Slides of the paper: Muhammad Ilyas Azeem, Sebastiano Panichella, Andrea Di Sorbo, Alexander Serebrenik, and Qing Wang: Action-based Recommendation in Pull-request Development . International Conference on Software and System Processes (ICSSP2020).

1. 1
Action-based Recommendation in Pull-request
Development
Institute of Software, Chinese Academy of SciencesInstitute of Software, Chinese Academy of Sciences
Muhammad Ilyas
Azeem
Sebastiano
Panichella
Alexander
Serebrenik Qing WangAndrea Di Sorbo

2. Popular GitHub Open-Source Projects
 Receives numerous pull requests daily
 E.g. Kubernetes receives more the 500 pull requests daily
2

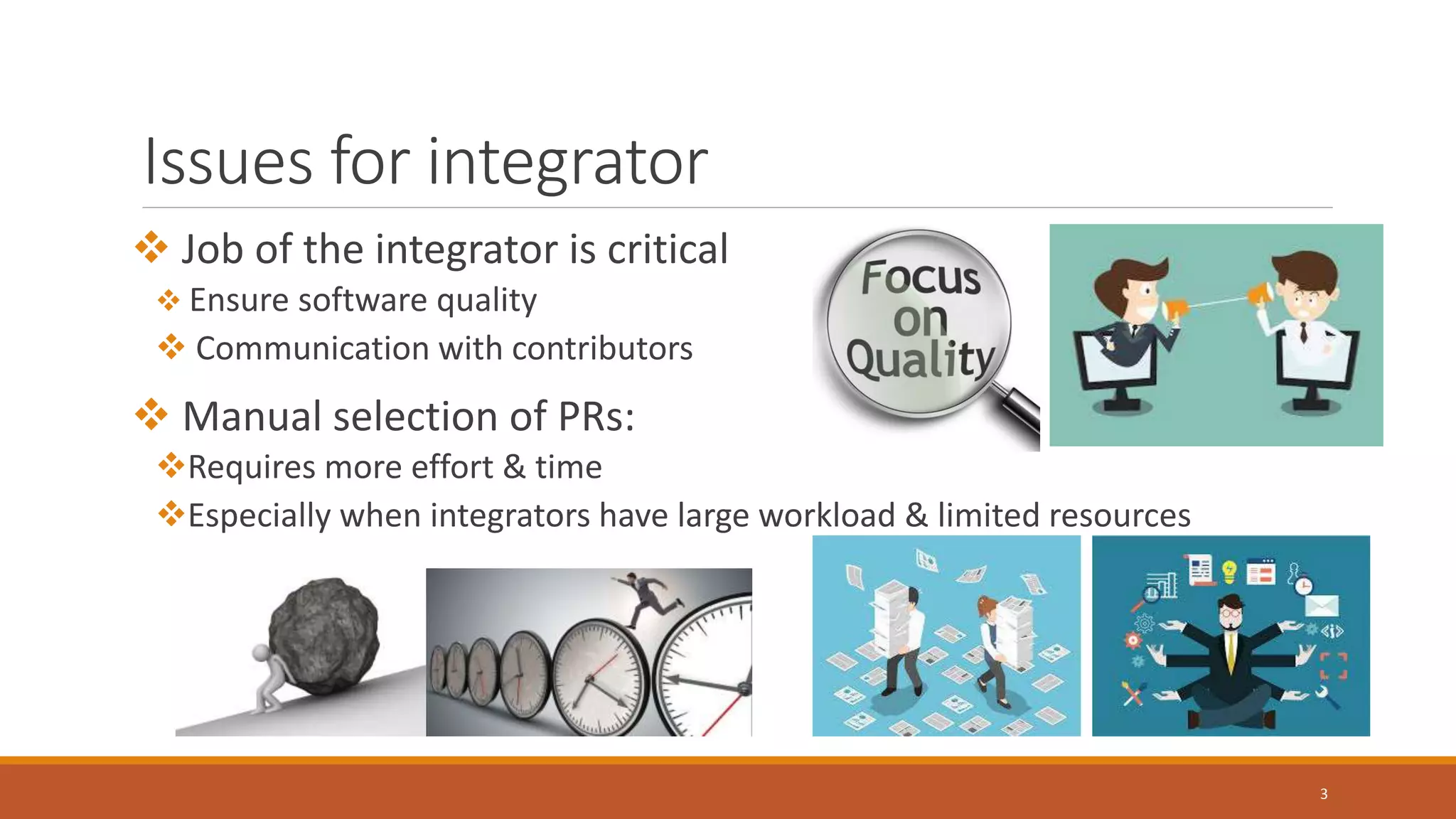

3. Issues for integrator
 Job of the integrator is critical
 Ensure software quality
 Communication with contributors
 Manual selection of PRs:
Requires more effort & time
Especially when integrators have large workload & limited resources
3

4. Proposed Solution
 CARTESIAN (aCceptance And Response classificaTion-based requESt
IdentifcAtioN)
 CARTESIAN recommends three actions on PRs:
 Accept, Response, and Reject
 To implement CARTESIAN we followed two steps:
 Feature Extraction Process
 Classification model
4

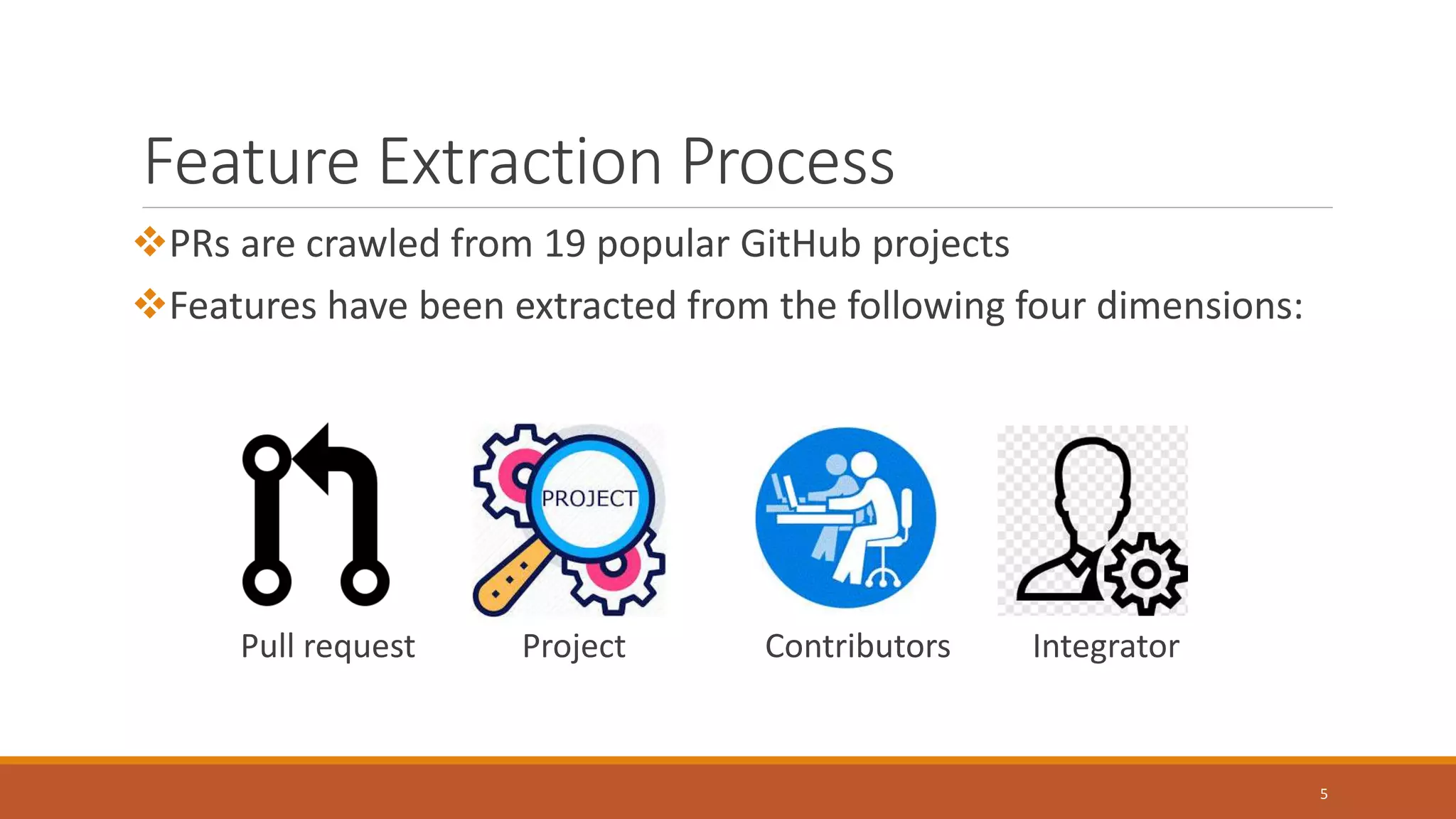

5. Feature Extraction Process
PRs are crawled from 19 popular GitHub projects
Features have been extracted from the following four dimensions:
Pull request Project Contributors Integrator
5

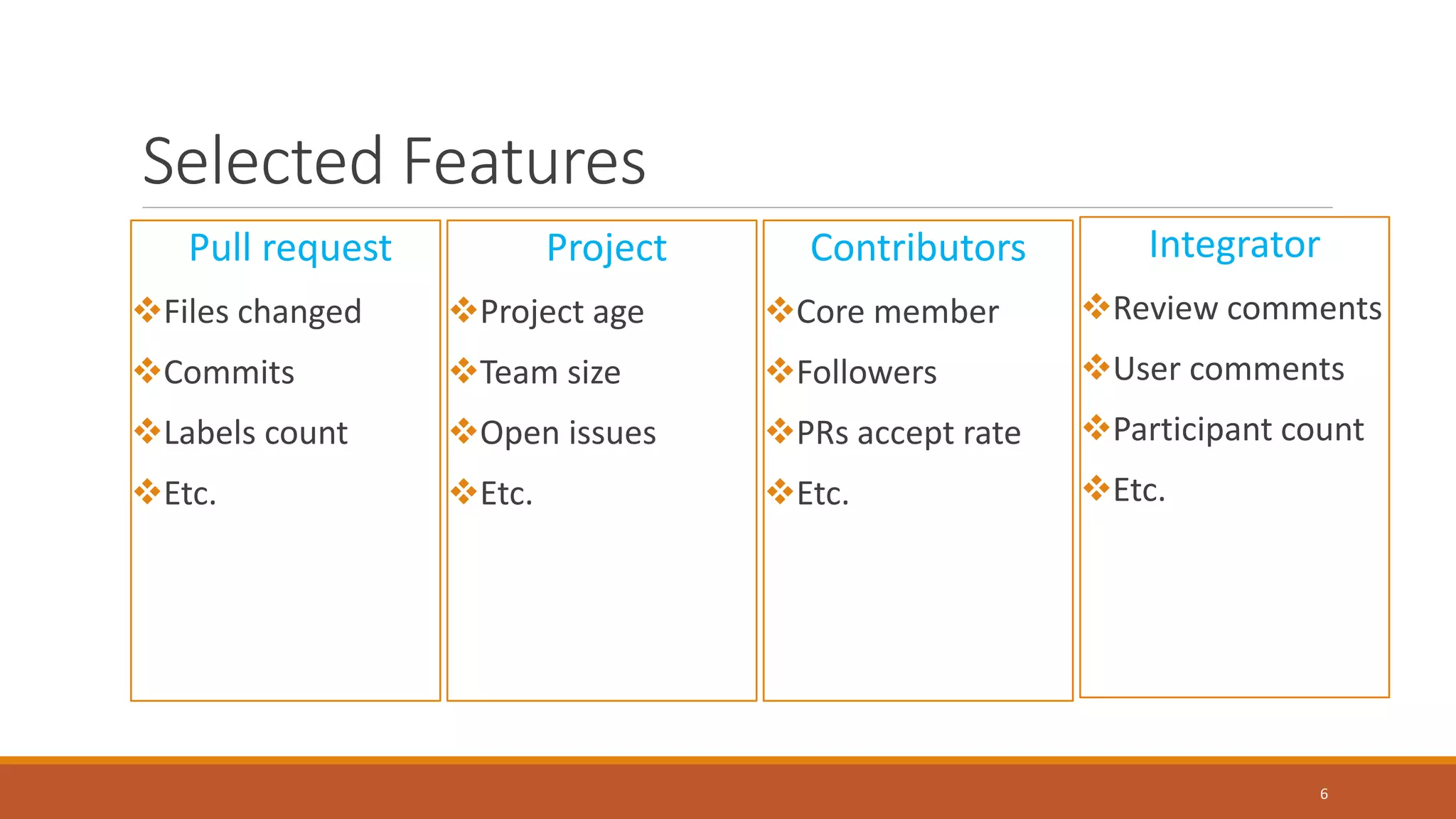

6. Selected Features
Pull request
Files changed
Commits
Labels count
Etc.
6
Project
Project age
Team size
Open issues
Etc.
Contributors
Core member
Followers
PRs accept rate
Etc.
Integrator
Review comments
User comments
Participant count
Etc.

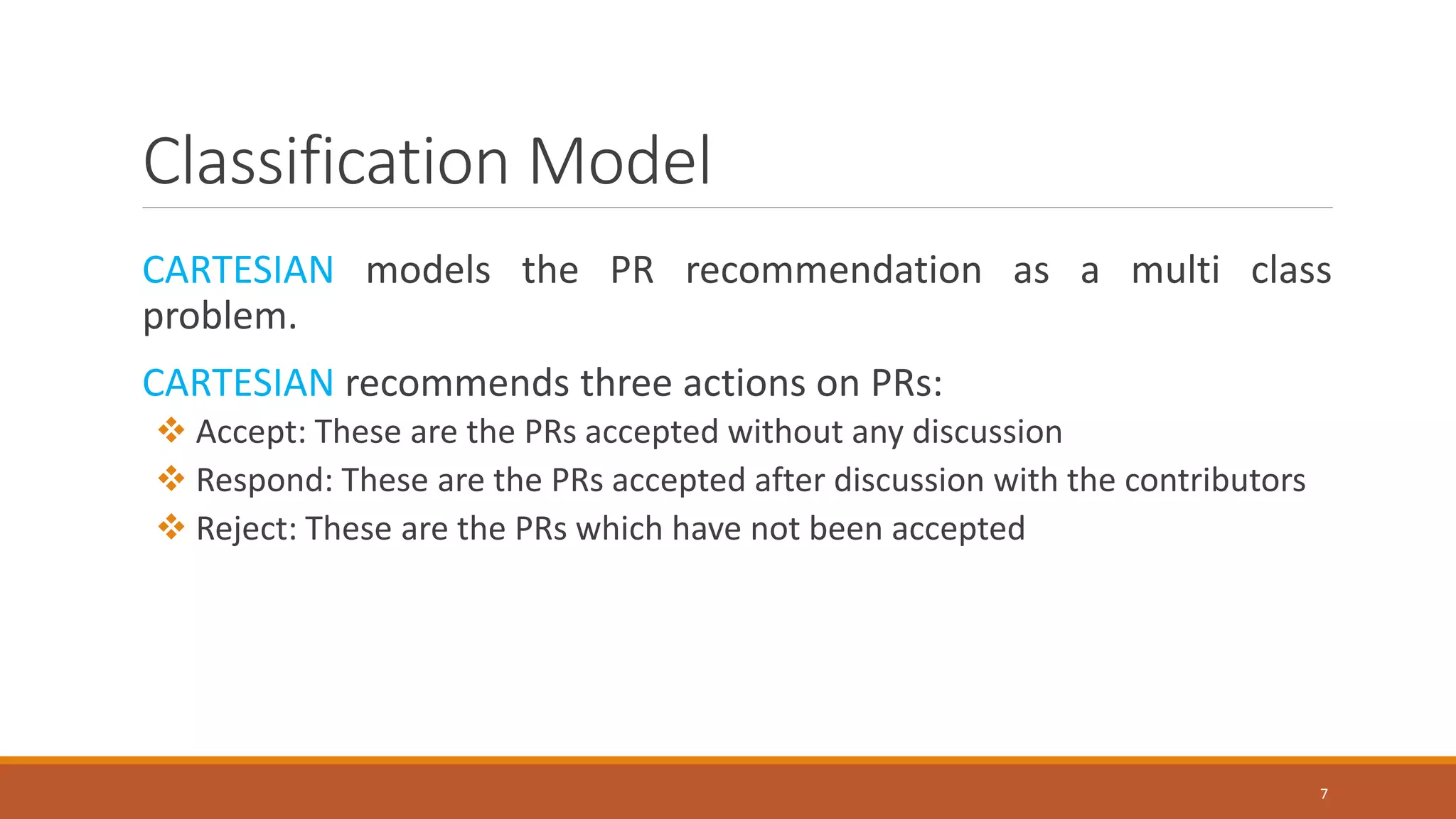

7. Classification Model
CARTESIAN models the PR recommendation as a multi class
problem.
CARTESIAN recommends three actions on PRs:
 Accept: These are the PRs accepted without any discussion
 Respond: These are the PRs accepted after discussion with the contributors
 Reject: These are the PRs which have not been accepted
7

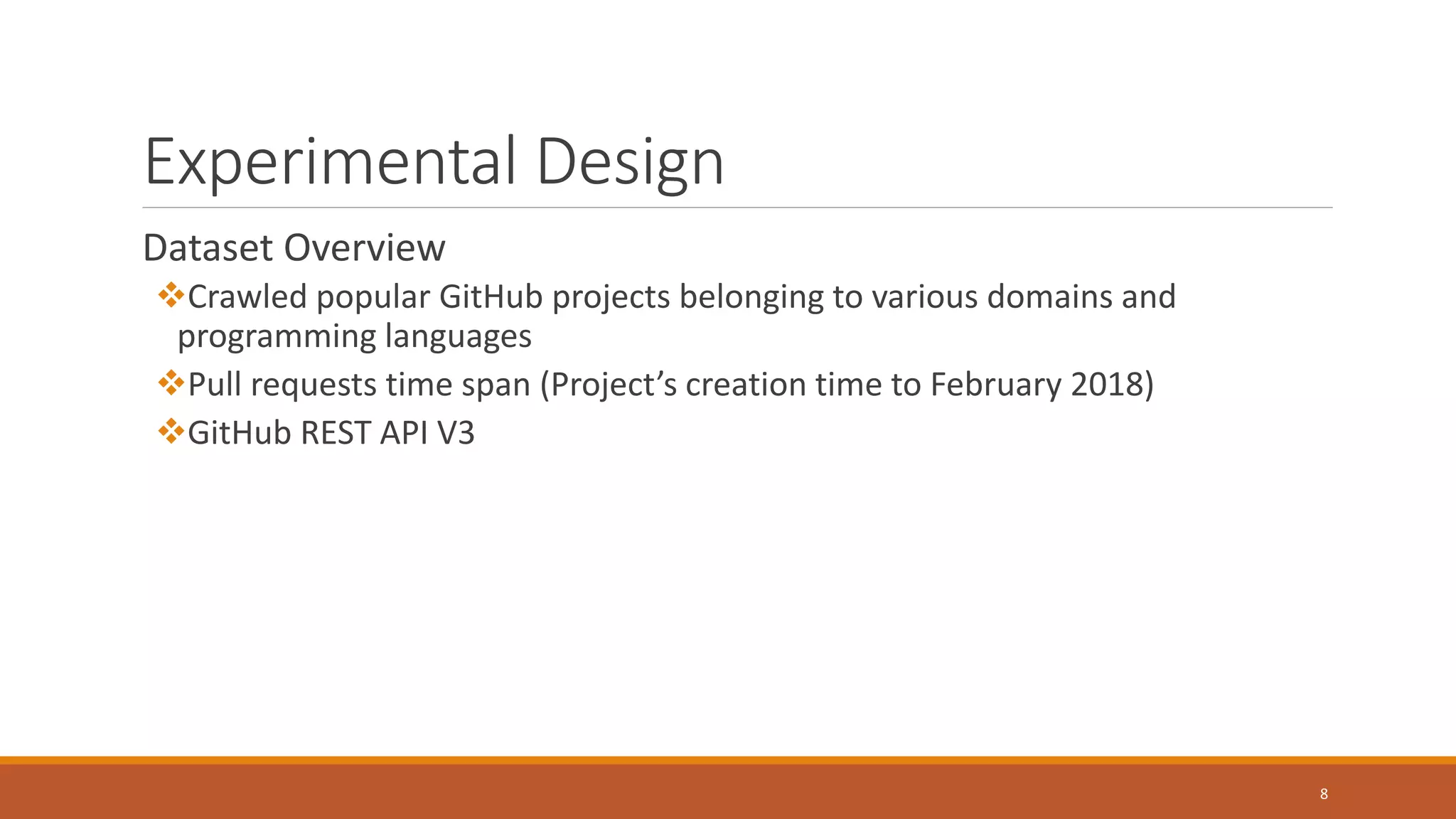

8. Experimental Design
Dataset Overview
Crawled popular GitHub projects belonging to various domains and
programming languages
Pull requests time span (Project’s creation time to February 2018)
GitHub REST API V3
8

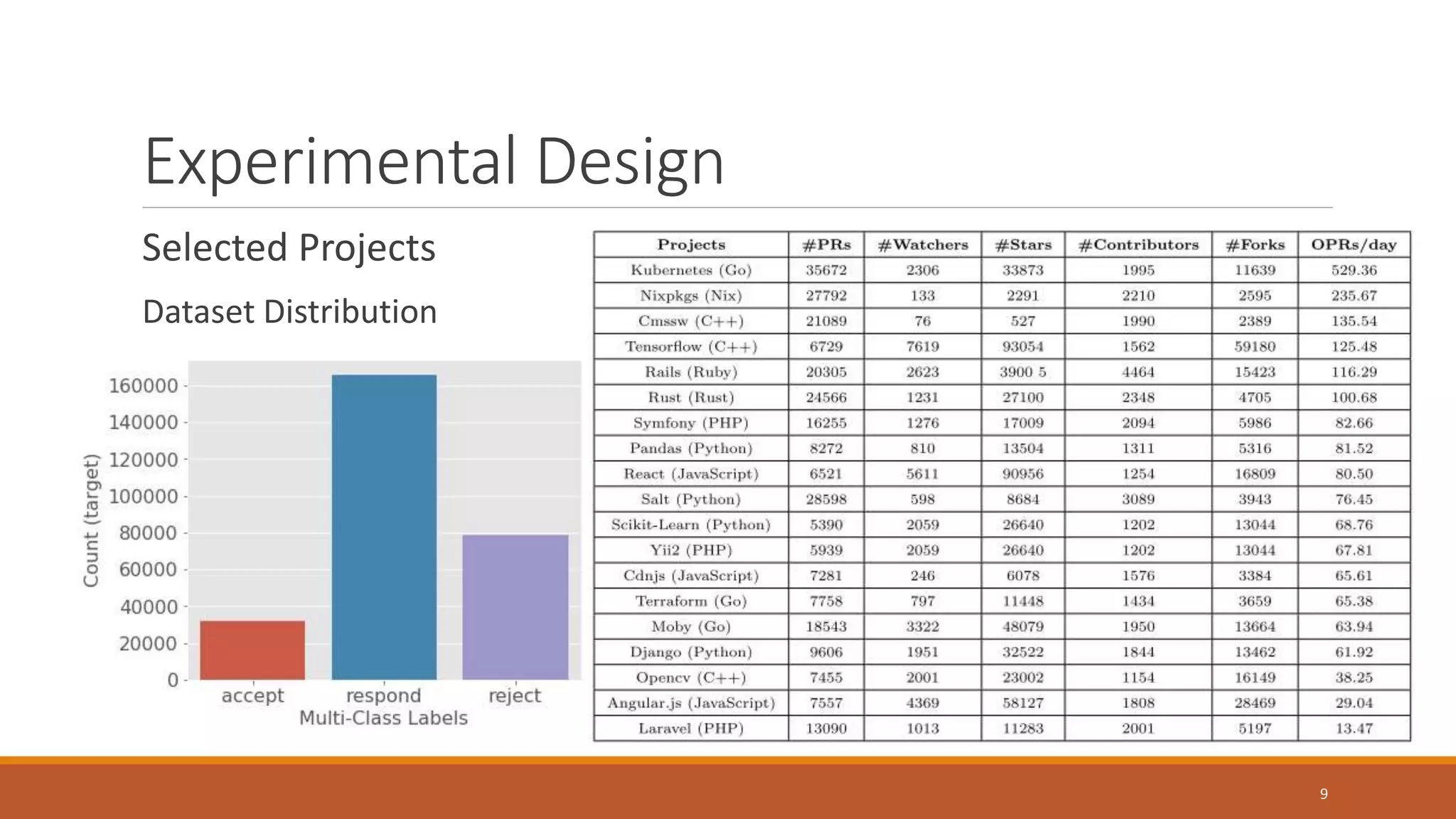

9. Experimental Design
Selected Projects
Dataset Distribution
9

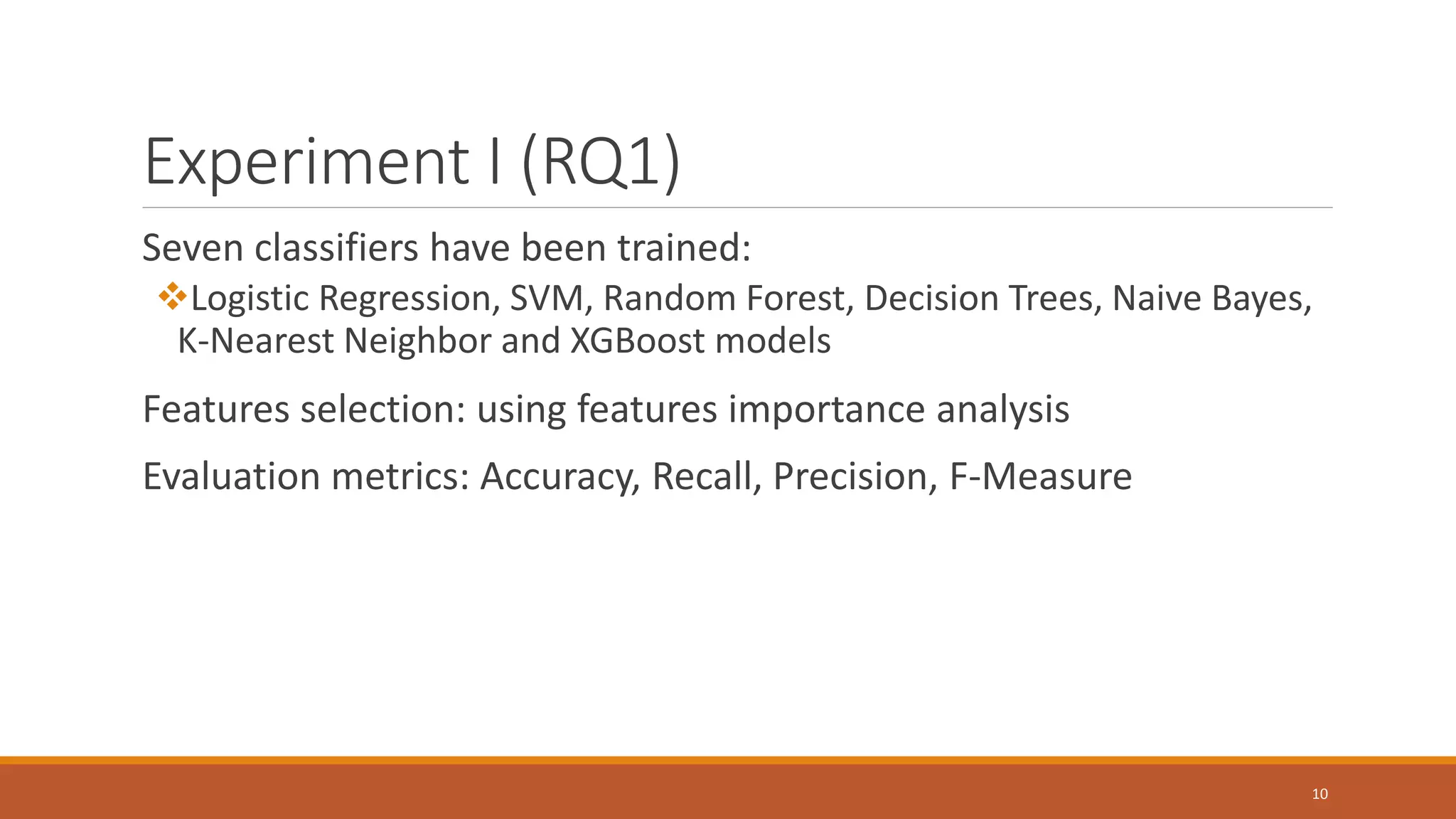

10. Experiment I (RQ1)
Seven classifiers have been trained:
Logistic Regression, SVM, Random Forest, Decision Trees, Naive Bayes,
K-Nearest Neighbor and XGBoost models
Features selection: using features importance analysis
Evaluation metrics: Accuracy, Recall, Precision, F-Measure
10

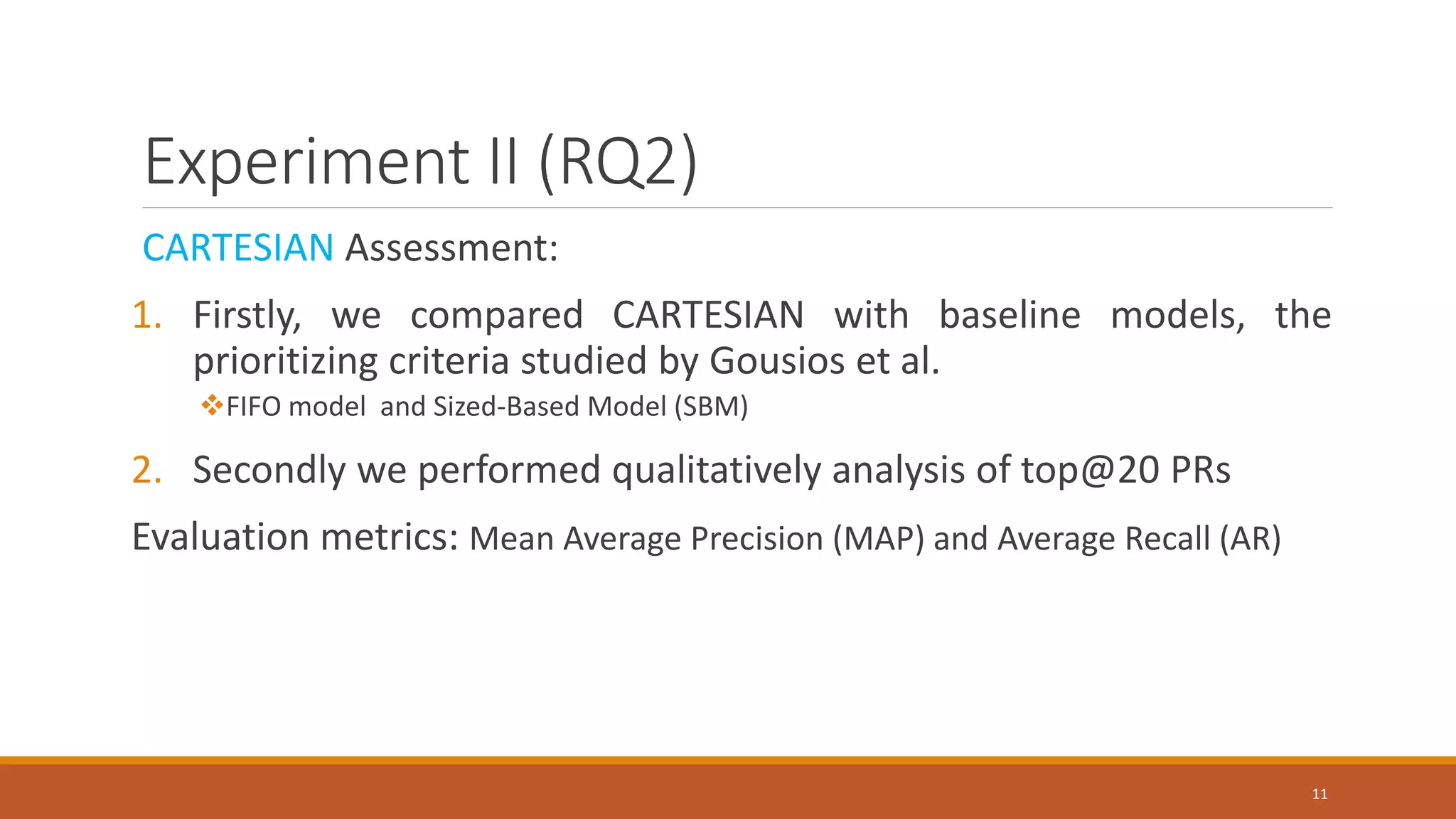

11. Experiment II (RQ2)
CARTESIAN Assessment:
1. Firstly, we compared CARTESIAN with baseline models, the
prioritizing criteria studied by Gousios et al.
FIFO model and Sized-Based Model (SBM)
2. Secondly we performed qualitatively analysis of top@20 PRs
Evaluation metrics: Mean Average Precision (MAP) and Average Recall (AR)
11

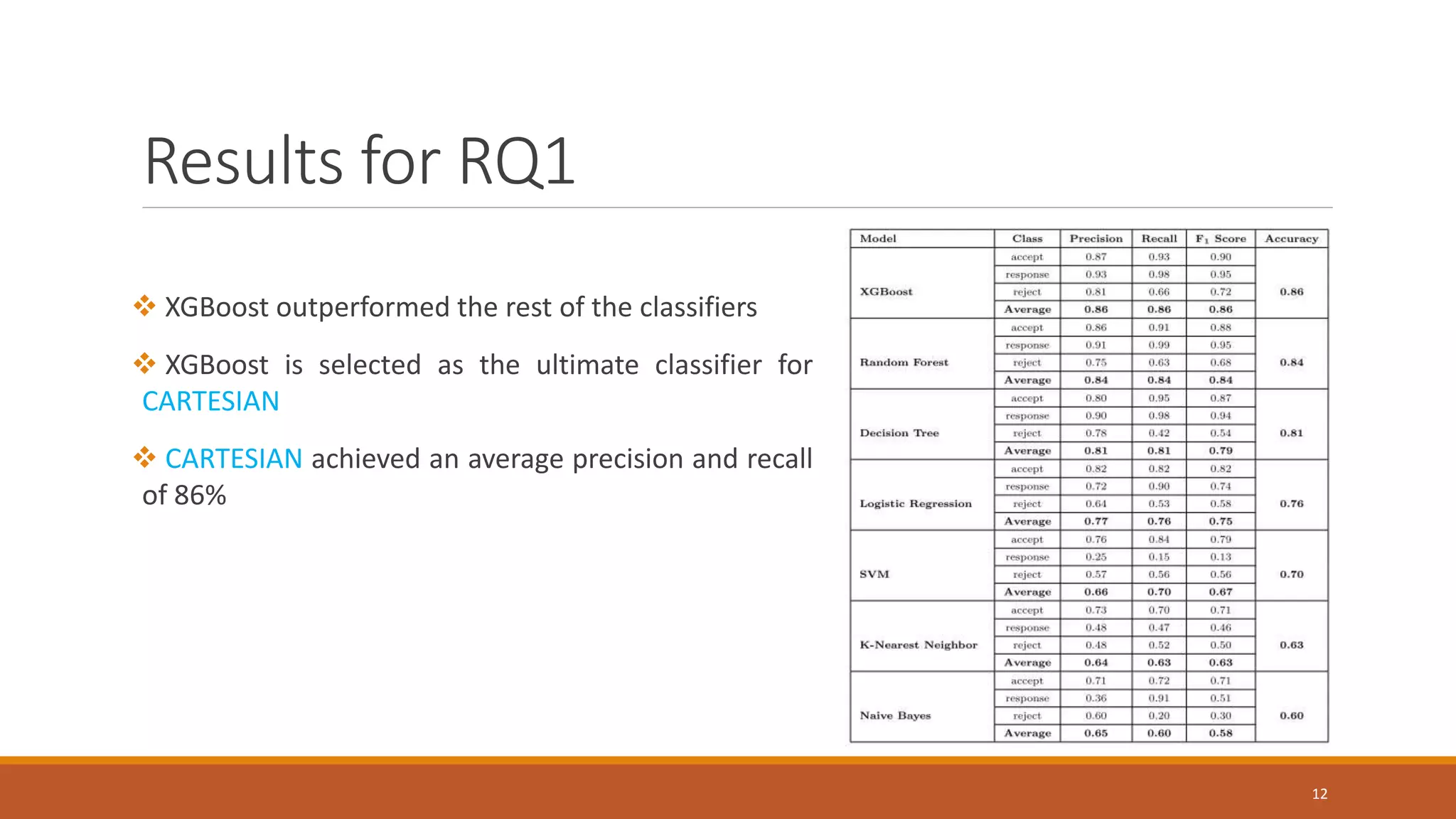

12. Results for RQ1
 XGBoost outperformed the rest of the classifiers
 XGBoost is selected as the ultimate classifier for
CARTESIAN
 CARTESIAN achieved an average precision and recall
of 86%
12

13. Features Importance Analysis
 Number of review & discussion
comments, the role of submitter, and
the number of participants in the
discussion are the most relevant
features
The classification accuracy is largely
driven by features in the Contributor
and Integrator dimensions.
13

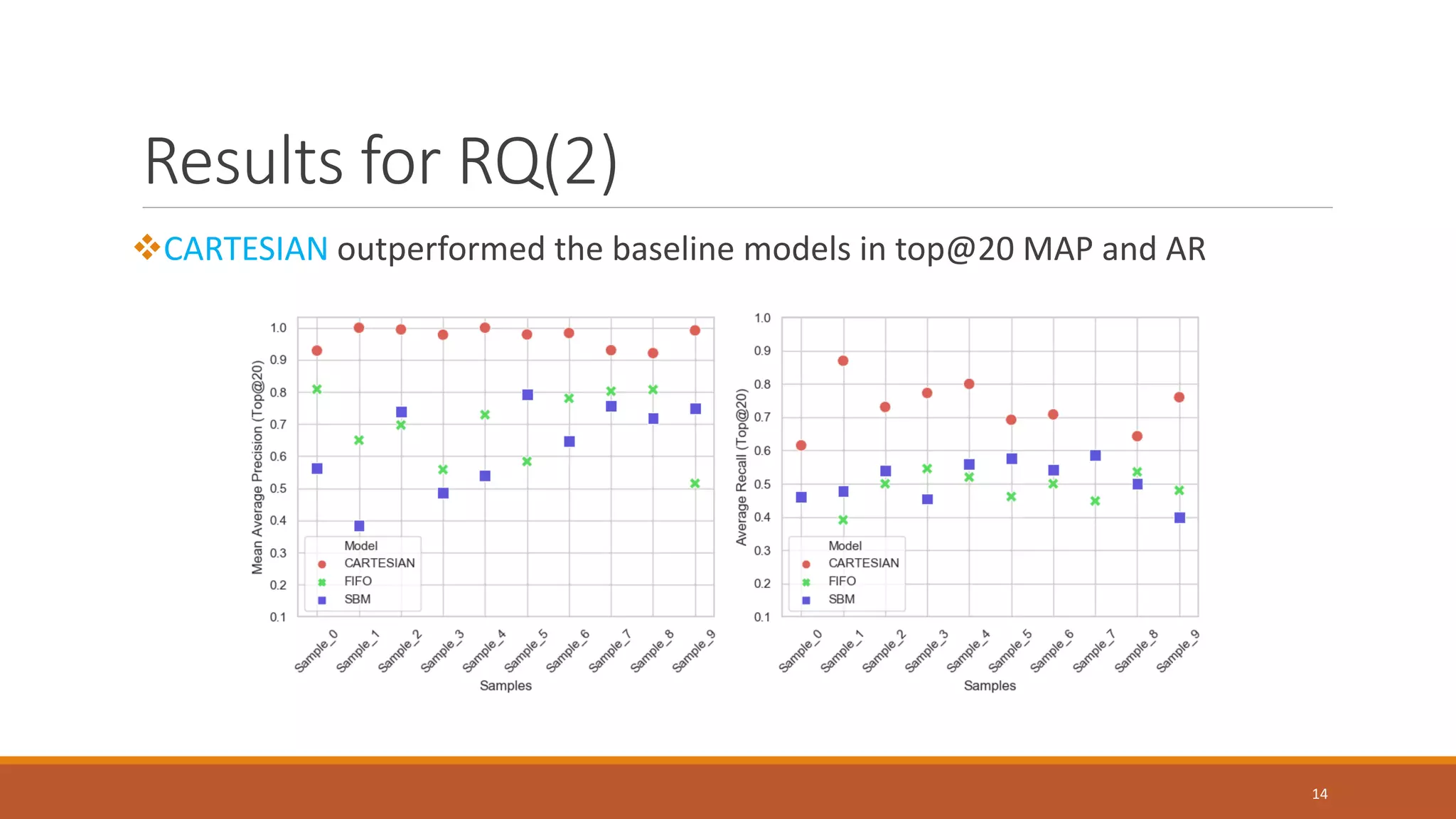

14. Results for RQ(2)
CARTESIAN outperformed the baseline models in top@20 MAP and AR
14

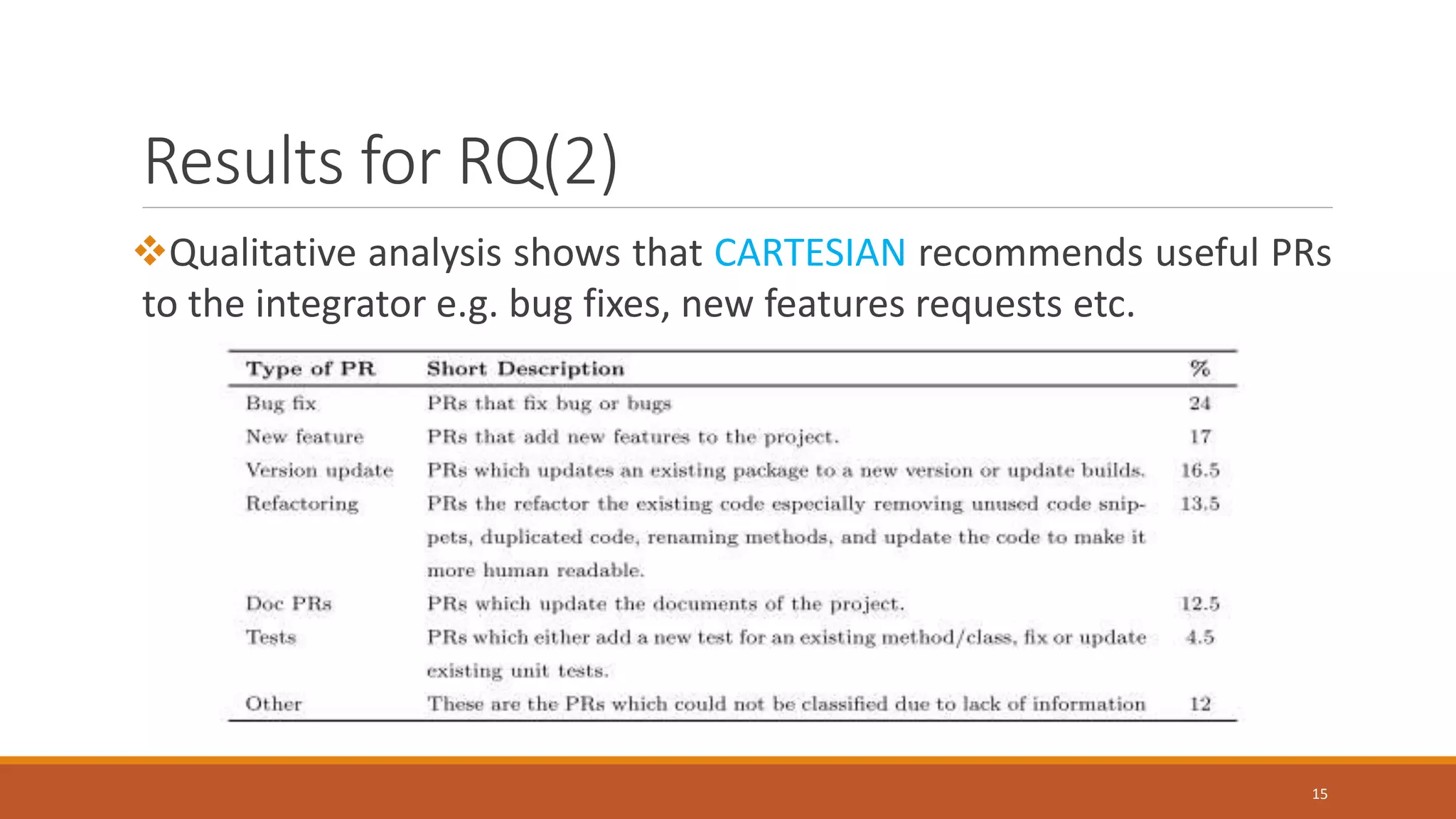

15. Results for RQ(2)
Qualitative analysis shows that CARTESIAN recommends useful PRs
to the integrator e.g. bug fixes, new features requests etc.
15

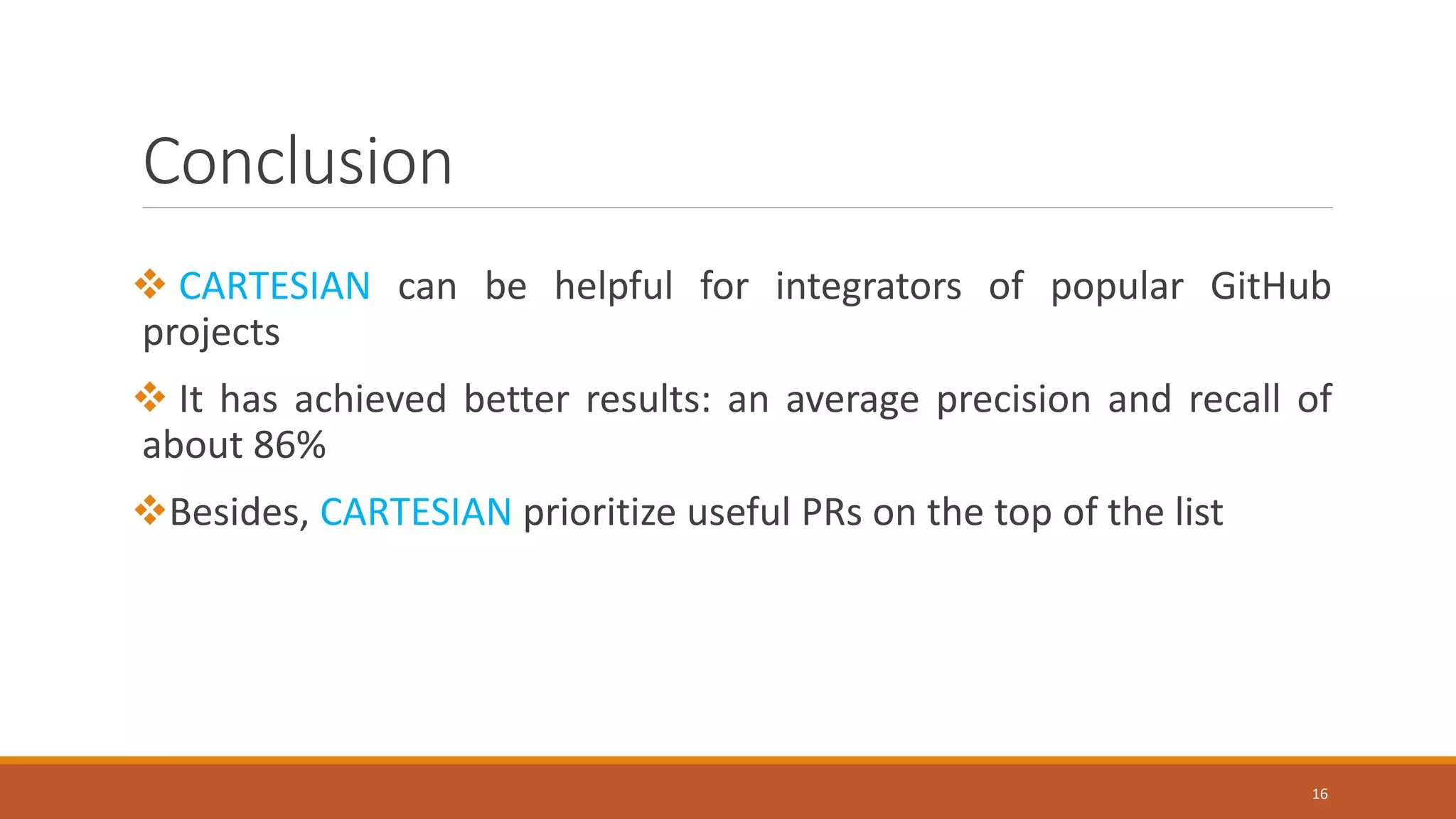

16. Conclusion
 CARTESIAN can be helpful for integrators of popular GitHub
projects
 It has achieved better results: an average precision and recall of
about 86%
Besides, CARTESIAN prioritize useful PRs on the top of the list
16

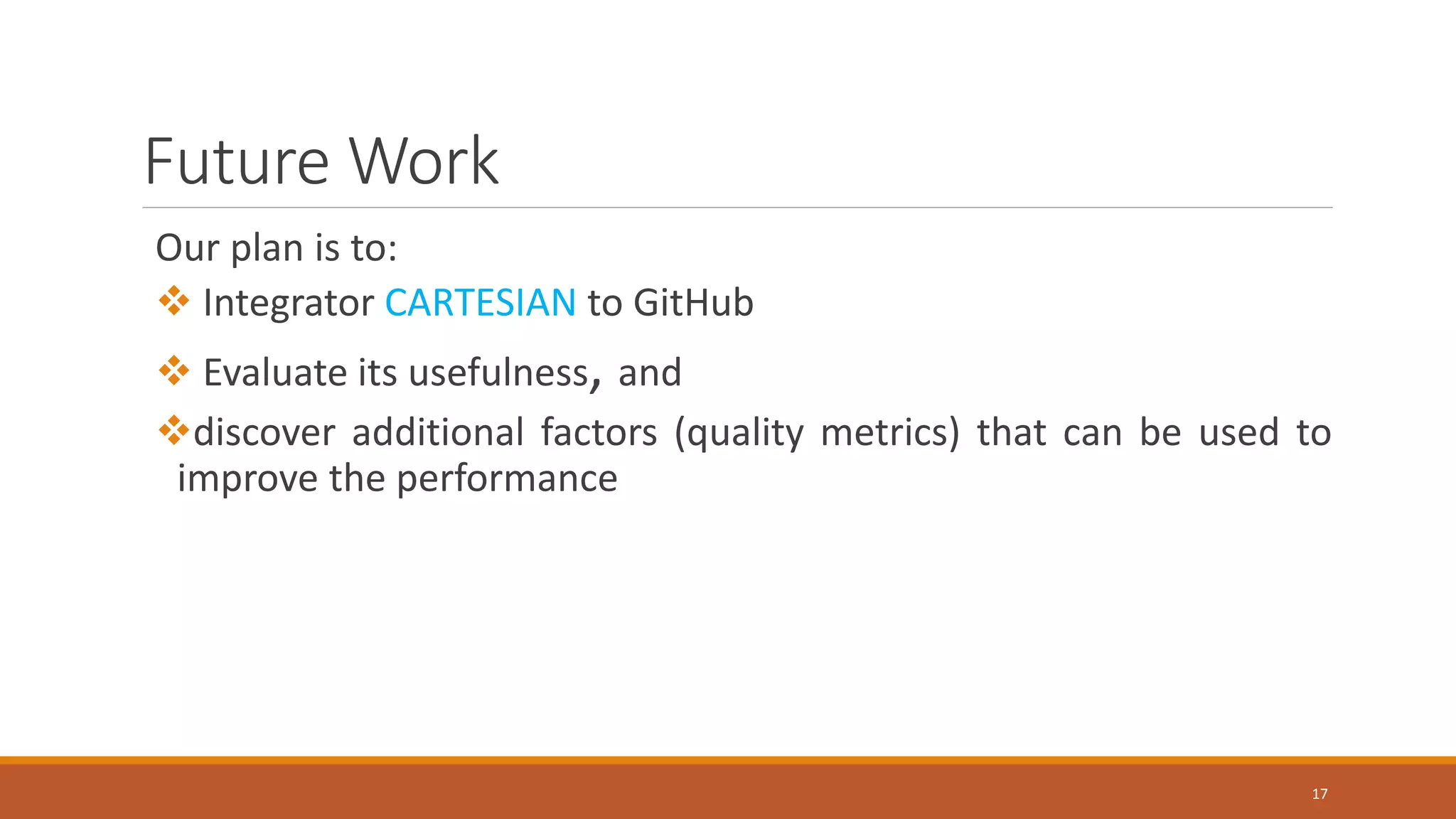

17. Future Work
Our plan is to:
 Integrator CARTESIAN to GitHub
 Evaluate its usefulness, and
discover additional factors (quality metrics) that can be used to
improve the performance
17

18. Thanks for your attention
18
