Acier Equipment product range

 Cut to Length Line for GI / CRCA / CC sheet,
 2 Hi Rolling Mill for Bimetal Sinter Line,
 Coil Tilter, Up-ender, Transfer Trolley,
 Terminal Equipment for sheet process and steel industries,
 Furnace charging / discharging equipments, Conveyor Dryer
 Convector plate for Bell Annealing Furnaces,
 Rolls – steel, rubber coated, chrome plated, Roller table,
 Machine building, Heavy Fabrication & Project supplies
 Special purpose attachments to earth moving machines,
 Precision spares and assemblies, development jobs,
 Sourcing & supply of engineering goods
Web site : www.acier-equipment.com , www.acierequipment.net
www.exportersindia.com/acierequipment ; www.indiamart.com/acierequipments
Facebook : www.facebook.com/Acier.Equipment Google+ : https://www.google.com/+AcierEquipment
Photographs: www.flickr.com/photos/dinesh_pandya/sets/72157623873832428/
Video : https://www.youtube.com/channel/UCCZIo30ldHc_wQZZvAfaL3w
E-mail : sales@acierequipment.com; acierequipment@outlook.in
ACIER EQUIPMENT

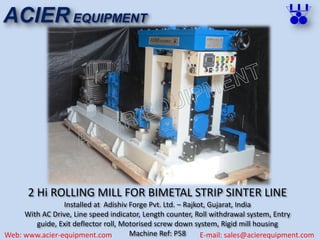

2 Hi ROLLING MILL FOR BIMETAL STRIP SINTER LINE
Installed at Adishiv Forge Pvt. Ltd. – Rajkot, Gujarat, India
With AC Drive, Line speed indicator, Length counter, Roll withdrawal system, Entry
guide, Exit deflector roll, Motorised screw down system, Rigid mill housing
Machine Ref: P58
ACIER EQUIPMENT
Web: www.acier-equipment.com E-mail: sales@acierequipment.com

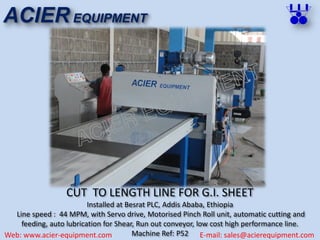

CUT TO LENGTH LINE FOR G.I. SHEET
Installed at Besrat PLC, Addis Ababa, Ethiopia
Line speed : 44 MPM, with Servo drive, Motorised Pinch Roll unit, automatic cutting and
feeding, auto lubrication for Shear, Run out conveyor, low cost high performance line.
Machine Ref: P52
ACIER EQUIPMENT

ACIER EQUIPMENT

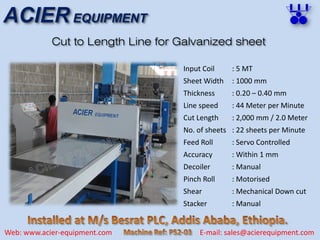

Cut to Length Line for Galvanized sheet
Input Coil
Sheet Width
Thickness
Line speed
Cut Length
No. of sheets
Feed Roll
Accuracy
Decoiler
Pinch Roll
Shear
Stacker
: 5 MT
: 1000 mm
: 0.20 – 0.40 mm
: 44 Meter per Minute
: 2,000 mm / 2.0 Meter
: 22 sheets per Minute
: Servo Controlled
: Within 1 mm
: Manual
: Motorised
: Mechanical Down cut
: Manual

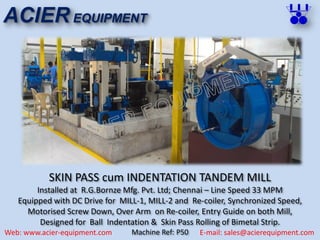

SKIN PASS cum INDENTATION TANDEM MILL
Installed at R.G.Bornze Mfg. Pvt. Ltd; Chennai – Line Speed 33 MPM
Equipped with DC Drive for MILL-1, MILL-2 and Re-coiler, Synchronized Speed,
Motorised Screw Down, Over Arm on Re-coiler, Entry Guide on both Mill,
Designed for Ball Indentation & Skin Pass Rolling of Bimetal Strip.
Machine Ref: P50
ACIER EQUIPMENT

Stereo Plate for Logo printing
Acier Equipment offers high quality printing plates for logo printing on
steel / galvanised steel sheet. These plates are designed based on your
requirement and is computerised process for unifarm quality.
Ref: Stereo Plates for Logo printing
ACIER EQUIPMENT

ACIER EQUIPMENT

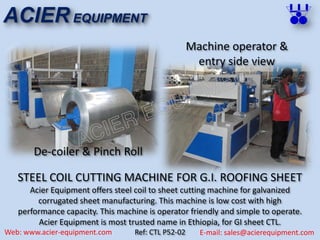

STEEL COIL CUTTING MACHINE FOR G.I. ROOFING SHEET
Acier Equipment offers steel coil to sheet cutting machine for galvanized
corrugated sheet manufacturing. This machine is low cost with high
performance capacity. This machine is operator friendly and simple to operate.
Acier Equipment is most trusted name in Ethiopia, for GI sheet CTL.
Ref: CTL P52-02
Machine operator &
entry side view
De-coiler & Pinch Roll

ACIER EQUIPMENT

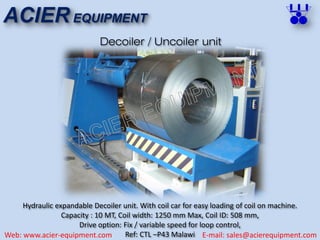

Decoiler / Uncoiler unit
Hydraulic expandable Decoiler unit. With coil car for easy loading of coil on machine.
Capacity : 10 MT, Coil width: 1250 mm Max, Coil ID: 508 mm,
Drive option: Fix / variable speed for loop control,
Ref: CTL –P43 Malawi

ACIER EQUIPMENT

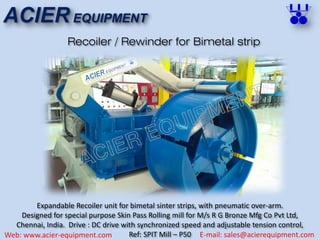

Recoiler / Rewinder for Bimetal strip
Expandable Recoiler unit for bimetal sinter strips, with pneumatic over-arm.
Designed for special purpose Skin Pass Rolling mill for M/s R G Bronze Mfg Co Pvt Ltd,
Chennai, India. Drive : DC drive with synchronized speed and adjustable tension control,
Ref: SPIT Mill – P50

ACIER EQUIPMENT

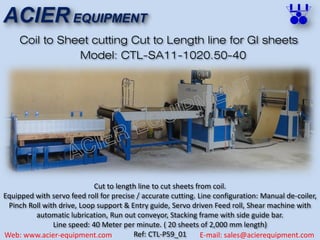

Coil to Sheet cutting Cut to Length line for GI sheets
Cut to length line to cut sheets from coil.
Equipped with servo feed roll for precise / accurate cutting. Line configuration: Manual de-coiler,
Pinch Roll with drive, Loop support & Entry guide, Servo driven Feed roll, Shear machine with
automatic lubrication, Run out conveyor, Stacking frame with side guide bar.
Line speed: 40 Meter per minute. ( 20 sheets of 2,000 mm length)
Ref: CTL-P59_01
Model: CTL-SA11-1020.50-40

ACIER EQUIPMENT

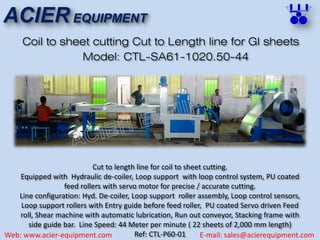

Coil to sheet cutting Cut to Length line for GI sheets
Cut to length line for coil to sheet cutting.
Equipped with Hydraulic de-coiler, Loop support with loop control system, PU coated
feed rollers with servo motor for precise / accurate cutting.
Line configuration: Hyd. De-coiler, Loop support roller assembly, Loop control sensors,
Loop support rollers with Entry guide before feed roller, PU coated Servo driven Feed
roll, Shear machine with automatic lubrication, Run out conveyor, Stacking frame with
side guide bar. Line Speed: 44 Meter per minute ( 22 sheets of 2,000 mm length)
Ref: CTL-P60-01
Model: CTL-SA61-1020.50-44

ACIER EQUIPMENT

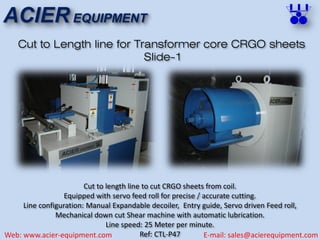

Cut to Length line for Transformer core CRGO sheets
Slide-1
Cut to length line to cut CRGO sheets from coil.
Equipped with servo feed roll for precise / accurate cutting.
Line configuration: Manual Expandable decoiler, Entry guide, Servo driven Feed roll,
Mechanical down cut Shear machine with automatic lubrication.
Line speed: 25 Meter per minute.
Ref: CTL-P47

ACIER EQUIPMENT

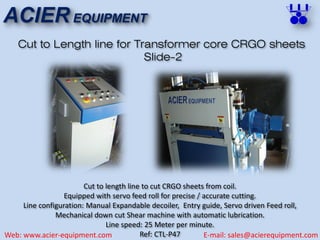

Cut to Length line for Transformer core CRGO sheets
Slide-2
Cut to length line to cut CRGO sheets from coil.
Equipped with servo feed roll for precise / accurate cutting.
Line configuration: Manual Expandable decoiler, Entry guide, Servo driven Feed roll,
Mechanical down cut Shear machine with automatic lubrication.
Line speed: 25 Meter per minute.
Ref: CTL-P47

ACIER EQUIPMENT

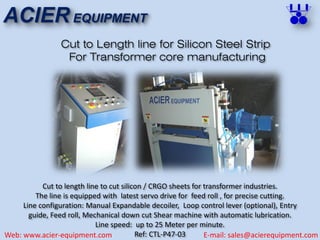

Cut to Length line for Silicon Steel Strip
For Transformer core manufacturing
Cut to length line to cut silicon / CRGO sheets for transformer industries.
The line is equipped with latest servo drive for feed roll , for precise cutting.
Line configuration: Manual Expandable decoiler, Loop control lever (optional), Entry
guide, Feed roll, Mechanical down cut Shear machine with automatic lubrication.
Line speed: up to 25 Meter per minute.
Ref: CTL-P47-03

ACIER EQUIPMENT

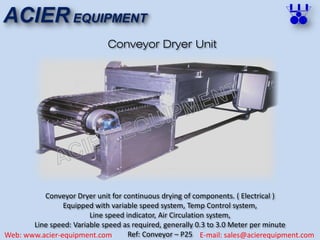

Conveyor Dryer Unit
Conveyor Dryer unit for continuous drying of components. ( Electrical )
Equipped with variable speed system, Temp Control system,
Line speed indicator, Air Circulation system,
Line speed: Variable speed as required, generally 0.3 to 3.0 Meter per minute
Ref: Conveyor – P25

ACIER EQUIPMENT
Rolling Mill for Bimetal Strip Sintering Line
Precision rolling mill for bimetal strip sintering line is equipped with
Eddy current drive , Line speed indicator, Length counter, Roll withdrawal system,
Entry guide, Exit deflector roll, Motorised screw down system, Rigid mill housing
Machine Ref: P27

ACIER EQUIPMENT

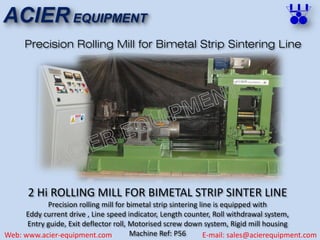

Precision Rolling Mill for Bimetal Strip Sintering Line
Precision rolling mill for bimetal strip sintering line is equipped with
Eddy current drive , Line speed indicator, Length counter, Roll withdrawal system,
Entry guide, Exit deflector roll, Motorised screw down system, Rigid mill housing
Machine Ref: P56

ACIER EQUIPMENT

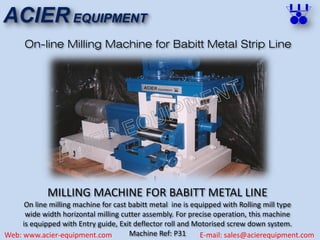

On-line Milling Machine for Babitt Metal Strip Line
MILLING MACHINE FOR BABITT METAL LINE
On line milling machine for cast babitt metal ine is equipped with Rolling mill type
wide width horizontal milling cutter assembly. For precise operation, this machine
is equipped with Entry guide, Exit deflector roll and Motorised screw down system.
Machine Ref: P31
