- 1. ADAPTIVE BITRATE ALGORITHMS:HOW THEY WORK AND HOW TO OPTIMIZE YOUR STACK Streaming Media East – Track D Tuesday, May 10, 2016 1:45 to 2:30 pm CLIENT-ACCELERATED STREAMING
- 2. Streamroot: Who arewe? PARTNERS INFINITE POSSIBILITIES, LIMITLESS DELIVERY Streamroot combines the best of a controlled, centralized network with the resilience and scalability of a widely distributed delivery architecture.
- 3. Presentation Outline I. Introduction:What are we trying to accomplish? Why does this matter? II. The Basics of how ABR algorithms work: constraints & parameters, process Example: hls.js III. Possible improvements to basic ABR algorithms: smoothing, quantizing, scheduling Example: dash.js IV. Going further Another Approach: buffer levels The key to improving: testing and iterating
- 4. I. Why ABR? Multiplicityof network conditions and devices need to dynamically select resolution HTTP / TCP stack removal from the transport protocol congestion logic client-level estimation & decisions Source: FESTIVE diagram of HTTP streaming

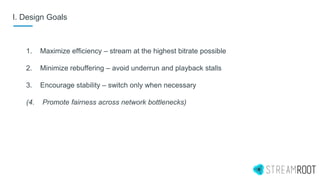

- 5. I. Design Goals 1.Maximize efficiency – stream at the highest bitrate possible 2. Minimize rebuffering – avoid underrun and playback stalls 3. Encourage stability – switch only when necessary (4. Promote fairness across network bottlenecks)
- 6. I. Why thisMatters Views 24 min longer when buffer ratio is < 0.2% for live content View time drops 40% when > 0.4% buffer ratio mark Buffer ratio vs. play time Source: NPAW aggregated data for a set of European live broadcasters
- 7. II. The Basics:Constraints and Parameters CONSTRAINTS TRADEOFF PARAMETERS Screen size / Player size Buffer size CPU & Dropped frame threshold Bandwidth & possible bitrate Startup time / Rebuffering recovery (Bonus: P2P Bandwidth)

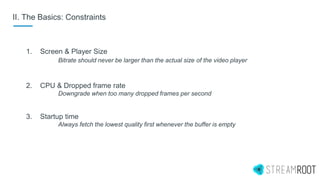

- 8. II. The Basics:Constraints 1. Screen & Player Size Bitrate should never be larger than the actual size of the video player 2. CPU & Dropped frame rate Downgrade when too many dropped frames per second 3. Startup time Always fetch the lowest quality first whenever the buffer is empty
- 9. II. The Basics:Tradeoff parameters 1. Maximize bitrate available bandwidth estimation Estimate the available bandwidth based on prior segment(s) Available bandwidth = size of chunk / time taken to download 2. Minimize rebuffering ratio buffer size Buffer ratio = buffering time / (buffering time + playback time) Abandon strategy Source: BOLA
- 10. Example: HLS.js HTML5 (MSE-based)media engine open-sourced by Dailymotion https://github.com/dailymotion/hls.js Very modular, so you can change the rules without even forking the media engine!
- 11. Example: HLS.js playersize level capping https://github.com/dailymotion/hls.js/blob/master/src/controller/cap-level-controller.js#L68 Checks the max CapLevel corresponding to current player size Frequency: every 1000 ms
- 12. Example: HLS.js droppedframe rule https://github.com/dailymotion/hls.js/blob/master/src/controller/fps-controller.js#L33 Calculates the dropped frames per second ratio. If > 0.2, bans the level forever goes into restricted capping levels fpsDroppedMonitoringThreshold fpsDroppedMonitoringPeriod

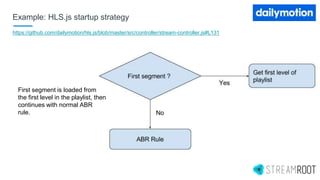

- 13. Example: HLS.js startupstrategy https://github.com/dailymotion/hls.js/blob/master/src/controller/stream-controller.js#L131 First segment is loaded from the first level in the playlist, then continues with normal ABR rule.
- 14. Example: HLS.js bandwidth-basedABR controller https://github.com/dailymotion/hls.js/blob/master/src/controller/abr-controller.js Simple algorithm, inspired by Android’s AVController’s ABR algo

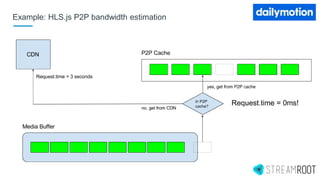

- 15. Example: HLS.js P2Pbandwidth estimation
- 16. Example: HLS.js bandwidthfragmentLoad abort rule https://github.com/dailymotion/hls.js/blob/master/src/controller/abr-controller.js#L51

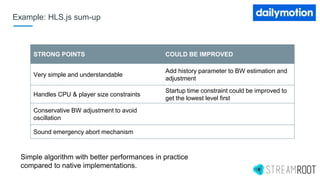

- 17. STRONG POINTS COULDBE IMPROVED Very simple and understandable Add history parameter to BW estimation and adjustment Handles CPU & player size constraints Startup time constraint could be improved to get the lowest level first Conservative BW adjustment to avoid oscillation Sound emergency abort mechanism Example: HLS.js sum-up Simple algorithm with better performances in practice compared to native implementations.

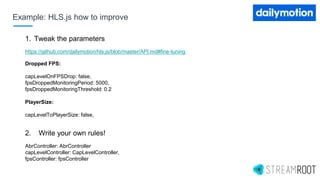

- 18. 1. Tweak theparameters https://github.com/dailymotion/hls.js/blob/master/API.md#fine-tuning Dropped FPS: capLevelOnFPSDrop: false, fpsDroppedMonitoringPeriod: 5000, fpsDroppedMonitoringThreshold: 0.2 PlayerSize: capLevelToPlayerSize: false, 2. Write your own rules! AbrController: AbrController capLevelController: CapLevelController, fpsController: fpsController Example: HLS.js how to improve

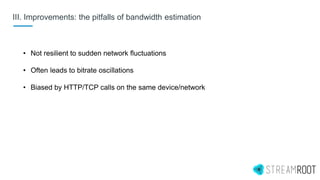

- 19. III. Improvements: thepitfalls of bandwidth estimation • Not resilient to sudden network fluctuations • Often leads to bitrate oscillations • Biased by HTTP/TCP calls on the same device/network

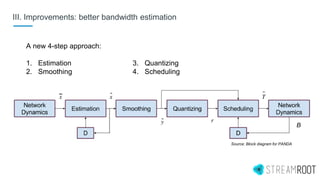

- 20. III. Improvements: betterbandwidth estimation A new 4-step approach: 1. Estimation 2. Smoothing 3. Quantizing 4. Scheduling Source: Block diagram for PANDA

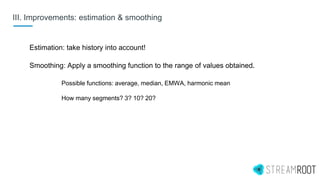

- 21. III. Improvements: estimation& smoothing Estimation: take history into account! Smoothing: Apply a smoothing function to the range of values obtained. Possible functions: average, median, EMWA, harmonic mean How many segments? 3? 10? 20?
- 22. III. Improvements: quantizing Quantizing:quantize the smoothed bandwidth to a discrete bitrate Additive increase multiplicative decrease conservative when switching up, more aggressive when down. Source: FESTIVE

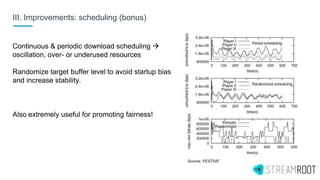

- 23. III. Improvements: scheduling(bonus) Continuous & periodic download scheduling oscillation, over- or underused resources Randomize target buffer level to avoid startup bias and increase stability. Also extremely useful for promoting fairness! Source: FESTIVE
- 24. Example 2: DASH.JS Dash.jsis the reference DASH player developed by DASH-IF. https://github.com/Dash-Industry-Forum/dash.js/wiki 4 different rules: 2 Main: ThroughputRule AbandonRequestsRule 2 secondary: BufferOccupancyRule InsufficientBufferRule

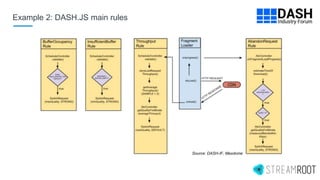

- 25. Example 2: DASH.JSmain rules Source: DASH-IF, Maxdome
- 26. Example 2: DASH.JS,sum-up STRONG POINTS COULD BE IMPROVED Smoothes bandwidth No quantization of bitrates Segment abort mechanism to avoid buffering during network drops Doesn’t handle CPU & Player size constraints Rich buffer threshold to avoid BW oscillations
- 27. Example 2: DASH.JShow to improve 1. Tweak the Parameters ThroughputRule: AVERAGE_THROUGHPUT_SAMPLE_AMOUNT_LIVE = 2; AVERAGE_THROUGHPUT_SAMPLE_AMOUNT_VOD = 3; AbandonRequestRule: GRACE_TIME_THRESHOLD = 500; ABANDON_MULTIPLIER = 1.5; 2. Write your own rules https://github.com/Dash-Industry-Forum/dash.js/wiki/Migration-2.0#extending-dashjs https://github.com/Dash-Industry-Forum/dash.js/blob/development/src/streaming/rules/abr/ABRRulesCollection.js BufferOccupancyRule: RICH_BUFFER_THRESHOLD = 20

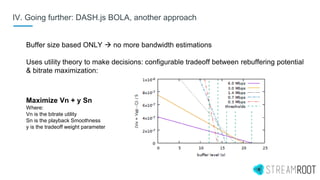

- 28. Buffer size basedONLY no more bandwidth estimations Uses utility theory to make decisions: configurable tradeoff between rebuffering potential & bitrate maximization: Maximize Vn + y Sn Where: Vn is the bitrate utility Sn is the playback Smoothness y is the tradeoff weight parameter IV. Going further: DASH.js BOLA, another approach

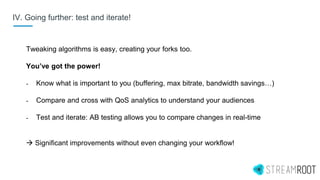

- 29. IV. Going further:test and iterate! Tweaking algorithms is easy, creating your forks too. You’ve got the power! - Know what is important to you (buffering, max bitrate, bandwidth savings…) - Compare and cross with QoS analytics to understand your audiences - Test and iterate: AB testing allows you to compare changes in real-time Significant improvements without even changing your workflow!
- 30.
- 31. Further Reading /Contact Us Probe and Adapt: Rate Adaptation for HTTP Video Streaming At Scale. Zhi Li, Xiaoqing Zhu, Josh Gahm, Rong Pan, Hao Hu, Ali C. Begen, Dave Oran, Cisco Systems, 7 Jul 2013. Improving Fairness, Efficiency, and Stability in HTTP-based Adaptive Video Streaming with FESTIVE, Junchen Jiang, Carnegie Mellon University, Vyas Sekar, Stony Brook University, Hui Zhang, Carnegie Mellon, University/Conviva Inc. 2012. ELASTIC: a Client-side Controller for Dynamic Adaptive Streaming over HTTP (DASH). Luca De Cicco, Member, IEEE, Vito Caldaralo, Vittorio Palmisano, and Saverio Mascolo, Senior Member, IEEE. BOLA: Near-Optimal Bitrate Adaptation for Online Videos. Kevin Spiteri, Rahul Urgaonkar , Ramesh K. Sitaraman, University of Massachusetts Amherst, Amazon Inc., Akamai Technologies Inc. Contact us at: Nikolay Rodionov, Co-Founder and CPO, nikolay@streamroot.io Erica Beavers, Head of Partnerships, erica@streamroot.io
