The document discusses two types of search helps in ABAP: elementary and collective. Elementary search helps define a basic search path and where to retrieve data, while collective search helps combine multiple elementary search helps to provide alternative search options to the user. Search helps can be statically or dynamically attached to selection screen fields or dynpro elements.

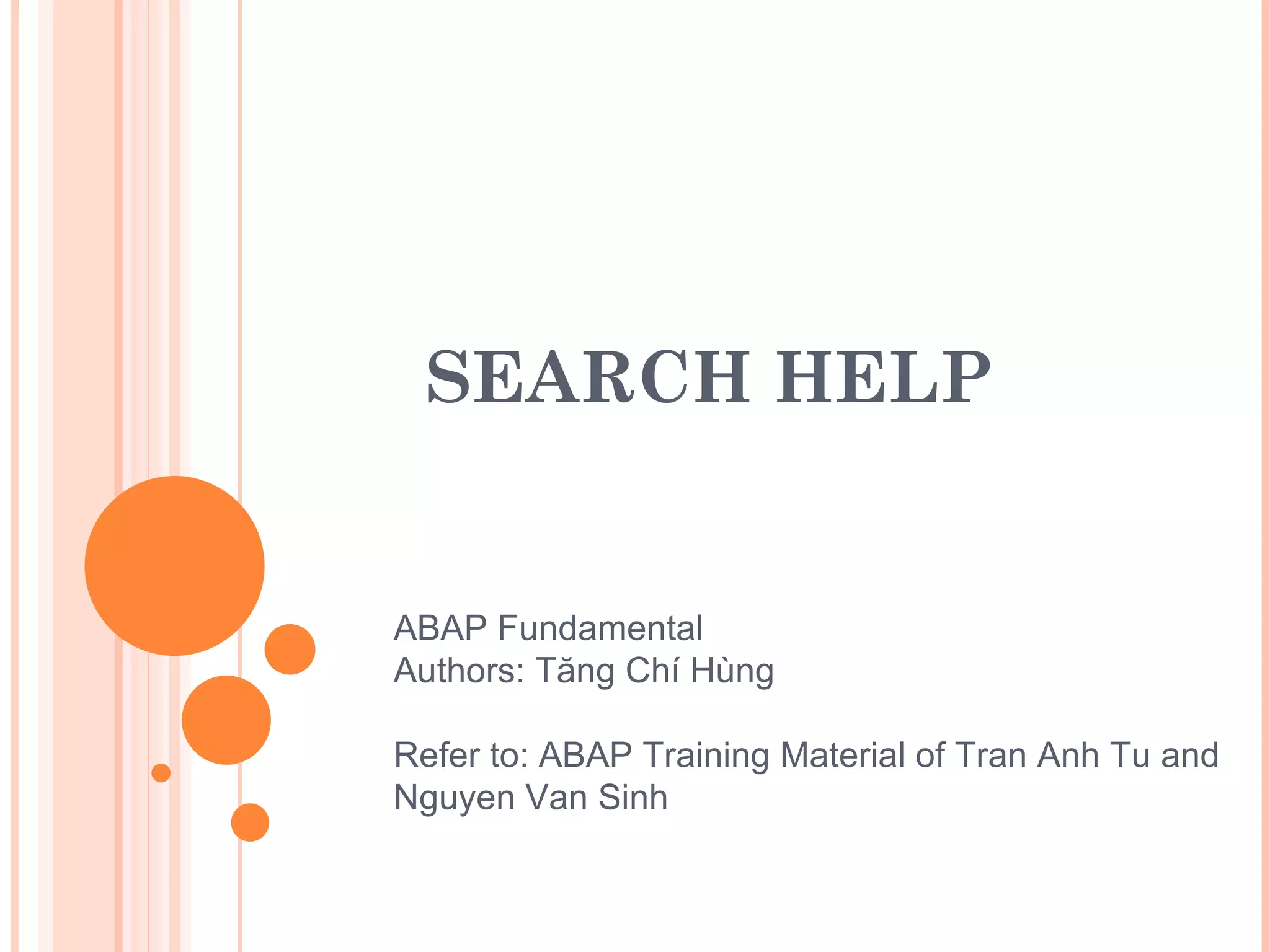

1. SEARCH HELP ABAP Fundamental Authors: Tăng Chí Hùng Refer to: ABAP Training Material of Tran Anh Tu and Nguyen Van Sinh

2. ELEMENTARY SEARCH HELP Elementary search helps describe a search path. The elementary search help must define where the data of the hit list should be read from. An elementary search help defines the standard flow of an input help.

3. ELEMENTARY SEARCH HELP

4. ELEMENTARY SEARCH HELP

5. ELEMENTARY SEARCH HELP

6. ELEMENTARY SEARCH HELP

7. COLLECTIVE SEARCH HELP Collective search helps combine several elementary search helps. Collective search help combines several elementary search helps. The user can thus choose one of several alternative search paths with collective search help.

8. COLLECTIVE SEARCH HELP

9. COLLECTIVE SEARCH HELP

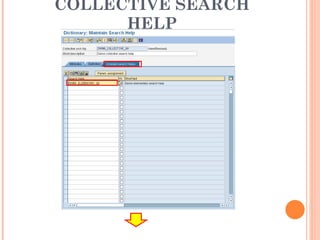

10. COLLECTIVE SEARCH HELP

11. COLLECTIVE SEARCH HELP

12. COLLECTIVE SEARCH HELP

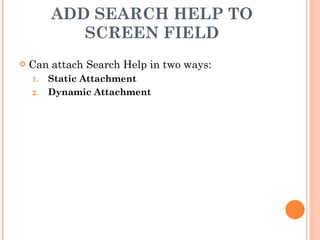

13. ADD SEARCH HELP TO SCREEN FIELD Can attach Search Help in two ways: Static Attachment Dynamic Attachment

14. Static Attachment PARAMETERS p MATCHCODE OBJECT search_help ex: PARAMETERS p_carrid TYPE s_carr_id MATCHCODE OBJECT demo_f4_de. a) To a selection-screen element:

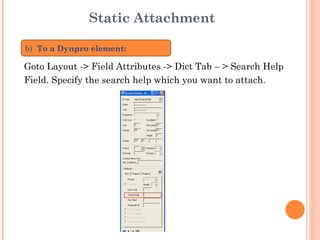

15. Static Attachment Goto Layout -> Field Attributes -> Dict Tab – > Search Help Field. Specify the search help which you want to attach. b) To a Dynpro element:

16. DYNAMIC ATTACHMENT PARAMETERS: p_carrid (2). DATA: table1 LIKE ddshretval OCCURS 0 WITH HEADER LINE. AT SELECTION-SCREEN ON VALUE-REQUEST FOR p_carrid . CALL FUNCTION 'F4IF_FIELD_VALUE_REQUEST' EXPORTING tabname = 'scarr' fieldname = 'carrid’ DYNPROFIELD = ' p_carrid ’ TABLES return_tab = table1 EXCEPTIONS field_not_found = 1 no_help_for_field = 2 inconsistent_help = 3 no_values_found = 4 OTHERS = 5 . a) To a selection-screen element:

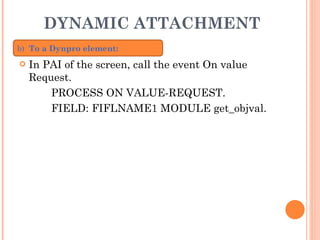

17. DYNAMIC ATTACHMENT In PAI of the screen, call the event On value Request. PROCESS ON VALUE-REQUEST. FIELD: FIFLNAME1 MODULE get_objval. b) To a Dynpro element:

18. THE END
