AAREAL Machine Catalog

Attn: Ms. Magie E-mail: sale@aarealmachine.com Mobile Phone/WhatsApp: 0086-15637361027 Website: www.aarealmachine.com- 1 -

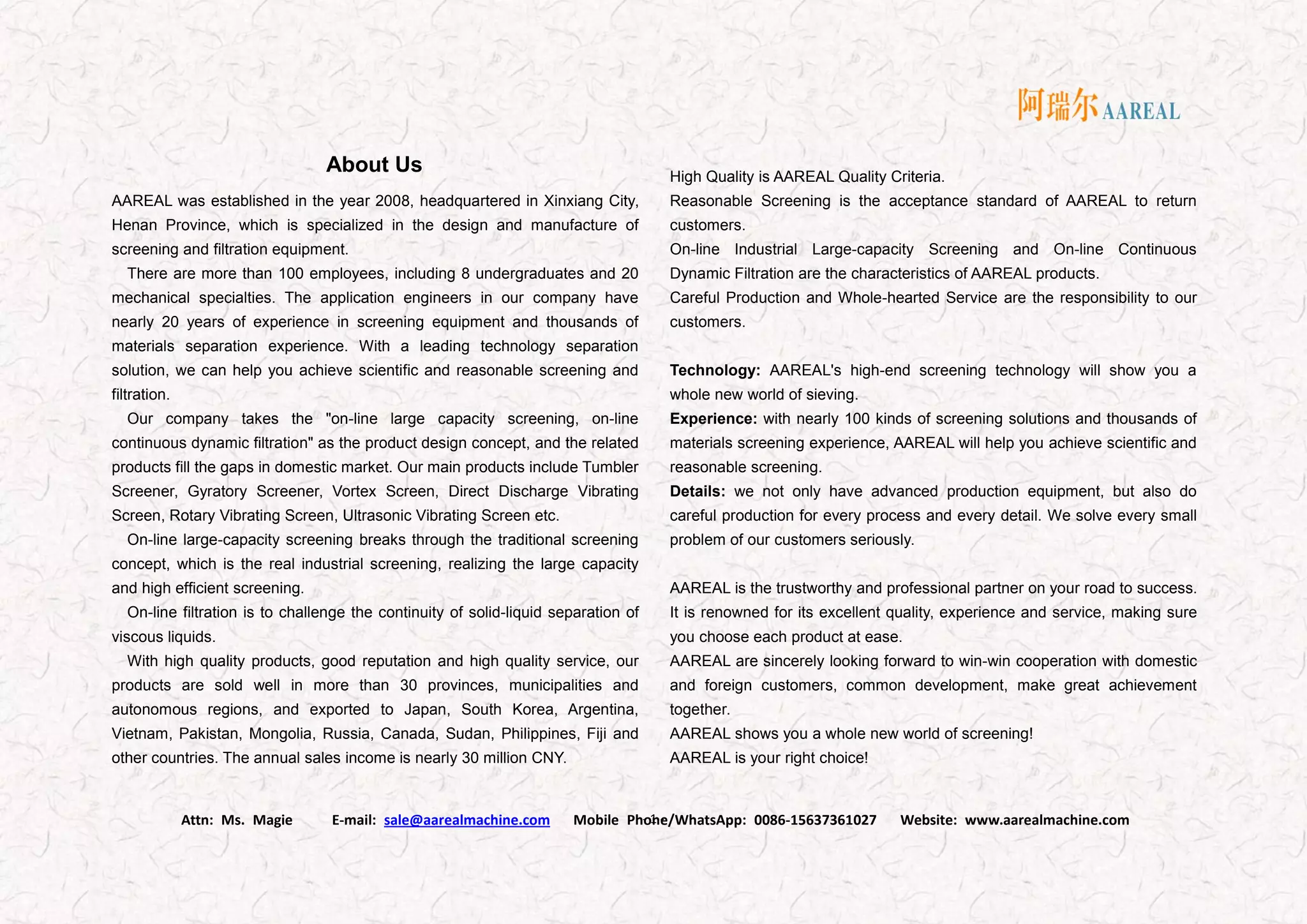

About Us
AAREAL was established in the year 2008, headquartered in Xinxiang City,
Henan Province, which is specialized in the design and manufacture of
screening and filtration equipment.
There are more than 100 employees, including 8 undergraduates and 20
mechanical specialties. The application engineers in our company have
nearly 20 years of experience in screening equipment and thousands of
materials separation experience. With a leading technology separation
solution, we can help you achieve scientific and reasonable screening and
filtration.
Our company takes the "on-line large capacity screening, on-line
continuous dynamic filtration" as the product design concept, and the related
products fill the gaps in domestic market. Our main products include Tumbler
Screener, Gyratory Screener, Vortex Screen, Direct Discharge Vibrating
Screen, Rotary Vibrating Screen, Ultrasonic Vibrating Screen etc.
On-line large-capacity screening breaks through the traditional screening
concept, which is the real industrial screening, realizing the large capacity
and high efficient screening.
On-line filtration is to challenge the continuity of solid-liquid separation of
viscous liquids.
With high quality products, good reputation and high quality service, our
products are sold well in more than 30 provinces, municipalities and
autonomous regions, and exported to Japan, South Korea, Argentina,
Vietnam, Pakistan, Mongolia, Russia, Canada, Sudan, Philippines, Fiji and
other countries. The annual sales income is nearly 30 million CNY.
High Quality is AAREAL Quality Criteria.
Reasonable Screening is the acceptance standard of AAREAL to return
customers.
On-line Industrial Large-capacity Screening and On-line Continuous
Dynamic Filtration are the characteristics of AAREAL products.
Careful Production and Whole-hearted Service are the responsibility to our
customers.
Technology: AAREAL's high-end screening technology will show you a
whole new world of sieving.
Experience: with nearly 100 kinds of screening solutions and thousands of
materials screening experience, AAREAL will help you achieve scientific and
reasonable screening.
Details: we not only have advanced production equipment, but also do
careful production for every process and every detail. We solve every small
problem of our customers seriously.
AAREAL is the trustworthy and professional partner on your road to success.
It is renowned for its excellent quality, experience and service, making sure
you choose each product at ease.
AAREAL are sincerely looking forward to win-win cooperation with domestic
and foreign customers, common development, make great achievement
together.
AAREAL shows you a whole new world of screening!
AAREAL is your right choice!

Enterprise Culture
Enterprise Strategy: using advanced separation technology, manufacturing
high-quality separation equipment, providing enthusiastic professional
services, and making AAREAL the leading brand of screening and filtration
industry
Corporate Image: enthusiastic, happy sieving and filtration expert
Enterprise Spirit: team, quality, innovation, service
Enterprise Mission: to grow with employees
Product Concept: on-line industrial large-capacity screening, on-line
continuous and dynamic filtering
Service Concept: thankful, timely, warm, professional
Quality Management Philosophy: abide by standards, control details,
manufacturing quality equipments
Quality Control
AAREAL's quality assurance:
 Quality Management Ideas: adhere strictly to standards, control the
details, make high quality equipment
 Full communication with customers is the basis of the quality service of
AAREAL
 Careful production and sincere service are our responsibility to the
customers
We not only have advanced production equipment, but also do careful
production for every process and every detail. We solve every small problem
of our customers seriously.
 ISO9001 quality management system passed and implemented
Special Services
 Fully communicate with customers and truly understand the technical
purpose of them, which is the key to serving customers.
 From customer inquiry, plan making, products manufacturing to
after-sales service, we pay close attention to detail. The details are all.
 Understand each customer's demand for sieving carefully
 Specialized screening laboratory for the customer to carry out the
sample sieving experiment
 The screening technology scheme is carefully designed based on
experimental data, actual working conditions and customer
requirements
 Careful production, provide high-quality screening equipment to
customers
 On-site installation, commissioning and technical training for field
operators
 7*24 hours of after-sales service, and try our best to get your praise
 Lifelong after-sales technical support, technical services, equipment
maintenance
 Material Screening Experiment:
Through a variety of screening equipment test, determine the feasibility of
the screening process, and contrast the powder before and after sieving, can
choose device type, mesh size, processing capacity, work efficiency,
equipment specifications and optimum setting etc.

Tumbler Screener
Working Principle:
The tumbler screener utilizes the humanoid screening principle. To imitate
the movement of artificial screening action and do 3-dimensional circular
motion, skillfully combine the sieving (planar circular motion) and winnowing
(upward parabolic motion), establish horizontal and throwing 3-dimensional
tumbling movement, make the material in the screen surface appear involute
spiral movement. The screening accuracy is as high as 90%~99%.
Mesh Cleaning Method:
 Bounce Ball + Scraping Ring
 Brush
 Jet Airflow
 Jet Airflow + Brush
 Elastic Scraper
 Ultrasonic Technology
Model: AM-600, AM-950, AM-1200, AM-1500, AM-2000, AM-2300,
AM-2600, AM-2900
Application:
chemical, food and spices, plastics and synthetic resin, mining, medicine,
wood industry, metallurgy, feed, fertilizer, fire work, others
Characteristics:
1. Soft rock screening will not destroy the particles original structure of the
material and not easy to produce static electricity. It is the best choice for
material that is flammable, explosive and easy to generate static. And
effectively extend the life of equipment parts.
2. With circular building block type assembling structure, it is easy to
assemble and disassemble. The outlet is free to rotate 360°.
3. Can be used up to 7 layers and get up to 8 particle sizes
4. The screen structure is diverse. It can be not only spliced, but also
integrally bonded.
5. The vertical direction acceleration value of the material particles is low, so
that the screen mesh is not easy to damage, prolonging the service life of the
screen.
6. Large-scale screening machine can be installed pneumatic lifting device to
reduce the difficulty of screen replacement.
7. The noise is low to 75dB. Fully enclosed and more environmentally
friendly.

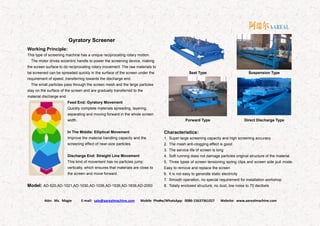

Gyratory Screener
Working Principle:
This type of screening machine has a unique reciprocating rotary motion.
The motor drives eccentric handle to power the screening device, making
the screen surface to do reciprocating rotary movement. The raw materials to
be screened can be spreaded quickly in the surface of the screen under the
requirement of speed, transferring towards the discharge end.
The small particles pass through the screen mesh and the large particles
stay on the surface of the screen and are gradually transferred to the
material discharge end.
Feed End: Gyratory Movement
Quickly complete materials spreading, layering,
separating and moving forward in the whole screen
width.
In The Middle: Elliptical Movement
Improve the material handling capacity and the
screening effect of near-size particles.
Discharge End: Straight Line Movement
This kind of movement has no particles jump
vertically, which ensures that materials are close to
the screen and move forward.
Model: AD-520,AD-1021,AD-1030,AD-1036,AD-1536,AD-1836,AD-2050
Seat Type Suspension Type
Forward Type Direct Discharge Type
Characteristics:
1. Super large screening capacity and high screening accuracy
2. The mesh anti-clogging effect is good
3. The service life of screen is long
4. Soft running does not damage particles original structure of the material
5. Three types of screen tensioning spring clips and screen side pull mode.
Easy to remove and replace the screen
6. It is not easy to generate static electricity
7. Smooth operation, no special requirement for installation workshop
8. Totally enclosed structure, no dust, low noise to 70 decibels

Gyratory Separator
Working Principle:
The total gyratory movement makes the material spreading, layering and
separating. The special gyratory motion can quickly disperse the material on
the whole width of the screen at the feed end, driving the particles move
close to the screen surface. The large horizontal amplitude can improve the
sieve effect of the approximate size of granules, and can improve the
material handling capacity of the machine.
Characteristics:
1.Continuous trouble-free running time is very long
2. Larger capacity. Duplex screening is available
3. With the forward stretch material discharging design, easy to collect
4. The anti-blocking effect is good with the mesh cleaning balls
5. Quick check and replace the screen
6. The machine itself is less destructive and the basic dynamic load is low
7. Fully enclosed structure and dust-free
8. Soft running and low noise
Model:
AF-1025, AF-1030, AF-1036, AF-1530, AF-1536, AF-1836, AF-2040
Application:
It is widely used in chemical, metallurgical, abrasive, mining, quarrying, clay,
glass, building materials, medicine, food processing, grain, plastics and other
industries of fine classification.
It can be used for the most stringent or demanding screening requirements
of activated carbon, fertilizer, frac sand, limestone, petroleum coke, plastic
particles, polyvinyl chloride powder, salt, sugar etc.
Bin Gate Mesh Cleaning Balls

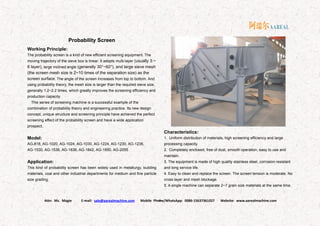

Probability Screen
Working Principle:
The probability screen is a kind of new efficient screening equipment. The
moving trajectory of the sieve box is linear. It adopts multi-layer (usually 3 ~
6 layer), large inclined angle (generally 30°~60°), and large sieve mesh
(the screen mesh size is 2~10 times of the separation size) as the
screen surface. The angle of the screen increases from top to bottom. And
using probability theory, the mesh size is larger than the required sieve size,
generally 1.2~2.2 times, which greatly improves the screening efficiency and
production capacity.
This series of screening machine is a successful example of the
combination of probability theory and engineering practice. Its new design
concept, unique structure and screening principle have achieved the perfect
screening effect of the probability screen and have a wide application
prospect.
Model:
AG-818, AG-1020, AG-1024, AG-1030, AG-1224, AG-1230, AG-1236,
AG-1530, AG-1536, AG-1836, AG-1842, AG-1850, AG-2055
Application:
This kind of probability screen has been widely used in metallurgy, building
materials, coal and other industrial departments for medium and fine particle
size grading.
Characteristics:
1. Uniform distribution of materials, high screening efficiency and large
processing capacity.
2. Completely enclosed, free of dust, smooth operation, easy to use and
maintain.
3. The equipment is made of high quality stainless steel, corrosion resistant
and long service life.
4. Easy to clean and replace the screen. The screen tension is moderate. No
cross layer and mesh blockage.
5. A single machine can separate 2~7 grain size materials at the same time.

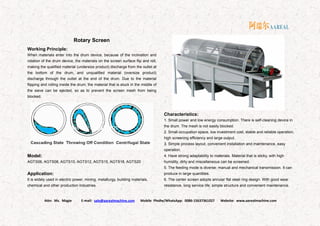

Rotary Screen
Working Principle:
When materials enter into the drum device, because of the inclination and
rotation of the drum device, the materials on the screen surface flip and roll,
making the qualified material (undersize product) discharge from the outlet at
the bottom of the drum, and unqualified material (oversize product)
discharge through the outlet at the end of the drum. Due to the material
flipping and rolling inside the drum, the material that is stuck in the middle of
the sieve can be ejected, so as to prevent the screen mesh from being
blocked.
Model:
AGTS06, AGTS08, AGTS10, AGTS12, AGTS15, AGTS18, AGTS20
Application:
It is widely used in electric power, mining, metallurgy, building materials,
chemical and other production industries.
Characteristics:
1. Small power and low energy consumption. There is self-cleaning device in
the drum. The mesh is not easily blocked.
2. Small occupation space, low investment cost, stable and reliable operation,
high screening efficiency and large output.
3. Simple process layout, convenient installation and maintenance, easy
operation.
4. Have strong adaptability to materials. Material that is sticky, with high
humidity, dirty and miscellaneous can be screened.
5. The feeding mode is diverse: manual and mechanical transmission. It can
produce in large quantities.
6. The center screen adopts annular flat steel ring design. With good wear
resistance, long service life, simple structure and convenient maintenance.

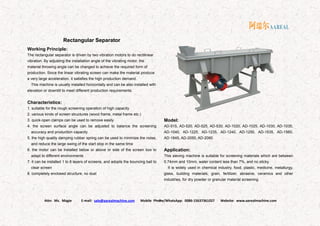

Rectangular Separator
Working Principle:
The rectangular separator is driven by two vibration motors to do rectilinear
vibration. By adjusting the installation angle of the vibrating motor, the
material throwing angle can be changed to achieve the required form of
production. Since the linear vibrating screen can make the material produce
a very large acceleration, it satisfies the high production demand.
This machine is usually installed horizontally and can be also installed with
elevation or downtilt to meet different production requirements.
Characteristics:
1. suitable for the rough screening operation of high capacity
2. various kinds of screen structures (wood frame, metal frame etc.)
3. quick-open clamps can be used to remove easily
4. the screen surface angle can be adjusted to balance the screening
accuracy and production capacity
5. the high quality damping rubber spring can be used to minimize the noise,
and reduce the large swing of the start stop in the same time
6. the motor can be installed below or above or side of the screen box to
adapt to different environments
7. it can be installed 1 to 8 layers of screens, and adopts the bouncing ball to
clear screen
8. completely enclosed structure, no dust
Model:
AD-515, AD-520, AD-525, AD-530, AD-1020, AD-1025, AD-1030, AD-1035,
AD-1040, AD-1225, AD-1235, AD-1240, AD-1250, AD-1535, AD-1560,
AD-1845, AD-2050, AD-2060
Application:
This sieving machine is suitable for screening materials which are between
0.74mm and 10mm, water content less than 7%, and no sticky.
It is widely used in chemical industry, food, plastic, medicine, metallurgy,
glass, building materials, grain, fertilizer, abrasive, ceramics and other
industries, for dry powder or granular material screening.

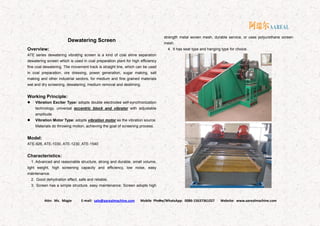

Dewatering Screen
Overview:
ATE series dewatering vibrating screen is a kind of coal slime separation
dewatering screen which is used in coal preparation plant for high efficiency
fine coal dewatering. The movement track is straight line, which can be used
in coal preparation, ore dressing, power generation, sugar making, salt
making and other industrial sectors, for medium and fine grained materials
wet and dry screening, dewatering, medium removal and desliming.
Working Principle:
 Vibration Exciter Type: adopts double electrodes self-synchronization
technology, universal eccentric block and vibrator with adjustable
amplitude.
 Vibration Motor Type: adopts vibration motor as the vibration source.
Materials do throwing motion, achieving the goal of screening process.
Model:
ATE-926, ATE-1030, ATE-1230, ATE-1540
Characteristics:
1. Advanced and reasonable structure, strong and durable, small volume,
light weight, high screening capacity and efficiency, low noise, easy
maintenance.
2. Good dehydration effect, safe and reliable.
3. Screen has a simple structure, easy maintenance. Screen adopts high
strength metal woven mesh, durable service, or uses polyurethane screen
mesh.
4. It has seat type and hanging type for choice.

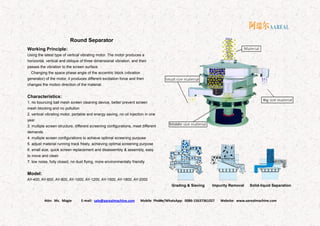

Round Separator
Working Principle:
Using the latest type of vertical vibrating motor. The motor produces a
horizontal, vertical and oblique of three dimensional vibration, and then
passes the vibration to the screen surface.
Changing the space phase angle of the eccentric block (vibration
generator) of the motor, it produces different excitation force and then
changes the motion direction of the material.
Characteristics:
1. no bouncing ball mesh screen cleaning device, better prevent screen
mesh blocking and no pollution
2. vertical vibrating motor, portable and energy saving, no oil injection in one
year
3. multiple screen structure, different screening configurations, meet different
demands
4. multiple screen configurations to achieve optimal screening purpose
5. adjust material running track freely, achieving optimal screening purpose
6. small size, quick screen replacement and disassembly & assembly, easy
to move and clean
7. low noise, fully closed, no dust flying, more environmentally friendly
Model:
AY-400, AY-600, AY-800, AY-1000, AY-1200, AY-1500, AY-1800, AY-2000
Grading & Sieving Impurity Removal Solid-liquid Separation

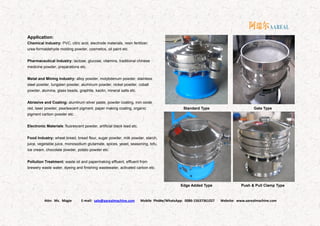

Application:
Chemical Industry: PVC, citric acid, electrode materials, resin fertilizer,
urea-formaldehyde molding powder, cosmetics, oil paint etc.
Pharmaceutical Industry: lactose, glucose, vitamins, traditional chinese
medicine powder, preparations etc.
Metal and Mining Industry: alloy powder, molybdenum powder, stainless
steel powder, tungsten powder, aluminum powder, nickel powder, cobalt
powder, alumina, glass beads, graphite, kaolin, mineral salts etc.
Abrasive and Coating: aluminum silver paste, powder coating, iron oxide
red, laser powder, pearlescent pigment, paper making coating, organic
pigment carbon powder etc.
Electronic Materials: fluorescent powder, artificial black lead etc.
Food Industry: wheat bread, bread flour, sugar powder, milk powder, starch,
juice, vegetable juice, monosodium glutamate, spices, yeast, seasoning, tofu,
ice cream, chocolate powder, potato powder etc.
Pollution Treatment: waste oil and papermaking effluent, effluent from
brewery waste water, dyeing and finishing wastewater, activated carbon etc.
Standard Type Gate Type
Edge Added Type Push & Pull Clamp Type

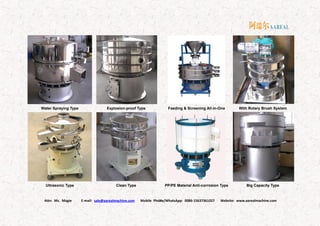

Water Spraying Type Explosion-proof Type
Ultrasonic Type Clean Type
Feeding & Screening All-in-One With Rotary Brush System
PP/PE Material Anti-corrosion Type Big Capacity Type

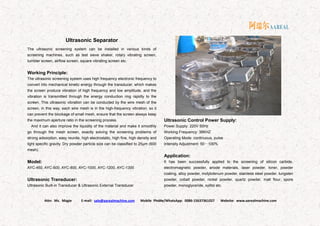

Ultrasonic Separator
The ultrasonic screening system can be installed in various kinds of
screening machines, such as test sieve shaker, rotary vibrating screen,
tumbler screen, airflow screen, square vibrating screen etc.
Working Principle:
The ultrasonic screening system uses high frequency electronic frequency to
convert into mechanical kinetic energy through the transducer, which makes
the screen produce vibration of high frequency and low amplitude, and the
vibration is transmitted through the energy conduction ring rapidly to the
screen. This ultrasonic vibration can be conducted by the wire mesh of the
screen, in this way, each wire mesh is in the high-frequency vibration, so it
can prevent the blockage of small mesh, ensure that the screen always keep
the maximum aperture ratio in the screening process.
And it can also improve the liquidity of the material and make it smoothly
go through the mesh screen, exactly solving the screening problems of
strong adsorption, easy reunite, high electrostatic, high fine, high density and
light specific gravity. Dry powder particle size can be classified to 25μm (600
mesh).
Model:
AYC-450, AYC-600, AYC-800, AYC-1000, AYC-1200, AYC-1300
Ultrasonic Transducer:
Ultrasonic Built-in Transducer & Ultrasonic External Transducer
Ultrasonic Control Power Supply:
Power Supply: 220V 50Hz
Working Frequency: 36KHZ
Operating Mode: continuous, pulse
Intensity Adjustment: 50～100%
Application:
It has been successfully applied to the screening of silicon carbide,
electromagnetic powder, anode materials, laser powder, toner, powder
coating, alloy powder, molybdenum powder, stainless steel powder, tungsten
powder, cobalt powder, nickel powder, quartz powder, malt flour, spore
powder, monoglyceride, xylitol etc.

Flow-thru Separator
Working Principle:
The double motor type is driven by two horizontal vibration motors, which
produce three-dimensional vibration. It not only makes the material more
evenly distributed, but also removes large particles, keeping the screen
surface clean and smooth. And the screening effect is better.
The single motor type adopts single horizontal vibration motor, simple and
convenient.
Characteristics:
1. Compact structure, low occupancy height (can be as low as 340mm).
2. Material flow adopts direct-current design.The product is discharged
directly from the bottom of the sieve machine, easy to connect with the
production line.
3. It is used for the high production capacity of coarse screening, very
suitable for the dry materials security screening with less large particles.
4. Small and light.
Model:
AX-400, AX-600, AX-800, AX-1000, AX-1200, AX-1500
Application:
It is often used in flour, starch, washing powder, metal powder, additives,
chemical industry, non-mining and other industries for particle and powder’s
coarse screening and fine screening.
Single-motor Type Convenient Type
Low-rise Type Dual-motor Type
Rectangular Type Brush System Type

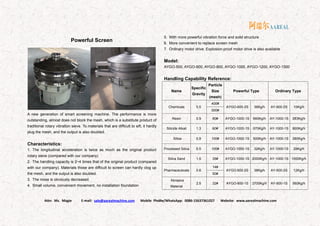

Powerful Screen
A new generation of smart screening machine. The performance is more
outstanding, almost does not block the mesh, which is a substitute product of
traditional rotary vibration sieve. To materials that are difficult to sift, it hardly
plug the mesh, and the output is also doubled.
Characteristics:
1. The longitudinal acceleration is twice as much as the original product
rotary sieve (compared with our company)
2. The handling capacity is 2~4 times that of the original product (compared
with our company). Materials those are difficult to screen can hardly clog up
the mesh, and the output is also doubled.
3. The noise is obviously decreased.
4. Small volume, convenient movement, no installation foundation
5. With more powerful vibration force and solid structure
6. More convenient to replace screen mesh
7. Ordinary motor drive. Explosion-proof motor drive is also available
Model:
AYGO-500, AYGO-600, AYGO-800, AYGO-1000, AYGO-1200, AYGO-1500
Handling Capability Reference:
Name
Specific
Gravity
Particle
Size
(mesh)
Powerful Type Ordinary Type
Chemicals 0.5
400#
AYGO-600-2S 36Kg/h AY-600-2S 10Kg/h
500#
Resin 0.9 80# AYGO-1000-1S 660Kg/h AY-1000-1S 283Kg/h
Silicide Alkali 1.3 60# AYGO-1000-1S 970Kg/h AY-1000-1S 800Kg/h
Silica 0.9 100# AYGO-1000-1S 500Kg/h AY-1000-1S 280Kg/h
Processed Silica 0.5 100# AYGO-1000-1S 32Kg/h AY-1000-1S 28Kg/h
Silica Sand 1.5 35# AYGO-1000-1S 2000Kg/h AY-1000-1S 1000Kg/h
Pharmaceuticals 0.6
14#
AYGO-600-2S 38Kg/h AY-600-2S 12Kg/h
50#
Abrasive
Material
2.5 32# AYGO-800-1S 3700Kg/h AY-800-1S 560Kg/h

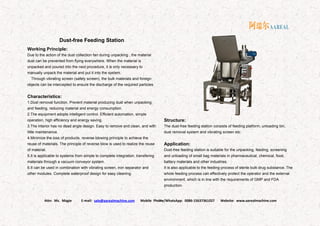

Dust-free Feeding Station
Working Principle:
Due to the action of the dust collection fan during unpacking , the material
dust can be prevented from flying everywhere. When the material is
unpacked and poured into the next procedure, it is only necessary to
manually unpack the material and put it into the system.
Through vibrating screen (safety screen), the bulk materials and foreign
objects can be intercepted to ensure the discharge of the required particles.
Characteristics:
1.Dust removal function. Prevent material producing dust when unpacking
and feeding, reducing material and energy consumption.
2.The equipment adopts intelligent control. Efficient automation, simple
operation, high efficiency and energy saving.
3.The interior has no dead angle design. Easy to remove and clean, and with
little maintenance.
4.Minimize the loss of products. reverse blowing principle to achieve the
reuse of materials. The principle of reverse blow is used to realize the reuse
of material.
5.It is applicable to systems from simple to complete integration, transfering
materials through a vacuum conveyor system.
6.It can be used in combination with vibrating screen, iron separator and
other modules. Complete waterproof design for easy cleaning.
Structure:
The dust-free feeding station consists of feeding platform, unloading bin,
dust removal system and vibrating screen etc.
Application:
Dust-free feeding station is suitable for the unpacking, feeding, screening
and unloading of small bag materials in pharmaceutical, chemical, food,
battery materials and other industries.
It is also applicable to the feeding process of sterile bulk drug substance. The
whole feeding process can effectively protect the operator and the external
environment, which is in line with the requirements of GMP and FDA
production.

Centrifugal Sifter
Working Principle:
When it works, the material enters from the feed inlet at the upper end of the
housing, and the rotating screw feeds the material into the screen barrel.
Material into the screen barrel is driven by rotating scraper, impacting the
cylindrical screen mesh under the action of centrifugal force and cyclone
propelling force, making the material smaller than the mesh through the
screen and discharge from the fine outlet.
The coarse powder is bounced back by the screen, moving forward and
discharging from the coarse outlet under the action of cyclone propelling
force and scraper, thus completing the entire screening process.
Model:
AL-18-65, AL-30-100, AL-50-130
Characteristics:
1. Small size, light weight, steady and no vibration, no noise, good sealing
performance, no dust and high efficiency.
2. The shell structure is novel. Easy to control. Simple installation and low
requirement for laying foundation.
3. It can be used by single machine or matching with multi-machines. Long
time continuous operation. Safe and reliable.
4. It can be equipped with a variety of material screens: stainless steel wire
mesh, stainless steel or carbon steel punching hole mesh, nylon fiber screen.
5. Screening and crushing into one.
6. Without static electricity in the operation.
7. Can be matched with the pneumatic conveying system, directly connected
into the wind path, saving resources.
8. New design: The gas protection system can deliver the purified air to both
ends of the equipment, which can effectively reduce the temperature
produced by the equipment during operation. The gas isolation layer is
formed on the bearing, thereby preventing dust from entering, effectively
prolonging the service life of the bearing, reducing the maintenance
frequency and improving the work efficiency.
Application:
Applicable to metallurgy, mining, pharmaceutical, food, chemical, metal
powder and non-metal industries etc.

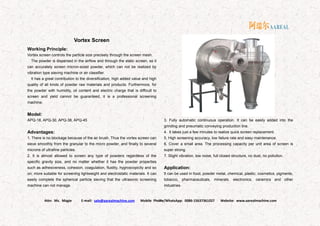

Vortex Screen
Working Principle:
Vortex screen controls the particle size precisely through the screen mesh.
The powder is dispersed in the airflow and through the static screen, so it
can accurately screen micron-sized powder, which can not be realized by
vibration type sieving machine or air classifier.
It has a great contribution to the diversification, high added value and high
quality of all kinds of powder raw materials and products. Furthermore, for
the powder with humidity, oil content and electric charge that is difficult to
screen and yield cannot be guaranteed, it is a professional screening
machine.
Model:
APQ-18, APQ-30, APQ-38, APQ-45
Advantages:
1. There is no blockage because of the air brush. Thus the vortex screen can
sieve smoothly from the granular to the micro powder, and finally to several
microns of ultrafine particles.
2. It is almost allowed to screen any type of powders regardless of the
specific gravity size, and no matter whether it has the powder properties
such as adhesiveness, cohesion, coagulation, fluidity, hygroscopicity and so
on, more suitable for screening lightweight and electrostatic materials. It can
easily complete the spherical particle sieving that the ultrasonic screening
machine can not manage.
3. Fully automatic continuous operation. It can be easily added into the
grinding and pneumatic conveying production line.
4. It takes just a few minutes to realize quick screen replacement.
5. High screening accuracy, low failure rate and easy maintenance.
6. Cover a small area. The processing capacity per unit area of screen is
super strong.
7. Slight vibration, low noise, full closed structure, no dust, no pollution.
Application:
It can be used in food, powder metal, chemical, plastic, cosmetics, pigments,
tobacco, pharmaceuticals, minerals, electronics, ceramics and other
industries.

AT-200 Test Sieve Shaker (Wet & Dry Screening)
Working Principle:
The main body of this machine is an electrically controlled electromagnet.
The electromagnet passes the vibrations of 3000 times (50H) or 6000 times
(100H) per minute to the sorting screen. The amplitude can be changed from
0 to 3 by controller, and the screening time can be adjusted by timer.
Characteristics:
1. Adopt advanced integrated circuit control, easy operation.
2. 8 pieces of sieves and one piece of bottom cover can be installed.
3. It can be used not only for powder screening, but also for fineness analysis
of slurry.
4. Small noise, light weight, no need to fix.
5. The vibration frequency and amplitude can be adjusted effectively.
6. The sifted materials are bounced and also do circular motion, so as to
make the screening more fully.
7. The height can be adjusted by the foot margin.
8. Screening process can be observed.
Application:
It is widely used in particle analysis of pharmaceutical, metallurgy, food,
superhard materials and other industries. With the advantages of simple
operation, no rotating parts, electronic control amplitude and frequency, it is
the simple, efficient and precise screening tool.
Technical Parameters:
NO. Name Data
1 Diameter φ200mm, φ100mm, φ75mm
2 Layer 1~8 layers
3 Mode of Vibration fine vibration, continuous vibration
4 Vibration Frequency 3000 times/min, 6000 times/min
5 Noise ＜50dB
6
Electromagnetism
Power
Source
AC 220V/50HZ
7 Amplitude 0~3mm
8 Weight 20KG

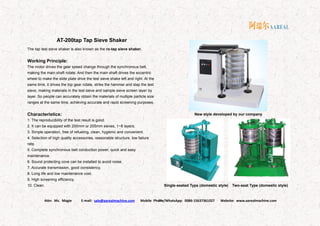

AT-200tap Tap Sieve Shaker
The tap test sieve shaker is also known as the ro-tap sieve shaker.
Working Principle:
The motor drives the gear speed change through the synchronous belt,
making the main shaft rotate. And then the main shaft drives the eccentric
wheel to make the slide plate drive the test sieve shake left and right. At the
same time, it drives the top gear rotate, strike the hammer and slap the test
sieve, making materials in the test sieve and sample sieve screen layer by
layer. So people can accurately obtain the materials of multiple particle size
ranges at the same time, achieving accurate and rapid screening purposes.
Characteristics:
1. The reproducibility of the test result is good.
2. It can be equipped with 200mm or 205mm sieves, 1~8 layers.
3. Simple operation, free of refueling, clean, hygienic and convenient.
4. Selection of high quality accessories, reasonable structure, low failure
rate.
5. Complete synchronous belt conduction power, quick and easy
maintenance.
6. Sound protecting cove can be installed to avoid noise.
7. Accurate transmission, good consistency.
8. Long life and low maintenance cost.
9. High screening efficiency.
10. Clean.
New style developed by our company
Single-seated Type (domestic style) Two-seat Type (domestic style)

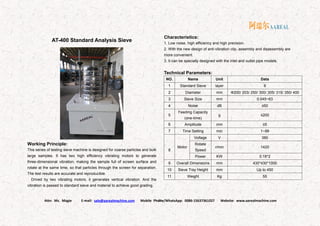

AT-400 Standard Analysis Sieve
Working Principle:
This series of testing sieve machine is designed for coarse particles and bulk
large samples. It has two high efficiency vibrating motors to generate
three-dimensional vibration, making the sample full of screen surface and
rotate at the same time, so that particles through the screen for separation.
The test results are accurate and reproducible.
Drived by two vibrating motors, it generates vertical vibration. And the
vibration is passed to standard sieve and material to achieve good grading.
Characteristics:
1. Low noise, high efficiency and high precision.
2. With the new design of anti-vibration clip, assembly and disassembly are
more convenient.
3. It can be specially designed with the inlet and outlet pipe models.
Technical Parameters:
NO. Name Unit Data
1 Standard Sieve layer 8
2 Diameter mm Ф200/ 203/ 250/ 300/ 305/ 315/ 350/ 400
3 Sieve Size mm 0.045~63
4 Noise dB ≤50
5
Feeding Capacity
(one-time)
g ≤200
6 Amplitude mm ≤5
7 Time Setting min 1~99
8
Motor
Voltage V 380
Rotate
Speed
r/min 1420
Power KW 0.18*2
9 Overall Dimensions mm 430*430*1000
10 Sieve Tray Height mm Up to 450
11 Weight Kg 55

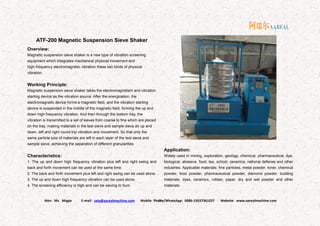

ATF-200 Magnetic Suspension Sieve Shaker
Overview:
Magnetic suspension sieve shaker is a new type of vibration screening
equipment which integrates mechanical physical movement and
high-frequency electromagnetic vibration these two kinds of physical
vibration.
Working Principle:
Magnetic suspension sieve shaker takes the electromagnetism and vibration
starting device as the vibration source. After the energization, the
electromagnetic device forms a magnetic field, and the vibration starting
device is suspended in the middle of the magnetic field, forming the up and
down high-frequency vibration. And then through the bottom tray, the
vibration is transmitted to a set of sieves from coarse to fine which are placed
on the tray, making materials in the test sieve and sample sieve do up and
down, left and right round-trip vibration and movement. So that only the
same particle size of materials are left in each layer of the test sieve and
sample sieve, achieving the separation of different granularities.
Characteristics:
1. The up and down high frequency vibration plus left and right swing and
back and forth movement can be used at the same time.
2. The back and forth movement plus left and right swing can be used alone.
3. The up and down high frequency vibration can be used alone.
4. The screening efficiency is high and can be sieving to 5um.
Application:
Widely used in mining, exploration, geology, chemical, pharmaceutical, dye,
biological, abrasive, food, tea, school, ceramics, national defense and other
industries. Applicable materials: fine particles, metal powder, toner, chemical
powder, food powder, pharmaceutical powder, diamond powder, building
materials, dyes, ceramics, rubber, paper, dry and wet powder and other
materials.

AAREAL Machine Catalog

More Related Content

What's hot

Similar to AAREAL Machine Catalog

Recently uploaded

AAREAL Machine Catalog
