![A Widget Platform
In Practice
{ themes , [
{ " family " , [
{ template , wdg_featured_games_compact } ,
{ num_games , 3 } ,
{ css , [ " f a m i l y / wdg_featured_games " ] }
]},
• Minimal to no impact on other
features
{ { " f a m i y " , 88 } , [
{ num_games , 5 }
]},
• Configurable per site and brand
{ "women" , [
{ template , wdg_featured_games } ,
{ num_games , 6 } ,
{ css , [ "women / wdg_featured_games " ] }
]}
]}
20/30](https://image.slidesharecdn.com/slides-131207124956-phpapp01/85/A-Widget-Based-Web-Platform-22-320.jpg)
Uploaded byenriquepazperez
A Widget Based Web Platform
The document outlines the development of a web widget platform by Spilgames, aimed at improving their existing monolithic portals. It emphasizes modular design with isolated widgets for easier deployment and management across various brands and sites, along with performance improvements and architectural wishes. The future plans include enhancing backend connectivity, performance analysis, and possibly using Elixir for widgets.
A Widget Based Web Platform
- 1. A Web WidgetPlatform Enrique Paz @quiquepaz 1/30
- 2. Introduction Meeting Me • SoftwareArchitect • Passionate Erlang developer • Testing enthusiast • Love beautiful code! 2/30
- 3. Introduction Meeting Spilgames • GamingPlatform • Serving data to 190+ countries world-wide • 180+ million unique users per month 3/30
- 4. Introduction Brands and Sites •5 Brands/Channels for target audiences • 1-15 Sites for different geographical regions • Strong domains www.agame.com for teens in the US www.games.co.uk for families in the UK www.juegosdechicas.com for girls in Spain ... 4/30
- 5.
- 6.
- 7. Old Portals Landscape •Monolithic portals per brand • Static pages with lots of AJAX calls • Architectural layers developed independently 7/30
- 8. Old Portals Landscape WhatWas Good. . . • Acceptable performance • Clear layer separation • Fast growth • Per brand & site development • Small learning curve 8/30
- 9. Old Portals Landscape WhatWas Good. . . 9/30
- 10. Old Portals Landscape .. . And What Wasn’t • Extensive frontend caching • No global features • Lots of logic on the client • Long time to global market • Redundant code • Tiny changes, massive impact 10/30
- 11.
- 12. Wish List Architectural Wishes •Isolated requests, features and crashes • Feature toggling on runtime • Linear scalability with supermarket hardware 12/30
- 13. Wish List Architectural Wishes •Isolated requests, features and crashes • Feature toggling on runtime • Linear scalability with supermarket hardware 12/30
- 14. Wish List Development Wishes •One modular codebase • Explicit component specifications • Small features, easy to deploy and rollback 13/30
- 15. Wish List Erlang BasedWeb Platforms? • Chicago Boss, Zotonic. . . (+) Nice layer separation (+) Mature solutions (+) Easy to use 14/30
- 16. Wish List Erlang BasedWeb Platforms? • Chicago Boss, Zotonic. . . (+) Nice layer separation (+) Mature solutions (+) Easy to use • But. . . (-) Feature isolation not key in their design (-) A VC framework fits better (abstracted model) 14/30
- 17. A Widget Platform Let’sCreate Our Own Solution! 15/30
- 18. A Widget Platform PagesMade Out Of Widgets 16/30
- 19. A Widget Platform PagesMade Out Of Widgets • Path determines an entry widget • Widgets and their children form a tree • Tree generates fully working HTML • Page generation time guaranteed! (timeouts) 17/30
- 20. A Widget Platform What’sA Widget? • Isolated • Explicitly specified • Releasable separately 18/30
- 21. A Widget Platform InPractice • Feature focused development not brand • One widget to serve all brands 19/30
- 22. A Widget Platform InPractice { themes , [ { " family " , [ { template , wdg_featured_games_compact } , { num_games , 3 } , { css , [ " f a m i l y / wdg_featured_games " ] } ]}, • Minimal to no impact on other features { { " f a m i y " , 88 } , [ { num_games , 5 } ]}, • Configurable per site and brand { "women" , [ { template , wdg_featured_games } , { num_games , 6 } , { css , [ "women / wdg_featured_games " ] } ]} ]} 20/30
- 23.
- 24. Managing Widgets Deployments • SWIFTas a central widget repository • HTTP interface with simple GUI • Uses the platform management interface: List nodes List widgets in a node Enable/disable widget in a node Change widget version in a node • Enforces configuration to new cluster members 22/30
- 25. Managing Widgets A HandyTool 23/30
- 26. Managing Widgets Master &Slaves In 1 Shell • The platform master node runs: A web server A management interface A specific set of widgets 24/30
- 27. Managing Widgets Master &Slaves In 1 Shell • The platform master node runs: A web server A management interface A specific set of widgets • Each slave node runs: Its own specific set of widgets 24/30

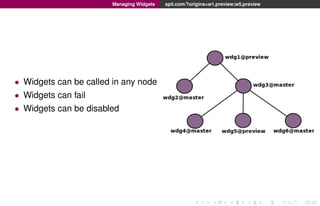

- 28. Managing Widgets spil.com/?origins=w1,preview;w5,preview • Widgetscan be called in any node • Widgets can fail • Widgets can be disabled 25/30
- 29.
- 30. The Future Lessons Learned •Document by example • Reinforce the concepts adoption often • Review, review, review • Measure performance from early stages 27/30
- 31. The Future Coming Up •Native widget to backend connectivity • Performance analysis on CI • Historical imagediff for widgets • Device/Browser capabilities available for widgets • Widgets written in Elixir? 28/30
- 32. The Future What We’veUsed • ErlyDTL for html templating • Cowboy as a web server • Lager for logging • Rebar for build tool • Lhttpc as HTTP client • Estatsd for monitoring • Sass as a CSS pre-processor 29/30
- 33. The Future Questions? Leave mefeedback! http://spkr8.com/t/28371 30/30
