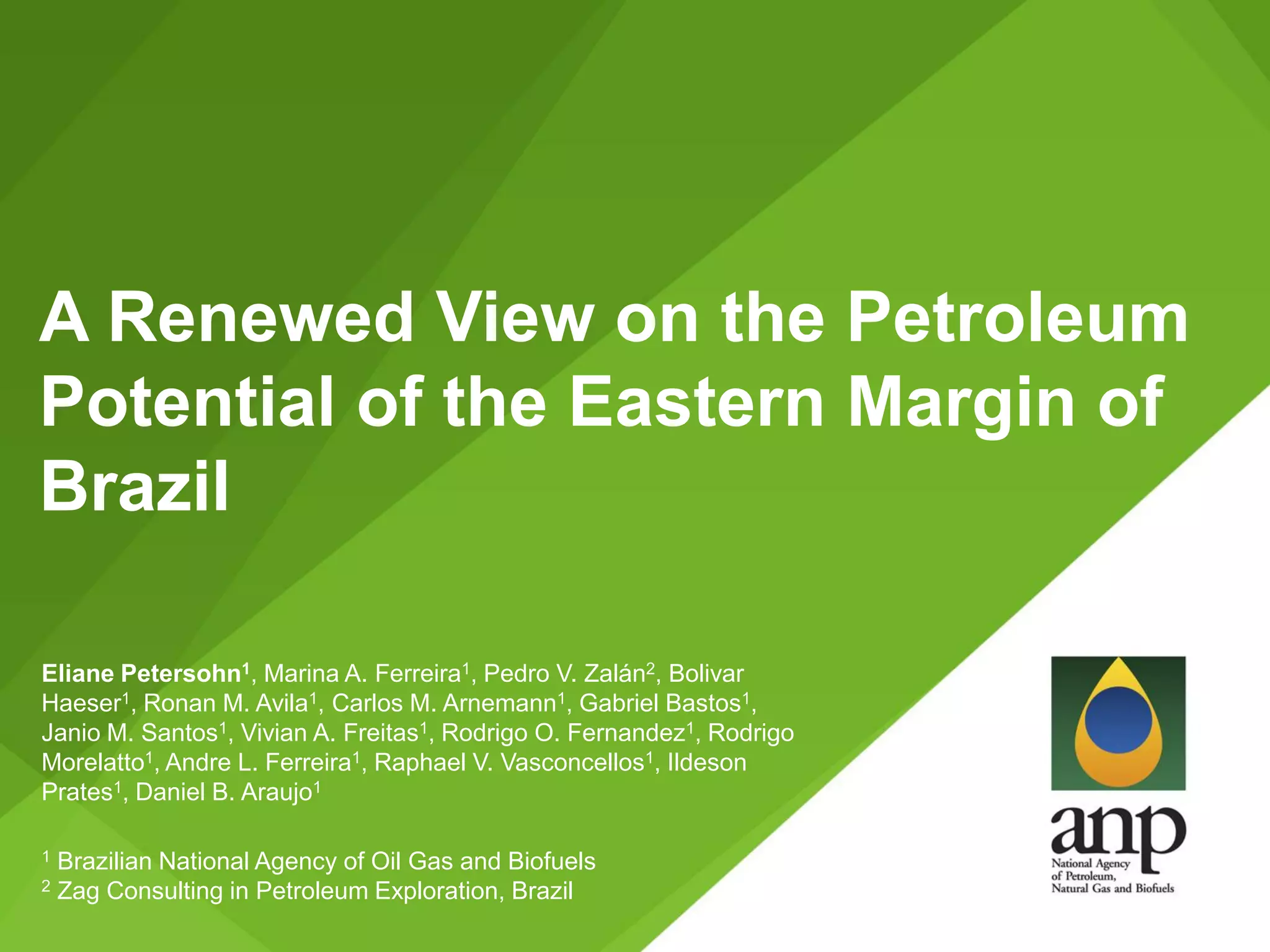

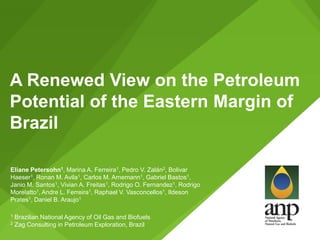

1. A Renewed View on the Petroleum
Potential of the Eastern Margin of
Brazil
Eliane Petersohn1, Marina A. Ferreira1, Pedro V. Zalán2, Bolivar
Haeser1, Ronan M. Avila1, Carlos M. Arnemann1, Gabriel Bastos1,
Janio M. Santos1, Vivian A. Freitas1, Rodrigo O. Fernandez1, Rodrigo
Morelatto1, Andre L. Ferreira1, Raphael V. Vasconcellos1, Ildeson
Prates1, Daniel B. Araujo1
1 Brazilian National Agency of Oil Gas and Biofuels
2 Zag Consulting in Petroleum Exploration, Brazil

2. Current Brazilian Exploration Scenario1
The 13th Bidding Round3
Conclusions4
Brazilian Eastern Margin2
Outline

3. Current Brazilian Exploration Scenario1
The 13th Bidding Round3
Conclusions4
Brazilian Eastern Margin2
Outline

4. ~ 2% of sedimentary areas:
Production Sharing
1st Pre-Salt Bidding Round
Remaining areas:
Concession Regime
Sedimentary area: 7.5 million km2
Exploration blocks area
under concession
~ 300,000 km2
433 oil and/or natural gas
fields
Current Brazilian
Exploration Scenario

5. 0
5
10
15
20
25
30
35
40
45
Proven Reserves (Bboe)
Proven Reserves
