A new generation of architectural facades
Trimo is a leading provider of building envelope solutions with sales in over 50 countries. They offer prefabricated steel buildings, structures, modular units, roofs, facades, and sports buildings. Their new product lines include Qbiss One, an aesthetic metal total wall solution, and Qbiss Air, an energy efficient glass curtain wall system. Qbiss One is a modular facade system that provides design freedom and is fully prefabricated. Qbiss Air uses an innovative insulating core to provide exceptional energy efficiency and minimal solar gain for the curtain wall. Both systems are sustainable, recyclable, and offer high performance.
More Related Content
Similar to A new generation of architectural facades
A new generation of architectural facades
- 1.

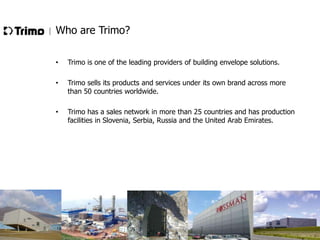

- 2. Who are Trimo? • Trimois one of the leading providers of building envelope solutions. • Trimo sells its products and services under its own brand across more than 50 countries worldwide. • Trimo has a sales network in more than 25 countries and has production facilities in Slovenia, Serbia, Russia and the United Arab Emirates.

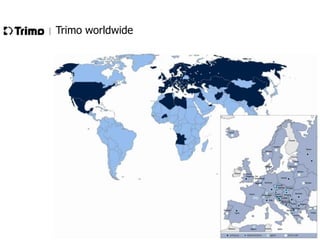

- 3.

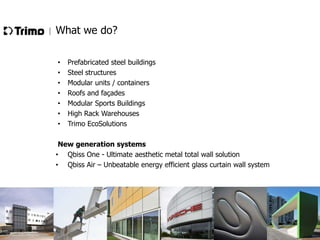

- 4. What we do? • • • • • • • Prefabricatedsteel buildings Steel structures Modular units / containers Roofs and façades Modular Sports Buildings High Rack Warehouses Trimo EcoSolutions New generation systems • Qbiss One - Ultimate aesthetic metal total wall solution • Qbiss Air – Unbeatable energy efficient glass curtain wall system

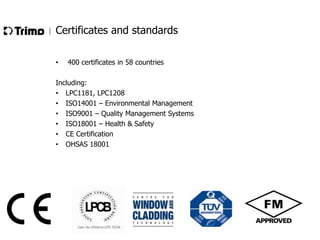

- 5. Certificates and standards • 400certificates in 58 countries Including: • LPC1181, LPC1208 • ISO14001 – Environmental Management • ISO9001 – Quality Management Systems • ISO18001 – Health & Safety • CE Certification • OHSAS 18001
- 7. Quality Building InnovativeSmart Skin
- 8. Ultimate aesthetic metaltotal wall solution

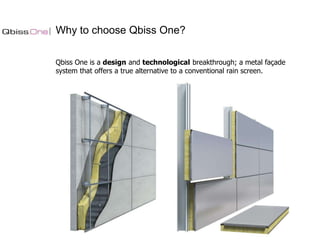

- 9. Why to chooseQbiss One? Qbiss One is a design and technological breakthrough; a metal façade system that offers a true alternative to a conventional rain screen.

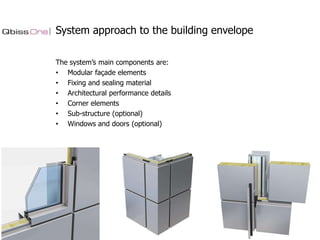

- 11. System approach tothe building envelope The system’s main components are: • Modular façade elements • Fixing and sealing material • Architectural performance details • Corner elements • Sub-structure (optional) • Windows and doors (optional)

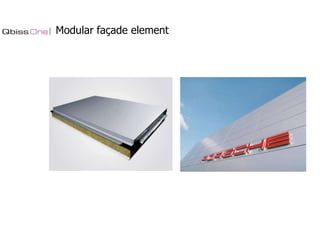

- 12.

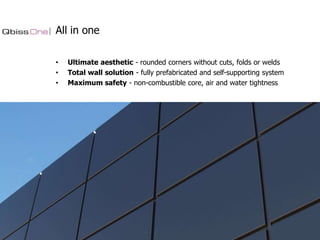

- 13. All in one • • • Ultimateaesthetic - rounded corners without cuts, folds or welds Total wall solution - fully prefabricated and self-supporting system Maximum safety - non-combustible core, air and water tightness

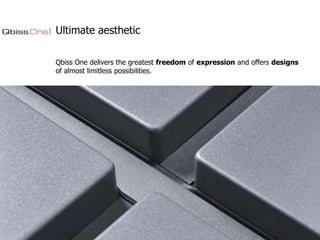

- 14. Ultimate aesthetic Qbiss Onedelivers the greatest freedom of expression and offers designs of almost limitless possibilities.

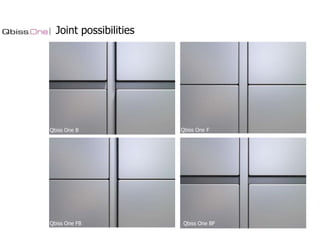

- 15. Joint possibilities Qbiss OneB Qbiss One FB Qbiss One F Qbiss One BF

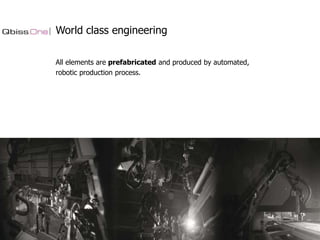

- 17. World class engineering Allelements are prefabricated and produced by automated, robotic production process.

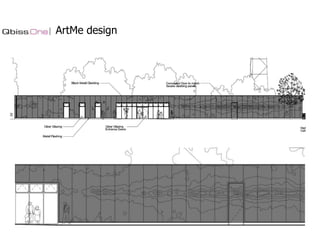

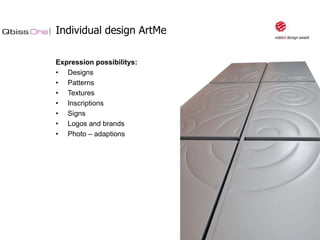

- 18. Individual design ArtMe Expressionpossibilitys: • Designs • Patterns • Textures • Inscriptions • Signs • Logos and brands • Photo – adaptions
- 19. Expression possibilites The gameof SCALE • abstractness close by, pattern distantly • expression power The game of SIZE • Facade element / fasade The game of SHADOW (depth) • 2D pattern 3D effect
- 20.

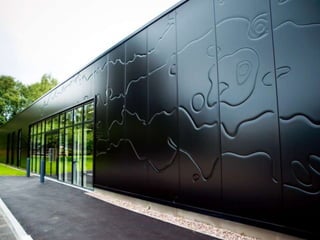

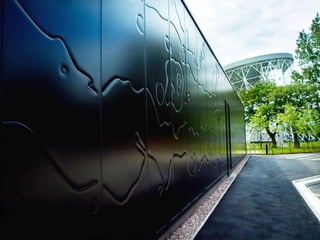

- 24.

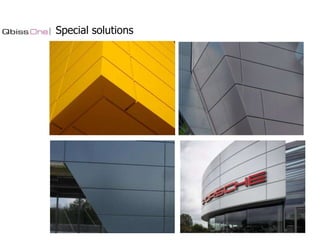

- 25.

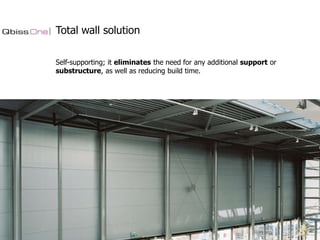

- 26. Total wall solution Self-supporting;it eliminates the need for any additional support or substructure, as well as reducing build time.
- 27. Interior walls andceilings Great opportunity is to use Qbiss One as internal cladding and additionally wall can continuously pass from exterior to interior and vice versa.

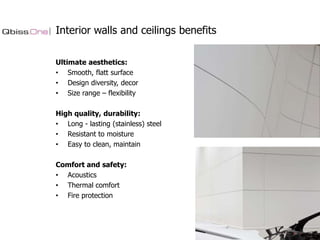

- 28. Interior walls andceilings benefits Ultimate aesthetics: • Smooth, flatt surface • Design diversity, decor • Size range – flexibility High quality, durability: • Long - lasting (stainless) steel • Resistant to moisture • Easy to clean, maintain Comfort and safety: • Acoustics • Thermal comfort • Fire protection
- 29. Acoustical internal ceiling Perforatedsolution: • sound reduction: Rw up to 34 dB • sound absorption: DLα = 8,3 dB
- 30. Fire safety &non toxic smoke Element’s is made of non - combustible mineral wool and assures EI 120 with a thickness of 150 mm. Mineral wool, do not emit toxic smoke, which is acknowledged to be the major cause of death in instances of fire and not the fire itself.
- 31. Air and watertightness Tested to the most demanding conditions of CWCT standards, Qbiss One façade system provides a superior air and water tight envelope.

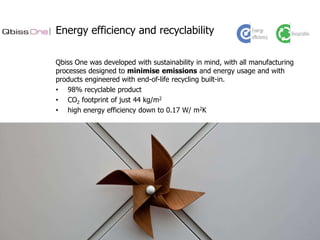

- 32. Energy efficiency andrecyclability Qbiss One was developed with sustainability in mind, with all manufacturing processes designed to minimise emissions and energy usage and with products engineered with end-of-life recycling built-in. • 98% recyclable product • CO2 footprint of just 44 kg/m2 • high energy efficiency down to 0.17 W/ m2K
- 33. Guarantee • • • 10 years Trimostandard guarantee on facade system Up to 30 years of extra steel sheet anti-corrosion and UV protection guarantee Tata Steel Colorcoat Prisma® - nonconditional! 50 micron PUR anti- corrosion and UV protection
- 34. Support and consulting • Qbissteam supports you throughout every phase of your architectural project. • To support and speed up the building design process Qbiss One objects are available in the BIM library for ArchiCad 16 and Revit design software.

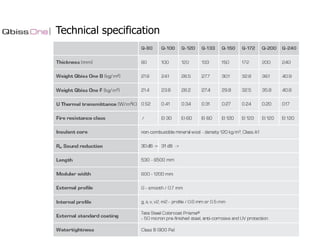

- 35.
- 36.
- 37.
- 38.

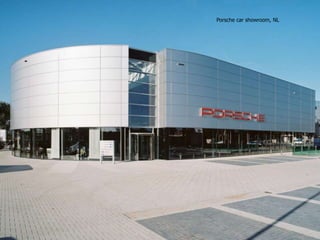

- 39. Showroom Porsche Amsterdam,Netherlands / 2009 Porsche car showroom, NL

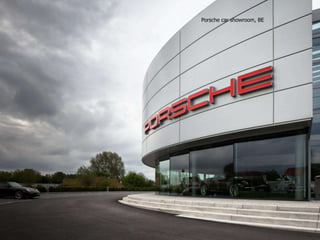

- 40. Showroom Porsche Knokke,Belgium 2011 Porsche car showroom, BE

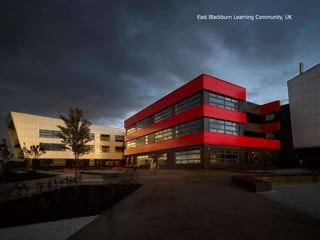

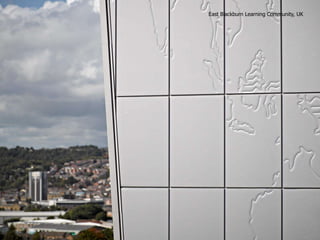

- 41. East Blackburn LearningCommunity, UK
- 42. East Blackburn LearningCommunity, UK
- 43. Winifred Holtby andTweendykes school, UK

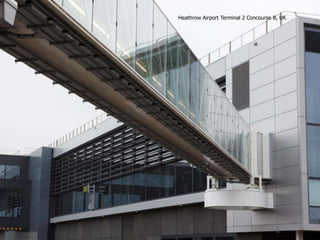

- 44. Heathrow Airport Terminal2 Concourse B, UK
- 45. Vialia High-Speed TrainStation, ES

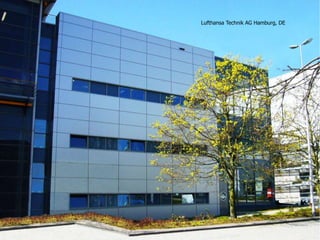

- 46. Lufthansa Technik AGHamburg, DE

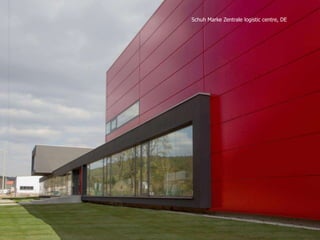

- 47. Schuh Marke Zentralelogistic centre, DE
- 48.

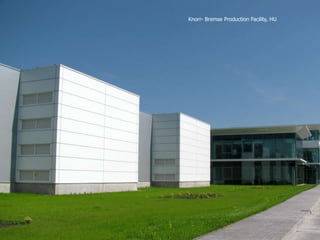

- 49. Knorr- Bremse ProductionFacility, HU

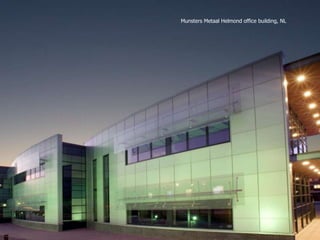

- 50. Munsters Metaal Helmondoffice building, NL

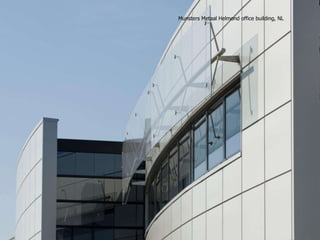

- 51. Munsters Metaal Helmondoffice building, NL

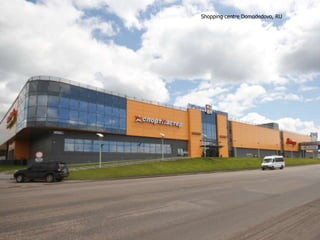

- 52.

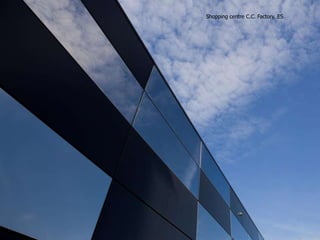

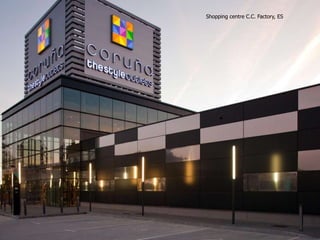

- 53. Shopping centre C.C.Factory, ES
- 54. Shopping centre C.C.Factory, ES

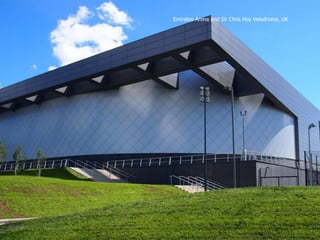

- 55. Emirates Arena andSir Chris Hoy Velodrome, UK
- 56. Hockey Stadium OndrejaNepela Arena, SK

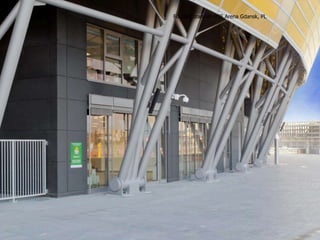

- 57. Football stadium PGEArena Gdansk, PL
- 58. Football stadium PGEArena Gdansk, PL
- 59. Unbeatable energy efficientglass curtain wall system
- 60. World’s best-performing glasscurtain wall system Qbiss Air is a unique unitized glass curtain wall system, which uses an innovative, multi-chamber insulating core, that provides exceptional energy efficiency and living comfort.

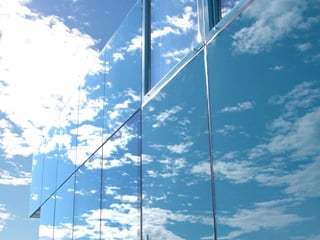

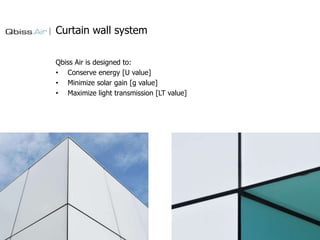

- 62. Curtain wall system QbissAir is designed to: • Conserve energy [U value] • Minimize solar gain [g value] • Maximize light transmission [LT value]
- 63. System Complete answer tocurtain wall systems: • Transparent, translucent and opaque units • Integrated substructure with flush wall inside • Sealing and fixing elements • Architectural details • Prefabricated corner elements • Integrated windows and doors elements

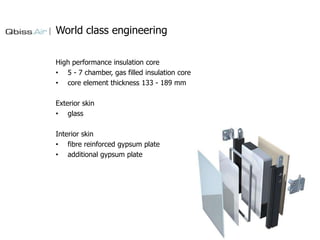

- 64. World class engineering Highperformance insulation core • 5 - 7 chamber, gas filled insulation core • core element thickness 133 - 189 mm Exterior skin • glass Interior skin • fibre reinforced gypsum plate • additional gypsum plate

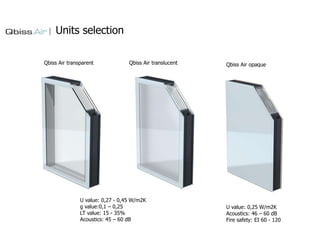

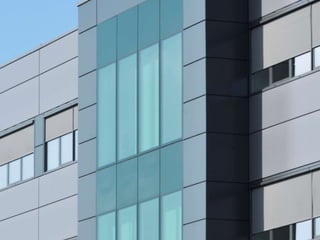

- 66. Units selection Qbiss Airtransparent Qbiss Air translucent U value: 0,27 - 0,45 W/m2K g value:0,1 – 0,25 LT value: 15 - 35% Acoustics: 45 – 60 dB Qbiss Air opaque U value: 0,25 W/m2K Acoustics: 46 – 60 dB Fire safety: EI 60 - 120

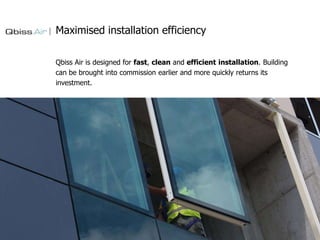

- 67. Maximised installation efficiency QbissAir is designed for fast, clean and efficient installation. Building can be brought into commission earlier and more quickly returns its investment.

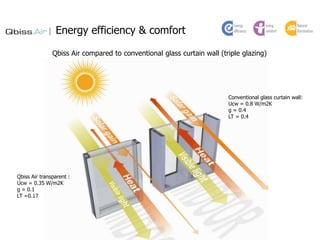

- 68. Energy efficiency &comfort Qbiss Air compared to conventional glass curtain wall (triple glazing) Conventional glass curtain wall: Ucw = 0.8 W/m2K g = 0.4 LT = 0.4 Qbiss Air transparent : Ucw = 0.35 W/m2K g = 0.1 LT =0.17

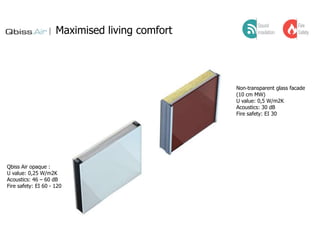

- 69. Maximised living comfort Non‐transparentglass facade (10 cm MW) U value: 0,5 W/m2K Acoustics: 30 dB Fire safety: EI 30 Qbiss Air opaque : U value: 0,25 W/m2K Acoustics: 46 – 60 dB Fire safety: EI 60 - 120

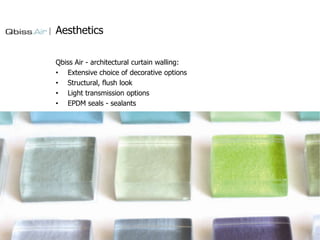

- 70. Aesthetics Qbiss Air -architectural curtain walling: • Extensive choice of decorative options • Structural, flush look • Light transmission options • EPDM seals - sealants

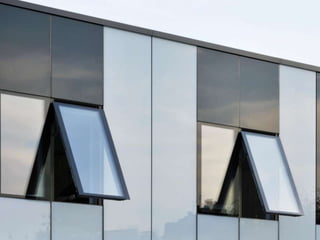

- 72. Active sustainability Qbiss Airassures sustainable benefits: • Exceptional energy savings • Unrivalled combination of key performance criteria (g, U, LT) • Increased internal floor space • High recyclability • Low CO2 emissions

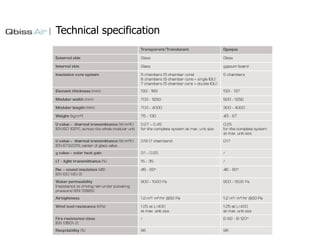

- 73.
- 74.
- 75.
- 76.
- 77.
- 78.

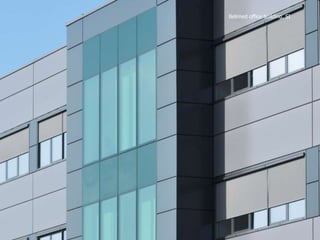

- 79.

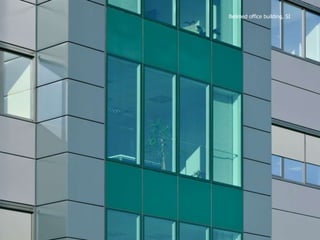

- 80.

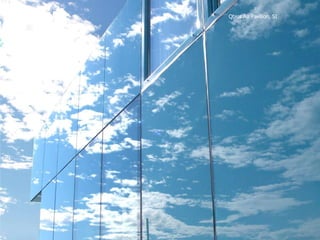

- 81.

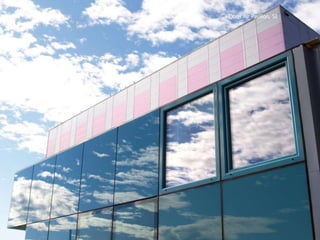

- 82.

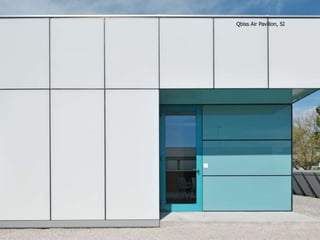

- 83.
