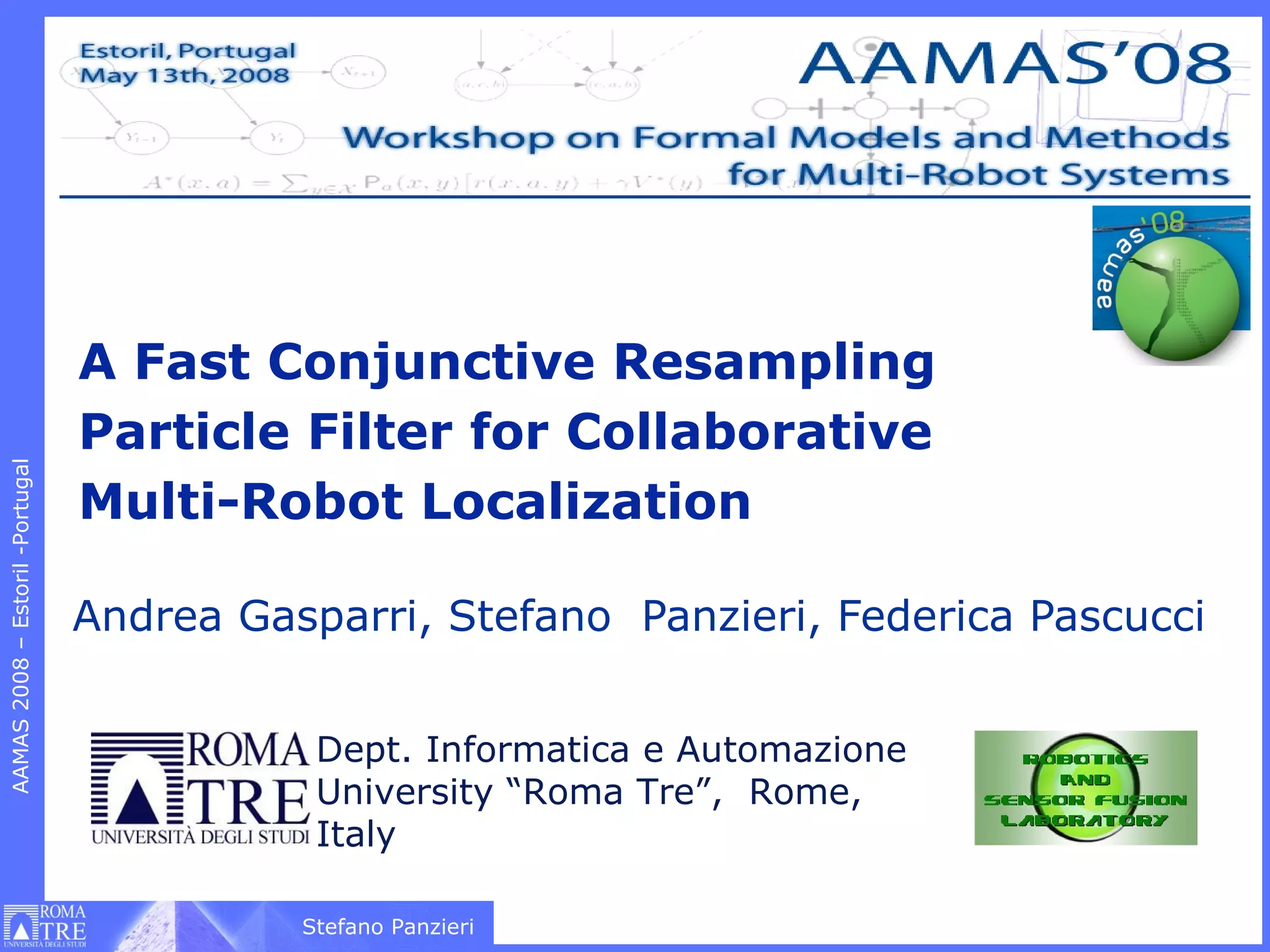

A Fast Conjunctive Resampling Particle Filter for Collaborative Multi-Robot Localization
1. A Fast Conjunctive Resampling
Particle Filter for Collaborative
Multi-Robot Localization
AAMAS 2008 – Estoril -Portugal
Andrea Gasparri, Stefano Panzieri, Federica Pascucci
Dept. Informatica e Automazione
University “Roma Tre”, Rome,
Italy
Stefano Panzieri

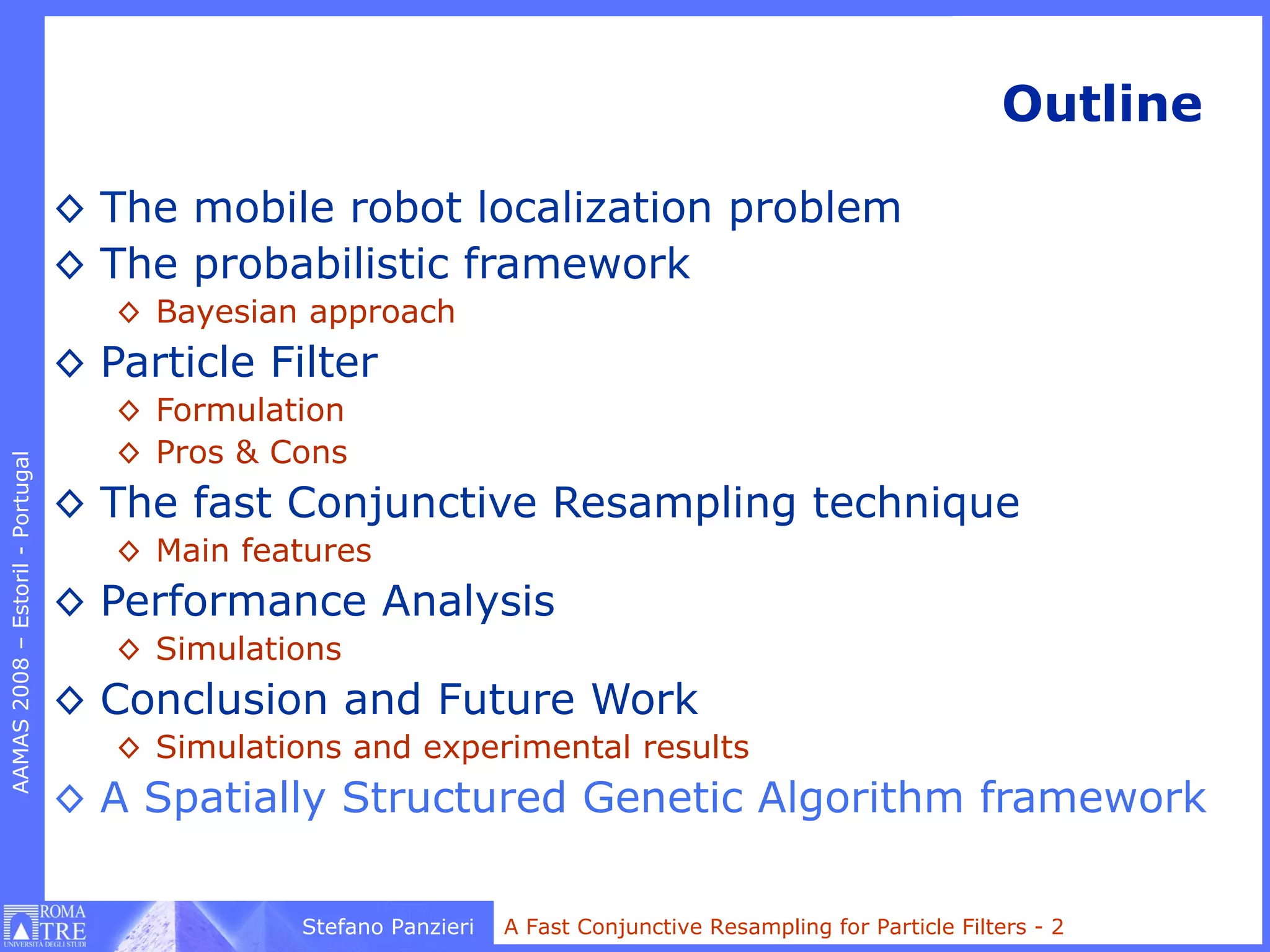

2. Outline
◊ The mobile robot localization problem
◊ The probabilistic framework
◊ Bayesian approach
◊ Particle Filter
Robotica Autonoma & Fusione Sensoriale
◊ Formulation
◊ Pros & Cons
AAMAS 2008 – Estoril - Portugal
◊ The fast Conjunctive Resampling technique
◊ Main features
◊ Performance Analysis
◊ Simulations
◊ Conclusion and Future Work
◊ Simulations and experimental results
◊ A Spatially Structured Genetic Algorithm framework
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 2
3. The mobile robot localization problem
◊ No a priori knowledge on robot pose
◊ Sensorial data
◊ Environment shape
◊ Motion capabilities
◊ Most of solutions based on the Probabilistic framework
Robotica Autonoma & Fusione Sensoriale
◊ Gaussian hypothesis:
AAMAS 2008 – Estoril - Portugal
◊ Kalman Filtering
◊ typically unimodal
◊ Relaxing gaussianity:
◊ Grid based approach
◊ Computational effort
◊ Sequential Montecarlo integration (particles)
◊ High number of particles
◊ Not robust on kidnapping
◊ Degeneracy problem
◊ PF enhanced
◊ More complex resampling steps
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 3
4. The Probabilistic Framework
◊ The probability theory provides a suitable framework for the
localization problem
◊ The robot’s pose can be described by a probability distribution,
named Belief:
Robotica Autonoma & Fusione Sensoriale
AAMAS 2008 – Estoril - Portugal
◊ Prior and Posterior beliefs can be obtained by splitting perceptual
data Zk in this way:
◊ The prior represents the Belief after integration of only input data
and before it receives last perceptual data zk.
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 4
5. Probabilistic Framework
◊ A recursive formulation can be obtained by Applying the Total
Probability Theorem, the Bayes’rule and some simplifying (Markov)
assumptions
Robotica Autonoma & Fusione Sensoriale
AAMAS 2008 – Estoril - Portugal
◊ Due to computational difficulties of handling the above integral,
approximations are required
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 5
6. Monte Carlo (naive Particle Filters)
◊ Monte carlo integration methodhs are algorithms for the
approximate evaluation of definite integrals
◊ The Perfect Monte Carlo Sampling draws N independent and
identically distributed random samples according to Bel+(xk):
Robotica Autonoma & Fusione Sensoriale
AAMAS 2008 – Estoril - Portugal
◊ Where is the delta-Dirac mass located in xk(i)
◊ Due to difficulty of efficient sampling from the posterior distribution
Bel+(xk) at any sample time k a different approach is required
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 6
7. Importance Sampling
◊ The key idea is of drawing samples from a normalized Importance
Sampling distribution which ha a support including
that of the posterior belief Bel+(xk):
Robotica Autonoma & Fusione Sensoriale
AAMAS 2008 – Estoril - Portugal
◊ Where wk(i) is the importance weight that can be recursively
obtained as:
◊ In mobile robotics, a suitable choice of the importance sampling
distribution is the prior Bel-(xk) distribution. With this choice:
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 7
8. Monte Carlo Integration Methods
◊ Advantages
◊ Ability to represent arbitrary densities
◊ Dealing with non-Gaussian noise
Robotica Autonoma & Fusione Sensoriale
◊ Adaptive focusing on probable regions of state-space
◊ Issues
AAMAS 2008 – Estoril - Portugal
◊ Degeneracy and loss of diversity,
◊ The choice of the optimal number of samples,
◊ The choice of importance density is crucial.
◊ Sampling Importance Resampling (SIR)
◊ Use prior Belief distribution Bel-(xk)
◊ Sistematic Resampling (SR)
◊ To deal with degeneracy problem
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 8
9. Particle Filter for Robot Localization
◊ The robot moves according to the unicycle model
φ
Robotica Autonoma & Fusione Sensoriale
y
AAMAS 2008 – Estoril - Portugal
◊ Where
x
◊ We suppose the robot equipped with laser rangefinders,
and the environment described by a set M of segments.
◊ The observation model is
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 9
10. Perceptual model
◊ Any particle, i.e., a possible robot pose, differs from the real
state in terms of the following quadratic distance error:
Robotica Autonoma & Fusione Sensoriale
◊ Where is the vector of measured distances
◊ The perceptual model adopted is
AAMAS 2008 – Estoril - Portugal
x
x
ˆ
z1
ˆ
z2
z1 x
z2
x
ˆ
z3
z3 x
x
Hypothesis
Real robot
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 10
11. Multi robot approach
◊ Suppose collaboration among robots
◊ We need to exchange belief information
◊ How information should be exchanged?
◊ What should be sent through the communication channel?
x
Robotica Autonoma & Fusione Sensoriale
x
AAMAS 2008 – Estoril - Portugal
x RA
x
x
RB
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 11
12. A previous approach
◊ Called the Belief related to the set of
robots, we suppose that the probability distribution P can be
decomposed in a product using marginal distributions
Robotica Autonoma & Fusione Sensoriale
◊ In this way the Belief update of one robot that takes into
AAMAS 2008 – Estoril - Portugal
account the an others Belief can be written
◊ But in a Monte Carlo context this integral cannot be easily done
due to Dirac impulses!
◊ D. Fox, W. Burgard, H. Kruppa, and S. Thrun. A probabilistic approach to collaborative
multi-robot localization. In Special issue of Autonomou Robots on Heterogeneous
Multi-Robot Systems, volume 8(3), 2000.
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 12
13. Reconstruct Belief using a density tree
Robotica Autonoma & Fusione Sensoriale
AAMAS 2008 – Estoril - Portugal
◊ D. Fox, W. Burgard, H.
Kruppa, and S. Thrun
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 13
14. The Fast Conjunctive Resampling
Main Features
Conjunction:
Robotica Autonoma & Fusione Sensoriale
◊ The conjunction of the best estimates
consists of substituting low weight
particles of one robot with others
AAMAS 2008 – Estoril - Portugal
having high weight on remote
robots propagation
Propagation:
◊ The propagation of sensory data
consists of an exchange of laser
readings that can be exploited to
solve environmental ambiguities
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 14
15. Conjunction
◊ Substitute lo weight particles of
one robot with high weight ones
projected from other robots
◊ We need a status for the particle:
Robotica Autonoma & Fusione Sensoriale
good, bad, new
◊ A particle is marked good during
AAMAS 2008 – Estoril - Portugal
input evolution if the weight of its
ancestor is above a threshold
◊ During a resample crated
particles are set new
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 15
16. Propagation of sensory data
x
z1RA
RA
z2 Integrate observations coming from robot RB
x
into weight evaluation of particles of robot RA
Robotica Autonoma & Fusione Sensoriale
x RA
RA
z3 z1RB x
z RA , RB
AAMAS 2008 – Estoril - Portugal
x
z 2RB
RB
◊ Using both sensory data only particles fitting well on both
locations will survive
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 16
17. Lock mechanism for data exchange
◊ Repeated exchange of information will simply result in
over-convergence to a bogus result
Robotica Autonoma & Fusione Sensoriale
◊ A simple locking mechanism can be introduced
AAMAS 2008 – Estoril - Portugal
◊ Two robots are free to exchange data when
◊ A conjunction with other robots happened since their
last meeting
◊ Robots have processed a consistent amount of
observations,
◊ An additional percentage of random resampling is
considered.
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 17
18. Complexity
◊ Note that, each time a conjunction of the best estimates is
performed, the weight of particles must be re-computed.
◊ In particular, this can be done without any additional computational
load simply letting follow the conjunction by the propagation of
Robotica Autonoma & Fusione Sensoriale
sensory data (which already implies the re-computation of particles
weights)
AAMAS 2008 – Estoril - Portugal
◊ This collaborative approach is very simple, it is easy to implement
and it does not increase the asymptotic complexity of the plain
Particles Filter
◊ In fact, it leads to an additional O(N) term to the computational
complexity of the plain Particle Filters that is O(N) as well
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 18
19. Performance Analysis
First Environment
◊ 4 Robots
◊ Ambiguous Environment
◊ 100 Trials
◊ Partial Communication
Robotica Autonoma & Fusione Sensoriale
AAMAS 2008 – Estoril - Portugal
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 19
20. Performance Analysis
Estimation Accuracy
Robotica Autonoma & Fusione Sensoriale
AAMAS 2008 – Estoril - Portugal
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 20
26. Considerations
Robotica Autonoma & Fusione Sensoriale
AAMAS 2008 – Estoril - Portugal
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 26
27. Future Work
◊ A deeper investigation on the inter-dependence
among beliefs when performing conjunction
Robotica Autonoma & Fusione Sensoriale
◊ An implementation of the proposed approach in a
real context
AAMAS 2008 – Estoril - Portugal
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 27
29. An other promising technique:
structuring a GA over a Network
◊ Lets consider the genetic
population as a Complex
System and take advantage of
the Evolutionary Cellular
Automata theory
Robotica Autonoma & Fusione Sensoriale
◊ That means: give to the GA a
topological structure
AAMAS 2008 – Estoril - Portugal
◊ The topological structure largely
determines the dynamical
processes that can take place in
complex systems
◊ A spatial structure can be given to
the population to exploit a more
biological-like spreading dynamics
a regular lattice
◊ It can be seen not only like an
improvement of panmictic
populations but also a source of
new and original dynamics
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 29
30. Small World networks
◊ Watts-Strogatz Algorithm
Start with a lattice network with
degree k
Randomically (with probability p)
Robotica Autonoma & Fusione Sensoriale
a rewiring is made of each link
moving the connection from one
AAMAS 2008 – Estoril - Portugal
node to an other
◊ Low Average Path length
◊ Fast propagation
◊ High Clustering coefficient
◊ Evolutionary niches
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 30
31. Evolving with a Genetic Mating-Rule
Compute a mean fitness over
the net
2
1
Then, for each link, compare the
two finesses
Robotica Autonoma & Fusione Sensoriale
Node 1 Node 2 Action Basic principles
AAMAS 2008 – Estoril - Portugal
LOW LOW Both Self-Mutate Mutation
HIGH/LOW LOW/HIGH Node 2/1 is replaced with Elitism &
a Mutation of Node 1/2 Mutation
HIGH HIGH The lower is replaced Elitism & Cross-
with the Cross-over on over
the two
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 31
32. Comparing GA with SSGA in Localization
panmictic GA
(n=200)
Robotica Autonoma & Fusione Sensoriale
AAMAS 2008 – Estoril - Portugal
SSGA
(WS, k=3, n=200)
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 32
33. Need a circular formation?
Robotica Autonoma & Fusione Sensoriale
AAMAS 2008 – Estoril - Portugal
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 33
34. Multirobot
Robotica Autonoma & Fusione Sensoriale
AAMAS 2008 – Estoril - Portugal
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 34
35. Thanks again!
Robotica Autonoma & Fusione Sensoriale
AAMAS 2008 – Estoril - Portugal
Stefano Panzieri A Fast Conjunctive Resampling for Particle Filters - 35
