This document summarizes Tobias Ivarsson's presentation on the "Advanced Compiler" project for Jython. It discusses performance benchmarks that show Jython is currently slower than CPython. It also analyzes mismatches between Python and the JVM, such as late binding, call frames, and exception handling. However, it argues the new compiler provides an enabling platform for optimizations like call frame analysis, inline caching of builtins, and exception handler restructuring to improve performance. It concludes the project is not just about compilation but moving Jython forward to better leverage future JVMs.

1. A better Python
for the JVM
Tobias Ivarsson <tobias@thobe.org>

2. Hello, my name is...
• ...Tobias Ivarsson
• Jython Committer / Compiler geek
• Java developer at Neo Technology
Ask me about our graph database - Neo4j
(it works with Python)

3. • Overview of the “Advanced Compiler”
project
• Performance figures
• Python / JVM mismatch
• Getting better
• Summary

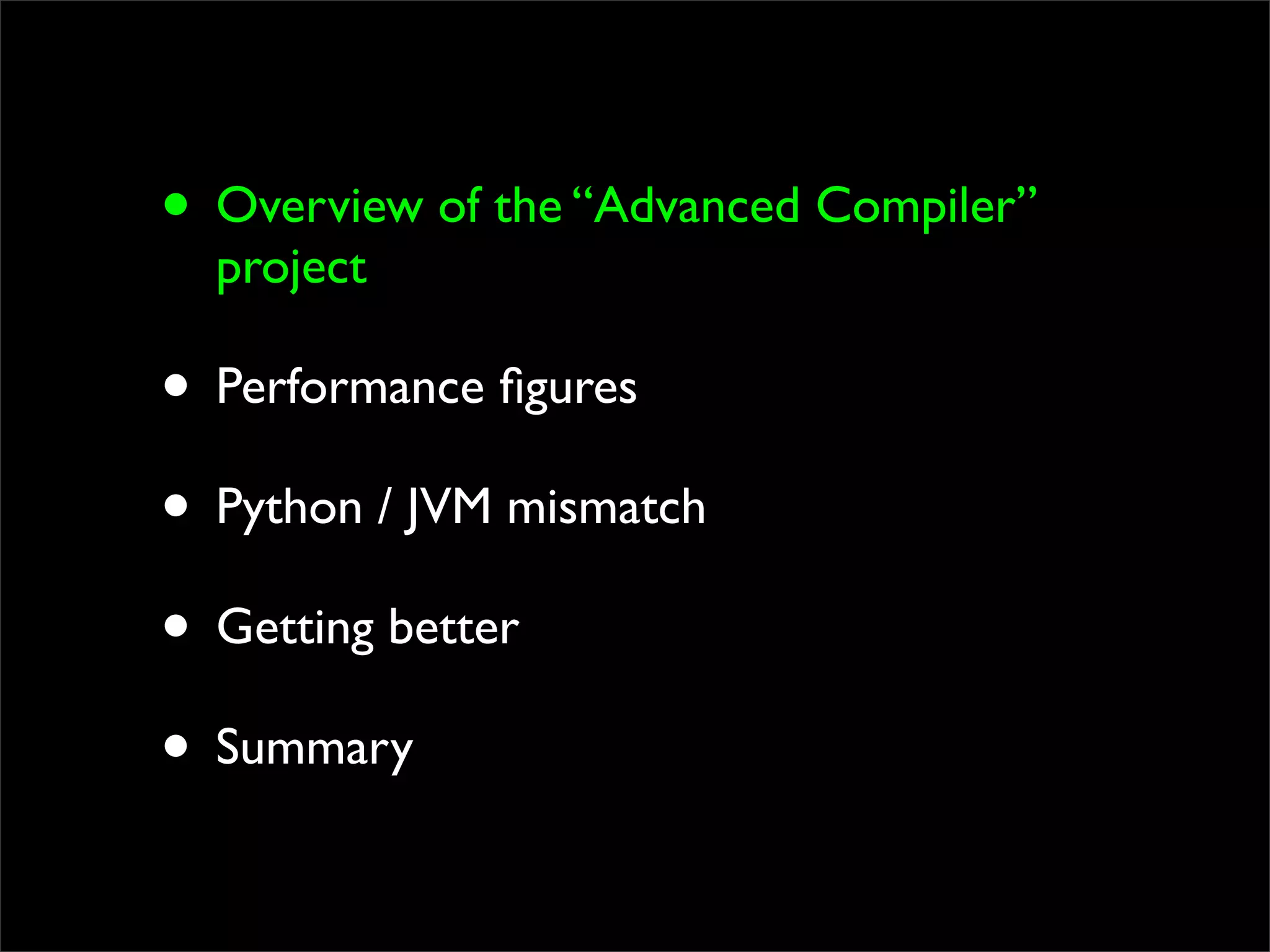

4. • Overview of the “Advanced Compiler”
project
• Performance figures
• Python / JVM mismatch
• Getting better
• Summary

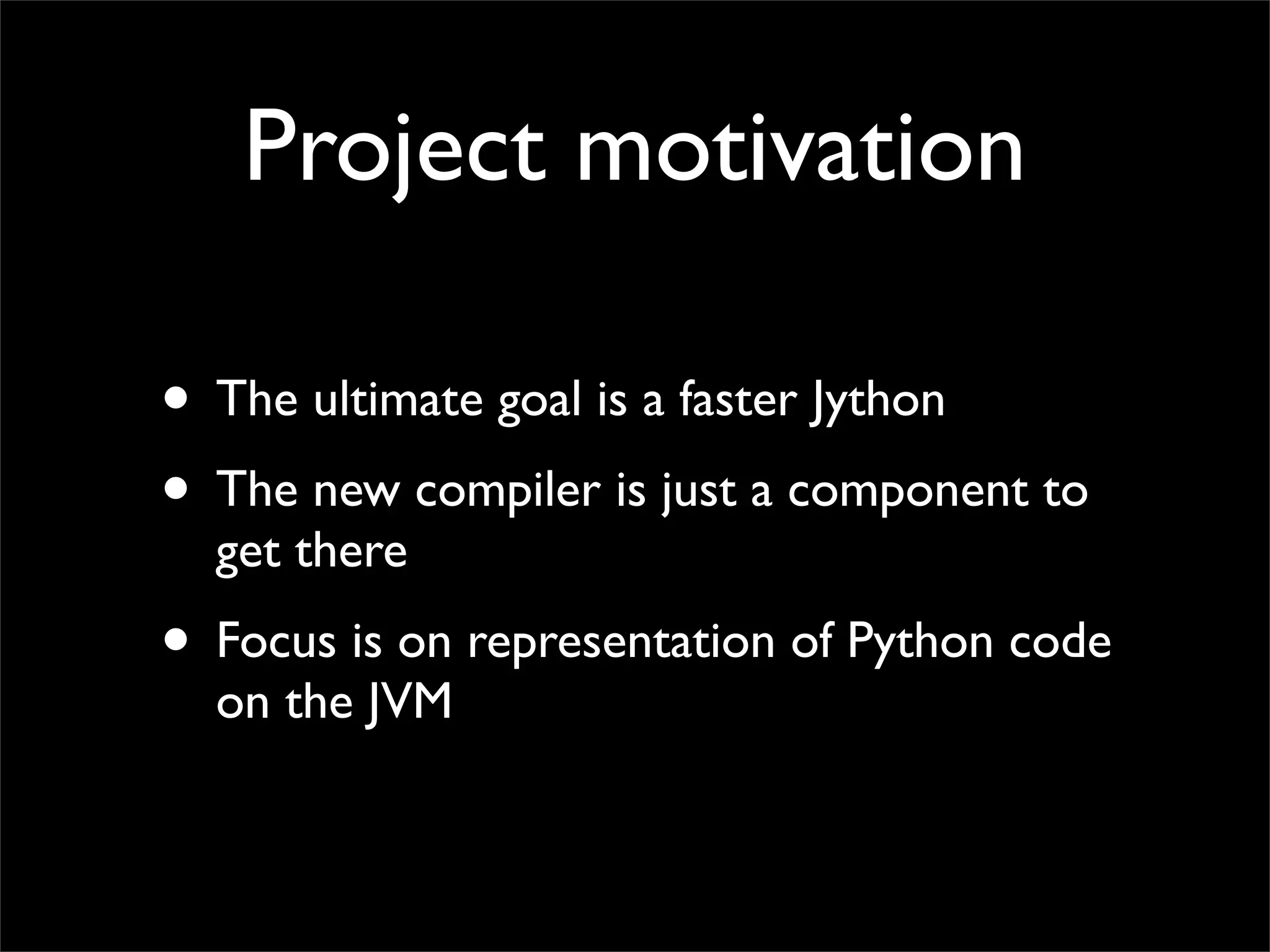

5. Project motivation
• The ultimate goal is a faster Jython
• The new compiler is just a component to
get there
• Focus is on representation of Python code
on the JVM

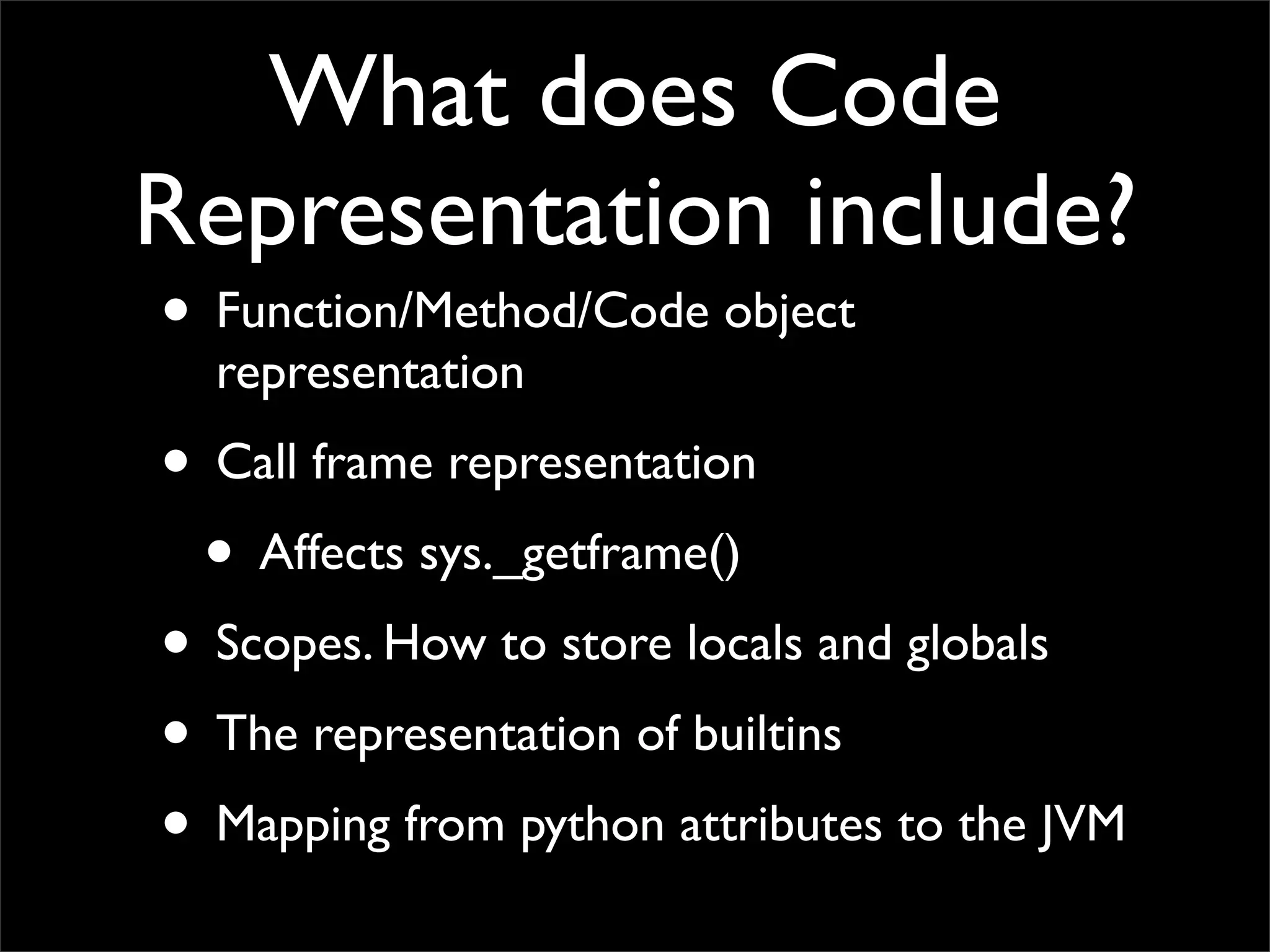

6. What does Code
Representation include?
• Function/Method/Code object
representation
• Call frame representation
• Affects sys._getframe()
• Scopes. How to store locals and globals
• The representation of builtins
• Mapping from python attributes to the JVM

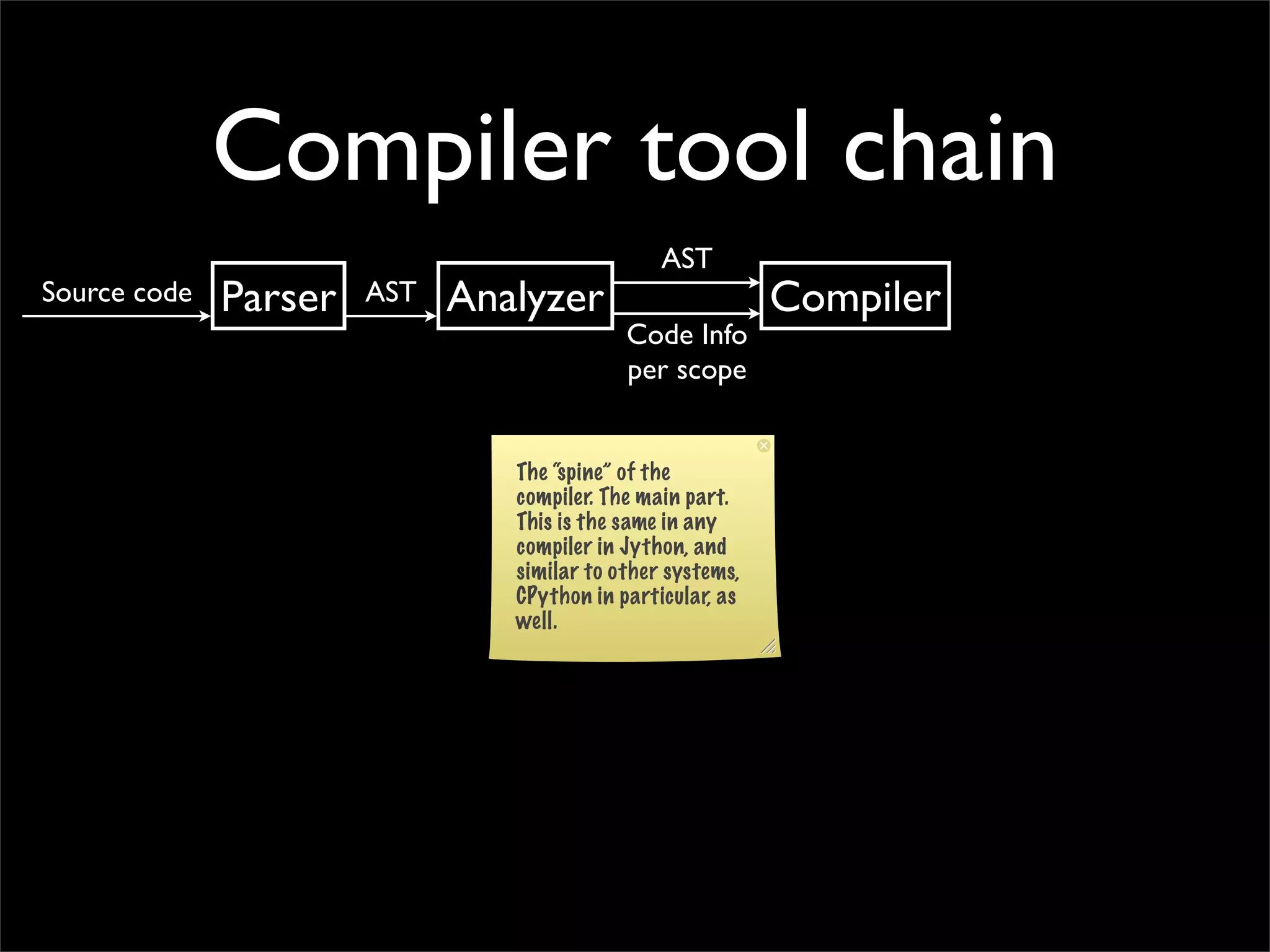

7. Compiler tool chain
AST
Source code Parser AST Analyzer Compiler
Code Info
per scope
The “spine” of the
compiler. The main part.
This is the same in any
compiler in Jython, and
similar to other systems,
CPython in particular, as
well.

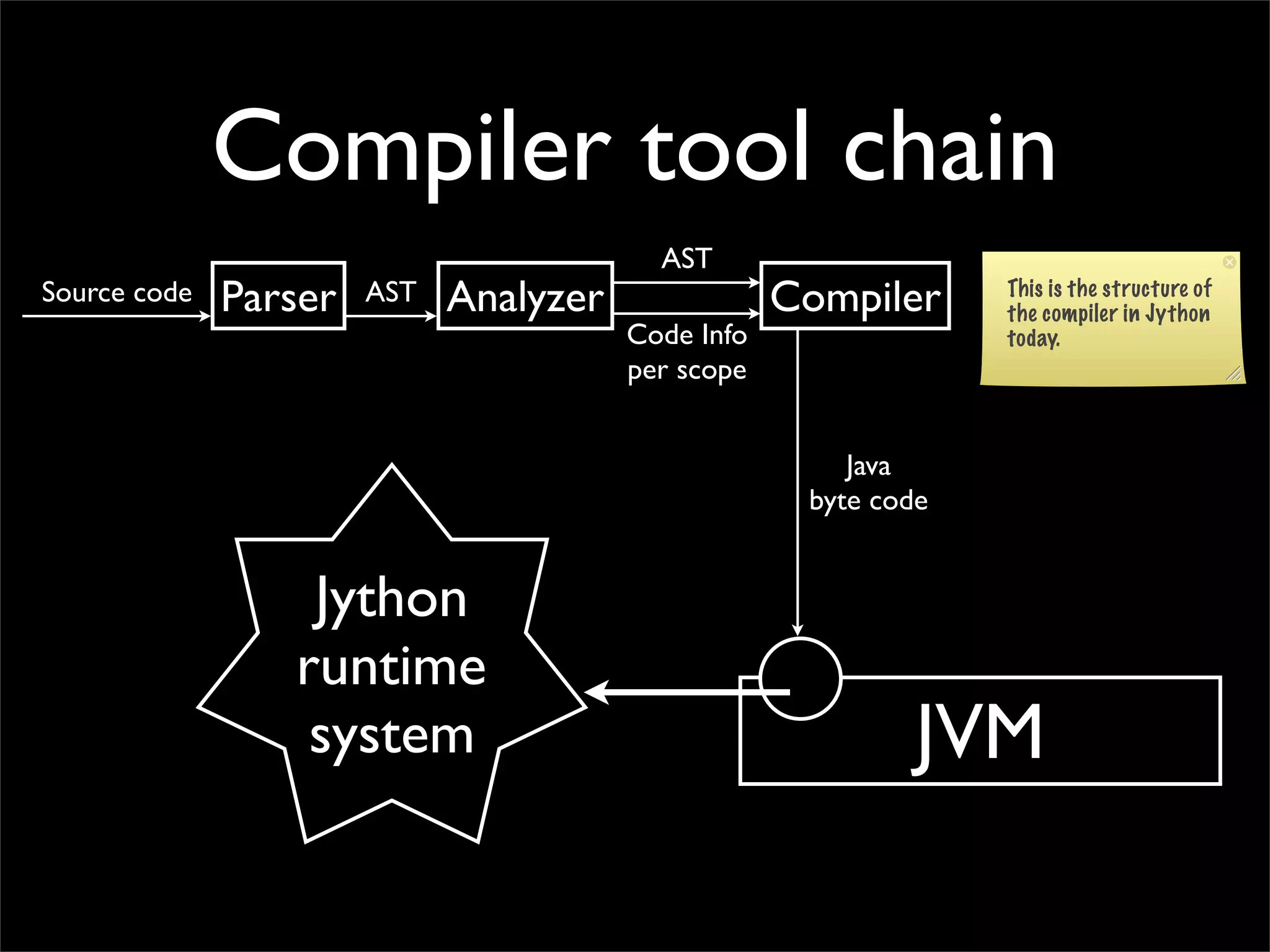

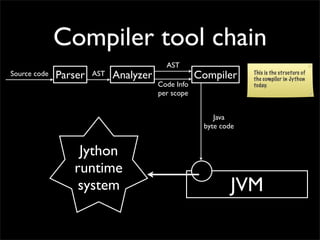

8. Compiler tool chain
AST
Source code Parser AST Analyzer Compiler This is the structure of
the compiler in Jython
Code Info today.
per scope
Java
byte code
Jython
runtime
system JVM

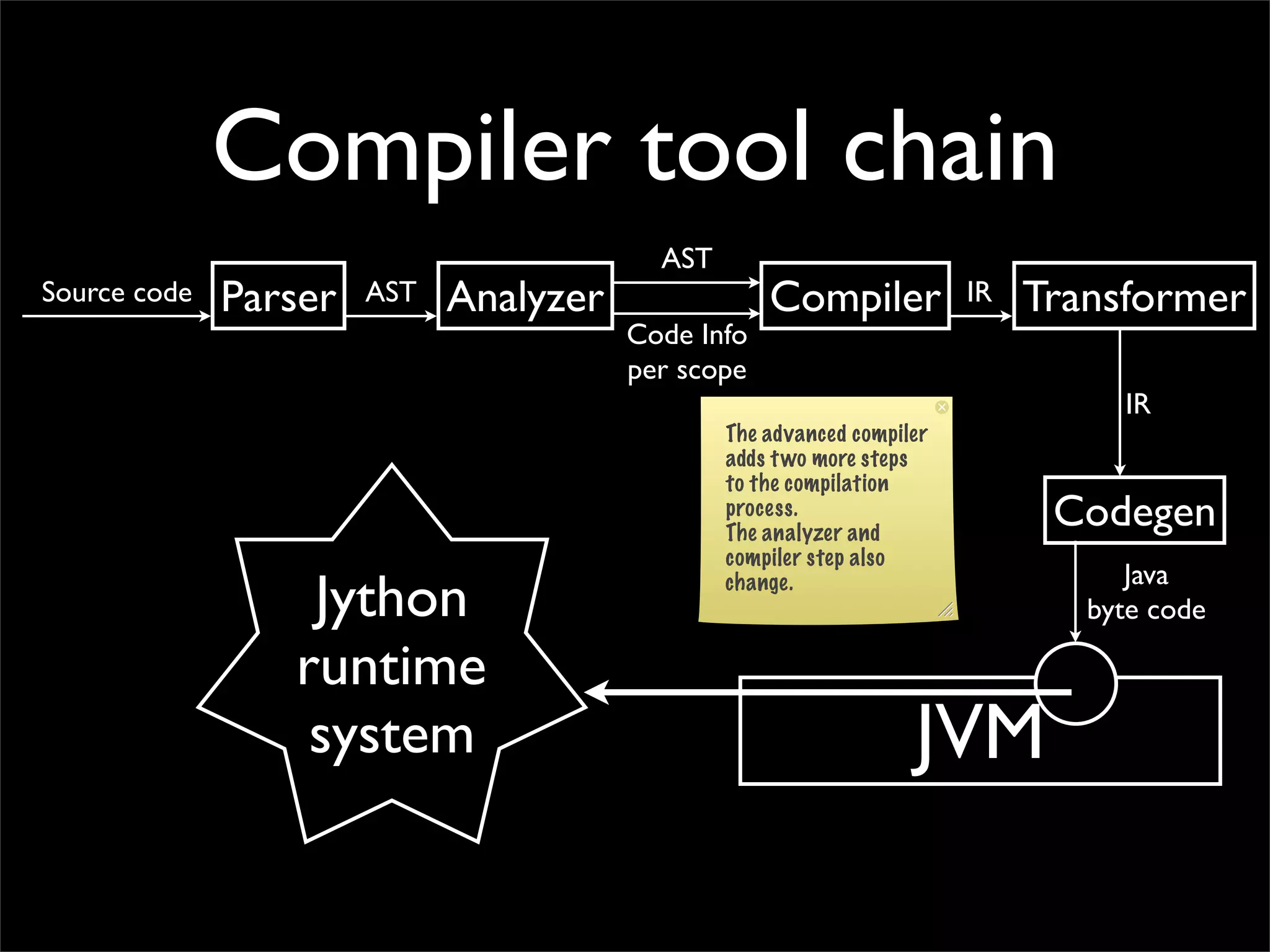

9. Compiler tool chain
AST
Source code Parser AST Analyzer Compiler IR Transformer
Code Info
per scope
IR
The advanced compiler
adds t wo more steps
to the compilation
process.
The analyzer and
Codegen
compiler step also
Java
Jython change.
byte code
runtime
system JVM

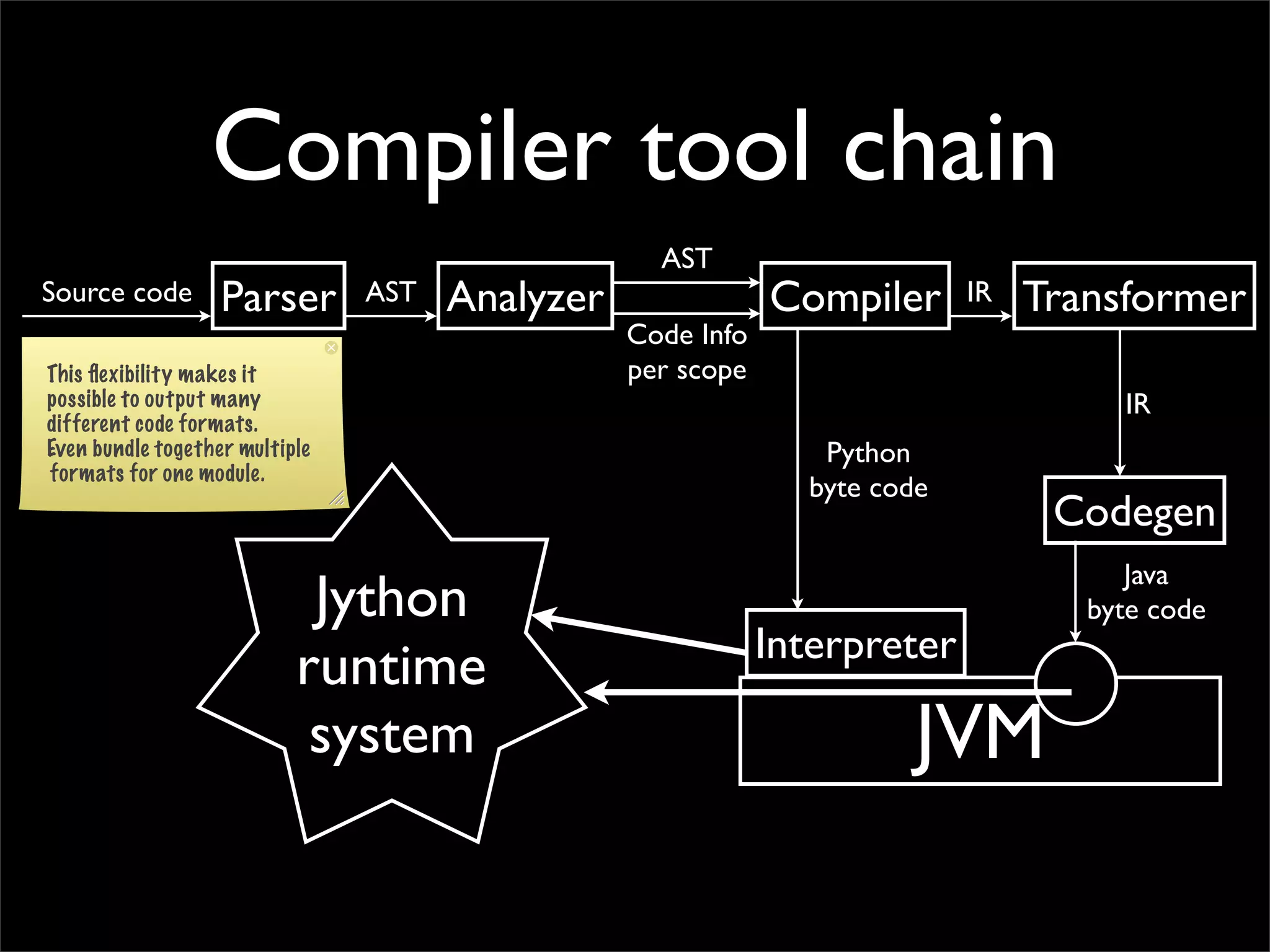

10. Compiler tool chain
AST
Source code Parser AST Analyzer Compiler IR Transformer
Code Info
This flexibility makes it per scope
possible to output many IR
different code formats.
Even bundle together multiple Python
formats for one module.
byte code
Codegen
Java
Jython byte code
Interpreter
runtime
system JVM

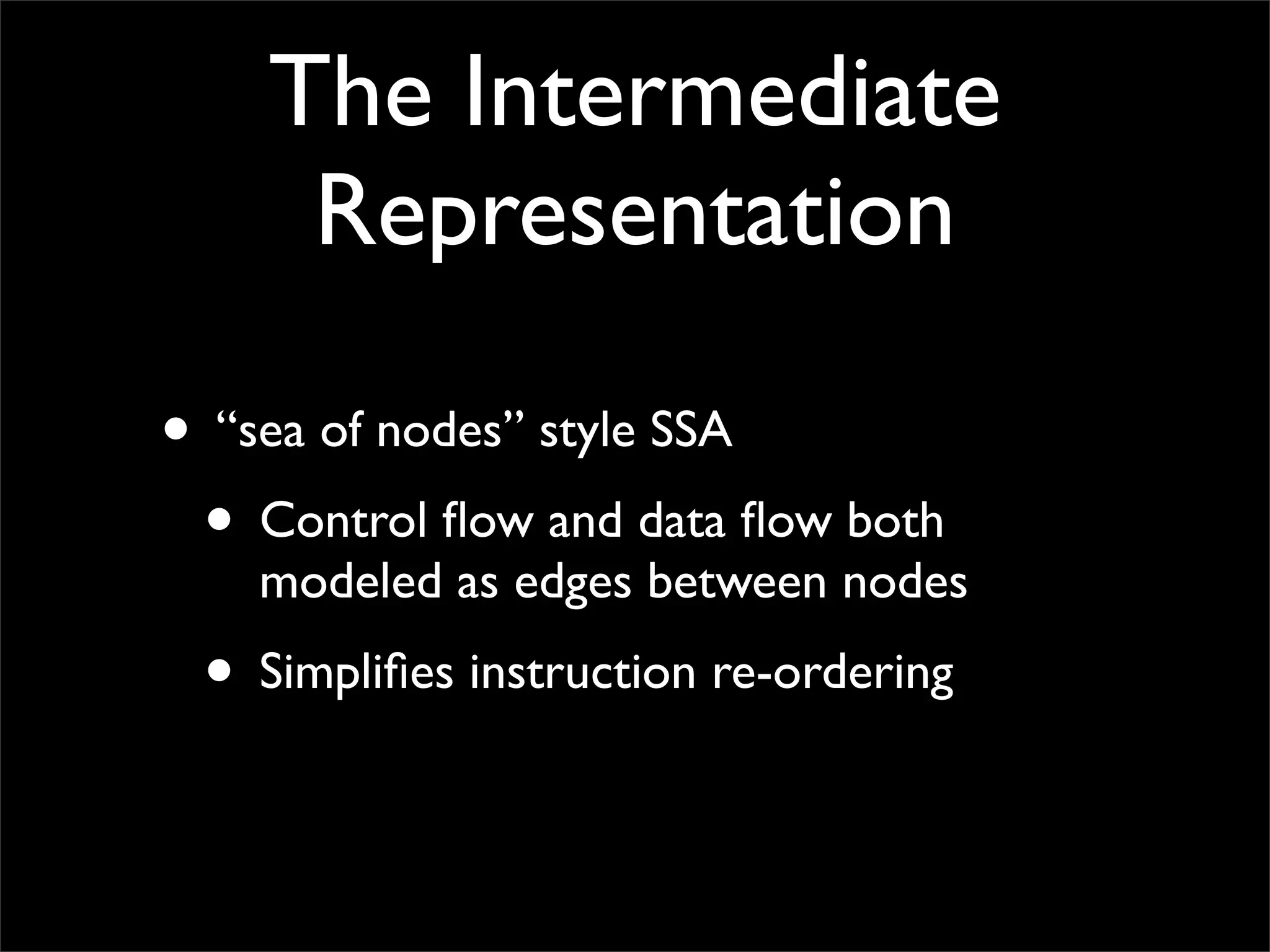

11. The Intermediate
Representation
• “sea of nodes” style SSA
• Control flow and data flow both
modeled as edges between nodes
• Simplifies instruction re-ordering

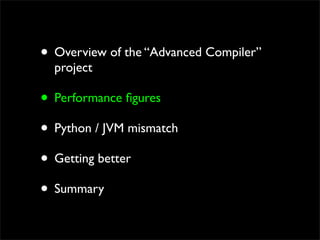

12. • Overview of the “Advanced Compiler”
project
• Performance figures
• Python / JVM mismatch
• Getting better
• Summary

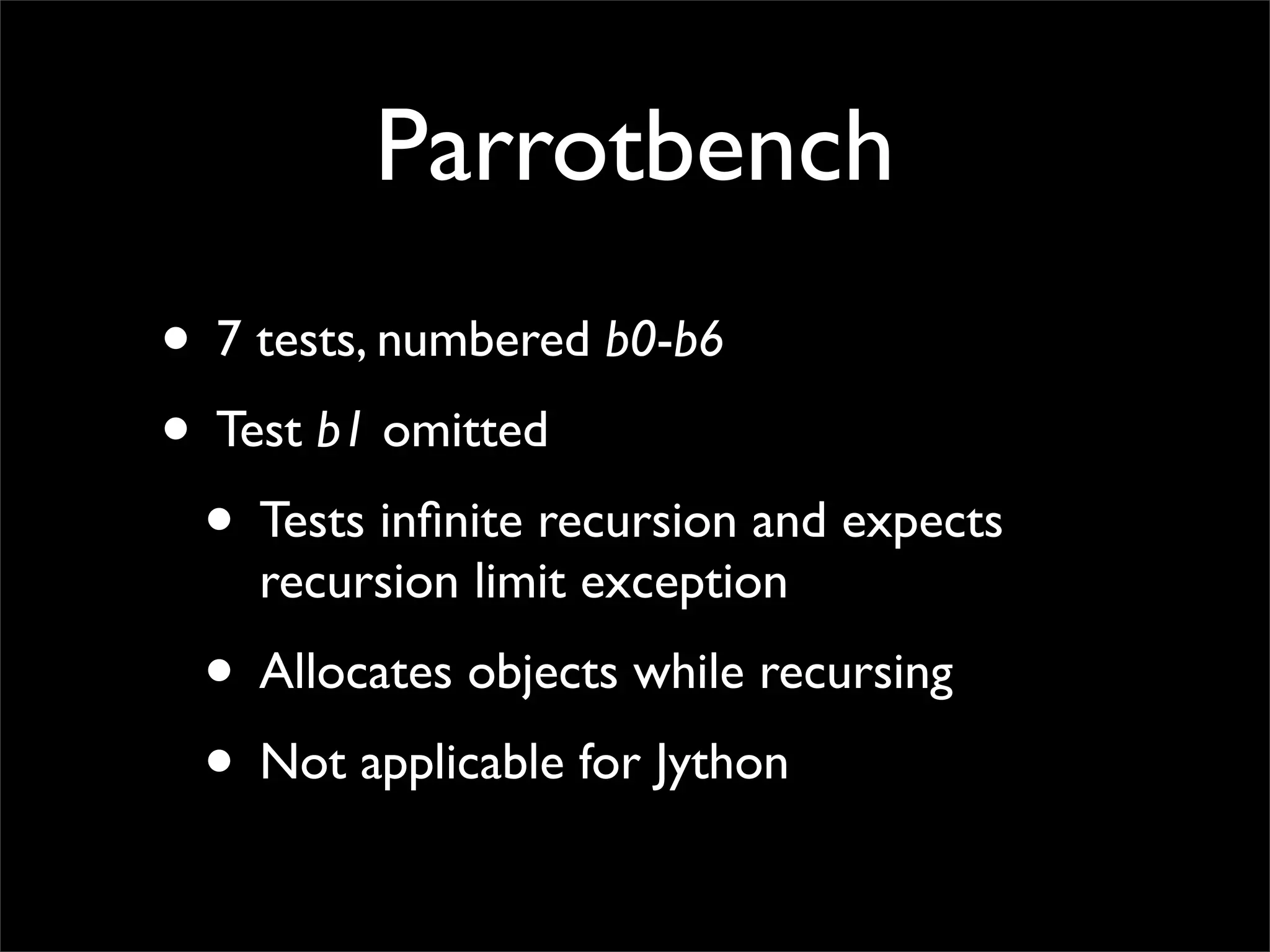

13. Parrotbench
• 7 tests, numbered b0-b6
• Test b1 omitted
• Tests infinite recursion and expects
recursion limit exception
• Allocates objects while recursing
• Not applicable for Jython

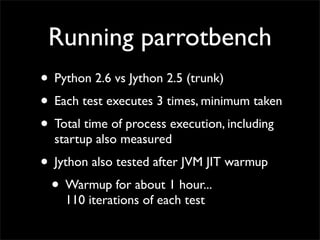

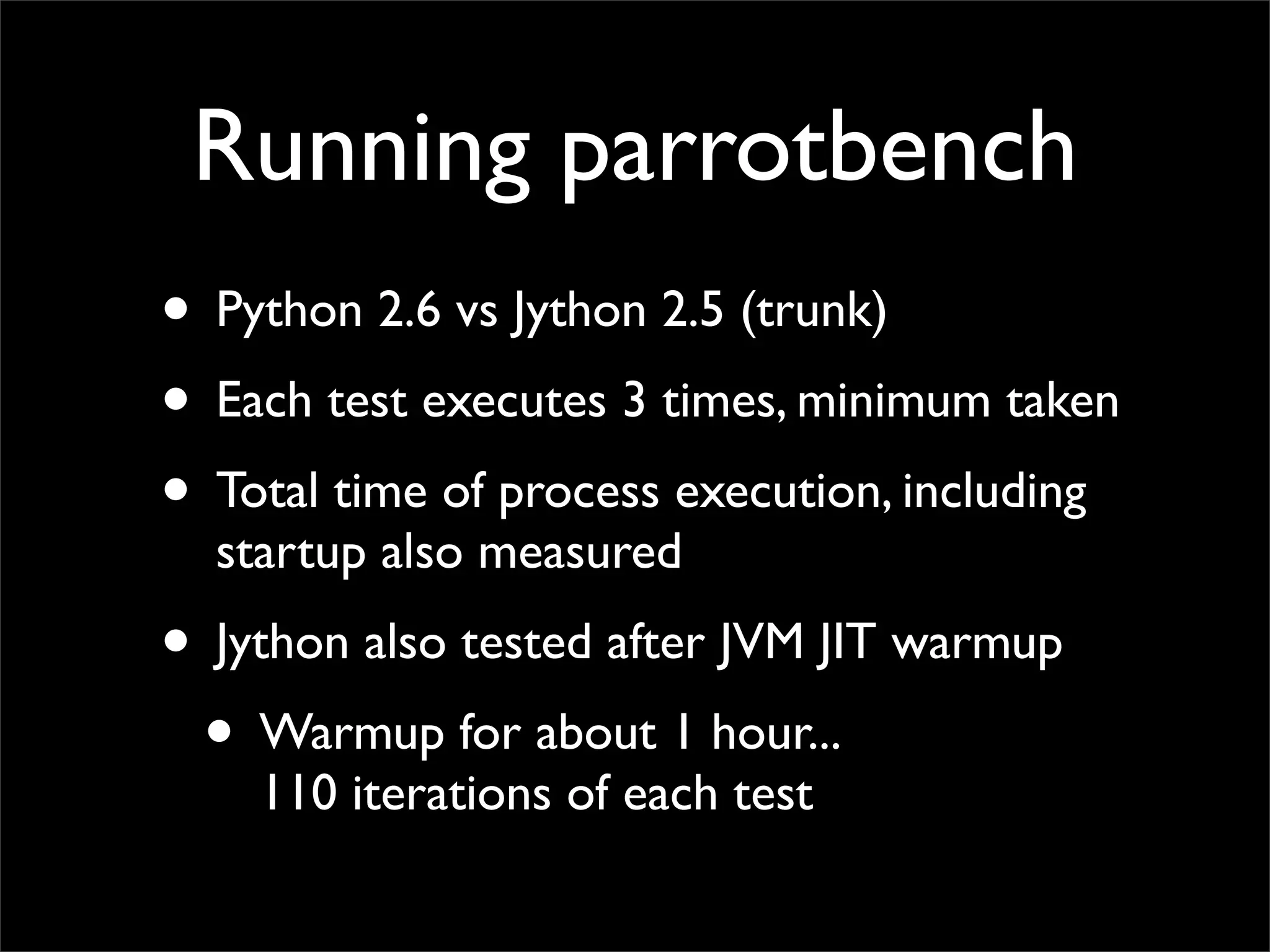

14. Running parrotbench
• Python 2.6 vs Jython 2.5 (trunk)
• Each test executes 3 times, minimum taken
• Total time of process execution, including
startup also measured
• Jython also tested after JVM JIT warmup
• Warmup for about 1 hour...
110 iterations of each test

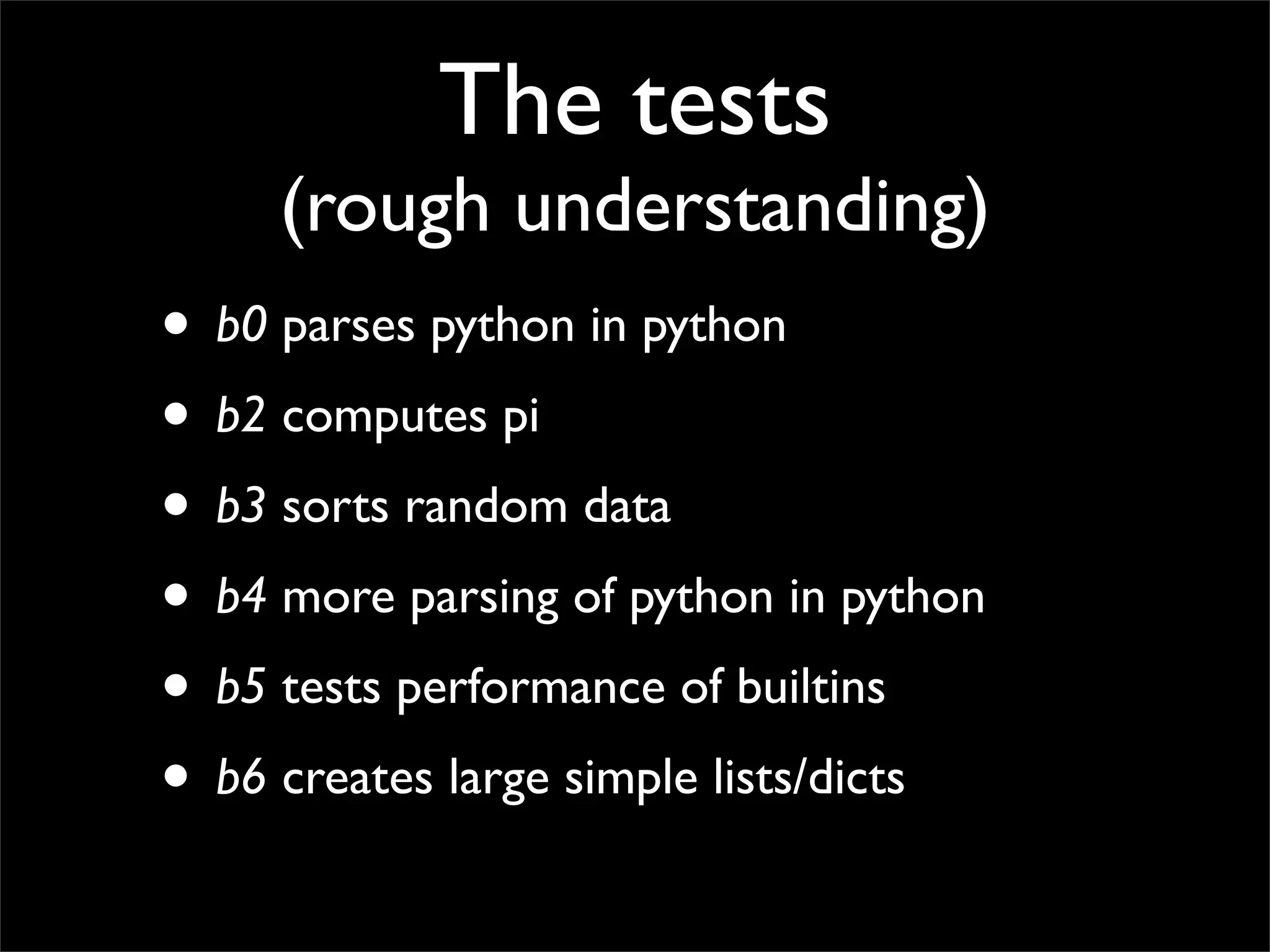

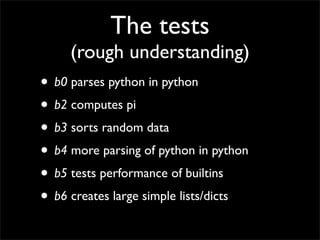

15. The tests
(rough understanding)
• b0 parses python in python
• b2 computes pi
• b3 sorts random data
• b4 more parsing of python in python
• b5 tests performance of builtins
• b6 creates large simple lists/dicts

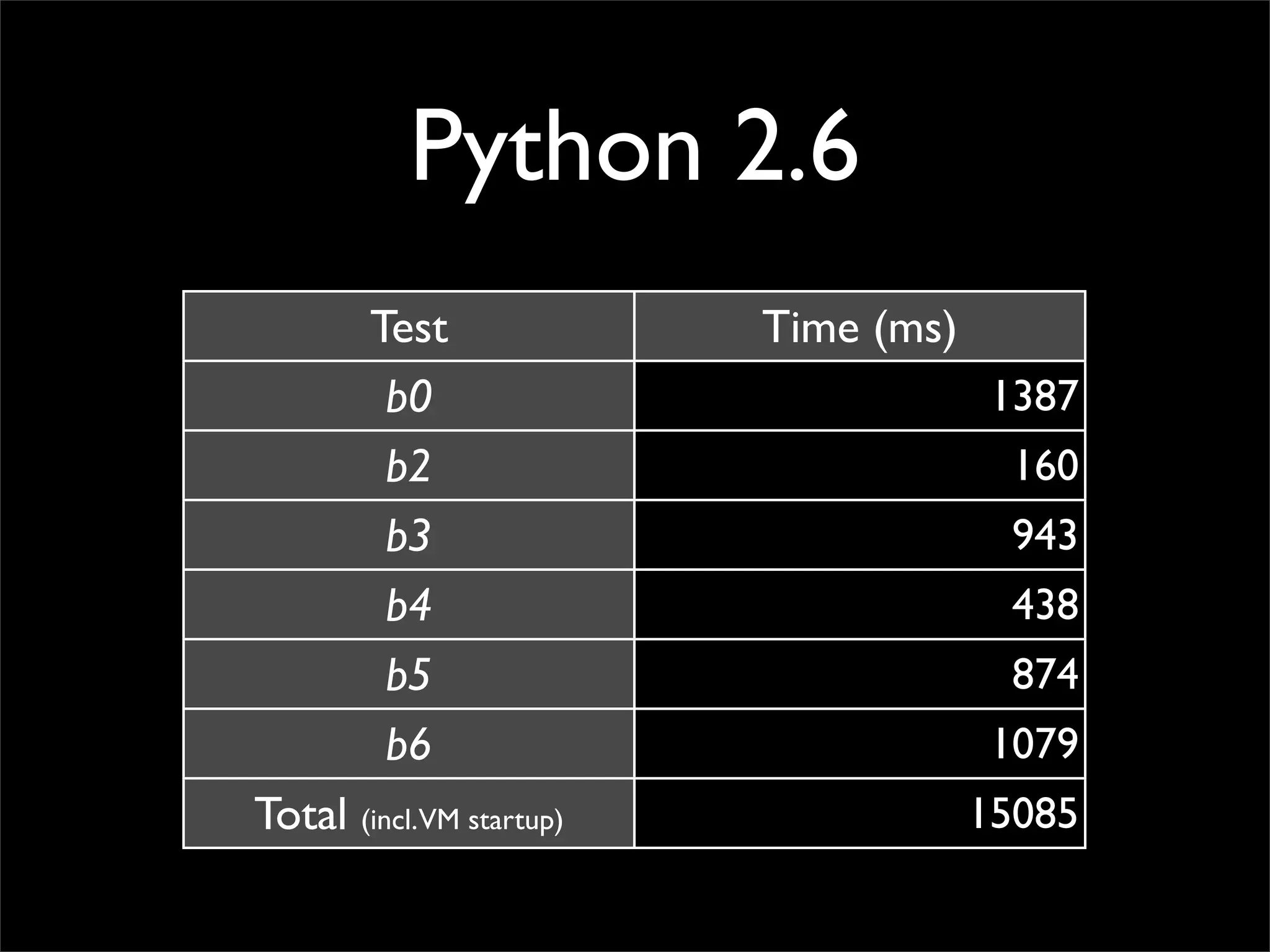

16. Python 2.6
Test Time (ms)
b0 1387
b2 160
b3 943
b4 438
b5 874
b6 1079
Total (incl.VM startup) 15085

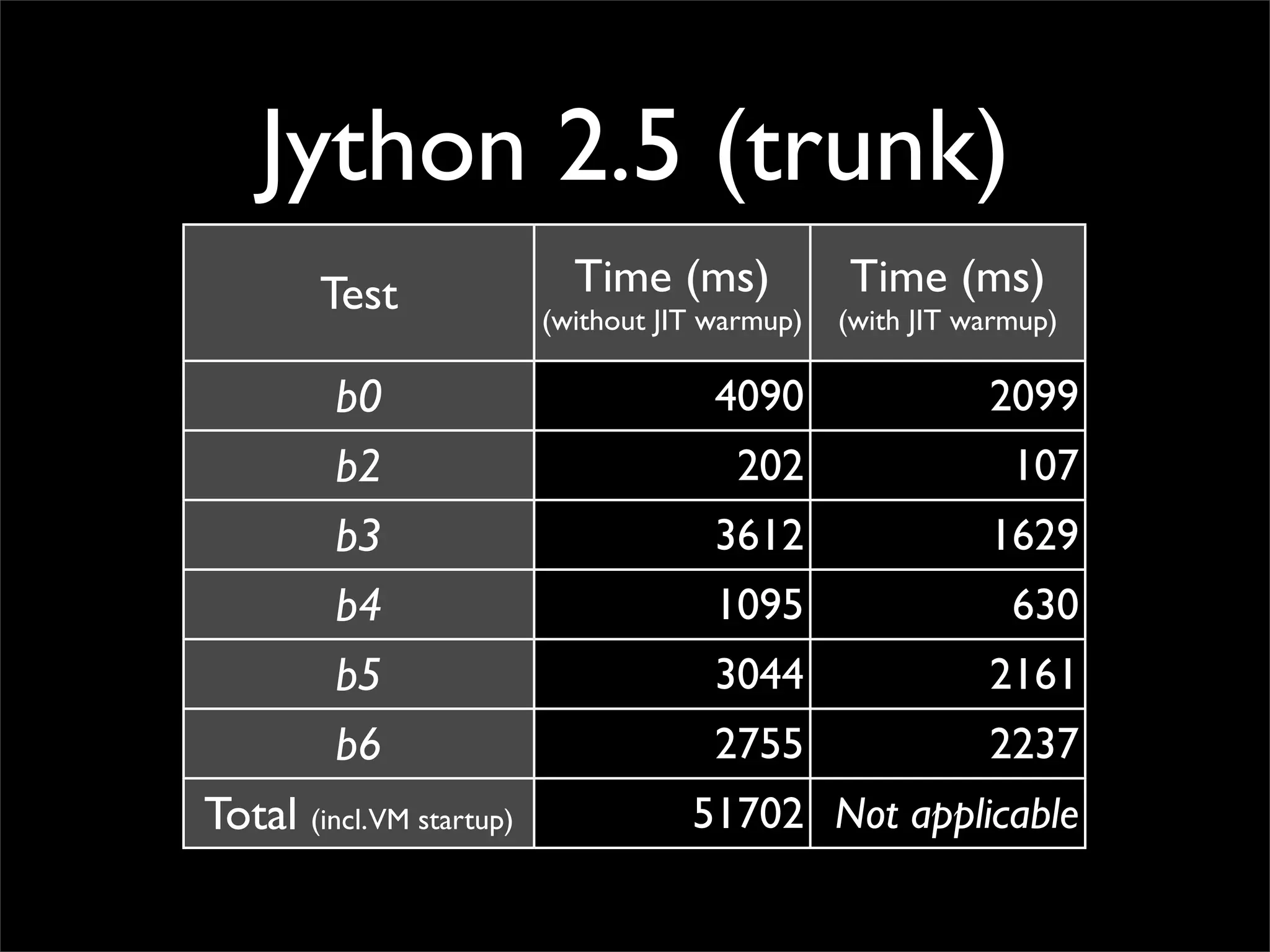

17. Jython 2.5 (trunk)
Test Time (ms) Time (ms)
(without JIT warmup) (with JIT warmup)
b0 4090 2099
b2 202 107
b3 3612 1629
b4 1095 630
b5 3044 2161
b6 2755 2237
Total (incl.VM startup) 51702 Not applicable

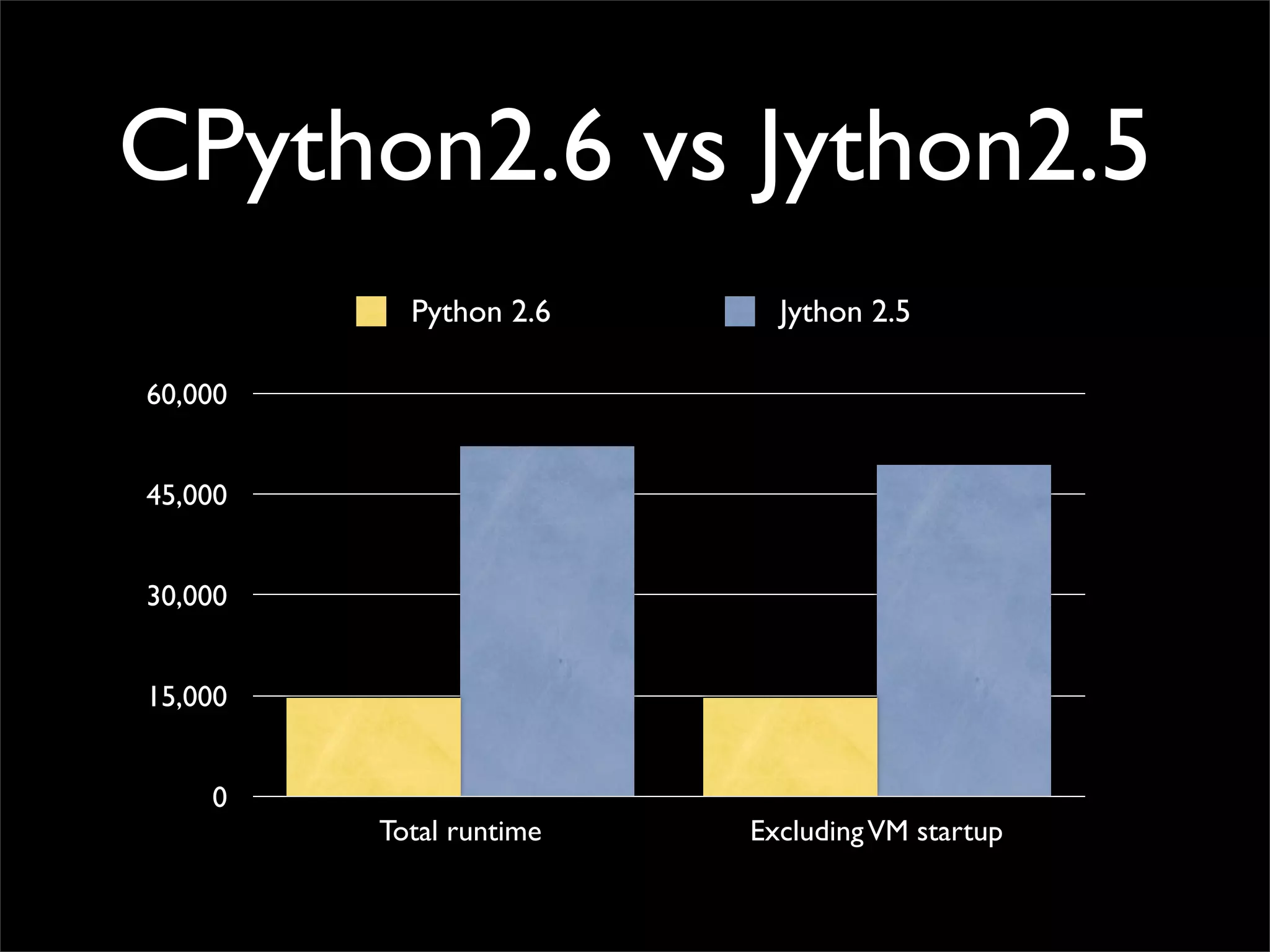

18. CPython2.6 vs Jython2.5
Python 2.6 Jython 2.5
60,000
45,000
30,000
15,000
0
Total runtime Excluding VM startup

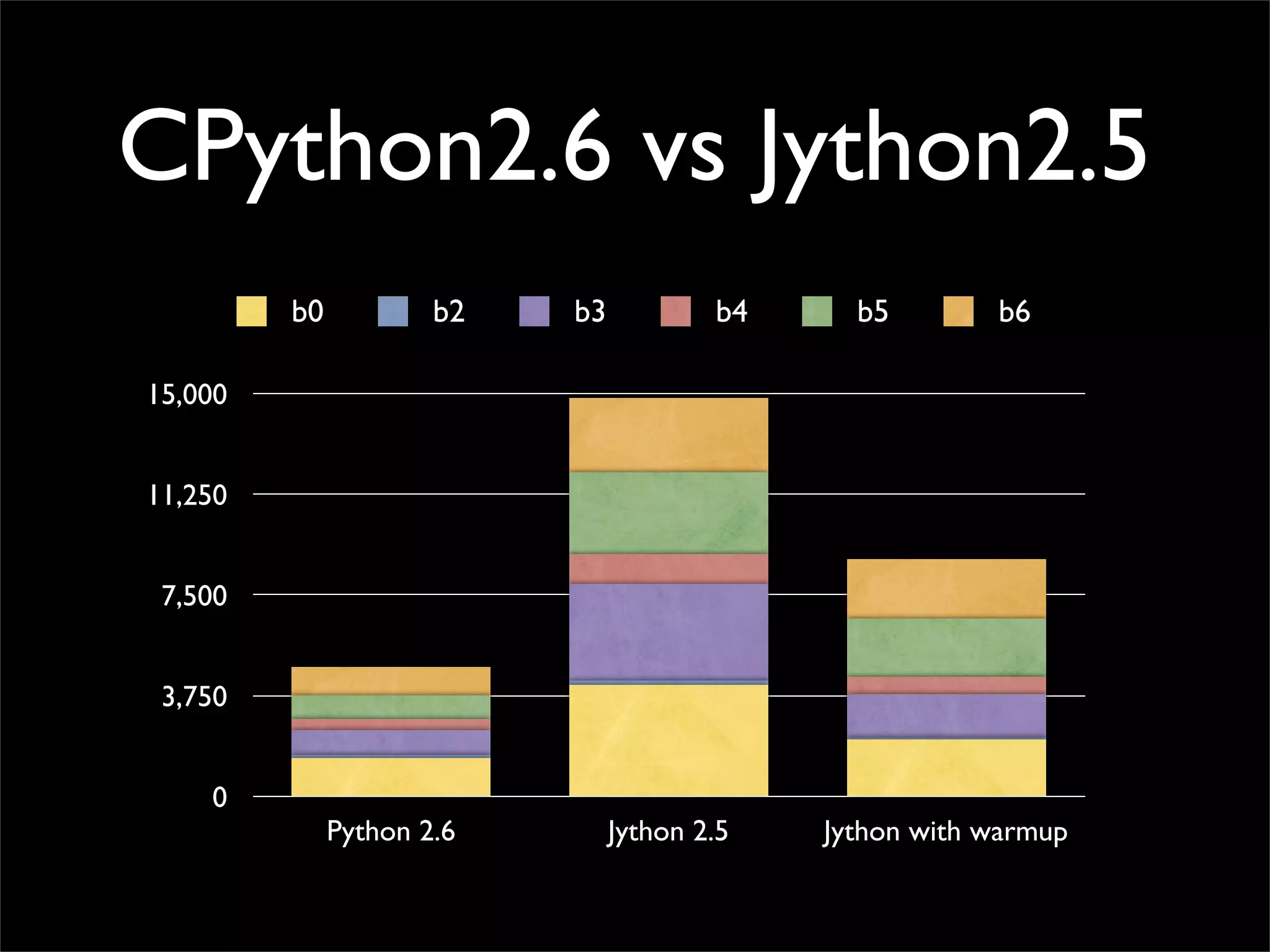

19. CPython2.6 vs Jython2.5
b0 b2 b3 b4 b5 b6
15,000
11,250
7,500
3,750
0
Python 2.6 Jython 2.5 Jython with warmup

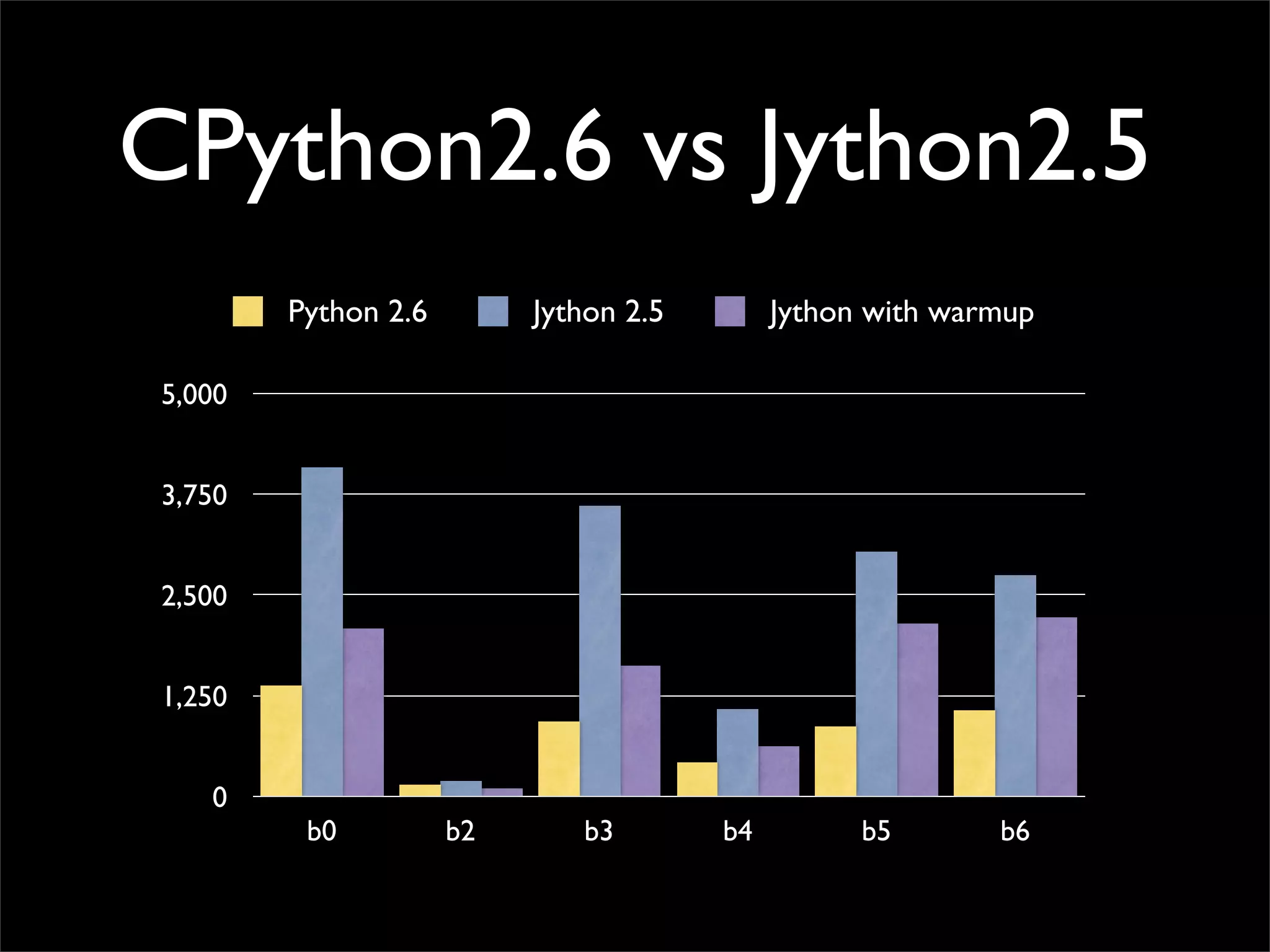

20. CPython2.6 vs Jython2.5
Python 2.6 Jython 2.5 Jython with warmup
5,000
3,750
2,500
1,250
0
b0 b2 b3 b4 b5 b6

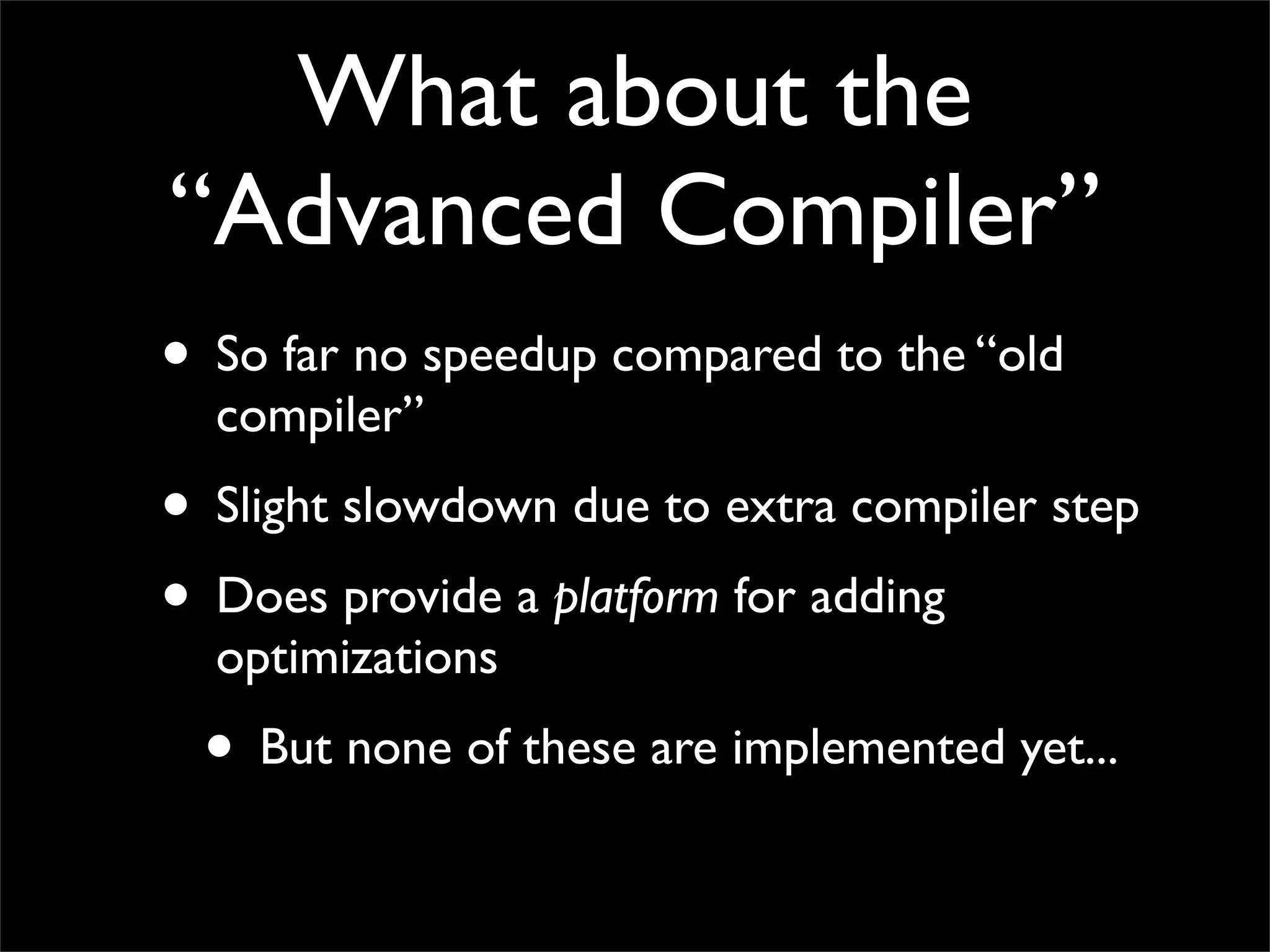

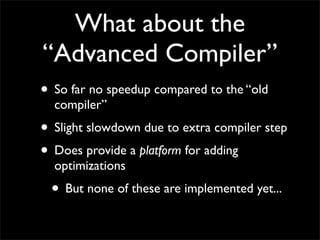

21. What about the
“Advanced Compiler”
• So far no speedup compared to the “old
compiler”
• Slight slowdown due to extra compiler step
• Does provide a platform for adding
optimizations
• But none of these are implemented yet...

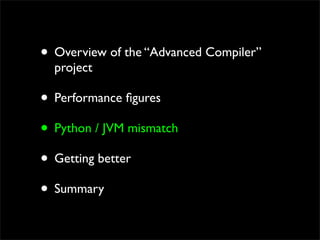

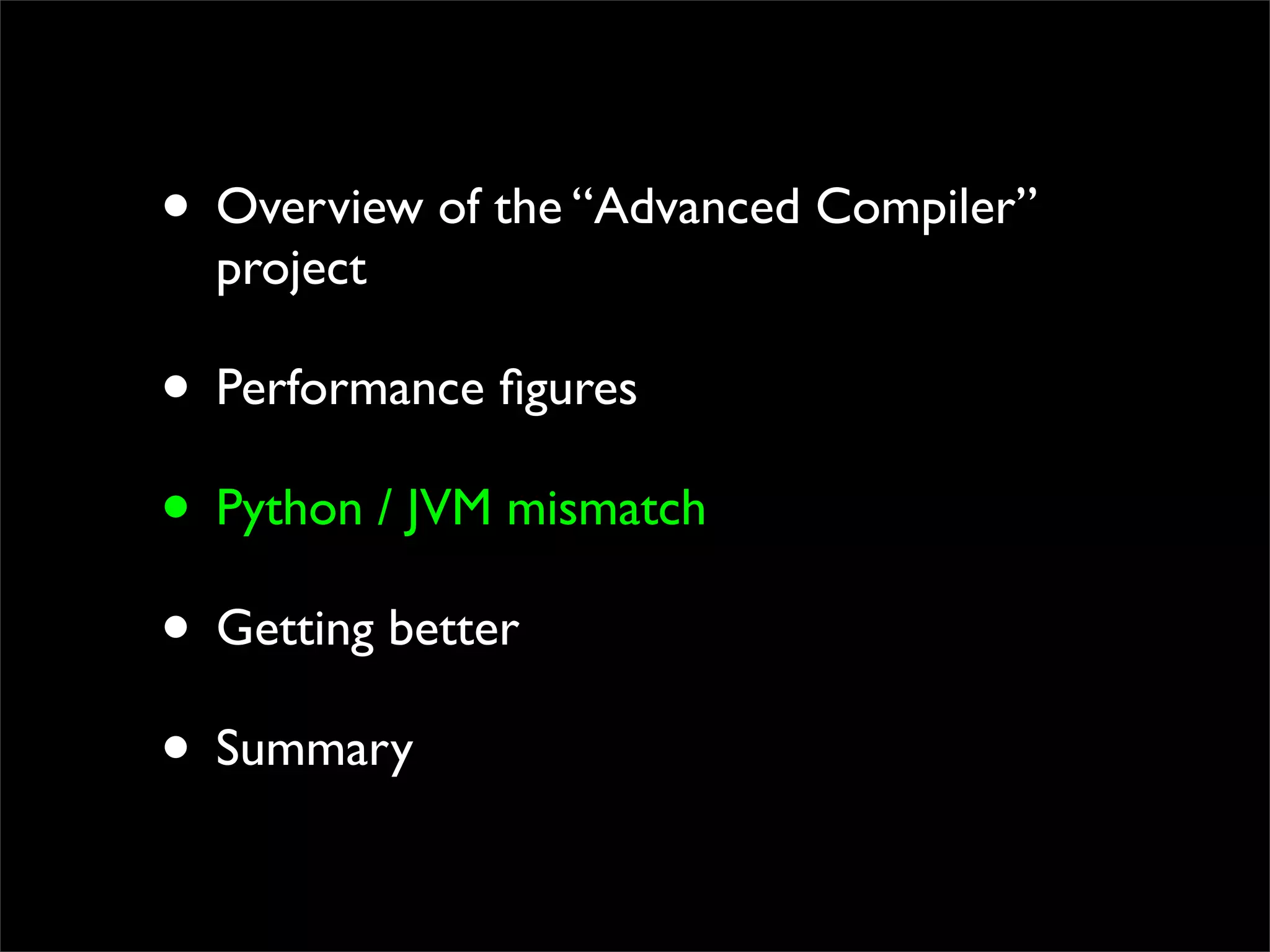

22. • Overview of the “Advanced Compiler”
project
• Performance figures
• Python / JVM mismatch
• Getting better
• Summary

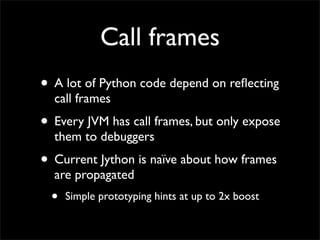

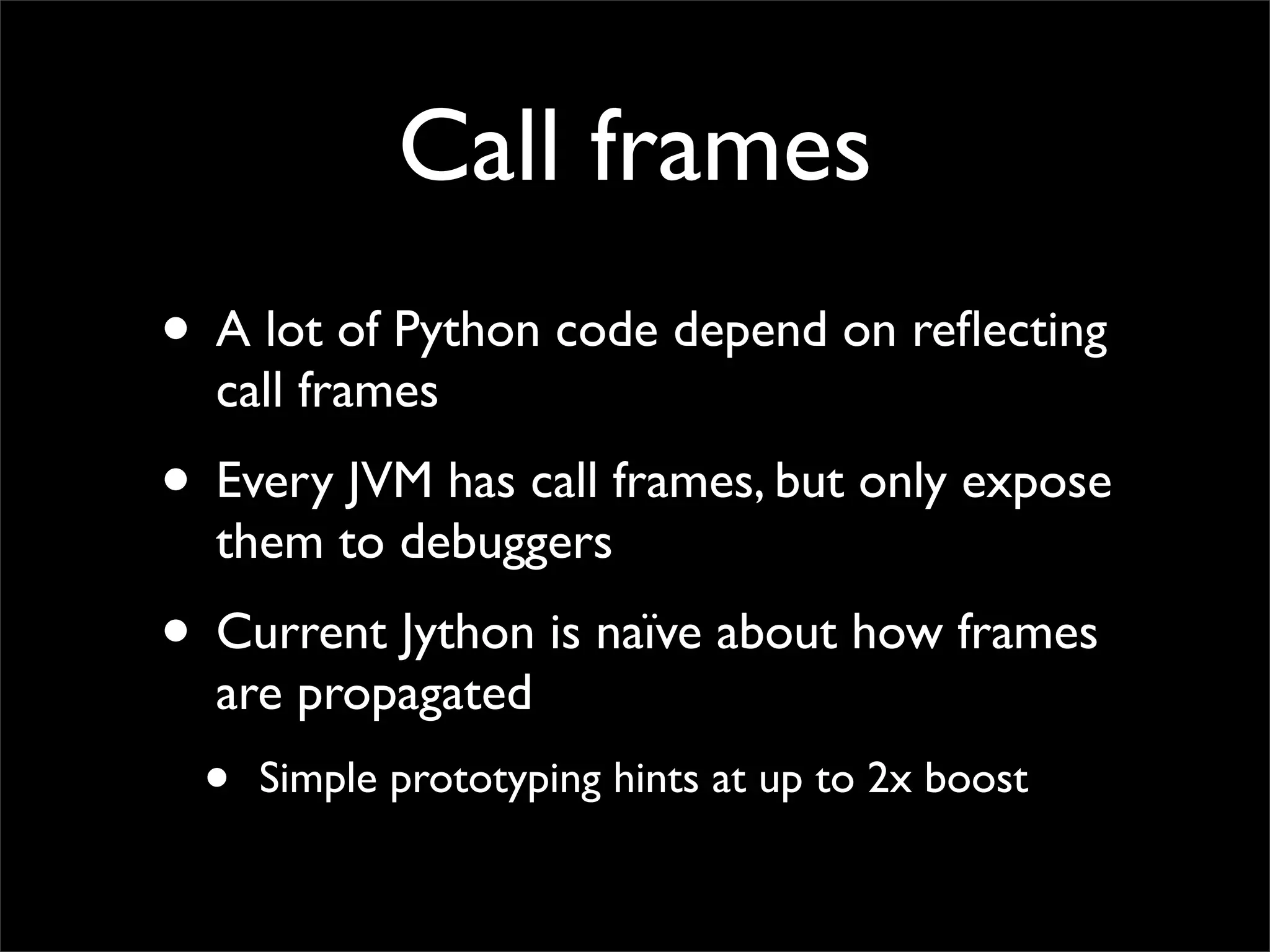

23. Call frames
• A lot of Python code depend on reflecting
call frames
• Every JVM has call frames, but only expose
them to debuggers
• Current Jython is naïve about how frames
are propagated
• Simple prototyping hints at up to 2x boost

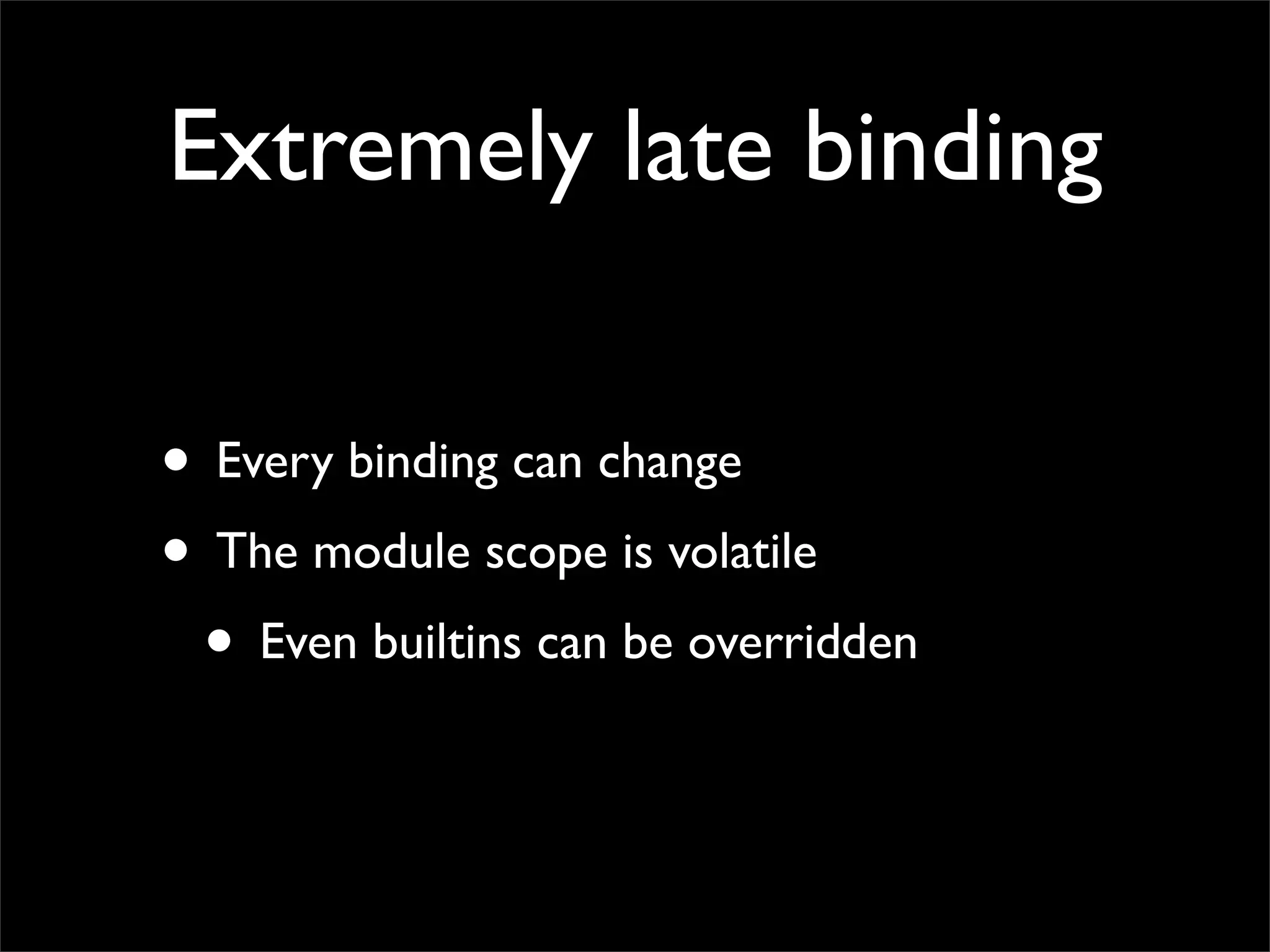

24. Extremely late binding
• Every binding can change
• The module scope is volatile
• Even builtins can be overridden

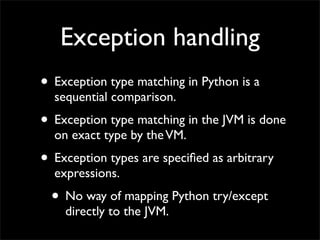

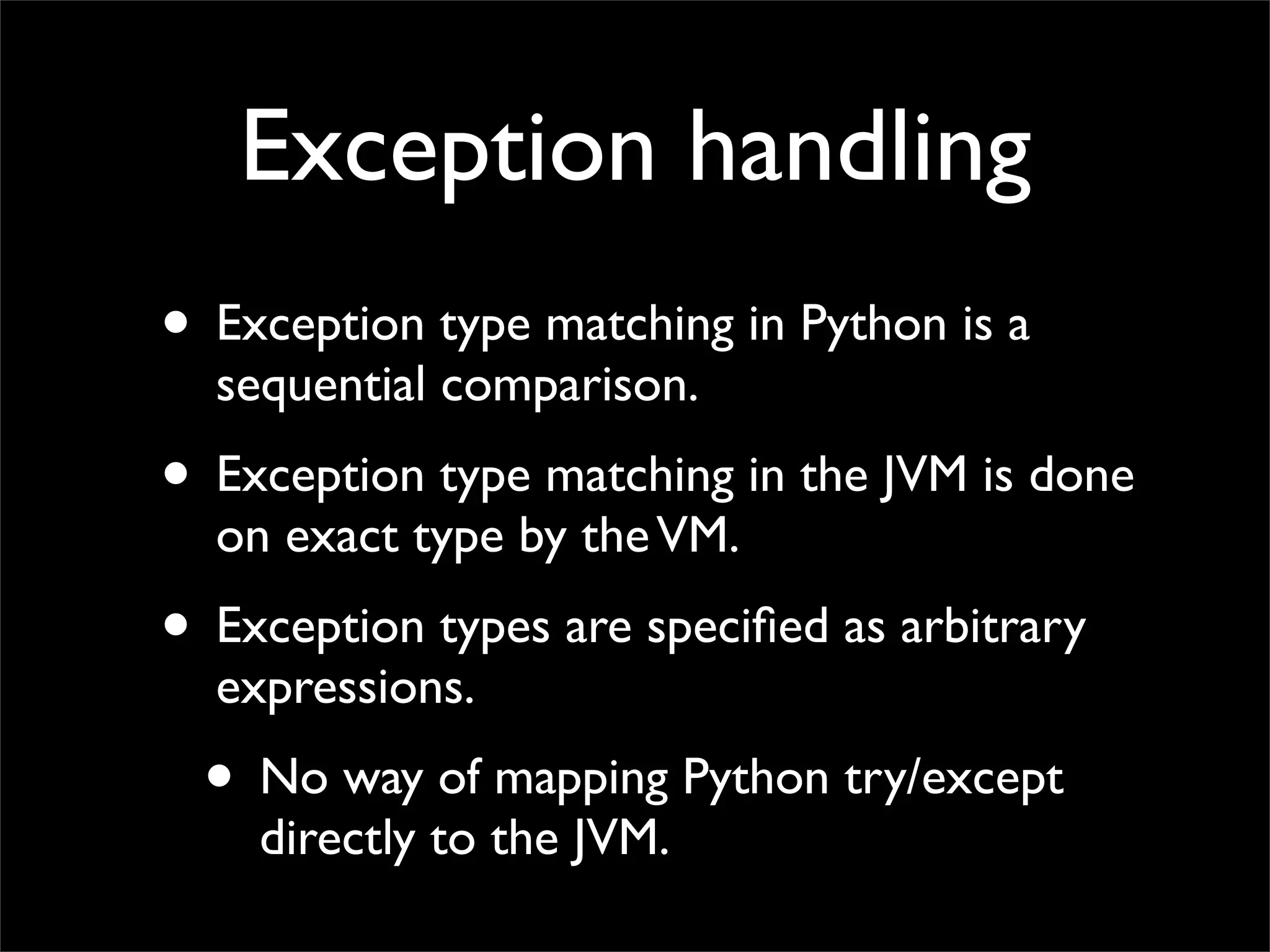

25. Exception handling
• Exception type matching in Python is a
sequential comparison.
• Exception type matching in the JVM is done
on exact type by the VM.
• Exception types are specified as arbitrary
expressions.
• No way of mapping Python try/except
directly to the JVM.

26. • Overview of the “Advanced Compiler”
project
• Performance figures
• Python / JVM mismatch
• Getting better
• Summary

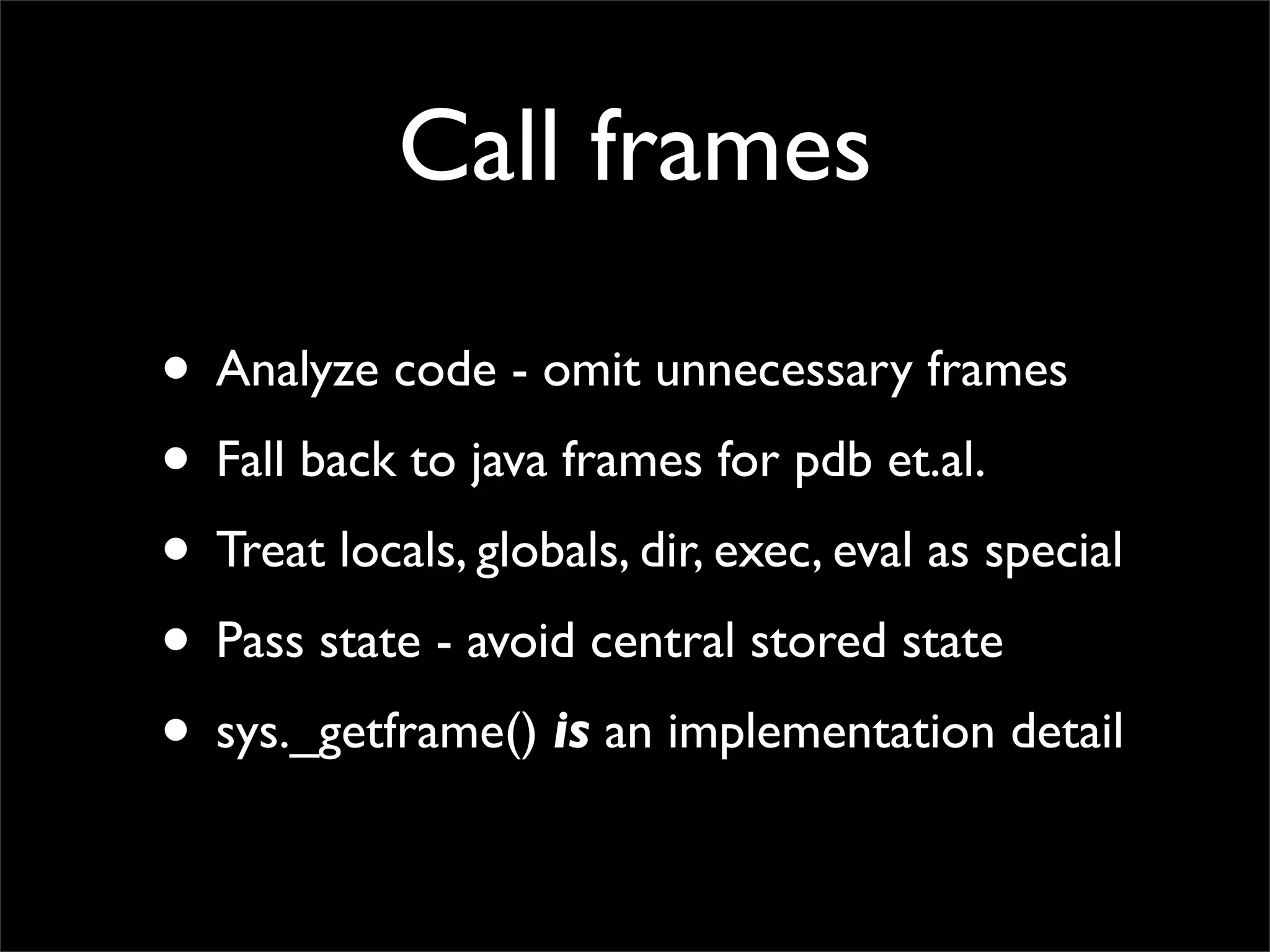

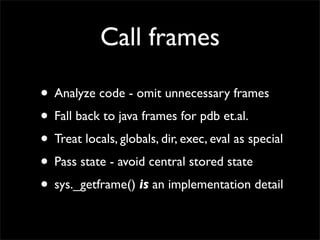

27. Call frames
• Analyze code - omit unnecessary frames
• Fall back to java frames for pdb et.al.
• Treat locals, globals, dir, exec, eval as special
• Pass state - avoid central stored state
• sys._getframe() is an implementation detail

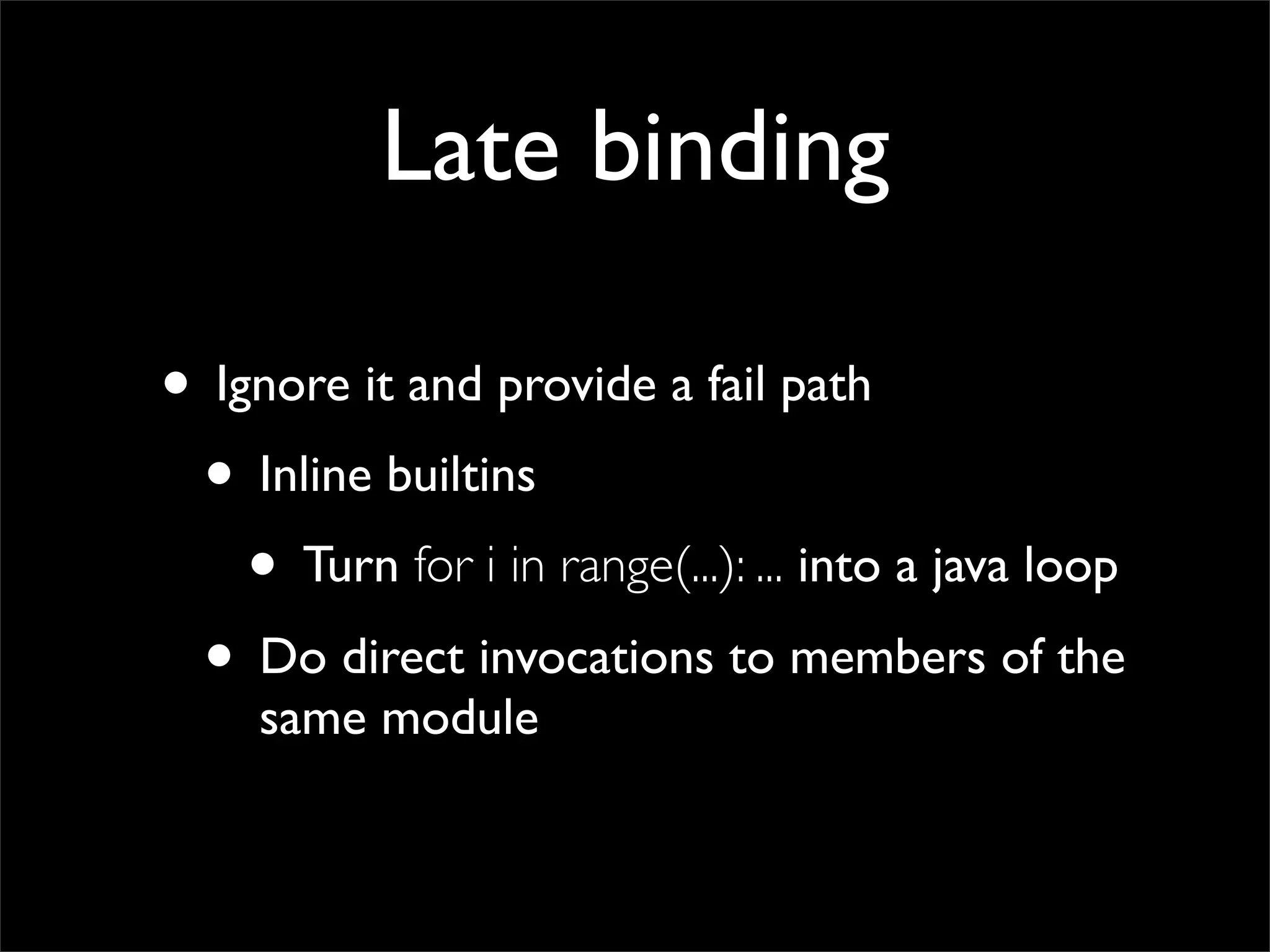

28. Late binding
• Ignore it and provide a fail path
• Inline builtins
• Turn for i in range(...): ... into a java loop
• Do direct invocations to members of the
same module

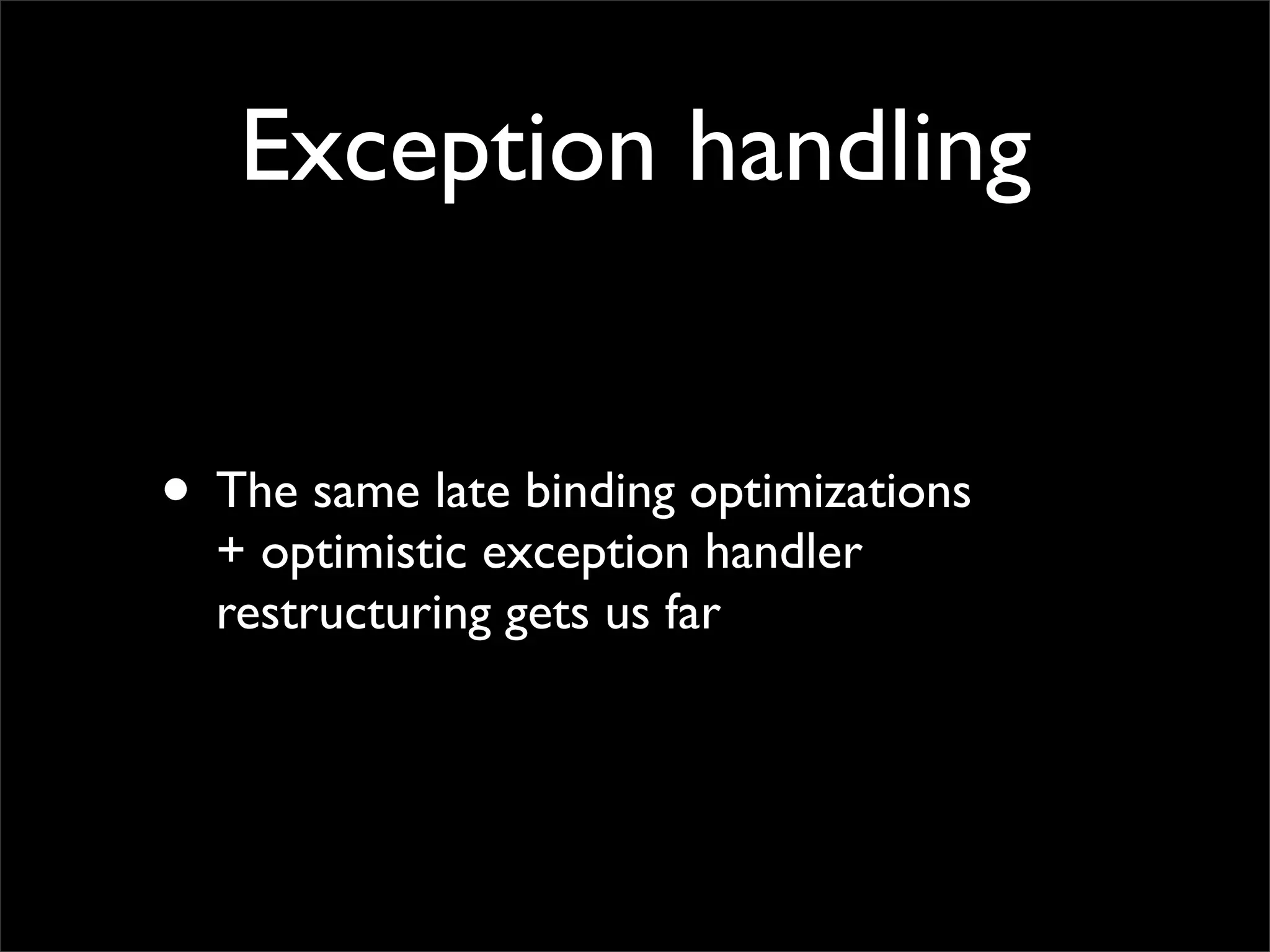

29. Exception handling
• The same late binding optimizations
+ optimistic exception handler
restructuring gets us far

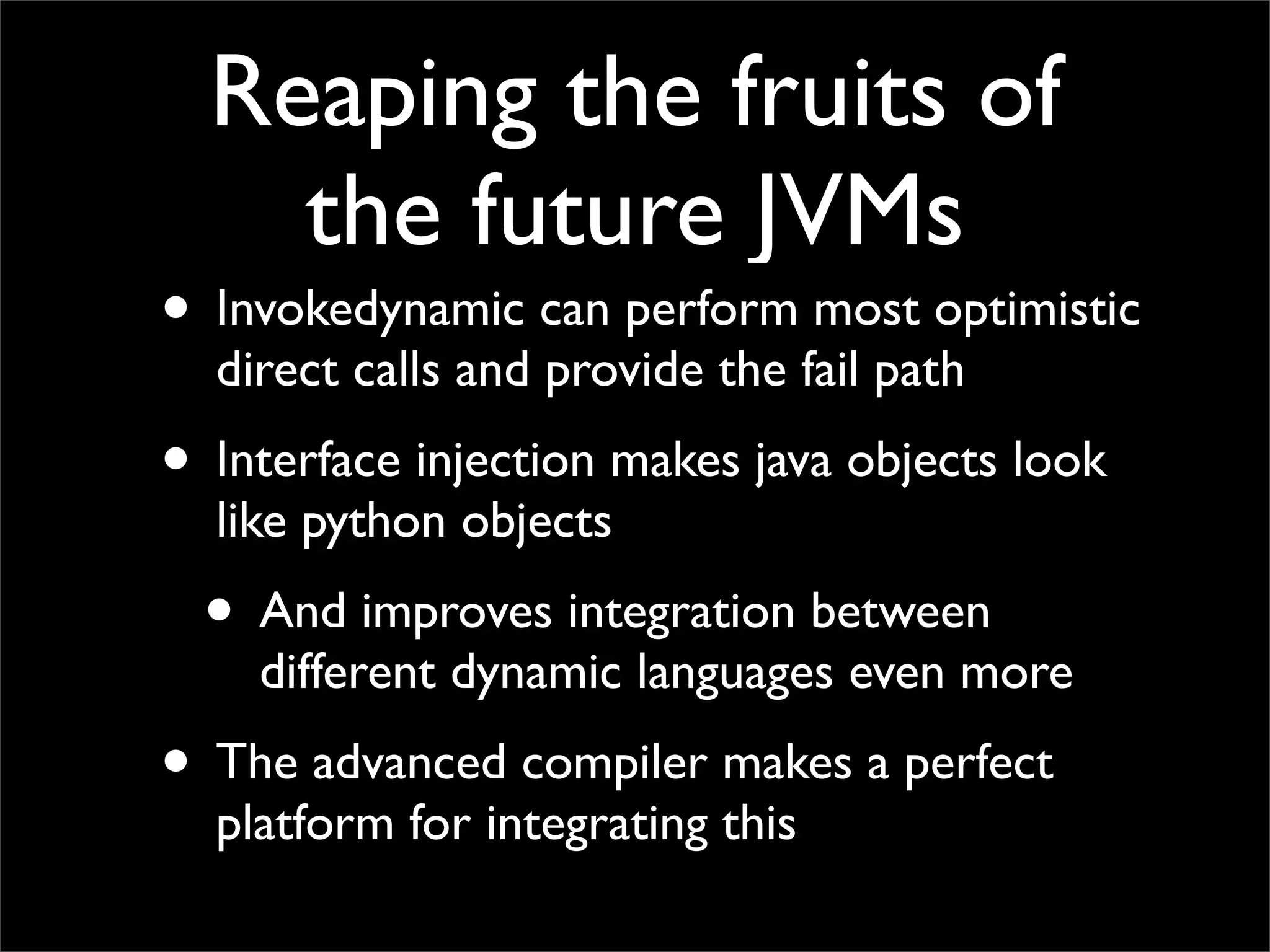

30. Reaping the fruits of
the future JVMs
• Invokedynamic can perform most optimistic
direct calls and provide the fail path
• Interface injection makes java objects look
like python objects
• And improves integration between
different dynamic languages even more
• The advanced compiler makes a perfect
platform for integrating this

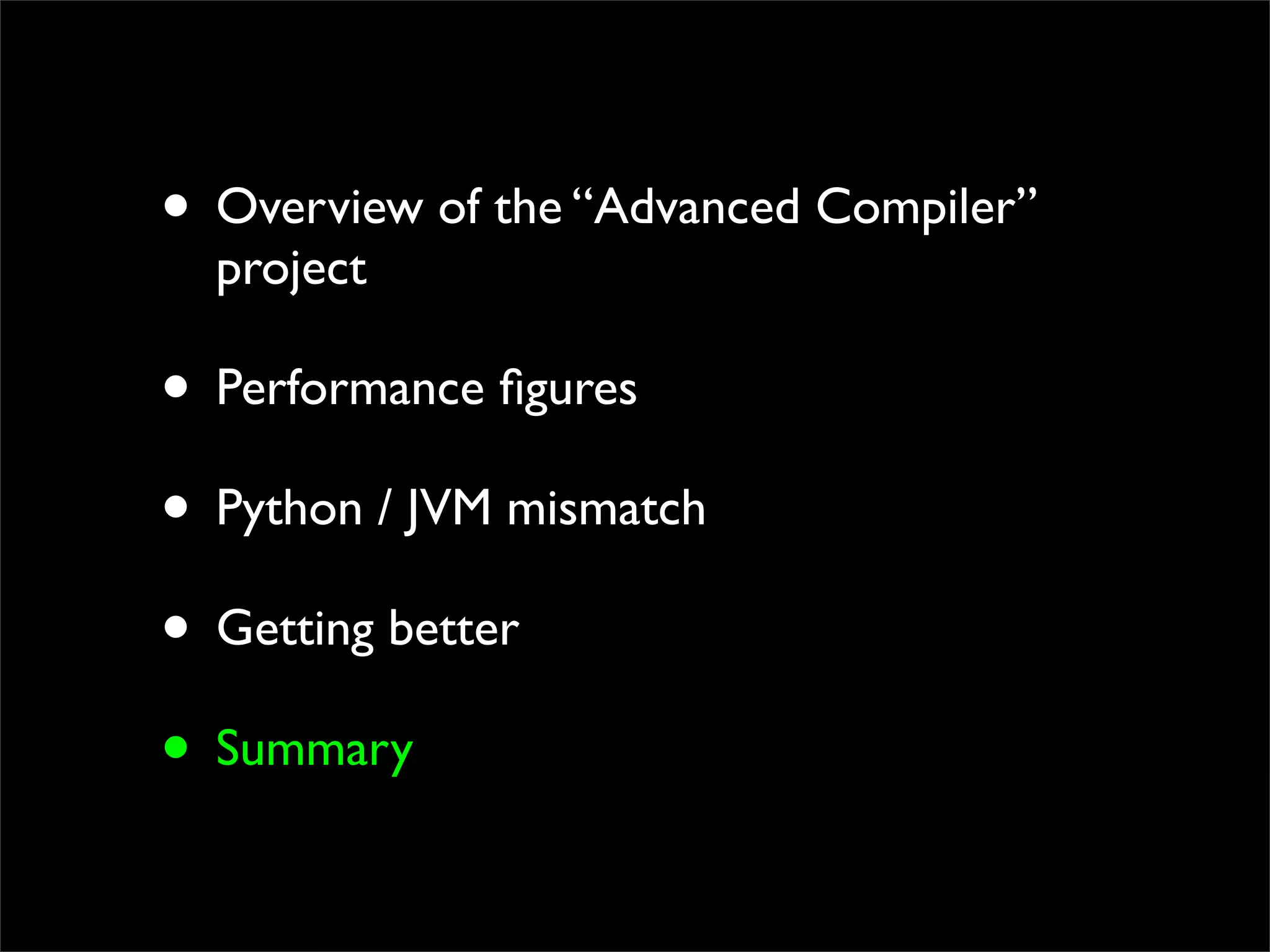

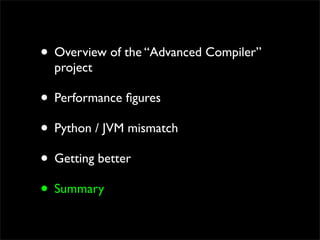

31. • Overview of the “Advanced Compiler”
project
• Performance figures
• Python / JVM mismatch
• Getting better
• Summary

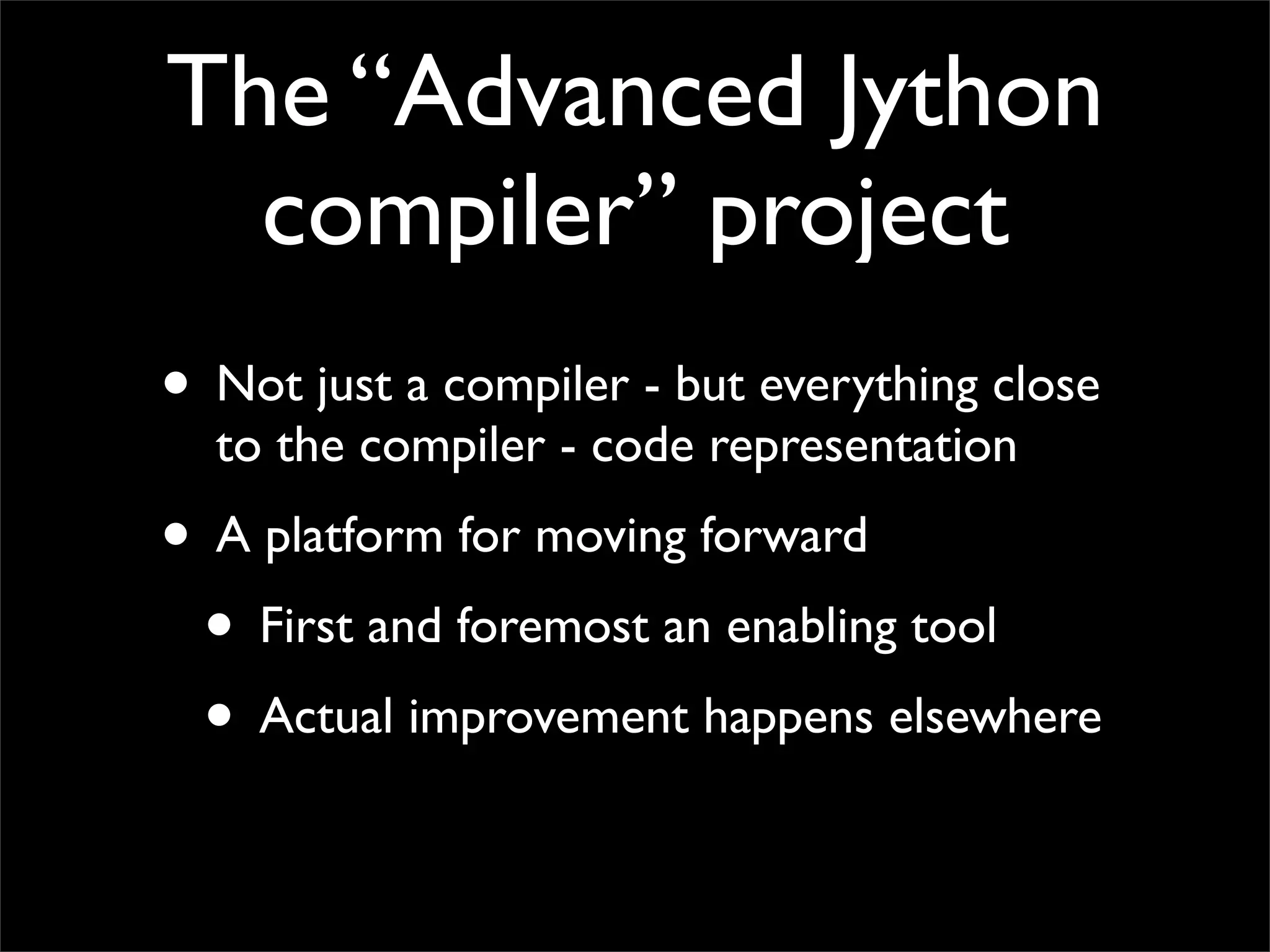

32. The “Advanced Jython
compiler” project
• Not just a compiler - but everything close
to the compiler - code representation
• A platform for moving forward
• First and foremost an enabling tool
• Actual improvement happens elsewhere

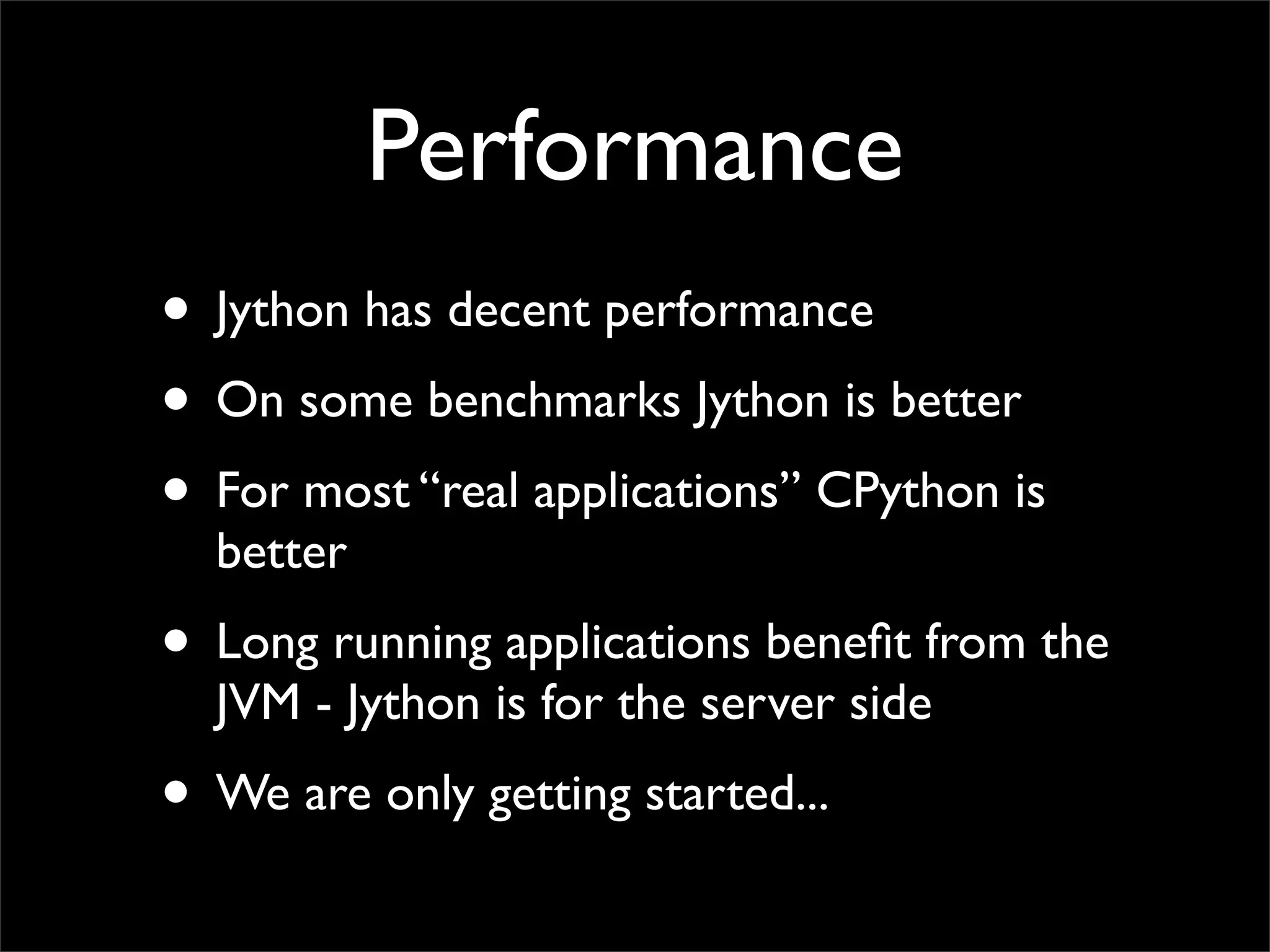

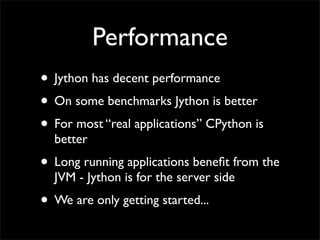

33. Performance
• Jython has decent performance
• On some benchmarks Jython is better
• For most “real applications” CPython is
better
• Long running applications benefit from the
JVM - Jython is for the server side
• We are only getting started...

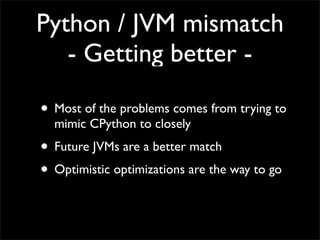

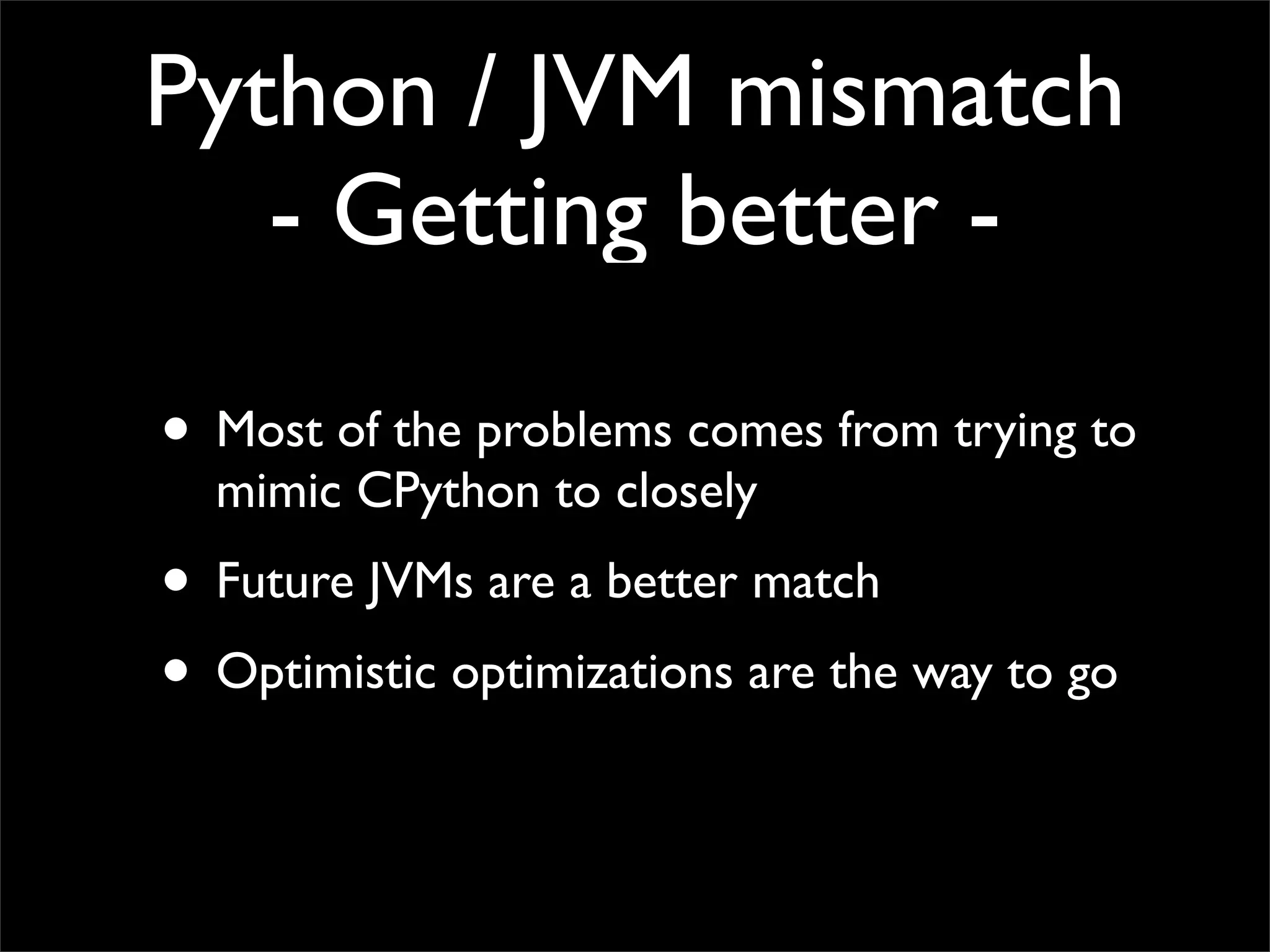

34. Python / JVM mismatch
- Getting better -
• Most of the problems comes from trying to
mimic CPython to closely
• Future JVMs are a better match
• Optimistic optimizations are the way to go

35. Thank you!
Questions?
Tobias Ivarsson
<tobias@thobe.org>
