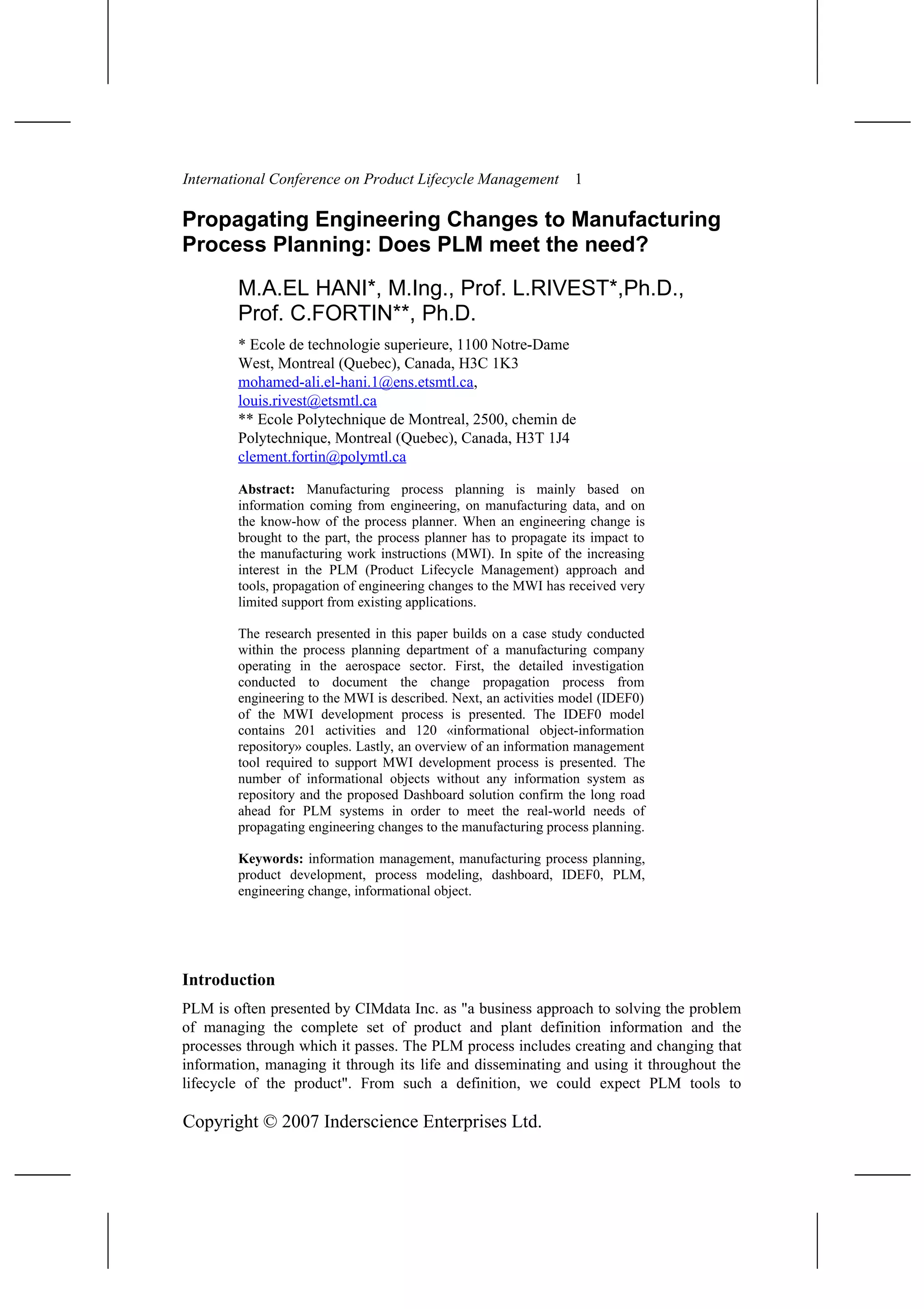

Propagating Engineering Changes to Manufacturing
Process Planning: Does PLM meet the need?
M.A.EL HANI*, M.Ing., Prof. L.RIVEST*,Ph.D.,
Prof. C.FORTIN**, Ph.D.
* Ecole de technologie superieure, 1100 Notre-Dame
West, Montreal (Quebec), Canada, H3C 1K3
mohamed-ali.el-hani.1@ens.etsmtl.ca,
louis.rivest@etsmtl.ca
** Ecole Polytechnique de Montreal, 2500, chemin de
Polytechnique, Montreal (Quebec), Canada, H3T 1J4
clement.fortin@polymtl.ca
Abstract: Manufacturing process planning is mainly based on
information coming from engineering, on manufacturing data, and on
the know-how of the process planner. When an engineering change is
brought to the part, the process planner has to propagate its impact to
the manufacturing work instructions (MWI). In spite of the increasing
interest in the PLM (Product Lifecycle Management) approach and
tools, propagation of engineering changes to the MWI has received very
limited support from existing applications.
The research presented in this paper builds on a case study conducted
within the process planning department of a manufacturing company
operating in the aerospace sector. First, the detailed investigation
conducted to document the change propagation process from
engineering to the MWI is described. Next, an activities model (IDEF0)
of the MWI development process is presented. The IDEF0 model
contains 201 activities and 120 «informational object-information
repository» couples. Lastly, an overview of an information management
tool required to support MWI development process is presented. The
number of informational objects without any information system as
repository and the proposed Dashboard solution confirm the long road
ahead for PLM systems in order to meet the real-world needs of
propagating engineering changes to the manufacturing process planning.
Keywords: information management, manufacturing process planning,
product development, process modeling, dashboard, IDEF0, PLM,
engineering change, informational object.
Introduction
PLM is often presented by CIMdata Inc. as "a business approach to solving the problem
of managing the complete set of product and plant definition information and the
processes through which it passes. The PLM process includes creating and changing that
information, managing it through its life and disseminating and using it throughout the
lifecycle of the product". From such a definition, we could expect PLM tools to
Copyright © 2007 Inderscience Enterprises Ltd.

2 M.A.EL HANI, L.RIVEST, C.FORTIN

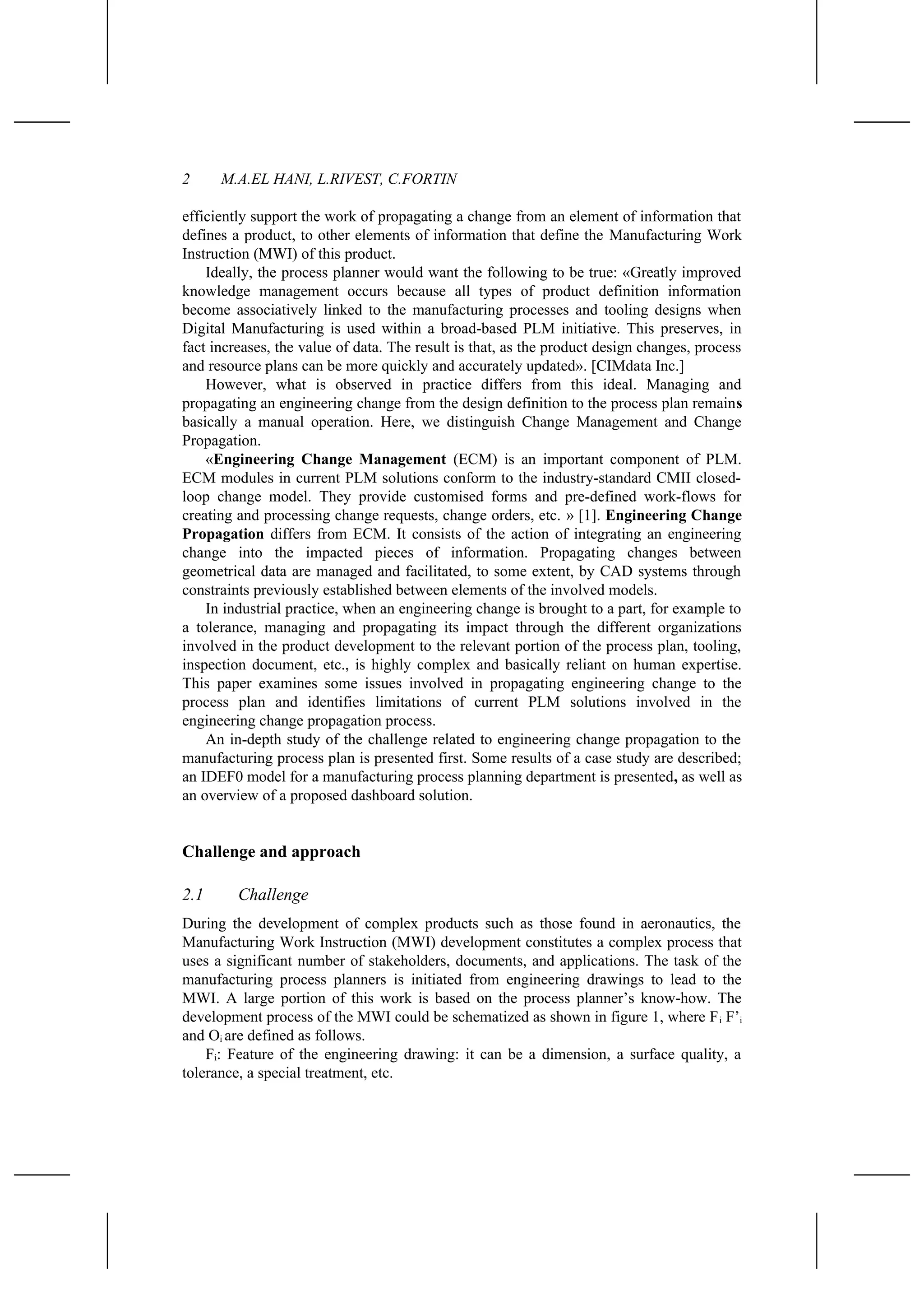

efficiently support the work of propagating a change from an element of information that
defines a product, to other elements of information that define the Manufacturing Work
Instruction (MWI) of this product.
Ideally, the process planner would want the following to be true: «Greatly improved
knowledge management occurs because all types of product definition information
become associatively linked to the manufacturing processes and tooling designs when
Digital Manufacturing is used within a broad-based PLM initiative. This preserves, in
fact increases, the value of data. The result is that, as the product design changes, process
and resource plans can be more quickly and accurately updated». [CIMdata Inc.]
However, what is observed in practice differs from this ideal. Managing and
propagating an engineering change from the design definition to the process plan remains
basically a manual operation. Here, we distinguish Change Management and Change
Propagation.
«Engineering Change Management (ECM) is an important component of PLM.
ECM modules in current PLM solutions conform to the industry-standard CMII closed-
loop change model. They provide customised forms and pre-defined work-flows for
creating and processing change requests, change orders, etc. » [1]. Engineering Change
Propagation differs from ECM. It consists of the action of integrating an engineering
change into the impacted pieces of information. Propagating changes between
geometrical data are managed and facilitated, to some extent, by CAD systems through
constraints previously established between elements of the involved models.
In industrial practice, when an engineering change is brought to a part, for example to
a tolerance, managing and propagating its impact through the different organizations
involved in the product development to the relevant portion of the process plan, tooling,
inspection document, etc., is highly complex and basically reliant on human expertise.
This paper examines some issues involved in propagating engineering change to the
process plan and identifies limitations of current PLM solutions involved in the
engineering change propagation process.
An in-depth study of the challenge related to engineering change propagation to the
manufacturing process plan is presented first. Some results of a case study are described;
an IDEF0 model for a manufacturing process planning department is presented, as well as
an overview of a proposed dashboard solution.
Challenge and approach
2.1 Challenge
During the development of complex products such as those found in aeronautics, the
Manufacturing Work Instruction (MWI) development constitutes a complex process that
uses a significant number of stakeholders, documents, and applications. The task of the
manufacturing process planners is initiated from engineering drawings to lead to the
MWI. A large portion of this work is based on the process planner’s know-how. The
development process of the MWI could be schematized as shown in figure 1, where Fi F’i
and Oi are defined as follows.
Fi: Feature of the engineering drawing: it can be a dimension, a surface quality, a
tolerance, a special treatment, etc.

Propagating Engineering Changes to Manufacturing Process Planning 3
F’i: Feature of the MWI: it can be a dimension, a tolerance, an adjustment, a tooling,
etc.
Oi: Informational object: it can be a piece of data, a unit of information, a formal or
abstract knowledge, a document, a set of documents, an electronic file, etc.
By analogy, using Maurino’s [2] description of a technical object, the concept of
informational object was introduced within this work to have a common representation of
all the product information.

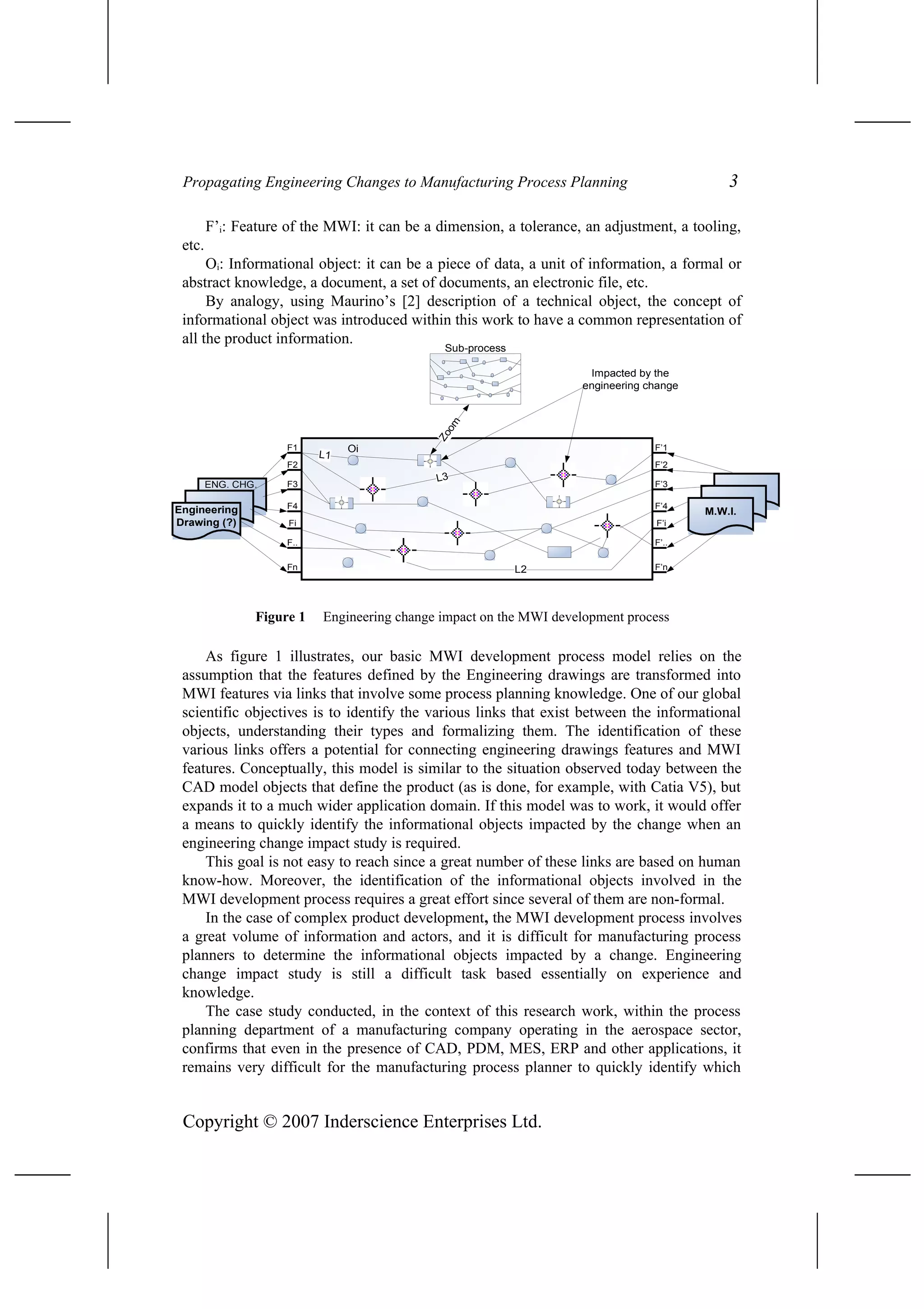

Figure 1 Engineering change impact on the MWI development process
As figure 1 illustrates, our basic MWI development process model relies on the
assumption that the features defined by the Engineering drawings are transformed into
MWI features via links that involve some process planning knowledge. One of our global
scientific objectives is to identify the various links that exist between the informational
objects, understanding their types and formalizing them. The identification of these
various links offers a potential for connecting engineering drawings features and MWI
features. Conceptually, this model is similar to the situation observed today between the
CAD model objects that define the product (as is done, for example, with Catia V5), but
expands it to a much wider application domain. If this model was to work, it would offer
a means to quickly identify the informational objects impacted by the change when an
engineering change impact study is required.
This goal is not easy to reach since a great number of these links are based on human
know-how. Moreover, the identification of the informational objects involved in the
MWI development process requires a great effort since several of them are non-formal.
In the case of complex product development, the MWI development process involves
a great volume of information and actors, and it is difficult for manufacturing process
planners to determine the informational objects impacted by a change. Engineering
change impact study is still a difficult task based essentially on experience and
knowledge.
The case study conducted, in the context of this research work, within the process
planning department of a manufacturing company operating in the aerospace sector,
confirms that even in the presence of CAD, PDM, MES, ERP and other applications, it
remains very difficult for the manufacturing process planner to quickly identify which
Sub-process
Engineering
Drawing (?)
F1
F2
F3
F4
Fi
F..
Fn
M.W.I.
F’1
F’2
F’3
F’4
F’i
F’..
F’n
L1
L3
L2
Oi
Zoom
ENG. CHG.
Impacted by the
engineering change

informational objects of complex MWI documents are impacted by an engineering
change and in which way.

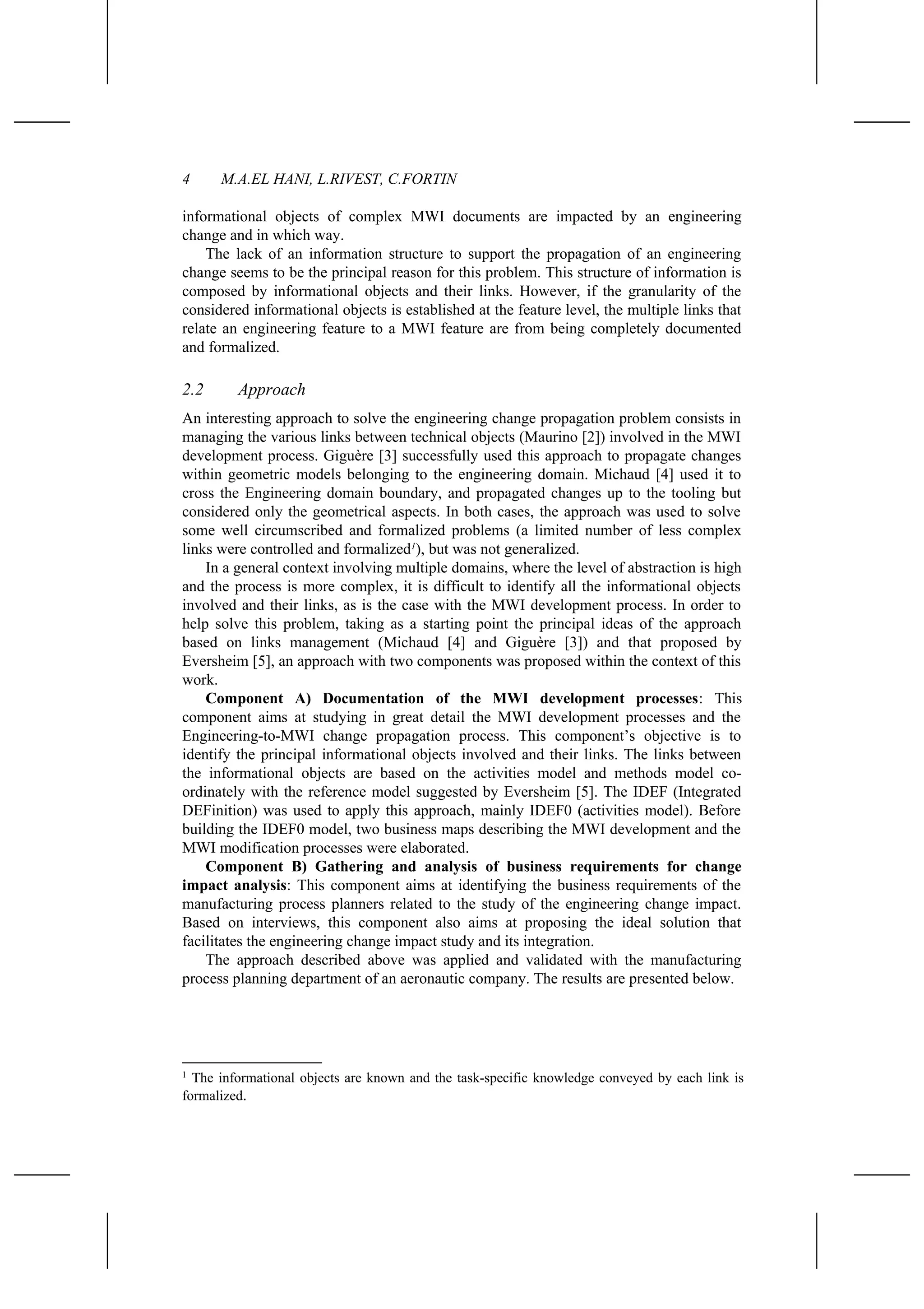

The lack of an information structure to support the propagation of an engineering
change seems to be the principal reason for this problem. This structure of information is
composed by informational objects and their links. However, if the granularity of the
considered informational objects is established at the feature level, the multiple links that
relate an engineering feature to a MWI feature are from being completely documented
and formalized.
2.2 Approach
An interesting approach to solve the engineering change propagation problem consists in
managing the various links between technical objects (Maurino [2]) involved in the MWI
development process. Giguère [3] successfully used this approach to propagate changes
within geometric models belonging to the engineering domain. Michaud [4] used it to
cross the Engineering domain boundary, and propagated changes up to the tooling but
considered only the geometrical aspects. In both cases, the approach was used to solve
some well circumscribed and formalized problems (a limited number of less complex
links were controlled and formalized1
), but was not generalized.
In a general context involving multiple domains, where the level of abstraction is high
and the process is more complex, it is difficult to identify all the informational objects
involved and their links, as is the case with the MWI development process. In order to
help solve this problem, taking as a starting point the principal ideas of the approach
based on links management (Michaud [4] and Giguère [3]) and that proposed by
Eversheim [5], an approach with two components was proposed within the context of this
work.
Component A) Documentation of the MWI development processes: This
component aims at studying in great detail the MWI development processes and the
Engineering-to-MWI change propagation process. This component’s objective is to
identify the principal informational objects involved and their links. The links between
the informational objects are based on the activities model and methods model co-
ordinately with the reference model suggested by Eversheim [5]. The IDEF (Integrated
DEFinition) was used to apply this approach, mainly IDEF0 (activities model). Before
building the IDEF0 model, two business maps describing the MWI development and the
MWI modification processes were elaborated.
Component B) Gathering and analysis of business requirements for change
impact analysis: This component aims at identifying the business requirements of the
manufacturing process planners related to the study of the engineering change impact.
Based on interviews, this component also aims at proposing the ideal solution that
facilitates the engineering change impact study and its integration.
The approach described above was applied and validated with the manufacturing
process planning department of an aeronautic company. The results are presented below.
1
The informational objects are known and the task-specific knowledge conveyed by each link is
formalized.

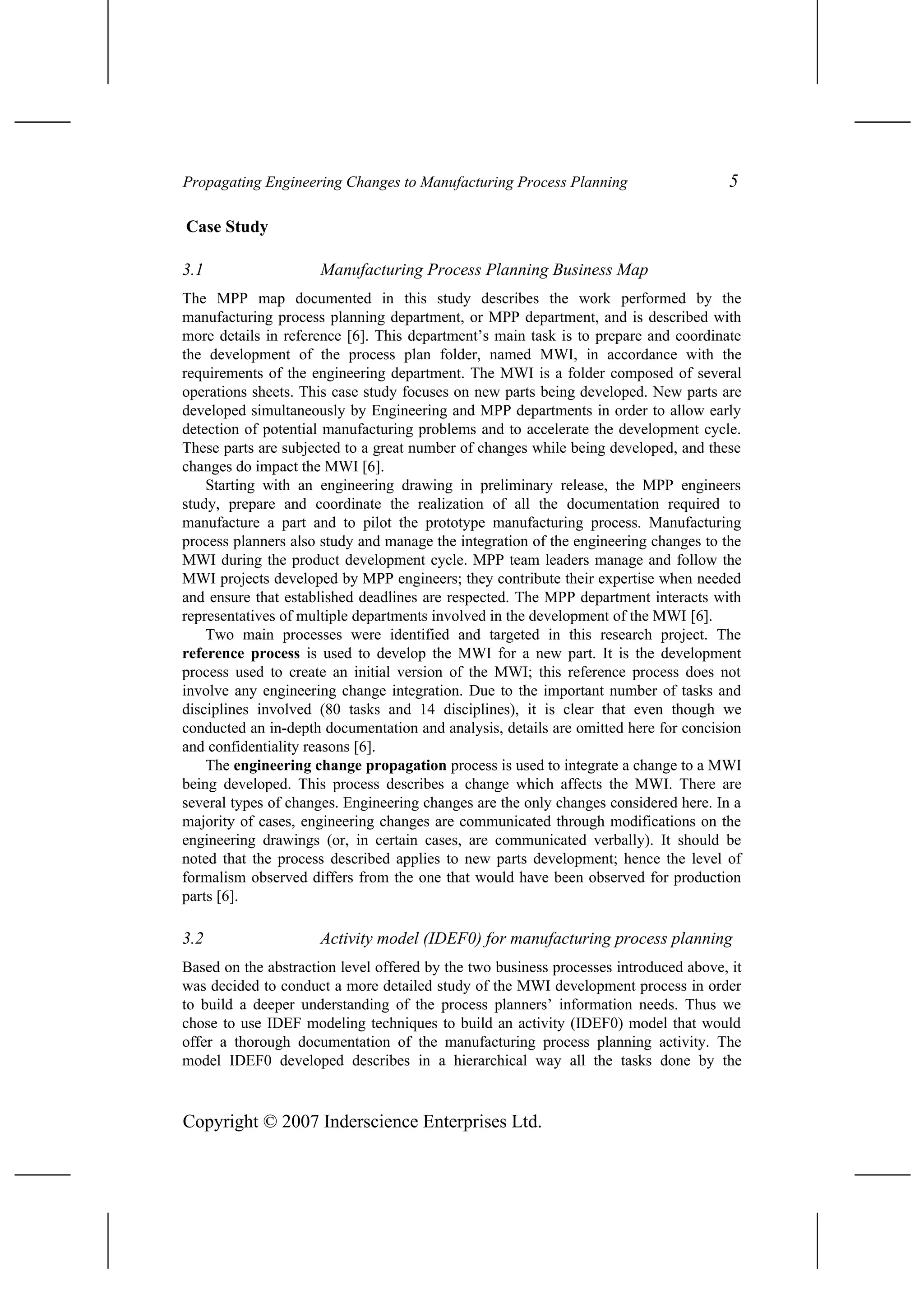

Case Study
3.1 Manufacturing Process Planning Business Map
The MPP map documented in this study describes the work performed by the
manufacturing process planning department, or MPP department, and is described with
more details in reference [6]. This department’s main task is to prepare and coordinate
the development of the process plan folder, named MWI, in accordance with the
requirements of the engineering department. The MWI is a folder composed of several
operations sheets. This case study focuses on new parts being developed. New parts are
developed simultaneously by Engineering and MPP departments in order to allow early
detection of potential manufacturing problems and to accelerate the development cycle.
These parts are subjected to a great number of changes while being developed, and these
changes do impact the MWI [6].
Starting with an engineering drawing in preliminary release, the MPP engineers
study, prepare and coordinate the realization of all the documentation required to
manufacture a part and to pilot the prototype manufacturing process. Manufacturing
process planners also study and manage the integration of the engineering changes to the
MWI during the product development cycle. MPP team leaders manage and follow the
MWI projects developed by MPP engineers; they contribute their expertise when needed
and ensure that established deadlines are respected. The MPP department interacts with
representatives of multiple departments involved in the development of the MWI [6].
Two main processes were identified and targeted in this research project. The
reference process is used to develop the MWI for a new part. It is the development
process used to create an initial version of the MWI; this reference process does not
involve any engineering change integration. Due to the important number of tasks and
disciplines involved (80 tasks and 14 disciplines), it is clear that even though we
conducted an in-depth documentation and analysis, details are omitted here for concision
and confidentiality reasons [6].
The engineering change propagation process is used to integrate a change to a MWI
being developed. This process describes a change which affects the MWI. There are
several types of changes. Engineering changes are the only changes considered here. In a
majority of cases, engineering changes are communicated through modifications on the
engineering drawings (or, in certain cases, are communicated verbally). It should be
noted that the process described applies to new parts development; hence the level of
formalism observed differs from the one that would have been observed for production
parts [6].
3.2 Activity model (IDEF0) for manufacturing process planning
Based on the abstraction level offered by the two business processes introduced above, it
was decided to conduct a more detailed study of the MWI development process in order
to build a deeper understanding of the process planners’ information needs. Thus we
chose to use IDEF modeling techniques to build an activity (IDEF0) model that would
offer a thorough documentation of the manufacturing process planning activity. The
model IDEF0 developed describes in a hierarchical way all the tasks done by the

manufacturing process planner during the MWI development process (the reference
process and the change propagation process).

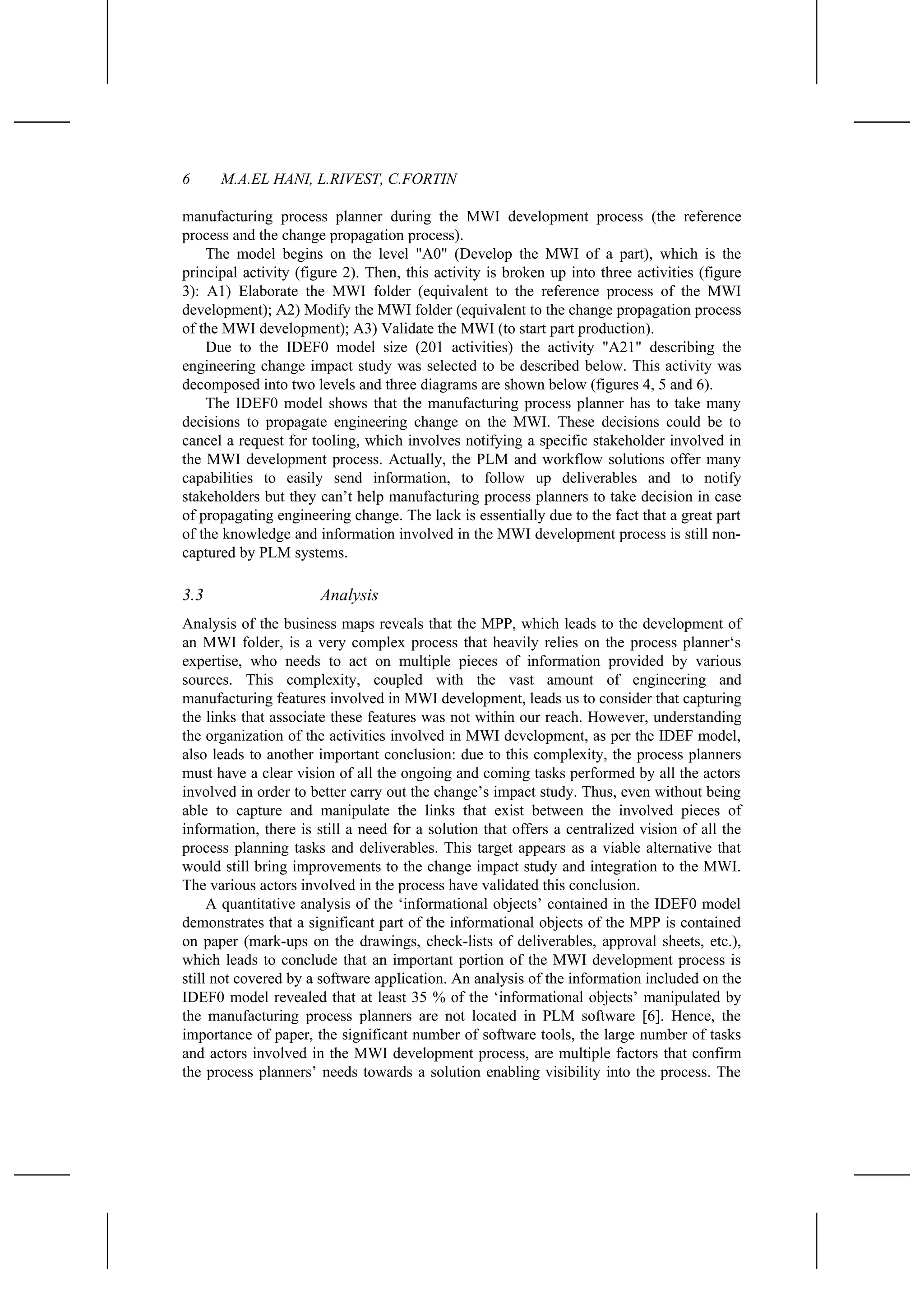

The model begins on the level "A0" (Develop the MWI of a part), which is the
principal activity (figure 2). Then, this activity is broken up into three activities (figure
3): A1) Elaborate the MWI folder (equivalent to the reference process of the MWI
development); A2) Modify the MWI folder (equivalent to the change propagation process
of the MWI development); A3) Validate the MWI (to start part production).
Due to the IDEF0 model size (201 activities) the activity "A21" describing the
engineering change impact study was selected to be described below. This activity was
decomposed into two levels and three diagrams are shown below (figures 4, 5 and 6).
The IDEF0 model shows that the manufacturing process planner has to take many
decisions to propagate engineering change on the MWI. These decisions could be to
cancel a request for tooling, which involves notifying a specific stakeholder involved in
the MWI development process. Actually, the PLM and workflow solutions offer many
capabilities to easily send information, to follow up deliverables and to notify
stakeholders but they can’t help manufacturing process planners to take decision in case
of propagating engineering change. The lack is essentially due to the fact that a great part
of the knowledge and information involved in the MWI development process is still non-
captured by PLM systems.
3.3 Analysis
Analysis of the business maps reveals that the MPP, which leads to the development of
an MWI folder, is a very complex process that heavily relies on the process planner‘s
expertise, who needs to act on multiple pieces of information provided by various
sources. This complexity, coupled with the vast amount of engineering and
manufacturing features involved in MWI development, leads us to consider that capturing
the links that associate these features was not within our reach. However, understanding
the organization of the activities involved in MWI development, as per the IDEF model,
also leads to another important conclusion: due to this complexity, the process planners
must have a clear vision of all the ongoing and coming tasks performed by all the actors
involved in order to better carry out the change’s impact study. Thus, even without being
able to capture and manipulate the links that exist between the involved pieces of
information, there is still a need for a solution that offers a centralized vision of all the
process planning tasks and deliverables. This target appears as a viable alternative that
would still bring improvements to the change impact study and integration to the MWI.
The various actors involved in the process have validated this conclusion.
A quantitative analysis of the ‘informational objects’ contained in the IDEF0 model
demonstrates that a significant part of the informational objects of the MPP is contained
on paper (mark-ups on the drawings, check-lists of deliverables, approval sheets, etc.),
which leads to conclude that an important portion of the MWI development process is
still not covered by a software application. An analysis of the information included on the
IDEF0 model revealed that at least 35 % of the ‘informational objects’ manipulated by
the manufacturing process planners are not located in PLM software [6]. Hence, the
importance of paper, the significant number of software tools, the large number of tasks
and actors involved in the MWI development process, are multiple factors that confirm
the process planners’ needs towards a solution enabling visibility into the process. The

proposed Dashboard is a solution that offers a centralized location for the process planner
to retrieve all data relevant to his work [6].
3.4 Requirements for an information management tool to
support manufacturing process planning: Dashboard
The business maps as well as the IDEF0 model provided us with an adequate
understanding of the process planning process. To further refine our comprehension of
the process planners’ needs, and to define the dashboard solution profile, questionnaires
and interviews were used to obtain information from all participants of the MWI
development process, including the process planners. The anticipated users of the
dashboard solution are manufacturing process planners, their team leaders, the
engineering department and the actors participating in the MWI development process. On
top of the needs expressed by the users, and after documenting the manufacturing process
planning work as well as its software environment, we added other requirements to the
dashboard specifications regarding the traceability of a MWI development project.
Generally, a dashboard solution is defined as a user interface that filters, organizes
and presents information in a way that is easy to read. It can be considered too, as a
small, defined set of key metrics used to provide a quick evaluation of a project or
process status. In our case, the dashboard solution is exceeds this basic definition. In
addition of capturing and centralizing information coming from different systems (CAD,
ERP, MES…), it allows manufacturing process planners to access those systems from a
unique interface. The main interface of the dashboard solution is divided in five areas:
• Project identification: it includes basic information about the project and the list of
resources involved in the MWI development process.

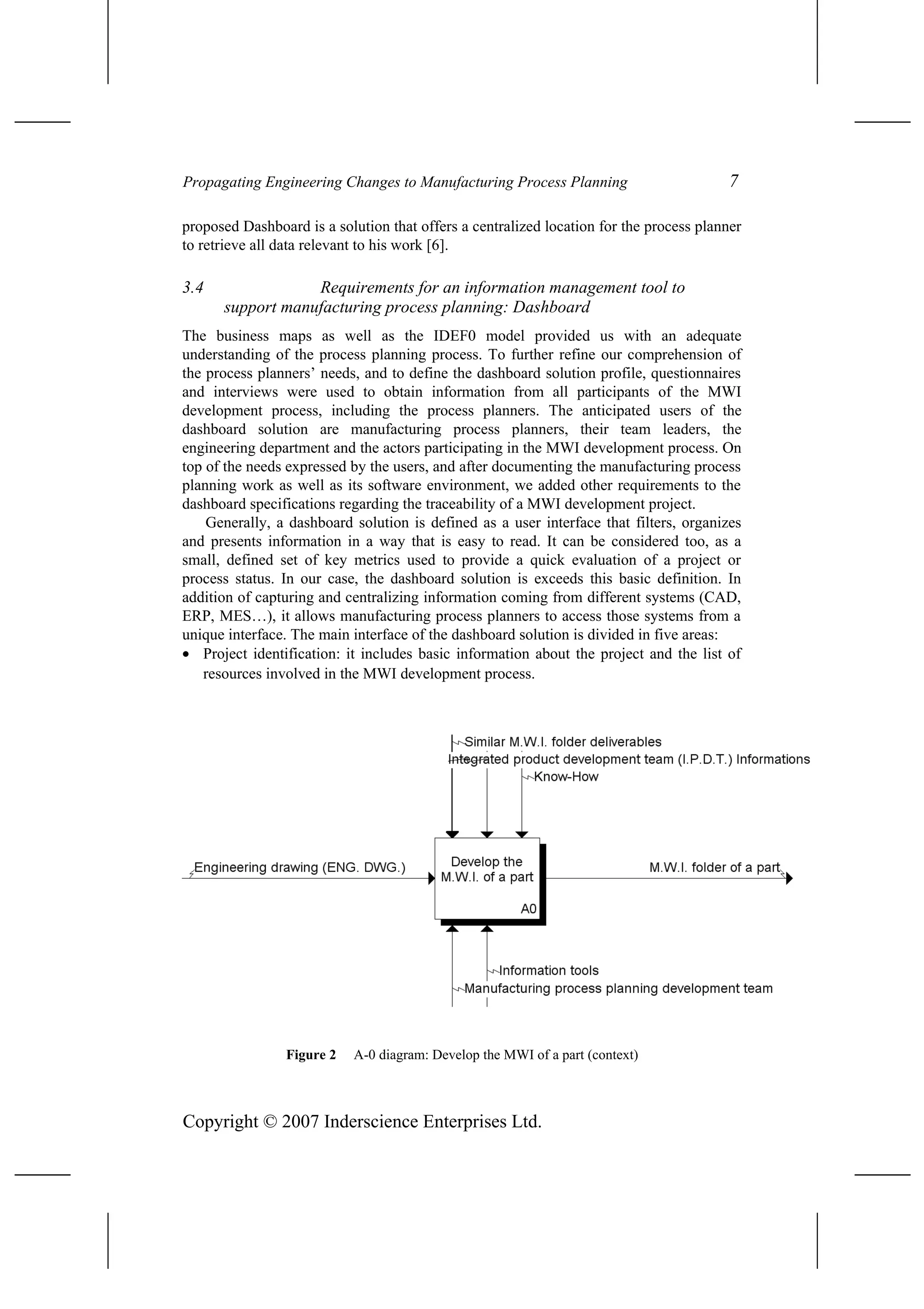

Figure 2 A-0 diagram: Develop the MWI of a part (context)

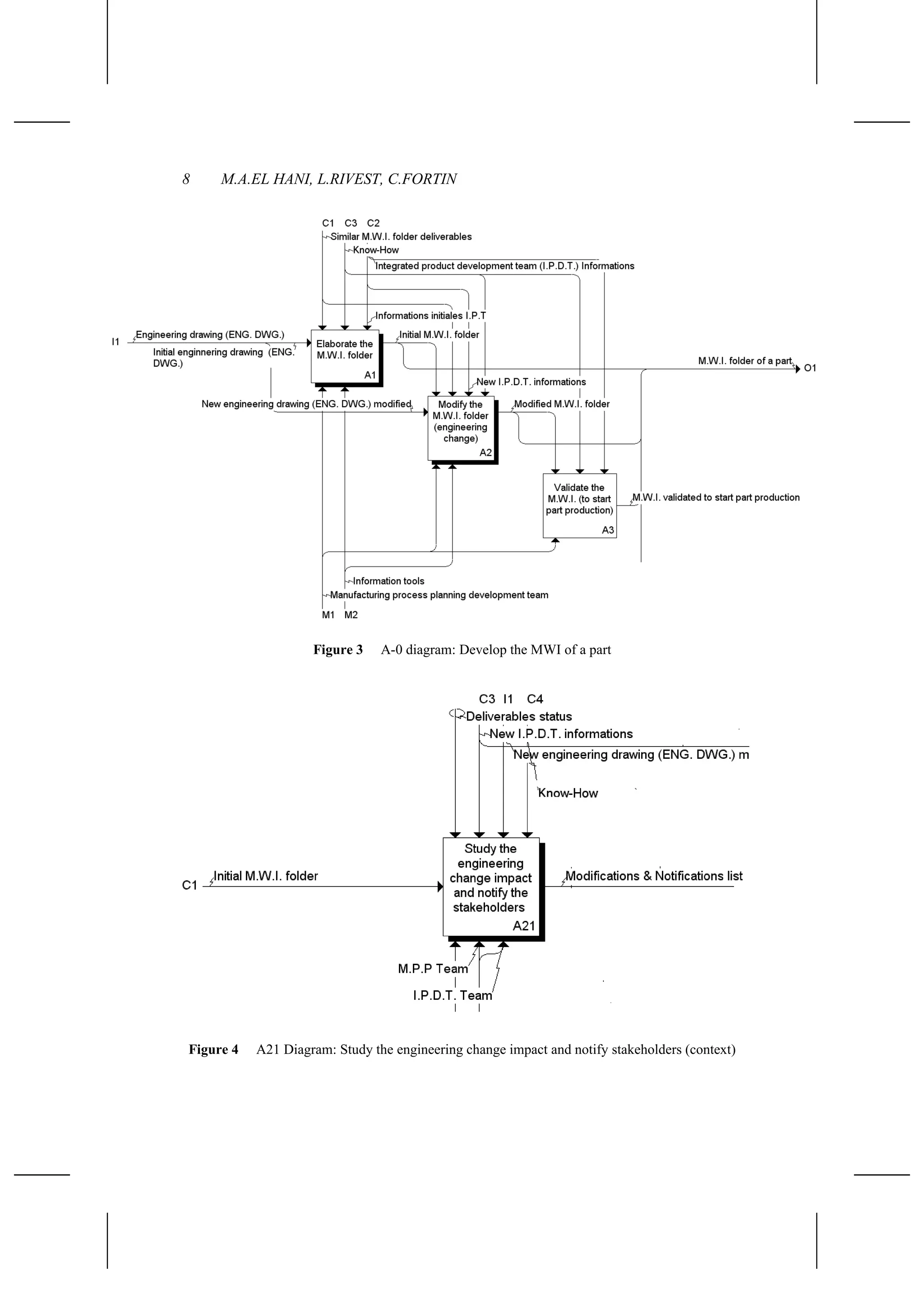

Figure 3 A-0 diagram: Develop the MWI of a part
Figure 4 A21 Diagram: Study the engineering change impact and notify stakeholders (context)

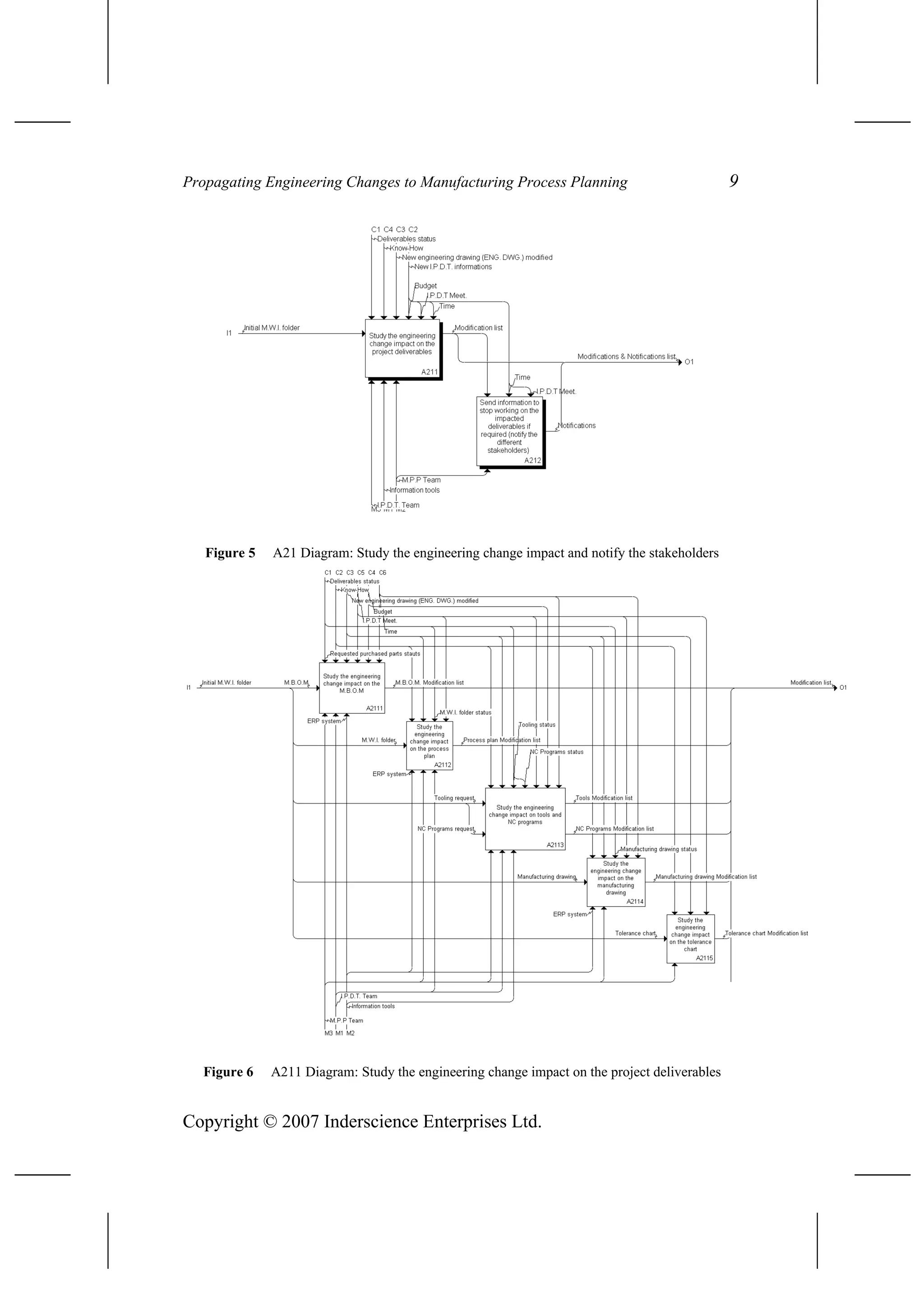

Figure 5 A21 Diagram: Study the engineering change impact and notify the stakeholders
Figure 6 A211 Diagram: Study the engineering change impact on the project deliverables

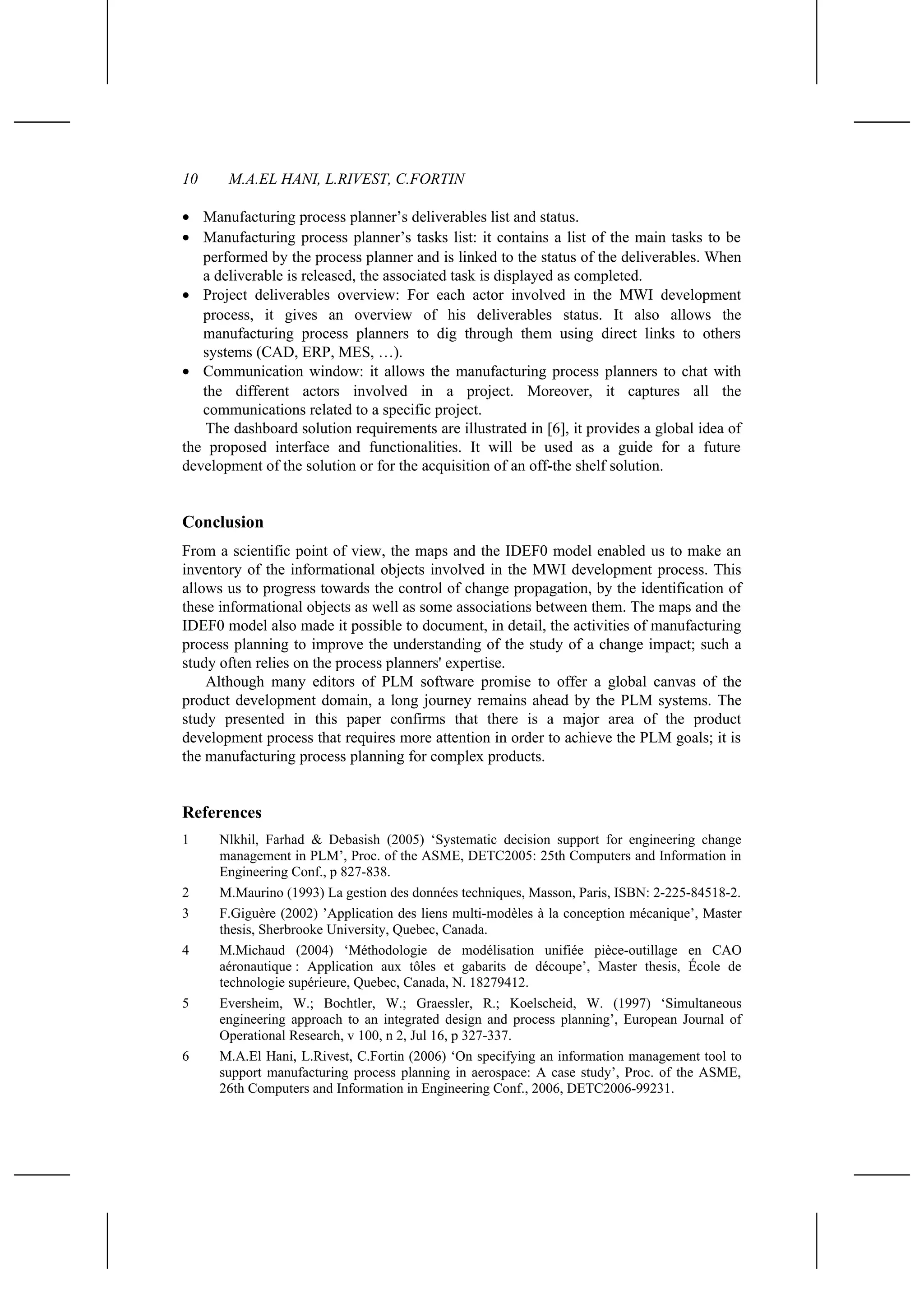

• Manufacturing process planner’s deliverables list and status.
• Manufacturing process planner’s tasks list: it contains a list of the main tasks to be
performed by the process planner and is linked to the status of the deliverables. When
a deliverable is released, the associated task is displayed as completed.
• Project deliverables overview: For each actor involved in the MWI development
process, it gives an overview of his deliverables status. It also allows the
manufacturing process planners to dig through them using direct links to others
systems (CAD, ERP, MES, …).
• Communication window: it allows the manufacturing process planners to chat with
the different actors involved in a project. Moreover, it captures all the
communications related to a specific project.
The dashboard solution requirements are illustrated in [6], it provides a global idea of
the proposed interface and functionalities. It will be used as a guide for a future
development of the solution or for the acquisition of an off-the shelf solution.
Conclusion
From a scientific point of view, the maps and the IDEF0 model enabled us to make an
inventory of the informational objects involved in the MWI development process. This
allows us to progress towards the control of change propagation, by the identification of
these informational objects as well as some associations between them. The maps and the
IDEF0 model also made it possible to document, in detail, the activities of manufacturing
process planning to improve the understanding of the study of a change impact; such a
study often relies on the process planners' expertise.
Although many editors of PLM software promise to offer a global canvas of the
product development domain, a long journey remains ahead by the PLM systems. The
study presented in this paper confirms that there is a major area of the product
development process that requires more attention in order to achieve the PLM goals; it is
the manufacturing process planning for complex products.
References
1 Nlkhil, Farhad & Debasish (2005) ‘Systematic decision support for engineering change
management in PLM’, Proc. of the ASME, DETC2005: 25th Computers and Information in
Engineering Conf., p 827-838.
2 M.Maurino (1993) La gestion des données techniques, Masson, Paris, ISBN: 2-225-84518-2.
3 F.Giguère (2002) ’Application des liens multi-modèles à la conception mécanique’, Master
thesis, Sherbrooke University, Quebec, Canada.
4 M.Michaud (2004) ‘Méthodologie de modélisation unifiée pièce-outillage en CAO
aéronautique : Application aux tôles et gabarits de découpe’, Master thesis, École de
technologie supérieure, Quebec, Canada, N. 18279412.
5 Eversheim, W.; Bochtler, W.; Graessler, R.; Koelscheid, W. (1997) ‘Simultaneous
engineering approach to an integrated design and process planning’, European Journal of
Operational Research, v 100, n 2, Jul 16, p 327-337.
6 M.A.El Hani, L.Rivest, C.Fortin (2006) ‘On specifying an information management tool to
support manufacturing process planning in aerospace: A case study’, Proc. of the ASME,
26th Computers and Information in Engineering Conf., 2006, DETC2006-99231.

Propagating Engineering Changes To Manufacturing Process Planning Does Plm Meet The Need

More Related Content

What's hot

Viewers also liked

Similar to Propagating Engineering Changes To Manufacturing Process Planning Does Plm Meet The Need

Recently uploaded

Propagating Engineering Changes To Manufacturing Process Planning Does Plm Meet The Need
