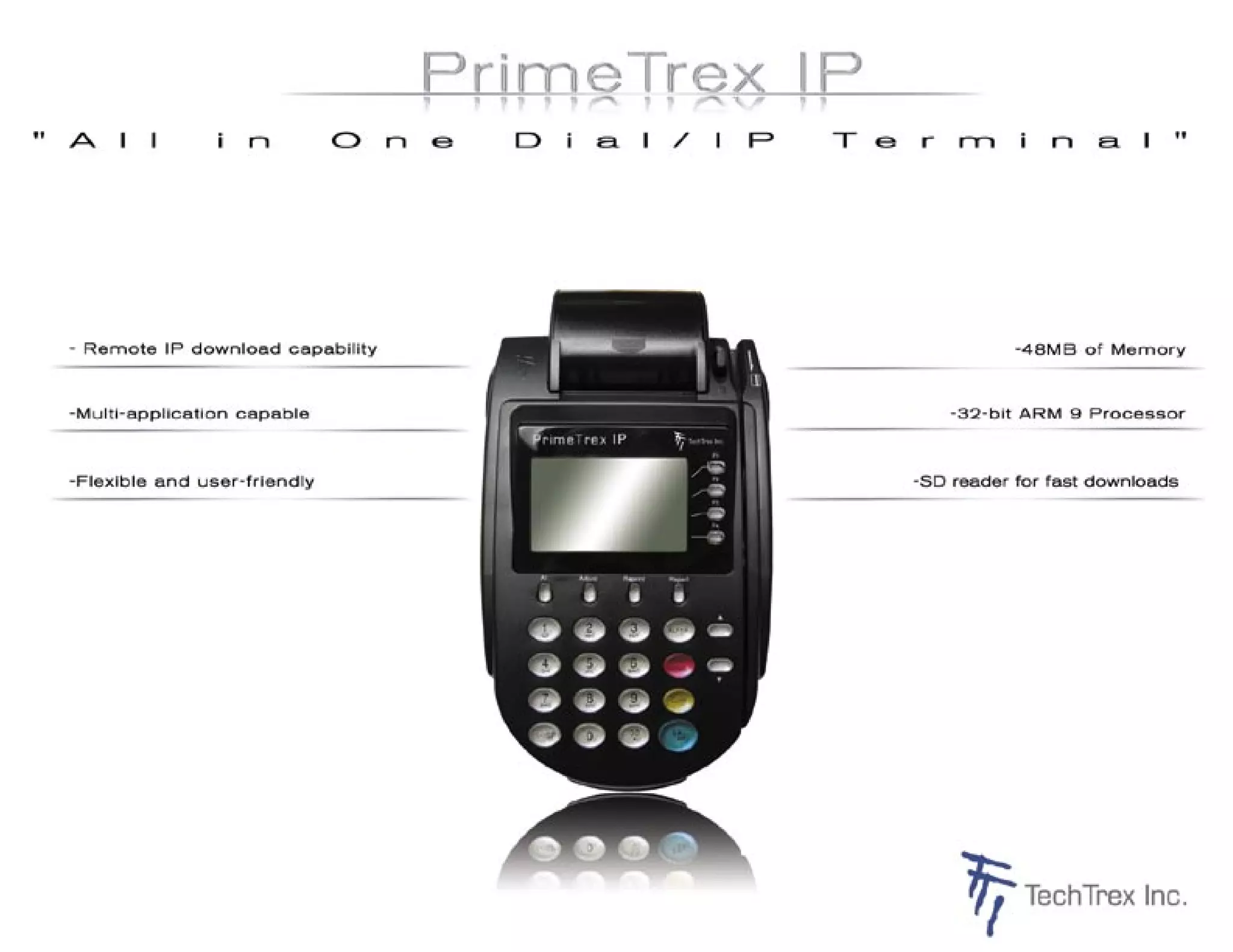

Prime Trex Ip Terminal

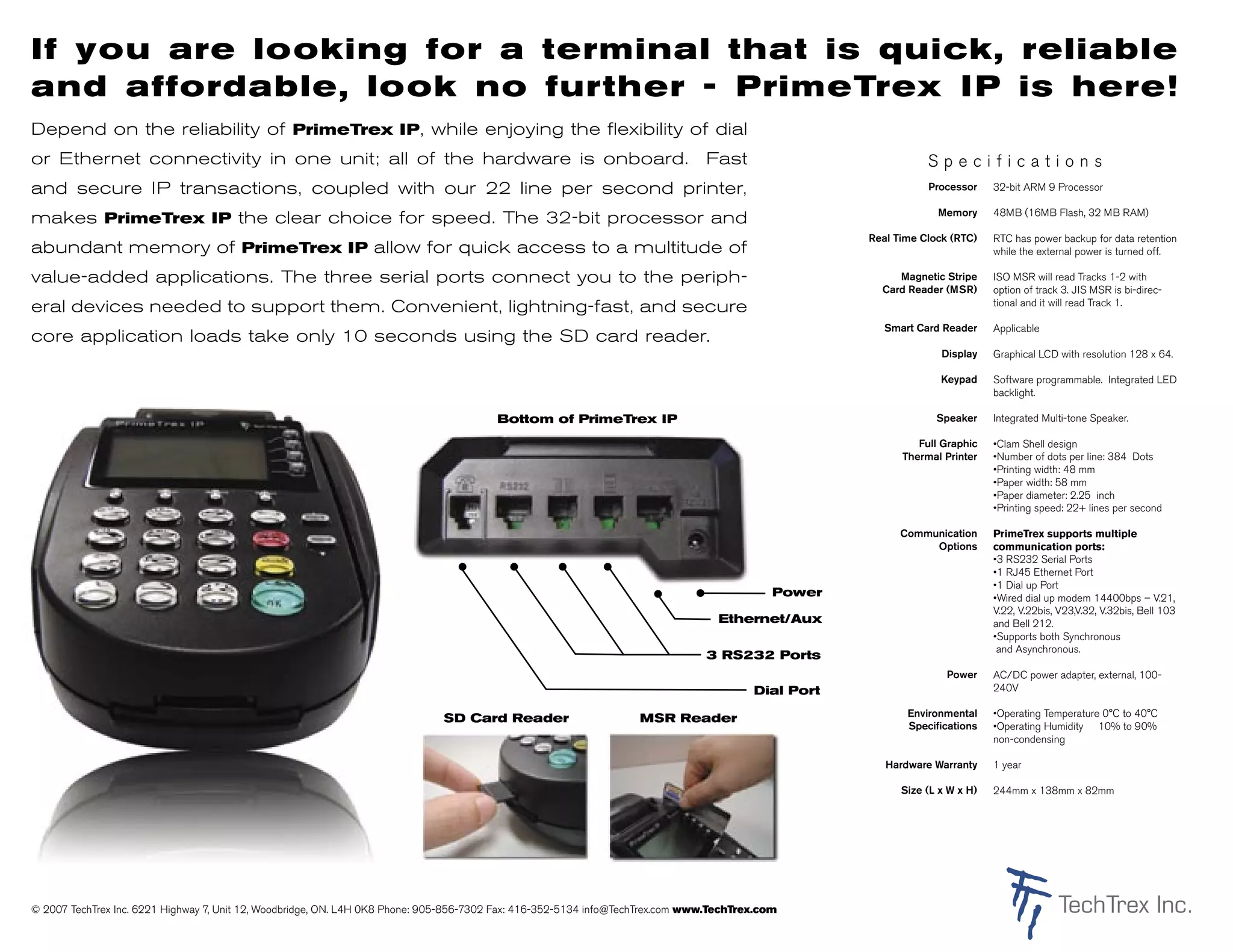

- 2. If you are looking for a terminal that is quick, reliable
and affordable, look no fur ther - PrimeTrex I P is here!
Depend on the reliability of PrimeTrex IP, while enjoying the flexibility of dial
or Ethernet connectivity in one unit; all of the hardware is onboard. Fast Specifications
and secure IP transactions, coupled with our 22 line per second printer, Processor 32-bit ARM 9 Processor
Memory 48MB (16MB Flash, 32 MB RAM)
makes PrimeTrex IP the clear choice for speed. The 32-bit processor and
Real Time Clock (RTC) RTC has power backup for data retention
abundant memory of PrimeTrex IP allow for quick access to a multitude of while the external power is turned off.
value-added applications. The three serial ports connect you to the periph- Magnetic Stripe ISO MSR will read Tracks 1-2 with
Card Reader (MSR) option of track 3. JIS MSR is bi-direc-
eral devices needed to support them. Convenient, lightning-fast, and secure tional and it will read Track 1.
Smart Card Reader Applicable
core application loads take only 10 seconds using the SD card reader.
Display Graphical LCD with resolution 128 x 64.
Keypad Software programmable. Integrated LED
backlight.
Bottom of PrimeTrex IP Speaker Integrated Multi-tone Speaker.
Full Graphic •Clam Shell design
Thermal Printer •Number of dots per line: 384 Dots
•Printing width: 48 mm
•Paper width: 58 mm
•Paper diameter: 2.25 inch
•Printing speed: 22+ lines per second
Communication PrimeTrex supports multiple
Options communication ports:
•3 RS232 Serial Ports
•1 RJ45 Ethernet Port
•1 Dial up Port
Power •Wired dial up modem 14400bps – V.21,
V.22, V.22bis, V23,V.32, V.32bis, Bell 103
Ethernet/Aux and Bell 212.
•Supports both Synchronous
and Asynchronous.
3 RS232 Ports
Power AC/DC power adapter, external, 100-
240V
Dial Port
Environmental •Operating Temperature 0°C to 40°C
SD Card Reader MSR Reader
Specifications •Operating Humidity 10% to 90%
non-condensing
Hardware Warranty 1 year
Size (L x W x H) 244mm x 138mm x 82mm
© 2007 TechTrex Inc. 6221 Highway 7, Unit 12, Woodbridge, ON. L4H 0K8 Phone: 905-856-7302 Fax: 416-352-5134 info@TechTrex.com www.TechTrex.com
