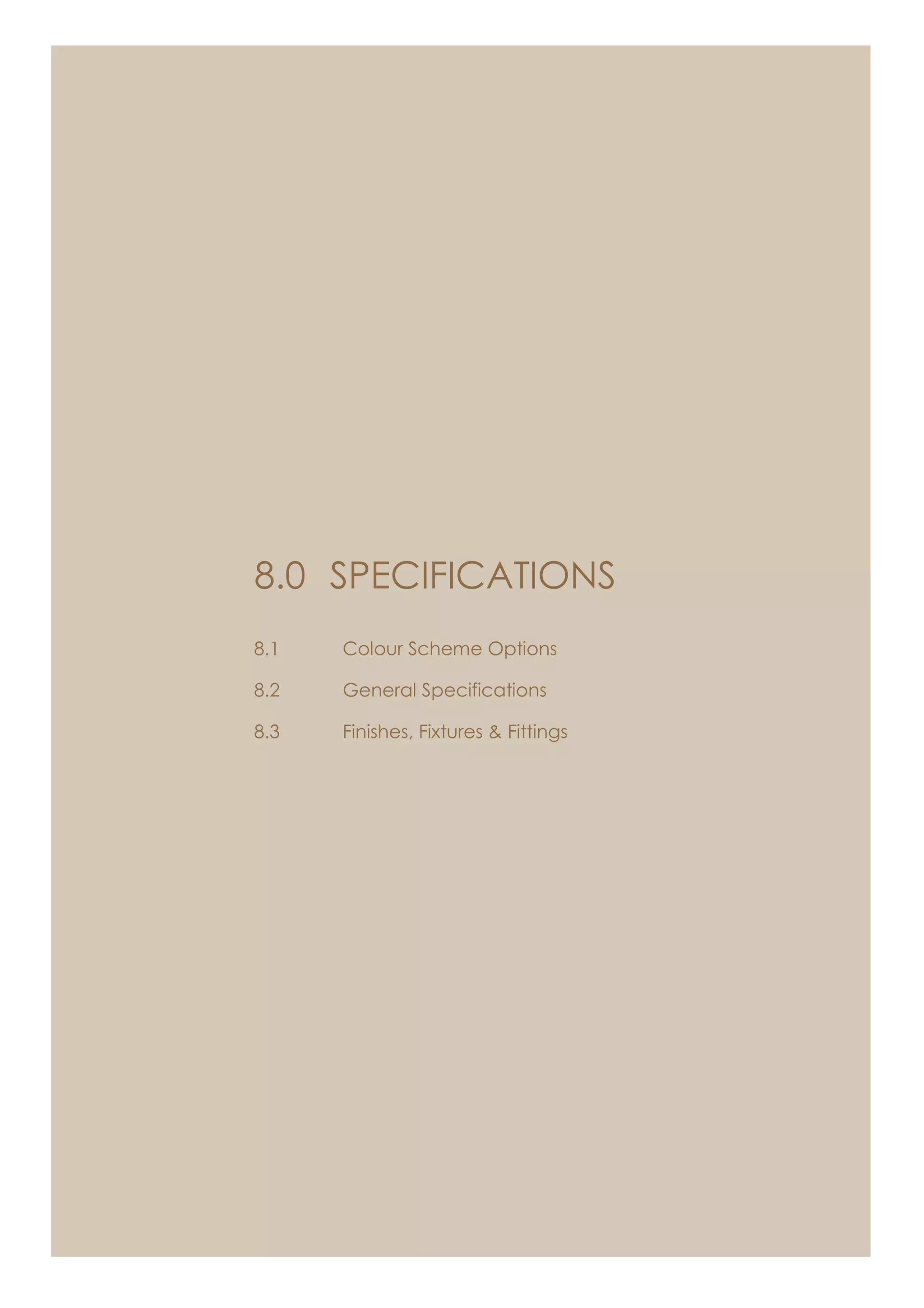

8.0 SPECIFICATIONS
8.1 Colour Scheme Options
8.2 General Specifications
8.3 Finishes, Fixtures & Fittings

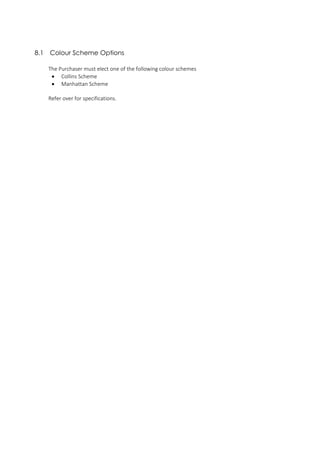

8.1 Colour Scheme Options
The Purchaser must elect one of the following colour schemes
Collins Scheme
Manhattan Scheme
Refer over for specifications.
8.2 General Specifications
Refer Attached.

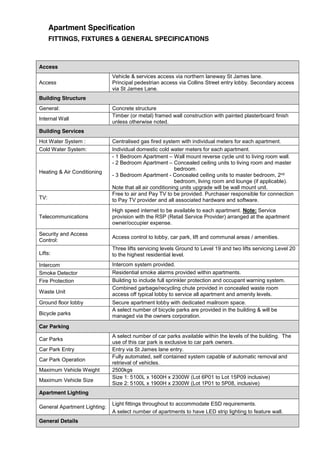

Apartment Specification
FITTINGS, FIXTURES & GENERAL SPECIFICATIONS
Access
Access
Vehicle & services access via northern laneway St James lane.
Principal pedestrian access via Collins Street entry lobby. Secondary access
via St James Lane.
Building Structure
General: Concrete structure
Internal Wall
Timber (or metal) framed wall construction with painted plasterboard finish
unless otherwise noted.
Building Services
Hot Water System : Centralised gas fired system with individual meters for each apartment.
Cold Water System: Individual domestic cold water meters for each apartment.
Heating & Air Conditioning
- 1 Bedroom Apartment – Wall mount reverse cycle unit to living room wall.
- 2 Bedroom Apartment – Concealed ceiling units to living room and master
bedroom.
- 3 Bedroom Apartment - Concealed ceiling units to master bedroom, 2nd
bedroom, living room and lounge (if applicable).
Note that all air conditioning units upgrade will be wall mount unit.
TV:
Free to air and Pay TV to be provided. Purchaser responsible for connection
to Pay TV provider and all associated hardware and software.
Telecommunications
High speed internet to be available to each apartment. Note: Service
provision with the RSP (Retail Service Provider) arranged at the apartment
owner/occupier expense.
Security and Access
Control:
Access control to lobby, car park, lift and communal areas / amenities.
Lifts:
Three lifts servicing levels Ground to Level 19 and two lifts servicing Level 20
to the highest residential level.
Intercom Intercom system provided.
Smoke Detector Residential smoke alarms provided within apartments.
Fire Protection Building to include full sprinkler protection and occupant warning system.
Waste Unit
Combined garbage/recycling chute provided in concealed waste room
access off typical lobby to service all apartment and amenity levels.
Ground floor lobby Secure apartment lobby with dedicated mailroom space.
Bicycle parks
A select number of bicycle parks are provided in the building & will be
managed via the owners corporation.
Car Parking
Car Parks
A select number of car parks available within the levels of the building. The
use of this car park is exclusive to car park owners.
Car Park Entry Entry via St James lane entry.
Car Park Operation
Fully automated, self contained system capable of automatic removal and
retrieval of vehicles.
Maximum Vehicle Weight 2500kgs
Maximum Vehicle Size
Size 1: 5100L x 1600H x 2300W (Lot 6P01 to Lot 15P09 inclusive)
Size 2: 5100L x 1900H x 2300W (Lot 1P01 to 5P08, inclusive)
Apartment Lighting
General Apartment Lighting:
Light fittings throughout to accommodate ESD requirements.
A select number of apartments to have LED strip lighting to feature wall.
General Details

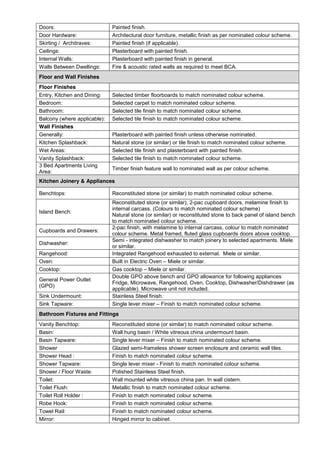

Doors: Painted finish.
Door Hardware: Architectural door furniture, metallic finish as per nominated colour scheme.
Skirting / Architraves: Painted finish (if applicable).
Ceilings: Plasterboard with painted finish.
Internal Walls: Plasterboard with painted finish in general.
Walls Between Dwellings: Fire & acoustic rated walls as required to meet BCA.
Floor and Wall Finishes
Floor Finishes
Entry, Kitchen and Dining: Selected timber floorboards to match nominated colour scheme.
Bedroom: Selected carpet to match nominated colour scheme.
Bathroom: Selected tile finish to match nominated colour scheme.
Balcony (where applicable): Selected tile finish to match nominated colour scheme.
Wall Finishes
Generally: Plasterboard with painted finish unless otherwise nominated.
Kitchen Splashback: Natural stone (or similar) or tile finish to match nominated colour scheme.
Wet Areas: Selected tile finish and plasterboard with painted finish.
Vanity Splashback: Selected tile finish to match nominated colour scheme.
3 Bed Apartments Living
Area:
Timber finish feature wall to nominated wall as per colour scheme.
Kitchen Joinery & Appliances
Benchtops: Reconstituted stone (or similar) to match nominated colour scheme.
Island Bench:
Reconstituted stone (or similar), 2-pac cupboard doors, melamine finish to
internal carcass. (Colours to match nominated colour scheme)
Natural stone (or similar) or reconstituted stone to back panel of island bench
to match nominated colour scheme.
Cupboards and Drawers:
2-pac finish, with melamine to internal carcass, colour to match nominated
colour scheme. Metal framed, fluted glass cupboards doors above cooktop.
Dishwasher:
Semi - integrated dishwasher to match joinery to selected apartments. Miele
or similar.
Rangehood: Integrated Rangehood exhausted to external. Miele or similar.
Oven: Built in Electric Oven – Miele or similar.
Cooktop: Gas cooktop – Miele or similar.
General Power Outlet
(GPO)
Double GPO above bench and GPO allowance for following appliances
Fridge, Microwave, Rangehood, Oven, Cooktop, Dishwasher/Dishdrawer (as
applicable). Microwave unit not included.
Sink Undermount: Stainless Steel finish.
Sink Tapware: Single lever mixer – Finish to match nominated colour scheme.
Bathroom Fixtures and Fittings
Vanity Benchtop: Reconstituted stone (or similar) to match nominated colour scheme.
Basin: Wall hung basin / White vitreous china undermount basin.
Basin Tapware: Single lever mixer – Finish to match nominated colour scheme.
Shower Glazed semi-frameless shower screen enclosure and ceramic wall tiles.
Shower Head : Finish to match nominated colour scheme.
Shower Tapware: Single lever mixer - Finish to match nominated colour scheme.
Shower / Floor Waste: Polished Stainless Steel finish.
Toilet: Wall mounted white vitreous china pan. In wall cistern.
Toilet Flush: Metallic finish to match nominated colour scheme.
Toilet Roll Holder : Finish to match nominated colour scheme.
Robe Hook: Finish to match nominated colour scheme.
Towel Rail: Finish to match nominated colour scheme.
Mirror: Hinged mirror to cabinet.
Laundry Cupboard
General Power Outlet
(GPO):
Double GPO to allow for Clothes Washer and Dryer.
Taps Hot/cold washing machine taps in chrome finish.
Equip. Arrangement: Space provision made for stacked washing machine/dryer.
Bedroom Fitments and Other Joinery
General Power Outlet
(GPO)
GPO and data points to bedroom.
Wardrobe Door:
1 & 2 bedroom apartments
2-pac or sliding mirror finish to door front to match nominated colour scheme
Wardrobe Door:
3 bedroom apartments
Timber veneer finish to door front to match nominated colour scheme.
Wardrobe Melamine shelves and hanging rail.
UPGRADE OPTIONS
ADDITIONAL AIR CONDITIONING UNIT (WALL MOUNT UNIT) TO STANDARD PROVISION
Upgrade 1 Applicable to 1 Bedroom Apartment
Additional reverse cycle air conditioning unit to
master bedroom
Upgrade 2 Applicable to 2 Bedroom Apartment
Additional reverse cycle air conditioning unit to
second bedroom
Upgrade 3
Applicable to North East & South
East Corner 3 Bedroom Apartment
Additional reverse cycle air conditioning unit to
second bedroom
Applicable to North East & South
East Corner 3 Bedroom Apartment
Additional reverse cycle air conditioning unit to
third bedroom
Upgrade 4
Applicable to Half Floor
3 Bedroom Apartment
Additional reverse cycle air conditioning unit to
third bedroom

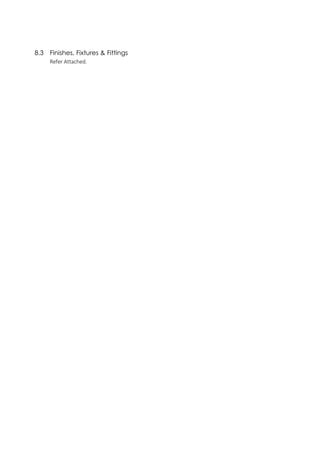

8.3 Finishes, Fixtures & Fittings
Refer Attached.

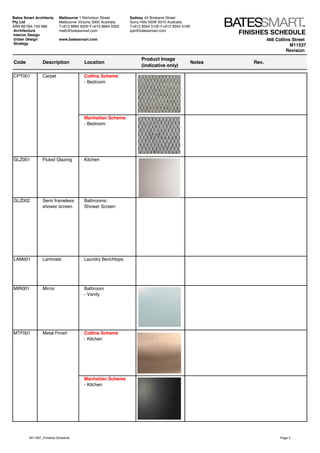

FINISHES SCHEDULE
466 Collins Street
M11537
Revision
Code Description Location
Product Image
(indicative only)
Notes Rev.
CPT001 Carpet Collins Scheme
- Bedroom
Manhattan Scheme
- Bedroom
GLZ001 Fluted Glazing Kitchen
GLZ002 Semi frameless
shower screen
Bathrooms:
Shower Screen
LAM001 Laminate Laundry Benchtops
MIR001 Mirror Bathroom
- Vanity
MTF001 Metal Finish Collins Scheme
- Kitchen
Manhattan Scheme
- Kitchen
Bates Smart Architects
Pty Ltd
ABN 68 094 740 986
Melbourne 1 Nicholson Street
Melbourne Victoria 3000 Australia
T+613 8664 6200 F+613 8664 6300
melb@batessmart.com
www.batessmart.com
Sydney 43 Brisbane Street
Surry Hills NSW 2010 Australia
T+612 8354 5100 F+612 8354 5199
syd@batessmart.comArchitecture
Interior Design
Urban Design
Strategy
M11397_Finishes Schedule Page 2

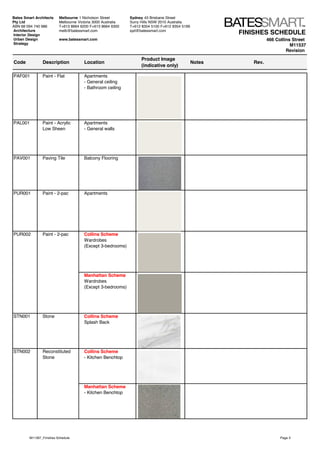

FINISHES SCHEDULE
466 Collins Street
M11537
Revision
Code Description Location
Product Image
(indicative only)
Notes Rev.
Bates Smart Architects
Pty Ltd
ABN 68 094 740 986
Melbourne 1 Nicholson Street
Melbourne Victoria 3000 Australia
T+613 8664 6200 F+613 8664 6300
melb@batessmart.com
www.batessmart.com
Sydney 43 Brisbane Street
Surry Hills NSW 2010 Australia
T+612 8354 5100 F+612 8354 5199
syd@batessmart.comArchitecture
Interior Design
Urban Design
Strategy
PAF001 Paint - Flat Apartments
- General ceiling
- Bathroom ceiling
PAL001 Paint - Acrylic
Low Sheen
Apartments
- General walls
PAV001 Paving Tile Balcony Flooring
PUR001 Paint - 2-pac Apartments
PUR002 Paint - 2-pac Collins Scheme
Wardrobes
(Except 3-bedrooms)
Manhattan Scheme
Wardrobes
(Except 3-bedrooms)
STN001 Stone Collins Scheme
Splash Back
STN002 Reconstituted
Stone
Collins Scheme
- Kitchen Benchtop
Manhattan Scheme
- Kitchen Benchtop
M11397_Finishes Schedule Page 3

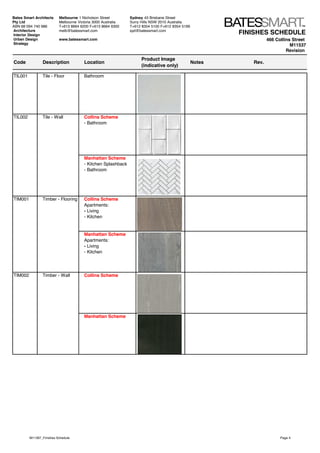

FINISHES SCHEDULE
466 Collins Street
M11537
Revision
Code Description Location
Product Image
(indicative only)
Notes Rev.
Bates Smart Architects
Pty Ltd
ABN 68 094 740 986
Melbourne 1 Nicholson Street
Melbourne Victoria 3000 Australia
T+613 8664 6200 F+613 8664 6300
melb@batessmart.com
www.batessmart.com
Sydney 43 Brisbane Street
Surry Hills NSW 2010 Australia
T+612 8354 5100 F+612 8354 5199
syd@batessmart.comArchitecture
Interior Design
Urban Design
Strategy
TIL001 Tile - Floor Bathroom
Collins Scheme
- Bathroom
Manhattan Scheme
- Kitchen Splashback
- Bathroom
TIM001 Timber - Flooring Collins Scheme
Apartments:
- Living
- Kitchen
Manhattan Scheme
Apartments:
- Living
- Kitchen
TIM002 Timber - Wall Collins Scheme
Manhattan Scheme
Tile - WallTIL002
M11397_Finishes Schedule Page 4

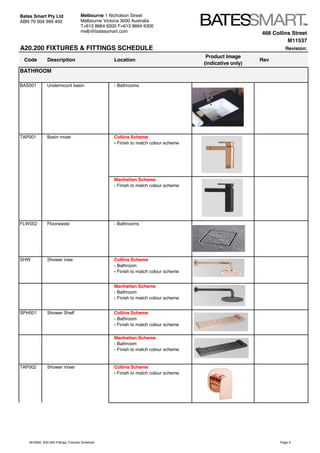

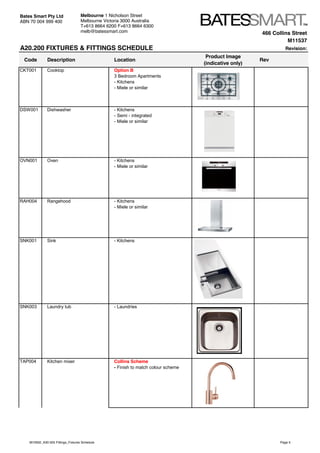

466 Collins Street
M11537
A20.200 FIXTURES & FITTINGS SCHEDULE Revision:
Code Description Location
Product Image
(indicative only)
Rev
BAS001 Undermount basin - Bathrooms
TAP001 Basin mixer Collins Scheme
- Finish to match colour scheme
Manhattan Scheme
- Finish to match colour scheme
FLW002 Floorwaste - Bathrooms
SHW Shower rose Collins Scheme
- Bathroom
- Finish to match colour scheme
Manhattan Scheme
- Bathroom
- Finish to match colour scheme
SPH001 Shower Shelf Collins Scheme
- Bathroom
- Finish to match colour scheme
Manhattan Scheme
- Bathroom
- Finish to match colour scheme
TAP002 Shower mixer Collins Scheme
- Finish to match colour scheme
BATHROOM
Bates Smart Pty Ltd
ABN 70 004 999 400
Melbourne 1 Nicholson Street
Melbourne Victoria 3000 Australia
T+613 8664 6200 F+613 8664 6300
melb@batessmart.com
M10932_A30.505 Fittings_Fixtures Schedule Page 3

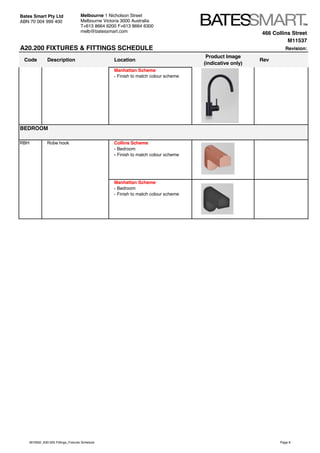

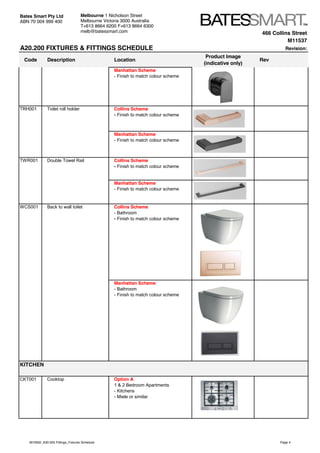

466 Collins Street
M11537
A20.200 FIXTURES & FITTINGS SCHEDULE Revision:
Code Description Location
Product Image
(indicative only)
Rev
Bates Smart Pty Ltd
ABN 70 004 999 400
Melbourne 1 Nicholson Street
Melbourne Victoria 3000 Australia
T+613 8664 6200 F+613 8664 6300
melb@batessmart.com
Manhattan Scheme
- Finish to match colour scheme
TRH001 Toilet roll holder Collins Scheme
- Finish to match colour scheme
Manhattan Scheme
- Finish to match colour scheme
TWR001 Double Towel Rail Collins Scheme
- Finish to match colour scheme
Manhattan Scheme
- Finish to match colour scheme
WCS001 Back to wall toilet Collins Scheme
- Bathroom
- Finish to match colour scheme
Manhattan Scheme
- Bathroom
- Finish to match colour scheme
CKT001 Cooktop Option A
1 & 2 Bedroom Apartments
- Kitchens
- Miele or similar
KITCHEN
M10932_A30.505 Fittings_Fixtures Schedule Page 4
466 Collins Street
M11537
A20.200 FIXTURES & FITTINGS SCHEDULE Revision:
Code Description Location
Product Image
(indicative only)
Rev
Bates Smart Pty Ltd
ABN 70 004 999 400
Melbourne 1 Nicholson Street
Melbourne Victoria 3000 Australia
T+613 8664 6200 F+613 8664 6300
melb@batessmart.com
CKT001 Cooktop Option B
3 Bedroom Apartments
- Kitchens
- Miele or similar
DSW001 Dishwasher - Kitchens
- Semi - integrated
- Miele or similar
OVN001 Oven - Kitchens
- Miele or similar
RAH004 Rangehood - Kitchens
- Miele or similar
SNK001 Sink - Kitchens
SNK003 Laundry tub - Laundries
TAP004 Kitchen mixer Collins Scheme
- Finish to match colour scheme
M10932_A30.505 Fittings_Fixtures Schedule Page 5
466 Collins Street
M11537
A20.200 FIXTURES & FITTINGS SCHEDULE Revision:
Code Description Location
Product Image
(indicative only)
Rev
Bates Smart Pty Ltd
ABN 70 004 999 400
Melbourne 1 Nicholson Street
Melbourne Victoria 3000 Australia
T+613 8664 6200 F+613 8664 6300
melb@batessmart.com
Manhattan Scheme
- Finish to match colour scheme
RBH Robe hook Collins Scheme
- Bedroom
- Finish to match colour scheme
Manhattan Scheme
- Bedroom
- Finish to match colour scheme
BEDROOM
M10932_A30.505 Fittings_Fixtures Schedule Page 6

Collins house material specifications

  • 1.
    8.0 SPECIFICATIONS 8.1 ColourScheme Options 8.2 General Specifications 8.3 Finishes, Fixtures & Fittings
  • 2.
    8.1 Colour SchemeOptions The Purchaser must elect one of the following colour schemes Collins Scheme Manhattan Scheme Refer over for specifications.
  • 5.
  • 6.
    Apartment Specification FITTINGS, FIXTURES& GENERAL SPECIFICATIONS Access Access Vehicle & services access via northern laneway St James lane. Principal pedestrian access via Collins Street entry lobby. Secondary access via St James Lane. Building Structure General: Concrete structure Internal Wall Timber (or metal) framed wall construction with painted plasterboard finish unless otherwise noted. Building Services Hot Water System : Centralised gas fired system with individual meters for each apartment. Cold Water System: Individual domestic cold water meters for each apartment. Heating & Air Conditioning - 1 Bedroom Apartment – Wall mount reverse cycle unit to living room wall. - 2 Bedroom Apartment – Concealed ceiling units to living room and master bedroom. - 3 Bedroom Apartment - Concealed ceiling units to master bedroom, 2nd bedroom, living room and lounge (if applicable). Note that all air conditioning units upgrade will be wall mount unit. TV: Free to air and Pay TV to be provided. Purchaser responsible for connection to Pay TV provider and all associated hardware and software. Telecommunications High speed internet to be available to each apartment. Note: Service provision with the RSP (Retail Service Provider) arranged at the apartment owner/occupier expense. Security and Access Control: Access control to lobby, car park, lift and communal areas / amenities. Lifts: Three lifts servicing levels Ground to Level 19 and two lifts servicing Level 20 to the highest residential level. Intercom Intercom system provided. Smoke Detector Residential smoke alarms provided within apartments. Fire Protection Building to include full sprinkler protection and occupant warning system. Waste Unit Combined garbage/recycling chute provided in concealed waste room access off typical lobby to service all apartment and amenity levels. Ground floor lobby Secure apartment lobby with dedicated mailroom space. Bicycle parks A select number of bicycle parks are provided in the building & will be managed via the owners corporation. Car Parking Car Parks A select number of car parks available within the levels of the building. The use of this car park is exclusive to car park owners. Car Park Entry Entry via St James lane entry. Car Park Operation Fully automated, self contained system capable of automatic removal and retrieval of vehicles. Maximum Vehicle Weight 2500kgs Maximum Vehicle Size Size 1: 5100L x 1600H x 2300W (Lot 6P01 to Lot 15P09 inclusive) Size 2: 5100L x 1900H x 2300W (Lot 1P01 to 5P08, inclusive) Apartment Lighting General Apartment Lighting: Light fittings throughout to accommodate ESD requirements. A select number of apartments to have LED strip lighting to feature wall. General Details
  • 7.
    Doors: Painted finish. DoorHardware: Architectural door furniture, metallic finish as per nominated colour scheme. Skirting / Architraves: Painted finish (if applicable). Ceilings: Plasterboard with painted finish. Internal Walls: Plasterboard with painted finish in general. Walls Between Dwellings: Fire & acoustic rated walls as required to meet BCA. Floor and Wall Finishes Floor Finishes Entry, Kitchen and Dining: Selected timber floorboards to match nominated colour scheme. Bedroom: Selected carpet to match nominated colour scheme. Bathroom: Selected tile finish to match nominated colour scheme. Balcony (where applicable): Selected tile finish to match nominated colour scheme. Wall Finishes Generally: Plasterboard with painted finish unless otherwise nominated. Kitchen Splashback: Natural stone (or similar) or tile finish to match nominated colour scheme. Wet Areas: Selected tile finish and plasterboard with painted finish. Vanity Splashback: Selected tile finish to match nominated colour scheme. 3 Bed Apartments Living Area: Timber finish feature wall to nominated wall as per colour scheme. Kitchen Joinery & Appliances Benchtops: Reconstituted stone (or similar) to match nominated colour scheme. Island Bench: Reconstituted stone (or similar), 2-pac cupboard doors, melamine finish to internal carcass. (Colours to match nominated colour scheme) Natural stone (or similar) or reconstituted stone to back panel of island bench to match nominated colour scheme. Cupboards and Drawers: 2-pac finish, with melamine to internal carcass, colour to match nominated colour scheme. Metal framed, fluted glass cupboards doors above cooktop. Dishwasher: Semi - integrated dishwasher to match joinery to selected apartments. Miele or similar. Rangehood: Integrated Rangehood exhausted to external. Miele or similar. Oven: Built in Electric Oven – Miele or similar. Cooktop: Gas cooktop – Miele or similar. General Power Outlet (GPO) Double GPO above bench and GPO allowance for following appliances Fridge, Microwave, Rangehood, Oven, Cooktop, Dishwasher/Dishdrawer (as applicable). Microwave unit not included. Sink Undermount: Stainless Steel finish. Sink Tapware: Single lever mixer – Finish to match nominated colour scheme. Bathroom Fixtures and Fittings Vanity Benchtop: Reconstituted stone (or similar) to match nominated colour scheme. Basin: Wall hung basin / White vitreous china undermount basin. Basin Tapware: Single lever mixer – Finish to match nominated colour scheme. Shower Glazed semi-frameless shower screen enclosure and ceramic wall tiles. Shower Head : Finish to match nominated colour scheme. Shower Tapware: Single lever mixer - Finish to match nominated colour scheme. Shower / Floor Waste: Polished Stainless Steel finish. Toilet: Wall mounted white vitreous china pan. In wall cistern. Toilet Flush: Metallic finish to match nominated colour scheme. Toilet Roll Holder : Finish to match nominated colour scheme. Robe Hook: Finish to match nominated colour scheme. Towel Rail: Finish to match nominated colour scheme. Mirror: Hinged mirror to cabinet.
  • 8.
    Laundry Cupboard General PowerOutlet (GPO): Double GPO to allow for Clothes Washer and Dryer. Taps Hot/cold washing machine taps in chrome finish. Equip. Arrangement: Space provision made for stacked washing machine/dryer. Bedroom Fitments and Other Joinery General Power Outlet (GPO) GPO and data points to bedroom. Wardrobe Door: 1 & 2 bedroom apartments 2-pac or sliding mirror finish to door front to match nominated colour scheme Wardrobe Door: 3 bedroom apartments Timber veneer finish to door front to match nominated colour scheme. Wardrobe Melamine shelves and hanging rail. UPGRADE OPTIONS ADDITIONAL AIR CONDITIONING UNIT (WALL MOUNT UNIT) TO STANDARD PROVISION Upgrade 1 Applicable to 1 Bedroom Apartment Additional reverse cycle air conditioning unit to master bedroom Upgrade 2 Applicable to 2 Bedroom Apartment Additional reverse cycle air conditioning unit to second bedroom Upgrade 3 Applicable to North East & South East Corner 3 Bedroom Apartment Additional reverse cycle air conditioning unit to second bedroom Applicable to North East & South East Corner 3 Bedroom Apartment Additional reverse cycle air conditioning unit to third bedroom Upgrade 4 Applicable to Half Floor 3 Bedroom Apartment Additional reverse cycle air conditioning unit to third bedroom
  • 9.
    8.3 Finishes, Fixtures& Fittings Refer Attached.
  • 10.
    FINISHES SCHEDULE 466 CollinsStreet M11537 Revision Code Description Location Product Image (indicative only) Notes Rev. CPT001 Carpet Collins Scheme - Bedroom Manhattan Scheme - Bedroom GLZ001 Fluted Glazing Kitchen GLZ002 Semi frameless shower screen Bathrooms: Shower Screen LAM001 Laminate Laundry Benchtops MIR001 Mirror Bathroom - Vanity MTF001 Metal Finish Collins Scheme - Kitchen Manhattan Scheme - Kitchen Bates Smart Architects Pty Ltd ABN 68 094 740 986 Melbourne 1 Nicholson Street Melbourne Victoria 3000 Australia T+613 8664 6200 F+613 8664 6300 melb@batessmart.com www.batessmart.com Sydney 43 Brisbane Street Surry Hills NSW 2010 Australia T+612 8354 5100 F+612 8354 5199 syd@batessmart.comArchitecture Interior Design Urban Design Strategy M11397_Finishes Schedule Page 2
  • 11.
    FINISHES SCHEDULE 466 CollinsStreet M11537 Revision Code Description Location Product Image (indicative only) Notes Rev. Bates Smart Architects Pty Ltd ABN 68 094 740 986 Melbourne 1 Nicholson Street Melbourne Victoria 3000 Australia T+613 8664 6200 F+613 8664 6300 melb@batessmart.com www.batessmart.com Sydney 43 Brisbane Street Surry Hills NSW 2010 Australia T+612 8354 5100 F+612 8354 5199 syd@batessmart.comArchitecture Interior Design Urban Design Strategy PAF001 Paint - Flat Apartments - General ceiling - Bathroom ceiling PAL001 Paint - Acrylic Low Sheen Apartments - General walls PAV001 Paving Tile Balcony Flooring PUR001 Paint - 2-pac Apartments PUR002 Paint - 2-pac Collins Scheme Wardrobes (Except 3-bedrooms) Manhattan Scheme Wardrobes (Except 3-bedrooms) STN001 Stone Collins Scheme Splash Back STN002 Reconstituted Stone Collins Scheme - Kitchen Benchtop Manhattan Scheme - Kitchen Benchtop M11397_Finishes Schedule Page 3
  • 12.
    FINISHES SCHEDULE 466 CollinsStreet M11537 Revision Code Description Location Product Image (indicative only) Notes Rev. Bates Smart Architects Pty Ltd ABN 68 094 740 986 Melbourne 1 Nicholson Street Melbourne Victoria 3000 Australia T+613 8664 6200 F+613 8664 6300 melb@batessmart.com www.batessmart.com Sydney 43 Brisbane Street Surry Hills NSW 2010 Australia T+612 8354 5100 F+612 8354 5199 syd@batessmart.comArchitecture Interior Design Urban Design Strategy TIL001 Tile - Floor Bathroom Collins Scheme - Bathroom Manhattan Scheme - Kitchen Splashback - Bathroom TIM001 Timber - Flooring Collins Scheme Apartments: - Living - Kitchen Manhattan Scheme Apartments: - Living - Kitchen TIM002 Timber - Wall Collins Scheme Manhattan Scheme Tile - WallTIL002 M11397_Finishes Schedule Page 4
  • 13.
    466 Collins Street M11537 A20.200FIXTURES & FITTINGS SCHEDULE Revision: Code Description Location Product Image (indicative only) Rev BAS001 Undermount basin - Bathrooms TAP001 Basin mixer Collins Scheme - Finish to match colour scheme Manhattan Scheme - Finish to match colour scheme FLW002 Floorwaste - Bathrooms SHW Shower rose Collins Scheme - Bathroom - Finish to match colour scheme Manhattan Scheme - Bathroom - Finish to match colour scheme SPH001 Shower Shelf Collins Scheme - Bathroom - Finish to match colour scheme Manhattan Scheme - Bathroom - Finish to match colour scheme TAP002 Shower mixer Collins Scheme - Finish to match colour scheme BATHROOM Bates Smart Pty Ltd ABN 70 004 999 400 Melbourne 1 Nicholson Street Melbourne Victoria 3000 Australia T+613 8664 6200 F+613 8664 6300 melb@batessmart.com M10932_A30.505 Fittings_Fixtures Schedule Page 3
  • 14.
    466 Collins Street M11537 A20.200FIXTURES & FITTINGS SCHEDULE Revision: Code Description Location Product Image (indicative only) Rev Bates Smart Pty Ltd ABN 70 004 999 400 Melbourne 1 Nicholson Street Melbourne Victoria 3000 Australia T+613 8664 6200 F+613 8664 6300 melb@batessmart.com Manhattan Scheme - Finish to match colour scheme TRH001 Toilet roll holder Collins Scheme - Finish to match colour scheme Manhattan Scheme - Finish to match colour scheme TWR001 Double Towel Rail Collins Scheme - Finish to match colour scheme Manhattan Scheme - Finish to match colour scheme WCS001 Back to wall toilet Collins Scheme - Bathroom - Finish to match colour scheme Manhattan Scheme - Bathroom - Finish to match colour scheme CKT001 Cooktop Option A 1 & 2 Bedroom Apartments - Kitchens - Miele or similar KITCHEN M10932_A30.505 Fittings_Fixtures Schedule Page 4
  • 15.
    466 Collins Street M11537 A20.200FIXTURES & FITTINGS SCHEDULE Revision: Code Description Location Product Image (indicative only) Rev Bates Smart Pty Ltd ABN 70 004 999 400 Melbourne 1 Nicholson Street Melbourne Victoria 3000 Australia T+613 8664 6200 F+613 8664 6300 melb@batessmart.com CKT001 Cooktop Option B 3 Bedroom Apartments - Kitchens - Miele or similar DSW001 Dishwasher - Kitchens - Semi - integrated - Miele or similar OVN001 Oven - Kitchens - Miele or similar RAH004 Rangehood - Kitchens - Miele or similar SNK001 Sink - Kitchens SNK003 Laundry tub - Laundries TAP004 Kitchen mixer Collins Scheme - Finish to match colour scheme M10932_A30.505 Fittings_Fixtures Schedule Page 5
  • 16.
    466 Collins Street M11537 A20.200FIXTURES & FITTINGS SCHEDULE Revision: Code Description Location Product Image (indicative only) Rev Bates Smart Pty Ltd ABN 70 004 999 400 Melbourne 1 Nicholson Street Melbourne Victoria 3000 Australia T+613 8664 6200 F+613 8664 6300 melb@batessmart.com Manhattan Scheme - Finish to match colour scheme RBH Robe hook Collins Scheme - Bedroom - Finish to match colour scheme Manhattan Scheme - Bedroom - Finish to match colour scheme BEDROOM M10932_A30.505 Fittings_Fixtures Schedule Page 6
