Retrouvez le mode d'emploi du robot cuiseur MAGIMIX COOK EXPERT. Acheter le robot Magimix cuiseur sur notre site habiague.com ou dans notre boutique à Toulouse.
Bằng cách trở thành một người lắng nghe tốt, bạn sẽ cải thiện được năng suất làm việc của mình, gây ảnh hưởng, thuyết phục và thương lượng thành công với người khác. Hơn nữa, bạn cũng sẽ tránh được những mâu thuẫn và hiểu nhầm đáng tiếc.
http://khoahockynang.edu.vn
Một thái độ sống tích cực, cố gắng phát triển kỹ năng và trau dồi kiến thức sẽ dẫn bạn đi đến con đường thành công.
Nên nhớ rằng: Muốn thành công - Hãy học cách chấp nhận thất bại.
Retrouvez le mode d'emploi du robot cuiseur MAGIMIX COOK EXPERT. Acheter le robot Magimix cuiseur sur notre site habiague.com ou dans notre boutique à Toulouse.
Bằng cách trở thành một người lắng nghe tốt, bạn sẽ cải thiện được năng suất làm việc của mình, gây ảnh hưởng, thuyết phục và thương lượng thành công với người khác. Hơn nữa, bạn cũng sẽ tránh được những mâu thuẫn và hiểu nhầm đáng tiếc.
http://khoahockynang.edu.vn
Một thái độ sống tích cực, cố gắng phát triển kỹ năng và trau dồi kiến thức sẽ dẫn bạn đi đến con đường thành công.
Nên nhớ rằng: Muốn thành công - Hãy học cách chấp nhận thất bại.
Saudi Arabia stands as a titan in the global energy landscape, renowned for its abundant oil and gas resources. It's the largest exporter of petroleum and holds some of the world's most significant reserves. Let's delve into the top 10 oil and gas projects shaping Saudi Arabia's energy future in 2024.
Immunizing Image Classifiers Against Localized Adversary Attacksgerogepatton
This paper addresses the vulnerability of deep learning models, particularly convolutional neural networks
(CNN)s, to adversarial attacks and presents a proactive training technique designed to counter them. We
introduce a novel volumization algorithm, which transforms 2D images into 3D volumetric representations.
When combined with 3D convolution and deep curriculum learning optimization (CLO), itsignificantly improves
the immunity of models against localized universal attacks by up to 40%. We evaluate our proposed approach
using contemporary CNN architectures and the modified Canadian Institute for Advanced Research (CIFAR-10
and CIFAR-100) and ImageNet Large Scale Visual Recognition Challenge (ILSVRC12) datasets, showcasing
accuracy improvements over previous techniques. The results indicate that the combination of the volumetric
input and curriculum learning holds significant promise for mitigating adversarial attacks without necessitating
adversary training.
Hierarchical Digital Twin of a Naval Power SystemKerry Sado
A hierarchical digital twin of a Naval DC power system has been developed and experimentally verified. Similar to other state-of-the-art digital twins, this technology creates a digital replica of the physical system executed in real-time or faster, which can modify hardware controls. However, its advantage stems from distributing computational efforts by utilizing a hierarchical structure composed of lower-level digital twin blocks and a higher-level system digital twin. Each digital twin block is associated with a physical subsystem of the hardware and communicates with a singular system digital twin, which creates a system-level response. By extracting information from each level of the hierarchy, power system controls of the hardware were reconfigured autonomously. This hierarchical digital twin development offers several advantages over other digital twins, particularly in the field of naval power systems. The hierarchical structure allows for greater computational efficiency and scalability while the ability to autonomously reconfigure hardware controls offers increased flexibility and responsiveness. The hierarchical decomposition and models utilized were well aligned with the physical twin, as indicated by the maximum deviations between the developed digital twin hierarchy and the hardware.
About
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Technical Specifications
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
Key Features
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface
• Compatible with MAFI CCR system
• Copatiable with IDM8000 CCR
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
Application
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdffxintegritypublishin
Advancements in technology unveil a myriad of electrical and electronic breakthroughs geared towards efficiently harnessing limited resources to meet human energy demands. The optimization of hybrid solar PV panels and pumped hydro energy supply systems plays a pivotal role in utilizing natural resources effectively. This initiative not only benefits humanity but also fosters environmental sustainability. The study investigated the design optimization of these hybrid systems, focusing on understanding solar radiation patterns, identifying geographical influences on solar radiation, formulating a mathematical model for system optimization, and determining the optimal configuration of PV panels and pumped hydro storage. Through a comparative analysis approach and eight weeks of data collection, the study addressed key research questions related to solar radiation patterns and optimal system design. The findings highlighted regions with heightened solar radiation levels, showcasing substantial potential for power generation and emphasizing the system's efficiency. Optimizing system design significantly boosted power generation, promoted renewable energy utilization, and enhanced energy storage capacity. The study underscored the benefits of optimizing hybrid solar PV panels and pumped hydro energy supply systems for sustainable energy usage. Optimizing the design of solar PV panels and pumped hydro energy supply systems as examined across diverse climatic conditions in a developing country, not only enhances power generation but also improves the integration of renewable energy sources and boosts energy storage capacities, particularly beneficial for less economically prosperous regions. Additionally, the study provides valuable insights for advancing energy research in economically viable areas. Recommendations included conducting site-specific assessments, utilizing advanced modeling tools, implementing regular maintenance protocols, and enhancing communication among system components.
Water scarcity is the lack of fresh water resources to meet the standard water demand. There are two type of water scarcity. One is physical. The other is economic water scarcity.
Welcome to WIPAC Monthly the magazine brought to you by the LinkedIn Group Water Industry Process Automation & Control.
In this month's edition, along with this month's industry news to celebrate the 13 years since the group was created we have articles including
A case study of the used of Advanced Process Control at the Wastewater Treatment works at Lleida in Spain
A look back on an article on smart wastewater networks in order to see how the industry has measured up in the interim around the adoption of Digital Transformation in the Water Industry.
Student information management system project report ii.pdfKamal Acharya
Our project explains about the student management. This project mainly explains the various actions related to student details. This project shows some ease in adding, editing and deleting the student details. It also provides a less time consuming process for viewing, adding, editing and deleting the marks of the students.
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Dr.Costas Sachpazis
Terzaghi's soil bearing capacity theory, developed by Karl Terzaghi, is a fundamental principle in geotechnical engineering used to determine the bearing capacity of shallow foundations. This theory provides a method to calculate the ultimate bearing capacity of soil, which is the maximum load per unit area that the soil can support without undergoing shear failure. The Calculation HTML Code included.
2024 State of Marketing Report – by HubspotMarius Sescu
https://www.hubspot.com/state-of-marketing
· Scaling relationships and proving ROI
· Social media is the place for search, sales, and service
· Authentic influencer partnerships fuel brand growth
· The strongest connections happen via call, click, chat, and camera.
· Time saved with AI leads to more creative work
· Seeking: A single source of truth
· TLDR; Get on social, try AI, and align your systems.
· More human marketing, powered by robots
ChatGPT is a revolutionary addition to the world since its introduction in 2022. A big shift in the sector of information gathering and processing happened because of this chatbot. What is the story of ChatGPT? How is the bot responding to prompts and generating contents? Swipe through these slides prepared by Expeed Software, a web development company regarding the development and technical intricacies of ChatGPT!
Saudi Arabia stands as a titan in the global energy landscape, renowned for its abundant oil and gas resources. It's the largest exporter of petroleum and holds some of the world's most significant reserves. Let's delve into the top 10 oil and gas projects shaping Saudi Arabia's energy future in 2024.
Immunizing Image Classifiers Against Localized Adversary Attacksgerogepatton
This paper addresses the vulnerability of deep learning models, particularly convolutional neural networks
(CNN)s, to adversarial attacks and presents a proactive training technique designed to counter them. We
introduce a novel volumization algorithm, which transforms 2D images into 3D volumetric representations.
When combined with 3D convolution and deep curriculum learning optimization (CLO), itsignificantly improves
the immunity of models against localized universal attacks by up to 40%. We evaluate our proposed approach
using contemporary CNN architectures and the modified Canadian Institute for Advanced Research (CIFAR-10
and CIFAR-100) and ImageNet Large Scale Visual Recognition Challenge (ILSVRC12) datasets, showcasing
accuracy improvements over previous techniques. The results indicate that the combination of the volumetric
input and curriculum learning holds significant promise for mitigating adversarial attacks without necessitating
adversary training.
Hierarchical Digital Twin of a Naval Power SystemKerry Sado
A hierarchical digital twin of a Naval DC power system has been developed and experimentally verified. Similar to other state-of-the-art digital twins, this technology creates a digital replica of the physical system executed in real-time or faster, which can modify hardware controls. However, its advantage stems from distributing computational efforts by utilizing a hierarchical structure composed of lower-level digital twin blocks and a higher-level system digital twin. Each digital twin block is associated with a physical subsystem of the hardware and communicates with a singular system digital twin, which creates a system-level response. By extracting information from each level of the hierarchy, power system controls of the hardware were reconfigured autonomously. This hierarchical digital twin development offers several advantages over other digital twins, particularly in the field of naval power systems. The hierarchical structure allows for greater computational efficiency and scalability while the ability to autonomously reconfigure hardware controls offers increased flexibility and responsiveness. The hierarchical decomposition and models utilized were well aligned with the physical twin, as indicated by the maximum deviations between the developed digital twin hierarchy and the hardware.
About
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Technical Specifications
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
Key Features
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface
• Compatible with MAFI CCR system
• Copatiable with IDM8000 CCR
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
Application
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdffxintegritypublishin
Advancements in technology unveil a myriad of electrical and electronic breakthroughs geared towards efficiently harnessing limited resources to meet human energy demands. The optimization of hybrid solar PV panels and pumped hydro energy supply systems plays a pivotal role in utilizing natural resources effectively. This initiative not only benefits humanity but also fosters environmental sustainability. The study investigated the design optimization of these hybrid systems, focusing on understanding solar radiation patterns, identifying geographical influences on solar radiation, formulating a mathematical model for system optimization, and determining the optimal configuration of PV panels and pumped hydro storage. Through a comparative analysis approach and eight weeks of data collection, the study addressed key research questions related to solar radiation patterns and optimal system design. The findings highlighted regions with heightened solar radiation levels, showcasing substantial potential for power generation and emphasizing the system's efficiency. Optimizing system design significantly boosted power generation, promoted renewable energy utilization, and enhanced energy storage capacity. The study underscored the benefits of optimizing hybrid solar PV panels and pumped hydro energy supply systems for sustainable energy usage. Optimizing the design of solar PV panels and pumped hydro energy supply systems as examined across diverse climatic conditions in a developing country, not only enhances power generation but also improves the integration of renewable energy sources and boosts energy storage capacities, particularly beneficial for less economically prosperous regions. Additionally, the study provides valuable insights for advancing energy research in economically viable areas. Recommendations included conducting site-specific assessments, utilizing advanced modeling tools, implementing regular maintenance protocols, and enhancing communication among system components.
Water scarcity is the lack of fresh water resources to meet the standard water demand. There are two type of water scarcity. One is physical. The other is economic water scarcity.
Welcome to WIPAC Monthly the magazine brought to you by the LinkedIn Group Water Industry Process Automation & Control.
In this month's edition, along with this month's industry news to celebrate the 13 years since the group was created we have articles including
A case study of the used of Advanced Process Control at the Wastewater Treatment works at Lleida in Spain
A look back on an article on smart wastewater networks in order to see how the industry has measured up in the interim around the adoption of Digital Transformation in the Water Industry.
Student information management system project report ii.pdfKamal Acharya
Our project explains about the student management. This project mainly explains the various actions related to student details. This project shows some ease in adding, editing and deleting the student details. It also provides a less time consuming process for viewing, adding, editing and deleting the marks of the students.
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Dr.Costas Sachpazis
Terzaghi's soil bearing capacity theory, developed by Karl Terzaghi, is a fundamental principle in geotechnical engineering used to determine the bearing capacity of shallow foundations. This theory provides a method to calculate the ultimate bearing capacity of soil, which is the maximum load per unit area that the soil can support without undergoing shear failure. The Calculation HTML Code included.
2024 State of Marketing Report – by HubspotMarius Sescu
https://www.hubspot.com/state-of-marketing
· Scaling relationships and proving ROI
· Social media is the place for search, sales, and service
· Authentic influencer partnerships fuel brand growth
· The strongest connections happen via call, click, chat, and camera.
· Time saved with AI leads to more creative work
· Seeking: A single source of truth
· TLDR; Get on social, try AI, and align your systems.
· More human marketing, powered by robots
ChatGPT is a revolutionary addition to the world since its introduction in 2022. A big shift in the sector of information gathering and processing happened because of this chatbot. What is the story of ChatGPT? How is the bot responding to prompts and generating contents? Swipe through these slides prepared by Expeed Software, a web development company regarding the development and technical intricacies of ChatGPT!
Product Design Trends in 2024 | Teenage EngineeringsPixeldarts
The realm of product design is a constantly changing environment where technology and style intersect. Every year introduces fresh challenges and exciting trends that mold the future of this captivating art form. In this piece, we delve into the significant trends set to influence the look and functionality of product design in the year 2024.
How Race, Age and Gender Shape Attitudes Towards Mental HealthThinkNow
Mental health has been in the news quite a bit lately. Dozens of U.S. states are currently suing Meta for contributing to the youth mental health crisis by inserting addictive features into their products, while the U.S. Surgeon General is touring the nation to bring awareness to the growing epidemic of loneliness and isolation. The country has endured periods of low national morale, such as in the 1970s when high inflation and the energy crisis worsened public sentiment following the Vietnam War. The current mood, however, feels different. Gallup recently reported that national mental health is at an all-time low, with few bright spots to lift spirits.
To better understand how Americans are feeling and their attitudes towards mental health in general, ThinkNow conducted a nationally representative quantitative survey of 1,500 respondents and found some interesting differences among ethnic, age and gender groups.
Technology
For example, 52% agree that technology and social media have a negative impact on mental health, but when broken out by race, 61% of Whites felt technology had a negative effect, and only 48% of Hispanics thought it did.
While technology has helped us keep in touch with friends and family in faraway places, it appears to have degraded our ability to connect in person. Staying connected online is a double-edged sword since the same news feed that brings us pictures of the grandkids and fluffy kittens also feeds us news about the wars in Israel and Ukraine, the dysfunction in Washington, the latest mass shooting and the climate crisis.
Hispanics may have a built-in defense against the isolation technology breeds, owing to their large, multigenerational households, strong social support systems, and tendency to use social media to stay connected with relatives abroad.
Age and Gender
When asked how individuals rate their mental health, men rate it higher than women by 11 percentage points, and Baby Boomers rank it highest at 83%, saying it’s good or excellent vs. 57% of Gen Z saying the same.
Gen Z spends the most amount of time on social media, so the notion that social media negatively affects mental health appears to be correlated. Unfortunately, Gen Z is also the generation that’s least comfortable discussing mental health concerns with healthcare professionals. Only 40% of them state they’re comfortable discussing their issues with a professional compared to 60% of Millennials and 65% of Boomers.
Race Affects Attitudes
As seen in previous research conducted by ThinkNow, Asian Americans lag other groups when it comes to awareness of mental health issues. Twenty-four percent of Asian Americans believe that having a mental health issue is a sign of weakness compared to the 16% average for all groups. Asians are also considerably less likely to be aware of mental health services in their communities (42% vs. 55%) and most likely to seek out information on social media (51% vs. 35%).
AI Trends in Creative Operations 2024 by Artwork Flow.pdfmarketingartwork
This article is all about what AI trends will emerge in the field of creative operations in 2024. All the marketers and brand builders should be aware of these trends for their further use and save themselves some time!
A report by thenetworkone and Kurio.
The contributing experts and agencies are (in an alphabetical order): Sylwia Rytel, Social Media Supervisor, 180heartbeats + JUNG v MATT (PL), Sharlene Jenner, Vice President - Director of Engagement Strategy, Abelson Taylor (USA), Alex Casanovas, Digital Director, Atrevia (ES), Dora Beilin, Senior Social Strategist, Barrett Hoffher (USA), Min Seo, Campaign Director, Brand New Agency (KR), Deshé M. Gully, Associate Strategist, Day One Agency (USA), Francesca Trevisan, Strategist, Different (IT), Trevor Crossman, CX and Digital Transformation Director; Olivia Hussey, Strategic Planner; Simi Srinarula, Social Media Manager, The Hallway (AUS), James Hebbert, Managing Director, Hylink (CN / UK), Mundy Álvarez, Planning Director; Pedro Rojas, Social Media Manager; Pancho González, CCO, Inbrax (CH), Oana Oprea, Head of Digital Planning, Jam Session Agency (RO), Amy Bottrill, Social Account Director, Launch (UK), Gaby Arriaga, Founder, Leonardo1452 (MX), Shantesh S Row, Creative Director, Liwa (UAE), Rajesh Mehta, Chief Strategy Officer; Dhruv Gaur, Digital Planning Lead; Leonie Mergulhao, Account Supervisor - Social Media & PR, Medulla (IN), Aurelija Plioplytė, Head of Digital & Social, Not Perfect (LI), Daiana Khaidargaliyeva, Account Manager, Osaka Labs (UK / USA), Stefanie Söhnchen, Vice President Digital, PIABO Communications (DE), Elisabeth Winiartati, Managing Consultant, Head of Global Integrated Communications; Lydia Aprina, Account Manager, Integrated Marketing and Communications; Nita Prabowo, Account Manager, Integrated Marketing and Communications; Okhi, Web Developer, PNTR Group (ID), Kei Obusan, Insights Director; Daffi Ranandi, Insights Manager, Radarr (SG), Gautam Reghunath, Co-founder & CEO, Talented (IN), Donagh Humphreys, Head of Social and Digital Innovation, THINKHOUSE (IRE), Sarah Yim, Strategy Director, Zulu Alpha Kilo (CA).
Trends In Paid Search: Navigating The Digital Landscape In 2024Search Engine Journal
The search marketing landscape is evolving rapidly with new technologies, and professionals, like you, rely on innovative paid search strategies to meet changing demands.
It’s important that you’re ready to implement new strategies in 2024.
Check this out and learn the top trends in paid search advertising that are expected to gain traction, so you can drive higher ROI more efficiently in 2024.
You’ll learn:
- The latest trends in AI and automation, and what this means for an evolving paid search ecosystem.
- New developments in privacy and data regulation.
- Emerging ad formats that are expected to make an impact next year.
Watch Sreekant Lanka from iQuanti and Irina Klein from OneMain Financial as they dive into the future of paid search and explore the trends, strategies, and technologies that will shape the search marketing landscape.
If you’re looking to assess your paid search strategy and design an industry-aligned plan for 2024, then this webinar is for you.
5 Public speaking tips from TED - Visualized summarySpeakerHub
From their humble beginnings in 1984, TED has grown into the world’s most powerful amplifier for speakers and thought-leaders to share their ideas. They have over 2,400 filmed talks (not including the 30,000+ TEDx videos) freely available online, and have hosted over 17,500 events around the world.
With over one billion views in a year, it’s no wonder that so many speakers are looking to TED for ideas on how to share their message more effectively.
The article “5 Public-Speaking Tips TED Gives Its Speakers”, by Carmine Gallo for Forbes, gives speakers five practical ways to connect with their audience, and effectively share their ideas on stage.
Whether you are gearing up to get on a TED stage yourself, or just want to master the skills that so many of their speakers possess, these tips and quotes from Chris Anderson, the TED Talks Curator, will encourage you to make the most impactful impression on your audience.
See the full article and more summaries like this on SpeakerHub here: https://speakerhub.com/blog/5-presentation-tips-ted-gives-its-speakers
See the original article on Forbes here:
http://www.forbes.com/forbes/welcome/?toURL=http://www.forbes.com/sites/carminegallo/2016/05/06/5-public-speaking-tips-ted-gives-its-speakers/&refURL=&referrer=#5c07a8221d9b
ChatGPT and the Future of Work - Clark Boyd Clark Boyd
Everyone is in agreement that ChatGPT (and other generative AI tools) will shape the future of work. Yet there is little consensus on exactly how, when, and to what extent this technology will change our world.
Businesses that extract maximum value from ChatGPT will use it as a collaborative tool for everything from brainstorming to technical maintenance.
For individuals, now is the time to pinpoint the skills the future professional will need to thrive in the AI age.
Check out this presentation to understand what ChatGPT is, how it will shape the future of work, and how you can prepare to take advantage.
A brief introduction to DataScience with explaining of the concepts, algorithms, machine learning, supervised and unsupervised learning, clustering, statistics, data preprocessing, real-world applications etc.
It's part of a Data Science Corner Campaign where I will be discussing the fundamentals of DataScience, AIML, Statistics etc.
Time Management & Productivity - Best PracticesVit Horky
Here's my presentation on by proven best practices how to manage your work time effectively and how to improve your productivity. It includes practical tips and how to use tools such as Slack, Google Apps, Hubspot, Google Calendar, Gmail and others.
The six step guide to practical project managementMindGenius
The six step guide to practical project management
If you think managing projects is too difficult, think again.
We’ve stripped back project management processes to the
basics – to make it quicker and easier, without sacrificing
the vital ingredients for success.
“If you’re looking for some real-world guidance, then The Six Step Guide to Practical Project Management will help.”
Dr Andrew Makar, Tactical Project Management
Beginners Guide to TikTok for Search - Rachel Pearson - We are Tilt __ Bright...
8 v92 booster_manual
1. HYDCO 8V92-14C BOOSTER
USER MANUAL
MANUFACTURED AND SERVICED BY
HYDRAULIC CONTRACTING & SUPPLY PTY LTD
A.B.N. 88 009 275 076 A.C.N. 009 275 076
FACTORY: 12 TRIUMPH AVE WANGARA W.A. 6065 TELEPHONE: (08) 9302 2455
POSTAL ADDRESS: P.O. BOX 1408 WANGARA W.A. 6947 FAX: (08) 9302 2080
WEBSITE: www.hydco.com.au
2. 2

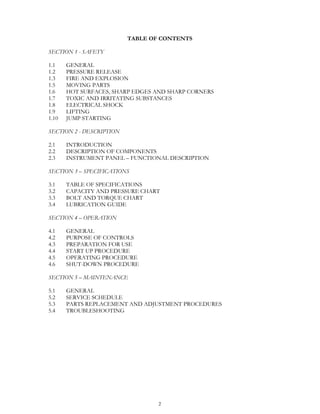

TABLE OF CONTENTS
SECTION 1 - SAFETY
1.1 GENERAL
1.2 PRESSURE RELEASE
1.3 FIRE AND EXPLOSION
1.5 MOVING PARTS
1.6 HOT SURFACES, SHARP EDGES AND SHARP CORNERS
1.7 TOXIC AND IRRITATING SUBSTANCES
1.8 ELECTRICAL SHOCK
1.9 LIFTING
1.10 JUMP STARTING
SECTION 2 - DESCRIPTION
2.1 INTRODUCTION
2.2 DESCRIPTION OF COMPONENTS

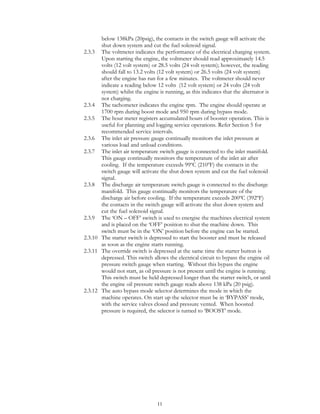

2.3 INSTRUMENT PANEL – FUNCTIONAL DESCRIPTION
SECTION 3 – SPECIFICATIONS

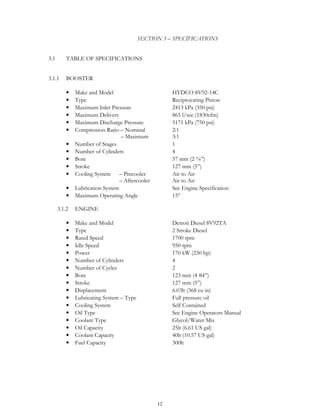

3.1 TABLE OF SPECIFICATIONS
3.2 CAPACITY AND PRESSURE CHART

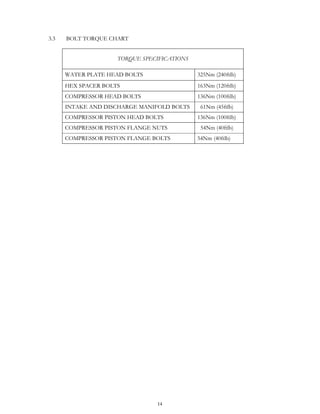

3.3 BOLT AND TORQUE CHART
3.4 LUBRICATION GUIDE
SECTION 4 – OPERATION
4.1 GENERAL
4.2 PURPOSE OF CONTROLS

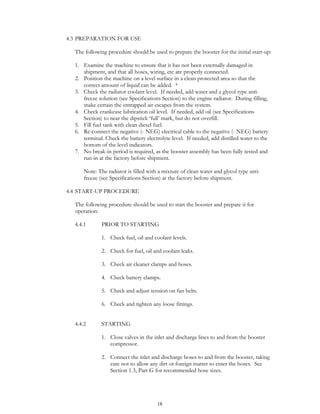

4.3 PREPARATION FOR USE

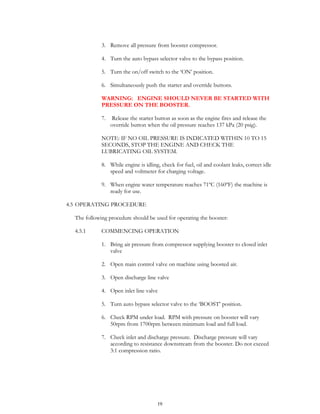

4.4 START UP PROCEDURE
4.5 OPERATING PROCEDURE
4.6 SHUT-DOWN PROCEDURE
SECTION 5 – MAINTENANCE
5.1 GENERAL

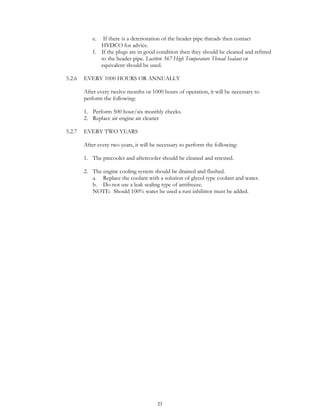

5.2 SERVICE SCHEDULE

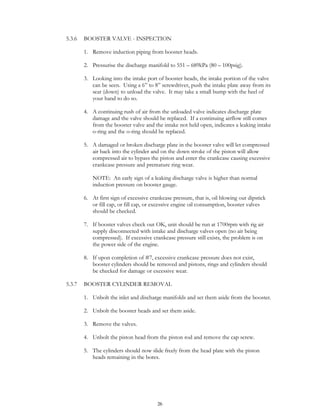

5.3 PARTS REPLACEMENT AND ADJUSTMENT PROCEDURES

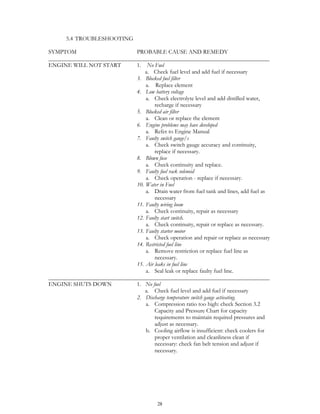

5.4 TROUBLESHOOTING
3. 3

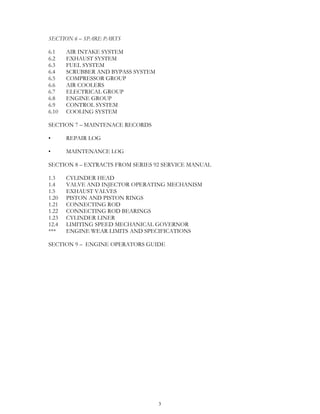

SECTION 6 – SPARE PARTS

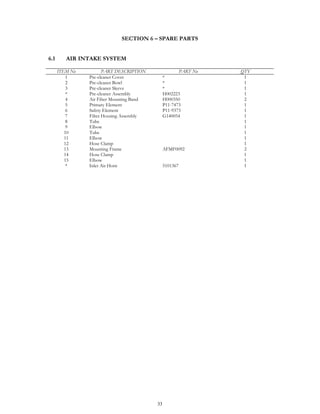

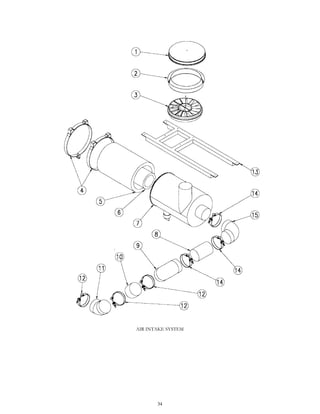

6.1 AIR INTAKE SYSTEM
6.2 EXHAUST SYSTEM
6.3 FUEL SYSTEM
6.4 SCRUBBER AND BYPASS SYSTEM

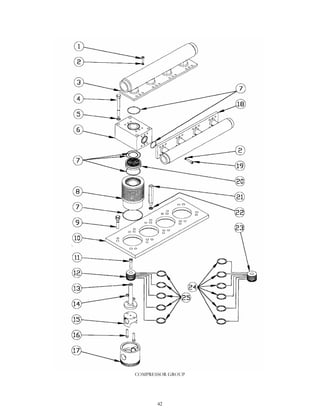

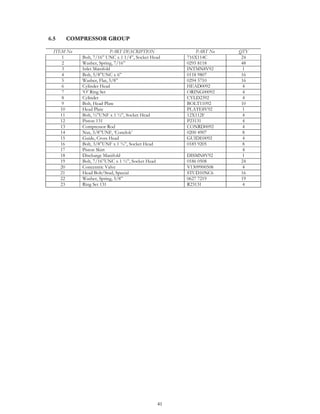

6.5 COMPRESSOR GROUP
6.6 AIR COOLERS
6.7 ELECTRICAL GROUP
6.8 ENGINE GROUP

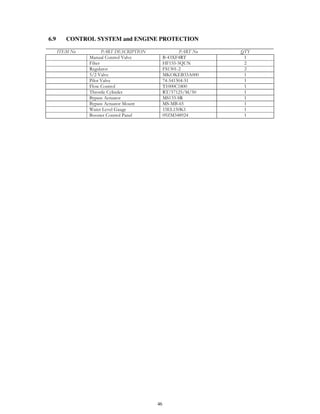

6.9 CONTROL SYSTEM
6.10 COOLING SYSTEM
SECTION 7 – MAINTENACE RECORDS

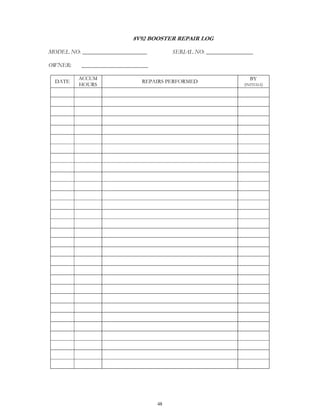

• REPAIR LOG
• MAINTENANCE LOG
SECTION 8 – EXTRACTS FROM SERIES 92 SERVICE MANUAL
1.3 CYLINDER HEAD
1.4 VALVE AND INJECTOR OPERATING MECHANISM
1.5 EXHAUST VALVES
1.20 PISTON AND PISTON RINGS
1.21 CONNECTING ROD
1.22 CONNECTING ROD BEARINGS
1.23 CYLINDER LINER
12.4 LIMITING SPEED MECHANICAL GOVERNOR
*** ENGINE WEAR LIMITS AND SPECIFICATIONS
SECTION 9 – ENGINE OPERATORS GUIDE
4. 4
SECTION 1 – SAFETY
1.1 GENERAL
Hydraulic Contracting and Supply Pty Ltd (HYDCO) manufactures its products so they can be
operated safely. However, the responsibility for safe operation rests with those who use and
maintain our products. The following safety precautions are offered as a guide, which, if
conscientiously followed, will minimise the possibility of accidents throughout the useful life of
this equipment.
This booster compressor hereafter is referred to as “booster”. This booster should be operated
only those who have been trained and delegated to do so, and who have read and understood this
operator’s manual. Failure to follow the instructions, procedures and safety precautions in this
manual, misuse of the booster, even though not expressly mentioned herein, can result in
accidents, injuries or death, property damage, and/or mechanical failure, for which HYDCO
cannot be held responsible.
Never start this booster unless it is safe to do so. Do not attempt to operate the booster with a
known unsafe condition. Tag the booster so others who may not know of the unsafe condition
will not attempt to operate it until the condition is corrected.
Do not disconnect or alter any safety shutdown sensors or switch gauges. Do not modify this
booster except with written factory approval. Unauthorised modifications may void warranty
terms and conditions.
1.2 PRESSURE RELEASE
• Inspect the pressure relief valves at least weekly to make sure they are not blocked,
closed, obstructed or otherwise disabled. Do not adjust the pressure relief valves.
• Install an appropriate flow-limiting valve between the booster discharge valve and the
discharge hose to reduce pressure in the event of hose failure, as per Health and
Safety requirements.
• When the hose is to be used to supply a manifold, install an additional appropriate
flow-limiting valve between the manifold and each shut-off (throttle) valve that is to
be connected to an air hose, to reduce pressure in the event of hose failure.
• Provide an appropriate flow limiting valve foe each additional 23m (75ft) of hose, to
reduce pressure in the event of hose failure.
• Flow limiting valves are listed by pipe size and flow rate. Select appropriate valves
accordingly.
• A maximum pressure of 6895 kPa (1000 psi) may occur at the discharge valve of this
booster, under certain circumstances. Select tools, air hoses, pipes, valves, filters and
other fittings accordingly. Do not exceed the manufacturers rated safe operating
pressures, for these items.
• It is recommended a 50mm (2”), 2758 kPa (400 psi) minimum operating pressure
hose be used for the inlet and a 40mm (1½”), 6895 kPa (1000 psi) minimum
operating pressure hose be used for the discharge, to prevent restricted flow and
protect against over pressurisation.
• Secure all hose connections by wire, chain or other suitable retaining devices to
prevent tools or hose ends from being accidentally disconnected.
5. 5
• Vent all internal pressure prior to opening, servicing or disconnecting any line, fitting,
hose, valve, drain plug, connection, or any other component, or before starting the
booster.
• Keep personnel out of line with and away from the discharge opening of hoses, tools
or other points of compressed air discharge.
• Do not use air at pressures higher than 207kPa (30psig) for cleaning purposes, and
then only with appropriate protective equipment, as per Health and Safety
requirements.
• Do not engage in horseplay with air hoses, as death or serious injury may result.
• Do not remove radiator filler cap while the booster is hot. Loosen the cap slowly to
its first stop to release any pressure, ensure coolant not boiling prior to fully removing
the cap.
1.3 FIRE AND EXPLOSION
• Refuel at a service station or from a fuel tank designed for that purpose. If this is not
possible ground the machine to the dispenser prior to filling.
• Clean up spills of fuel, oil or coolant immediately.
• Shut off booster and allow it to cool. Then keep sparks, flames and other sources of
ignition away. Do not allow smoking in the vicinity when adding fuel, or when
checking or adding electrolyte to the batteries, or when checking or adding oils.
• Do not permit liquids or oil film to accumulate on any external or internal surfaces of
the booster. Wipe down using an aqueous industrial cleaner or steam clean as
required. Do not use flammable solvents for cleaning purposes.
• Disconnect the grounded (negative) battery connection prior to attempting any
repairs.
• Keep electrical wiring, including the battery terminals and other terminals in good
condition. Replace any wiring that has cracked, cut, abraded or otherwise degraded
insulation: or terminals that are worn or corroded. Keep all terminals clean and tight.
• Keep grounded conductive objects such as tools away from exposed live electrical
parts such as terminals to avoid arcing, which may serve as a source of ignition.
• Replace damaged fuel tanks or lines immediately rather than attempting to weld or
otherwise repair. Do not store or attempt to operate this booster with any known
leaks in the fuel system.
• Remove any material that may be damaged by heat or that may support combustion
and is in close proximity prior to attempting welding repairs.
• Keep a suitable class, fully charged fire extinguisher/s nearby when servicing or
operating the booster.
• Turn off battery charger before making or breaking connections to the battery.
• Do not operate booster under low overhanging leaves or permit leaves to contact hot
exhaust system surfaces.
1.4 MOVING PARTS
• Keep hands, arms or other parts of the body and clothing away from belts, pulleys
and other moving parts.
• Do not attempt to operate the booster with the fan guard removed.
• Wear snug fitting clothing and confine long hair when working around this booster.
6. 6

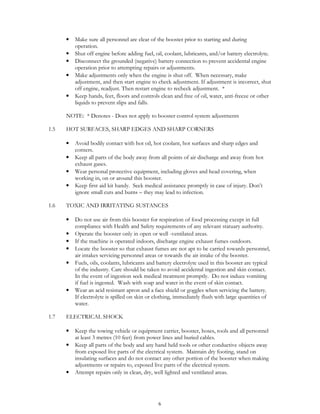

• Make sure all personnel are clear of the booster prior to starting and during
operation.
• Shut off engine before adding fuel, oil, coolant, lubricants, and/or battery electrolyte.
• Disconnect the grounded (negative) battery connection to prevent accidental engine
operation prior to attempting repairs or adjustments.
• Make adjustments only when the engine is shut off. When necessary, make
adjustment, and then start engine to check adjustment. If adjustment is incorrect, shut
off engine, readjust. Then restart engine to recheck adjustment. *
• Keep hands, feet, floors and controls clean and free of oil, water, anti-freeze or other
liquids to prevent slips and falls.
NOTE: * Denotes - Does not apply to booster control system adjustments
1.5 HOT SURFACES, SHARP EDGES AND SHARP CORNERS
• Avoid bodily contact with hot oil, hot coolant, hot surfaces and sharp edges and
corners.
• Keep all parts of the body away from all points of air discharge and away from hot
exhaust gases.
• Wear personal protective equipment, including gloves and head covering, when
working in, on or around this booster.
• Keep first aid kit handy. Seek medical assistance promptly in case of injury. Don’t
ignore small cuts and burns – they may lead to infection.
1.6 TOXIC AND IRRITATING SUSTANCES
• Do not use air from this booster for respiration of food processing except in full
compliance with Health and Safety requirements of any relevant statuary authority.
• Operate the booster only in open or well -ventilated areas.
• If the machine is operated indoors, discharge engine exhaust fumes outdoors.
• Locate the booster so that exhaust fumes are not apt to be carried towards personnel,
air intakes servicing personnel areas or towards the air intake of the booster.
• Fuels, oils, coolants, lubricants and battery electrolyte used in this booster are typical
of the industry. Care should be taken to avoid accidental ingestion and skin contact.
In the event of ingestion seek medical treatment promptly. Do not induce vomiting
if fuel is ingested. Wash with soap and water in the event of skin contact.
• Wear an acid resistant apron and a face shield or goggles when servicing the battery.
If electrolyte is spilled on skin or clothing, immediately flush with large quantities of
water.
1.7 ELECTRICAL SHOCK
• Keep the towing vehicle or equipment carrier, booster, hoses, tools and all personnel
at least 3 metres (10 feet) from power lines and buried cables.
• Keep all parts of the body and any hand held tools or other conductive objects away
from exposed live parts of the electrical system. Maintain dry footing, stand on
insulating surfaces and do not contact any other portion of the booster when making
adjustments or repairs to, exposed live parts of the electrical system.
• Attempt repairs only in clean, dry, well lighted and ventilated areas.
7. 7
1.8 LIFTING
• Lift only by lifting eyes provided
• Inspect lifting eyes and points of attachment for cracked welds and for cracked, bent,
corroded or otherwise degraded members prior to lifting.
• Make sure entire lifting rigging and supporting structure has been inspected, is in
good condition, and has a rated capacity of at least 2000kg.
• Make sure lifting hooks have a functional safety latch, or equivalent, and are fully
engaged and latched on the lifting eyes.
• Use guide ropes or equivalent to prevent twisting or swinging.
• Do not attempt to lift in high winds.
• Keep all personnel out from under and away from the booster when it is suspended.
• Lift booster no higher than necessary.
• Keeps lift operator in constant attendance whenever booster is suspended.
• Set booster down only on level surfaces capable of supporting at least 3000kg.

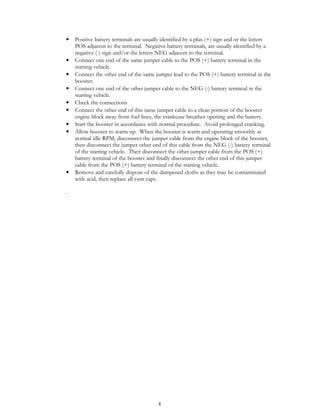

1.10 JUMP STARTING
• Observe all safety precautions mentioned elsewhere in this manual.
• The batteries may contain hydrogen gas, which is flammable and explosive. Keep
flames, sparks and other sources of ignition away.
• The batteries contain acid, which is corrosive. Do not allow battery acid to contact
eyes, skin, fabrics or painted surfaces, as serious personal injury or property damage
could result. Flush any contacted areas thoroughly with water immediately. Wear an
acid resistant apron and face shield when attempting to jump-start the booster.
• Remove all vent caps from both batteries in the booster. Do not permit dirt or
foreign matter to enter the open cells.
• Check fluid level. If low, bring fluid to correct level before attempting to start.
• Do not attempt to jump-start if fluid is frozen or slushy. Bring the batteries up to
4.4ºC (40ºF) before attempting to jump-start.
• Cover open cells of the booster battery with clean dampened cloths before
attempting to jump-start.
• Attempt to jump-start only with a vehicle having the appropriate voltage (12V or
24V) with a negative ground that is equipped with a battery or batteries of
comparable size or larger. Do not attempt to jump-start using motor generator sets,
welders or other sources of DC power as serious damage may result.
• Do not attempt to start a 12-volt system with two 12-volt batteries connected in
series.
• Bring the starting vehicle alongside the booster, but do not permit metal-to-metal
contact between the booster and the starting vehicle.
• Place the starting vehicle in neutral or park, turn off all non-essential accessory loads
and start the engine.
• Use only jumper cables that are clean, in good condition and are heavy enough to
handle the starting current.
• Avoid accidental contact between jumper cable terminal clips or clamps and any
metallic portion of either the booster or the starting vehicle to minimise the
possibility of uncontrolled arcing, which might serve as a source of ignition.
8. 8
• Positive battery terminals are usually identified by a plus (+) sign and or the letters
POS adjacent to the terminal. Negative battery terminals, are usually identified by a
negative (-) sign and/or the letters NEG adjacent to the terminal.
• Connect one end of the same jumper cable to the POS (+) battery terminal in the
starting vehicle.
• Connect the other end of the same jumper lead to the POS (+) battery terminal in the
booster.
• Connect one end of the other jumper cable to the NEG (-) battery terminal in the
starting vehicle.
• Check the connections
• Connect the other end of this same jumper cable to a clean portion of the booster
engine block away from fuel lines, the crankcase breather opening and the battery.
• Start the booster in accordance with normal procedure. Avoid prolonged cranking.
• Allow booster to warm up. When the booster is warm and operating smoothly at
normal idle RPM, disconnect the jumper cable from the engine block of the booster,
then disconnect the jumper other end of this cable from the NEG (-) battery terminal
of the starting vehicle. Then disconnect the other jumper cable from the POS (+)
battery terminal of the booster and finally disconnect the other end of this jumper
cable from the POS (+) battery terminal of the starting vehicle.
• Remove and carefully dispose of the dampened cloths as they may be contaminated
with acid, then replace all vent caps.
.
9. 9
SECTION 2 – DESCRIPTION
2.1 INTRODUCTION
The model 8V92-14B is an integral engine booster compressor that is designed to
deliver pressures up to 5171 kPa (750 psi) while using inlet capacities up to 865 l/sec
(1800cfm) and holding inlet pressures up to 2413 kPa (350 psi). To prevent excess
temperature the compression ratio should not exceed 3:1 while holding inlet
pressures below 1724 kPa (250 psig). For capacities, inlet pressures and maximum
discharge pressures, see Chart 3, page
NOTE: THE BOOSTER WILL INCREASE THE PRESSURE ACCORDING
TO THE DOWNSTREAM RESISTANCE BUT WILL NOT ADD ANY
ADDITIONAL CAPACITY. THE MACHINE MUST ALWAYS BE USED
WITH ANOTHER AIR COMPRESSOR OF THE CORRECT CAPACITY 340
L/SEC (720 CFM) – 865 L/SEC (1830 CFM) TO MAINTAIN THE CORRECT
INLET PRESSURE.
2.2 DESCRIPTION OF COMPONENTS
2.2.1 SERVICE VALVES
The booster is provided with a 50mm (2”) BSPT inlet valve and a 40mm
(1 ½”) BSPT discharge valve to allow independent control of the booster.
With the inlet and discharge valves closed and all pressure vented from
the machine, the booster may be started and warmed up with no load on
the engine. This procedure is described in SECTION 4.4, START UP
PROCEDURE.
2.2.2 INLET RELIEF VALVE
A 25mm (1”), 2758 kPa (400 psi) relief valve is provided on the inlet side
to prevent over pressurisation of the inlet system.
2.2.3 PRECOOLER
An air to air precooler is provided to cool the inlet air to prevent
excessive temperatures during the booster compression process. The
compressor providing the air must have a good air-cooling system or
aftercooler as the inlet air temperature should be below 121ºC (250ºF).
2.2.4 SCRUBBER TANK OR MOISTURE SEPERATURE
After the precooler a scrubber tank or moisture separator is provided to
remove any moisture and oil from the air stream. Am automatic drain
valve is provided to regularly drain the accumulated moisture and oil. A
manual drain valve is also provided. This should be drained daily, or at
the end of each shift.
2.2.5 INLET STRAINER
An inlet strainer is located after the scrubber tank to strain any particles,
which may have entered the air stream during hose connection, and
prevent them from entering the booster cylinders.
10. 10
2.2.6 DISCHARGE RELIEF VALVE
A 20mm (¾”), 6895kPa (1000psi) relief valve is provided on the discharge
side to prevent over pressurisation of the discharge system.
2.2.7 AFTERCOOLER
After compression in the booster the air passes through an air-to-air
aftercooler for final cooling.
2.2.8 AUTO BYPASS VALVE
An automatic bypass valve is provided between the aftercooler and the
scrubber tank. It is set up to automatically open during periods in bypass
mode and close during periods in boost mode.
2.2.9 DISCHARGE CHECK VALVE
A 40mm (1½”) check valve is provided between the aftercooler and the
discharge service valve, this prevents high-pressure air entering the
booster system during bypass mode as well as maintaining a pilot pressure
signal for the auto bypass system.
2.3 INSTRUMENT PANEL GROUP – FUNCTIONAL DESCRIPTION
The Instrument Panel Group (refer Fig 2) consists of a panel housing the following:
• Engine water temperature switch gauge
• Engine oil pressure switch gauge
• Voltmeter
• Tachometer
• Hour meter
• Inlet air pressure gauge
• Discharge air pressure gauge
• Inlet air temperature switch gauge
• Discharge air temperature switch gauge
• ‘ON-OFF’ switch
• Starter switch
• Override switch
• Fuse
• Auto bypass mode selector
2.3.1 The engine water temperature switch gauge is connected to the engine at
an access port that allows it to sense the temperature of the engine
coolant. This gauge continually monitors the temperature of the coolant
during operation. The normal operating temperature should be between
71ºC - 99ºC (160ºF - 210ºF). If the temperature exceeds 99ºC (210ºF) the
contacts in the switch gauge will activate the shut down system and cut
the fuel solenoid signal.
2.3.2 The engine oil pressure switch gauge monitors the engine oil pressure
from the moment the machine is started. It is essential that the correct oil
pressure be maintained. The normal oil pressure should be between
345kPa – 551kPa (50psig – 80psig) at 1700rpm. If the oil pressure falls
11. 11
below 138kPa (20psig), the contacts in the switch gauge will activate the
shut down system and cut the fuel solenoid signal.
2.3.3 The voltmeter indicates the performance of the electrical charging system.
Upon starting the engine, the voltmeter should read approximately 14.5
volts (12 volt system) or 28.5 volts (24 volt system); however, the reading
should fall to 13.2 volts (12 volt system) or 26.5 volts (24 volt system)
after the engine has run for a few minutes. The voltmeter should never
indicate a reading below 12 volts (12 volt system) or 24 volts (24 volt
system) whilst the engine is running, as this indicates that the alternator is
not charging.
2.3.4 The tachometer indicates the engine rpm. The engine should operate at
1700 rpm during boost mode and 950 rpm during bypass mode.
2.3.5 The hour meter registers accumulated hours of booster operation. This is
useful for planning and logging service operations. Refer Section 5 for
recommended service intervals.
2.3.6 The inlet air pressure gauge continually monitors the inlet pressure at
various load and unload conditions.
2.3.7 The inlet air temperature switch gauge is connected to the inlet manifold.
This gauge continually monitors the temperature of the inlet air after
cooling. If the temperature exceeds 99ºC (210ºF) the contacts in the
switch gauge will activate the shut down system and cut the fuel solenoid
signal.
2.3.8 The discharge air temperature switch gauge is connected to the discharge
manifold. This gauge continually monitors the temperature of the
discharge air before cooling. If the temperature exceeds 200ºC (392ºF)
the contacts in the switch gauge will activate the shut down system and
cut the fuel solenoid signal.
2.3.9 The ‘ON – OFF’ switch is used to energise the machines electrical system
and is placed on the ‘OFF’ position to shut the machine down. This
switch must be in the ‘ON’ position before the engine can be started.
2.3.10 The starter switch is depressed to start the booster and must be released
as soon as the engine starts running.
2.3.11 The override switch is depressed at the same time the starter button is
depressed. This switch allows the electrical circuit to bypass the engine oil
pressure switch gauge when starting. Without this bypass the engine
would not start, as oil pressure is not present until the engine is running.
This switch must be held depressed longer than the starter switch, or until
the engine oil pressure switch gauge reads above 138 kPa (20 psig).
2.3.12 The auto bypass mode selector determines the mode in which the
machine operates. On start up the selector must be in ‘BYPASS’ mode,
with the service valves closed and pressure vented. When boosted
pressure is required, the selector is turned to ‘BOOST’ mode.
12. 12
SECTION 3 – SPECIFICATIONS
3.1 TABLE OF SPECIFICATIONS
3.1.1 BOOSTER
• Make and Model HYDCO 8V92-14C
• Type Reciprocating Piston
• Maximum Inlet Pressure 2413 kPa (350 psi)
• Maximum Delivery 865 l/sec (1830cfm)
• Maximum Discharge Pressure 5171 kPa (750 psi)
• Compression Ratio – Nominal 2:1
– Maximum 3:1
• Number of Stages 1
• Number of Cylinders 4
• Bore 57 mm (2 ⅜”)
• Stroke 127 mm (5”)
• Cooling System – Precooler Air to Air
– Aftercooler Air to Air
• Lubrication System See Engine Specification
• Maximum Operating Angle 15°
3.1.2 ENGINE
• Make and Model Detroit Diesel 8V92TA
• Type 2 Stroke Diesel
• Rated Speed 1700 rpm
• Idle Speed 950 rpm
• Power 170 kW (230 hp)
• Number of Cylinders 4
• Number of Cycles 2
• Bore 123 mm (4 84”)
• Stroke 127 mm (5”)
• Displacement 6.03lt (368 cu in)
• Lubricating System – Type Full pressure oil
• Cooling System Self Contained
• Oil Type See Engine Operators Manual
• Coolant Type Glycol/Water Mix
• Oil Capacity 25lt (6.61 US gal)
• Coolant Capacity 40lt (10.57 US gal)
• Fuel Capacity 300lt
13. 13
3.1.3 ELECTRICAL
• System Type 24Vdc Negative Earth
• Battery 2 x N70ZZ
• Alternator Delco AC
3.1.4 FRAME
• Length 1900mm (90.55”)
• Width 1500mm (46.06”)
• Height 1595mm (62.8”)
• Weight 2000kg (4410 lb)
3.1.5 SAFETY
• High Water Temperature Shutdown >99°C (210°F)
• Low Oil Pressure Shutdown <138kPa (20psig)
• High Inlet Air Temperature Shutdown >99°C (210°F)
• High Discharge Air Temperature Shutdown >200°C (392°F)
• Inlet Relief Valve Set Pressure 2758kPa (400psi)
• Discharge Relief Valve Set Pressure 6895kPa (1000psi)
3.2 CAPACITY AND PRESSURE CHART
BOOSTER MODEL - 8V92 –14B
OPERATING CONDITIONS
INDUCTION PRESSURE kPa
psig
1034
150
1379
200
1724
250
2068
300
2413
350
DISCHARGE PRESSURE kPa
(2:1 ratio) psig
2068
300
2758
400
3448
500
4173
600
4827
700
DISCHARGE PRESSURE kPa
MAXIMUM psig
3103
450
4137
600
5172
750
5172
750
5172
750
CAPACITY l/sec
(@ 2:1 ratio) cfm
340
720
446
945
547
1160
651
1380
755
1600
RPM MAX 1700 1700 1700 1700 1700
RPM MIN 950 950 950 950 950
IMPORTANT – HIGHER OR LOWER PRESSURES AND SPEEDS
OTHER THAN THOSE SHOWN MUST NOT BE USED.
NOTE: This chart lists NOMINAL RATINGS ONLY. Actual pressures and capacities may
vary slightly
14. 14
3.3 BOLT TORQUE CHART
TORQUE SPECIFICATIONS
WATER PLATE HEAD BOLTS 325Nm (240ftlb)
HEX SPACER BOLTS 163Nm (120ftlb)
COMPRESSOR HEAD BOLTS 136Nm (100ftlb)
INTAKE AND DISCHARGE MANIFOLD BOLTS 61Nm (45ftlb)
COMPRESSOR PISTON HEAD BOLTS 136Nm (100ftlb)
COMPRESSOR PISTON FLANGE NUTS 54Nm (40ftlb)
COMPRESSOR PISTON FLANGE BOLTS 54Nm (40ftlb)
15. 15
3.4 LUBRICATION GUIDE
The reliability of the unit is dependent on the selection and maintenance of the lubricant.
The ambient temperature, relative humidity and contamination levels must be considered
in the selection of lubricant. Should the unit be operated under severe conditions of heat,
humidity or contaminant level, the change intervals recommended below must be reduced
accordingly.
VISCOSITY GRADE SELECTION
AMBIENT
TEMPERATURE
LUBRICANT RECOMMENDATION
ºC ºF PRIMARY SECONDARY TERTIARY
10 – 50 50 – 122 SAE 40 SAE 30 None
0 - 10 32 – 50
SAE 40
plus Starting
Aids
SAE 30
Usually Unaided
None
-18 – 0 0 – 32
SAE 40
plus Starting
Aids
SAE 30
plus Starting
Aids
15W – 40
Usually Unaided
Below -18 Below 0
SAE 40
plus Starting
Aids
SAE 30
plus Starting
Aids
15W – 40
plus Starting
Aids
TABLE 1 – LUBRICANT SELECTION GUIDE
3.4.1 APPLICATION GUIDE
When ambient conditions exceed those noted or if conditions warrant use of
extended life lubricants, contact HYDCO for clarification.
HYDCO encourage the user to participate in an oil analysis program with the oil
supplier. This could result in an oil change differing from that stated in this
manual.
3.4.2 ENGINE LUBRICATION GUIDE
See Engine Operators Manual.
16. 16
SECTION 4 – OPERATION
4.1 GENERAL
Optimum service can be expected from an HYDCO booster when operating and
service procedures are based on a clear understanding of its working principles.
While HYDCO have built into this booster a comprehensive array of controls
and indicators to assure you that it is running properly, you will want to recognise
and interpret the readings that will call for service or indicate the beginning of a
malfunction. Before starting your booster, read this section thoroughly;
familiarise yourself with the controls and indicators, their purpose, location and
use.
4.2 PURPOSE OF CONTROLS
Control or Indicator Purpose
ON/OFF SWITCH Turn this switch to the ‘ON’ position to energise
the electrical system of the machine. This switch
is located on the instrument panel.
ENGINE STARTER SWITCH Depress to start the engine. This switch is located
on the instrument panel. Release as soon as the
engine fires.
OVER RIDE SWITCH Located on the instrument panel, used to bypass
the oil pressure switch when starting the engine.
Hold until oil pressure is 137kPa (15 – 20psig)
VOLTMETER Monitors the performance of the engine charging
system and is the primary indicator of an electrical
malfunction. The normal reading is between 13.2
and 14.5 volts.
ENGINE WATER TEMP Monitors the temperature of the engine cooling
SWITCH GUAGE water and shuts the engine down above 99ºC
(210ºF). The normal operating temperature
should read approximately 71 - 99ºC (160 - 210ºF).
TACHOMETER Indicates the engine speed.
HOURMETER Indicates accumulated hours of operation. Useful
for planning and logging service schedules.
ENGINE OIL PRESSURE Monitors the engine oil pressure and shuts down
the
SWITCH GUAGE engine when the pressure drops below 137kPa (20
psig). The normal reading is 345 – 551kPa (50 –
80psig) @ 1700 RPM.
17. 17
INLET AIR PRESSURE GUAGE Continuously monitors the booster inlet air
pressure at various loaded and unloaded
conditions.
DISCHARGE AIR PRESSURE Continuously monitors the booster discharge air
GUAGE pressure at various loaded and unloaded
conditions.
INLET AIR TEMPERATURE Monitors the air temperature in the booster inlet
SWITCH GUAGE manifold and shuts the engine down when above
above-normal readings occur. The normal reading
should be below 99ºC (210ºF).
DISCHARGE AIR TEMP Monitors the air temperature in the booster
SWITCH GUAGE discharge manifold and shuts the engine down
when above above-normal readings occur. The
normal reading should be below 200ºC (392ºF).
DISCHARGE AIR CHECK Stops reverse flow of air through booster on
booster shutdown and during periods in bypass
mode.
AUTO BYPASS MODE Automatically closes during boost mode and opens
during bypass mode to prevent inlet pressures
below 551 kPa (80 psig) and discharge pressures
above 5171 kPa (750 psi)
DISCHARGE PRESSURE Opens discharge pressure to the atmosphere
RELIEF VALVE should booster discharge air pressure exceed 6895
kPa (1000 psi).
INLET PRESSURE RELIEF Opens inlet pressure to the atmosphere should the
VALVE booster discharge air pressure exceed 2758kPa
(400 psi).
INLET PRESSURE REGULATOR Delivers a pressure signal regulated at 689 kPa
(100 psi), to the auto bypass air actuator allowing
the auto bypass valve to open and close according
to signal conditions.
PILOT PRESSURE REGULATOR Delivers a pilot signal regulated at 689kPa (100
psi), to the 5/2 directional valve on the auto
bypass air actuator when the discharge pressure
reaches the pilot valve set pressure.
INLET PRESSURE VENT VALVE Vents excess inlet pressure to the atmosphere
during periods in bypass mode.
AUTO BYPASS SELECTOR Used to change modes from boost/auto bypass
and bypass or vice-versa. The auto bypass selector
is located on the instrument panel.
18. 18
4.3 PREPARATION FOR USE
The following procedure should be used to prepare the booster for the initial start-up:
1. Examine the machine to ensure that it has not been externally damaged in
shipment, and that all hoses, wiring, etc are properly connected.
2. Position the machine on a level surface in a clean protected area so that the
correct amount of liquid can be added. *
3. Check the radiator coolant level. If needed, add water and a glycol type anti-
freeze solution (see Specifications Section) to the engine radiator. During filling,
make certain the entrapped air escapes from the system.
4. Check crankcase lubrication oil level. If needed, add oil (see Specifications
Section) to near the dipstick ‘full’ mark, but do not overfill.
5. Fill fuel tank with clean diesel fuel.
6. Re-connect the negative (- NEG) electrical cable to the negative (- NEG) battery
terminal. Check the battery electrolyte level. If needed, add distilled water to the
bottom of the level indicators.
7. No break-in period is required, as the booster assembly has been fully tested and
run-in at the factory before shipment.
Note: The radiator is filled with a mixture of clean water and glycol type anti-
freeze (see Specifications Section) at the factory before shipment.
4.4 START-UP PROCEDURE
The following procedure should be used to start the booster and prepare it for
operation:
4.4.1 PRIOR TO STARTING
1. Check fuel, oil and coolant levels.
2. Check for fuel, oil and coolant leaks.
3. Check air cleaner clamps and hoses.
4. Check battery clamps.
5. Check and adjust tension on fan belts.
6. Check and tighten any loose fittings.
4.4.2 STARTING
1. Close valves in the inlet and discharge lines to and from the booster
compressor.
2. Connect the inlet and discharge hoses to and from the booster, taking
care not to allow any dirt or foreign matter to enter the hoses. See
Section 1.3, Part G for recommended hose sizes.
19. 19
3. Remove all pressure from booster compressor.
4. Turn the auto bypass selector valve to the bypass position.
5. Turn the on/off switch to the ‘ON’ position.
6. Simultaneously push the starter and override buttons.
WARNING: ENGINE SHOULD NEVER BE STARTED WITH
PRESSURE ON THE BOOSTER.
7. Release the starter button as soon as the engine fires and release the
override button when the oil pressure reaches 137 kPa (20 psig).
NOTE: IF NO OIL PRESSURE IS INDICATED WITHIN 10 TO 15
SECONDS, STOP THE ENGINE AND CHECK THE
LUBRICATING OIL SYSTEM.
8. While engine is idling, check for fuel, oil and coolant leaks, correct idle
speed and voltmeter for charging voltage.
9. When engine water temperature reaches 71ºC (160ºF) the machine is
ready for use.
4.5 OPERATING PROCEDURE
The following procedure should be used for operating the booster:
4.5.1 COMMENCING OPERATION
1. Bring air pressure from compressor supplying booster to closed inlet
valve
2. Open main control valve on machine using boosted air.
3. Open discharge line valve
4. Open inlet line valve
5. Turn auto bypass selector valve to the ‘BOOST’ position.
6. Check RPM under load. RPM with pressure on booster will vary
50rpm from 1700rpm between minimum load and full load.
7. Check inlet and discharge pressure. Discharge pressure will vary
according to resistance downstream from the booster. Do not exceed
3:1 compression ratio.
20. 20
4.5.2 DURING OPERATION
1. When a break in operation is required, close main control valve on
machine using boosted air. *
2. When resuming operation, open main control valve on machine using
boosted air.
3. Repeat steps 6 and 7 Commencing Operation
* The auto bypass system is designed to automatically hold the booster
in bypass mode while pressure is held in the discharge line.
4.6 SHUTDOWN PROCEDURE
4.6.1 ROUTINE
1. Turn the auto bypass selector valve to the bypass position
2. Close the inlet valve.
3. Remove pressure from booster by opening one of the drain valves.
4. Close discharge valve.
5. Allow booster to idle for a minute to cool down.
6. Turn the on-off switch to the ‘OFF’ position.
4.6.2 EMERGENCY
1. Turn the on-off switch to the ‘OFF’ position.
2. Turn the auto bypass selector valve to the bypass position.
3. Close the inlet valve.
4. Remove pressure from booster by opening one of the drain valves.
5. Close discharge valve.
21. 21
SECTION 5 – MAINTENANCE
5.1 GENERAL
A good maintenance program is the key to long machine life. Below is a program that
when followed should keep your machine in top running condition. Also included in this
program are routine service operations required for the engine. However, these are as stated
routine. For maintenance requirements other than outlined below, refer to the Detroit Diesel
Series 92 – Engine Operators’ Guide, where a detailed description of service instructions is given.
See Section 5.8 – Parts Replacement and Adjustment Procedures for detailed maintenance
instruction of specific booster system components.
5.2 SERVICE SHEDULE
5.2.1 DAILY OPERATION
Prior to starting the booster, check and adjust where necessary, the engine oil
level, radiator coolant level, fuel level, fan belt tension, air cleaner for blockage,
leaks or deterioration, drain the scrubber tank and auto bypass filters, and check
drain plug on the bottom of the inlet strainer.
NOTE: The engine cooling system MUST be drained and flushed every two
years. Replace the coolant with a solution of glycol type coolant and water. Do
not use a leak sealing type of antifreeze. Should 100% water be used a rust
inhibitor must be added.
After a routine start has been made, observe the instrument panel gauges and be
sure they monitor the correct readings for that particular phase of operation.
After the machine has warmed up, it is recommended that a general check on the
overall machine and instrument panel be made to assure that the booster is
running correctly. Check the air filter maintenance indicator. Should the indicator
show ‘RED’, wash or replace the element immediately – see Section 5.3 Air Filter
Maintenance. Always ensure that the air filter restriction gauge is reset after
maintenance.
5.2.2 EVERY 50 HOURS OR WEEKLY
After every week or 50 hours of operation, it will be necessary to perform the
following:
1. Carry out daily checks.
2. Check air cleaner element and dust cap assembly.
3. Check and repair any leaks or other damage.
22. 22
5.2.3 EVERY 100 HOURS OR MONTHLY
After every month or 100 hours of operation, it will be necessary to perform the
following:
1. Perform 50 hour/weekly checks.
2. Check the battery electrolyte level and top up with distilled water as necessary.
3. Change the engine oil and oil filter. This is best done when the engine is hot.
4. Change or clean air filter element.
5.2.4 EVERY 200 HOURS OR 3 MONTHS
After every three months or 200 hours of operation, it will be necessary to
perform the following:
1. Perform 100 hour/ monthly checks
2. Change fuel filter. Should persistent clogging occur, change the fuel filter
replacement schedule.
3. Check fan belt condition and tension.
4. Clean radiator, aftercooler and precooler exteriors. Depending on local
conditions more frequent cleaning may be required.
5.2.5 EVERY 500 HOURS OR 6 MONTHS
After every six months or 500 hours of operation, it will be necessary to perform
the following:
1. Perform 200 hour/ six monthly checks.
2. Examine all hoses and replace as needed.
3. Check the operation of the safety shut down switch gauges.
4. Inspect precooler and aftercooler for any external damage to the tubes
a. Remove two (2) plugs from each end of each precooler and aftercooler
header pipe, one plug at the connection (inlet/outlet) end and one (1)
midway along the header pipe.
b. Inspect the removed plugs for any sign of corrosion, erosion and intact
thread form.
c. Inspect the header pipe plug thread for intact thread form.
d. If there are signs of corrosion, erosion or a deterioration of the plugs
inspect all the plugs of the affected cooler header and they should be
replaced as required.
23. 23
e. If there is a deterioration of the header pipe threads then contact
HYDCO for advice.
f. If the plugs are in good condition then they should be cleaned and refitted
to the header pipe. Loctite® 567 High Temperature Thread Sealant or
equivalent should be used.
5.2.6 EVERY 1000 HOURS OR ANNUALLY
After every twelve months or 1000 hours of operation, it will be necessary to
perform the following:
1. Perform 500 hour/six monthly checks.
2. Replace air engine air cleaner
5.2.7 EVERY TWO YEARS
After every two years, it will be necessary to perform the following:
1. The precooler and aftercooler should be cleaned and retested.
2. The engine cooling system should be drained and flushed.
a. Replace the coolant with a solution of glycol type coolant and water.
b. Do not use a leak sealing type of antifreeze.
NOTE: Should 100% water be used a rust inhibitor must be added.
24. 24
5.3 PARTS REPLACEMENT AND ADJUSTMENT PROCEDURES
5.3.1 AIR FILTER MAINTENANCE
Air filter maintenance should be performed when the air filter restriction
indicator shows ‘RED’. The restriction indicator is located at the front of the air
filter housing. The restriction indicator will alert you as to when the main
element maintenance is necessary.
5.3.2 AIR FILTER ELEMENT REMOVAL
1. Clean exterior of the air filter housing.
2. Loosen the locking ring at the rear of the housing and remove the dust cover
from the housing.
3. Remove the element assembly by loosening the wing nut securing it.
4. Pull the element assembly out of the housing.
5. Clean the interior of the housing by using a damp, clean cloth. DO NOT
blow out dirt with compressed air.
6. Clean or replace the primary element.
5.3.3 AIR FILTER ELEMENT CLEANING
The air filter element is cleaned by one of two methods. One method uses
washing in clean water and a mild household detergent if the element is
contaminated with grease or oil and dirt. The other method uses compressed air.
The MAXIMUM number of times an element should be cleaned is six (6),
however, the element should be used for no longer than a one (1) year with out a
change.
Prior to cleaning an element, check the element for damage. Damaged elements
are to be replaced. When cleaning an element, however, never exceed the
recommended maximum pressures for water 275 kPa (40 psig) or compressed air
200kPa (30 psig).
Do not strike the element against any hard surface to dislodge dust. This will
damage the sealing surfaces and possibly rupture the element. NEVER blow dirt
out of the interior of the filter housing, as this may introduce dust downstream of
the filter. Use instead a damp, clean cloth. DO NOT OIL THE AIR FILTER
ELEMENT.
METHOD 1 - CLEANING THE AIR FILTER ELEMENT BY WASHING
When washing the element, never use petroleum solutions or solvent, also never
immerse a dirty element in water or cleaning solution, this will carry dust onto the
25. 25
‘clean side’ (inside surface) of the element. Dust must be removed by reverse
flushing of the element. Use clean, clear water with a ‘garden hose’ at no more
than 275 kPa (40 psig). Direct the water up and down the pleats of the filter
media from the ‘clean side’ of the element until the dust is removed.
If after washing as described above, the element is found to contaminated with oil
or grease, it should be agitated in a solution of mild household detergent and
water. The solution is 10 grams (4 tablespoons) of detergent to 4 litres (1 gallon)
of lukewarm water, mixed well. After the element has well agitated, rinse
thoroughly and carefully shake out any excess water. Lay the element on its side
and allow it to dry before reinstalling. The element should be protected during
drying time from contamination. Mechanical drying methods can be used,
however, heated air must be well circulated and not be over 71ºC (160ºF). Do
not use a light bulb for drying. Do not use compressed air for drying; the pressure
will rupture the element when wet. Regardless of the drying procedure, always
inspect the element for damage prior to installation.
METHOD 2 - CLEANING THE AIR FILTER ELEMENT WITH
COMPRESSED AIR
When cleaning the element with compressed air, never let the air pressure exceed
200kPa (30psig). Reverse flush the element by directing the compressed air up
and down the pleats in the filter media from the ‘clean side’ of the element.
Continue reverse flushing until all dust is removed. Should any oil or grease be
present after this, the element should then be cleaned as per Method 1. When the
element is satisfactorily cleaned, inspect thoroughly prior to installation.
5.3.4 AIR FILTER ELEMENT INSPECTION
1. Place a bright light inside the element and inspect for damage or leak hole.
2. Inspect all gaskets and gasket contact surfaces of the housing. Replace faulty
gaskets.
3. If a cleaned element is to be stored for later use, it must be stored in a clean
container.
4. After an element has been installed, inspect and tighten, as necessary, all air
inlet connections prior to resuming booster operation.
5.3.5 PRESSURE REGULATOR MAINTENANCE
1. Regulator parts are subject to normal wear and must be inspected and
replaced as necessary. The frequency of inspection and parts replacement
depends on the severity of service conditions and the requirements of local,
state and federal rules and regulations.
WARNING
To avoid personal injury or equipment damage from sudden release or explosion
of accumulated gas, do not attempt any maintenance or disassembly without first
isolating the regulator from the regulator.
26. 26
5.3.6 BOOSTER VALVE - INSPECTION
1. Remove induction piping from booster heads.
2. Pressurise the discharge manifold to 551 – 689kPa (80 – 100psig).
3. Looking into the intake port of booster heads, the intake portion of the valve
can be seen. Using a 6” to 8” screwdriver, push the intake plate away from its
seat (down) to unload the valve. It may take a small bump with the heel of
your hand to do so.
4. A continuing rush of air from the unloaded valve indicates discharge plate
damage and the valve should be replaced. If a continuing airflow still comes
from the booster valve and the intake not held open, indicates a leaking intake
o-ring and the o-ring should be replaced.
5. A damaged or broken discharge plate in the booster valve will let compressed
air back into the cylinder and on the down stroke of the piston will allow
compressed air to bypass the piston and enter the crankcase causing excessive
crankcase pressure and premature ring wear.
NOTE: An early sign of a leaking discharge valve is higher than normal
induction pressure on booster gauge.
6. At first sign of excessive crankcase pressure, that is, oil blowing out dipstick
or fill cap, or fill cap, or excessive engine oil consumption, booster valves
should be checked.
7. If booster valves check out OK, unit should be run at 1700rpm with rig air
supply disconnected with intake and discharge valves open (no air being
compressed). If excessive crankcase pressure still exists, the problem is on
the power side of the engine.
8. If upon completion of #7, excessive crankcase pressure does not exist,
booster cylinders should be removed and pistons, rings and cylinders should
be checked for damage or excessive wear.
5.3.7 BOOSTER CYLINDER REMOVAL
1. Unbolt the inlet and discharge manifolds and set them aside from the booster.
2. Unbolt the booster heads and set them aside.
3. Remove the valves.
4. Unbolt the piston head from the piston rod and remove the cap screw.
5. The cylinders should now slide freely from the head plate with the piston
heads remaining in the bores.
27. 27
5.3.8 BOOSTER CYLINDER INSTALLATION
1. Lubricate all viton rings with silicon grease and install. This enables o-rings
to remain in position while parts are inverted.
2. Install cylinders with the piston heads still in place into the head plate.
3. Taking care not to damage the bores or piston heads, use a screw driver and a
hammer handle, or suitable substitutes, to align the piston rod with the piston
head counter bore and push the piston head over the piston rod.
4. Install the cap screws in the piston rods using Loctite® 262 Stud Compound on
the threads and torque to 100ft/lbs.
5. Install booster valves.
6. Install booster heads and tighten bolts until the heads are held lightly and
evenly on the booster valves.
7. Install inlet manifold and tighten bolts until the inlet manifold is held lightly
and evenly on each booster head.
8. Install discharge manifold and torque bolts to 40ft/lbs.
9. Back off the inlet manifold bolts slightly, and then torque bolts to 40ft/lbs.
10. Torque booster head bolts using diagonally opposite bolts on each head first,
and then remaining two bolts on each head. Torque bolts in three stages;
50ft/lbs, 100ft/lbs, 100ft/lbs.
28. 28
5.4 TROUBLESHOOTING
SYMPTOM PROBABLE CAUSE AND REMEDY
___________________________________________________________________________
ENGINE WILL NOT START 1. No Fuel
a. Check fuel level and add fuel if necessary
3. Blocked fuel filter
a. Replace element
4. Low battery voltage
a. Check electrolyte level and add distilled water,
recharge if necessary
5. Blocked air filter
a. Clean or replace the element
6. Engine problems may have developed
a. Refer to Engine Manual
7. Faulty switch gauge/s
a. Check switch gauge accuracy and continuity,
replace if necessary.
8. Blown fuse
a. Check continuity and replace.
9. Faulty fuel rack solenoid
a. Check operation - replace if necessary.
10. Water in Fuel
a. Drain water from fuel tank and lines, add fuel as
necessary
11. Faulty wiring loom
a. Check continuity, repair as necessary
12. Faulty start switch.
a. Check continuity, repair or replace as necessary.
13. Faulty starter motor
a. Check operation and repair or replace as necessary
14. Restricted fuel line
a. Remove restriction or replace fuel line as
necessary.
15. Air leaks in fuel line
a. Seal leak or replace faulty fuel line.
___________________________________________________________________________
ENGINE SHUTS DOWN 1. No fuel
a. Check fuel level and add fuel if necessary
2. Discharge temperature switch gauge activating.
a. Compression ratio too high: check Section 3.2
Capacity and Pressure Chart for capacity
requirements to maintain required pressures and
adjust as necessary.
b. Cooling airflow is insufficient: check coolers for
proper ventilation and cleanliness clean if
necessary: check fan belt tension and adjust if
necessary.
29. 29
SYMPTOM PROBABLE CAUSE AND REMEDY
ENGINE SUTS DOWN (cont) c. Faulty discharge temperature switch gauge. Check
for switch accuracy and continuity and replace if
necessary.
3. Oil pressure switch gauge activating
a. Low oil level: check oil level and add oil if
necessary
b. Faulty oil pressure switch gauge. Check for switch
accuracy and continuity and replace if necessary.
4. Water temperature switch gauge activating
a. Cooling airflow is insufficient. Check coolers for
proper ventilation and cleanliness clean if
necessary: check fan belt tension and adjust if
necessary.
b. Low water level; check water level and add water if
necessary.
c. Faulty water temperature switch gauge. Check for
switch accuracy and continuity and replace if
necessary.
5. Blown fuse
b. Check continuity and replace.
6. Faulty fuel rack solenoid
b. Check fuel rack solenoid, replace if necessary.
7. Water in Fuel
b. Drain water from fuel tank and lines, add fuel as
necessary
8. Faulty wiring loom
b. Check continuity, repair as necessary
9. Blocked fuel filter
a. Replace the element.
10. Blocked air filter
a. Clean or replace the element
11. Engine problems may have developed
a. Refer to your Engine Manual
12. Restricted fuel line
b. Remove restriction or replace fuel line as
necessary.
13. Air leaks in fuel line
b. Seal leak or replace faulty fuel line.
30. 30
SYMPTOM POSSIBLE CAUSE AND REMEDY
___________________________________________________________________________
UNABLE TO OBTAIN HIGH 1. Air demand too great
DISCHARGE PRESSURES a. Check service lines for leaks or open valves.
b. Drill string or hole conditions: check Section 3.2
Capacity and Pressure Chart for capacity
requirements to maintain required pressures and
adjust as necessary.
2. Faulty bypass valve
a. Check valve and repair or replace if necessary
3. Faulty concentric valve/s
a. Perform booster valve check and replace valve/s if
necessary
___________________________________________________________________________
DISCHARGE SAFETY VALVE 1. Pilot valve set too high
‘POPS OFF’ a. Check setting and adjust if necessary
2. Leaks or restriction in the control system causing pilot signal
pressure loss
a. Check control lines and components
3. Bypass valve jammed
a. Free valve or replace if necessary
4. Bypass valve air actuator jammed
a. Free air actuator or replace if necessary
5. Water in control system causing slow bypass reaction time
a. Check all control lines and components
6. Faulty discharge safety valve
a. Replace discharge safety valve
7. Internal restriction in aftercooler
a. Check aftercooler and remove restriction
8. Blocked or faulty discharge check valve
a. Inspect discharge check valve and unblock, repair
or replace if necessary.
9. Faulty pilot valve
a. Check pilot valve and repair or replace if
necessary.
10. Blocked bypass filter element
a. Inspect filter elements and clean or replace if
necessary.
11. Faulty bypass pilot regulator
a. Check pilot regulator and repair or replace if
necessary.
31. 31
SYMPTOM PROBABLE CAUSE AND REMEDY
___________________________________________________________________________
INLET SAFETY VALVE 1. Supply pressure too high
‘POPS OFF’ a. Check Section 3.2 Capacity and Pressure Chart
for capacity requirements to maintain required
pressures and adjust as necessary.
2. Bypass vent valve blocked or faulty
a. Check the vent valve and unblock, repair or
replace as necessary.
___________________________________________________________________________
EXCESSIVE OIL 1. Engine problems may have developed
CONSUMPTION a. Refer to your Engine Manual
2. Faulty concentric valve/s
a. Perform booster valve check and replace
valve/s if necessary.
3. Oil level too high
a. Check oil level and adjust level as required.
4. Blocked air filter
a. Clean or replace the element.
5. Excessive ring and piston clearances
a. Performing a booster valve check will indicate
whether further inspection is required and if
necessary, replacement of rings, pistons and
cylinders is warranted.
___________________________________________________________________________
BOOSTER OVERHEATING 1. Loose or broken fan belt
a. Tighten or change fan belt
2. Dirty precooler core
a. Clean precooler core thoroughly
3. Faulty discharge temperature switch gauge
a. Check the switch accuracy and replace if necessary.
4. Internal restriction in precooler
a. Check precooler and clear restriction
___________________________________________________________________________
ENGINE OVERHEATING 1. Loose or broken fan belt
a. Tighten or change fanbelt
2. Dirty radiator core
a. Clean radiator core thoroughly
3. Low coolant level
a. Check coolant level and add coolant as required
4. Faulty engine thermostat
a. Check thermostat operation and replace if
necessary
5. Internal restriction in radiator
a. Check radiator and clear restriction.
6. Low lubricating oil level.
a. Check lubricating oil level and add oil as necessary.
7. Faulty water pump
a. Check water pump and repair or replace if
necessary.
32. 32
SYMPTOM POSSIBLE CAUSE AND REMADY
__________________________________________________________________________
OTHER ENGINE PROBLEMS 1. Refer to your Engine Manual
33. 33
SECTION 6 – SPARE PARTS
6.1 AIR INTAKE SYSTEM
ITEM No PART DESCRIPTION PART No QTY
1 Pre-cleaner Cover * 1
2 Pre-cleaner Bowl * 1
3 Pre-cleaner Sleeve * 1
* Pre-cleaner Assembly H002223 1
4 Air Filter Mounting Band H000350 2
5 Primary Element P11-7473 1
6 Safety Element P11-9373 1
7 Filter Housing Assembly G140054 1
8 Tube 1
9 Elbow 1
10 Tube 1
11 Elbow 1
12 Hose Clamp 1
13 Mounting Frame AFMF0092 2
14 Hose Clamp 1
15 Elbow 1
* Inlet Air Horn 5101367 1
44. 44
6.7 ELECTRICAL GROUP
ITEM No PART DESCRIPTION PART No QTY
1 Battery Lead, Negative 1
2 Battery, 12vDC N70Z15P 2
3 Battery Carrier Assembly 2
4 Battery Lead, Positive 1
5 Starter Solenoid 1
6 Starter Motor 01-17284 1
7 Alternator Drive Belt A41 1
8 Alternator, 24v 70A BXU2456 1
9 Belt Adjusting Bracket 1
10 Alternator Mount 1
- Battery Isolator 3Y-8522 1
45. 45
6.8 ENGINE GROUP
ITEM No PART DESCRIPTION PART No QTY
1 Engine Mount, Front Right EMFRIGHT NA
2 Engine Mount, Front Left EMFLEFT NA
3 Vibration Isolation Mount 786027-S5 4
4 NA
5 NA
6 Engine Mount, Rear, Right, Hi/Lo EMRHILO NA
7 Flywheel Cover FWC0092 1
8 Engine Mount Rear, Right EMRLO – R 1
- Engine Mount Rear, Left EMRLO – L 1
- Filter Engine Oil 23530408 1
- Cylinder Head Gasket 5199674 1
- Sump Gasket 5117231 1
- Blower Base Gasket 23520012 1
- Cam Plate Gasket 23515145 1
- Air Inlet Gasket 5101408 1
- Aftercooler ‘O’ Ring 5101138 1
- Rocker Cover Gasket 5104081 1
ENGINE GROUP
46. 46
6.9 CONTROL SYSTEM and ENGINE PROTECTION
ITEM No PART DESCRIPTION PART No QTY
Manual Control Valve B-43XF4RT 1
Filter HF155-5QUN 2
Regulator FS1301-2 2
5/2 Valve MKOKEB33A000 1
Pilot Valve 74-541304-51 1
Flow Control T1000C1800 1
Throttle Cylinder RT/57125/M/50 1
Bypass Actuator MS133-SR 1
Bypass Actuator Mount MS-MB-65 1
Water Level Gauge 15EL150K1 1
Booster Control Panel 09ZM348924 1
47. 47
6.10 COOLING SYSTEM
ITEM No PART DESCRIPTION PART No QTY
1 Belt, Fan A51 Set of 3
2 Spacer, Fan FANSP0192 1
3 Guard, Fan DFG14850 1
4 Fan 4ZL-9-800 1
5 Radiator Assembly VS/5C3-8 1
6 Hose Clamp 24546 2
7 Hose 26524 1
8 Clamp 24548 4
9 Hose 77300G1 2
10 Elbow SB07690 1
Filter Coolant 23508427 1
COOLING SYSTEM
48. 48
8V92 BOOSTER REPAIR LOG
MODEL NO: ______________________ SERIAL NO: ________________
OWNER: ______________________
DATE
ACCUM
HOURS
REPAIRS PERFORMED
BY
(INITIALS)
49. 49
8V92 BOOSTER MAINTENANCE LOG
MODEL NO: ______________________ SERIAL NO: ________________
OWNER: ______________________
DATE
SERVICE
HOURS
SERVICE PERFORMED
BY
(INITIALS)
