The document explains data binding in Microsoft Blazor, emphasizing its role in connecting application data with the user interface for effective synchronization. It details five types of data binding: one-way, two-way, event binding, and form binding, highlighting their distinct functionalities. The document also covers the methods of implementation for one-way and two-way data binding, as well as the use of event binding to enhance interactivity in web applications.

1. DATA BINDING
M I C R O S O F T B L A Z O R

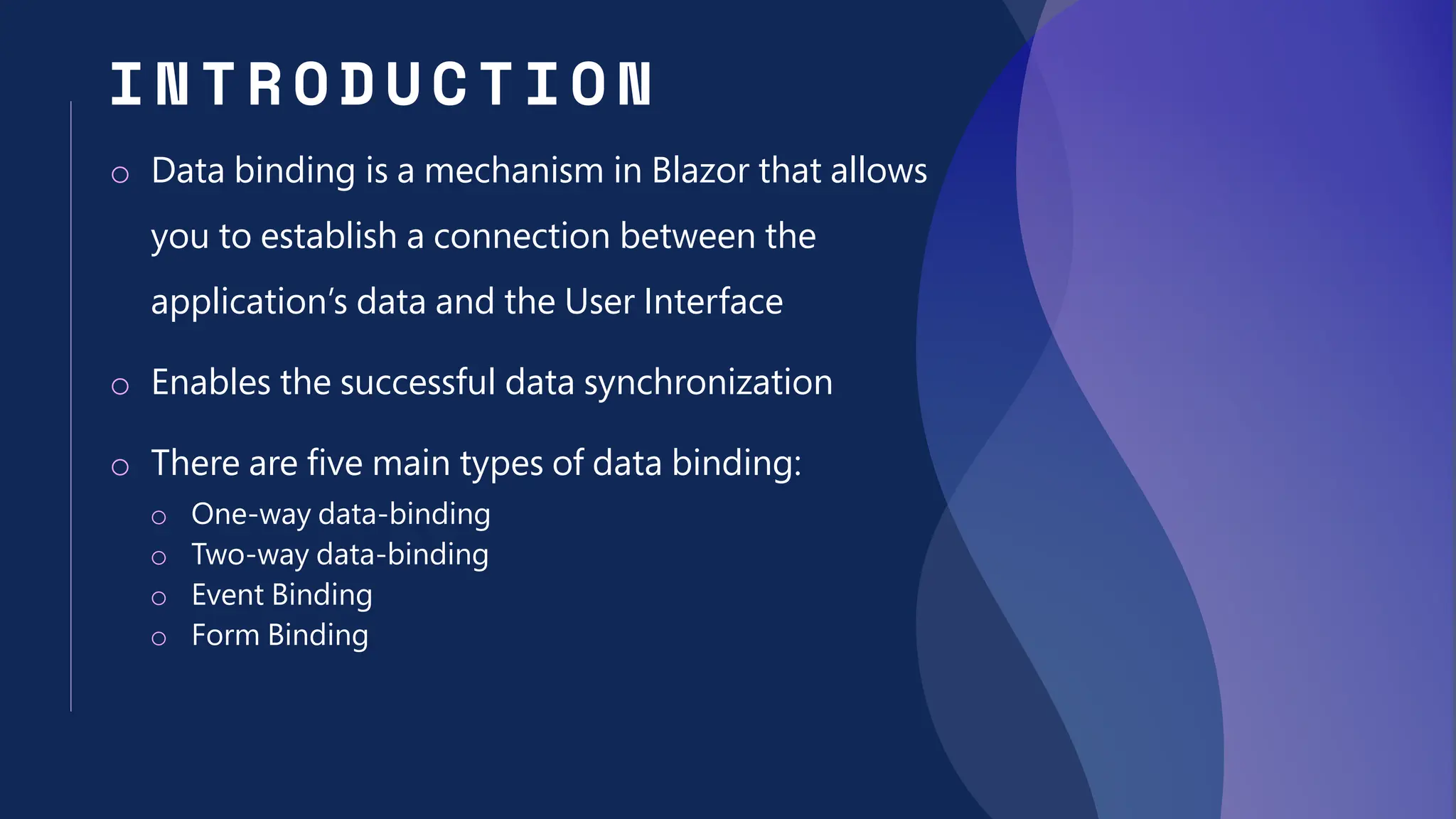

2. INTR ODUC TION
o Data binding is a mechanism in Blazor that allows
you to establish a connection between the
application’s data and the User Interface
o Enables the successful data synchronization
o There are five main types of data binding:
o One-way data-binding
o Two-way data-binding
o Event Binding
o Form Binding

3. O N E - WAY DATA - BIN DING
o Provides one way communication between UI and code
o Does not allow dynamic changes based on changes in the code.
Whatever you state in your code will be reflected in your UI
o If user makes any update in UI, it does not propagate back to the
code
o There are two methods of one-way data-binding:
o Using @ syntax
o Using Bind Attribute

4. O N E - WAY DATA - BIN DING
o We use @ symbol to get the value from the code to the UI.
o We generally use this method to bind @code part of the code with
@page part of the markup.

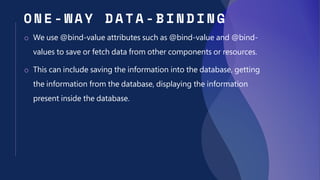

5. O N E - WAY DATA - BIN DING
o We use @bind-value attributes such as @bind-value and @bind-
values to save or fetch data from other components or resources.
o This can include saving the information into the database, getting
the information from the database, displaying the information
present inside the database.

6. O N E - WAY DATA - BIN DING

7. T W O - WAY DATA - BIN DING
o Used to perform bi-directional data flow
o It is commonly used with form elements, such as textboxes,
checkboxes and other element, maintaining a synchronized state
o The two-way data-binding uses @bind directive to perform the
communication, typically applied to the value attribute of an input
element
o Simplifies the process of handling user inputs and keeping the UI
and application process synchronized

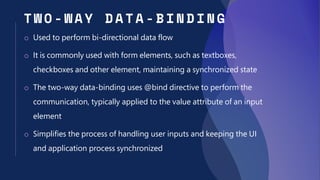

8. T W O - WAY DATA - BIN DING
o Used to perform bi-directional data flow
o It is commonly used with form elements, such as textboxes,
checkboxes and other element, maintaining a synchronized state
o The two-way data-binding uses @bind directive to perform the
communication, typically applied to the value attribute of an input
element
o Simplifies the process of handling user inputs and keeping the UI
and application process synchronized

9. T W O - WAY DATA - BIN DING

10. EVEN T BI NDIN G
o Event binding refers to the process of associating C# methods with
multiple HTML events
o This mechanism enables you to handle events such as button
clicks, mouse movements, and keyboard inputs, making the web
application interactive and responsive
o This includes @onclick, @oninput, @onchange, @onmouseover
etc.

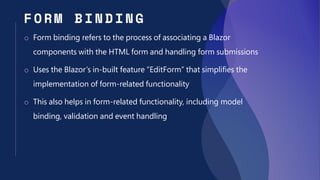

11. FORM BIN DING
o Form binding refers to the process of associating a Blazor
components with the HTML form and handling form submissions
o Uses the Blazor’s in-built feature “EditForm” that simplifies the
implementation of form-related functionality
o This also helps in form-related functionality, including model
binding, validation and event handling
