3D Printing And Designing Final Report.pdf

-SWARALI BORHADE
4TH YEAR B.ARCH.
ELECTIVE - V

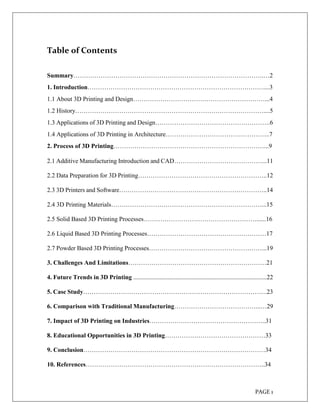

Table of Contents
Summary……………………………………………………………………………….…2
1. Introduction…………………………………………………………………………....3
1.1 About 3D Printing and Design………………………………………………………...4
1.2 History………………………………………………………………………………....5
1.3 Applications of 3D Printing and Design……………………………………………….6
1.4 Applications of 3D Printing in Architecture…………………………………………..7
2. Process of 3D Printing………………………………………………………………...9
2.1 Additive Manufacturing Introduction and CAD……………………………………...11

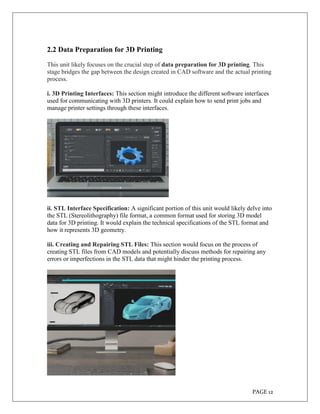

2.2 Data Preparation for 3D Printing……………………………………………………..12
2.3 3D Printers and Software……………………………………………………………..14
2.4 3D Printing Materials………………………………………………………………...15

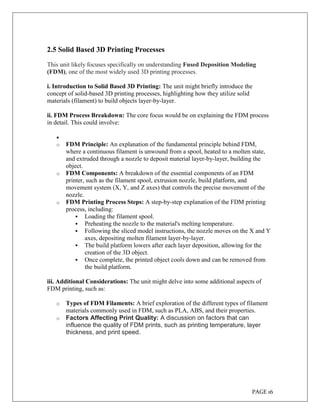

2.5 Solid Based 3D Printing Processes………………………………………………......16

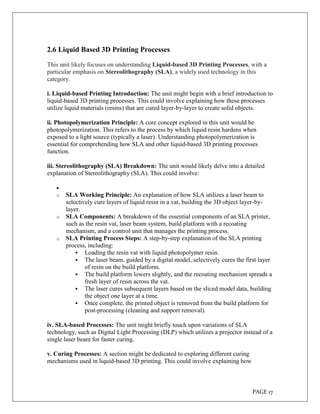

2.6 Liquid Based 3D Printing Processes…………………………………………………17

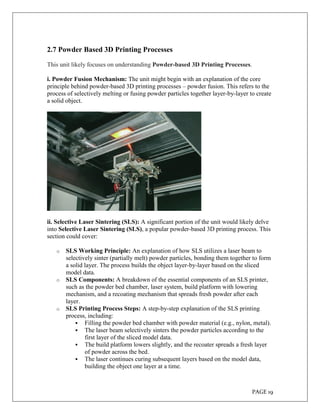

2.7 Powder Based 3D Printing Processes………………………………………………...19

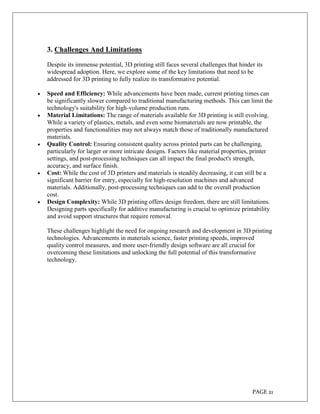

3. Challenges And Limitations…………………………………………………………21
4. Future Trends in 3D Printing .....................................................................................22

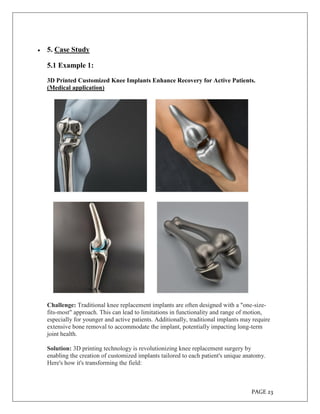

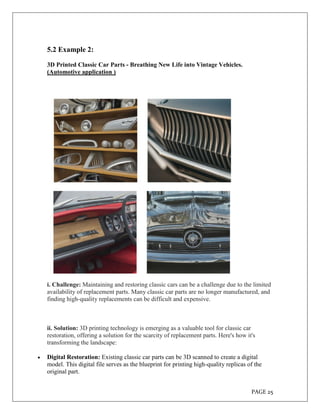

5. Case Study…………………………………………………………………………….23

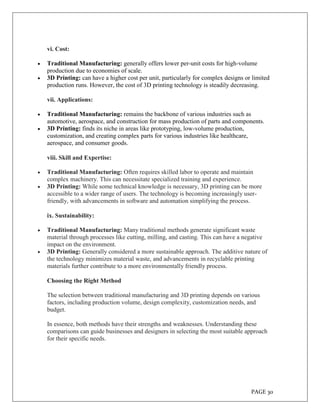

6. Comparison with Traditional Manufacturing…………………………………...…29

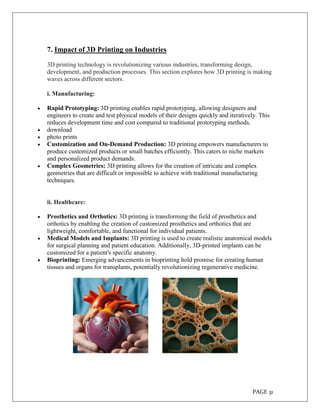

7. Impact of 3D Printing on Industries………………………………………………..31

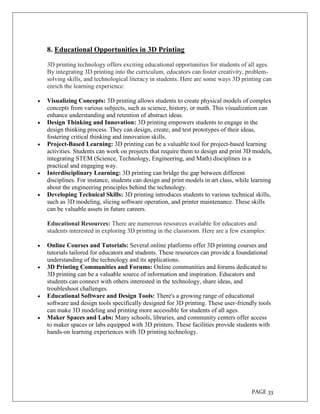

8. Educational Opportunities in 3D Printing…………………………………………33
9. Conclusion……………………………………………………………………………34
10. References…………………………………………………………………………..34

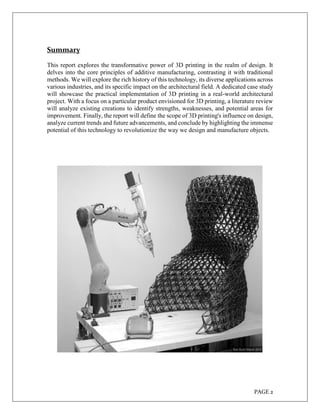

Summary
This report explores the transformative power of 3D printing in the realm of design. It
delves into the core principles of additive manufacturing, contrasting it with traditional
methods. We will explore the rich history of this technology, its diverse applications across
various industries, and its specific impact on the architectural field. A dedicated case study
will showcase the practical implementation of 3D printing in a real-world architectural
project. With a focus on a particular product envisioned for 3D printing, a literature review
will analyze existing creations to identify strengths, weaknesses, and potential areas for
improvement. Finally, the report will define the scope of 3D printing's influence on design,
analyze current trends and future advancements, and conclude by highlighting the immense
potential of this technology to revolutionize the way we design and manufacture objects.

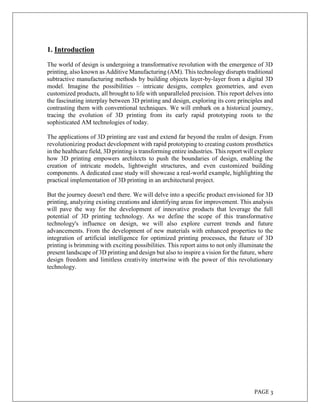

1. Introduction
The world of design is undergoing a transformative revolution with the emergence of 3D
printing, also known as Additive Manufacturing (AM). This technology disrupts traditional
subtractive manufacturing methods by building objects layer-by-layer from a digital 3D
model. Imagine the possibilities – intricate designs, complex geometries, and even
customized products, all brought to life with unparalleled precision. This report delves into
the fascinating interplay between 3D printing and design, exploring its core principles and
contrasting them with conventional techniques. We will embark on a historical journey,
tracing the evolution of 3D printing from its early rapid prototyping roots to the
sophisticated AM technologies of today.
The applications of 3D printing are vast and extend far beyond the realm of design. From
revolutionizing product development with rapid prototyping to creating custom prosthetics
in the healthcare field, 3D printing is transforming entire industries. This report will explore
how 3D printing empowers architects to push the boundaries of design, enabling the
creation of intricate models, lightweight structures, and even customized building
components. A dedicated case study will showcase a real-world example, highlighting the
practical implementation of 3D printing in an architectural project.
But the journey doesn't end there. We will delve into a specific product envisioned for 3D
printing, analyzing existing creations and identifying areas for improvement. This analysis
will pave the way for the development of innovative products that leverage the full
potential of 3D printing technology. As we define the scope of this transformative
technology's influence on design, we will also explore current trends and future
advancements. From the development of new materials with enhanced properties to the
integration of artificial intelligence for optimized printing processes, the future of 3D
printing is brimming with exciting possibilities. This report aims to not only illuminate the
present landscape of 3D printing and design but also to inspire a vision for the future, where
design freedom and limitless creativity intertwine with the power of this revolutionary
technology.

1.1 About 3D Printing and Design
The design world is undergoing a radical transformation fueled by the emergence of 3D
printing, also known as Additive Manufacturing (AM). Unlike traditional subtractive
manufacturing methods that remove material to create an object, 3D printing builds
objects layer-by-layer from a digital 3D model. This revolutionary technology unlocks a
world of possibilities for designers, enabling the creation of intricate geometries, complex
designs, and even customized products with unparalleled precision.
This report delves into the fascinating synergy between 3D printing and design. We will
explore the core principles of various 3D printing processes, highlighting their unique
advantages and versatility. From the freedom of design to the ability to produce
functional prototypes rapidly, 3D printing empowers designers to push the boundaries of
creativity and innovation.
The applications of 3D printing in design are vast and transformative. It fosters rapid
prototyping, allowing designers to iterate and test ideas quickly, significantly accelerating
the design process. Furthermore, 3D printing facilitates the creation of complex and
detailed models, aiding in design communication and visualization. These physical
models provide invaluable insights for clients and stakeholders, fostering better
collaboration and project understanding.

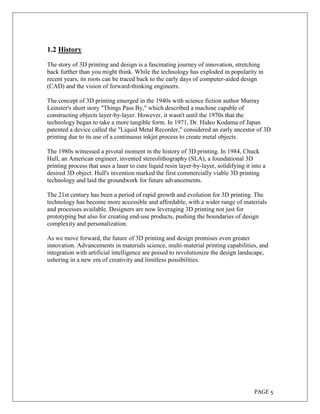

1.2 History
The story of 3D printing and design is a fascinating journey of innovation, stretching
back further than you might think. While the technology has exploded in popularity in
recent years, its roots can be traced back to the early days of computer-aided design
(CAD) and the vision of forward-thinking engineers.
The concept of 3D printing emerged in the 1940s with science fiction author Murray
Leinster's short story "Things Pass By," which described a machine capable of
constructing objects layer-by-layer. However, it wasn't until the 1970s that the
technology began to take a more tangible form. In 1971, Dr. Hideo Kodama of Japan
patented a device called the "Liquid Metal Recorder," considered an early ancestor of 3D
printing due to its use of a continuous inkjet process to create metal objects.
The 1980s witnessed a pivotal moment in the history of 3D printing. In 1984, Chuck
Hull, an American engineer, invented stereolithography (SLA), a foundational 3D
printing process that uses a laser to cure liquid resin layer-by-layer, solidifying it into a
desired 3D object. Hull's invention marked the first commercially viable 3D printing
technology and laid the groundwork for future advancements.
The 21st century has been a period of rapid growth and evolution for 3D printing. The
technology has become more accessible and affordable, with a wider range of materials
and processes available. Designers are now leveraging 3D printing not just for
prototyping but also for creating end-use products, pushing the boundaries of design
complexity and personalization.
As we move forward, the future of 3D printing and design promises even greater
innovation. Advancements in materials science, multi-material printing capabilities, and
integration with artificial intelligence are poised to revolutionize the design landscape,
ushering in a new era of creativity and limitless possibilities.

1.3 Applications of 3D Printing and Design
3D printing's impact extends far beyond the realm of design. This transformative
technology is revolutionizing various industries, fostering innovation and efficiency
across numerous applications.
Product Design and Prototyping: One of the most prominent applications of 3D
printing in design is rapid prototyping. Designers can create functional prototypes quickly
and iterate on their ideas efficiently. This allows for faster design cycles, reduced
development costs, and the ability to test and refine designs before mass production.
Healthcare: 3D printing is playing a crucial role in healthcare, particularly in the
creation of custom prosthetics and implants. With the ability to create personalized
prosthetics tailored to individual patient needs, 3D printing is improving mobility and
quality of life for amputees.
Aerospace: The aerospace industry leverages 3D printing to create lightweight and high-
strength components for aircraft and spacecraft. These components can be complex in
design and require specialized materials, making 3D printing an ideal solution for this
demanding field.
Automotive: The automotive industry utilizes 3D printing for various applications,
including creating prototypes for car parts, testing new designs, and even producing low-
volume manufacturing components. This allows for faster development cycles and the
ability to customize car parts for specific needs.
Consumer Goods: 3D printing is paving the way for personalized and on-demand
manufacturing in the consumer goods industry. Imagine customized phone cases, unique
jewelry pieces, or even functional homeware designed and created specifically for you.
This level of personalization opens doors for a new era of consumer experience.
Beyond these established applications, the future of 3D printing holds immense
potential. With advancements in materials science and multi-material printing
capabilities, the possibilities are truly endless. The report will delve deeper into specific
applications within the architectural field in the following section.3D printing's impact
extends far beyond the realm of design. This transformative technology is revolutionizing
various industries, fostering innovation and efficiency across numerous applications.

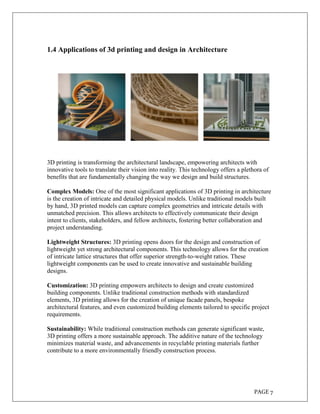

1.4 Applications of 3d printing and design in Architecture
3D printing is transforming the architectural landscape, empowering architects with
innovative tools to translate their vision into reality. This technology offers a plethora of
benefits that are fundamentally changing the way we design and build structures.
Complex Models: One of the most significant applications of 3D printing in architecture
is the creation of intricate and detailed physical models. Unlike traditional models built
by hand, 3D printed models can capture complex geometries and intricate details with
unmatched precision. This allows architects to effectively communicate their design
intent to clients, stakeholders, and fellow architects, fostering better collaboration and
project understanding.
Lightweight Structures: 3D printing opens doors for the design and construction of
lightweight yet strong architectural components. This technology allows for the creation
of intricate lattice structures that offer superior strength-to-weight ratios. These
lightweight components can be used to create innovative and sustainable building
designs.
Customization: 3D printing empowers architects to design and create customized
building components. Unlike traditional construction methods with standardized
elements, 3D printing allows for the creation of unique facade panels, bespoke
architectural features, and even customized building elements tailored to specific project
requirements.
Sustainability: While traditional construction methods can generate significant waste,
3D printing offers a more sustainable approach. The additive nature of the technology
minimizes material waste, and advancements in recyclable printing materials further
contribute to a more environmentally friendly construction process.

On-Site Printing:
The future holds promise for on-site printing of entire structures, particularly in remote
locations or for disaster relief efforts. Imagine 3D-printed shelters rapidly deployed in
areas affected by natural disasters, providing much-needed temporary housing.
6. Building Information Modeling (BIM) Integration:
Seamless connection between 3D printing and BIM software streamlines design and
construction workflows. Architects can leverage BIM to design buildings virtually and
directly translate those designs into 3D printing instructions, optimizing the entire
process.
7. Complex Features:
3D printing's ability to create intricate shapes enables the design of buildings with unique
aesthetics and optimized structural elements. Architects can explore complex geometries
and organic forms, pushing the boundaries of architectural expression.
The potential applications of 3D printing in architecture extend beyond these established
examples. The future holds promise for on-site printing of entire structures, particularly
in remote locations or for disaster relief efforts. This transformative technology is poised
to revolutionize the architectural field, pushing the boundaries of design, functionality,
and sustainability.
3D printing is transforming the architectural landscape, empowering architects with
innovative tools to translate their vision into reality. This technology offers a plethora of
benefits that are fundamentally changing the way we design and build structures.

2. Process of 3D Printing
The magic of 3D printing lies in its ability to transform a digital design into a tangible
object. This section delves into the process of translating a concept from the realm of
design software to a physical 3D printed creation.
 Design and Modeling:
The journey begins with meticulous design using Computer-Aided Design (CAD)
software. 3D modeling software allows designers to create a virtual representation of the
object, defining its shape, size, and intricate details with precision. Depending on the
complexity of the design, various software options cater to specific needs, from user-
friendly beginner tools to advanced professional applications.
 File Preparation for 3D Printing:
Once the 3D model is complete, it needs to be prepared for the printing process. This
involves translating the CAD model into a format compatible with the specific 3D printer
being used. Slicing software plays a crucial role in this step. It essentially cuts the digital
model into thin layers, providing instructions for the 3D printer to build the object layer-
by-layer.

 Choosing the Right 3D Printing Process:
The selection of the most suitable 3D printing process depends on several factors,
including the desired material properties, the level of detail required, and the project
budget. Here's a glimpse into some popular 3D printing processes:
1. Fused Deposition Modeling (FDM): This widely used process utilizes spooled filament
material that is melted and deposited layer-by-layer to create the object. FDM offers a
wide range of materials, making it suitable for various applications.
2. Stereolithography (SLA): This process employs a laser beam to cure liquid resin layer-
by-layer, resulting in highly detailed and smooth models with exceptional surface finish.
SLA is ideal for creating intricate prototypes or design models.
 The Printing Process:
Once the model is sliced and the 3D printer is programmed with the printing instructions,
the printing process begins. The printer meticulously builds the object layer-by-layer
based on the pre-defined settings. Printing time can vary significantly depending on the
size and complexity of the model.
 Post-Processing and Finishing:
After printing, the model may require some post-processing steps, such as support
material removal. Support structures are temporary structures printed along with the
model to provide stability during the printing process. Depending on the chosen material
and desired outcome, the object may also require additional finishing touches like
sanding, painting, or other surface treatments.

2.1 Additive Manufacturing Introduction and CAD
This focuses on the foundational aspects of the technology and its integration with
computer-aided design (CAD).
i. Introduction to Additive Manufacturing (AM):This section would likely introduce
the concept of AM, also known as 3D printing. It would explain the core principle of
building objects layer-by-layer from a digital model, contrasting it with traditional
subtractive manufacturing methods.
ii. Conventional vs. Additive Manufacturing: This section would delve into a
comparison between conventional manufacturing processes (like machining, casting, etc.)
and 3D printing. It would highlight the advantages and limitations of each approach.
iii. Overview of 3D Printing Processes: This section would provide an introduction to
various 3D printing processes, such as FDM (Fused Deposition Modeling), SLA
(Stereolithography), SLS (Selective Laser Sintering), etc. It would explain the working
principles of each process and their suitability for different applications.
iv. Computer Aided Design (CAD) and File Formats: This section would cover the
fundamentals of CAD software and its role in 3D printing. It would explain how CAD
models are created and saved in specific file formats compatible with 3D printers.
v. Process Chain for 3D Printing: This section would outline the entire workflow
involved in 3D printing, encompassing steps like design creation in CAD, file preparation
(slicing), printing, and post-processing.
vi. Reverse Engineering for 3D Printing: This section might introduce the concept of
reverse engineering, which involves creating a digital model from an existing physical
object. This could be relevant for applications where 3D printing needs to replicate an
existing design.
Overall, this unit seems to be designed to provide a comprehensive introduction to 3D
printing technology, focusing on the core principles, various processes, and their
connection with computer-aided design software. It equips students with the foundational
knowledge to understand the process of creating and printing 3D models.

2.2 Data Preparation for 3D Printing
This unit likely focuses on the crucial step of data preparation for 3D printing. This
stage bridges the gap between the design created in CAD software and the actual printing
process.
i. 3D Printing Interfaces: This section might introduce the different software interfaces
used for communicating with 3D printers. It could explain how to send print jobs and
manage printer settings through these interfaces.
ii. STL Interface Specification: A significant portion of this unit would likely delve into
the STL (Stereolithography) file format, a common format used for storing 3D model
data for 3D printing. It would explain the technical specifications of the STL format and
how it represents 3D geometry.
iii. Creating and Repairing STL Files: This section would focus on the process of
creating STL files from CAD models and potentially discuss methods for repairing any
errors or imperfections in the STL data that might hinder the printing process.

iv. STL Data Manipulation: This section might explore techniques for manipulating
STL data, such as scaling, rotating, or merging models. These manipulations could be
necessary for optimal printing or specific design requirements.
v. Advantages and Limitations of STL: The unit would likely discuss the advantages
and limitations of the STL file format. While widely used, STL has limitations in
representing certain types of geometries. Understanding these limitations is crucial for
selecting the appropriate file format for different applications.
vi. Part Orientation and Support Generation: This section would delve into a critical
aspect of data preparation – part orientation and support generation. It would explain how
the 3D model is positioned and how temporary support structures are created within the
slicing software. Proper orientation and support structures ensure successful printing,
especially for models with overhangs or complex geometries.
vii. Model Slicing and Contour Data: This section would focus on the concept of model
slicing. Slicing software essentially cuts the 3D model into numerous thin layers,
providing instructions for the 3D printer to build the object layer-by-layer. Understanding
how slicing works is essential for optimizing print quality and minimizing printing time.
viii. Direct and Adaptive Slicing: The unit might introduce different slicing strategies,
such as direct slicing and adaptive slicing. Direct slicing uses a uniform layer thickness
for the entire model, while adaptive slicing can adjust layer thickness based on the
complexity of the model, potentially improving print quality and efficiency.
ix. Tool Path Generation: This section could explore the concept of tool path
generation, which refers to the creation of the specific path the printer's nozzle will
follow while depositing material during the printing process. Understanding tool path
generation can help optimize printing parameters for different materials and desired
outcomes.
In conclusion, this unit equips learners with the knowledge and skills necessary to
prepare 3D models for printing. By understanding file formats, slicing techniques, and
support generation, users can effectively translate their designs into successful 3D printed
objects.

2.3 3D Printers and Software
This unit of 3D printing and design likely focuses on two key aspects:
. 3D Printers: This section would delve into the core functionalities and characteristics
of 3D printers. Here's a breakdown of potential content:
i. Types of 3D Printers: It might introduce different types of 3D printers based on their
printing technologies (FDM, SLA, SLS, etc.) and highlight their advantages and
limitations for various applications.
 Accuracy, Precision, and Tolerance: This section would explain the concepts of
accuracy, precision, and tolerance in 3D printing. These terms define the printer's ability
to replicate the intended design and the level of detail achievable.
ii. 3D Printing Software: This section would introduce different software applications
used in 3D printing workflows. Here's a potential breakdown of the content:
 Software Categories: It might categorize the software into different groups, such as 3D
modeling software for design creation (e.g., Fusion 360, Solidworks), slicing software for
preparing models for printing (e.g., Ultimaker Cura, Slic3r), and printer host software for
managing print jobs (e.g., Repetier Host).
 Specific Software Examples: The unit might provide a brief overview of some popular
software options, including their functionalities, target user groups, and potential
advantages. However, due to the vast number of software options listed, it's unlikely the
unit would go into deep detail on how to operate each one.

2.4 3D Printing Materials
Understanding the available materials and their properties is essential for selecting the
right material for a specific application.
i. Forms of 3D Printing Raw Materials: This section would introduce the different
forms that 3D printing materials can take, such as liquids (resins for SLA), solids
(filaments for FDM), wires (metals for DED), and powders (for SLS and binder jetting).
Understanding these forms is crucial as they are specific to each printing process.
ii. Popular 3D Printing Processes and Materials: This section would likely delve into
some of the most common 3D printing processes (FDM, SLA, SLS, binder jetting,
material jetting, and direct energy deposition) and explore the materials typically used
with each process. For instance, it might explain how FDM commonly utilizes filament
materials like PLA and ABS, while SLA utilizes liquid resins.
iii. Material Families: This section would likely categorize 3D printing materials into
different families, such as polymers, metals, non-metals (including ceramics), and
composites. It might explore the general properties and advantages of each material
family.
iv. Focus on Polymers: Given the prevalence of polymer materials (plastics) in 3D
printing, the unit might dedicate a specific section to exploring various polymer types
used in FDM and other processes. It could explain the properties of common polymers
like PLA, ABS, PETG, and their suitability for different applications.
v. Powder Preparation: This section might delve into the specific considerations for
powder-based materials used in processes like SLS and binder jetting. It could explore
aspects like powder particle size, distribution, and flowability, which are crucial for
successful printing with these technologies.
vi. Material Properties: Throughout the unit, a significant focus would likely be placed
on understanding the key properties of different materials. These properties might include
factors like mechanical strength, heat resistance, chemical resistance, flexibility, and
biocompatibility.

2.5 Solid Based 3D Printing Processes
This unit likely focuses specifically on understanding Fused Deposition Modeling
(FDM), one of the most widely used 3D printing processes.
i. Introduction to Solid Based 3D Printing: The unit might briefly introduce the
concept of solid-based 3D printing processes, highlighting how they utilize solid
materials (filament) to build objects layer-by-layer.
ii. FDM Process Breakdown: The core focus would be on explaining the FDM process
in detail. This could involve:

o FDM Principle: An explanation of the fundamental principle behind FDM,
where a continuous filament is unwound from a spool, heated to a molten state,
and extruded through a nozzle to deposit material layer-by-layer, building the
object.
o FDM Components: A breakdown of the essential components of an FDM
printer, such as the filament spool, extrusion nozzle, build platform, and
movement system (X, Y, and Z axes) that controls the precise movement of the
nozzle.
o FDM Printing Process Steps: A step-by-step explanation of the FDM printing
process, including:
 Loading the filament spool.
 Preheating the nozzle to the material's melting temperature.
 Following the sliced model instructions, the nozzle moves on the X and Y
axes, depositing molten filament layer-by-layer.
 The build platform lowers after each layer deposition, allowing for the
creation of the 3D object.
 Once complete, the printed object cools down and can be removed from
the build platform.
iii. Additional Considerations: The unit might delve into some additional aspects of
FDM printing, such as:
o Types of FDM Filaments: A brief exploration of the different types of filament
materials commonly used in FDM, such as PLA, ABS, and their properties.
o Factors Affecting Print Quality: A discussion on factors that can
influence the quality of FDM prints, such as printing temperature, layer
thickness, and print speed.

2.6 Liquid Based 3D Printing Processes
This unit likely focuses on understanding Liquid-based 3D Printing Processes, with a
particular emphasis on Stereolithography (SLA), a widely used technology in this
category.
i. Liquid-based Printing Introduction: The unit might begin with a brief introduction to
liquid-based 3D printing processes. This could involve explaining how these processes
utilize liquid materials (resins) that are cured layer-by-layer to create solid objects.
ii. Photopolymerization Principle: A core concept explored in this unit would be
photopolymerization. This refers to the process by which liquid resin hardens when
exposed to a light source (typically a laser). Understanding photopolymerization is
essential for comprehending how SLA and other liquid-based 3D printing processes
function.
iii. Stereolithography (SLA) Breakdown: The unit would likely delve into a detailed
explanation of Stereolithography (SLA). This could involve:

o SLA Working Principle: An explanation of how SLA utilizes a laser beam to
selectively cure layers of liquid resin in a vat, building the 3D object layer-by-
layer.
o SLA Components: A breakdown of the essential components of an SLA printer,
such as the resin vat, laser beam system, build platform with a recoating
mechanism, and a control unit that manages the printing process.
o SLA Printing Process Steps: A step-by-step explanation of the SLA printing
process, including:
 Loading the resin vat with liquid photopolymer resin.
 The laser beam, guided by a digital model, selectively cures the first layer
of resin on the build platform.
 The build platform lowers slightly, and the recoating mechanism spreads a
fresh layer of resin across the vat.
 The laser cures subsequent layers based on the sliced model data, building
the object one layer at a time.
 Once complete, the printed object is removed from the build platform for
post-processing (cleaning and support removal).
iv. SLA-based Processes: The unit might briefly touch upon variations of SLA
technology, such as Digital Light Processing (DLP) which utilizes a projector instead of a
single laser beam for faster curing.
v. Curing Processes: A section might be dedicated to exploring different curing
mechanisms used in liquid-based 3D printing. This could involve explaining how

photopolymerization can be achieved with various light sources like lasers, projectors, or
high-intensity light sources.
Overall, this unit equips learners with a solid understanding of SLA, a prominent liquid-
based 3D printing process. By delving into photopolymerization principles, SLA
components, and the printing process itself, users gain valuable knowledge for utilizing
and potentially troubleshooting SLA technology for their 3D printing needs.

2.7 Powder Based 3D Printing Processes
This unit likely focuses on understanding Powder-based 3D Printing Processes.
i. Powder Fusion Mechanism: The unit might begin with an explanation of the core
principle behind powder-based 3D printing processes – powder fusion. This refers to the
process of selectively melting or fusing powder particles together layer-by-layer to create
a solid object.
ii. Selective Laser Sintering (SLS): A significant portion of the unit would likely delve
into Selective Laser Sintering (SLS), a popular powder-based 3D printing process. This
section could cover:
o SLS Working Principle: An explanation of how SLS utilizes a laser beam to
selectively sinter (partially melt) powder particles, bonding them together to form
a solid layer. The process builds the object layer-by-layer based on the sliced
model data.
o SLS Components: A breakdown of the essential components of an SLS printer,
such as the powder bed chamber, laser system, build platform with lowering
mechanism, and a recoating mechanism that spreads fresh powder after each
layer.
o SLS Printing Process Steps: A step-by-step explanation of the SLS printing
process, including:
 Filling the powder bed chamber with powder material (e.g., nylon, metal).
 The laser beam selectively sinters the powder particles according to the
first layer of the sliced model data.
 The build platform lowers slightly, and the recoater spreads a fresh layer
of powder across the bed.
 The laser continues curing subsequent layers based on the model data,
building the object one layer at a time.

 Once complete, the printed object is unpacked from the powder bed, and
excess powder is removed during post-processing.
iii. SLS-based Printers: The unit might briefly explore variations of SLS technology,
such as Multi Jet Sintering (MJF) which utilizes inkjet printing heads alongside a laser
for enhanced capabilities.
iv. Laser Engineering Net Shaping (LENS): The unit might introduce Laser
Engineering Net Shaping (LENS), another powder-based process that utilizes a high-
powered laser beam to completely melt and fuse powder particles, creating metal objects.
v. Electron Beam Melting (EBM): The unit might also introduce Electron Beam
Melting (EBM), a similar process to LENS that utilizes an electron beam for melting
metal powders, often used for high-performance metal parts.
vi. Binder Jet 3D Printing: The unit might conclude with an explanation of Binder Jet
3D Printing. This process utilizes a binder jet to selectively deposit a liquid binding
agent onto powder layers, creating a solid structure. It can be used with various powder
materials like metals, plastics, and even sand.

3. Challenges And Limitations
Despite its immense potential, 3D printing still faces several challenges that hinder its
widespread adoption. Here, we explore some of the key limitations that need to be
addressed for 3D printing to fully realize its transformative potential.
 Speed and Efficiency: While advancements have been made, current printing times can
be significantly slower compared to traditional manufacturing methods. This can limit the
technology's suitability for high-volume production runs.
 Material Limitations: The range of materials available for 3D printing is still evolving.
While a variety of plastics, metals, and even some biomaterials are now printable, the
properties and functionalities may not always match those of traditionally manufactured
materials.
 Quality Control: Ensuring consistent quality across printed parts can be challenging,
particularly for larger or more intricate designs. Factors like material properties, printer
settings, and post-processing techniques can all impact the final product's strength,
accuracy, and surface finish.
 Cost: While the cost of 3D printers and materials is steadily decreasing, it can still be a
significant barrier for entry, especially for high-resolution machines and advanced
materials. Additionally, post-processing techniques can add to the overall production
cost.
 Design Complexity: While 3D printing offers design freedom, there are still limitations.
Designing parts specifically for additive manufacturing is crucial to optimize printability
and avoid support structures that require removal.
These challenges highlight the need for ongoing research and development in 3D printing
technologies. Advancements in materials science, faster printing speeds, improved
quality control measures, and more user-friendly design software are all crucial for
overcoming these limitations and unlocking the full potential of this transformative
technology.

4. Future Trends in 3D Printing
3D printing is poised to reshape architecture. Here are some key trends:
 Bioprinting: Imagine sustainable building materials grown from organic materials like
algae or fungus, offering eco-friendly and self-healing properties.
 Large-Scale Printing: On-site 3D printing of entire building elements will reduce costs
and environmental impact by eliminating transportation needs.

 Personalized Housing: 3D-printed houses could be customized for individual needs,
leading to faster construction of disaster relief shelters and affordable housing.
 BIM Integration: Seamless connection between 3D printing and Building Information
Modeling (BIM) software will streamline design and construction workflows.


 5. Case Study
5.1 Example 1:
3D Printed Customized Knee Implants Enhance Recovery for Active Patients.
(Medical application)
Challenge: Traditional knee replacement implants are often designed with a "one-size-
fits-most" approach. This can lead to limitations in functionality and range of motion,
especially for younger and active patients. Additionally, traditional implants may require
extensive bone removal to accommodate the implant, potentially impacting long-term
joint health.
Solution: 3D printing technology is revolutionizing knee replacement surgery by
enabling the creation of customized implants tailored to each patient's unique anatomy.
Here's how it's transforming the field:

1. Pre-Surgical Planning: Advanced imaging techniques, such as CT scans and MRI
scans, are used to create a detailed 3D model of the patient's knee joint, including bone
structure, ligaments, and cartilage damage.
2. Implant Design and Customization: Surgeons leverage specialized software to design a
customized implant that perfectly replicates the patient's natural knee anatomy. This can
involve replicating specific bone curvatures, preserving healthy bone tissue, and
optimizing the implant for the patient's activity level and desired range of motion.
3. 3D Printing the Implant: The customized implant design is then sent to a 3D printing
facility. Using biocompatible materials like titanium or tantalum powder, the 3D printer
meticulously builds the implant layer-by-layer, ensuring an accurate and high-quality
replica.
4. Benefits of 3D Printed Knee Implants:
o Personalized Fit and Function: The custom-designed implant precisely matches
the patient's anatomy, leading to improved stability, flexibility, and a more natural
feeling knee joint.
o Minimally Invasive Surgery: By preserving more bone tissue, 3D printed
implants may enable minimally invasive surgical approaches, resulting in faster
healing times and reduced post-operative pain.
o Faster Recovery and Improved Outcomes: A well-fitting implant allows for
quicker rehabilitation and a return to daily activities and sports participation for
active patients.
o Reduced Risk of Complications: Preserving bone and achieving a more natural
fit can potentially lower the risk of implant loosening or other long-term
complications.
Outcomes: Studies have shown that patients receiving 3D printed knee replacements
experience significant improvements in pain reduction, function, and overall satisfaction
compared to traditional implant surgeries.
The Future of 3D Printing in Knee Replacement:
3D printing holds immense promise for the future of knee replacement surgery.
Advancements in biocompatible materials, improved design software, and continued
research may lead to:
 3D printed implants with improved wear resistance for extended implant longevity.
 Incorporation of personalized bone ingrowth features to promote better
osseointegration (fusion between bone and implant).
 Patient-specific surgical guides printed using 3D printing technology to enhance
surgical precision and efficiency.
3D printing is personalizing knee replacement surgery, offering patients a new era of
improved postoperative outcomes, faster recovery times, and the ability to return to an
active lifestyle.

5.2 Example 2:
3D Printed Classic Car Parts - Breathing New Life into Vintage Vehicles.
(Automotive application )
i. Challenge: Maintaining and restoring classic cars can be a challenge due to the limited
availability of replacement parts. Many classic car parts are no longer manufactured, and
finding high-quality replacements can be difficult and expensive.
ii. Solution: 3D printing technology is emerging as a valuable tool for classic car
restoration, offering a solution for the scarcity of replacement parts. Here's how it's
transforming the landscape:
 Digital Restoration: Existing classic car parts can be 3D scanned to create a digital
model. This digital file serves as the blueprint for printing high-quality replicas of the
original part.

 Material Matching: Advancements in 3D printing materials allow for the use of
materials with properties similar to the original parts. For instance, ABS plastic can be
used for replicating interior trim pieces, while metal printing can be employed for more
robust components.
 Accuracy and Customization: 3D printing enables the creation of highly accurate
replicas, preserving the original design and functionality of the classic car part.
Additionally, 3D printing allows for minor design modifications to improve performance
or address specific restoration needs.
iii. Benefits of 3D Printed Classic Car Parts:
 Preserving Automotive History: 3D printing helps maintain classic cars by providing a
reliable source for replacement parts, ensuring the longevity and preservation of these
historical vehicles.
 Reduced Restoration Costs: Compared to finding scarce original parts, 3D printed
replacements can offer a more cost-effective solution for classic car restoration projects.
 Improved Part Availability: 3D printing eliminates dependence on limited stock of
classic car parts, making restoration more feasible for a wider range of classic car models.
 Customization Potential: 3D printing allows for minor modifications to classic car parts
to enhance performance or accommodate specific restoration goals.
iv. Case in point: Reviving the Austin Healey 3000
British Motor Heritage (BMH), a leading classic car parts supplier, partnered with a 3D
printing company to reproduce parts for the iconic Austin Healey 3000. This
collaboration highlights the potential of 3D printing in classic car restoration:
 Recreating Out-of-Production Parts: BMH successfully 3D printed replacement parts
for the Austin Healey 3000 that were no longer commercially available. This included
interior trim pieces, door handles, and specific engine components.
 Maintaining Authenticity: The 3D printed parts were designed to match the original
specifications of the Austin Healey 3000, ensuring they preserved the car's historical
integrity.
 Meeting Restoration Needs: 3D printing provided a reliable and cost-effective solution
for classic car enthusiasts to restore and maintain their Austin Healey 3000 vehicles.

5.3 Example 3:
Case Study: The Amsterdam Canal House - A Pioneering Example of 3D Printed
Facade Panels
The Amsterdam Canal House is a groundbreaking project that showcases the potential of
3D printing in architecture. This unique residential building, located in the historic center
of Amsterdam, Netherlands, features a stunning facade adorned with intricate 3D printed
concrete panels.
Project Details:
 Architects: HXTNL (previously known as Henrique Rijnboutt Architects)
 Location: Amsterdam, Netherlands
 Year of Completion: 2018
 3D Printing Technology: Digital Concrete Printing
Challenges and Innovation:
The primary challenge for this project was to seamlessly integrate a modern design with
the traditional aesthetic of the surrounding canal houses. The architects, HXTNL, opted for
3D printed concrete panels as a solution. This innovative approach allowed them to create
complex and intricate facade elements that echoed the historical architectural style while
maintaining a contemporary flair.
The 3D Printing Process:
The facade panels were created using a Digital Concrete Printing technique. This
technology utilizes a robotic arm to deposit layers of specially formulated concrete mix
onto a bed, following a digital design file. This allows for the creation of highly detailed
and customized components.
Benefits of 3D Printing:
 Design Freedom: 3D printing enabled the creation of intricate geometric patterns on the
facade panels, replicating the historical ornamentation while offering a unique and
modern aesthetic.

 Lightweight Construction: The 3D printed concrete panels were lighter than traditional
precast concrete elements, reducing the overall building weight and minimizing
foundation requirements.
 Reduced Waste: The digital nature of 3D printing minimizes material waste compared to
traditional concrete casting methods.
 Sustainability: The 3D printed concrete panels were created with a specially formulated
mix that offered improved insulation properties, contributing to the building's energy
efficiency.
Impact and Future Potential:
The Amsterdam Canal House stands as a testament to the transformative potential of 3D
printing in architecture. This project demonstrates the ability to create aesthetically
pleasing and functionally sound architectural elements with this innovative technology.
The success of the Amsterdam Canal House project paves the way for wider adoption of
3D printing in the construction industry. As 3D printing technologies continue to evolve,
we can expect to see even more innovative and sustainable architectural applications
emerge in the future.

6. Comparison with Traditional Manufacturing
While 3D printing offers a revolutionary approach to design and production, traditional
manufacturing methods remain prevalent in various industries. Here's a breakdown
comparing these two contrasting processes:
i. Production Volume:
 Traditional Manufacturing: excels in high-volume production. Assembly lines and
established processes are optimized for efficiency when producing large quantities of
identical parts.
 3D Printing: is better suited for low-volume production, prototyping, or customized
items. The layer-by-layer nature makes it less efficient for mass production.
ii. Lead Time:
 Traditional Manufacturing: can involve lengthy lead times due to tooling costs and
production setup times, especially for complex designs.
 3D Printing: often boasts faster lead times, particularly for prototypes or small batches.
The digital nature of the process allows for quicker design iterations and production.
iii. Design Complexity:
 Traditional Manufacturing: may struggle with highly intricate or organic designs due
to limitations of machining processes.
 3D Printing: excels at creating complex geometries and designs with internal features or
channels that would be difficult or impossible with traditional methods.
iv. Material Options:
 Traditional Manufacturing: offers a wider range of material options, including metals,
plastics, wood, and textiles, depending on the specific process.
 3D Printing: while expanding, has a more limited selection of materials compared to
traditional methods. However, advancements are continually adding new material options
like biomaterials and composites.
v. Customization:
 Traditional Manufacturing: can be challenging and expensive to customize products
for individual needs.
 3D Printing: facilitates easy customization of designs and products, making it ideal for
personalized or niche applications.

vi. Cost:
 Traditional Manufacturing: generally offers lower per-unit costs for high-volume
production due to economies of scale.
 3D Printing: can have a higher cost per unit, particularly for complex designs or limited
production runs. However, the cost of 3D printing technology is steadily decreasing.
vii. Applications:
 Traditional Manufacturing: remains the backbone of various industries such as
automotive, aerospace, and construction for mass production of parts and components.
 3D Printing: finds its niche in areas like prototyping, low-volume production,
customization, and creating complex parts for various industries like healthcare,
aerospace, and consumer goods.
viii. Skill and Expertise:
 Traditional Manufacturing: Often requires skilled labor to operate and maintain
complex machinery. This can necessitate specialized training and experience.
 3D Printing: While some technical knowledge is necessary, 3D printing can be more
accessible to a wider range of users. The technology is becoming increasingly user-
friendly, with advancements in software and automation simplifying the process.
ix. Sustainability:
 Traditional Manufacturing: Many traditional methods generate significant waste
material through processes like cutting, milling, and casting. This can have a negative
impact on the environment.
 3D Printing: Generally considered a more sustainable approach. The additive nature of
the technology minimizes material waste, and advancements in recyclable printing
materials further contribute to a more environmentally friendly process.
Choosing the Right Method
The selection between traditional manufacturing and 3D printing depends on various
factors, including production volume, design complexity, customization needs, and
budget.
In essence, both methods have their strengths and weaknesses. Understanding these
comparisons can guide businesses and designers in selecting the most suitable approach
for their specific needs.

7. Impact of 3D Printing on Industries
3D printing technology is revolutionizing various industries, transforming design,
development, and production processes. This section explores how 3D printing is making
waves across different sectors.
i. Manufacturing:
 Rapid Prototyping: 3D printing enables rapid prototyping, allowing designers and
engineers to create and test physical models of their designs quickly and iteratively. This
reduces development time and cost compared to traditional prototyping methods.
 download
 photo prints
 Customization and On-Demand Production: 3D printing empowers manufacturers to
produce customized products or small batches efficiently. This caters to niche markets
and personalized product demands.
 Complex Geometries: 3D printing allows for the creation of intricate and complex
geometries that are difficult or impossible to achieve with traditional manufacturing
techniques.
ii. Healthcare:
 Prosthetics and Orthotics: 3D printing is transforming the field of prosthetics and
orthotics by enabling the creation of customized prosthetics and orthotics that are
lightweight, comfortable, and functional for individual patients.
 Medical Models and Implants: 3D printing is used to create realistic anatomical models
for surgical planning and patient education. Additionally, 3D-printed implants can be
customized for a patient's specific anatomy.
 Bioprinting: Emerging advancements in bioprinting hold promise for creating human
tissues and organs for transplants, potentially revolutionizing regenerative medicine.

iii. Aerospace:
 Lightweight Components: 3D printing allows for the creation of lightweight and high-
strength components for aircraft, reducing weight and improving fuel efficiency.
 Complex Parts: The technology enables the production of complex aerospace parts with
internal channels and lattices for optimized performance.
 Rapid Prototyping and On-Demand Parts: 3D printing facilitates rapid prototyping for
aerospace components and even on-demand printing of replacement parts at remote
locations.
iv. Construction:
 Building Prototypes and Mockups: 3D printing can be used to create architectural
models and mockups for construction projects, facilitating better visualization and
planning.
 Construction Components: Advancements are opening doors for 3D printing of specific
construction components, such as walls, or even entire buildings in some cases.
 Customization and Design Freedom: 3D printing offers possibilities for on-site
customization of building components and greater design freedom for architects and
engineers.
v. Consumer Goods:
 Personalized Products: 3D printing allows for the mass customization of consumer
goods, enabling products to be tailored to individual preferences and needs.
 On-Demand Manufacturing: The technology facilitates on-demand production of
consumer goods, reducing inventory needs and enabling just-in-time manufacturing.
 Innovation and Design Flexibility: 3D printing empowers designers and creators to
develop innovative products with complex shapes and features.

8. Educational Opportunities in 3D Printing
3D printing technology offers exciting educational opportunities for students of all ages.
By integrating 3D printing into the curriculum, educators can foster creativity, problem-
solving skills, and technological literacy in students. Here are some ways 3D printing can
enrich the learning experience:
 Visualizing Concepts: 3D printing allows students to create physical models of complex
concepts from various subjects, such as science, history, or math. This visualization can
enhance understanding and retention of abstract ideas.
 Design Thinking and Innovation: 3D printing empowers students to engage in the
design thinking process. They can design, create, and test prototypes of their ideas,
fostering critical thinking and innovation skills.
 Project-Based Learning: 3D printing can be a valuable tool for project-based learning
activities. Students can work on projects that require them to design and print 3D models,
integrating STEM (Science, Technology, Engineering, and Math) disciplines in a
practical and engaging way.
 Interdisciplinary Learning: 3D printing can bridge the gap between different
disciplines. For instance, students can design and print models in art class, while learning
about the engineering principles behind the technology.
 Developing Technical Skills: 3D printing introduces students to various technical skills,
such as 3D modeling, slicing software operation, and printer maintenance. These skills
can be valuable assets in future careers.
Educational Resources: There are numerous resources available for educators and
students interested in exploring 3D printing in the classroom. Here are a few examples:
 Online Courses and Tutorials: Several online platforms offer 3D printing courses and
tutorials tailored for educators and students. These resources can provide a foundational
understanding of the technology and its applications.
 3D Printing Communities and Forums: Online communities and forums dedicated to
3D printing can be a valuable source of information and inspiration. Educators and
students can connect with others interested in the technology, share ideas, and
troubleshoot challenges.
 Educational Software and Design Tools: There's a growing range of educational
software and design tools specifically designed for 3D printing. These user-friendly tools
can make 3D modeling and printing more accessible for students of all ages.
 Maker Spaces and Labs: Many schools, libraries, and community centers offer access
to maker spaces or labs equipped with 3D printers. These facilities provide students with
hands-on learning experiences with 3D printing technology.

9. Conclusion
In conclusion, this report has explored the transformative power of 3D printing in design
and manufacturing. We've seen how this technology, once a futuristic concept, has
become a powerful tool with the potential to revolutionize entire industries. 3D printing
offers a compelling alternative to traditional methods, enabling the creation of complex
geometries, rapid prototyping, and significantly reduced waste.
The growing accessibility and affordability of 3D printers further amplify this impact.
This democratization of the technology paves the way for a future of greater
personalization, with customized products readily available. Design freedom flourishes as
limitations on shape and complexity fade, allowing for innovative creations previously
unimaginable. Additionally, 3D printing opens doors for sustainable production practices.
The ability to manufacture on-demand and with minimal waste fosters a more
environmentally conscious approach to production.
Looking ahead, the future of 3D printing is bright. As advancements in materials, printing
speeds, and post-processing techniques continue to develop, we can expect even broader
adoption and groundbreaking applications. From personalized medicine to intricate
aerospace components, 3D printing has the potential to reshape the way we design and
manufacture across countless fields. While challenges remain, the potential for 3D
printing to revolutionize design and manufacturing processes is undeniable. This
technology stands poised to usher in a new era of creativity, efficiency, and sustainability,
shaping a future quite literally built layer by layer.
10. References
https://www.autodesk.com/solutions/3d-printing
https://3dprinting.com/
https://www.sketchup.com/try-sketchup
https://www.ncbi.nlm.nih.gov/pmc/articles/PMC10221839/
https://www.mayoclinic.org/tests-procedures/knee-replacement/care-at-mayo-clinic/pcc-
20385278

3D Printing And Designing Final Report.pdf

Recommended

Recommended

More Related Content

Similar to 3D Printing And Designing Final Report.pdf

Similar to 3D Printing And Designing Final Report.pdf (19)

Recently uploaded

Recently uploaded (20)

3D Printing And Designing Final Report.pdf
