1. Understanding class
definitions
Looking inside classes
5.0

2. 2
Main concepts to be covered
• fields
• constructors
• methods
• parameters
• assignment statements
Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling

3. 3

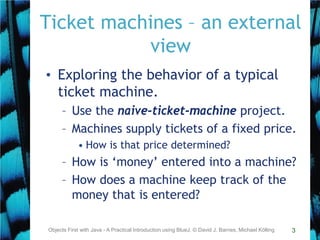

Ticket machines – an external
view
• Exploring the behavior of a typical
ticket machine.
– Use the naive-ticket-machine project.
– Machines supply tickets of a fixed price.
• How is that price determined?
– How is ‘money’ entered into a machine?
– How does a machine keep track of the
money that is entered?
Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling

4. 4

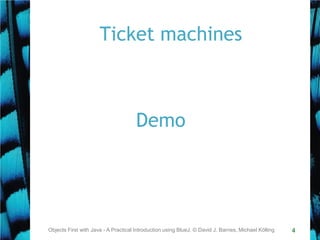

Ticket machines
Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling
Demo

5. 5
Ticket machines – an internal
view
• Interacting with an object gives us
clues about its behavior.
• Looking inside allows us to determine
how that behavior is provided or
implemented.
• All Java classes have a similar-looking
internal view.
Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling

6. 6
Fields, constructor, method
• Fields  store data for each object
to use
• Constructor  allow each object to
be set up
• Methods  implement the behavior
of the object
Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling

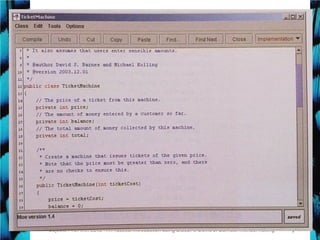

7. 7Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling

8. 8

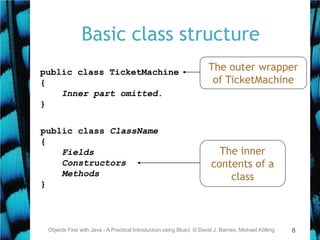

Basic class structure
Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling
public class TicketMachine
{
Inner part omitted.
}
public class ClassName
{
Fields
Constructors
Methods
}
The outer wrapper
of TicketMachine
The inner
contents of a
class

9. 9

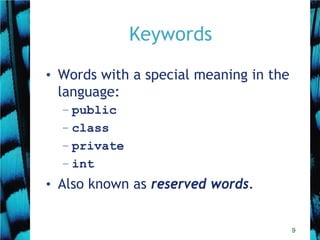

Keywords
• Words with a special meaning in the
language:
– public
– class
– private
– int
• Also known as reserved words.

10. 10

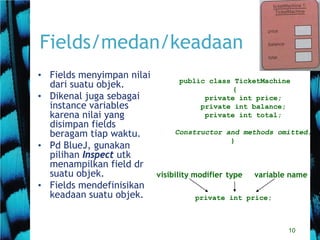

Fields/medan/keadaan
• Fields menyimpan nilai
dari suatu objek.
• Dikenal juga sebagai
instance variables
karena nilai yang
disimpan fields
beragam tiap waktu.
• Pd BlueJ, gunakan
pilihan Inspect utk
menampilkan field dr
suatu objek.
• Fields mendefinisikan
keadaan suatu objek.
public class TicketMachine
{
private int price;
private int balance;
private int total;
Constructor and methods omitted.
}
private int price;
visibility modifier type variable name

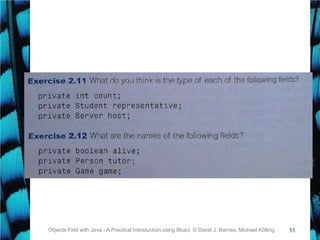

11. 11Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling

12. 12

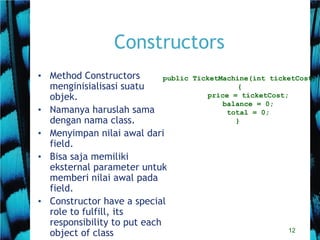

Constructors
• Method Constructors
menginisialisasi suatu
objek.
• Namanya haruslah sama
dengan nama class.
• Menyimpan nilai awal dari
field.
• Bisa saja memiliki
eksternal parameter untuk
memberi nilai awal pada
field.
• Constructor have a special
role to fulfill, its
responsibility to put each
object of class
public TicketMachine(int ticketCost)
{
price = ticketCost;
balance = 0;
total = 0;
}

13. 13

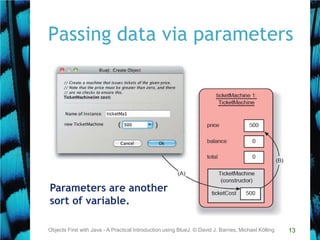

Passing data via parameters
Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling
Parameters are another
sort of variable.

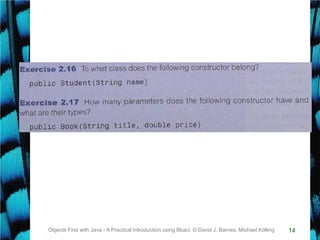

14. 14Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling

15. 15

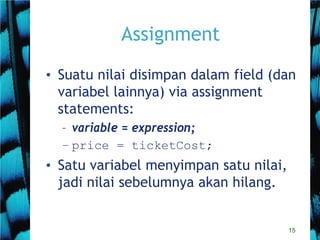

Assignment
• Suatu nilai disimpan dalam field (dan
variabel lainnya) via assignment
statements:
– variable = expression;
– price = ticketCost;
• Satu variabel menyimpan satu nilai,
jadi nilai sebelumnya akan hilang.

16. 16

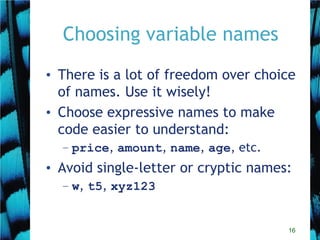

Choosing variable names
• There is a lot of freedom over choice
of names. Use it wisely!
• Choose expressive names to make
code easier to understand:
– price, amount, name, age, etc.
• Avoid single-letter or cryptic names:
– w, t5, xyz123

17. 17
Methods
• Suatu Method merupakan implementasi perilaku
dari objek.
• Secara umum ada 3:
– Method constructor: digunakan untuk mencipta
objek dan memberi nilai awal pada objek yang
dicipta
– Method accessor
– Method mutator
• Struktur method terdiri dari bagian header dan
body.
• TicketMachine has four methods:
– getPrice, getBalance, insertMoney, printTicket

18. 18

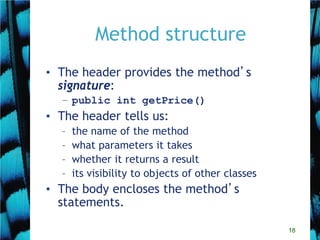

Method structure
• The header provides the method’s
signature:
– public int getPrice()
• The header tells us:
– the name of the method
– what parameters it takes
– whether it returns a result
– its visibility to objects of other classes
• The body encloses the method’s
statements.

19. 19
Accessor methods
• Method Accessors: mengembalikan informasi
mengenai objek.
• Bagian header mendefinisikan method’s
signature. public int getPrice()
• Bagian body melingkupi semua method’s
statements.
• Terdapat statement return pada body.

20. 20

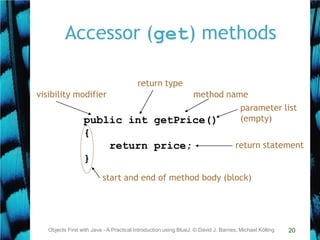

Accessor (get) methods
Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling
public int getPrice()
{
return price;
}
return type
method name
parameter list
(empty)
start and end of method body (block)
return statement
visibility modifier

21. 22

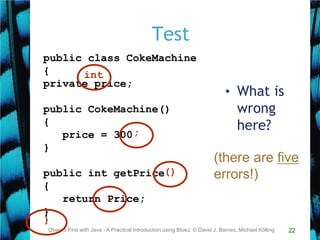

Test
Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling
public class CokeMachine
{
private price;
public CokeMachine()
{
price = 300
}
public int getPrice
{
return Price;
}
}
;
()
int
-
• What is
wrong
here?
(there are five
errors!)

22. 23

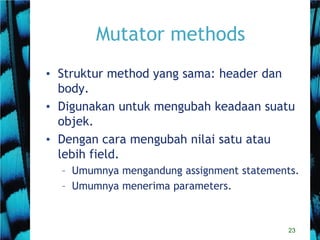

Mutator methods
• Struktur method yang sama: header dan
body.
• Digunakan untuk mengubah keadaan suatu
objek.
• Dengan cara mengubah nilai satu atau
lebih field.
– Umumnya mengandung assignment statements.
– Umumnya menerima parameters.

23. 24

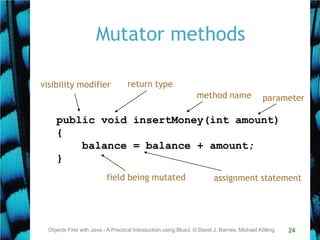

Mutator methods
Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling
public void insertMoney(int amount)
{
balance = balance + amount;
}
return type
method name parameter
visibility modifier
assignment statementfield being mutated

24. 25
set mutator methods
• Fields often have dedicated set
mutator methods.
• These have a simple, distinctive
form:
– void return type
– method name related to the field name
– single parameter, with the same type as
the type of the field
– a single assignment statement

25. 26

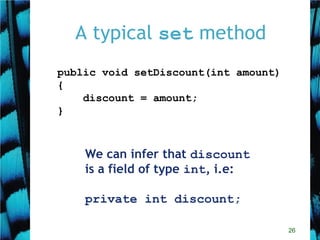

A typical set method
public void setDiscount(int amount)
{
discount = amount;
}
We can infer that discount
is a field of type int, i.e:
private int discount;

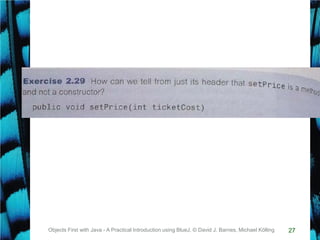

26. 27Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling

27. 28

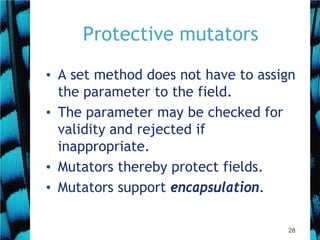

Protective mutators
• A set method does not have to assign
the parameter to the field.
• The parameter may be checked for
validity and rejected if
inappropriate.
• Mutators thereby protect fields.
• Mutators support encapsulation.

28. 29

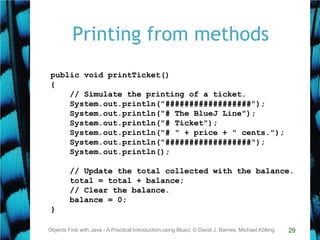

Printing from methods
Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling
public void printTicket()
{
// Simulate the printing of a ticket.
System.out.println("##################");
System.out.println("# The BlueJ Line");
System.out.println("# Ticket");
System.out.println("# " + price + " cents.");
System.out.println("##################");
System.out.println();
// Update the total collected with the balance.
total = total + balance;
// Clear the balance.
balance = 0;
}

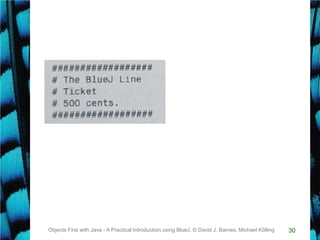

29. 30Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling

30. 31

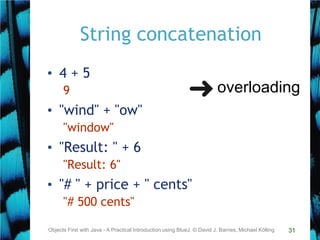

String concatenation
• 4 + 5
9
• "wind" + "ow"
"window"
• "Result: " + 6
"Result: 6"
• "# " + price + " cents"
"# 500 cents"
Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling
overloading

31. 32
Quiz
• System.out.println(5 + 6 + "hello");
• System.out.println("hello" + 5 + 6);
Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling
11hello
hello56

32. 33

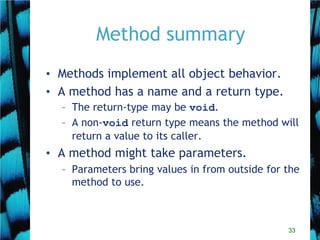

Method summary
• Methods implement all object behavior.
• A method has a name and a return type.
– The return-type may be void.
– A non-void return type means the method will
return a value to its caller.
• A method might take parameters.
– Parameters bring values in from outside for the
method to use.

33. 34

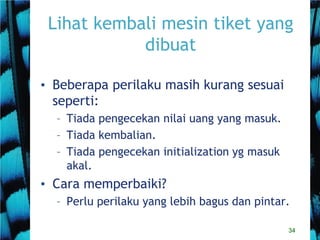

Lihat kembali mesin tiket yang
dibuat
• Beberapa perilaku masih kurang sesuai
seperti:
– Tiada pengecekan nilai uang yang masuk.
– Tiada kembalian.
– Tiada pengecekan initialization yg masuk
akal.
• Cara memperbaiki?
– Perlu perilaku yang lebih bagus dan pintar.

34. 35
Making choices in everyday life
• If I have enough money left, then I
will go out for a meal
• otherwise I will stay home and watch
a movie.

35. 36

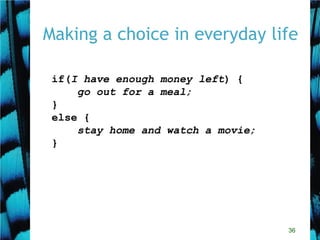

Making a choice in everyday life
if(I have enough money left) {
go out for a meal;
}
else {
stay home and watch a movie;
}

36. 37

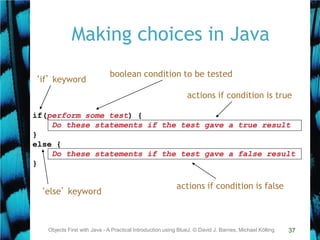

Making choices in Java
Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling
if(perform some test) {
Do these statements if the test gave a true result
}
else {
Do these statements if the test gave a false result
}
‘if’ keyword
boolean condition to be tested
actions if condition is true
actions if condition is false
‘else’ keyword

37. 38
Making a choice in the
ticket machine
Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling
public void insertMoney(int amount)
{
if(amount > 0) {
balance = balance + amount;
}
else {
System.out.println(
"Use a positive amount: " +
amount);
}
}

38. 39

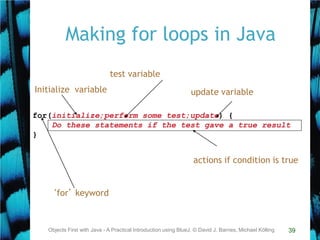

Making for loops in Java
Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling
for(initialize;perform some test;update) {
Do these statements if the test gave a true result
}
‘for’ keyword
test variable
actions if condition is true
update variableInitialize variable

39. 40
Writing a for loop
Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling
int i;
int sum=0;
for(i=0;i<10;i++) {
sum = sum + i;
}

40. 41

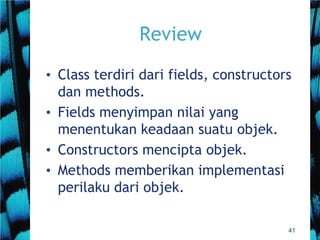

Review
• Class terdiri dari fields, constructors
dan methods.
• Fields menyimpan nilai yang
menentukan keadaan suatu objek.
• Constructors mencipta objek.
• Methods memberikan implementasi
perilaku dari objek.

41. 42

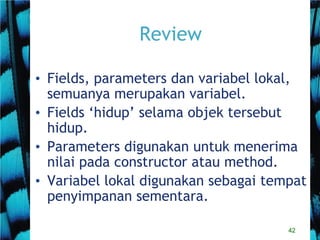

Review
• Fields, parameters dan variabel lokal,
semuanya merupakan variabel.
• Fields ‘hidup’ selama objek tersebut
hidup.
• Parameters digunakan untuk menerima
nilai pada constructor atau method.
• Variabel lokal digunakan sebagai tempat
penyimpanan sementara.

42. 43

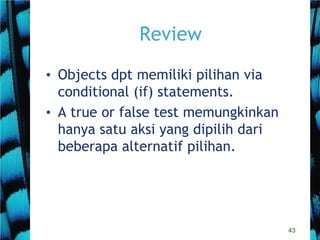

Review
• Objects dpt memiliki pilihan via
conditional (if) statements.
• A true or false test memungkinkan
hanya satu aksi yang dipilih dari
beberapa alternatif pilihan.

43. 44

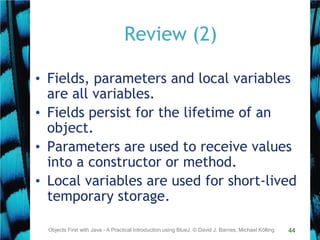

Review (2)
• Fields, parameters and local variables
are all variables.
• Fields persist for the lifetime of an
object.
• Parameters are used to receive values
into a constructor or method.
• Local variables are used for short-lived
temporary storage.
Objects First with Java - A Practical Introduction using BlueJ, © David J. Barnes, Michael Kölling

44. 45

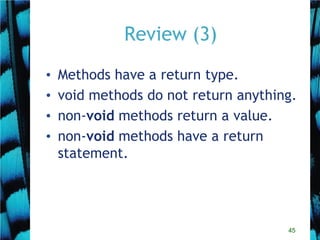

Review (3)
• Methods have a return type.
• void methods do not return anything.
• non-void methods return a value.
• non-void methods have a return
statement.
