This document contains plans for a 24-foot California cabin tiny house to be built on a trailer. It includes 17 sheets with details on the floor plans, elevations, framing, electrical, plumbing, and other aspects of the design. Notes indicate this is an original design that must not be copied or released without permission and payment of applicable fees. Dimensions are subject to verification and adjustment at the job site.

1. 01A
24' California Cabin
Standard Plan Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.
Drawn by:
S. Maisel
SMARTSMARTHouse

2. 02A
24' California Cabin
Standard Plan Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.

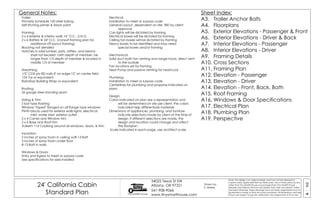

General Notes: Sheet Index:
A3. Trailer Anchor Bolts
A4. Floorplans
A5. Exterior Elevations - Passenger & Front
A6. Exterior Elevations - Driver & Back
A7. Interior Elevations - Passenger
A8. Interior Elevations - Driver
A9. Framing Details
A10. Cross Sections

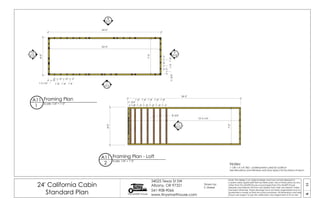

A11. Framing Plan

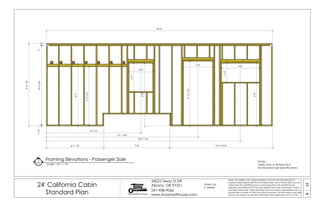

A12. Elevation - Passenger

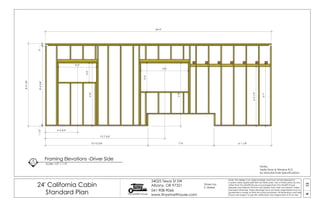

A13. Elevation - Driver
A14. Elevation - Front, Back, Bath

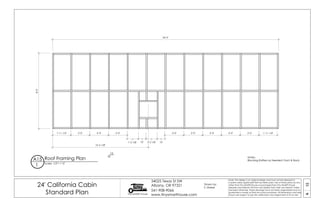

A15. Roof Framing

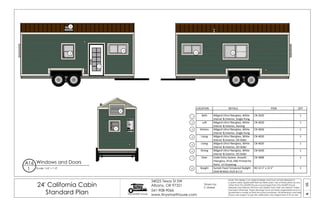

A16. Windows & Door Specifications

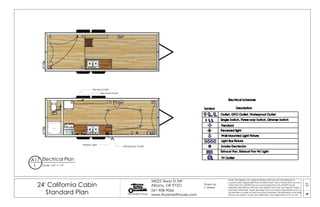

A17. Electrical Plan
A18. Plumbing Plan

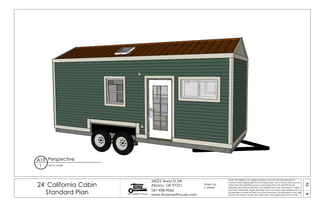

A19. Perspective
Trailer:
Primarily Schedule 120 steel tubing
Self Etching primer & black paint
Framing:
2 x 4 exterior & interior walls 16" O.C., U.N.O.
2 x 6 Rafters @ 24" O.C. (consult framing plan for
additional off layout framing)
Blocking not detailed
Notches in solid lumber, joists, rafters, and beams
shall not exceed 1/6th depth of member, be
longer than 1/3 depth of member & located in
middle 1/3 of member
Sheathing:
1/2" CDX ply 8D nails 4" on edge,12" on center field
15# Tar or equivalent
Raindrop Building Wrap or equivalent
Roofing:
26 gauge steel standing seam
Siding & Trim:
Z-bar type flashing
Window "taped" flanged on all flange type windows
Plinth blocks used for exterior walls lights, electrical
inlet, water inlet, exterior outlet
2 x 4 Corner and Window trim
2 x 6 Base and Roof trim
Vulkem 116 Caulking around all windows, doors, & trim
Insulation:
2 inches of spray foam in ceiling w/R-13 Batt
3 inches of spray foam under floor
R-13 Batt in walls
Windows & Doors:
Entry and Egress to meet or surpass code
See specifications for sizes installed
Electrical:
Installation to meet or surpass code
General Layout, dependent on site, TBD by client
approval
Can lights will be dictated by framing
Electrical boxes will be dictated by framing
Ceiling fan boxes will be dictated by framing
Heavy boxes to be identified and may need
special boxes and/or framing
Mechanical:
Solid duct bath fan venting and range hood, direct vent
to the outside
Fan locations set by framing
Heat Pump and passive venting for heat/cool
Plumbing:
Installation to meet or surpass code
Centerlines for plumbing and propane indicated on
plans
Design:
Colors indicated on plan are a representation and
will be determined on site per client, the colors
indicated help differentiate materials
Dimensions of appliances, plumbing, and furniture
indicate selections made by client at the time of
design, if different selections are made, the
design and location could change and affect
the floorplan
Scale indicated in each page, use architect scale
Drawn by:
S. Maisel

3. 03A
24' California Cabin
Standard Plan Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.

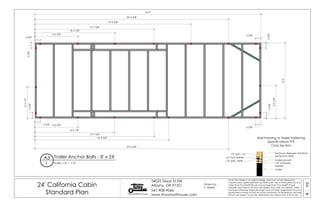

Trailer Anchor Bolts - 8' x 24'
Scale: 1/2" = 1'-0"
A3
1
Tie Downs Between 2x4 Studs
2x4 Bottom Plate
UnderLayment
Trailer
1/2" all thread
welded
to the trailer
1/2" galv. nut
1/2" lock washer
1/2" galv. plate
Wall Framing to Trailer Fastening
Specifications TYP.
Cross Section
Drawn by:
S. Maisel
6 5/8" 4'-6 5/8"
20'-6 5/8"
65/8"
65/8"
6 5/8"
4'-6 5/8"
16'-6 5/8"
20'-6 5/8"
65/8"65/8"
6 5/8"
8'-5 1/8"
12'-7 5/8"
14'-2 3/8"
6 5/8"
3'-53/8"
3'-31/2"
8'-5 7/8"
12'-7 5/8"
24'-0"
8'-0"

4. 04A
24' California Cabin
Standard Plan Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.

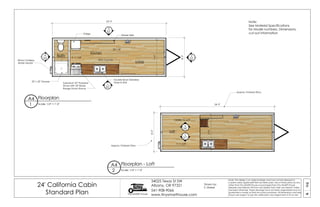

Floorplan
Scale: 1/4" = 1'-0"
A4
1
1
A5
2
A5
3
A6
4
A6
Floorplan - LoftA4
2 Scale: 1/4" = 1'-0"
5
A7
6
A8
Note:
See Material Specifications
for Model numbers, Dimensions,
cut-out information
Kitchen
Living
Loft
Ladder to Loft
Drawn by:
S. Maisel
Bath
Wheel Well
IKEA Counter
32" x 32" Shower
Suburban 22" Propane
Stove with 24" Broan
Range Hood Above
Double Bowl Stainsless
Drop-in Sink
7'-4"
7'-4"
Approx. Finished Dims.
Approx. Finished Dims.
Rinnia Tankless
Water Heater
Fridge
2'-11 7/8"
20'-1/8"
24'-3"
8'-3"
8'-3"
24'-3"
7'-11 5/8"

5. 05A
24' California Cabin
Standard Plan Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.

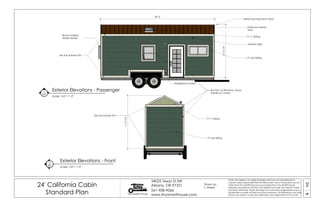

Exterior Elevations - Front
Scale: 1/4" = 1'-0"
Exterior Elevations - Passenger
Scale: 1/4" = 1'-0"
1
A5
2
A5
Drawn by:
S. Maisel
Rinnai Tankless
Water Heater
Metal Standing Seam Roof
LP Lap Siding
2x6 Top & Base Trim
T1-11 Siding
2x4 Trim on Windows, Doors,
Gables & Corners
Dickinson Heater
Vent
LP Lap Siding
T1-11 Siding
2x6 Top & Base Trim
Exterior Light
Waterproof Outlet
11'-31/4"
11'-31/4"
24'-3"

6. 06A
24' California Cabin
Standard Plan Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.

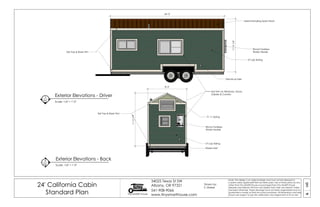

Exterior Elevations - Driver
Scale: 1/4" = 1'-0"
Exterior Elevations - Back
Scale: 1/4" = 1'-0"
3
A6
4
A6
Drawn by:
S. Maisel
Metal Standing Seam Roof
LP Lap Siding
2x6 Top & Base Trim
2x4 Trim on Windows, Doors,
Gables & Corners
LP Lap Siding
T1-11 Siding
2x6 Top & Base Trim
Rinnai Tankless
Water Heater
8'-3"
11'-31/4"
11'-31/4"
Rinnai Tankless
Water Heater
Water Inlet
24'-3"
Electrical Inlet

7. 07A
24' California Cabin
Standard Plan Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.

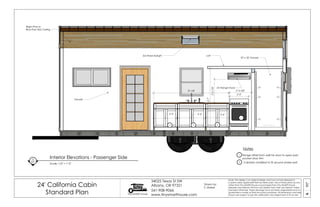

Interior Elevations - Passenger Side
Scale: 1/2" = 1'-0"
5
A7
Drawn by:
S. Maisel
Bright Pine or
Blue Pine T&G Ceiling
Drywall
1 Range offset from wall for door to open past
pocket door trim
Notes
24" Range Hood
2 Cabinets modified to fit around wheel well
2'-0"
8'-1/8"
3'-0" 2'-6"2'-6"
2'-4 5/8"
2'-57/8"
1
222
6'-7"
32" x 32" Shower
Loft2x2 Fixed Skylight

8. 08A
24' California Cabin
Standard Plan Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.

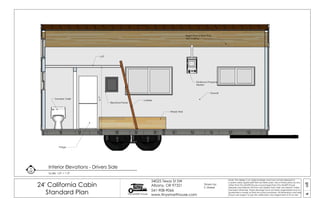

Interior Elevations - Drivers Side
Scale: 1/2" = 1'-0"
6
A8
Drawn by:
S. Maisel
Wheel Well
Drywall
Bright Pine or Blue Pine
T&G Ceiling
Fridge
Loft
Electrical Panel
Dickinson Propane
Heater
Dometic Toilet
Ladder6'-7"

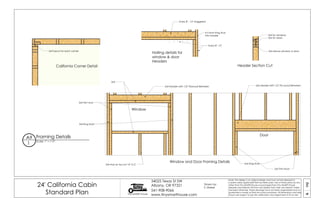

9. 09A
24' California Cabin
Standard Plan Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.
Framing DetailsA9
1
Scale: 1" = 1'-0"
California Corner Detail
2x4 Header with 1/2" Plywood Between
Window and Door Framing Details
2x4
2x4 Trim stud
2x4 King Stud
2x6 Header with 1/2" Ply wood Between
2x4 King Stud
2x4 Trim Stud
2x4 stay on lay out 16" O.C.
Door
Window
Nailing details for
window & door
Headers
Every 8" - 12" staggered
4-5 from King Stud
into header 2x4 for windows
2x6 for doors
Header Section Cut
Every 8" -12"
2x4 above window or door2x4 layout for each corner
Drawn by:
S. Maisel

10. 10A
24' California Cabin
Standard Plan
Standing Seam Metal Roof with WeatherShield
over 1/2" CDX Nailed 6" O.C. 12" Field
Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.

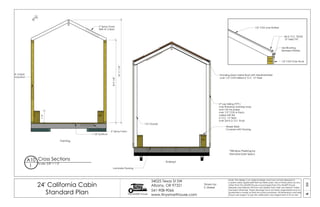

Cross SectionsA10
1
Scale: 3/8" = 1'-0"
LP Lap Siding (TYP.)
over Raindrop building wrap
and 15# tar paper
over 1/2" CDX or Equiv.
nailed with 8d
6" O.C. 12" field
over 2x4 K.D. D.F. Studs
Drawn by:
S. Maisel
Framing
6
12
1 1/8" Subfloor
3" Spray Foam
R-13 Batt
Insulation
2" Spray Foam
With R-13 Batt
Wheel Wells
Covered with Flooring
2x6 Blocking
Between Rafters
1/2' CDX Over Studs
8d 6" O.C. EDGE
12" Field TYP.
1/2" CDX over Rafters
Finished
1/2" Drywall
*Window Flashing by
Manufacturer Specs
10'-111/4"
8'-91/8"
1'-3"
Laminate Flooring

11. 11A
24' California Cabin
Standard Plan Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.
Framing PlanA11
1
Scale: 1/4" = 1'-0"
1-1/8" x 4' x 8' T&G underlayment used for subfloor
See Elevations and Window and Door Specs for locations of each.
Notes:
10
A14
9
A14
11
A14
7
A12
8
A13
Drawn by:
S. Maisel
24'-0"
8'-0"
1'-3 1/4" 1'-4" 1'-4" 1'-4"
113/4"1'-4"1'-4"
24'-0"
8'-0"
Framing Plan - LoftA11
2
Scale: 1/4" = 1'-0"
11 3/4"
1'-4" 1'-4" 1'-4" 1'-4" 1'-4"
8'-3/4"
15'-4 1/4"
23'-5"
7'-5"
7'-5"

12. 12A
24' California Cabin
Standard Plan Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.
Framing Elevations - Passenger Side7
A12 Scale: 1/2" = 1'-0"
Drawn by:
S. Maisel
Notes:
Verify Door & Window R.O.
by Manufacturer Specifications
24'-0"
8'-91/8"
3"8'-43/4"11/2"
6'-1 1/4" 7'-0" 10'-10 3/4"
2'-6"
3'-0"
6'-8"
10'-1/2"
16'-1 3/8"
20'-7 1/4"
6'-7"
6'-31/2"
6'-101/2"
3'-2" 4'-0"
2'-0"
6'-8"

13. 13A
24' California Cabin
Standard Plan Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.
8
A13
Framing Elevations -Driver Side
Scale: 1/2" = 1'-0"
Drawn by:
S. Maisel
Notes:
Verify Door & Window R.O.
by Manufacturer Specifications
24'-0"
8'-91/8"
3"8'-43/4"11/2"
2'-0"
3'-4 3/4"
4'-0"
6'-8"
6'-8"
12'-7 3/4"
5'-0"
3'-0"
6'-7"
6'-31/2"
10'-10 3/4" 7'-0" 6'-1 1/4"

14. 14A
24' California Cabin
Standard Plan Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.

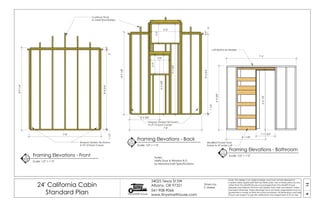

Framing Elevations - Front
Scale: 1/2" = 1'-0"
Framing Elevations - Back
Scale: 1/2" = 1'-0"
10
A14
9
A14
Framing Elevations - Bathroom
Scale: 1/2" = 1'-0"
11
A14
Simpson Tension Tie Downs
# LTT-19 Each Corner
Drawn by:
S. Maisel
Simpson Tension Tie Downs
# LTT-19 Each Corner
Modified Pocket Door
Frame to Fit Under Loft
Notes:
Verify Door & Window R.O.
by Manufacturer Specifications
7'-5"
6'-93/8"
6'-41/8"
1'-11 3/4"
Loft Beams as Header
4'-1 7/8"
7'-8"
8'-91/8"
3"
8'-43/4"
11/2"
2'-0"
2'-0"
3'-2 3/8"
3'-0"
2'-0"
9'-73/8"
6'-33/8"
7'-8"
8'-91/4"
3"
8'-43/4"
11/2"
Continue Studs
to meet Roof Rafters

15. 15A
24' California Cabin
Standard Plan Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.
Roof Framing PlanA15
1 Scale: 1/2"= 1'-0"
Drawn by:
S. Maisel
Notes:
Blocking Rafters as Needed: Front & Back
24'-0"8'-0"
10'-2 1/8"
1'-11 1/4" 2'-0" 2'-0" 2'-0"
1'-2 1/8" 10" 1'-2 1/8" 10"
2'-0" 2'-0" 2'-0" 2'-0" 2'-0" 1'-11 1/4"
6
12

16. 16A
24' California Cabin
Standard Plan Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.
Windows and Doors
Scale: 1/4" = 1'-0"
A16
1
1
2
3
4
5
Drawn by:
S. Maisel
6
7
LOCATION DETAILS ITEM QTY
Bath Milgard Ultra Fiberglass, White
Interior & Exterior, Single Hung
CN 2020 1
Loft Milgard Ultra Fiberglass, White
Interior & Exterior, Awning
CN 3020 1
Kitchen Milgard Ultra Fiberglass, White
Interior & Exterior, Single Hung
CN 3026 1
Living Milgard Ultra Fiberglass, White
Interior & Exterior, OX Slider
CN 4020 1
Living Milgard Ultra Fiberglass, White
Interior & Exterior, XO Slider
CN 4020 1
Dining Milgard Ultra Fiberglass, White
Interior & Exterior, XO Slider
CN 5030 1
Door Codel Entry System, Smooth
Fiberglass, SF10, GBG Primed for
Paint, LH Outswing
CN 3068 1
Skyight Suntek Fixed Tempered Skylight
2020 #CMGII.2525.B-C.D
RO 22.5" x 22.5" 18
1
2
3
4
5 6
7
8

17. 17A
24' California Cabin
Standard Plan Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.
Electrical Plan
Scale: 1/4" = 1'-0"
A17
1
Drawn by:
S. Maisel
Electrical Panel
Electrical Inlet
Waterproof Outlet
Exterior Light

18. 18A
24' California Cabin
Standard Plan Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.

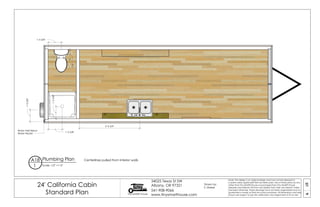

Plumbing Plan
Scale: 1/2" =1'-0"
A18
1
Centerlines pulled from interior walls
Drawn by:
S. Maisel
Water Inlet Below
Water Heater
1'-25/8"
1'-5 5/8"
1'-33/8"
1'-4 5/8"
1'-0"
6'-4 3/4"

19. 19A
24' California Cabin
Standard Plan Tiny SMART House
34025 Texas St SW
Albany, OR 97321
541-908-9066
www.tinysmarthouse.com
Note: This design is an original design and must not be released or
copied unless applicable fee has been paid. Use of these plans by any
other than Tiny SMART House or purchased from Tiny SMART House
releases and relieves TSH from any liability from their use thereof. Unless
stamped otherwise, these drawings have not been engineered and no
guarantee is made as their structural soundness. All dimensions and sizes
shown are subject to job site verification and adjustment to fit on site.
Perspective
not to scale
A19
1
Drawn by:
S. Maisel
