Final presentation of the CUDC's 2020 Community Design Charrette, focusing on Cleveland's Brookside Reservation & its adjacent neighborhoods.

1. METROPARKSCHARRETTE2020
PARKSIN A PANDEMIC
Oct 2-5 2020
Kent State University
College of Architecture & Environmental Design
Cleveland Urban Design Collaborative

2. Brookside2020
SUPPORTEDBY:
ROBERT MASTRIANA,
4M COMPANY LLC

3. Brookside2020
SPECIALTHANKS:

4. MIDWESTURBAN
DESIGNCHARRETTE
Brookside2020
2020 CLEVELAND METROPARKS

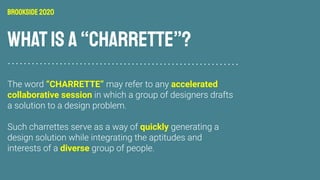

5. WHATIS A “CHARRETTE”?
Brookside2020
“CHARRETTE” accelerated
collaborative session
quickly
diverse

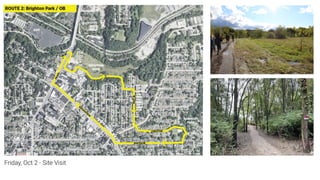

6. CHARRETTEGOALS
Brookside2020

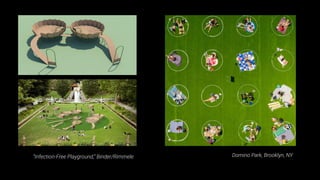

9. PARKS&PUBLICSPACES
IN A PANDEMIC
Brookside2020

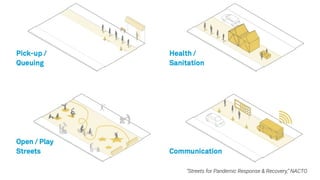

13. BROOKSIDE&BRIGHTON
Brookside2020

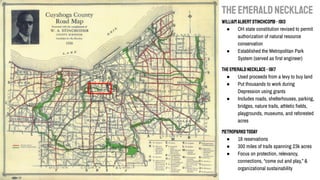

14. THEEMERALDNECKLACE
William AlbertStinchcomb-1913
● OH state constitution revised to permit
authorization of natural resource
conservation
● Established the Metropolitan Park
System (served as first engineer)
TheEmeraldNecklace-1917
● Used proceeds from a levy to buy land
● Put thousands to work during
Depression using grants
● Includes roads, shelterhouses, parking,
bridges, nature trails, athletic fields,
playgrounds, museums, and reforested
acres
Metroparkstoday
● 18 reservations
● 300 miles of trails spanning 23k acres
● Focus on protection, relevancy,
connections, “come out and play,” &
organizational sustainability

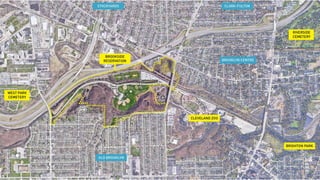

15. FOCUS AREA

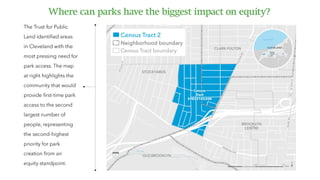

19. BIGCREEKWATERSHED
● Third largest tributary of the Cuyahoga River
● Contains 130+ miles of streams & culverts
● Collects water from 8 municipalities
○ Cleveland, Brooklyn, Linndale, Parma, Parma Heights,
Brook Park, Middleburg Heights, North Royalton
● Over 90% developed land
● Nearly 40% impervious surface
● Most heavily urbanized watershed in Cuyahoga River
Watershed

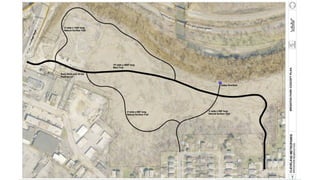

21. URBANDESIGN
FRAMEWORK
Brookside2020

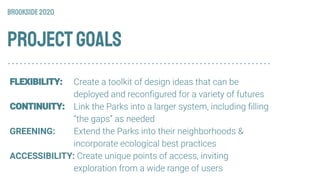

22. PROJECTGOALS
Brookside2020
GREENING:
ACCESSIBILITY:

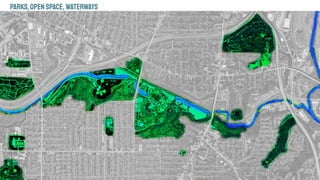

23. Parks,OpenSpace,Waterways

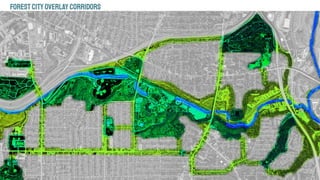

24. ForestCityOverlayCorridors

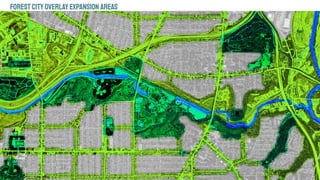

25. ForestCityOverlayExpansion Areas

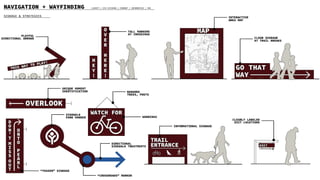

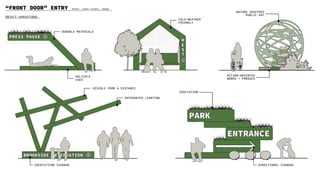

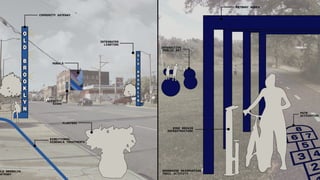

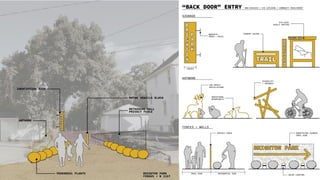

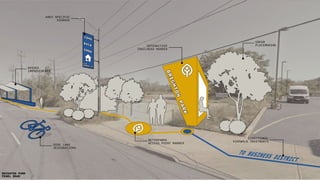

26. WAYFINDING&IDENTITY
Brookside2020

36. CONNECTINGTHE
PARKS
Brookside2020

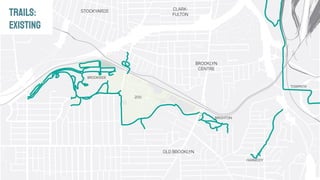

37. TRAILS:
EXISTING

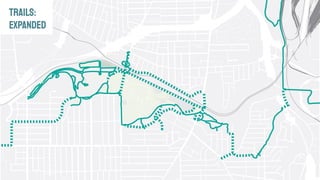

38. TRAILS:
EXPANDED

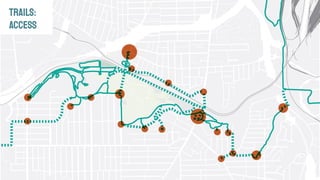

39. TRAILS:
ACCESS

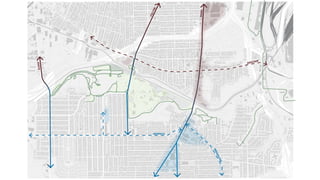

40. REGIONALConnections:
TOWPATHTRAIL

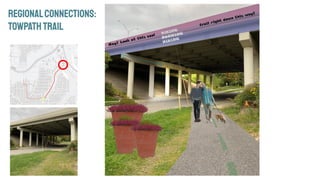

41. REGIONALConnections:
TOWPATHTRAIL

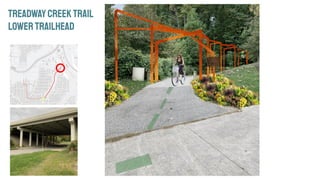

42. TREADWAYCREEKTRAIL
LOWERTRAILHEAD

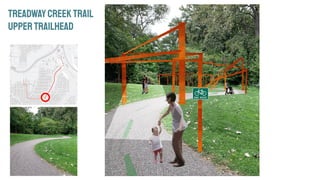

43. TREADWAYCREEKTRAIL
UPPERTRAILHEAD

44. HarmodyPark:EXISTING

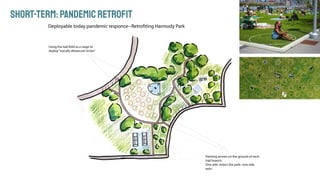

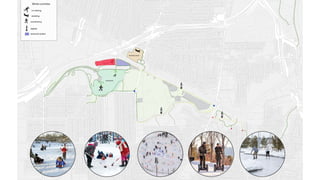

45. SHORT-TERM:PANDEMICRETROFIT

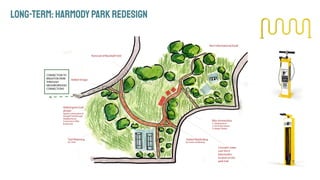

46. LONg-TERM:HARMODYPARKREDESIGN

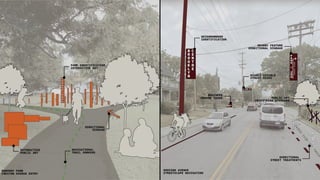

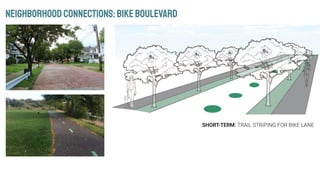

47. NeighborhoodConnections:BikeBoulevard

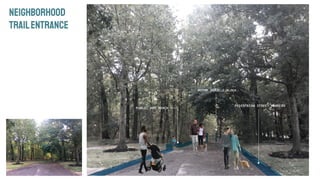

49. NEIGHBORHOOD
TRAILENTRANCE

50. Korogaru Park in Sapporo

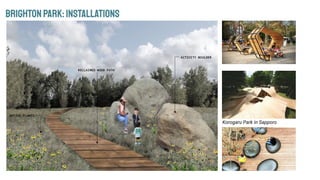

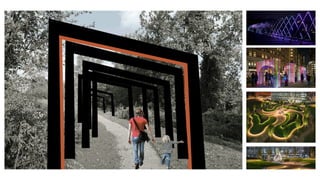

BRIGHTONPARK:INSTALLATIONS

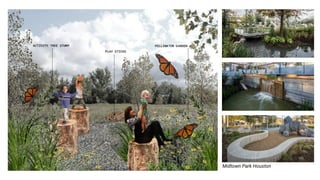

51. Midtown Park Houston

54. Brighton Park
FORESTcITYOverlayCorridordEVELOPMENT
Street Trees
Bike Lanes
Green Roof and
Green Wall Tax
Incentives
Crosswalks &
Complete Streets
New Development
Wayfinding Enhancements

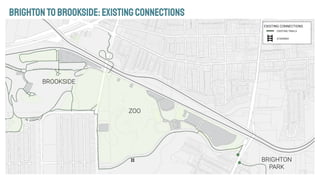

55. BRIGHTONTOBROOKSIDE:EXISTINGCONNECTIONS

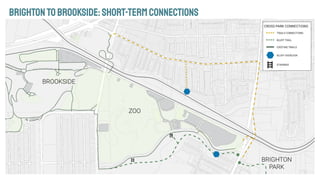

56. BRIGHTONTOBROOKSIDE:SHORT-TERMCONNECTIONS

57. BRIGHTONTOBROOKSIDE:NORTHBLUFFOVERLOOK

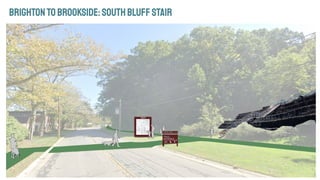

58. BRIGHTONTOBROOKSIDE:SOUTHBLUFFSTAIR

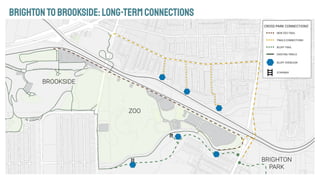

59. BRIGHTONTOBROOKSIDE:LONG-TERMCONNECTIONS

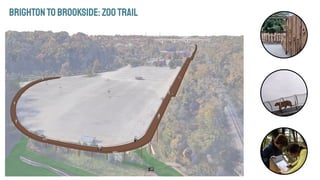

60. BRIGHTONTOBROOKSIDE: ZOOTRAIL

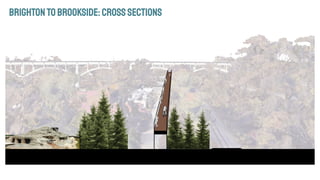

61. BRIGHTONTOBROOKSIDE:CROSSSECTIONS

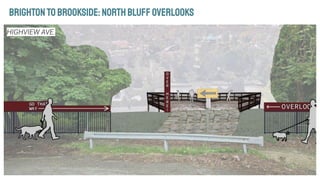

62. BRIGHTONTOBROOKSIDE:NORTHBLUFFOVERLOOKS

63. BRIGHTONTOBROOKSIDE:NORTHBLUFFOVERLOOKS

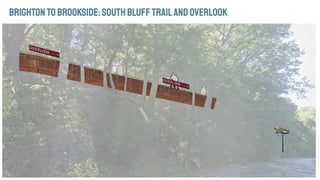

64. BRIGHTONTOBROOKSIDE:SouthBLUFFTRAILandoverlook

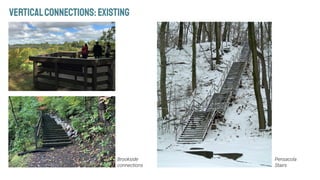

65. VERTICALCONNECTIONS:EXISTING

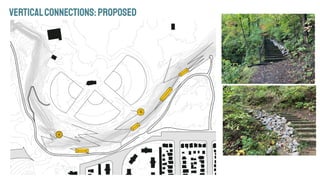

66. VERTICALCONNECTIONS:proposed

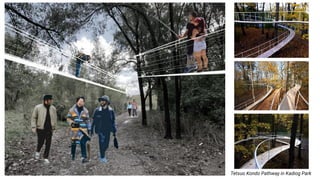

67. Tetsuo Kondo Pathway in Kadiog Park

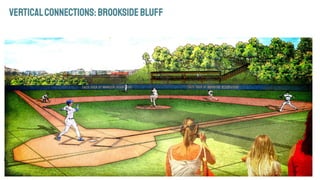

68. Verticaltrails-brooksidebluff
VERTICALCONNECTIONS:BROOKSIDEBLUFF

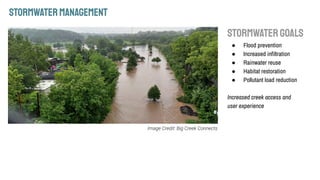

69. Stormwatergoals
● Flood prevention
● Increased infiltration
● Rainwater reuse
● Habitat restoration
● Pollutant load reduction
Increased creek access and
user experience
STORMWATERMANAGEMENT

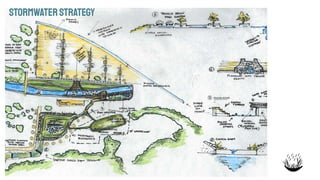

70. STORMWATERstrategy

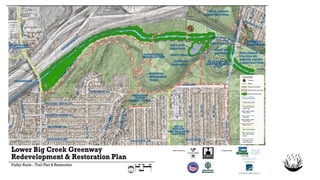

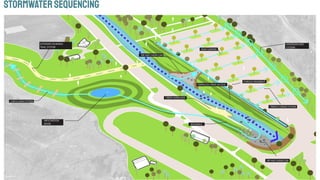

72. Stormwatersequencing

73. BIGCREEK ACCESS

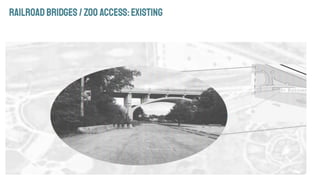

74. RAILROADBRIDGES/ ZOO ACCESS:EXISTING

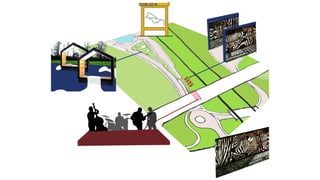

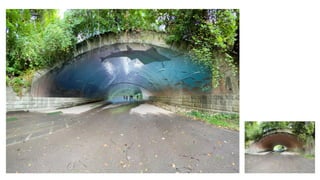

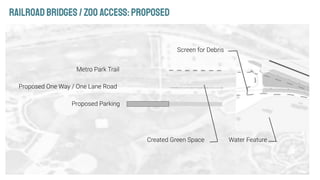

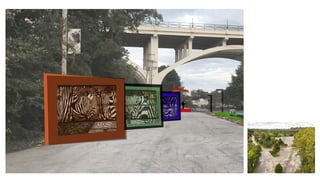

75. RAILROADBRIDGES/ ZOO ACCESS:PROPOSED

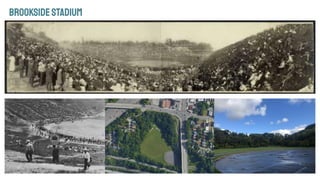

80. BROOKSIDESTADIUM

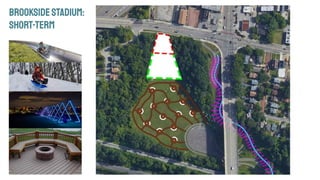

81. BROOKSIDESTADIUM:
SHORT-TERM

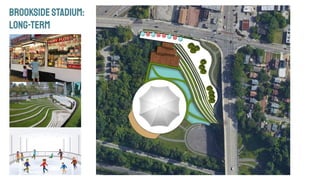

82. BROOKSIDESTADIUM:
LONG-TERM

85. STREETSCAPE
CONNECTIONS

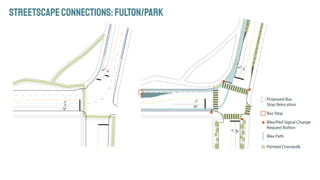

86. STREETSCAPECONNECTIONS:FULTON/PARK

87. STREETSCAPECONNECTIONS:FULTONRDBRIDGE

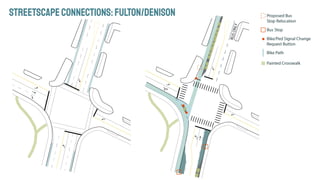

88. STREETSCAPECONNECTIONS:FULTON/DENISON

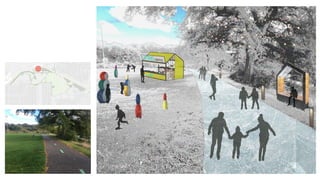

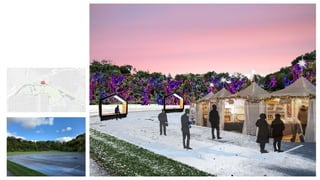

89. FOUR-SEASONUSE
BROOKSIDE2020

95. PROGRAMMINGIDEAS
BRIGHTONPARK

96. FALL
● Thanksgiving Turkey Trot & Family Walk
● Warm Hands | Cold Noses socially distanced dog walks
● Temporary Shelter Design / Build Competition

97. FALL
● Thanksgiving Turkey Trot & Family Walk
● Warm Hands | Cold Noses socially distanced dog walks
● Temporary Shelter Design / Build Competition

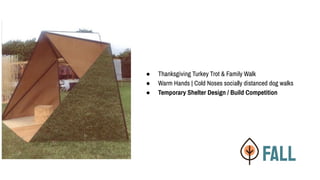

98. FALL
● Thanksgiving Turkey Trot & Family Walk
● Warm Hands | Cold Noses socially distanced dog walks
● Temporary Shelter Design / Build Competition

99. ● Winter Solstice @ Brighton Park
● Snowman Overlook
Arboles Noche (luzinterruptus)
WINTER

100. WINTER
● Winter Solstice @ Brighton Park
● Snowman Overlook

101. SPRING
● Spring Spin @ Brighton Park
● Take Your Park to Work Day
● Pink Moon over Brighton Park
● Arbor Day Tree Plant-a-thon

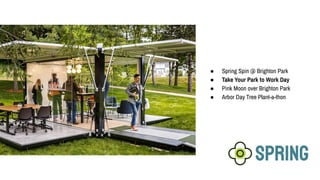

102. SPRING
● Spring Spin @ Brighton Park
● Take Your Park to Work Day
● Pink Moon over Brighton Park
● Arbor Day Tree Plant-a-thon

103. SPRING
● Spring Spin @ Brighton Park
● Take Your Park to Work Day
● Pink Moon over Brighton Park
(April 27, 2021)
● Arbor Day Tree Plant-a-thon

104. SPRING
● Spring Spin @ Brighton Park
● Take Your Park to Work Day
● Pink Moon over Brighton Park
● Arbor Day Tree Plant-a-thon
(30 April 2021)

105. SUMMER
● Landfill Archeology @ Brighton Park
● Bat Box Workshops
● Barrier-free Brighton Accessibility
Scavenger Hunt

106. SUMMER
● Landfill Archeology @ Brighton Park
● Bat Box Workshops
● Barrier-free Brighton Accessibility
Scavenger Hunt

107. SUMMER
● Landfill Archeology @ Brighton Park
● Bat Box Workshops
● Barrier-free Brighton Accessibility
Scavenger Hunt

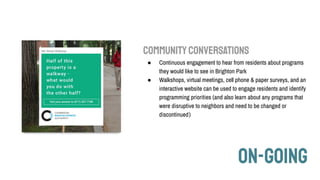

108. ON-GOING
COMMUNITYCONVERSATIONS
● Continuous engagement to hear from residents about programs
they would like to see in Brighton Park
● Walkshops, virtual meetings, cell phone & paper surveys, and an
interactive website can be used to engage residents and identify
programming priorities (and also learn about any programs that
were disruptive to neighbors and need to be changed or
discontinued)

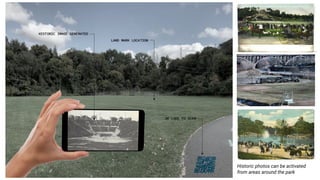

109. Historic photos can be activated
from areas around the park

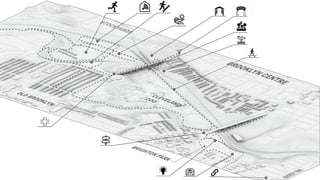

110. OVERALLCONCEPT
BROOKSIDE2020

113. QUESTIONS/
COMMENTS?
