1. Bind me if you can
Răzvan Rotari
Cristian Neamțu

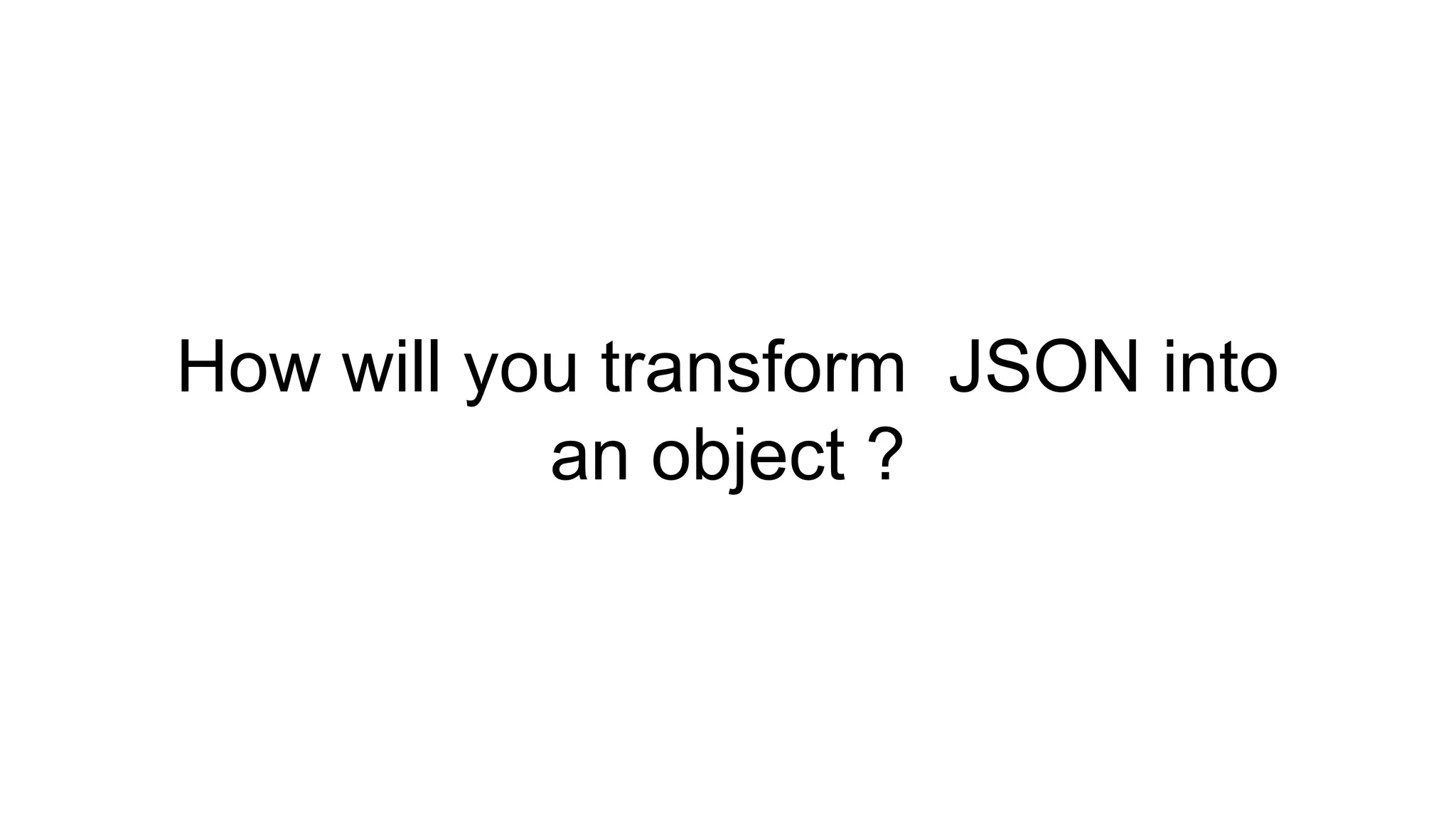

2. How will you transform JSON into
an object ?

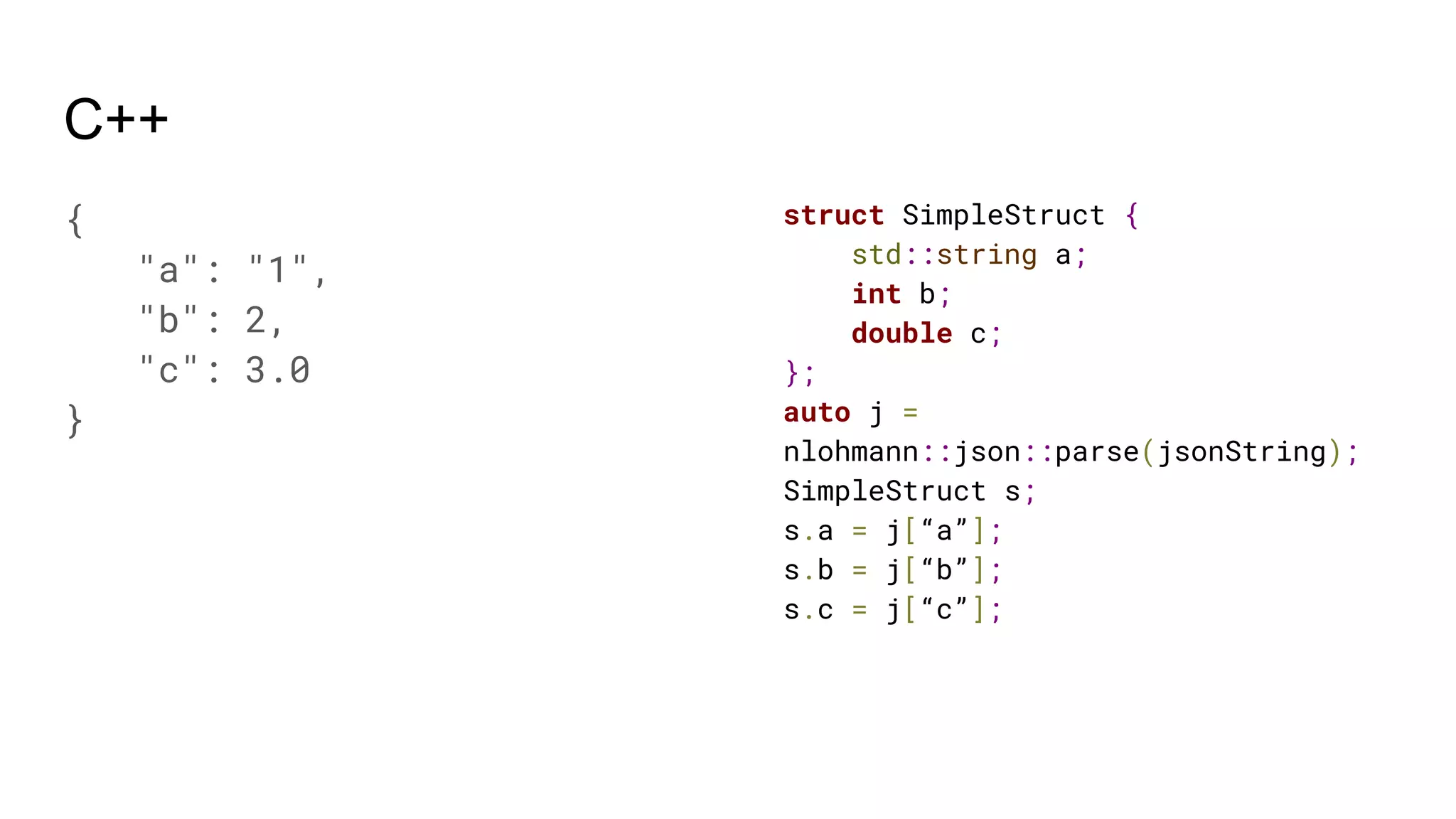

3. C++
{
"a": "1",
"b": 2,
"c": 3.0
}
struct SimpleStruct {
std::string a;
int b;
double c;
};
auto j =
nlohmann::json::parse(jsonString);
SimpleStruct s;
s.a = j[“a”];
s.b = j[“b”];
s.c = j[“c”];

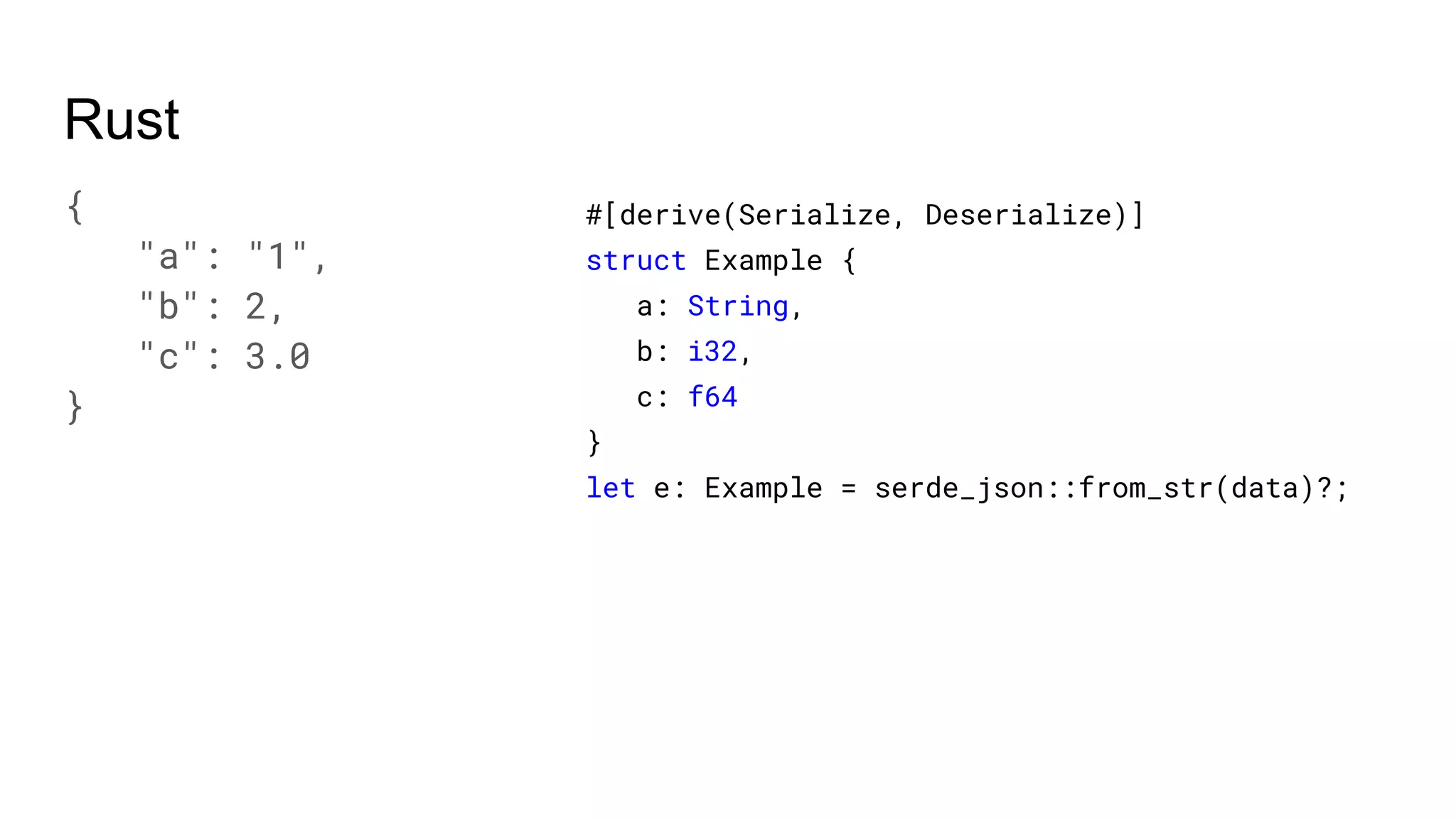

4. Rust
{
"a": "1",
"b": 2,
"c": 3.0
}
#[derive(Serialize, Deserialize)]
struct Example {
a: String,
b: i32,
c: f64
}
let e: Example = serde_json::from_str(data)?;

5. Can we reproduce this
in c++?

6. NO!

7. But how close can we get?

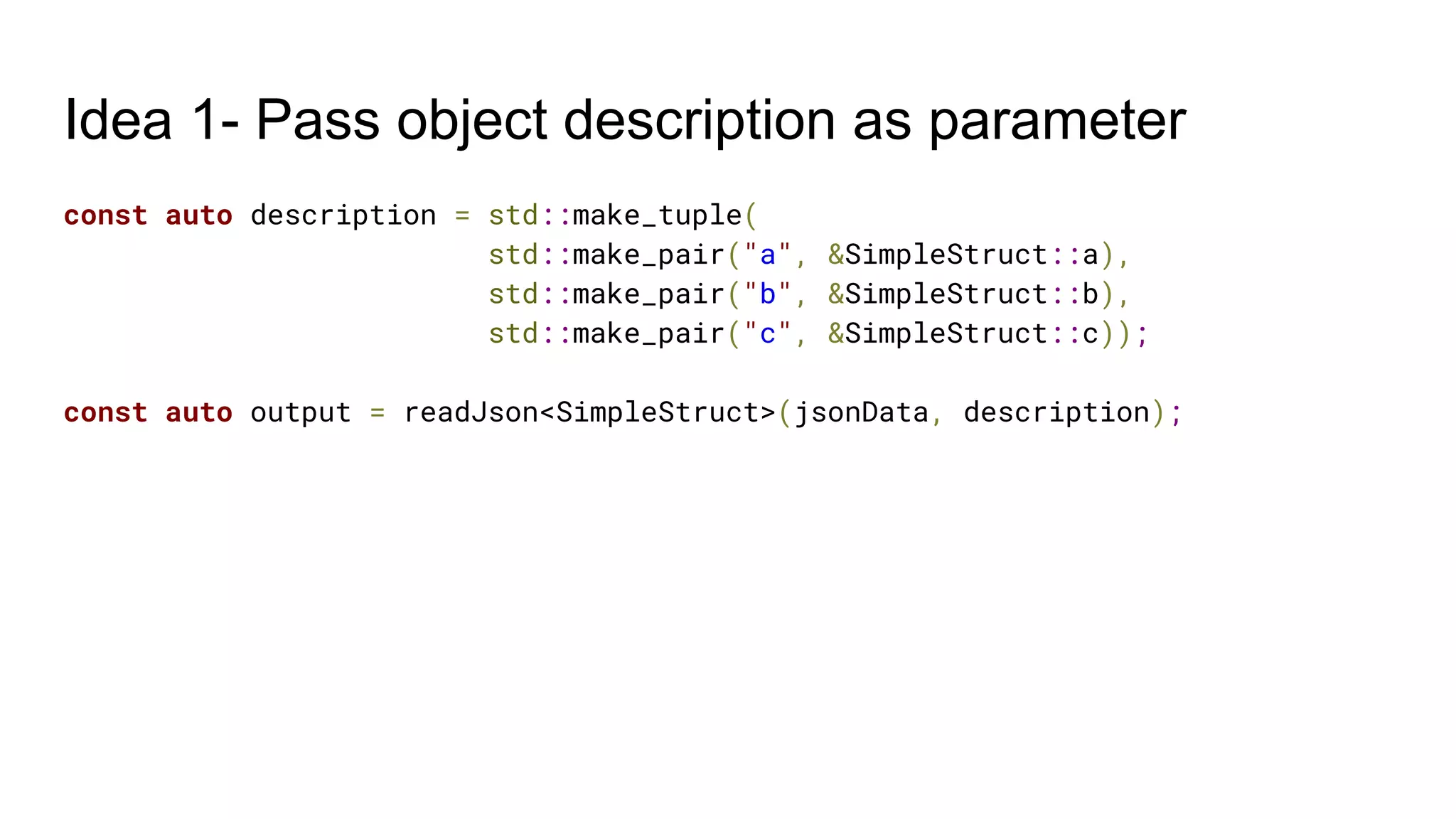

8. Idea 1- Pass object description as parameter
const auto description = std::make_tuple(
std::make_pair("a", &SimpleStruct::a),
std::make_pair("b", &SimpleStruct::b),
std::make_pair("c", &SimpleStruct::c));
const auto output = readJson<SimpleStruct>(jsonData, description);

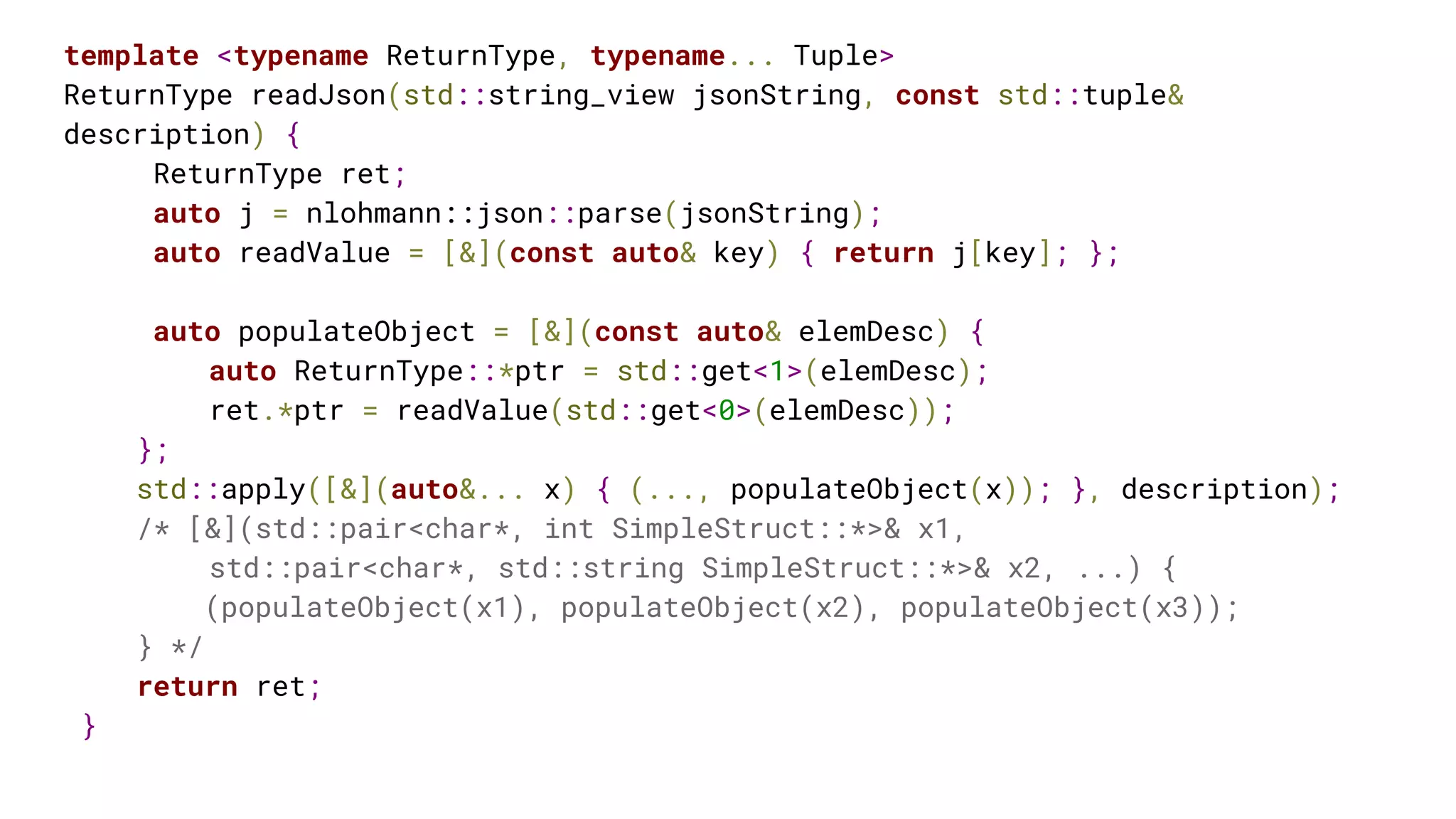

9. template <typename ReturnType, typename... Tuple>
ReturnType readJson(std::string_view jsonString, const std::tuple&
description) {
ReturnType ret;
auto j = nlohmann::json::parse(jsonString);
auto readValue = [&](const auto& key) { return j[key]; };
auto populateObject = [&](const auto& elemDesc) {
auto ReturnType::*ptr = std::get<1>(elemDesc);
ret.*ptr = readValue(std::get<0>(elemDesc));
};
std::apply([&](auto&... x) { (..., populateObject(x)); }, description);
/* [&](std::pair<char*, int SimpleStruct::*>& x1,
std::pair<char*, std::string SimpleStruct::*>& x2, ...) {
(populateObject(x1), populateObject(x2), populateObject(x3));
} */
return ret;
}

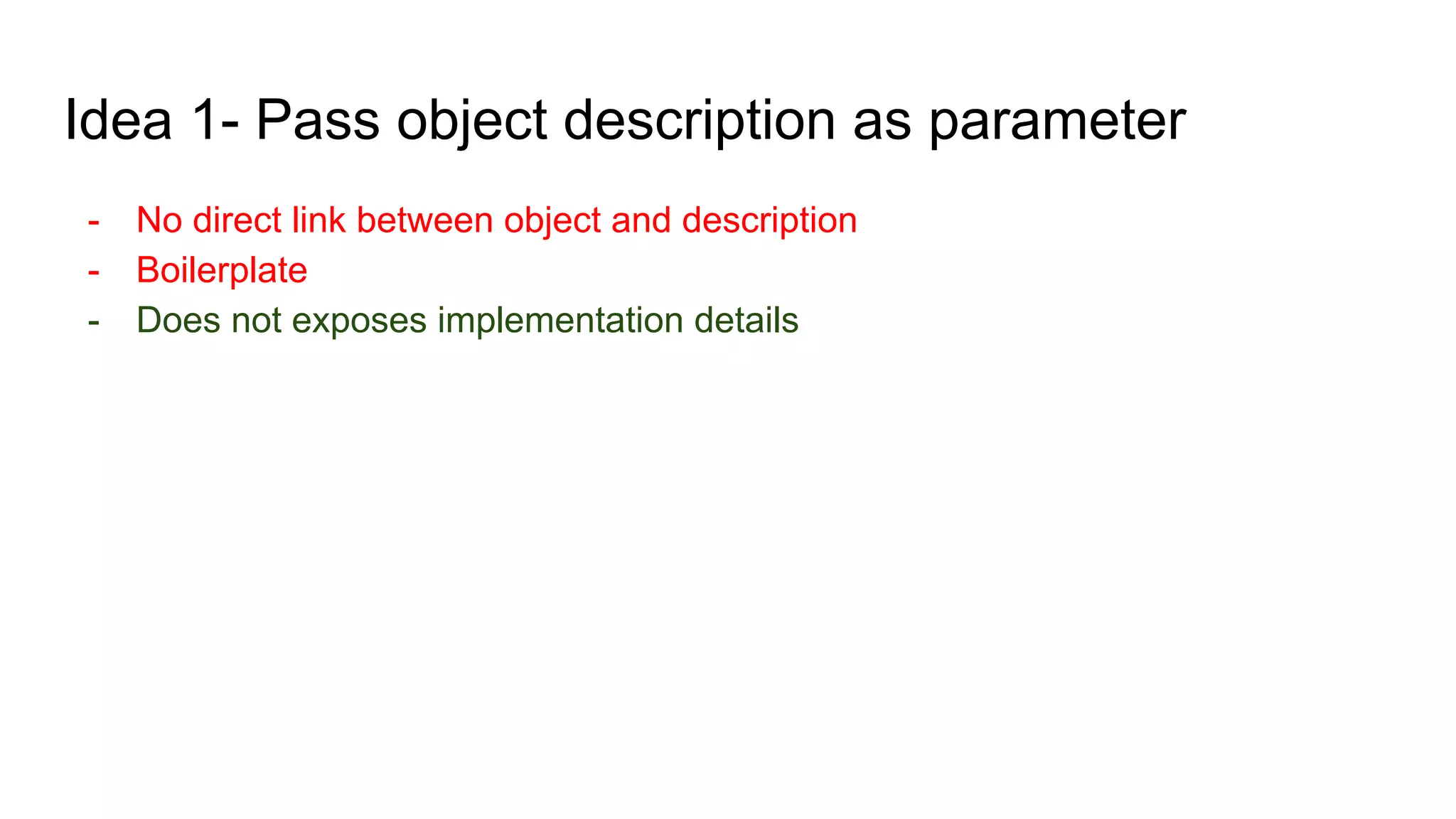

10. Idea 1- Pass object description as parameter
- No direct link between object and description
- Boilerplate
- Does not exposes implementation details

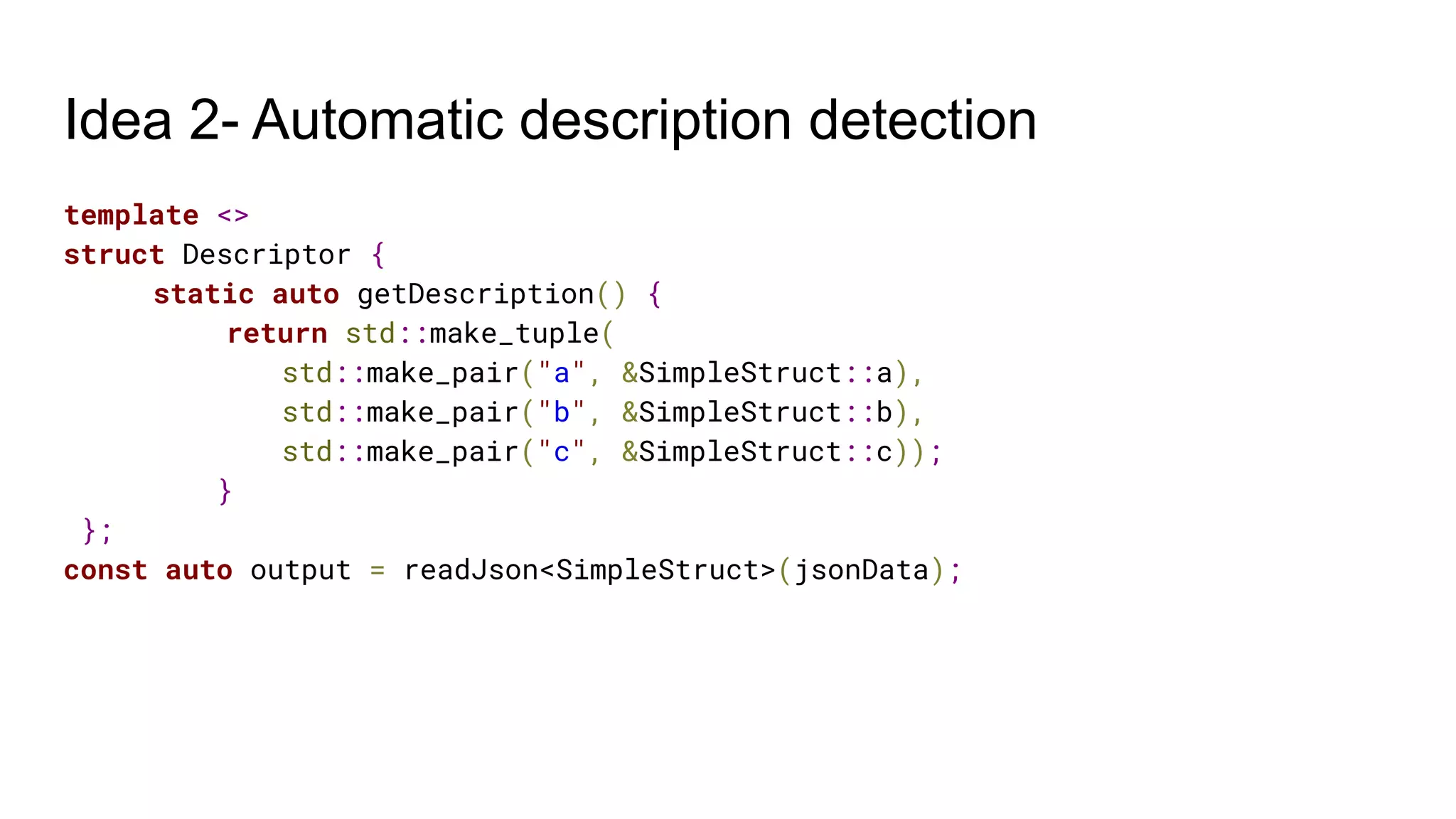

11. Idea 2- Automatic description detection
template <>
struct Descriptor {
static auto getDescription() {
return std::make_tuple(
std::make_pair("a", &SimpleStruct::a),
std::make_pair("b", &SimpleStruct::b),
std::make_pair("c", &SimpleStruct::c));
}
};
const auto output = readJson<SimpleStruct>(jsonData);

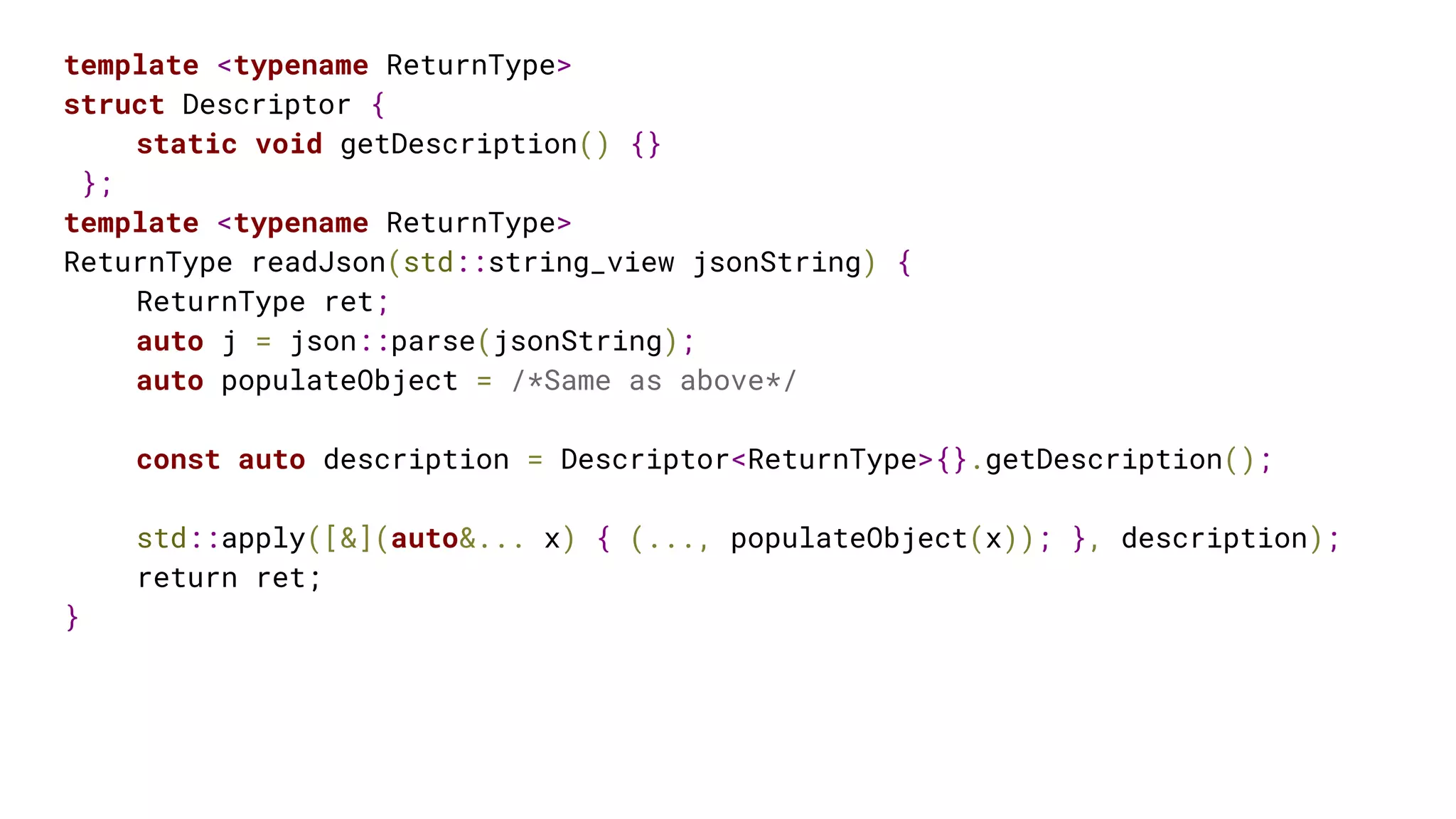

12. template <typename ReturnType>
struct Descriptor {
static void getDescription() {}
};
template <typename ReturnType>
ReturnType readJson(std::string_view jsonString) {
ReturnType ret;
auto j = json::parse(jsonString);
auto populateObject = /*Same as above*/
const auto description = Descriptor<ReturnType>{}.getDescription();
std::apply([&](auto&... x) { (..., populateObject(x)); }, description);
return ret;
}

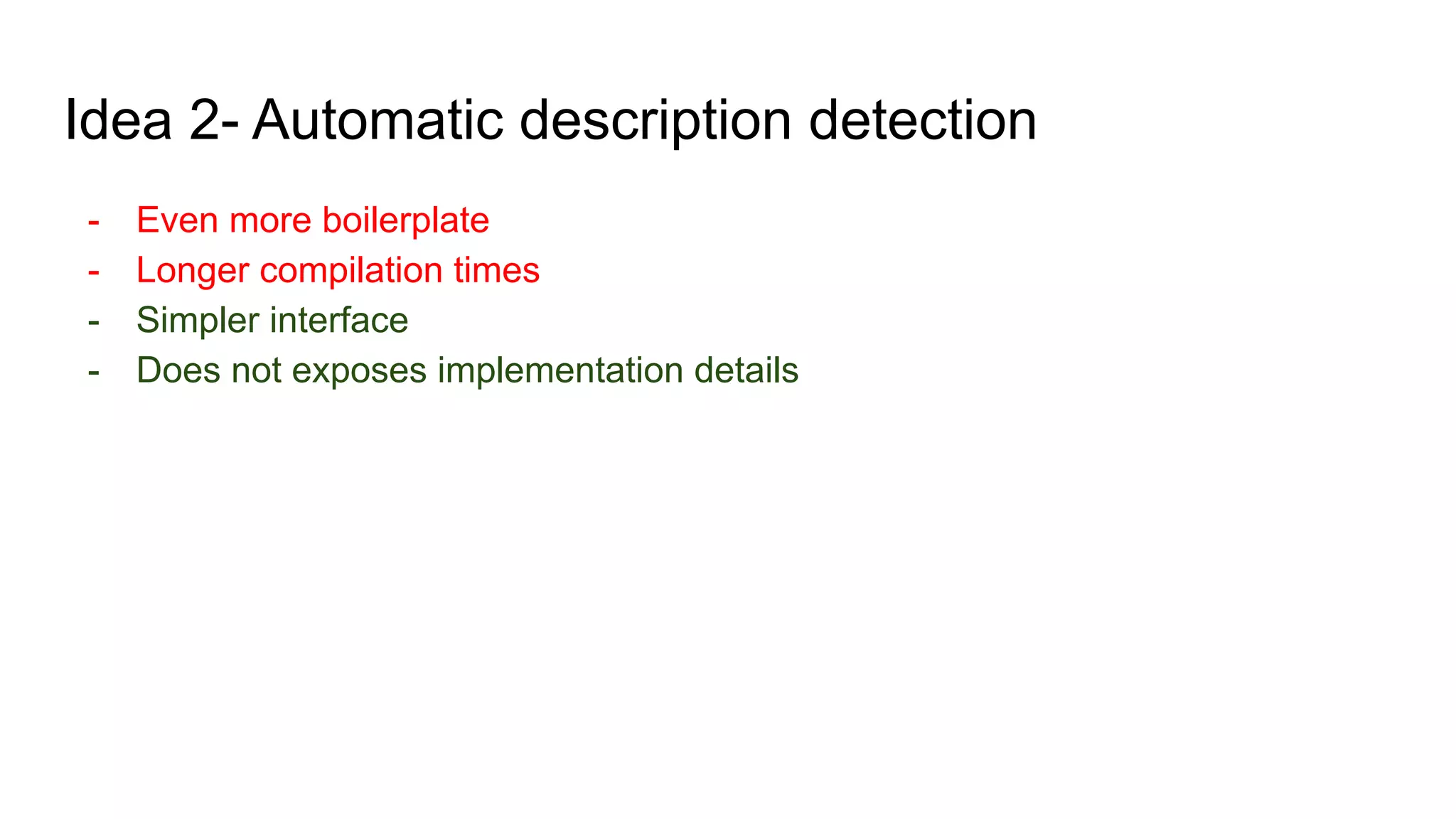

13. Idea 2- Automatic description detection
- Even more boilerplate
- Longer compilation times
- Simpler interface
- Does not exposes implementation details

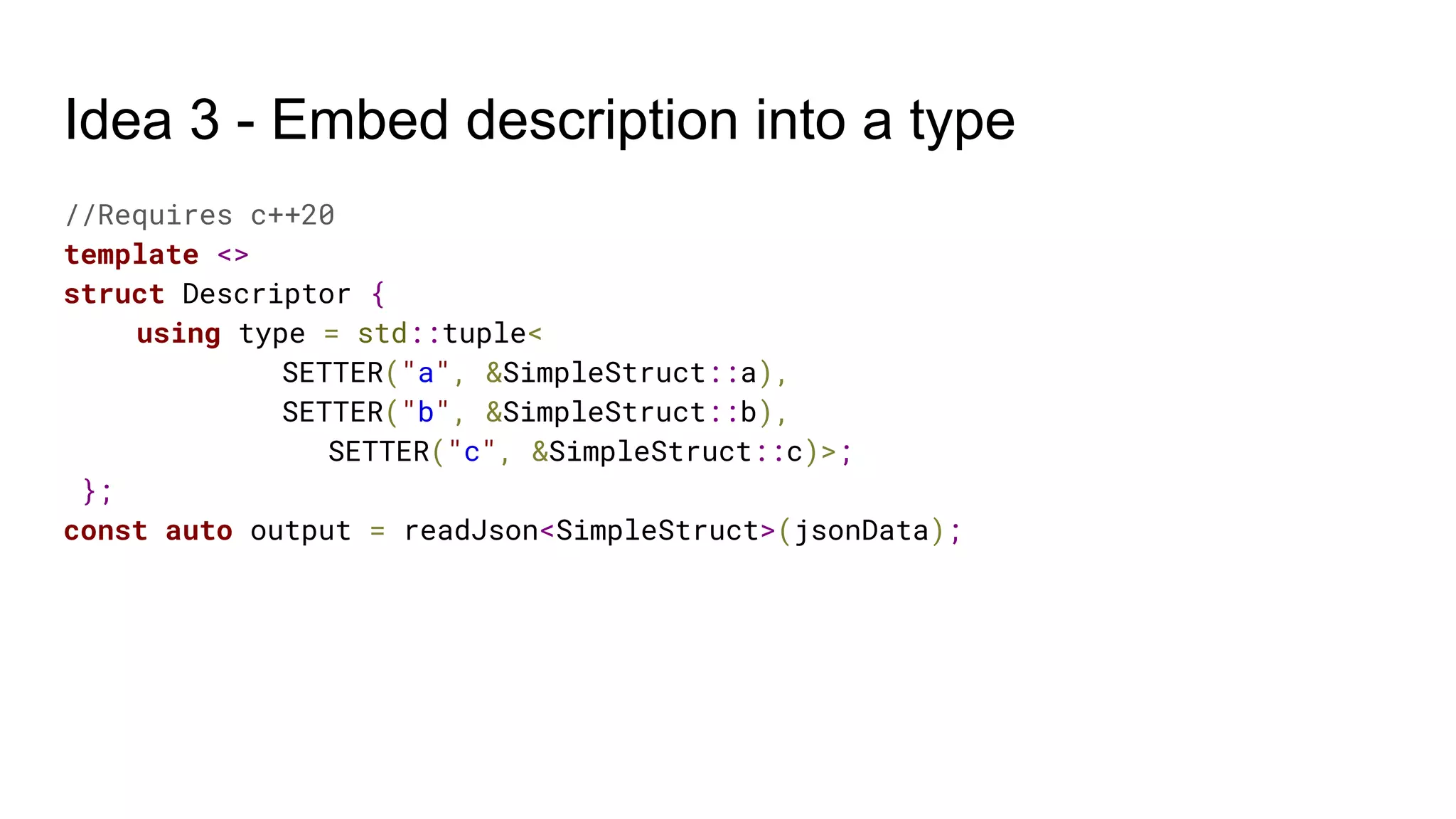

14. Idea 3 - Embed description into a type
//Requires c++20
template <>
struct Descriptor {
using type = std::tuple<
SETTER("a", &SimpleStruct::a),
SETTER("b", &SimpleStruct::b),
SETTER("c", &SimpleStruct::c)>;
};
const auto output = readJson<SimpleStruct>(jsonData);

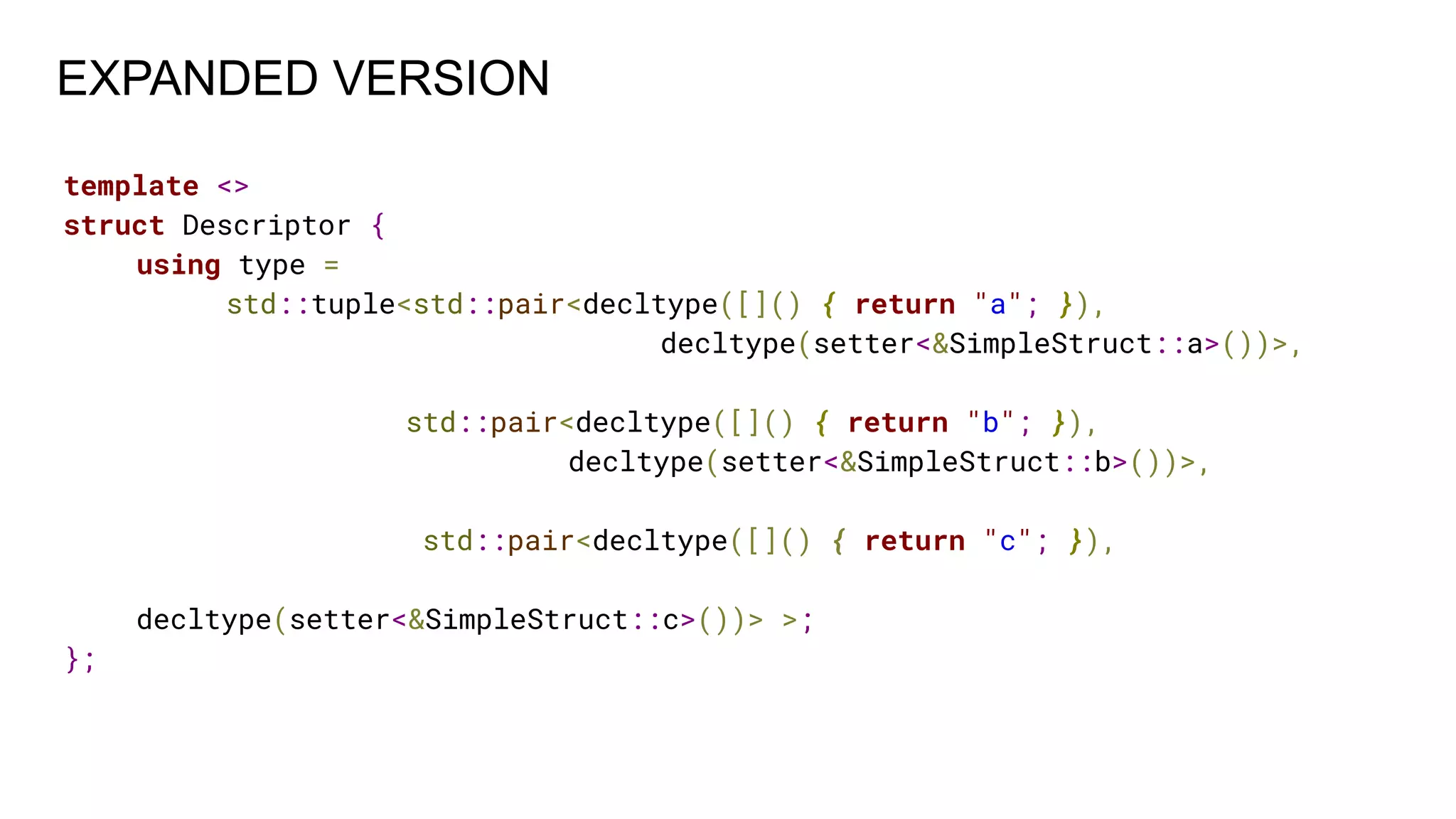

15. template <>
struct Descriptor {
using type =
std::tuple<std::pair<decltype([]() { return "a"; }),
decltype(setter<&SimpleStruct::a>())>,
std::pair<decltype([]() { return "b"; }),
decltype(setter<&SimpleStruct::b>())>,
std::pair<decltype([]() { return "c"; }),
decltype(setter<&SimpleStruct::c>())> >;
};
EXPANDED VERSION

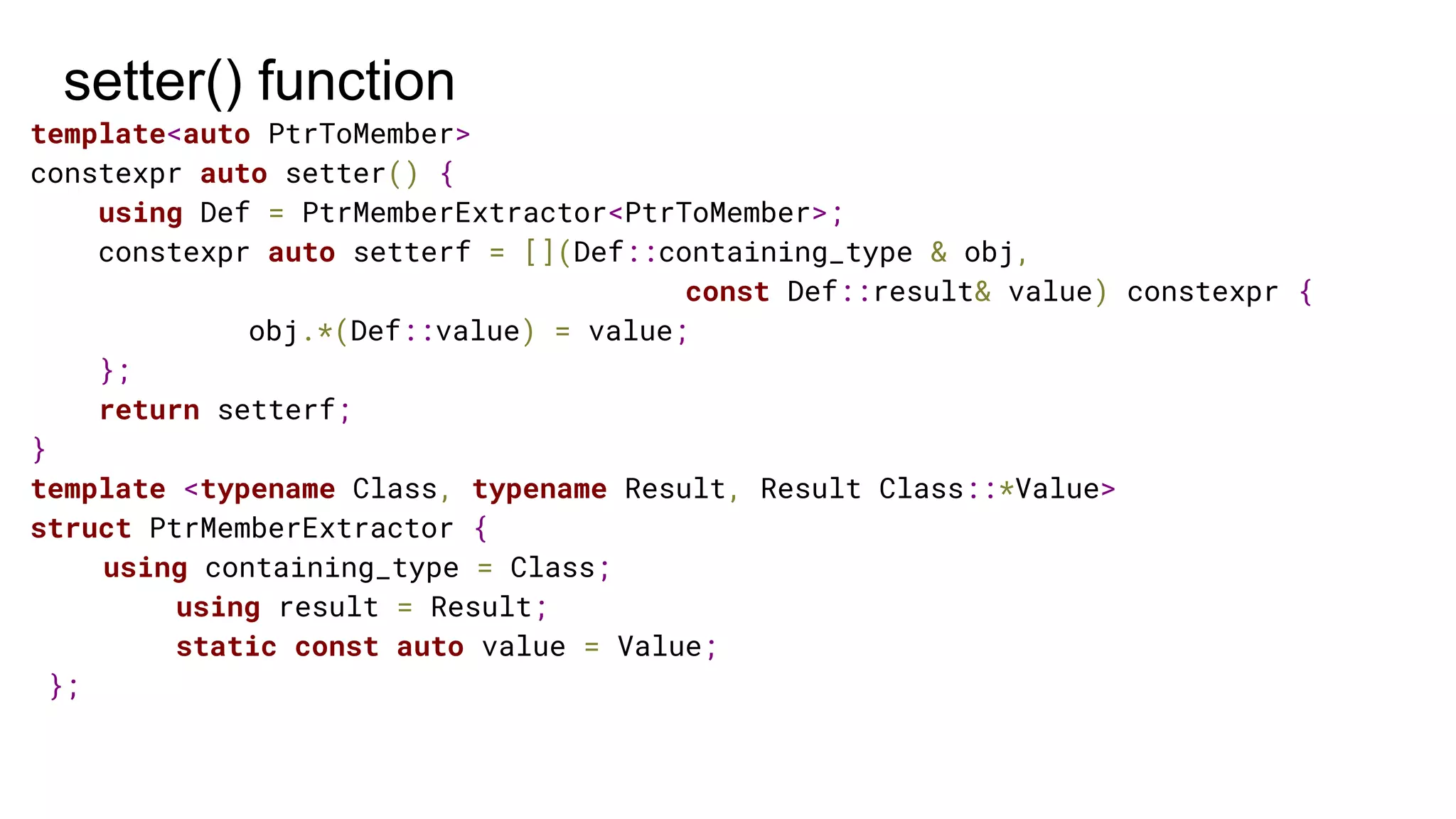

16. setter() function
template<auto PtrToMember>
constexpr auto setter() {
using Def = PtrMemberExtractor<PtrToMember>;
constexpr auto setterf = [](Def::containing_type & obj,
const Def::result& value) constexpr {
obj.*(Def::value) = value;
};
return setterf;
}
template <typename Class, typename Result, Result Class::*Value>
struct PtrMemberExtractor {
using containing_type = Class;
using result = Result;
static const auto value = Value;
};

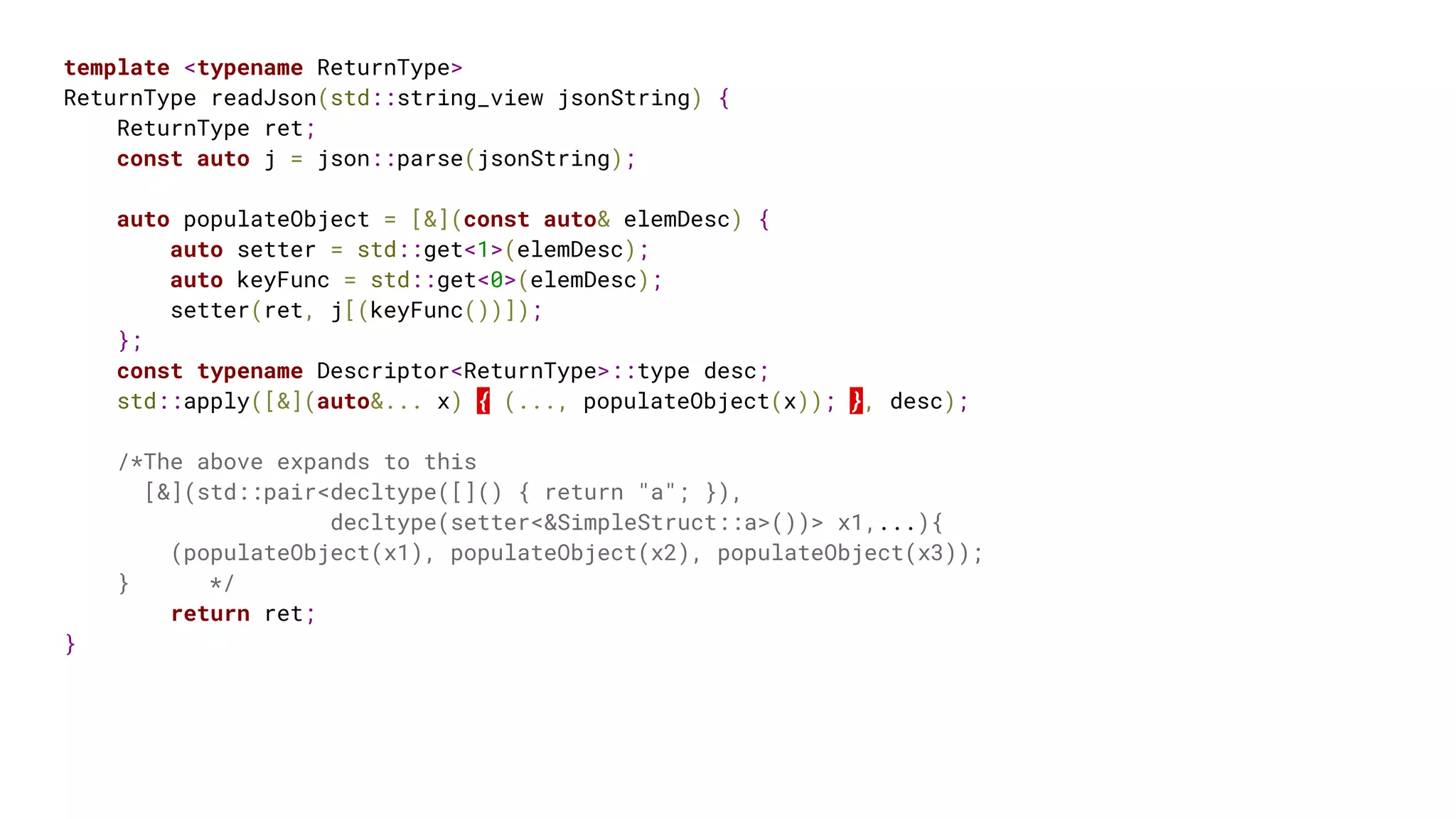

17. template <typename ReturnType>
ReturnType readJson(std::string_view jsonString) {
ReturnType ret;
const auto j = json::parse(jsonString);
auto populateObject = [&](const auto& elemDesc) {
auto setter = std::get<1>(elemDesc);
auto keyFunc = std::get<0>(elemDesc);
setter(ret, j[(keyFunc())]);
};
const typename Descriptor<ReturnType>::type desc;
std::apply([&](auto&... x) { (..., populateObject(x)); }, desc);
/*The above expands to this
[&](std::pair<decltype([]() { return "a"; }),
decltype(setter<&SimpleStruct::a>())> x1,...){
(populateObject(x1), populateObject(x2), populateObject(x3));
} */
return ret;
}

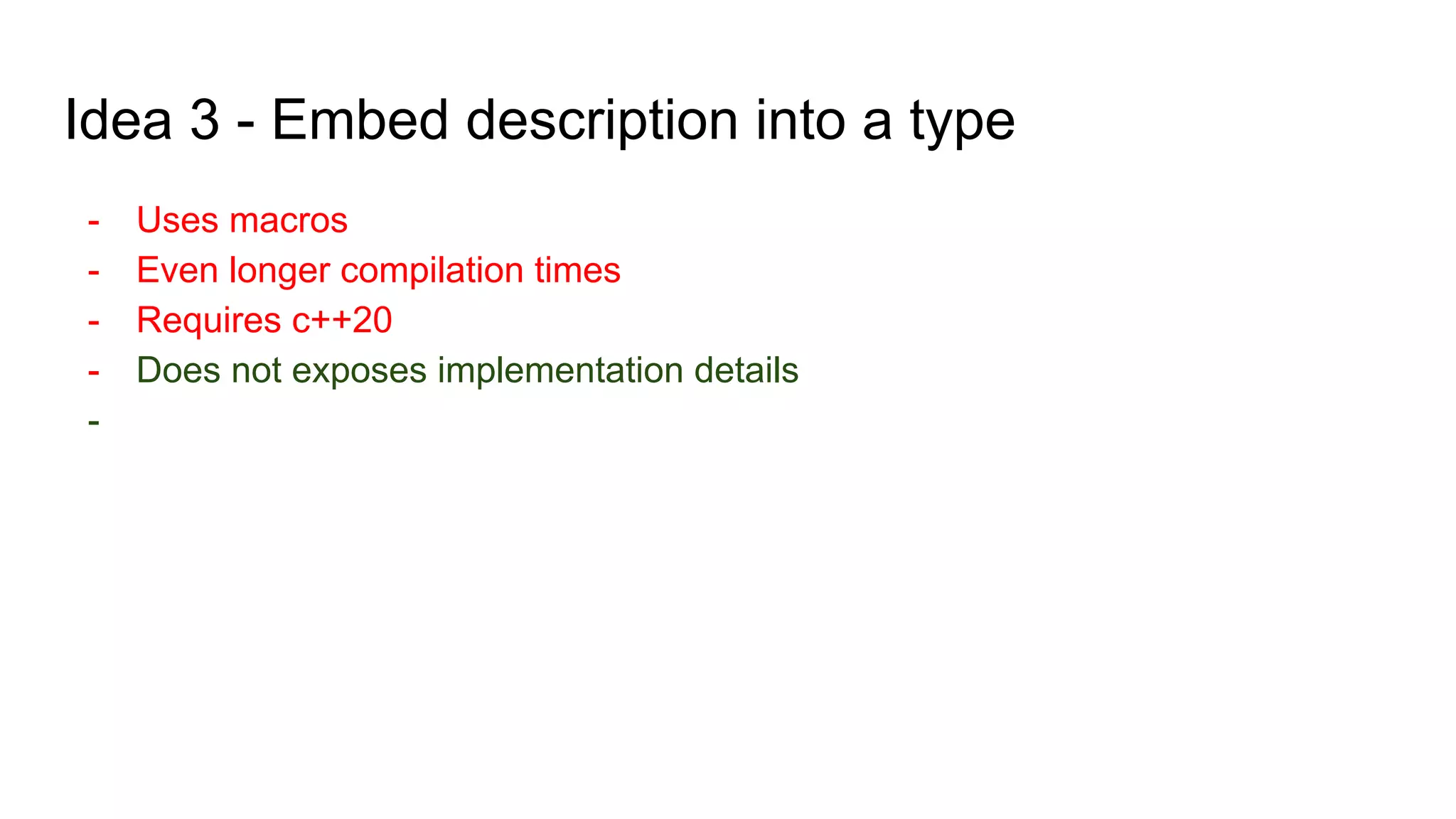

18. Idea 3 - Embed description into a type
- Uses macros
- Even longer compilation times
- Requires c++20
- Does not exposes implementation details
-

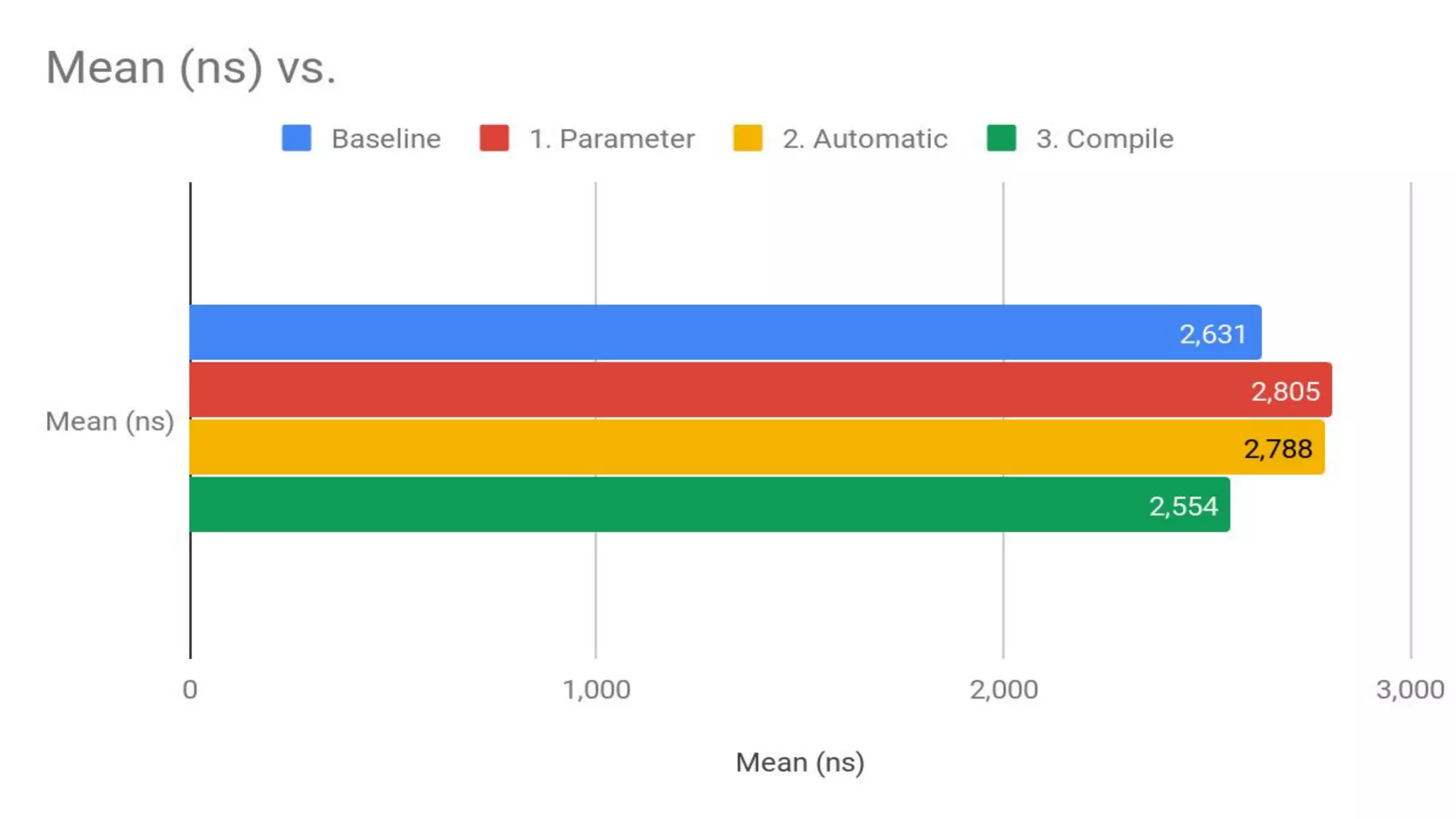

19. Performace
Baseline Parameter Automatic Compile
mean 2.631 us
Low mean 2.623 us
High mean 2.656 us

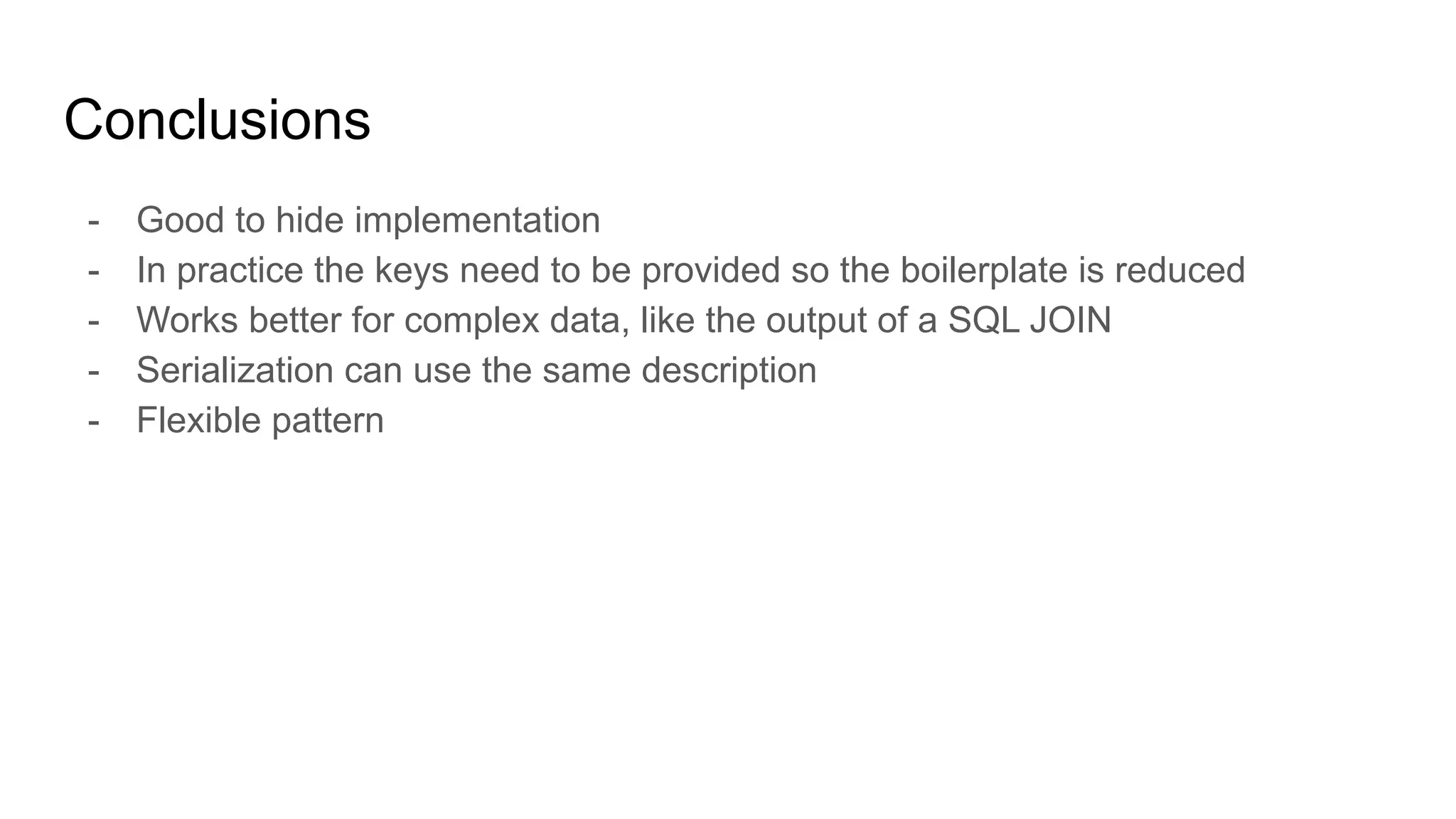

20. Conclusions
- Good to hide implementation
- In practice the keys need to be provided so the boilerplate is reduced
- Works better for complex data, like the output of a SQL JOIN
- Serialization can use the same description
- Flexible pattern

21. Rust

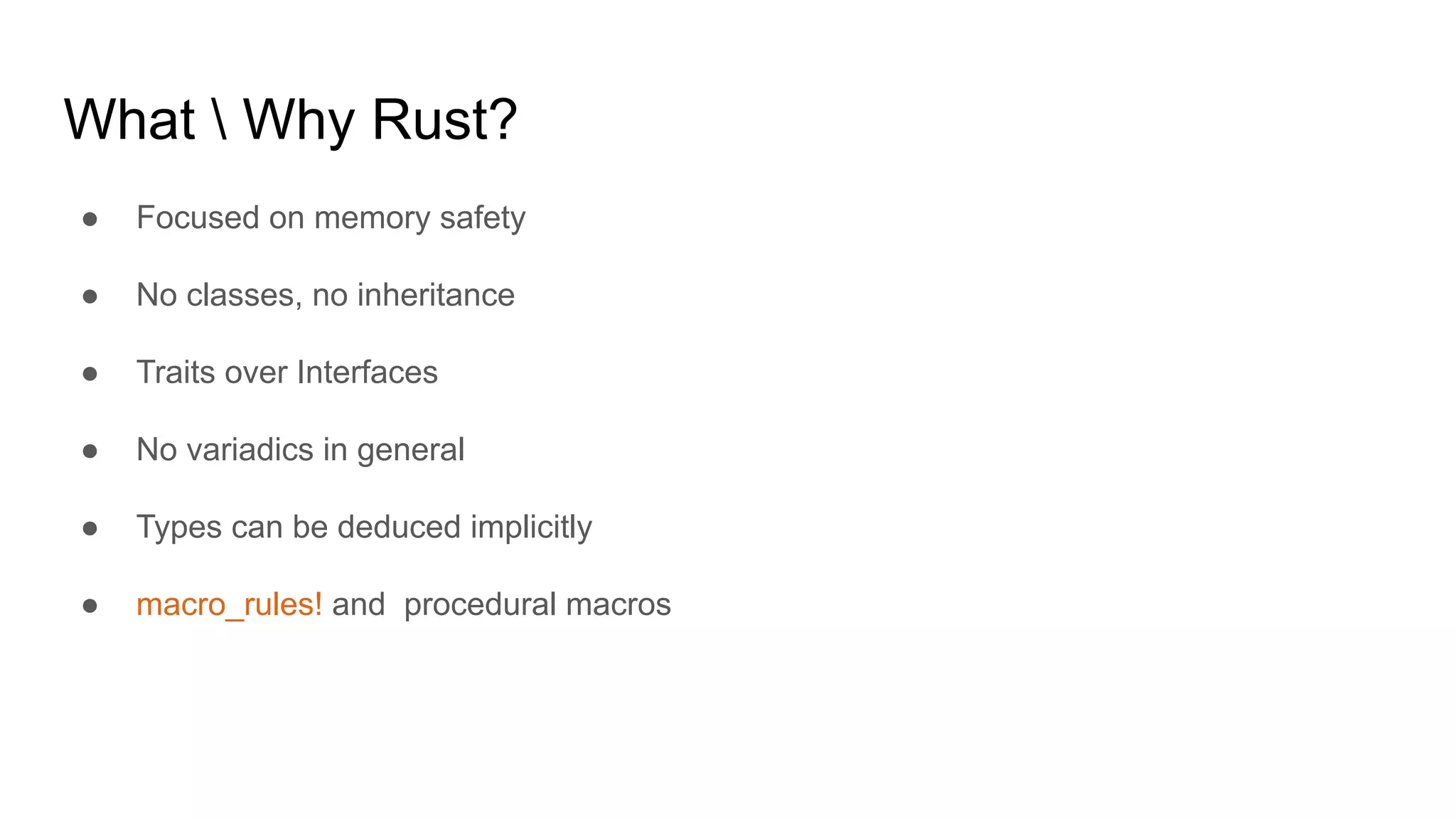

22. What Why Rust?
● Focused on memory safety
● No classes, no inheritance
● Traits over Interfaces
● No variadics in general
● Types can be deduced implicitly
● macro_rules! and procedural macros

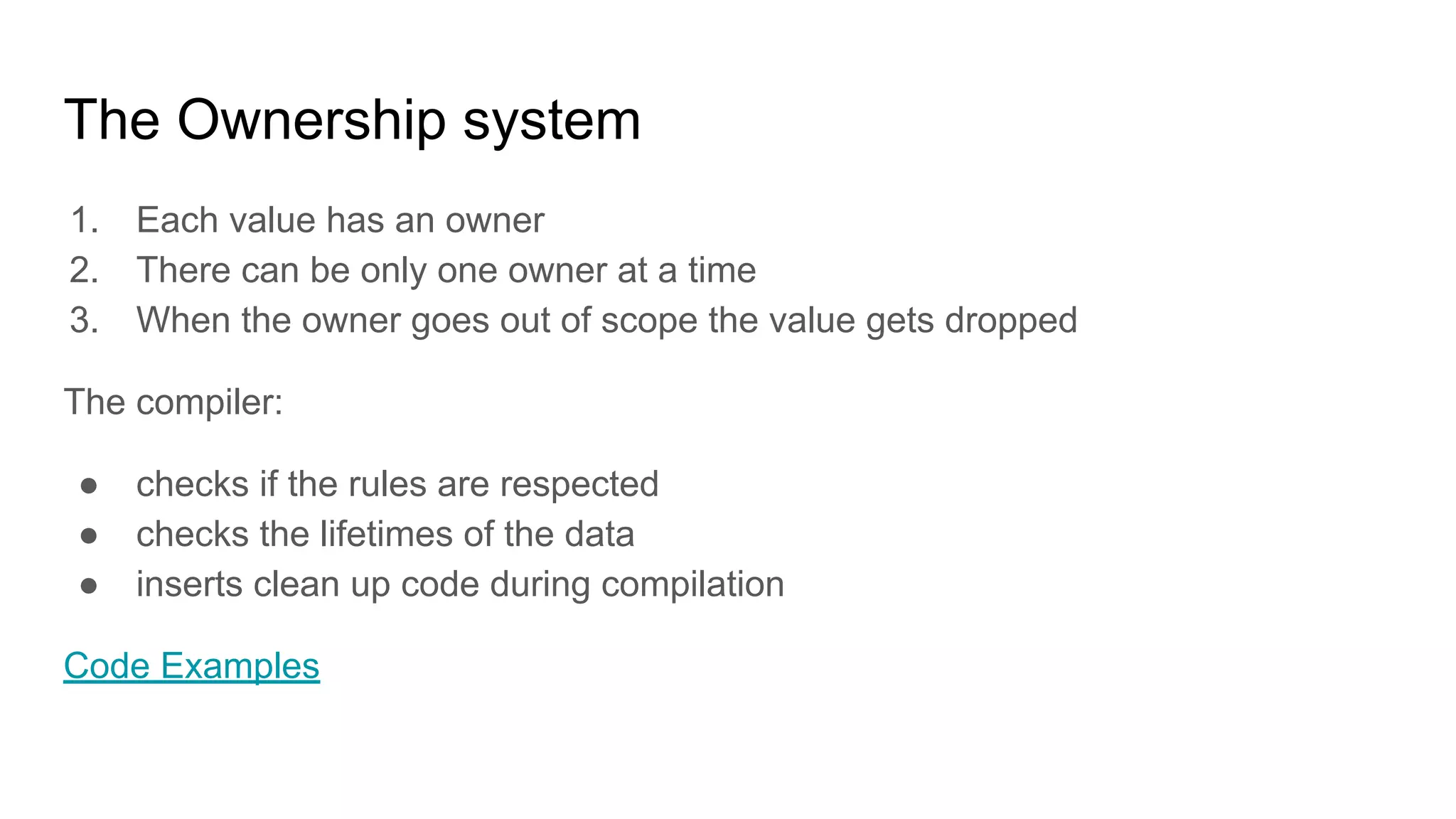

23. The Ownership system
1. Each value has an owner
2. There can be only one owner at a time
3. When the owner goes out of scope the value gets dropped
The compiler:
● checks if the rules are respected
● checks the lifetimes of the data
● inserts clean up code during compilation
Code Examples

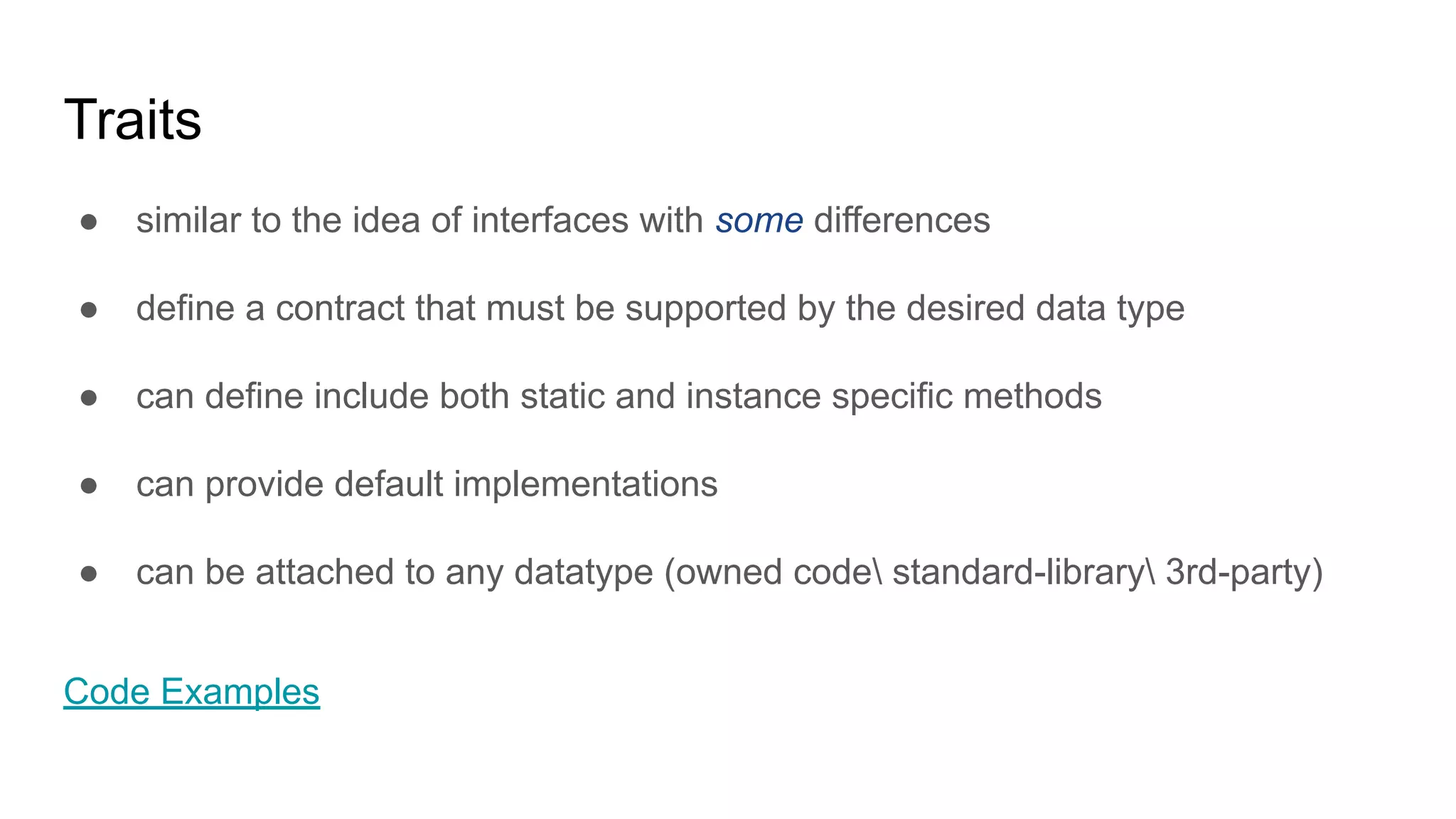

24. Traits
● similar to the idea of interfaces with some differences
● define a contract that must be supported by the desired data type
● can define include both static and instance specific methods
● can provide default implementations
● can be attached to any datatype (owned code standard-library 3rd-party)
Code Examples

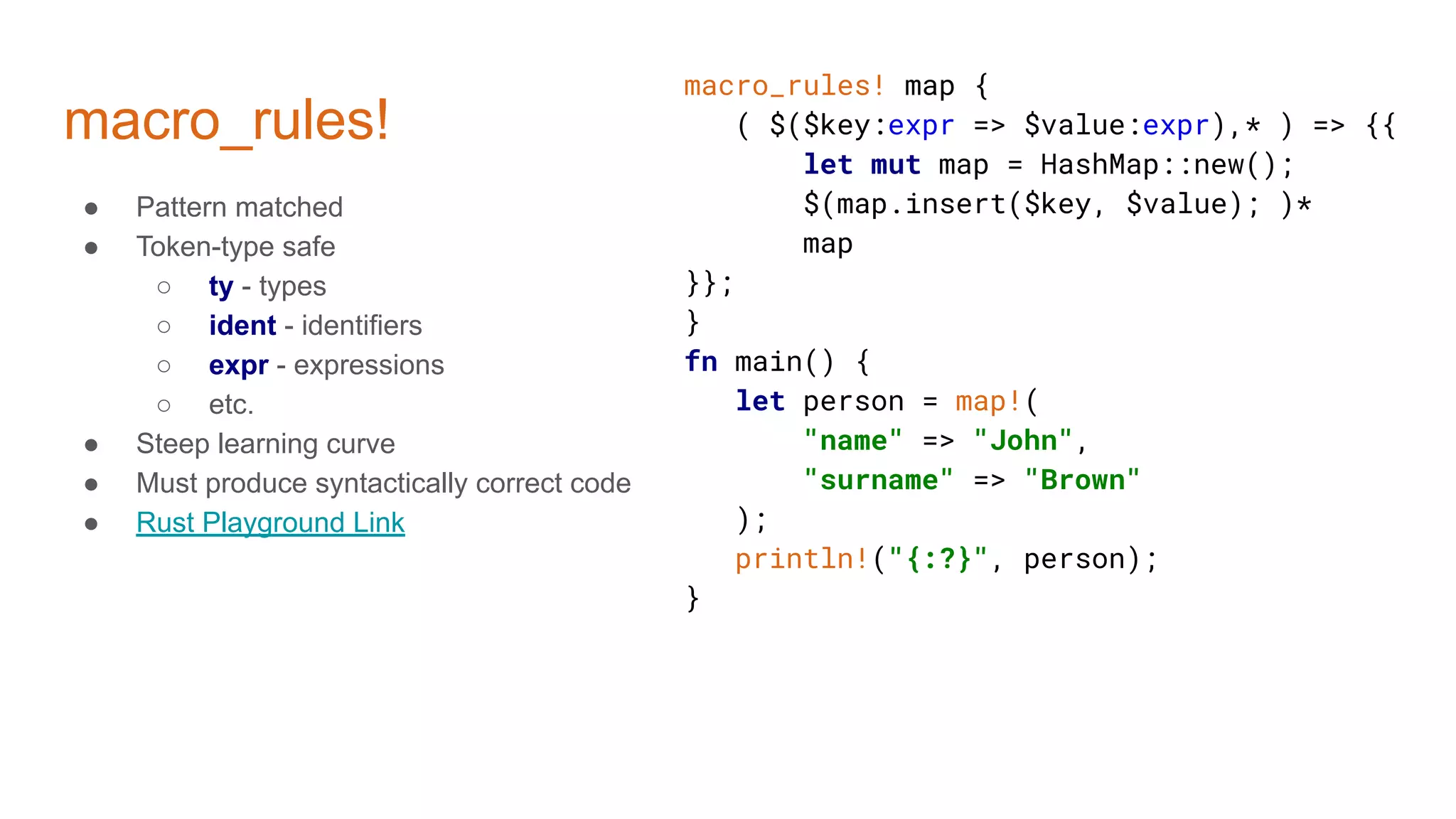

25. macro_rules!
macro_rules! map {
( $($key:expr => $value:expr),* ) => {{
let mut map = HashMap::new();
$(map.insert($key, $value); )*
map
}};
}
fn main() {
let person = map!(
"name" => "John",
"surname" => "Brown"
);
println!("{:?}", person);
}
● Pattern matched
● Token-type safe
○ ty - types
○ ident - identifiers
○ expr - expressions
○ etc.
● Steep learning curve
● Must produce syntactically correct code
● Rust Playground Link

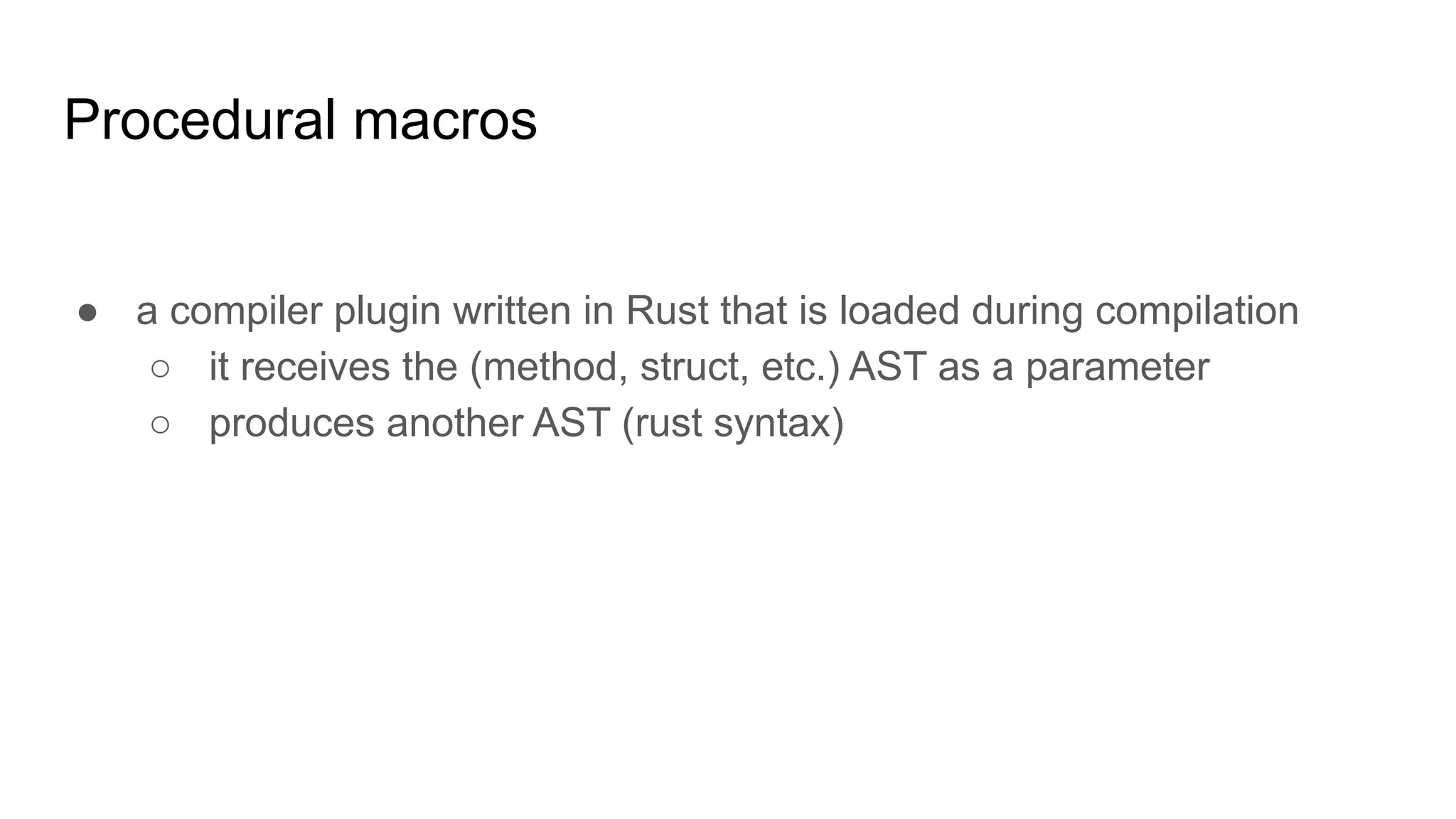

26. Procedural macros
● a compiler plugin written in Rust that is loaded during compilation
○ it receives the (method, struct, etc.) AST as a parameter
○ produces another AST (rust syntax)

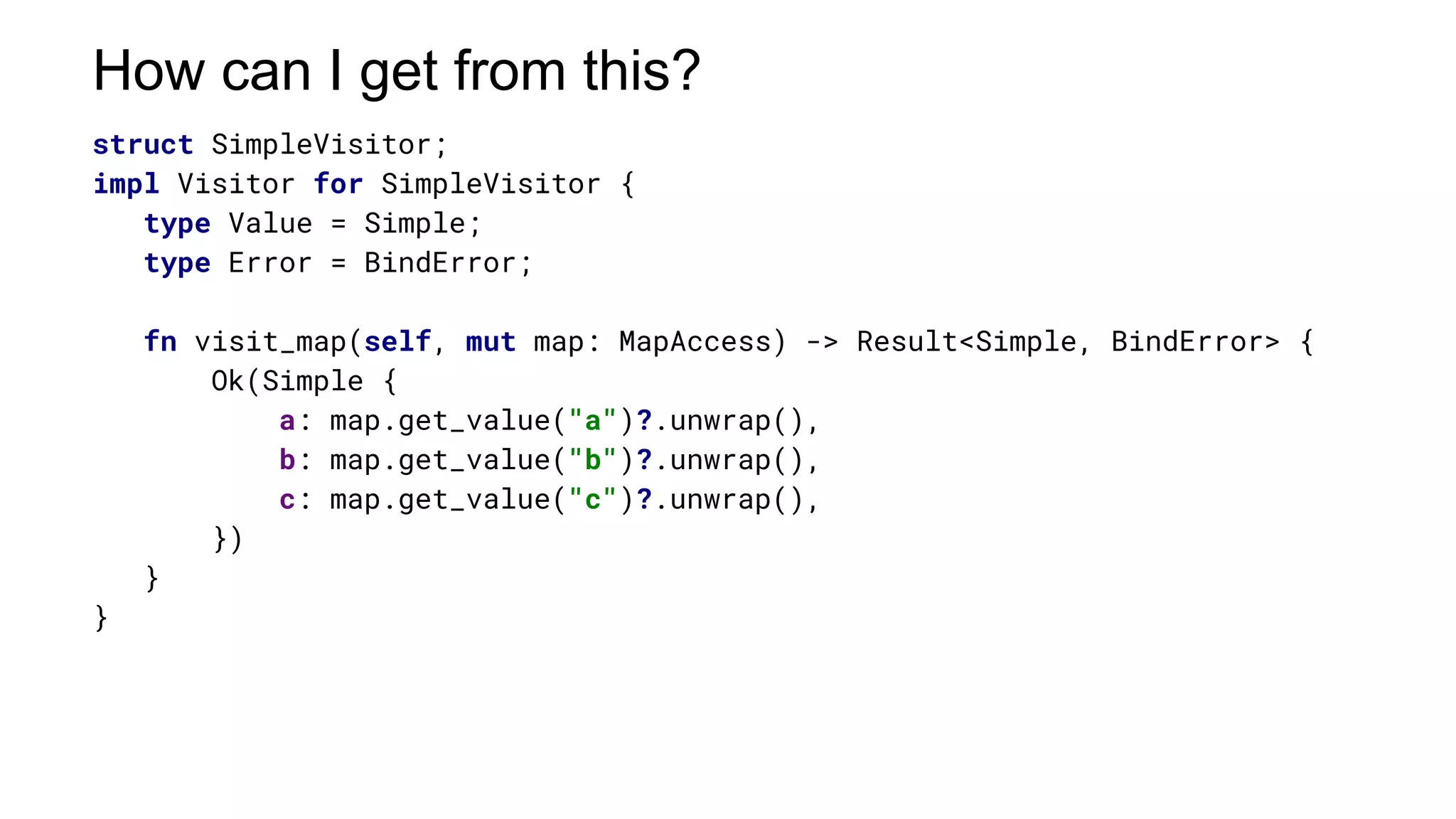

27. struct SimpleVisitor;
impl Visitor for SimpleVisitor {
type Value = Simple;
type Error = BindError;
fn visit_map(self, mut map: MapAccess) -> Result<Simple, BindError> {
Ok(Simple {
a: map.get_value("a")?.unwrap(),
b: map.get_value("b")?.unwrap(),
c: map.get_value("c")?.unwrap(),
})
}
}
How can I get from this?

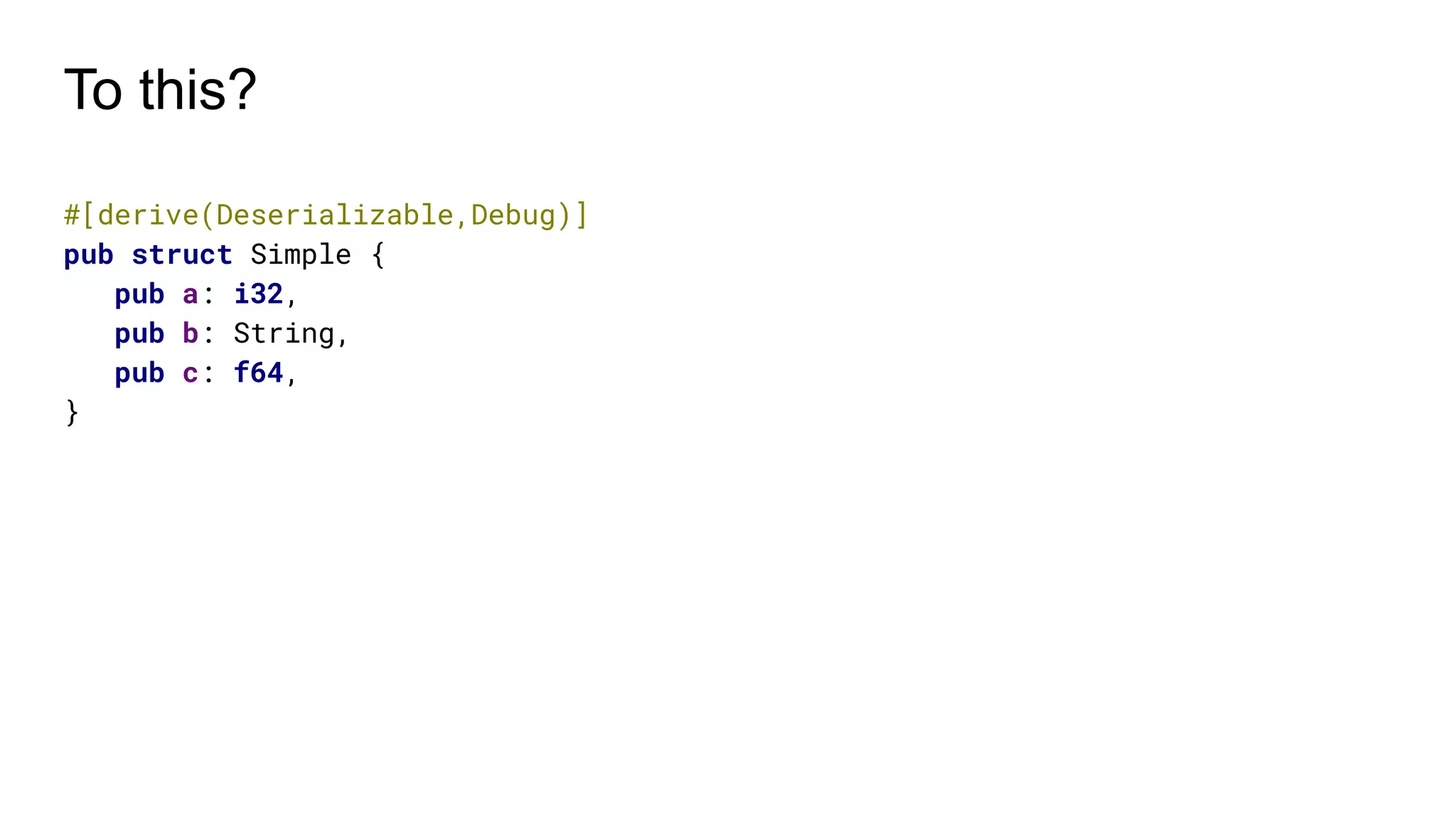

28. To this?
#[derive(Deserializable,Debug)]
pub struct Simple {
pub a: i32,
pub b: String,
pub c: f64,
}

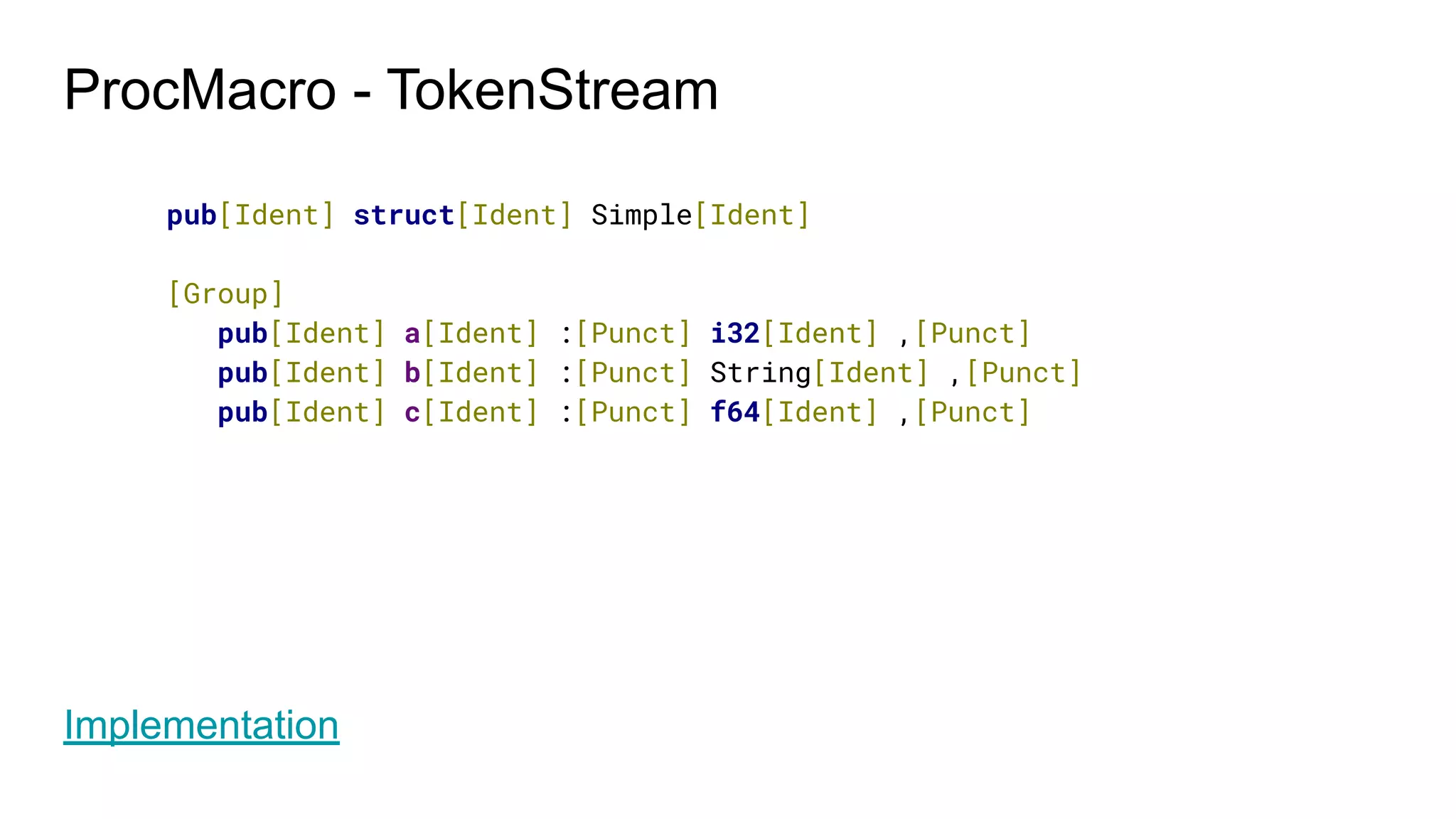

29. ProcMacro - TokenStream
pub[Ident] struct[Ident] Simple[Ident]
[Group]
pub[Ident] a[Ident] :[Punct] i32[Ident] ,[Punct]
pub[Ident] b[Ident] :[Punct] String[Ident] ,[Punct]
pub[Ident] c[Ident] :[Punct] f64[Ident] ,[Punct]
Implementation

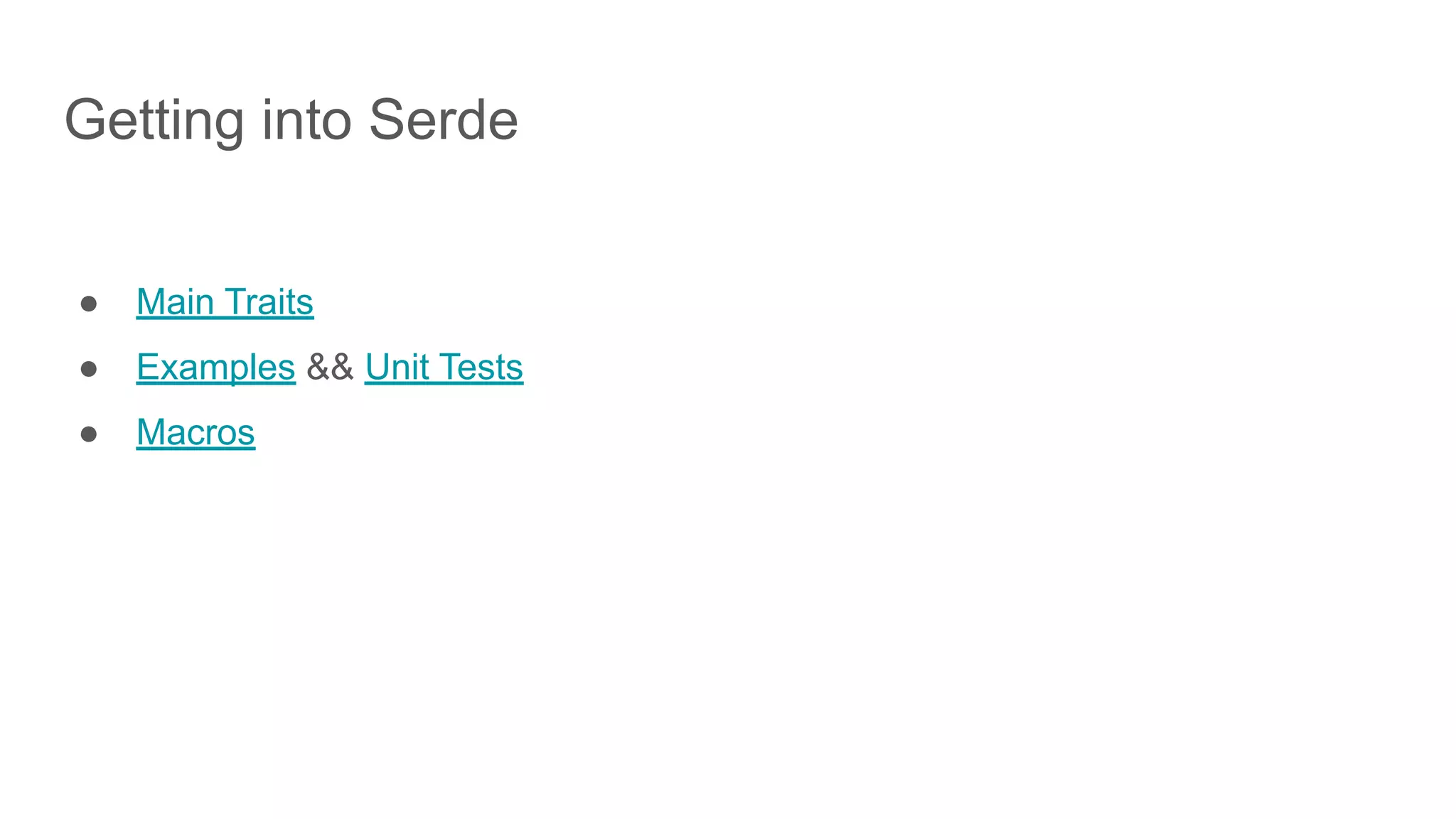

30. Getting into Serde
● Main Traits
● Examples && Unit Tests
● Macros

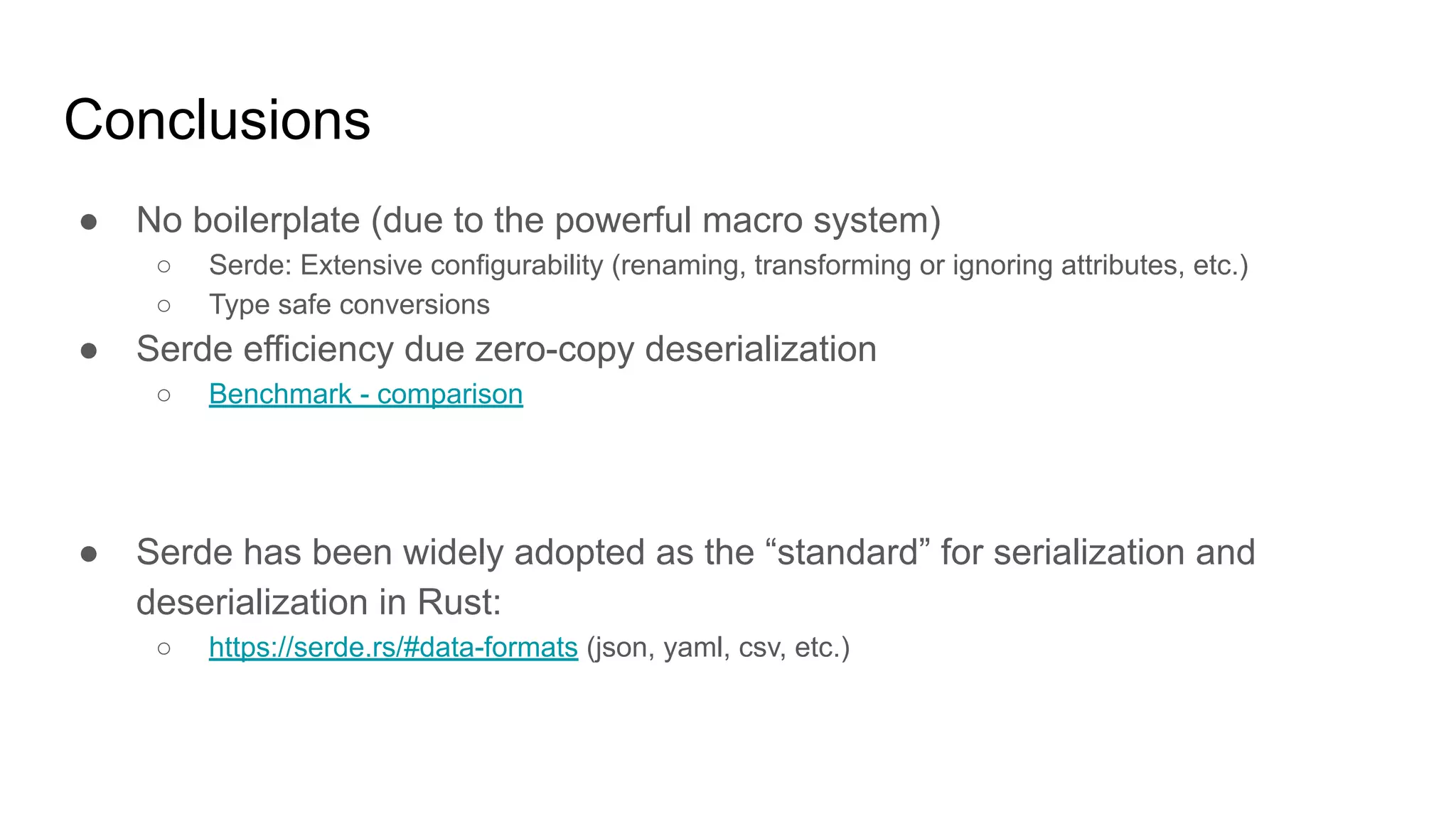

32. Conclusions
● No boilerplate (due to the powerful macro system)
○ Serde: Extensive configurability (renaming, transforming or ignoring attributes, etc.)
○ Type safe conversions

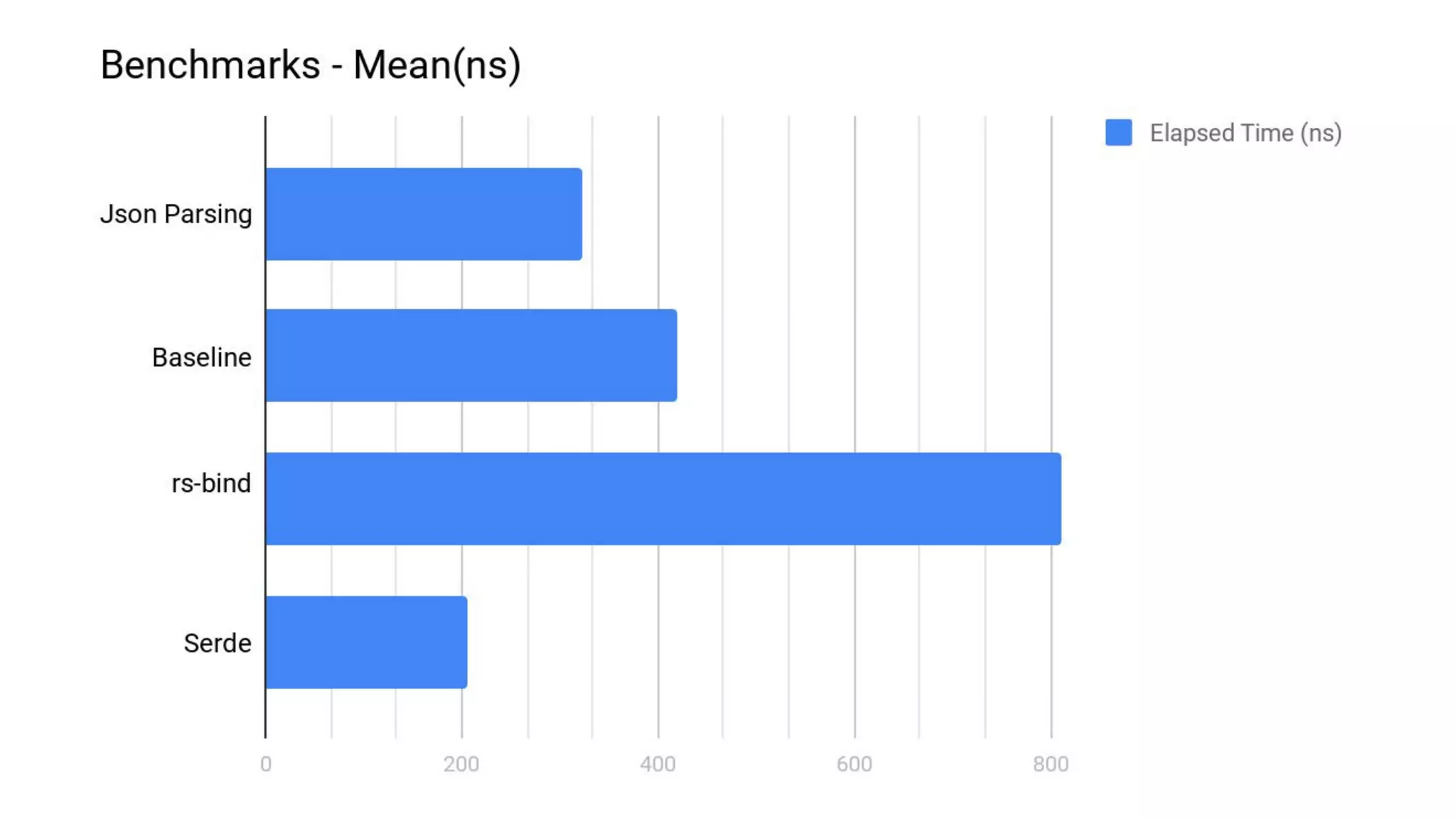

● Serde efficiency due zero-copy deserialization
○ Benchmark - comparison
● Serde has been widely adopted as the “standard” for serialization and
deserialization in Rust:
○ https://serde.rs/#data-formats (json, yaml, csv, etc.)

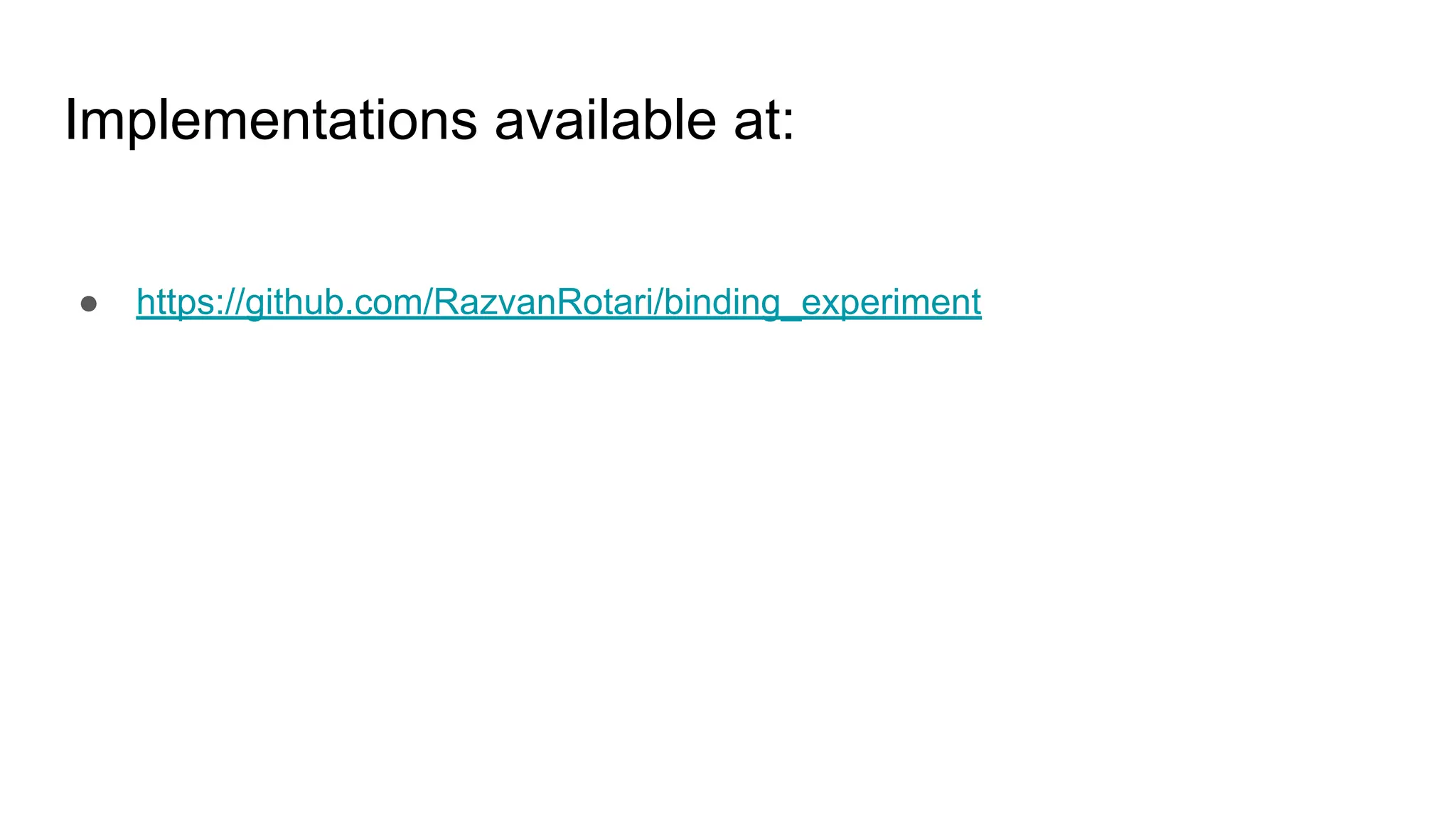

33. Implementations available at:
● https://github.com/RazvanRotari/binding_experiment

34. Thank you!

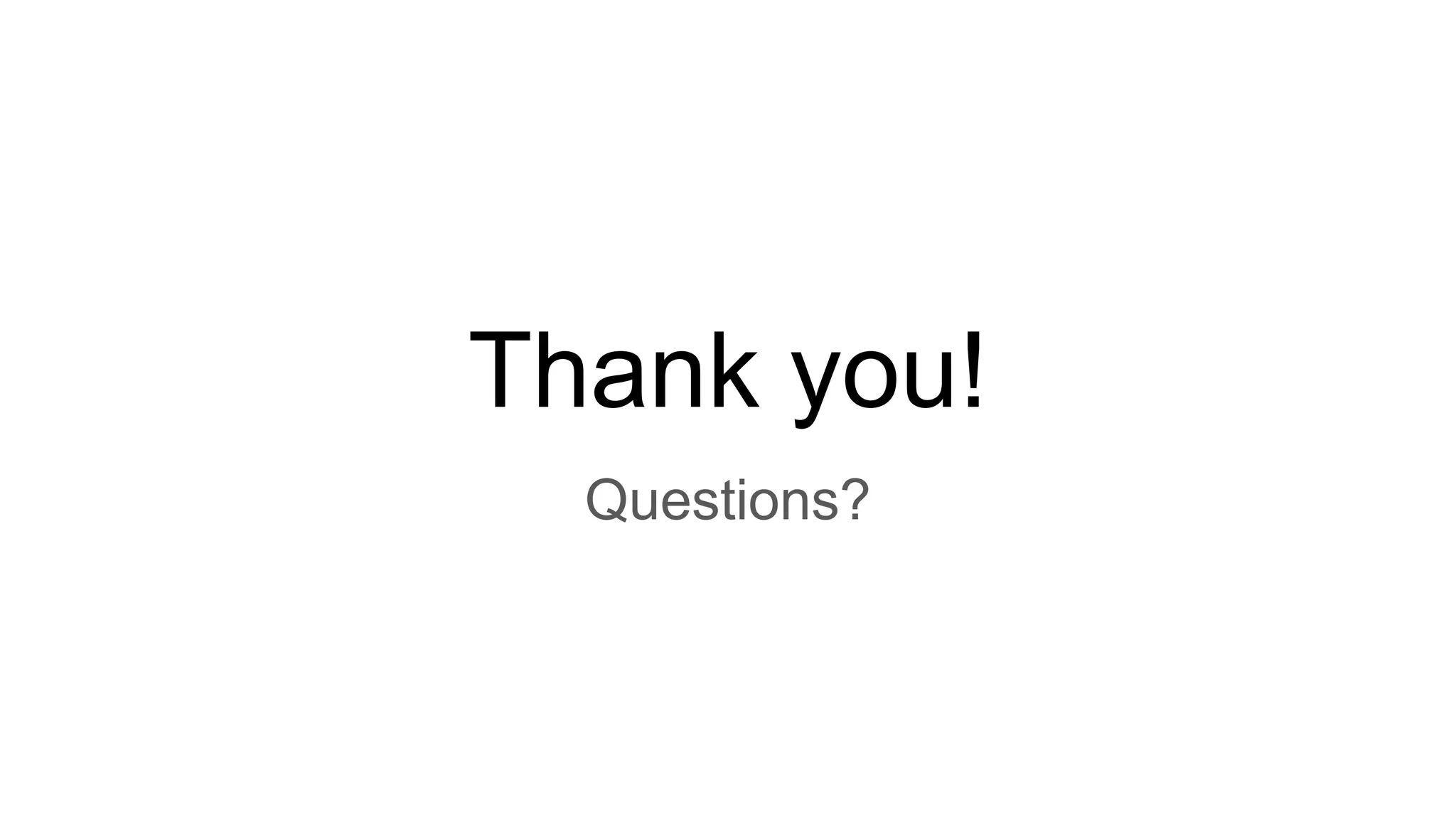

Questions?
