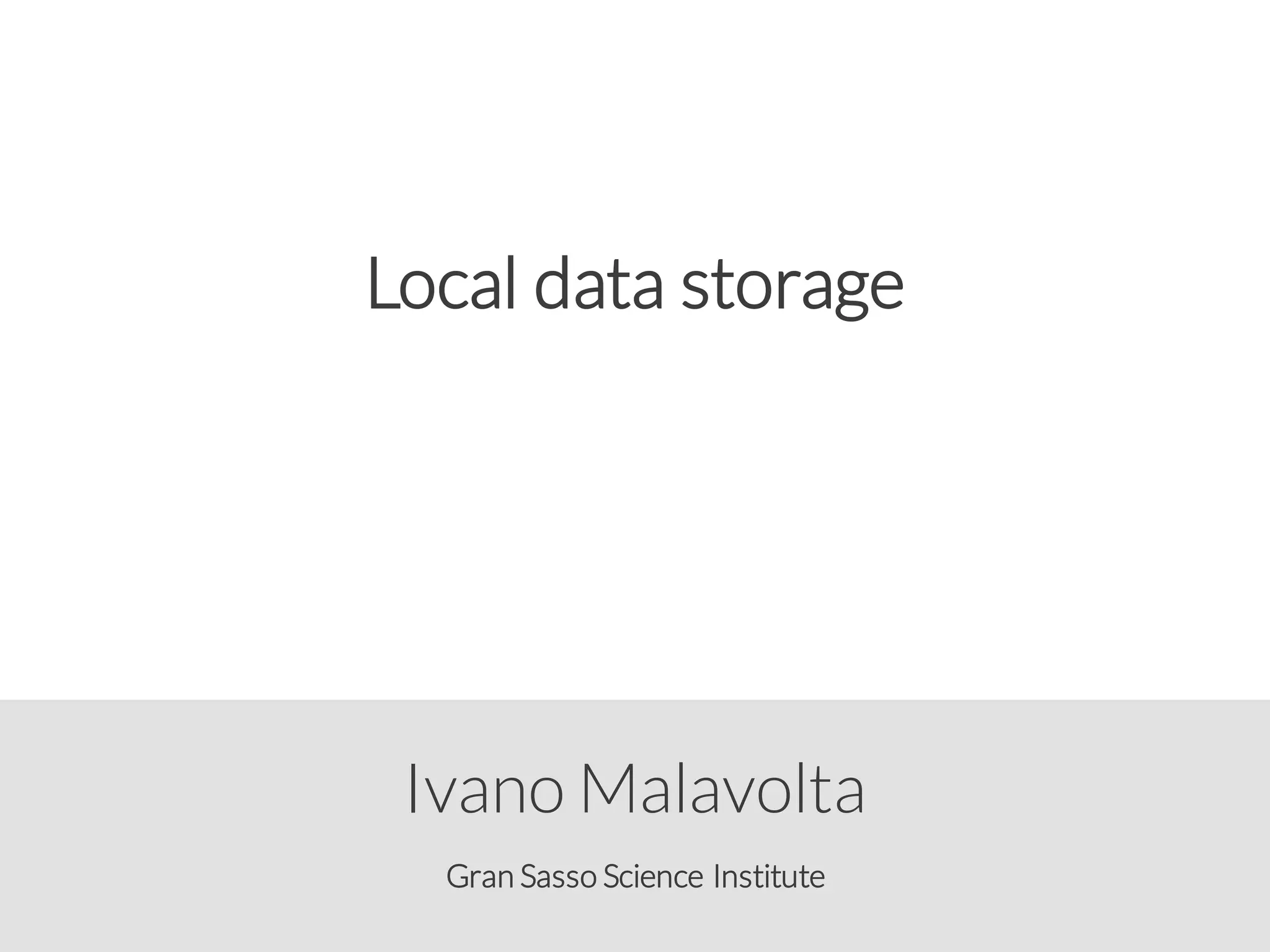

1. Gran Sasso Science Institute
Ivano Malavolta
Local data storage

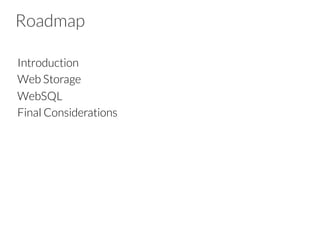

2. Roadmap
Introduction
Web Storage
WebSQL
Final Considerations

3. Local storage and file system access
There are 4 ways to store data locallyin Cordova:
• Web storage
• Local Storage
• Session Storage
• WebSQL
• Indexed DB
• File System Access
Not considered in this course

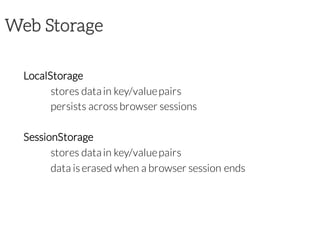

4. Web Storage
LocalStorage
stores datain key/valuepairs
persists across browser sessions
SessionStorage
stores datain key/valuepairs
data is erased when a browser session ends

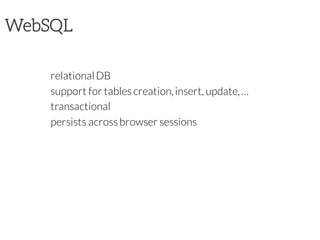

5. WebSQL
relationalDB
support for tables creation,insert, update,…
transactional
persists across browser sessions

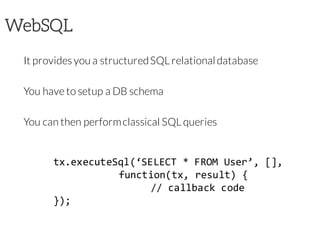

6. WebSQL
It provides you a structuredSQL relationaldatabase
You have to setup a DB schema
You can then performclassical SQL queries
tx.executeSql(‘SELECT * FROM User’, [],
function(tx, result) {
// callback code
});

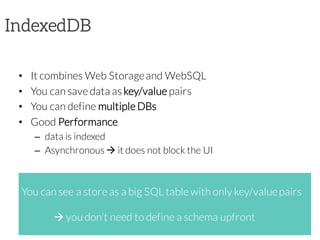

7. IndexedDB
• It combines Web Storageand WebSQL
• You can save data as key/value pairs
• You can define multiple DBs
• Good Performance
– data is indexed
– Asynchronous à it does not block the UI
You can see a store as a big SQL table with only key/valuepairs
à you don’t need to define a schema upfront

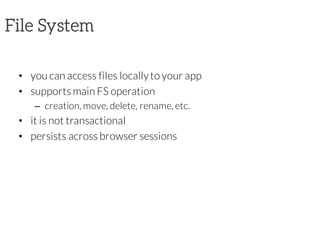

8. File System
• you can access files locallyto your app
• supports main FS operation
– creation, move, delete, rename, etc.
• it is not transactional
• persists across browser sessions

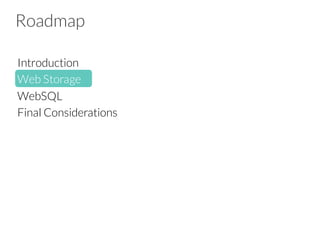

9. Roadmap
Introduction
Web Storage
WebSQL
Final Considerations

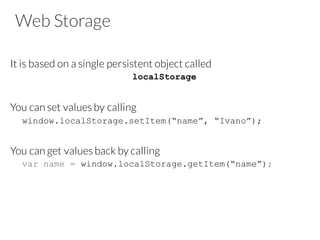

10. Web Storage
It is based on a single persistent object called
localStorage
You can set values by calling
window.localStorage.setItem(“name”, “Ivano”);
You can get values back by calling
var name = window.localStorage.getItem(“name”);

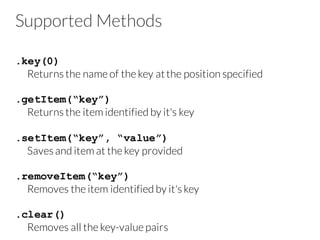

11. Supported Methods
.key(0)
Returns the name of the key atthe position specified
.getItem(“key”)
Returns the item identified by it's key
.setItem(“key”, “value”)
Saves and item at the key provided
.removeItem(“key”)
Removes the item identified by it's key
.clear()
Removes all the key-value pairs

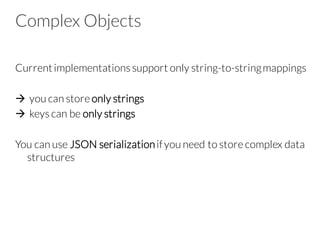

12. Complex Objects
Currentimplementations support only string-to-stringmappings
à you can store only strings
à keys can be only strings
You can use JSON serializationifyou need to store complex data
structures

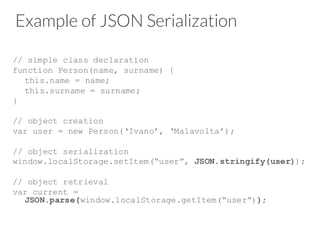

13. Example of JSON Serialization
// simple class declaration
function Person(name, surname) {
this.name = name;
this.surname = surname;
}
// object creation
var user = new Person(‘Ivano’, ‘Malavolta’);
// object serialization
window.localStorage.setItem(“user”, JSON.stringify(user));
// object retrieval
var current =
JSON.parse(window.localStorage.getItem(“user”));

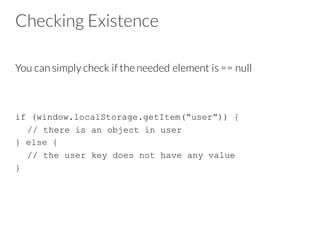

14. Checking Existence
You can simply check if the needed element is == null
if (window.localStorage.getItem(“user”)) {
// there is an object in user
} else {
// the user key does not have any value
}

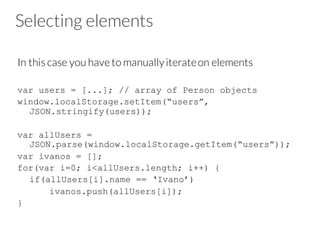

15. Selecting elements
In this case you have to manuallyiterateon elements
var users = [...]; // array of Person objects
window.localStorage.setItem(“users”,
JSON.stringify(users));
var allUsers =
JSON.parse(window.localStorage.getItem(“users”));
var ivanos = [];
for(var i=0; i<allUsers.length; i++) {
if(allUsers[i].name == ‘Ivano’)
ivanos.push(allUsers[i]);
}

16. Session Storage
Session Storageprovides the same interfaceas LocalStorage
à you can call the same methods
but
Session Storageis cleared between app launches

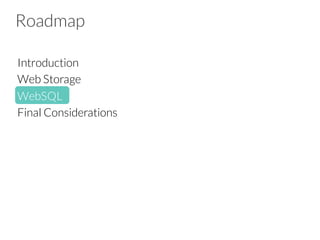

17. Roadmap
Introduction
Web Storage
WebSQL
Final Considerations

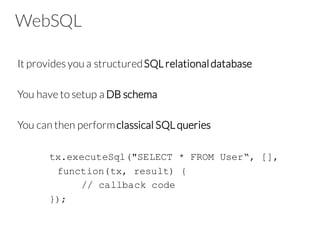

18. WebSQL
It provides you a structuredSQL relationaldatabase
You have to setup a DB schema
You can then performclassical SQL queries
tx.executeSql("SELECT * FROM User“, [],
function(tx, result) {
// callback code
});

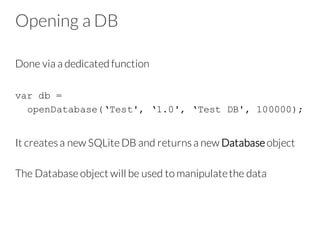

19. Opening a DB
Done via a dedicated function
var db =
openDatabase(‘Test', ‘1.0', ‘Test DB', 100000);
It creates a new SQLite DB and returns a new Database object
The Database object will be used to manipulatethe data

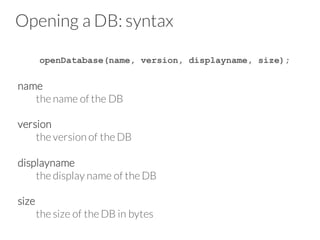

20. Opening a DB: syntax
openDatabase(name, version, displayname, size);
name
the name of the DB
version
the version of the DB
displayname
the display name of the DB
size
the size of the DB in bytes

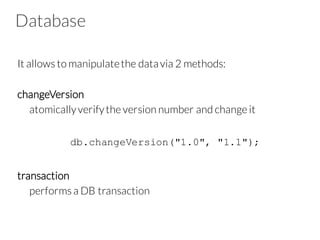

21. Database
It allows to manipulatethe datavia 2 methods:
changeVersion
atomicallyverifythe version number and change it
db.changeVersion("1.0", "1.1");
transaction
performs a DB transaction

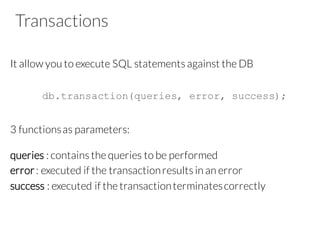

22. Transactions
It allow you to execute SQL statements against the DB
db.transaction(queries, error, success);
3 functionsas parameters:
queries : contains the queries to be performed
error: executed if the transactionresults in an error
success : executed if the transactionterminatescorrectly

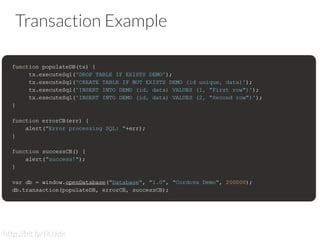

23. Transaction Example
http://bit.ly/JlUJde

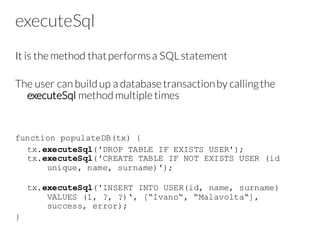

24. executeSql
It is the method thatperforms a SQL statement
The user can build up a database transactionby callingthe
executeSql method multiple times
function populateDB(tx) {
tx.executeSql('DROP TABLE IF EXISTS USER');
tx.executeSql('CREATE TABLE IF NOT EXISTS USER (id
unique, name, surname)');
tx.executeSql('INSERT INTO USER(id, name, surname)
VALUES (1, ?, ?)‘, [“Ivano“, “Malavolta“],
success, error);
}

25. Result Sets
When the executeSql method is called, it willinvoke it's callback
with a SQLResultSet parameter
It has 3 properties:
insertId
the ID of the row thathas been inserted
rowsAffected
the number of rows changed by the SQL statement
rows
the data returned from a SQL select statement
rows is an object of type SQLResultSetList

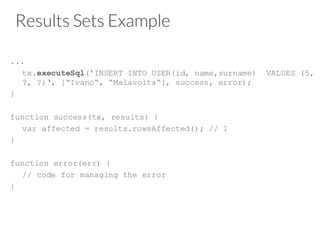

26. Results Sets Example
...
tx.executeSql('INSERT INTO USER(id, name,surname) VALUES (5,
?, ?)‘, [“Ivano“, “Malavolta“], success, error);
}
function success(tx, results) {
var affected = results.rowsAffected(); // 1
}
function error(err) {
// code for managing the error
}

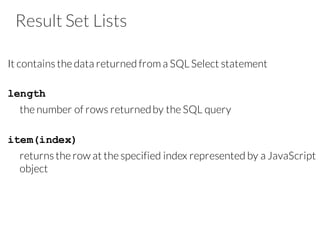

27. Result Set Lists
It contains the data returned from a SQL Select statement
length
the number of rows returnedby the SQL query
item(index)
returns the row at the specified index represented by a JavaScript
object

28. Result Set List Example
...
tx.executeSql(‘SELECT * FROM USER‘, [], success, error);
}
function success(tx, results) {
var size = results.rows.length;
for (var i=0; i<size; i++){
console.log(results.rows.item(i).name);
}
}

29. Errors
It contains informationabout an occurred error
code
A predefined error code
es. UNKNOWN_ERR,
DATABASE_ERR,
TOO_LARGE_ERR,
QUOTA_ERR,
TIMEOUT_ERR,
SYNTAX_ERR
message
A description of the error
error notconsidered by anyother error codes
internal error of the database
the result set is too large
the db now exceeds the storage space of the app
• the statement is not sintactically correct
• the number of parameters does notmatch with
placeholders
no reasonable time to get the lock for the transition

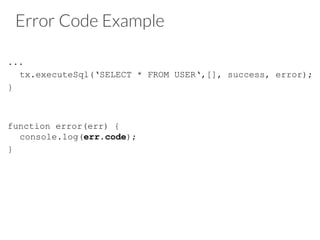

30. Error Code Example
...
tx.executeSql(‘SELECT * FROM USER‘,[], success, error);
}
function error(err) {
console.log(err.code);
}

31. Roadmap
Introduction
Web Storage
WebSQL
Final Considerations

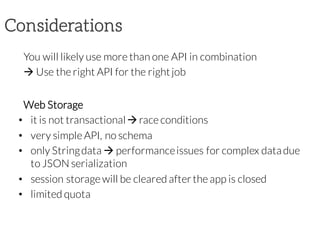

32. Considerations
You will likely use more than one API in combination
à Use the right API for the rightjob
Web Storage
• it is not transactionalàrace conditions
• very simple API, no schema
• only Stringdata à performanceissues for complex datadue
to JSON serialization
• session storage will be cleared afterthe app is closed
• limited quota

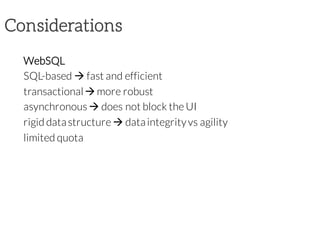

33. Considerations
WebSQL
SQL-based à fast and efficient
transactionalàmore robust
asynchronous à does not block the UI
rigid datastructure à dataintegrityvs agility
limited quota

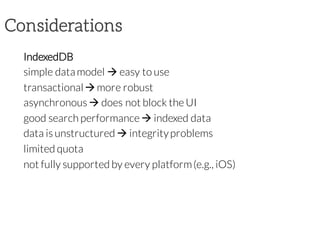

34. Considerations
IndexedDB
simple datamodel à easy to use
transactionalàmore robust
asynchronous à does not block the UI
good search performance à indexed data
data is unstructured à integrityproblems
limited quota
not fully supported by every platform(e.g., iOS)

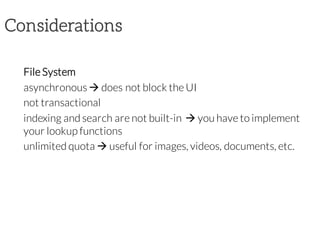

35. Considerations
File System
asynchronous à does not block the UI
not transactional
indexing and search are not built-in à you have to implement
your lookup functions
unlimited quota à useful for images, videos, documents, etc.

36. Platforms support

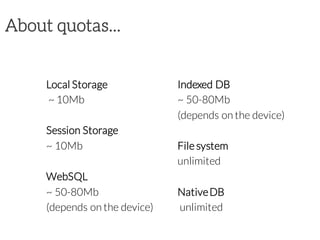

37. About quotas...
Local Storage
~ 10Mb
Session Storage
~ 10Mb
WebSQL
~ 50-80Mb
(depends on the device)
Indexed DB
~ 50-80Mb
(depends on the device)
File system
unlimited
NativeDB
unlimited

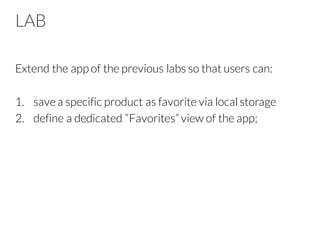

38. LAB
Extend the app of the previous labs so that users can:
1. savea specific product as favorite via localstorage
2. define a dedicated “Favorites” view of the app;

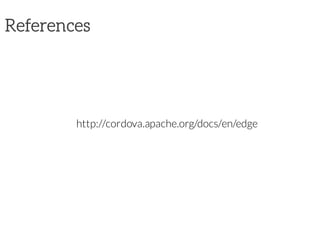

39. References
http://cordova.apache.org/docs/en/edge

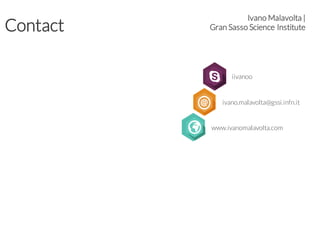

40. Contact
