1. Metasepi team meeting #19:
ATS application on Arduino
Kiwamu Okabe @ Metasepi Project

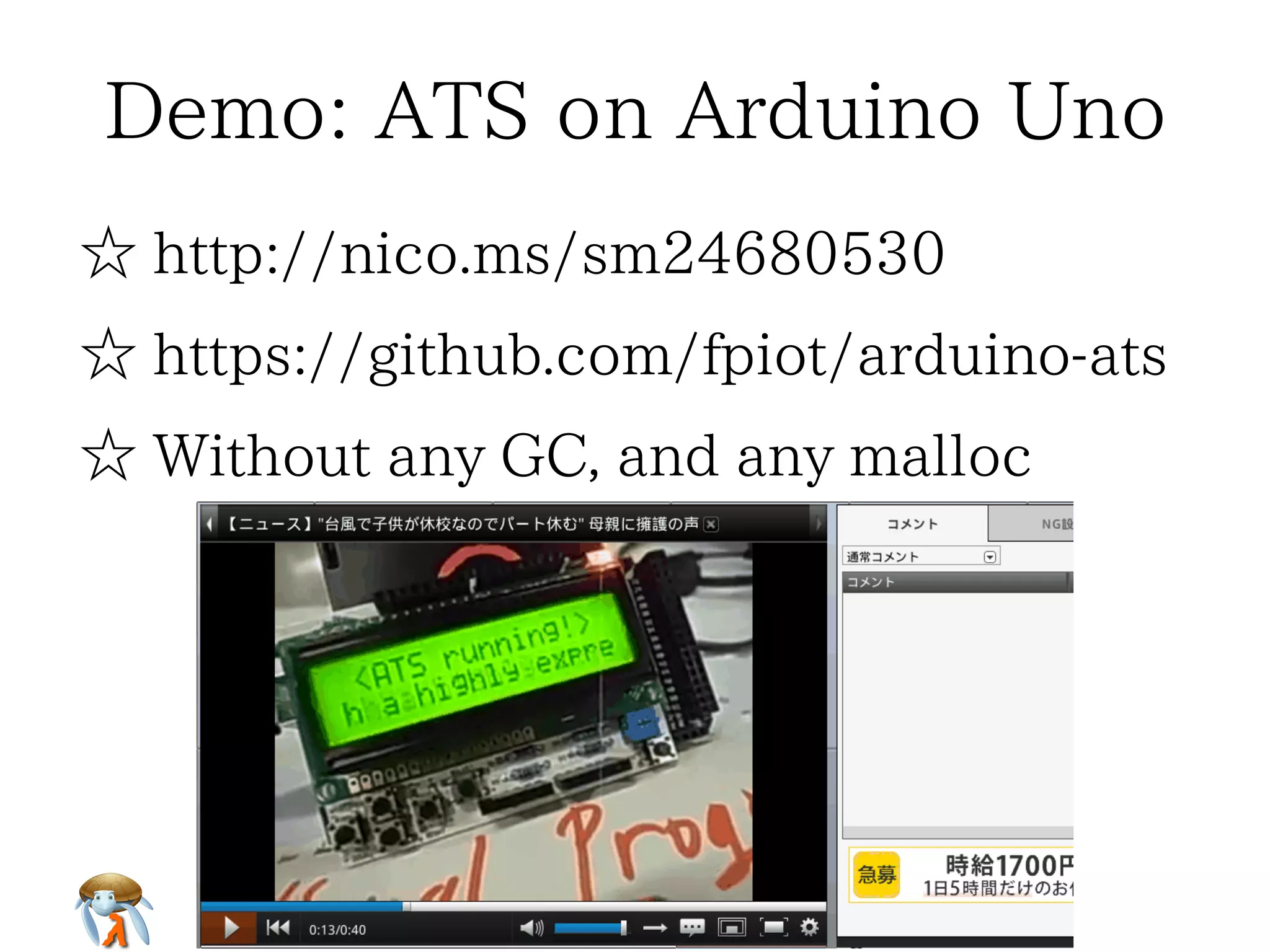

2. Demo: ATS on Arduino Uno
☆ http://nico.ms/sm24680530
☆ https://github.com/fpiot/arduino-ats
☆ Without any GC, and any malloc

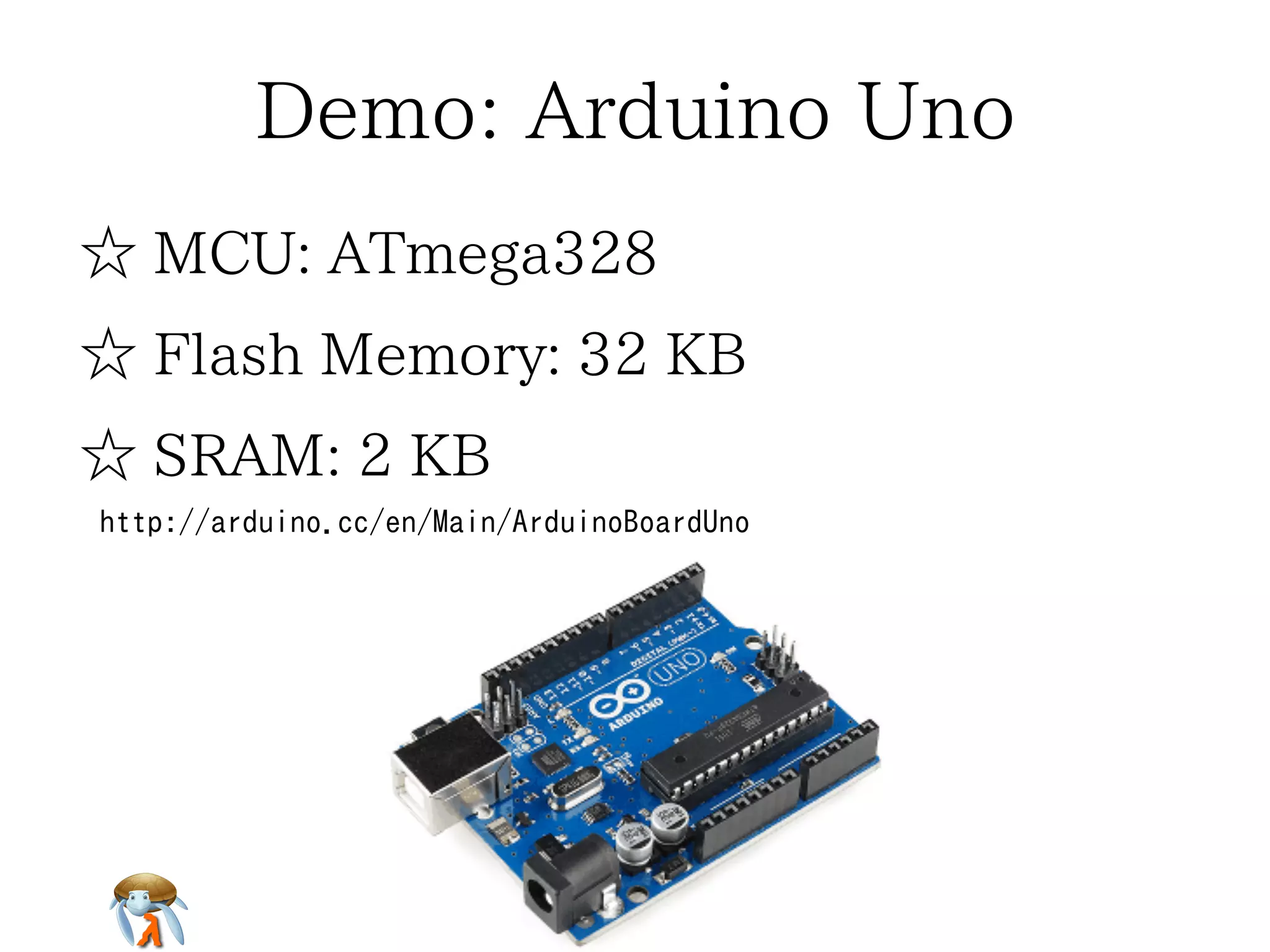

3. Demo: Arduino Uno
☆ MCU: ATmega328
☆ Flash Memory: 32 KB
☆ SRAM: 2 KB
hhhttttttppp::://////aaarrrddduuuiiinnnooo...cccccc///eeennn///MMMaaaiiinnn///AAArrrddduuuiiinnnoooBBBoooaaarrrdddUUUnnnooo

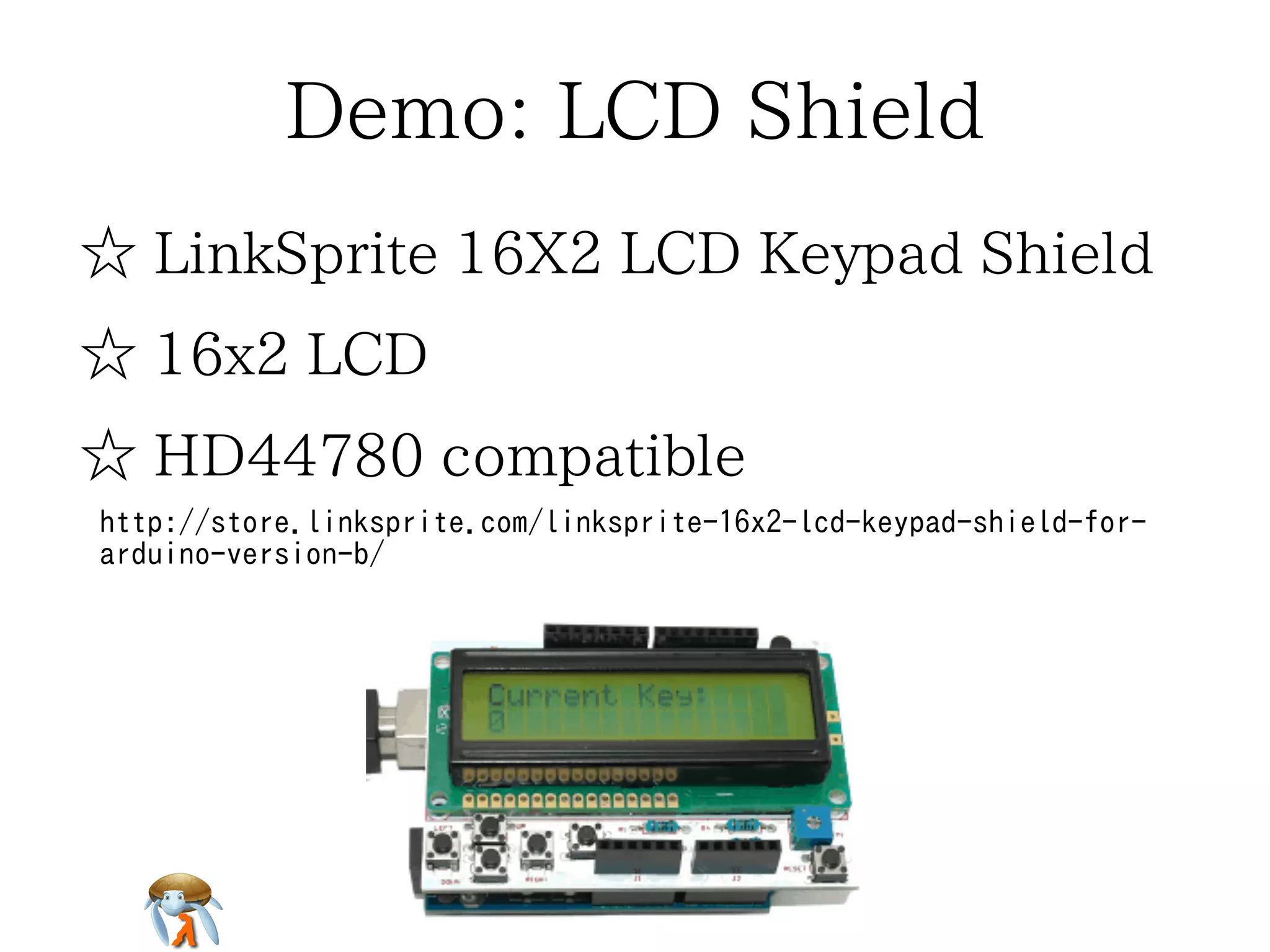

4. Demo: LCD Shield
☆ LinkSprite 16X2 LCD Keypad Shield
☆ 16x2 LCD
☆ HD44780 compatible
http://store.linksprite.com/linksprite-16x2-lcd-keypad-shield-for-arduino-
version-b/

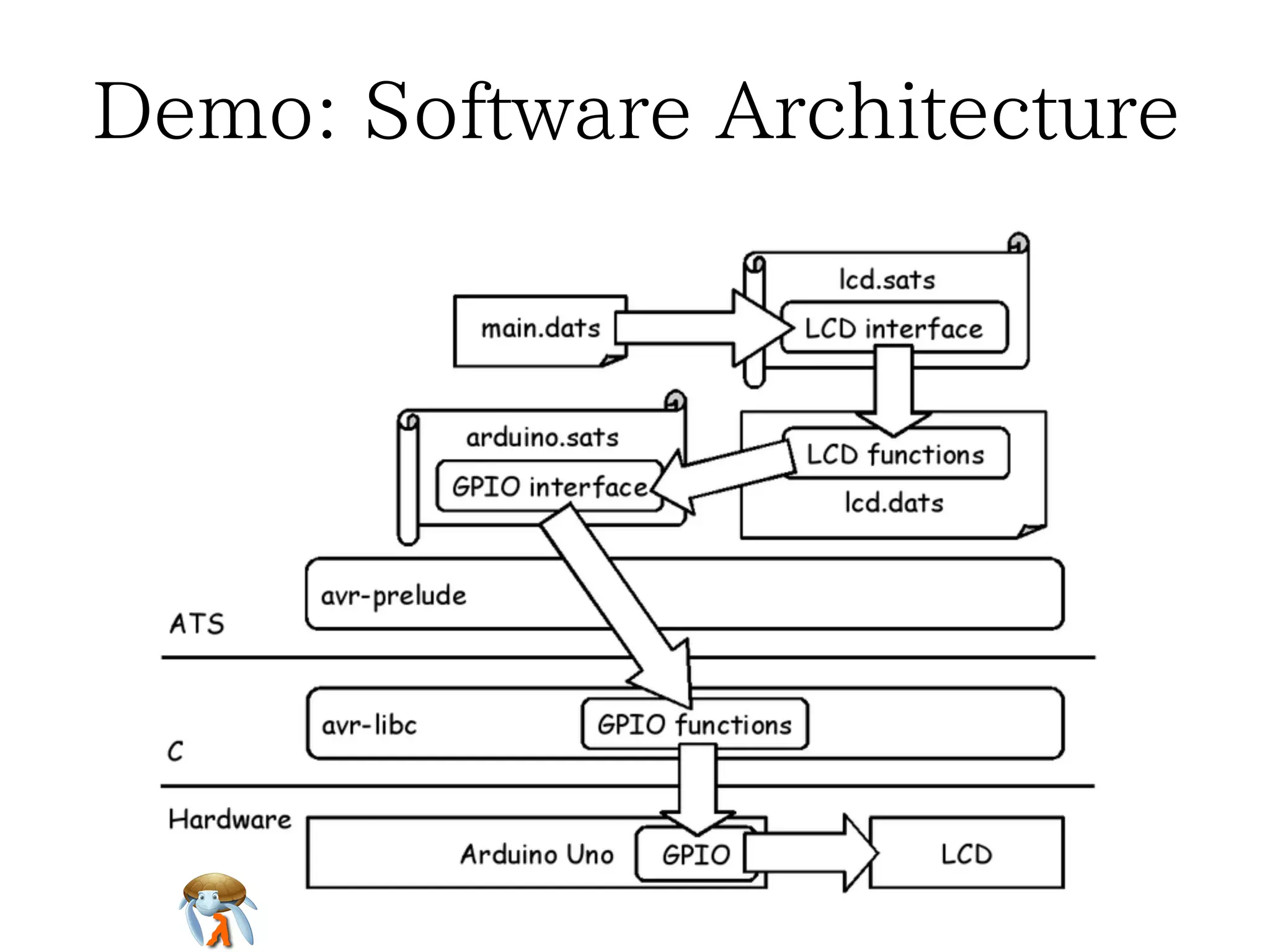

5. Demo: Software Architecture

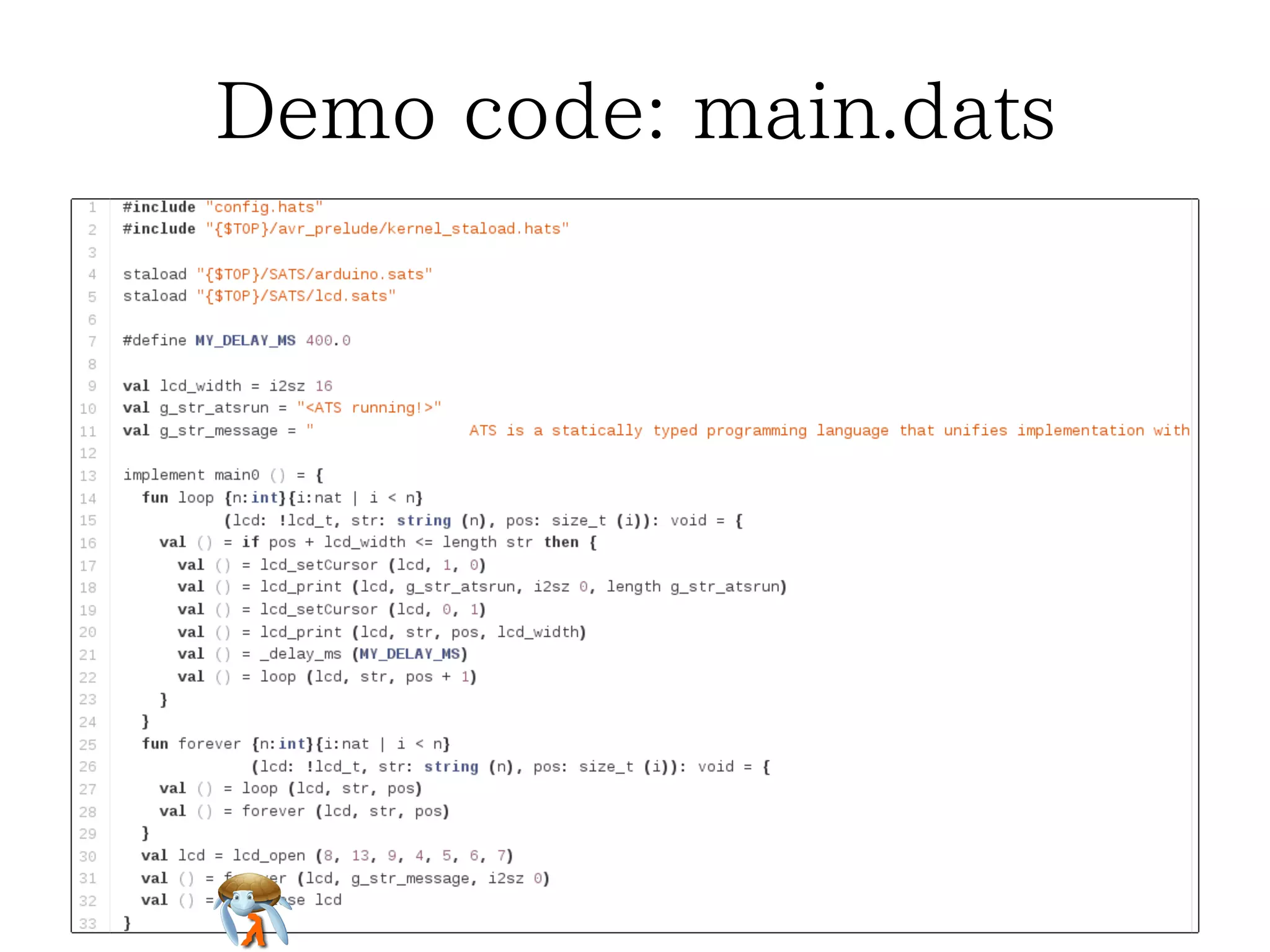

6. Demo code: main.dats

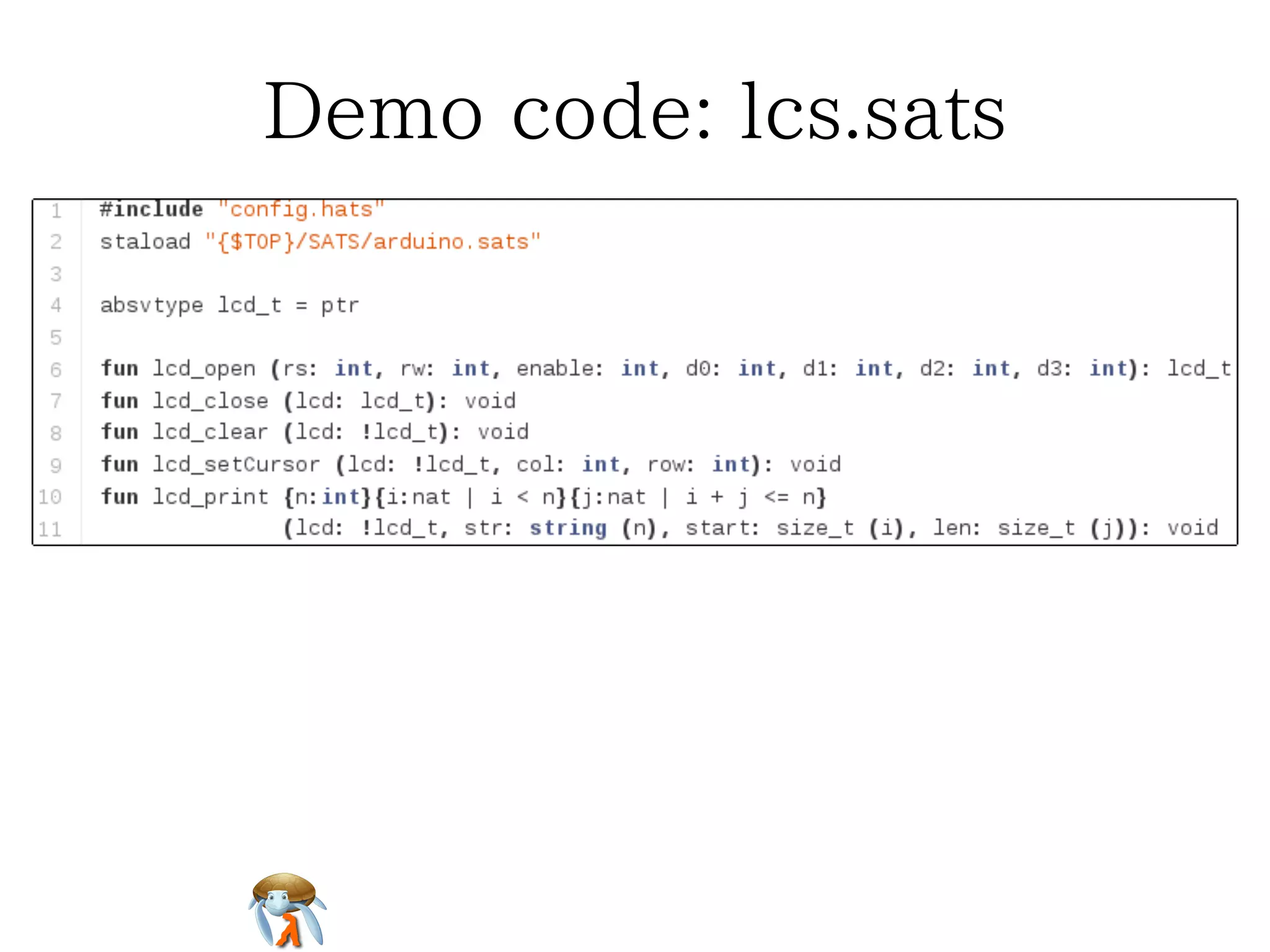

7. Demo code: lcs.sats

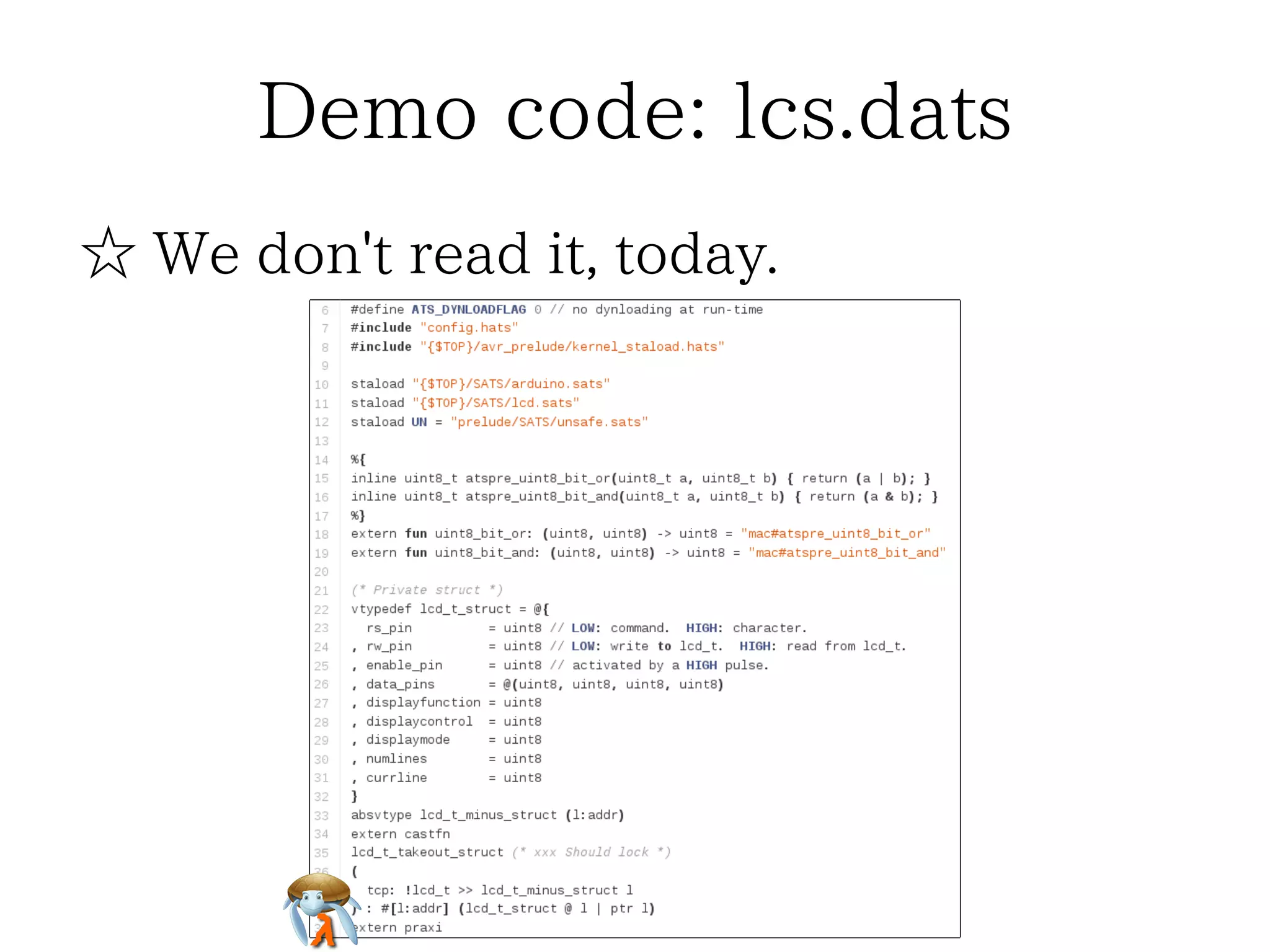

8. Demo code: lcs.dats
☆ We don't read it, today.

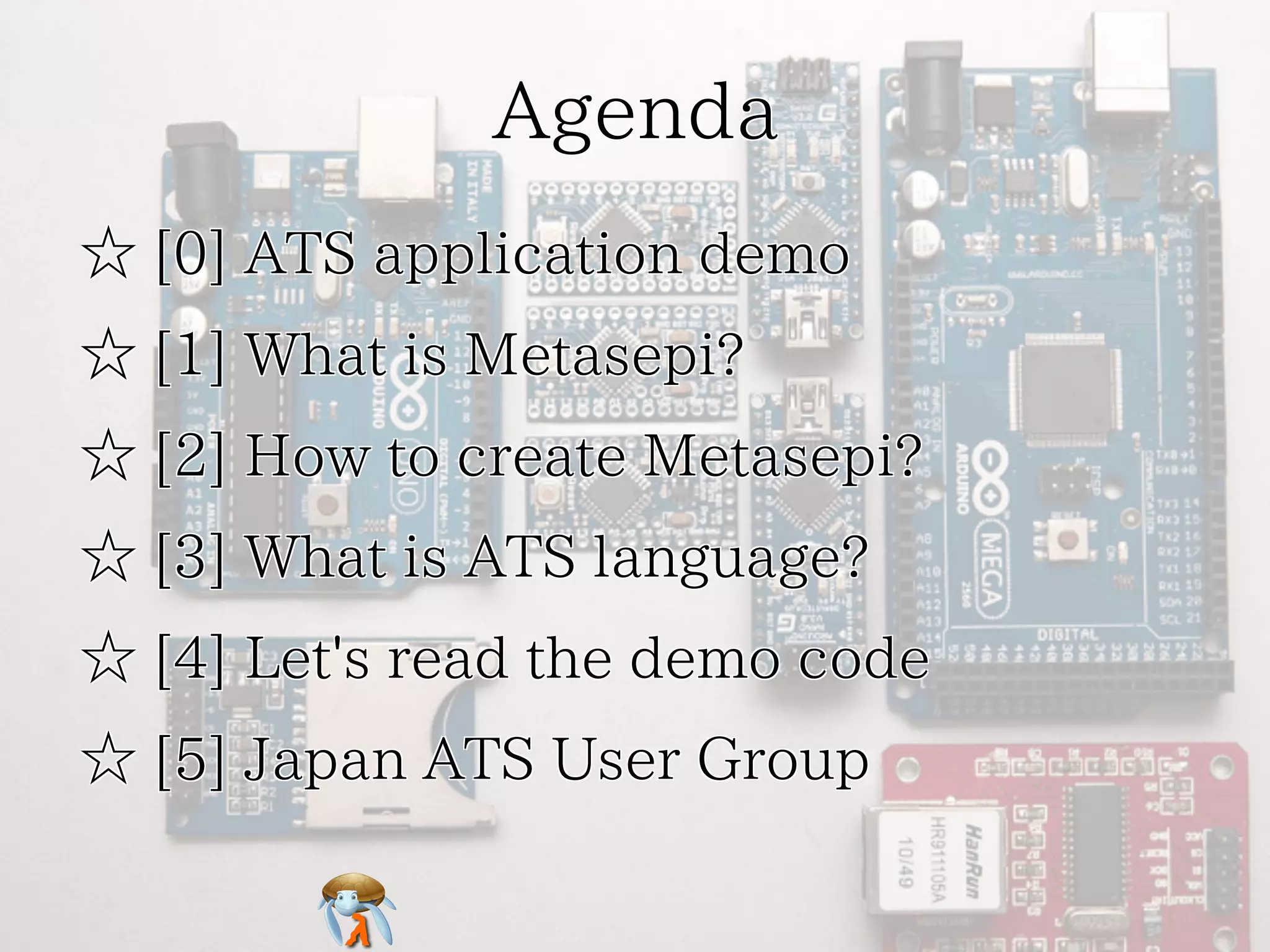

9. Agenda
☆ [0] ATS application demo
☆ [1] What is Metasepi?
☆ [2] How to create Metasepi?
☆ [3] What is ATS language?
☆ [4] Let's read the demo code
☆ [5] Japan ATS User Group

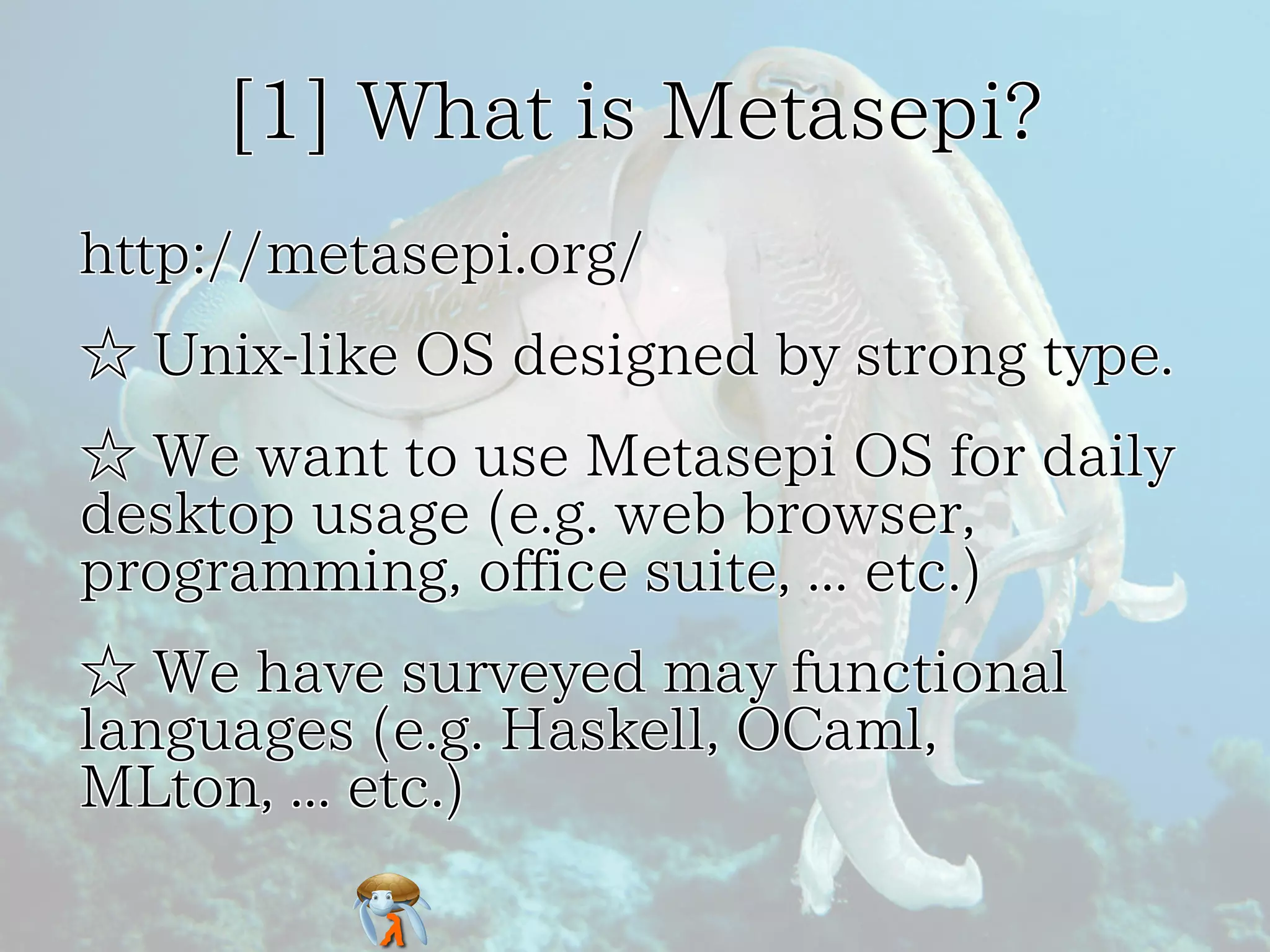

10. [1] What is Metasepi?
http://metasepi.org/
☆ Unix-like OS designed by strong type.
☆ We want to use Metasepi OS for daily
desktop usage (e.g. web browser,
programming, office suite, ... etc.)
☆ We have surveyed may functional
languages (e.g. Haskell, OCaml,
MLton, ... etc.)

11. Kernel developer wants type
☆ Kernels are developed with C.
☆ We should design kernel with the
greatest care.
☆ C language is unsafe!

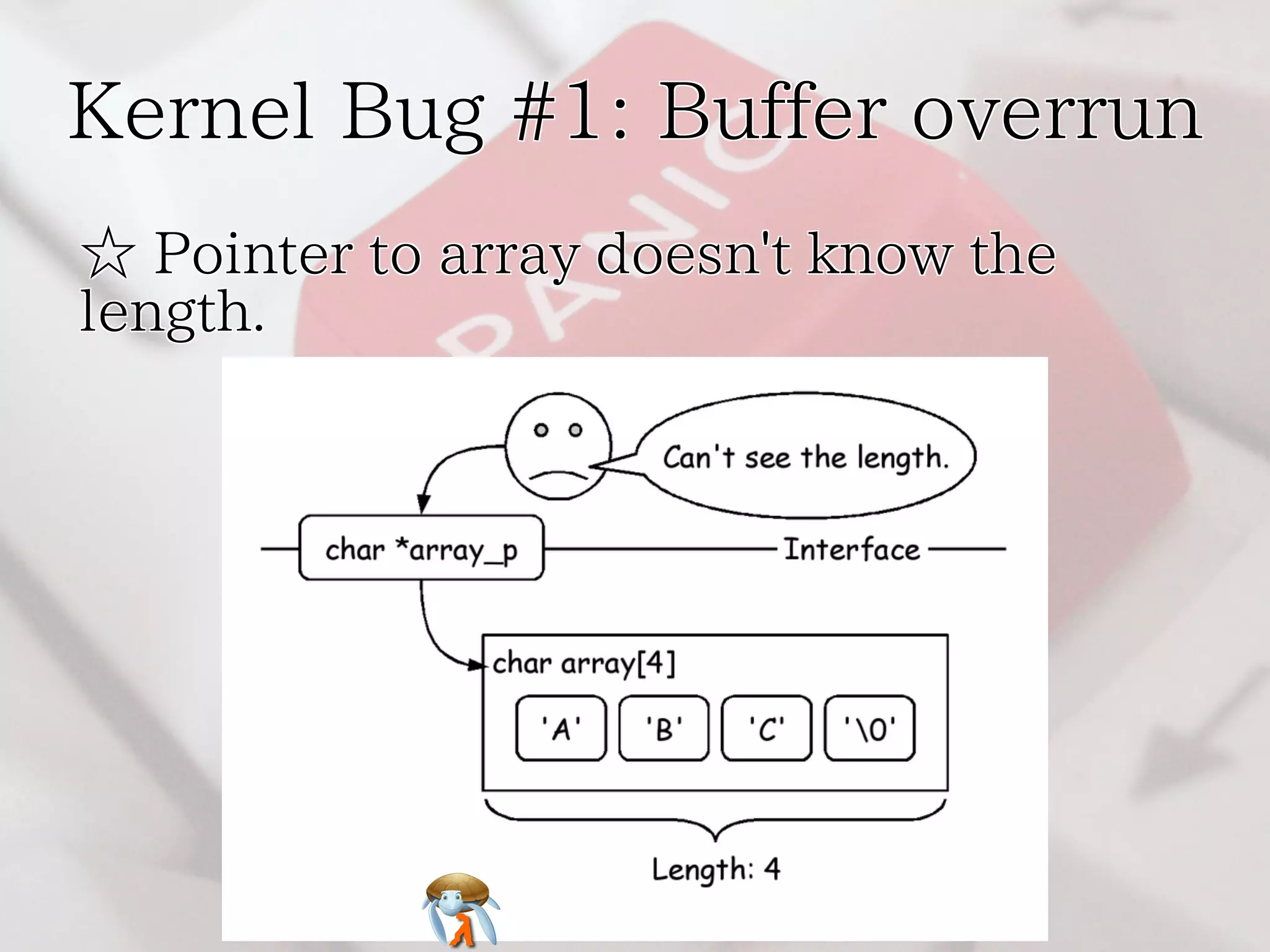

12. Kernel Bug #1: Buffer overrun
☆ Pointer to array doesn't know the
length.

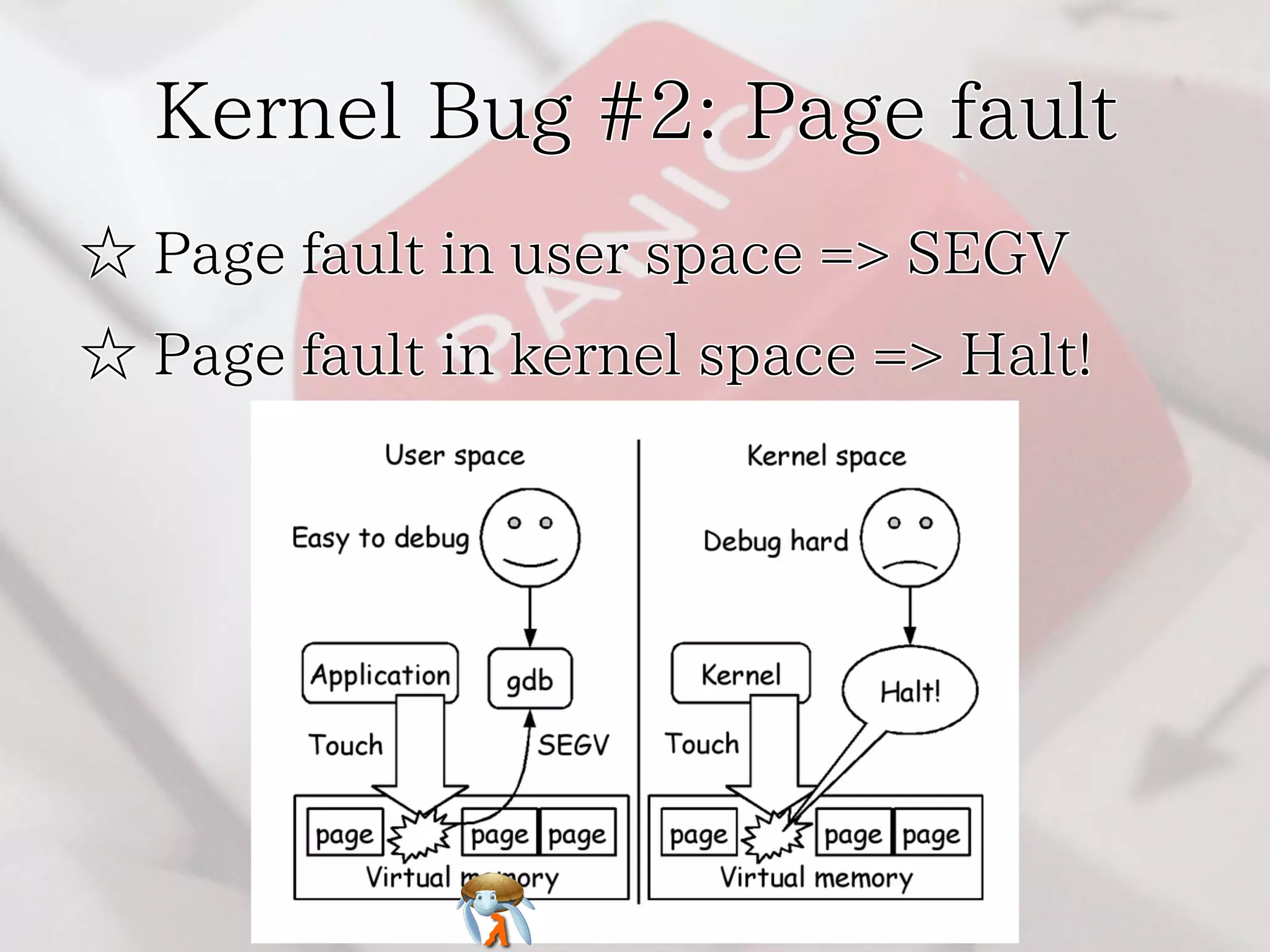

13. Kernel Bug #2: Page fault
☆ Page fault in user space => SEGV
☆ Page fault in kernel space => Halt!

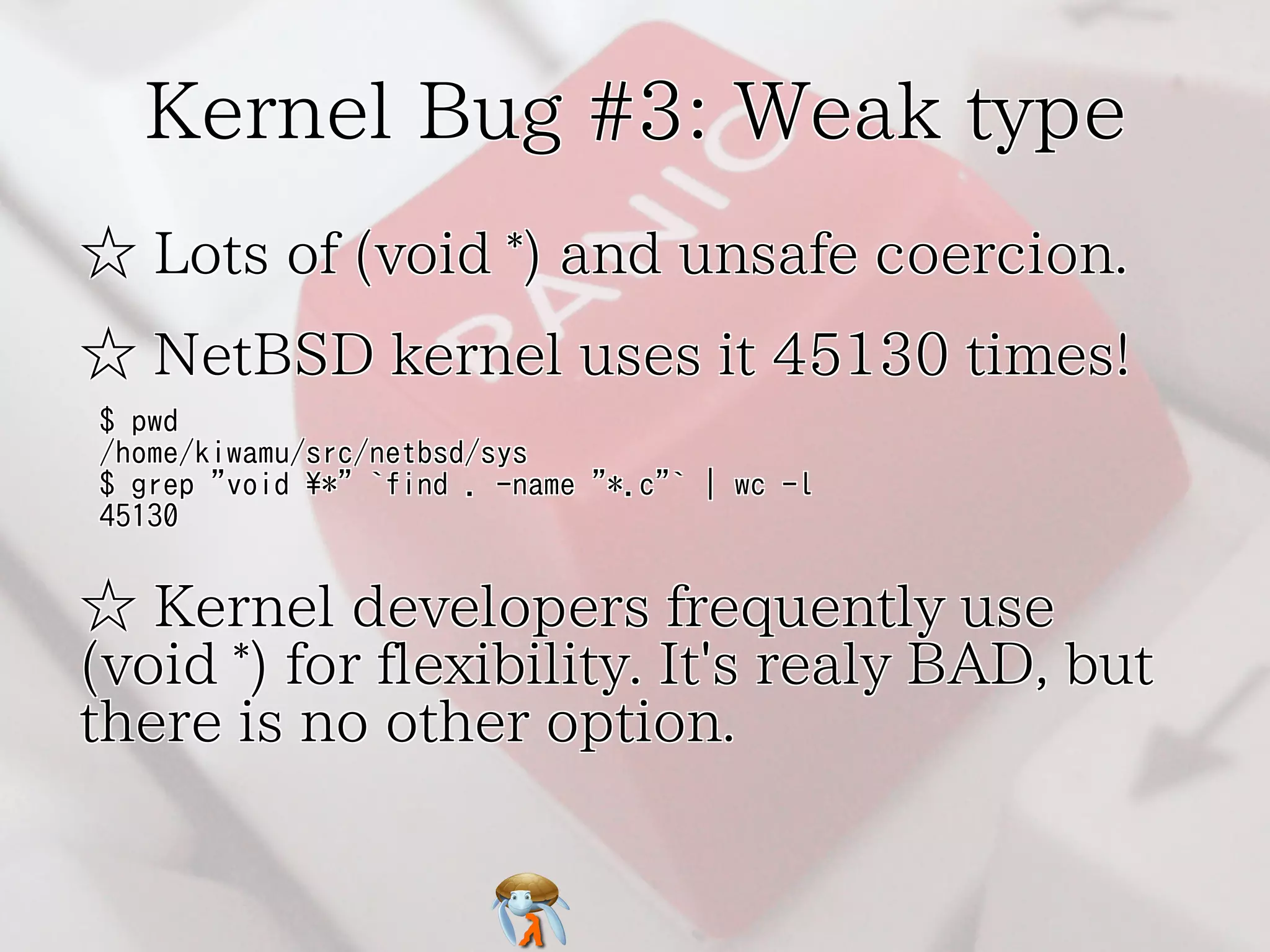

14. Kernel Bug #3: Weak type
☆ Lots of (void *) and unsafe coercion.
☆ NetBSD kernel uses it 45130 times!
$ pwd
/home/kiwamu/src/netbsd/sys
$ grep "void *" `find . -name "*.c"` | wc -l
45130
☆ Kernel developers frequently use
(void *) for flexibility. It's realy BAD, but
there is no other option.

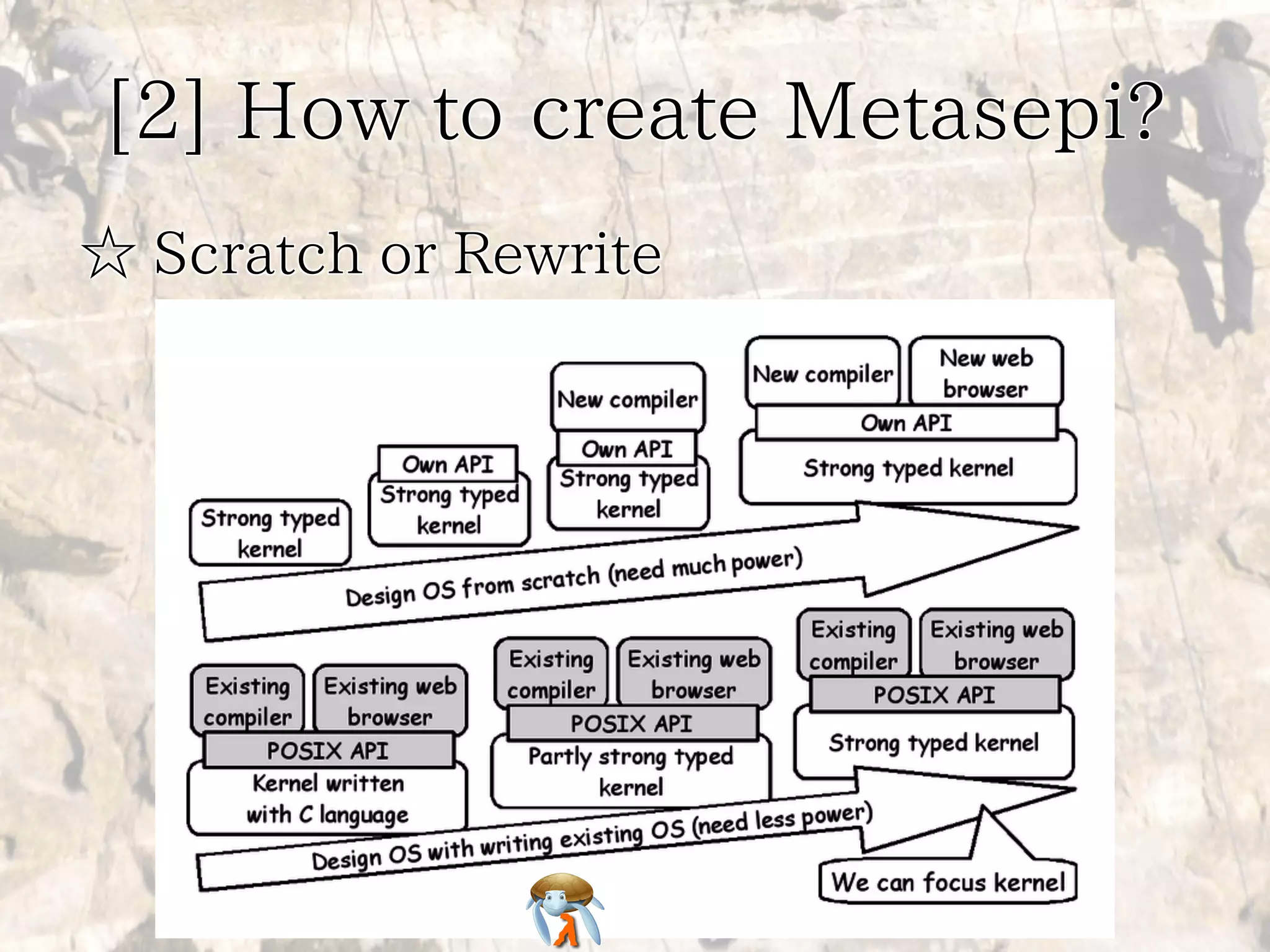

15. [2] How to create Metasepi?
☆ Scratch or Rewrite

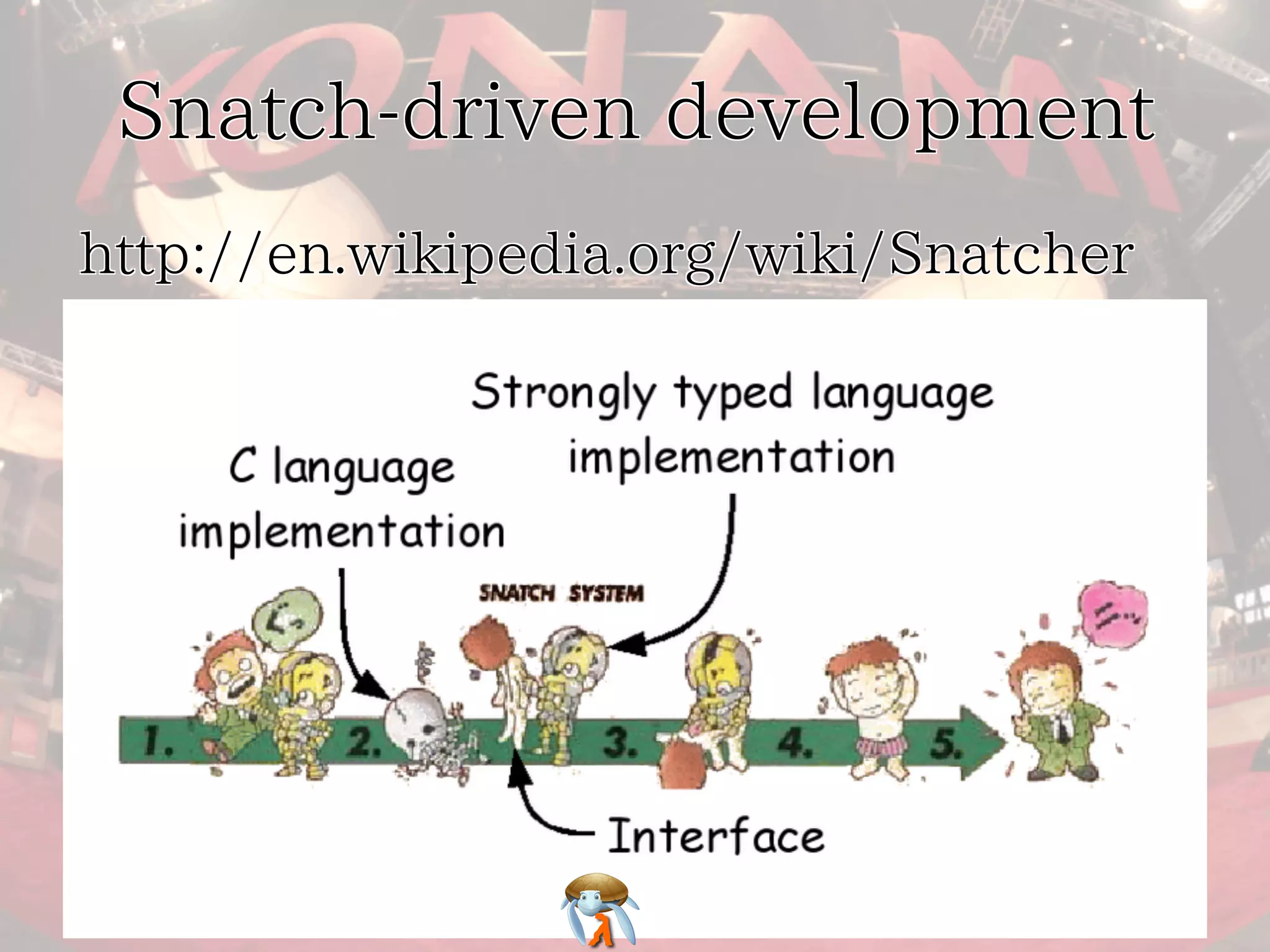

16. Snatch-driven development
http://en.wikipedia.org/wiki/Snatcher

17. Which language should we use?
☆ ATS http://www.ats-lang.org/

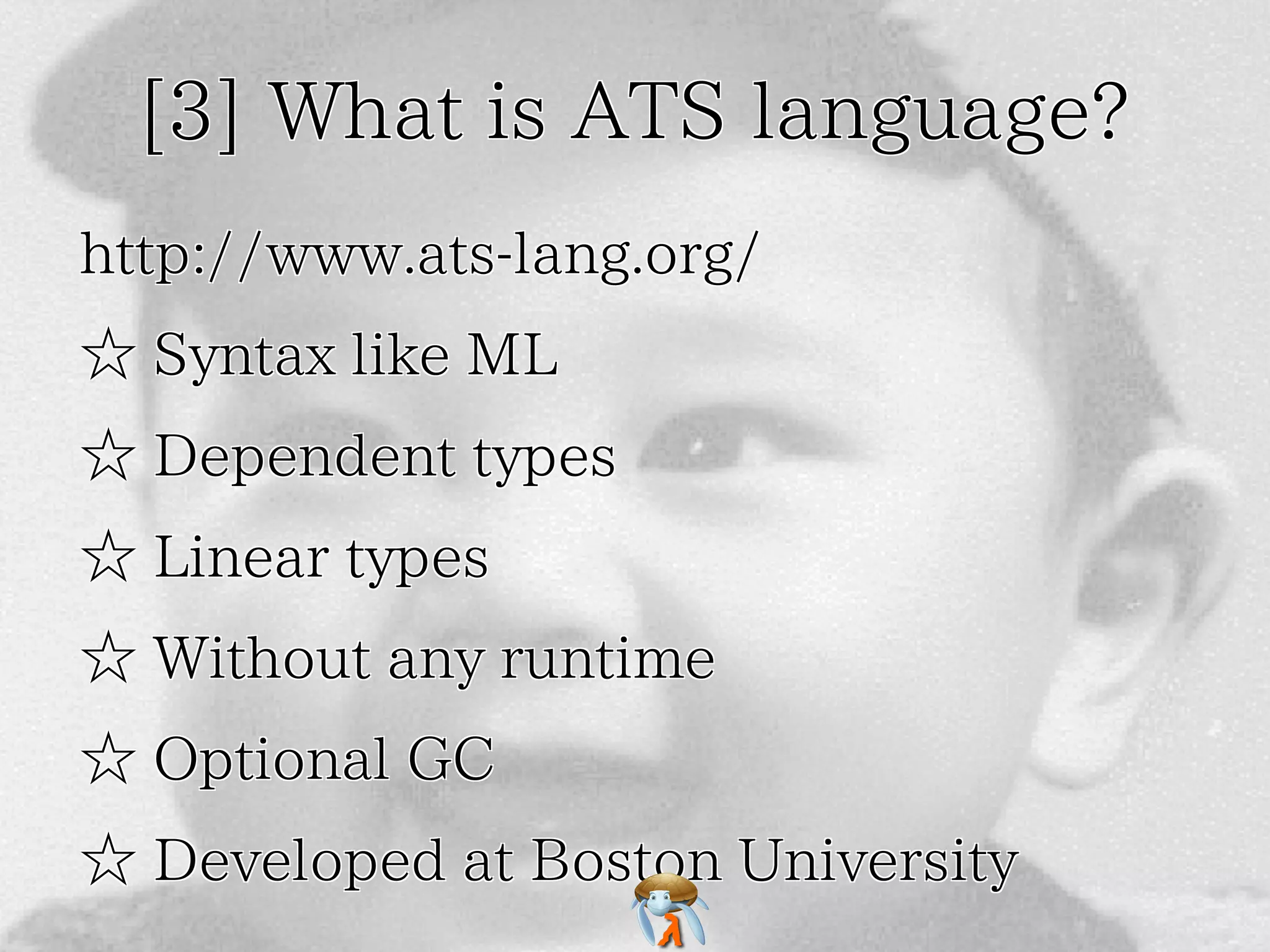

18. [3] What is ATS language?
http://www.ats-lang.org/
☆ Syntax like ML
☆ Dependent types
☆ Linear types
☆ Without any runtime
☆ Optional GC
☆ Developed at Boston University

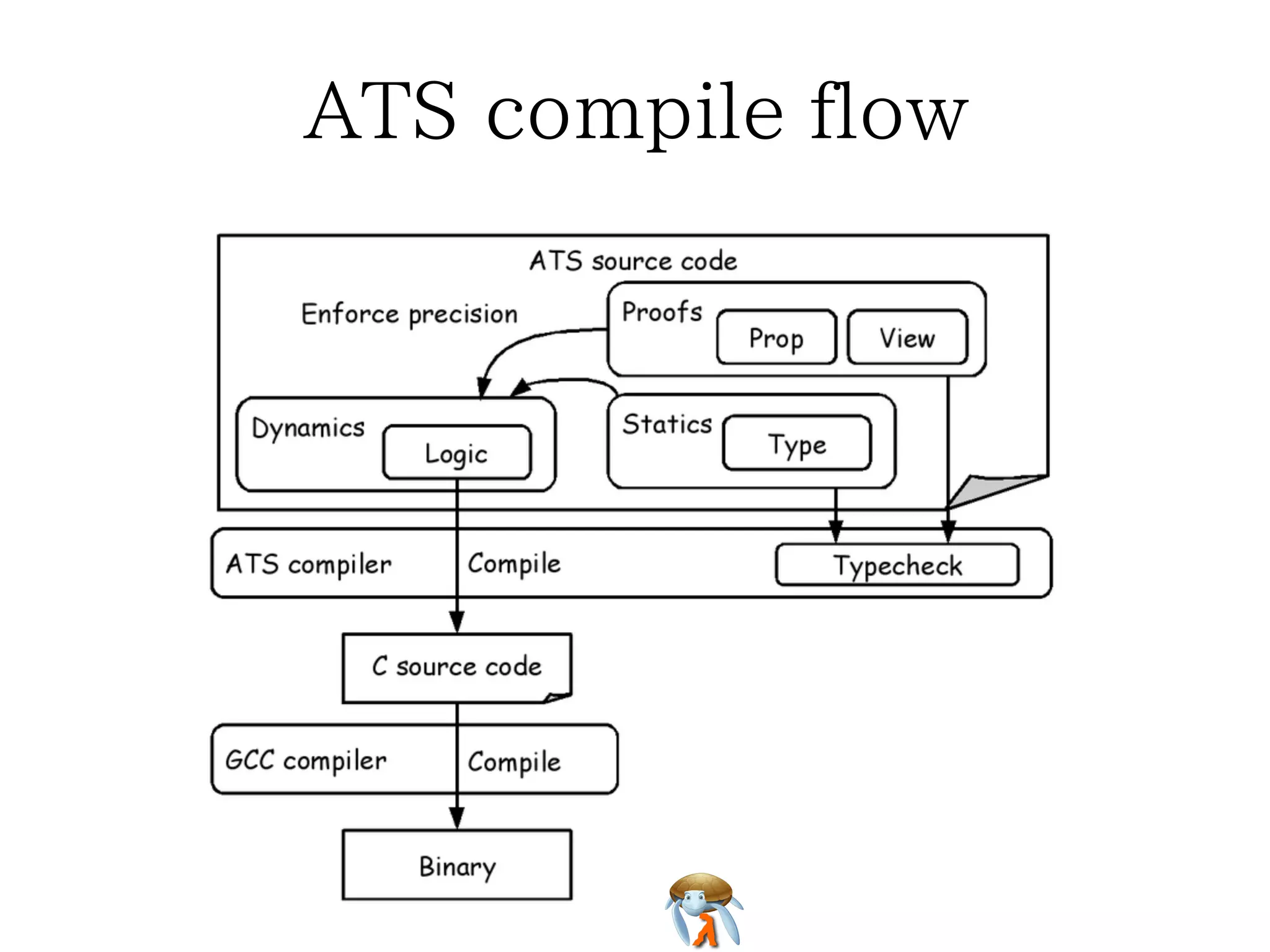

19. ATS compile flow

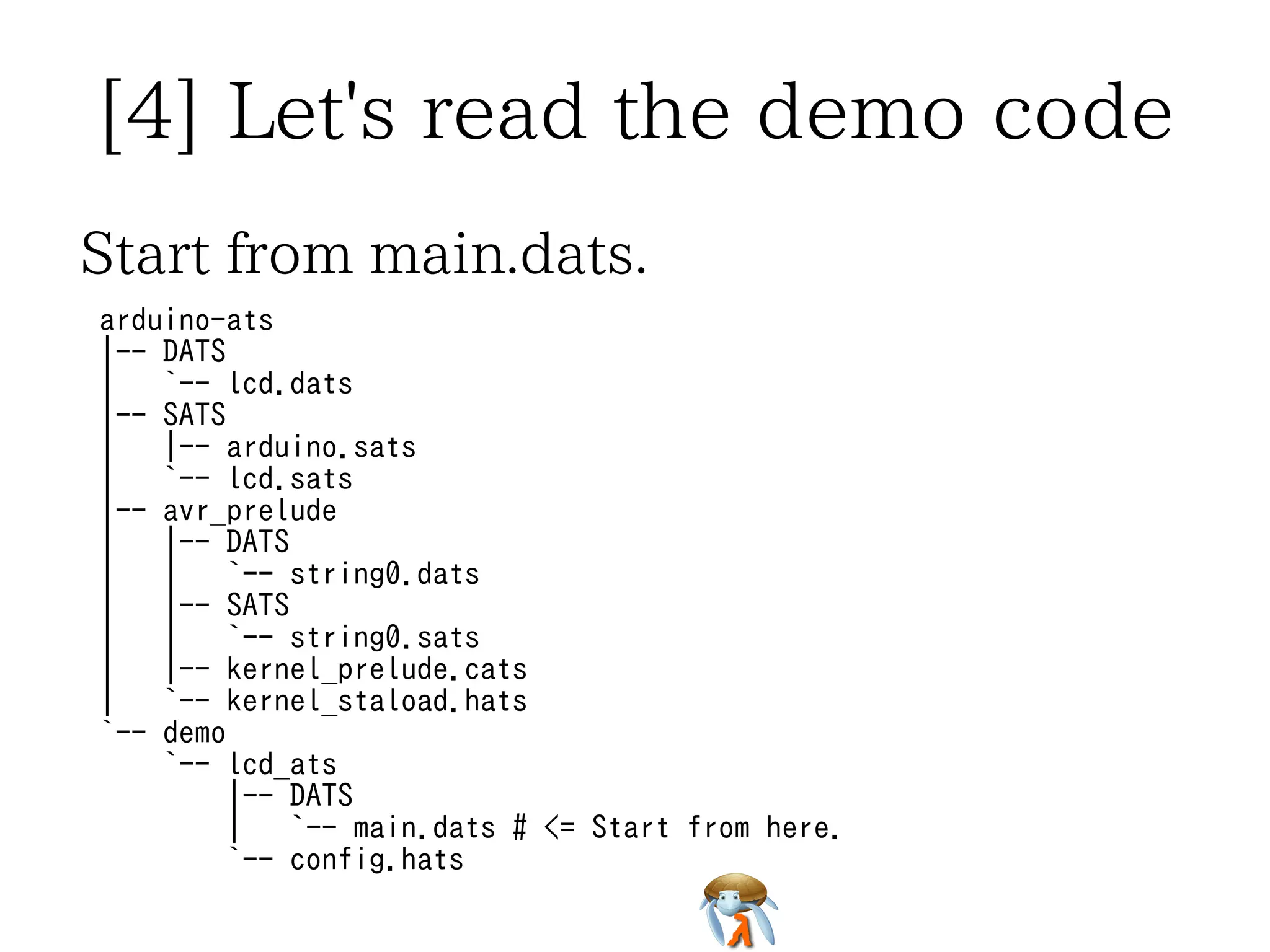

20. [4] Let's read the demo code
Start from main.dats.
arduino-ats
|-- DATS
| `-- lcd.dats
|-- SATS
| |-- arduino.sats
| `-- lcd.sats
|-- avr_prelude
| |-- DATS
| | `-- string0.dats
| |-- SATS
| | `-- string0.sats
| |-- kernel_prelude.cats
| `-- kernel_staload.hats
`-- demo
`-- lcd_ats
|-- DATS
| `-- main.dats # <= Start from here.
`-- config.hats

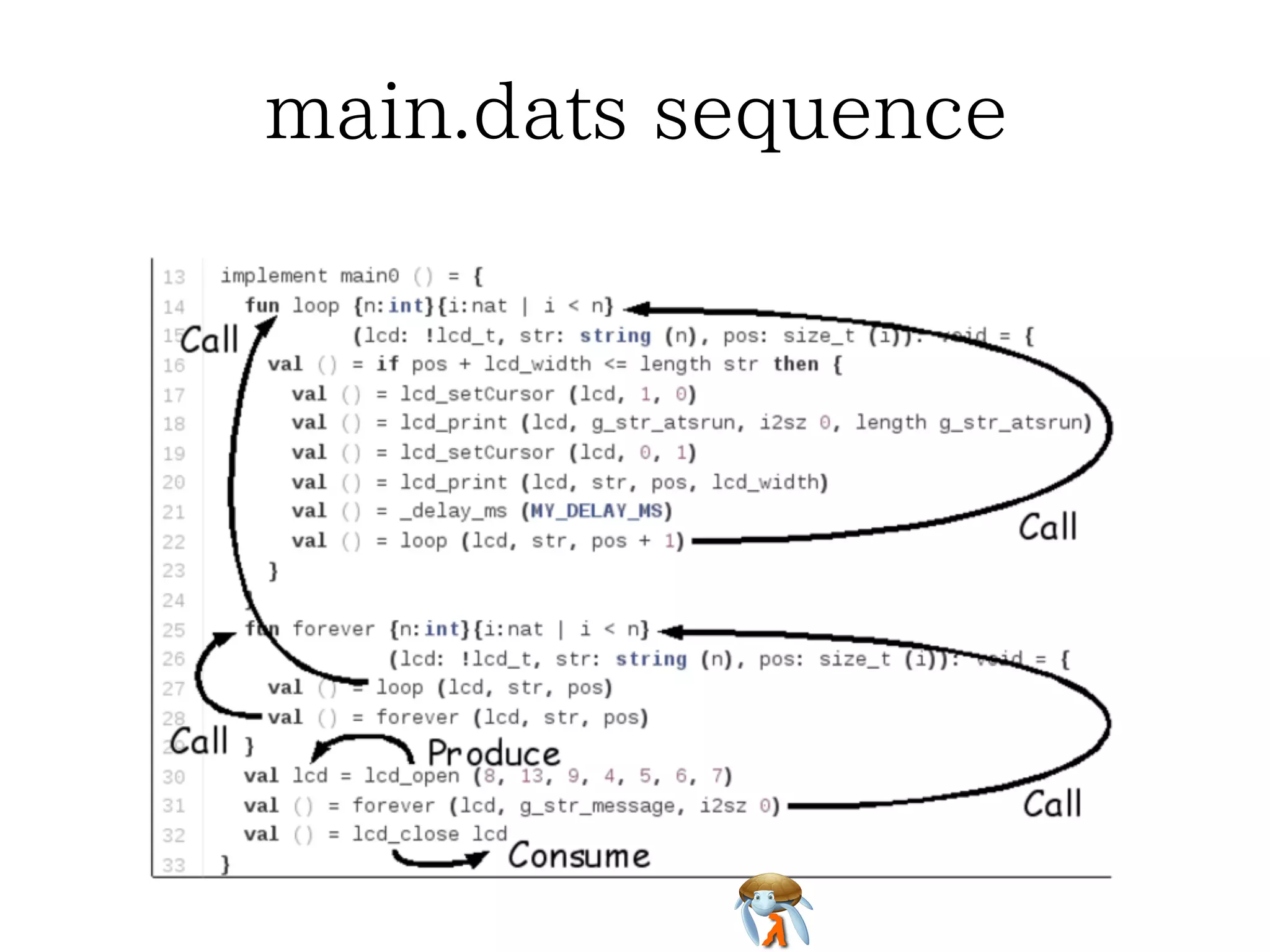

21. main.dats sequence

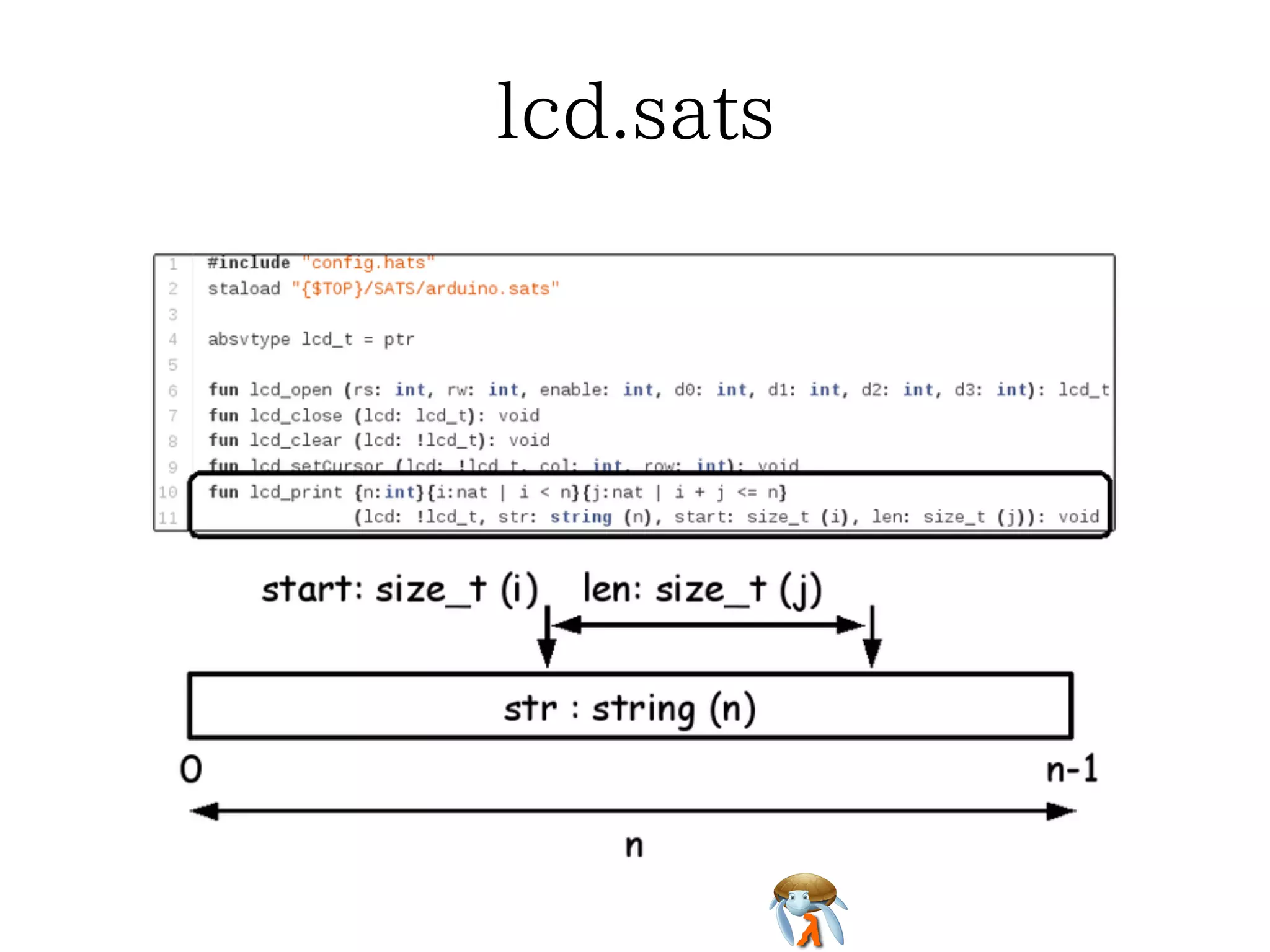

22. lcd.sats

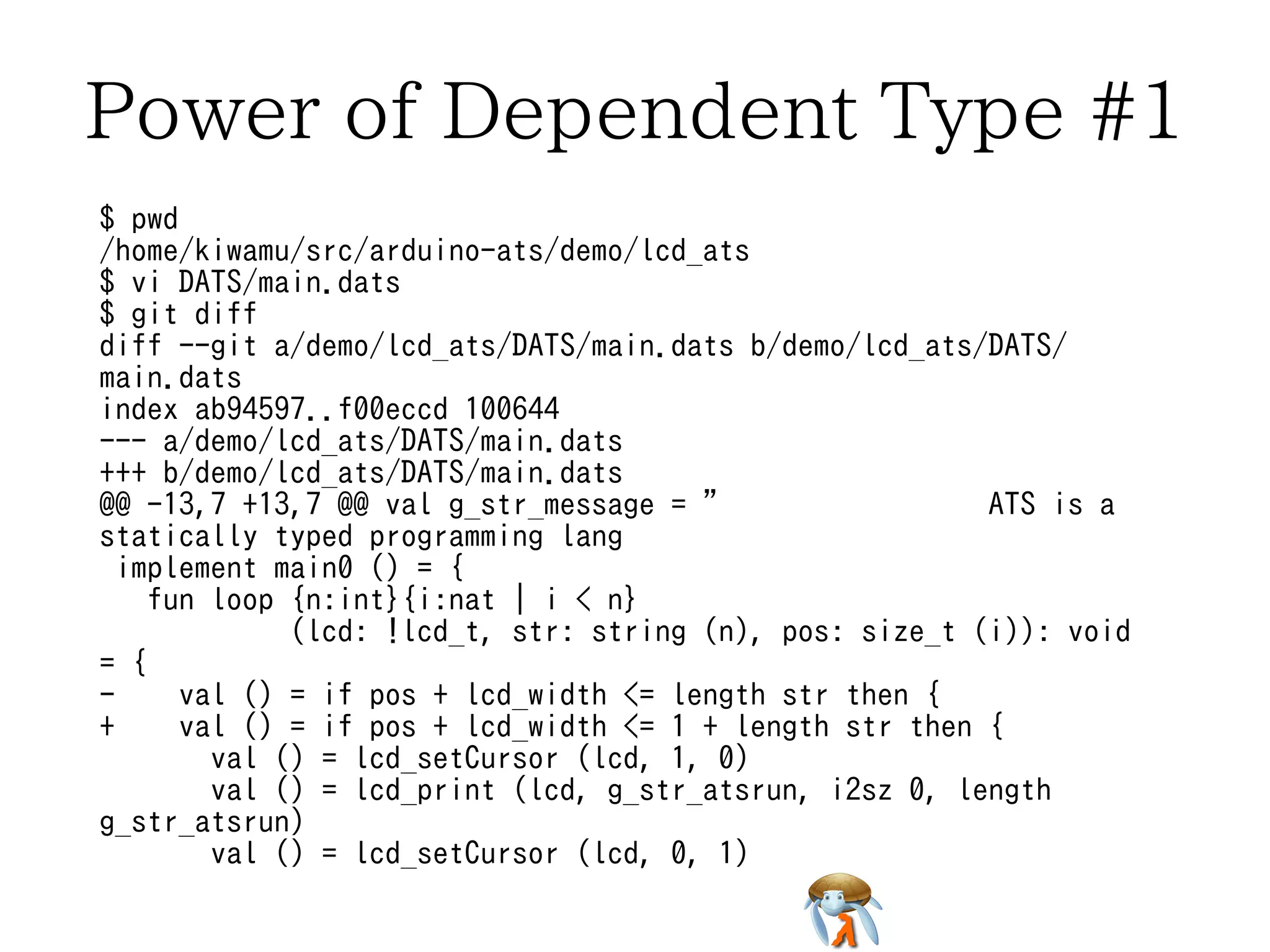

23. Power of Dependent Type #1
$ pwd
/home/kiwamu/src/arduino-ats/demo/lcd_ats
$ vi DATS/main.dats
$ git diff
diff --git a/demo/lcd_ats/DATS/main.dats b/demo/lcd_ats/DATS/
main.dats
index ab94597..f00eccd 100644
--- a/demo/lcd_ats/DATS/main.dats
+++ b/demo/lcd_ats/DATS/main.dats
@@ -13,7 +13,7 @@ val g_str_message = " ATS is a
statically typed programming lang
implement main0 () = {
fun loop {n:int}{i:nat | i < n}
(lcd: !lcd_t, str: string (n), pos: size_t (i)): void
= {
- val () = if pos + lcd_width <= length str then {
+ val () = if pos + lcd_width <= 1 + length str then {
val () = lcd_setCursor (lcd, 1, 0)
val () = lcd_print (lcd, g_str_atsrun, i2sz 0, length
g_str_atsrun)
val () = lcd_setCursor (lcd, 0, 1)

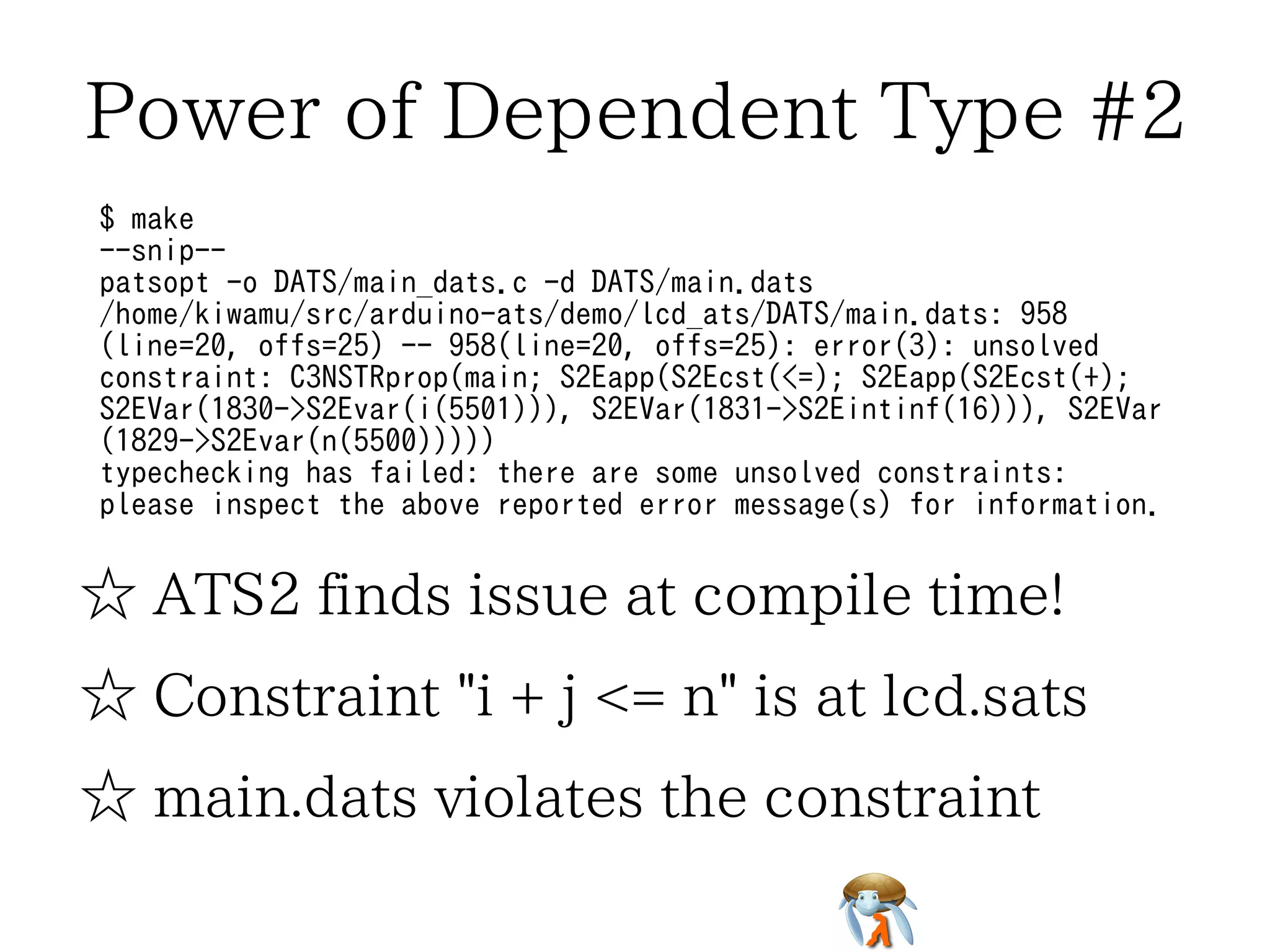

24. Power of Dependent Type #2
$ make
--snip--
patsopt -o DATS/main_dats.c -d DATS/main.dats
/home/kiwamu/src/arduino-ats/demo/lcd_ats/DATS/main.dats: 958
(line=20, offs=25) -- 958(line=20, offs=25): error(3): unsolved
constraint: C3NSTRprop(main; S2Eapp(S2Ecst(<=); S2Eapp(S2Ecst(+);
S2EVar(1830->S2Evar(i(5501))), S2EVar(1831->S2Eintinf(16))), S2EVar
(1829->S2Evar(n(5500)))))
typechecking has failed: there are some unsolved constraints:
please inspect the above reported error message(s) for information.
☆ ATS2 finds issue at compile time!
☆ Constraint "i + j <= n" is at lcd.sats
☆ main.dats violates the constraint

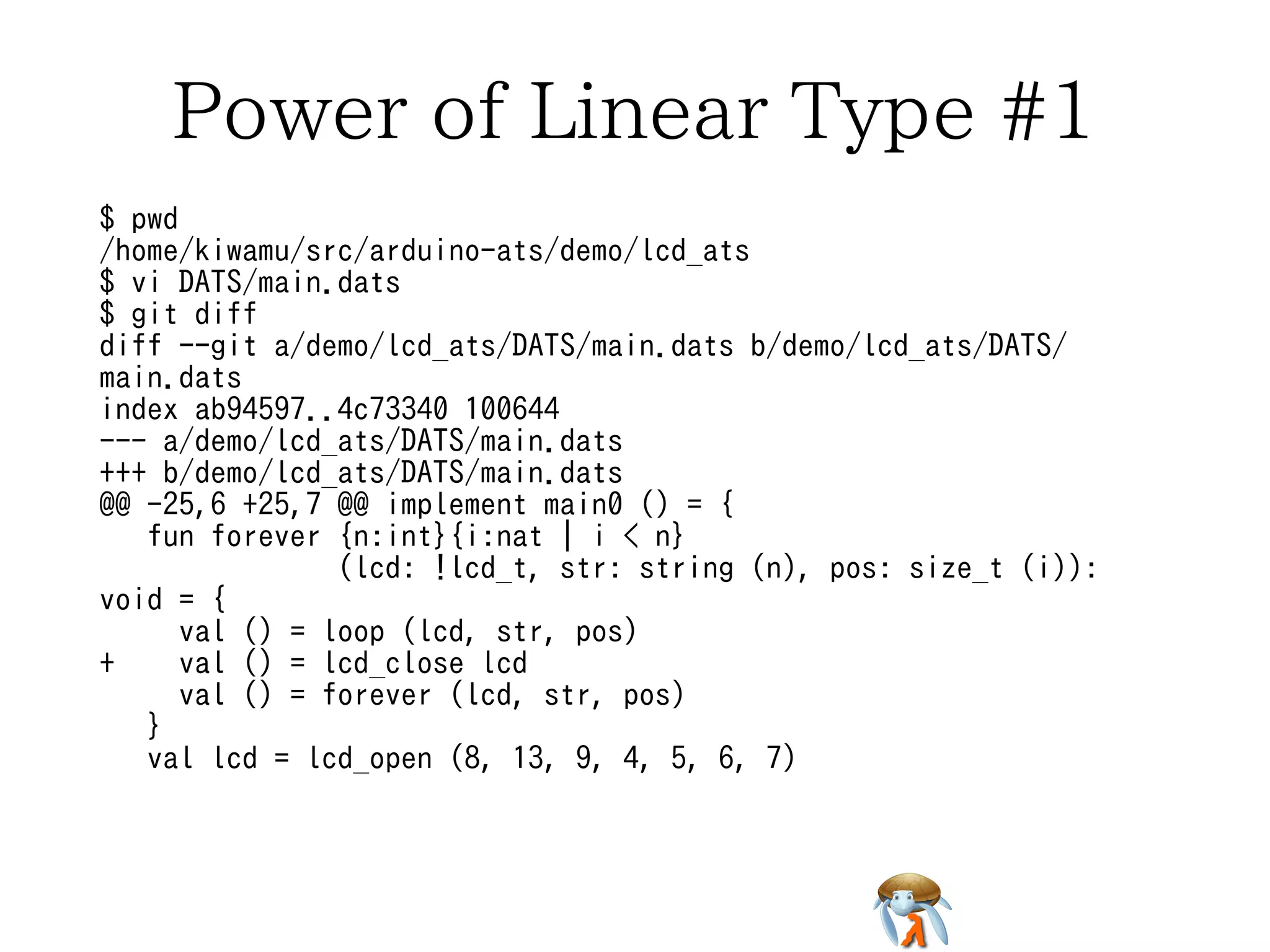

25. Power of Linear Type #1
$ pwd
/home/kiwamu/src/arduino-ats/demo/lcd_ats
$ vi DATS/main.dats
$ git diff
diff --git a/demo/lcd_ats/DATS/main.dats b/demo/lcd_ats/DATS/
main.dats
index ab94597..4c73340 100644
--- a/demo/lcd_ats/DATS/main.dats
+++ b/demo/lcd_ats/DATS/main.dats
@@ -25,6 +25,7 @@ implement main0 () = {
fun forever {n:int}{i:nat | i < n}
(lcd: !lcd_t, str: string (n), pos: size_t (i)):
void = {
val () = loop (lcd, str, pos)
+ val () = lcd_close lcd
val () = forever (lcd, str, pos)
}
val lcd = lcd_open (8, 13, 9, 4, 5, 6, 7)

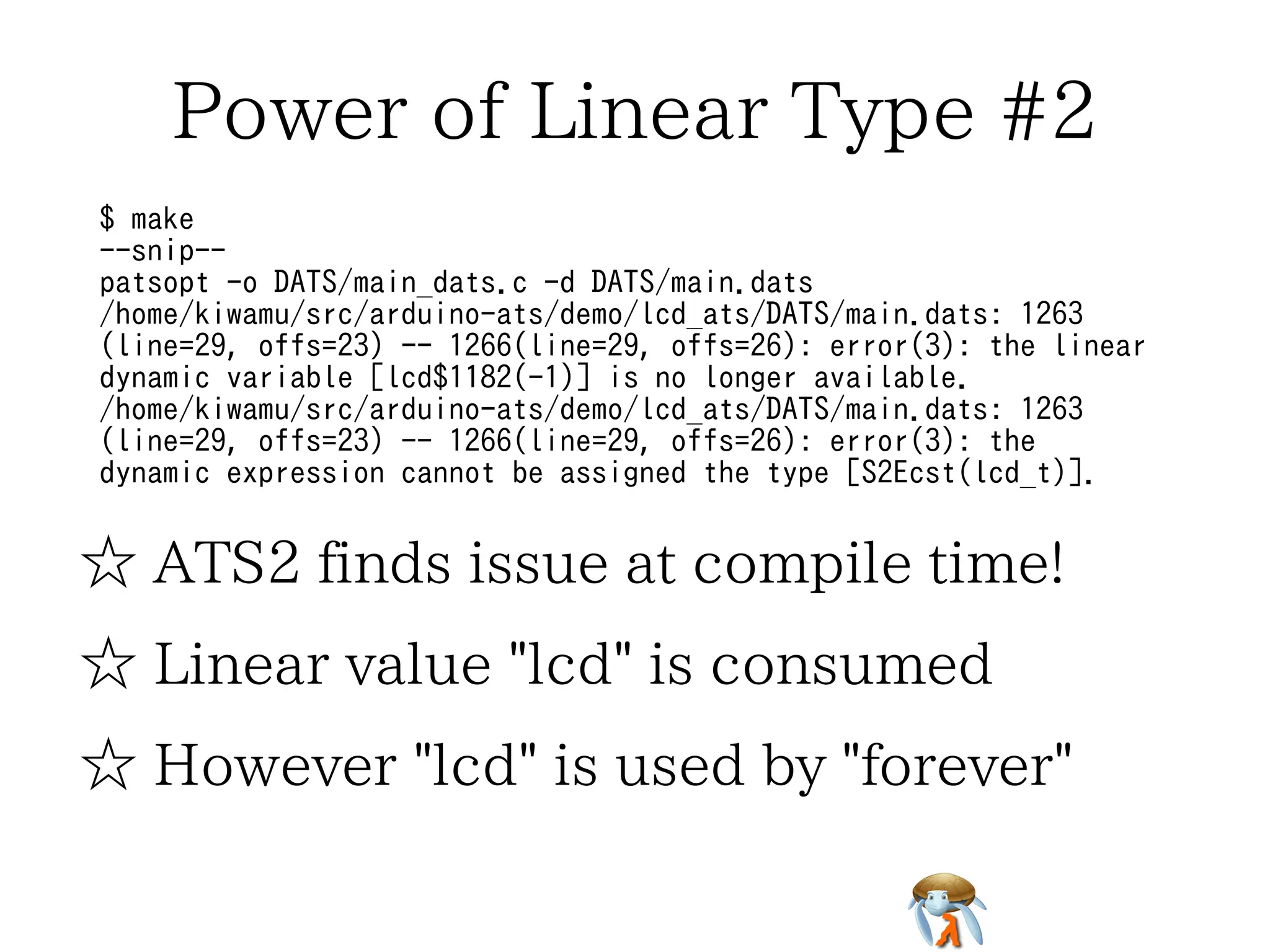

26. Power of Linear Type #2
$ make
--snip--
patsopt -o DATS/main_dats.c -d DATS/main.dats
/home/kiwamu/src/arduino-ats/demo/lcd_ats/DATS/main.dats: 1263
(line=29, offs=23) -- 1266(line=29, offs=26): error(3): the linear
dynamic variable [lcd$1182(-1)] is no longer available.
/home/kiwamu/src/arduino-ats/demo/lcd_ats/DATS/main.dats: 1263
(line=29, offs=23) -- 1266(line=29, offs=26): error(3): the
dynamic expression cannot be assigned the type [S2Ecst(lcd_t)].
☆ ATS2 finds issue at compile time!
☆ Linear value "lcd" is consumed
☆ However "lcd" is used by "forever"

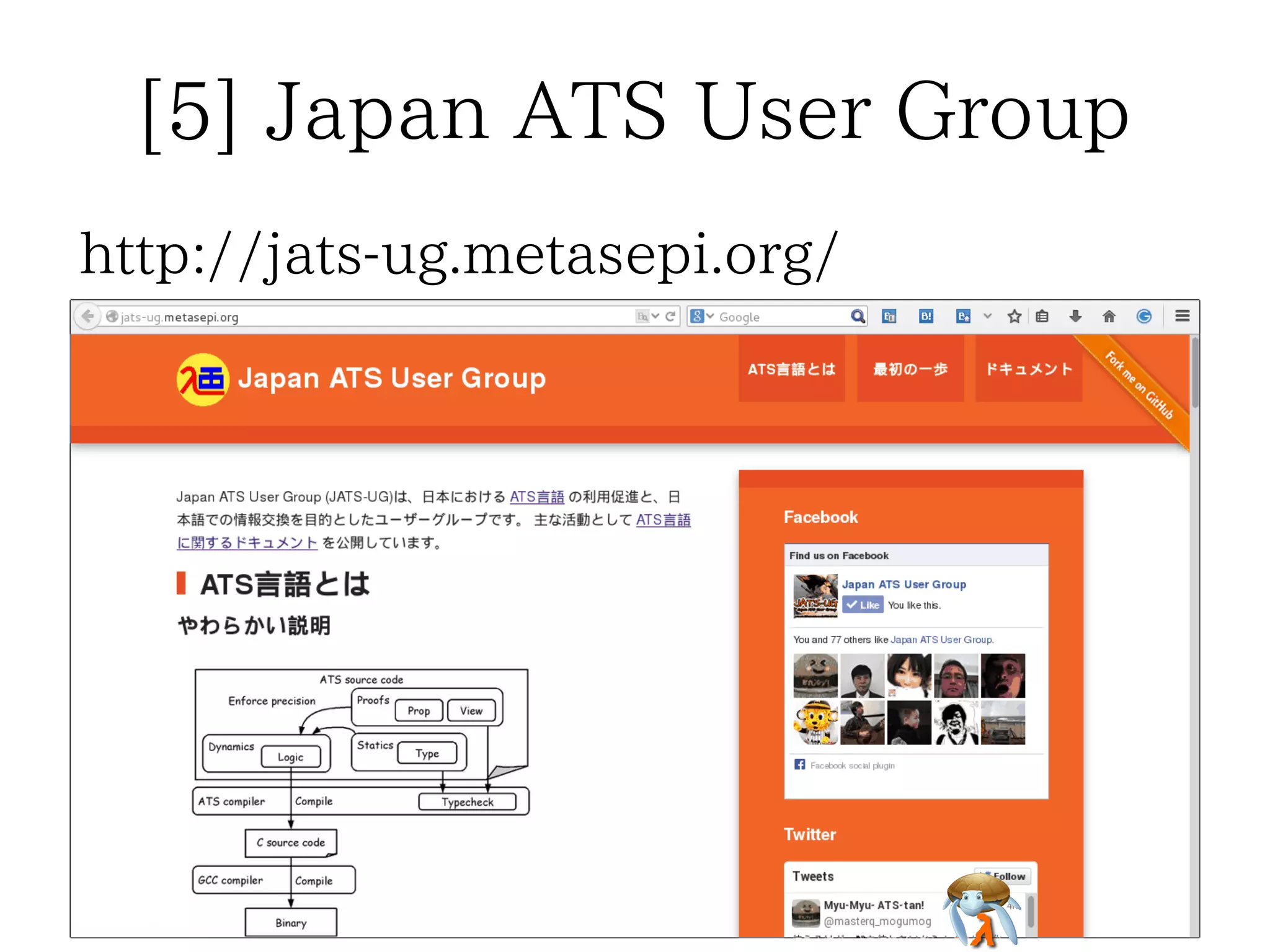

27. [5] Japan ATS User Group
http://jats-ug.metasepi.org/

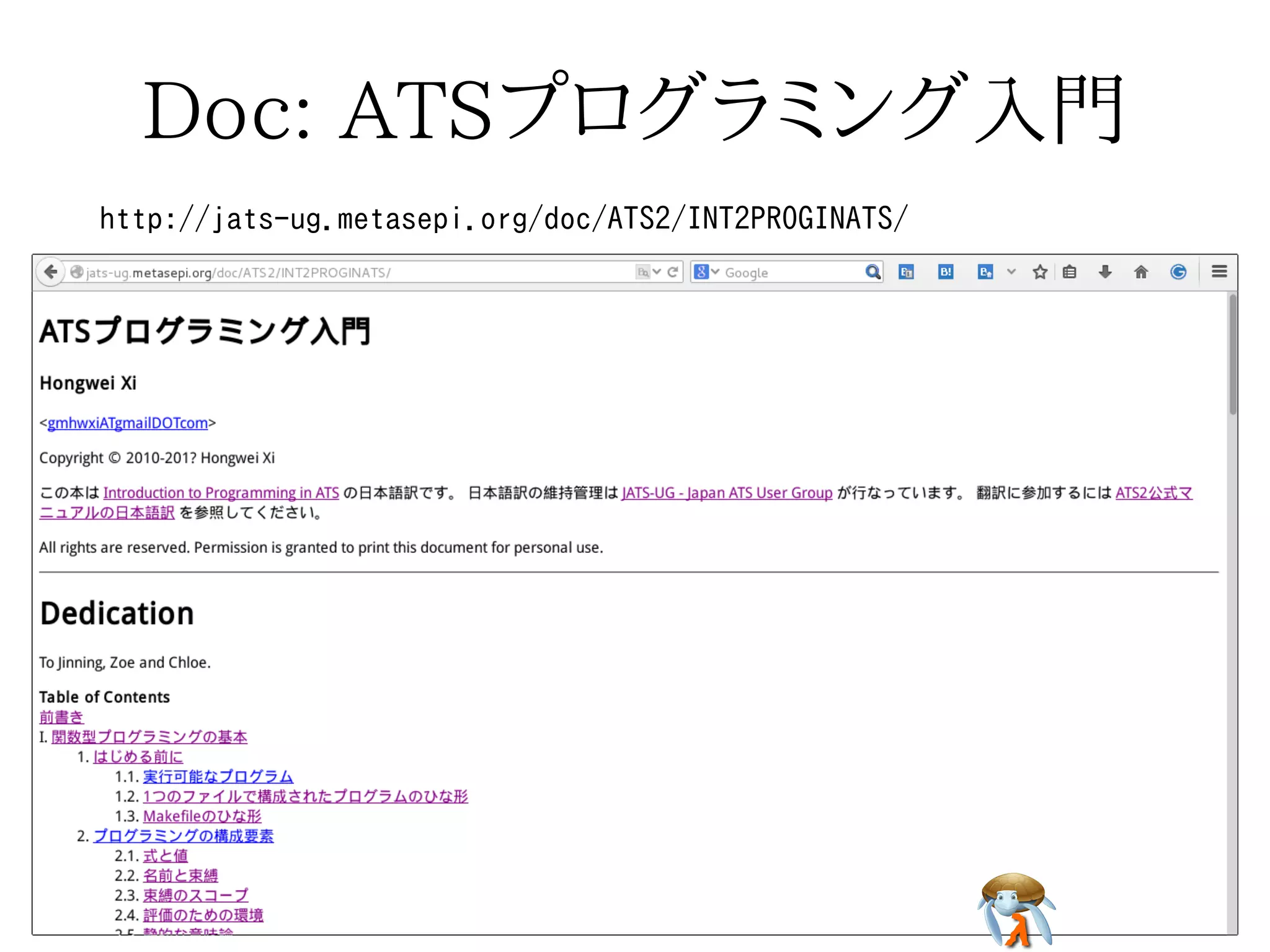

28. Doc: ATSプログラミング入門
hhhttttttppp::://////jjjaaatttsss---uuuggg...mmmeeetttaaassseeepppiii...ooorrrggg///dddoooccc///AAATTTSSS222///IIINNNTTT222PPPRRROOOGGGIIINNNAAATTTSSS///

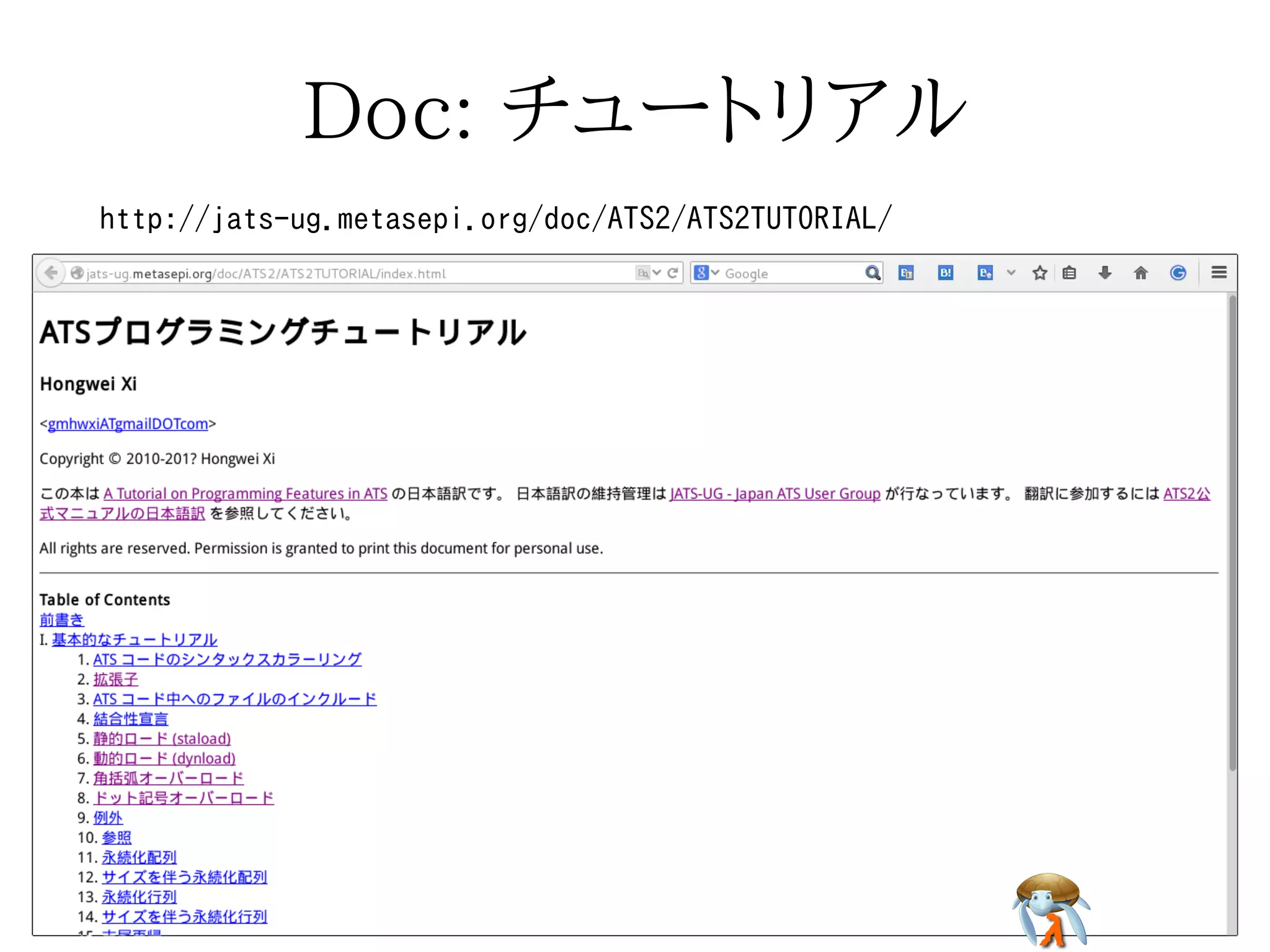

29. Doc: チュートリアル
hhhttttttppp::://////jjjaaatttsss---uuuggg...mmmeeetttaaassseeepppiii...ooorrrggg///dddoooccc///AAATTTSSS222///AAATTTSSS222TTTUUUTTTOOORRRIIIAAALLL///

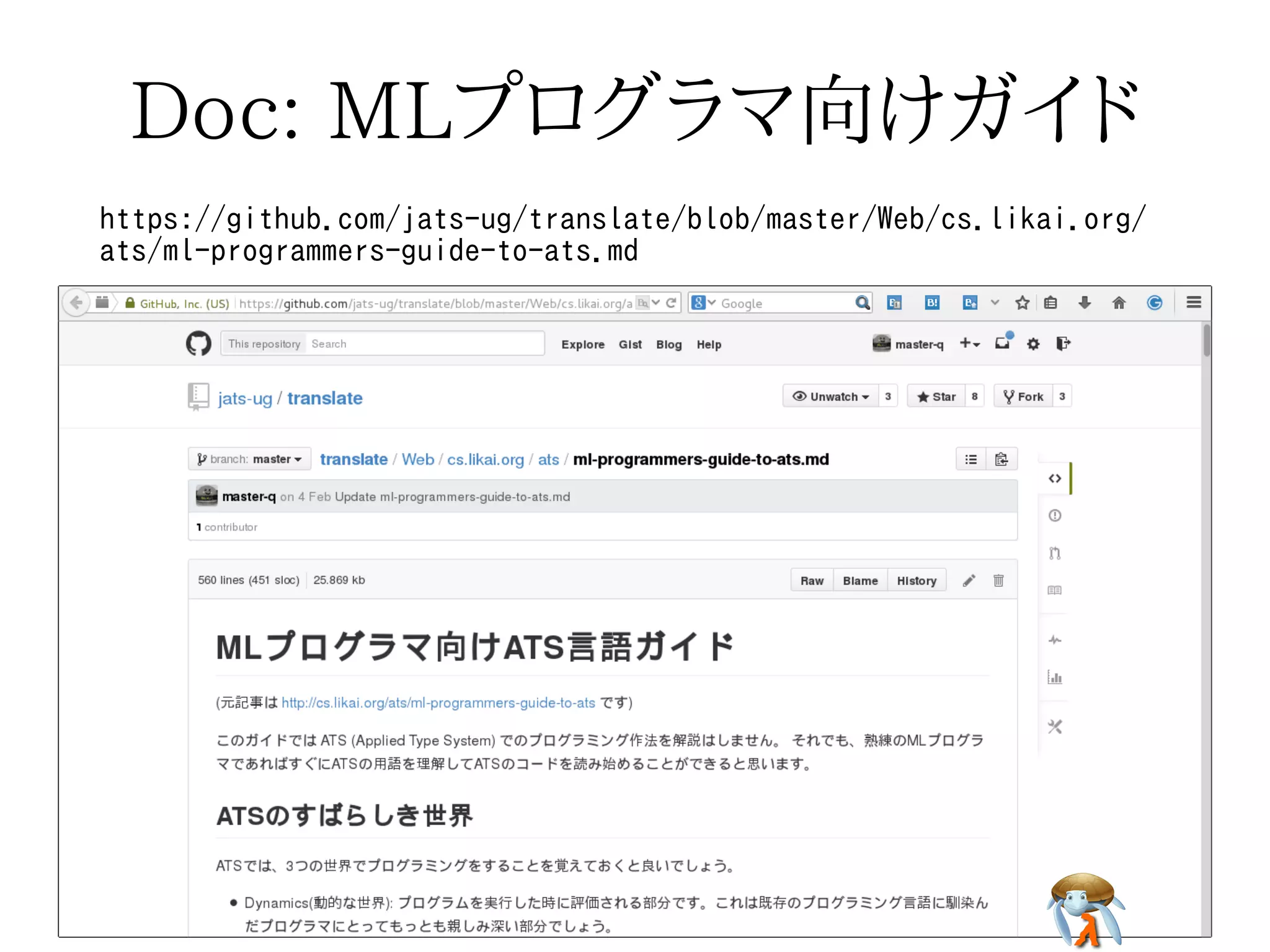

30. Doc: MLプログラマ向けガイド
https://github.com/jats-ug/translate/blob/master/Web/cs.likai.org/
ats/ml-programmers-guide-to-ats.md

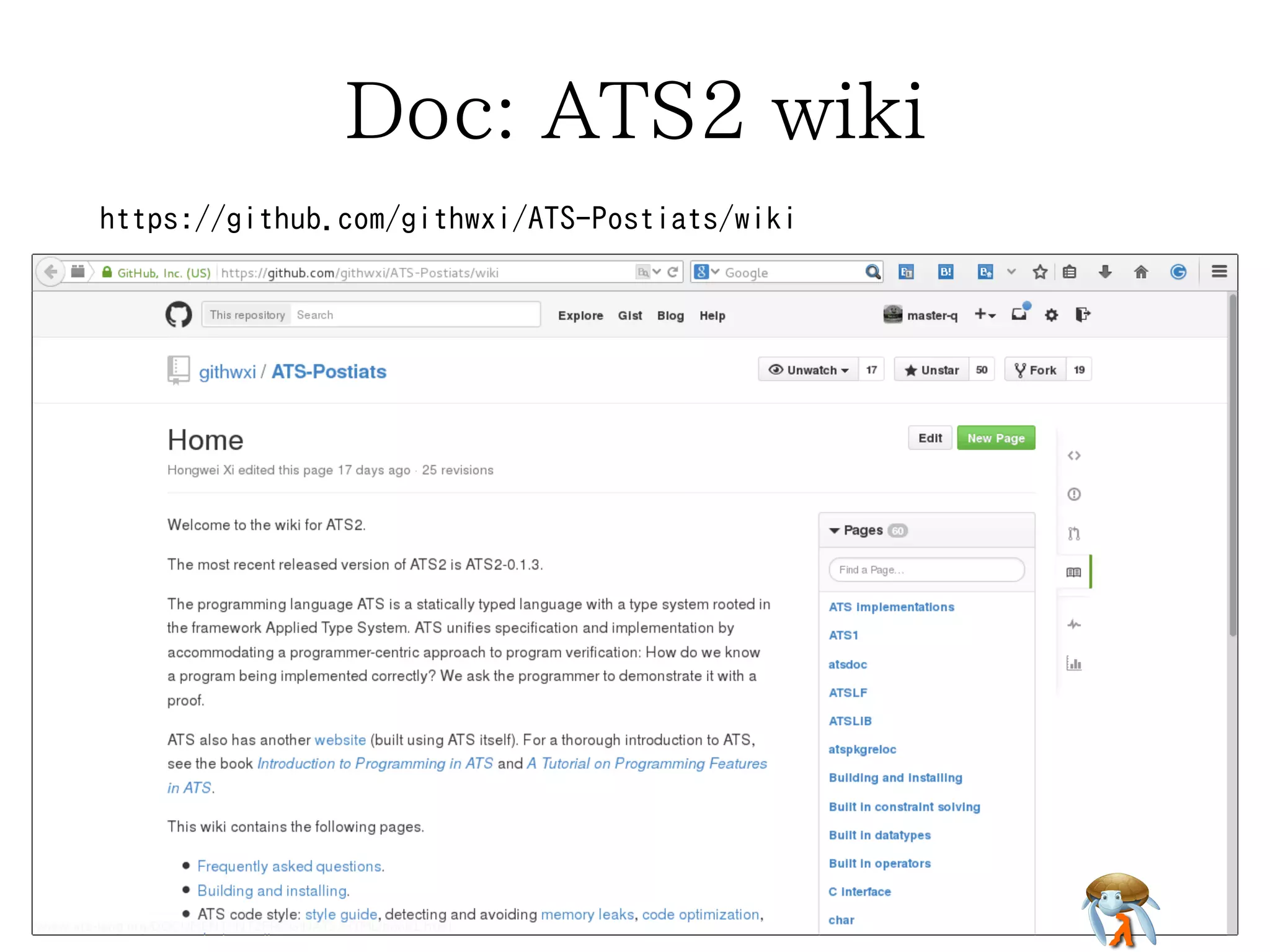

31. Doc: ATS2 wiki
hhhttttttpppsss::://////gggiiittthhhuuubbb...cccooommm///gggiiittthhhwwwxxxiii///AAATTTSSS---PPPooossstttiiiaaatttsss///wwwiiikkkiii

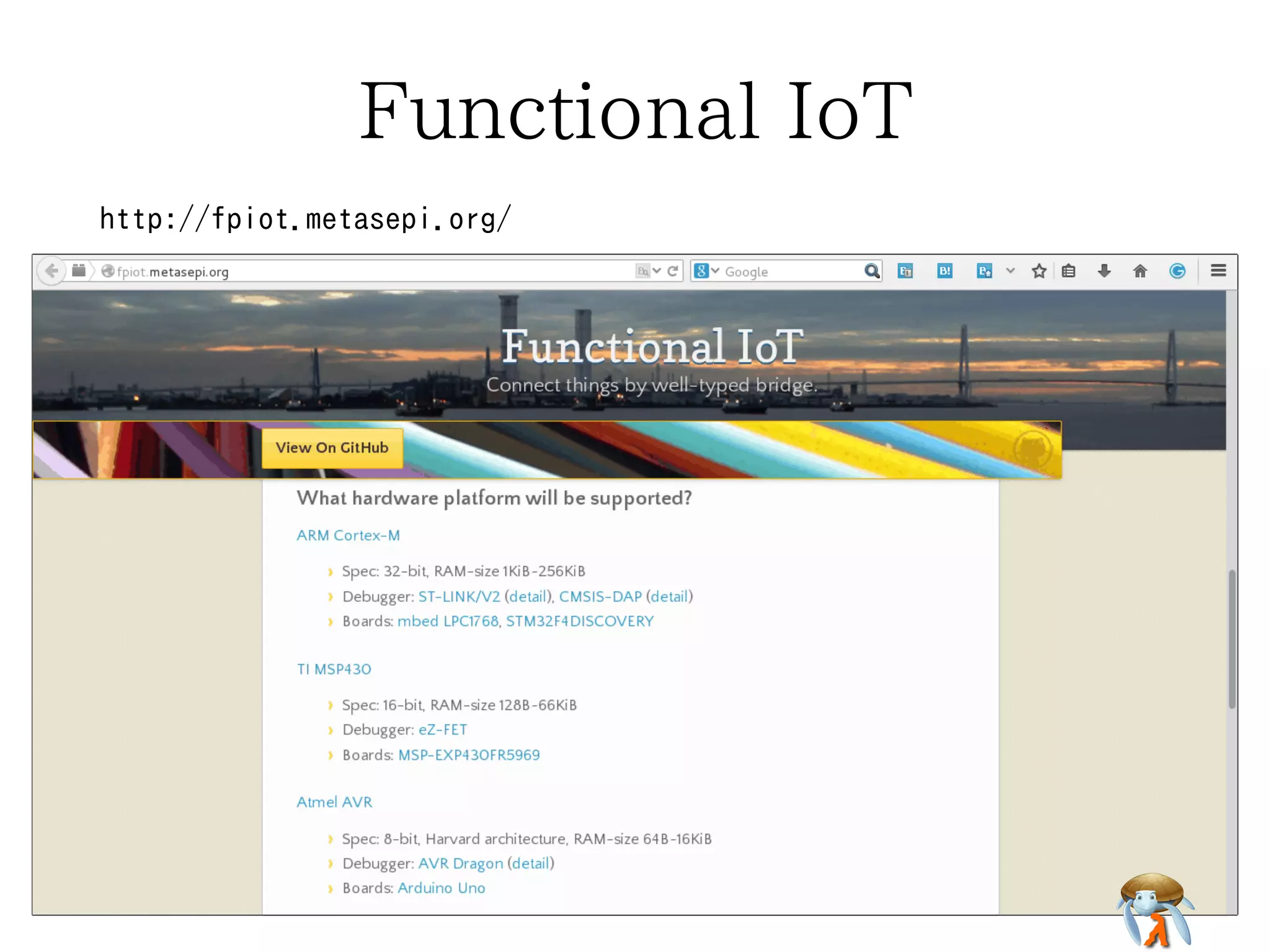

32. Functional IoT
hhhttttttppp::://////fffpppiiiooottt...mmmeeetttaaassseeepppiii...ooorrrggg///

33. Follow me!
https://twitter.com/jats_ug
