2012 Retail Chevrolet Sonic 5dr HB LTZ w/2LZ 1JW48
SELECTED MODEL & OPTIONS
SELECTED MODEL - 2012 Retail 1JW48 5dr HB LTZ w/2LZ

Code Description MSRP
1JW48 2012 Chevrolet Sonic 5dr HB LTZ w/2LZ $18,495.00

SELECTED VEHICLE COLORS - 2012 Retail 1JW48 5dr HB LTZ w/2LZ

Code Description
- Interior: No color has been selected.
- Exterior 1: No color has been selected.
- Exterior 2: No color has been selected.

SELECTED OPTIONS - 2012 Retail 1JW48 5dr HB LTZ w/2LZ

CATEGORY
EMISSIONS
FE9 EMISSIONS, FEDERAL REQUIREMENTS $0.00
ENGINE
LUW ENGINE, ECOTEC 1.8L VARIABLE VALVE TIMING DOHC 4- $0.00
CYLINDER SEQUENTIAL MFI estimated (138 hp [103 kW] @ 6300 rpm,
125 lb-ft of torque [168.8 N-m] @ 3800 rpm) (STD)
TRANSMISSION
MM1 TRANSMISSION, AUTOMATIC (STD) $0.00
PREFERRED EQUIPMENT GROUP
2LZ 2LZ PREFERRED EQUIPMENT GROUP includes Standard Equipment $0.00
PAINT
GBE CRYSTAL RED TINTCOAT $325.00
PAINT SCHEME
___ STANDARD PAINT $0.00
SEAT TYPE

Report content is based on current data version referenced. Any performance-related calculations are offered solely as
guidelines. Actual unit performance will depend on your operating conditions.
GM AutoBook, Data Version: 185.0, Data updated 8/9/2011 3:23:00 PM
©Copyright 1986-2005 Chrome Systems Corporation. All rights reserved.
Customer File:
August 18, 2011 11:58:07 AM Page 1

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

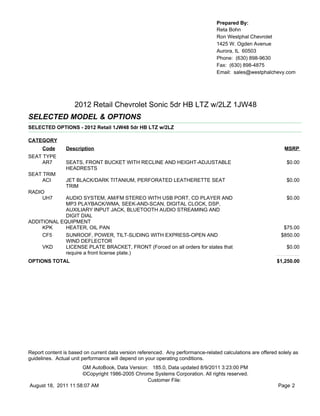

SELECTED MODEL & OPTIONS
SELECTED OPTIONS - 2012 Retail 1JW48 5dr HB LTZ w/2LZ

CATEGORY
SEAT TYPE
AR7 SEATS, FRONT BUCKET WITH RECLINE AND HEIGHT-ADJUSTABLE $0.00
HEADRESTS
SEAT TRIM
ACI JET BLACK/DARK TITANIUM, PERFORATED LEATHERETTE SEAT $0.00
TRIM
RADIO
UH7 AUDIO SYSTEM, AM/FM STEREO WITH USB PORT, CD PLAYER AND $0.00
MP3 PLAYBACK/WMA, SEEK-AND-SCAN, DIGITAL CLOCK, DSP,
AUXILIARY INPUT JACK, BLUETOOTH AUDIO STREAMING AND
DIGIT DIAL
ADDITIONAL EQUIPMENT
KPK HEATER, OIL PAN $75.00
CF5 SUNROOF, POWER, TILT-SLIDING WITH EXPRESS-OPEN AND $850.00
WIND DEFLECTOR
VKD LICENSE PLATE BRACKET, FRONT (Forced on all orders for states that $0.00
require a front license plate.)
OPTIONS TOTAL $1,250.00

Customer File:
August 18, 2011 11:58:07 AM Page 2

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

PRICING SUMMARY
PRICING SUMMARY - 2012 Retail 1JW48 5dr HB LTZ w/2LZ

MSRP
Base Price $18,495.00
Total Options: $1,250.00
Vehicle Subtotal $19,745.00

Advert/Adjustments $0.00
Destination Charge $760.00

GRAND TOTAL $20,505.00

Customer File:
August 18, 2011 11:58:07 AM Page 3

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

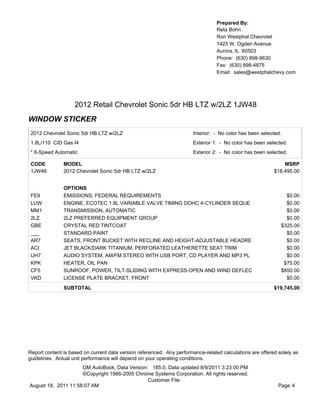

WINDOW STICKER
2012 Chevrolet Sonic 5dr HB LTZ w/2LZ Interior: - No color has been selected.
1.8L/110 CID Gas I4 Exterior 1: - No color has been selected.
* 6-Speed Automatic Exterior 2: - No color has been selected.

CODE MODEL MSRP
1JW48 2012 Chevrolet Sonic 5dr HB LTZ w/2LZ $18,495.00

OPTIONS
LUW ENGINE, ECOTEC 1.8L VARIABLE VALVE TIMING DOHC 4-CYLINDER SEQUE $0.00
MM1 TRANSMISSION, AUTOMATIC $0.00
2LZ 2LZ PREFERRED EQUIPMENT GROUP $0.00
AR7 SEATS, FRONT BUCKET WITH RECLINE AND HEIGHT-ADJUSTABLE HEADRE $0.00
ACI JET BLACK/DARK TITANIUM, PERFORATED LEATHERETTE SEAT TRIM $0.00
UH7 AUDIO SYSTEM, AM/FM STEREO WITH USB PORT, CD PLAYER AND MP3 PL $0.00
CF5 SUNROOF, POWER, TILT-SLIDING WITH EXPRESS-OPEN AND WIND DEFLEC $850.00
VKD LICENSE PLATE BRACKET, FRONT $0.00
SUBTOTAL $19,745.00

Customer File:
August 18, 2011 11:58:07 AM Page 4

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

WINDOW STICKER
Advert/Adjustments $0.00
Destination Charge $760.00
TOTAL PRICE $20,505.00
Est City: - TBD - mpg
Est Highway: - TBD - mpg
Est Highway Cruising Range: - TBD - mi

Customer File:
August 18, 2011 11:58:07 AM Page 5

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

STANDARD EQUIPMENT
STANDARD EQUIPMENT - 2012 Retail 1JW48 5dr HB LTZ w/2LZ

ENTERTAINMENT
• Audio system, AM/FM stereo with USB port, CD player and MP3 playback/WMA, seek-and-scan, digital clock, DSP,
auxiliary input jack, Bluetooth audio streaming and digit dial
• Audio system feature, premium 6-speaker system
• Audio system feature, USB port
• Audio system feature, auxiliary input jack
• Bluetooth for phone, personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface)
• Sirius XM Satellite Radio is standard on nearly all 2012 GM models. Enjoy a 3-month trial to the 'XM Select'
package, with over 170 channels including commercial-free music, all your favorite sports, exclusive talk and
entertainment. And now add premium channels to your trial at no-cost. Welcome to the world of satellite radio.
(Requires a subscription sold separately by SiriusXM after the first 90 days which is continuous until you call
SiriusXM to cancel. Available only in the 48 contiguous United States and D.C. Visit siriusxm.com for details.)
EXTERIOR
• Wheels, 17" (43.2 cm) painted aluminum
• Tires, P205/50R17 all-season, blackwall
• Tire, compact spare
• Headlamps, halogen composite
• Headlamp control, automatic on and off
• Fog lamps, front
• Mirrors, outside heated power-adjustable, body-color, manual-folding
• Glass, solar absorbing, tinted
• Wipers, front intermittent, variable
• Wiper, rear intermittent with washer
• Spoiler, rear, roof-mounted, large, body-color
• Moldings, chrome belt-line
• Door handles, body-color with chrome strip
• Lift handle and release lever, rear, chrome

Customer File:
August 18, 2011 11:58:07 AM Page 6

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

STANDARD EQUIPMENT

INTERIOR
• Seats, front bucket with recline and height-adjustable headrests
• Seat trim, perforated leatherette seating surfaces
• Seat adjuster, driver 4-way manual
• Seat adjuster, front passenger 2-way manual
• Seats, heated driver and front passenger
• Armrest, driver seat
• Seat, rear 60/40 split-folding with outboard height-adjustable headrests
• Floor mats, carpeted front and rear
• Steering column, tilt and telescopic
• Steering wheel, leather-wrapped
• Steering wheel controls, mounted audio and phone interface controls
• Instrumentation, with analog tachometer; digital speedometer, odometer, trip odometer and fuel gauge
• Temperature sensor, outside
• Oil life monitoring system
• Driver Information Center with trip odometer, fuel range, average fuel economy, average vehicle speed, tire
pressure and oil life remaining
• Door locks, power
• Remote Keyless Entry
• Remote vehicle starter system
• Windows, power with driver Express-Up and Down with anti-pinch feature
• Cruise control, electronic with set and resume speed
• Engine immobilizer, theft-deterrent system
• Theft-deterrent system, content theft alarm
• Cabin air filter, pollutant

Customer File:
August 18, 2011 11:58:07 AM Page 7

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

STANDARD EQUIPMENT

• Air conditioning, single-zone manual
• Defogger, rear-window electric
• Map pocket, front passenger seatback
• Power outlet, auxiliary, front center console
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger vanity mirrors, covered
• Assist handles, driver, front passenger and rear outboard
• Lighting, interior overhead courtesy, rear and dual front reading lamps
• Lighting, interior, trunk/cargo area
• Cargo shade, rear
• Keys, ignition, foldable, 2
MECHANICAL
• Engine, ECOTEC 1.8L Variable Valve Timing DOHC 4-cylinder sequential MFI estimated (138 hp [103 kW] @ 6300
rpm, 125 lb-ft of torque [168.8 N-m] @ 3800 rpm)
• Transmission, automatic
• Axle, 3.47 ratio
• Front wheel drive
• Transmission, 6-speed automatic
• Battery, 438 cold-cranking amps
• Alternator, 100 amps
• Suspension, Touring
• Brakes, 4-wheel antilock
• Steering, power, Electric Power Steering (EPS)
• Exhaust, stainless-steel, heavy-duty
• Mechanical jack with tools

Customer File:
August 18, 2011 11:58:07 AM Page 8

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

STANDARD EQUIPMENT

SAFETY
• Brakes, front disc/rear drum
• Brake Assist
• Electronic brake force distribution
• Hill hold feature
• Rollover mitigation
• StabiliTrak, stability control system
• Traction control
• Daytime Running Lamps
• Air bags, dual-stage, frontal, driver and right-front passenger, includes Passenger Sensing System (Always use
safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child
restraint. See the Owner's Manual for more information.)
• Air bags, 10 total (Always use safety belts and child restraints. Children are safer when properly secured in a rear
seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, head curtain, side-front and rear outboard seating positions (Always use safety belts and child restraints.
Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual
for more information.)
• Air bags, knee, driver and front passenger (Always use safety belts and child restraints. Children are safer when
properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, thorax side-impact seat-mounted, side-front and rear outboard seating positions (Always use safety belts
and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See
the Owner's Manual for more information.)
• Automatic Crash Response
• OnStar, 6 months of Directions and Connections plan, includes Automatic Crash Response, Emergency Services,
Crisis Assist, Stolen Vehicle Assistance including Stolen Vehicle Slowdown, Remote Door Unlock (requires power
locks), Navigation, OnStar Vehicle Diagnostics, Roadside Assistance, and Hands Free Calling. (Visit onstar.com for
details and system limitations.)
• Stolen Vehicle Assistance
• OnStar Vehicle Diagnostics

Customer File:
August 18, 2011 11:58:07 AM Page 9

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

STANDARD EQUIPMENT

• Safety belts, 3-point, all seating positions, rear
• Safety belts, 3-point, driver and right-front passenger, height-adjustable, includes pretensioners and load limiters
• Door locks, rear child security, power
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Tire Pressure Monitor System

Customer File:
August 18, 2011 11:58:07 AM Page 10

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

WEIGHT RATINGS
WEIGHT RATINGS - 2012 Retail 1JW48 5dr HB LTZ w/2LZ

Front Gross Axle Weight Rating:
Rear Gross Axle Weight Rating:
Gross Vehicle Weight Rating: 0

Customer File:
August 18, 2011 11:58:07 AM Page 11

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875


ALL OPTIONS
ALL OPTIONS - 2012 Retail 1JW48 5dr HB LTZ w/2LZ
CATEGORY
EMISSIONS
NE1 EMISSIONS, ARIZONA, CONNECTICUT, MAINE, MARYLAND, $0.00
MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON,
PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON
STATE REQUIREMENTS
YF5 EMISSIONS, CALIFORNIA STATE REQUIREMENTS $0.00
NB8 EMISSIONS OVERRIDE, CALIFORNIA (allows a dealer in states that $0.00
require California emissions - Arizona, California, Connecticut, Maryland,
Massachusetts, New Jersey, New York, Oregon, Pennsylvania, Rhode
Island or Washington - to order Federal emissions for a vehicle that will
be registered in a state that has Federal emission requirements). Do not
use for vehicles that will be registered in Arizona, California, Connecticut,
Maryland, Massachusetts, New Jersey, New York, Oregon,
Pennsylvania, Rhode Island or Washington. (Requires (FE9) Federal
emissions requirements. Not available in Maine or Vermont.)

Customer File:
August 18, 2011 11:58:07 AM Page 12

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

ALL OPTIONS
CATEGORY
EMISSIONS
NC7 EMISSIONS OVERRIDE, FEDERAL (for vehicles ordered by dealers in $0.00
Federal emission states with (YF5) or (NE1) emissions - Not required for
vehicles being shipped to Arizona, California, Connecticut, Maine,
Maryland, Massachusetts, New Jersey, New York, Oregon,
Pennsylvania, Rhode Island, Vermont or Washington) (Requires (YF5)
California state emissions requirements or (NE1) Arizona, Connecticut,
Maine, Maryland, Massachusetts, New Jersey, New York, Oregon,
Pennsylvania, Rhode Island, Vermont or Washington state emissions
requirements.)
NB9 EMISSIONS OVERRIDE, STATE-SPECIFIC (for dealers ordering $0.00
vehicles in (YF5) or (NE1) emission states - Arizona, California,
Connecticut, Maine, Maryland, Massachusetts, New Jersey, New York,
Oregon, Pennsylvania, Rhode Island, Vermont and Washington) (Allows
a California dealer (YF5 emissions) to order (NE1) emissions with (NB9)
emissions override code for registration in (NE1) states; or, an Arizona,
Connecticut, Maine, Maryland, Massachusetts, New Jersey, New York,
Oregon, Pennsylvania, Rhode Island, Vermont and Washington dealer
(NE1 emissions) to order (YF5) emissions with (NB9) emissions override
code for registration in California.)
ENGINE
LUW ENGINE, ECOTEC 1.8L VARIABLE VALVE TIMING DOHC 4- $0.00
CYLINDER SEQUENTIAL MFI estimated (138 hp [103 kW] @ 6300 rpm,
125 lb-ft of torque [168.8 N-m] @ 3800 rpm) (STD)
TRANSMISSION
MM1 TRANSMISSION, AUTOMATIC (STD) $0.00
PREFERRED EQUIPMENT GROUP
2LZ 2LZ PREFERRED EQUIPMENT GROUP includes Standard Equipment $0.00
PAINT
GAN SILVER ICE METAILLC $0.00
GAZ SUMMIT WHITE $0.00

Customer File:
August 18, 2011 11:58:07 AM Page 13

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

ALL OPTIONS
CATEGORY
PAINT
GBA BLACK $0.00
GCN VICTORY RED $0.00
GCR INFERNO ORANGE METALLIC $195.00
PAINT SCHEME
SEAT TYPE
AR7 SEATS, FRONT BUCKET WITH RECLINE AND HEIGHT-ADJUSTABLE $0.00
HEADRESTS
SEAT TRIM
ACI JET BLACK/DARK TITANIUM, PERFORATED LEATHERETTE SEAT $0.00
TRIM
ADN JET BLACK/BRICK, PERFORATED LEATHERETTE SEAT TRIM $0.00
(Includes Brick instrument panel and door accent.)
ADP DARK PEWTER/DARK TITANIUM, PERFORATED LEATHERETTE $0.00
SEAT TRIM (Includes Gray carpeting and floor mats in lieu of Jet Black.)
RADIO
UH7 AUDIO SYSTEM, AM/FM STEREO WITH USB PORT, CD PLAYER AND $0.00
MP3 PLAYBACK/WMA, SEEK-AND-SCAN, DIGITAL CLOCK, DSP,
AUXILIARY INPUT JACK, BLUETOOTH AUDIO STREAMING AND
DIGIT DIAL
ADDITIONAL EQUIPMENT
CF5 SUNROOF, POWER, TILT-SLIDING WITH EXPRESS-OPEN AND $850.00
WIND DEFLECTOR
VKD LICENSE PLATE BRACKET, FRONT (Forced on all orders for states that $0.00
require a front license plate.)

Customer File:
August 18, 2011 11:58:07 AM Page 14

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

WARRANTY INFORMATION
WARRANTY INFORMATION - 2012 Retail 1JW48 5dr HB LTZ w/2LZ

WARRANTY
<<< PRELIMINARY 2012 WARRANTY >>>

Basic:
3 Years/36,000 Miles

Drivetrain:

Corrosion:
Rust-Through

Emissions:
Gas Engine
Short Term California

Roadside Assistance:

Customer File:
August 18, 2011 11:58:07 AM Page 15

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

TECHNICAL SPECIFICATIONS
POWERTRAIN - BASIC SPECIFICATIONS - 2012 Retail 1JW48 5dr HB LTZ w/2LZ

ENGINE
Engine Order Code LUW
Engine Type Gas I4
Displacement 1.8L/110 CID
SAE Net Horsepower @ RPM 138 @ 6300
SAE Net Torque (lb ft) @ RPM 125 @ 3800
TRANSMISSION
Transmission order code MH9
Transmission Type Description 6-Speed Automatic
Drive Train Front Wheel Drive
MILEAGE
City EPA fuel economy estimate (MPG) - TBD -
Hwy EPA fuel economy estimate (MPG) - TBD -
City cruising range (mi) - TBD -
Hwy cruising range (mi) - TBD -
* Indicates equipment which is in addition to or replaces base model's standard equipment.

Customer File:
August 18, 2011 11:58:07 AM Page 16

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

POWERTRAIN - ADVANCED SPECIFICATIONS - 2012 Retail 1JW48 5dr HB LTZ w/2LZ

TRANSMISSION
Gear Ratio (:1)
First Gear Ratio (:1) 4.45
Second Gear Ratio (:1) 2.91
Third Gear Ratio (:1) 1.89
Fourth Gear Ratio (:1) 1.44
Fifth Gear Ratio (:1) 1.00
Sixth Gear Ratio (:1) 0.74
Reverse Ratio (:1) 2.87
Clutch size (in)
Final Drive Axle Ratio (:1) 3.47
ELECTRICAL
Battery 1
Battery cold cranking Amps @ 0 F 438.00
Alternator
Alternator Amps 100.00
COOLING SYSTEM
Cooling system capacity - TBD -

Customer File:
August 18, 2011 11:58:07 AM Page 17

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

PAYLOAD/TRAILERING SPECIFICATIONS - 2012 Retail 1JW48 5dr HB LTZ w/2LZ

WEIGHT INFORMATION
Base curb weight (lbs) - TBD -
TRAILERING Max Trailer Wt. Max Tongue Load
Dead Weight Hitch (lbs)
Weight Distributing Hitch (lbs)
Fifth Wheel Hitch (lbs)

Customer File:
August 18, 2011 11:58:07 AM Page 18

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

CHASSIS SPECIFICATIONS - 2012 Retail 1JW48 5dr HB LTZ w/2LZ

SUSPENSION Front Rear
Suspension Type MacPherson Strut Torsion Beam
Suspension Type (cont.) w/Coil Springs w/Coil Springs
Shock Absorber Diameter (mm)
Stabilizer Bar Diameter (in) - TBD -
BRAKES
Brake type Pwr
ABS System 4-Wheel
Front Rear
Disc Yes
Rotor Diam x Thickness (in) 10.8 x - TBD -
Drum Yes
Drum Diam x Width (in) 9.0 x - TBD -
TIRES Front Rear Spare
Tire Order Code RKJ RKJ
Tire Size P205/50R17 P205/50R17 Compact
WHEELS Front Rear Spare
Wheel Size 17 x - TBD - 17 x - TBD - Compact
Wheel Type Aluminum Aluminum Steel
STEERING
Steering type Electric Pwr Steering
Ratio (:1)
Overall 14.10
Lock-to-Lock Turns 2.70
Turning Diameter
Curb-to-Curb 36.10
Wall-to-Wall

Customer File:
August 18, 2011 11:58:07 AM Page 19

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

CHASSIS SPECIFICATIONS - 2012 Retail 1JW48 5dr HB LTZ w/2LZ

FUEL TANK Main
Capacity 12.10

Customer File:
August 18, 2011 11:58:07 AM Page 20

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

DIMENSIONS - 2012 Retail 1JW48 5dr HB LTZ w/2LZ

EXTERIOR DIMENSIONS
Wheelbase (in) 99.40
Length, Overall (in) 159.00
Width, Max w/o mirrors (in) 68.30
Height, Overall (in) 59.70
Tread Width
Track Width, Front 59.4
Track Width, Rear 59.4
Min Ground Clearance (in) 4.90
CARGO AREA DIMENSIONS
Liftover Height (in) - TBD -
Cargo Volume
Cargo Volume with Rear Seat Up 19.0
Cargo Volume with Rear Seat Down 30.7
INTERIOR DIMENSIONS
Passenger Capacity 5
Passenger Volume (ft³) 90.60
EPA Classification Subcompact Car
Seating Position Front Second
Head Room (in) * 37.60 38.10
Leg Room (in) 41.80 34.60
Shoulder Room (in) 53.40 53.00
Hip Room (in) 51.40 51.60

Customer File:
August 18, 2011 11:58:07 AM Page 21

2012 sonic hb_2_ltz

More Related Content

Similar to 2012 sonic hb_2_ltz

More from Ron Westphal Chevy

Recently uploaded

2012 sonic hb_2_ltz
