2012 sonic hb_1_lt

Prepared By:
Reta Bohn
Ron Westphal Chevrolet
1425 W. Ogden Avenue
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875
Email: sales@westphalchevy.com

2012 Retail Chevrolet Sonic 5dr HB LT w/1LT 1JV48
SELECTED MODEL & OPTIONS
SELECTED MODEL - 2012 Retail 1JV48 5dr HB LT w/1LT

Code Description MSRP
1JV48 2012 Chevrolet Sonic 5dr HB LT w/1LT $15,735.00

SELECTED VEHICLE COLORS - 2012 Retail 1JV48 5dr HB LT w/1LT

Code Description
- Interior: No color has been selected.
- Exterior 1: No color has been selected.
- Exterior 2: No color has been selected.

SELECTED OPTIONS - 2012 Retail 1JV48 5dr HB LT w/1LT

CATEGORY
EMISSIONS
FE9 EMISSIONS, FEDERAL REQUIREMENTS $0.00
ENGINE
LUV ENGINE, ECOTEC TURBO 1.4L VARIABLE VALVE TIMING DOHC 4- $700.00
CYLINDER SEQUENTIAL MFI (138 hp [103 kW] @ 4900 rpm, 148 lb-ft
of torque [199.8 N-m] @ 1850 rpm)
TRANSMISSION
MM3 TRANSMISSION, MANUAL (STD) $0.00
AXLE
FXB AXLE, 3.65 RATIO (Included and only available with (MZ4) 6-speed $0.00
manual transmission and (LUV) ECOTEC Turbo 1.4L engine.)
PREFERRED EQUIPMENT GROUP
1LT 1LT PREFERRED EQUIPMENT GROUP includes Standard Equipment $0.00
WHEEL TYPE
RRK WHEELS, 15" (38.1 CM) PAINTED ALUMINUM $0.00
TIRES
Report content is based on current data version referenced. Any performance-related calculations are offered solely as
guidelines. Actual unit performance will depend on your operating conditions.
GM AutoBook, Data Version: 185.0, Data updated 8/9/2011 3:23:00 PM
©Copyright 1986-2005 Chrome Systems Corporation. All rights reserved.
Customer File:
August 18, 2011 12:36:44 PM Page 1

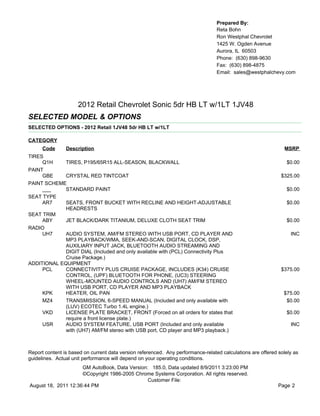

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875


CATEGORY
TIRES
Q1H TIRES, P195/65R15 ALL-SEASON, BLACKWALL $0.00
PAINT
GBE CRYSTAL RED TINTCOAT $325.00
PAINT SCHEME
___ STANDARD PAINT $0.00
SEAT TYPE
AR7 SEATS, FRONT BUCKET WITH RECLINE AND HEIGHT-ADJUSTABLE $0.00
HEADRESTS
SEAT TRIM
ABY JET BLACK/DARK TITANIUM, DELUXE CLOTH SEAT TRIM $0.00
RADIO
UH7 AUDIO SYSTEM, AM/FM STEREO WITH USB PORT, CD PLAYER AND INC
MP3 PLAYBACK/WMA, SEEK-AND-SCAN, DIGITAL CLOCK, DSP,
AUXILIARY INPUT JACK, BLUETOOTH AUDIO STREAMING AND
DIGIT DIAL (Included and only available with (PCL) Connectivity Plus
Cruise Package.)
ADDITIONAL EQUIPMENT
PCL CONNECTIVITY PLUS CRUISE PACKAGE, INCLUDES (K34) CRUISE $375.00
CONTROL, (UPF) BLUETOOTH FOR PHONE, (UC3) STEERING
WHEEL-MOUNTED AUDIO CONTROLS AND (UH7) AM/FM STEREO
WITH USB PORT, CD PLAYER AND MP3 PLAYBACK
KPK HEATER, OIL PAN $75.00
MZ4 TRANSMISSION, 6-SPEED MANUAL (Included and only available with $0.00
(LUV) ECOTEC Turbo 1.4L engine.)
VKD LICENSE PLATE BRACKET, FRONT (Forced on all orders for states that $0.00
require a front license plate.)
USR AUDIO SYSTEM FEATURE, USB PORT (Included and only available INC
with (UH7) AM/FM stereo with USB port, CD player and MP3 playback.)

Customer File:
August 18, 2011 12:36:44 PM Page 2

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875


CATEGORY
UPF BLUETOOTH FOR PHONE, PERSONAL CELL PHONE CONNECTIVITY INC
TO VEHICLE AUDIO SYSTEM AND HMI (HUMAN MACHINE
INTERFACE) (Included and only available with (PCL) Connectivity Plus
Cruise Package.)
UC3 STEERING WHEEL CONTROLS, MOUNTED AUDIO AND PHONE INC
INTERFACE CONTROLS (Included and only available with (PCL)
Connectivity Plus Cruise Package.)
K34 CRUISE CONTROL, ELECTRONIC WITH SET AND RESUME SPEED INC
(Included and only available with (PCL) Connectivity Plus Cruise
Package.)
OPTIONS TOTAL $1,475.00

Customer File:
August 18, 2011 12:36:44 PM Page 3

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

PRICING SUMMARY
PRICING SUMMARY - 2012 Retail 1JV48 5dr HB LT w/1LT

MSRP
Base Price $15,735.00
Total Options: $1,475.00
Vehicle Subtotal $17,210.00

Advert/Adjustments $0.00
Destination Charge $760.00

GRAND TOTAL $17,970.00

Customer File:
August 18, 2011 12:36:44 PM Page 4

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

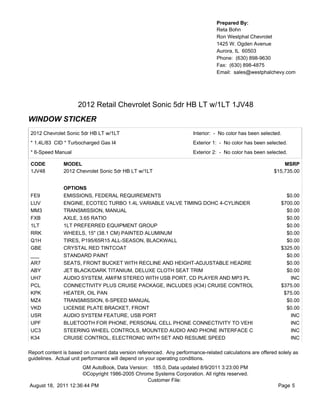

WINDOW STICKER
2012 Chevrolet Sonic 5dr HB LT w/1LT Interior: - No color has been selected.
* 1.4L/83 CID * Turbocharged Gas I4 Exterior 1: - No color has been selected.
* 6-Speed Manual Exterior 2: - No color has been selected.

CODE MODEL MSRP
1JV48 2012 Chevrolet Sonic 5dr HB LT w/1LT $15,735.00

OPTIONS
LUV ENGINE, ECOTEC TURBO 1.4L VARIABLE VALVE TIMING DOHC 4-CYLINDER $700.00
MM3 TRANSMISSION, MANUAL $0.00
FXB AXLE, 3.65 RATIO $0.00
1LT 1LT PREFERRED EQUIPMENT GROUP $0.00
AR7 SEATS, FRONT BUCKET WITH RECLINE AND HEIGHT-ADJUSTABLE HEADRE $0.00
UH7 AUDIO SYSTEM, AM/FM STEREO WITH USB PORT, CD PLAYER AND MP3 PL INC
PCL CONNECTIVITY PLUS CRUISE PACKAGE, INCLUDES (K34) CRUISE CONTROL $375.00
MZ4 TRANSMISSION, 6-SPEED MANUAL $0.00
VKD LICENSE PLATE BRACKET, FRONT $0.00
USR AUDIO SYSTEM FEATURE, USB PORT INC
UPF BLUETOOTH FOR PHONE, PERSONAL CELL PHONE CONNECTIVITY TO VEHI INC
UC3 STEERING WHEEL CONTROLS, MOUNTED AUDIO AND PHONE INTERFACE C INC

Customer File:
August 18, 2011 12:36:44 PM Page 5

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

WINDOW STICKER
SUBTOTAL $17,210.00
Advert/Adjustments $0.00
Destination Charge $760.00
TOTAL PRICE $17,970.00
Est City: - TBD - mpg
Est Highway: - TBD - mpg
Est Highway Cruising Range: - TBD - mi

Customer File:
August 18, 2011 12:36:44 PM Page 6

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

STANDARD EQUIPMENT
STANDARD EQUIPMENT - 2012 Retail 1JV48 5dr HB LT w/1LT

ENTERTAINMENT
• Audio system, AM/FM stereo with CD player and MP3 playback, seek-and-scan, digital clock, auto-tone control,
Radio Data System (RDS), equalizer and auxiliary input jack
• Audio system feature, premium 6-speaker system
• Audio system feature, auxiliary input jack
• Sirius XM Satellite Radio is standard on nearly all 2012 GM models. Enjoy a 3-month trial to the 'XM Select'
package, with over 170 channels including commercial-free music, all your favorite sports, exclusive talk and
entertainment. And now add premium channels to your trial at no-cost. Welcome to the world of satellite radio.
(Requires a subscription sold separately by SiriusXM after the first 90 days which is continuous until you call
SiriusXM to cancel. Available only in the 48 contiguous United States and D.C. Visit siriusxm.com for details.)
EXTERIOR
• Wheels, 15" (38.1 cm) painted aluminum
• Tires, P195/65R15 all-season, blackwall
• Tire, compact spare
• Headlamps, halogen composite
• Headlamp control, automatic on and off
• Mirrors, outside heated power-adjustable, body-color, manual-folding
• Glass, solar absorbing, tinted
• Wipers, front intermittent, variable
• Wiper, rear intermittent with washer
• Spoiler, rear, roof-mounted, large, body-color
• Moldings, chrome belt-line
• Door handles, body-color

Customer File:
August 18, 2011 12:36:44 PM Page 7

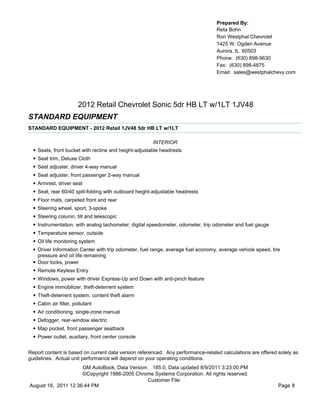

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

STANDARD EQUIPMENT

INTERIOR
• Seats, front bucket with recline and height-adjustable headrests
• Seat trim, Deluxe Cloth
• Seat adjuster, driver 4-way manual
• Seat adjuster, front passenger 2-way manual
• Armrest, driver seat
• Seat, rear 60/40 split-folding with outboard height-adjustable headrests
• Floor mats, carpeted front and rear
• Steering wheel, sport, 3-spoke
• Steering column, tilt and telescopic
• Instrumentation, with analog tachometer; digital speedometer, odometer, trip odometer and fuel gauge
• Temperature sensor, outside
• Oil life monitoring system
• Driver Information Center with trip odometer, fuel range, average fuel economy, average vehicle speed, tire
pressure and oil life remaining
• Door locks, power
• Remote Keyless Entry
• Windows, power with driver Express-Up and Down with anti-pinch feature
• Engine immobilizer, theft-deterrent system
• Theft-deterrent system, content theft alarm
• Cabin air filter, pollutant
• Air conditioning, single-zone manual
• Defogger, rear-window electric
• Map pocket, front passenger seatback
• Power outlet, auxiliary, front center console

Customer File:
August 18, 2011 12:36:44 PM Page 8

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

STANDARD EQUIPMENT

• Mirror, inside rearview manual day/night
• Visors, driver and front passenger vanity mirrors, covered
• Assist handles, driver, front passenger and rear outboard
• Lighting, interior overhead courtesy, rear and dual front reading lamps
• Lighting, interior, trunk/cargo area
• Cargo shade, rear
• Keys, ignition, foldable, 2
MECHANICAL
• Engine, ECOTEC 1.8L Variable Valve Timing DOHC 4-cylinder sequential MFI estimated (138 hp [103 kW] @ 6300
rpm, 125 lb-ft of torque [168.8 N-m] @ 3800 rpm)
• Transmission, manual
• Axle, 3.94 ratio
• Front wheel drive
• Transmission, 5-speed manual
• Battery, 438 cold-cranking amps
• Alternator, 100 amps
• Suspension, Touring
• Brakes, 4-wheel antilock
• Steering, power, Electric Power Steering (EPS)
• Exhaust, stainless-steel, heavy-duty
• Mechanical jack with tools

Customer File:
August 18, 2011 12:36:44 PM Page 9

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

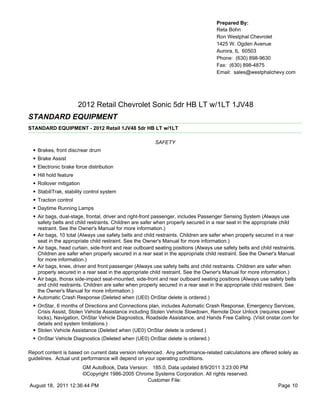

STANDARD EQUIPMENT

SAFETY
• Brakes, front disc/rear drum
• Brake Assist
• Electronic brake force distribution
• Hill hold feature
• Rollover mitigation
• StabiliTrak, stability control system
• Traction control
• Daytime Running Lamps
• Air bags, dual-stage, frontal, driver and right-front passenger, includes Passenger Sensing System (Always use
safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child
restraint. See the Owner's Manual for more information.)
• Air bags, 10 total (Always use safety belts and child restraints. Children are safer when properly secured in a rear
seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, head curtain, side-front and rear outboard seating positions (Always use safety belts and child restraints.
Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual
for more information.)
• Air bags, knee, driver and front passenger (Always use safety belts and child restraints. Children are safer when
properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, thorax side-impact seat-mounted, side-front and rear outboard seating positions (Always use safety belts
and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See
the Owner's Manual for more information.)
• Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)
• OnStar, 6 months of Directions and Connections plan, includes Automatic Crash Response, Emergency Services,
Crisis Assist, Stolen Vehicle Assistance including Stolen Vehicle Slowdown, Remote Door Unlock (requires power
locks), Navigation, OnStar Vehicle Diagnostics, Roadside Assistance, and Hands Free Calling. (Visit onstar.com for
details and system limitations.)
• Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)
• OnStar Vehicle Diagnostics (Deleted when (UE0) OnStar delete is ordered.)

Customer File:
August 18, 2011 12:36:44 PM Page 10

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

STANDARD EQUIPMENT

• Safety belts, 3-point, all seating positions, rear
• Safety belts, 3-point, driver and right-front passenger, height-adjustable, includes pretensioners and load limiters
• Door locks, rear child security, power
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Tire Pressure Monitor System

Customer File:
August 18, 2011 12:36:44 PM Page 11

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

WEIGHT RATINGS
WEIGHT RATINGS - 2012 Retail 1JV48 5dr HB LT w/1LT

Front Gross Axle Weight Rating:
Rear Gross Axle Weight Rating:
Gross Vehicle Weight Rating: 0

Customer File:
August 18, 2011 12:36:44 PM Page 12

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875


ALL OPTIONS
ALL OPTIONS - 2012 Retail 1JV48 5dr HB LT w/1LT
CATEGORY
EMISSIONS
NE1 EMISSIONS, ARIZONA, CONNECTICUT, MAINE, MARYLAND, $0.00
MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON,
PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON
STATE REQUIREMENTS
YF5 EMISSIONS, CALIFORNIA STATE REQUIREMENTS $0.00
NB8 EMISSIONS OVERRIDE, CALIFORNIA (allows a dealer in states that $0.00
require California emissions - Arizona, California, Connecticut, Maryland,
Massachusetts, New Jersey, New York, Oregon, Pennsylvania, Rhode
Island or Washington - to order Federal emissions for a vehicle that will
be registered in a state that has Federal emission requirements). Do not
use for vehicles that will be registered in Arizona, California, Connecticut,
Maryland, Massachusetts, New Jersey, New York, Oregon,
Pennsylvania, Rhode Island or Washington. (Requires (FE9) Federal
emissions requirements. Not available in Maine or Vermont.)

Customer File:
August 18, 2011 12:36:44 PM Page 13

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

ALL OPTIONS
CATEGORY
EMISSIONS
NC7 EMISSIONS OVERRIDE, FEDERAL (for vehicles ordered by dealers in $0.00
Federal emission states with (YF5) or (NE1) emissions - Not required for
vehicles being shipped to Arizona, California, Connecticut, Maine,
Maryland, Massachusetts, New Jersey, New York, Oregon,
Pennsylvania, Rhode Island, Vermont or Washington) (Requires (YF5)
California state emissions requirements or (NE1) Arizona, Connecticut,
Maine, Maryland, Massachusetts, New Jersey, New York, Oregon,
Pennsylvania, Rhode Island, Vermont or Washington state emissions
requirements.)
NB9 EMISSIONS OVERRIDE, STATE-SPECIFIC (for dealers ordering $0.00
vehicles in (YF5) or (NE1) emission states - Arizona, California,
Connecticut, Maine, Maryland, Massachusetts, New Jersey, New York,
Oregon, Pennsylvania, Rhode Island, Vermont and Washington) (Allows
a California dealer (YF5 emissions) to order (NE1) emissions with (NB9)
emissions override code for registration in (NE1) states; or, an Arizona,
Connecticut, Maine, Maryland, Massachusetts, New Jersey, New York,
Oregon, Pennsylvania, Rhode Island, Vermont and Washington dealer
(NE1 emissions) to order (YF5) emissions with (NB9) emissions override
code for registration in California.)
ENGINE
LUW ENGINE, ECOTEC 1.8L VARIABLE VALVE TIMING DOHC 4- $0.00
CYLINDER SEQUENTIAL MFI estimated (138 hp [103 kW] @ 6300 rpm,
125 lb-ft of torque [168.8 N-m] @ 3800 rpm) (STD)
LUV ENGINE, ECOTEC TURBO 1.4L VARIABLE VALVE TIMING DOHC 4- $700.00
CYLINDER SEQUENTIAL MFI (138 hp [103 kW] @ 4900 rpm, 148 lb-ft
of torque [199.8 N-m] @ 1850 rpm)
TRANSMISSION
MM3 TRANSMISSION, MANUAL (STD) $0.00
AXLE
FX1 AXLE, 3.94 RATIO $0.00

Customer File:
August 18, 2011 12:36:44 PM Page 14

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

ALL OPTIONS
CATEGORY
AXLE
FXB AXLE, 3.65 RATIO (Included and only available with (MZ4) 6-speed $0.00
manual transmission and (LUV) ECOTEC Turbo 1.4L engine.)
PREFERRED EQUIPMENT GROUP
1LT 1LT PREFERRED EQUIPMENT GROUP includes Standard Equipment $0.00
WHEEL TYPE
RRV WHEELS, 16" (40.6 CM) PAINTED ALUMINUM (Included and only $0.00
available with (PDV) Wheels and Fog Lamp Package.)
TIRES
QLG TIRES, P205/55R16 ALL-SEASON, BLACKWALL (Included and only $0.00
available with (RRV) 16" aluminum wheels.)
PAINT
GAN SILVER ICE METAILLC $0.00
GAZ SUMMIT WHITE $0.00
GBA BLACK $0.00
GCN VICTORY RED $0.00
GCR INFERNO ORANGE METALLIC $195.00
PAINT SCHEME
SEAT TYPE
AR7 SEATS, FRONT BUCKET WITH RECLINE AND HEIGHT-ADJUSTABLE $0.00
HEADRESTS
SEAT TRIM
ACB JET BLACK/BRICK, DELUXE CLOTH SEAT TRIM (Includes Brick $0.00
instrument panel and door accent.)

Customer File:
August 18, 2011 12:36:44 PM Page 15

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

ALL OPTIONS
CATEGORY
SEAT TRIM
ACC DARK PEWTER/DARK TITANIUM, DELUXE CLOTH SEAT TRIM $0.00
(Includes Gray carpeting and floor mats in lieu of Jet Black.)
RADIO
US8 AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER and MP3 W/A
playback, seek-and-scan, digital clock, auto-tone control, Radio Data
System (RDS), equalizer and auxiliary input jack
UH7 AUDIO SYSTEM, AM/FM STEREO WITH USB PORT, CD PLAYER AND INC
MP3 PLAYBACK/WMA, SEEK-AND-SCAN, DIGITAL CLOCK, DSP,
AUXILIARY INPUT JACK, BLUETOOTH AUDIO STREAMING AND
DIGIT DIAL (Included and only available with (PCL) Connectivity Plus
Cruise Package.)
PCL CONNECTIVITY PLUS CRUISE PACKAGE, INCLUDES (K34) CRUISE $375.00
CONTROL, (UPF) BLUETOOTH FOR PHONE, (UC3) STEERING
WHEEL-MOUNTED AUDIO CONTROLS AND (UH7) AM/FM STEREO
WITH USB PORT, CD PLAYER AND MP3 PLAYBACK
PDV WHEELS AND FOG LAMP PACKAGE, INCLUDES (RRV) 16" PAINTED $295.00
ALUMINUM WHEELS AND (T3U) FRONT FOG LAMPS (Requires
(LUW) ECOTEC 1.8L engine.)
MZ4 TRANSMISSION, 6-SPEED MANUAL (Included and only available with $0.00
(LUV) ECOTEC Turbo 1.4L engine.)
T3U FOG LAMPS, FRONT (Included and only available with (PDV) Wheels $0.00
and Fog Lamp Package.)
VKD LICENSE PLATE BRACKET, FRONT (Forced on all orders for states that $0.00
require a front license plate.)
USR AUDIO SYSTEM FEATURE, USB PORT (Included and only available INC
with (UH7) AM/FM stereo with USB port, CD player and MP3 playback.)
UPF BLUETOOTH FOR PHONE, PERSONAL CELL PHONE CONNECTIVITY INC
TO VEHICLE AUDIO SYSTEM AND HMI (HUMAN MACHINE
INTERFACE) (Included and only available with (PCL) Connectivity Plus
Cruise Package.)
Customer File:
August 18, 2011 12:36:44 PM Page 16

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

ALL OPTIONS
CATEGORY
U2J SIRIUS XM SATELLITE RADIO, DELETE (Requires a Fleet or -$100.00
Government order type and (UE0) OnStar delete. Includes (U71) roof-
mounted antenna. Not available with (PCL) Connectivity Plus Cruise
Package. Required on vehicles (all order types) ordered from AK, HI,
Puerto Rico and the Virgin Islands where SiriusXM Satellite Radio service
is not available.)
UC3 STEERING WHEEL CONTROLS, MOUNTED AUDIO AND PHONE INC
INTERFACE CONTROLS (Included and only available with (PCL)
Connectivity Plus Cruise Package.)
(Included and only available with (PCL) Connectivity Plus Cruise
Package.)
C90 LIGHTING, INTERIOR, REAR AND SINGLE FRONT LAMP (Included $0.00
and only available with (UE0) OnStar delete.)

Customer File:
August 18, 2011 12:36:44 PM Page 17

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

WARRANTY INFORMATION
WARRANTY INFORMATION - 2012 Retail 1JV48 5dr HB LT w/1LT

WARRANTY
<<< PRELIMINARY 2012 WARRANTY >>>

Basic:
3 Years/36,000 Miles

Drivetrain:

Corrosion:
Rust-Through

Emissions:
Gas Engine
Short Term California

Roadside Assistance:

Customer File:
August 18, 2011 12:36:44 PM Page 18

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

TECHNICAL SPECIFICATIONS
POWERTRAIN - BASIC SPECIFICATIONS - 2012 Retail 1JV48 5dr HB LT w/1LT

ENGINE
Engine Order Code * LUV
Engine Type * Turbocharged Gas I4
Displacement * 1.4L/83 CID
SAE Net Horsepower @ RPM * 138 @ 4900
SAE Net Torque (lb ft) @ RPM * 148 @ 1850
TRANSMISSION
Transmission order code * MZ4
Transmission Type Description * 6-Speed Manual
Drive Train Front Wheel Drive
MILEAGE
City EPA fuel economy estimate (MPG) - TBD -
Hwy EPA fuel economy estimate (MPG) - TBD -
City cruising range (mi) - TBD -
Hwy cruising range (mi) - TBD -
* Indicates equipment which is in addition to or replaces base model's standard equipment.

Customer File:
August 18, 2011 12:36:44 PM Page 19

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

POWERTRAIN - ADVANCED SPECIFICATIONS - 2012 Retail 1JV48 5dr HB LT w/1LT

TRANSMISSION
Gear Ratio (:1)
First Gear Ratio (:1) * 3.82
Second Gear Ratio (:1) * 2.05
Third Gear Ratio (:1) * 1.30
Fourth Gear Ratio (:1) * 0.96
Fifth Gear Ratio (:1) * 0.74
Sixth Gear Ratio (:1) * 0.61
Reverse Ratio (:1) * 3.55
Clutch size (in) - TBD -
Final Drive Axle Ratio (:1) * 3.65
ELECTRICAL
Battery 1
Battery cold cranking Amps @ 0 F 438.00
Alternator
Alternator Amps 100.00
COOLING SYSTEM
Cooling system capacity - TBD -

Customer File:
August 18, 2011 12:36:44 PM Page 20

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

PAYLOAD/TRAILERING SPECIFICATIONS - 2012 Retail 1JV48 5dr HB LT w/1LT

WEIGHT INFORMATION
Base curb weight (lbs) - TBD -
TRAILERING Max Trailer Wt. Max Tongue Load
Dead Weight Hitch (lbs)
Weight Distributing Hitch (lbs)
Fifth Wheel Hitch (lbs)

Customer File:
August 18, 2011 12:36:44 PM Page 21

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

CHASSIS SPECIFICATIONS - 2012 Retail 1JV48 5dr HB LT w/1LT

SUSPENSION Front Rear
Suspension Type MacPherson Strut Torsion Beam
Suspension Type (cont.) w/Coil Springs w/Coil Springs
Shock Absorber Diameter (mm)
Stabilizer Bar Diameter (in) - TBD -
BRAKES
Brake type Pwr
ABS System 4-Wheel
Front Rear
Disc Yes
Rotor Diam x Thickness (in) 10.8 x - TBD -
Drum Yes
Drum Diam x Width (in) 9.0 x - TBD -
TIRES Front Rear Spare
Tire Order Code Q1H Q1H
Tire Size P195/65R15 P195/65R15 Compact
WHEELS Front Rear Spare
Wheel Size 15 x - TBD - 15 x - TBD - Compact
Wheel Type Aluminum Aluminum Steel
STEERING
Steering type Electric Pwr Steering
Ratio (:1)
Overall 14.10
Lock-to-Lock Turns 2.80
Turning Diameter
Curb-to-Curb 34.50
Wall-to-Wall

Customer File:
August 18, 2011 12:36:44 PM Page 22

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

CHASSIS SPECIFICATIONS - 2012 Retail 1JV48 5dr HB LT w/1LT

FUEL TANK Main
Capacity 12.10

Customer File:
August 18, 2011 12:36:44 PM Page 23

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

DIMENSIONS - 2012 Retail 1JV48 5dr HB LT w/1LT

EXTERIOR DIMENSIONS
Wheelbase (in) 99.40
Length, Overall (in) 159.00
Width, Max w/o mirrors (in) 68.30
Height, Overall (in) 59.70
Tread Width
Track Width, Front 59.4
Track Width, Rear 59.4
Min Ground Clearance (in) 4.90
CARGO AREA DIMENSIONS
Liftover Height (in) - TBD -
Cargo Volume
Cargo Volume with Rear Seat Up 19.0
Cargo Volume with Rear Seat Down 30.7
INTERIOR DIMENSIONS
Passenger Capacity 5
Passenger Volume (ft³) 90.60
EPA Classification Subcompact Car
Seating Position Front Second
Head Room (in) 38.70 38.10
Leg Room (in) 41.80 34.60
Shoulder Room (in) 53.40 53.00
Hip Room (in) 51.40 51.60

Customer File:
August 18, 2011 12:36:44 PM Page 24

2012 sonic hb_1_lt

More Related Content

What's hot

Similar to 2012 sonic hb_1_lt

More from Ron Westphal Chevy

Recently uploaded

2012 sonic hb_1_lt
