2014 Chevy Impala 1LS

Prepared By:
Reta Bohn
Ron Westphal Chevrolet
1425 W. Ogden Avenue
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875
Email: sales@westphalchevy.com

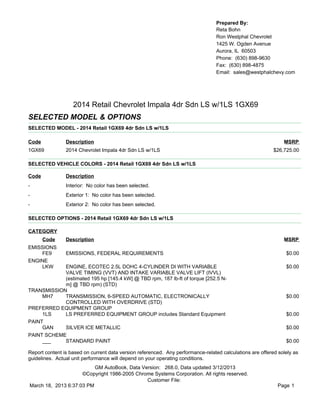

2014 Retail Chevrolet Impala 4dr Sdn LS w/1LS 1GX69
SELECTED MODEL & OPTIONS
SELECTED MODEL - 2014 Retail 1GX69 4dr Sdn LS w/1LS

Code Description MSRP
1GX69 2014 Chevrolet Impala 4dr Sdn LS w/1LS $26,725.00

SELECTED VEHICLE COLORS - 2014 Retail 1GX69 4dr Sdn LS w/1LS

Code Description
- Interior: No color has been selected.
- Exterior 1: No color has been selected.
- Exterior 2: No color has been selected.

SELECTED OPTIONS - 2014 Retail 1GX69 4dr Sdn LS w/1LS

CATEGORY
EMISSIONS
FE9 EMISSIONS, FEDERAL REQUIREMENTS $0.00
ENGINE
LKW ENGINE, ECOTEC 2.5L DOHC 4-CYLINDER DI WITH VARIABLE $0.00
VALVE TIMING (VVT) AND INTAKE VARIABLE VALVE LIFT (IVVL)
(estimated 195 hp [145.4 kW] @ TBD rpm, 187 lb-ft of torque [252.5 N-
m] @ TBD rpm) (STD)
TRANSMISSION
MH7 TRANSMISSION, 6-SPEED AUTOMATIC, ELECTRONICALLY $0.00
CONTROLLED WITH OVERDRIVE (STD)
PREFERRED EQUIPMENT GROUP
1LS LS PREFERRED EQUIPMENT GROUP includes Standard Equipment $0.00
PAINT
GAN SILVER ICE METALLIC $0.00
PAINT SCHEME
___ STANDARD PAINT $0.00

Report content is based on current data version referenced. Any performance-related calculations are offered solely as
guidelines. Actual unit performance will depend on your operating conditions.
GM AutoBook, Data Version: 268.0, Data updated 3/12/2013
©Copyright 1986-2005 Chrome Systems Corporation. All rights reserved.
Customer File:
March 18, 2013 6:37:03 PM Page 1

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

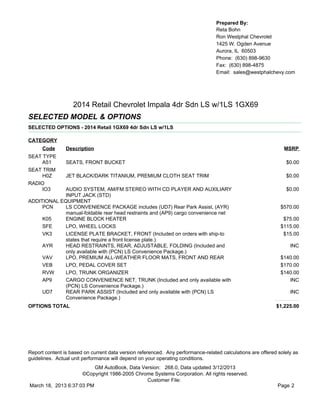

SELECTED MODEL & OPTIONS
SELECTED OPTIONS - 2014 Retail 1GX69 4dr Sdn LS w/1LS

CATEGORY
SEAT TYPE
A51 SEATS, FRONT BUCKET $0.00
SEAT TRIM
H0Z JET BLACK/DARK TITANIUM, PREMIUM CLOTH SEAT TRIM $0.00
RADIO
IO3 AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER AND AUXILIARY $0.00
INPUT JACK (STD)
ADDITIONAL EQUIPMENT
PCN LS CONVENIENCE PACKAGE includes (UD7) Rear Park Assist, (AYR) $570.00
manual-foldable rear head restraints and (AP9) cargo convenience net
K05 ENGINE BLOCK HEATER $75.00
SFE LPO, WHEEL LOCKS $115.00
VK3 LICENSE PLATE BRACKET, FRONT (Included on orders with ship-to $15.00
states that require a front license plate.)
AYR HEAD RESTRAINTS, REAR, ADJUSTABLE, FOLDING (Included and INC
only available with (PCN) LS Convenience Package.)
VAV LPO, PREMIUM ALL-WEATHER FLOOR MATS, FRONT AND REAR $140.00
VEB LPO, PEDAL COVER SET $170.00
RVW LPO, TRUNK ORGANIZER $140.00
AP9 CARGO CONVENIENCE NET, TRUNK (Included and only available with INC
(PCN) LS Convenience Package.)
UD7 REAR PARK ASSIST (Included and only available with (PCN) LS INC
Convenience Package.)
OPTIONS TOTAL $1,225.00

Customer File:
March 18, 2013 6:37:03 PM Page 2

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

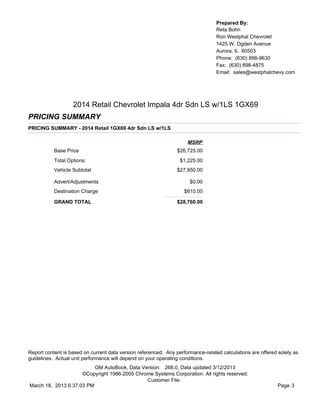

PRICING SUMMARY
PRICING SUMMARY - 2014 Retail 1GX69 4dr Sdn LS w/1LS

MSRP
Base Price $26,725.00
Total Options: $1,225.00
Vehicle Subtotal $27,950.00

Advert/Adjustments $0.00
Destination Charge $810.00

GRAND TOTAL $28,760.00

Customer File:
March 18, 2013 6:37:03 PM Page 3

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

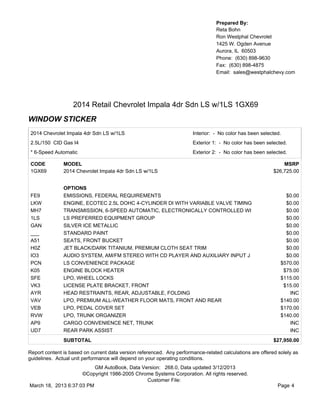

WINDOW STICKER
2014 Chevrolet Impala 4dr Sdn LS w/1LS Interior: - No color has been selected.
2.5L/150 CID Gas I4 Exterior 1: - No color has been selected.
* 6-Speed Automatic Exterior 2: - No color has been selected.

CODE MODEL MSRP
1GX69 2014 Chevrolet Impala 4dr Sdn LS w/1LS $26,725.00

OPTIONS
LKW ENGINE, ECOTEC 2.5L DOHC 4-CYLINDER DI WITH VARIABLE VALVE TIMING $0.00
MH7 TRANSMISSION, 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED WI $0.00
1LS LS PREFERRED EQUIPMENT GROUP $0.00
IO3 AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER AND AUXILIARY INPUT J $0.00
PCN LS CONVENIENCE PACKAGE $570.00
VK3 LICENSE PLATE BRACKET, FRONT $15.00
AYR HEAD RESTRAINTS, REAR, ADJUSTABLE, FOLDING INC
AP9 CARGO CONVENIENCE NET, TRUNK INC
UD7 REAR PARK ASSIST INC
SUBTOTAL $27,950.00

Customer File:
March 18, 2013 6:37:03 PM Page 4

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

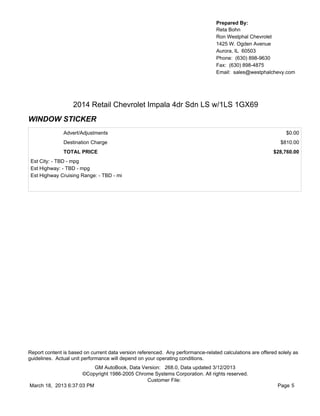

WINDOW STICKER
Advert/Adjustments $0.00
Destination Charge $810.00
TOTAL PRICE $28,760.00
Est City: - TBD - mpg
Est Highway: - TBD - mpg
Est Highway Cruising Range: - TBD - mi

Customer File:
March 18, 2013 6:37:03 PM Page 5

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

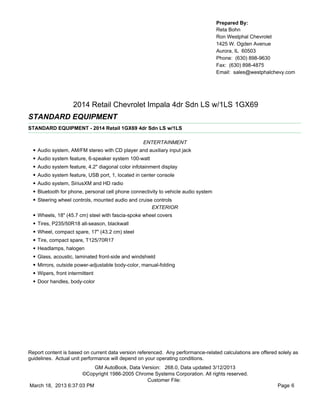

STANDARD EQUIPMENT
STANDARD EQUIPMENT - 2014 Retail 1GX69 4dr Sdn LS w/1LS

ENTERTAINMENT
• Audio system, AM/FM stereo with CD player and auxiliary input jack
• Audio system feature, 6-speaker system 100-watt
• Audio system feature, 4.2" diagonal color infotainment display
• Audio system feature, USB port, 1, located in center console
• Audio system, SiriusXM and HD radio
• Bluetooth for phone, personal cell phone connectivity to vehicle audio system
• Steering wheel controls, mounted audio and cruise controls
EXTERIOR
• Wheels, 18" (45.7 cm) steel with fascia-spoke wheel covers
• Tires, P235/50R18 all-season, blackwall
• Wheel, compact spare, 17" (43.2 cm) steel
• Tire, compact spare, T125/70R17
• Headlamps, halogen
• Glass, acoustic, laminated front-side and windshield
• Mirrors, outside power-adjustable body-color, manual-folding
• Wipers, front intermittent
• Door handles, body-color

Customer File:
March 18, 2013 6:37:03 PM Page 6

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

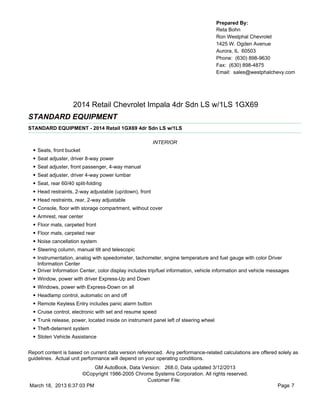

STANDARD EQUIPMENT

INTERIOR
• Seats, front bucket
• Seat adjuster, driver 8-way power
• Seat adjuster, front passenger, 4-way manual
• Seat adjuster, driver 4-way power lumbar
• Seat, rear 60/40 split-folding
• Head restraints, 2-way adjustable (up/down), front
• Head restraints, rear, 2-way adjustable
• Console, floor with storage compartment, without cover
• Armrest, rear center
• Floor mats, carpeted front
• Floor mats, carpeted rear
• Noise cancellation system
• Steering column, manual tilt and telescopic
• Instrumentation, analog with speedometer, tachometer, engine temperature and fuel gauge with color Driver
Information Center
• Driver Information Center, color display includes trip/fuel information, vehicle information and vehicle messages
• Window, power with driver Express-Up and Down
• Windows, power with Express-Down on all
• Headlamp control, automatic on and off
• Remote Keyless Entry includes panic alarm button
• Cruise control, electronic with set and resume speed
• Trunk release, power, located inside on instrument panel left of steering wheel
• Theft-deterrent system
• Stolen Vehicle Assistance

Customer File:
March 18, 2013 6:37:03 PM Page 7

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

STANDARD EQUIPMENT

• OnStar Turn-by-Turn Navigation
• Air conditioning, single-zone electronic
• Defogger, rear-window
• Power outlets, 2, auxiliary, 12-volt, located on front of console and inside console
• Power outlet, auxiliary, 12-volt, located forward of console, below the HVAC controls
• Map pockets, driver and front passenger seatbacks
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handles, driver, front passenger and rear outboard
• Brake, park, electronic push button powered, located on instrument panel left of steering wheel
• Lighting, interior with theater dimming, delayed entry/exit, glovebox and trunk
MECHANICAL
• Engine, ECOTEC 2.5L DOHC 4-cylinder DI with Variable Valve Timing (VVT) and intake Variable Valve Lift (iVVL)
(estimated 195 hp [145.4 kW] @ TBD rpm, 187 lb-ft of torque [252.5 N-m] @ TBD rpm)
• Transmission, 6-speed automatic, electronically controlled with overdrive
• Axle, 3.23 final drive ratio
• Front wheel drive
• Battery, 70AH, maintenance free with rundown protection, heavy-duty 512 cold-cranking amps
• Chassis equipment, front strut assembly
• Suspension, rear 4-link
• Steering, power, variable assist electric
• Brakes, 4-wheel antilock, 4-wheel disc
• Brake lining, high-performance, noise and dust performance with FNC rotors
• Exhaust, single-outlet stainless-steel with hidden, turned-down tip

Customer File:
March 18, 2013 6:37:03 PM Page 8

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

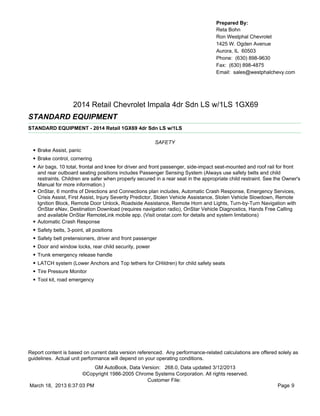

STANDARD EQUIPMENT

SAFETY
• Brake Assist, panic
• Brake control, cornering
• Air bags, 10 total, frontal and knee for driver and front passenger, side-impact seat-mounted and roof rail for front
and rear outboard seating positions includes Passenger Sensing System (Always use safety belts and child
restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's
Manual for more information.)
• OnStar, 6 months of Directions and Connections plan includes, Automatic Crash Response, Emergency Services,
Crisis Assist, First Assist, Injury Severity Predictor, Stolen Vehicle Assistance, Stolen Vehicle Slowdown, Remote
Ignition Block, Remote Door Unlock, Roadside Assistance, Remote Horn and Lights, Turn-by-Turn Navigation with
OnStar eNav, Destination Download (requires navigation radio), OnStar Vehicle Diagnostics, Hands Free Calling
and available OnStar RemoteLink mobile app. (Visit onstar.com for details and system limitations)
• Automatic Crash Response
• Safety belts, 3-point, all positions
• Safety belt pretensioners, driver and front passenger
• Door and window locks, rear child security, power
• Trunk emergency release handle
• LATCH system (Lower Anchors and Top tethers for CHildren) for child safety seats
• Tire Pressure Monitor
• Tool kit, road emergency

Customer File:
March 18, 2013 6:37:03 PM Page 9

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

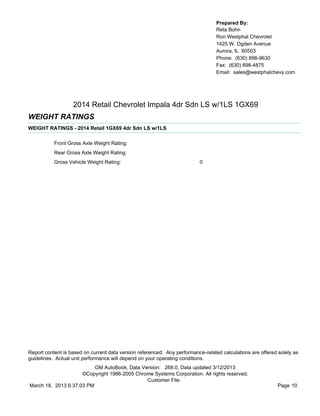

WEIGHT RATINGS
WEIGHT RATINGS - 2014 Retail 1GX69 4dr Sdn LS w/1LS

Front Gross Axle Weight Rating:
Rear Gross Axle Weight Rating:
Gross Vehicle Weight Rating: 0

Customer File:
March 18, 2013 6:37:03 PM Page 10

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875


ALL OPTIONS
ALL OPTIONS - 2014 Retail 1GX69 4dr Sdn LS w/1LS
CATEGORY
EMISSIONS
NE1 EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, $0.00
MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON,
PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON
STATE REQUIREMENTS
YF5 EMISSIONS, CALIFORNIA STATE REQUIREMENTS $0.00
NB8 EMISSIONS OVERRIDE, CALIFORNIA (allows a dealer in states that $0.00
require California emissions - California, Connecticut, Delaware,
Maryland, Massachusetts, New Jersey, New York, Oregon,
Pennsylvania, Rhode Island or Washington - to order Federal emissions
for a vehicle that will be registered in a state that has Federal emission
requirements). Do not use for vehicles that will be registered in California,
Connecticut, Delaware, Maryland, Massachusetts, New Jersey, New
York, Oregon, Pennsylvania, Rhode Island or Washington. (Requires
(FE9) Federal emissions requirements. Not available in Maine or
Vermont.)

Customer File:
March 18, 2013 6:37:03 PM Page 11

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

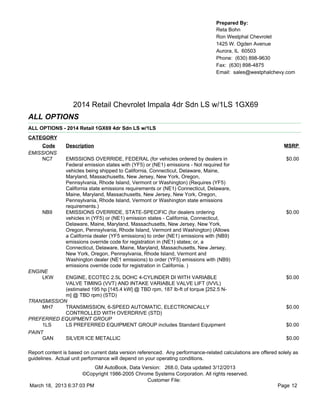

ALL OPTIONS
CATEGORY
EMISSIONS
NC7 EMISSIONS OVERRIDE, FEDERAL (for vehicles ordered by dealers in $0.00
Federal emission states with (YF5) or (NE1) emissions - Not required for
vehicles being shipped to California, Connecticut, Delaware, Maine,
Maryland, Massachusetts, New Jersey, New York, Oregon,
Pennsylvania, Rhode Island, Vermont or Washington) (Requires (YF5)
California state emissions requirements or (NE1) Connecticut, Delaware,
Maine, Maryland, Massachusetts, New Jersey, New York, Oregon,
Pennsylvania, Rhode Island, Vermont or Washington state emissions
requirements.)
NB9 EMISSIONS OVERRIDE, STATE-SPECIFIC (for dealers ordering $0.00
vehicles in (YF5) or (NE1) emission states - California, Connecticut,
Delaware, Maine, Maryland, Massachusetts, New Jersey, New York,
Oregon, Pennsylvania, Rhode Island, Vermont and Washington) (Allows
a California dealer (YF5 emissions) to order (NE1) emissions with (NB9)
emissions override code for registration in (NE1) states; or, a
Connecticut, Delaware, Maine, Maryland, Massachusetts, New Jersey,
New York, Oregon, Pennsylvania, Rhode Island, Vermont and
Washington dealer (NE1 emissions) to order (YF5) emissions with (NB9)
emissions override code for registration in California. )
ENGINE
LKW ENGINE, ECOTEC 2.5L DOHC 4-CYLINDER DI WITH VARIABLE $0.00
VALVE TIMING (VVT) AND INTAKE VARIABLE VALVE LIFT (IVVL)
(estimated 195 hp [145.4 kW] @ TBD rpm, 187 lb-ft of torque [252.5 N-
m] @ TBD rpm) (STD)
TRANSMISSION
MH7 TRANSMISSION, 6-SPEED AUTOMATIC, ELECTRONICALLY $0.00
CONTROLLED WITH OVERDRIVE (STD)
PREFERRED EQUIPMENT GROUP
1LS LS PREFERRED EQUIPMENT GROUP includes Standard Equipment $0.00
PAINT

Customer File:
March 18, 2013 6:37:03 PM Page 12

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

ALL OPTIONS
CATEGORY
PAINT
GAZ SUMMIT WHITE (Not available on LTZ.) $0.00
GBA BLACK $0.00
GLJ ASHEN GRAY METALLIC $0.00
GTS BLUE TOPAZ METALLIC (Not available at start of production. Not $0.00
available on LS Eco and LT Eco.)
GWS SILVER TOPAZ METALLIC (Not available at start of production. Not $0.00
available on LS Eco and LT Eco.)
GWT CHAMPAGNE SILVER METALLIC $0.00
GXH BLUE RAY METALLIC $0.00
PAINT SCHEME
SEAT TYPE
SEAT TRIM
RADIO
IO3 AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER AND AUXILIARY $0.00
INPUT JACK (STD)
PCN LS CONVENIENCE PACKAGE includes (UD7) Rear Park Assist, (AYR) $570.00
manual-foldable rear head restraints and (AP9) cargo convenience net
VK3 LICENSE PLATE BRACKET, FRONT (Included on orders with ship-to $15.00
states that require a front license plate.)
AYR HEAD RESTRAINTS, REAR, ADJUSTABLE, FOLDING (Included and INC
only available with (PCN) LS Convenience Package.)

Customer File:
March 18, 2013 6:37:03 PM Page 13

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

ALL OPTIONS
CATEGORY
AP9 CARGO CONVENIENCE NET, TRUNK (Included and only available with INC
(PCN) LS Convenience Package.)
W2D LPO, CARGO NET (Not available with (PCN) LS Convenience Package.) $60.00
UD7 REAR PARK ASSIST (Included and only available with (PCN) LS INC
Convenience Package.)
R6M NEW JERSEY COST SURCHARGE *Required on all vehicles to be $0.00
registered in New Jersey*
R8Q ILLINOIS COST SURCHARGE $0.00

Customer File:
March 18, 2013 6:37:03 PM Page 14

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

COLOR AVAILABILITY
COLOR CHART - 2014 Retail 1GX69 4dr Sdn LS w/1LS

EXTERIOR INTERIOR
Jet
Black/Da
rk
Titanium
Silver Ice Metallic X

Customer File:
March 18, 2013 6:37:03 PM Page 15

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

WARRANTY INFORMATION
WARRANTY INFORMATION - 2014 Retail 1GX69 4dr Sdn LS w/1LS

WARRANTY
<<< PRELIMINARY 2014 WARRANTY >>>

Basic:
3 Years/36,000 Miles

Drivetrain:

Corrosion:
Rust-Through

Roadside Assistance:

Customer File:
March 18, 2013 6:37:03 PM Page 16

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

TECHNICAL SPECIFICATIONS
POWERTRAIN - BASIC SPECIFICATIONS - 2014 Retail 1GX69 4dr Sdn LS w/1LS

ENGINE
Engine Order Code LKW
Engine Type Gas I4
Displacement 2.5L/150 CID
SAE Net Horsepower @ RPM 195 @ - TBD -
SAE Net Torque (lb ft) @ RPM 187 @ - TBD -
TRANSMISSION
Transmission order code MH7
Transmission Type Description 6-Speed Automatic
Drive Train Front Wheel Drive
MILEAGE
City EPA fuel economy estimate (MPG) - TBD -
Hwy EPA fuel economy estimate (MPG) - TBD -
City cruising range (mi) - TBD -
Hwy cruising range (mi) - TBD -
* Indicates equipment which is in addition to or replaces base model's standard equipment.

Customer File:
March 18, 2013 6:37:03 PM Page 17

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

POWERTRAIN - ADVANCED SPECIFICATIONS - 2014 Retail 1GX69 4dr Sdn LS w/1LS

TRANSMISSION
Gear Ratio (:1)
First Gear Ratio (:1) - TBD -
Second Gear Ratio (:1) - TBD -
Third Gear Ratio (:1) - TBD -
Fourth Gear Ratio (:1) - TBD -
Fifth Gear Ratio (:1) - TBD -
Sixth Gear Ratio (:1) - TBD -
Reverse Ratio (:1) - TBD -
Clutch size (in)
Final Drive Axle Ratio (:1) 3.23
ELECTRICAL
Battery 1
Battery cold cranking Amps @ 0 F 512.00
Alternator
Alternator Amps - TBD -
COOLING SYSTEM
Cooling system capacity - TBD -

Customer File:
March 18, 2013 6:37:03 PM Page 18

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

PAYLOAD/TRAILERING SPECIFICATIONS - 2014 Retail 1GX69 4dr Sdn LS w/1LS

WEIGHT INFORMATION
Base curb weight (lbs) - TBD -
TRAILERING Max Trailer Wt. Max Tongue Load
Dead Weight Hitch (lbs) - TBD - - TBD -
Weight Distributing Hitch (lbs)
Fifth Wheel Hitch (lbs)

Customer File:
March 18, 2013 6:37:03 PM Page 19

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

CHASSIS SPECIFICATIONS - 2014 Retail 1GX69 4dr Sdn LS w/1LS

SUSPENSION Front Rear
Suspension Type - TBD - Multi-Link
Suspension Type (cont.)
Shock Absorber Diameter (mm) N/A N/A
Stabilizer Bar Diameter (in) - TBD - - TBD -
BRAKES
Brake type Pwr
ABS System 4-Wheel
Front Rear
Disc Yes Yes
Rotor Diam x Thickness (in) - TBD - - TBD -
Drum
Drum Diam x Width (in)
TIRES Front Rear Spare
Tire Order Code QGK QGK QCL
Tire Size P235/50R18 P235/50R18 T125/70R17
WHEELS Front Rear Spare
Wheel Size 18 x - TBD - 18 x - TBD - 17 x - TBD -
Wheel Type Steel Steel Steel
STEERING
Steering type - TBD -
Ratio (:1)
Overall - TBD -
Lock-to-Lock Turns - TBD -
Turning Diameter
Curb-to-Curb - TBD -
Wall-to-Wall - TBD -

Customer File:
March 18, 2013 6:37:03 PM Page 20

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

CHASSIS SPECIFICATIONS - 2014 Retail 1GX69 4dr Sdn LS w/1LS

FUEL TANK Main
Capacity 18.50

Customer File:
March 18, 2013 6:37:03 PM Page 21

Prepared By:
Reta Bohn
Aurora, IL 60503
Phone: (630) 898-9630
Fax: (630) 898-4875

DIMENSIONS - 2014 Retail 1GX69 4dr Sdn LS w/1LS

EXTERIOR DIMENSIONS
Wheelbase (in) 111.70
Length, Overall (in) 201.30
Width, Max w/o mirrors (in) 73.00
Height, Overall (in) 58.90
Tread Width
Track Width, Front 62.20
Track Width, Rear 62.00
Min Ground Clearance (in) - TBD -
CARGO AREA DIMENSIONS
Liftover Height (in) - TBD -
Trunk Volume 18.8
INTERIOR DIMENSIONS
Passenger Capacity 5
Passenger Volume (ft³) - TBD -
EPA Classification Large Cars
Seating Position Front Second
Head Room (in) 39.90 37.40
Leg Room (in) 45.80 39.80
Shoulder Room (in) 57.90 56.90
Hip Room (in) 54.90 54.10

Customer File:
March 18, 2013 6:37:03 PM Page 22

2014 Chevy Impala 1LS

More Related Content

What's hot

Similar to 2014 Chevy Impala 1LS

More from Ron Westphal Chevy

Recently uploaded

2014 Chevy Impala 1LS
