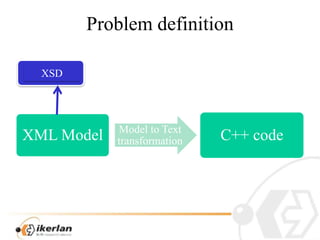

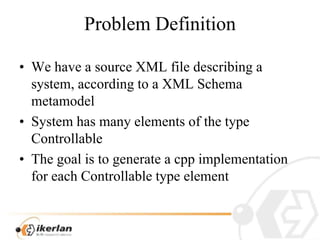

2. ProblemDefinitionWehave a source XML filedescribing a system, accordingto a XML SchemametamodelSystem has manyelements of thetypeControllableThegoalistogeneratea cppimplementationforeachControllabletypeelement

3. ProblemdefinitionXSD

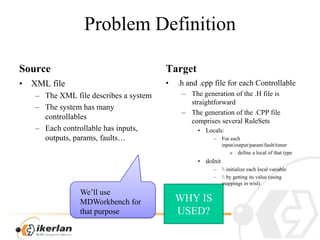

4. ProblemDefinitionSourceXML fileThe XML file describes a systemThesystem has manycontrollablesEachcontrollable has inputs, outputs, params, faults…Target.h and .cppfileforeachControllableThe generation of the .H file is straightforwardThe generation of the .CPP file comprises several RuleSetsLocals:For each input/output/param/fault/timer define a local of that typedoInit\\ initialize each local variable\\ by getting its value (using mappings in wtsl)WHY IS USED?We’ll use MDWorkbench forthatpurpose

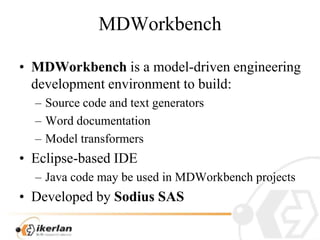

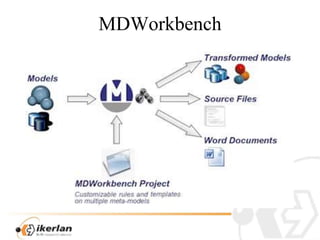

5. MDWorkbenchMDWorkbench is a model-driven engineering development environment to build:Source code and text generatorsWord documentationModel transformersEclipse-based IDEJava code may be used in MDWorkbench projectsDeveloped by Sodius SAS

6. MDWorkbench

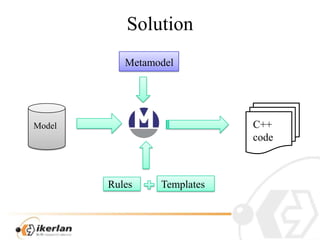

7. SolutionMetamodelC++ codeModelRulesTemplates

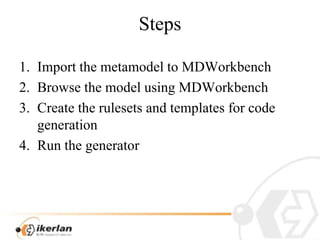

8. StepsImportthemetamodelto MDWorkbenchBrowsethemodelusing MDWorkbenchCreatetherulesets and templatesforcodegenerationRunthegenerator

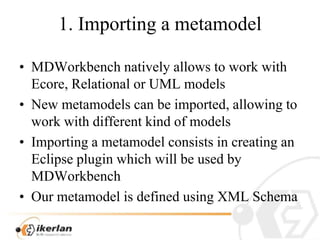

9. 1. Importing a metamodelMDWorkbench nativelyallowstoworkwithEcore, Relationalor UML modelsNew metamodels can beimported, allowingtoworkwithdifferentkind of modelsImporting a metamodelconsists in creatingan Eclipse pluginwhichwillbeusedby MDWorkbenchOurmetamodelisdefinedusing XML Schema

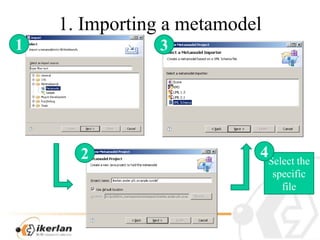

10. 1. Importing a metamodel1342Select the specific file

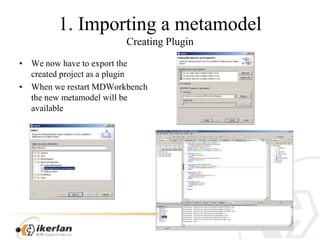

11. 1. Importing a metamodelCreatingPluginWenowhavetoexportthecreatedproject as a pluginWhenwerestart MDWorkbench the new metamodelwillbeavailable

12. 2. BrowsingthemodelOnce themetamodel has beenimportedwe can open themodel in MDWorkbench and browseit

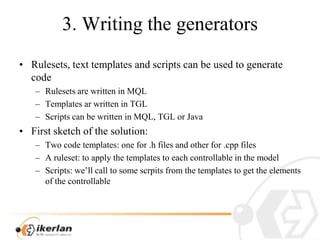

13. 3. WritingthegeneratorsRulesets, texttemplates and scripts can beusedtogeneratecodeRulesets are written in MQLTemplatesarwritten in TGLScripts can bewritten in MQL, TGL or JavaFirst sketch of thesolution:Twocodetemplates: onefor .h files and otherfor .cpp filesA ruleset: toapplythetemplatestoeachcontrollable in themodelScripts: we’llcalltosomescrpitsfromthetemplatestogettheelements of thecontrollable

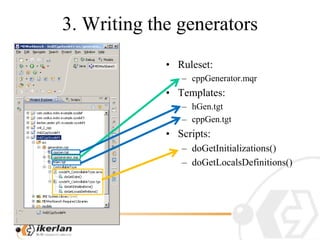

14. 3. WritingthegeneratorsRuleset:cppGenerator.mqrTemplates:hGen.tgtcppGen.tgtScripts:doGetInitializations()doGetLocalsDefinitions()

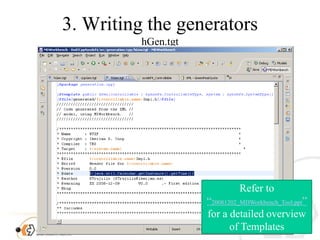

15. 3. WritingthegeneratorshGen.tgtRefer to “20081202_MDWorkbench_Tool.ppt” for a detailed overview of Templates

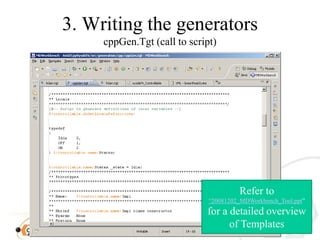

16. 3. WritingthegeneratorscppGen.Tgt (callto script)Refer to “20081202_MDWorkbench_Tool.ppt” for a detailed overview of Templates

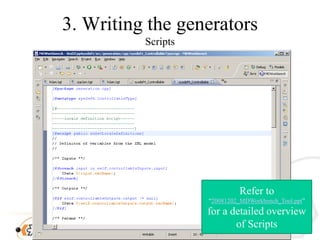

17. 3. WritingthegeneratorsScriptsRefer to “20081202_MDWorkbench_Tool.ppt” for a detailed overview of Scripts

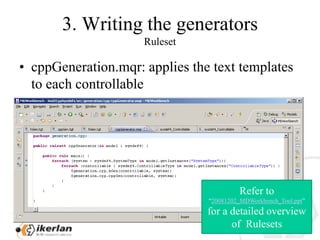

18. 3. WritingthegeneratorsRulesetcppGeneration.mqr: appliesthetexttemplatestoeachcontrollableRefer to “20081202_MDWorkbench_Tool.ppt”for a detailed overview of Rulesets

19. 4. RunningthegeneratorRunconfigurationSelecttheruleset as themainelementwewanttorun and the input model

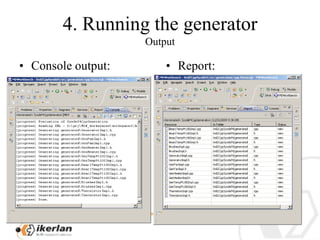

20. 4. RunningthegeneratorOutputConsole output:Report:

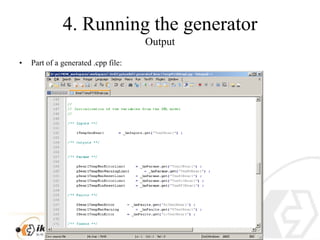

21. 4. RunningthegeneratorOutputPart of a generated .cppfile:
