This document discusses how to write MySQL 5.1 plugins. It covers including necessary header files, declaring plugins, implementing a generic plugin descriptor, and providing init and deinit functions. It also provides an example of a minimal daemon plugin that logs initialization and deinitialization.

1. Roland Bouman
http://rpbouman.blogspot.com/
1
Writing MySQL 5.1 Plugins

2. Roland Bouman
http://rpbouman.blogspot.com/
2
Tasks Before Implementing
Plugins
● Include header files:
– Standard headers: <stdlib.h>, <ctype.h>
– MySQL headers for Clean plugins:
<mysql/plugin.h>
– MySQL headers for Unclean plugins:
<mysql_version.h>
● Create a section for plugin declarations:
– mysql_declare_plugin(name)
– mysql_declare_plugin_end

3. Roland Bouman
http://rpbouman.blogspot.com/
3

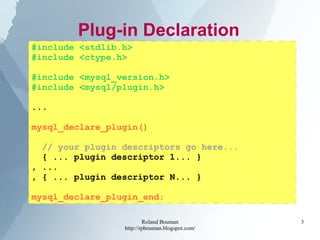

Plug-in Declaration
#include <stdlib.h>
#include <ctype.h>
#include <mysql_version.h>
#include <mysql/plugin.h>
...
mysql_declare_plugin()
// your plugin descriptors go here...
{ ... plugin descriptor 1... }
, ...
, { ... plugin descriptor N... }
mysql_declare_plugin_end;

4. Roland Bouman
http://rpbouman.blogspot.com/
4

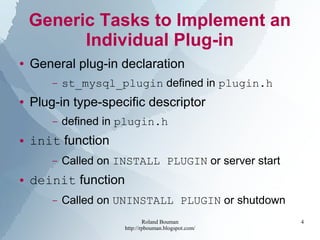

Generic Tasks to Implement an
Individual Plug-in
● General plug-in declaration
– st_mysql_plugin defined in plugin.h
● Plug-in type-specific descriptor
– defined in plugin.h
● init function
– Called on INSTALL PLUGIN or server start
● deinit function
– Called on UNINSTALL PLUGIN or shutdown

5. Roland Bouman
http://rpbouman.blogspot.com/
5

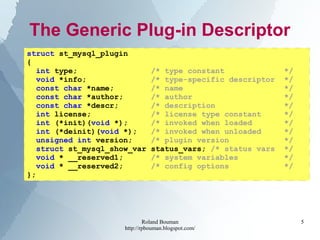

The Generic Plug-in Descriptor
struct st_mysql_plugin
{
int type; /* type constant */
void *info; /* type-specific descriptor */
const char *name; /* name */
const char *author; /* author */
const char *descr; /* description */
int license; /* license type constant */
int (*init)(void *); /* invoked when loaded */
int (*deinit)(void *); /* invoked when unloaded */
unsigned int version; /* plugin version */
struct st_mysql_show_var status_vars; /* status vars */
void * __reserved1; /* system variables */
void * __reserved2; /* config options */
};

6. Roland Bouman
http://rpbouman.blogspot.com/
6

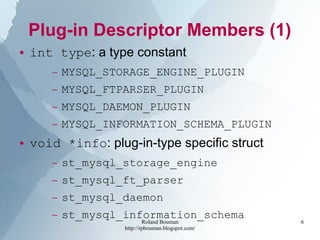

Plug-in Descriptor Members (1)
● int type: a type constant
– MYSQL_STORAGE_ENGINE_PLUGIN
– MYSQL_FTPARSER_PLUGIN
– MYSQL_DAEMON_PLUGIN
– MYSQL_INFORMATION_SCHEMA_PLUGIN
● void *info: plug-in-type specific struct
– st_mysql_storage_engine
– st_mysql_ft_parser
– st_mysql_daemon
– st_mysql_information_schema

7. Roland Bouman
http://rpbouman.blogspot.com/
7

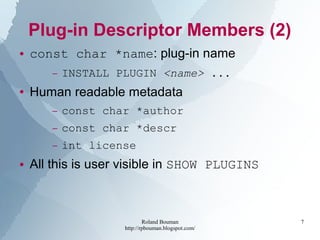

Plug-in Descriptor Members (2)
● const char *name: plug-in name
– INSTALL PLUGIN <name> ...
● Human readable metadata
– const char *author
– const char *descr
– int license
● All this is user visible in SHOW PLUGINS

8. Roland Bouman
http://rpbouman.blogspot.com/
8

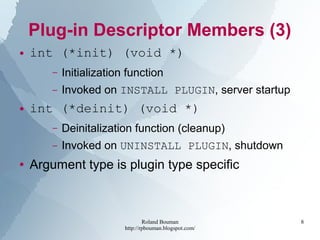

Plug-in Descriptor Members (3)
● int (*init) (void *)
– Initialization function
– Invoked on INSTALL PLUGIN, server startup
● int (*deinit) (void *)
– Deinitalization function (cleanup)
– Invoked on UNINSTALL PLUGIN, shutdown
● Argument type is plugin type specific

9. Roland Bouman
http://rpbouman.blogspot.com/
9

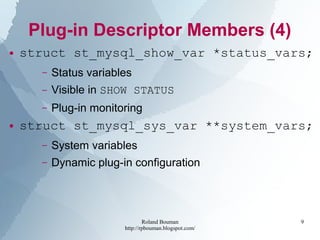

Plug-in Descriptor Members (4)
● struct st_mysql_show_var *status_vars;
– Status variables
– Visible in SHOW STATUS
– Plug-in monitoring
● struct st_mysql_sys_var **system_vars;
– System variables
– Dynamic plug-in configuration

10. Roland Bouman
http://rpbouman.blogspot.com/
10

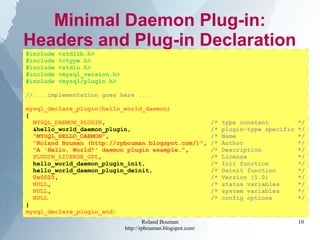

Minimal Daemon Plug-in:
Headers and Plug-in Declaration
#include <stdlib.h>
#include <ctype.h>
#include <stdio.h>
#include <mysql_version.h>
#include <mysql/plugin.h>
//... implementation goes here ...
mysql_declare_plugin(hello_world_daemon)
{
MYSQL_DAEMON_PLUGIN, /* type constant */
&hello_world_daemon_plugin, /* plugin-type specific */
"MYSQL_HELLO_DAEMON", /* Name */
"Roland Bouman (http://rpbouman.blogspot.com/)", /* Author */
"A 'Hello, World!' daemon plugin example.", /* Description */
PLUGIN_LICENSE_GPL, /* License */
hello_world_daemon_plugin_init, /* Init function */
hello_world_daemon_plugin_deinit, /* Deinit function */
0x0010, /* Version (1.0) */
NULL, /* status variables */
NULL, /* system variables */
NULL /* config options */
}
mysql_declare_plugin_end;

11. Roland Bouman
http://rpbouman.blogspot.com/
11
Minimal Daemon Plug-in:
Implementation
// Log initialization
static int hello_world_daemon_plugin_init(void *p)
{
fprintf(stderr, "hello_world_daemon_plugin_initn");
return 0;
}
// Log de-initialization
static int hello_world_daemon_plugin_deinit(void *p)
{
fprintf(stderr, "hello_world_daemon_plugin_deinitn");
return 0;
}
// plug-in type specific structure
struct st_mysql_daemon hello_world_daemon_plugin=
{ MYSQL_DAEMON_INTERFACE_VERSION };
