This document provides instructions for creating a basic map application for Android using Google Maps. It outlines 8 key steps: 1) Downloading the Google API SDK, 2) Creating an emulator targeting the Google API, 3) Adding the Google Maps library and internet permissions to AndroidManifest.xml, 4) Replacing the main.xml layout with a MapView component, 5) Getting an API key by generating an MD5 fingerprint, 6) Entering the API key in main.xml, 7) Extending the MapActivity class instead of the Activity class, and 8) Running the app on the emulator.

1. 12. Map
Oum Saokosal
Master of Engineering in Information Systems, South Korea
855-12-252-752
oum_saokosal@yahoo.com

2. Map
• Google owns Android, so it is obvious that
the map you're going to use in Android
app must be Google Map.
• However to use Google Map in your app
is not as easy as it should be.

3. Instruction how to make Map app:
1. Go to window menu -> Android SDK Manager
-> Download Google API (2.3.3 API 10)

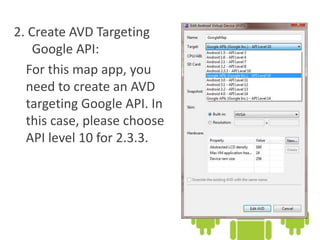

4. 2. Create AVD Targeting
Google API:
For this map app, you
need to create an AVD
targeting Google API. In
this case, please choose
API level 10 for 2.3.3.

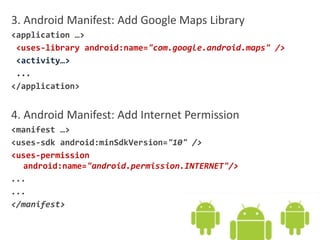

5. 3. Android Manifest: Add Google Maps Library
<application …>
<uses-library android:name="com.google.android.maps" />
<activity…>
...
</application>
4. Android Manifest: Add Internet Permission
<manifest …>
<uses-sdk android:minSdkVersion="10" />
<uses-permission
android:name="android.permission.INTERNET"/>
...
...
</manifest>

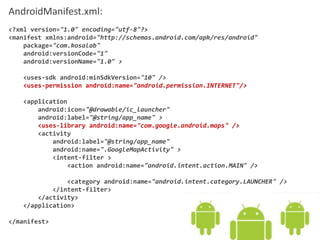

6. AndroidManifest.xml:
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.kosalab"
android:versionCode="1"
android:versionName="1.0" >
<uses-sdk android:minSdkVersion="10" />
<uses-permission android:name="android.permission.INTERNET"/>
<application
android:icon="@drawable/ic_launcher"
android:label="@string/app_name" >
<uses-library android:name="com.google.android.maps" />
<activity
android:label="@string/app_name"
android:name=".GoogleMapActivity" >
<intent-filter >
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
</application>
</manifest>

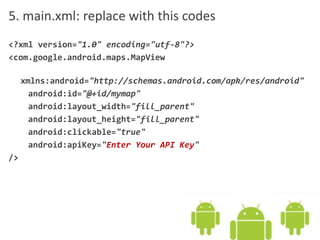

7. 5. main.xml: replace with this codes
<?xml version="1.0" encoding="utf-8"?>
<com.google.android.maps.MapView
xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/mymap"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:clickable="true"
android:apiKey="Enter Your API Key"
/>

8. 6. Getting API Key:
6.1. Go to a website, http://code.google.com/android/add-
ons/google-apis
6.2. Click on Maps API Key Signup

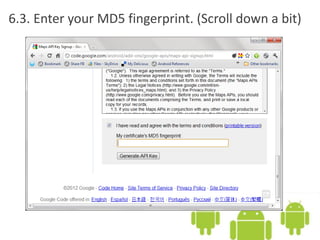

9. 6.3. Enter your MD5 fingerprint. (Scroll down a bit)

10. 6.4. To get MD5 fingerprint
6.4.1. In Eclipse, go to Window -> Preferences -> Android ->
Build -> Default debug keystore -> Copy the path

11. 6.4.2. In Windows Explorer, go to Java installed
folder, e.g. c:Program Files (x86)Java -> jre6 ->
bin -> keystore.exe

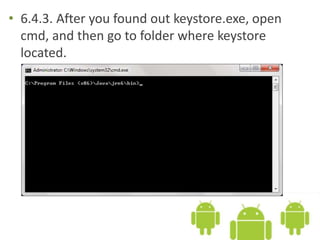

12. • 6.4.3. After you found out keystore.exe, open
cmd, and then go to folder where keystore
located.

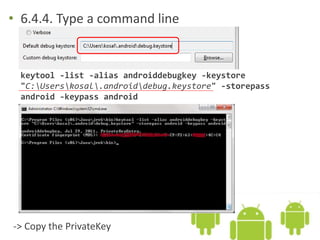

13. • 6.4.4. Type a command line
keytool -list -alias androiddebugkey -keystore
"C:Userskosal.androiddebug.keystore" -storepass
android -keypass android
-> Copy the PrivateKey

14. • 6.4.5. Paste the PrivateKey into MD5 Fingerprint
in the website -> Click "Generate API Key"

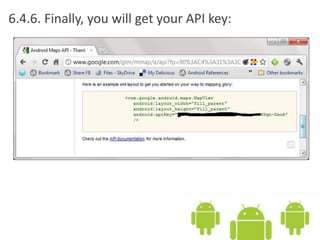

15. 6.4.6. Finally, you will get your API key:

16. 7. Enter the API key into main.xml.
<?xml version="1.0" encoding="utf-8"?>
<com.google.android.maps.MapView
xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/mymap"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:clickable="true"
android:apiKey="eNtEr_y0uR_Ap1_kEy_HeRe"
/>

17. 8. In Java, you must extends MapActivity instead of Activity:
package com.kosalab;
import com.google.android.maps.MapActivity;
import com.google.android.maps.MapView;
import android.os.Bundle;
public class GoogleMapActivity extends MapActivity {
/** Called when the activity is first created. */
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.main);
MapView mapView = (MapView) findViewById(R.id.mymap);
mapView.setBuiltInZoomControls(true);
}
@Override
protected boolean isRouteDisplayed() {
// TODO Auto-generated method stub
return false;
}
}

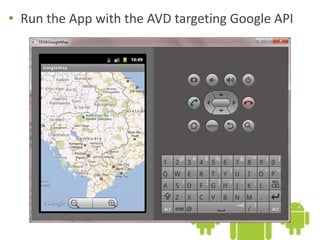

18. • Run the App with the AVD targeting Google API

19. You know what, you have
reached the end of this course!
Thank You Very Much
Good Luck!
From Prof. Oum Saokosal
On Feb 1, 2012
