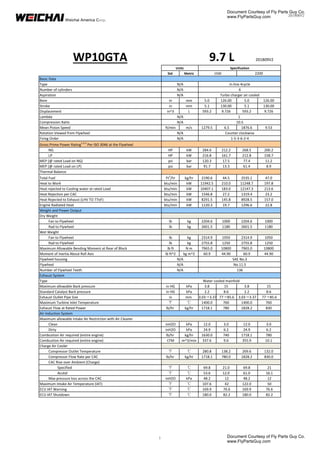

This document provides specifications for a Weichai America Corp WP10GTA engine. It includes basic data on displacement, cylinder configuration, aspiration, power ratings, thermal balance, weight and dimensions, cooling system details, lubrication system specs, and fuel consumption curves. The engine is an inline 4-cycle diesel with a bore and stroke of 126mm x 130mm, producing 284.6 kW at 212.2 HP on natural gas and 216.8 kW at 161.7 HP on liquid propane gas under ISO 3046 test conditions.

1. Weichai America Corp.
201806V2
WP10GTA
Std Metric
Basic Data
Type
Number of cylinders
Aspiration
Bore in mm 5.0 126.00 5.0 126.00
Stroke in mm 5.1 130.00 5.1 130.00
Displacement in^3 L 593.2 9.726 593.2 9.726
Lambda
Compression Ratio
Mean Piston Speed ft/min m/s 1279.5 6.5 1876.6 9.53
Rotation Viewed from Flywheel
Firing Order
Gross Prime Power Rating1,2,3
Per ISO 3046 at the Flywheel
NG HP kW 284.6 212.2 268.5 200.2
LP HP kW 216.8 161.7 212.8 158.7
MEP (@ rated Load on NG) psi bar 120.3 17.5 77.4 11.2
MEP (@ rated Load on LP) psi bar 91.7 13.3 61.4 8.9
Thermal Balance
Total Fuel Ft3
/hr kg/hr 2190.6 44.5 2535.1 47.0
Heat to Work btu/min kW 11942.5 210.0 11248.7 197.8
Heat rejected to Cooling water at rated Load btu/min kW 10407.1 183.0 12147.3 213.6
Heat Rejection per CAC btu/min kW 1546.8 27.2 1319.4 23.2
Heat Rejected to Exhaust (LHV TO 77oF) btu/min kW 8291.5 145.8 8928.5 157.0
Engine Radiated Heat btu/min kW 1120.3 19.7 1296.6 22.8
Weight and Power Output
Dry Weight
Fan to Flywheel lb kg 2204.6 1000 2204.6 1000
Rad to Flywheel lb kg 2601.5 1180 2601.5 1180
Wet Weight
Fan to Flywheel lb kg 2314.9 1050 2314.9 1050
Rad to Flywheel lb kg 2755.8 1250 2755.8 1250
Maximum Allowable Bending Moment at Rear of Block lb ft N m 7965.0 10800 7965.0 10800
Moment of Inertia About Roll Axis lb ft^2 kg m^2 60.9 44.90 60.9 44.90
Flywheel housing
Flywheel
Number of Flywheel Teeth
Exhaust System
Type
Maximum allowable Back pressure in HG kPa 3.8 15 3.8 15
Standard Catalyst Back pressure in HG kPa 2.2 8.6 2.2 8.6
Exhaust Outlet Pipe Size in mm 3.03→3.37 77→85.6 3.03→3.37 77→85.6
Maximum Turbine Inlet Temperature ℉ ℃ 1400.0 760 1400.0 760
Exhaust Flow at Rated Power lb/hr kg/hr 1718.1 780 1828.2 830
Air Induction System
Maximum allowable Intake Air Restriction with Air Cleaner
Clean inH2O kPa 12.0 3.0 12.0 3.0
Dirty inH2O kPa 24.9 6.2 24.9 6.2
Combustion Air required (entire engine) lb/hr kg/hr 1630.0 740 1718.1 780
Combustion Air required (entire engine) CFM m^3/min 337.6 9.6 355.9 10.1
Charge Air Cooler
Compressor Outlet Temperature ℉ ℃ 280.8 138.2 269.6 132.0
Compressor Flow Rate per CAC lb/hr kg/hr 1718.1 780.0 1828.2 830.0
CAC Rise over Ambient (Charge)
Specified ℉ ℃ 69.8 21.0 69.8 21
Acutal ℉ ℃ 53.6 12.0 61.0 16.1
Max pressure loss across the CAC inH2O kPa 48.2 12 48.2 12
Maximum Intake Air Temperature (IAT) ℉ ℃ 107.6 42 122.0 50
ECU IAT Warning ℉ ℃ 169.9 76.6 169.9 76.6
ECU IAT Shutdown ℉ ℃ 180.0 82.2 180.0 82.2
N/A 136
Water cooled mainfold
N/A No.11.5
N/A 10.5
N/A Counter clockwise
N/A 1-5-3-6-2-4
N/A SAE No.3
9.7 L 201809V2
Units Specificaiton
1500 2200
N/A in-line 4cycle
N/A 6
N/A Turbo charger air cooled
N/A 1
1
Document Courtesy of Fly Parts Guy Co.
www.FlyPartsGuy.com
Document Courtesy of Fly Parts Guy Co.
www.FlyPartsGuy.com

2. Weichai America Corp.
201806V2
WP10GTA 9.7 L 201809V2
Units Specificaiton
Cooling System
Coolant Capacity
Engine only gal L 5.8 22 5.8 22
Engine with Radiator gal L 13.2 50 13.2 50
Engine Coolant Flow gal/min L/min 89.8 340 105.7 400
Water Pump Speed
Standard Thermostat Range
Cracking Temperature ℉ ℃ 168.8 76 168.8 76
Full Open Temperature ℉ ℃ 190.4 88 190.4 88
Maximum Allowable Pressure Cap psi bar 7.4 0.50 7.4 0.50
Ambient Clearance Open Genset (water) (Air-to-Boil)
Specified ℉ ℃ ≥107 ≥42 ≥107 ≥42
Acutal ℉ ℃ 107.6 42.0 111.2 44.0
Maximum Allowable Top Tank Temperature ℉ ℃ 208.4 98 208.4 98
ECU Warning ℉ ℃ 220.0 103 220.0 103
ECU Shutdown ℉ ℃ 230.0 110 230.0 110
Fan Power HP kW 18.4 13.7 42.2 31.5
Fan Diameter, including blades in mm 29.9 760 29.9 760
Fan Speed
Electrical System
Minimum Recommended Battery Capacity
Cold Cranking Current
Engine only
Engine with Drive train
Maximum Allowable Resistance of Starting Circuit
Starting Motor Power HP kW 7.4 5.5 7.4 5.5
Battery Charging Alternator
Voltage
Current
Coil primary Resistance
Spark Plug p/n
Spark plug gap
Lubrication System
Oil Specification
Oil Pressure
Idle
Min Psi Bar 19.1 1.3 19.1 1.3
Max Psi Bar 54.4 3.7 54.4 3.7
Rated Speed
Min Psi Bar 51.5 3.5 51.5 3.5
Max Psi Bar 85.3 5.8 85.3 5.8
Maximum Allowable Oil Temperature ℉ ℃ 221.0 105.0 221.0 105.0
Engine Oil Capacity
Min Qts L 21.1 20.0 21.1 20.0
Max Qts L 25.4 24.0 25.4 24.0
Oil Filter Capacity Qts L 1.4 1.3 1.4 1.3
ECU Oil Pressure Warning
ECU Oil Pressure Shut Down
Fuel System
Fuel Consumption
NG Ft3
/hr kg/hr 2190.6 44.5 2535.1 51.5
LP Ft3
/hr kg/hr 687.1 39.3 753.5 43.1
Maximum EPR Rated Pressure psi kPa 1.0 6.9 1.0 6.9
Maximum Running pressure to Electronic Pressure Regulator (EPR) inH2O kPa 10.8 2.7 10.8 2.7
Minimum Running pressure to EPR inH2O kPa 6.8 1.7 6.8 1.7
Minimum Gas Supply Pipe Size
Maximum EPR Rated Pressure psi kPa 1.0 6.90 1.0 6.90
Maximum Running Pressure to EPR inH2O kPa 10.8 2.70 10.8 2.70
Minimum Running Pressure to EPR inH2O kPa 6.8 1.70 6.8 1.70
Minimum LPG Supply Pipe Size4
1/4" NPT
1-1/4" NPT
psi 30.0 30.0
psi 25.0 25.0
Volts 28
Amps 70
Ohms 0.59Ω ± 10%
Bosch R66857
mm 0.45-0.5
SAE 15W-40 Low Ash Gas engine oil (.25-.5% by wt), API CD/CF or higher
Ohms 0.002
RPM 1905 2286
AH 150
CCA 900
CCA 900
RPM 1905 2286
2
Document Courtesy of Fly Parts Guy Co.
www.FlyPartsGuy.com
Document Courtesy of Fly Parts Guy Co.
www.FlyPartsGuy.com

3. Weichai America Corp.
201806V2
WP10GTA 9.7 L 201809V2
Units Specificaiton
Power Curve vs. Speed (Natural Gas)
Fuel Consumption Curve vs. Speed (Natural Gas)
Power Curve vs. Speed (Liquid Propane Gas )
60
80
100
120
140
160
180
200
220
600
700
800
900
1000
1100
1200
1300
1400
900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200
Power
(kW)
Speed (rpm)
Torque
(N.m)
20
25
30
35
40
45
50
55
60
65
70
200
205
210
215
220
225
230
235
240
900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200
Total
Fuel（m³/h)
Speed (rpm)
BSFC（g/kW.h）
50
70
90
110
130
150
170
190
200
300
400
500
600
700
800
900
1000
1100
900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200
Power
(kW)
Torque(N.m)
Speed (rpm)
3
Document Courtesy of Fly Parts Guy Co.
www.FlyPartsGuy.com
Document Courtesy of Fly Parts Guy Co.
www.FlyPartsGuy.com

4. Weichai America Corp.
201806V2
WP10GTA 9.7 L 201809V2
Units Specificaiton
Fuel Consumption Curve vs. Speed (Liquid Propane Gas)
Net Power data (Natural Gas)
Speed (RPM) 900 1200 1500 1800 2000 2200
Gross Power (kW) 75.7 166.5 212.2 202.6 204.1 200.2
Fan Power (kW) 6.9 12.3 13.7 17.1 23.9 31.5
Net Power (kW) 68.8 154.1 198.5 185.5 180.2 168.8
Net Power data (Liquid Propane Gas)
Speed (RPM) 900 1500 1800 2200
Gross Power (kW) 80.5 161.7 167.9 158.7
Fan Power (kW) 6.9 13.7 17.1 31.5
Net Power (kW) 73.6 148.1 150.9 127.2
4
The preceeding pipe sizes are only suggestions and piping sizes may vary with temperature, pressure, distance from supply and application of local codes. Gas
must be available at adequate volume and pressure for engine at the EPR.
1
Standby and overload ratings based on ISO3046.
2
All ratings are gross flywheel horsepower corrected to 77
o
F at an altitude of 328 feet with no cooling fan or alternator losses using heating value for NG of 1025
BTU/SCF (HHV) and for propane of 2490 BTU/SCF (HHV).
3
Production tolerances in engines and installed components can account for power variations of +/- 5%. Altitude, temperature and excessive exhaust and intake
restrictions should be applied to power calculations. Engine maybe operated at : up to 1200 feet and 86°F without power deration. For sustained operation above
these conditions, derate by 2.5% per 1000 feet, and 1.5% per 10°F.
9
11
13
15
17
19
21
23
25
200
210
220
230
240
250
260
270
280
900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200
TotalFuel（gal/h）
BSFC(g/kW.h)
Speed (rpm)
4
Document Courtesy of Fly Parts Guy Co.
www.FlyPartsGuy.com
Document Courtesy of Fly Parts Guy Co.
www.FlyPartsGuy.com

5. Weichai America Corp.
WP10GTA
Std Metric
Basic Data
Type
Number of cylinders
Aspiration
Bore in mm 5.0 126.00 5.0 126.00
Stroke in mm 5.1 130.00 5.1 130.00
Displacement in^3 L 593.2 9.726 593.2 9.726
Lambda
Compression Ratio
Mean Piston Speed ft/min m/s 1279.5 6.50 1535.4 7.80
Rotation Viewed from Flywheel
Firing Order
Gross Standby Power Rating1,2,3
Per ISO 3046 at the Flywheel
NG HP kW 308.4 230.0 316.2 235.8
LP HP kW 216.8 161.7 225.2 167.9
MEP (@ rated Load on NG) psi bar 130.4 18.9 237.6 16.2
MEP (@ rated Load on LP) psi bar 91.7 13.3 169.1 11.5
Thermal Balance
Total Fuel Ft
3
/hr kg/hr 2436.7 49.5 2535.1 51.5
Heat to Work btu/min kW 13079.9 230.0 16856.0 235.8
Heat rejected to Cooling water at rated Load btu/min kW 11390.9 200.3 11345.4 215.2
Heat Rejection per CAC btu/min kW 1745.9 30.7 1495.7 15.0
Heat Rejected to Exhaust (LHV TO 77oF) btu/min kW 9605.2 168.9 9781.5 177.8
Enigne Radiated Heat btu/min kW 1108.9 19.5 2075.7 15.0
Gross Prime Power Rating1,2,3
Per ISO 3046 at the Flywheel
NG HP kW 281.61 212.2 268.2 202.6
LP HP kW 216.84 161.7 225.0 167.9
MEP (@ rated Load on NG) psi bar 119.10 17.27 201.4 13.7
MEP (@ rated Load on LP) psi bar 91.71 13.30 169.3 11.5
Thermal Balance
Total Fuel Ft3
/hr kg/hr 2195.48 44.6 2180.7 44.3
Heat to Work btu/min kW 11942.53 210 10947.3 192.5
Heat rejected to Cooling water at rated Load btu/min kW 10316.07 181.4 10264.9 180.5
Heat Rejection per CAC btu/min kW 1387.61 24.4 1495.7 26.3
Heat Rejected to Exhaust (LHV TO 77oF) btu/min kW 8342.71 146.7 8280.2 145.6
Engine Radiated Heat btu/min kW 1217.00 21.4 4788.4 84.2
Weight and Power Output
Dry Weight
Fan to Flywheel lb kg 2204.62 1000 2204.6 1000
Rad to Flywheel lb kg 2601.45 1180 2601.5 1180
Wet Weight
Fan to Flywheel lb kg 2314.9 1050 2314.9 1050
Rad to Flywheel lb kg 2755.8 1250 2755.8 1250
Maximum Allowable Bending Moment at Rear of Block lb ft N m 7965.0 10800 7965.0 10800
Moment of Inertia About Roll Axis lb ft^2 kg m^2 60.9 44.90 60.9 44.90
Flywheel housing
Flywheel
Number of Flywheel Teeth
Exhaust System
Type
Maximum allowable Back pressure in HG kPa 3.8 15 3.8 15
Standard Catalyst Back pressure in HG kPa 2.2 8.6 2.2 8.6
Exhaust Outlet Pipe Size in mm 3.03→3.37 77→85.6 3.03→3.37 77→85.6
Maximum Turbine Inlet Temperature ℉ ℃ 1400.0 760 1400.0 760
Exhaust Flow at Rated Power lb/hr kg/hr 1938.3 880 2026.4 920
Air Induction System
Maximum allowable Intake Air Restriction with Air Cleaner
Clean inH2O kPa 12.0 3.0 12.0 3.0
Dirty inH2O kPa 24.9 6.2 24.9 6.2
N/A in-line 4cycle
9.7 L 201809V2
Units Specificaiton
1500 1800
N/A 6
N/A Turbo charger air cooled
N/A 1
N/A No.11.5
N/A 10.5
N/A Counter clockwise
N/A 1-5-3-6-2-4
N/A SAE No.3
N/A 136
Water cooled mainfold
1
Document Courtesy of Fly Parts Guy Co.
www.FlyPartsGuy.com
Document Courtesy of Fly Parts Guy Co.
www.FlyPartsGuy.com

6. Weichai America Corp.
WP10GTA
Std Metric
9.7 L 201809V2
Units Specificaiton
1500 1800
Combustion Air required (entire engine) lb/hr kg/hr 1630.0 740.0 1914.1 869.0
Combustion Air required (entire engine) CFM m^3/min 337.6 9.6 498.6 14.1
Charge Air Cooler
Compressor Outlet Temperature ℉ ℃ 307.8 153.2 312.3 155.7
Compressor Flow Rate per CAC lb/hr kg/hr 1938.3 880.0 2027.5 920.5
CAC Rise over Ambient (Charge)
Specified ℉ ℃ 69.8 21.0 69.8 21
Acutal ℉ ℃ 62.8 17.1 58.6 14.8
Max pressure loss across the CAC inH2O kPa 48.2 12 48.2 12
Maximum Intake Air Temperature (IAT) ℉ ℃ 122.0 50 122.0 50
ECU IAT Warning ℉ ℃ 169.9 76.6 169.9 76.6
ECU IAT Shutdown ℉ ℃ 180.0 82.2 180.0 82.2
Cooling System
Coolant Capacity
Engine only gal L 5.8 22 5.8 22
Engine with Radiator gal L 13.2 50 13.2 50
Engine Coolant Flow gal/min L/min 89.8 340 105.7 400
Water Pump Speed
Standard Thermostat Range
Cracking Temperature ℉ ℃ 168.8 76 168.8 76
Full Open Temperature ℉ ℃ 190.4 88 190.4 88
Maximum Allowable Pressure Cap psi bar 7.4 0.50 7.4 0.50
Ambient Clearance Open Genset (water) (Air-to-Boil)
Specified ℉ ℃ ≥107 ≥42 ≥107 ≥42
Acutal ℉ ℃ 107.6 42.0 111.2 44.0
Maximum Allowable Top Tank Temperature ℉ ℃ 208.4 98 208.4 98
ECU Warning ℉ ℃ 220.0 103 220.0 103
ECU Shutdown ℉ ℃ 230.0 110 230.0 110
Fan Power HP kW 18.4 13.7 22.9 17.1
Fan Diameter, including blades in mm 29.9 760 29.9 760
Fan Speed
Electrical System
Minimum Recommended Battery Capacity
Cold Cranking Current
Engine only
Engine with Drive train
Maximum Allowable Resistance of Starting Circuit
Starting Motor Power HP kW 7.4 5.5 7.4 5.5
Battery Charging Alternator
Voltage
Current
Coil primary Resistance
Spark Plug p/n
Spark plug gap
Lubrication System
Oil Specification
Oil Pressure
Idle
Min Psi Bar 19.1 1.30 19.1 1.30
Max Psi Bar 54.4 3.70 54.4 3.70
Rated Speed
Min Psi Bar 51.5 3.50 51.5 3.50
Max Psi Bar 85.3 5.80 85.3 5.80
Maximum Allowable Oil Temperature ℉ ℃ 221.0 105 221.0 105
Engine Oil Capacity
Min Qts L 21.13 20.00 21.13 20.00
Max Qts L 25.36 24.00 25.36 24.00
Oil Filter Capacity Qts L 1.37 1.30 1.37 1.30
ECU Oil Pressure Warning
ECU Oil Pressure Shut Down
RPM 1905 2286
RPM 1905 2286
AH 150
Ohms 0.59Ω ± 10% 0.59Ω ± 10%
CCA 900
CCA 900
Ohms 0.002
Volts 28
Amps 70
Bosch R66857 Bosch R66857
mm 0.45-0.5 0.45-0.5
psi 25.0 25.0
SAE 15W-40 Low Ash Gas engine oil (.25-.5% by wt), API CD/CF or higher
psi 30.0 30.0
2
Document Courtesy of Fly Parts Guy Co.
www.FlyPartsGuy.com
Document Courtesy of Fly Parts Guy Co.
www.FlyPartsGuy.com

7. Weichai America Corp.
WP10GTA
Std Metric
9.7 L 201809V2
Units Specificaiton
1500 1800
Fuel System
Fuel Consumption
NG Ft
3
/hr kg/hr 2234.86 45.4 2535.1 51.50
LP Ft
3
/hr kg/hr / / 753.5 43.10
Maximum EPR Rated Pressure psi kPa 1.0 6.90 1.0 6.90
Maximum Running pressure to Electronic Pressure Regulator (EPR)
inH2O kPa 10.8 2.70 10.8 2.70
Minimum Running pressure to EPR inH2O kPa 6.8 1.70 6.8 1.70
Minimum Gas Supply Pipe Size
Maximum EPR Rated Pressure psi kPa 1.0 6.90 1.0 6.90
Maximum Running Pressure to EPR inH2O kPa 10.8 2.70 10.8 2.70
Minimum Running Pressure to EPR inH2O kPa 6.8 1.70 6.8 1.70
Minimum LPG Supply Pipe Size
4
Fuel Consumption Curve @ 1500 RPM (Natural Gas)
Fuel Consumption Curve @ 1500 RPM (Liquid Propane Gas)
1-1/4" NPT
1/4" NPT
10
20
30
40
50
60
70
80
160
180
200
220
240
260
280
300
49.76 79.97 100.67 121.69 153.46 170.45 189.50 213.72 234.09
Fue
Consumption
m³/h
Power (kW)
BSFC
g/kW.h
0
5
10
15
20
25
30
35
40
200
250
300
350
400
450
500
550
600
16.11 39.60 80.84 122.97 161.74
Total
Fuel（gal
/h）
Power （kW）
BSFC（g/kW.h）
3
Document Courtesy of Fly Parts Guy Co.
www.FlyPartsGuy.com
Document Courtesy of Fly Parts Guy Co.
www.FlyPartsGuy.com

8. Weichai America Corp.
WP10GTA
Std Metric
9.7 L 201809V2
Units Specificaiton
1500 1800
Fuel Consumption Curve @ 1800 RPM (Natural Gas)
Fuel Consumption Curve @ 1800 RPM (Liquid Propane Gas)
4
The preceeding pipe sizes are only suggestions and piping sizes may vary with temperature, pressure, distance from supply and application of local
codes. Gas must be available at adequate volume and pressure for engine at the EPR.
1
Standby and overload ratings based on ISO3046.
2
All ratings are gross flywheel horsepower corrected to 77o
F at an altitude of 328 feet with no cooling fan or alternator losses using heating value
for NG of 1025 BTU/SCF (HHV) and for propane of 2490 BTU/SCF (HHV).
3
Production tolerances in engines and installed components can account for power variations of +/- 5%. Altitude, temperature and excessive
exhaust and intake restrictions should be applied to power calculations. Engine maybe operated at : up to 1200 feet and 86°F without power
deration. For sustained operation above these conditions, derate by 2.5% per 1000 feet, and 1.5% per 10°F.
0
10
20
30
40
50
60
70
80
90
100
190
220
250
280
310
340
370
400
430
460
490
18.8 47.1 56.6 75.9 95.5 115.4 140.2 157.0 179.2 191.9 201.4 218.7 236.0
Total
Fuel（m³/h）
Power （kW）
BSFC（g/kW.h）
0
5
10
15
20
25
30
35
40
200
250
300
350
400
450
500
550
600
16.55 41.98 83.89 126.40 167.93 Total
Fuel（gal
/h）
Power (kW）
BSFC（g/kW.h）
4
Document Courtesy of Fly Parts Guy Co.
www.FlyPartsGuy.com
Document Courtesy of Fly Parts Guy Co.
www.FlyPartsGuy.com
