1. MeeGo Architecture Update
Sunil Saxena
Elton Yang
April 14th 2011
1

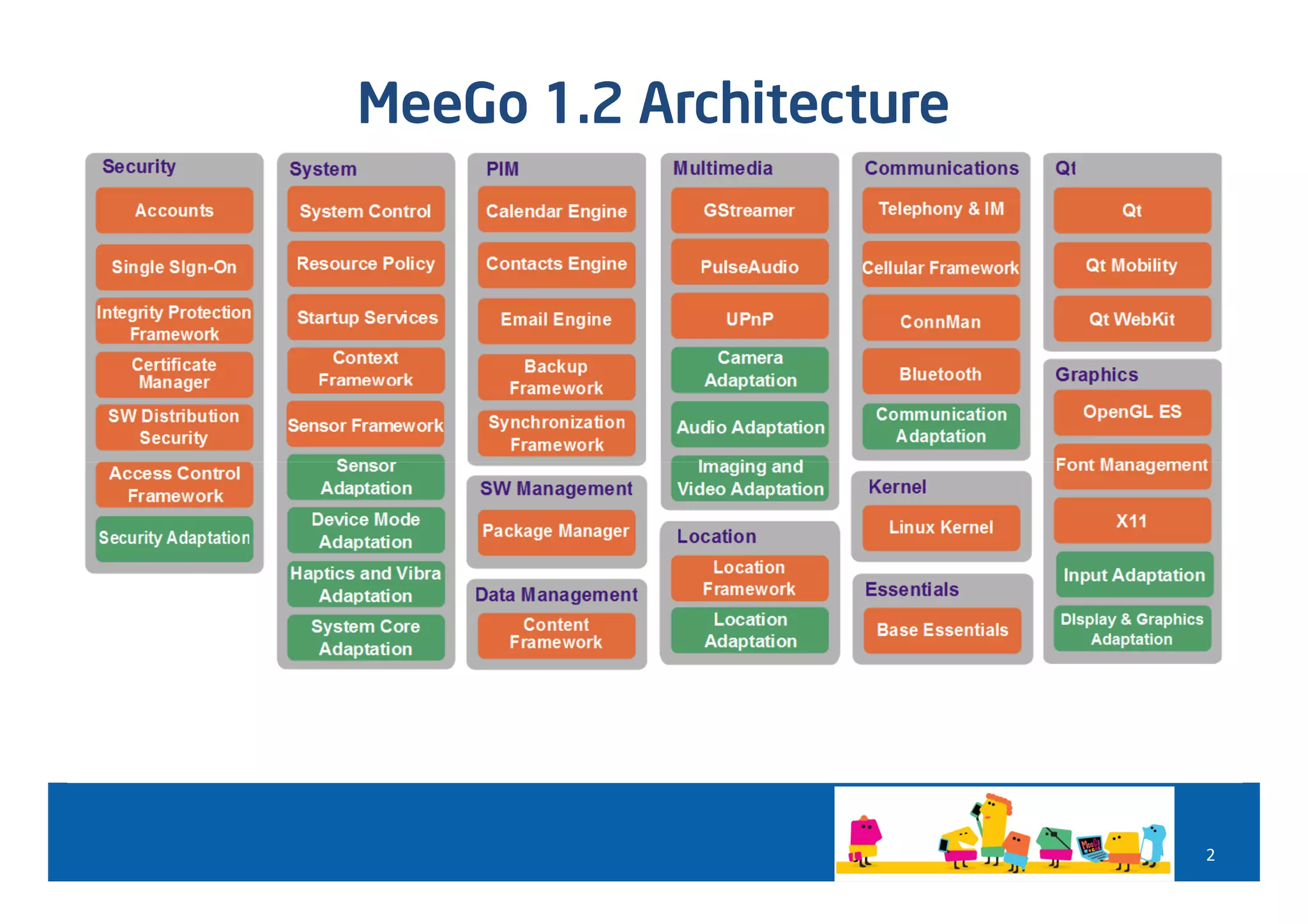

2. MeeGo 1.2 Architecture
2

3. MeeGo 1.2 Architecture – Status
3

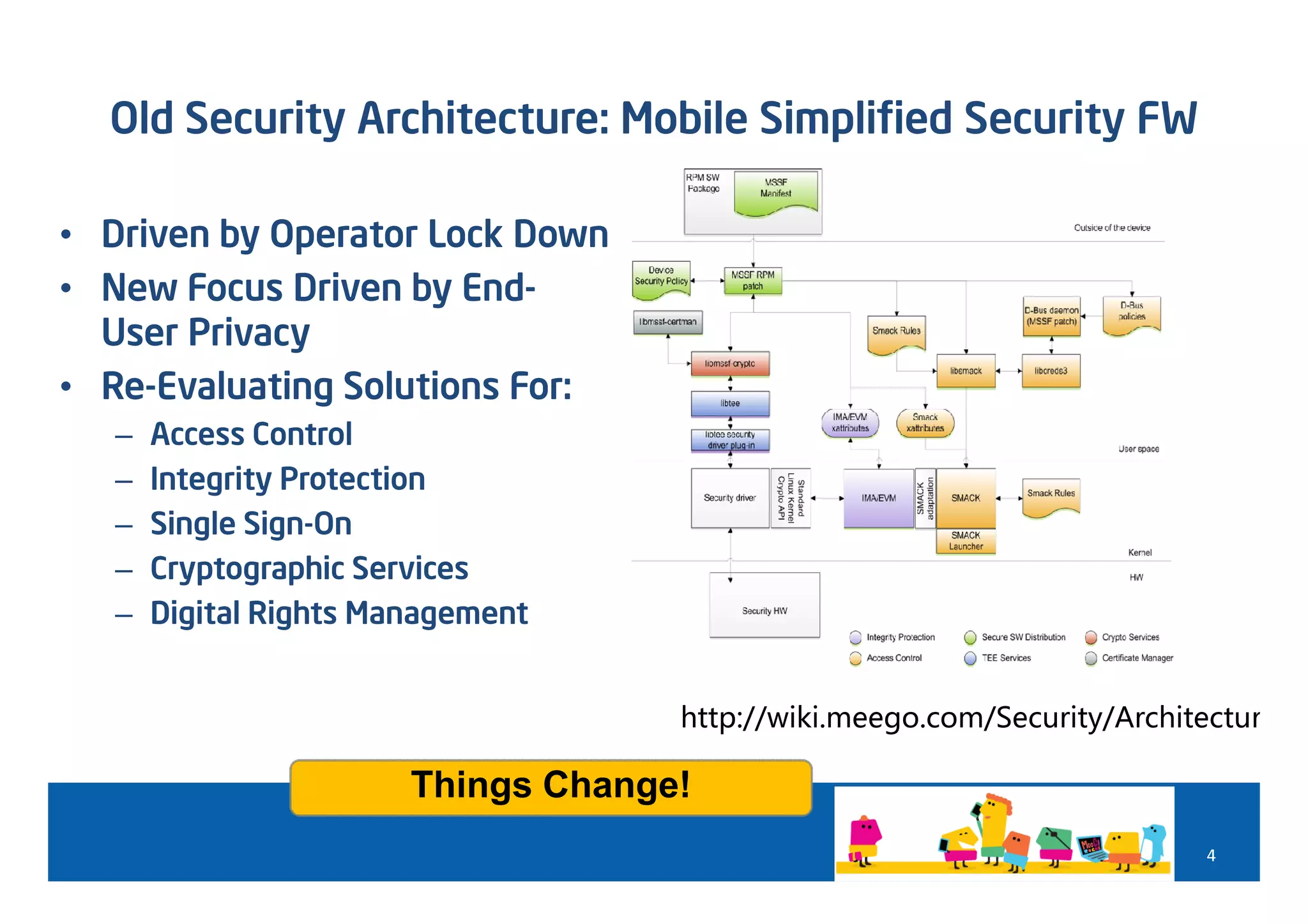

4. Old Security Architecture: Mobile Simplified Security FW
• Driven by Operator Lock Down
• New Focus Driven by End-
User Privacy
• Re-Evaluating Solutions For:
– Access Control
– Integrity Protection
– Single Sign-On
– Cryptographic Services
– Digital Rights Management
http://wiki.meego.com/Security/Architecture
Things Change!
4

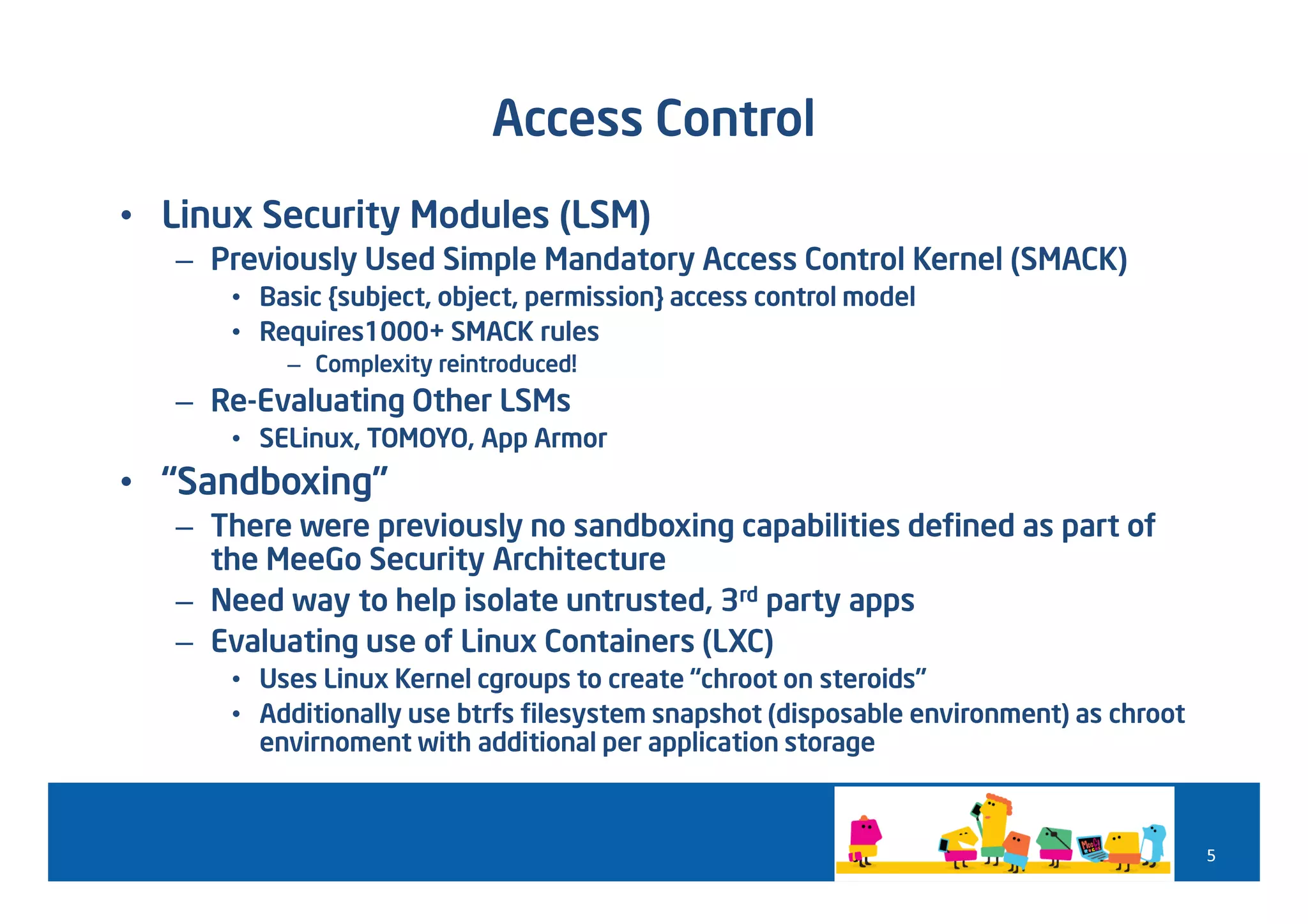

5. Access Control
• Linux Security Modules (LSM)
– Previously Used Simple Mandatory Access Control Kernel (SMACK)
• Basic {subject, object, permission} access control model
• Requires1000+ SMACK rules
– Complexity reintroduced!
– Re-Evaluating Other LSMs
• SELinux, TOMOYO, App Armor
• “Sandboxing”
– There were previously no sandboxing capabilities defined as part of
the MeeGo Security Architecture
– Need way to help isolate untrusted, 3rd party apps
– Evaluating use of Linux Containers (LXC)
• Uses Linux Kernel cgroups to create “chroot on steroids”
• Additionally use btrfs filesystem snapshot (disposable environment) as chroot
envirnoment with additional per application storage
5

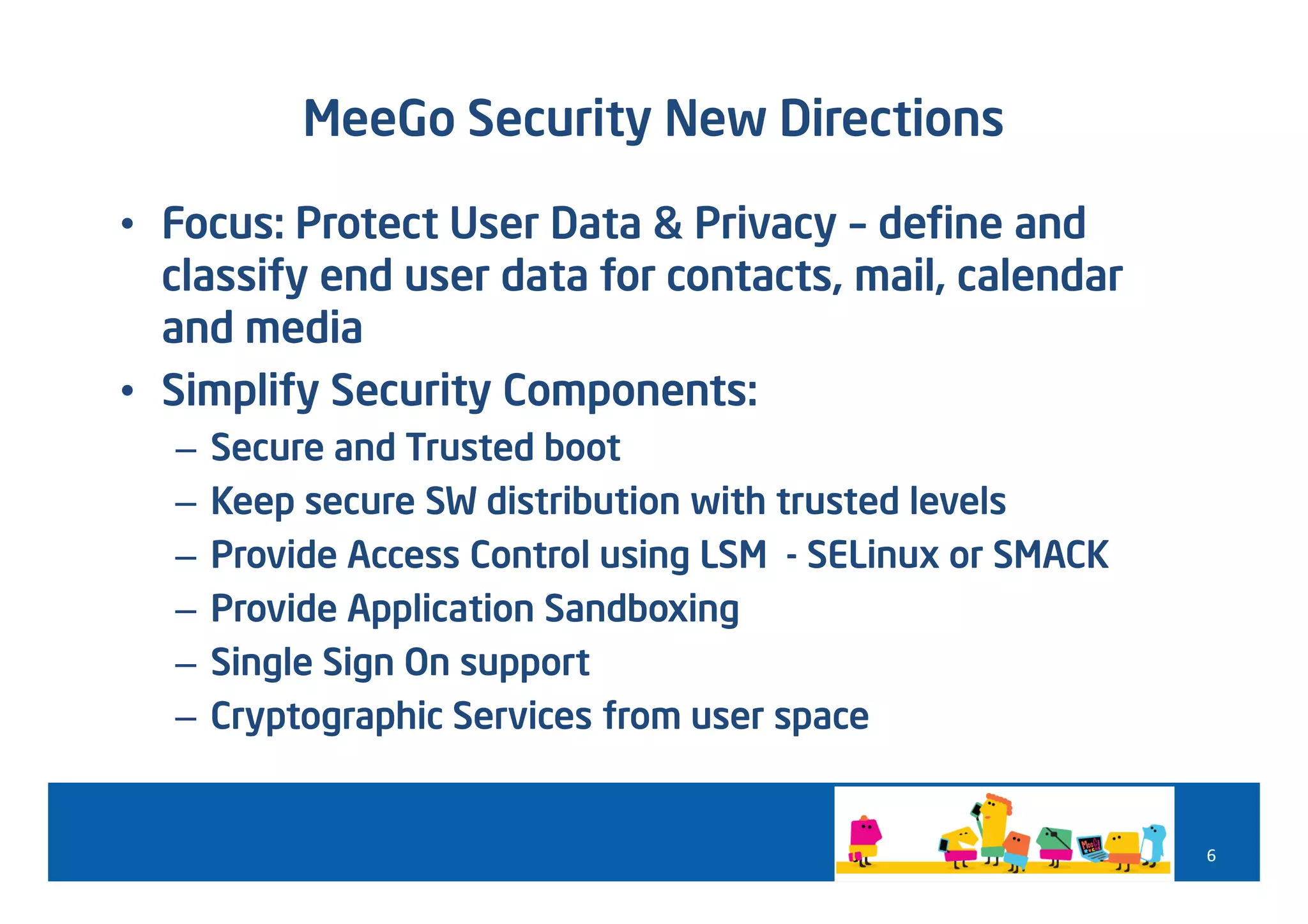

6. MeeGo Security New Directions
• Focus: Protect User Data & Privacy – define and
classify end user data for contacts, mail, calendar
and media
• Simplify Security Components:
– Secure and Trusted boot
– Keep secure SW distribution with trusted levels
– Provide Access Control using LSM - SELinux or SMACK
– Provide Application Sandboxing
– Single Sign On support
– Cryptographic Services from user space
6

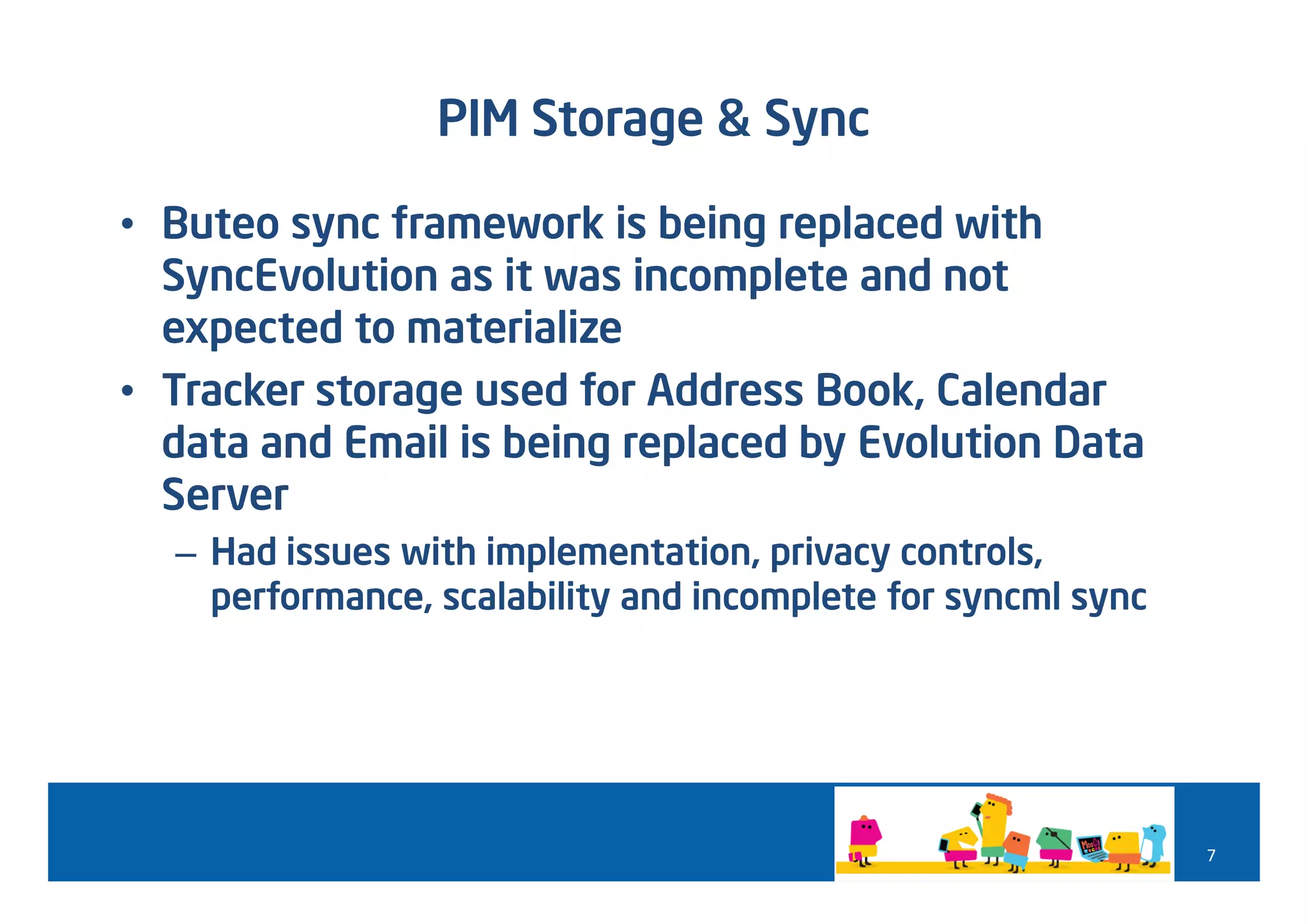

7. PIM Storage & Sync
• Buteo sync framework is being replaced with
SyncEvolution as it was incomplete and not
expected to materialize
• Tracker storage used for Address Book, Calendar
data and Email is being replaced by Evolution Data
Server
– Had issues with implementation, privacy controls,
performance, scalability and incomplete for syncml sync
7

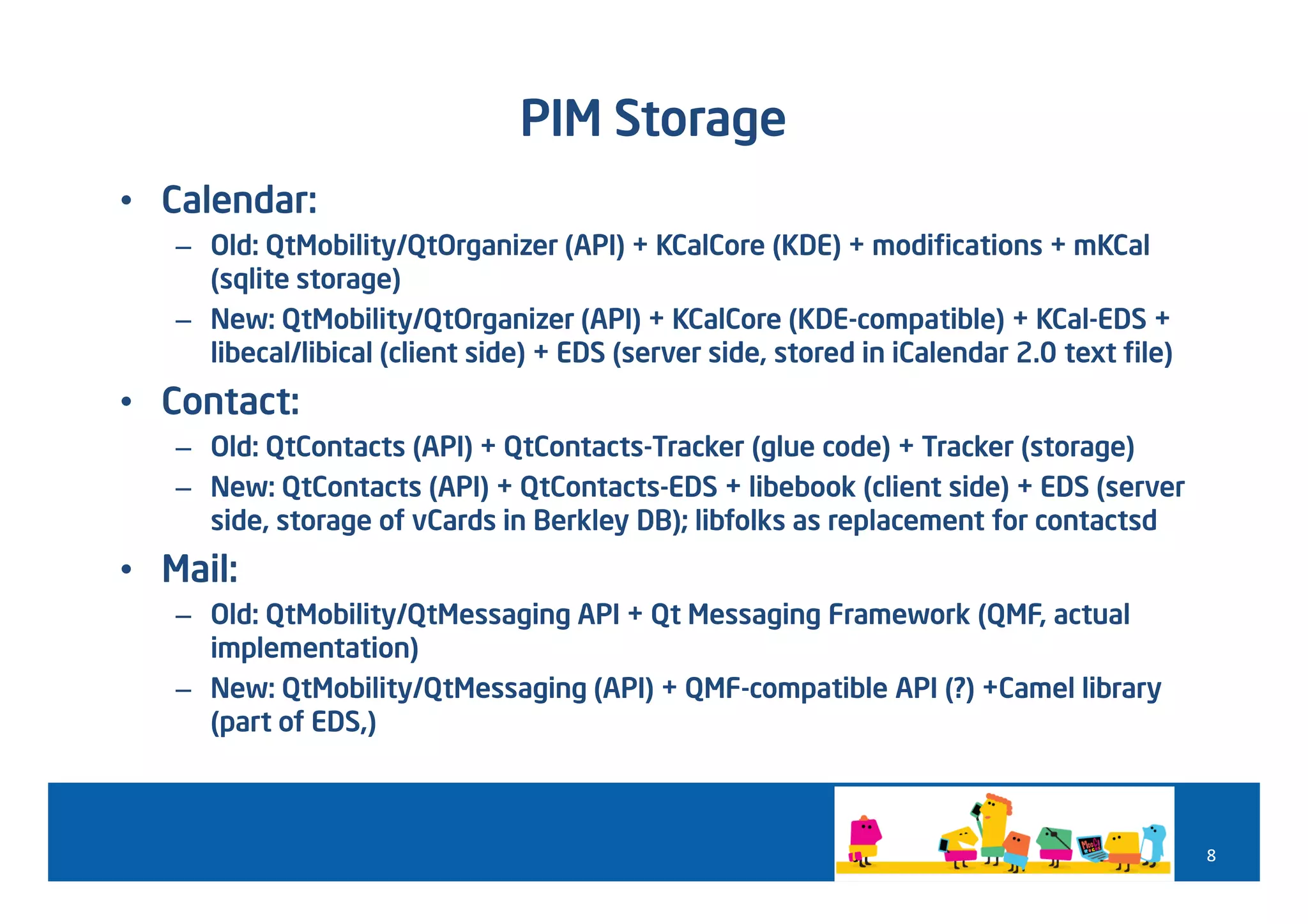

8. PIM Storage
• Calendar:
– Old: QtMobility/QtOrganizer (API) + KCalCore (KDE) + modifications + mKCal
(sqlite storage)
– New: QtMobility/QtOrganizer (API) + KCalCore (KDE-compatible) + KCal-EDS +
libecal/libical (client side) + EDS (server side, stored in iCalendar 2.0 text file)
• Contact:
– Old: QtContacts (API) + QtContacts-Tracker (glue code) + Tracker (storage)
– New: QtContacts (API) + QtContacts-EDS + libebook (client side) + EDS (server
side, storage of vCards in Berkley DB); libfolks as replacement for contactsd
• Mail:
– Old: QtMobility/QtMessaging API + Qt Messaging Framework (QMF, actual
implementation)
– New: QtMobility/QtMessaging (API) + QMF-compatible API (?) +Camel library
(part of EDS,)
8

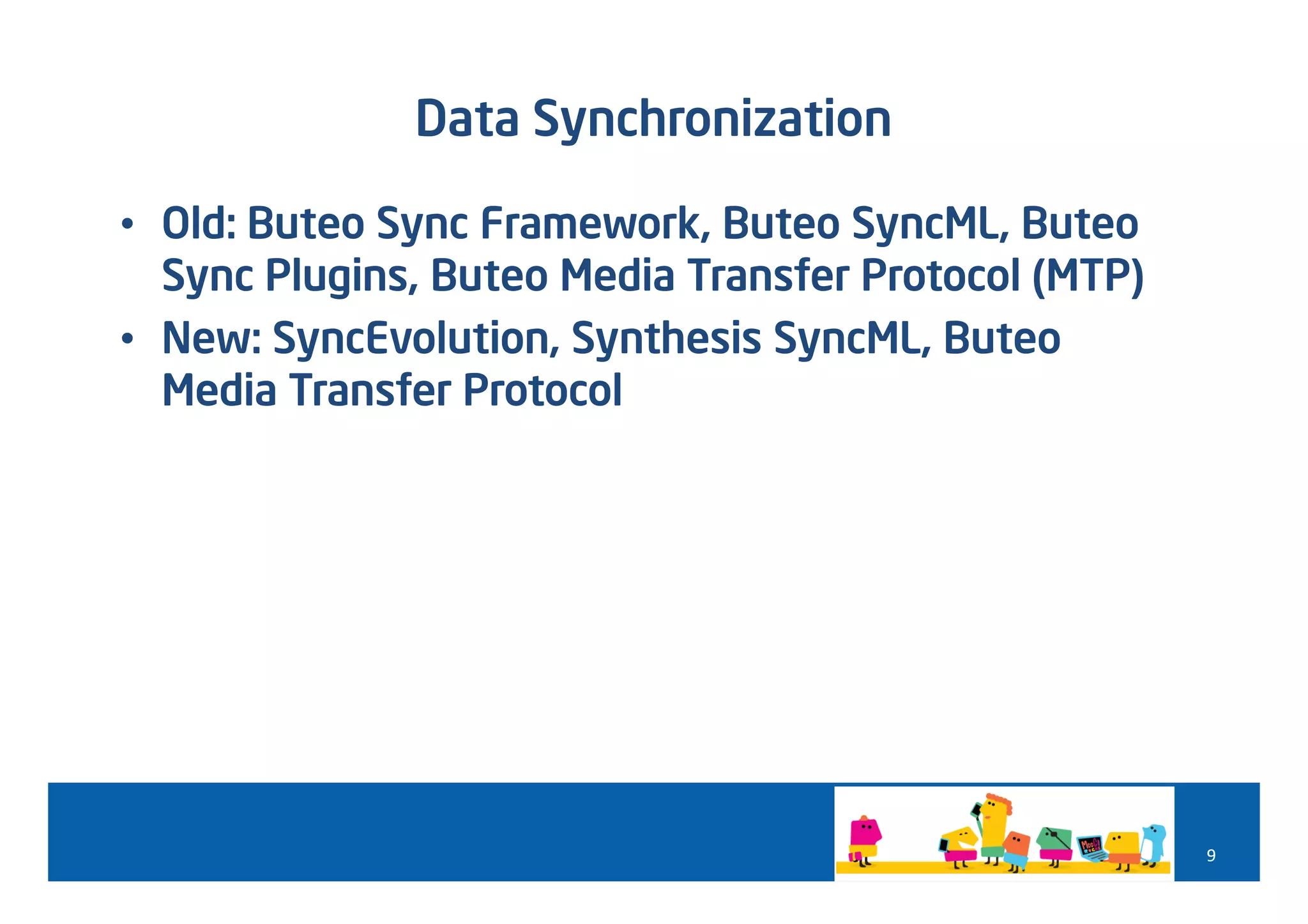

9. Data Synchronization
• Old: Buteo Sync Framework, Buteo SyncML, Buteo
Sync Plugins, Buteo Media Transfer Protocol (MTP)
• New: SyncEvolution, Synthesis SyncML, Buteo
Media Transfer Protocol
9

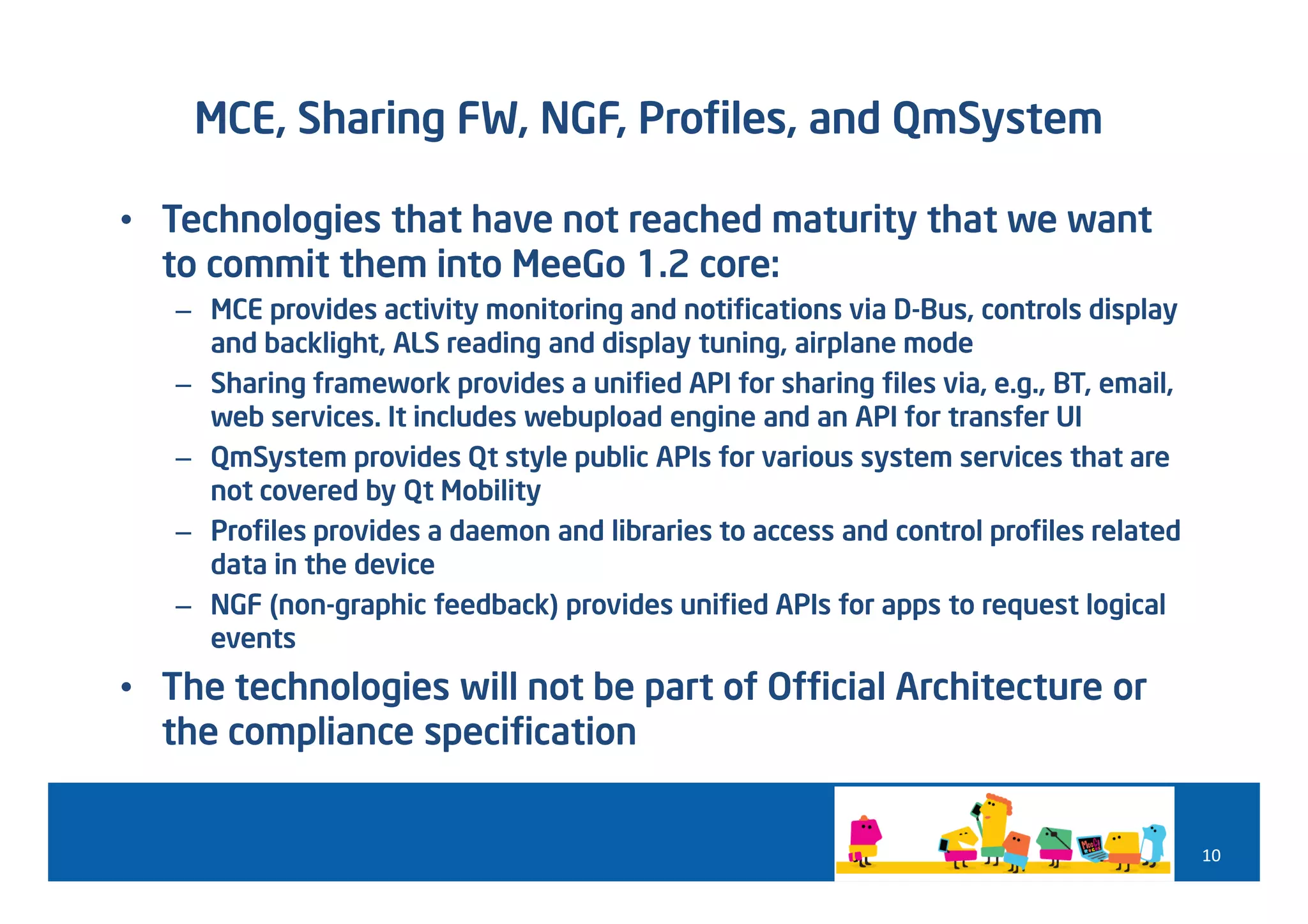

10. MCE, Sharing FW, NGF, Profiles, and QmSystem
• Technologies that have not reached maturity that we want
to commit them into MeeGo 1.2 core:
– MCE provides activity monitoring and notifications via D-Bus, controls display
and backlight, ALS reading and display tuning, airplane mode
– Sharing framework provides a unified API for sharing files via, e.g., BT, email,
web services. It includes webupload engine and an API for transfer UI
– QmSystem provides Qt style public APIs for various system services that are
not covered by Qt Mobility
– Profiles provides a daemon and libraries to access and control profiles related
data in the device
– NGF (non-graphic feedback) provides unified APIs for apps to request logical
events
• The technologies will not be part of Official Architecture or
the compliance specification
10

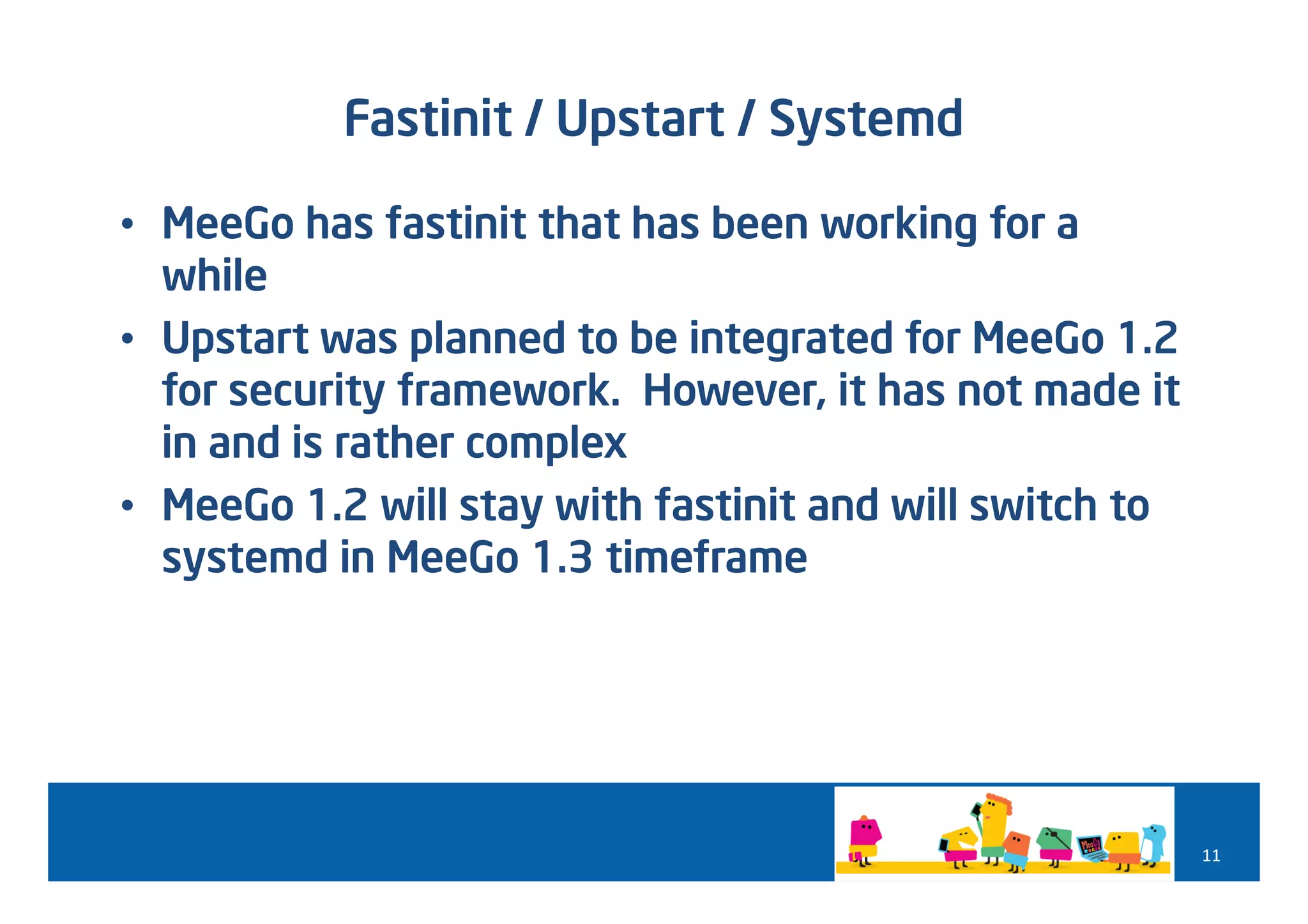

11. Fastinit / Upstart / Systemd
• MeeGo has fastinit that has been working for a
while
• Upstart was planned to be integrated for MeeGo 1.2
for security framework. However, it has not made it
in and is rather complex
• MeeGo 1.2 will stay with fastinit and will switch to
systemd in MeeGo 1.3 timeframe
11

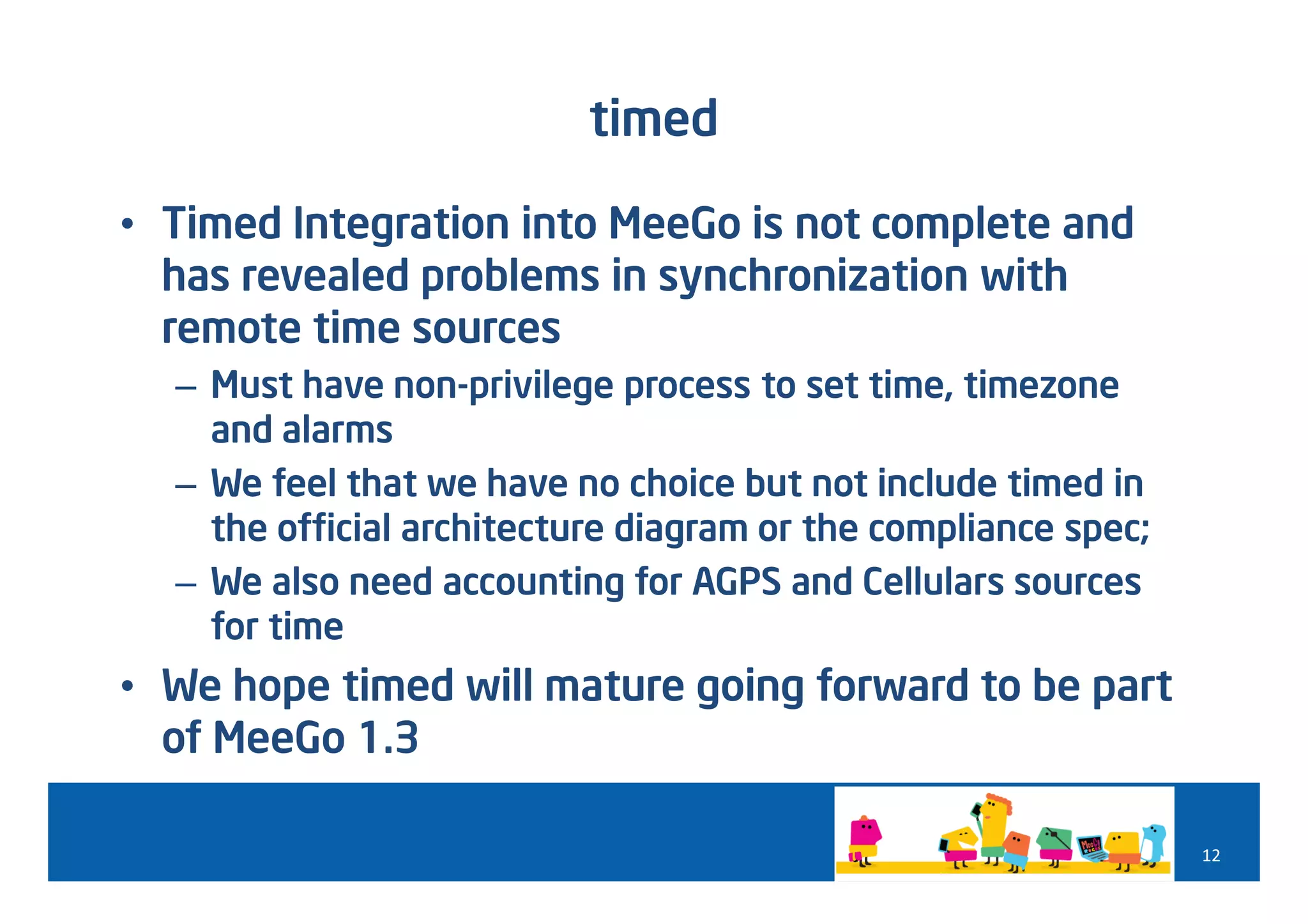

12. timed
• Timed Integration into MeeGo is not complete and
has revealed problems in synchronization with
remote time sources
– Must have non-privilege process to set time, timezone
and alarms
– We feel that we have no choice but not include timed in
the official architecture diagram or the compliance spec;
– We also need accounting for AGPS and Cellulars sources
for time
• We hope timed will mature going forward to be part
of MeeGo 1.3
12

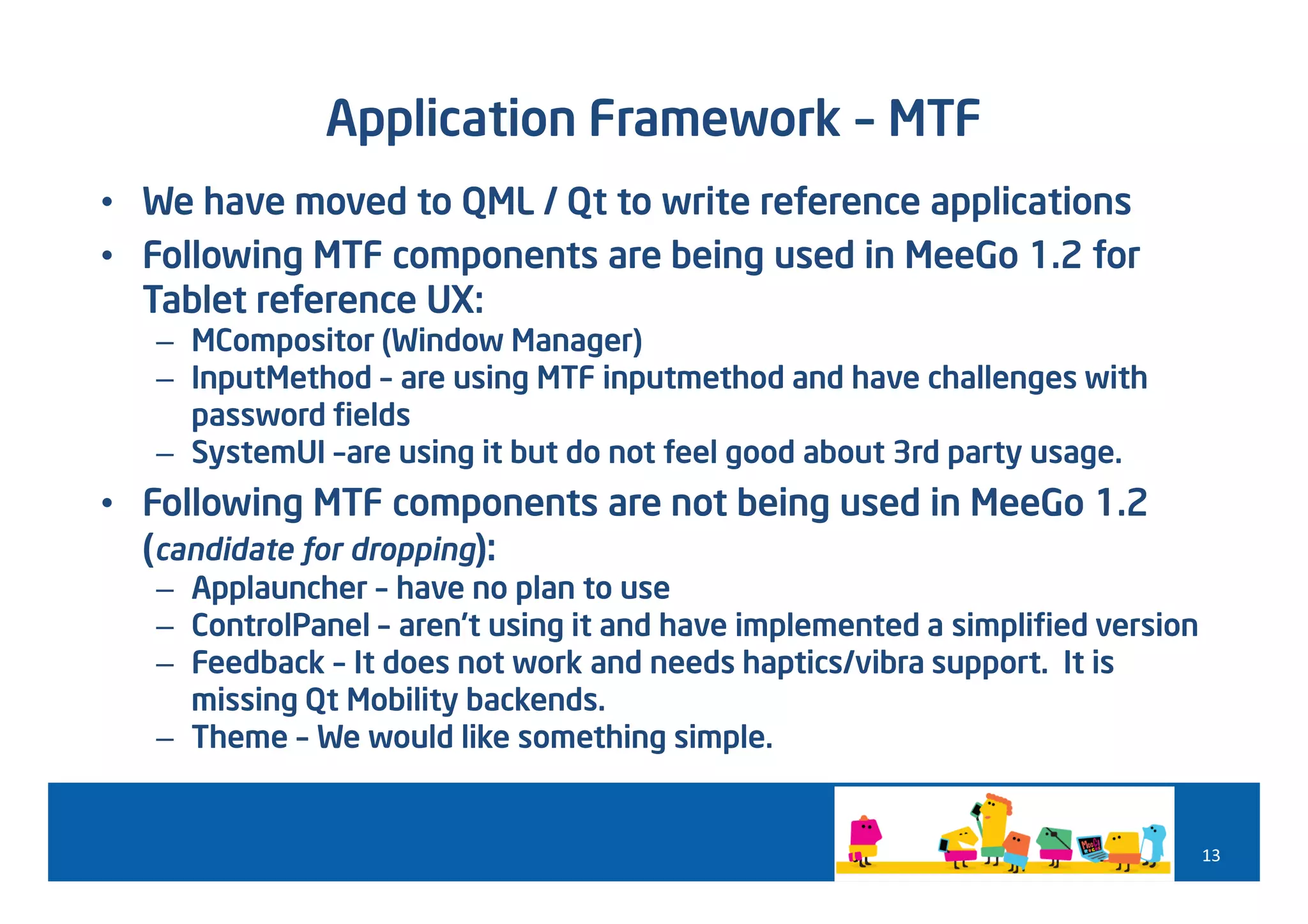

13. Application Framework – MTF
• We have moved to QML / Qt to write reference applications
• Following MTF components are being used in MeeGo 1.2 for
Tablet reference UX:
– MCompositor (Window Manager)
– InputMethod – are using MTF inputmethod and have challenges with
password fields
– SystemUI –are using it but do not feel good about 3rd party usage.
• Following MTF components are not being used in MeeGo 1.2
(candidate for dropping):
– Applauncher – have no plan to use
– ControlPanel – aren’t using it and have implemented a simplified version
– Feedback – It does not work and needs haptics/vibra support. It is
missing Qt Mobility backends.
– Theme – We would like something simple.
13

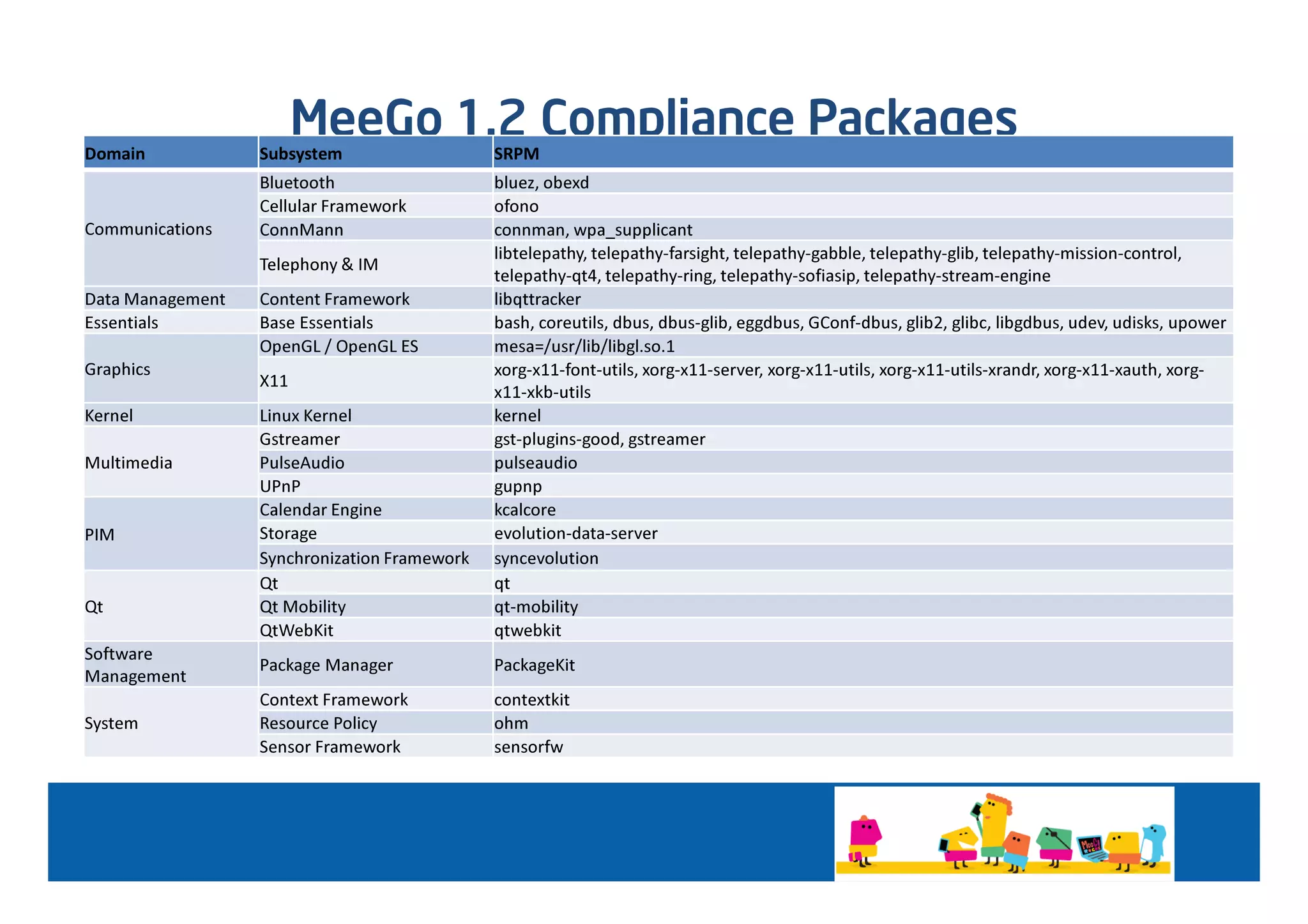

14. Domain
MeeGo 1.2 Compliance Packages
Subsystem SRPM
Bluetooth bluez, obexd
Cellular Framework ofono
Communications ConnMann connman, wpa_supplicant
libtelepathy, telepathy-farsight, telepathy-gabble, telepathy-glib, telepathy-mission-control,
Telephony & IM
telepathy-qt4, telepathy-ring, telepathy-sofiasip, telepathy-stream-engine
Data Management Content Framework libqttracker
Essentials Base Essentials bash, coreutils, dbus, dbus-glib, eggdbus, GConf-dbus, glib2, glibc, libgdbus, udev, udisks, upower
OpenGL / OpenGL ES mesa=/usr/lib/libgl.so.1
Graphics xorg-x11-font-utils, xorg-x11-server, xorg-x11-utils, xorg-x11-utils-xrandr, xorg-x11-xauth, xorg-
X11
x11-xkb-utils
Kernel Linux Kernel kernel
Gstreamer gst-plugins-good, gstreamer
Multimedia PulseAudio pulseaudio
UPnP gupnp
Calendar Engine kcalcore
PIM Storage evolution-data-server
Synchronization Framework syncevolution
Qt qt
Qt Qt Mobility qt-mobility
QtWebKit qtwebkit
Software
Package Manager PackageKit
Management
Context Framework contextkit
System Resource Policy ohm
Sensor Framework sensorfw

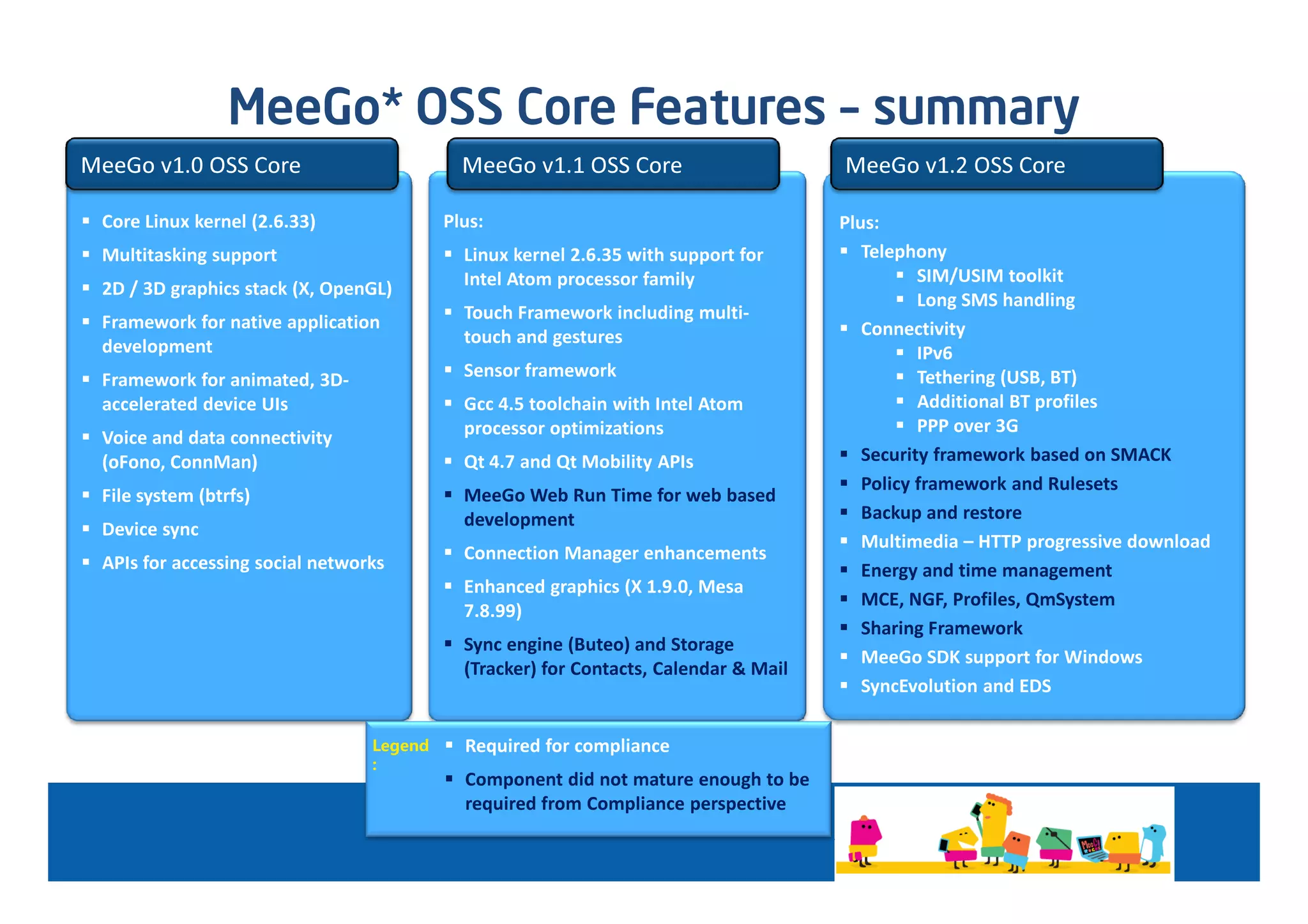

15. MeeGo* OSS Core Features – summary
MeeGo v1.0 OSS Core MeeGo v1.1 OSS Core MeeGo v1.2 OSS Core
Core Linux kernel (2.6.33) Plus: Plus:
Multitasking support Linux kernel 2.6.35 with support for Telephony
Intel Atom processor family SIM/USIM toolkit
2D / 3D graphics stack (X, OpenGL)
Long SMS handling
Framework for native application Touch Framework including multi-
touch and gestures Connectivity
development IPv6
Framework for animated, 3D- Sensor framework Tethering (USB, BT)
accelerated device UIs Gcc 4.5 toolchain with Intel Atom Additional BT profiles
processor optimizations PPP over 3G
Voice and data connectivity
(oFono, ConnMan) Qt 4.7 and Qt Mobility APIs Security framework based on SMACK
Policy framework and Rulesets
File system (btrfs) MeeGo Web Run Time for web based
development Backup and restore
Device sync
Multimedia – HTTP progressive download
APIs for accessing social networks Connection Manager enhancements
Energy and time management
Enhanced graphics (X 1.9.0, Mesa
MCE, NGF, Profiles, QmSystem
7.8.99)
Sharing Framework
Sync engine (Buteo) and Storage
MeeGo SDK support for Windows
(Tracker) for Contacts, Calendar & Mail
SyncEvolution and EDS
Legend Required for compliance
:
Component did not mature enough to be
required from Compliance perspective

16. Questions?
16

17. Thanks
17
