2. SQL: Non-Procedural Language of RDB
Tuple calculus
◦ { t | F(t) } where:
t : tuple variable
F(t) : well formed formula
Example
◦ Get the No. and name of all managers
2
Distributed Database Systems
"
"
|
, MANAGER
TITLE
t
EMP
t
ENAME
ENO
t
3. SQL: Non-Procedural Language of RDB
Domain calculus
where:
xi : domain variables
: well formed formula
Example
{ x, y | E(x, y, "manager") }
3
Distributed Database Systems
,
,
,
|
,
,
, 2
1
2
1 n
n x
x
x
F
x
x
x
n
x
x
x
F ,
,
, 2
1
Variables are position sensitive!
4. SQL: Non-Procedural Language of RDB
SQL is a tuple calculus language
SELECT ENO,ENAME
FROM EMP
WHERE TITLE=“manager”
4
Distributed Database Systems
End user uses non-procedural languages
to express queries.
5. Query Processor
Query processor transforms queries into
procedural operations to access data
5
Distributed Database Systems
6. Query Processor
Distributed query processor has to deal
with
◦query decomposition, and
◦data localization
6
Distributed Database Systems
8. 7.1 Query Processing Problems
Centralized query processor must
◦transform calculus query into
algebra operation, and
◦choose the best execution plan
Example:
SELECT ENAME
FROM E,G
WHERE E.ENO = G.ENO
AND RESP=“manager”
8
Distributed Database Systems
9. 7.1 Query Processing Problems
Relational Algebra 1
Relational Algebra 2
9
Distributed Database Systems
G
E Manager
RESP
ENO
ENAME "
"
G
E
ENO
G
ENO
E
Manager
RESP
ENAME
.
.
"
"
Execution plan 2 is better for consuming
less resources!
10. 7.1 Query Processing Problems
In DDB, the query processor must
consider the communication cost and
select the best site!
Same query as last example, but G and E
are distributed.
Simple plan:
◦ To transport all segments to query site and
execute there.This causes too much network
traffic, very costly.
10
Distributed Database Systems

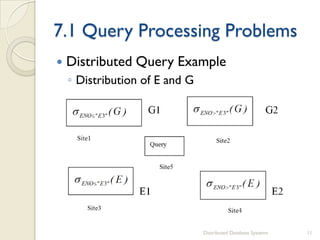

11. 7.1 Query Processing Problems
Distributed Query Example
◦ Distribution of E and G
11
Distributed Database Systems

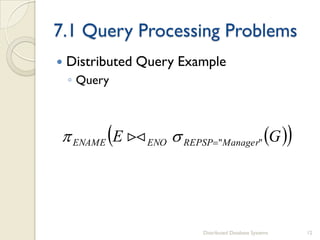

12. 7.1 Query Processing Problems
Distributed Query Example
◦ Query
12
Distributed Database Systems
G
E Manager
REPSP
ENO
ENAME "
"
13. 7.1 Query Processing Problems
Distributed Query Example
◦ Optimized Processing
13
Distributed Database Systems
15. 7.2 Objectives of Query Processing
Two-fold objectives:
◦Transformation, and
◦Optimization
15
Distributed Database Systems
16. 7.2 Objectives of Query Processing
Cost to be considered for optimization:
◦CPU time
◦I/O time, and
◦Communication time
16
Distributed Database Systems
WAN: the last cost is dominant
LAN: all three are equal
17. 7.3 Complexity of Relational Algebra Operations
Distributed Database Systems 17
18. 7.3 Complexity of Relational Algebra Operations
Measured by n (cardinality) and tuples are
sorted on comparison attributes
Distributed Database Systems 18
O(n)
O(nlogn)
O(nlogn)
O(n2)
)
duplicates
(with
,
GROUP
),
duplicates
(with
,
,
,
,

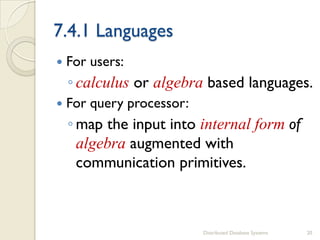

20. 7.4.1 Languages
For users:
◦ calculus or algebra based languages.
For query processor:
◦ map the input into internal form of
algebra augmented with
communication primitives.
Distributed Database Systems 20

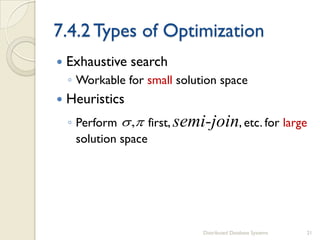

21. 7.4.2 Types of Optimization
Exhaustive search
◦ Workable for small solution space
Heuristics
◦ Perform first, semi-join, etc. for large
solution space
Distributed Database Systems 21
,

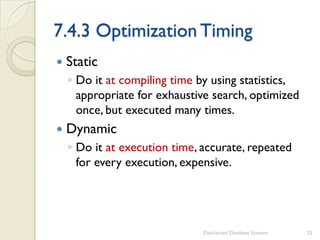

22. 7.4.3 Optimization Timing
Static
◦ Do it at compiling time by using statistics,
appropriate for exhaustive search, optimized
once, but executed many times.
Dynamic
◦ Do it at execution time, accurate, repeated
for every execution, expensive.
Distributed Database Systems 22

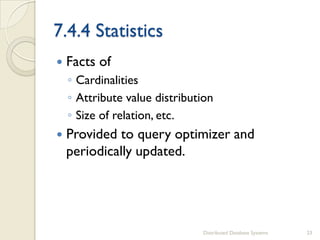

23. 7.4.4 Statistics
Facts of
◦ Cardinalities
◦ Attribute value distribution
◦ Size of relation, etc.
Provided to query optimizer and
periodically updated.
Distributed Database Systems 23

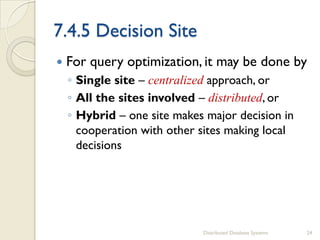

24. 7.4.5 Decision Site
For query optimization, it may be done by
◦ Single site – centralized approach, or
◦ All the sites involved – distributed, or
◦ Hybrid – one site makes major decision in
cooperation with other sites making local
decisions
Distributed Database Systems 24

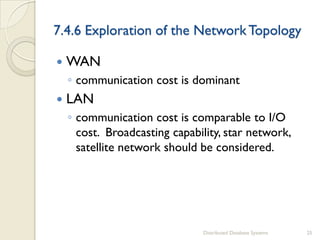

25. 7.4.6 Exploration of the NetworkTopology
WAN
◦ communication cost is dominant
LAN
◦ communication cost is comparable to I/O
cost. Broadcasting capability, star network,
satellite network should be considered.
Distributed Database Systems 25

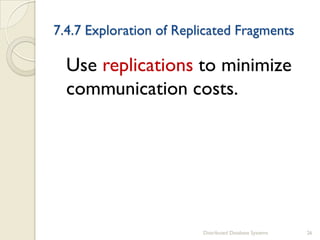

26. 7.4.7 Exploration of Replicated Fragments
Use replications to minimize
communication costs.
Distributed Database Systems 26

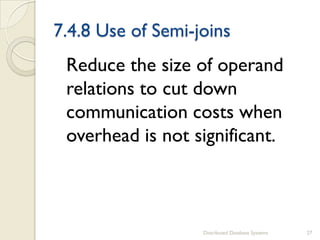

27. 7.4.8 Use of Semi-joins
Reduce the size of operand
relations to cut down
communication costs when
overhead is not significant.
Distributed Database Systems 27

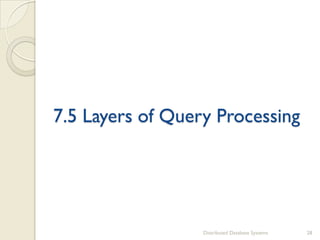

28. 7.5 Layers of Query Processing
Distributed Database Systems 28

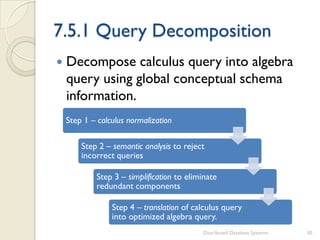

30. 7.5.1 Query Decomposition
Decompose calculus query into algebra
query using global conceptual schema
information.
Distributed Database Systems 30
Step 1 – calculus normalization
Step 2 – semantic analysis to reject
incorrect queries
Step 3 – simplification to eliminate
redundant components
Step 4 – translation of calculus query
into optimized algebra query.

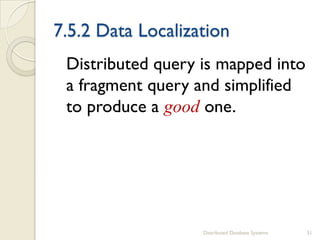

31. 7.5.2 Data Localization
Distributed query is mapped into
a fragment query and simplified
to produce a good one.
Distributed Database Systems 31
32. 7.5.3 Global Query Optimization
Find an execution strategy close to
optimal.
Find the best ordering of operations in
the fragment query, including
communication operations.
Cost function defined in time is required.
Distributed Database Systems 32

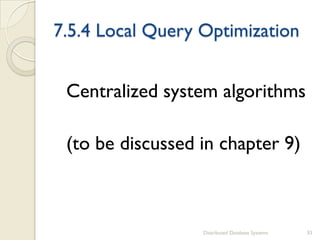

33. 7.5.4 Local Query Optimization
Centralized system algorithms
(to be discussed in chapter 9)
Distributed Database Systems 33

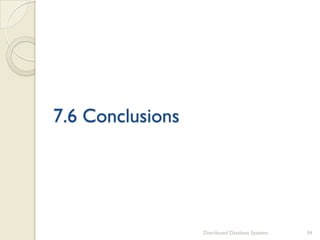

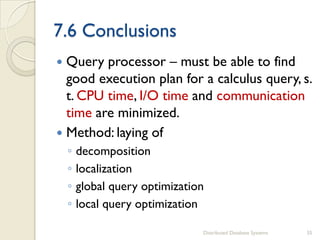

35. 7.6 Conclusions
Query processor – must be able to find
good execution plan for a calculus query, s.
t. CPU time, I/O time and communication
time are minimized.
Method: laying of
◦ decomposition
◦ localization
◦ global query optimization
◦ local query optimization
Distributed Database Systems 35
