This document provides information on the benefits and applications of an articulated crane, as well as specifications for a Fassi Model F110A.22 articulated crane mounted on a Ford F750 chassis. The benefits include fast setup for higher productivity, versatile boom tip attachments, use for multiple applications, better material handling control, articulated boom maneuverability, and efficient operation with optional remote control and no operator certification required. Typical applications include utilities work, electric cooperatives, rural electric associations, and municipalities. The specifications list the crane features and options, body and accessories, and chassis details.

1. Take advantage of these benefits:
• Fast setup for higher crew productivity
• Endless boom tip attachments for versatility
• One truck for multiple applications
• Better control of material handling
• Articulated boom for maneuverability
• Quick movement for efficient operation
• Optional remote control for improved visibility
• No operator certification required
• Can be used like a stick crane
If you have an application like these, you can benefit from an articulated crane.
Articulated Cranes
• Utilities
• Electric Co-ops
• REAs
• Municipalities
01 12 D106

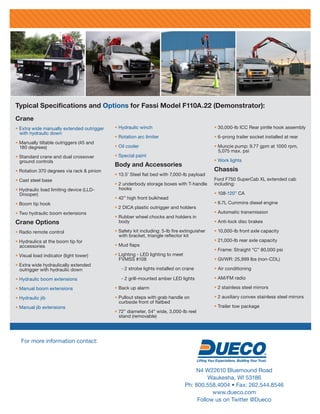

2. Typical Specifications and Options for Fassi Model F110A.22 (Demonstrator):
For more information contact:
N4 W22610 Bluemound Road
Waukesha, WI 53186
Ph: 800.558.4004 • Fax: 262.544.8546
www.dueco.com
Follow us on Twitter @Dueco
Crane
• Extra wide manually extended outrigger
with hydraulic down
• Manually tiltable outriggers (45 and
180 degrees)
• Standard crane and dual crossover
ground controls
• Rotation 370 degrees via rack & pinion
• Cast steel base
• Hydraulic load limiting device (LLD-
Drooper)
• Boom tip hook
• Two hydraulic boom extensions
Crane Options
• Radio remote control
• Hydraulics at the boom tip for
accessories
• Visual load indicator (light tower)
• Extra wide hydraulically extended
outrigger with hydraulic down
• Hydraulic boom extensions
• Manual boom extensions
• Hydraulic jib
• Manual jib extensions
• Hydraulic winch
• Rotation arc limiter
• Oil cooler
• Special paint
Body and Accessories
• 13.5’ Steel flat bed with 7,000-lb payload
• 2 underbody storage boxes with T-handle
hooks
• 42” high front bulkhead
• 2 DICA plastic outrigger and holders
• Rubber wheel chocks and holders in
body
• Safety kit including: 5-lb fire extinguisher
with bracket, triangle reflector kit
• Mud flaps
• Lighting - LED lighting to meet
FVMSS #108
- 2 strobe lights installed on crane
- 2 grill-mounted amber LED lights
• Back up alarm
• Pullout steps with grab handle on
curbside front of flatbed
• 72” diameter, 54” wide, 3,000-lb reel
stand (removable)
• 30,000-lb ICC Rear pintle hook assembly
• 6-prong trailer socket installed at rear
• Muncie pump: 9.77 gpm at 1000 rpm,
5,075 max. psi
• Work lights
Chassis
Ford F750 SuperCab XL extended cab
including:
• 108-120” CA
• 6.7L Cummins diesel engine
• Automatic transmission
• Anti-lock disc brakes
• 10,000-lb front axle capacity
• 21,000-lb rear axle capacity
• Frame: Straight “C” 80,000 psi
• GVWR: 25,999 lbs (non-CDL)
• Air conditioning
• AM/FM radio
• 2 stainless steel mirrors
• 2 auxiliary convex stainless steel mirrors
• Trailer tow package
