Recommendation System Overview, Types of Recommender System, and OpenSource tools/libraries available.

1. ACM Data Mining Hackathon
8/18/2012
Recommender Systems
Navisro Analytics
@navisro
info@navisro.com
http://www.navisro.com

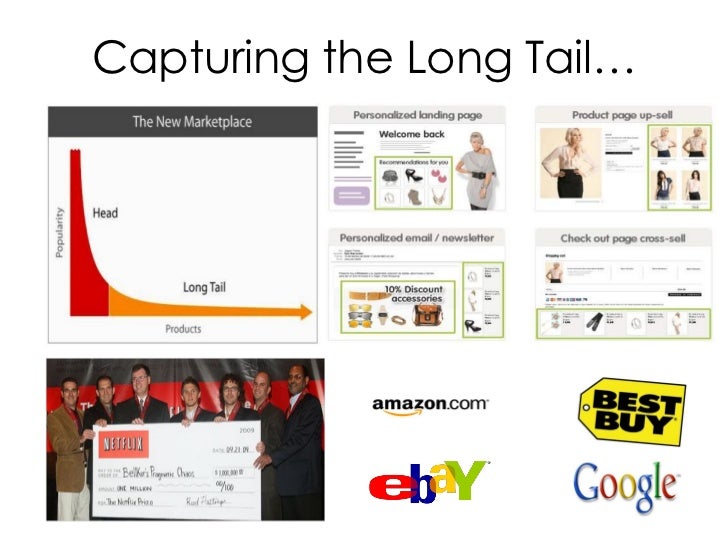

2. Capturing the Long Tail…

3. Recommender Approaches
Model Based
Training SVM,
LDA, SVD for
Collaborative implicit features
Filtering – Item-
Item similarity
(You like Godfather
so you will like
Attribute-based Scarface - Netflix)
recommendations
(You like action
movies, starring
Clint Eastwood, you Social+Interest
might like “Good, Graph Based (Your
Bad and the Ugly” friends like Lady
Netflix) Collaborative Gaga so you will
Filtering – User- like Lady Gaga,
User Similarity PYMK – Facebook,
LinkedIn)
(People like you
who bought beer
Item also bought
Hierarchy diapers - Target)
(You bought
Printer you
will also need
ink - BestBuy)

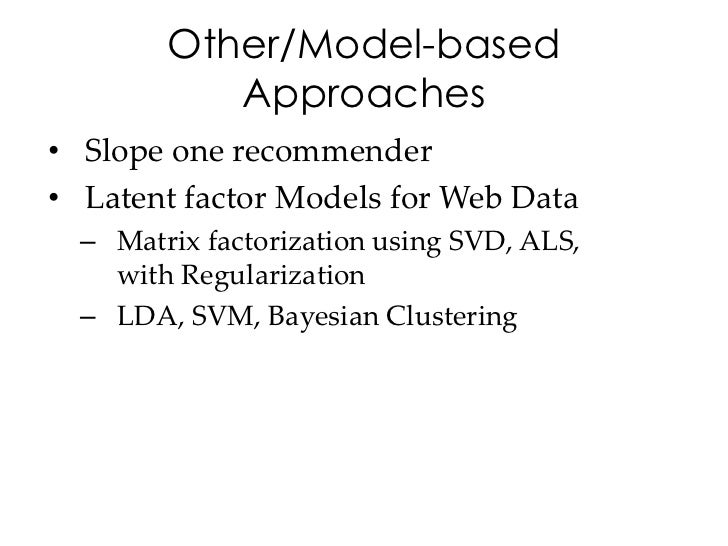

4. Other/Model-based
Approaches
• Slope one recommender
• Latent factor Models for Web Data
– Matrix factorization using SVD, ALS,
with Regularization
– LDA, SVM, Bayesian Clustering

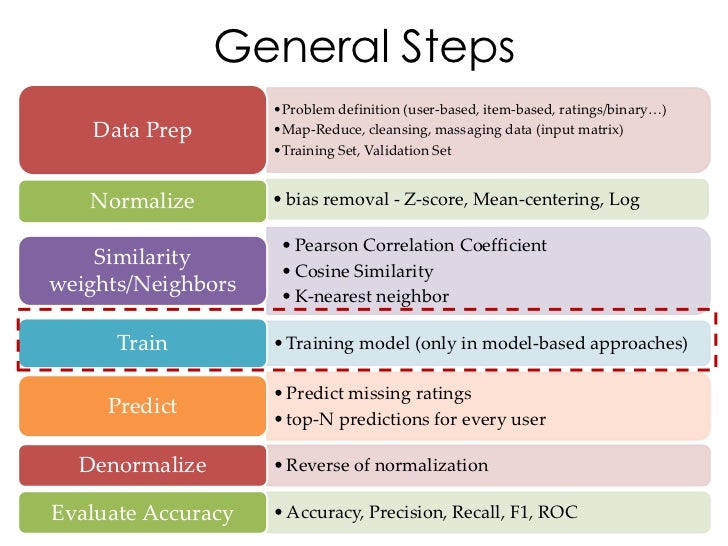

5. General Steps
•Problem definition (user-based, item-based, ratings/binary…)
Data Prep •Map-Reduce, cleansing, massaging data (input matrix)
•Training Set, Validation Set
Normalize • bias removal - Z-score, Mean-centering, Log
• Pearson Correlation Coefficient
Similarity
• Cosine Similarity
weights/Neighbors • K-nearest neighbor
Train • Training model (only in model-based approaches)
• Predict missing ratings
Predict
• top-N predictions for every user
Denormalize • Reverse of normalization
Evaluate Accuracy • Accuracy, Precision, Recall, F1, ROC

6. User-based CF
Reference: Recommenderlab vignette, http://cran.r-project.org/web/packages/recommenderlab/vignettes/recommenderlab.pdf

7. Challenges
• Dimensionality reduction (e.g. use PCA)
• Input data sparsity (aka cold start
problem)
• Overfitting to training data set (use
regularization)
• Data wrangling, in general…

8. Just How Good is your
Recommender?
• Evaluation of predicted ratings (Mean
Average Error, Root Mean Sq Error)
• Evaluation of top-N recommendations
– Mean Absolute Error
– Accuracy
– Precision & Recall (F1 score)
– ROC curve

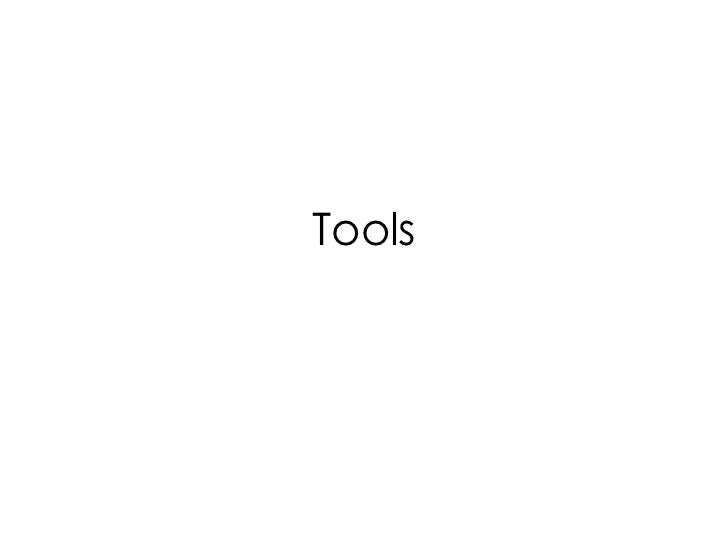

9. Tools

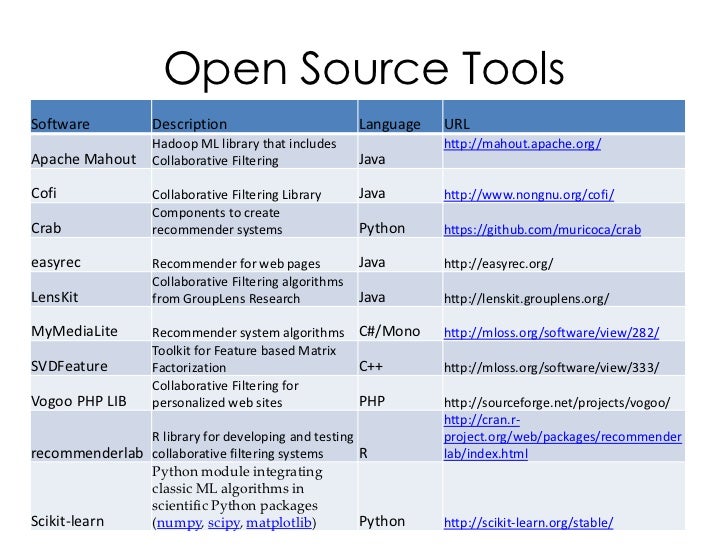

10. Open Source Tools
Software Description Language URL
Hadoop ML library that includes http://mahout.apache.org/
Apache Mahout Collaborative Filtering Java
Cofi Collaborative Filtering Library Java http://www.nongnu.org/cofi/
Components to create
Crab recommender systems Python https://github.com/muricoca/crab
easyrec Recommender for web pages Java http://easyrec.org/
Collaborative Filtering algorithms
LensKit from GroupLens Research Java http://lenskit.grouplens.org/
MyMediaLite Recommender system algorithms C#/Mono http://mloss.org/software/view/282/
Toolkit for Feature based Matrix
SVDFeature Factorization C++ http://mloss.org/software/view/333/
Collaborative Filtering for
Vogoo PHP LIB personalized web sites PHP http://sourceforge.net/projects/vogoo/
http://cran.r-
R library for developing and testing project.org/web/packages/recommender
recommenderlab collaborative filtering systems R lab/index.html
Python module integrating
classic ML algorithms in
scientific Python packages
Scikit-learn (numpy, scipy, matplotlib) Python http://scikit-learn.org/stable/

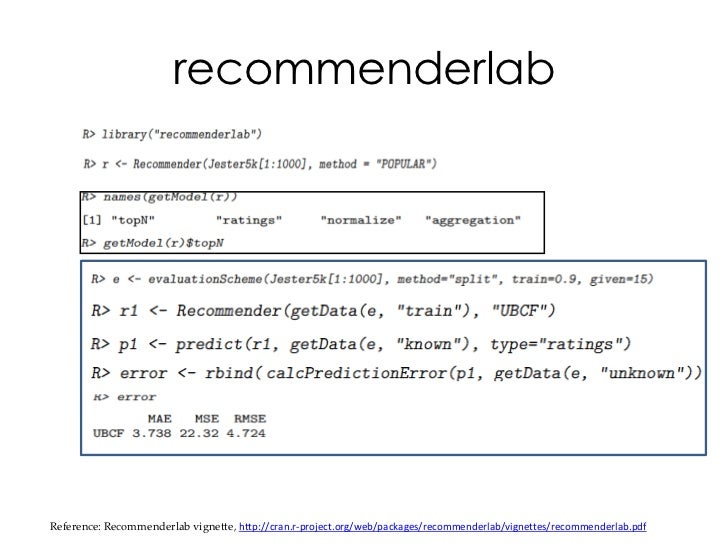

11. recommenderlab
Reference: Recommenderlab vignette, http://cran.r-project.org/web/packages/recommenderlab/vignettes/recommenderlab.pdf

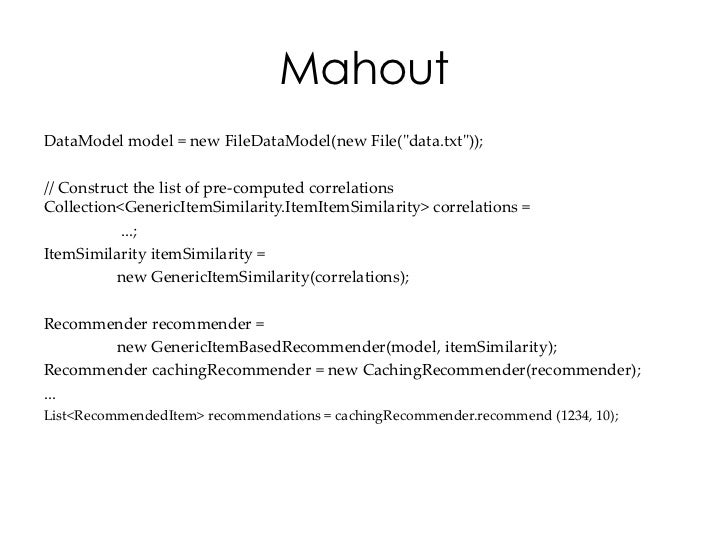

12. Mahout
DataModel model = new FileDataModel(new File("data.txt"));
// Construct the list of pre-computed correlations
Collection<GenericItemSimilarity.ItemItemSimilarity> correlations =
...;
ItemSimilarity itemSimilarity =
new GenericItemSimilarity(correlations);
Recommender recommender =
new GenericItemBasedRecommender(model, itemSimilarity);
Recommender cachingRecommender = new CachingRecommender(recommender);
...
List<RecommendedItem> recommendations = cachingRecommender.recommend (1234, 10);

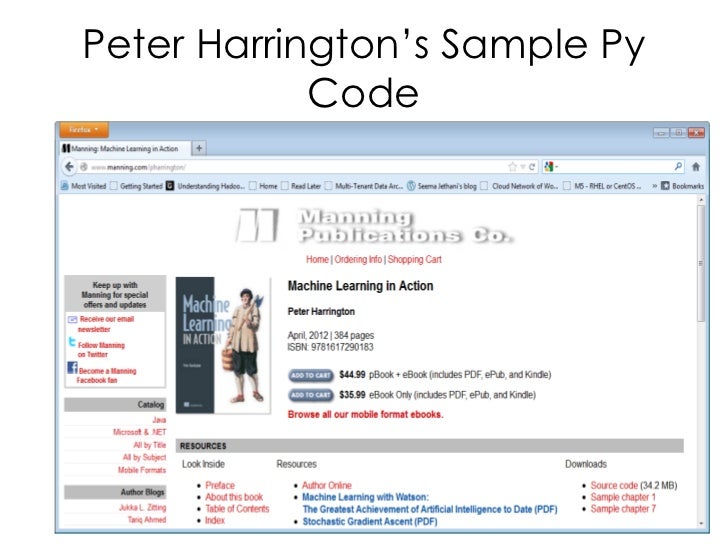

13. Peter Harrington’s Sample Py
Code

14. 2. References & Reading
• High Level Reading
– Programming Collective Intelligence by Toby Segaran. The 2nd
chapter gives a good introduction to collaborative filtering with Python
examples (non-SVD).
– Matrix Factorization Techniques for Recommender Systems
Yehuda Koren; Robert Bell; Chris Volinsky, IEEE Computer,
2009, 8
• Singular Value Decomposition (SVD) Reading
– The Singular Value Decomposition, by Jody Hourigan and Lynn
McIndoo, Linear Algebra – Math 45.
http://online.redwoods.edu/INSTRUCT/darnold/LAPROJ/Fall98/
JodLynn/report2.pdf w/ Matlab & image examples
– Numerical Recipes, 3rd Edition, Press et. al.,2007, p65-75.

15. References & Reading (continued)
• Collaborative Filtering Reading
– See papers on research.yahoo.com/Yehuda_Koren
– Collaborative Filtering for Implicit Feedback Datasets, Yifan Hu;
Yehuda Koren; Chris Volinsky, IEEE International Conference on
Data Mining (ICDM 2008), IEEE, 2008
– Factorization Meets the Neighborhood: a Multifaceted Collaborative
Filtering Model, Yehuda Koren, ACM Int. Conference on
Knowledge Discovery and Data Mining (KDD’08), 2008
– Collaborative Filtering with Temporal Dynamics, Yehuda Koren,
KDD 2009, ACM, 2009
– James Thornton’s CF Blog http://original.jamesthornton.com/cf/
– Apache Mahout Recommender
https://cwiki.apache.org/MAHOUT/recommender-
documentation.html
– Flexible Collaborative Filtering In Java With Mahout Taste - Philippe
Adjiman
– Books, Articles and Tutorials on Mahout/Cofi

16. Questions?
