Slides of my Devlink talk about OpenID, why it fails, how it can be fixed and how browser vendors could help to fix the identity problem of the web.

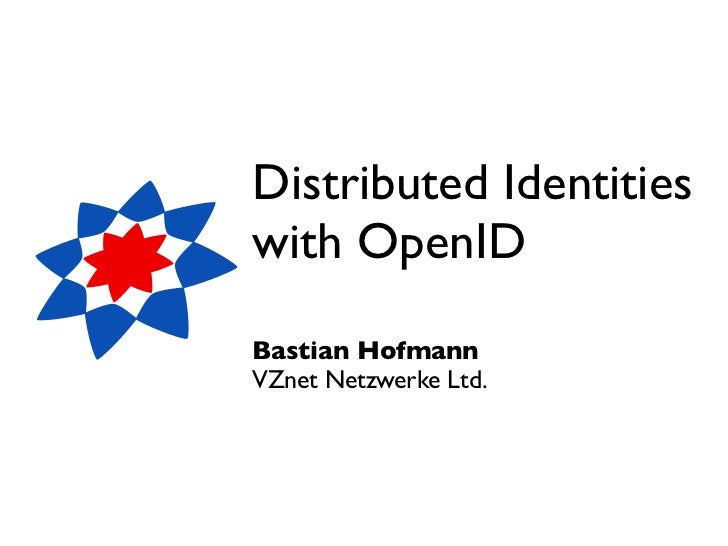

1. Distributed Identities
with OpenID
Bastian Hofmann
VZnet Netzwerke Ltd.

2. OpenID is dead

3. „OpenID has been a burden on support
since the day it was launched.“
„Fewer than 1% of all 37signals users are
currently using OpenID.“
http://productblog.37signals.com/products/2011/01/well-be-retiring-our-
support-of-openid-on-may-1.html

4. „OpenID is the worst possible "solution"
I have ever seen in my entire life to a
problem that most people don't really
have.“
Yishan Wong (Facebook)
http://www.quora.com/What-s-wrong-with-OpenID

5. Facebook Connect
250,000,000 monthly users

6. So why are you here?

7. • Why identity management is still a problem
• OpenID how it works, and why it fails
• OpenID Connect & OAuth2: OpenIDs
future?
• What can browser vendors do?

12. Questions? Ask!

13. http://slideshare.net/bashofmann

14. Only one identity?

15. Identity is conveyed by communication
Identity is not fixed but recreated by every
communication with your fellows
Expectations of different people result in
different identities
Lothar Krappmann

16. Paul Adams
http://www.slideshare.net/padday/the-real-life-social-network-v2

19. Sign up again and again

20. Passwords are broken
Same password for more than one service
Saved unsecurely in the browser
Names, birthdays, car brand, ...
Disclosed to others
Too short, too simple
Sent over non encrypted connections

21. Single Sign On

22. Microsoft Live ID
Launched 1999 as .net Passport

23. Facebook Connect

25. And there are much more

26. Nascar problem

27. Aggregation
http://www.janrain.com/

28. OpenID
http://openid.net/

29. The Client

30. Discovery
<link rel="openid.server" href="http://www.myopenid.com/
server" />
<link rel="openid2.provider" href="http://www.myopenid.com/
server" />
Delegation
<meta http-equiv="X-XRDS-Location" content="http://
bhofmann.myopenid.com/" />
<link rel="openid2.provider" href="http://
www.myopenid.com/server" />
<link rel="openid2.local_id" href="http://
bhofmann.myopenid.com/" />
<link rel="openid.server" href="http://www.myopenid.com/
server" />
<link rel="openid.delegate" href="http://
bhofmann.myopenid.com/" />

31. Connection Flow

32. DEMO

33. Authentication vs Authorization
Who is the user?
Is this really user X?
VS
Is X allowed to do something?
Does X have the permission?
Client sites want more than just a
unique identifier (Social Graph)

34. But there are Spec Extensions

35. Simple Registration
• Allows to specify certain fields in request that
must or should be returned by the Identity
Provider
openid.sreg.required=openid.sreg.fullname&
openid.sreg.optional=openid.sreg.email,openid.sreg.gender
openid.sreg.fullname=Bastian&openid.sreg.gender=male

36. Attribute Exchange
• Fetch Request
penid.ns.ax=http://openid.net/srv/ax/1.0
openid.ax.mode=fetch_request
openid.ax.type.fname=http://example.com/schema/fullname
openid.ax.type.gender=http://example.com/schema/gender
openid.ax.type.fav_dog=http://example.com/schema/favourite_dog
openid.ax.type.fav_movie=http://example.com/schema/
favourite_movie
openid.ax.count.fav_movie=3
openid.ax.required=fname,gender
openid.ax.if_available=fav_dog,fav_movie
openid.ax.update_url=http://idconsumer.com/update?
transaction_id=a6b5c41

37. Attribute Exchange
• Fetch Response
openid.ns.ax=http://openid.net/srv/ax/1.0
openid.ax.mode=fetch_response
openid.ax.type.fname=http://example.com/schema/fullname
openid.ax.type.gender=http://example.com/schema/gender
openid.ax.type.fav_dog=http://example.com/schema/favourite_dog
openid.ax.type.fav_movie=http://example.com/schema/
favourite_movie
openid.ax.value.fname=John Smith
openid.ax.count.gender=0
openid.ax.value.fav_dog=Spot
openid.ax.count.fav_movie=2
openid.ax.value.fav_movie.1=Movie1
openid.ax.value.fav_movie.2=Movie2
openid.ax.update_url=http://idconsumer.com/update?
transaction_id=a6b5c41

38. Attribute Exchange
• Store Request
openid.ns.ax=http://openid.net/srv/ax/1.0
openid.ax.mode=store_request
openid.ax.type.fname=http://example.com/schema/fullname
openid.ax.value.fname=Bob Smith
openid.ax.type.fav_movie=http://example.com/schema/
favourite_movie
openid.ax.count.fav_movie=2
openid.ax.value.fav_movie.1=Movie1
openid.ax.value.fav_movie.2=Movie2
• Store Respons
openid.ns.ax=http://openid.net/srv/ax/1.0
openid.ax.mode=store_response_success

39. http://oauth.net/

40. OAuth 1.0a Flow
+----------+ +---------------+
| -+----(B)-- Request Token -------->| |
| End-user | | Authorization |
| at |<---(C)-- User authenticates --->| Server |
| Browser | | |
| -+----(D)-- Verifier -------------<| |
+-|----|---+ +---------------+
| | ^ v
(B) (D) | |
| | | |
^ v | |
+---------+ | |
| |>---(A)-- Redirect URL ---------------| |
| Web |<---(A)-- Request Token + Secret -----| |
| Client |>---(E)-- Request Token, Verifier ----' |
| |<---(E)-- Access Token + Secret -------------'
+---------+
Every Request: Client Credentials, Nonce, Timestamp, Signature
http://oauth.net/

41. OpenID + OAuth
• Combines OpenID Authentication and
OAuth authorization
openid.ns.oauth=http://specs.openid.net/extensions/oauth/1.0
&openid.oauth.consumer=123456
openid.ns.oauth=http://specs.openid.net/extensions/oauth/1.0
&openid.oauth.request_token=7890

42. Failures of OpenID 2.0
Complex to implement
No marketing
Do you have an OpenID?
What is it?
URL as identifier => Bad User Experience

43. How to fix it?

44. Easier to implement
Better user experience
Built on top of OAuth 2.0
More simple specification
wider adption

45. What‘s wrong with OAuth?
Does not work well with non web or
JavaScript based clients
The „Invalid Signature“ Problem
Complicated Flow, many requests

46. http://oauth.net/

47. What‘s new in OAuth2? (Draft 10)
No signatures
Cookie-like Bearer Token
Different client profiles
No Token Secrets
No Request Tokens
Mandatory TSL/SSL
Much more flexible regarding extensions
http://tools.ietf.org/html/draft-ietf-oauth-v2

48. Web-Server Profile
+----------+ Client Identifier +---------------+
| -+----(A)--- & Redirect URI ------>| |
| End-user | | Authorization |
| at |<---(B)-- User authenticates --->| Server |
| Browser | | |
| -+----(C)-- Authorization Code ---<| |
+-|----|---+ +---------------+
| | ^ v
(A) (C) | |
| | | |
^ v | |
+---------+ | |
| |>---(D)-- Client Credentials, --------' |
| Web | Authorization Code, |
| Client | & Redirect URI |
| | |
| |<---(E)----- Access Token -------------------'
+---------+ (w/ Optional Refresh Token)

49. User-Agent Profile
+----------+ Client Identifier +----------------+
| |>---(A)-- & Redirection URI --->| |
| | | |
End <--+ - - - +----(B)-- User authenticates -->| Authorization |
User | | | Server |
| |<---(C)--- Redirect URI -------<| |
| Client | with Access Token | |
| in | in Fragment +----------------+
| Browser |
| | +----------------+
| |>---(D)--- Redirect URI ------->| |
| | without Fragment | Web Server |
| | | with Client |
| (F) |<---(E)--- Web Page with ------<| Resource |
| Access | Script | |
| Token | +----------------+
+----------+

50. What happend to signatures?
Ongoing controvers discussion
Bearer Tokens are fine over secure connection
Vulnerable if discovery is introduced
Or if TSL/SSL is not possible

51. Scopes
Optional parameter for provider
specific implementations
Additional return values
Access Control

52. Scope: „openid“
With access token additional values are returned
UserID: URL to Portable Contacts endpoint
Timestamp
Signature
http://openidconnect.com/

53. https://github.com/vznet/vz_id_democlient
http://opensocial-demo.vz-modules.net/vzid/index.php

54. DEMO

55. OpenID Connect
Discovery
Get Identifier of user
Call /.well-­‐known/host-­‐meta file at
the domain of the user‘s provider
Look for a link pointing to the OpenID
Connect endpoints in the returned
LRDD

56. Phishing

57. @ E-mail address
equals identity?

58. Can the browser help?

59. FOAF+SSL (WebID)
http://esw.w3.org/Foaf%2Bssl

60. DEMO

61. Bad browser UI
Syncing between different computers?
More than one user on the same computer?

62. Mozilla UX Mockups

63. https://browserid.org/

64. DEMO

65. Summing it up
• We need a single sign on system for the
web
• OpenID is cool, but has some problems
• Proprietary solutions are bad for users, site
owners and developers
• A new more simple and flexible spec is
coming up
• Browser vendors are working to solve this
problem in the browser
