Small Cell Planning

  1. 1. Small Cell Planning by Keima Wireless

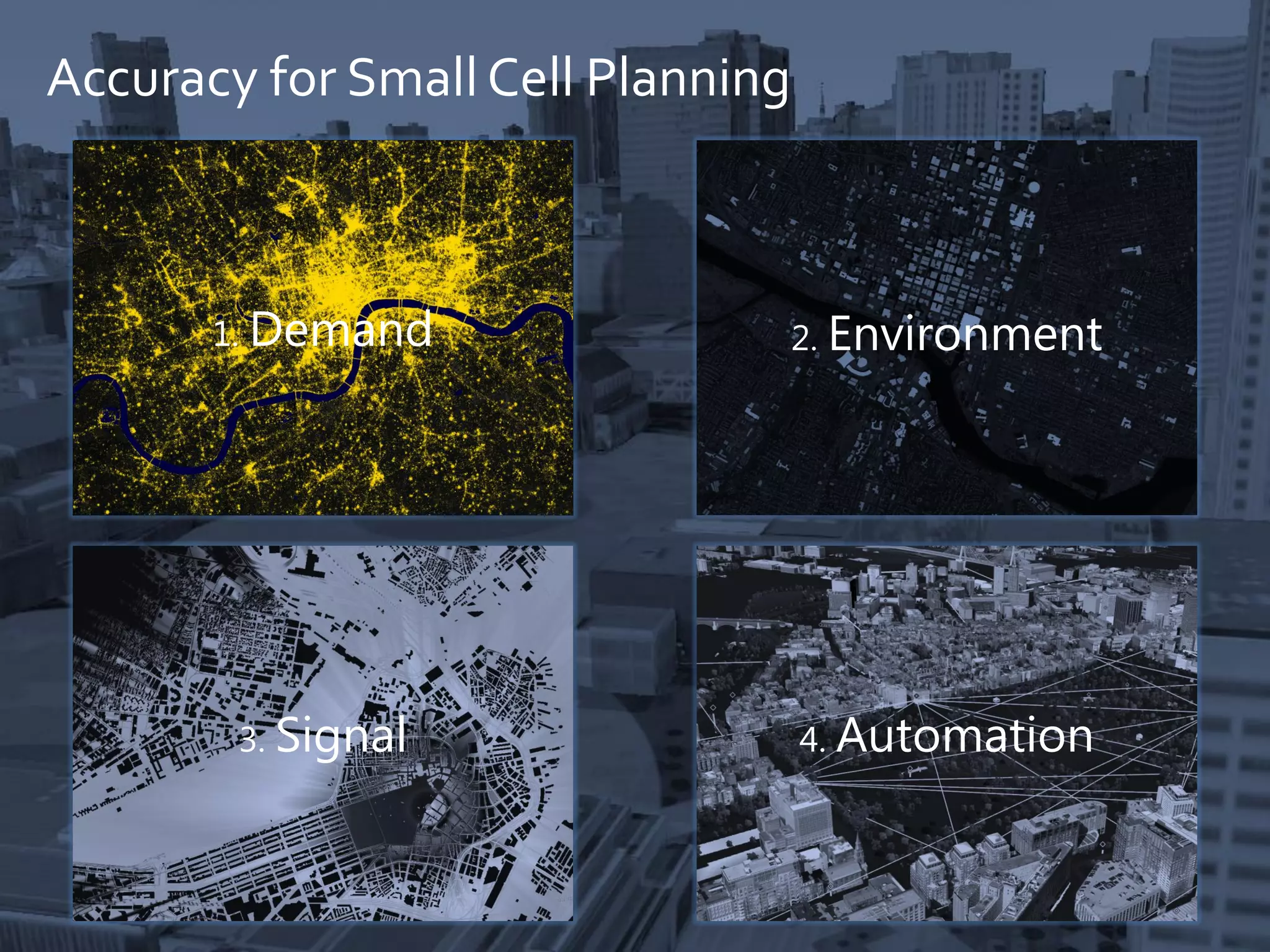

  2. 2. Accuracy for SmallCell Planning 1. Demand 2. Environment 3. Signal 4. Automation

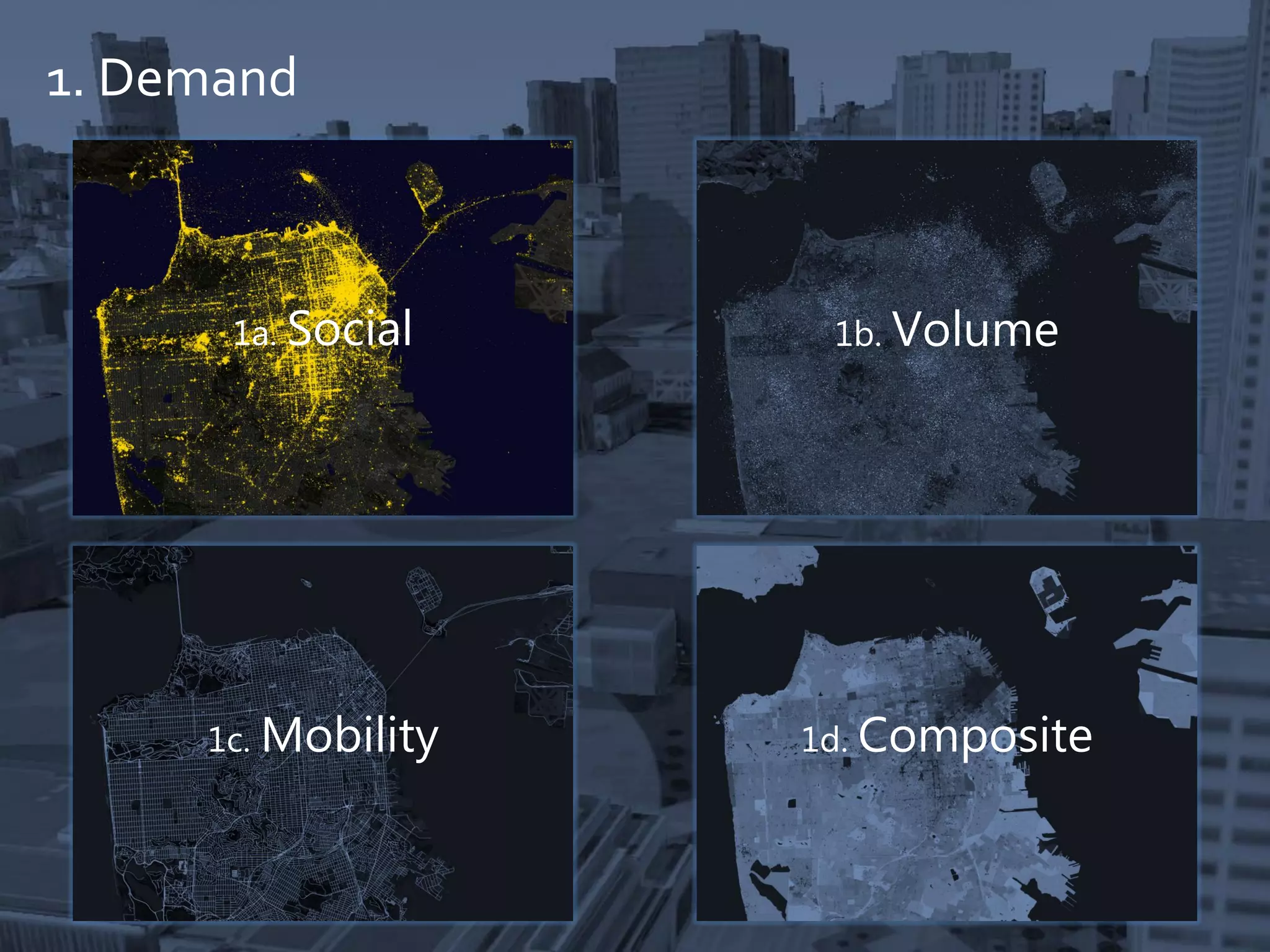

  3. 3. 1. Demand 1a. Social 1b. Volume 1c. Mobility 1d. Composite
  4. 4. • New small cells should be placed to coincide with areas of highest demand (e.g. hotspots) to maximise capacity. • Small cells have radii ~100 m which means their spectrally efficient 64-QAM zones are ~50 m or less. • Demand estimates should take account of non uniformity and be capable of resolving clustering accuracy <50 m. • Geotagged social data (Twitter, foursquare, …) use Wi-Fi assisted GPS for location accuracy ~ 10 m or less … 1a. Social Demand

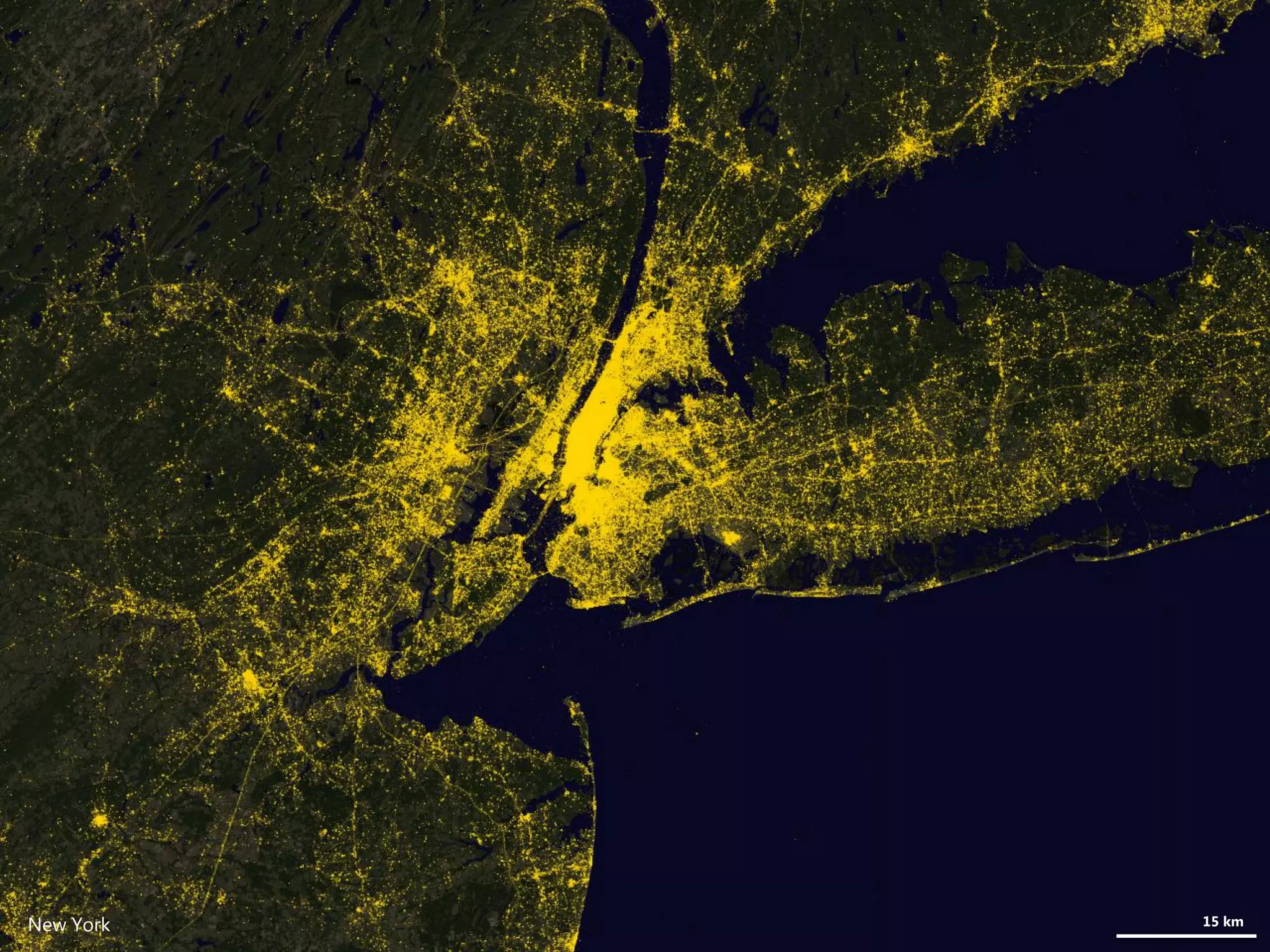

  5. 5. 15 kmNew York

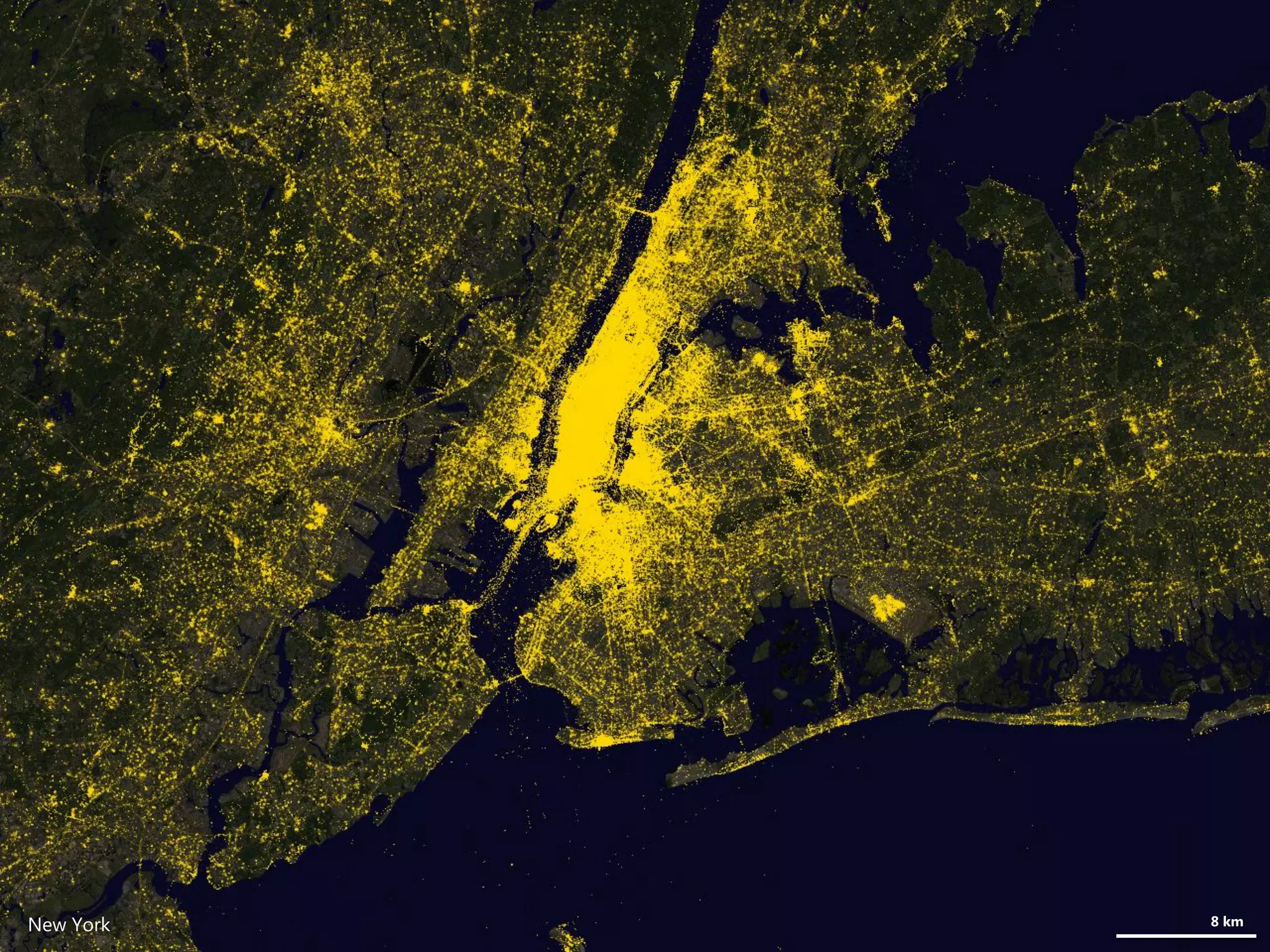

  6. 6. 8 kmNew York

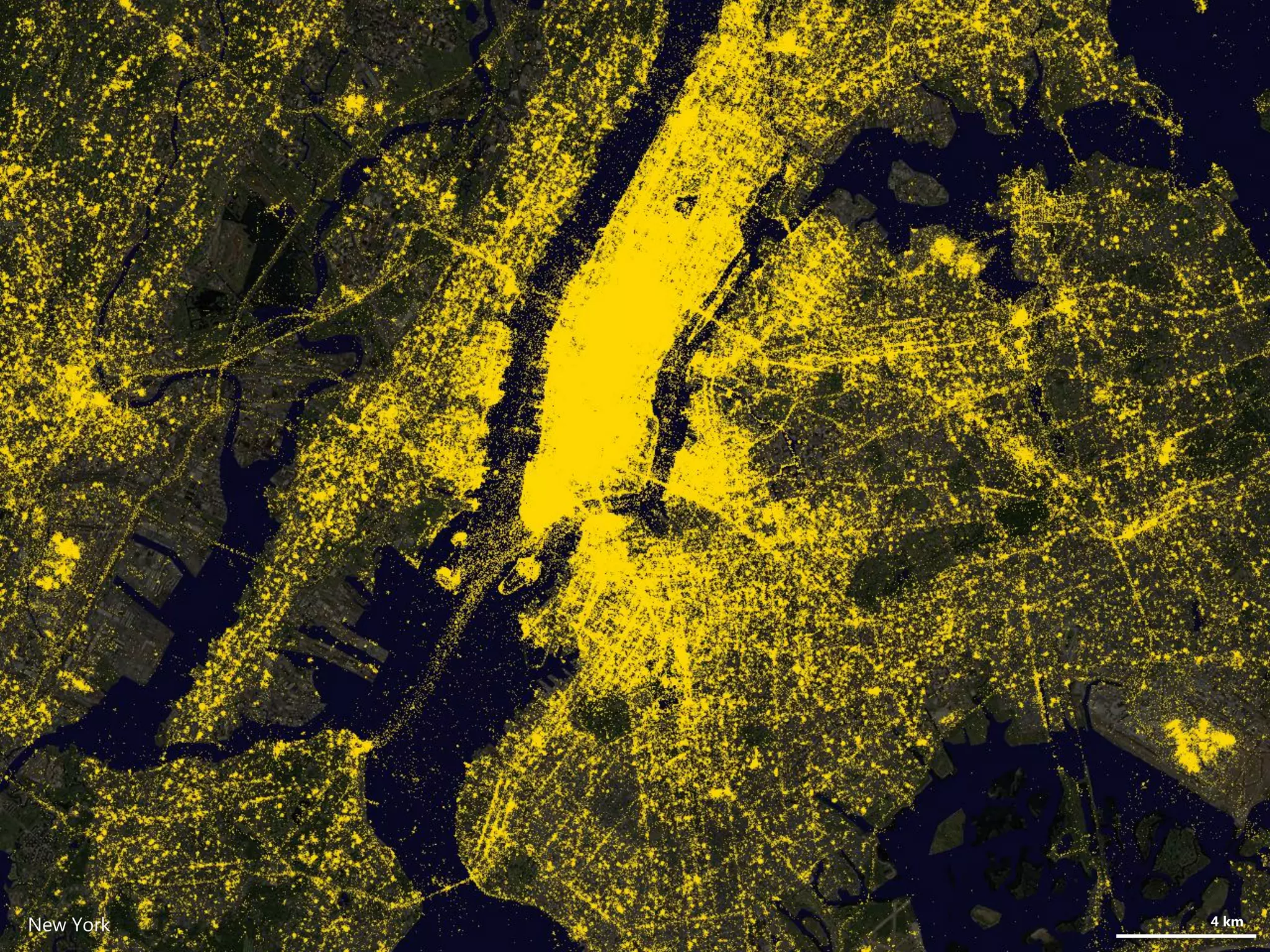

  7. 7. 4 kmNew York

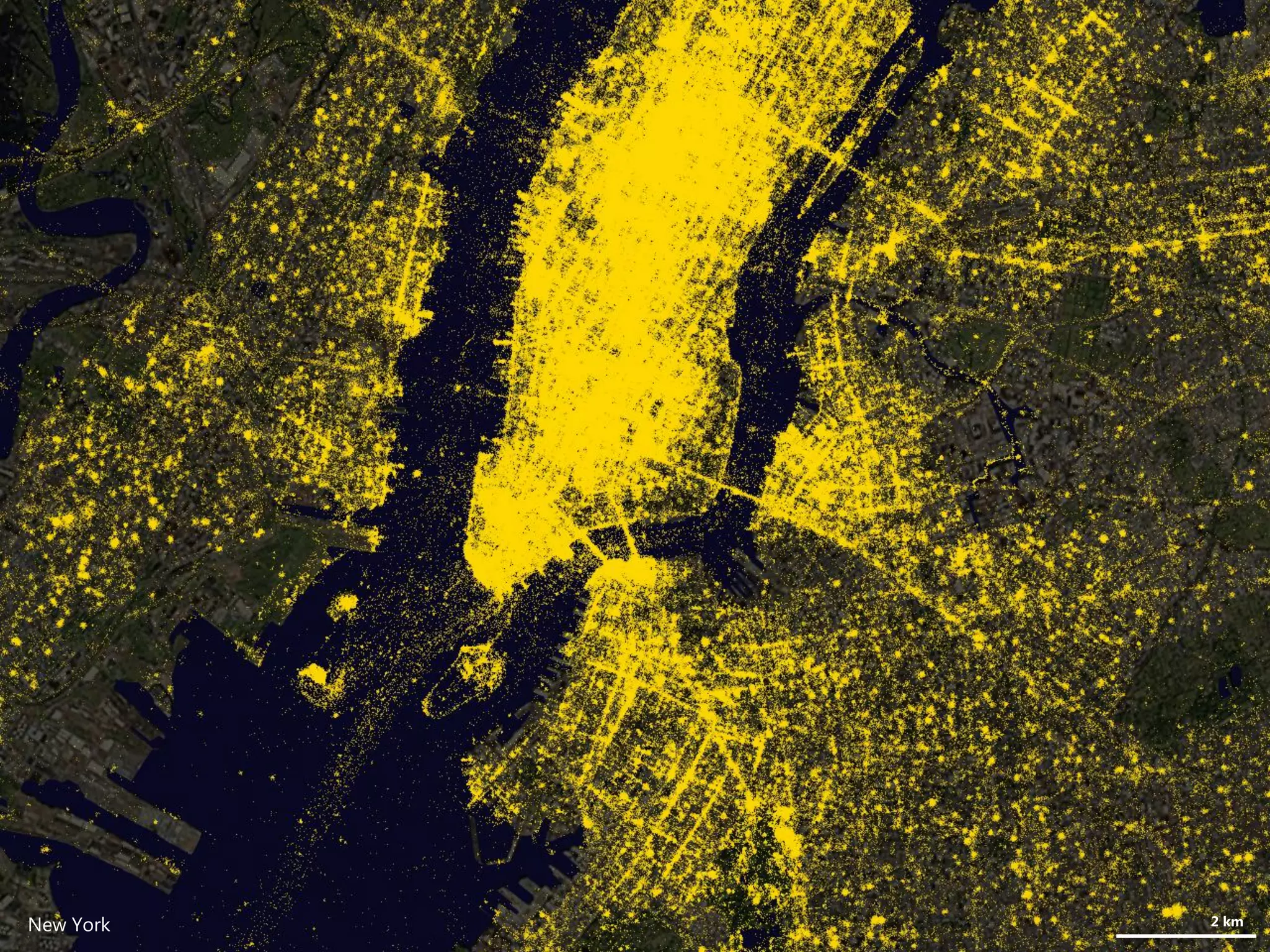

  8. 8. 2 kmNew York

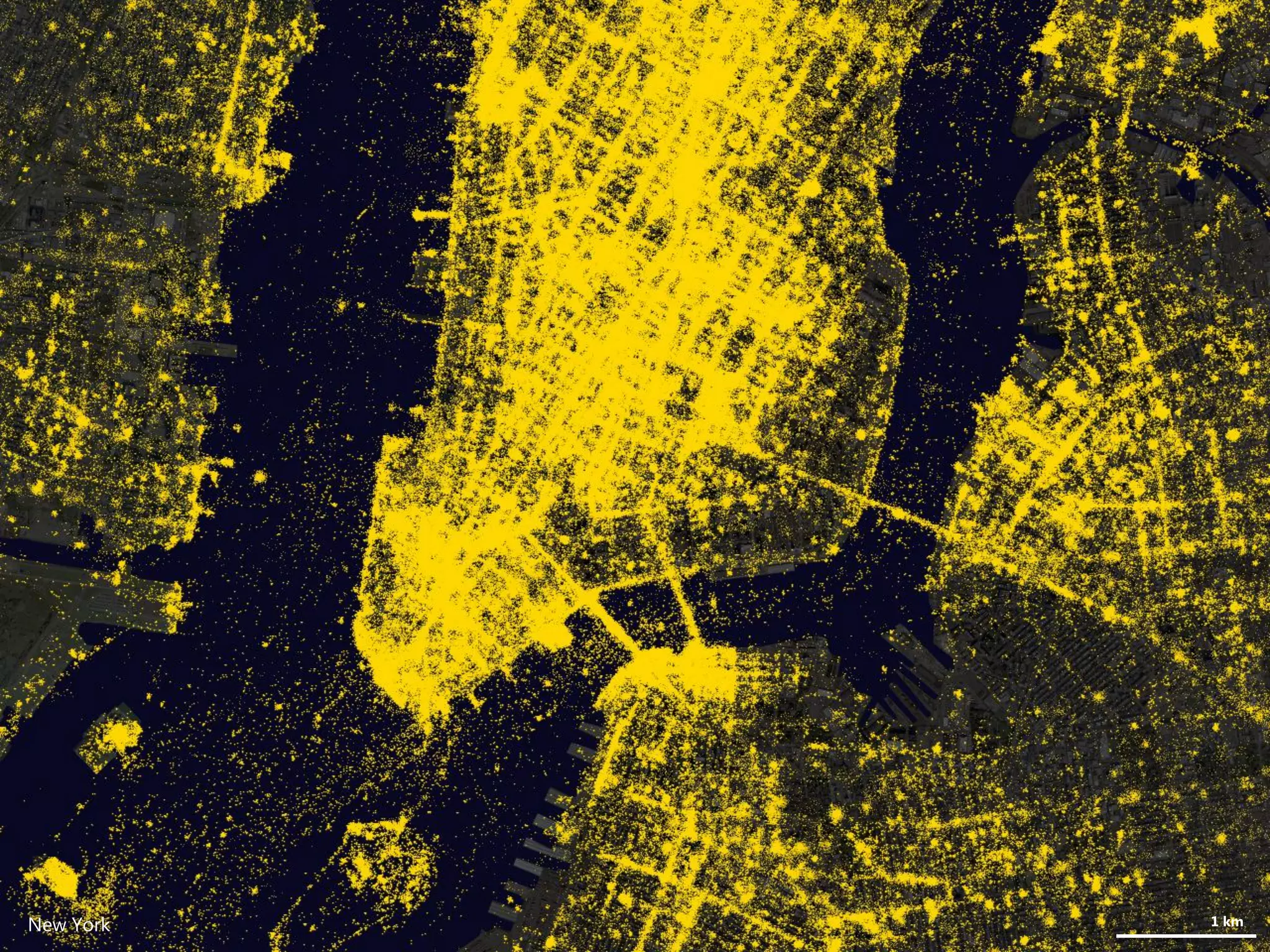

  9. 9. 1 kmNew York

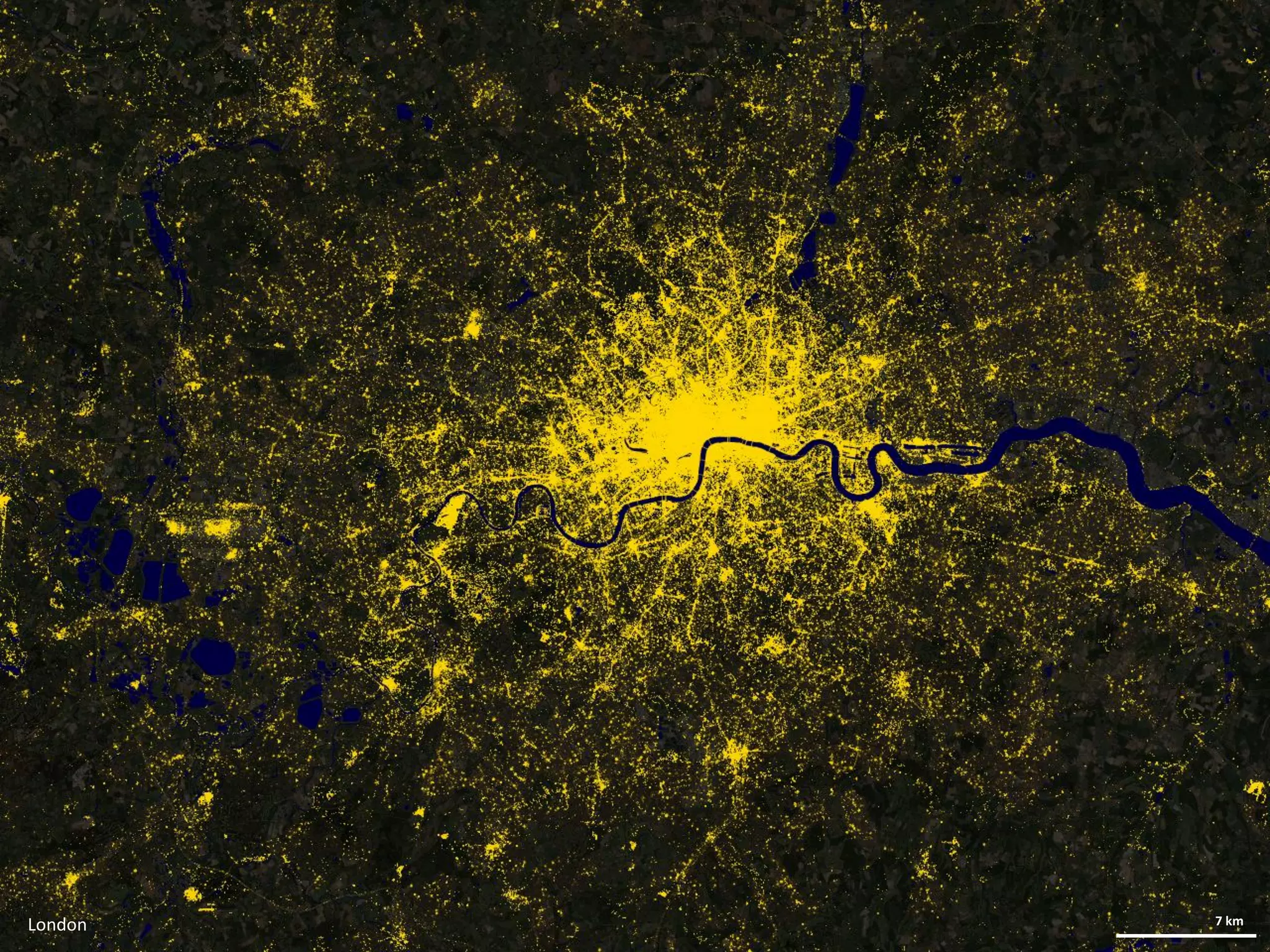

  10. 10. 7 kmLondon

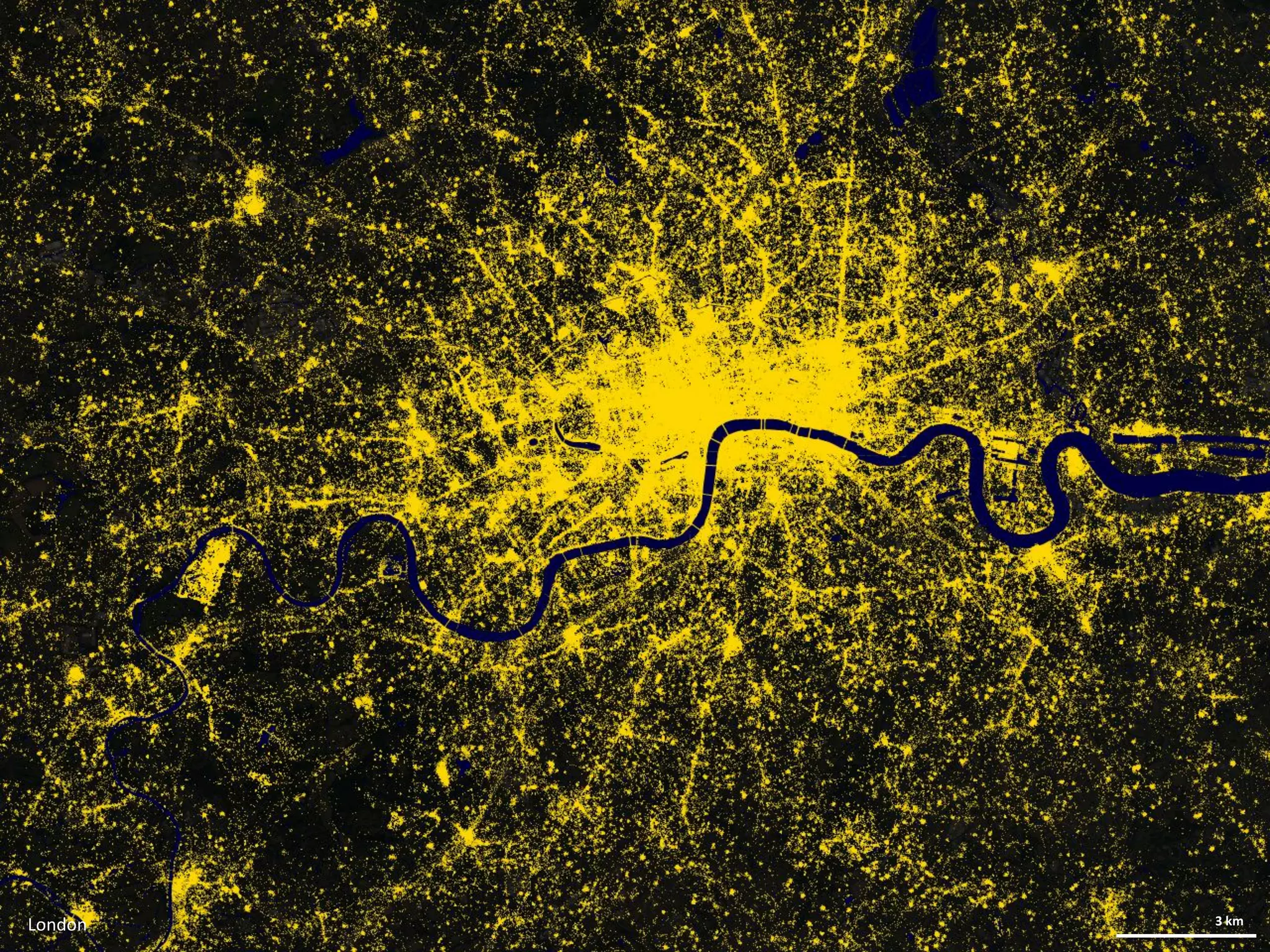

  11. 11. 3 kmLondon

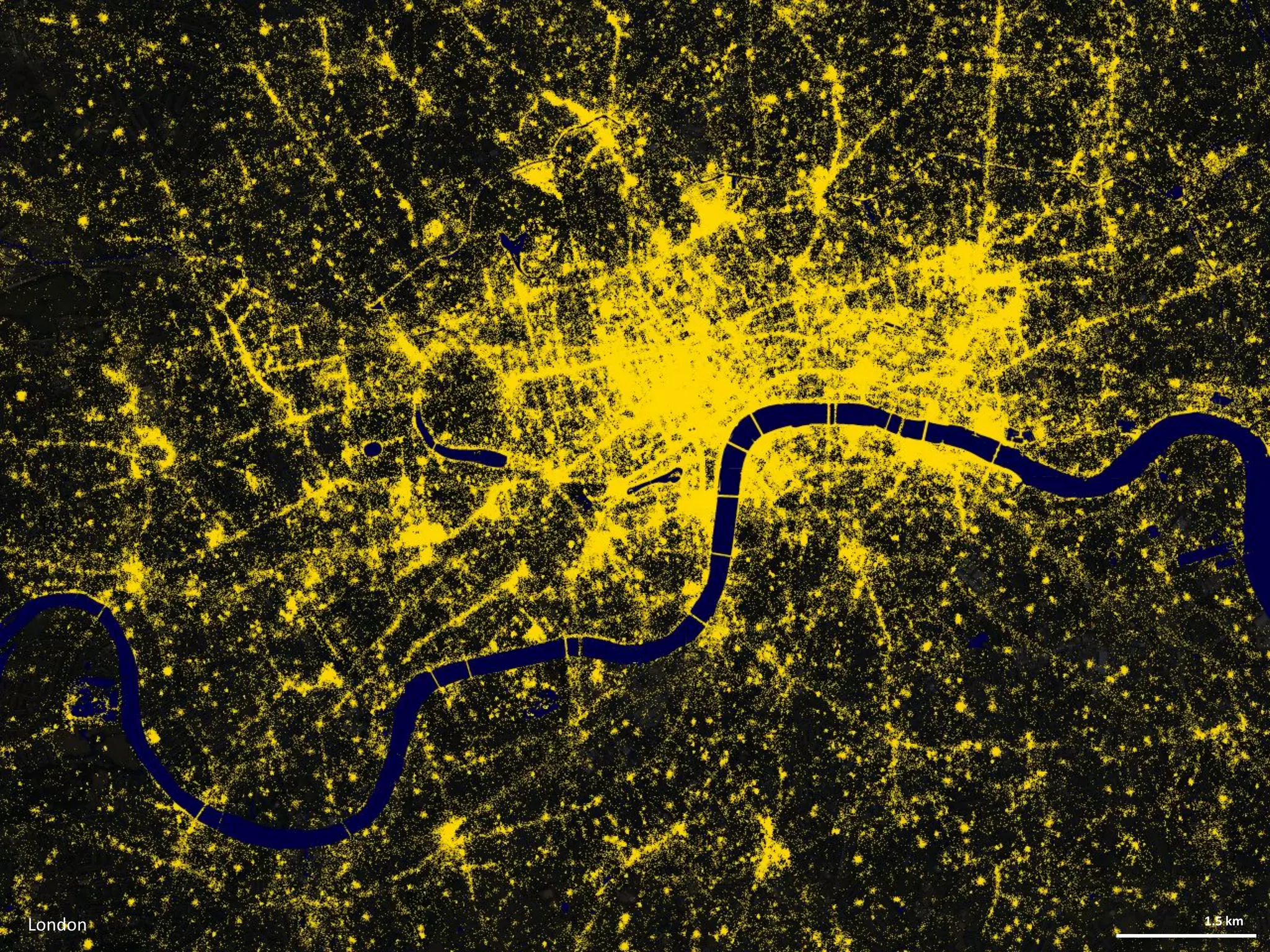

  12. 12. 1.5 kmLondon

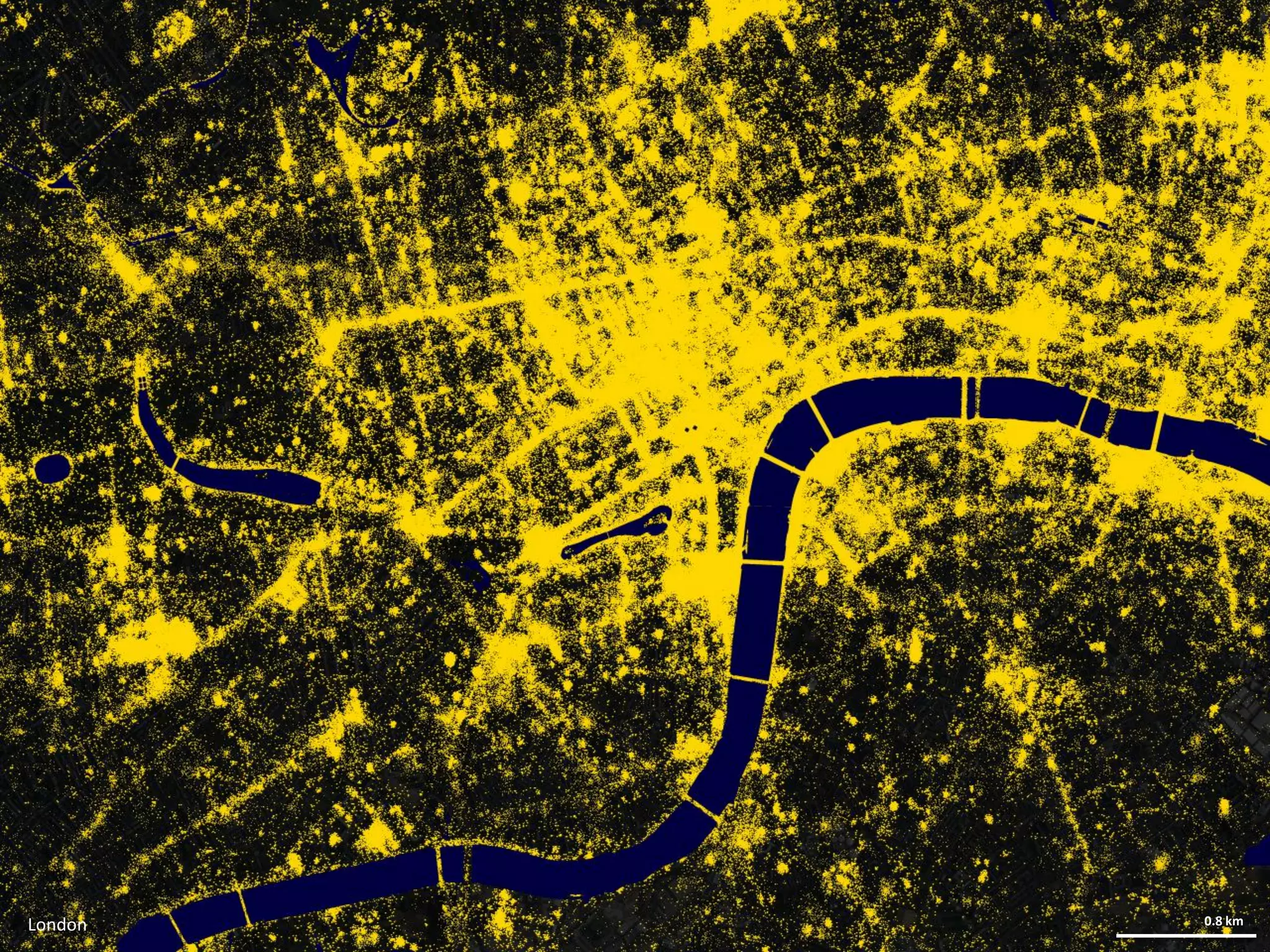

  13. 13. 0.8 kmLondon

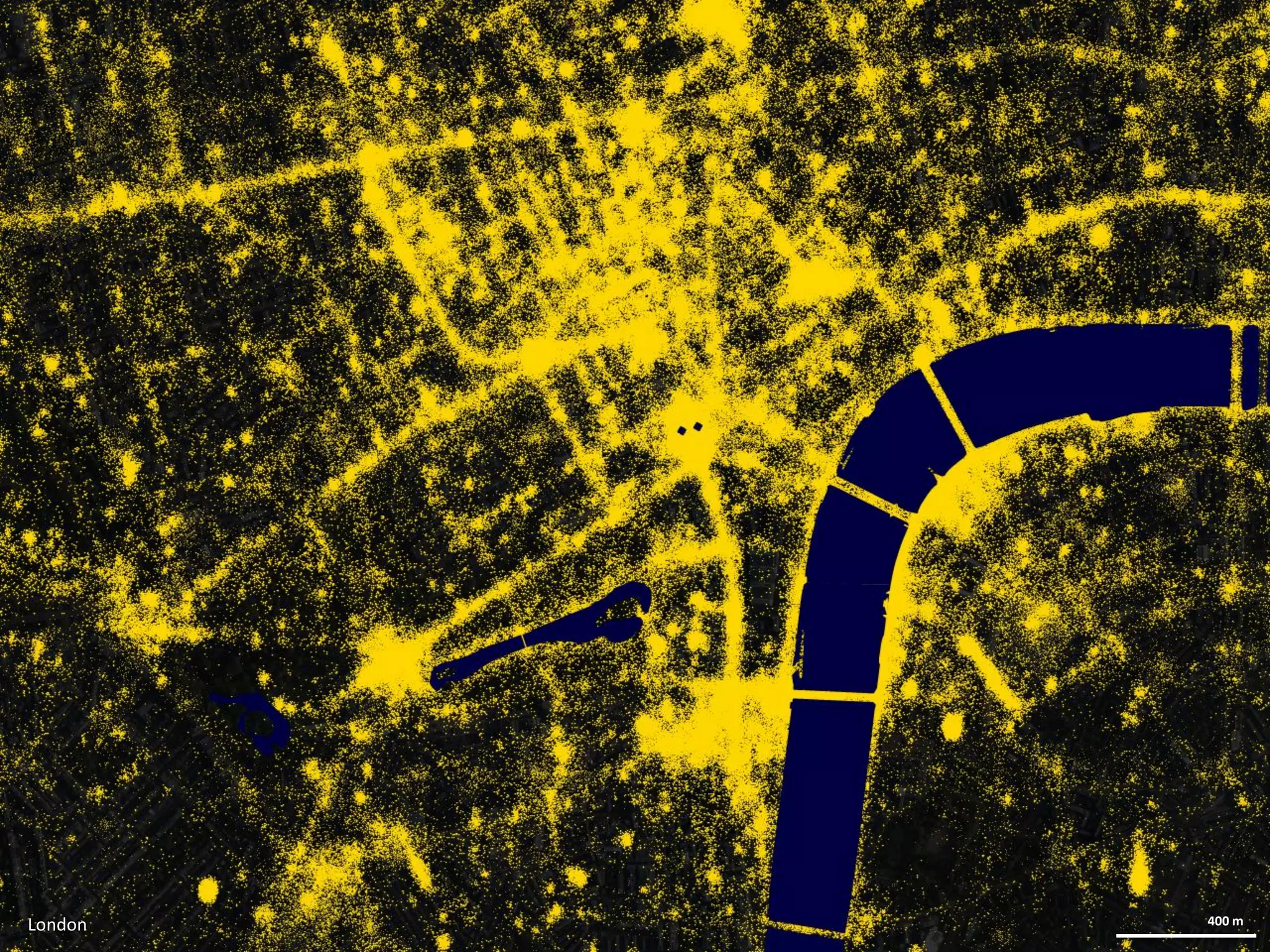

  14. 14. 400 mLondon

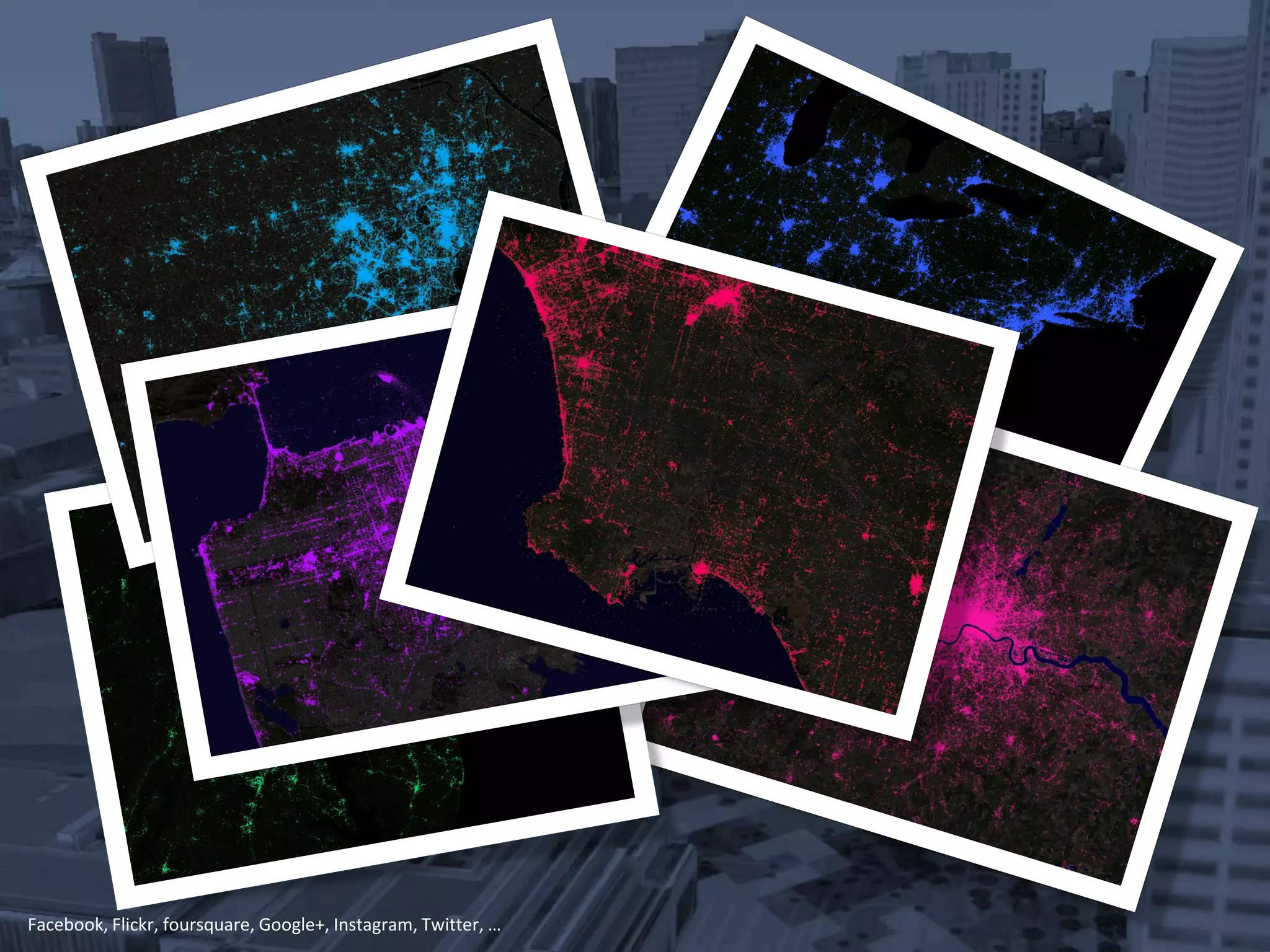

  15. 15. Facebook, Flickr, foursquare, Google+, Instagram, Twitter, …
  16. 16. • Network design solutions • Big data management, 3D visualisation and analysis • Cloud compute capacity • Very large-scale automation Keima Overture info@keima.co.uk

×
