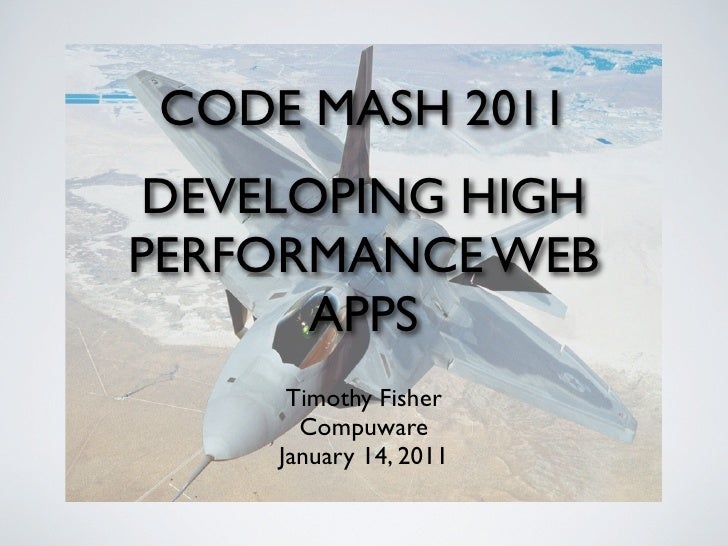

CODE MASH 2011 DEVELOPING HIGHPERFORMANCE WEB       APPS      Timothy Fisher       Compuware     January 14, 2011
WHO AM I?                              Timothy Fisher                              Technical Consultant                   ...
AGENDA• Why   Front-end Performance Matters• Optimize   Page Load• Responsive   Interfaces• Loading   and Executing JavaSc...
AGENDA• DOM     Scripting• Tools• Performance    Monitoring• QuestionsAn overview to spark thought and further investigation
TRAIL BLAZERS• Steve   Souders• Nicholas   Zakas• Stoyan    Stefanov• Patrick   Meenan• Sergey    Chernyshev
Why Front-endPerformance matters
According to Yahoo:“80% of end-user response time isspent on the front-end”According to Steve Souders (Google performance ...
Ads                                     CDN’s   Services          Syndicated ContentIntegration is happening on the client...
OPTIMIZING FRONT END•   Majority of end user response time spent on front end•   Easier to optimize front end•   Time spen...
OPTIMIZE PAGE LOAD
PAGE LOAD TIME              IS IMPORTANTPage load time is critical to the success of a web site/app         Google: +500 m...
BEST PRACTICES•   Reduce HTTP Requests    •   reduce overhead of page load    •   combine javascript and css into less num...
BEST PRACTICES•   Make Pages Cacheable    •   add expires header to pages    •   use on all static content    •   reduces ...
BEST PRACTICES•   Place Stylesheets at the Top    •   browser needs style info first to avoid repaints/reflows later        ...
BEST PRACTICES•   Minify JavaScript and CSS    •   save bandwidth / download time    •   lots of tools to automate this fo...
BEST PRACTICES•   Maximize Paralell Downloads•   Split components across domains•   each browser limits paralell downloads...
CSS SPRITES•   One image contains    multiple web images•   CSS styles used to    display correct web    image, i.e. posit...
RESPONSIVE INTERFACES
A SINGLE BROWSER THREAD
SINGLE THREAD                   IMPLICATIONS• Single   UI Thread for both UI updates and JavaScript execution  • only   on...
“0.1 second is about the limit for having the user feel that a system is reacting instantaneoulsy”   - Jakob Nielsen, Usab...
No limit to how long this can run...  function processData(items, processor, callback) {      for (var i=0, len=items.leng...
WEB WORKERS• Commonly     associated with HTML5• Allow   for asynchronous JavaScript execution• JS   runs in a seperate th...
Calling a Web Worker    var worker = new Worker("worker.js");    // Watch for messages from the worker    worker.onmessage...
LOADING & EXECUTING     JAVASCRIPT
WHY JAVASCRIPT?•   Poorly written JavaScript is the most common reason    for slow client-side performance    • Loading   ...
TYPICAL JAVASCRIPT             PLACEMENT<html>    <head>        <link href=”style.css” rel=”stylesheet” type=”text/css”/> ...
BETTER JAVASCRIPT           PLACEMENT<html>    <head>        <link href=”style.css” rel=”stylesheet” type=”text/css”/>    ...
COMBINE JAVASCRIPT FILES•   Each script request requires HTTP performance overhead•   Minimize overhead by combining scrip...
MINIFY JAVASCRIPT• Removes     all unecessary space/comments from your JS files• Replace   variables with short names• Easy...
NON-BLOCKING LOADS• AddJavaScript to a page in a way that does not block the browser thread ‣ Dynamic Script Elements ‣ Sc...
DYNAMIC SCRIPT ELEMENTS• JavaScript          is downloaded and executed without blocking other page processes.  var script...
SCRIPT INJECTION• Use Ajax to get script• Can control when script is parsed/executed• JavaScript must be served from same ...
RECOMMENDED       NONBLOCKING LOAD• Include the code necessary to dynamically load the the rest of the JS required for pag...
REAL WORLD USE• This     technique is used by many JavaScript libraries including YUI and Dojo.   <script type="text/javas...
OPEN SOURCE JS LOADERSLots of libraries available to help with the JS load problem:         •   ControlJS         •   LabJ...
CONTROLJS• Progessive   Enhancement is core to ControlJS philosophy• downloads    scripts asynchronously• delays   script ...
CONTROLJS                    Async JS Loading        var cjsscript = document.createElement(script);        cjsscript.src ...
CONTROLJS                          Delayed Execution<script data-cjsexec=false type="text/cjs" data-cjssrc="jquery.min.js"...
LABJS                   Async JS Loading<script src="LAB.js"></script>Load these scripts asynchronously:$LAB.script(mootoo...
SUMMARY• Browser    UI and JS share a single thread• Code  execution blocks other browser processes such as UI painting• P...
DATA ACCESS
ACCESSING DATAHow you store and access data can have a significantimpact on performance...         JavaScript Scope Chain
SCOPE CHAINBad (deeper scope chain referencing repeatedly)function innerHTMLLoop() {    document.getElementById(ctrl1).inn...
DOM SCRIPTING
DOCUMENT OBJECT MODEL • Document Object Model (DOM) is a language  independent API for working with HTML and XML • DOM  Sc...
DOM/JS ISOLATION•   DOM and JavaScript implementations are independent    of each other in all major browsers•   This caus...
BAD DOM SCRIPTINGBad (we cross the bridge 1500 times!)function innerHTMLLoop() {    for (var count = 0; count < 1500; coun...
REPAINTS AND REFLOWS  A reflow occurs whenever you change the  geometry of an element that is displayed on the  page.  A re...
AVOIDING REPAINTS/REFLOWS  This will potentially cause 3 repaints/reflows...  var el = document.getElementById(mydiv);  el....
TOOLS
TOOLS ARE YOUR FRIENDThe right tools can help a developer identify and fixperformance problems related to client-side behav...
FIREBUG•Firefox plugin•Debug JavaScript•View page load waterfall:
PAGE SPEED•Extension to Firebug from Google•Provides tips for improving page performance
Y-SLOW•Extension to Firebug from Yahoo•tips for improving page performance
DYNATRACE AJAX EDITION•extension for IE, coming soon for Firefox•deeper client-side tracing than the firebug extensions
SPEED TRACER•performance extension for Google Chrome•similar features to Dynatrace Ajax
YUI PROFILER•profile JavaScript performance•developer must insert JS code
MORE TOOLS...Internet Explorer Developer ToolsSafari Web InspectorChrome Developer ToolsLots of developer tools to debug p...
PERFOMANCE MONITORING
SHOWSLOW collects:   YSlow   PageSpeed   DyantraceIntegrate withWebPageTestto run tests.                 http://www.showsl...
WEB PAGE TESTTests againstdedicated nodes.Agent deployedon test nodes.Image capture                     http://www.webpage...
BOOMERANG                              <html>                                <head>JavaScript library for Real            ...
W3C WEB PERFORMANCENew W3C Working Group focused on web performance.First recommendations: Navigation Timing - how fast do...
DON’T WANT TO DOALL OF THIS YOURSELF???
End-to-end application performance monitoring
RESOURCES•   Yahoo Exceptional Performance    http://developer.yahoo.com/performance/•   Google Web Performance    http://...
QUESTIONS
