JavaScript APIs you’ve never heard of (and some you have)

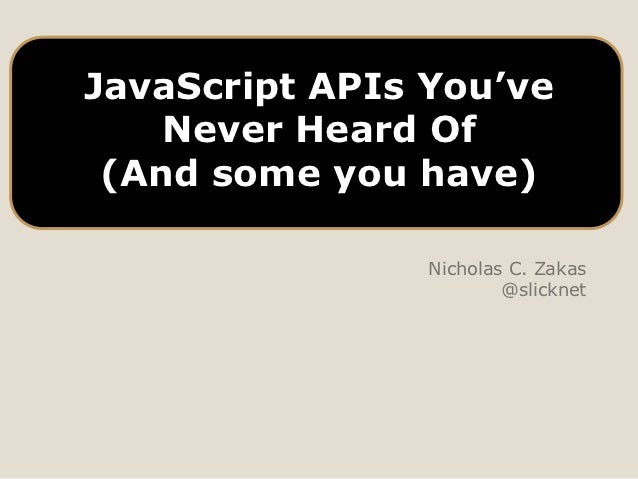

JavaScript APIs You’ve Never Heard Of (And some you have) Nicholas C. Zakas @slicknet

Who’s this guy?

flickr.com/photos/vbillings/172124448 /

HTML5, DOM4 &…DOM Level 2!

<ul id=“mylist”> <li>Item 1</li> <li>Item 1</li> <li>Item 1</li></ul> UL#text LI #text LI #text LI #text

<ul id=“mylist”> <li>Item 1</li> <li>Item 1</li> <li>Item 1</li> </ul> var list = document.getElementById(“mylist”); console.log(list.childNodes.length); //7 console.log(list.children.length); //3childrenDOM4HTMLCollection of all child nodes that are elements

<ul id=“mylist”> <li>Item 1</li> <li>Item 1</li> <li>Item 1</li> </ul> var list = document.getElementById(“mylist”), node1 = list.childNodes[0], child1 = list.children[0]; console.log(node1.nodeName); //”#text” console.log(child1.nodeName); //”LI”childrenDOM4HTMLCollection of all child nodes that are elements

<ul id=“mylist”>  <li>Item 1</li> <li>Item 1</li> IE 6-8 includes <li>Item 1</li> comments in the </ul> children collection var list = document.getElementById(“mylist”), node1 = list.childNodes[0], child1 = list.children[0]; console.log(node1.nodeName); //”#text” console.log(child1.nodeName); //”#comment”children BUG!DOM4HTMLCollection of all child nodes that are elements

UL firstChild lastChild #text LI #text LI #text LI #textElement Traversal APIDefines new properties for accessing element children

9 UL firstElementChild lastElementChild #text LI #text LI #text LI #textElement Traversal APIDefines new properties for accessing element children

9 <ul id=“mylist”> <li>Item 1</li> <li>Item 1</li> <li>Item 1</li> </ul> var list = document.getElementById(“mylist”), node1 = list.firstChild, child1 = list.firstElementChild; console.log(node1.nodeName); //”#text” console.log(child1.nodeName); //”LI”firstElementChildElement Traversal API & DOM4Point to first child node that is an element

9 <ul id=“mylist”> <li>Item 1</li> <li>Item 1</li> <li>Item 1</li> </ul> var list = document.getElementById(“mylist”), node1= list.lastChild, child= list.lastElementChild; console.log(node1.nodeName); //”#text” console.log(child1.nodeName); //”LI”lastElementChildElement Traversal API & DOM4Point to last child node that is an element

9 nextSibling LI #text LIElement Traversal APIDefines new properties for accessing element children

9 LI #text LI nextElementSiblingElement Traversal APIDefines new properties for accessing element children

9 previousSibling LI #text LIElement Traversal APIDefines new properties for accessing element children

9 LI #text LI previousElementSiblingElement Traversal APIDefines new properties for accessing element children

9 // iterate over element children var child = element.firstElementChild; while(child) { process(child); child = child.nextElementSibling; }Element Traversal APIDefines new properties for accessing element children

var element = document.getElementById(“foo”); if (document.body.contains(element)) { //do something } function isAncestor(child, maybeAncestor) { return maybeAncestor.contains(child); } // useful for event delegation if (isAncestor(event.target, list)) { // do something }contains()DOM4Determines if a given element is an ancestor of another

“beforebegin” “afterbegin” “beforeend” “afterend”element.insertAdjacentHTML(location, html); Any valid HTML stringinsertAdjacentHTML()HTML5Insert an HTML string into the DOM at a specific place

<nav> <h2>Site Menu</h2> <ul id="menu"> <li><a href="/">Home</a></li> <li><a href="/about">About</a></li> </ul></nav>var menu = document.getElementById("menu");insertAdjacentHTML()HTML5Insert an HTML string into the DOM at a specific place

<nav> <h2>Site Menu</h2> <p>Hello world!</p> <ul id="menu"> <li><a href="/">Home</a></li> <li><a href="/about">About</a></li> </ul></nav>var menu = document.getElementById("menu");menu.insertAdjacentHTML("beforebegin", "<p>Hello world!</p>");insertAdjacentHTML()HTML5Insert an HTML string into the DOM at a specific place

<nav> <h2>Site Menu</h2> <ul id="menu"> <li>Hello world!</li> <li><a href="/">Home</a></li> <li><a href="/about">About</a></li> </ul></nav>var menu = document.getElementById("menu");menu.insertAdjacentHTML(“afterbegin", "<li>Hello world!</li>");insertAdjacentHTML()HTML5Insert an HTML string into the DOM at a specific place

<nav> <h2>Site Menu</h2> <ul id="menu"> <li><a href="/">Home</a></li> <li><a href="/about">About</a></li> <li>Hello world!</li> </ul></nav>var menu = document.getElementById("menu");menu.insertAdjacentHTML(“beforeend", "<li>Hello world!</li>");insertAdjacentHTML()HTML5Insert an HTML string into the DOM at a specific place

<nav> <h2>Site Menu</h2> <ul id="menu"> <li><a href="/">Home</a></li> <li><a href="/about">About</a></li> </ul> <p>Hello world!</p></nav>var menu = document.getElementById("menu");menu.insertAdjacentHTML(“afterend", "<p>Hello world!</p>");insertAdjacentHTML()HTML5Insert an HTML string into the DOM at a specific place

http://jsperf.com/insertadjacenthtml-perf/4 In many cases, faster than innerHTML!insertAdjacentHTML()HTML5Insert an HTML string into the DOM at a specific place

element.outerHTML = html; Any valid HTML stringouterHTMLHTML5Get/set HTML for an entire element

<nav> <h2>Site Menu</h2> <ul id="menu"> <li><a href="/">Home</a></li> <li><a href="/about">About</a></li> </ul></nav>var menu = document.getElementById("menu");var html = menu.outerHTML;outerHTMLHTML5Get/set HTML for an entire element

<nav> <h2>Site Menu</h2> <p>Hello world!</p></nav>var menu = document.getElementById("menu"); Detachedmenu.outerHTML = "<p>Hello world!</p>"; reference to <ul>console.log(menu.tagName); // “UL”console.log(menu.parentNode); // nullouterHTMLHTML5Get/set HTML for an entire element

9document.implementation.createHTMLDocument(title); Title of the documentcreateHTMLDocument()DOM Level 2Create an invisible document

9var doc = document.implementation.createHTMLDocument(“Test”);console.log(doc.title); // “Test”doc.body.innerHTML = “<p>Hello world!</p>”;var p = document.querySelector(“p”);console.log(p.textContent); // “Hello world!”createHTMLDocument()DOM Level 2Create an invisible document

9function isSafeHTML(html) { var doc = document.implementation.createHTMLDocument(“Test”); doc.body.innerHTML = html; return !doc.querySelector(“script,style,link,object”);}createHTMLDocument()DOM Level 2Create an invisible document

9function sanitizeHTML(html) { var doc = document.implementation.createHTMLDocument(“Test”); doc.body.innerHTML = html; var nodes = doc.querySelectorAll(“script,style,link,object”); for (var i=0, len=nodes.length; i < len; i++) { nodes[i].parentNode.removeChild(nodes[i]); } return doc.body.innerHTML;}createHTMLDocument()DOM Level 2Create an invisible document

9<input value="data" id="data-field">var textbox = document.getElementById("data-field");textbox.focus();textbox.select();textbox.setSelectionRange(1, 3);setSelectionRange()HTML5Select specific parts of textbox content

9// put caret at starttextbox.setSelectionRange(0, 0);// put caret at endtextbox.setSelectionRange( textbox.value.length, textbox.value.length);setSelectionRange()HTML5Select specific parts of textbox content

9<input value="data" id="data-field">var textbox = document.getElementById("data-field");textbox.focus();textbox.setSelectionRange(1, 3);console.log(textbox.selectionStart); // 1console.log(textbox.selectionEnd); // 3selectionStart/selectionEndHTML5Set/get the start and ending range of selection

<input value="data" id="data-field">var textbox = document.getElementById("data-field");textbox.focus();var focused = document.activeElement;console.log(focused === textbox); // trueactiveElementHTML5Returns the element that currently has focus

XMLHttpRequest Level 2

3 10 var data = new FormData(); data.append(“name”, “Nicholas”); data.append(“age”, 25); data.append(“note”, “Yeah right!”); var xhr = new XMLHttpRequest(); xhr.open(“post”, “/submit”, true); //setup event handlers xhr.send(data);FormDataXMLHttpRequest Level 2Used to submit <form> data via XMLHttpRequest

3 10 var data = new FormData(document.forms[0]); var xhr = new XMLHttpRequest(); xhr.open(“post”, “/submit”, true); //setup event handlers xhr.send(data);FormDataXMLHttpRequest Level 2Used to submit <form> data via XMLHttpRequest

3 10 <input type="file" id="photo" name="photo"> var data = new FormData(), fileControl = document.getElementById("photo"); data.append(“name”, “Nicholas”); data.append(“photo”, fileControl.files[0]); var xhr = new XMLHttpRequest(); xhr.open(“post”, “/submit”, true); //setup event handlers xhr.send(data);FormDataXMLHttpRequest Level 2Used to submit <form> data via XMLHttpRequest

3 10 var xhr = new XMLHttpRequest(); xhr.open(“post”, “/submit”, true); xhr.upload.onprogress = function(event) { var percentage = event.loaded/event.total * 100; updateProgress(percentage); }; xhr.send(data);Upload ProgressXMLHttpRequest Level 2Monitor the time to upload

3 9 var xhr = new XMLHttpRequest(); xhr.open(“get”, “/data”, true); xhr.timeout = 5000; xhr.ontimeout = function() { console.log(“Request timed out.”); }; // other event handlers xhr.send(data);XHR TimeoutsXMLHttpRequest Level 2Used to stop a request after a period of time

var xhr = new XMLHttpRequest(); xhr.open(“get”, “/data”, true); xhr.onload = function() { var text = xhr.responseText; doSomethingWith(text); }; // other event handlers xhr.send();XHR Response TypesXMLHttpRequest Level 2Retrieve a particular type of object – not just text!

var xhr = new XMLHttpRequest(); xhr.open(“get”, “/data”, true); xhr.onload = function() { var xmldoc = xhr.responseXML; doSomethingWith(xmldoc); }; // other event handlers xhr.send();XHR Response TypesXMLHttpRequest Level 2Retrieve a particular type of object – not just text!

3 10 var xhr = new XMLHttpRequest(); xhr.open(“get”, “/data”, true); xhr.responseType = "text"; xhr.onload = function() { var text = xhr.response; doSomethingWith(text); }; // other event handlers xhr.send();XHR Response TypesXMLHttpRequest Level 2Retrieve a particular type of object – not just text!

3 10 var xhr = new XMLHttpRequest(); xhr.open(“get”, “/data”, true); xhr.responseType = "document"; xhr.onload = function() { var xmldoc = xhr.response; doSomethingWith(xmldoc); }; // other event handlers xhr.send();XHR Response TypesXMLHttpRequest Level 2Retrieve a particular type of object – not just text!

3 10 var xhr = new XMLHttpRequest(); xhr.open(“get”, “/data”, true); xhr.responseType = "blob"; xhr.onload = function() { Great for var blob = xhr.response; downloading doSomethingWith(blob); images! }; // other event handlers xhr.send();XHR Response TypesXMLHttpRequest Level 2Retrieve a particular type of object – not just text!

3 10 var xhr = new XMLHttpRequest(); xhr.open(“get”, “/data”, true); Great for downloading xhr.responseType = "arraybuffer"; binary data! xhr.onload = function() { var binData = new Uint16Array(xhr.response); doSomethingWith(binData); }; // other event handlers xhr.send();XHR Response TypesXMLHttpRequest Level 2Retrieve a particular type of object – not just text!

var xhr = new XMLHttpRequest(); xhr.open(“get”, “/data”, true); xhr.responseType = "json"; xhr.onload = function() { var json = xhr.response; doSomethingWith(json); }; // other event handlers xhr.send();XHR Response TypesXMLHttpRequest Level 2Retrieve a particular type of object – not just text!

CSS in JavaScript

3 9 var element = document.getElementById(“foo”); if (element.matchesSelector(“#foo”)) { //do something } if (element.matchesSelector(“body .bar”)) { //do something }matchesSelector()Selector API Level 2Determines if the element matches a certain CSS selector

element.mozMatchesSelector() element.webkitMatchesSelector() element.msMatchesSelector() element.oMatchesSelector()matchesSelector()Selector API Level 2Determines if the element matches a certain CSS selector

var element = document.getElementById(“foo”); if (element.matches(“#foo”)) { //do something } if (element.matches(“.bar”, element.parentNode)) { //do something }matches ()Selector API Level 2Determines if the element matches a certain CSS selector

Hello!getBoundingClientRect()CSS Object Model ViewsDetermines size and location of an element in the viewport

var rect = element.getBoundingClientRect();// all measurements in pixels relative to viewportconsole.log(rect.left);console.log(rect.top);console.log(rect.right); // relative to leftconsole.log(rect.bottom); // relative to topconsole.log(rect.width);console.log(rect.height);getBoundingClientRect()CSS Object Model ViewsDetermines size and location of an element in the viewport

var rect = element.getBoundingClientRect();// all measurements in pixels relative 8 adds 2 to each IE < to viewportconsole.log(rect.left); coordinate – you mustconsole.log(rect.top); subtract itconsole.log(rect.right); // relative to leftconsole.log(rect.bottom); // relative to topconsole.log(rect.width);console.log(rect.height);getBoundingClientRect() BUG!CSS Object Model ViewsDetermines size and location of an element in the viewport

Think clientX and clientY var element = document.elementFromPoint(x, y); Element at that point with highest z-indexelementFromPoint()CSS Object Model ViewsReturn the element at a position relative to viewport

10var mql = window.matchMedia(“(max-width:600px)”);if (mql.matches) { //do something}mql.addListener(function(mql) { console.log(mql.media + “ “ + (mql.matches ? “matches” : “doesn’t match”);});matchMedia()CSS Object Model ViewsAllows JavaScript to interact with CSS media queries

Review

What We Talked About• Element Traversal API• element.children• element.contains()• element.insertAdjacentHTML()• element.outerHTML• document.activeElement• document.implementation.createHTMLDocument()• element.setSelectionRange()• element.selectionStart• element.selectionEnd

What We Talked About• FormData• Upload Progress• XHR Timeouts• XHR Response Types• element.matchesSelector()• element.getBoundingClientRect()• document.elementFromPoint()• window.matchMedia()

The End

EtceteraMy blog: nczonline.netTwitter: @slicknetThese Slides: slideshare.net/nzakas
