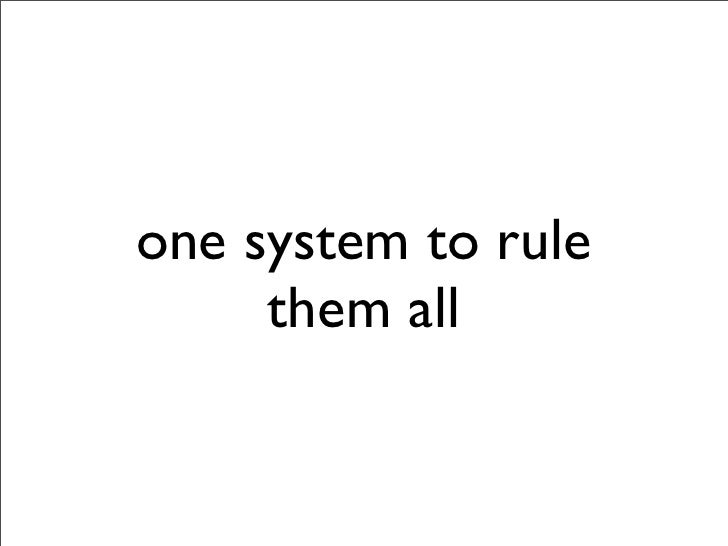

one system to rule
     them all
the challenge
• write a backend that scales well
• handle various frontends (web, iPhone, ...)
• runs “somewhere in the cloud”
• easy to...
the solution
RabbitMQ
+CouchDB
=Awesome
Part I
RabbitMQ

• AMQP based Message Queue
• lots of additional transports (XMPP, HTTP,
  STOMP, ...)
• erlang based
frontend    frontend   frontend




daemon       RabbitMQ




daemon        daemon         daemon
• every functionality gets a backed daemon
• every daemon has a queue associated
• communication via a JSON message that
 ...
the JSON message
{
    "response": {
        "expiry": 710,
        "ts": "1234425918",
        "name": "Lenz Gschwendtner",
        "last4...
works great for ...

• RPC style communication
• if the flow through the system is static
• fast transactions
gets fiddly when ...

• there are asynchronous callbacks from
  outside
• message flow can change based on various
  factors...
Part II
workflows
... again ...
what we have ...

• various frontends
• backend daemons
• JSON messages
what we need


• a way to describe message flow
• a easy flexible way to write and update it
CouchDB
... to the rescue
workflow

• really only a path definition through
  backends
• some sort of condition management
• a backend definition
{
    "_id": "f7a4408898e5...a05b4181045",
    "_rev": "3-633060011",
    "name": "billing_info",
    "type": "workflow",
...
... and the backend
      definition
{
    "_id": "33adf2e3efc3...f423929f057ac",
    "_rev": "3-3507820969",
    "conn": "rpc",
    "type": "worker",
    "nam...
now we need a
workflow daemon
frontend    frontend   frontend




daemon       RabbitMQ         workflow




daemon        daemon         daemon
where are we now?

• we can call backends as before
• we can call workflows via the workflow
  queue
• we can manage workflow...
Part III
asynchronous callbacks
problem

• we start a workflow
• we call some external API
• the external API somehow notifies us
  (Mail, Callback URL, ......
we need a persistent
   message store
{
    "_id": "22cd37afd06c82129adb665d3150f570",
    "_rev": "3-2669449653",
    "status": "done",
    "last_update": 1252...
one more problem
  how do we correlate messages
... with some CouchDB
       awesome ...
• the backend daemon for the callback polls a
  view in CouchDB

• we can search for any value in the request
  we sent

•...
external   frontend    frontend   frontend
callback



       daemon         RabbitMQ         workflow




       daemon   ...
me
Lenz Gschwendtner
CTO iWantMyName
   @norbu09
credits

• RabbitMQ
• CouchDB
• Erlang and Perl
more credits

• http://www.flickr.com/photos/djpd
• http://www.flickr.com/photos/lilyapp
• http://www.flickr.com/photos/b-tal...
RabbitMQ + CouchDB = Awesome
RabbitMQ + CouchDB = Awesome
RabbitMQ + CouchDB = Awesome
RabbitMQ + CouchDB = Awesome
RabbitMQ + CouchDB = Awesome
