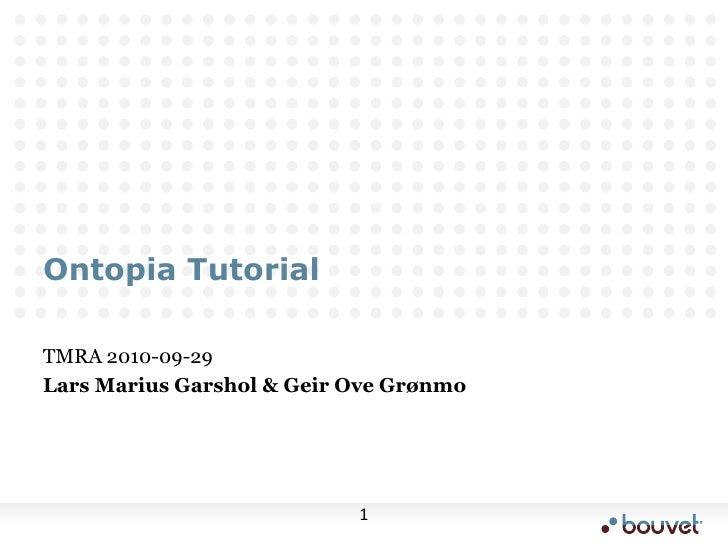

Ontopia tutorial

Ontopia Tutorial
TMRA 2010-09-29
Lars Marius Garshol & Geir Ove Grønmo

Agenda
About you
who are you?
About Ontopia
The product
The future
Participating in the project

Some background
About Ontopia

Brief history
1999-2000
private hobby project for Geir Ove
2000-2009
commercial software sold by Ontopia AS
lots of international customers in diverse fields
2009-
open source project

The project
Open source hosted at Google Code
Contributors
Lars Marius Garshol, Bouvet
Geir Ove Grønmo, Bouvet
Thomas Neidhart, SpaceApps
Lars Heuer, Semagia
Hannes Niederhausen, TMLab
Stig Lau, Bouvet
Baard H. Rehn-Johansen, Bouvet
Peter-Paul Kruijssen, Morpheus
Quintin Siebers, Morpheus
Matthias Fischer, HTW Berlin

Recent work
Ontopia/Liferay integration
Matthias Fischer & LMG
Various fixes and optimizations
everyone
Tropics (RESTful web service interface)
SpaceApps
Porting build system to Maven2
Morpheus

Architecture and modules
Product overview

The big picture
Auto-class.
A.N.other
A.N.other
Other
CMSs
A.N.other
A.N.other
DB2TM
Portlet support
OKP
TMSync
Engine
CMSintegration
Data
integration
Escenic
Taxon.import
Ontopoly
Web
service

The engine
Core API
TMAPI 2.0 support
Import/export
RDF conversion
TMSync
Fulltext search
Event API
tolog query language
tolog update language
Engine

The backends
In-memory
no persistent storage
thread-safe
no setup
RDBMS
transactions
persistent
thread-safe
uses caching
clustering
Remote
uses web service
read-only
unofficial
Engine
Memory
RDBMS
Remote

DB2TM
Upconversion to TMs
from RDBMS via JDBC
or from CSV
Uses XML mapping
can call out to Java
Supports sync
either full rescan
or change table
TMRAP
Nav
DB2TM
Classify
Engine
Memory
RDBMS
Remote

TMRAP
Web service interface
via SOAP
via plain HTTP
Requests
get-topic
get-topic-page
get-tolog
delete-topic
...
TMRAP
Nav
DB2TM
Classify
Engine
Memory
RDBMS
Remote

Navigator framework
Servlet-based API
manage topic maps
load/scan/delete/create
JSP tag library
XSLT-like
based on tolog
JSTL integration
TMRAP
Nav
DB2TM
Classify
Engine
Memory
RDBMS
Remote

Automated classification
Undocumented
experimental
Extracts text
autodetects format
Word, PDF, XML, HTML
Processes text
detects language
stemming, stop-words
Extracts keywords
ranked by importance
uses existing topics
supports compound terms
TMRAP
Nav
DB2TM
Classify
Engine
Memory
RDBMS
Remote

Vizigator
Viz
Ontopoly
Graphical visualization
VizDesktop
Swing app to configure
filter/style/...
Vizlet
Java applet for web
uses configuration
loads via TMRAP
uses “Remote” backend
TMRAP
Nav
DB2TM
Classify
Engine
Memory
RDBMS
Remote

Ontopoly
Viz
Ontopoly
Generic editor
web-based, AJAX
meta-ontology in TM
Ontology designer
create types and fields
control user interface
build views
incremental dev
Instance editor
guided by ontology
TMRAP
Nav
DB2TM
Classify
Engine
Memory
RDBMS
Remote

Typical deployment
Viewing
application
Engine
Users
DB
Backend
Ontopoly
Frameworks
Editors
DB
TMRAP
DB2TM
HTTP
DB
External application
Application server

APIs
The engine

Core APIs
net.ontopia.topicmaps.core.*
Fairly direct mapping from TMDM
TopicIF
AssociationIF
TopicMapIF
...
Set/get methods reflect TMDM properties

TopicIF
Interface, not a class
getTopicNames()
addTopicName(TopicNameIF)
removeTopicName(TopicNameIF)
getOccurrences() + add + remove
getSubjectIdentifiers() + add + remove
getItemIdentifiers() + add + remove
getSubjectLocators() + add + remove
getRoles()
getRolesByType(TopicIF)

Core interfaces
TopicMapStoreIF
TopicMapIF
TopicIF
AssociationIF
TopicNameIF
OccurrenceIF
AssociationRoleIF
VariantNameIF

How to get a TopicMapIF
Create one directly
new net...impl.basic.InMemoryTopicMapStore()
Load one from file
using an importer (next slide)
Connect to an RDBMS
covered later
Use a topic map repository
covered later

TopicMapReaderIF
import net.ontopia.topicmaps.core.TopicMapIF;
import net.ontopia.topicmaps.core.TopicMapReaderIF;
import net.ontopia.topicmaps.utils.ImportExportUtils;
public class TopicCounter {
public static void main(String[] argv) throws Exception {
TopicMapReaderIF reader = ImportExportUtils.getReader(argv[0]);
TopicMapIF tm = reader.read();
System.out.println("TM contains " + tm.getTopics().size() + " topics");
}
}
[larsga@c716c5ac1 tmp]$ java TopicCounter ~/data/bilder/privat/metadata.xtm
TM contains 17035 topics
[larsga@c716c5ac1 tmp]$

Supported syntaxes

The utility classes
A set of classes outside the core interfaces that perform common tasks
a number of these utilities are obsolete now that tolog is here
They are all built on top of the core interfaces
Some important utilities
ImportExportUtils creates readers and writers
MergeUtils merges topics and topic maps
PSI contains important PSIs
DeletionUtils cascading delete of topics
DuplicateSuppressionUtils removes duplicates
TopicStringifiers find names for topics

Topic Maps repository
Uses a set of topic maps sources to build a set of topics maps
topic maps can be looked up by ID
Many kinds of sources
scan directory for files matching pattern
download from URL
connect to RDBMS
...
Configurable using an XML file
tm-sources.xml
Used by Navigator Framework

Event API
Allows clients to receive notification of changes
Must implement TopicMapListenerIF
static class TestListener extends AbstractTopicMapListener {
public void objectAdded(TMObjectIF snapshot) {
System.out.println("Topic added: " + snapshot.getObjectId());
}
public void objectModified(TMObjectIF snapshot) {
System.out.println("Topic modified: " + snapshot.getObjectId());
}
public void objectRemoved(TMObjectIF snapshot) {
System.out.println("Topic removed: " + snapshot.getObjectId());
}
}

Using the API
// register to listen for events
TestListener listener = new TestListener();
TopicMapEvents.addTopicListener(ref, listener);
// get the store through the reference so the listener is registered
ref.createStore(false);
// let's add a topic
System.out.println("Off we go");
TopicMapBuilderIF builder = tm.getBuilder();
TopicIF newbie = builder.makeTopic(tm);
System.out.println("Let's name this topic");
builder.makeTopicName(newbie, "Newbie topic");
// then let's remove it
System.out.println("And now, the exit");
DeletionUtils.remove(newbie);
System.out.println("Goodbye, short-lived topic");
[larsga@dhcp-98 tmp]$ java EventTest bkclean.xtm
Off we go
Topic added: 3409
Let's name this topic
Topic modified: 3409
Topic modified: 3409
And now, the exit
Topic removed: 3409
Goodbye, short-lived topic

For more information
See the Engine Developer's Guide
http://www.ontopia.net/doc/current/doc/engine/devguide.html

Persistence & transactions
RDBMS backend

RDBMS backend
Stores Topic Maps in an RDBMS
generic schema
access via JDBC
Provides full ACID
transactions
concurrency
...
Supports several databases
Oracle, MySQL, PostgreSQL, MS SQL Server, hsql
Clustering support

Core API implementation
Implements same API as in-memory impl
theoretically, a switch requires only config change
Lazy loading of objects
objects loaded from DB as needed
Considerable internal caching
for performance reasons
Separate objects for separate transactions
in order to provide isolation
Shared cache between transactions

Configuration
A Java property file
Specifies
database type
JDBC URL
username + password
cache settings
clustering settings
...

jdbcspy
A built-in SQL profiler
Useful for identifying cause of performance issues

tolog
The Query Engine

tolog
A logic-based query language
a mix of Prolog and SQL
effectively equivalent to Datalog
Two parts
queries (data retrieval)
updates (data modification)
Developed by Ontopia
not an ISO standard
eventually to be replaced by TMQL

tolog
The recommended way to interact with the data
API programming is slow and cumbersome
tolog queries perform better
Available via
Java API
Web service API
Forms interface in Omnigator
tolog queries return API objects

Finding all operas by a composer
Collection operas = new ArrayList();
TopicIF composer = getTopicById("puccini");
TopicIF composed_by = getTopicById("composed-by");
TopicIF work = getTopicById("work");
TopicIF creator = getTopicById("composer");
for (AssociationRoleIF role1 : composer.getRolesByType(creator)) {
AssociationIF assoc = role1.getAssociation();
if (assoc.getType() != composed_by)
continue;
for (AssociationRoleIF role2 : assoc.getRoles()) {
if (role2.getType() != work)
continue;
operas.add(role2.getPlayer());
}
}

Finding all operas by a composer
composed-by(puccini : composer, $O : work)?
composed-by($C : composer, tosca : work)?
composed-by($C : composer, $O : work)?
composed-by(puccini : composer, tosca : work)?

Features
Access all aspects of a topic map
Generic queries independent of ontology
AND, OR, NOT, OPTIONAL
Count
Sort
LIMIT/OFFSET
Reusable inference rules

Chaining predicates (AND)
Predicates can be chained
born-in($PERSON : person, $PLACE : place),located-in($PLACE : containee, italy : container)?
The comma between the predicates means AND
This query finds all the people born in Italy
It first builds a two-column table of all born-in associations
Then, those rows where the place is not located-in Italy are removed
(Note that when the PLACE variable is reused above that means that the birthplace and the location must be the same topic in each match)
Any number of predicates can be chained
Their order is insignificant
Actually, the optimizer reorders the predicates
It will start with located-in because it has a topic constant

Thinking in predicates
Most of you are probably used to functions, which work like this:
function(arg1, arg2, arg3) -> result
Predicates, however, are in a sense bidirectional, because of the way the pattern matching works
predicate(topic : role1, $VAR : role2)
predicate($VAR : role1, topic : role2)
The order of the roles are, on the other hand, insignificant
predicate(topic : role1, $VAR : role2)
predicate($VAR : role2, topic : role1)

Projection
Sometimes queries make use of temporary variables that we are not really interested in
The way to get rid of unwanted variables is projection
Syntax:
select $variable1, $variable2, ...
from <query>?
The query is first run, then projected down to the requested variables

The instance-of predicate
instance-of has the following form:
instance-of (instance,class)
NOTE: the order of the arguments is significant
Like players, instance and class may be specified in two ways:
using a variable ($name)
using a topic reference
e.g. instance-of ( $A, city )
instance-of makes use of the superclass-subclass associations in the topic map
this means that composers will be considered musicians, and musicians will be considered persons

Cities with the most premieres
using o for i"http://psi.ontopedia.net/"
select $CITY, count($OPERA) from
instance-of($CITY, o:City),
{ o:premiere($OPERA : o:Work, $CITY : o:Place)
|
o:premiere($OPERA : o:Work, $THEATRE : o:Place),
o:located_in($THEATRE : o:Containee, $CITY : o:Container)
} order by $OPERA desc?

All non-hidden photos
select $PHOTO from
instance-of($PHOTO, op:Photo)
not(ph:hide($PHOTO : ph:hidden)),
not(ph:taken-at($PHOTO : op:Image, $PLACE : op:Place),
ph:hide($PLACE : ph:hidden)),
not(ph:taken-during($PHOTO : op:Image, $EVENT : op:Event),
ph:hide($EVENT : ph:hidden)),
not(ph:depicted-in($PHOTO : ph:depiction, $PERSON : ph:depicted),
ph:hide($PERSON : ph:hidden))?

Demo
Show running queries in Omnigator
Also show query tracing
Shakespeare
/* #OPTION: optimizer.reorder = false */

tologspy
tolog query profiler
shares code with jdbcspy

Using the query engine API
The query engine API is really simple to use
get a QueryProcessorIF object
run a query in the QueryProcessorIF and get a QueryResultIF
loop over the results and use them
close the result object
go back to step 2, or do something else
There are two different QueryProcessorIF implementations
the API lets you write code without worrying about that, however
the two implementations behave identically

Running a query with the API
TopicMapIF tm = ...;
QueryProcessorIF processor = QueryUtils.getQueryProcessor(tm);
QueryResultIF result = processor.execute(“instance-of($P, person)?”);
try {
while (result.next()) {
TopicIF person = (TopicIF) result.getValue(0);
// do something useful with 'person'
}
} finally {
result.close();
}

Advanced options
It is possible to parse a query once, and then run it many times
the processor returns a ParsedQueryIF object, which can be executed
parameters can be passed to the query on each execution
It is possible to make declarations and use them across executions

Using a parsed query
ParsedQueryIF parsedQuery = processor.parse(“instance-of($P, %TYPE%)?”);
Map params = Collections.singletonMap(“TYPE”, person);
QueryResultIF result = parsedQuery.execute(params);
try {
while (result.next()) {
// ...
}
} finally {
result.close();
}

QueryWrapper
Designed to make all of this easier
QueryWrapper qw = new QueryWrapper(tm);
TopicIF topic = qw.queryForTopic(...);
List topics = qw.queryForList(...);
List<Person> people =
qw.queryForList(..., mapper);

tolog updates
Greatly simplifies TM modification
Also means you can do modification without API programming
useful with RDBMS topic maps
useful with TMs in running web servers
By performing a sequence of updates, just about any change can be made
Potentially allows much more powerful architecture

DELETE
Static form
delete lmg
Dynamic form
delete $person from instance-of($person, person)
Delete a value
delete subject-identifier(topic, “http://ex.org/tst”)

MERGE
Static form
MERGE topic1, topic2
Dynamic form
MERGE $p1, $p2 FROM instance-of($p1, person), instance-of($p2, person),
email($p1, $email),
email($p2, $email)

INSERT
Static form
INSERT lmg isa person; - “Lars Marius Garshol” .
Dynamic form
INSERT tmcl:belongs-to-schema(tmcl:container : theschema, tmcl:containee: $c) FROM instance-of($c, tmcl:constraint)

INSERT again
INSERT
?y $psi .
event-in-year(event: $e, year: ?y)
FROM
start-date($e, $date),
str:substring($y, $date, 4),
str:concat($psi, "http://psi.semagia.com/iso8601", $y)

UPDATE
Static form
UPDATE value(@3421, “New name”)
Dynamic form
UPDATE value($TN, “Ontopia”) FROM topic-name(oks, $TN)

More information
Look at sample queries in Omnigator
tolog tutorial
http://www.ontopia.net/doc/current/doc/query/tutorial.html
tolog built-in predicate reference
http://www.ontopia.net/doc/current/doc/query/predicate-reference.html

Conversion from RDBMS data
DB2TM

DB2TM
Upconversion of relational data
either from CSV files or
over JDBC
Based on an XML file describing the mapping
very highly configurable
Support for
all of Topic Maps (except variants)
value transformations
synchronization

Standard use case
Pull in data from external source
turn it into Topic Maps following some ontology
Enrich it
usually manually, but not necessarily
Resync from source at intervals

DB2TM example
Ontopia
+
=
United Nations
Bouvet
<relation name="organizations.csv" columns="id name url">
<topic type="ex:organization">
<item-identifier>#org${id}</item-identifier>
<topic-name>${name}</topic-name>
<occurrence type="ex:homepage">${url}</occurrence>
</topic>
</relation>

Creating associations
<relation name="people.csv" columns="id given family employer phone">
<topic id="employer">
<item-identifier>#org${employer}</item-identifier>
</topic>
<topic type="ex:person">
<item-identifier>#person${id}</item-identifier>
<topic-name>${given} ${family}</topic-name>
<occurrence type="ex:phone">${phone}</occurrence>
<player atype="ex:employed-by" rtype="ex:employee">
<other rtype="ex:employer" player="#employer"/>
</player>
</topic>
</relation>

Value transformations
<relation name="SCHEMATA" columns="SCHEMA_NAME">
<function-column name='SCHEMA_ID'
method='net.ontopia.topicmaps.db2tm.Functions.makePSI'>
<param>${SCHEMA_NAME}</param>
</function-column>
<topic type="mysql:schema">
<item-identifier>#${SCHEMA_ID}</item-identifier>
<topic-name>${SCHEMA_NAME}</topic-name>
</topic>
</relation>

Running DB2TM
java net.ontopia.topicmaps.db2tm.Execute
command-line tool
also works with RDBMS topic maps
net.ontopia.topicmaps.db2tm.DB2TM
API class to run transformations
methods "add" and "sync"

More information
DB2TM User's Guide
http://www.ontopia.net/doc/current/doc/db2tm/user-guide.html

Synchronizing with other sources
TMSync

TMSync
Configurable module for synchronizing one TM against another
define subset of source TM to sync (using tolog)
define subset of target TM to sync (using tolog)
the module handles the rest
Can also be used with non-TM sources
create a non-updating conversion from the source to some TM format
then use TMSync to sync against the converted TM instead of directly against the source

How TMSync works
Define which part of the target topic map you want,
Define which part of the source topic map it is the master for, and
The algorithm does the rest

If the source is not a topic map
TMSync
convert.xslt
Simply do a normal one-time conversion
let TMSync do the update for you
In other words, TMSync reduces the update problem to a conversion problem
source.xml

The City of Bergen usecase
Norge.no
Service
Unit
Person
LOS
City of Bergen
LOS

Web service interface
TMRAP

TMRAP basics
Abstract interface
that is, independent of any particular technology
coarse-grained operations, to reduce network traffic
Protocol bindings exist
plain HTTP binding
SOAP binding
Supports many syntaxes
XTM 1.0
LTM
TM/XML
custom tolog result-set syntax

get-topic
Retrieves a single topic from the remote server
topic map may optionally be specified
syntax likewise
Main use
to build client-side fragments into a bigger topic map
to present information about a topic on a different server

get-topic
Parameters
identifier: a set of URIs (subject identifiers of wanted topic)
subject: a set of URIs (subject locators of wanted topic)
item: a set of URIs (item identifiers of wanted topic)
topicmap: identifier for topic map being queried
syntax: string identifying desired Topic Maps syntax in response
view: string identifying TM-Views view used to define fragment
Response
topic map fragment representing topic in requested syntax
default is XTM fragment with all URI identifiers, names, occurrences, and associations
in default view types and scopes on these constructs are only identified by one <*Ref xlink:href=“...”/> XTM element
the same goes for associated topics

get-topic-page
Returns link information about a topic
that is, where does the server present this topic
mainly useful for realizing the portal integration scenario
result information contains metadata about server setup

get-topic-page
Parameters
syntax: string identifying desired Topic Maps syntax in response
Response is a topic map fragment
[oks : tmrap:server = "OKS Samplers local installation"]
[opera : tmrap:topicmap = "The Italian Opera Topic Map"]
{opera, tmrap:handle, [[opera.xtm]]}
tmrap:contained-in(oks : tmrap:container, opera : tmrap:containee)
tmrap:contained-in(opera : tmrap:container, view : tmrap:containee)
tmrap:contained-in(opera : tmrap:container, edit : tmrap:containee)
[view : tmrap:view-page %"http://localhost:8080/omnigator/models/..."]
[edit : tmrap:edit-page %"http://localhost:8080/ontopoly/enter.ted?..."]
[russia = "Russia” @"http://www.topicmaps.org/xtm/1.0/country.xtm#RU"]

get-tolog
Returns query results
main use is to extract larger chunks of the topic map to the client for presentation
more flexible than get-topic
can achieve more with less network traffic

get-tolog
Parameters
tolog: tolog query
syntax: string identifying desired syntax of response
view: string identifying TM-Views view used to define fragment
Response
if syntax is“tolog”
an XML representation of the query result
useful if order of results matter
otherwise, a topic map fragment containing multiple topics is returned
as for get-topic

add-fragment
Adds information to topic map on the server
does this by merging in a fragment
Parameters
fragment: topic map fragment
topicmap: identifier for topic map being added to
syntax: string identifying syntax of request fragment
Result
fragment imported into named topic map

update-topic
Can be used to update a topic
add-fragment only adds information
update sets the topic to exactly the uploaded information
Parameters
topicmap: the topic map to update
fragment: fragment containing the new topic
syntax: syntax of the uploaded fragment
Update happens using TMSync

delete-topic
Removes a topic from the server
Parameters
Result
deletes the identified topic
includes all names, occurrences, and associations

tolog-update
Runs a tolog update statement
Parameters
topicmap: topic map to update
statement: tolog statement to run
Runs the statement & commits the change

HTTP binding basics
The mapping requires a base URL
e.g http://localhost:8080/tmrap/
This is used to send requests
http://localhost:8080/tmrap/method?param1=value1&...
GET is used for requests that do not cause state changes
POST for requests that do
Responses returned in response body

Exercise #1: Retrieve a topic
Use the get-topic request to retrieve a topic from the server
base URL is http://localhost:8080/tmrap/
find the identifying URI in Omnigator
just print the retrieved fragment to get a look at it
Note: you must escape the “#” character in URIs
otherwise it is interpreted as the anchor and not transmitted at all
escape sequence: %23
Note: you must specify the topic map ID
otherwise results will only be returned from loaded topic maps
in other words: if the topic map isn’t loaded, you get no results

Solution #1 (in Python)
import urllib
BASE = "http://localhost:8080/tmrap/tmrap/"
psi = "http://www.topicmaps.org/xtm/1.0/country.xtm%23RU"
inf = urllib.urlopen(BASE + "get-topic?identifier=" + psi)
print inf.read()
inf.close()

Solution #1 (response)
<topicMap xmlns="http://www.topicmaps.org/xtm/1.0/"
xmlns:xlink="http://www.w3.org/1999/xlink">
<topic id="id458">
<instanceOf>
<subjectIndicatorRef xlink:href="http://psi.ontopia.net/geography/#country"/>
</instanceOf>
<subjectIdentity>
<subjectIndicatorRef xlink:href="http://www.topicmaps.org/xtm/1.0/country.xtm#RU"/>
<topicRef xlink:href="file:/.../WEB-INF/topicmaps/geography.xtmm#russia"/>
</subjectIdentity>
<baseName>
<baseNameString>Russia</baseNameString>
</baseName>
</topic>

Processing XTM with XSLT
This is possible, but unpleasant
the main problem is that the XML is phrased in terms of Topic Maps, not in domain terms
this means that all the XPath will talk about “topic”, “association”, ... and not “person”, “works-for” etc
The structure is also complicated
this makes queries complicated
for example, the XPath to traverse an association looks like this:
//xtm:association
[xtm:member[xtm:roleSpec / xtm:topicRef / @xlink:href = '#employer']
[xtm:topicRef / @xlink:href = concat('#', $company)]]
[xtm:instanceOf / xtm:topicRef / @xlink:href = '#employed-by']

TM/XML
Non-standard XML syntax for Topic Maps
defined by Ontopia (presented at TMRA’05)
implemented in the OKS
XSLT-friendly
much easier to process with XSLT than XTM
can be understood by developers who do not understand Topic Maps
dynamic domain-specific syntaxes instead of generic syntax
predictable (can generate XML Schema from TM ontology)

TM/XML example
<topicmap ... reifier="tmtopic">
<topicmap id="tmtopic">
<iso:topic-name><tm:value>TM/XML example</tm:value> </iso:topic-name>
<dc:description>An example of the use of TM/XML.</dc:description>
</topicmap>
<person id="lmg">
<iso:topic-name><tm:value>Lars Marius Garshol</tm:value>
<tm:variant scope="core:sort">garshol, lars marius</tm:variant>
</iso:topic-name>
<homepage datatype="http://www.w3.org/2001/XMLSchema#anyURI"
>http://www.garshol.priv.no</homepage>
<created-by role="creator" topicref="tmtopic" otherrole="work"/>
<presentation role="presenter">
<presented topicref="tmxml"/>
<event topicref="tmra05"/>
</presentation>
</person>
</topicmap>

tmphoto
Category
Person
Event
Location
http://www.garshol.priv.no/tmphoto/
A topic map to organize my personal photos
contains ~15,000 photos
A web gallery runs on Ontopia
on www.garshol.priv.no

tmtools
http://www.garshol.priv.no/tmtools/
Organization
An index of Topic Maps tools
organized as shown on the right
Again, web application for browsing
screenshots below
Person
Software
product
Platform
Category
Technology

The person page
Boring! No content.

And in tmphoto...

get-illustration
A web service in tmphoto
receives the PSI of a person
then automatically picks a suitable photo of that person
Based on
vote score for photos,
categories (portrait),
other people in photo
...
The service returns
a topic map fragment with links to the person page and a few different sizes of the selected photo
http://www.garshol.priv.no/blog/183.html

get-illustration
Hmmm. Scores, categories, people in photo, ...
Do you have a photo of
http://psi.ontopedia.net/Benjamin_Bock ?
http://www.garshol.priv.no/tmphoto/get-illustration?identifier=http://psi.on....
tmphoto
tmtools
Topic map
fragment

Voila...

Points to note
No hard-wiring of links
just add identifiers when creating people topics
photos appear automatically
if a better photo is added later, it’s replaced automatically
No copying of data
no duplication, no extra maintenance
Very loose binding
nothing application-specific
Highly extensible
once the identifiers are in place we can easily pull in more content from other sources

My blog
Has more content about
people (tmphoto & tmtools),
events (tmphoto),
tools (tmtools),
technologies (tmtools)
Should be available in those applications

Solution
My blog posts are tagged
but the tags are topics, which can have PSIs
these PSIs are used in tmphoto and tmtools, too
The get-topic-page request lets tmphoto & tmtools ask the blog for links to relevant posts
given identifiers for a topic, returns links to pages about that topic
http://www.garshol.priv.no/blog/145.html

get-topic-page
Do you have pages about
http://psi.ontopedia.net/TMRA_2008 ?
http://www.garshol.priv.no/blog/get-topic-page?identifier=http://psi.on....
Blog
tmphoto
Topic map
fragment
Topics linking to
individual blog posts

In tmphoto

Making web applications
Navigator Framework

Ontopia Navigator Framework
Java API for interacting with TM repository
JSP tag library
based on tolog
kind of like XSLT in JSP with tolog instead of XPath
has JSTL integration
Undocumented parts
web presentation components
some wrapped as JSP tags
want to build proper portlets from them

How it works
Web server with JSP containere.g. Apache Tomcat
JSP page
Browser
Topic MapEngine
TagLibraries
JSP page
Browser
JSP page
Browser
JSP page
Browser
Topic Map

The two tag libraries
tolog
makes up nearly the entire framework
used to extract information from topic maps
lets you execute tolog queries to extract information from the topic map
looping and control flow structures
template
used to create template pages
separates layout and structure from content
not Topic Maps-aware
optional, but recommended

How the tag libraries work
The topic map engine holds a registry of topic maps
collected from the tm-sources.xml configuration file
each topic map has its own id (usually the file name)
Each page also holds a set of variable bindings
each variable holds a collection of objects
objects can be topics, base names, locators, strings, ...
Tags access variables
some tags set the values of variables, while others use them

Building a JSP page
The <%@ taglib ... %> tags declare your tag libraries
Tells the page which tag library to include and binds it to a prefix
Prefixes are used to qualify the tags (and avoid name collisions)
Use the <tolog:context> tag around the entire page
The "topicmap" attribute specifies the ID of the current topic map
The first time you access the page in your browser the page gets compiled
If you modify the page then it will be recompiled the next time it is accessed

http://www.ontopia.net/operamap

Navigator tag library example
<%-- assume variable 'composer' is already set --%>
Operas: <tolog:foreach query=”composed-by(%composer% : composer, $OPERA : opera), { premiere-date($OPERA, $DATE) }?”> <li> <a href="opera.jsp?id=<tolog:id var="OPERA"/>”
><tolog:out var="OPERA"/></a>
<tolog:if var="DATE"> <tolog:out var="DATE"/> </tolog:if> </li></tolog:foreach>

Elmer Preview

Possible configuration
Application directories
webapps
myApp/
*.jsp
omnigator/
WEB-INF/
config/
*.xml
i18n/
topicmaps/
*.xtm, *.ltm
web.xml

The navigator configuration files
web.xml
where to find the other files, plus plug-ins
tm-sources.xml
tells the navigator where to find topic maps
log4j.properties
configuration of the log4j logging
More details in the "Configuration Guide" document

More information
Navigator Framework Configuration Guide
http://www.ontopia.net/doc/current/doc/navigator/config.html
Navigator Framework Developer's Guide
http://www.ontopia.net/doc/current/doc/navigator/navguide.html
Navigator Framework Tag Library Reference
http://www.ontopia.net/doc/current/doc/navigator/tolog-taglib.html

...
Automated classification

What is automated classification?
Create parts of a topic map automatically
using the text in existing content as the source
not necessarily 100% automatic; user may help out
A hard task
natural language processing is very complex
result is never perfect
However, it’s possible to achieve some results

Why automate classification?
Creating a topic map requires intellectual effort
that is, it requires work by humans
Human effort = cost
added value must be sufficient to justify the cost
in some cases either
the cost is too high, or
the value added is too limited
The purpose of automation is to lower the cost
this increases the number of cases where the use of Topic Maps is justified

Automatable tasks
Project
Person
Department
Worked on
Worked on
Jane Doe
worked on
employed in
XYZ Project
IT group
Ontology
hard
depends on requirements
one time only
Instance data
hard
usually exists in other sources
Document keywords
easier
frequent operation
usually no other sources

Two kinds of categorization
Broad:
Environment, Crisis management
Narrow:
Water, Norway, drought, Drought Act, Cloud seeding, Morecambe Bay
Broad categorization
categories are broadly defined
include many different subjects
Narrow categorization
uses very specific keywords
each keyword is a single subject

What it does
Extract keywords from content
goal is to use these for classification
Not entity recognition
we only care about identifying what the content is about
Uses statistical approach
no attempt at full formal parsing of the text

Steps of operation
Identify format
then, extract the text
Identify language
then, remove stop words
stem remaining words
Classify
can use terms from preexisting Topic Maps
exploits knowledge of the language
Return proposed keywords

Example of keyword extraction
topic maps 1.0
metadata 0.57
subject-based class. 0.42
Core metadata 0.42
faceted classification 0.34
taxonomy 0.22
monolingual thesauri 0.19
controlled vocabulary 0.19
Dublin Core 0.16
thesauri 0.16
Dublin 0.15
keywords 0.15

Example #2
Automated classification 1.0 5
Topic Maps 0.51 14
XSLT 0.38 11
compound keywords 0.29 2
keywords 0.26 20
Lars 0.23 1
Marius 0.23 1
Garshol 0.22 1
...

So how could this be used?
To help users classify new documents in a CMS interface
suggest appropriate keywords, screened by user before approval
Automate classification of incoming documents
this means lower quality, but also lower cost
Get an overview of interesting terms in a document corpus
classify all documents, extract the most interesting terms
this can be used as the starting point for building an ontology
(keyword extraction only)

Example user interface
The user creates an article
this screen then used to add keywords
user adjusts the proposals from the classifier

Interfaces
java net.ontopia.topicmaps.classify.Chew
<topicmapuri>
<inputfile>
produces textual output only
net.ontopia.topicmaps.classify.SimpleClassifier
classify(uri, topicmap) -> TermDatabase
classify(uri) -> TermDatabase

Supported formats and languages
XML (any schema)
HTML (non-XML)
PDF
Word (.doc, .docx)
PowerPoint (.ppt, .pptx)
Plain text
English
Norwegian

Visualization of Topic Maps
Vizigator

The Vizigator
Graphical visualization of Topic Maps
Two parts
VizDesktop: Swing desktop app for configuration
Vizlet: Java applet for web deployment
Configuration stored in XTM file

The uses of visualization
Not really suitable for navigation
doesn't work for all kinds of data
Great for seeing the big picture

Without configuration

With configuration

VizDesktop

The Vizigator
The Vizigator uses TMRAP
the Vizlet runs in the browser (on the client)
a fragment of the topic map is downloaded from the server
the fragment is grown as needed
Server
TMRAP

Embedding the Vizlet
Set up TMRAP service
Add ontopia-vizlet.jar
Add necessary HTML
<applet code="net.ontopia.topicmaps.viz.Vizlet.class"
archive="ontopia-vizlet.jar">
<param name="tmrap" value="/omnigator/plugins/viz/">
<param name="config" value="/omnigator/plugins/viz/config.jsp?tm=<%= tmid %>">
<param name="tmid" value="<%= tmid %>">
<param name="idtype" value="<%= idtype %>">
<param name="idvalue" value="<%= idvalue %>">
<param name="propTarget" value="VizletProp">
<param name="controlsVisible" value="true">
<param name="locality" value="1">
<param name="max-locality" value="5">
</applet>

Topic Maps debugger
Omnigator

Omnigator
Generic Topic Maps browser
very useful for seeing what's in a topic map
the second-oldest part of Ontopia
Contains other features beyond simple browsing
statistics
management console
merging
tolog querying/updates
export

Ontology designer and editor
Ontopoly

Ontopoly
A generic Topic Maps editor, in two parts
ontology editor: used to create the ontology and schema
instance editor: used to enter instances based on ontology
Features
works with both XTM files and topic maps stored in RDBMS backend
supports access control to administrative functions, ontology, and instance editors
existing topic maps can be imported
parts of the ontology can be marked as read-only, or hidden

Ontology designer
Create ontology based on
topic, association, name, occurrence, and role types
Supports iterative ontology development
modify and prototype the ontology until it's right
Supports ontology annotation
add fields to topic types, for example
Supports views
define restricted views of certain topic types

Instance editor
Configured by the ontology editor
shows topics as defined by the ontology
Has several ways to pick associations
drop-down list
by search
from hierarchy
Avoids conflicts
pages viewed by one user are locked to others

Ontopoly is embeddable
The Ontopoly instance editor can be embedded
basically, the main panel can be inserted into another web application
uses an iframe
Requires only ID of topic being edited
can also be restricted to a specific view
Makes it possible to build easier-to-use editors
so users don't have to learn all of Ontopoly

Adding content features
CMS integrations

CMS integration
The best way to add content functionality to Ontopia
the world doesn’t need another CMS
better to reuse those which already exist
So far two integrations exist
Escenic
OfficeNet Knowledge Portal
more are being worked on

Implementation
A CMS event listener
the listener creates topics for new CMS articles, folders, etc
the mapping is basically the design of the ontology used by this listener
Presentation integration
it must be possible to list all topics attached to an article
conversely, it must be possible to list all articles attached to a topic
how close the integration needs to be here will vary, as will the difficulty of the integration
User interface integration
it needs to be possible to attach topics to an article from within the normal CMS user interface
this can be quite tricky
Search integration
the Topic Maps search needs to also search content in the CMS
can be achieved by writing a tolog plug-in

Articles as topics
is about
Elections
New city council appointed
Goal: associate articles with topics
mainly to say what they are about
typically also want to include other metadata
Need to create topics for the articles to do this
in fact, a general CMS-to-TM mapping is needed
must decide what metadata and structures to include

Mapping issues
Article topics
what topic type to use?
title becomes name? (do you know the title?)
include author? include last modified? include workflow state?
should all articles be mapped?
Folders/directories/sections/...
should these be mapped, too?
one topic type for all folders/.../.../...?
if so, use associations to connect articles to folders
use associations to reproduce hierarchical folder structure
Multimedia objects
should these be included?
what topic type? what name? ...

Two styles of mappings
Articles as articles
Topic represents only the article
Topic type is some subclass of “article”
“Is about” association connects article into topic map
Fields are presentational
title, abstract, body
Articles as concepts
Topic represents some real-world subject (like a person)
article is just the default content about that subject
Type is the type of the subject (person)
Semantic associations to the rest of the topic map
works in department, has competence, ...
Fields can be semantic
name, phone no, email, ...

Article as article
Article about building of a new school
Is about association to “Primary schools”
Topic type is “article”

Article as concept
Article about a sports hall
Article really represents the hall
Topic type is “Location”
Associations to
city borough
events in the location
category “Sports”

Ontopia/Liferay
An integration with the Liferay CMS and portal is in progress
presented Friday 1130-1150 in Schiller 2

Two projects
Real-life usage

The project
A new citizen’s portal for the city administration
strategic decision to make portal main interface for interaction with citizens
as many services as possible are to be moved online
Big project
started in late 2004, to continue at least into 2008
~5 million Euro spent by launch date
1.7 million Euro budgeted for 2007
Topic Maps development is a fraction of this (less than 25%)
Many companies involved
Bouvet/Ontopia
Avenir
KPMG
Karabin
Escenic

Simplified original ontology
Service catalog
Escenic (CMS)
LOS
Form
Article
nearly
everything
Category
Service
Subject
Department
Borough
External
resource
Employee
Payroll++

Data flow
Ontopoly
Ontopia
Escenic
LOS
Integration
TMSync
DB2TM
Fellesdata
Payroll
(Agresso)
Dexter/Extens
Service
Catalog

Conceptual architecture
Data
sources
Oracle Portal
Application
Ontopia
Escenic
Oracle Database

The portal

Technical architecture

NRK/Skole
Norwegian National Broadcasting (NRK)
media resources from the archives
published for use in schools
integrated with the National Curriculum
In production
delayed by copyright wrangling
Technologies
OKS
Polopoly CMS
MySQL database
Resin application server

Curriculum-based browsing (1)
Curriculum
Social studies
High school

Gender roles

Feminist movement in the 70s and 80s
Changes to the family in the 70s
The prime minister’s husband
Children choosing careers
Gay partnerships in 1993

One video (prime minister’s husband)
Metadata
Subject
Person
Related
resources
Description

Conceptual architecture
Polopoly
HTTP
Ontopia
MediaDB
Grep
DB2TM
TMSync
RDBMS backend
MySQL
Editors

Implementation
Domain model in Java
Plain old Java objects built on
Ontopia’s Java API
tolog
JSP for presentation
using JSTL on top of the domain model
Subversion for the source code
Maven2 to build and deploy
Unit tests

What we’d like to see
The future

The big picture
Auto-class.
A.N.other
A.N.other
Other
CMSs
A.N.other
A.N.other
DB2TM
Portlet support
OKP
XML2TM
Engine
CMSintegration
Data
integration
Escenic
Taxon.import
Ontopoly
Web
service

CMS integrations
The more of these, the better
Candidate CMSs
Liferay (being worked on at Bouvet)
Alfresco
Magnolia
Inspera
JSR-170 Java Content Repository
CMIS (OASIS web service standard)

Portlet toolkit
Subversion contains a number of “portlets”
basically, Java objects doing presentation tasks
some have JSP wrappers as well
Examples
display tree view
list of topics filterable by facets
show related topics
get-topic-page via TMRAP component
Not ready for prime-time yet
undocumented
incomplete

Ontopoly plug-ins
Plugins for getting more data from externals
TMSync import plugin
DB2TM plugin
Subj3ct.com plugin
adapted RDF2TM plugin
classify plugin
...
Plugins for ontology fragments
menu editor, for example

TMCL
Now implementable
We’d like to see
an object model for TMCL (supporting changes)
a validator based on the object model
Ontopoly import/export from TMCL (initially)
refactor Ontopoly API to make it more portable
Ontopoly ported to use TMCL natively (eventually)

Things we’d like to remove
OSL support
Ontopia Schema Language
Web editor framework
unfortunately, still used by some major customers
Fulltext search
the old APIs for this are not really of any use

Management interface
Import topic maps (to file or RDBMS)

What do you think?
Suggestions?
Questions?
Plans?
Ideas?

Setting up the developer environment
Getting started

If you are using Ontopia...
...simply download the zip, then
unzip,
set the classpath,
start the server, ...
...and you’re good to go

If you are developing Ontopia...
You must have
Java 1.5 (not 1.6 or 1.7 or ...)
Ant 1.6 (or later)
Ivy 2.0 (or later)
Subversion
Then
check out the source from Subversion
svn checkout http://ontopia.googlecode.com/svn/trunk/ ontopia-read-only
ant bootstrap
ant dist.jar.ontopia
ant test
ant dist.ontopia

Beware
This is fun, because
you can play around with anything you want
e.g, my build has a faster TopicIF.getRolesByType
you can track changes as they happen in svn
However, you’re on your own
if it fails it’s kind of hard to say why
maybe it’s your changes, maybe not
For production use, official releases are best

Participating etc
The project

Our goal
To provide the best toolkit for building Topic Maps-based applications
We want it to be
actively maintained,
bug-free,
scalable,
easy to use,
well documented,
stable,
reliable

Our philosophy
We want Ontopia to provide as much useful more-or-less generic functionality as possible
New contributions are generally welcome as long as
they meet the quality requirements, and
they don’t cause problems for others

The sandbox
There’s a lot of Ontopia-related code which does not meet those requirements
some of it can be very useful,
someone may pick it up and improve it
The sandbox is for these pieces
some are in Ontopia’s Subversion repository,
others are maintained externally
To be “promoted” into Ontopia a module needs
an active maintainer,
to be generally useful, and
to meet certain quality requirements

Communications
Join the mailing list(s)!
http://groups.google.com/group/ontopia
http://groups.google.com/group/ontopia-dev
Google Code page
http://code.google.com/p/ontopia/
note the “updates” feed!
Blog
http://ontopia.wordpress.com
Twitter
http://twitter.com/ontopia

Committers
These are the people who run the project
they can actually commit to Subversion
they can vote on decisions to be made etc
Everyone else can
use the software as much as they want,
report and comment on issues,
discuss on the mailing list, and
submit patches for inclusion

How to become a committer
Participate in the project!
that is, get involved first
let people get to know you, show some commitment
Once you’ve gotten some way into the project you can ask to become a committer
best if you have provided some patches first
Unless you’re going to commit changes there’s no need to be a committer

Finding a task to work on
Report bugs!
they exist. if you find any, please report them.
Look at the open issues
there is always testing/discussion to be done
Look for issues marked “newbie”
http://code.google.com/p/ontopia/issues/list?q=label:Newbie
Look at what’s in the sandbox
most of these modules need work
Scratch an itch
if there’s something you want fixed/changed/added...

How to fix a bug
First figure out why you think it fails
Then write a test case
based on your assumption
make sure the test case fails (test before you fix)
Then fix the bug
follow the coding guidelines (see wiki)
Then run the test suite
verify that you’ve fixed the bug
verify that you haven’t broken anything
Then submit the patch

The test suite
Lots of *.test packages in the source tree
3795 test cases as of right now
test data in ontopia/src/test-data
some tests are generators based on files
some of the test files come from cxtm-tests.sf.net
Run with
ant test
java net.ontopia.test.TestRunner src/test-data/config/tests.xml test-group

Source tree structure
net.ontopia.
utils various utilities
test various test support code
infoset LocatorIF code + cruft
persistence OR-mapper for RDBMS backend
product cruft
xml various XML-related utilities
topicmaps next slides

net.ontopia.topicmaps.
core core engine API
impl engine backends + utils
utils utilities (see next slide)
cmdlineutils command-line tools
entry TM repository
nav + nav2 navigator framework
query tolog engine
viz
classify
db2tm
webed cruft

net.ontopia.topicmaps.utils
* various utility classes
ltm LTM reader and writer
ctm CTM reader
rdf RDF converter (both ways)
tmrap TMRAP implementation

Let’s write some code!

The engine
The core API corresponds closely to the TMDM
TopicMapIF, TopicIF, TopicNameIF, ...
Compile with
ant init compile.ontopia
.class files go into ontopia/build/classes
ant dist.ontopia.jar # makes a jar

The importers
Main class implements TopicMapReaderIF
usually, this lets you set up configuration, etc
then uses other classes to do the real work
XTM importers
use an XML parser
main work done in XTM(2)ContentHandler
some extra code for validation and format detection
CTM/LTM importers
use Antlr-based parsers
real code in ctm.g/ltm.g
All importers work via the core API

Find an issue in the issue tracker
(Picking one with “Newbie” might be good,
but isn’t necessary)
Get set up
check out the source code
build the code
run the test suite
Then dig in
we’ll help you with any questions you have
At the end, submit a patch to the issue tracker
remember to use the test suite!

Ontopia tutorial

by Lars Marius Garshol on Oct 04, 2010

Accessibility

Categories

Upload Details

Usage Rights

2 Embeds 53

Statistics

Ontopia tutorial Presentation Transcript

http://tmra.de	45
http://www.techgig.com	8
