Lessons Learned Migrating 2+ Billion Documents at Craigslist

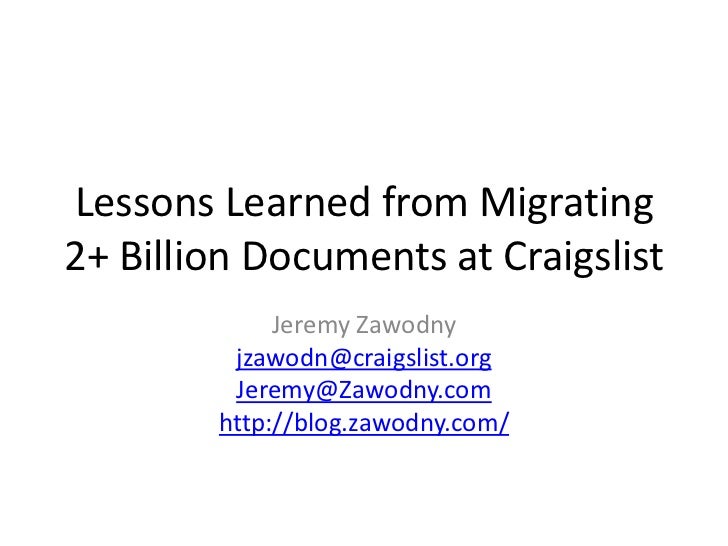

Lessons Learned from Migrating 2+ Billion Documents at Craigslist
Jeremy Zawodny
jzawodn@craigslist.org
Jeremy@Zawodny.com
http://blog.zawodny.com/

Outline
Recap last year’s MongoSV Talk
The Archive, Why MongoDB, etc.
http://www.10gen.com/video/mongosv2010/craigslist
The Infrastructure
The Lessons
Wishlist
Q&A

Craigslist Numbers
2 data centers
~500 servers
~100 MySQL servers
~700 cities, worldwide
~1 billion hits/day
~1.5 million posts/day

Archive: Where Data Goes To Die
Live Numbers
~1.75M posts/day
~14 day avg. lifetime
~60 day retention
~100M posts
We keep all postings
Users reuse postings
Daily archive migration
Internal query tools

Archive Pain
Coupled Schemas
Big Indexes
Hardware Failures
Replication Lag
Poor Search
Human Time Costs

MongoDB Wins
Scalable
Fast
Friendly
Proven
Pragmatic
Approachable

MongoDB Details
Plan for 5 billion documents
Average size: 2KB
3 Replica sets, 3 Servers each
Deploy to 2 datacenters
Same deployment in each datacenter
Posting ID is sharding key

MongoDB Architecture
Typical Sharding with Replica Sets
(external sphinx full-text indexers not pictured)
config
client
client
client
client
config
config
mongos
mongos
mongos
shard001
shard003
shard002
replica set
replica set
replica set

Lesson: Know Your Hardware
MongoDB on blades really sucks
Single 10k RPM disks can’t take it when data is noticeably larger than RAM
Mongo operations can hit the client timeout (30 sec default)
Even minutely cron jobs start to spew
Lots of time wasted in development environment, trying different kernels, tuning, etc.
Most noticeable during heavy writes but can happen if pages fall out of RAM for other reasons

Lesson: Replica Sets Rock
Lots of reboots happened during dev environment troubleshooting
Each time, one of the remaining nodes took over
No “reclone” no config file or DNS changes
Stuff “just worked” while nodes bounced up and down

Lesson: Know Your Data
MongoDB is UTF-8
Some of our older data is decidedly NOT UTF-8
We have lots of sloppy encoding issues to clean up. But we had to clean them all up.
Start data load. Wait 12-36 hours. Witness fail. Fix code. Start over. Sigh.
This is a combination of having been sloppy and having old data. Even with a lot less history, this can bite you. Get your encoding house in order!

Lesson: Know Your Data Size
MongoDB has a doc size limits
4MB in 1.6.x, 16MB in 1.8.x
What to do with outliers?
In our case, trim off some useless data.
But going from relational to document means this sort of problem is easy to have. One parent, many children.
It’d be nice if this was easier to change, but clients have it hard-coded too.
Compression would help, of course.

Lesson: Know Your Data Types
Field Types and Conversions can be expensive to do after the fact!
MongoDB treats strings and numbers differently, but some programming languages (such as Perl) don’t make that distinction obvious
This has indexing implications when you later look for 123456789 but had unknowingly stored “123456789”
http://search.cpan.org/dist/MongoDB/lib/MongoDB/DataTypes.pod

Data Types, continued
“If the type of a field is ambiguous and important to your application, you should document what you expect the application to send to the database and convert your data to those types before sending.”
Do you know how to do that in your language of choice?
Some drivers may make a “guess” that gets it right most of the time.

Lesson: Know SomeSharding
The Balancer can be your frenemy
Initial insert rate: 8,000/sec
Later drops to 200/sec
Too much time spent waiting to page in data that’s going to be sent to another node and never looked at (locally) again
Pre-split your data if possible
http://blog.zawodny.com/2011/03/06/mongodb-pre-splitting-for-faster-data-loading-and-importing/

Lesson: Know Some Replica Sets
Replica Set re-sync requires index rebuilds on the secondary
Most painful when a slave is down too long and can’t catch up using the oplog
Typically during high write volumes
In a large data set, the index rebuilding can take a couple of days w/out many indexes
What if you lose another while that is happening?

MongoDBWishlist
Replica set node re-sync without out index rebuilding
Record (or field) compression (not everyone uses a filesystem that offers compression)
Method to tap into the oplog so that changes can be fed to external indexers (Sphinx, Redis, etc.)
Hash-based sharding (coming soon?)
Cluster snapshot/backup tool
