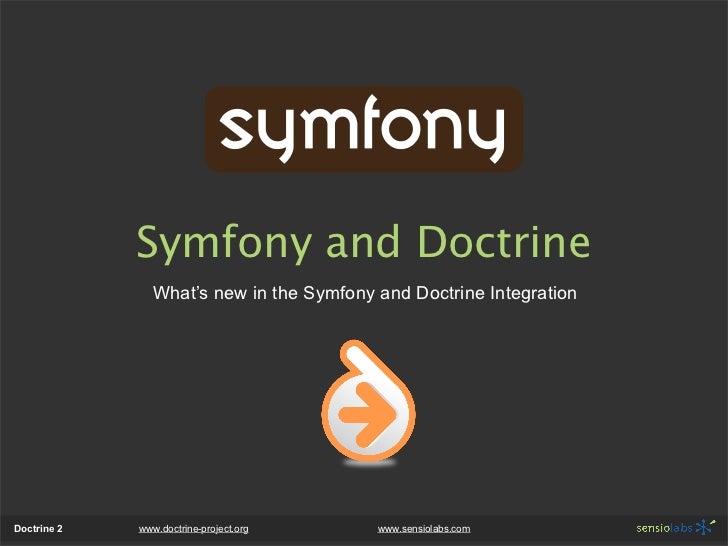

Symfony and Doctrine
               What’s new in the Symfony and Doctrine Integration




Doctrine 2   www.doctrine-proje...
Updated DoctrineBundle
• Doctrine2 features fully integrated
    – Database Abstraction Layer
    – Object Relational Mapp...
DoctrineMongoDBBundle
• MongoDB Object Document Mapper
    – Transparent persistence to MongoDB
    – Same architecture as...
DoctrineMigrationsBundle
• Integration with the database migrations
  project.

• Easily manage and deploy different versi...
DBAL
• To use just the DBAL you must configure it:



                              doctrine.dbal:
                        ...
DBAL
• If you need to specify multiple connections
  you can use the following syntax:
             doctrine.dbal:
       ...
DBAL Console Commands
• Create all configured databases
       $ php console doctrine:database:create

• Create a specific d...
DBAL Console Commands
• Execute SQL queries
       $ php console doctrine:query:sql “SELECT * FROM user”



• Specify conn...
DBAL
• Get the default configured database
  connection:
             class MyController extends DoctrineController
       ...
DBAL
• Get a configured database connection service
  by its name:
             class MyController extends DoctrineControll...
ORM
• The EntityManager
         • Central place for persisting and retrieving entities
         • Multiple instances allo...
ORM
• What is an Entity? It is a regular PHP object
  that has been mapped to the Doctrine2 ORM:
                         ...
ORM
• No more magic in your domain
• Clean and testable
• Fast!
• Only limited by what you can do with PHP OO
  to design ...
ORM
• Configure an entity manager to start using
  the ORM:

    doctrine.orm:
      default_entity_manager:             de...
ORM
• Console commands implemented for
  improved developer workflow:




Doctrine 2   www.doctrine-project.org    www.sens...
ORM
• Console commands implemented for
  improved developer workflow:
         •   Ensure production settings
         •   ...
ORM
• Get the default configured entity manager
  service:

             class MyController extends DoctrineController
    ...
ORM
• Get a configured entity manager service by its
  name:

             class MyController extends DoctrineController
  ...
ORM
• Persisting entities is as simple as creating the
  object and telling Doctrine to persist it:
             class MyC...
ORM
• Creating Query instances and issue DQL
  queries to retrieve objects:
             class MyController extends Doctri...
ORM
• Creating QueryBuilder instances to
  programatically build DQL queries through a
  fluent interface:
                ...
ORM
• Update your database schema during
  development as your domain model evolves

• Add a new column to our User entity...
ORM
• Run update command to update your
  database schema from mapping information

       $ php console doctrine:schema:u...
Object Document Mapper
• New Doctrine Project for persisting objects to
  MongoDB

• Same architecture as ORM

• Transpare...
MongoDB ODM
• The DocumentManager
         • Central place for persisting and retrieving documents
         • Multiple ins...
MongoDB ODM
• To use the MongoDB ODM you must configure
  it:

             doctrine_odm.mongodb:
               default_do...
MongoDB ODM
• If the defaults are good enough for you then
  you can omit all the previous options:



             doctri...
MongoDB ODM
• What is a Document? It is a regular PHP object
  that has been mapped to the MongoDB ODM:
                  ...
MongoDB ODM
• Get the default configured document
  manager:

             class MyController extends DoctrineController
  ...
MongoDB ODM
• Get a configured document manager by its
  name:

             class MyController extends DoctrineController
...
MongoDB ODM
• Just like the ORM persisting documents is
  easy:
             class MyController extends DoctrineController...
MongoDB ODM
• Change tracking
    – All objects are tracked in an identity map
    – Changesets are calculated on flush
   ...
MongoDB ODM
• Traditional MongoDB find() and findOne()



             $users = $dm->find('User', $criteria);

             ...
MongoDB ODM
• Query API for building MongoDB queries
  through a fluent OO interface:

             class MyController exte...
MongoDB ODM
• Using Query builder API
                       class MyController extends DoctrineController
               ...
MongoDB ODM
• Fluent Query interface generates and
  executes find() and findOne() methods
  internally

• Query information...
MongoDB ODM
• Document Query Language (DQL)
    – SQL like grammar for querying MongoDB

• Query types supported
    –    ...
MongoDB ODM
• Find query



             $query = $dm->query('find all User');
             $users = $query->execute();


...
MongoDB ODM
• Selecting fields




             $query = $dm->query('find username, password User');




Doctrine 2      ww...
MongoDB ODM
• $slice operator for paging embedded
  collections
         $query = $dm->query('find comments skip 20 limit ...
MongoDB ODM
• Use atomic operators
             $query = $dm->query("update User set password =
             'changeme' wh...
MongoDB ODM
• Complex update
             $query = $dm->query("update User inc count = 1, inc
             views = 2, set ...
MongoDB ODM
• Document Query Language (DQL)
    – atomic operators
    – skip and limit main results
    – skip and limit ...
Database Migrations
• New DoctrineMigrationsBundle contains
  integration with the Doctrine Database
  Migrations project
...
Database Migrations
• Migration classes:


             class Version20100416130401 extends AbstractMigration
            ...
Database Migrations
• Manually execute SQL for migrations:

   class Version20100416130422 extends AbstractMigration
   {
...
Database Migrations
• Use API of Schema objects to perform
  migration:

             class Version20100416130401 extends ...
Database Migrations
• Check migrations status:

 $ ./doctrine migrations:status

  == Configuration

      >>   Name:     ...
Database Migrations
• Execute migration dry runs:
             $ ./doctrine migrations:migrate --dry-run
             Are ...
Database Migrations
• Specify a version number to revert to or 0 to
  revert all migrations:
                             ...
Database Migrations
• Write migration SQL file instead of executing:
        $ ./doctrine migrations:migrate --write-sql
  ...
Database Migrations
• Integration with ORM for generating
  migrations when you change your mapping
  information. Add a n...
Database Migrations
• The generated migration class looks like:
             class Version20100416130459 extends AbstractM...
Database Migrations
• Run migrate command to execute the
  generated migration:
             $ ./doctrine migrations:migra...
Questions?
     Jonathan H. Wage
     jonathan.wage@sensio.com

     sensiolabs.com | doctrine-project.org | sympalphp.org...
Upcoming SlideShare
Loading in...5
×

Symfony2 and Doctrine2 Integration

29,921

Published on

2 Comments
34 Likes
Statistics
Notes
No Downloads
Views
Total Views
29,921
On Slideshare
0
From Embeds
0
Number of Embeds
11
Actions
Shares
0
Downloads
519
Comments
2
Likes
34
Embeds 0
No embeds

No notes for slide

Transcript of "Symfony2 and Doctrine2 Integration"

  1. 1. Symfony and Doctrine What’s new in the Symfony and Doctrine Integration Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  2. 2. Updated DoctrineBundle • Doctrine2 features fully integrated – Database Abstraction Layer – Object Relational Mapper Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  3. 3. DoctrineMongoDBBundle • MongoDB Object Document Mapper – Transparent persistence to MongoDB – Same architecture as ORM – Map a class as an entity and document Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  4. 4. DoctrineMigrationsBundle • Integration with the database migrations project. • Easily manage and deploy different versions of your database. • Generate migrations when you change your schema mapping information Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  5. 5. DBAL • To use just the DBAL you must configure it: doctrine.dbal: dbname: Symfony user: root password: ~ Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  6. 6. DBAL • If you need to specify multiple connections you can use the following syntax: doctrine.dbal: default_connection: default connections: default: driver: PDOSqlite dbname: Symfony user: root password: null host: localhost port: ~ path: %kernel.data_dir%/symfony.sqlite event_manager_class: DoctrineCommonEventManager configuration_class: DoctrineDBALConfiguration wrapper_class: ~ options: [] Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  7. 7. DBAL Console Commands • Create all configured databases $ php console doctrine:database:create • Create a specific database $ php console doctrine:database:create --connection=default • Drop all configured databases $ php console doctrine:database:drop • Drop a specific database $ php console doctrine:database:drop --connection=default Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  8. 8. DBAL Console Commands • Execute SQL queries $ php console doctrine:query:sql “SELECT * FROM user” • Specify connection $ php console doctrine:query:sql “...” --connection=default Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  9. 9. DBAL • Get the default configured database connection: class MyController extends DoctrineController { public function indexAction() { $conn = $this->getDatabaseConnection(); // ... } } Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  10. 10. DBAL • Get a configured database connection service by its name: class MyController extends DoctrineController { public function indexAction() { $conn = $this->getDatabaseConnection('default'); // ... } } Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  11. 11. ORM • The EntityManager • Central place for persisting and retrieving entities • Multiple instances allowed • One EntityManager per database connection $config = new DoctrineORMConfiguration(); $config->setMetadataCacheImpl(new DoctrineCommonCacheArrayCache); $driverImpl = $config->newDefaultAnnotationDriver(array(__DIR__."/Entities")); $config->setMetadataDriverImpl($driverImpl); $config->setProxyDir(__DIR__ . '/Proxies'); $config->setProxyNamespace('Proxies'); $connectionOptions = array( 'driver' => 'pdo_sqlite', 'path' => 'database.sqlite' ); $em = DoctrineORMEntityManager::create($connectionOptions, $config); • Dependency Injection handles the creation and management of entity manager services Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  12. 12. ORM • What is an Entity? It is a regular PHP object that has been mapped to the Doctrine2 ORM: /** @Entity */ class User { /** * @Id @Column(type="integer") * @GeneratedValue */ private $id; /** @Column(type="string", length=255) */ private $name; public function getId() { return $this->id; } public function getName() { return $this->name; } public function setName($name) { $this->name = $name; } } Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  13. 13. ORM • No more magic in your domain • Clean and testable • Fast! • Only limited by what you can do with PHP OO to design your domain • Inheritance • Use __construct() without any problems • Entities are persisted transparently by the EntityManager Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  14. 14. ORM • Configure an entity manager to start using the ORM: doctrine.orm: default_entity_manager: default cache_driver: apc # array, apc, memcache, xcache entity_managers: default: connection: default Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  15. 15. ORM • Console commands implemented for improved developer workflow: Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  16. 16. ORM • Console commands implemented for improved developer workflow: • Ensure production settings • Clear metadata, query and result cache • Load data fixtures • Create and drop configured databases • Generate entities from mapping information • Generate new skeleton entities • Generate skeleton entity repository classes • Convert mapping information between formats • Convert a Doctrine1 schema • Import mapping information from an existing database • Execute DQL and SQL queries • Create, drop and update database schema from mapping information Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  17. 17. ORM • Get the default configured entity manager service: class MyController extends DoctrineController { public function indexAction() { $em = $this->getEntityManager(); // ... } } Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  18. 18. ORM • Get a configured entity manager service by its name: class MyController extends DoctrineController { public function indexAction() { $em = $this->getEntityManager('default'); // ... } } Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  19. 19. ORM • Persisting entities is as simple as creating the object and telling Doctrine to persist it: class MyController extends DoctrineController { public function createAction() { $em = $this->getEntityManager(); $user = new User(); $user->setName('Jonathan H. Wage'); $em->persist($user); $em->flush(); // ... } } Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  20. 20. ORM • Creating Query instances and issue DQL queries to retrieve objects: class MyController extends DoctrineController { public function indexAction() { $em = $this->getEntityManager(); $query = $em->createQuery('select u from MyBundle:User u'); $users = $query->execute(); // ... } } Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  21. 21. ORM • Creating QueryBuilder instances to programatically build DQL queries through a fluent interface: class MyController extends DoctrineController { public function indexAction() { $em = $this->getEntityManager(); $qb = $em->createQueryBuilder() ->select('u') ->from('MyBundle:User', 'u'); $query = $qb->getQuery(); $users = $query->execute(); // ... } } Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  22. 22. ORM • Update your database schema during development as your domain model evolves • Add a new column to our User entity /** @Entity */ class User { // ... /** @Column(type="string", length=255) */ private $email; } Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  23. 23. ORM • Run update command to update your database schema from mapping information $ php console doctrine:schema:update • The above compares your current database schema to your new mapping information and executes the necessary queries to bring your database up-to-date. Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  24. 24. Object Document Mapper • New Doctrine Project for persisting objects to MongoDB • Same architecture as ORM • Transparently persist PHP5 objects to MongoDB Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  25. 25. MongoDB ODM • The DocumentManager • Central place for persisting and retrieving documents • Multiple instances allowed $config = new Configuration(); $config->setProxyDir(__DIR__ . '/Proxies'); $config->setProxyNamespace('Proxies'); $config->setDefaultDB('doctrine_odm_sandbox'); $reader = new AnnotationReader(); $reader->setDefaultAnnotationNamespace('DoctrineODMMongoDBMapping'); $config->setMetadataDriverImpl(new AnnotationDriver($reader, __DIR__ . '/Documents')); $dm = DocumentManager::create(new Mongo(), $config); • Dependency Injection handles the creation and management of document manager services Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  26. 26. MongoDB ODM • To use the MongoDB ODM you must configure it: doctrine_odm.mongodb: default_document_manager: default cache_driver: array document_managers: default: connection: mongodb connections: mongodb: server: localhost/somedatabase Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  27. 27. MongoDB ODM • If the defaults are good enough for you then you can omit all the previous options: doctrine_odm.mongodb: ~ Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  28. 28. MongoDB ODM • What is a Document? It is a regular PHP object that has been mapped to the MongoDB ODM: /** @Document */ class User { /** * @Id */ private $id; /** @String */ private $name; public function getId() { return $this->id; } public function getName() { return $this->name; } public function setName($name) { $this->name = $name; } } Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  29. 29. MongoDB ODM • Get the default configured document manager: class MyController extends DoctrineController { public function indexAction() { $dm = $this->getDocumentManager(); // ... } } Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  30. 30. MongoDB ODM • Get a configured document manager by its name: class MyController extends DoctrineController { public function indexAction() { $dm = $this->getDocumentManager('default'); // ... } } Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  31. 31. MongoDB ODM • Just like the ORM persisting documents is easy: class MyController extends DoctrineController { public function createAction() { $dm = $this->getDocumentManager(); $user = new User(); $user->setName('Jonathan H. Wage'); $dm->persist($user); $dm->flush(); // ... } } Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  32. 32. MongoDB ODM • Change tracking – All objects are tracked in an identity map – Changesets are calculated on flush – Changesets are used to perform updates using the atomic operators • The following code results in an efficient mongo update with only the properties that need updated: Array ( $user->setName('new name'); -> [$set] => Array ( $dm->flush(); [name] => new name ) ) Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  33. 33. MongoDB ODM • Traditional MongoDB find() and findOne() $users = $dm->find('User', $criteria); $query = $dm->findOne('User', array('username' => 'jwage') ); $user = $query->getSingleResult(); Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  34. 34. MongoDB ODM • Query API for building MongoDB queries through a fluent OO interface: class MyController extends DoctrineController { public function indexAction() { $dm = $this->getDocumentManager(); $query = $dm->createQuery('MyBundle:User'); $users = $query->execute(); // ... } } Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  35. 35. MongoDB ODM • Using Query builder API class MyController extends DoctrineController { public function indexAction() { $dm = $this->getDocumentManager(); $query = $dm->createQuery('User') ->where('username', 'jwage'); $user = $query->getSingleResult(); // ... } } • where(), whereIn(), whereMod(), whereNot(), etc. Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  36. 36. MongoDB ODM • Fluent Query interface generates and executes find() and findOne() methods internally • Query information is collected via fluent oo interface and executed later Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  37. 37. MongoDB ODM • Document Query Language (DQL) – SQL like grammar for querying MongoDB • Query types supported – Find – Insert – Update – Remove Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  38. 38. MongoDB ODM • Find query $query = $dm->query('find all User'); $users = $query->execute(); Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  39. 39. MongoDB ODM • Selecting fields $query = $dm->query('find username, password User'); Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  40. 40. MongoDB ODM • $slice operator for paging embedded collections $query = $dm->query('find comments skip 20 limit 10 Post'); Array ( [comments] => Array ( [$slice] => Array ( [0] => 20 [1] => 10 ) ) ) Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  41. 41. MongoDB ODM • Use atomic operators $query = $dm->query("update User set password = 'changeme' where username = 'jwage'"); Array ( [$set] => Array ( [password] => changeme ) ) Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  42. 42. MongoDB ODM • Complex update $query = $dm->query("update User inc count = 1, inc views = 2, set username = 'jwage'"); Array ( [$inc] => Array ( [count] => 1 [views] => 2 ) [$set] => Array ( [username] => jwage ) ) Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  43. 43. MongoDB ODM • Document Query Language (DQL) – atomic operators – skip and limit main results – skip and limit embedded documents – use dot notation for querying embedded documents – embed JSON values in your DQL syntax $query = $dm->query("update User pushAll groups = '[1, 2, 3]'"); Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  44. 44. Database Migrations • New DoctrineMigrationsBundle contains integration with the Doctrine Database Migrations project • Migrations have been completely re-written from Doctrine1 and are an extension of the database abstraction layer http://www.doctrine-project.org/projects/migrations Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  45. 45. Database Migrations • Migration classes: class Version20100416130401 extends AbstractMigration { public function up(Schema $schema) { } public function down(Schema $schema) { } } Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  46. 46. Database Migrations • Manually execute SQL for migrations: class Version20100416130422 extends AbstractMigration { public function up(Schema $schema) { $this->_addSql('CREATE TABLE addresses (id INT NOT NULL, street VARCHAR(255) NOT NULL, PRIMARY KEY(id)) ENGINE = InnoDB'); } public function down(Schema $schema) { $this->_addSql('DROP TABLE addresses'); } } Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  47. 47. Database Migrations • Use API of Schema objects to perform migration: class Version20100416130401 extends AbstractMigration { public function up(Schema $schema) { $table = $schema->createTable('users'); $table->addColumn('username', 'string'); $table->addColumn('password', 'string'); } public function down(Schema $schema) { $schema->dropTable('users'); } } Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  48. 48. Database Migrations • Check migrations status: $ ./doctrine migrations:status == Configuration >> Name: Doctrine Sandbox Migrations >> Configuration Source: /Users/jwage/Sites/doctrine2git/tools/sandbox/migrations.xml >> Version Table Name: doctrine_migration_versions >> Migrations Namespace: DoctrineMigrations >> Migrations Directory: /Users/jwage/Sites/doctrine2git/tools/sandbox/DoctrineMigrations >> Current Version: 2010-04-16 13:04:22 (20100416130422) >> Latest Version: 2010-04-16 13:04:22 (20100416130422) >> Executed Migrations: 0 >> Available Migrations: 1 >> New Migrations: 1 == Migration Versions >> 2010-04-16 13:04:01 (20100416130401) not migrated Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  49. 49. Database Migrations • Execute migration dry runs: $ ./doctrine migrations:migrate --dry-run Are you sure you wish to continue? y Executing dry run of migration up to 20100416130452 from 0 >> migrating 20100416130452 -> CREATE TABLE users (username VARCHAR(255) NOT NULL, password VARCHAR(255) NOT NULL) ENGINE = InnoDB • Omit --dry-run to execute migration. Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  50. 50. Database Migrations • Specify a version number to revert to or 0 to revert all migrations: $ ./doctrine migrations:migrate 0 Are you sure you wish to continue? y Migrating down to 0 from 20100416130401 -- reverting 20100416130401 -> DROP TABLE users -- reverted Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  51. 51. Database Migrations • Write migration SQL file instead of executing: $ ./doctrine migrations:migrate --write-sql Executing dry run of migration up to 20100416130401 from 0 >> migrating 20100416130401 -> CREATE TABLE users (username VARCHAR(255) NOT NULL, password VARCHAR(255) NOT NULL) ENGINE = InnoDB Writing migration file to "/path/to/sandbox/doctrine_migration_20100416130405.sql" • It would produce a file like: # Doctrine Migration File Generated on 2010-04-16 13:04:05 # Migrating from 0 to 20100416130422 # Version 20100416130401 CREATE TABLE users (username VARCHAR(255) NOT NULL, password VARCHAR(255) NOT NULL) ENGINE = InnoDB; Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  52. 52. Database Migrations • Integration with ORM for generating migrations when you change your mapping information. Add a new property to your Entity: /** @Entity @Table(name="users") */ class User { /** * @var string $test */ private $test; // ... } • Run the migrations diff command: $ ./doctrine migrations:diff Generated new migration class to "/path/to/migrations/DoctrineMigrations/Version20100416130459.php" from schema differences. Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  53. 53. Database Migrations • The generated migration class looks like: class Version20100416130459 extends AbstractMigration { public function up(Schema $schema) { $this->_addSql('ALTER TABLE users ADD test VARCHAR(255) NOT NULL'); } public function down(Schema $schema) { $this->_addSql('ALTER TABLE users DROP test'); } } • It contains the SQL statements required to update your database with the schema changes. Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  54. 54. Database Migrations • Run migrate command to execute the generated migration: $ ./doctrine migrations:migrate • Now your database is up to date and contains the new column named test. Doctrine 2 www.doctrine-project.org www.sensiolabs.com
  55. 55. Questions? Jonathan H. Wage jonathan.wage@sensio.com sensiolabs.com | doctrine-project.org | sympalphp.org | jwage.com You should follow me on http://www.twitter.com/jwage for updates about Symfony, Doctrine and related developments. You can contact Jonathan about Doctrine and Open-Source or for training, consulting, application development, or business related questions at jonathan.wage@sensio.com Doctrine 2 www.doctrine-project.org www.sensiolabs.com
