Java EE 6 & GlassFish = Less Code + More Power @ DevIgnition

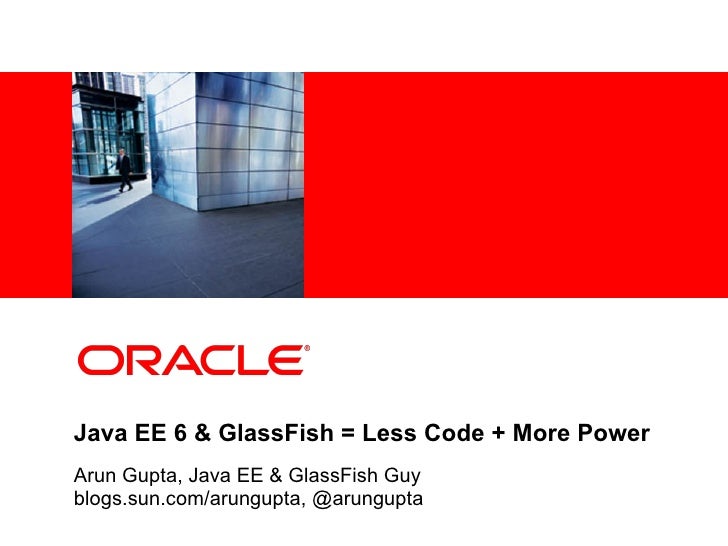

<Insert Picture Here>Java EE 6 & GlassFish = Less Code + More PowerArun Gupta, Java EE & GlassFish Guyblogs.sun.com/arungupta, @arungupta

The following/preceding is intended to outline ourgeneral product direction. It is intended forinformation purposes only, and may not beincorporated into any contract. It is not acommitment to deliver any material, code, orfunctionality, and should not be relied upon inmaking purchasing decisions.The development, release, and timing of anyfeatures or functionality described for Oracle’sproducts remains at the sole discretion of Oracle. 2

Compatible Java EE 5 Implhttp://java.sun.com/javaee/overview/compatibility-javaee5.jsp 3

Compatible Java EE 6 ImplsToday:Announced: 4

Java EE 6 Themes Flexible Embrace open sourceWeb Profile & frameworks Pruning Lightweight Extensible Enables Drag & Drop Java EE framework installation Developer Productivity More annotations POJO development Less XML configuration 5

Java EE 6 Web Profile 1.0• Fully functional mid-sized profile • Actively discussed in the Java EE 6 Expert Group and outside it • Technologies • Servlets 3.0, JSP 2.2, EL 2.2, Debugging Support for Other Languages 1.0, JSTL 1.2, JSF 2.0, Common Annotations 1.1, EJB 3.1 Lite, JTA 1.1, JPA 2.0, Bean Validation 1.0, Managed Beans 1.0, Interceptors 1.1, Context & Dependency Injection 1.0, Dependency Injection for Java 1.0 6

Java EE 6 - Done 09• Specifications approved by the JCP• Reference Implementation is GlassFish v3 20• TCK ec D 7

Java EE 6 Specifications• The Platform• Java EE 6 Web Profile 1.0• Managed Beans 1.0 8

Java EE 6 Specifications New• Contexts and Dependency Injection for Java EE (JSR 299)• Bean Validation 1.0 (JSR 303)• Java API for RESTful Web Services (JSR 311)• Dependency Injection for Java (JSR 330) 9

Java EE 6 Specifications Extreme Makeover• Java Server Faces 2.0 (JSR 314)• Java Servlets 3.0 (JSR 315)• Java Persistence 2.0 (JSR 317)• Enterprise Java Beans 3.1 & Interceptors 1.1 (JSR 318)• Java EE Connector Architecture 1.6 (JSR 322) 10

Java EE 6 Specifications Updates• Java API for XML-based Web Services 2.2 (JSR 224)• Java API for XML Binding 2.2 (JSR 222)• Web Services Metadata MR3 (JSR 181)• JSP 2.2/EL 2.2 (JSR 245)• Web Services for Java EE 1.3 (JSR 109)• Common Annotations 1.1 (JSR 250)• Java Authorization Contract for Containers 1.3 (JSR 115)• Java Authentication Service Provider Interface for Containers 1.0 (JSR 196) 11

Java EE 6 Specifications As is• JDBC 4.0 API• Java Naming and Directory Interface 1.2• Java Message Service 1.1• Java Transaction API 1.1• Java Transaction Service 1.0• JavaMail API Specification 1.4• JavaBeans Activation Framework 1.1• Java API for XML Processing 1.3• Java API for XML-based RPC 1.1• SOAP with Attachments API for Java 1.3• Java API for XML Registries 1.0• Java EE Management Specification 1.1 (JSR 77)• Java EE Deployment Specification 1.2 (JSR 88)• Java Management Extensions 1.2• Java Authentication and Authorization Service 1.0• Debugging Support for Other Languages (JSR 45)• Standard Tag Library for JSP 1.2 (JSR 52)• Streaming API for XML 1.0 (JSR 173) 12

Java EE 6 & Ease-of-development• Continue advancements of Java EE 5• Primary focus: Web Tier• General principles • Annotation-based programming model • Reduce or eliminate need for DD • Traditional API for advanced users 13

Servlets in Java EE 5 At least 2 files<web-app> package com.sun; <servlet> public class MyServlet extends <servlet-name>MyServlet HttpServlet { </servlet-name> public void <servlet-class> doGet(HttpServletRequest com.sun.MyServlet req,HttpServletResponse res) </servlet-class> { </servlet> ... <servlet-mapping> <servlet-name>MyServlet } </servlet-name> ... <url-pattern>/myApp/* } </url-pattern> </servlet-mapping> ...</web-app> 14

Servlets 3.0 (JSR 315) Annotations-based @WebServletpackage com.sun;@WebServlet(name=”MyServlet”, urlPatterns={”/myApp/*”})public class MyServlet extends HttpServlet { public void doGet(HttpServletRequest req, HttpServletResponse res) {  <web-app> ... <servlet> <servlet-name>MyServlet</servlet-name> } <servlet-class> com.sun.MyServlet </servlet-class> </servlet> <servlet-mapping> <servlet-name>MyServlet</servlet-name> <url-pattern>/myApp/*</url-pattern> </servlet-mapping> ... </web-app>http://blogs.sun.com/arungupta/entry/java_ee_6_glassfish_31http://blogs.sun.com/arungupta/entry/screencast_31_java_ee_6 15

Servlets 3.0• @WebServlet, @WebListener, @WebFilter, …• Asynchronous Servlets • @WebServlet(asyncSupported=true)• Plugin libraries using web fragments• Dynamic registration of Servlets• WEB-INF/lib/[*.jar]/META-INF/resources accessible in the root• Programmatic authentication login/logout• Default Error Page• ... 16

EJB 3.1 (JSR 318) Package & Deploy in a WAR Java EE 5 Java EE 6 myApp.war myApp.ear WEB-INF/classes web.war com.sun.FooServlet com.sun.TickTock WEB-INF/web.xml com.sun.FooBean WEB-INF/classes com.sun.FooHelper com.sun.FooServlet com.sun.TickTock beans.jar com.sun.FooBean web.xml ? com.sun.FooHelperhttp://blogs.sun.com/arungupta/entry/java_ee_6_glassfish_31http://blogs.sun.com/arungupta/entry/screencast_31_java_ee_6 17

EJB 3.1 - Sample@Stateless @EJBpublic class MySessionBean { MySessionBean bean; @PostConstruct public void setupResources() { // setup your resources } @PreDestroy public void cleanupResources() { // collect them back here } public String sayHello(String name) { return "Hello " + name; }} 18

EJB 3.1• No interface view – one source file per bean• Embeddable API• @Singleton • Initialization in @PostContruct• Cron-like semantics for Timer• Asynchronous Session Bean• Portable Global JNDI Name 19

EJB 3.1EJB 3.1 Lite – Feature Comparison 20

Contexts & Dependency Injection (JSR 299)• Standards-based Dependency Injection• Type-safe – Builds on @Inject API• Context/Scope management• Includes ELResolver @Inject @LoggedIn User userRequest What ? Which one ?Injection (Type) (Qualifier) 21

CDI• Qualifiers• Events• Stereotypes• Interceptors• Decorators• Alternatives•... 22

Java Server Faces 2.0 (JSR 314)• Facelets as “templating language” • Custom components much easier to develop• Integrated Ajax (with or without JavaScript)• “faces-config.xml” optional in common cases• Default navigation rules• Much more … • Runs on Servlet 2.5+ • Bookmarkable URLs • Conditional navigation • ... 23

Java Persistence API 2 (JSR 317)• Improved O/R mapping• Type-safe Criteria API • Metamodel• Expanded and Richer JPQL• 2nd-level Cache• New locking modes • PESSIMISTIC_READ – grab shared lock • PESSIMISTIC_WRITE – grab exclusive lock • PESSIMISTIC_FORCE_INCREMENT – update version• Standard configuration options • javax.persistence.jdbc.[driver | url | user | password] 24

Bean Validation (JSR 303)• Tier-independent mechanism to define constraints for data validation • Represented by annotations • javax.validation.* package• Integrated with JSF and JPA • JSF: f:validateRequired, f:validateRegexp • JPA: pre-persist, pre-update, and pre-remove• @NotNull(message=”...”), @Max, @Min, @Size• Fully Extensible • @Email String recipient; 25

JAX-RS 1.1 (JSR 311)• Java API for building RESTful Web Services• POJO based• Annotation-driven• Server-side API• HTTP-centric 26

JAX-RS 1.1Code Sample - Simple@Path("helloworld")public class HelloWorldResource { @GET @Produces("text/plain") public String sayHello() { return "Hello World"; } @GET @Path("morning") public String morning() { return “Good Morning!”; }} 27

IDE Support for Java EE 6 28

Books on GlassFish 29

What is GlassFish ?• A community • Users, Partners, Testers, Developers, ... • Started in 2005 on java.net• Application Server • Open Source (CDDL & GPL v2) • Java EE Reference Implementation 30

GlassFish Server Chronology2006 2007 2008 2009 2010 …GlassFish v1Java EE 5, Single Instance GlassFish v2 Java EE 5, High Availability GlassFish Server 3 Java EE 6, Single Instance GlassFish Server 3.1 Java EE 6, High Availability 31

GlassFish DistributionsDistribution License FeaturesGlassFish Open Source CDDL & • Java EE 6 CompatibilityEdition 3.0.1 GPLv2 • No Clustering • Clustering planned in 3.1 • mod_jk for load balancingGlassFish Open Source CDDL & • Java EE 5 CompatibilityEdition 2.1.1 GPLv2 • In memory replication • mod_loadbalancerOracle GlassFish Server Commercial • GlassFish Open Source Edition 3.0.13.0.1 • GlassFish Server Control Clustering • Clustering planned in 3.1 Coming Soon!Oracle GlassFish Server Commercial • GlassFish Open Source Edition 2.1.12.1.1 • Enterprise Manager • HADB

GlassFish 3• Modular • Maven 2 – Build & Module description • Felix – OSGi runtime (200+ bundles) • Allow any type of Container to be plugged • Start Container and Services on demand• Embeddable: runs in-VM• Extensible • Rails, Grails, Django, ... • Administration, Monitoring, Logging, Deployment, ... 33

GlassFish 3.0.1 • First Oracle-branded release of GlassFish • Additional platform support • Oracle Enterprise Linux 4 & 5 (32 & 64-bit) • Red Hat Enterprise Linux 64-bit • Window 2008 R2 (32 & 64-bit) • HP-UX 11i, (32 & 64-bit) • JRockit 6 Update 17 • 100+ bugfixeshttp://www.oracle.com/technetwork/middleware/glassfish/overview/index.html 34

Boost your productivity Retain session across deploymentasadmin redeploy –properties keepSessions=true helloworld.war 36

Boost your productivityDeploy-on-Save 37

GlassFish Server OSE 3.1• Combine benefits from versions 2.1.1 and 3.0 • Clustering, replication and centralized admin (2.1.1) • OSGi modularity and Java EE 6 from (3.x)• Other ... • Application Versioning • Application-Scoped resources • SSH-based remote management & monitoring • Various Enterprise OSGi specs • Embedded (extensive) • Admin Console based on RESTful APIhttp://wikis.sun.com/display/glassfish/GlassFishv3.1 38

GlassFish and WebLogic together• Best open source application server with • Best commercial application server for support from Oracle transactional Java EE applications• Open source platform of choice for light- • Platform of choice for standardization weight Web applications • Focus on lowest operational cost and mission• Focus on latest Java EE standards and critical applications community driven innovation • integration with Oracle Database, Fusion• Certified interoperability with Fusion Middleware & Fusion Applications Middleware• Differentiated innovation, scout thread Production Java Production Java Application Deployment Application Deployment GlassFish Server WebLogic Server 39

What does Java EE offer to Cloud ?● Containers● Injectable services● Scale to large clusters● Security model● ... 40

What can Java EE do for Clouds ?● Tighter requirements for resource and state management● Better isolation between applications● Potential standard APIs for NRDBMS, Caching, …● HTML5● Common management and monitoring interfaces● Better packaging ● Apps/Data are (multiple) versioned, Upgrades, Expose/Connect to services, QoS attributes, ...● Evolution, not revolution 41

What else is coming in JavaEE.next?• Modularity • Build on Java SE work • Applications made of modules • Dependencies are explicit • Versioning is built-in• Web socket support• Standard JSON API• HTML5 support• NIO.2-based web container 42

References• glassfish.org• oracle.com/goto/glassfish• blogs.sun.com/theaquarium• glassfish.org/roadmap• youtube.com/user/GlassFishVideos• Follow @glassfish 43

<Insert Picture Here>Java EE 6 & GlassFish = Less Code + More PowerArun Gupta, Java EE & GlassFish Guyblogs.sun.com/arungupta, @arungupta
