Proxies
                              are Awesome!
                                    Brendan Eich
                      ...

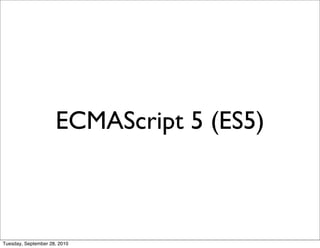

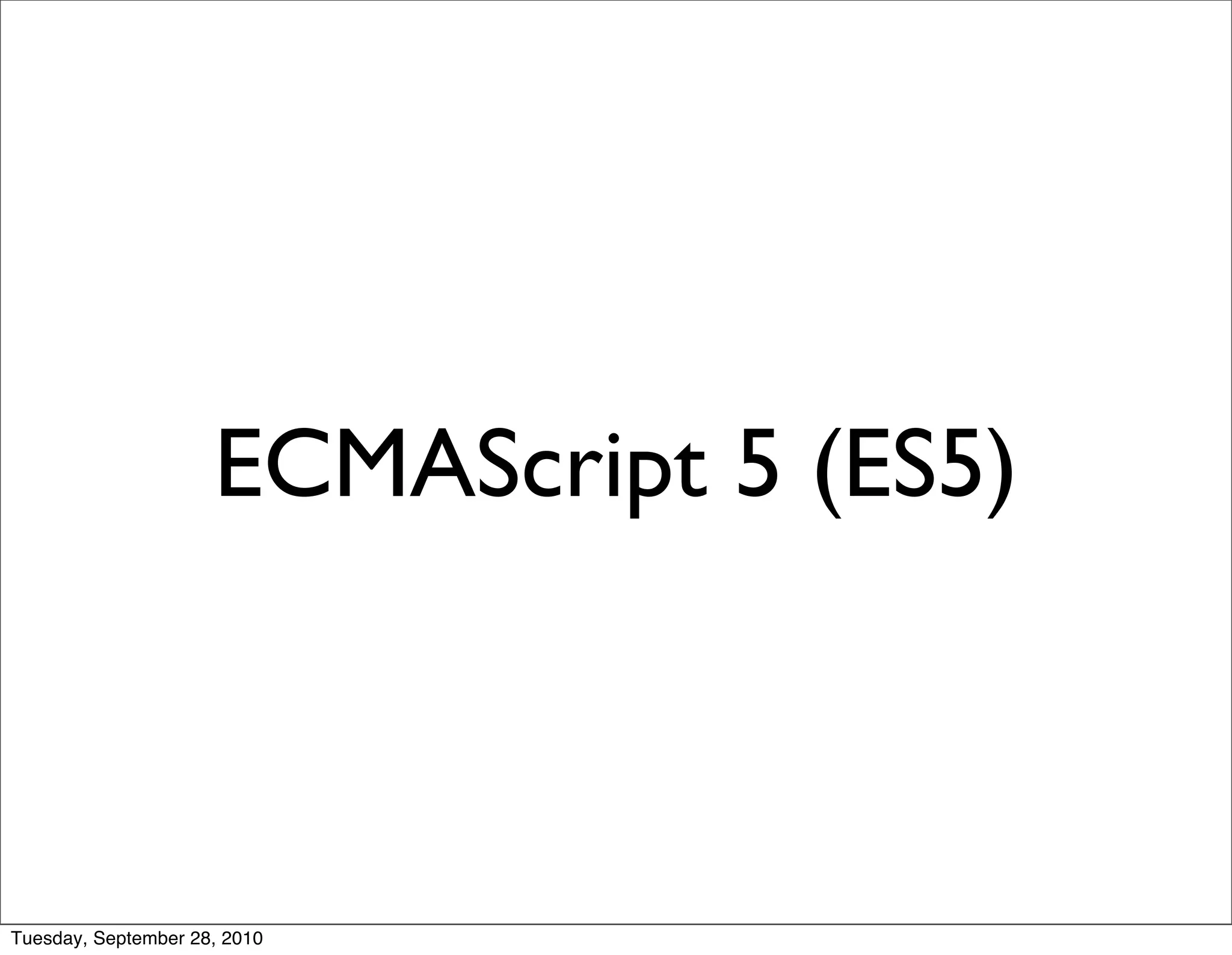

ECMAScript 5 (ES5)



Tuesday, September 28, 2010

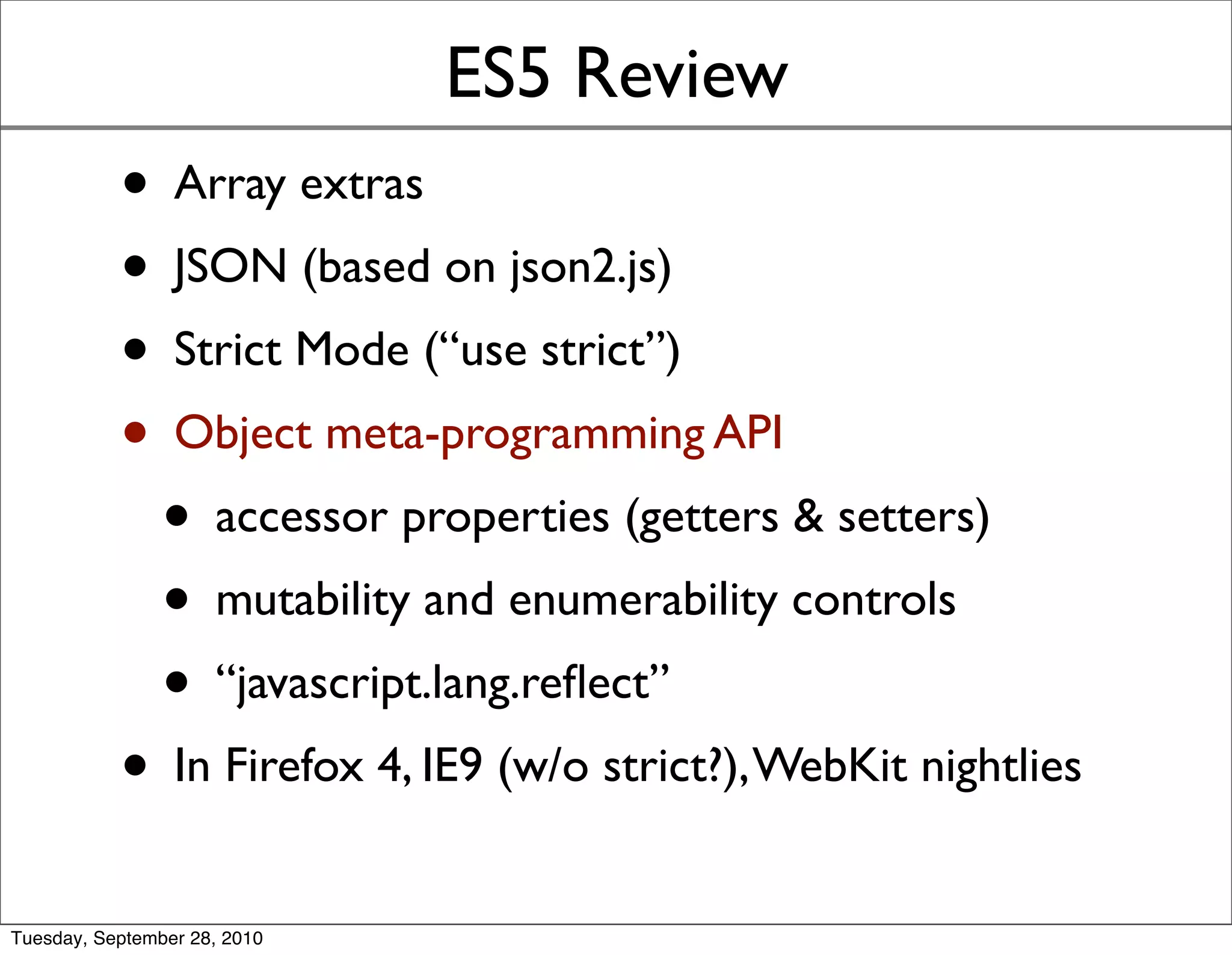

ES5 Review
           • Array extras
           • JSON (based on json2.js)
           • Strict Mode (“use strict”)
       ...

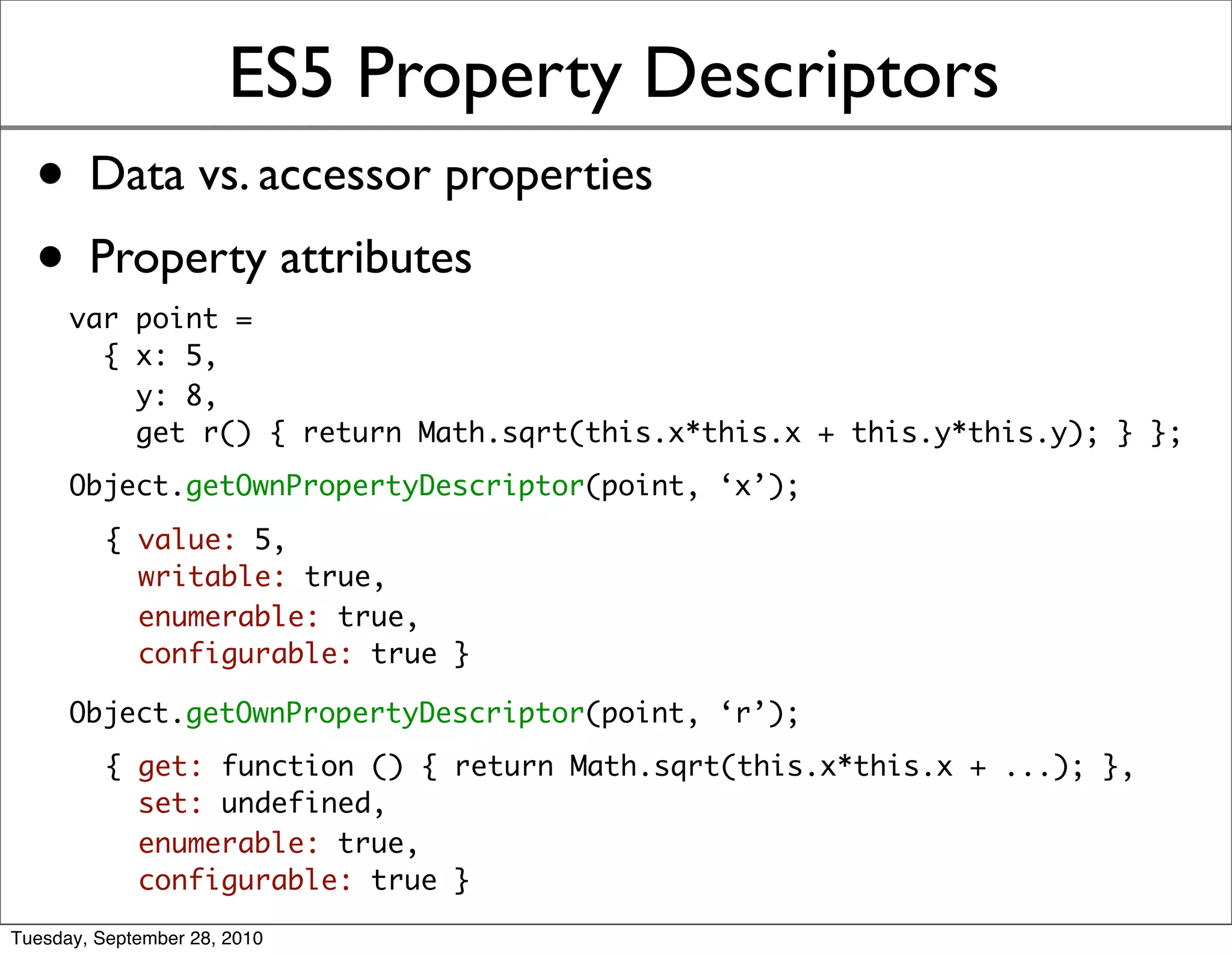

ES5 Property Descriptors
  • Data vs. accessor properties
  • Property attributes
      var point =
        { x: 5,
      ...

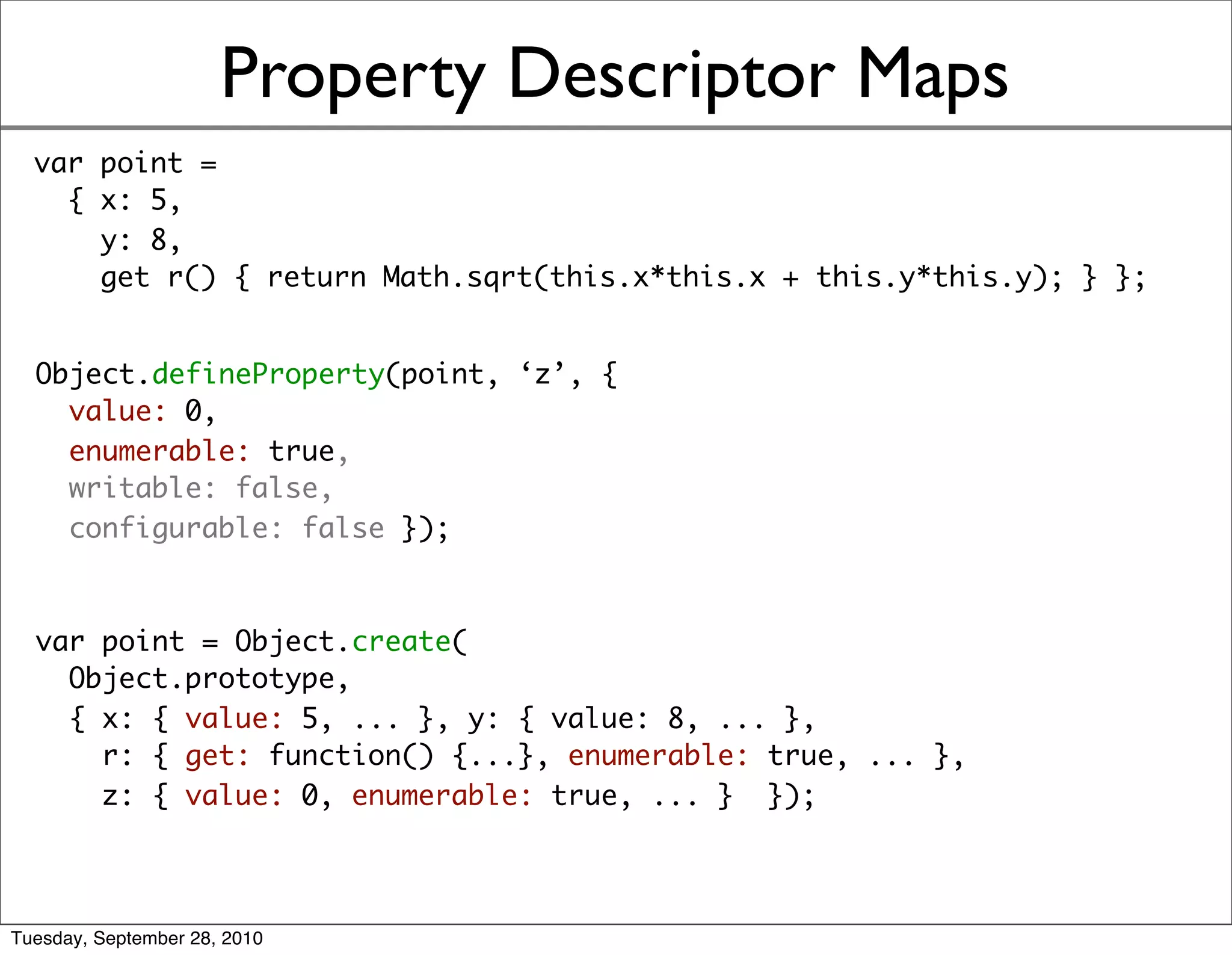

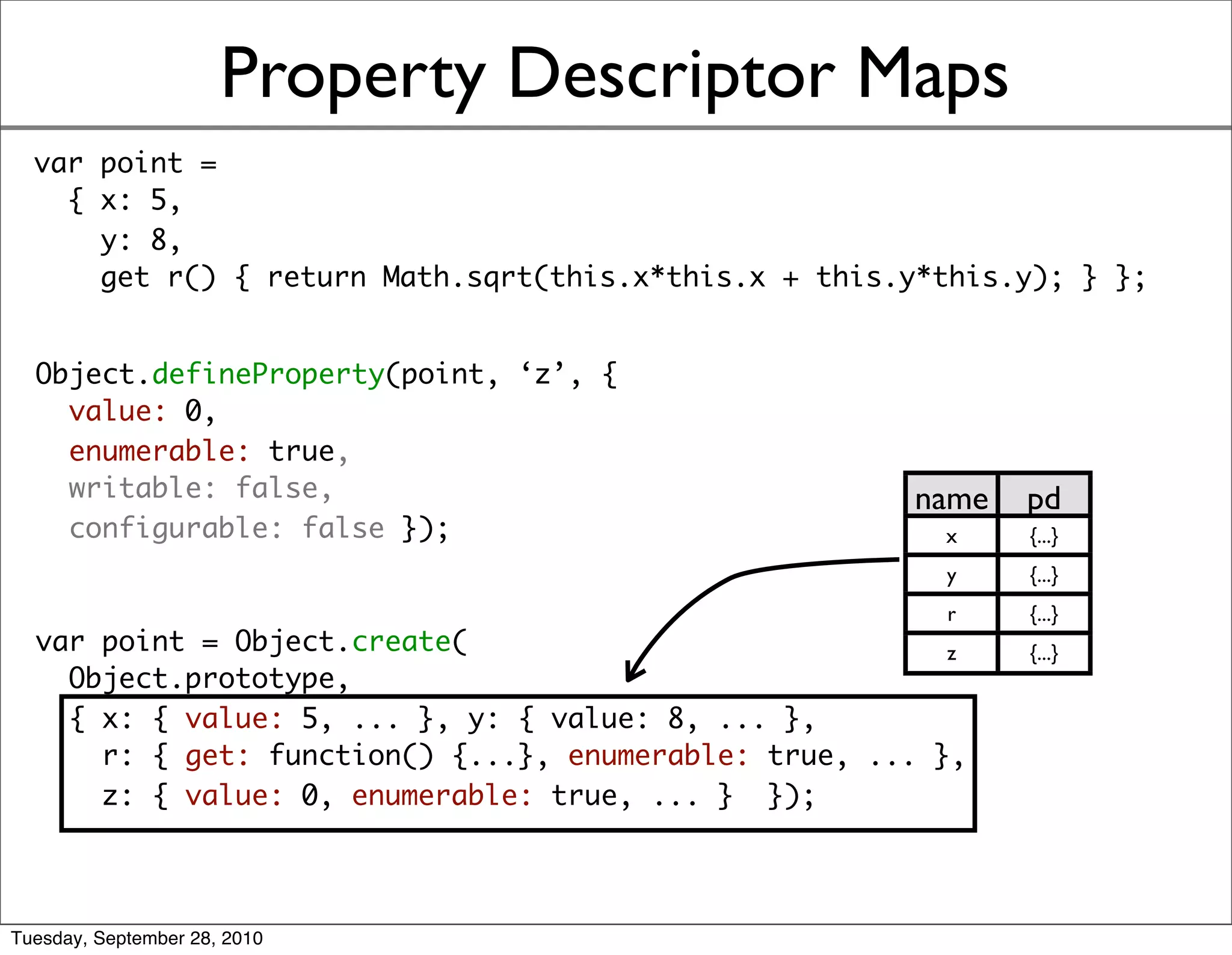

Property Descriptor Maps
  var point =
    { x: 5,
      y: 8,
      get r() { return Math.sqrt(this.x*this.x + this.y*thi...
Property Descriptor Maps
  var point =
    { x: 5,
      y: 8,
      get r() { return Math.sqrt(this.x*this.x + this.y*thi...

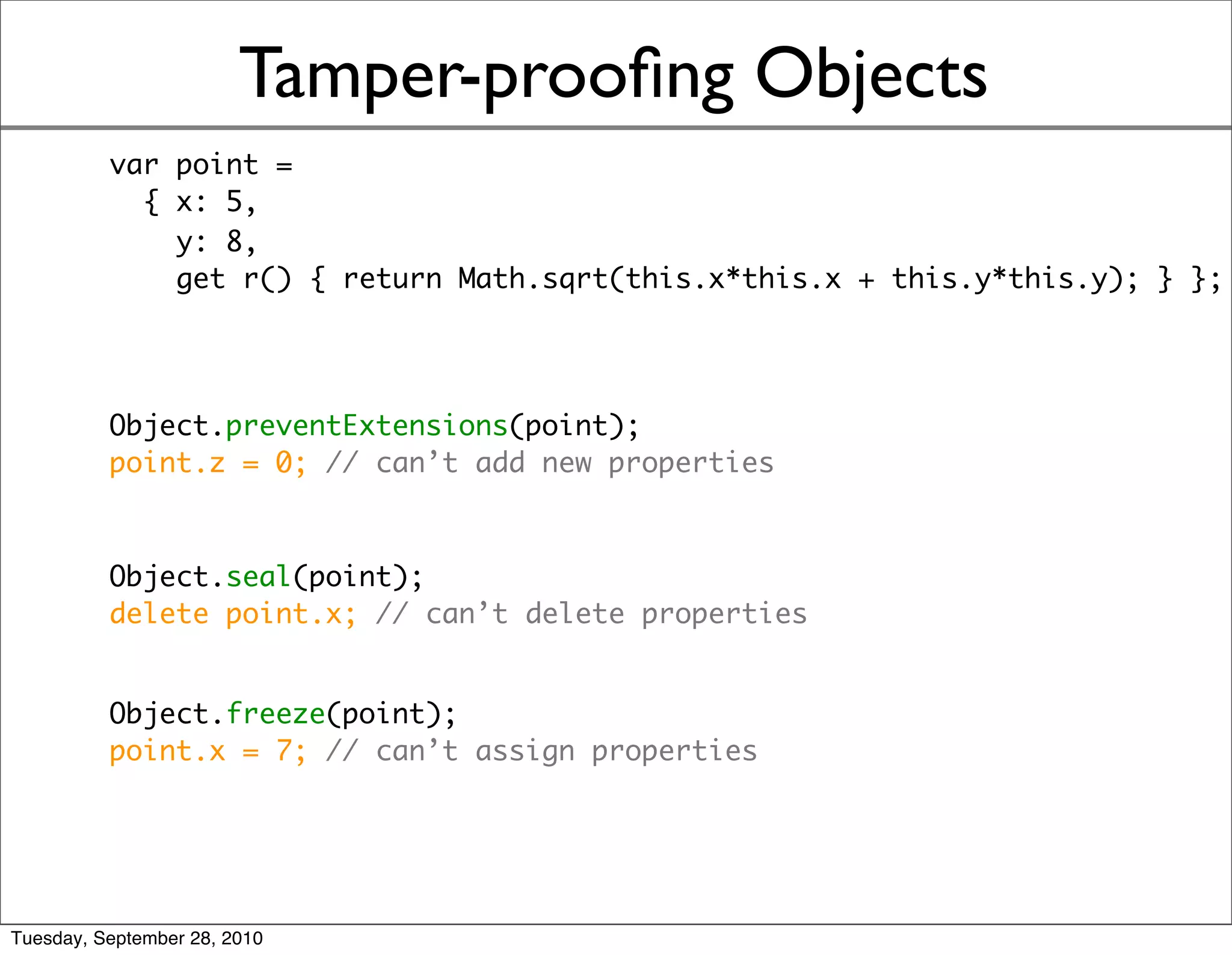

Tamper-proofing Objects
          var point =
            { x: 5,
              y: 8,
              get r() { return Math.s...

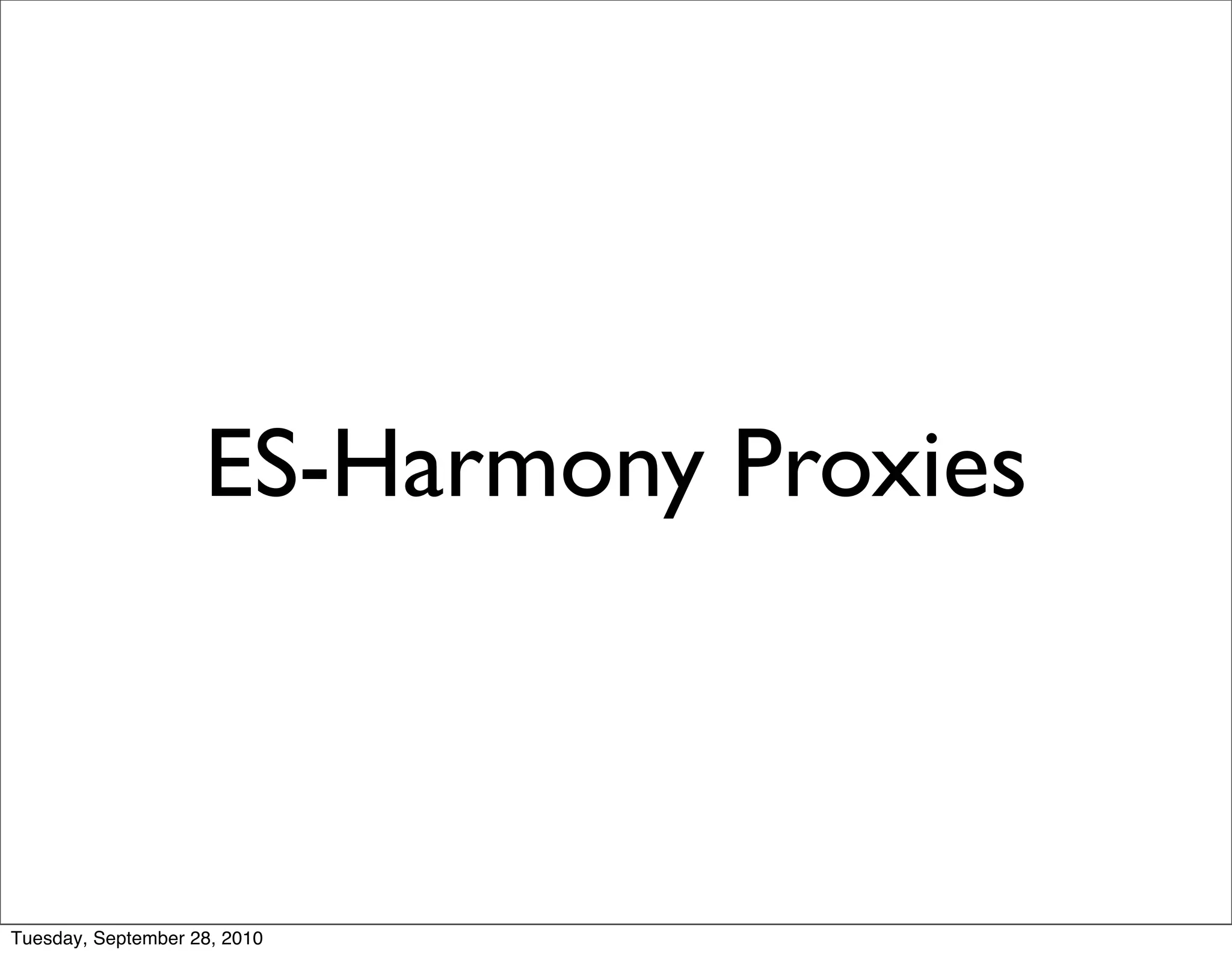

ES-Harmony Proxies



Tuesday, September 28, 2010

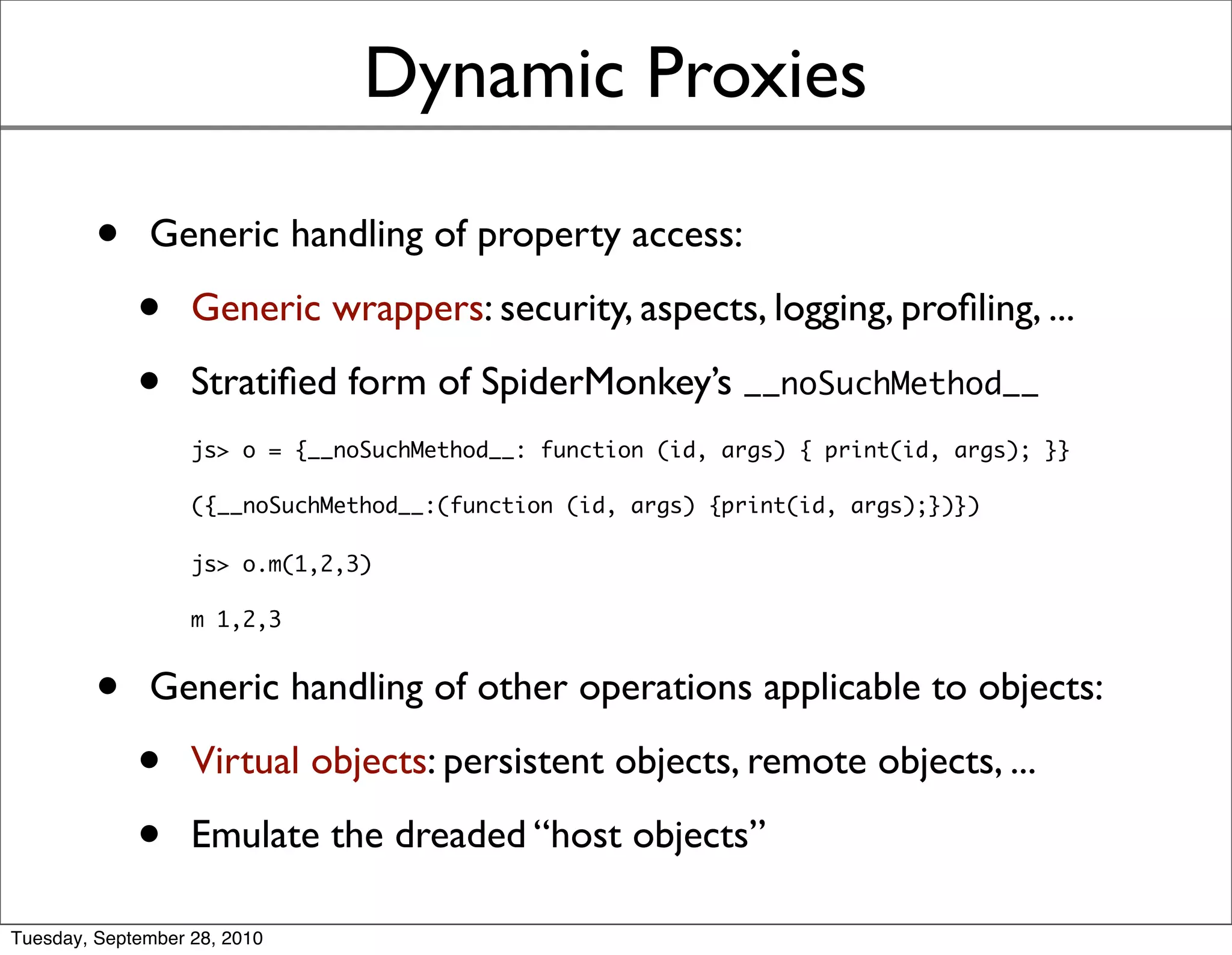

Dynamic Proxies

         •    Generic handling of property access:

             •     Generic wrappers: security, aspect...

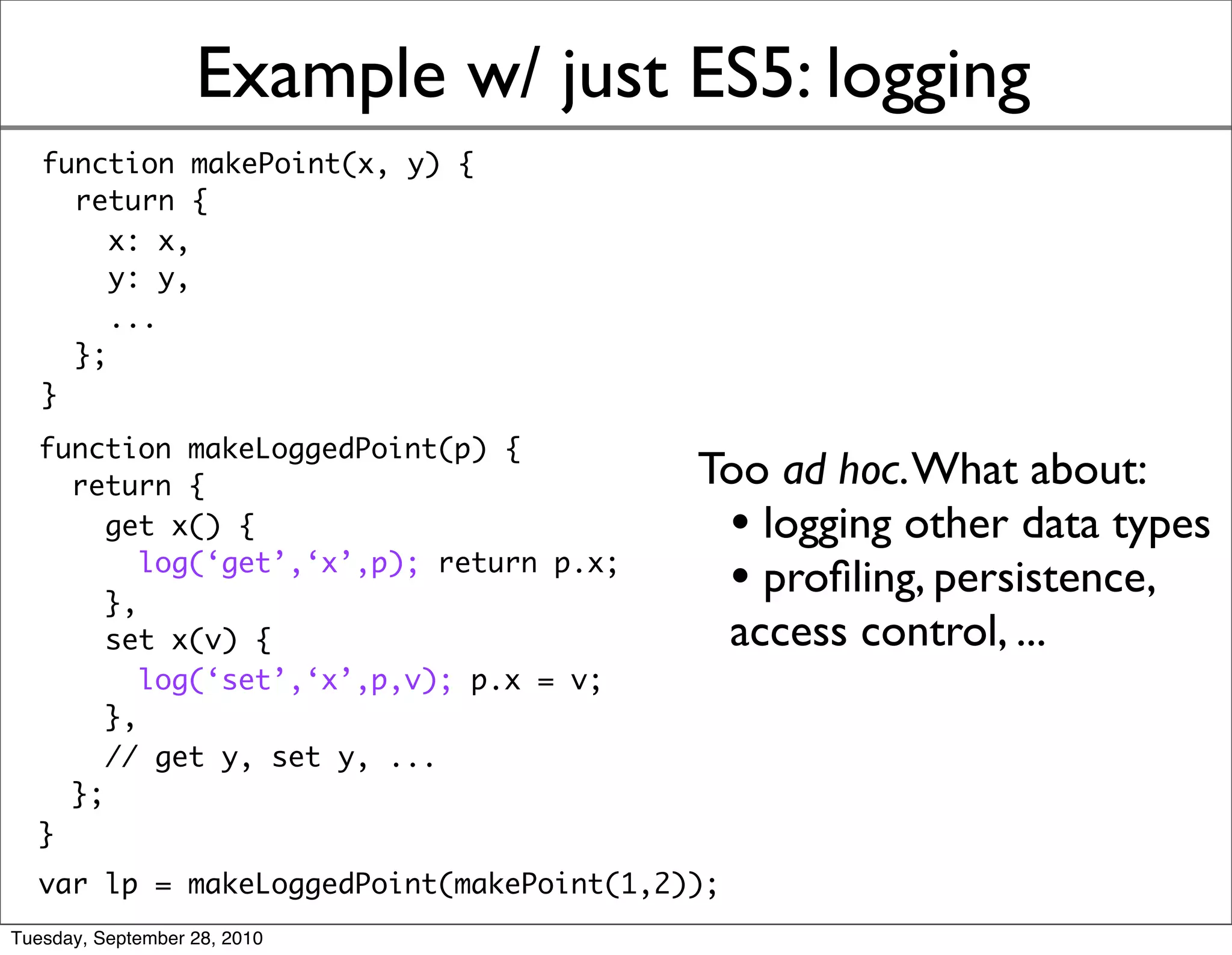

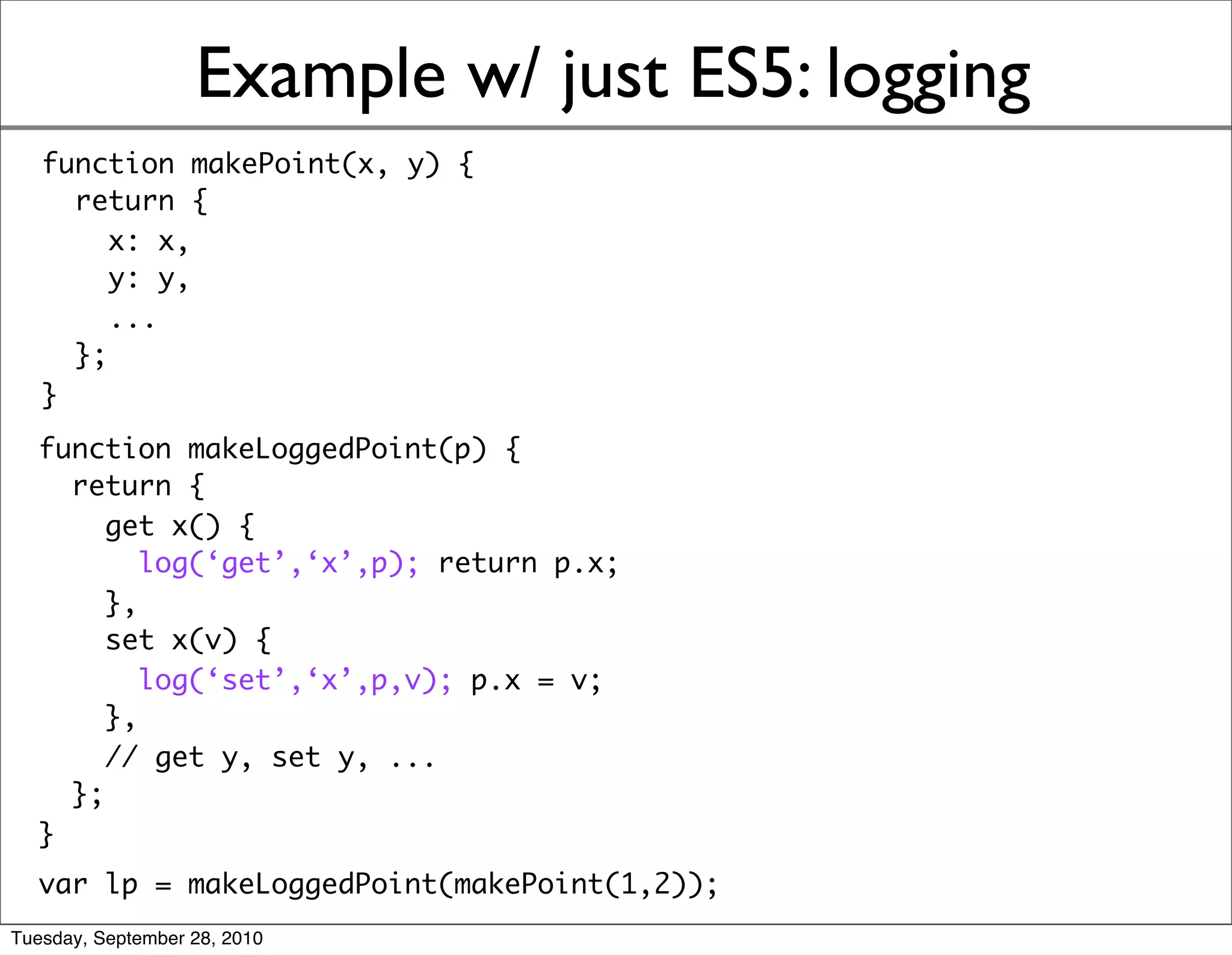

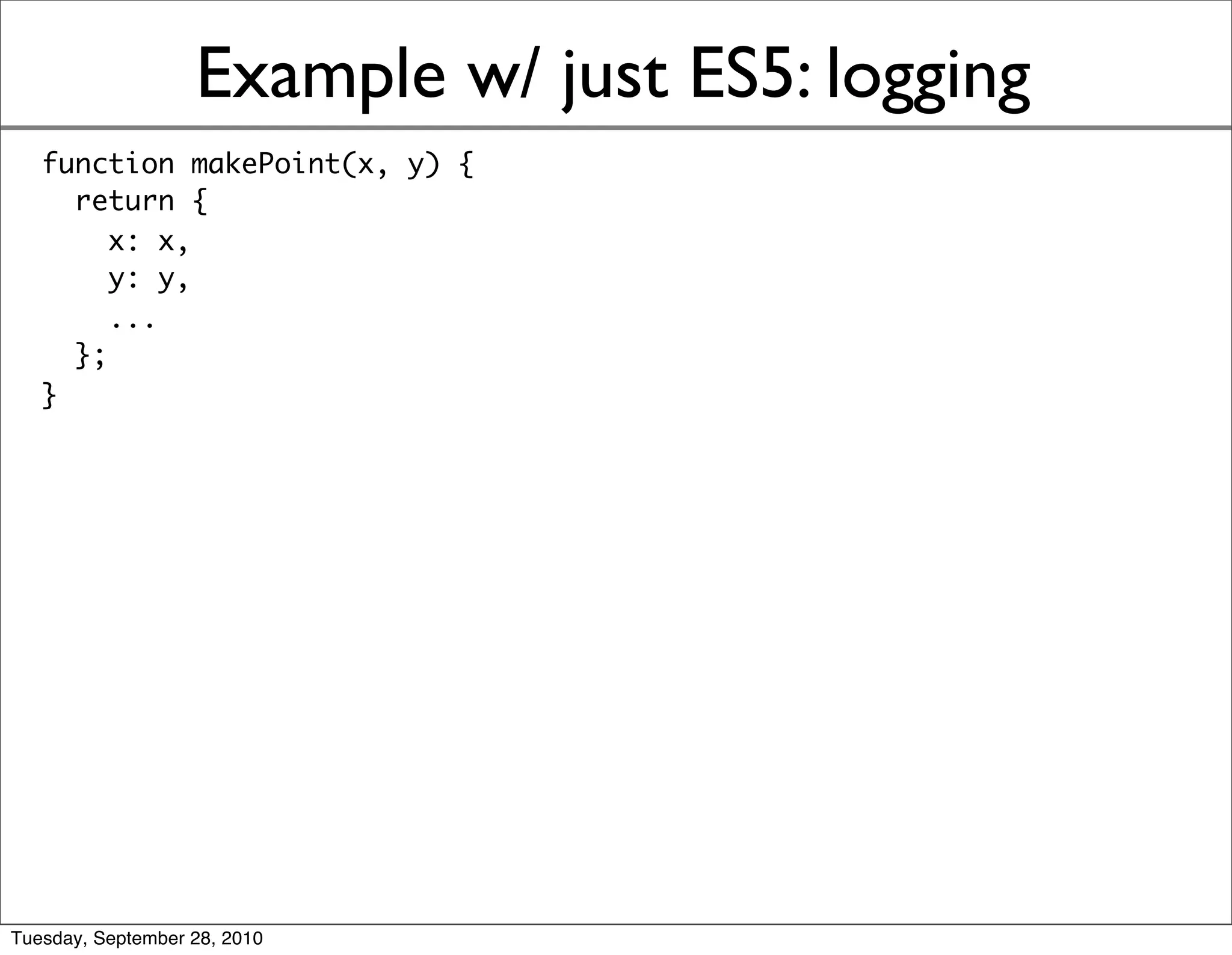

Example w/ just ES5: logging
   function makePoint(x, y) {
     return {
        x: x,
        y: y,
        ...
     };
 ...
Example w/ just ES5: logging
   function makePoint(x, y) {
     return {
        x: x,
        y: y,
        ...
     };
 ...
Example w/ just ES5: logging
   function makePoint(x, y) {
     return {
        x: x,
        y: y,
        ...
     };
 ...

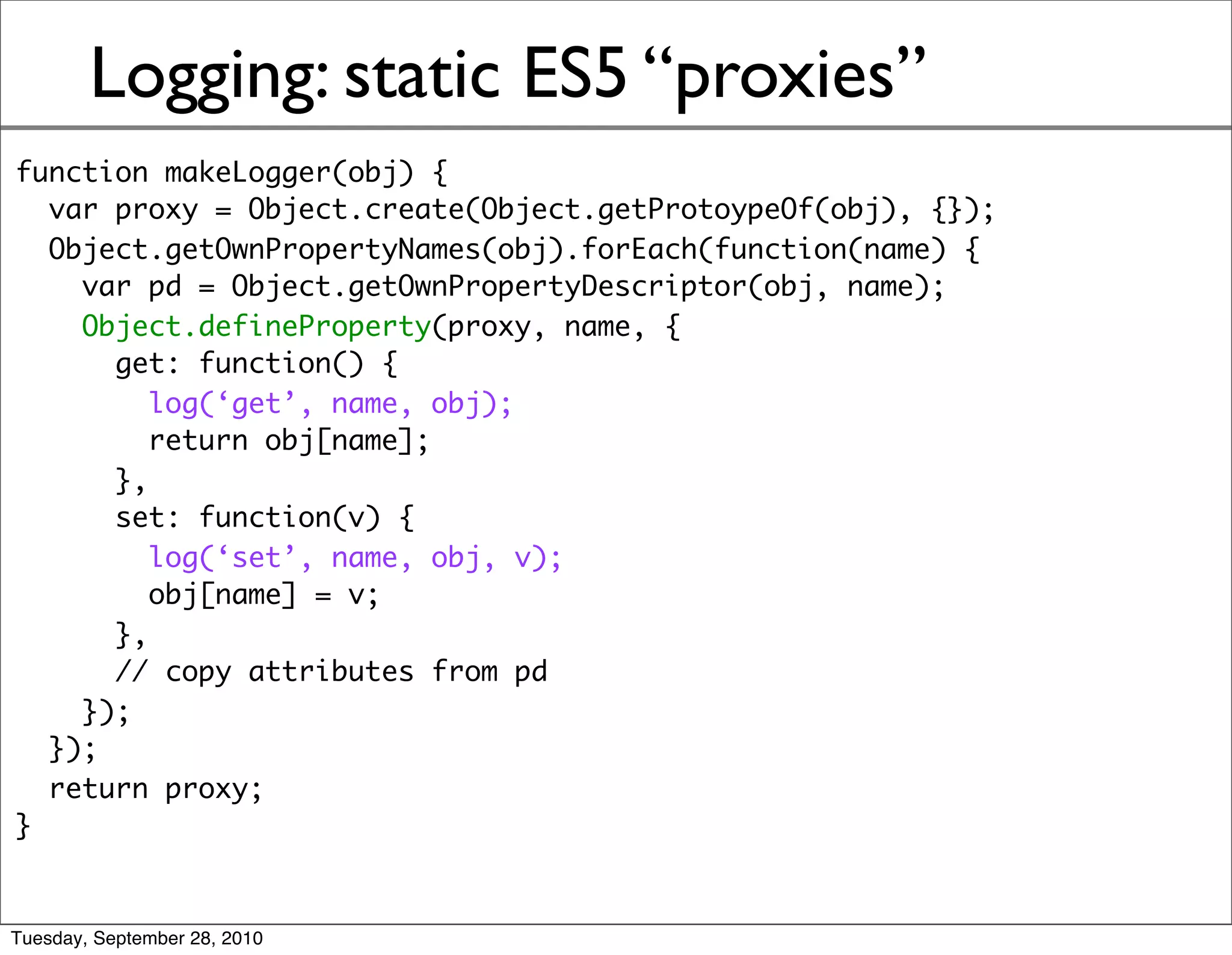

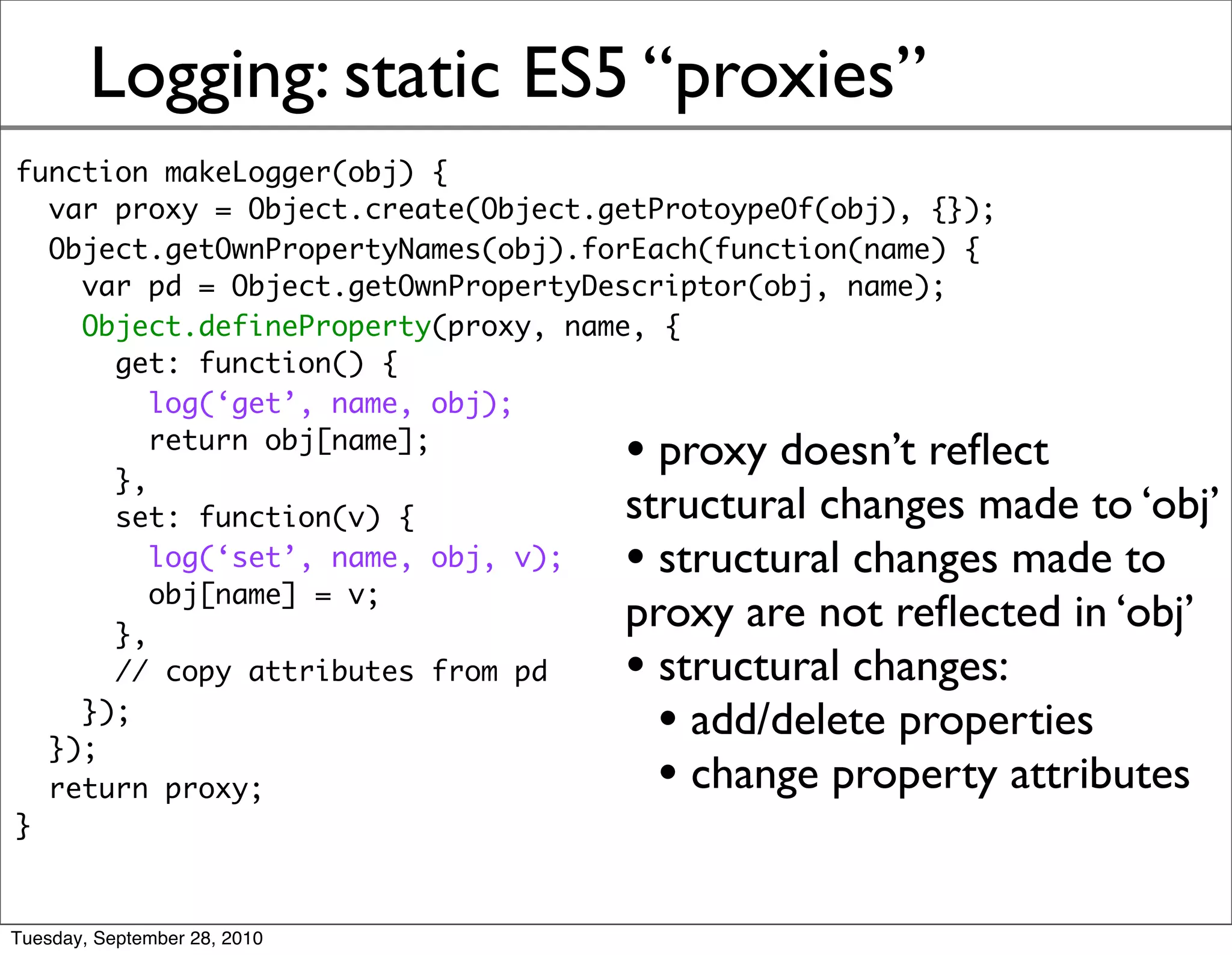

Logging: static ES5 “proxies”
function makeLogger(obj) {
  var proxy = Object.create(Object.getProtoypeOf(obj), {});
  Obj...
Logging: static ES5 “proxies”
function makeLogger(obj) {
  var proxy = Object.create(Object.getProtoypeOf(obj), {});
  Obj...

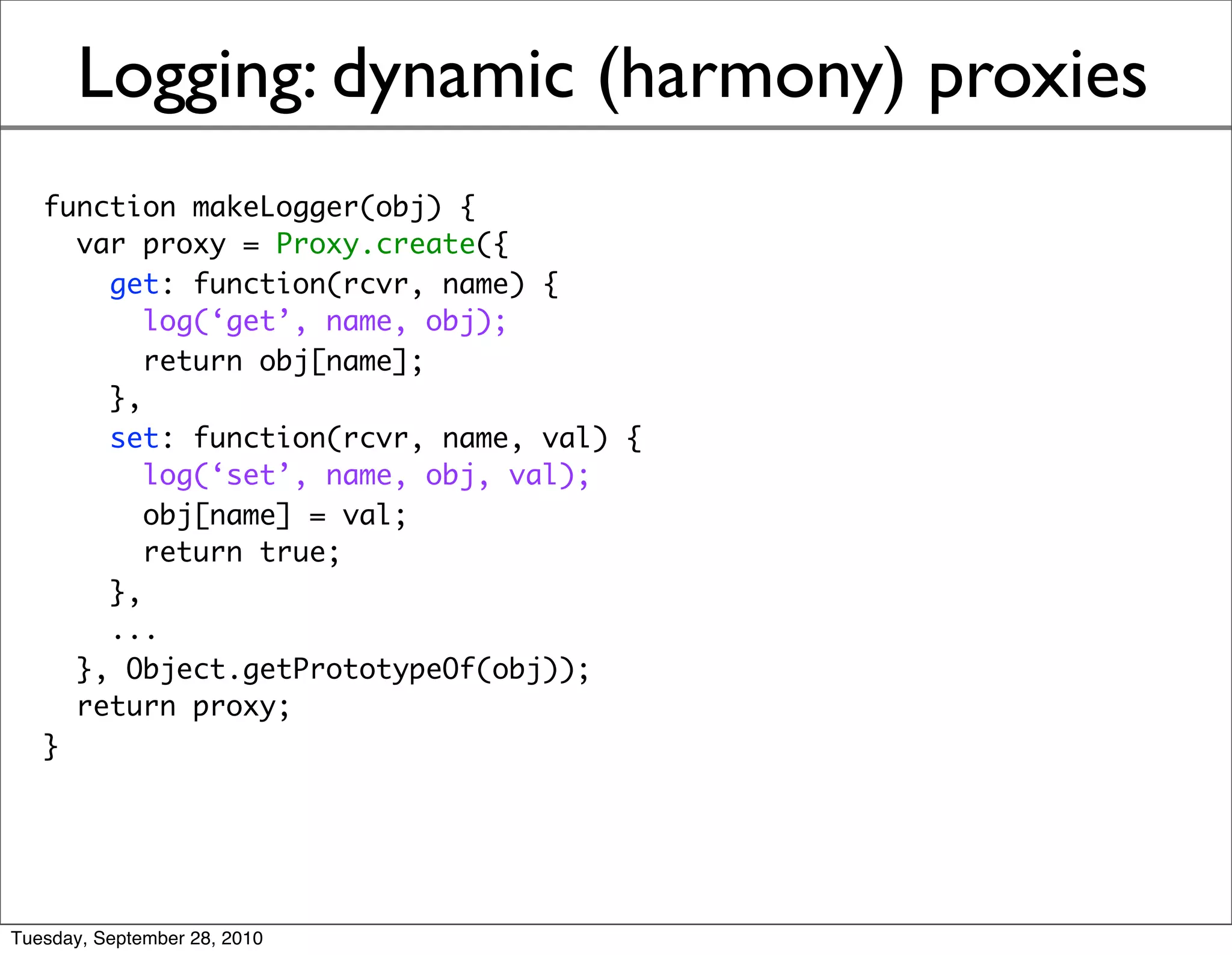

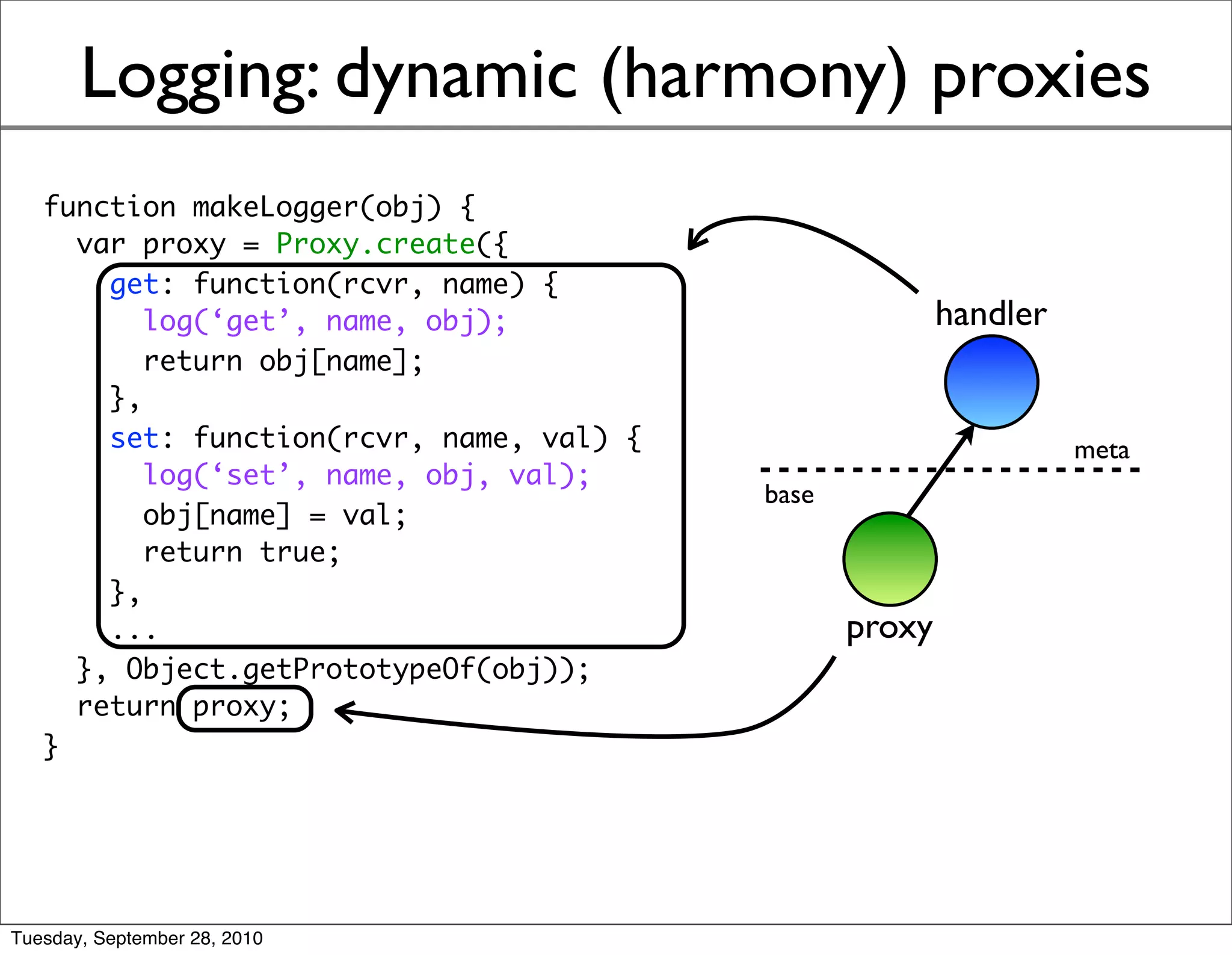

Logging: dynamic (harmony) proxies
   function makeLogger(obj) {
     var proxy = Proxy.create({
       get: function(rcvr...
Logging: dynamic (harmony) proxies
   function makeLogger(obj) {
     var proxy = Proxy.create({
       get: function(rcvr...

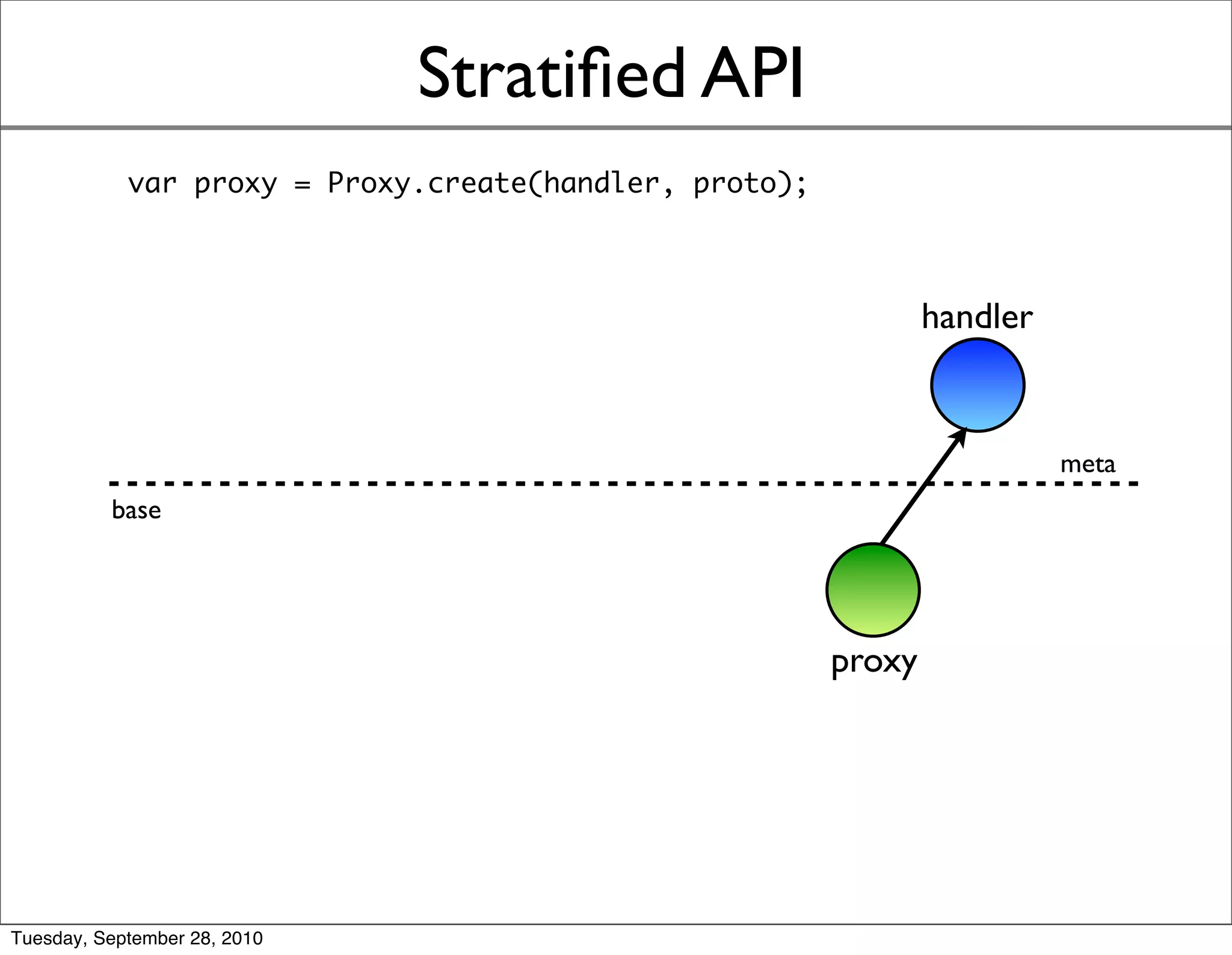

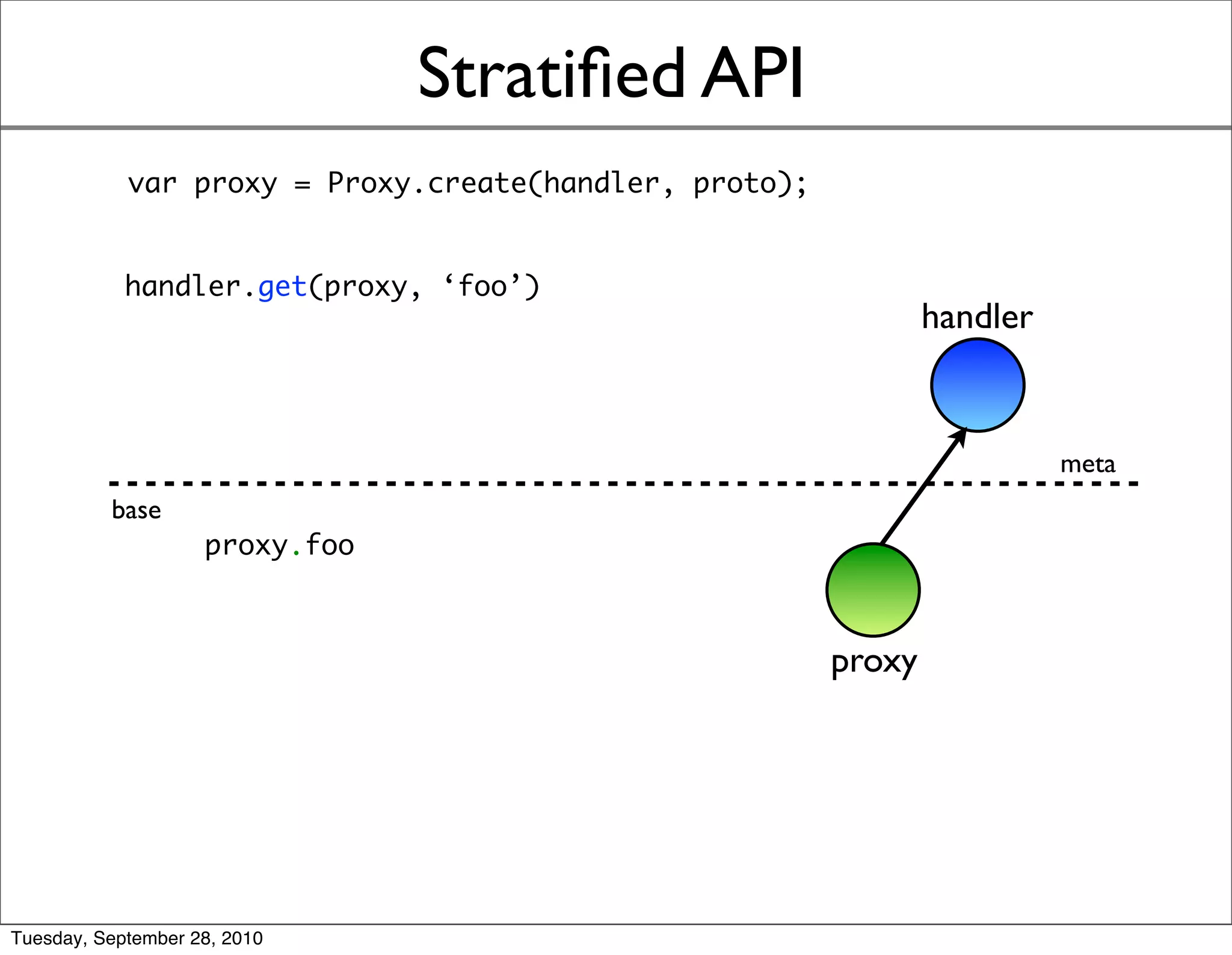

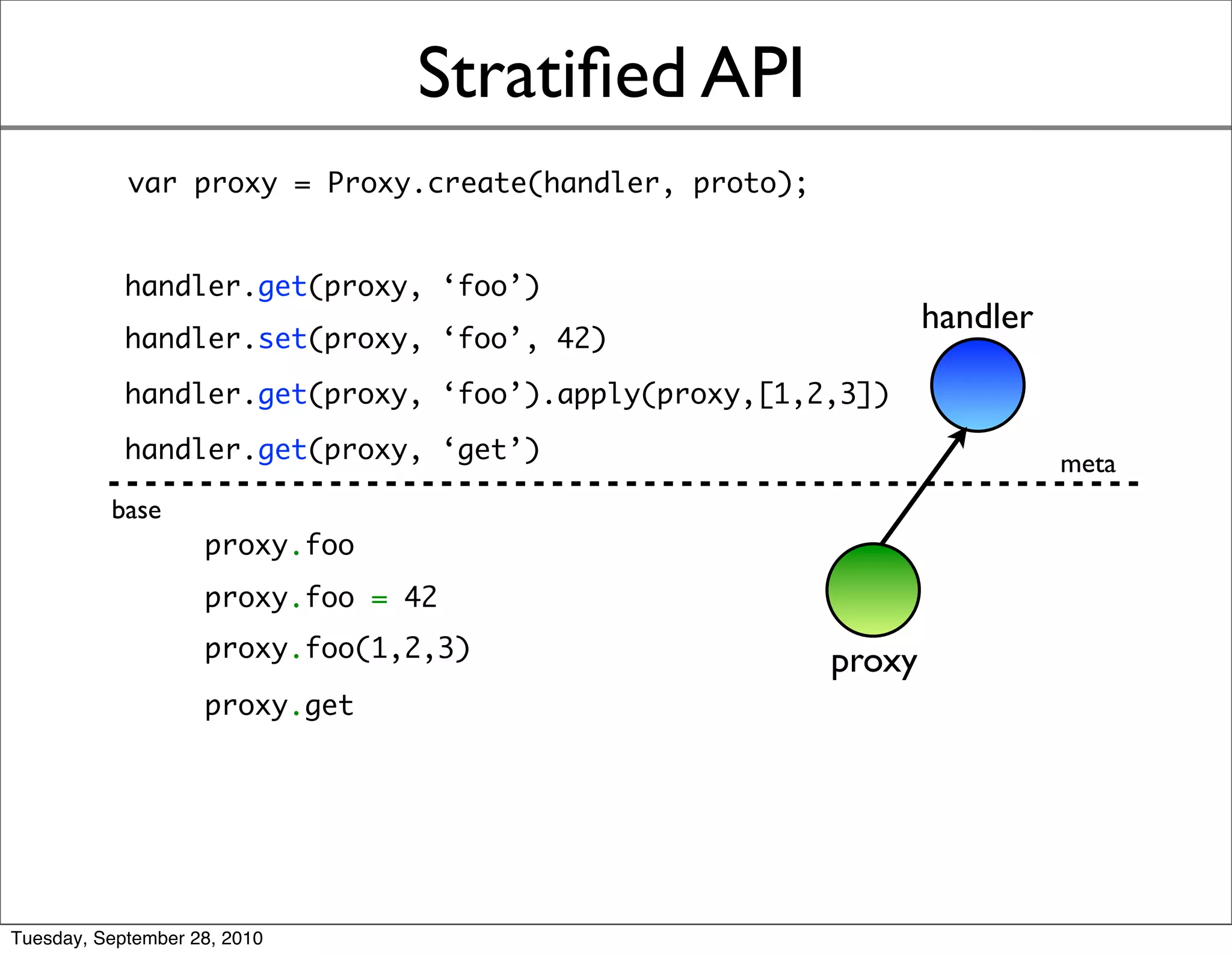

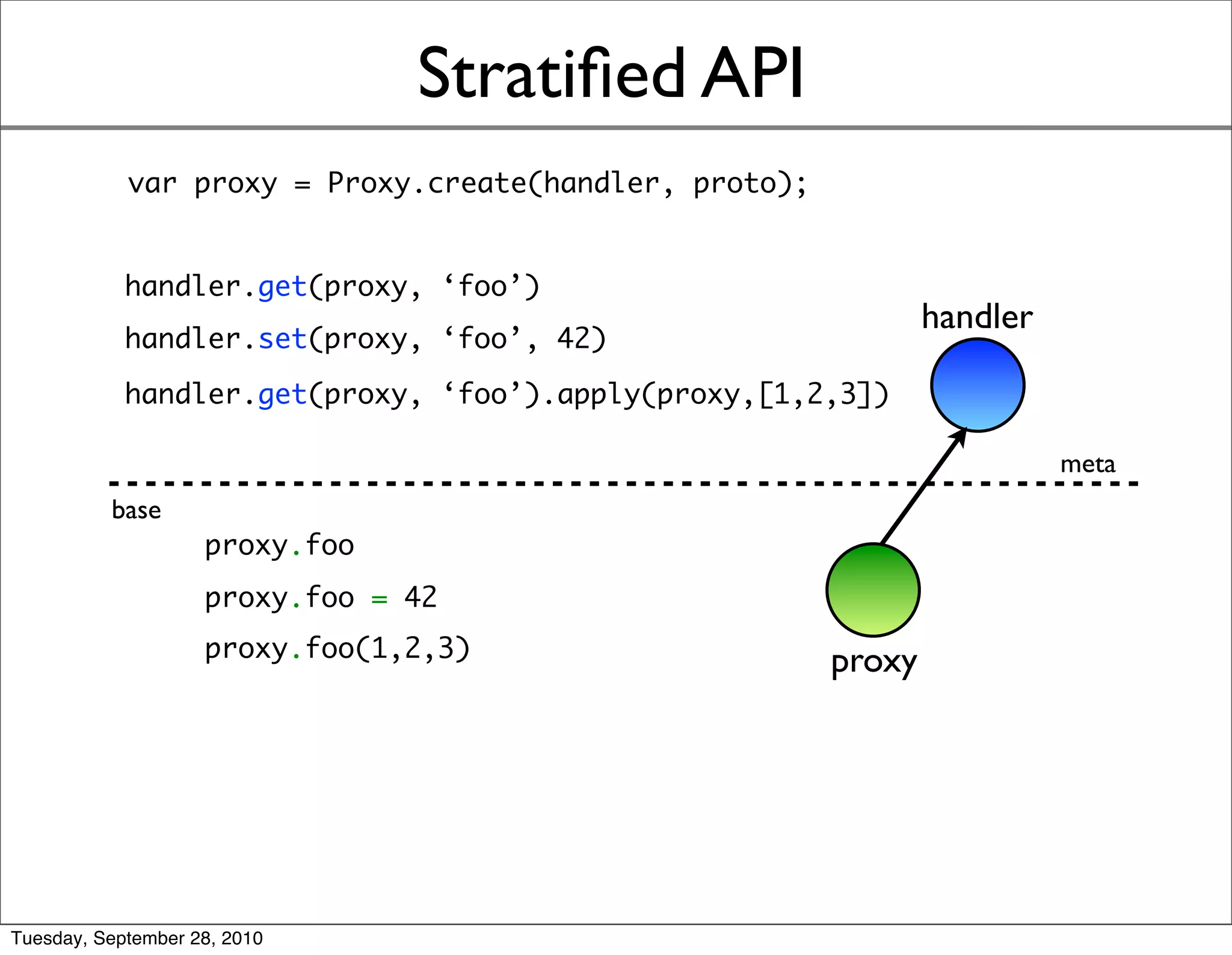

Stratified API
            var proxy = Proxy.create(handler, proto);



                                                   ...

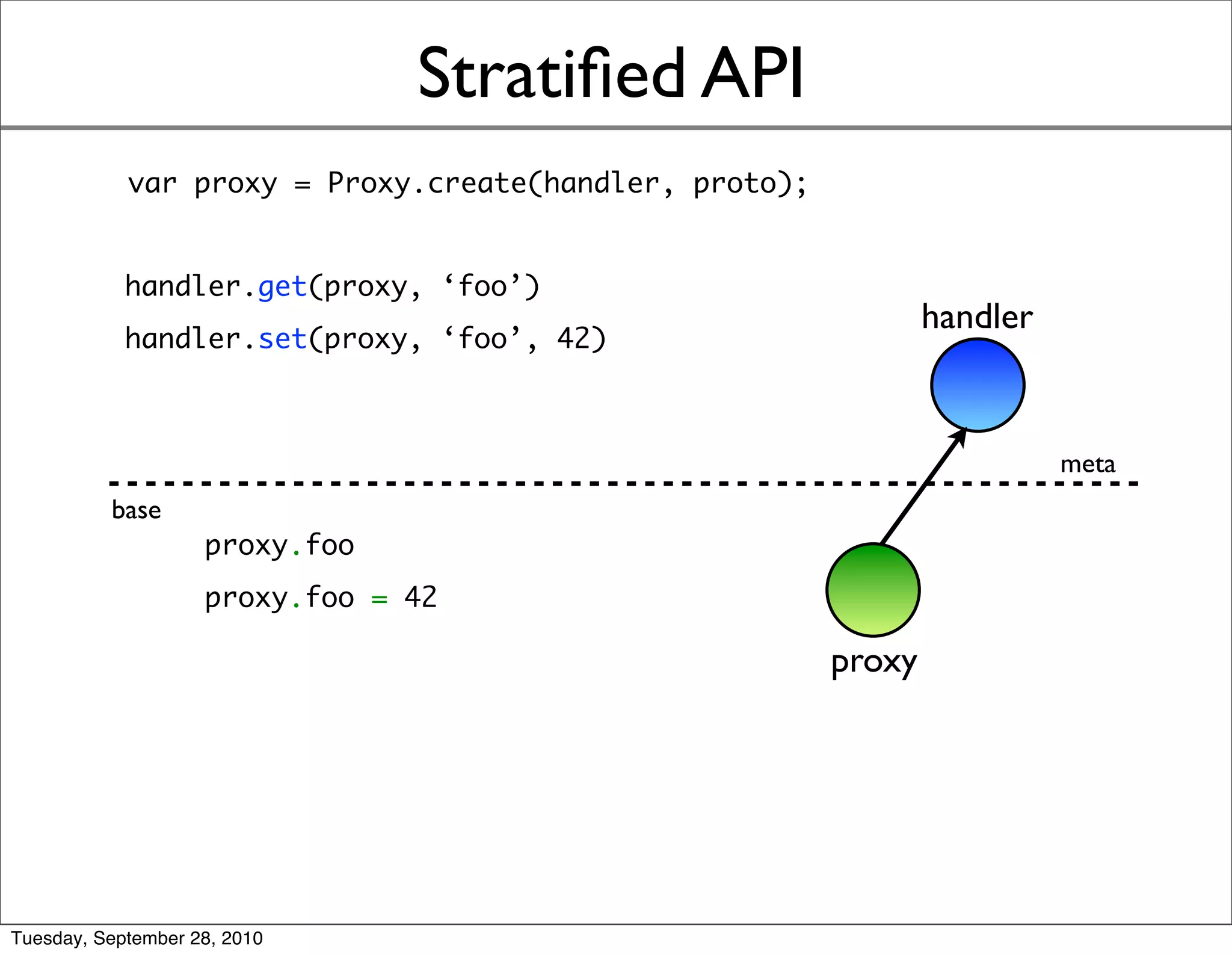

Stratified API
            var proxy = Proxy.create(handler, proto);


            handler.get(proxy, ‘foo’)
              ...
Stratified API
            var proxy = Proxy.create(handler, proto);


            handler.get(proxy, ‘foo’)
              ...
Stratified API
            var proxy = Proxy.create(handler, proto);


            handler.get(proxy, ‘foo’)
              ...
Stratified API
            var proxy = Proxy.create(handler, proto);


            handler.get(proxy, ‘foo’)
              ...
Stratified API
            var proxy = Proxy.create(handler, proto);


            handler.get(proxy, ‘foo’)
              ...

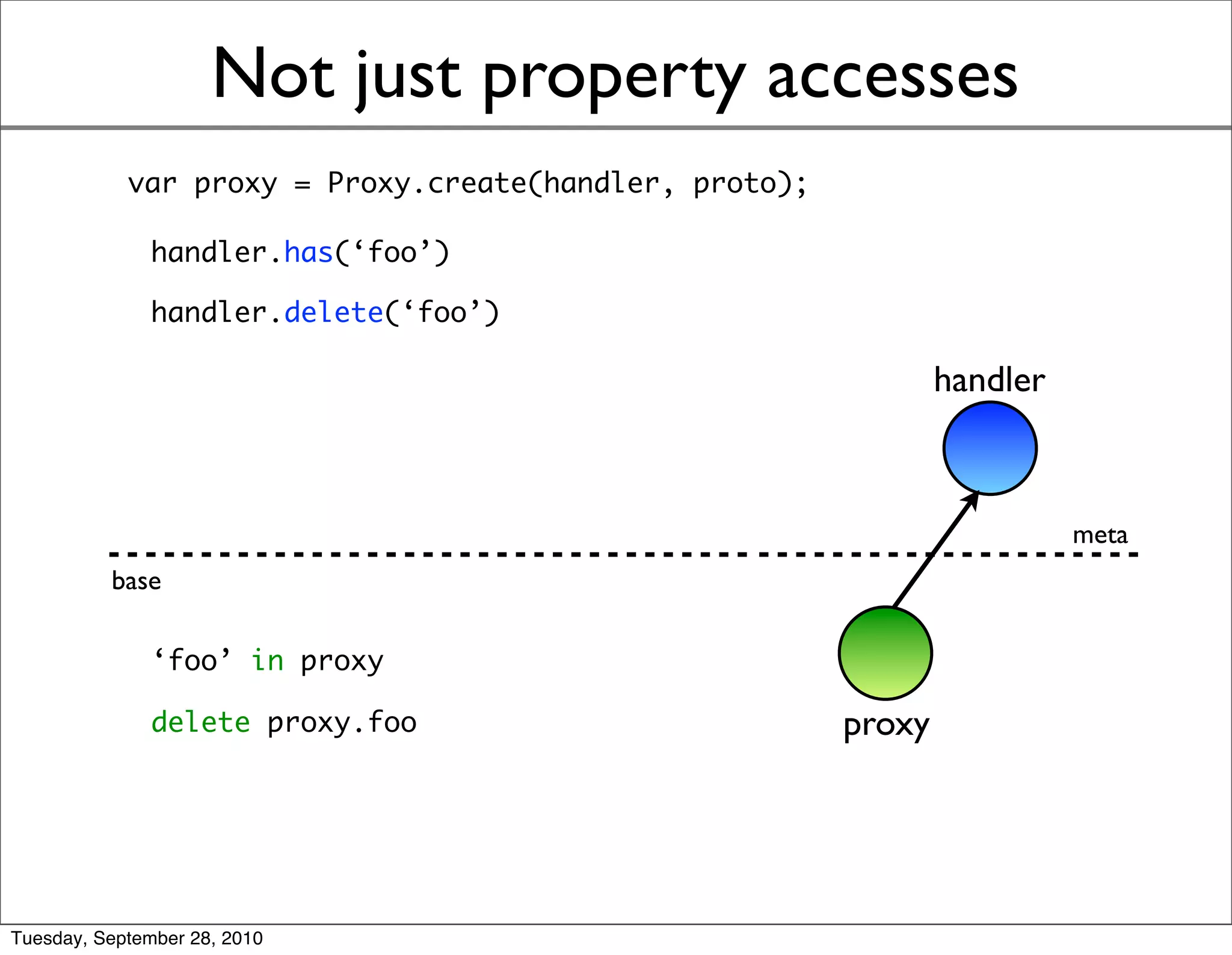

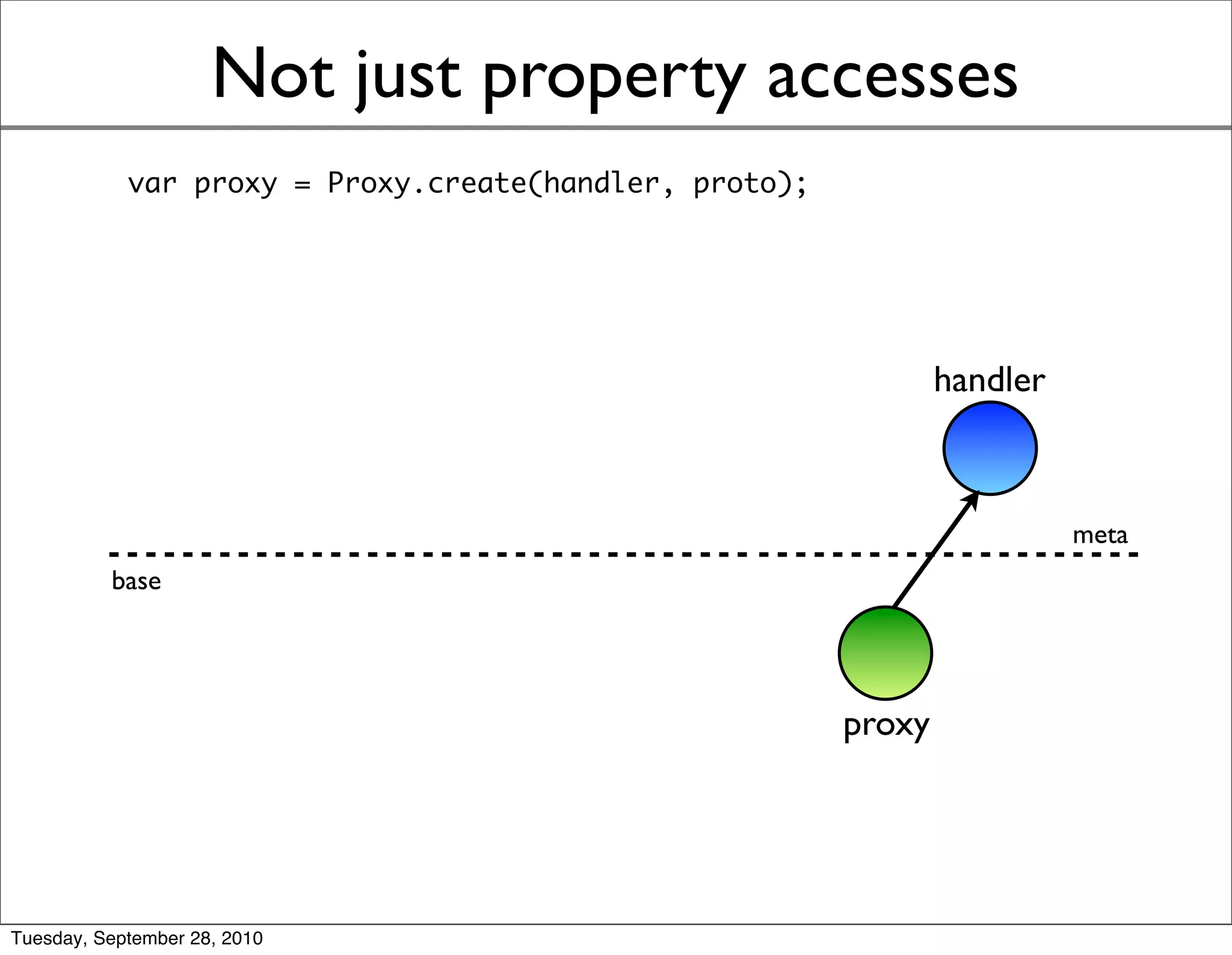

Not just property accesses
            var proxy = Proxy.create(handler, proto);




                                     ...
Not just property accesses
            var proxy = Proxy.create(handler, proto);

              handler.has(‘foo’)



    ...
Not just property accesses
            var proxy = Proxy.create(handler, proto);

              handler.has(‘foo’)

      ...
Not just property accesses
            var proxy = Proxy.create(handler, proto);

              handler.has(‘foo’)

      ...

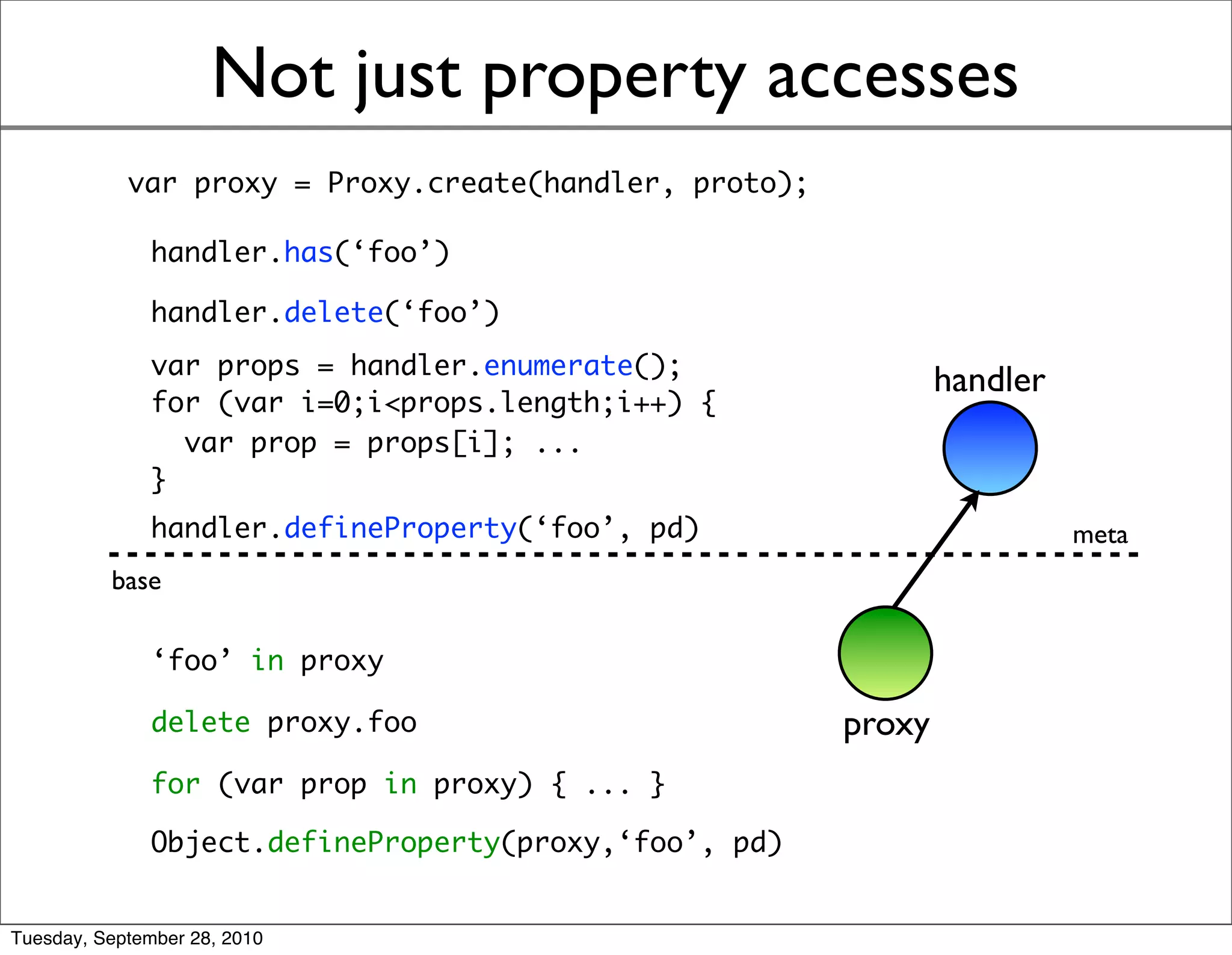

Not just property accesses
            var proxy = Proxy.create(handler, proto);

              handler.has(‘foo’)

      ...

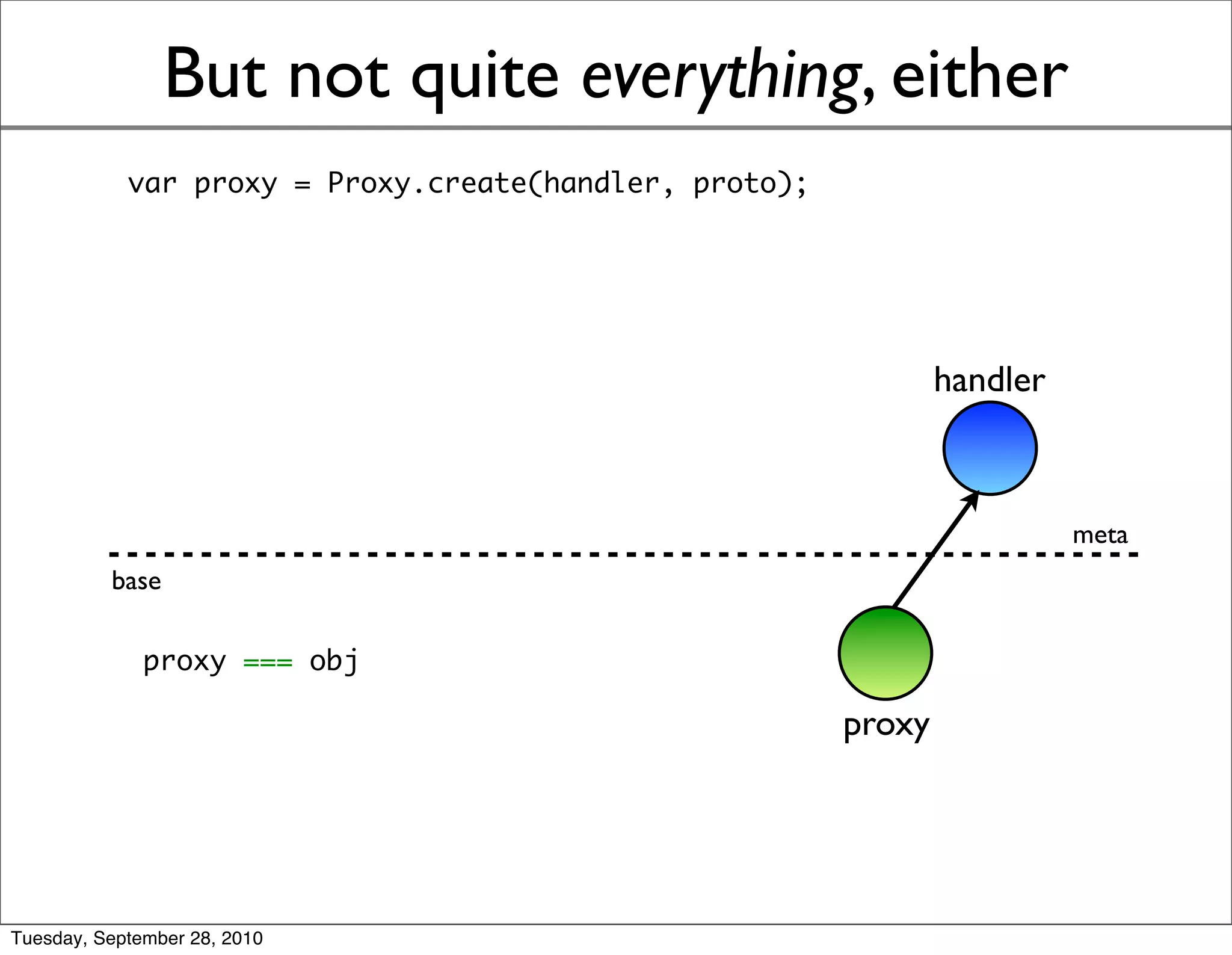

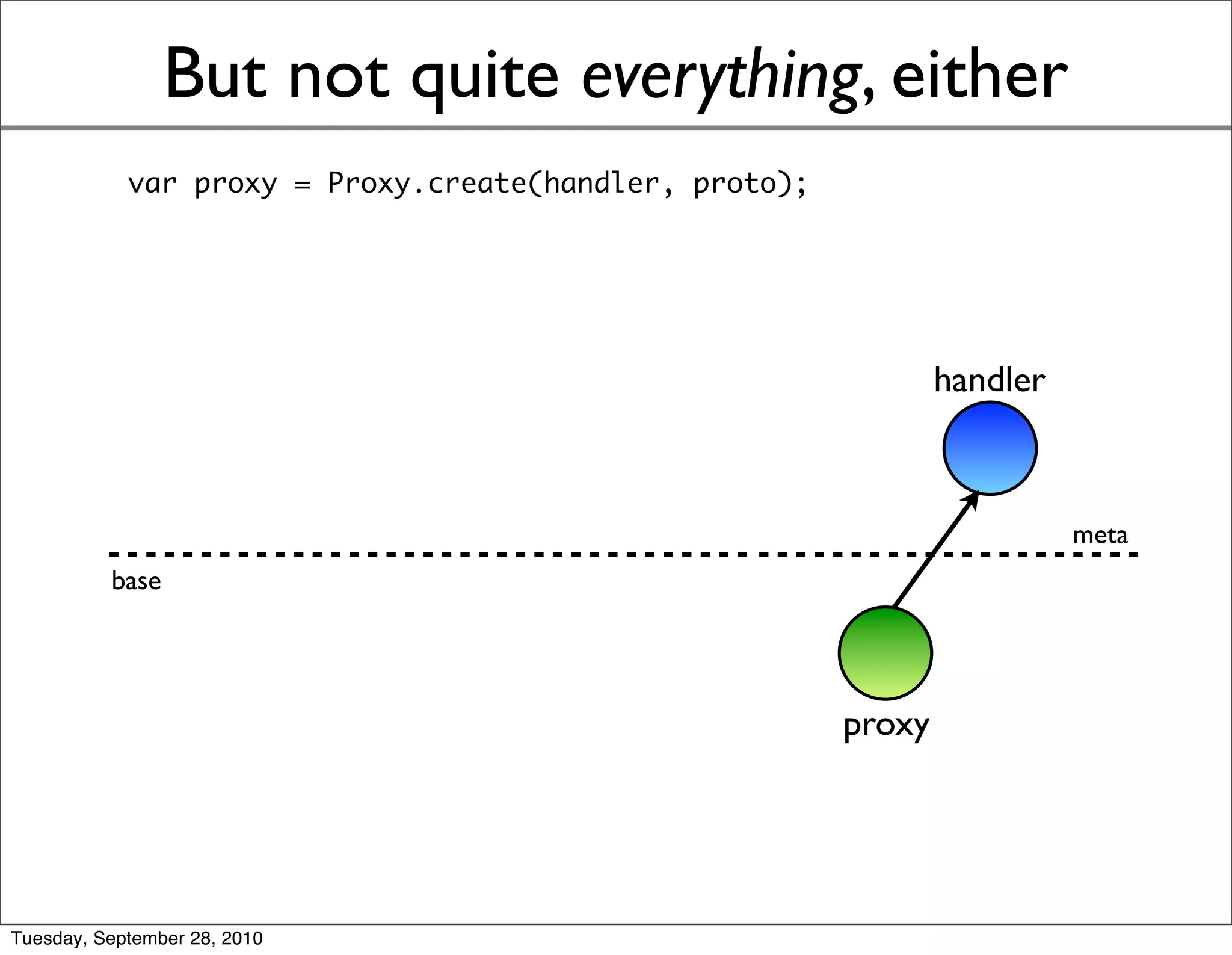

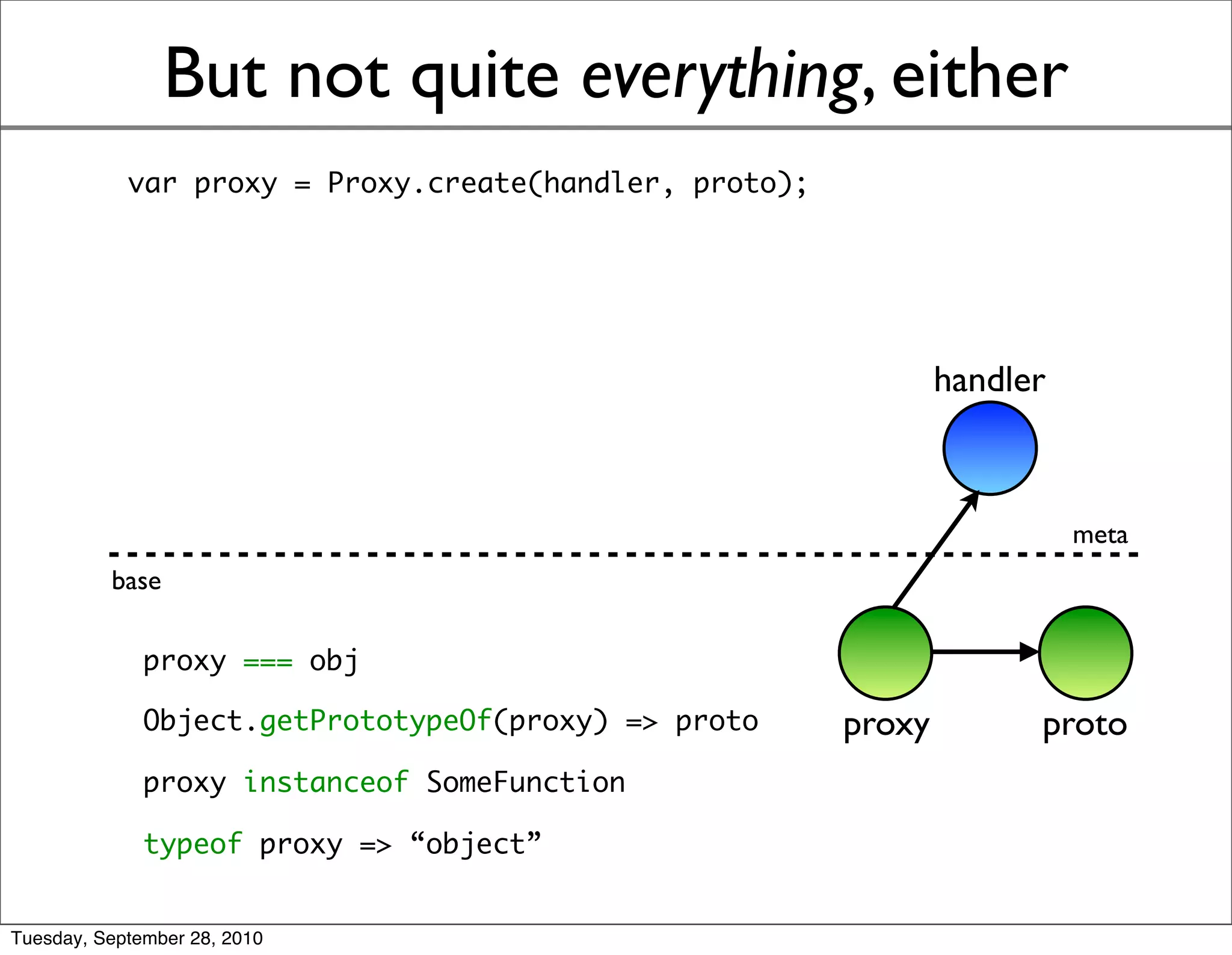

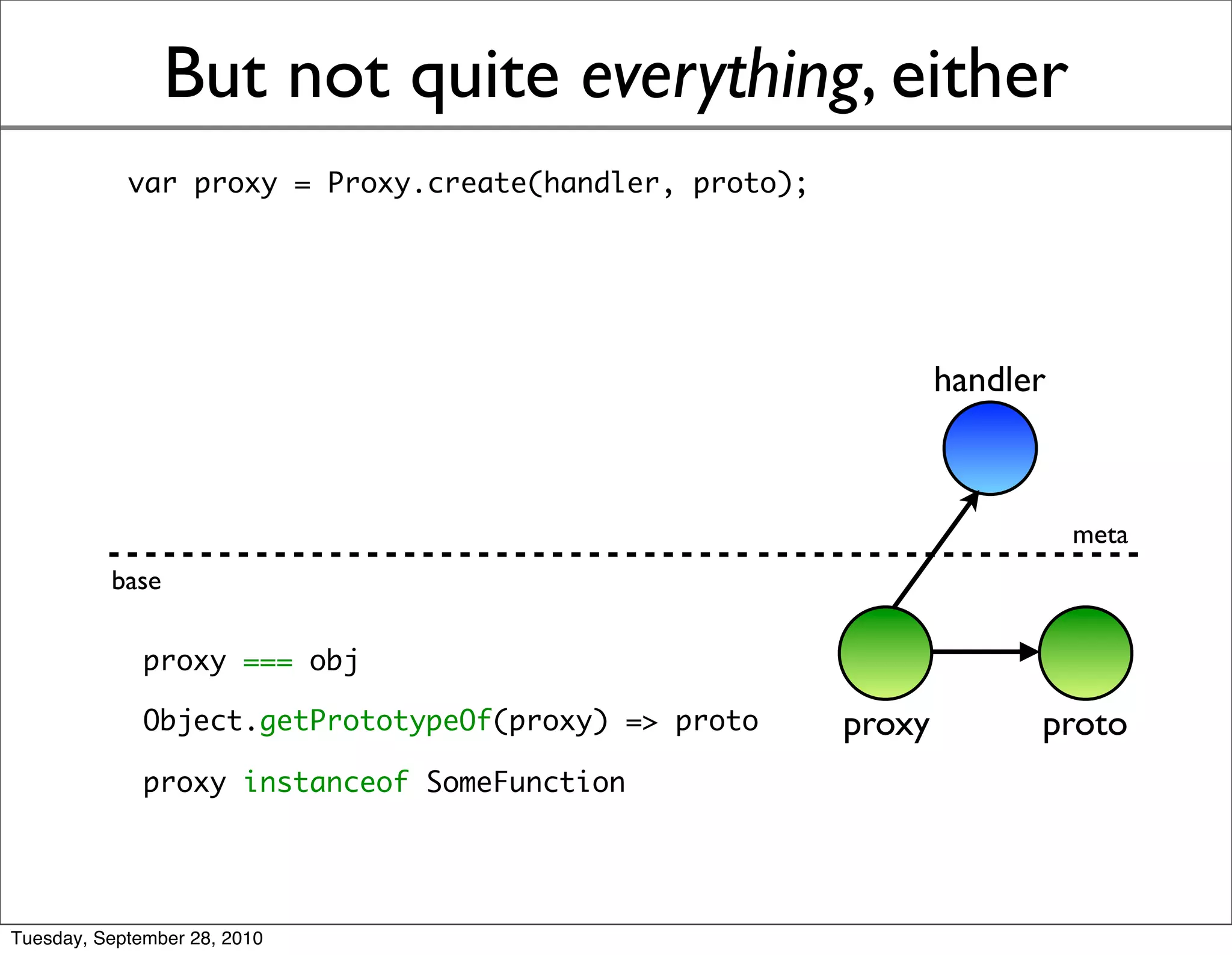

But not quite everything, either
            var proxy = Proxy.create(handler, proto);




                               ...
But not quite everything, either
            var proxy = Proxy.create(handler, proto);




                               ...
But not quite everything, either
            var proxy = Proxy.create(handler, proto);




                               ...
But not quite everything, either
            var proxy = Proxy.create(handler, proto);




                               ...
But not quite everything, either
            var proxy = Proxy.create(handler, proto);




                               ...

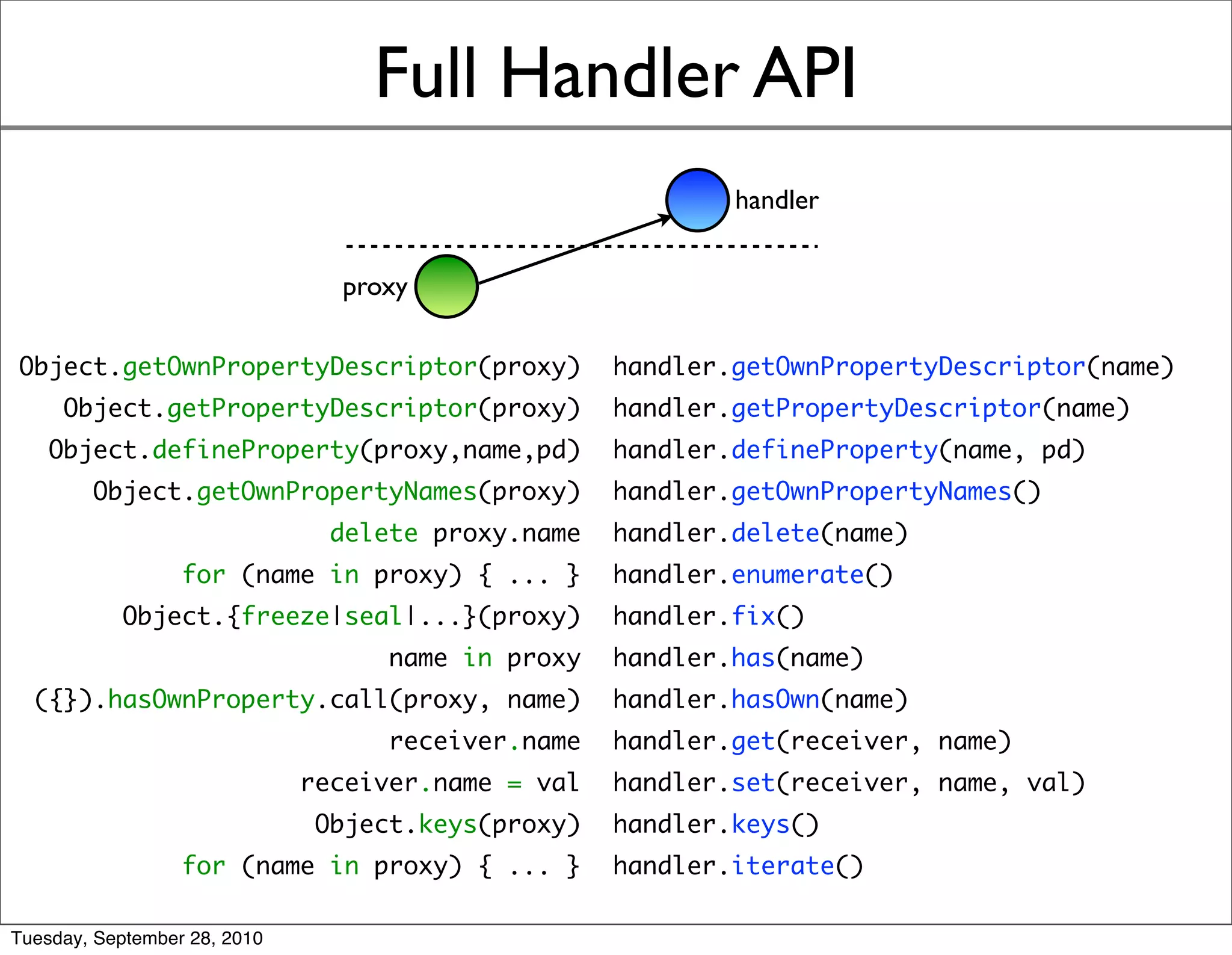

Full Handler API
                                                            handler


                                pro...

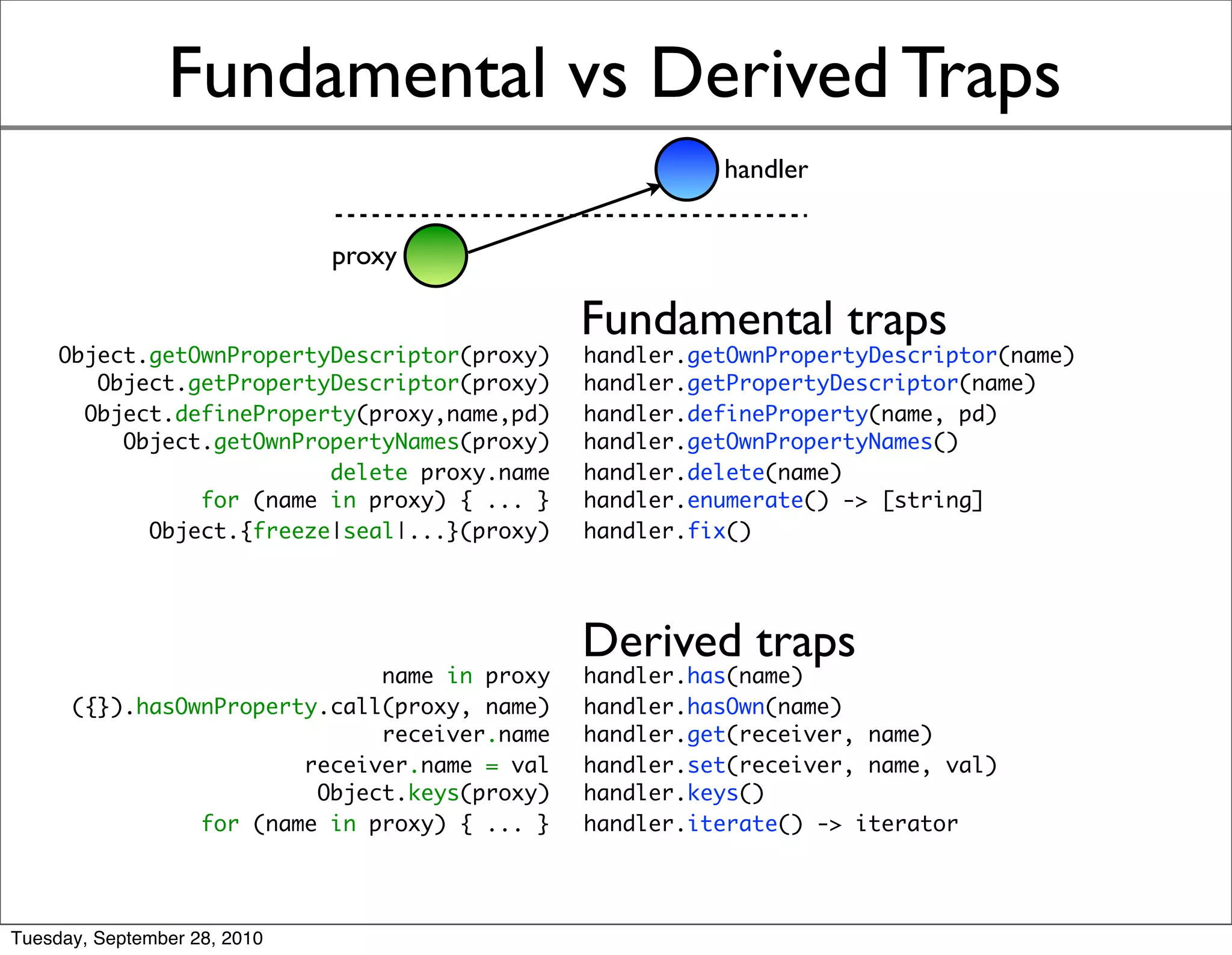

Fundamental vs Derived Traps
                                                         handler


                          ...

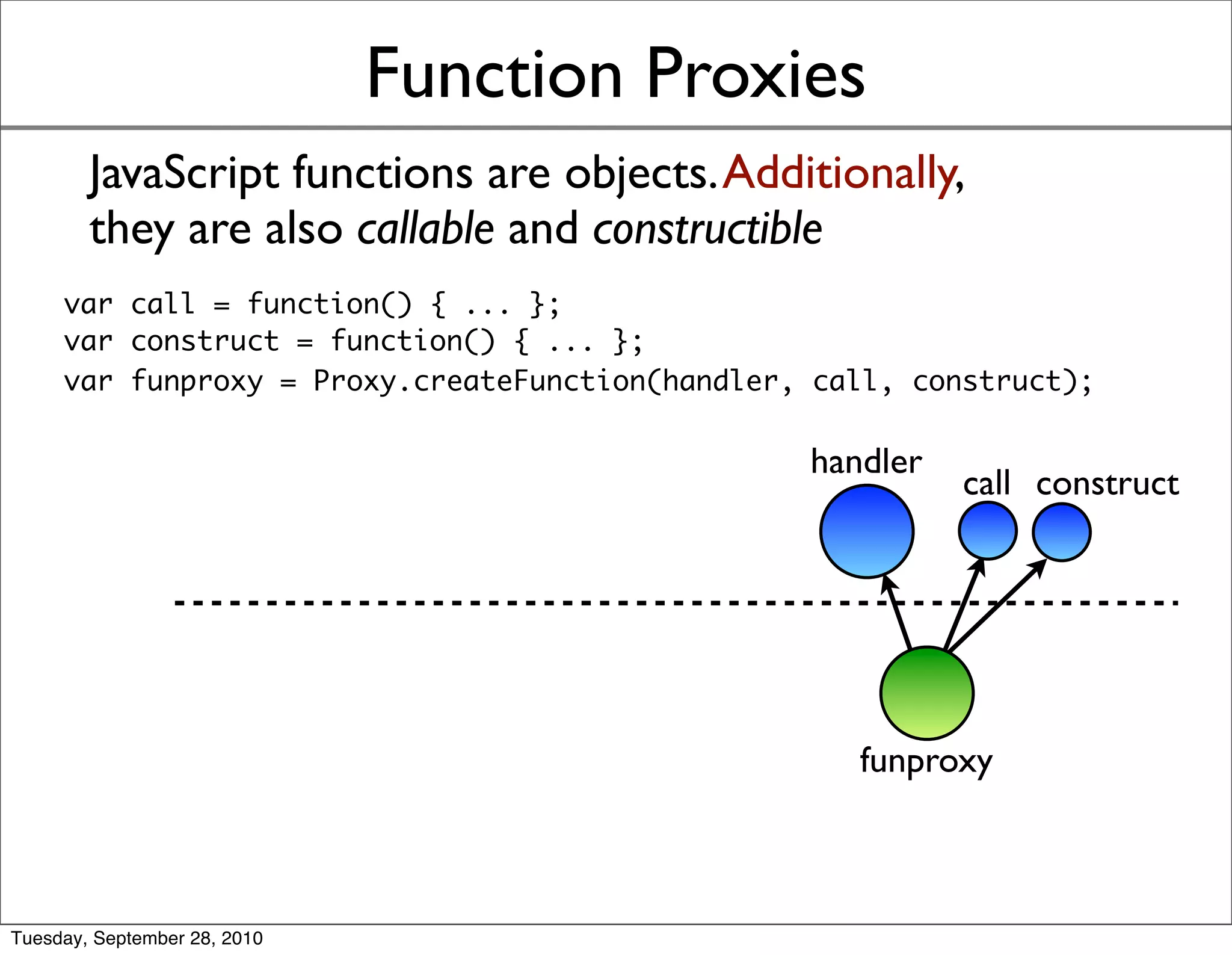

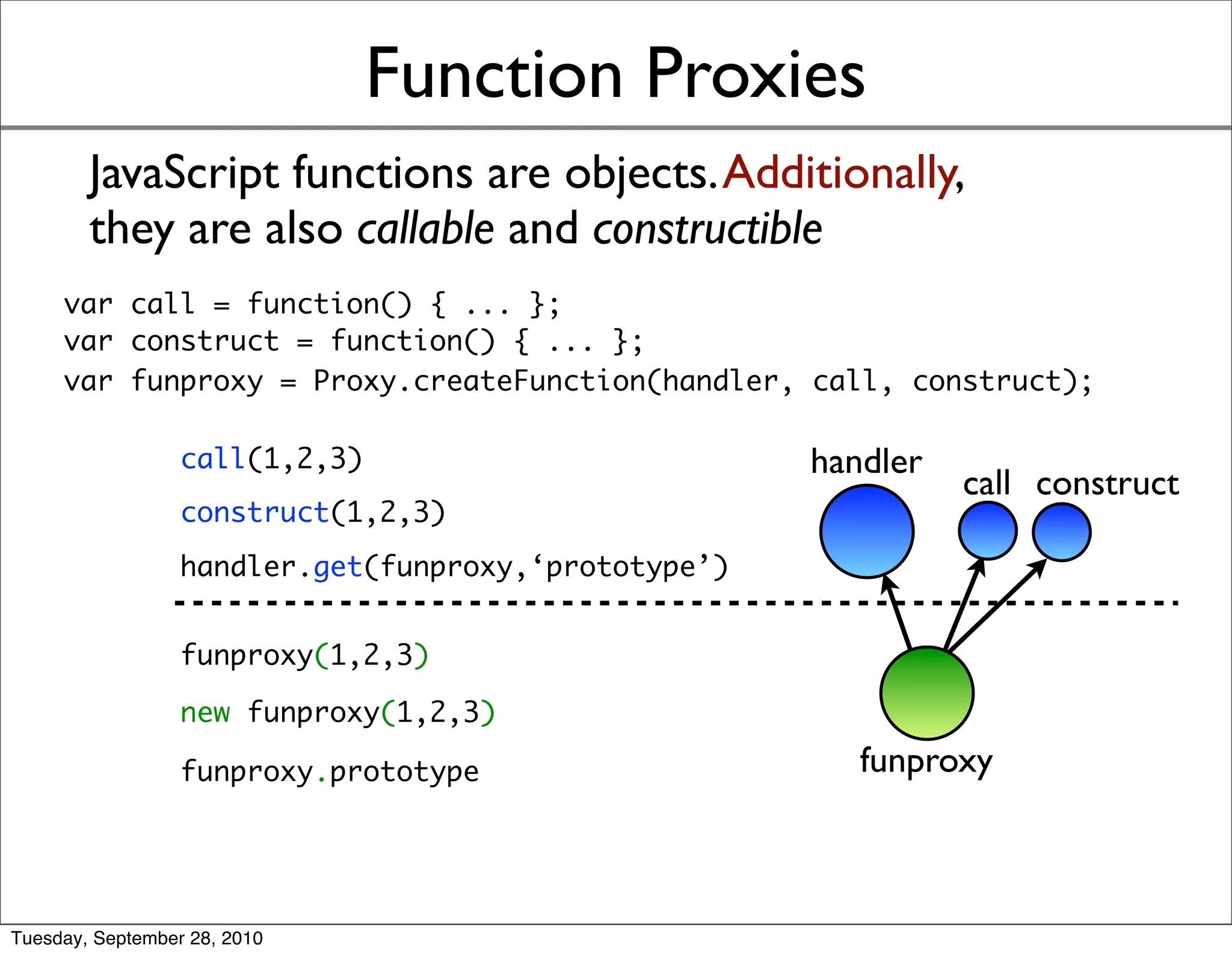

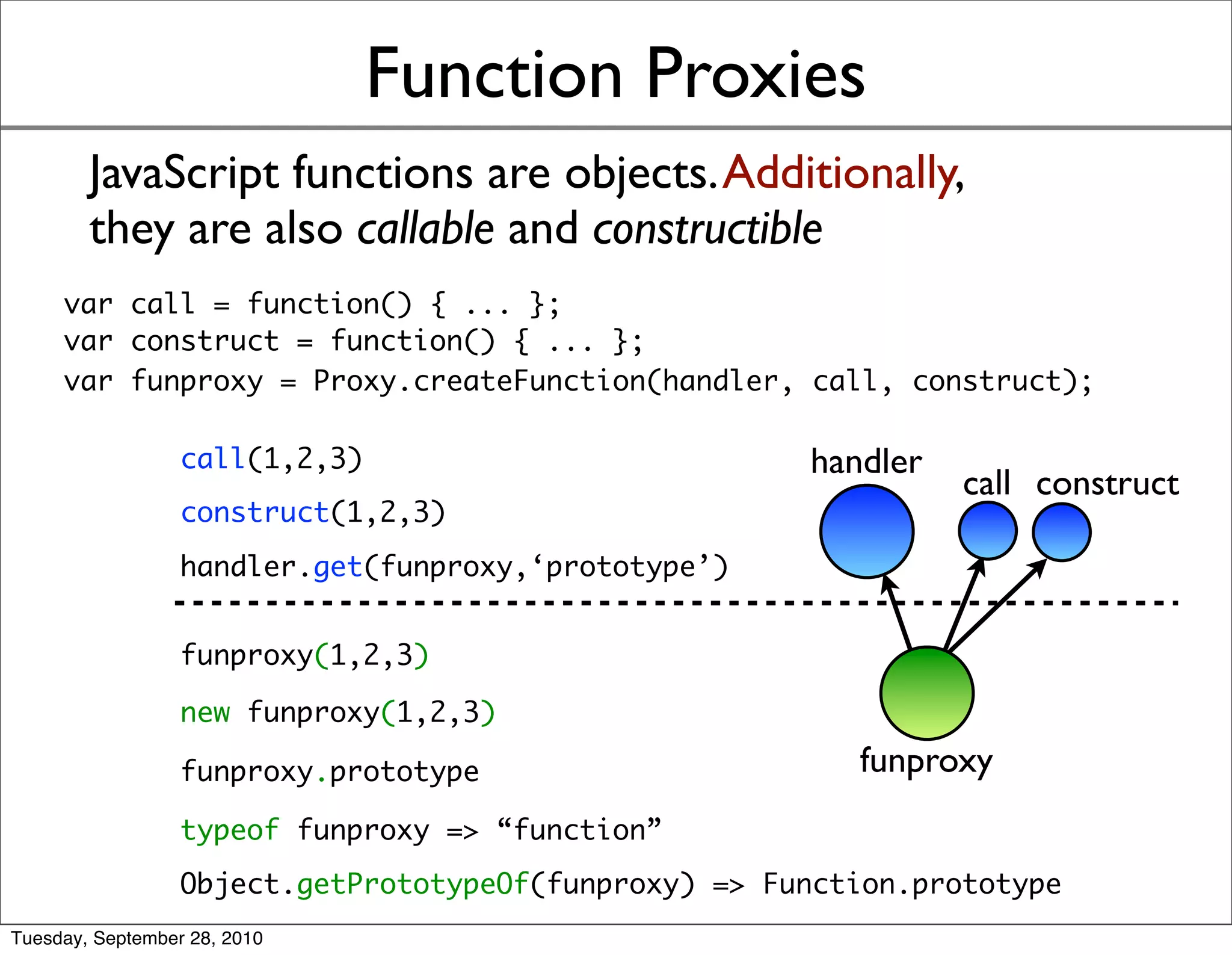

Function Proxies
        JavaScript functions are objects. Additionally,
        they are also callable and constructible
...
Function Proxies
        JavaScript functions are objects. Additionally,
        they are also callable and constructible
...
Function Proxies
        JavaScript functions are objects. Additionally,
        they are also callable and constructible
...
Function Proxies
        JavaScript functions are objects. Additionally,
        they are also callable and constructible
...
Function Proxies
        JavaScript functions are objects. Additionally,
        they are also callable and constructible
...
Function Proxies
        JavaScript functions are objects. Additionally,
        they are also callable and constructible
...
Dilemma: Invoke vs Get+Call
               • Fundamental vs derived traps = tradeoff in
                     performance (...

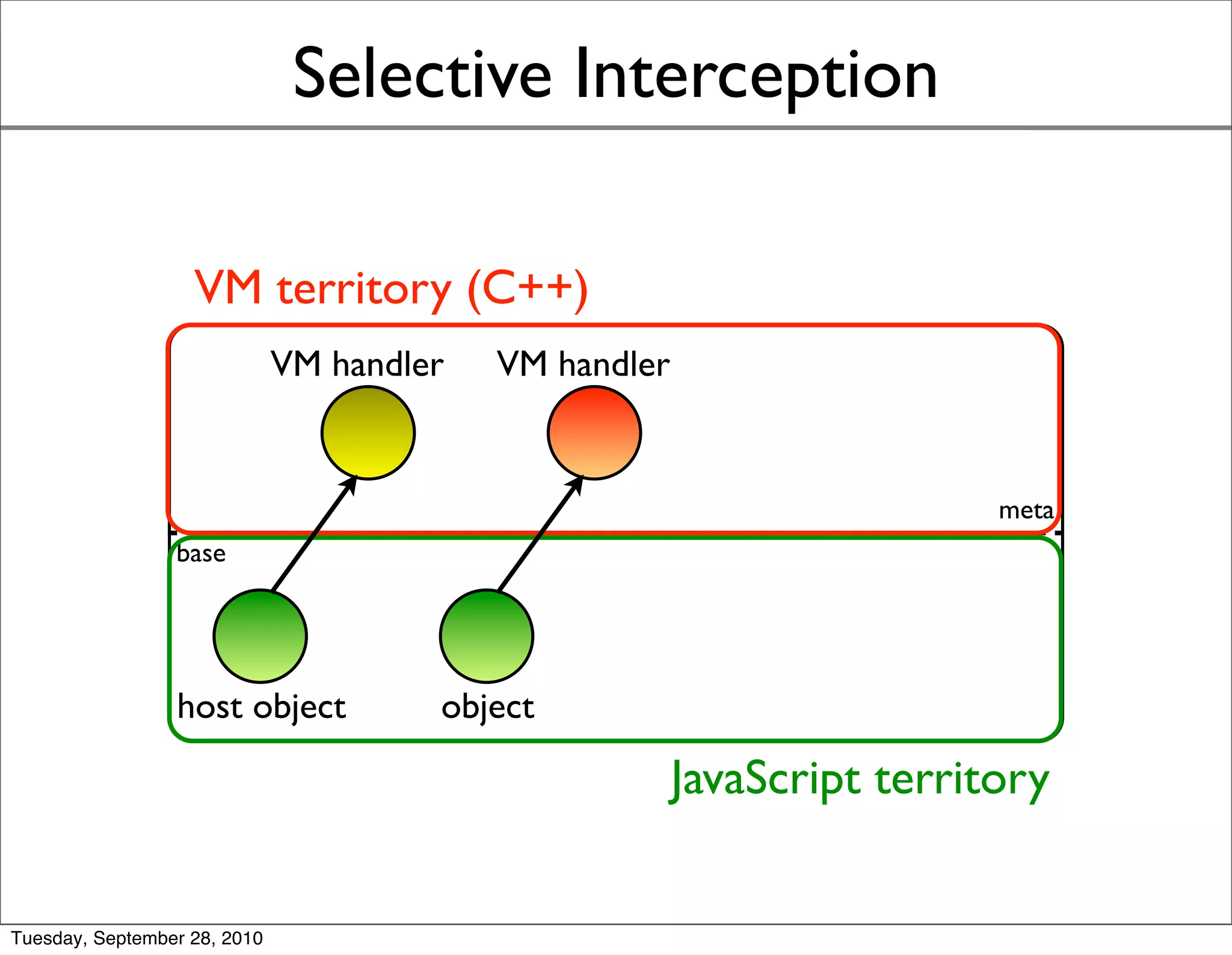

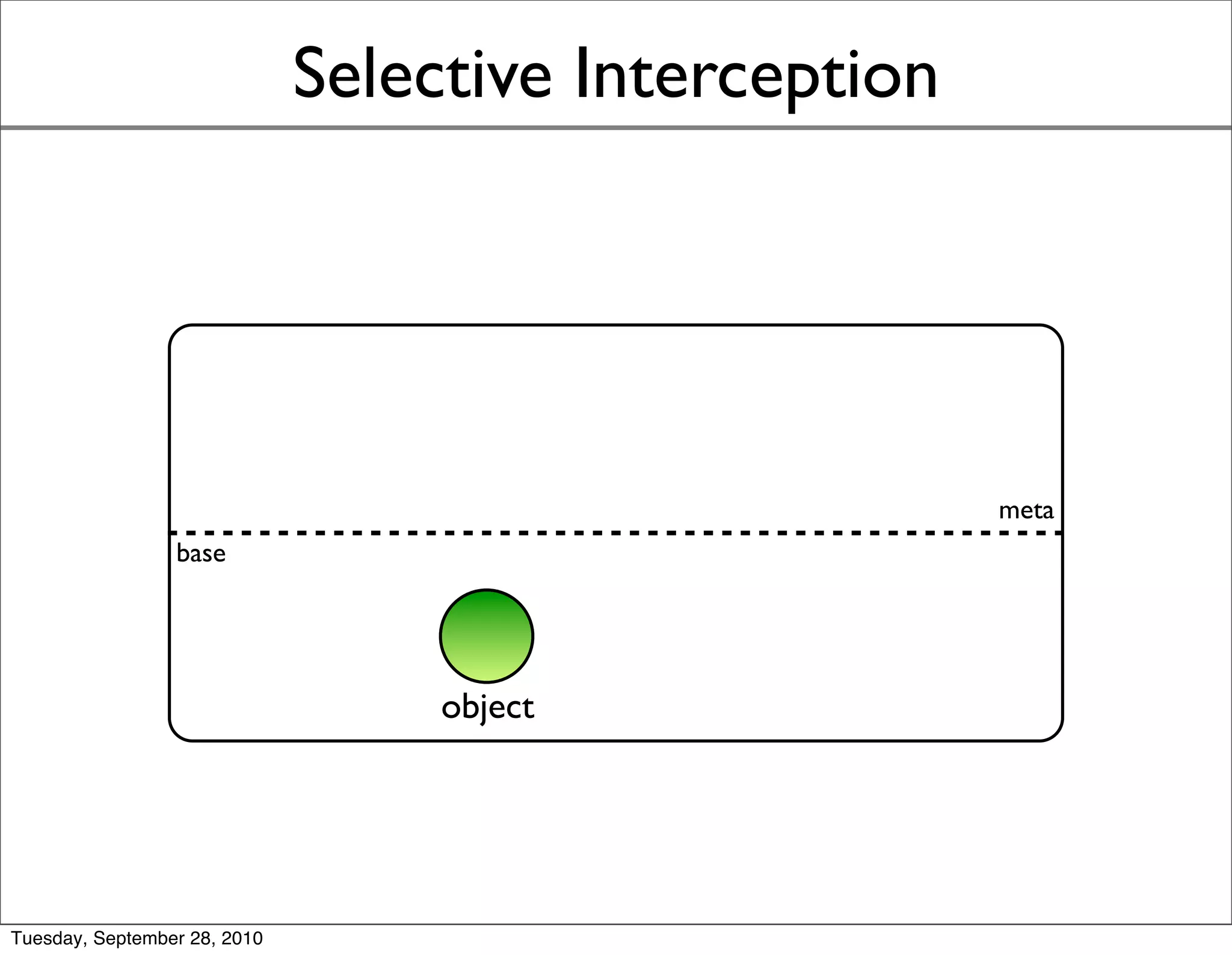

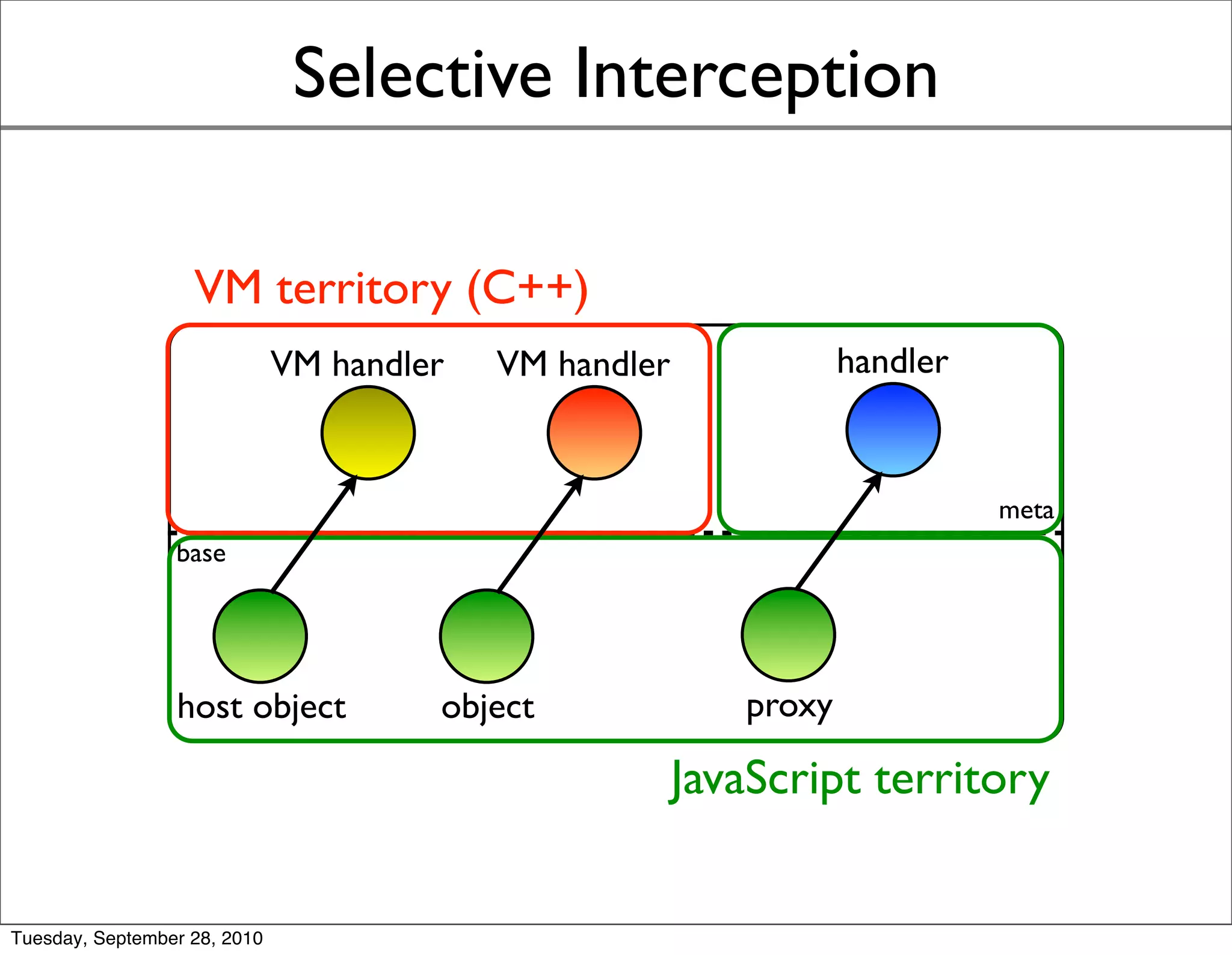

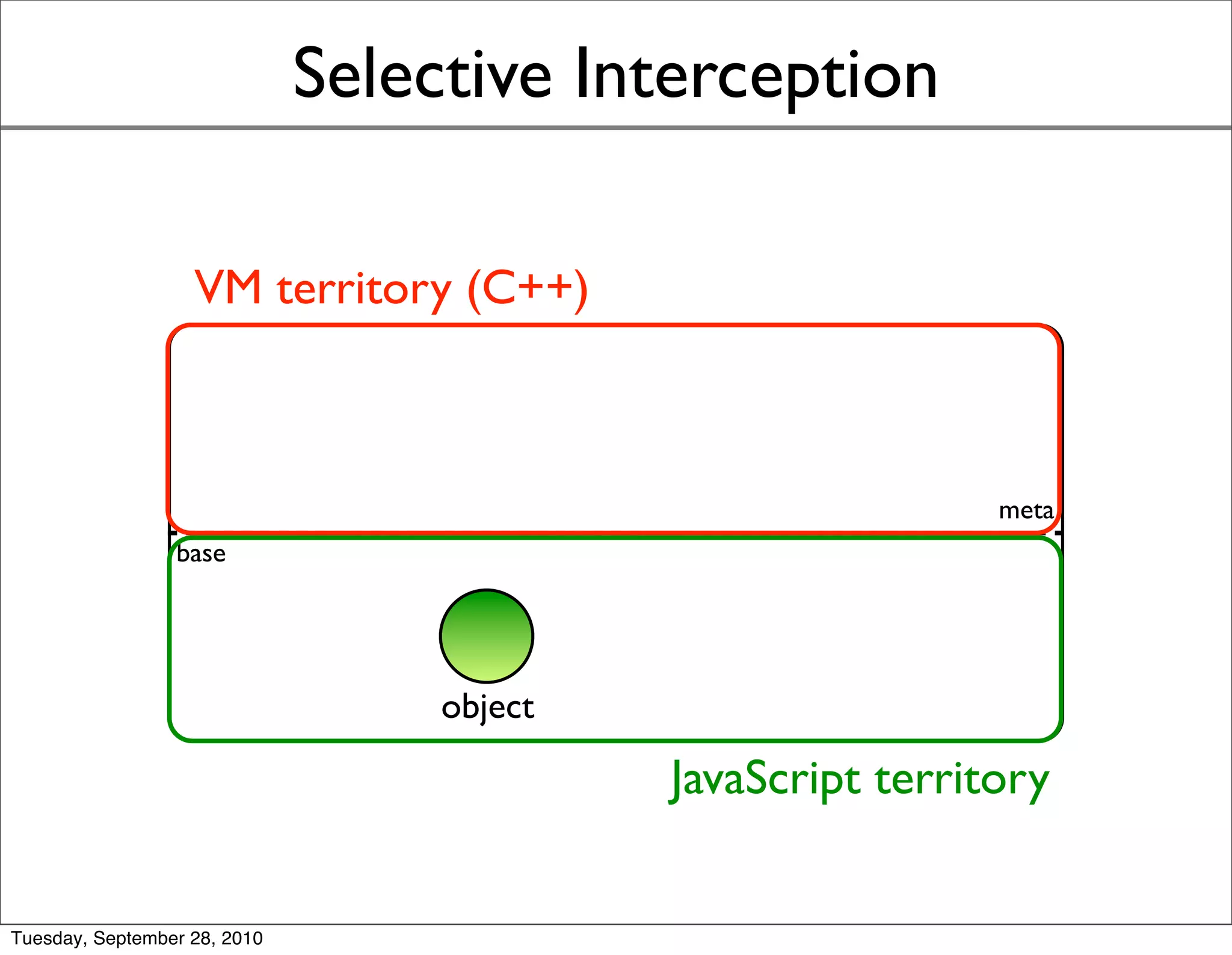

Selective Interception




                                                       meta
                 base




         ...
Selective Interception

                   VM territory (C++)



                                                         ...

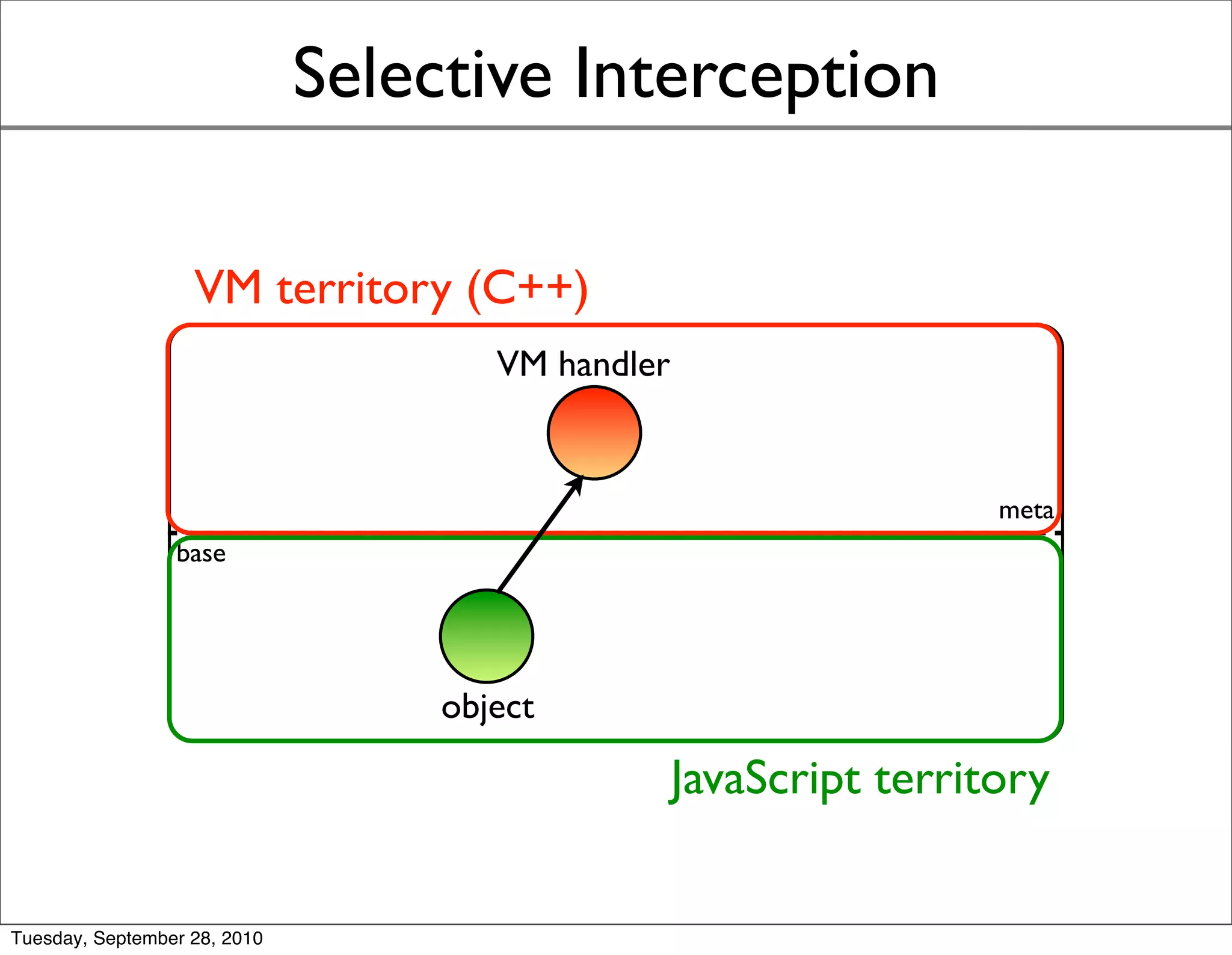

Selective Interception

                   VM territory (C++)
                                      VM handler


         ...
Selective Interception

                   VM territory (C++)
                              VM handler   VM handler


    ...
Selective Interception

                   VM territory (C++)
                              VM handler   VM handler       ...
Selective Interception

                   VM territory (C++)
                              VM handler   VM handler       ...

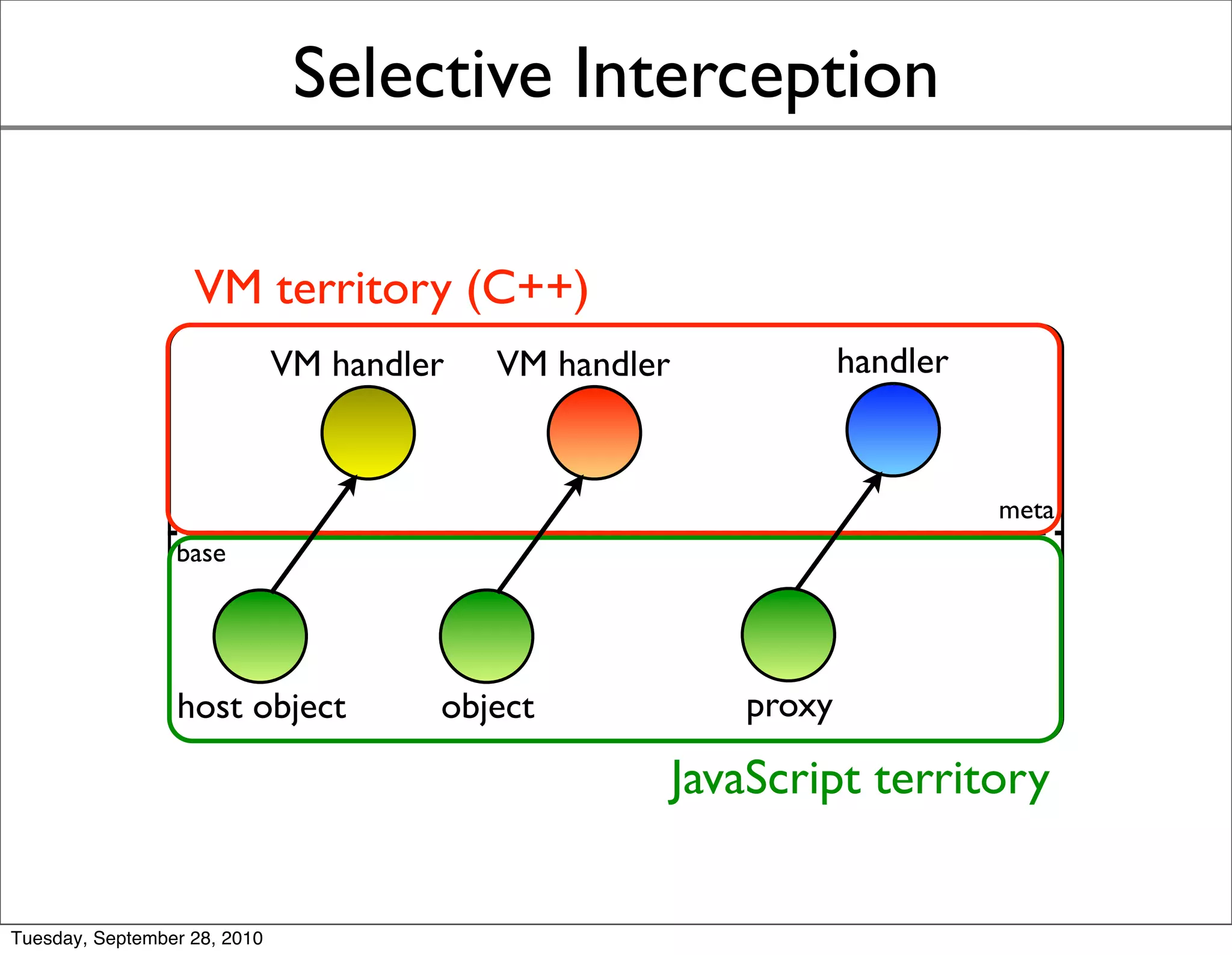

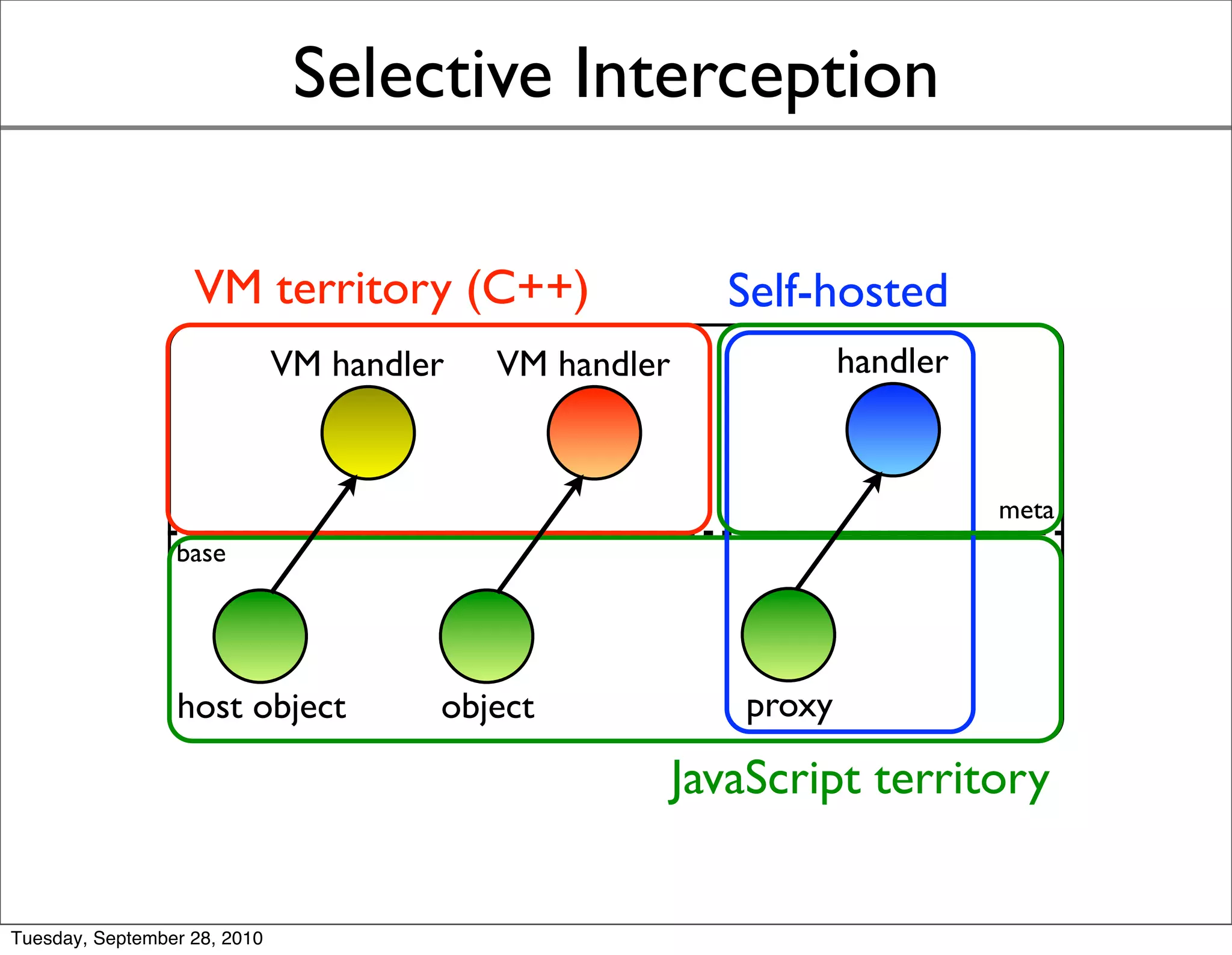

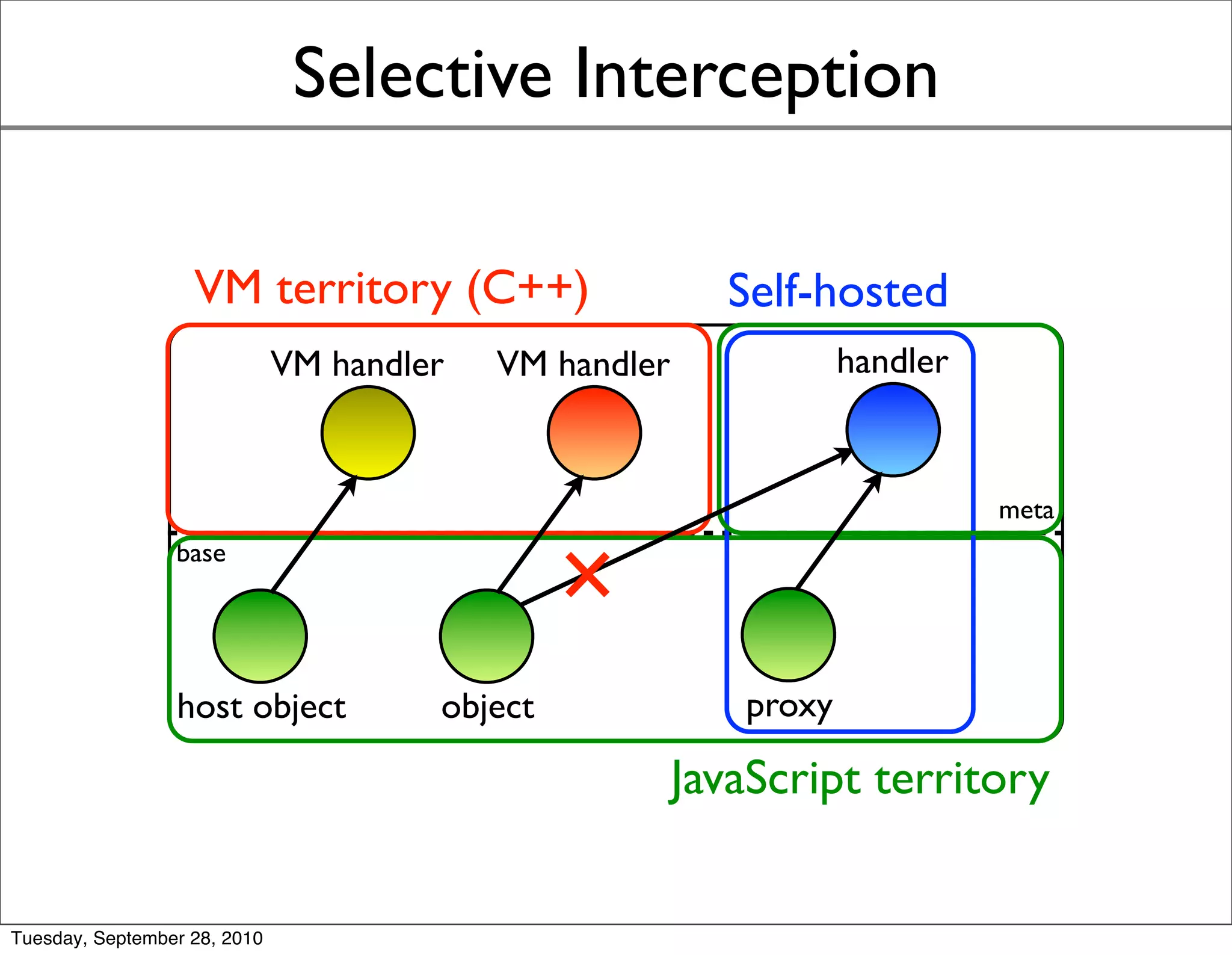

Selective Interception

                   VM territory (C++)                      Self-hosted
                           ...
Selective Interception

                   VM territory (C++)                      Self-hosted
                           ...

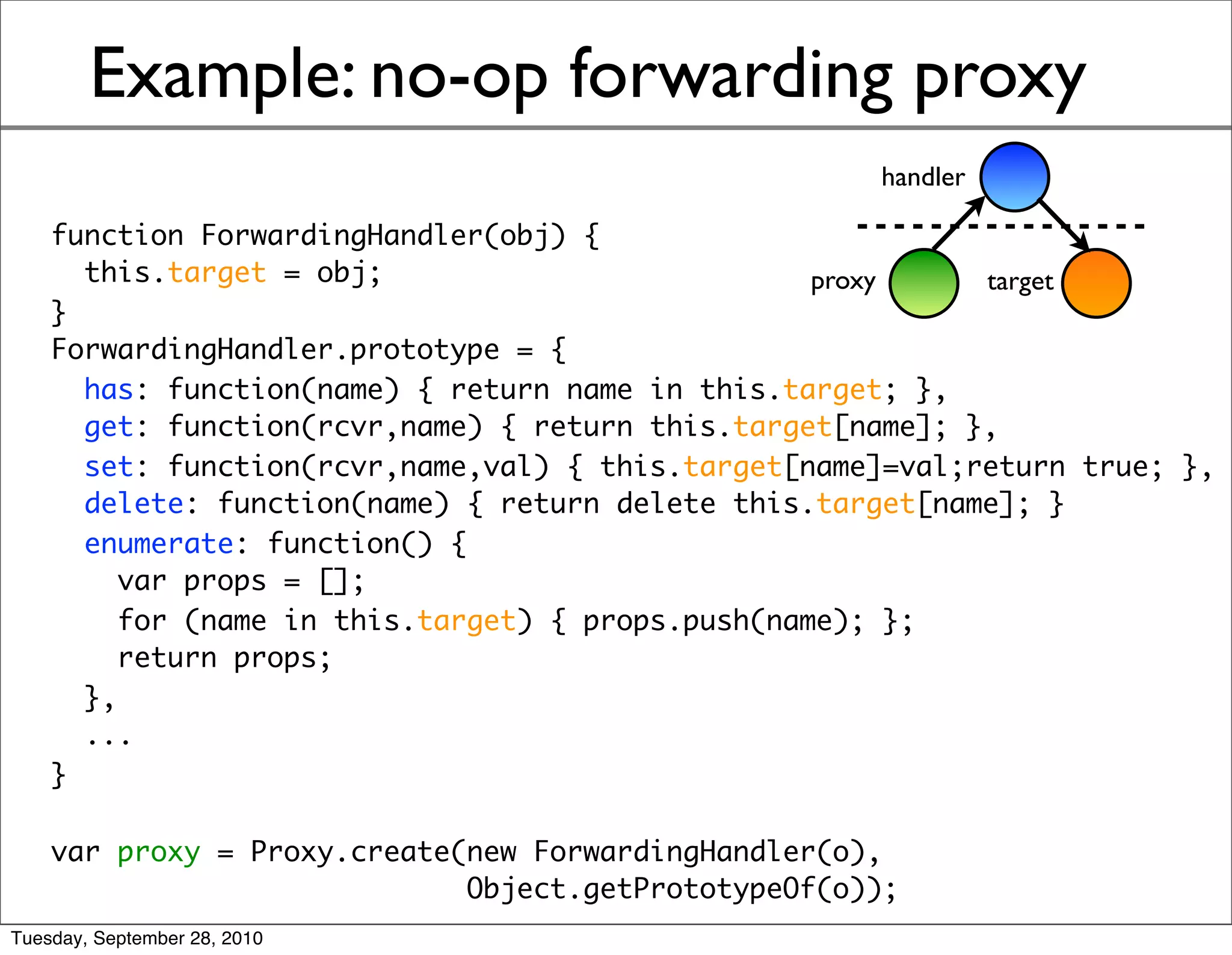

Example: no-op forwarding proxy
                                                     handler

    function ForwardingHandl...

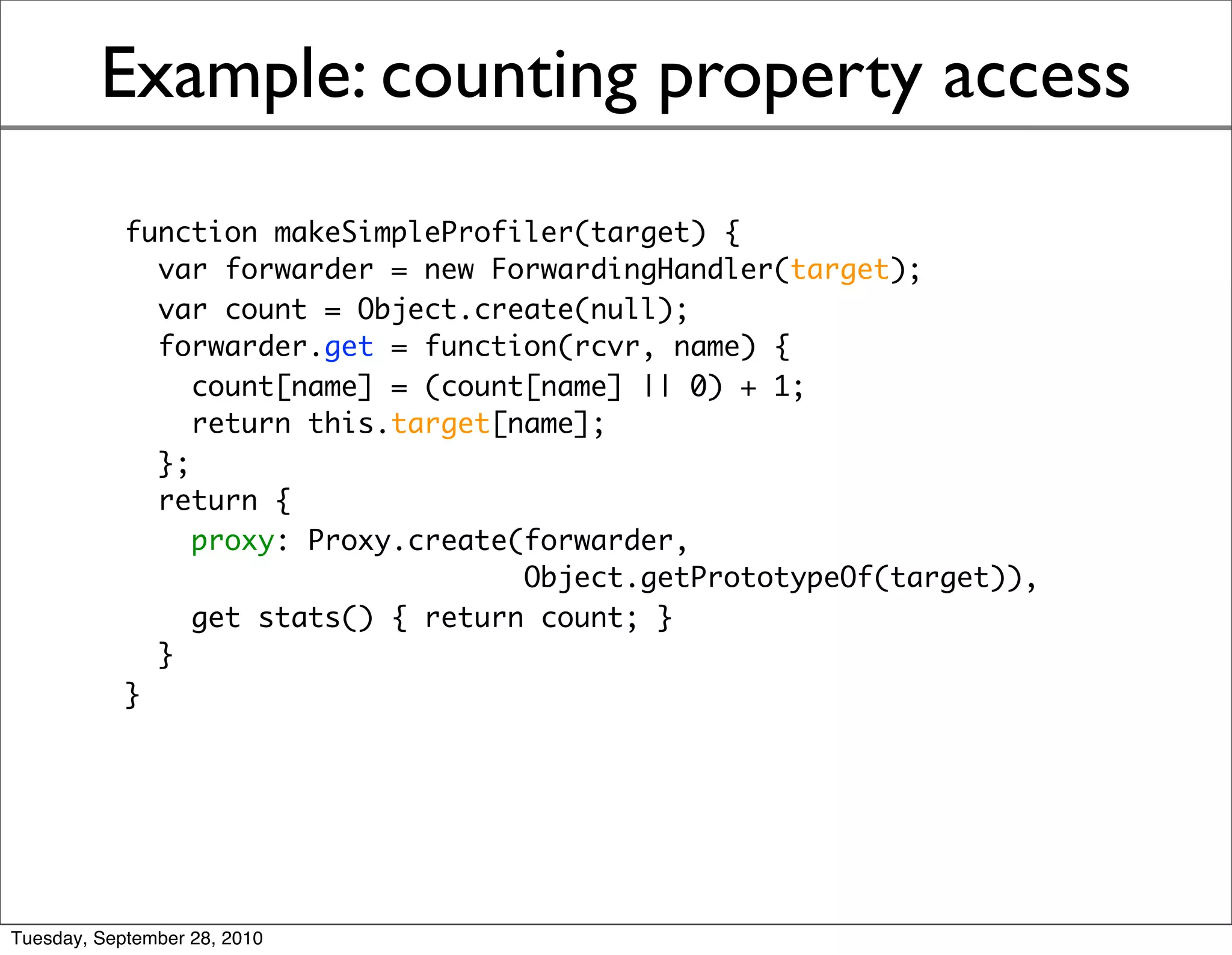

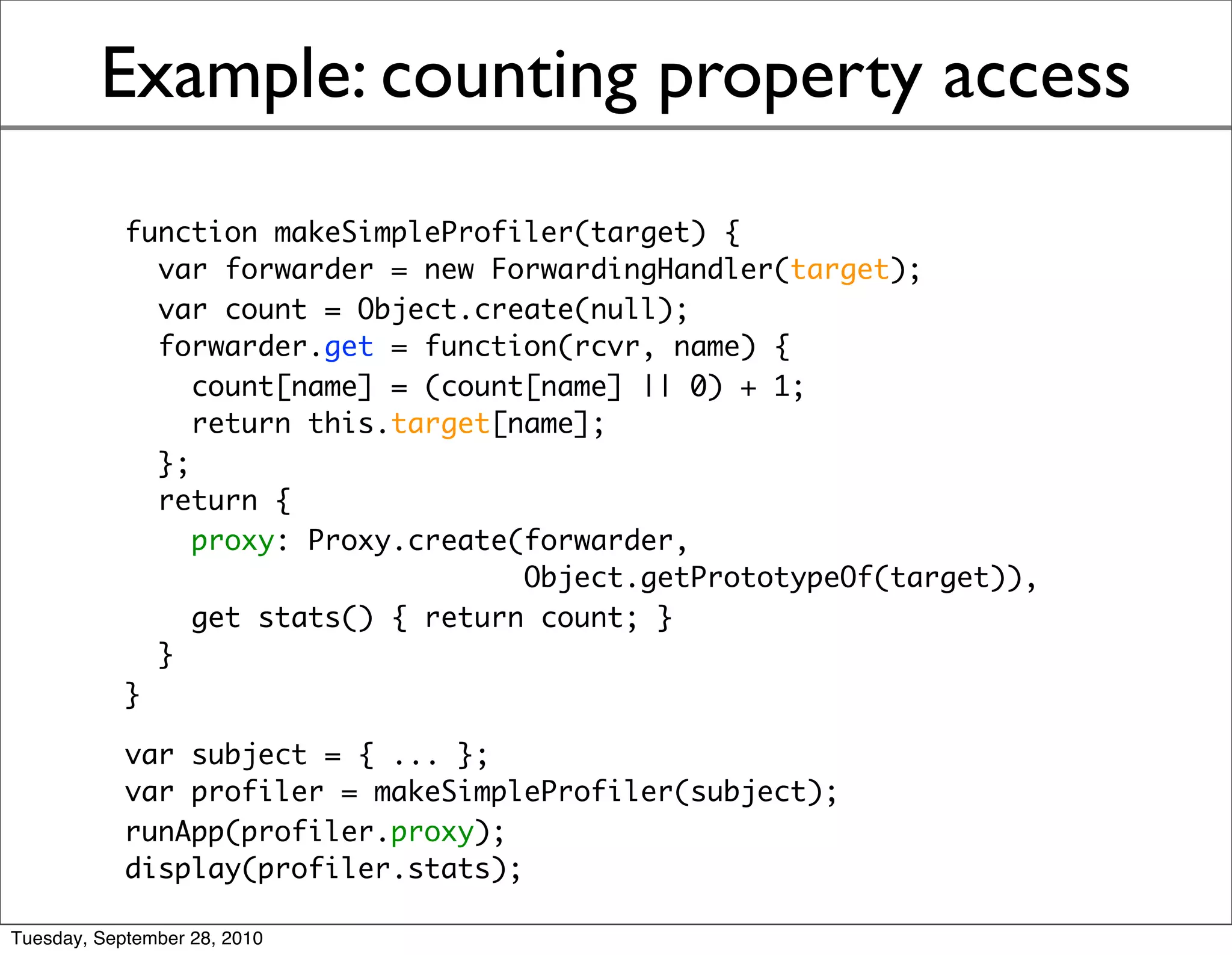

Example: counting property access
            function makeSimpleProfiler(target) {
              var forwarder = new Forw...
Example: counting property access
            function makeSimpleProfiler(target) {
              var forwarder = new Forw...

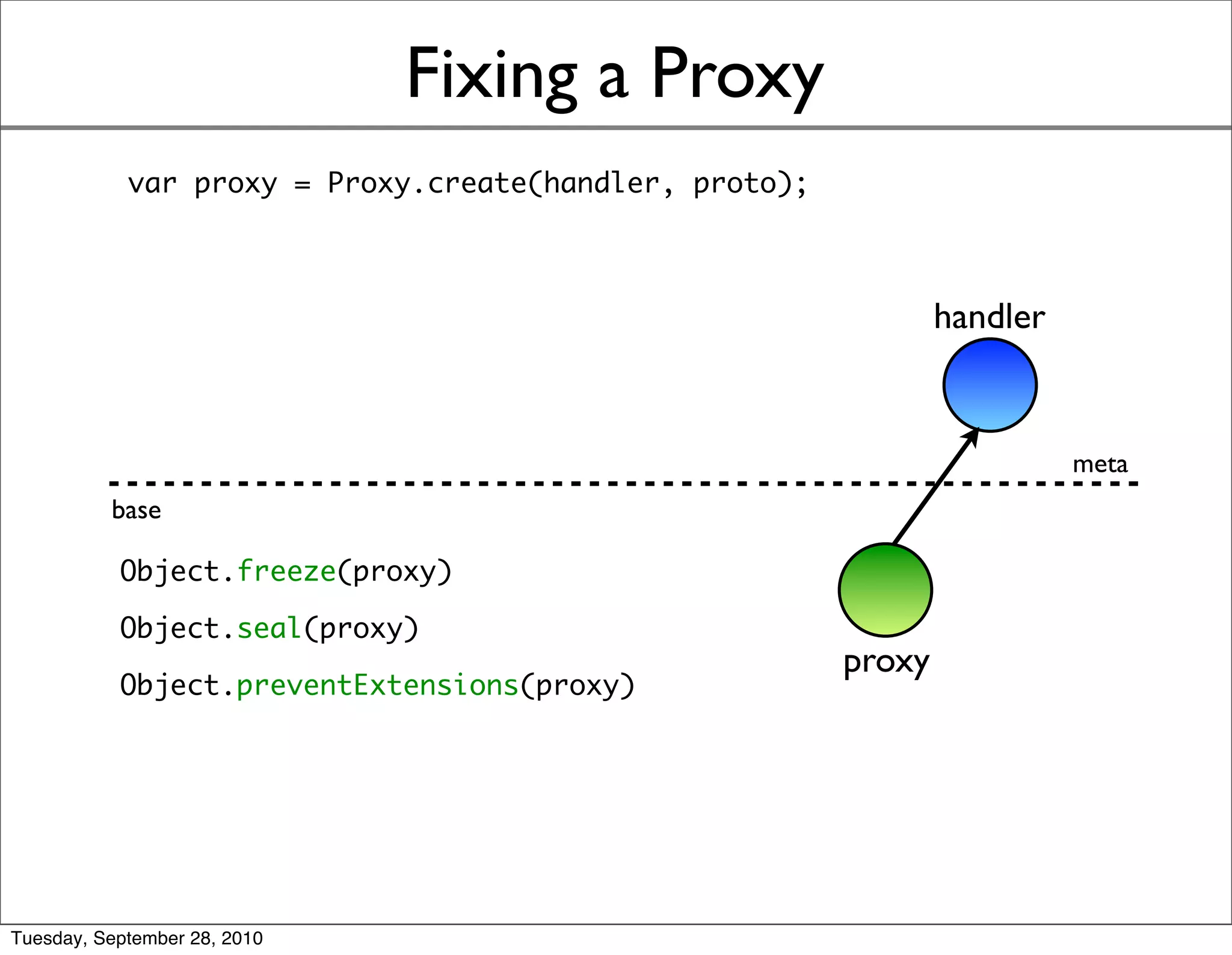

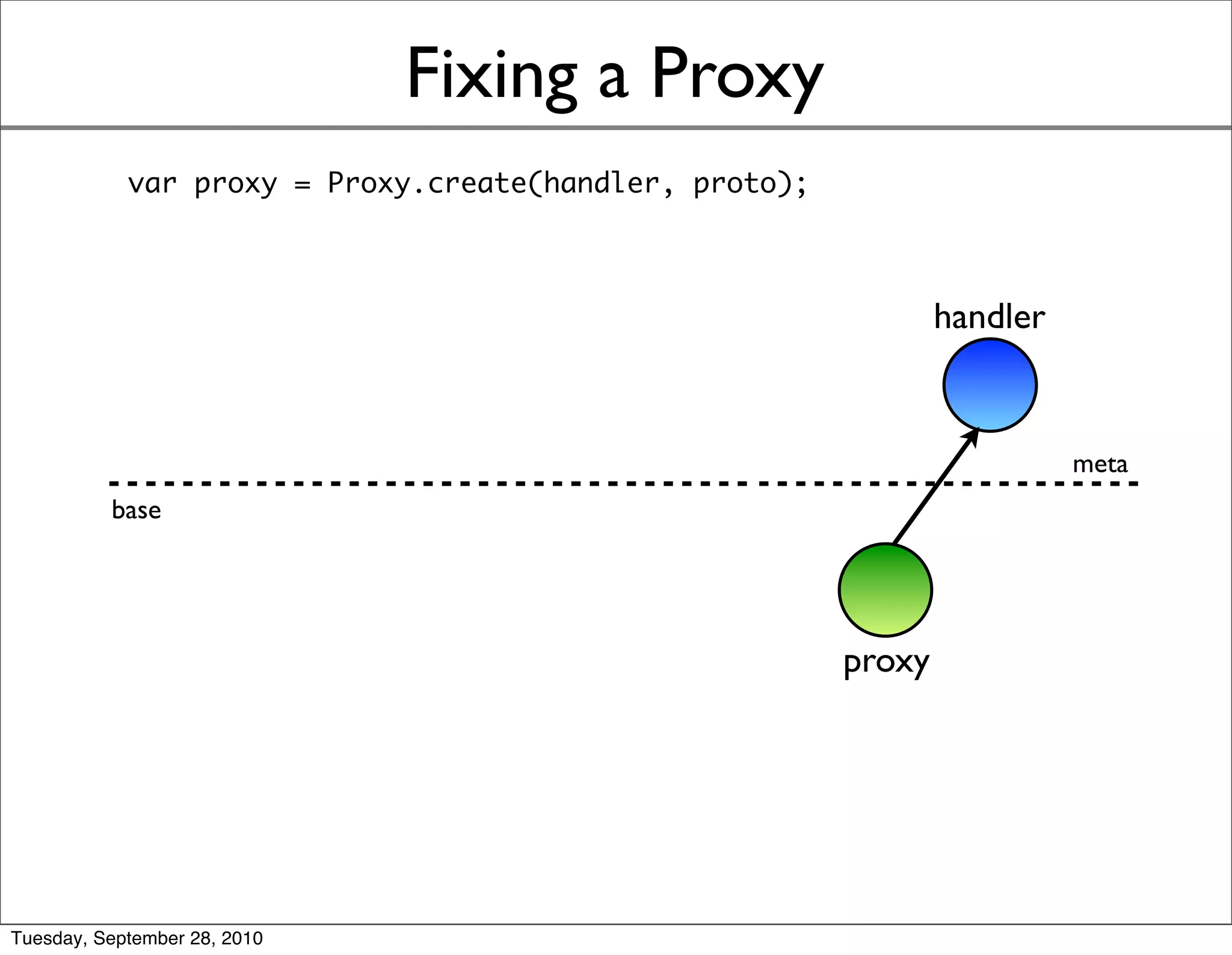

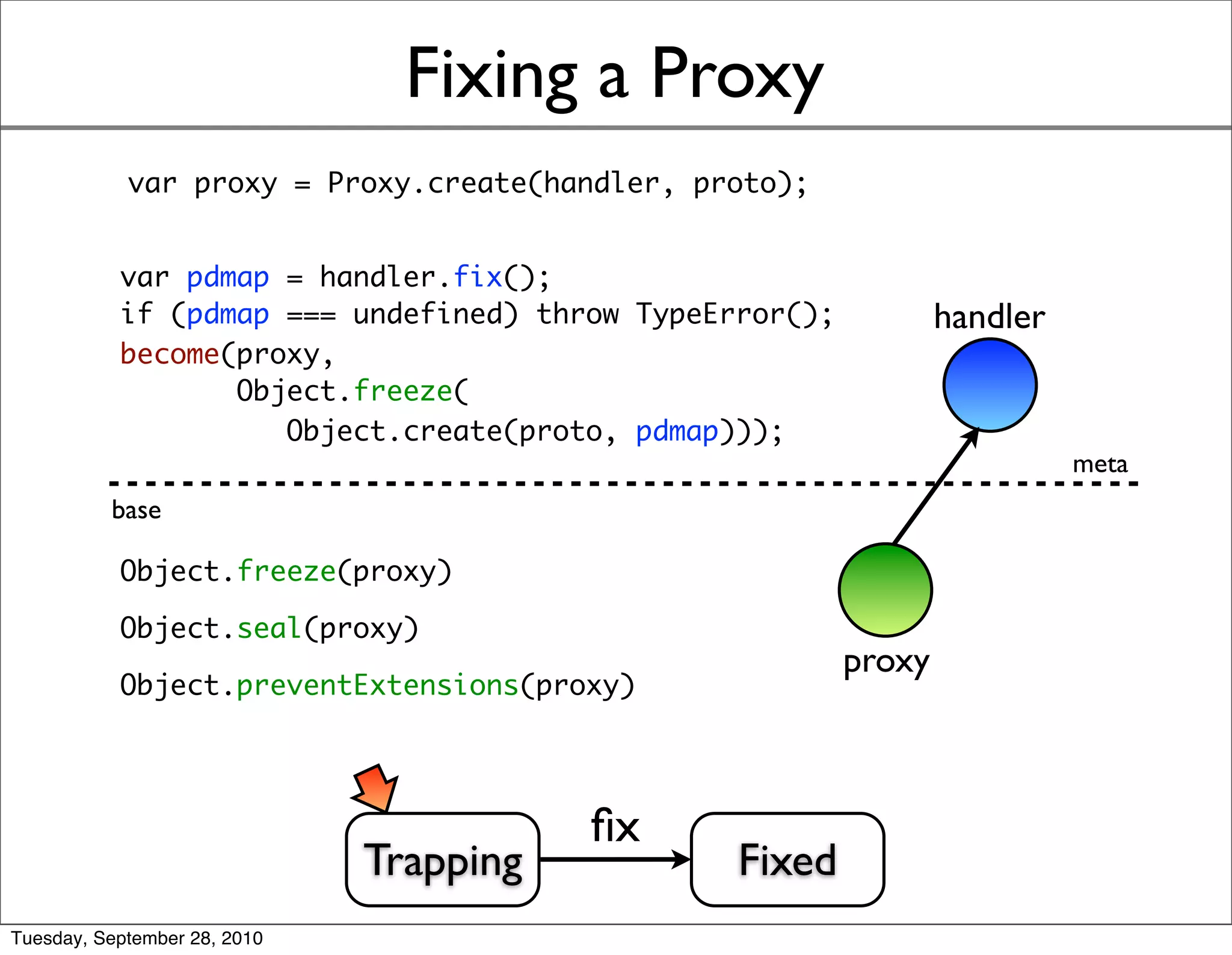

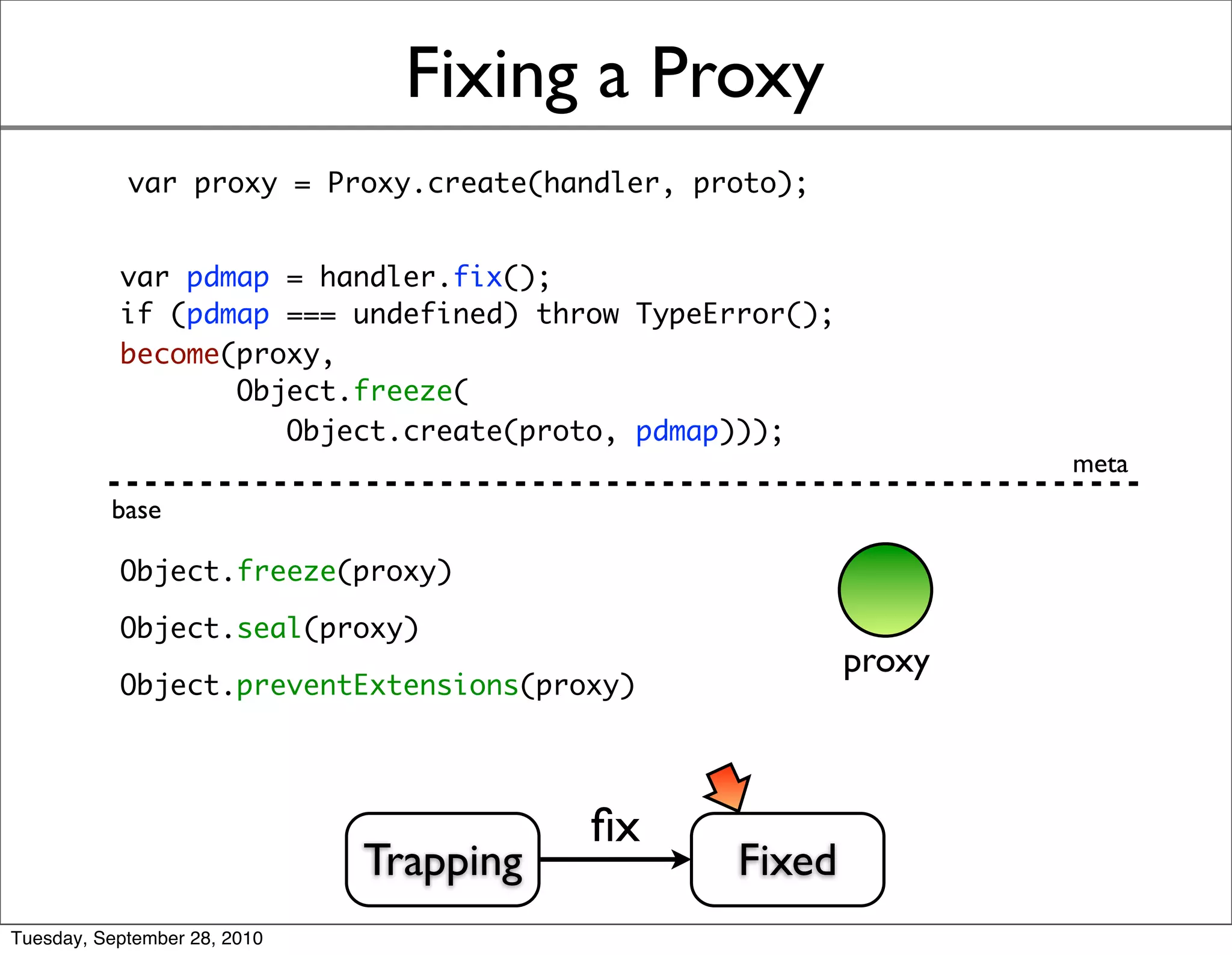

Fixing a Proxy
            var proxy = Proxy.create(handler, proto);



                                                  ...
Fixing a Proxy
            var proxy = Proxy.create(handler, proto);



                                                  ...
Fixing a Proxy
            var proxy = Proxy.create(handler, proto);


           var pdmap = handler.fix();
           if...
Fixing a Proxy
            var proxy = Proxy.create(handler, proto);


           var pdmap = handler.fix();
           if...
Fixing a Proxy
            var proxy = Proxy.create(handler, proto);


           var pdmap = handler.fix();
           if...
Meta-level Shifting
                                                        handler


                              proxy
...

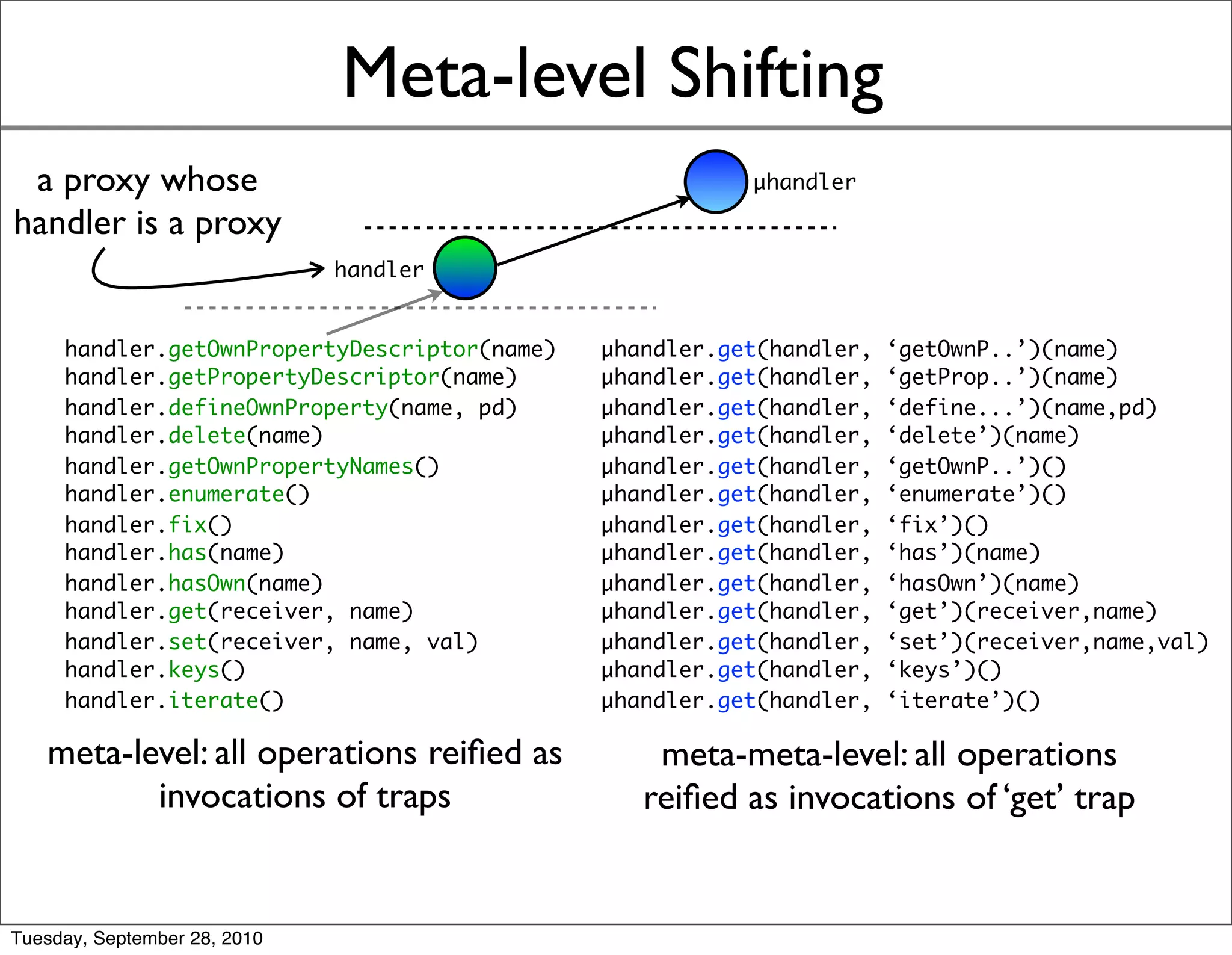

Meta-level Shifting
 a proxy whose                                           μhandler

handler is a proxy
                ...

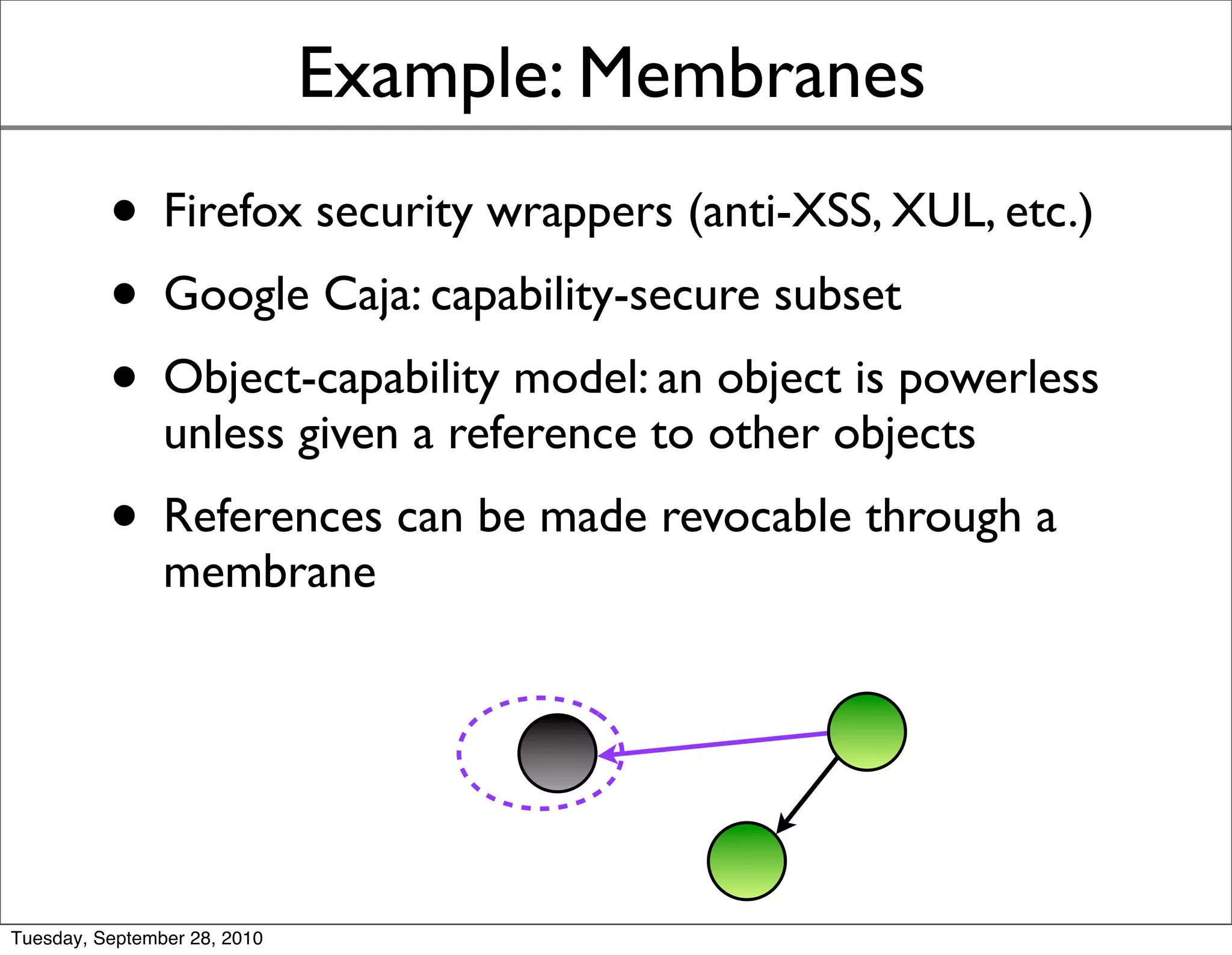

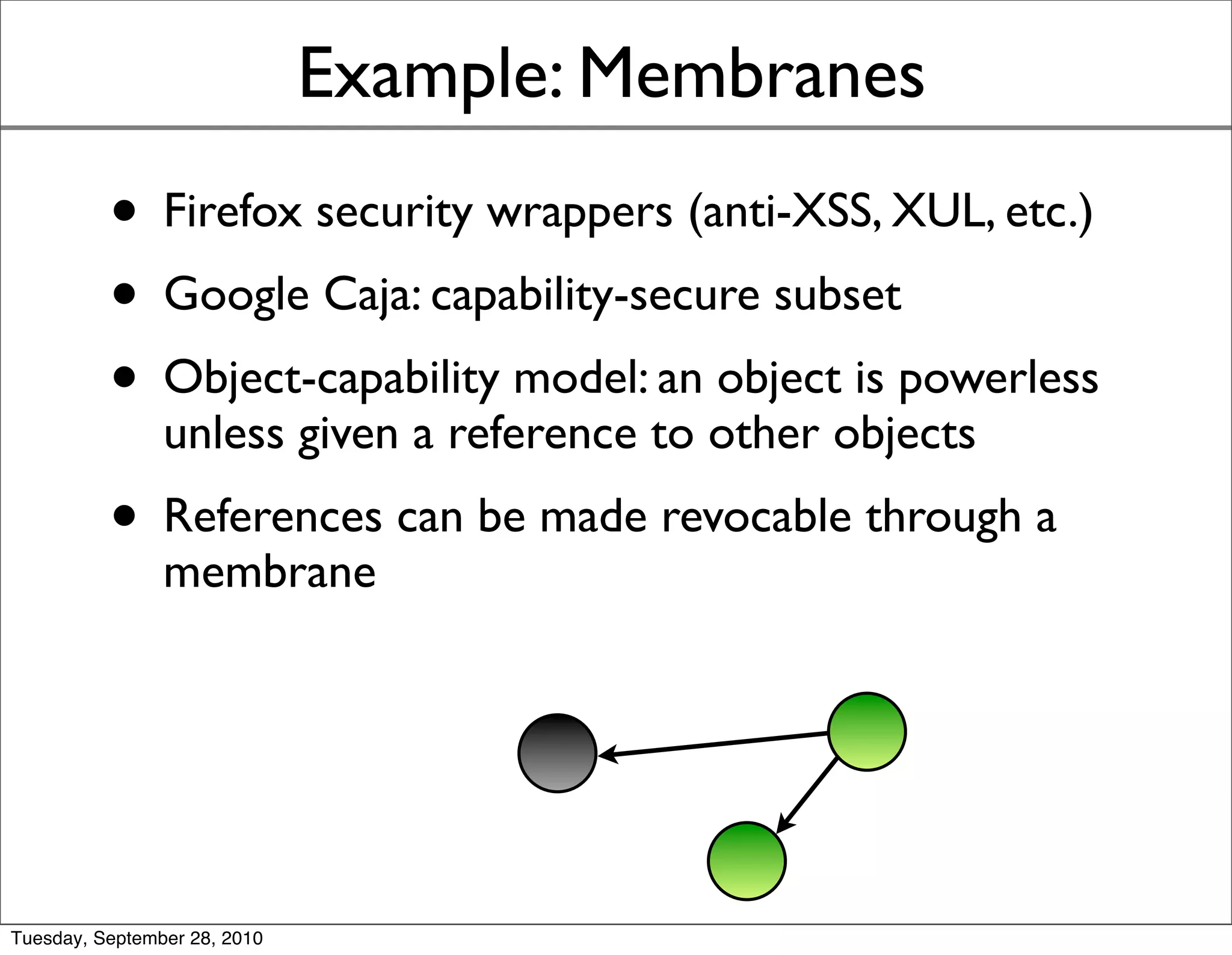

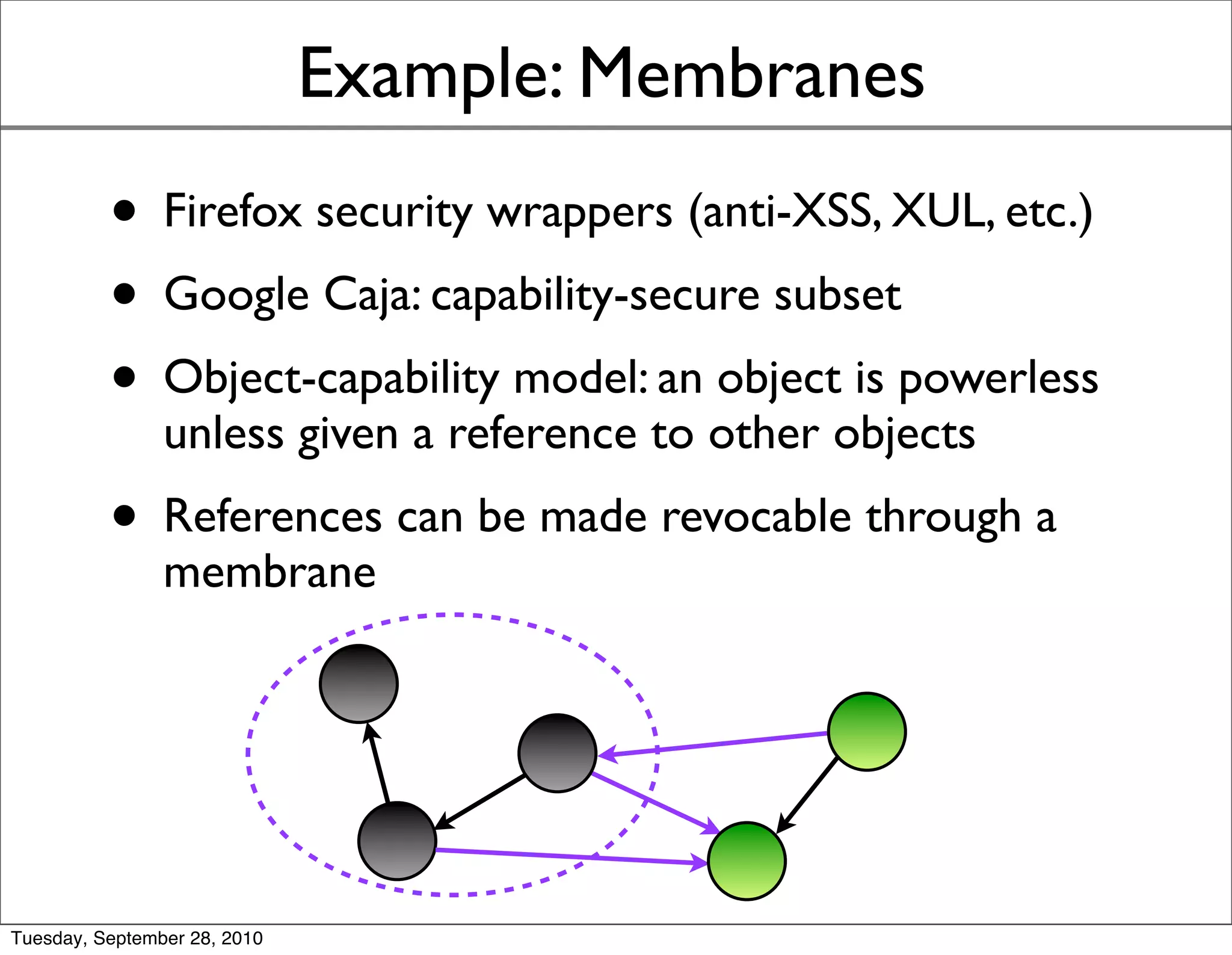

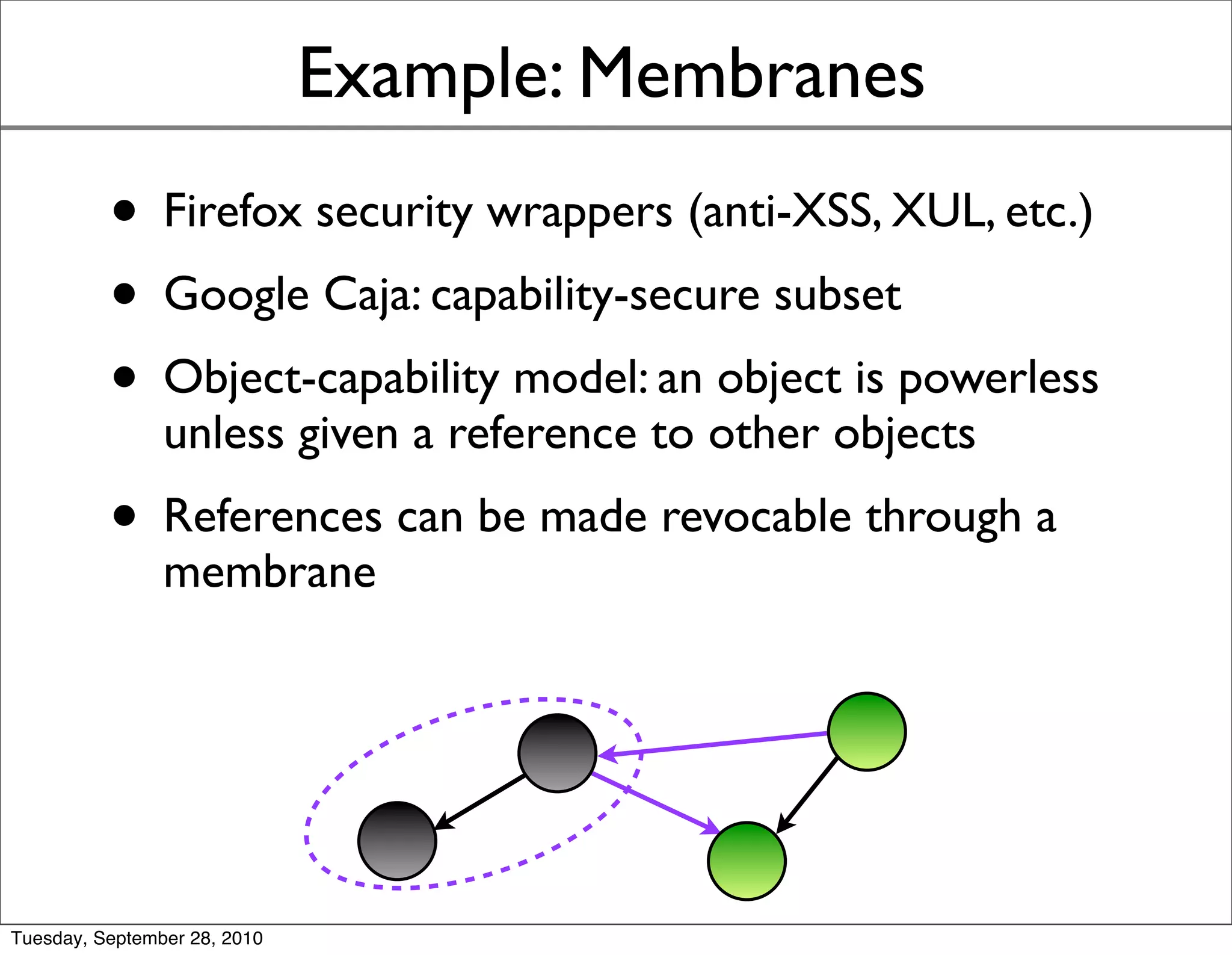

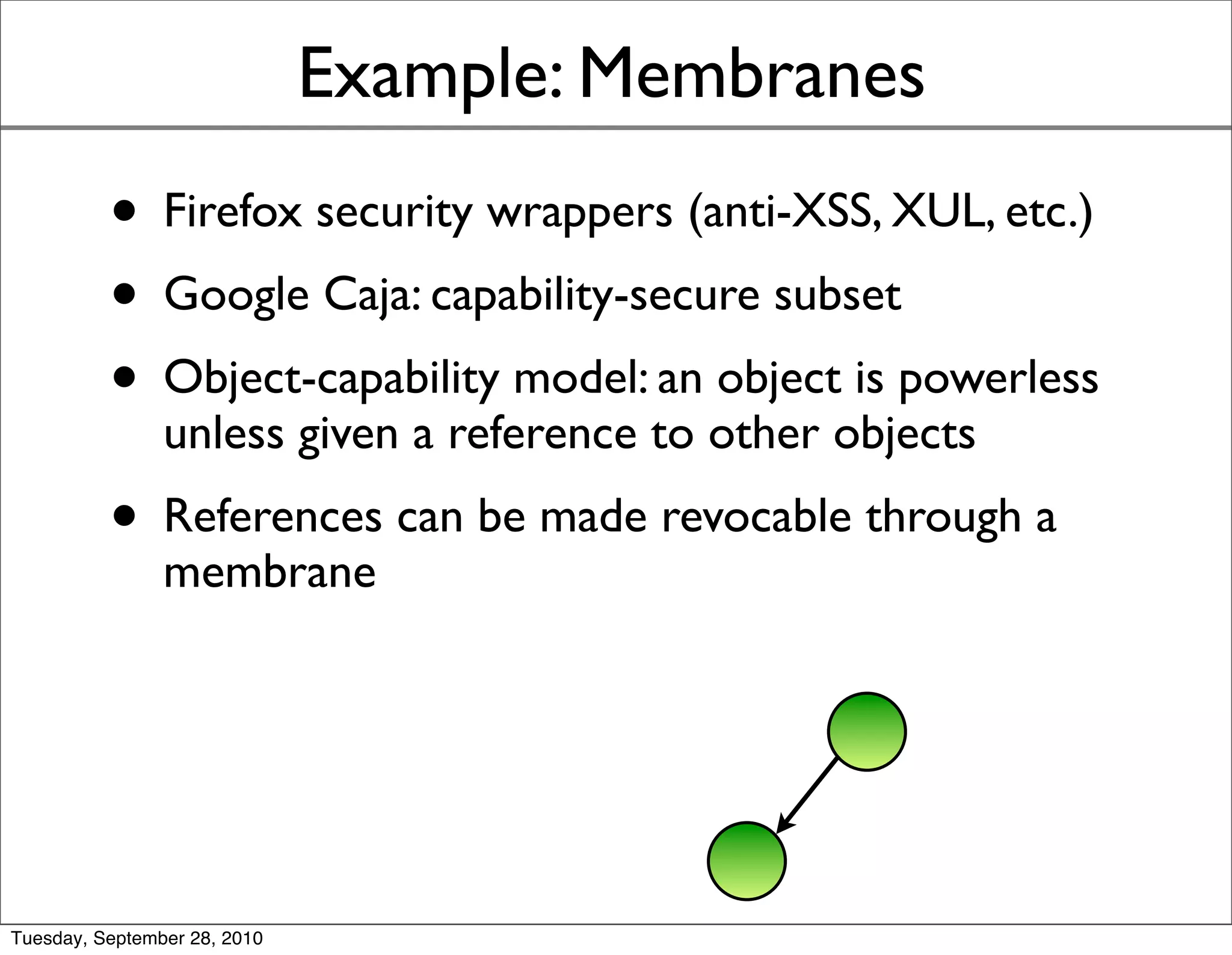

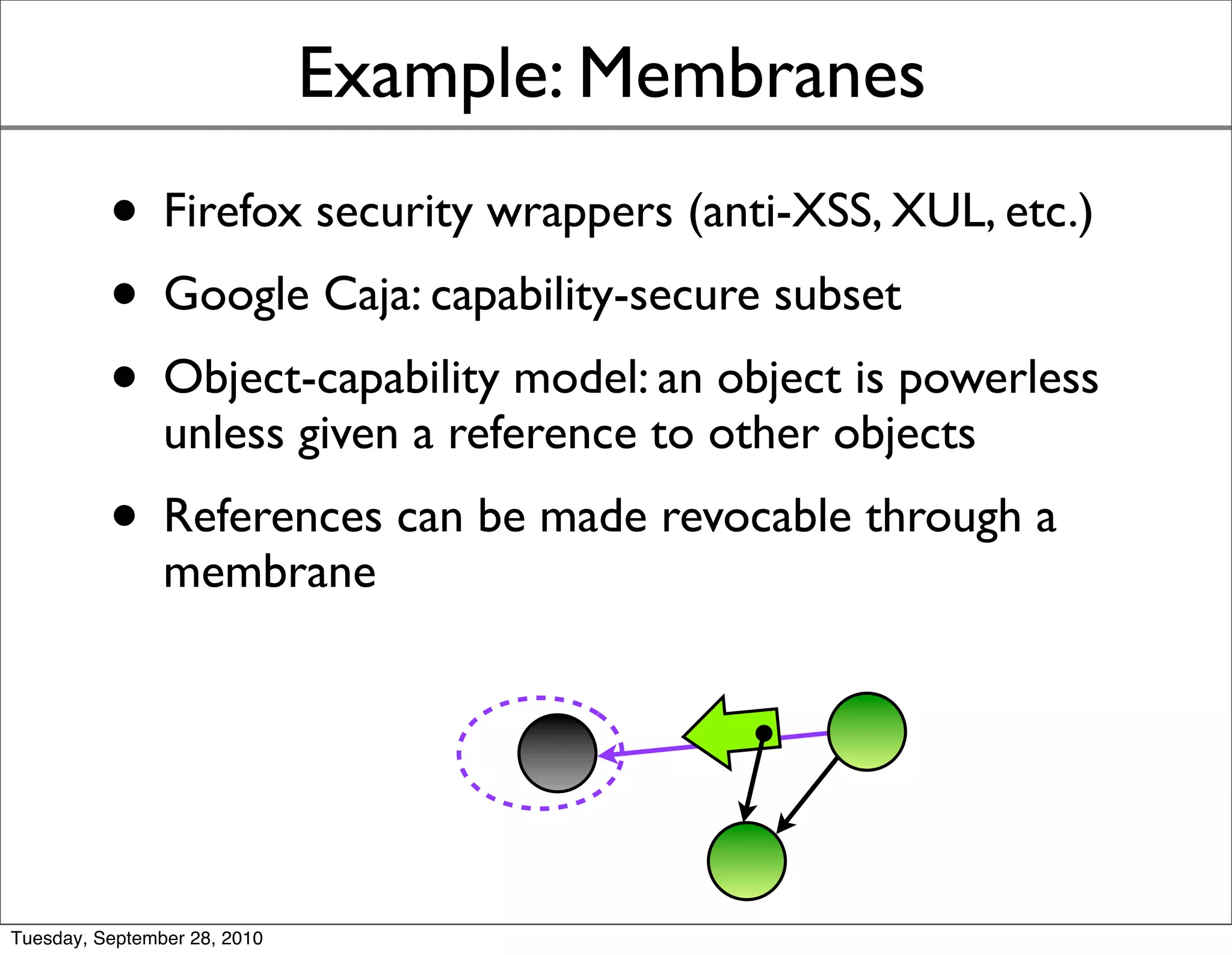

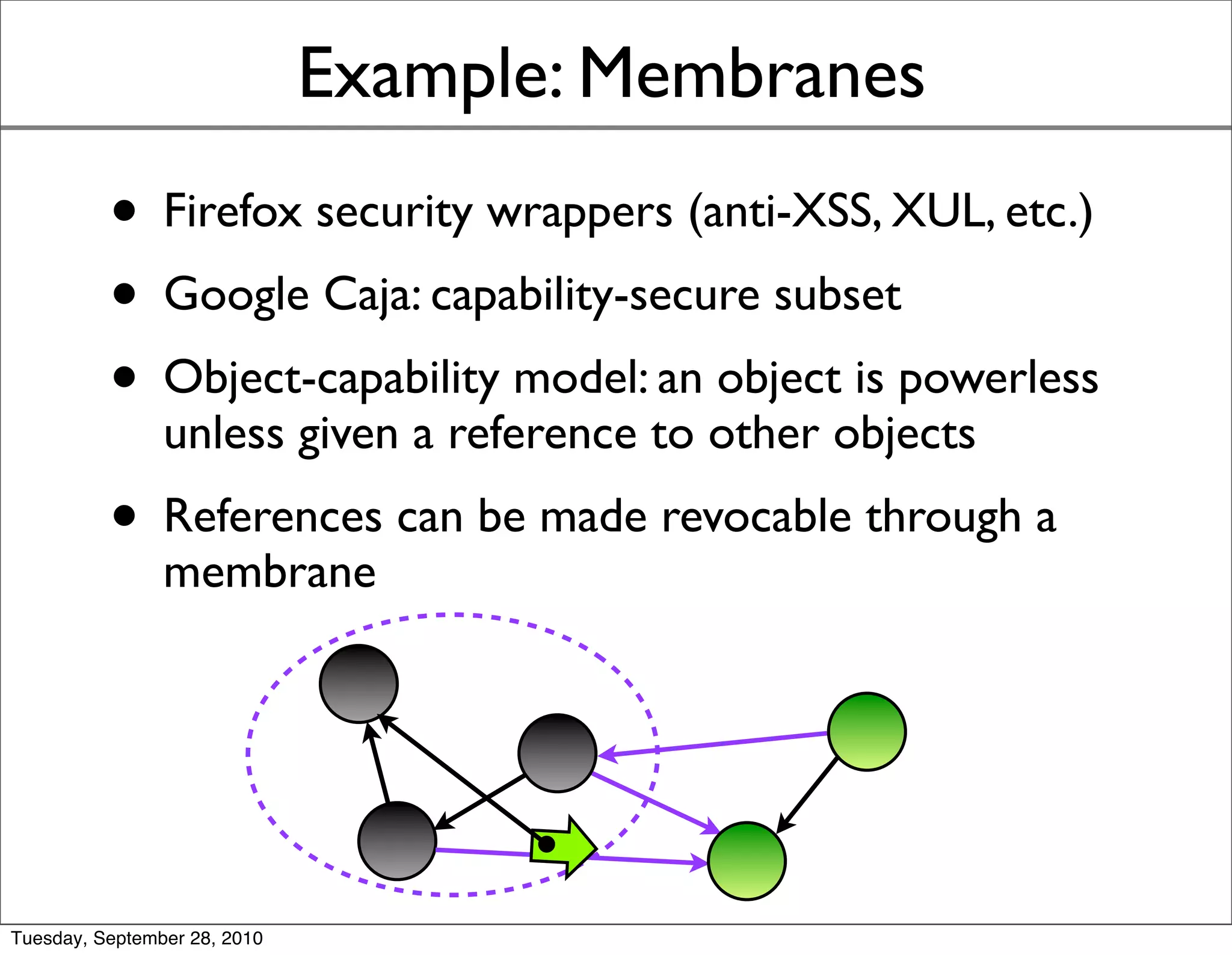

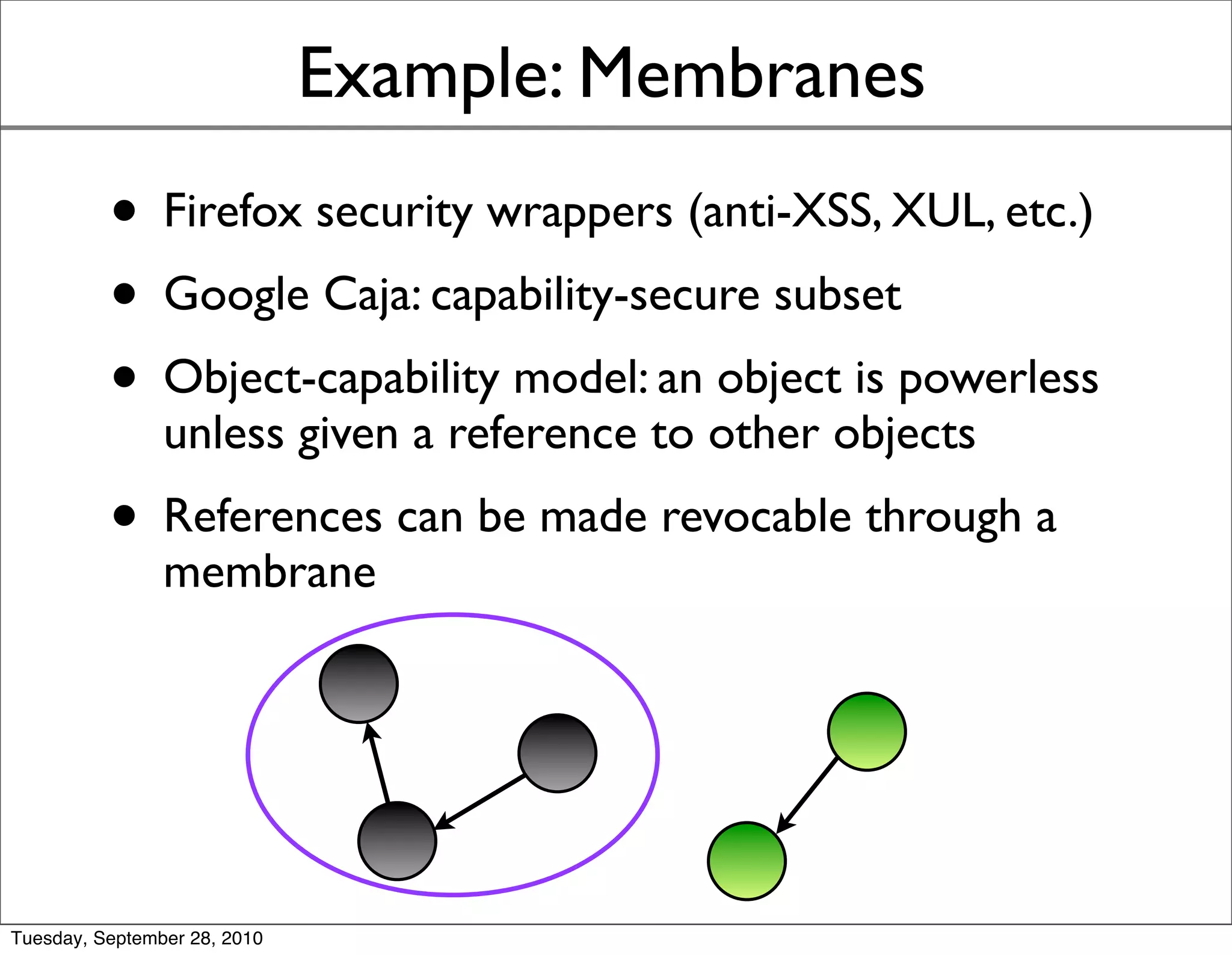

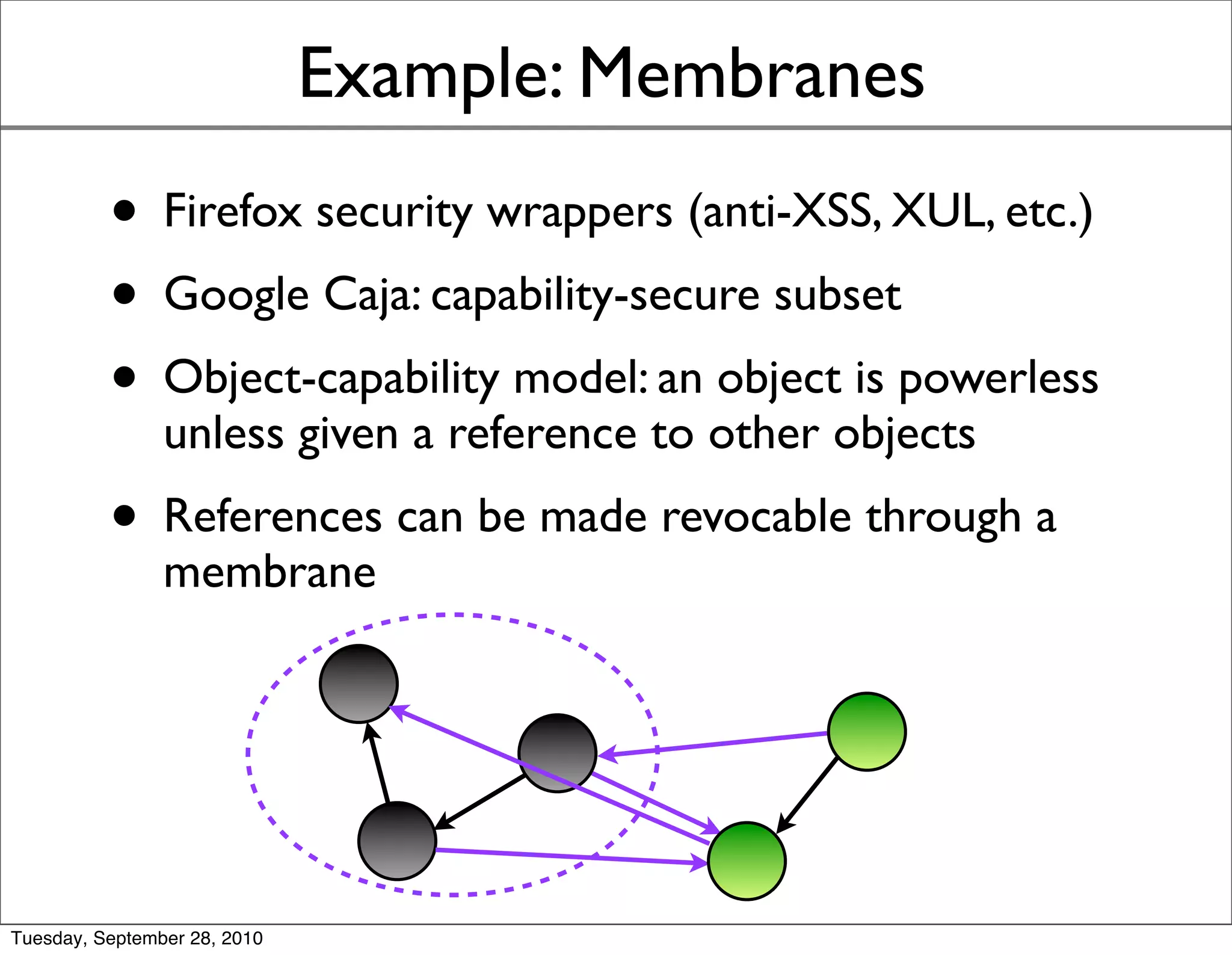

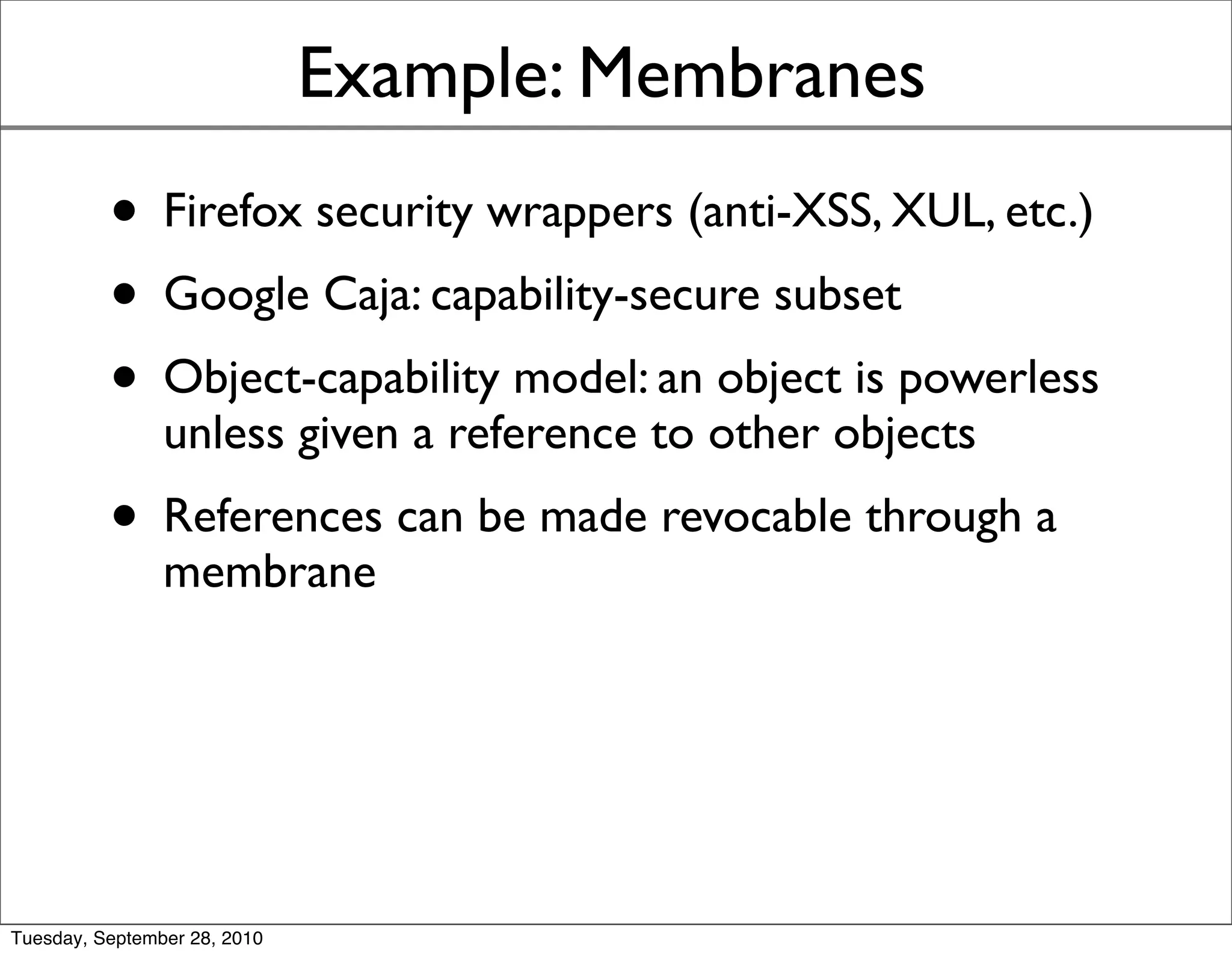

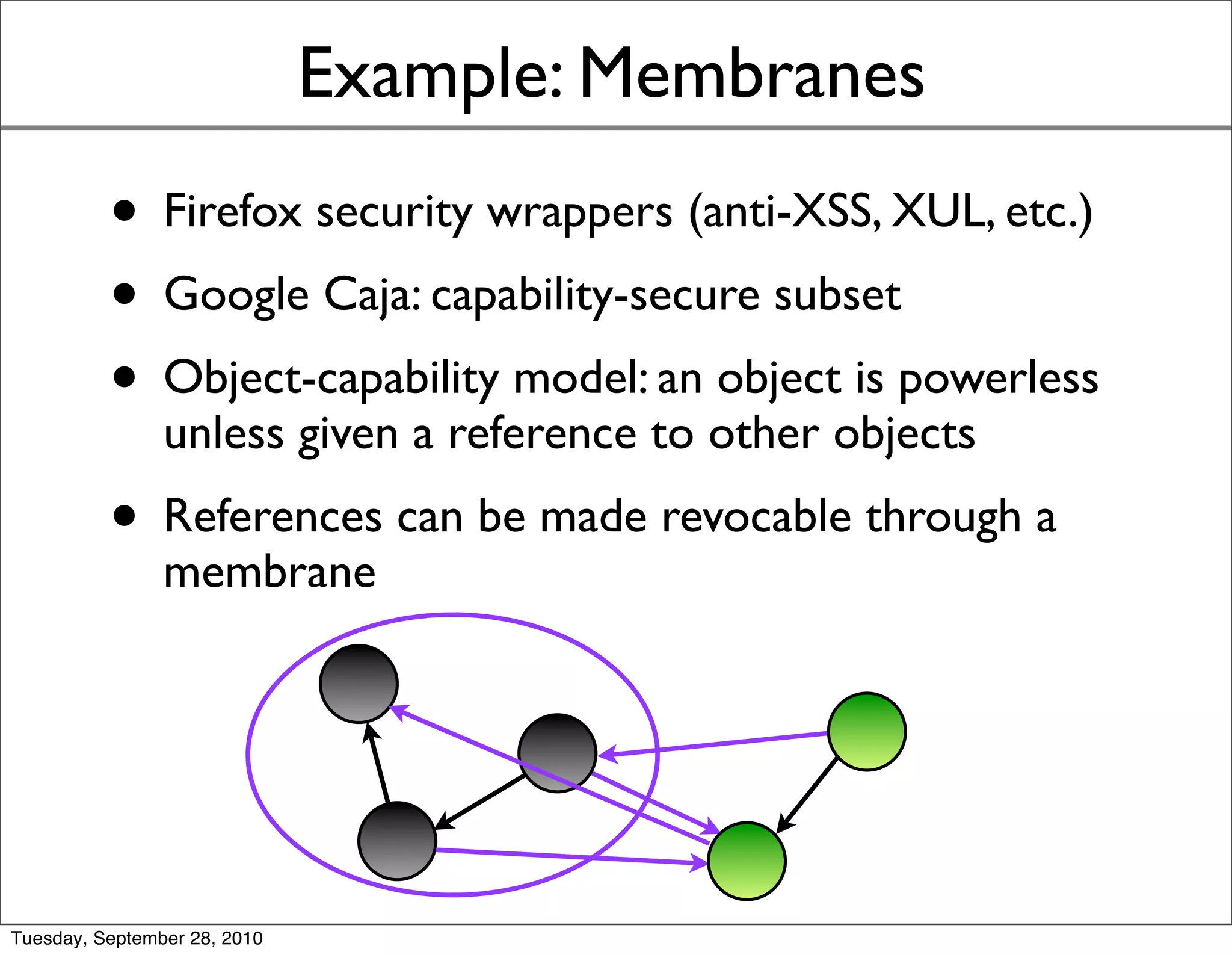

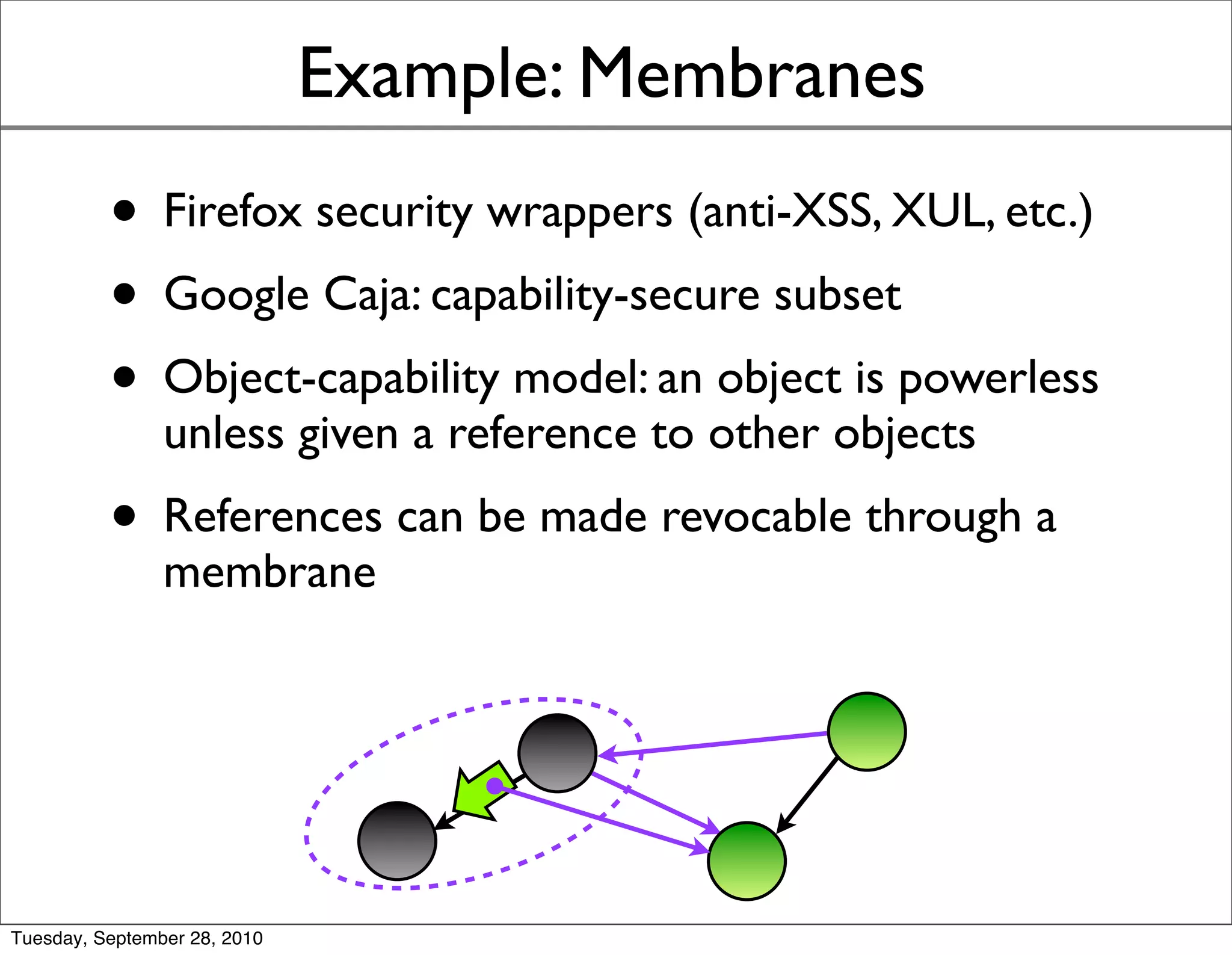

Example: Membranes
          • Firefox security wrappers (anti-XSS, XUL, etc.)
          • Google Caja: capability-secure ...
Example: Membranes
          • Firefox security wrappers (anti-XSS, XUL, etc.)
          • Google Caja: capability-secure ...
Example: Membranes
          • Firefox security wrappers (anti-XSS, XUL, etc.)
          • Google Caja: capability-secure ...
Example: Membranes
          • Firefox security wrappers (anti-XSS, XUL, etc.)
          • Google Caja: capability-secure ...
Example: Membranes
          • Firefox security wrappers (anti-XSS, XUL, etc.)
          • Google Caja: capability-secure ...
Example: Membranes
          • Firefox security wrappers (anti-XSS, XUL, etc.)
          • Google Caja: capability-secure ...
Example: Membranes
          • Firefox security wrappers (anti-XSS, XUL, etc.)
          • Google Caja: capability-secure ...
Example: Membranes
          • Firefox security wrappers (anti-XSS, XUL, etc.)
          • Google Caja: capability-secure ...
Example: Membranes
          • Firefox security wrappers (anti-XSS, XUL, etc.)
          • Google Caja: capability-secure ...
Example: Membranes
          • Firefox security wrappers (anti-XSS, XUL, etc.)
          • Google Caja: capability-secure ...
Example: Membranes
          • Firefox security wrappers (anti-XSS, XUL, etc.)
          • Google Caja: capability-secure ...
Example: Membranes
          • Firefox security wrappers (anti-XSS, XUL, etc.)
          • Google Caja: capability-secure ...
Example: Membranes
          • Firefox security wrappers (anti-XSS, XUL, etc.)
          • Google Caja: capability-secure ...
Example: Membranes
          • Firefox security wrappers (anti-XSS, XUL, etc.)
          • Google Caja: capability-secure ...

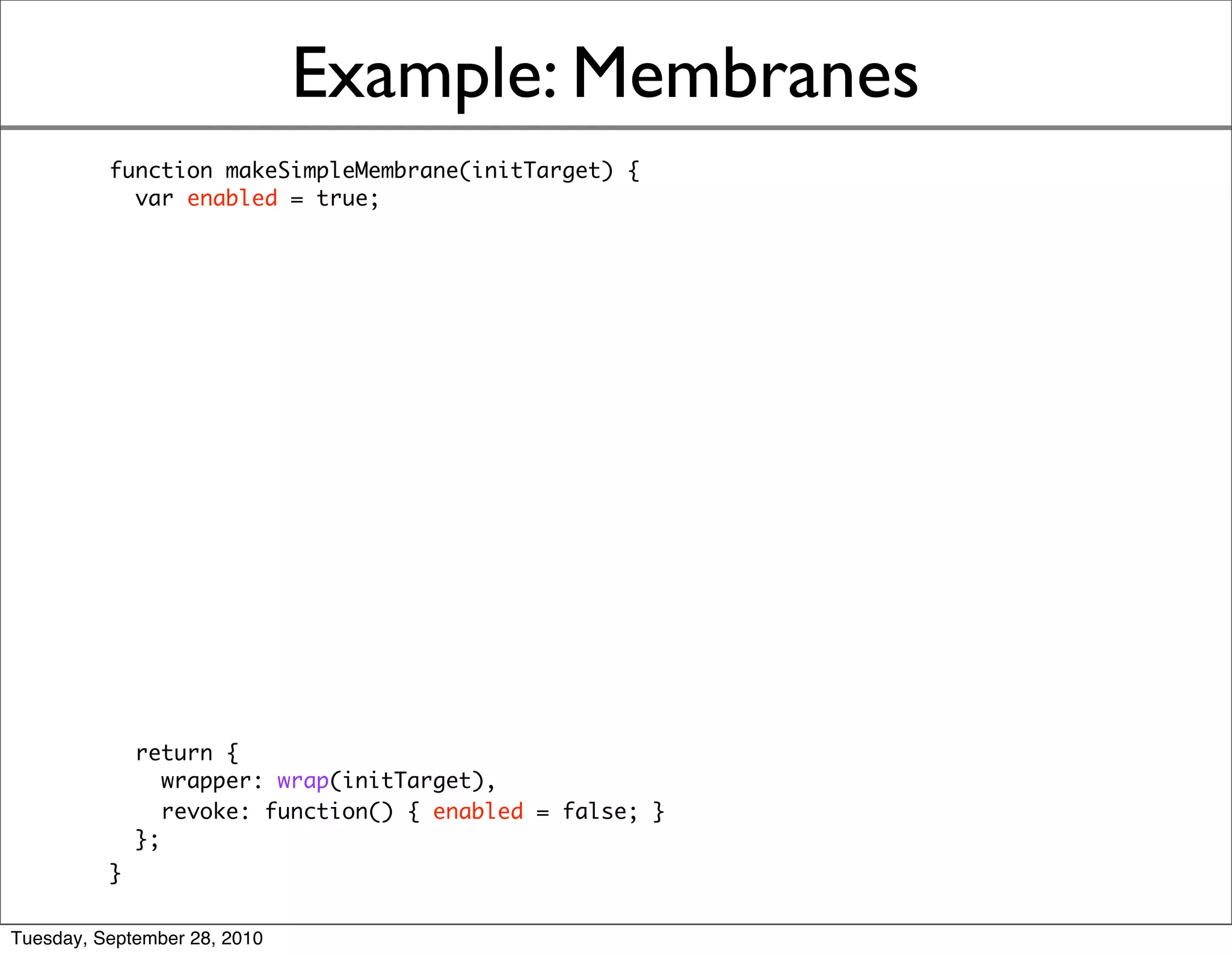

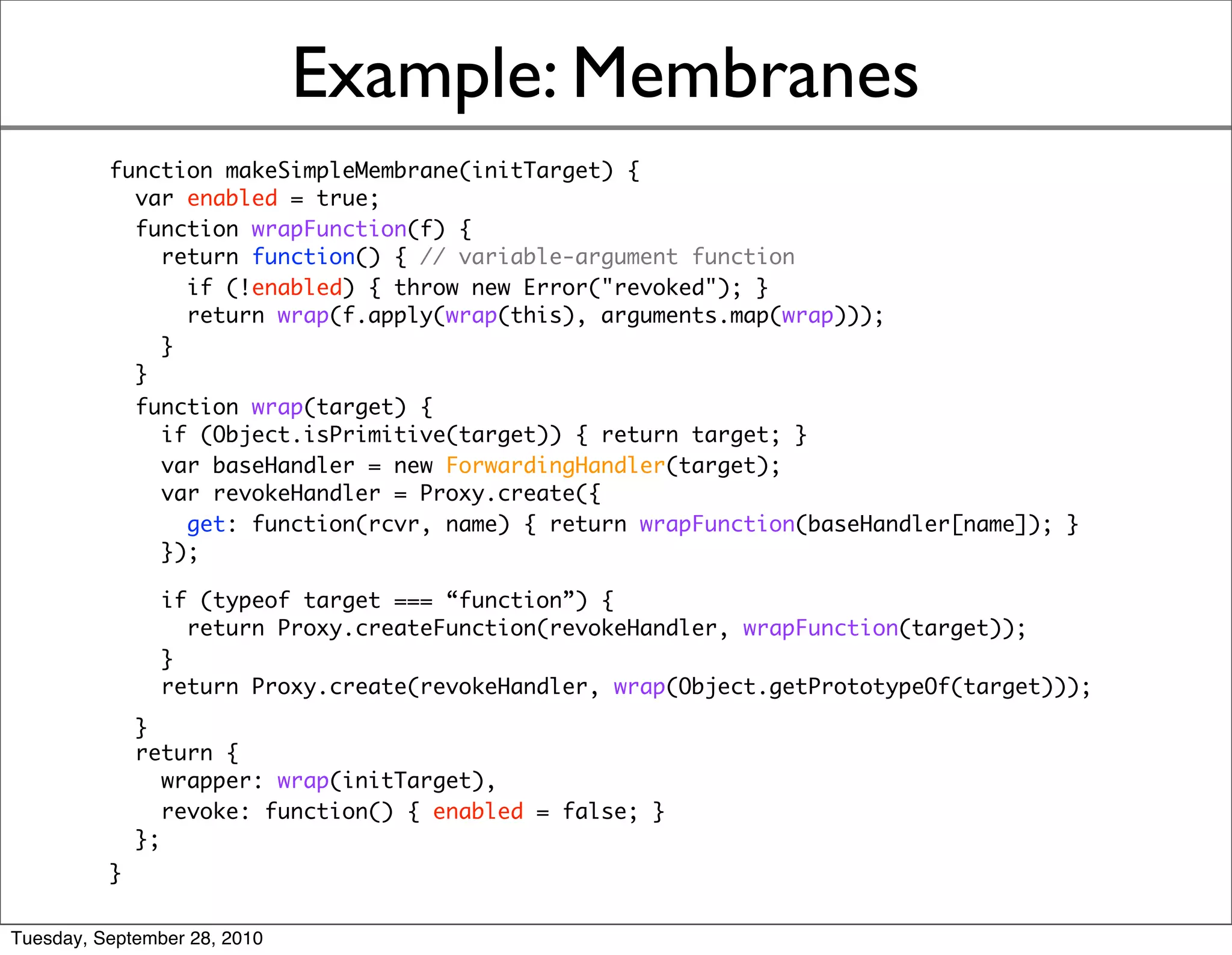

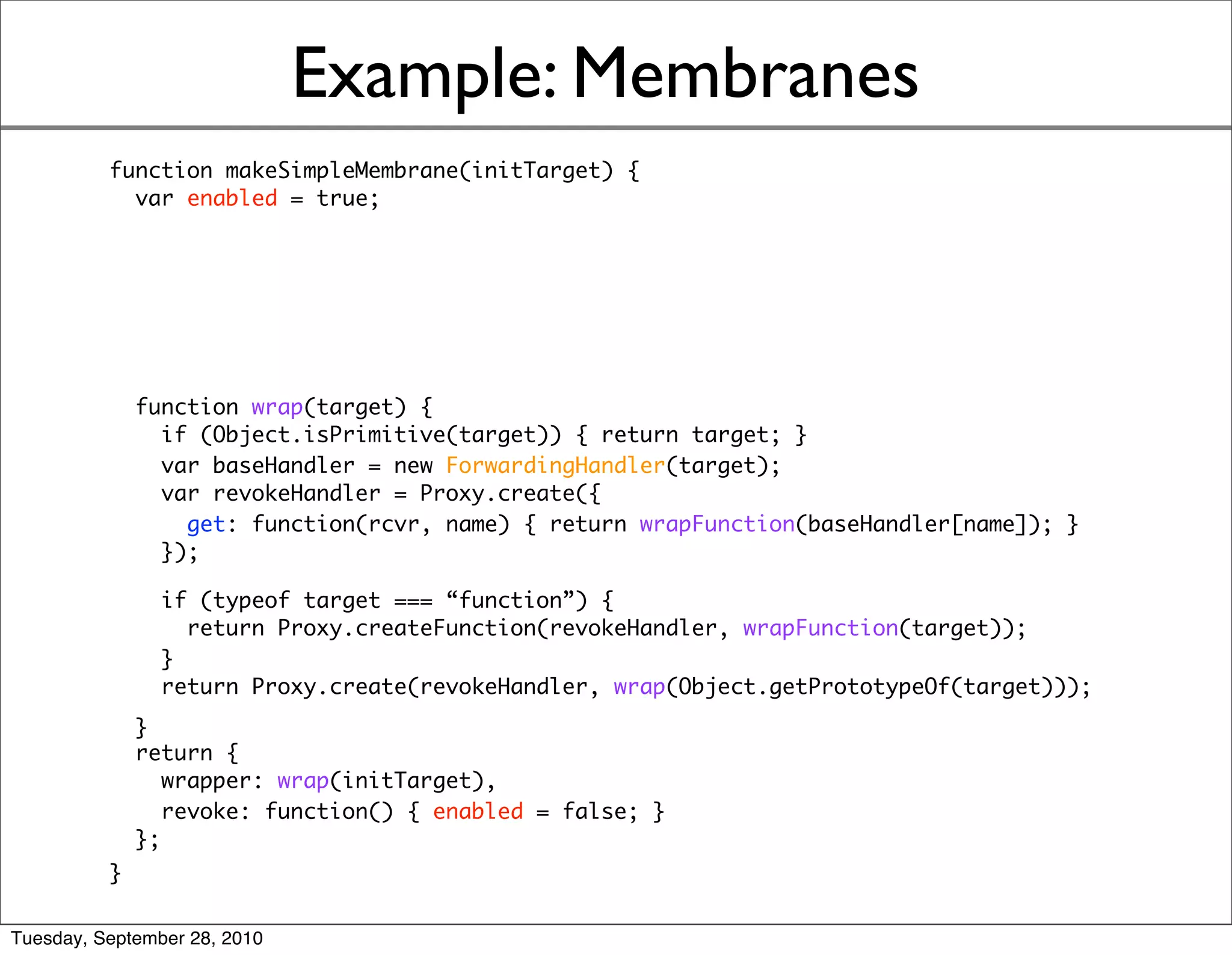

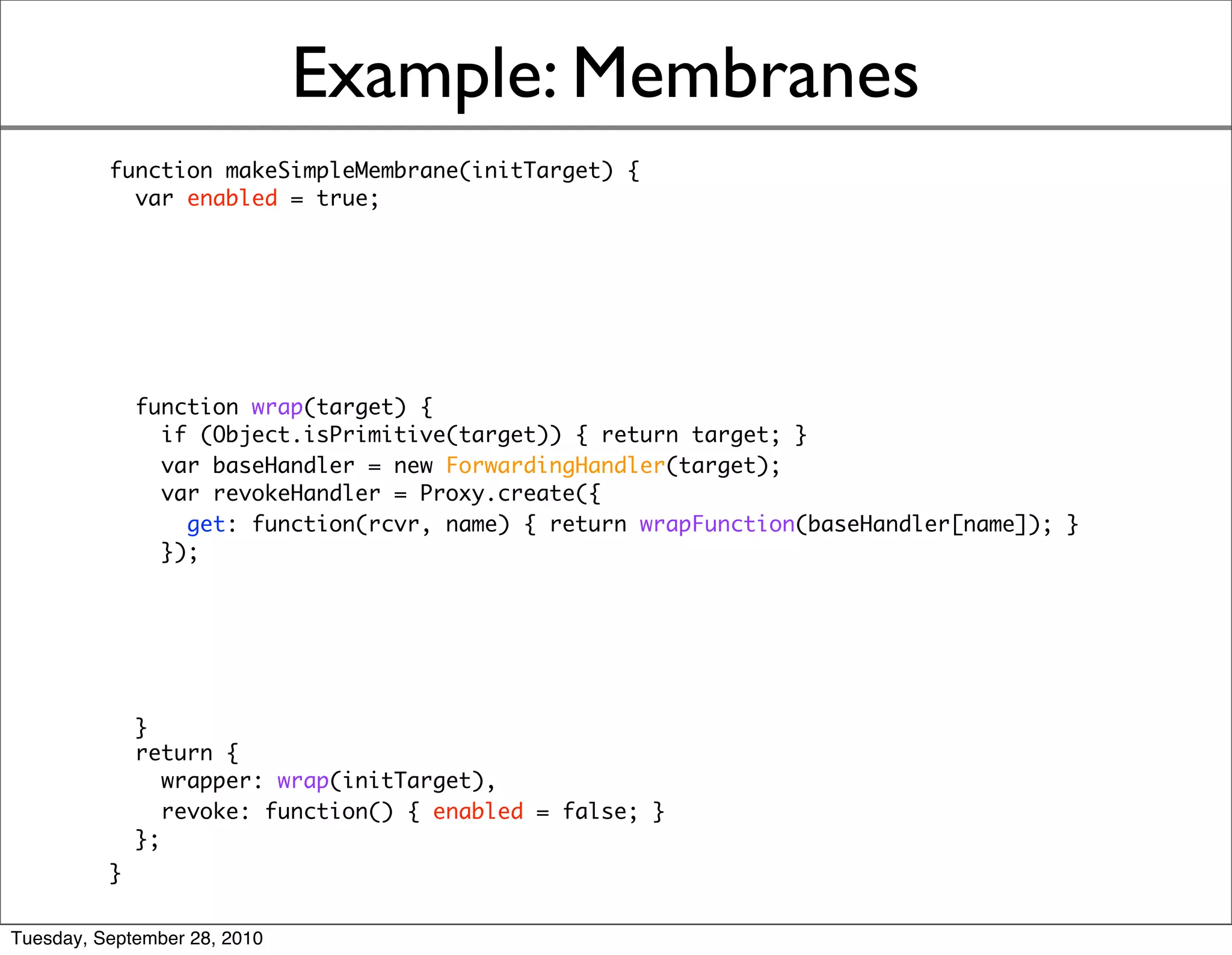

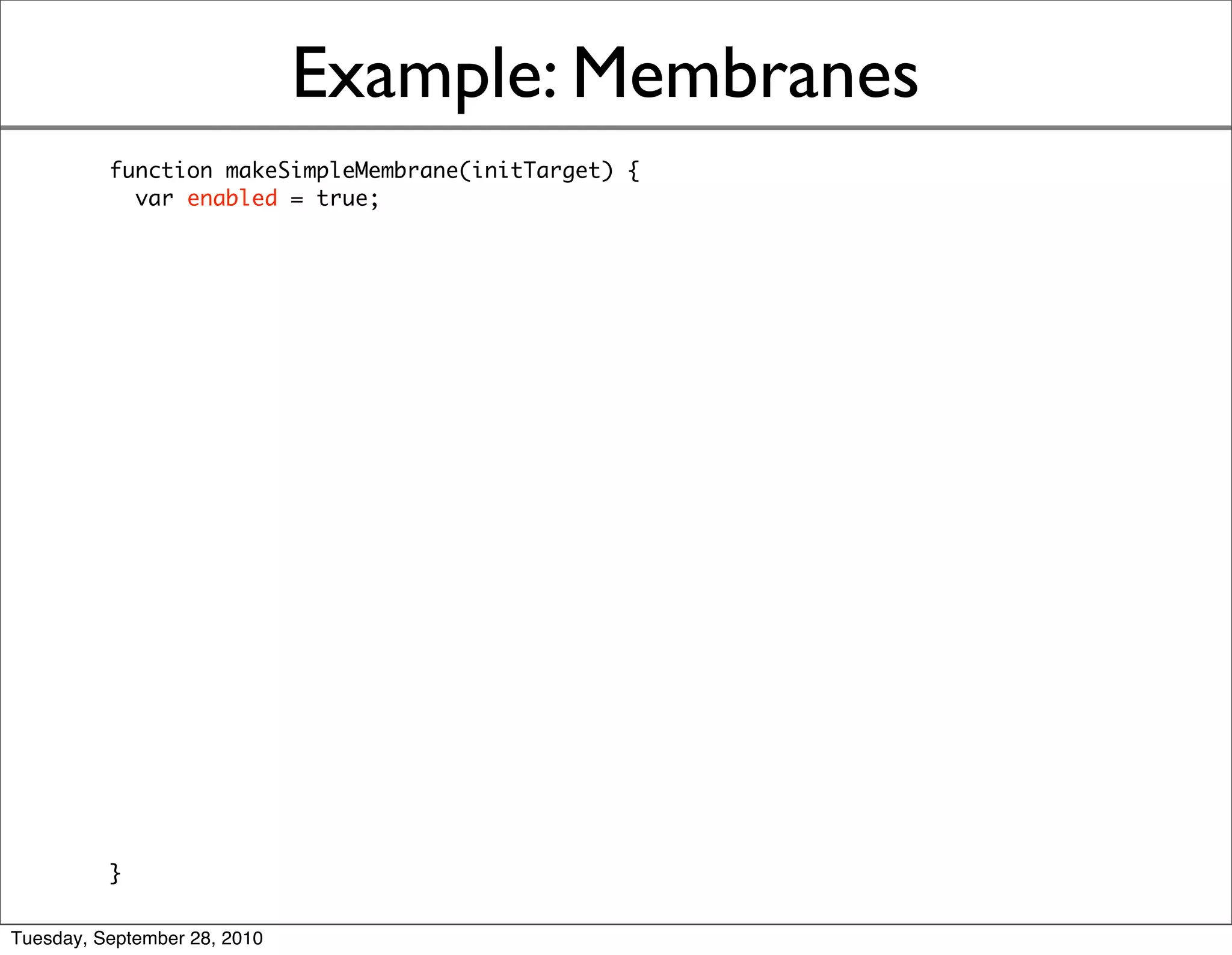

Example: Membranes
          function makeSimpleMembrane(initTarget) {
            var enabled = true;




          }

Tu...
Example: Membranes
          function makeSimpleMembrane(initTarget) {
            var enabled = true;




            ret...
Example: Membranes
          function makeSimpleMembrane(initTarget) {
            var enabled = true;




            fun...
Example: Membranes
          function makeSimpleMembrane(initTarget) {
            var enabled = true;




            fun...
Example: Membranes
          function makeSimpleMembrane(initTarget) {
            var enabled = true;
            functio...

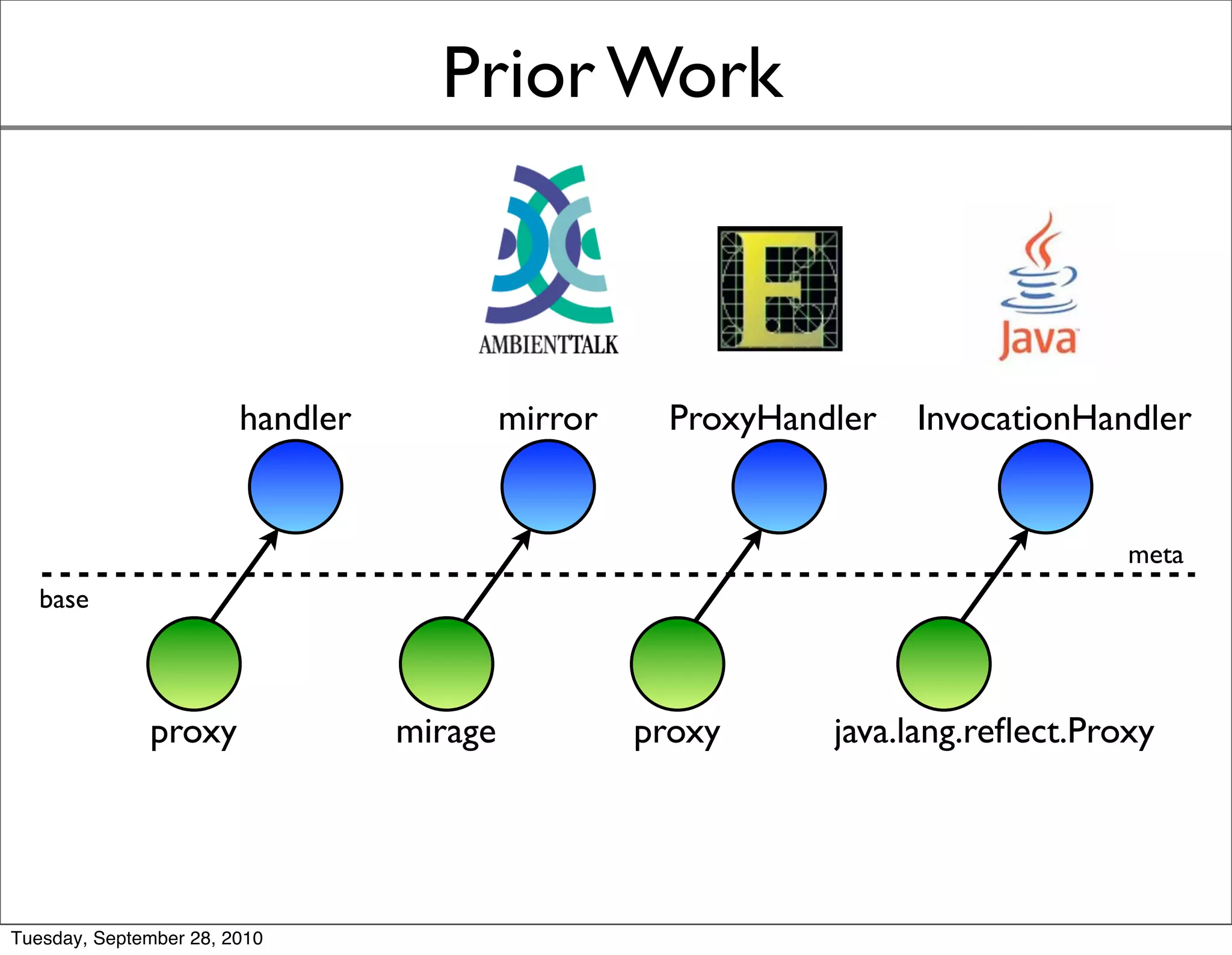

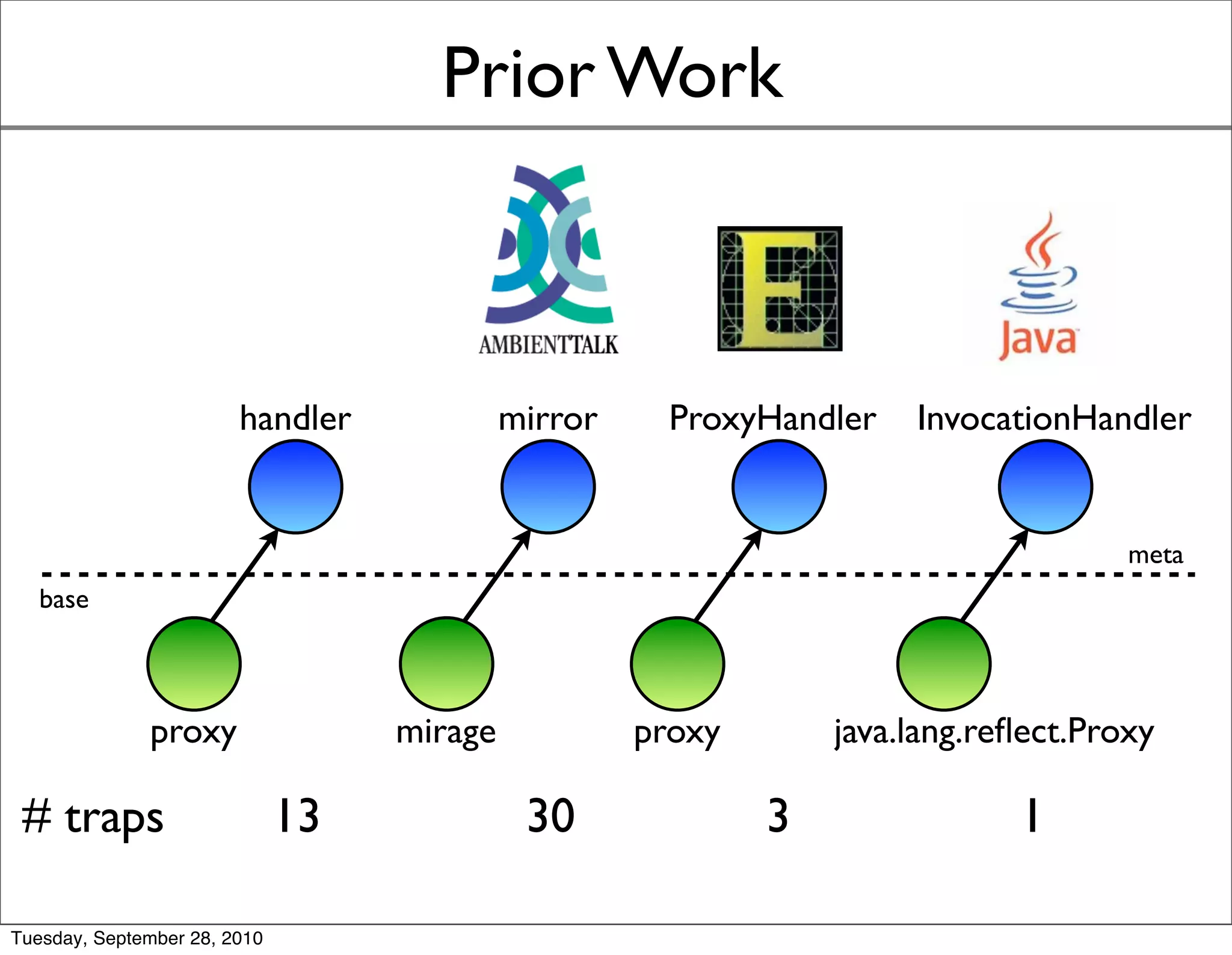

Prior Work



                        handler


                                               meta
   base



           ...
Prior Work



                        handler            mirror     ProxyHandler   InvocationHandler


                   ...
Prior Work



                        handler             mirror     ProxyHandler   InvocationHandler


                  ...

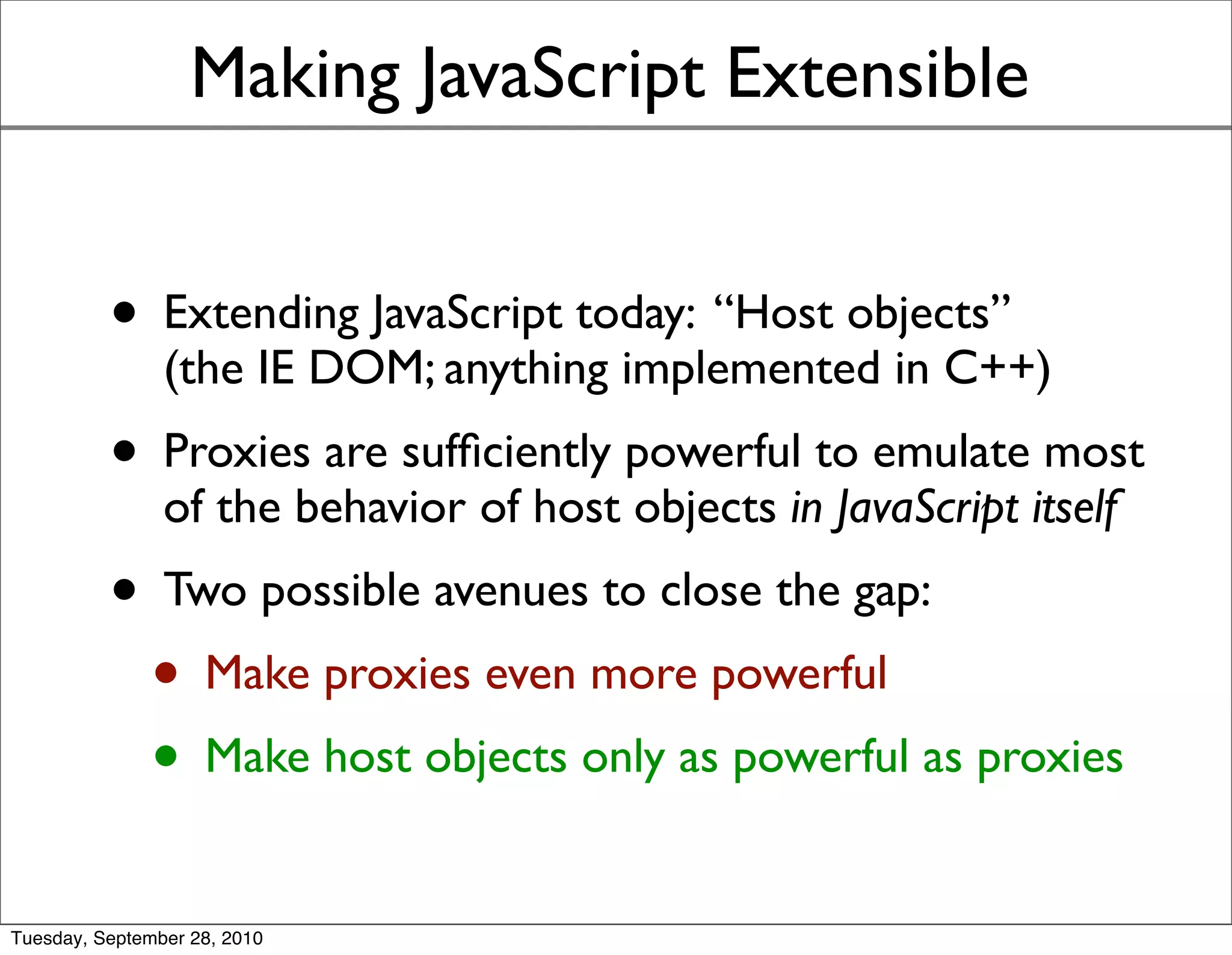

Making JavaScript Extensible


          • Extending JavaScript today: “Host objects”
                (the IE DOM; anythin...

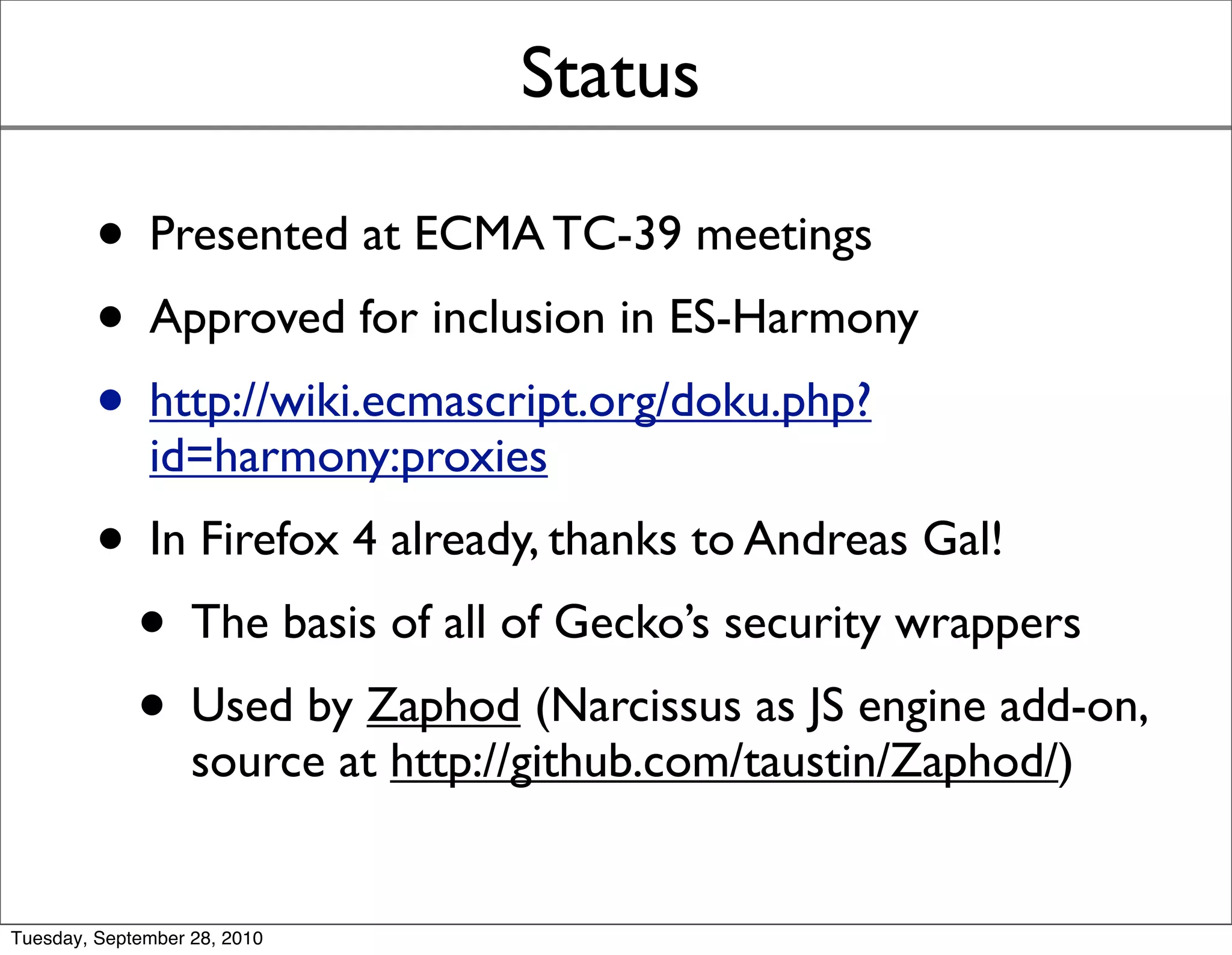

Status

         • Presented at ECMA TC-39 meetings
         • Approved for inclusion in ES-Harmony
         • http://wiki...

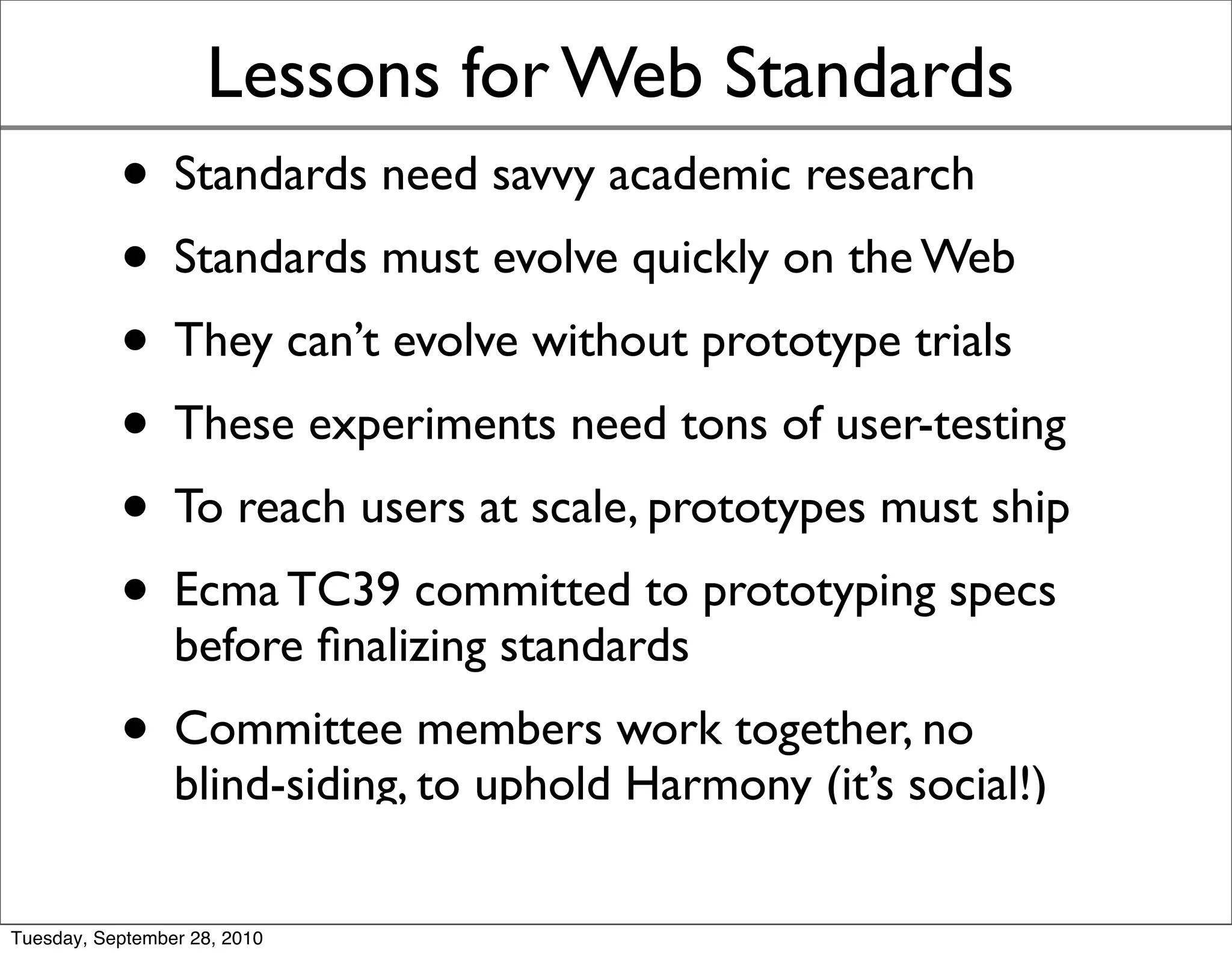

Lessons for Web Standards
           • Standards need savvy academic research
           • Standards must evolve quickly o...

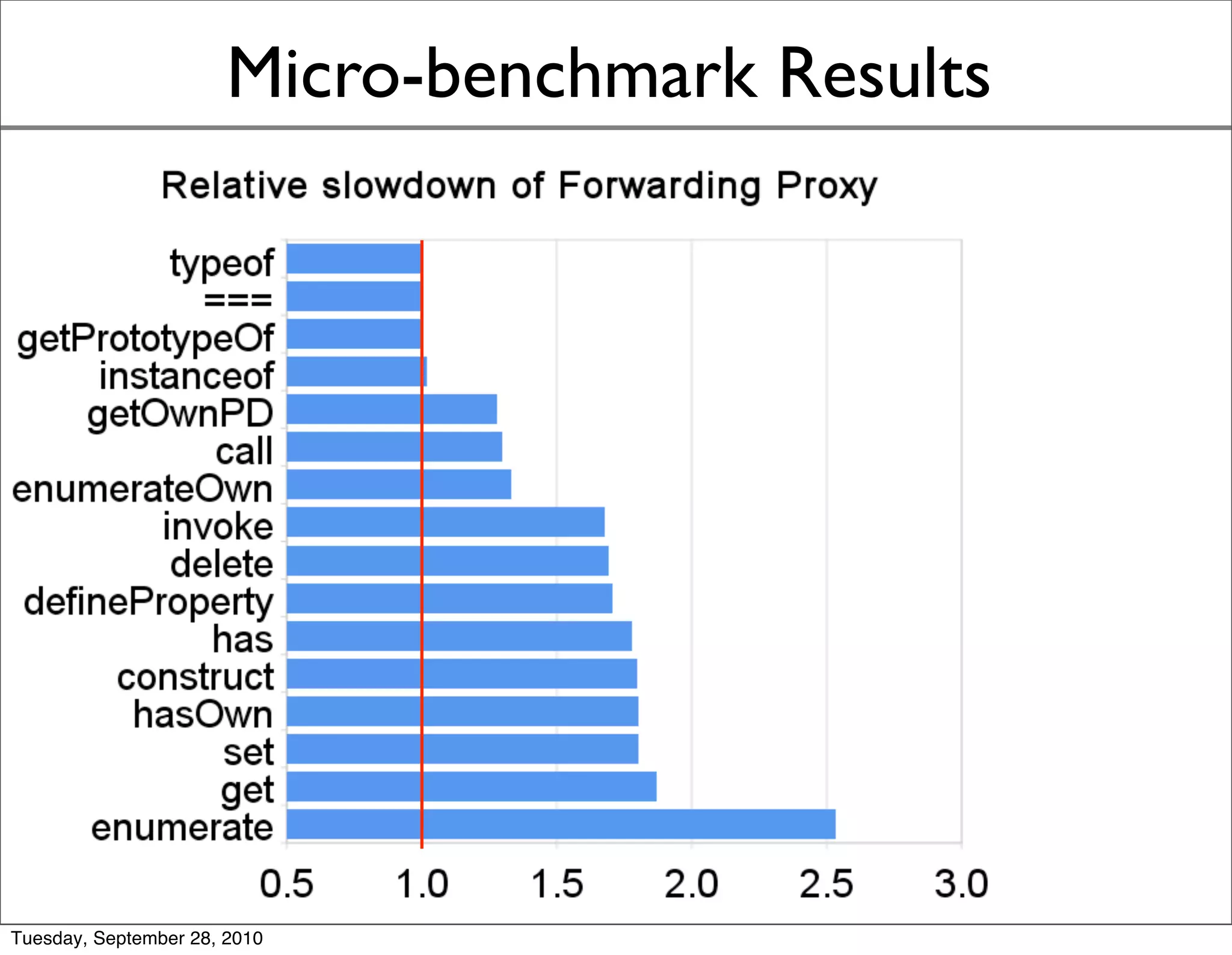

Micro-benchmark Results




Tuesday, September 28, 2010

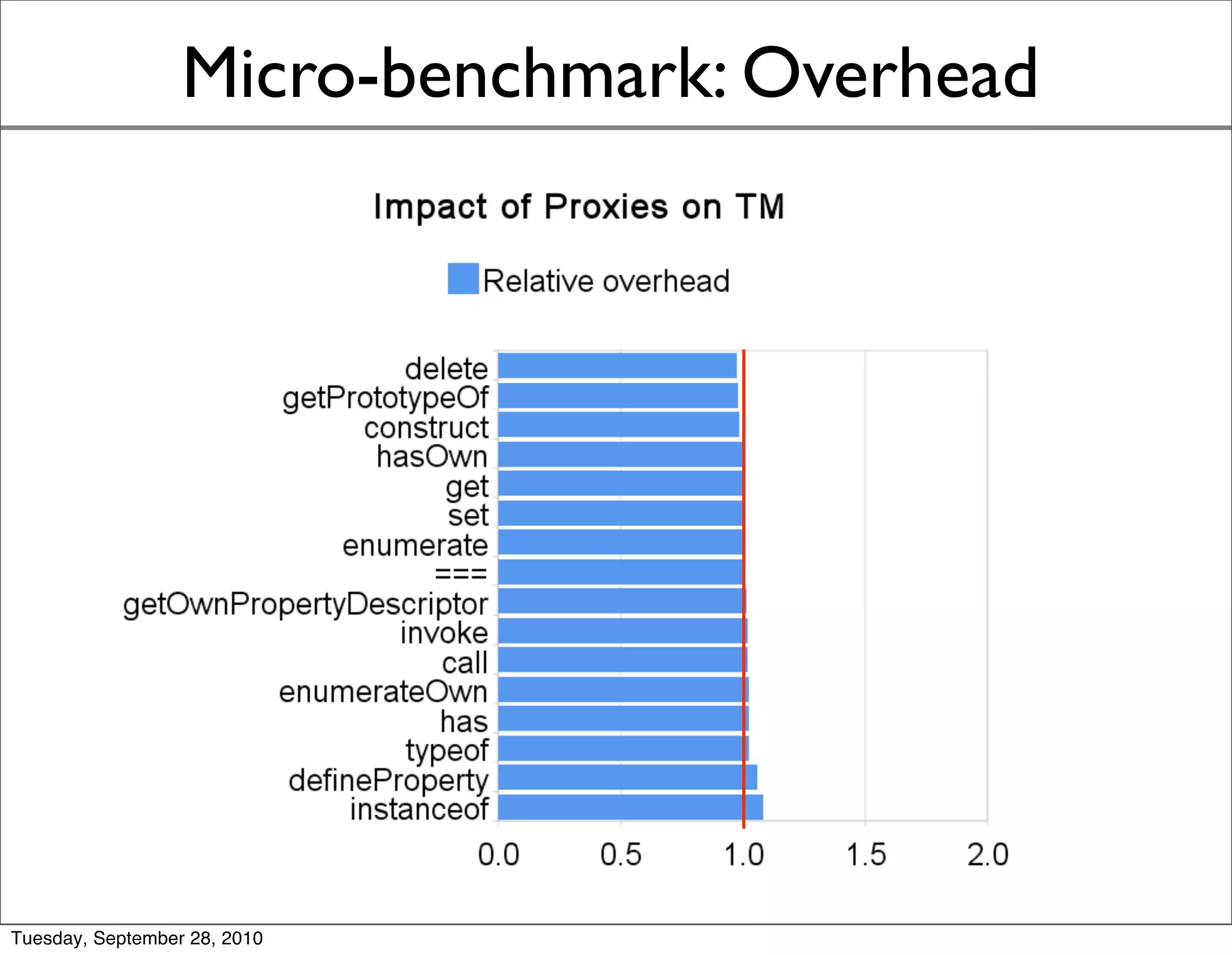

Micro-benchmark: Overhead




Tuesday, September 28, 2010

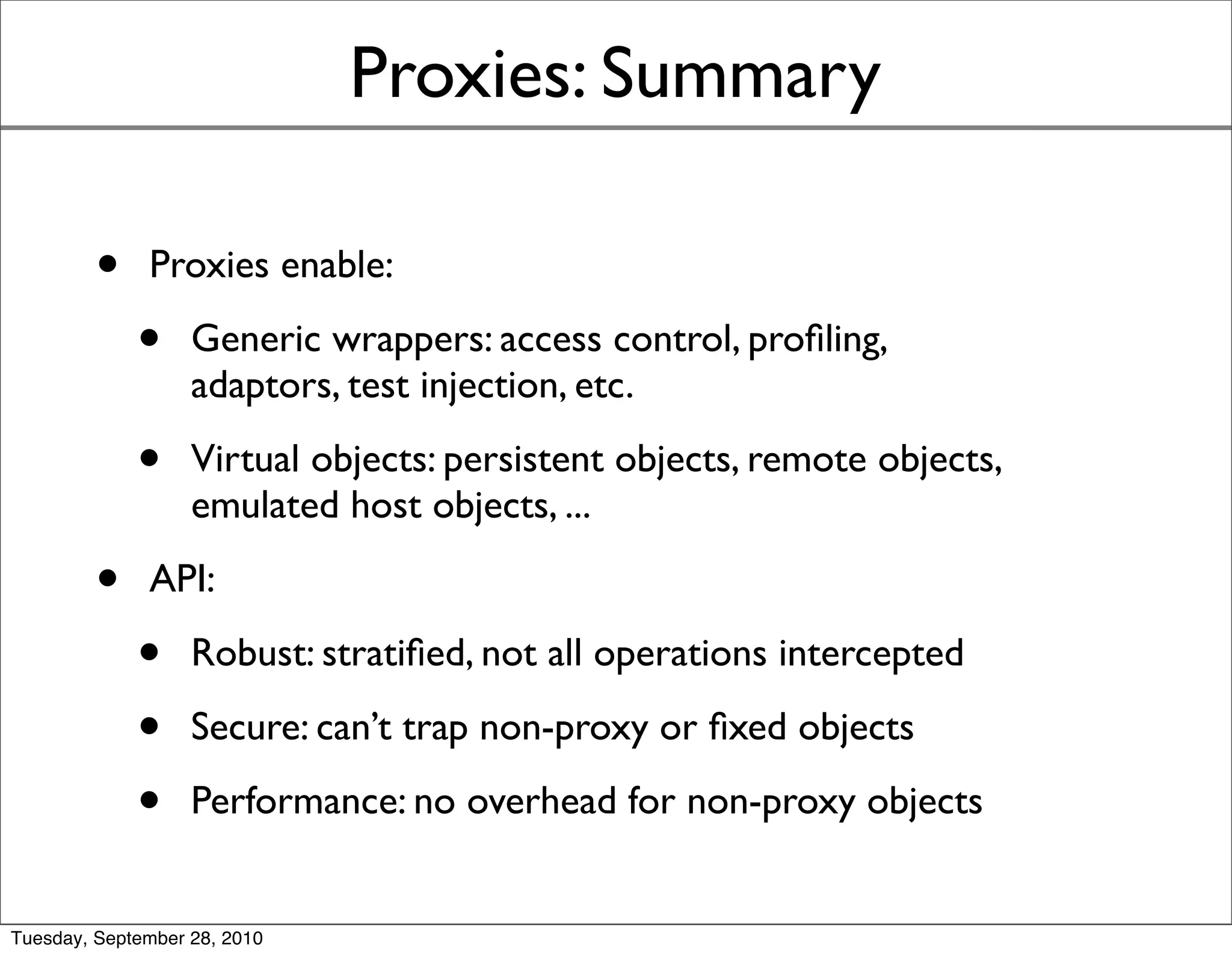

Proxies: Summary

         •    Proxies enable:

             •     Generic wrappers: access control, profiling,
          ...
Conclusions

               • ES5 provides new meta-programming APIs
               • ES-Harmony Proxies: robust dynamic m...
