1. Enhance Voyager by User Innovations
Ex Libris Northeast User Group Annual Conference 10/27/2011
Sharon Yang
Rider University

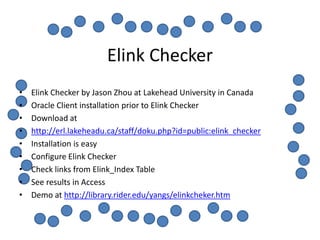

2. Elink Checker
• Elink Checker by Jason Zhou at Lakehead University in Canada
• Oracle Client installation prior to Elink Checker
• Download at
• http://erl.lakeheadu.ca/staff/doku.php?id=public:elink_checker

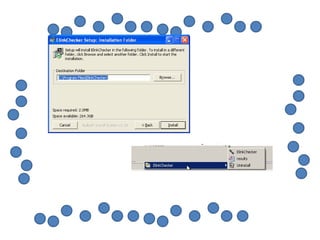

• Installation is easy
• Configure Elink Checker
• Check links from Elink_Index Table

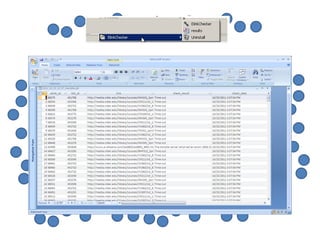

• See results in Access
• Demo at http://library.rider.edu/yangs/elinkcheker.htm

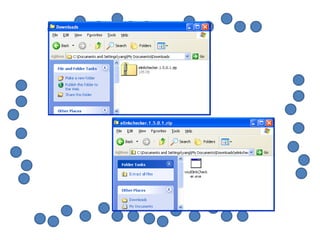

3. Download from this Web Site

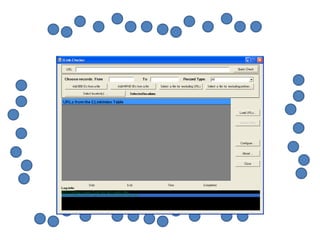

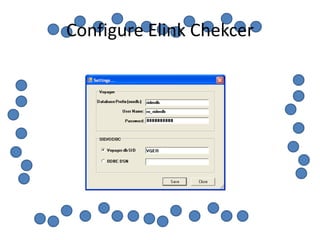

8. Configure Elink Chekcer

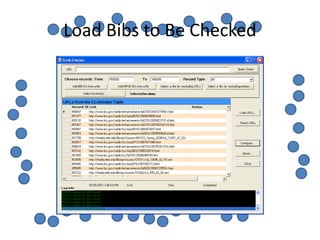

12. Load Bibs to Be Checked

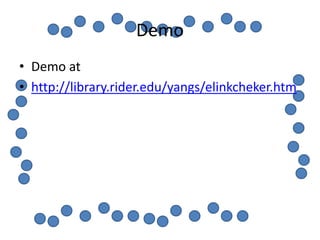

15. Demo
• Demo at
• http://library.rider.edu/yangs/elinkcheker.htm

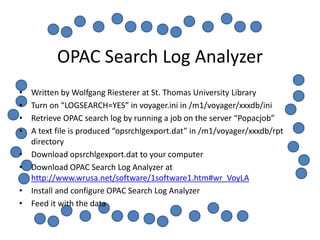

16. OPAC Search Log Analyzer
• Written by Wolfgang Riesterer at St. Thomas University Library
• Turn on “LOGSEARCH=YES” in voyager.ini in /m1/voyager/xxxdb/ini
• Retrieve OPAC search log by running a job on the server “Popacjob”
• A text file is produced “opsrchlgexport.dat” in /m1/voyager/xxxdb/rpt
directory
• Download opsrchlgexport.dat to your computer
• Download OPAC Search Log Analyzer at
http://www.wrusa.net/software/1software1.htm#wr_VoyLA
• Install and configure OPAC Search Log Analyzer
• Feed it with the data

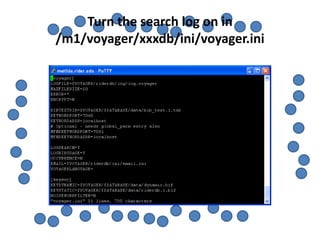

17. Turn the search log on in
/m1/voyager/xxxdb/ini/voyager.ini

18. Run /m1/voyager/xxxdb/sbin/Popacjob

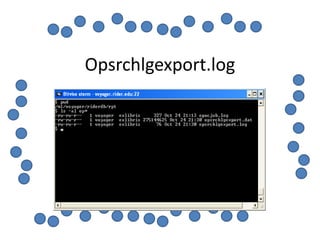

19. Opsrchlgexport.log

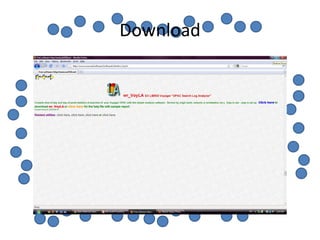

20. Download

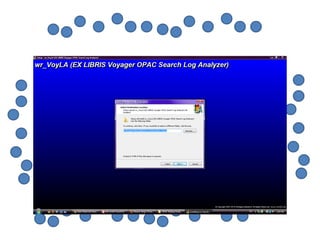

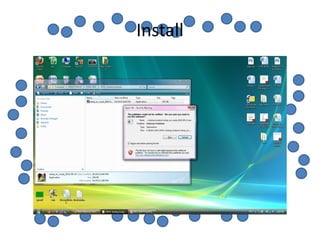

21. Install

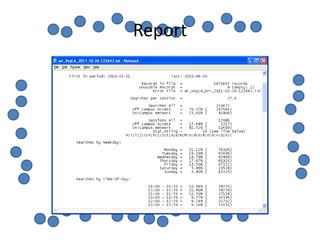

27. Report

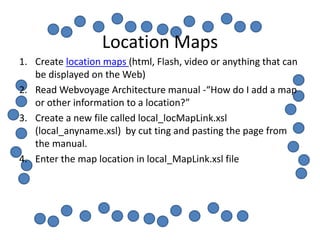

28. Location Maps
1. Create location maps (html, Flash, video or anything that can
be displayed on the Web)
2. Read Webvoyage Architecture manual -“How do I add a map
or other information to a location?”
3. Create a new file called local_locMapLink.xsl
(local_anyname.xsl) by cut ting and pasting the page from
the manual.
4. Enter the map location in local_MapLink.xsl file

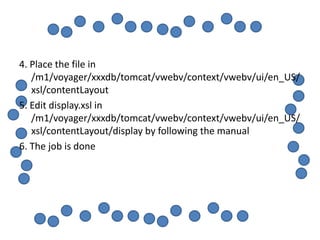

29. 4. Place the file in
/m1/voyager/xxxdb/tomcat/vwebv/context/vwebv/ui/en_US/
xsl/contentLayout
5. Edit display.xsl in
/m1/voyager/xxxdb/tomcat/vwebv/context/vwebv/ui/en_US/
xsl/contentLayout/display by following the manual
6. The job is done

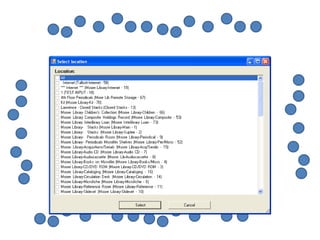

30. Find out what is the location code you want to create a map in
SysAdmin

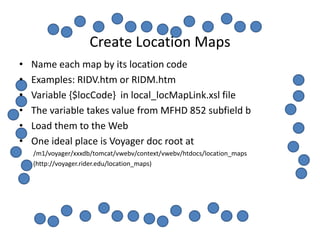

31. Create Location Maps
• Name each map by its location code
• Examples: RIDV.htm or RIDM.htm
• Variable {$locCode} in local_locMapLink.xsl file
• The variable takes value from MFHD 852 subfield b
• Load them to the Web
• One ideal place is Voyager doc root at
/m1/voyager/xxxdb/tomcat/vwebv/context/vwebv/htdocs/location_maps
(http://voyager.rider.edu/location_maps)

32. local_locMapLink.xsl
<!--
** Note: sample link to map based on loc code
** Version : 1.0
** Created : 16-Nov-2007
** Created By :
-->
<xsl:stylesheet version="1.0"
xmlns:xsl="http://www.w3.org/1999/XSL/Transform"
xmlns:page="http://www.exlibrisgroup.com/voyager/webvoyage/page"
xmlns:fo="http://www.w3.org/1999/XSL/Format">
<!-- ###################################################################### -->
<xsl:template name="locMapLink">
<xsl:param name="mfhd"/>
<xsl:variable name="locCode">
<xsl:call-template name="BMDProcessMarcTags">
<xsl:with-param name="field" select="'852'"/>
<xsl:with-param name="indicator1" select="'X'"/>
<xsl:with-param name="indicator2" select="'X'"/>
<xsl:with-param name="subfield" select="'b'"/>
<xsl:with-param name="mfhdID" select="$mfhd"/>
<xsl:with-param name="recordType" select="'mfhd'"/>
</xsl:call-template>
</xsl:variable>
<!-- you must create your web site to display maps -->
<xsl:variable name="baseURL">http://www.exlibrisgroup.com/?loc=</
xsl:variable>
<div class="locationMap">
Show me a&#160;<a id="locMap" href="{$baseURL}{$locCode}"
target="_new">map</a>.
</div>
</xsl:template>
<!-- ###################################################################### -->
</xsl:stylesheet>

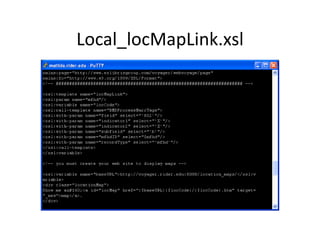

33. Local_locMapLink.xsl

34. Display.xsl

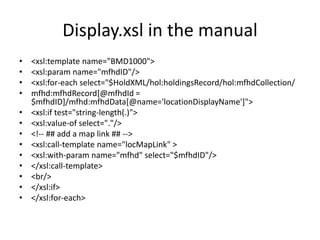

35. Display.xsl in the manual
• <xsl:template name="BMD1000">
• <xsl:param name="mfhdID"/>
• <xsl:for-each select="$HoldXML/hol:holdingsRecord/hol:mfhdCollection/
• mfhd:mfhdRecord[@mfhdId =
$mfhdID]/mfhd:mfhdData[@name='locationDisplayName']">
• <xsl:if test="string-length(.)">
• <xsl:value-of select="."/>
• <!-- ## add a map link ## -->
• <xsl:call-template name="locMapLink" >
• <xsl:with-param name="mfhd" select="$mfhdID"/>
• </xsl:call-template>
• <br/>
• </xsl:if>
• </xsl:for-each>

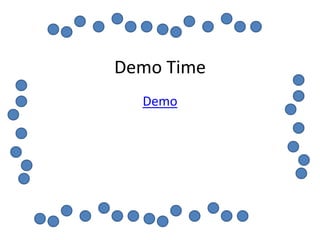

37. Demo Time
Demo

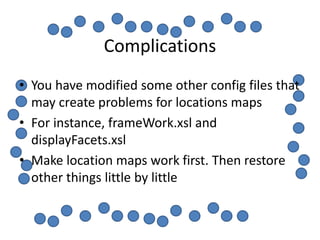

38. Complications
• You have modified some other config files that
may create problems for locations maps
• For instance, frameWork.xsl and
displayFacets.xsl
• Make location maps work first. Then restore
other things little by little

39. Questions
