XAdES Specification based on the Apache XMLSec Project

XAdES Speciﬁcation based on the Apache
XMLSec Project

Zdravko Danailov Krassen Deltchev
Email: nqkoi_ot_bg@yahoo.com Email: Krassen.Deltchev@rub.de

Project thesis

at

Chair for Network and Data Security
Prof. Dr. Jörg Schwenk

advised through Dipl.Ing. Lijun Liao

22.05.2007

Horst-Görtz Institute Ruhr-University of Bochum

Abstract

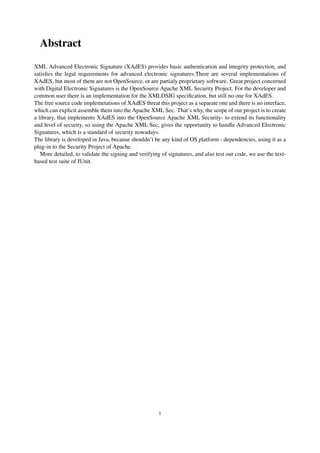

XML Advanced Electronic Signature (XAdES) provides basic authentication and integrity protection, and
satisﬁes the legal requirements for advanced electronic signatures.There are several implementations of
XAdES, but most of them are not OpenSource, or are partialy proprietary software. Great project concerned
with Digital Electronic Signatures is the OpenSource Apache XML Security Project. For the developer and
common user there is an implementation for the XMLDSIG speciﬁcation, but still no one for XAdES.
The free source code implemetations of XAdES threat this project as a separate one and there is no interface,
which can explicit assemble them into the Apache XML Sec. That’s why, the scope of our project is to create
a library, that implements XAdES into the OpenSource Apache XML Security- to extend its functionality
and level of security, so using the Apache XML Sec, gives the opportunity to handle Advanced Electronic
Signatures, which is a standard of security nowadays.
The library is developed in Java, because shouldn’t be any kind of OS platform - dependencies, using it as a
plug-in to the Security Project of Apache.
More detailed, to validate the signing and verifying of signatures, and also test our code, we use the text-
based test suite of JUnit.

i

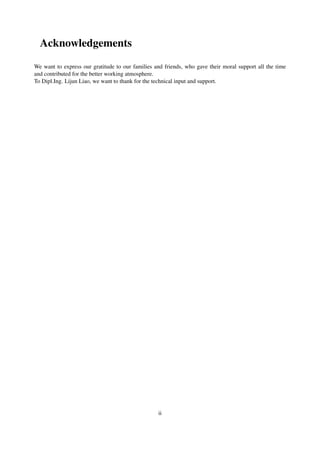

Acknowledgements
We want to express our gratitude to our families and friends, who gave their moral support all the time
and contributed for the better working atmosphere.
To Dipl.Ing. Lijun Liao, we want to thank for the technical input and support.

ii

Contents

1 Introduction 1
1.1 Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Related works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Background 4
2.1 Definitions and Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 XML . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 XML Advanced Electronic Signature Data Structures . . . . . . . . . . . . . . . . . . . . . 6
2.3.1 XML Signature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3.2 XAdES- XML Advanced Electronic Signature . . . . . . . . . . . . . . . . . . . . 8

3 XAdES Elements 10
3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.2 QualifyingProperties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.3 SignedProperties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.4 UnsignedProperties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.5 SignedSignatureProperties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.6 SignedDataObjectProperties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.7 UnsignedSignatureProperties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

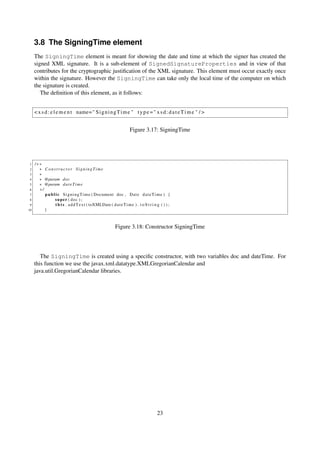

3.8 The SigningTime element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.9 The SigningCertificate element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.10 The SignaturePolicyIdentifier element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.11 The SignatureProductionPlace element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.12 The SignerRole element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.13 The DataObjectFormat element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

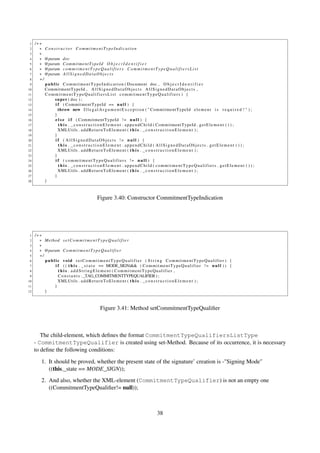

3.14 The CommitmentTypeIndication element . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3.15 The AllDataObjectsTimeStamp element . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
3.16 The IndividualDataObjectsTimeStamp element . . . . . . . . . . . . . . . . . . . . . . . . 40
3.17 The CounterSignature element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

4 Datatypes 42

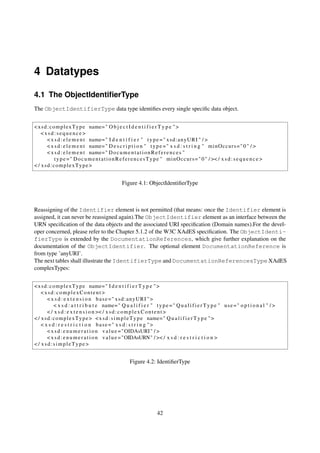

4.1 The ObjectIdentifierType . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
4.2 The EncapsulatedPKIDataType . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
4.3 The TimeStampType . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

5 Conclusion 47

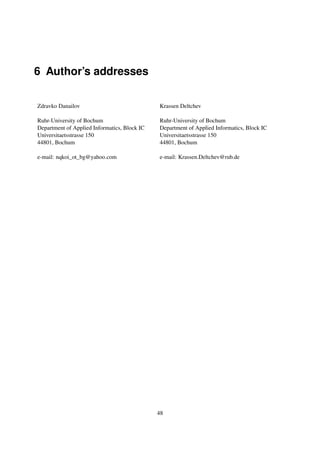

6 Author’s addresses 48

7 Bibliography 49

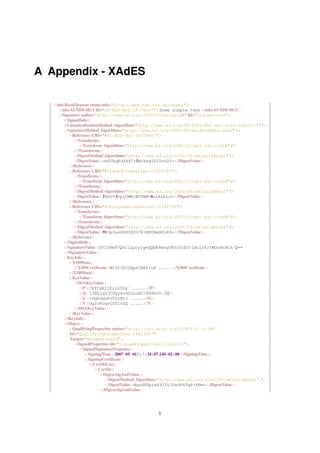

A Appendix - XAdES i

iii

B Appendix - XAdES-BES iv

C Appendix - XAdES-More then one Element vi

D Appendix - Screenshots xi

iv

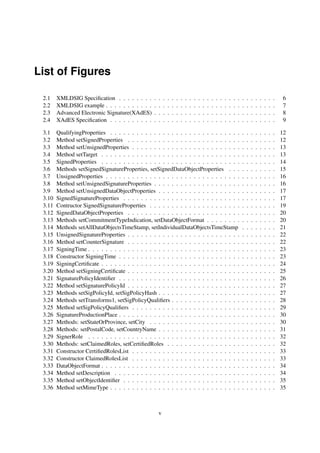

List of Figures

2.1 XMLDSIG Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

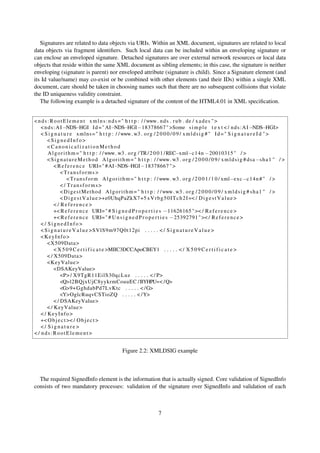

2.2 XMLDSIG example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Advanced Electronic Signature(XAdES) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

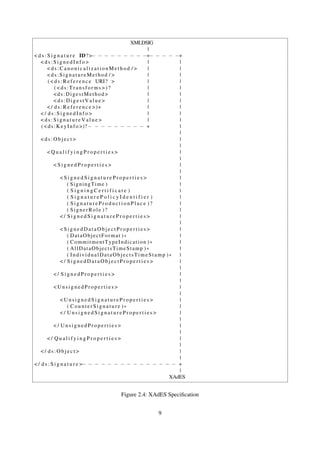

2.4 XAdES Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.1 QualifyingProperties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2 Method setSignedProperties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

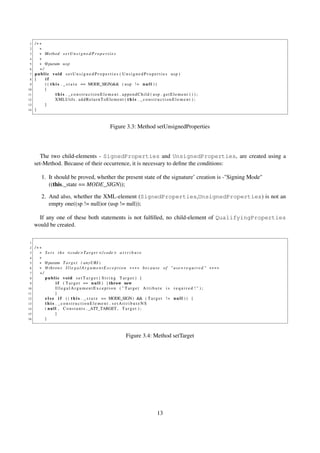

3.3 Method setUnsignedProperties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.4 Method setTarget . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.5 SignedProperties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.6 Methods setSignedSignatureProperties, setSignedDataObjectProperties . . . . . . . . . . . 15
3.7 UnsignedProperties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.8 Method setUnsignedSignatureProperties . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

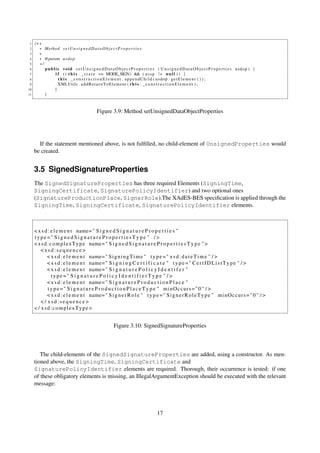

3.9 Method setUnsignedDataObjectProperties . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.10 SignedSignatureProperties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

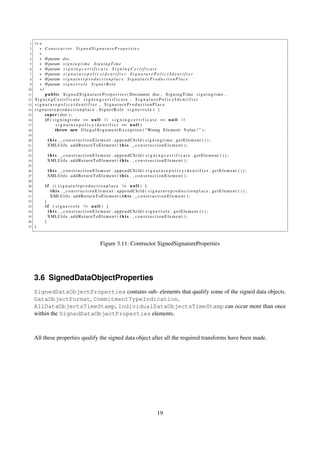

3.11 Contructor SignedSignatureProperties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

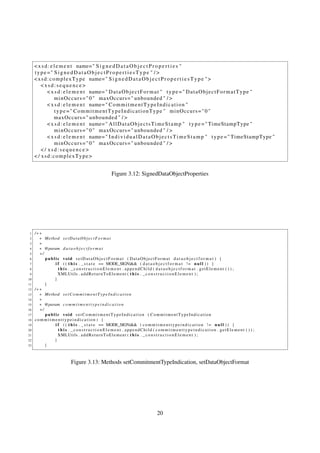

3.12 SignedDataObjectProperties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.13 Methods setCommitmentTypeIndication, setDataObjectFormat . . . . . . . . . . . . . . . . 20

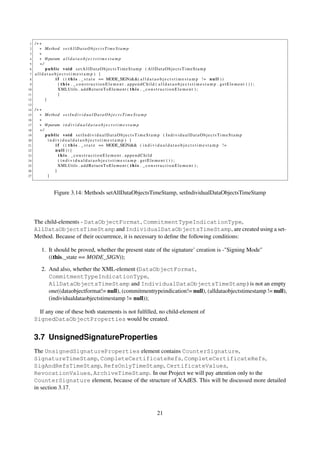

3.14 Methods setAllDataObjectsTimeStamp, setIndividualDataObjectsTimeStamp . . . . . . . . 21
3.15 UnsignedSignatureProperties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.16 Method setCounterSignature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.17 SigningTime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.18 Constructor SigningTime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

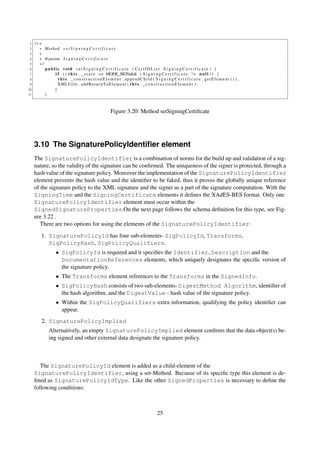

3.19 SigningCertificate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.20 Method setSigningCertificate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

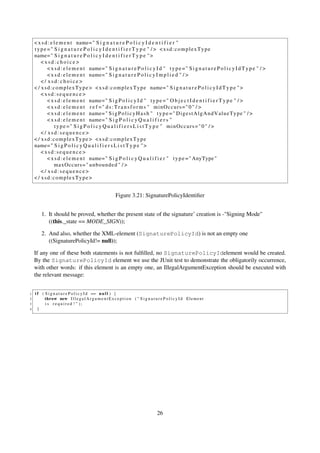

3.21 SignaturePolicyIdentifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.22 Method setSignaturePolicyId . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3.23 Methods setSigPolicyId, setSigPolicyHash . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3.24 Methods setTransforms1, setSigPolicyQualifiers . . . . . . . . . . . . . . . . . . . . . . . . 28

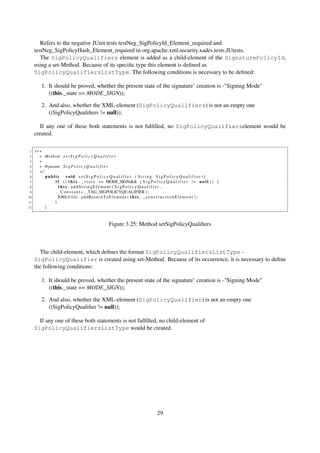

3.25 Method setSigPolicyQualifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

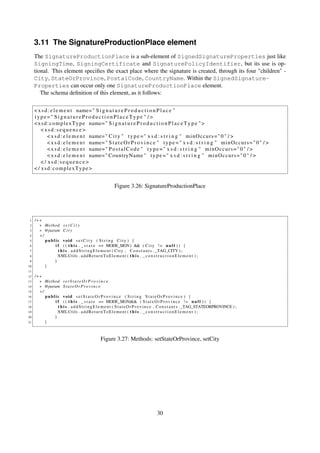

3.26 SignatureProductionPlace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.27 Methods: setStateOrProvince, setCity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

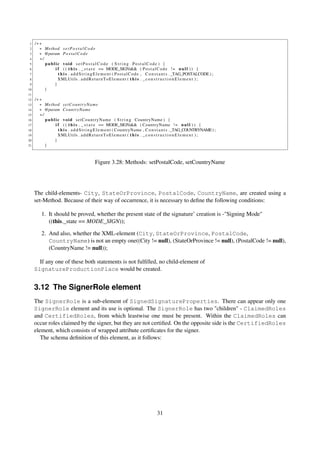

3.28 Methods: setPostalCode, setCountryName . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.29 SignerRole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.30 Methods: setClaimedRoles, setCertifiedRoles . . . . . . . . . . . . . . . . . . . . . . . . . 32

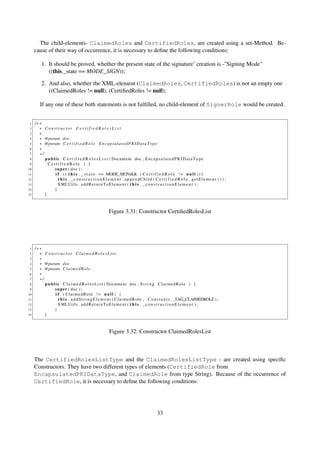

3.31 Constructor CertifiedRolesList . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.32 Constructor ClaimedRolesList . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.33 DataObjectFormat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.34 Method setDescription . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.35 Method setObjectIdentifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

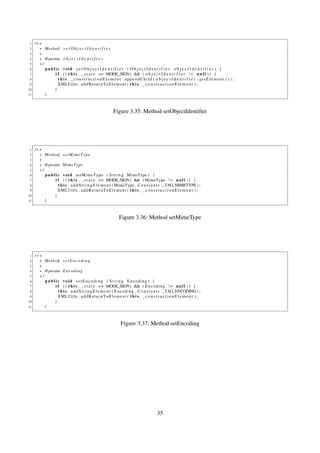

3.36 Method setMimeType . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

v

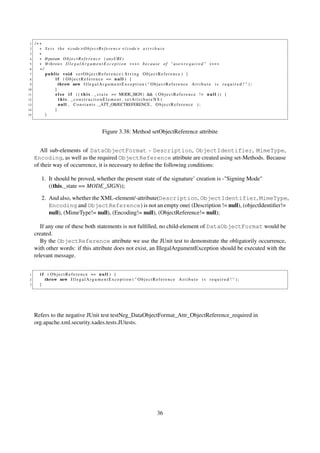

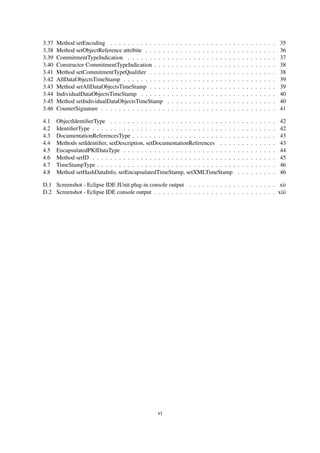

3.37 Method setEncoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3.38 Method setObjectReference attribite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

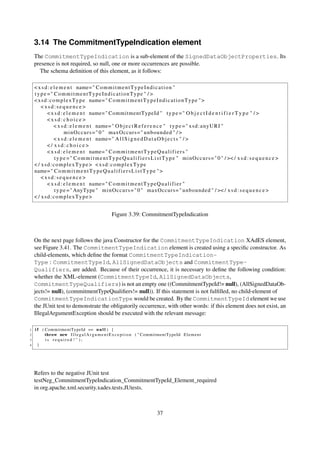

3.39 CommitmentTypeIndication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3.40 Constructor CommitmentTypeIndication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
3.41 Method setCommitmentTypeQualifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
3.42 AllDataObjectsTimeStamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
3.43 Method setAllDataObjectsTimeStamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

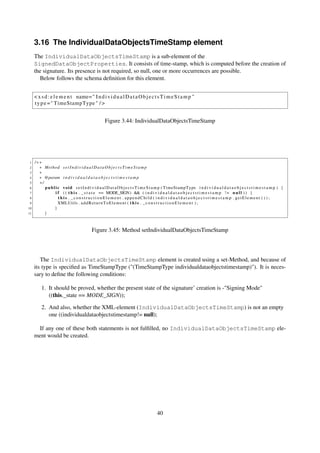

3.44 IndividualDataObjectsTimeStamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
3.45 Method setIndividualDataObjectsTimeStamp . . . . . . . . . . . . . . . . . . . . . . . . . 40
3.46 CounterSignature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

4.1 ObjectIdentifierType . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
4.2 IdentifierType . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

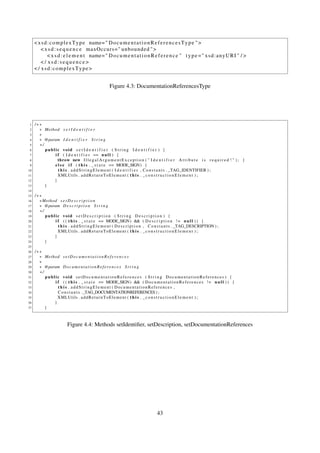

4.3 DocumentationReferencesType . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
4.4 Methods setIdentifier, setDescription, setDocumentationReferences . . . . . . . . . . . . . 43
4.5 EncapsulatedPKIDataType . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

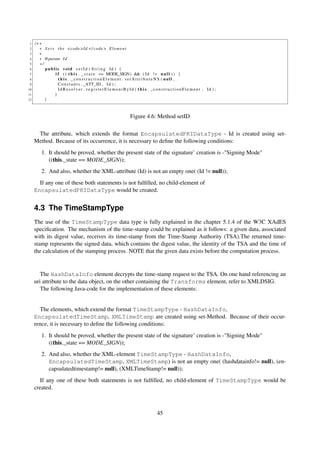

4.6 Method setID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

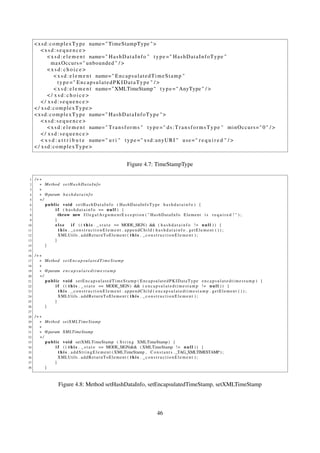

4.7 TimeStampType . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
4.8 Method setHashDataInfo, setEncapsulatedTimeStamp, setXMLTimeStamp . . . . . . . . . 46

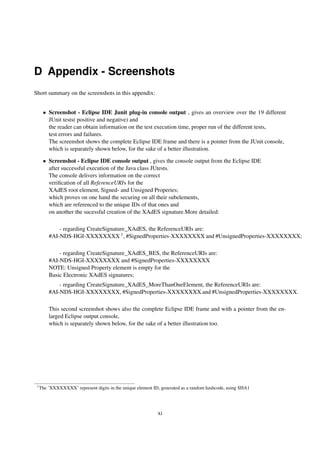

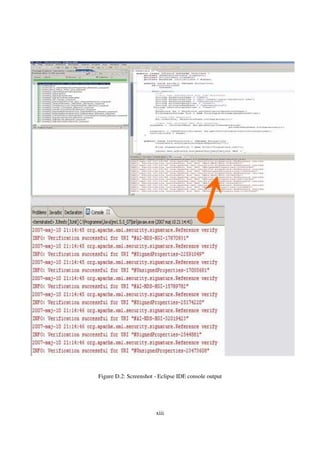

D.1 Screenshot - Eclipse IDE JUnit plug-in console output . . . . . . . . . . . . . . . . . . . . xii
D.2 Screenshot - Eclipse IDE console output . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii

vi

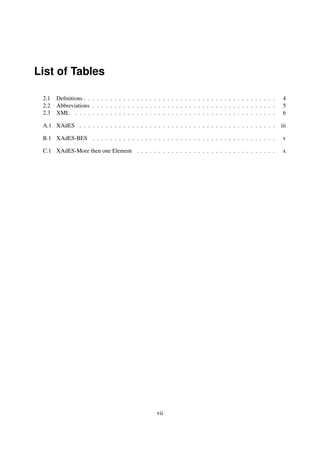

List of Tables

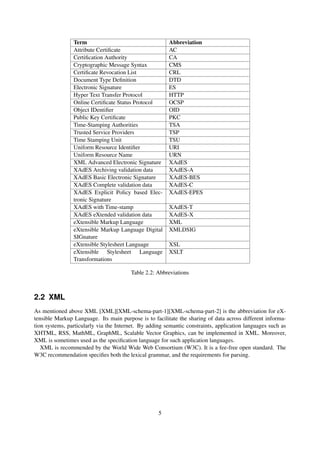

2.1 Deﬁnitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

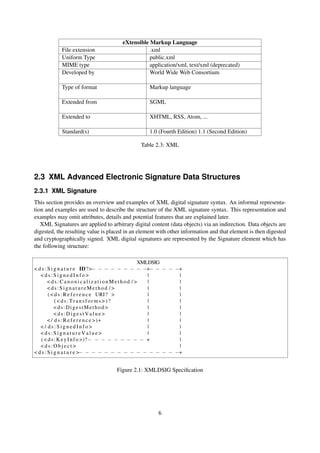

2.3 XML . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

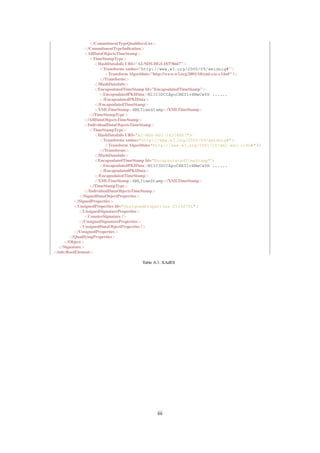

A.1 XAdES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

B.1 XAdES-BES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

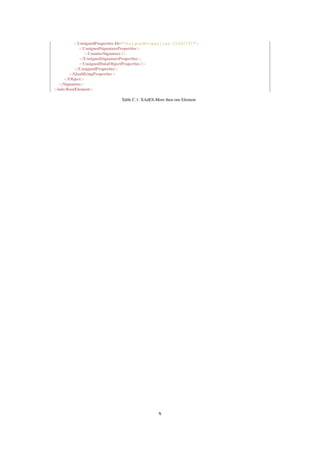

C.1 XAdES-More then one Element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

vii

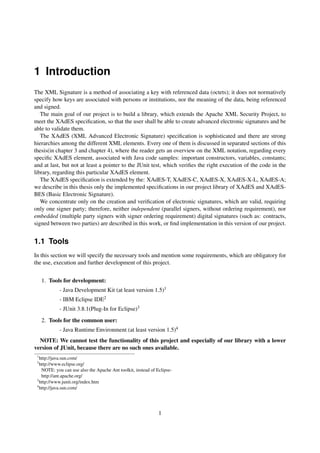

1 Introduction
The XML Signature is a method of associating a key with referenced data (octets); it does not normatively
specify how keys are associated with persons or institutions, nor the meaning of the data, being referenced
and signed.
The main goal of our project is to build a library, which extends the Apache XML Security Project, to
meet the XAdES specification, so that the user shall be able to create advanced electronic signatures and be
able to validate them.
The XAdES (XML Advanced Electronic Signature) specification is sophisticated and there are strong
hierarchies among the different XML elements. Every one of them is discussed in separated sections of this
thesis(in chapter 3 and chapter 4), where the reader gets an overview on the XML notation, regarding every
specific XAdES element, associated with Java code samples: important constructors, variables, constants;
and at last, but not at least a pointer to the JUnit test, which verifies the right execution of the code in the
library, regarding this particular XAdES element.
The XAdES specification is extended by the: XAdES-T, XAdES-C, XAdES-X, XAdES-X-L, XAdES-A;
we describe in this thesis only the implemented specifications in our project library of XAdES and XAdES-
BES (Basic Electronic Signature).
We concentrate only on the creation and verification of electronic signatures, which are valid, requiring
only one signer party; therefore, neither independent (parallel signers, without ordering requirement), nor
embedded (multiple party signers with signer ordering requirement) digital signatures (such as: contracts,
signed between two parties) are described in this work, or find implementation in this version of our project.

1.1 Tools
In this section we will specify the necessary tools and mention some requirements, which are obligatory for
the use, execution and further development of this project.

1. Tools for development:
- Java Development Kit (at least version 1.5)1
- IBM Eclipse IDE2
- JUnit 3.8.1(Plug-In for Eclipse)3
2. Tools for the common user:
- Java Runtime Environment (at least version 1.5)4
NOTE: We cannot test the functionality of this project and especially of our library with a lower
version of JUnit, because there are no such ones available.
1
http://java.sun.com/
2
http://www.eclipse.org/
NOTE: you can use also the Apache Ant toolkit, instead of Eclipse-
http://ant.apache.org/
3
http://www.junit.org/index.htm
4
http://java.sun.com/

1

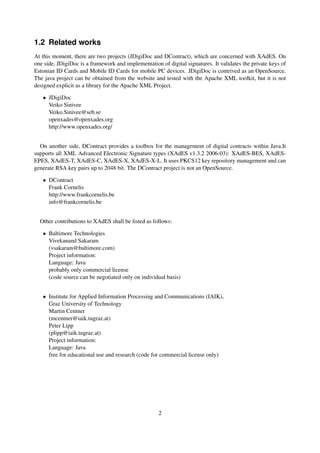

1.2 Related works
At this moment, there are two projects (JDigiDoc and DContract), which are concerned with XAdES. On
one side, JDigiDoc is a framework and implementation of digital signatures. It validates the private keys of
Estonian ID Cards and Mobile ID Cards for mobile PC devices. JDigiDoc is contrived as an OpenSource.
The java project can be obtained from the website and tested with the Apache XML toolkit, but it is not
designed explicit as a library for the Apache XML Project.

• JDigiDoc
Veiko Sinivee
Veiko.Sinivee@seb.se
openxades@openxades.org
http://www.openxades.org/

On another side, DContract provides a toolbox for the management of digital contracts within Java.It
supports all XML Advanced Electronic Signature types (XAdES v1.3.2 2006-03): XAdES-BES, XAdES-
EPES, XAdES-T, XAdES-C, XAdES-X, XAdES-X-L. It uses PKCS12 key repository management and can
generate RSA key pairs up to 2048 bit. The DContract project is not an OpenSource.

• DContract
Frank Cornelis
http://www.frankcornelis.be
info@frankcornelis.be

Other contributions to XAdES shall be listed as follows:

• Baltimore Technologies
Vivekanand Sakaram
(vsakaram@baltimore.com)
Project information:
Language: Java
probably only commercial license
(code source can be negotiated only on individual basis)

• Institute for Applied Information Processing and Communications (IAIK),
Graz University of Technology
Martin Centner
(mcentner@iaik.tugraz.at)
Peter Lipp
(plipp@iaik.tugraz.at)
Language: Java
free for educational use and research (code for commercial license only)

2

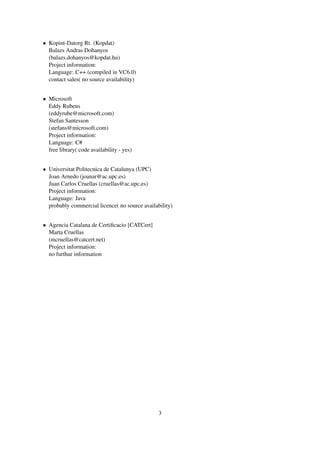

• Kopint-Datorg Rt. (Kopdat)
Balazs Andras Dohanyos
(balazs.dohanyos@kopdat.hu)
Language: C++ (compiled in VC6.0)
contact sales( no source availability)

• Microsoft
Eddy Rubens
(eddyrube@microsoft.com)
Stefan Santesson
(stefans@microsoft.com)
Language: C#
free library( code availability - yes)

• Universitat Politecnica de Catalunya (UPC)
Joan Arnedo (joanar@ac.upc.es)
Juan Carlos Cruellas (cruellas@ac.upc.es)
Language: Java
probably commercial licence( no source availability)

• Agencia Catalana de Certiﬁcacio [CATCert]
Marta Cruellas
(mcruellas@catcert.net)
no furthur information

3

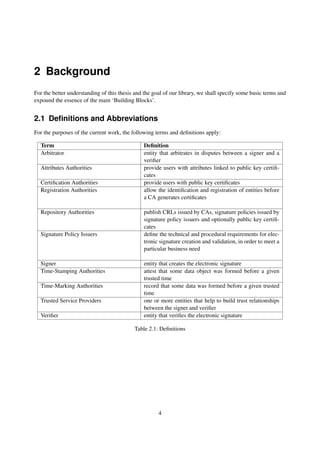

2 Background
For the better understanding of this thesis and the goal of our library, we shall specify some basic terms and
expound the essence of the main ‘Building Blocks’.

2.1 Definitions and Abbreviations
For the purposes of the current work, the following terms and definitions apply:

Term Definition
Arbitrator entity that arbitrates in disputes between a signer and a
verifier
Attributes Authorities provide users with attributes linked to public key certifi-
cates
Certification Authorities provide users with public key certificates
Registration Authorities allow the identification and registration of entities before
a CA generates certificates

Repository Authorities publish CRLs issued by CAs, signature policies issued by
signature policy issuers and optionally public key certifi-
cates
Signature Policy Issuers define the technical and procedural requirements for elec-
tronic signature creation and validation, in order to meet a
particular business need

Signer entity that creates the electronic signature
Time-Stamping Authorities attest that some data object was formed before a given
trusted time
Time-Marking Authorities record that some data was formed before a given trusted
time
Trusted Service Providers one or more entities that help to build trust relationships
between the signer and verifier
Verifier entity that verifies the electronic signature

Table 2.1: Definitions

4

Term Abbreviation
Attribute Certificate AC
Certification Authority CA
Cryptographic Message Syntax CMS
Certificate Revocation List CRL
Document Type Definition DTD
Electronic Signature ES
Hyper Text Transfer Protocol HTTP
Online Certificate Status Protocol OCSP
Object IDentifier OID
Public Key Certificate PKC
Time-Stamping Authorities TSA
Trusted Service Providers TSP
Time Stamping Unit TSU
Uniform Resource Identifier URI
Uniform Resource Name URN
XML Advanced Electronic Signature XAdES
XAdES Archiving validation data XAdES-A
XAdES Basic Electronic Signature XAdES-BES
XAdES Complete validation data XAdES-C
XAdES Explicit Policy based Elec- XAdES-EPES
tronic Signature
XAdES with Time-stamp XAdES-T
XAdES eXtended validation data XAdES-X
eXtensible Markup Language XML
eXtensible Markup Language Digital XMLDSIG
SIGnature
eXtensible Stylesheet Language XSL
eXtensible Stylesheet Language XSLT
Transformations

Table 2.2: Abbreviations

2.2 XML
As mentioned above XML [XML][XML-schema-part-1][XML-schema-part-2] is the abbreviation for eX-
tensible Markup Language. Its main purpose is to facilitate the sharing of data across different informa-
tion systems, particularly via the Internet. By adding semantic constraints, application languages such as
XHTML, RSS, MathML, GraphML, Scalable Vector Graphics, can be implemented in XML. Moreover,
XML is sometimes used as the specification language for such application languages.
XML is recommended by the World Wide Web Consortium (W3C). It is a fee-free open standard. The
W3C recommendation specifies both the lexical grammar, and the requirements for parsing.

5

eXtensible Markup Language
File extension .xml
Uniform Type public.xml
MIME type application/xml, text/xml (deprecated)
Developed by World Wide Web Consortium

Type of format Markup language

Extended from SGML

Extended to XHTML, RSS, Atom, ...

Standard(s) 1.0 (Fourth Edition) 1.1 (Second Edition)

Table 2.3: XML

2.3 XML Advanced Electronic Signature Data Structures
2.3.1 XML Signature
This section provides an overview and examples of XML digital signature syntax. An informal representa-
tion and examples are used to describe the structure of the XML signature syntax. This representation and
examples may omit attributes, details and potential features that are explained later.
XML Signatures are applied to arbitrary digital content (data objects) via an indirection. Data objects are
digested, the resulting value is placed in an element with other information and that element is then digested
and cryptographically signed. XML digital signatures are represented by the Signature element which has
the following structure:

XMLDSIG
< d s : S i g n a t u r e ID ? >− − − − − − − − −+− − − − −+
<ds:SignedInfo> | |
<ds:CanonicalizationMethod /> | |
<ds:SignatureMethod / > | |
( < d s : R e f e r e n c e URI? > | |
(<ds:Transforms>)? | |
<ds:DigestMethod> | |
<ds:DigestValue> | |
< / d s : R e f e r e n c e >)+ | |
</ ds:SignedInfo> | |
<ds:SignatureValue> | |
( < d s : K e y I n f o >)?− − − − − − − − − + |
<ds:Object> |
< d s : S i g n a t u r e >− − − − − − − − − − − − − − − −+

Figure 2.1: XMLDSIG Speciﬁcation

6

Signatures are related to data objects via URIs. Within an XML document, signatures are related to local
data objects via fragment identiﬁers. Such local data can be included within an enveloping signature or
can enclose an enveloped signature. Detached signatures are over external network resources or local data
objects that reside within the same XML document as sibling elements; in this case, the signature is neither
enveloping (signature is parent) nor enveloped attribute (signature is child). Since a Signature element (and
its Id value/name) may co-exist or be combined with other elements (and their IDs) within a single XML
document, care should be taken in choosing names such that there are no subsequent collisions that violate
the ID uniqueness validity constraint.
The following example is a detached signature of the content of the HTML4.01 in XML speciﬁcation.

< n d s : R o o t E l e m e n t x m l n s : n d s = " h t t p : / / www. n d s . r u b . de / x a d e s " >
< n d s : A I −NDS−HGI I d = " AI−NDS−HGI−18378667 " >Some s i m p l e t e x t < / n d s : A I −NDS−HGI>
< S i g n a t u r e xmlns = " h t t p : / / www. w3 . o r g / 2 0 0 0 / 0 9 / x m l d s i g # " I d = " S i g n a t u r e I d " >
<SignedInfo>
<CanonicalizationMethod
A l g o r i t h m = " h t t p : / / www. w3 . o r g / TR / 2 0 0 1 / REC−xml−c14n −20010315 " / >
< S i g n a t u r e M e t h o d A l g o r i t h m = " h t t p : / / www. w3 . o r g / 2 0 0 0 / 0 9 / x m l d s i g # dsa−s h a 1 " / >
< R e f e r e n c e URI= " #AI−NDS−HGI−18378667 " >
<Transforms>
< T r a n s f o r m A l g o r i t h m = " h t t p : / / www. w3 . o r g / 2 0 0 1 / 1 0 / xml−exc−c14n # " / >
< / Transforms>
< D i g e s t M e t h o d A l g o r i t h m = " h t t p : / / www. w3 . o r g / 2 0 0 0 / 0 9 / x m l d s i g # s h a 1 " / >
< D i g e s t V a l u e >+e0UhqPaZkX7+5 x V r b g 5 0 I T c h 2 I =< / D i g e s t V a l u e >
</ Reference>
+< R e f e r e n c e URI= " # S i g n e d P r o p e r t i e s −11626165 " >< / R e f e r e n c e >
+< R e f e r e n c e URI= " # U n s i g n e d P r o p e r t i e s −25392791 " >< / R e f e r e n c e >
</ SignedInfo>
< S i g n a t u r e V a l u e >SVlS9m97Q0t12pi . . . . . < / S i g n a t u r e V a l u e >
<KeyInfo>
<X509Data >
< X 5 0 9 C e r t i f i c a t e >MIIC3DCCApoCBEY1 . . . . . < / X 5 0 9 C e r t i f i c a t e >
< / X509Data >
<KeyValue >
<DSAKeyValue>
 / X9TgR11EilS30qcLuz . . . . .
<Q>l2BQjxUjC8yykrmCouuEC /BYHPU=< / Q>
<G>9+ GghdabPd7LvKtc . . . . . < / G>
<Y>OglcRuqvCSTioZQ . . . . . < / Y>
< / DSAKeyValue>
< / KeyValue >
< / KeyInfo>
+< O b j e c t >< / O b j e c t >
</ Signature>
< / nds:RootElement>

Figure 2.2: XMLDSIG example

The required SignedInfo element is the information that is actually signed. Core validation of SignedInfo
consists of two mandatory processes: validation of the signature over SignedInfo and validation of each

7

Reference digest within SignedInfo. Note that the algorithms used in calculating the SignatureValue are
also included in the signed information while the SignatureValue element is outside SignedInfo.
The CanonicalizationMethod is the algorithm that is used to canonicalize the SignedInfo element before
it is digested as part of the signature operation. Note that the example in Figure 2.2 , as well as all examples
in this specification, are not in canonical form.

2.3.2 XAdES- XML Advanced Electronic Signature

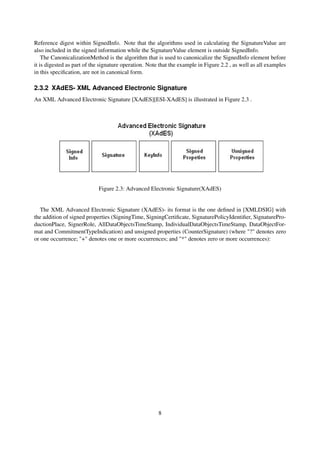

An XML Advanced Electronic Signature [XAdES][ESI-XAdES] is illustrated in Figure 2.3 .

Figure 2.3: Advanced Electronic Signature(XAdES)

The XML Advanced Electronic Signature (XAdES)- its format is the one defined in [XMLDSIG] with
the addition of signed properties (SigningTime, SigningCertificate, SignaturePolicyIdentifier, SignaturePro-
ductionPlace, SignerRole, AllDataObjectsTimeStamp, IndividualDataObjectsTimeStamp, DataObjectFor-
mat and CommitmentTypeIndication) and unsigned properties (CounterSignature) (where "?" denotes zero
or one occurrence; "+" denotes one or more occurrences; and "*" denotes zero or more occurrences):

8

3 XAdES Elements
3.1 Overview
The reader shall understand that, there are several requirements for the sake of the proper run of the project
library. The original OpenSource Apache XML Security Project can be found at:
http://santuario.apache.org/Java/index.html , where the developer can find the source and binary packages (
http://xml.apache.org/security/dist/ ) and important installation notes(
http://santuario.apache.org/Java/installation.html) Our project library is tested on the former version of the
Apache XMLSec Project- v1.3.0. Furthermore, the Apache Project is created as an ’Eclipse Java Project’
and we use Sun JDK 1.5.0_11. For the reader concerned, regarding the implementation of the Project, using
JDK 1.4.x (only Windows NT 4.0 and old Unix-based distributions with kernel 2.4.x) please refer to the
installation site of the project. The developer must be aware of the following facts:
• Copy all files from ’xml-security-bin-1_3_0/xml-security-1_3_0/libs’ to the ’xml-security-src-1_3_0/
xml-security-1_3_0/libs’, so the Apache XMLSec Project( xml-security-src-1_3_0) can be loaded as
a standard Eclipse Java Project and properly run,
• In the new Eclipse Java Project load the JUnit 3.8.1 library, so the XAdES JUnit tests can be executed.
We didn’t test our project library with the current version of JUnit namely version 4.1.
We decided to separate the XAdES library package (.../xml-security-src-1_3_0/xml-security-src-1_3_0/
xml-security-1_3_0/src-xades/ ) in the following sub-packages:
• ’.../input/ ’- where the Java Keystore data is specified;
• ’.../doc/’- where the JavaDoc shall be found,
• ’.../org/apache/xml/security/xades/ ’- where the user can find the source code of our XAdES library;
the following Java classes are important for the discussion in this introduction to the thesis:
– QualifyingProperties- the fundamental XAdES element, which embeds all qualifying
properties of an Advanced XML Signature; The QualifyingProperties is a child element
of Object (one of the four base XAdES elements-’SignedInfo’, ’SignatureValue’,
’KeyInfo’ and ’Object’); if we regret the use of the Object element, then an Advanced
Electronic Signature cannot be built, because the other sub-elements: ’SignedInfo’,
’SignatureValue’, ’KeyInfo’ in their selves do not fulfill completely the XAdES specifi-
cation ,
– Constants- all used constants for the different types of elements/attributes, namespaces, al-
gorithms’ descriptions are defined,
• ’.../org/apache/xml/security/xades/sp’- the SignedProperties XAdES element and its sub-
elements ( conform to the XMLDSIG notation) are specified,
• ’.../org/apache/xml/security/xades/up’- the user shall find all the classes, which describe the basic
child-element UnsignedProperties( of the QualifyingProperties) and its sub-elements,
which are optional( see further)

10

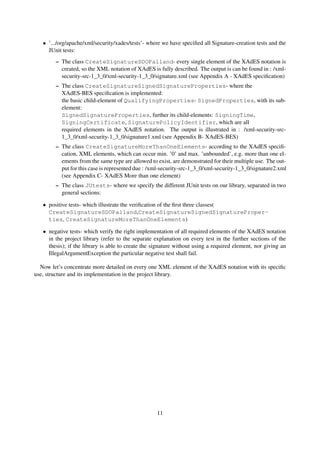

• ’.../org/apache/xml/security/xades/tests’- where we have specified all Signature-creation tests and the
JUnit tests:
– The class CreateSignatureSDOPalland- every single element of the XAdES notation is
created, so the XML notation of XAdES is fully described. The output is can be found in : /xml-
security-src-1_3_0/xml-security-1_3_0/signature.xml (see Appendix A - XAdES specification)
– The class CreateSignatureSignedSignatureProperties- where the
XAdES-BES specification is implemented:
the basic child-element of QualifyingProperties- SignedProperties, with its sub-
element:
SignedSignatureProperties, further its child-elements: SigningTime,
SigningCertificate, SignaturePolicyIdentifier, which are all
required elements in the XAdES notation. The output is illustrated in : /xml-security-src-
1_3_0/xml-security-1_3_0/signature1.xml (see Appendix B- XAdES-BES)
– The class CreateSignatureMoreThanOneElements- according to the XAdES specifi-
cation, XML elements, which can occur min. ’0’ and max. ’unbounded’, e.g. more than one el-
ements from the same type are allowed to exist, are demonstrated for their multiple use. The out-
put for this case is represented due : /xml-security-src-1_3_0/xml-security-1_3_0/signature2.xml
(see Appendix C- XAdES More than one element)
– The class JUtests- where we specify the different JUnit tests on our library, separated in two
general sections:

• positive tests- which illustrate the verification of the first three classes(
CreateSignatureSDOPalland,CreateSignatureSignedSignatureProper-
ties, CreateSignatureMoreThanOneElements)

• negative tests- which verify the right implementation of all required elements of the XAdES notation
in the project library (refer to the separate explanation on every test in the further sections of the
thesis); if the library is able to create the signature without using a required element, nor giving an
IllegalArgumentException the particular negative test shall fail.

Now let’s concentrate more detailed on every one XML element of the XAdES notation with its specific
use, structure and its implementation in the project library.

11

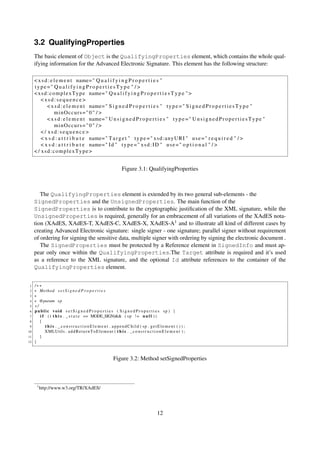

3.2 QualifyingProperties
The basic element of Object is the QualifyingProperties element, which contains the whole qual-
ifying information for the Advanced Electronic Signature. This element has the following structure:

< x s d : e l e m e n t name= " Q u a l i f y i n g P r o p e r t i e s "
type =" Q u a l i f y i n g P r o p e r t i e s T y p e " / >
< x s d : c o m p l e x T y p e name= " Q u a l i f y i n g P r o p e r t i e s T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " S i g n e d P r o p e r t i e s " t y p e = " S i g n e d P r o p e r t i e s T y p e "
minOccurs=" 0 " / >
< x s d : e l e m e n t name= " U n s i g n e d P r o p e r t i e s " t y p e = " U n s i g n e d P r o p e r t i e s T y p e "
minOccurs=" 0 " / >
</ xsd:sequence>
< x s d : a t t r i b u t e name= " T a r g e t " t y p e = " x s d : a n y U R I " u s e = " r e q u i r e d " / >
< x s d : a t t r i b u t e name= " I d " t y p e = " x s d : I D " u s e = " o p t i o n a l " / >
< / xsd:complexType>

Figure 3.1: QualifyingProperties

The QualifyingProperties element is extended by its two general sub-elements - the
SignedProperties and the UnsignedProperties. The main function of the
SignedProperties is to contribute to the cryptographic justiﬁcation of the XML signature, while the
UnsignedProperties is required, generally for an embracement of all variations of the XAdES nota-
tion (XAdES, XAdES-T, XAdES-C, XAdES-X, XAdES-A1 and to illustrate all kind of different cases by
creating Advanced Electronic signature: single signer - one signature; parallel signer without requirement
of ordering for signing the sensitive data, multiple signer with ordering by signing the electronic document .
The SignedProperties must be protected by a Reference element in SignedInfo and must ap-
pear only once within the QualifyingProperties.The Target attribute is required and it’s used
as a reference to the XML signature, and the optional Id attribute references to the container of the
QualifyingProperties element.

1 /∗∗
2 ∗ Method s e t S i g n e d P r o p e r t i e s
3 ∗
4 ∗ @param s p
5 ∗/
6 public void s e t S i g n e d P r o p e r t i e s ( S i g n e d P r o p e r t i e s sp ) {
7 i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( s p ! = n u l l ) )
8 {
9 t h i s . _ c o n s t r u c t i o n E l e m e n t . appendChild ( sp . getElement ( ) ) ;
10 XMLUtils . a d d R e t u r n T o E l e m e n t ( t h i s . _ c o n s t r u c t i o n E l e m e n t ) ;
11 }
12 }

Figure 3.2: Method setSignedProperties

1
http://www.w3.org/TR/XAdES/

12

1 /∗∗
2 ∗
3 ∗ Method s e t U n s i g n e d P r o p e r t i e s
4 ∗
5 ∗ @param u s p
6 ∗/
7 publ ic void s e t U n s i g n e d P r o p e r t i e s ( U n s i g n e d P r o p e r t i e s usp )
8 { if
9 ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( u s p ! = n u l l ) )
10 {
11 t h i s . _ c o n s t r u c t i o n E l e m e n t . appendChild ( usp . getElement ( ) ) ;
13 }
14 }

Figure 3.3: Method setUnsignedProperties

The two child-elements - SignedProperties and UnsignedProperties, are created using a
set-Method. Because of their occurrence, it is necessary to deﬁne the conditions:

1. It should be proved, whether the present state of the signature’ creation is -"Signing Mode"
((this._state == MODE_SIGN));

2. And also, whether the XML-element (SignedProperties,UnsignedProperties) is not an
empty one((sp != null)or (usp != null));

If any one of these both statements is not fulﬁlled, no child-element of QualifyingProperties
would be created.

1
2 /∗∗
3 ∗ S e t s t h e <code >T a r g e t </ code > a t t r i b u t e
4 ∗
5 ∗ @param T a r g e t ( anyURI )
6 ∗ @throws I l l e g a l A r g u m e n t E x c e p t i o n ∗∗∗∗ b e c a u s e o f " u s e= r e q u i r e d " ∗∗∗∗
7 ∗/
8 public void s e t T a r g e t ( S t r i n g Target ) {
9 i f ( T a r g e t == n u l l ) { throw new
10 IllegalArgumentException ( " Target Attibute is required ! " ) ;
11 }
12 e l s e i f ( ( t h i s . _ s t a t e == MODE_SIGN) && ( T a r g e t ! = n u l l ) ) {
13 this . _constructionElement . setAttributeNS
14 ( n u l l , C o n s t a n t s . _ATT_TARGET , T a r g e t ) ;
15 }
16 }

Figure 3.4: Method setTarget

13

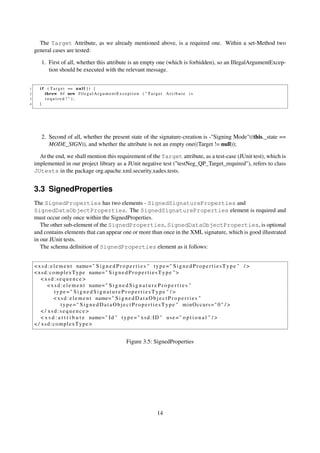

The Target Attribute, as we already mentioned above, is a required one. Within a set-Method two
general cases are tested:

1. First of all, whether this attribute is an empty one (which is forbidden), so an IllegalArgumentExcep-
tion should be executed with the relevant message.

1 i f ( T a r g e t == n u l l } ) {
2 throw b f new I l l e g a l A r g u m e n t E x c e p t i o n ( " T a r g e t A t t i b u t e i s
3 required ! " );
4 }

2. Second of all, whether the present state of the signature-creation is -"Signing Mode"((this._state ==
MODE_SIGN)), and whether the attribute is not an empty one((Target != null));

At the end, we shall mention this requirement of the Target attribute, as a test-case (JUnit test), which is
implemented in our project library as a JUnit negative test ("testNeg_QP_Target_required"), refers to class
JUtests in the package org.apache.xml.security.xades.tests.

3.3 SignedProperties
The SignedProperties has two elements - SignedSignatureProperties and
SignedDataObjectProperties. The SignedSignatureProperties element is required and
must occur only once within the SignedProperties.
The other sub-element of the SignedProperties, SignedDataObjectProperties, is optional
and contains elements that can appear one or more than once in the XML signature, which is good illustrated
in our JUnit tests.
The schema deﬁnition of SignedProperties element as it follows:

< x s d : e l e m e n t name= " S i g n e d P r o p e r t i e s " t y p e = " S i g n e d P r o p e r t i e s T y p e " / >
< x s d : c o m p l e x T y p e name= " S i g n e d P r o p e r t i e s T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " S i g n e d S i g n a t u r e P r o p e r t i e s "
type =" S i g n e d S i g n a t u r e P r o p e r t i e s T y p e " / >
< x s d : e l e m e n t name= " S i g n e d D a t a O b j e c t P r o p e r t i e s "
t y p e =" S i g n e d D a t a O b j e c t P r o p e r t i e s T y p e " minOccurs=" 0 " / >
</ xsd:sequence>

Figure 3.5: SignedProperties

14

1 /∗∗
2 ∗ Method s e t S i g n e d S i g n a t u r e P r o p e r t i e s
3 ∗
4 ∗ @param s s p
5 ∗/
6 public void s e t S i g n e d S i g n a t u r e P r o p e r t i e s ( S i g n e d S i g n a t u r e P r o p e r t i e s ssp ) {
7 i f ( s s p == n u l l ) {
8 throw new I l l e g a l A r g u m e n t E x c e p t i o n (
9 " S i g n e d S i g n a t u r e P r o p e r t i e s Element i s r e q u i r e d ! " ) ;
10 }
11 e l s e i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( s s p ! = n u l l ) ) {
12 t h i s . _constructionElement . appendChild ( ssp . getElement ( ) ) ;
14 }
15 }
16
17 /∗∗
18 ∗ Method s e t S i g n e d D a t a O b j e c t P r o p e r t i e s
19 ∗
20 ∗ @param s d o p
21 ∗/
22 p u b l i c void s e t S i g n e d D a t a O b j e c t P r o p e r t i e s ( S i g n e d D a t a O b j e c t P r o p e r t i e s sdop ) {
23 i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( s d o p ! = n u l l ) ) {
24 t h i s . _ c o n s t r u c t i o n E l e m e n t . appendChild ( sdop . getElement ( ) ) ;
26 }
27 }

Figure 3.6: Methods setSignedSignatureProperties, setSignedDataObjectProperties

The two child-elements - SignedSignatureProperties and
SignedDataObjectProperties, are created using a set-Method. Because of their different way of
occurrence, it is necessary to deﬁne the following conditions:


2. And also, whether the XML-element (SignedSignatureProperties,
SignedDataObjectProperties) is not an empty one((ssp != null)or (sdop != null));

If any one of these both statements is not fulﬁlled, no child-element of SignedProperties would be
created. By the SignedSignatureProperties element we use the JUnit test to demonstrate the
obligatorily occurrence, with other words: if this element is an empty one, an IllegalArgumentException
should be executed with the relevant message.

1 i f ( s s p == n u l l } {
2 throw new I l l e g a l A r g u m e n t E x c e p t i o n ( " S i g n e d S i g n a t u r e P r o p e r t i e s E l e m e n t i s
3 required ! " );
4 }

Refers to the negative JUnit test testNeg_SignedSignatureProperties in
org.apache.xml.security.xades.tests.JUtests.

15

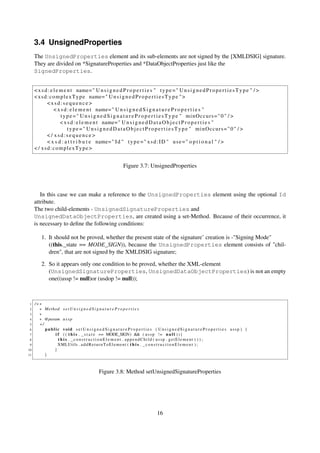

3.4 UnsignedProperties
The UnsignedProperties element and its sub-elements are not signed by the [XMLDSIG] signature.
They are divided on *SignatureProperties and *DataObjectProperties just like the
SignedProperties.

< x s d : e l e m e n t name= " U n s i g n e d P r o p e r t i e s " t y p e = " U n s i g n e d P r o p e r t i e s T y p e " / >
< x s d : c o m p l e x T y p e name= " U n s i g n e d P r o p e r t i e s T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " U n s i g n e d S i g n a t u r e P r o p e r t i e s "
t y p e =" U n s i g n e d S i g n a t u r e P r o p e r t i e s T y p e " minOccurs=" 0 " / >
< x s d : e l e m e n t name= " U n s i g n e d D a t a O b j e c t P r o p e r t i e s "
t y p e =" U n s i g n e d D a t a O b j e c t P r o p e r t i e s T y p e " minOccurs=" 0 " / >
</ xsd:sequence>

Figure 3.7: UnsignedProperties

In this case we can make a reference to the UnsignedProperties element using the optional Id
attribute.
The two child-elements - UnsignedSignatureProperties and
UnsignedDataObjectProperties, are created using a set-Method. Because of their occurrence, it
is necessary to deﬁne the following conditions:

1. It should not be proved, whether the present state of the signature’ creation is -"Signing Mode"
((this._state == MODE_SIGN)), because the UnsignedProperties element consists of "chil-
dren", that are not signed by the XMLDSIG signature;

2. So it appears only one condition to be proved, whether the XML-element
(UnsignedSignatureProperties, UnsignedDataObjectProperties) is not an empty
one((ussp != null)or (usdop != null));

1 /∗∗
2 ∗ Method s e t U n s i g n e d S i g n a t u r e P r o p e r t i e s
3 ∗
4 ∗ @param u s s p
5 ∗/
6 public void s e t U n s i g n e d S i g n a t u r e P r o p e r t i e s ( U n s i g n e d S i g n a t u r e P r o p e r t i e s ussp ) {
7 i f ( ( t h i s . _ s t a t e == MODE_SIGN) && ( u s s p ! = n u l l ) ) {
8 t h i s . _constructionElement . appendChild ( ussp . getElement ( ) ) ;
10 }
11 }

Figure 3.8: Method setUnsignedSignatureProperties

16

1 /∗∗
2 ∗ Method s e t U n s i g n e d D a t a O b j e c t P r o p e r t i e s
3 ∗
4 ∗ @param u s d o p
5 ∗/
6 p u b l i c void s e t U n s i g n e d D a t a O b j e c t P r o p e r t i e s ( U n s i g n e d D a t a O b j e c t P r o p e r t i e s usdop ) {
7 i f ( ( t h i s . _ s t a t e == MODE_SIGN) && ( u s s p ! = n u l l ) ) {
8 t h i s . _ c o n s t r u c t i o n E l e m e n t . appendChild ( usdop . get El eme nt ( ) ) ;
10 }
11 }

Figure 3.9: Method setUnsignedDataObjectProperties

If the statement mentioned above, is not fulﬁlled, no child-element of UnsignedProperties would
be created.

3.5 SignedSignatureProperties
The SignedSignatureProperties has three required Elements (SigningTime,
SigningCertificate, SignaturePolicyIdentifier) and two optional ones
(SignatureProductionPlace, SignerRole).The XAdES-BES speciﬁcation is applied through the
SigningTime, SigningCertificate, SignaturePolicyIdentifier elements.

< x s d : e l e m e n t name= " S i g n e d S i g n a t u r e P r o p e r t i e s "
type =" S i g n e d S i g n a t u r e P r o p e r t i e s T y p e " / >
< x s d : c o m p l e x T y p e name= " S i g n e d S i g n a t u r e P r o p e r t i e s T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " S i g n i n g T i m e " t y p e = " x s d : d a t e T i m e " / >
< x s d : e l e m e n t name= " S i g n i n g C e r t i f i c a t e " t y p e = " C e r t I D L i s t T y p e " / >
< x s d : e l e m e n t name= " S i g n a t u r e P o l i c y I d e n t i f e r "
type =" S i g n a t u r e P o l i c y I d e n t i f i e r T y p e " / >
< x s d : e l e m e n t name= " S i g n a t u r e P r o d u c t i o n P l a c e "
t y p e =" S i g n a t u r e P r o d u c t i o n P l a c e T y p e " minOccurs=" 0 " / >
< x s d : e l e m e n t name= " S i g n e r R o l e " t y p e = " S i g n e r R o l e T y p e " m i n O c c u r s = " 0 " / >
</ xsd:sequence>

Figure 3.10: SignedSignatureProperties

The child-elements of the SignedSignatureProperties are added, using a constructor. As men-
tioned above, the SigningTime, SigningCertificate and
SignaturePolicyIdentifier elements are required. Thorough, their occurrence is tested: if one
of these obligatory elements is missing, an IllegalArgumentException should be executed with the relevant
message:

17

1 i f ( s i g n i n g t i m e == n u l l } | | ( s i g n i n g c e r t i f i c a t e == n u l l } | | (
2 s i g n a t u r e p o l i c y i d e n t i f i e r == n u l l )
3 {
4 throw new I l l e g a l A r g u m e n t E x c e p t i o n ( " Wrong E l e m e n t V a l u e ! " ) ;
5 }

Refers to the negative JUnit tests testNeg_SigningTime, testNeg_SigningCertificate and
testNeg_SignaturePolicyIdentifier and to the positive JUnit test
testPositive_SignedSignatureProperties_Elements_required in
The same statements are used to prove that the present phase of signature’ creation is -"Signing Mode"
((this._state == MODE_SIGN)), and the XML-element (SigningTime, SigningCertificate and
SignaturePolicyIdentifier) is not an empty one((signingtime!= null)or (signingcertificate!= null))
or ((signaturepolicyidentifier!= null)).Likewise, for the other two elements the tested conditions are, whether
the present state of the signature’ creation is -"Signing Mode"
((this._state == MODE_SIGN)), and also whether the XML-element (
SignatureProductionPlace, SignerRole) is not an empty one
((signatureproductionplace! = null) or (signerrole! = null));

18

1 /∗∗
2 ∗ Constructor SignedSignatureProperties
3 ∗
4 ∗ @param doc
5 ∗ @param s i g n i n g t i m e S i g n i n g T i m e
6 ∗ @param s i g n i n g c e r t i f i c a t e S i g n i n g C e r t i f i c a t e
7 ∗ @param s i g n a t u r e p o l i c y i d e n t i f i e r S i g n a t u r e P o l i c y I d e n t i f i e r
8 ∗ @param s i g n a t u r e p r o d u c t i o n p l a c e S i g n a t u r e P r o d u c t i o n P l a c e
9 ∗ @param s i g n e r r o l e S i g n e r R o l e
10 ∗/
11 p u b l i c S i g n e d S i g n a t u r e P r o p e r t i e s ( Document doc , S i g n i n g T i m e s i g n i n g t i m e ,
12 SigningCertificate signingcertificate , SignaturePolicyIdentifier
13 signaturepolicyidentifier , SignatureProductionPlace
14 signatureproductionplace , SignerRole s i g n e r r o l e ) {
15 s u p e r ( doc ) ;
16 i f ( s i g n i n g t i m e == n u l l | | s i g n i n g c e r t i f i c a t e == n u l l | |
17 s i g n a t u r e p o l i c y i d e n t i f i e r == n u l l )
18 throw new I l l e g a l A r g u m e n t E x c e p t i o n ( " Wrong E l e m e n t V a l u e ! " ) ;
19
20 t h i s . _constructionElement . appendChild ( signingtime . getElement ( ) ) ;
22
23 t h i s . _constructionElement . appendChild ( s i g n i n g c e r t i f i c a t e . getElement ( ) ) ;
25
26 t h i s . _constructionElement . appendChild ( s i g n a t u r e p o l i c y i d e n t i f i e r . getElement ( ) ) ;
28
29 i f ( ( s i g n a t u r e p r o d u c t i o n p l a c e != n u l l ) {
30 t h i s . _constructionElement . appendChild ( s i g n a t u r e p r o d u c t i o n p l a c e . getElement ( ) ) ;
32 }
33 i f ( s i g n e r r o l e != n u l l ) {
34 t h i s . _constructionElement . appendChild ( s i g n e r r o l e . getElement ( ) ) ;
36 }
37 }

Figure 3.11: Contructor SignedSignatureProperties

3.6 SignedDataObjectProperties
SignedDataObjectProperties contains sub- elements that qualify some of the signed data objects.
DataObjectFormat, CommitmentTypeIndication,
AllDataObjectsTimeStamp, IndividualDataObjectsTimeStamp can occur more than once
within the SignedDataObjectProperties elements.

All these properties qualify the signed data object after all the required transforms have been made.

19

< x s d : e l e m e n t name= " S i g n e d D a t a O b j e c t P r o p e r t i e s "
type =" SignedDataObjectPropertiesType " / >
< x s d : c o m p l e x T y p e name= " S i g n e d D a t a O b j e c t P r o p e r t i e s T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " D a t a O b j e c t F o r m a t " t y p e = " D a t a O b j e c t F o r m a t T y p e "
m i n O c c u r s = " 0 " maxOccurs = " unbounded " / >
< x s d : e l e m e n t name= " C o m m i t m e n t T y p e I n d i c a t i o n "
t y p e =" CommitmentTypeIndicationType " minOccurs=" 0 "
maxOccurs = " unbounded " / >
< x s d : e l e m e n t name= " A l l D a t a O b j e c t s T i m e S t a m p " t y p e = " TimeStampType "
< x s d : e l e m e n t name= " I n d i v i d u a l D a t a O b j e c t s T i m e S t a m p " t y p e = " TimeStampType "
</ xsd:sequence>

Figure 3.12: SignedDataObjectProperties

1 /∗∗
2 ∗ Method s e t D a t a O b j e c t F o r m a t
3 ∗
4 ∗ @param d a t a o b j e c t f o r m a t
5 ∗/
6 public void setDataObjectFormat ( DataObjectFormat d a t a o b j e c t f o r m a t ) {
7 i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( d a t a o b j e c t f o r m a t ! = n u l l ) ) {
8 t h i s . _constructionElement . appendChild ( d a t a o b j e c t f o r m a t . getElement ( ) ) ;
10 }
11 }
12 /∗∗
13 ∗ Method s e t C o m m i t m e n t T y p e I n d i c a t i o n
14 ∗
15 ∗ @param c o m m i t m e n t t y p e i n d i c a t i o n
16 ∗/
17 public void setCommitmentTypeIndication ( CommitmentTypeIndication
18 commitmenttypeindication ) {
19 i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( c o m m i t m e n t t y p e i n d i c a t i o n ! = n u l l ) ) {
20 t h i s . _constructionElement . appendChild ( commitmenttypeindication . getElement ( ) ) ;
22 }
23 }

Figure 3.13: Methods setCommitmentTypeIndication, setDataObjectFormat

20

1 /∗∗
2 ∗ Method s e t A l l D a t a O b j e c t s T i m e S t a m p
3 ∗
4 ∗ @param a l l d a t a o b j e c t s t i m e s t a m p
5 ∗/
6 public void setAllDataObjectsTimeStamp ( AllDataObjectsTimeStamp
7 alldataobjectstimestamp ) {
8 i f ( ( t h i s . _ s t a t e == MODE_SIGN)&&( a l l d a t a o b j e c t s t i m e s t a m p ! = n u l l ) )
9 { t h i s . _constructionElement . appendChild ( a l l d a t a o b j e c t s t i m e s t a m p . getElement ( ) ) ;
11 }
12 }
13
14 /∗∗
15 ∗ Method s e t I n d i v i d u a l D a t a O b j e c t s T i m e S t a m p
16 ∗
17 ∗ @param i n d i v i d u a l d a t a o b j e c t s t i m e s t a m p
18 ∗/
19 public void setIn dividual DataObje ctsTimeS tamp ( IndividualDataObjectsTimeStamp
20 individualdataobjectstimestamp ) {
21 i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( i n d i v i d u a l d a t a o b j e c t s t i m e s t a m p ! =
22 null )){
23 t h i s . _constructionElement . appendChild
24 ( ind ivid uald ata obje ctst imes tamp . getElement ( ) ) ;
26 }
27 }

Figure 3.14: Methods setAllDataObjectsTimeStamp, setIndividualDataObjectsTimeStamp

The child-elements - DataObjectFormat, CommitmentTypeIndicationType,
AllDataObjectsTimeStamp and IndividualDataObjectsTimeStamp, are created using a set-
Method. Because of their occurrence, it is necessary to deﬁne the following conditions:


2. And also, whether the XML-element (DataObjectFormat,
CommitmentTypeIndicationType,
AllDataObjectsTimeStamp and IndividualDataObjectsTimeStamp) is not an empty
one((dataobjectformat!= null), (commitmenttypeindication!= null), (alldataobjectstimestamp != null),
(individualdataobjectstimestamp != null));

If any one of these both statements is not fulﬁlled, no child-element of
SignedDataObjectProperties would be created.

3.7 UnsignedSignatureProperties
The UnsignedSignatureProperties element contains CounterSignature,
SignatureTimeStamp, CompleteCertificateRefs, CompleteCertificateRefs,
SigAndRefsTimeStamp, RefsOnlyTimeStamp, CertificateValues,
RevocationValues, ArchiveTimeStamp. In our Project we will pay attention only to the
CounterSignature element, because of the structure of XAdES. This will be discussed more detailed
in section 3.17.

21

< x s d : e l e m e n t name= " U n s i g n e d S i g n a t u r e P r o p e r t i e s "
type =" U n s i g n e d S i g n a t u r e P r o p e r t i e s T y p e " / >
< x s d : c o m p l e x T y p e name= " U n s i g n e d S i g n a t u r e P r o p e r t i e s T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " C o u n t e r S i g n a t u r e " t y p e = " C o u n t e r S i g n a t u r e T y p e "
< x s d : e l e m e n t name= " S i g n a t u r e T i m e S t a m p " t y p e = " TimeStampType "
< x s d : e l e m e n t name= " C o m p l e t e C e r t i f i c a t e R e f s "
t y p e =" C o m p l e t e C e r t i f i c a t e R e f s T y p e " minOccurs=" 0 " / >
< x s d : e l e m e n t name= " C o m p l e t e R e v o c a t i o n R e f s "
t y p e =" CompleteRevocationRefsType " minOccurs=" 0 " / >
<xsd:choice>
< x s d : e l e m e n t name= " SigAndRefsTimeStamp " t y p e = " TimeStampType "
< x s d : e l e m e n t name= " RefsOnlyTimeStamp " t y p e = " TimeStampType "
</ xsd:choice>
< x s d : e l e m e n t name= " C e r t i f i c a t e V a l u e s " t y p e = " C e r t i f i c a t e V a l u e s T y p e "
minOccurs=" 0 " / >
< x s d : e l e m e n t name= " R e v o c a t i o n V a l u e s " t y p e = " R e v o c a t i o n V a l u e s T y p e "
minOccurs=" 0 " / >
< x s d : e l e m e n t name= " A r c h i v e T i m e S t a m p " t y p e = " TimeStampType "
</ xsd:sequence>

Figure 3.15: UnsignedSignatureProperties

Only the CounterSignature element, using a set-Method, is speciﬁed, because the other sub-elements
of the UnsignedSignatureProperties are not included in the XAdES XML structure. Note, that
only the value of the element is tested, because the "children" of
UnsignedProperties element, are not signed by the XMLDSIG signature.

1 /∗∗
2 ∗ Method s e t C o u n t e r S i g n a t u r e
3 ∗ @param s i g n a t u r e
4 ∗/
5 public void s e t C o u n t e r S i g n a t u r e ( C o u n t e r S i g n a t u r e signature ) {
6 i f ( ( t h i s . _ s t a t e == MODE_SIGN) && ( s i g n a t u r e ! = n u l l ) ) {
7 t h i s . _constructionElement . appendChild ( s i g n a t u r e . getElement ( ) ) ;
9 }
10 }

Figure 3.16: Method setCounterSignature

22

3.8 The SigningTime element
The SigningTime element is meant for showing the date and time at which the signer has created the
signed XML signature. It is a sub-element of SignedSignatureProperties and in view of that
contributes for the cryptographic justification of the XML signature. This element must occur exactly once
within the signature. However the SigningTime can take only the local time of the computer on which
the signature is created.
The definition of this element, as it follows:

< x s d : e l e m e n t name= " S i g n i n g T i m e " t y p e = " x s d : d a t e T i m e " / >

Figure 3.17: SigningTime

1 /∗∗
2 ∗ Constructor SigningTime
3 ∗
4 ∗ @param doc
5 ∗ @param d a t e T i m e
6 ∗/
7 p u b l i c S i g n i n g T i m e ( Document doc , D a t e d a t e T i m e ) {
8 s u p e r ( doc ) ;
9 t h i s . a d d T e x t ( toXMLDate ( d a t e T i m e ) . t o S t r i n g ( ) ) ;
10 }

Figure 3.18: Constructor SigningTime

The SigningTime is created using a specific constructor, with two variables doc and dateTime. For
this function we use the javax.xml.datatype.XMLGregorianCalendar and
java.util.GregorianCalendar libraries.

23

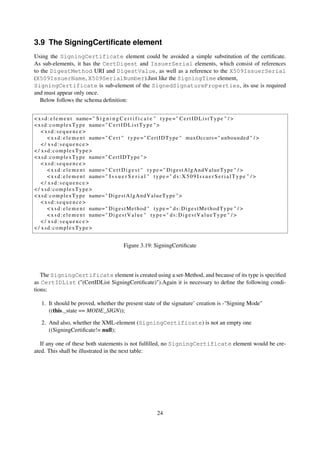

3.9 The SigningCertificate element
Using the SigningCertificate element could be avoided a simple substitution of the certificate.
As sub-elements, it has the CertDigest and IssuerSerial elements, which consist of references
to the DigestMethod URI and DigestValue, as well as a reference to the X509IssuerSerial
(X509IssuerName, X509SerialNumber).Just like the SigningTime element,
SigningCertificate is sub-element of the SignedSignatureProperties, its use is required
and must appear only once.
Below follows the schema definition:

< x s d : e l e m e n t name= " S i g n i n g C e r t i f i c a t e " t y p e = " C e r t I D L i s t T y p e " / >
< x s d : c o m p l e x T y p e name= " C e r t I D L i s t T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " C e r t " t y p e = " C e r t I D T y p e " maxOccurs = " unbounded " / >
</ xsd:sequence>
< x s d : c o m p l e x T y p e name= " C e r t I D T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " C e r t D i g e s t " t y p e = " D i g e s t A l g A n d V a l u e T y p e " / >
< x s d : e l e m e n t name= " I s s u e r S e r i a l " t y p e = " d s : X 5 0 9 I s s u e r S e r i a l T y p e " / >
</ xsd:sequence>
< x s d : c o m p l e x T y p e name= " D i g e s t A l g A n d V a l u e T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " D i g e s t M e t h o d " t y p e = " d s : D i g e s t M e t h o d T y p e " / >
< x s d : e l e m e n t name= " D i g e s t V a l u e " t y p e = " d s : D i g e s t V a l u e T y p e " / >
</ xsd:sequence>

Figure 3.19: SigningCertificate

The SigningCertificate element is created using a set-Method, and because of its type is specified
as CertIDList ("(CertIDList SigningCertificate)").Again it is necessary to define the following condi-
tions:


2. And also, whether the XML-element (SigningCertificate) is not an empty one
((SigningCertificate!= null);

If any one of these both statements is not fulfilled, no SigningCertificate element would be cre-
ated. This shall be illustrated in the next table:

24

1 /∗∗
2 ∗ Method s e t S i g n i n g C e r t i f i c a t e
3 ∗
4 ∗ @param S i g n i n g C e r t i f i c a t e
5 ∗/
6 public void s e t S i g n i n g C e r t i f i c a t e ( C e r t I D L i s t S i g n i n g C e r t i f i c a t e ) {
7 i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( S i g n i n g C e r t i f i c a t e ! = n u l l ) ) {
8 t h i s . _constructionElement . appendChild ( S i g n i n g C e r t i f i c a t e . getElement ( ) ) ;
10 }
11 }

Figure 3.20: Method setSigningCertificate

3.10 The SignaturePolicyIdentifier element
The SignaturePolicyIdentifier is a combination of norms for the build up and validation of a sig-
nature, so the validity of the signature can be confirmed. The uniqueness of the signer is protected, through a
hash value of the signature policy. Moreover the implementation of the SignaturePolicyIdentifier
element prevents the hash value and the identifier to be faked, thus it proves the globally unique reference
of the signature policy to the XML signature and the signer as a part of the signature computation. With the
SigningTime and the SigningCertificate elements it defines the XAdES-BES format. Only one
SignaturePolicyIdentifier element must occur within the
SignedSignatureProperties.On the next page follows the schema definition for this type, see Fig-
ure 3.22 .
There are two options for using the elements of the SignaturePolicyIdentifier:

1. SignaturePolicyId has four sub-elements- SigPolicyId, Transforms,
SigPolicyHash, SigPolicyQualifiers.
• SigPolicyId is required and it specifies the Identifier, Description and the
DocumentationReferences elements, which uniquely designates the specific version of
the signature policy.
• The Transforms element references to the Transforms in the SignedInfo.
• SigPolicyHash consists of two sub-elements- DigestMethod Algorithm, identifier of
the hash algorithm, and the DigestValue - hash value of the signature policy.
• Within the SigPolicyQualifiers extra information, qualifying the policy identifier can
appear.
2. SignaturePolicyImplied
Alternatively, an empty SignaturePolicyImplied element confirms that the data object(s) be-
ing signed and other external data designate the signature policy.

The SignaturePolicyId element is added as a child-element of the
SignaturePolicyIdentifier, using a set-Method. Because of its specific type this element is de-
fined as SignaturePolicyIdType. Like the other SignedProperties is necessary to define the
following conditions:

25

< x s d : e l e m e n t name= " S i g n a t u r e P o l i c y I d e n t i f i e r "
type =" S i g n a t u r e P o l i c y I d e n t i f i e r T y p e " / > <xsd:complexType
name= " S i g n a t u r e P o l i c y I d e n t i f i e r T y p e " >
<xsd:choice>
< x s d : e l e m e n t name= " S i g n a t u r e P o l i c y I d " t y p e = " S i g n a t u r e P o l i c y I d T y p e " / >
< x s d : e l e m e n t name= " S i g n a t u r e P o l i c y I m p l i e d " / >
</ xsd:choice>
< / x s d : c o m p l e x T y p e > < x s d : c o m p l e x T y p e name= " S i g n a t u r e P o l i c y I d T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " S i g P o l i c y I d " t y p e = " O b j e c t I d e n t i f i e r T y p e " / >
< x s d : e l e m e n t r e f =" d s : T r a n s f o r m s " minOccurs=" 0 " / >
< x s d : e l e m e n t name= " S i g P o l i c y H a s h " t y p e = " D i g e s t A l g A n d V a l u e T y p e " / >
< x s d : e l e m e n t name= " S i g P o l i c y Q u a l i f i e r s "
t y p e =" S i g P o l i c y Q u a l i f i e r s L i s t T y p e " minOccurs=" 0 " / >
</ xsd:sequence>
< / xsd:complexType> <xsd:complexType
name= " S i g P o l i c y Q u a l i f i e r s L i s t T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " S i g P o l i c y Q u a l i f i e r " t y p e = " AnyType "
</ xsd:sequence>

Figure 3.21: SignaturePolicyIdentiﬁer


2. And also, whether the XML-element (SignaturePolicyId) is not an empty one
((SignaturePolicyId!= null));

If any one of these both statements is not fulﬁlled, no SignaturePolicyIdelement would be created.
By the SignaturePolicyId element we use the JUnit test to demonstrate the obligatorily occurrence,
with other words: if this element is an empty one, an IllegalArgumentException should be executed with
the relevant message:

1 i f ( S i g n a t u r e P o l i c y I d == n u l l ) {
2 throw new I l l e g a l A r g u m e n t E x c e p t i o n ( " S i g n a t u r e P o l i c y I d E l e m e n t
3 is required ! " );
4 }

26

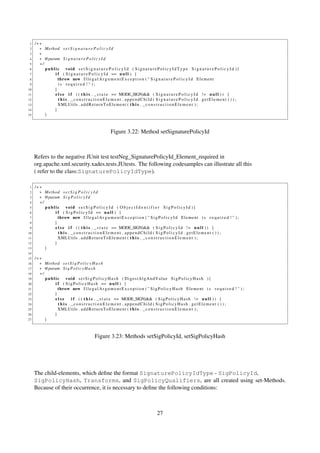

1 /∗∗
2 ∗ Method s e t S i g n a t u r e P o l i c y I d
3 ∗
4 ∗ @param S i g n a t u r e P o l i c y I d
5 ∗/
6 public void s e t S i g n a t u r e P o l i c y I d ( S i g n a t u r e P o l i c y I d T y p e S i g n a t u r e P o l i c y I d ){
7 i f ( S i g n a t u r e P o l i c y I d == n u l l ) {
8 throw new I l l e g a l A r g u m e n t E x c e p t i o n ( " S i g n a t u r e P o l i c y I d E l e m e n t
10 }
11 e l s e i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( S i g n a t u r e P o l i c y I d ! = n u l l ) ) {
12 t h i s . _constructionElement . appendChild ( S i g n a t u r e P o l i c y I d . getElement ( ) ) ;
14 }
15 }

Figure 3.22: Method setSignaturePolicyId

Refers to the negative JUnit test testNeg_SignaturePolicyId_Element_required in
org.apache.xml.security.xades.tests.JUtests. The following codesamples can illustrate all this
( refer to the class:SignaturePolicyIdType).

1 /∗∗
2 ∗ Method s e t S i g P o l i c y I d
3 ∗ @param S i g P o l i c y I d
4 ∗/
5 public void s e t S i g P o l i c y I d ( O b j e c t I d e n t i f i e r S i g P o l i c y I d ){
6 i f ( S i g P o l i c y I d == n u l l ) {
7 throw new I l l e g a l A r g u m e n t E x c e p t i o n ( " S i g P o l i c y I d E l e m e n t i s r e q u i r e d ! " ) ;
8 }
9 e l s e i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( S i g P o l i c y I d ! = n u l l ) ) {
10 t h i s . _constructionElement . appendChild ( SigPolicyId . getElement ( ) ) ;
12 }
13 }
14
15 /∗∗
16 ∗ Method s e t S i g P o l i c y H a s h
17 ∗ @param S i g P o l i c y H a s h
18 ∗/
19 public void s e t S i g P o l i c y H a s h ( DigestAlgAndValue SigPolicyHash ){
20 i f ( S i g P o l i c y H a s h == n u l l ) {
21 throw new I l l e g a l A r g u m e n t E x c e p t i o n ( " S i g P o l i c y H a s h E l e m e n t i s r e q u i r e d ! " ) ;
22 }
23 else i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( S i g P o l i c y H a s h ! = n u l l ) ) {
24 t h i s . _constructionElement . appendChild ( SigPolicyHash . getElement ( ) ) ;
26 }
27 }

Figure 3.23: Methods setSigPolicyId, setSigPolicyHash

The child-elements, which deﬁne the format SignaturePolicyIdType - SigPolicyId,
SigPolicyHash, Transforms, and SigPolicyQualifiers, are all created using set-Methods.
Because of their occurrence, it is necessary to deﬁne the following conditions:

27

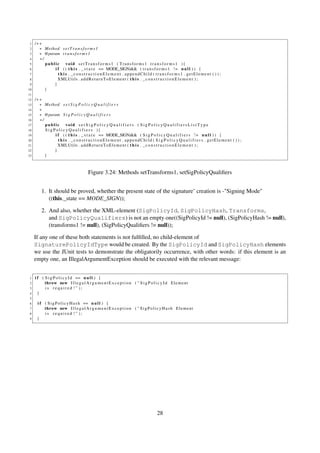

1 /∗∗
2 ∗ Method s e t T r a n s f o r m s 1
3 ∗ @param t r a n s f o r m s 1
4 ∗/
5 public void setTransforms1 ( Transforms1 t r a n s f o r m s 1 ){
6 i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( t r a n s f o r m s 1 ! = n u l l ) ) {
7 t h i s . _constructionElement . appendChild ( transforms1 . getElement ( ) ) ;
9 }
10 }
11
12 /∗∗
13 ∗ Method s e t S i g P o l i c y Q u a l i f i e r s
14 ∗
15 ∗ @param S i g P o l i c y Q u a l i f i e r s
16 ∗/
17 public void s e t S i g P o l i c y Q u a l i f i e r s ( S i g P o l i c y Q u a l i f i e r s L i s t T y p e
18 S i g P o l i c y Q u a l i f i e r s ){
19 i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( S i g P o l i c y Q u a l i f i e r s ! = n u l l ) ) {
20 t h i s . _constructionElement . appendChild ( S i g P o l i c y Q u a l i f i e r s . getElement ( ) ) ;
22 }
23 }

Figure 3.24: Methods setTransforms1, setSigPolicyQualiﬁers


2. And also, whether the XML-element (SigPolicyId, SigPolicyHash, Transforms,
and SigPolicyQualifiers) is not an empty one((SigPolicyId != null), (SigPolicyHash != null),
(transforms1 != null), (SigPolicyQualiﬁers != null));

SignaturePolicyIdType would be created. By the SigPolicyId and SigPolicyHash elements
we use the JUnit tests to demonstrate the obligatorily occurrence, with other words: if this element is an
empty one, an IllegalArgumentException should be executed with the relevant message:

1 i f ( S i g P o l i c y I d == n u l l ) {
2 throw new I l l e g a l A r g u m e n t E x c e p t i o n ( " S i g P o l i c y I d E l e m e n t
4 }
5
6 i f ( S i g P o l i c y H a s h == n u l l ) {
7 throw new I l l e g a l A r g u m e n t E x c e p t i o n ( " S i g P o l i c y H a s h E l e m e n t
9 }

28

Refers to the negative JUnit tests testNeg_SigPolicyId_Element_required and
testNeg_SigPolicyHash_Element_required in org.apache.xml.security.xades.tests.JUtests.
The SigPolicyQualifiers element is added as a child-element of the SignaturePolicyId,
using a set-Method. Because of its specific type this element is defined as
SigPolicyQualifiersListType. The following conditions is necessary to be defined:


2. And also, whether the XML-element (SigPolicyQualifiers) is not an empty one
((SigPolicyQualifiers != null));

If any one of these both statements is not fulfilled, no SigPolicyQualifierselement would be
created.

1 /∗∗
2 ∗ Method s e t S i g P o l i c y Q u a l i f i e r
3 ∗
4 ∗ @param S i g P o l i c y Q u a l i f i e r
5 ∗/
6 public void s e t S i g P o l i c y Q u a l i f i e r ( S t r i n g S i g P o l i c y Q u a l i f i e r ){
7 i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( S i g P o l i c y Q u a l i f i e r ! = n u l l ) ) {
8 this . addStringElement ( SigPolicyQualifier ,
9 C o n s t a n t s . _TAG_SIGPOLICYQUALIFIER ) ;
11 }
12 }

Figure 3.25: Method setSigPolicyQualifiers

The child-element, which defines the format SigPolicyQualifiersListType -
SigPolicyQualifier is created using set-Method. Because of its occurrence, it is necessary to define
the following conditions:


2. And also, whether the XML-element (SigPolicyQualifier) is not an empty one
((SigPolicyQualifier != null));

SigPolicyQualifiersListType would be created.

29

3.11 The SignatureProductionPlace element
The SignatureProductionPlace is a sub-element of SignedSignatureProperties just like
SigningTime, SigningCertificate and SignaturePolicyIdentifier, but its use is op-
tional. This element speciﬁes the exact place where the signature is created, through its four "children" -
City, StateOrProvince, PostalCode, CountryName. Within the SignedSignature-
Properties can occur only one SignatureProductionPlace element.
The schema deﬁnition of this element, as it follows:

< x s d : e l e m e n t name= " S i g n a t u r e P r o d u c t i o n P l a c e "
type =" S i g n a t u r e P r o d u c t i o n P l a c e T y p e " / >
< x s d : c o m p l e x T y p e name= " S i g n a t u r e P r o d u c t i o n P l a c e T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " C i t y " t y p e = " x s d : s t r i n g " m i n O c c u r s = " 0 " / >
< x s d : e l e m e n t name= " S t a t e O r P r o v i n c e " t y p e = " x s d : s t r i n g " m i n O c c u r s = " 0 " / >
< x s d : e l e m e n t name= " P o s t a l C o d e " t y p e = " x s d : s t r i n g " m i n O c c u r s = " 0 " / >
< x s d : e l e m e n t name= " CountryName " t y p e = " x s d : s t r i n g " m i n O c c u r s = " 0 " / >
</ xsd:sequence>

Figure 3.26: SignatureProductionPlace

1 /∗∗
2 ∗ Method s e t C i t y
3 ∗ @param C i t y
4 ∗/
5 public void s e t C i t y ( S t r i n g City ) {
6 i f ( ( t h i s . _ s t a t e == MODE_SIGN) && ( C i t y ! = n u l l ) ) {
7 t h i s . a d d S t r i n g E l e m e n t ( C i t y , C o n s t a n t s . _TAG_CITY ) ;
9 }
10 }
11
12 /∗∗
13 ∗ Method s e t S t a t e O r P r o v i n c e
14 ∗ @param S t a t e O r P r o v i n c e
15 ∗/
16 public void s e t S t a t e O r P r o v i n c e ( S t r i n g S t a t e O r P r o v i n c e ) {
17 i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( S t a t e O r P r o v i n c e ! = n u l l ) ) {
18 t h i s . a d d S t r i n g E l e m e n t ( S t a t e O r P r o v i n c e , C o n s t a n t s . _TAG_STATEORPROVINCE ) ;
20 }
21 }

Figure 3.27: Methods: setStateOrProvince, setCity

30

1 /∗∗
2 ∗ Method s e t P o s t a l C o d e
3 ∗ @param P o s t a l C o d e
4 ∗/
5 public void s e t P o s t a l C o d e ( S t r i n g PostalCode ) {
6 i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( P o s t a l C o d e ! = n u l l ) ) {
7 t h i s . a d d S t r i n g E l e m e n t ( P o s t a l C o d e , C o n s t a n t s . _TAG_POSTALCODE ) ;
9 }
10 }
11
12 /∗∗
13 ∗ Method s e t C o u n t r y N a m e
14 ∗ @param CountryName
15 ∗/
16 p u b l i c v o i d s e t C o u n t r y N a m e ( S t r i n g CountryName ) {
17 i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( CountryName ! = n u l l ) ) {
18 t h i s . a d d S t r i n g E l e m e n t ( CountryName , C o n s t a n t s . _TAG_COUNTRYNAME ) ;
20 }
21 }

Figure 3.28: Methods: setPostalCode, setCountryName

The child-elements- City, StateOrProvince, PostalCode, CountryName, are created using a
set-Method. Because of their way of occurrence, it is necessary to define the following conditions:


2. And also, whether the XML-element (City, StateOrProvince, PostalCode,
CountryName) is not an empty one((City != null), (StateOrProvince != null), (PostalCode != null),
(CountryName != null));

SignatureProductionPlace would be created.

3.12 The SignerRole element
The SignerRole is a sub-element of SignedSignatureProperties. There can appear only one
SignerRole element and its use is optional. The SignerRole has two "children" - ClaimedRoles
and CertifiedRoles, from which leastwise one must be present. Within the ClaimedRoles can
occur roles claimed by the signer, but they are not certified. On the opposite side is the CertifiedRoles
element, which consists of wrapped attribute certificates for the signer.

31

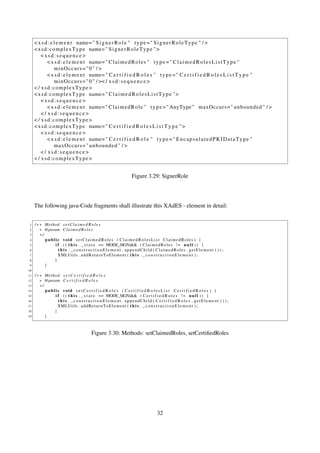

< x s d : e l e m e n t name= " S i g n e r R o l e " t y p e = " S i g n e r R o l e T y p e " / >
< x s d : c o m p l e x T y p e name= " S i g n e r R o l e T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " C l a i m e d R o l e s " t y p e = " C l a i m e d R o l e s L i s t T y p e "
minOccurs=" 0 " / >
< x s d : e l e m e n t name= " C e r t i f i e d R o l e s " t y p e = " C e r t i f i e d R o l e s L i s t T y p e "
m i n O c c u r s = " 0 " / >< / x s d : s e q u e n c e >
< x s d : c o m p l e x T y p e name= " C l a i m e d R o l e s L i s t T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " C l a i m e d R o l e " t y p e = " AnyType " maxOccurs = " unbounded " / >
</ xsd:sequence>
< x s d : c o m p l e x T y p e name= " C e r t i f i e d R o l e s L i s t T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " C e r t i f i e d R o l e " t y p e = " E n c a p s u l a t e d P K I D a t a T y p e "
</ xsd:sequence>

Figure 3.29: SignerRole

The following java-Code fragments shall illustrate this XAdES - element in detail:

1 / ∗ ∗ Method s e t C l a i m e d R o l e s
2 ∗ @param C l a i m e d R o l e s
3 ∗/
4 public void setClaimedRoles ( ClaimedRolesList ClaimedRoles ) {
5 i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( C l a i m e d R o l e s ! = n u l l ) ) {
6 t h i s . _ c o n s t r u c t i o n E l e m e n t . appendChild ( ClaimedRoles . getElement ( ) ) ;
8 }
9 }
10
11 / ∗ ∗ Method s e t C e r t i f i e d R o l e s
12 ∗ @param C e r t i f i e d R o l e s
13 ∗/
14 public void s e t C e r t i f i e d R o l e s ( C e r t i f i e d R o l e s L i s t C e r t i f i e d R o l e s ) {
15 i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( C e r t i f i e d R o l e s ! = n u l l ) ) {
16 t h i s . _constructionElement . appendChild ( C e r t i f i e d R o l e s . getElement ( ) ) ;
18 }
19 }

Figure 3.30: Methods: setClaimedRoles, setCertiﬁedRoles

32

The child-elements- ClaimedRoles and CertifiedRoles, are created using a set-Method. Be-
cause of their way of occurrence, it is necessary to define the following conditions:


2. And also, whether the XML-element (ClaimedRoles, CertifiedRoles) is not an empty one
((ClaimedRoles != null), (CertifiedRoles != null);

If any one of these both statements is not fulfilled, no child-element of SignerRole would be created.

1 /∗∗
2 ∗ Constructor CertifiedRolesList
3 ∗
4 ∗ @param doc
5 ∗ @param C e r t i f i e d R o l e E n c a p s u l a t e d P K I D a t a T y p e
6 ∗
7 ∗/
8 p u b l i c C e r t i f i e d R o l e s L i s t ( Document doc , E n c a p s u l a t e d P K I D a t a T y p e
9 CertifiedRole ) {
10 s u p e r ( doc ) ;
11 i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( C e r t i f i e d R o l e ! = n u l l ) ) {
12 t h i s . _constructionElement . appendChild ( C e r t i f i e d R o l e . getElement ( ) ) ;
14 }
15 }

Figure 3.31: Constructor CertifiedRolesList

1 /∗∗
2 ∗ Constructor ClaimedRolesList
3 ∗
4 ∗ @param doc
5 ∗ @param C l a i m e d R o l e
6 ∗
7 ∗/
8 p u b l i c C l a i m e d R o l e s L i s t ( Document doc , S t r i n g C l a i m e d R o l e ) {
9 s u p e r ( doc ) ;
10 i f ( ClaimedRole != n u l l ) {
11 t h i s . a d d S t r i n g E l e m e n t ( C l a i m e d R o l e , C o n s t a n t s . _TAG_CLAIMEDROLE ) ;
13 }
14 }

Figure 3.32: Constructor ClaimedRolesList

The CertifiedRolesListType and the ClaimedRolesListType - are created using specific
Constructors. They have two different types of elements (CertifiedRole from
EncapsulatedPKIDataType, and ClaimedRole from type String). Because of the occurrence of
CertifiedRole, it is necessary to define the following conditions:

33

2. And also, whether the XML-element (CertifiedRole) is not an empty one
((CertifiedRole!= null));

CertifiedRolesListType would be created.
For the ClaimedRole element it should be proved only whether it is not an empty one ((ClaimedRole!=
null)).

3.13 The DataObjectFormat element
The DataObjectFormat element is a sub-element of the SignedDataObjectProperties. It sup-
plies information about any signed data object. This element may appear, if one specific signed data object
has to be qualified. Its presence is not required, so null, one or more occurrences are possible.
The schema definition of this element, as it follows.

< x s d : e l e m e n t name= " D a t a O b j e c t F o r m a t " t y p e = " D a t a O b j e c t F o r m a t T y p e " / >
< x s d : c o m p l e x T y p e name= " D a t a O b j e c t F o r m a t T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " D e s c r i p t i o n " t y p e = " x s d : s t r i n g " m i n O c c u r s = " 0 " / >
< x s d : e l e m e n t name= " O b j e c t I d e n t i f i e r " t y p e = " O b j e c t I d e n t i f i e r T y p e "
minOccurs=" 0 " / >
< x s d : e l e m e n t name= " MimeType " t y p e = " x s d : s t r i n g " m i n O c c u r s = " 0 " / >
< x s d : e l e m e n t name= " E n c o d i n g " t y p e = " x s d : a n y U R I " m i n O c c u r s = " 0 " / >
</ xsd:sequence>
< x s d : a t t r i b u t e name= " O b j e c t R e f e r e n c e " t y p e = " x s d : a n y U R I "
use=" r e q u i r e d " / >

Figure 3.33: DataObjectFormat

1 /∗∗
2 ∗ Method s e t D e s c r i p t i o n
3 ∗
4 ∗ @param D e s c r i p t i o n
5 ∗/
6 public void s e t D e s c r i p t i o n ( S t r i n g D e s c r i p t i o n ) {
7 i f ( ( t h i s . _ s t a t e == MODE_SIGN) && ( D e s c r i p t i o n ! = n u l l ) ) {
8 t h i s . a d d S t r i n g E l e m e n t ( D e s c r i p t i o n , C o n s t a n t s . _TAG_DESCRIPTION ) ;
10 }
11 }

Figure 3.34: Method setDescription

34

1 /∗∗
2 ∗ Method s e t O b j e c t I d e n t i f i e r
3 ∗
4 ∗ @param o b j e c t I d e n t i f i e r
5 ∗/
6 public void s e t O b j e c t I d e n t i f i e r ( O b j e c t I d e n t i f i e r o b j e c t I d e n t i f i e r ) {
7 i f ( ( t h i s . _ s t a t e == MODE_SIGN) && ( o b j e c t I d e n t i f i e r ! = n u l l ) ) {
8 t h i s . _constructionElement . appendChild ( o b j e c t I d e n t i f i e r . getElement ( ) ) ;
10 }
11 }

Figure 3.35: Method setObjectIdentiﬁer

1 /∗∗
2 ∗ Method s e t M i m e T y p e
3 ∗
4 ∗ @param MimeType
5 ∗/
6 p u b l i c v o i d setMimeType ( S t r i n g MimeType ) {
7 i f ( ( t h i s . _ s t a t e == MODE_SIGN) && ( MimeType ! = n u l l ) ) {
8 t h i s . a d d S t r i n g E l e m e n t ( MimeType , C o n s t a n t s . _TAG_MIMETYPE ) ;
10 }
11 }

Figure 3.36: Method setMimeType

1 /∗∗
2 ∗ Method s e t E n c o d i n g
3 ∗
4 ∗ @param E n c o d i n g
5 ∗/
6 public void setEncoding ( S t r i n g Encoding ) {
7 i f ( ( t h i s . _ s t a t e == MODE_SIGN) && ( E n c o d i n g ! = n u l l ) ) {
8 t h i s . a d d S t r i n g E l e m e n t ( Encoding , C o n s t a n t s . _TAG_ENCODING ) ;
10 }
11 }

Figure 3.37: Method setEncoding

35

1 /∗∗
2 ∗ S e t s t h e <code > O b j e c t R e f e r e n c e </ code > a t t r i b u t e
3 ∗
4 ∗ @param O b j e c t R e f e r e n c e ( anyURI )
5 ∗ @throws I l l e g a l A r g u m e n t E x c e p t i o n ∗∗∗∗ b e c a u s e o f " u s e= r e q u i r e d " ∗∗∗∗
6 ∗/
7 public void s e t O b j e c t R e f e r e n c e ( S t r i n g ObjectReference ) {
8 i f ( O b j e c t R e f e r e n c e == n u l l ) {
9 throw new I l l e g a l A r g u m e n t E x c e p t i o n ( " O b j e c t R e f e r e n c e A t t i b u t e i s r e q u i r e d ! " ) ;
10 }
11 e l s e i f ( ( t h i s . _ s t a t e == MODE_SIGN) && ( O b j e c t R e f e r e n c e ! = n u l l ) ) {
12 this . _constructionElement . setAttributeNS (
13 n u l l , C o n s t a n t s . _ATT_OBJECTREFERENCE , O b j e c t R e f e r e n c e ) ;
14 }
15 }

Figure 3.38: Method setObjectReference attribite

All sub-elements of DataObjectFormat - Description, ObjectIdentifier, MimeType,
Encoding, as well as the required ObjectReference attribute are created using set-Methods. Because
of their way of occurrence, it is necessary to define the following conditions:


2. And also, whether the XML-element/-attribute(Description, ObjectIdentifier, MimeType,
Encoding and ObjectReference) is not an empty one( (Description != null), (objectIdentifier!=
null), (MimeType!= null), (Encoding!= null), (ObjectReference!= null);

If any one of these both statements is not fulfilled, no child-element of DataObjectFormat would be
created.
By the ObjectReference attribute we use the JUnit test to demonstrate the obligatorily occurrence,
with other words: if this attribute does not exist, an IllegalArgumentException should be executed with the
relevant message.

1 i f ( O b j e c t R e f e r e n c e == n u l l ) {
2 throw new I l l e g a l A r g u m e n t E x c e p t i o n ( " O b j e c t R e f e r e n c e A t t i b u t e i s r e q u i r e d ! " ) ;
3 }

Refers to the negative JUnit test testNeg_DataObjectFormat_Attr_ObjectReference_required in

36

3.14 The CommitmentTypeIndication element
The CommitmentTypeIndication is a sub-element of the SignedDataObjectProperties. Its
presence is not required, so null, one or more occurrences are possible.

< x s d : e l e m e n t name= " C o m m i t m e n t T y p e I n d i c a t i o n "
type =" CommitmentTypeIndicationType " / >
< x s d : c o m p l e x T y p e name= " C o m m i t m e n t T y p e I n d i c a t i o n T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " CommitmentTypeId " t y p e = " O b j e c t I d e n t i f i e r T y p e " / >
<xsd:choice>
< x s d : e l e m e n t name= " O b j e c t R e f e r e n c e " t y p e = " x s d : a n y U R I "
< x s d : e l e m e n t name= " A l l S i g n e d D a t a O b j e c t s " / >
</ xsd:choice>
< x s d : e l e m e n t name= " C o m m i t m e n t T y p e Q u a l i f i e r s "
t y p e = " C o m m i t m e n t T y p e Q u a l i f i e r s L i s t T y p e " m i n O c c u r s = " 0 " / >< / x s d : s e q u e n c e >
< / xsd:complexType> <xsd:complexType
name= " C o m m i t m e n t T y p e Q u a l i f i e r s L i s t T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " C o m m i t m e n t T y p e Q u a l i f i e r "
t y p e = " AnyType " m i n O c c u r s = " 0 " maxOccurs = " unbounded " / >< / x s d : s e q u e n c e >

Figure 3.39: CommitmentTypeIndication

On the next page follows the java Constructor for the CommitmentTypeIndication XAdES element,
see Figure 3.41. The CommitmentTypeIndication element is created using a specific constructor. As
child-elements, which define the format CommitmentTypeIndication-
Type : CommitmentTypeId, AllSignedDataObjects and CommitmentType-
Qualifiers, are added. Because of their occurrence, it is necessary to define the following condition:
whether the XML-element (CommitmentTypeId, AllSignedDataObjects,
CommitmentTypeQualifiers) is not an empty one ((CommitmentTypeId!= null), (AllSignedDataOb-
jects!= null), (commitmentTypeQualifiers!= null)). If this statement is not fulfilled, no child-element of
CommitmentTypeIndicationType would be created. By the CommitmentTypeId element we use
the JUnit test to demonstrate the obligatorily occurrence, with other words: if this element does not exist, an
IllegalArgumentException should be executed with the relevant message:

1 i f ( CommitmentTypeId == n u l l ) {
2 throw new I l l e g a l A r g u m e n t E x c e p t i o n ( " CommitmentTypeId E l e m e n t
4 }

Refers to the negative JUnit test
testNeg_CommitmentTypeIndication_CommitmentTypeId_Element_required
in org.apache.xml.security.xades.tests.JUtests.

37

1 /∗∗
2 ∗ Constructor CommitmentTypeIndication
3 ∗
4 ∗ @param doc
5 ∗ @param C o m m i t m e n t T y p e I d O b j e c t I d e n t i f i e r
6 ∗ @param c o m m i t m e n t T y p e Q u a l i f i e r s C o m m i t m e n t T y p e Q u a l i f i e r s L i s t
7 ∗ @param A l l S i g n e d D a t a O b j e c t s
8 ∗/
9 p u b l i c C o m m i t m e n t T y p e I n d i c a t i o n ( Document doc , O b j e c t I d e n t i f i e r
10 CommitmentTypeId , A l l S i g n e d D a t a O b j e c t s A l l S i g n e d D a t a O b j e c t s ,
11 CommitmentTypeQualifiersList commitmentTypeQualifiers ) {
12 s u p e r ( doc ) ;
13 i f ( CommitmentTypeId == n u l l ) {
14 throw new I l l e g a l A r g u m e n t E x c e p t i o n ( " CommitmentTypeId e l e m e n t i s r e q u i r e d ! " ) ;
15 }
16 e l s e i f ( CommitmentTypeId ! = n u l l ) {
17 t h i s . _ c o n s t r u c t i o n E l e m e n t . a p p e n d C h i l d ( CommitmentTypeId . g e t E l e m e n t ( ) ) ;
19 }
20 i f ( A l l S i g n e d D a t a O b j e c t s != n u l l ) {
21 t h i s . _constructionElement . appendChild ( AllSignedDataObjects . getElement ( ) ) ;
23 }
24 i f ( c om m it me n tT yp e Qu al i fi er s != n u l l ) {
25 t h i s . _constructionElement . appendChild ( commitmentTypeQualifiers . getElement ( ) ) ;
27 }
28 }

Figure 3.40: Constructor CommitmentTypeIndication

1 /∗∗
2 ∗ Method s e t C o m m i t m e n t T y p e Q u a l i f i e r
3 ∗
4 ∗ @param C o m m i t m e n t T y p e Q u a l i f i e r
5 ∗/
6 public void setCommitmentTypeQualifier ( S t r i n g CommitmentTypeQualifier ) {
7 i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( C o m m i t m e n t T y p e Q u a l i f i e r ! = n u l l ) ) {
8 t h i s . addStringElement ( CommitmentTypeQualifier ,
9 C o n s t a n t s . _TAG_COMMITMENTTYPEQUALIFIER ) ;
11 }
12 }

Figure 3.41: Method setCommitmentTypeQualifier

The child-element, which defines the format CommitmentTypeQualifiersListType
- CommitmentTypeQualifier is created using set-Method. Because of its occurrence, it is necessary
to define the following conditions:

2. And also, whether the XML-element (CommitmentTypeQualifier) is not an empty one
((CommitmentTypeQualifier!= null));

38

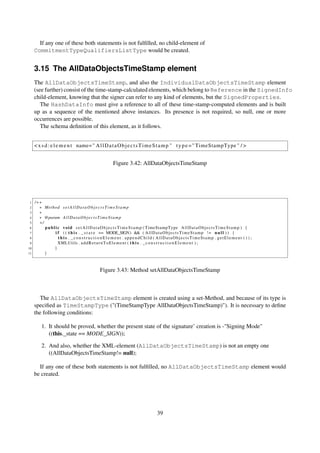

CommitmentTypeQualifiersListType would be created.

3.15 The AllDataObjectsTimeStamp element
The AllDataObjectsTimeStamp, and also the IndividualDataObjectsTimeStamp element
(see further) consist of the time-stamp-calculated elements, which belong to Reference in the SignedInfo
child-element, knowing that the signer can refer to any kind of elements, but the SignedProperties.
The HashDataInfo must give a reference to all of these time-stamp-computed elements and is built
up as a sequence of the mentioned above instances. Its presence is not required, so null, one or more
occurrences are possible.
The schema definition of this element, as it follows.

< x s d : e l e m e n t name= " A l l D a t a O b j e c t s T i m e S t a m p " t y p e = " TimeStampType " / >

Figure 3.42: AllDataObjectsTimeStamp

1 /∗∗
2 ∗ Method s e t A l l D a t a O b j e c t s T i m e S t a m p
3 ∗
4 ∗ @param A l l D a t a O b j e c t s T i m e S t a m p
5 ∗/
6 p u b l i c v o i d s e t A l l D a t a O b j e c t s T i m e S t a m p ( TimeStampType A l l D a t a O b j e c t s T i m e S t a m p ) {
7 i f ( ( t h i s . _ s t a t e == MODE_SIGN) && ( A l l D a t a O b j e c t s T i m e S t a m p ! = n u l l ) ) {
8 t h i s . _constructionElement . appendChild ( AllDataObjectsTimeStamp . getElement ( ) ) ;
10 }
11 }

Figure 3.43: Method setAllDataObjectsTimeStamp

The AllDataObjectsTimeStamp element is created using a set-Method, and because of its type is
specified as TimeStampType ("(TimeStampType AllDataObjectsTimeStamp)"). It is necessary to define
the following conditions:


2. And also, whether the XML-element (AllDataObjectsTimeStamp) is not an empty one
((AllDataObjectsTimeStamp!= null);

If any one of these both statements is not fulfilled, no AllDataObjectsTimeStamp element would
be created.

39

3.16 The IndividualDataObjectsTimeStamp element
The IndividualDataObjectsTimeStamp is a sub-element of the
SignedDataObjectProperties. It consists of time-stamp, which is computed before the creation of
the signature. Its presence is not required, so null, one or more occurrences are possible.
Below follows the schema definition for this element.

< x s d : e l e m e n t name= " I n d i v i d u a l D a t a O b j e c t s T i m e S t a m p "
t y p e = " TimeStampType " / >

Figure 3.44: IndividualDataObjectsTimeStamp

1 /∗∗
2 ∗ Method s e t I n d i v i d u a l D a t a O b j e c t s T i m e S t a m p
3 ∗
4 ∗ @param i n d i v i d u a l d a t a o b j e c t s t i m e s t a m p
5 ∗/
6 p u b l i c v o i d s e t I n d i v i d u a l D a t a O b j e c t s T i m e S t a m p ( TimeStampType i n d i v i d u a l d a t a o b j e c t s t i m e s t a m p ) {
7 i f ( ( t h i s . _ s t a t e == MODE_SIGN) && ( i n d i v i d u a l d a t a o b j e c t s t i m e s t a m p ! = n u l l ) ) {
8 t h i s . _constructionElement . appendChild ( i n d i v i d u a l d a t a o b j e c t s t i m e s t a m p . getElement ( ) ) ;
10 }
11 }

Figure 3.45: Method setIndividualDataObjectsTimeStamp

The IndividualDataObjectsTimeStamp element is created using a set-Method, and because of
its type is specified as TimeStampType ("(TimeStampType individualdataobjectstimestamp)"). It is neces-
sary to define the following conditions:


2. And also, whether the XML-element (IndividualDataObjectsTimeStamp) is not an empty
one ((individualdataobjectstimestamp!= null);

If any one of these both statements is not fulfilled, no IndividualDataObjectsTimeStamp ele-
ment would be created.

40

3.17 The CounterSignature element
The CounterSignature element is a sub-element of the UnsignedSignatureProperties, which
extends as a child-element the UnsignedProperties. Its use is optional (its presence is not required,
so null, one or more occurrences are possible) and belongs not to the scope of this thesis and the current
version of the project. Though, this implementation of the element offers the chance for future elaboration
of the project. A successful integration of the CounterSignature element shall extend the functional-
ity of the XAdES library to implement: Independent Signatures and Embedded Signatures, important for
evaluating the signing of contracts between parallel signer, and multi-signer parties with/without option for
signer ordering. For further information, please refer to: W3C XAdES speciﬁcation[XAdES].

< x s d : e l e m e n t name= " C o u n t e r S i g n a t u r e " t y p e = " C o u n t e r S i g n a t u r e T y p e " / >
< x s d : c o m p l e x T y p e name= " C o u n t e r S i g n a t u r e T y p e " >
<xsd:sequence>
< xsd:element r e f =" d s : S i g n a t u r e " / >
</ xsd:sequence>

Figure 3.46: CounterSignature

41

4 Datatypes
4.1 The ObjectIdentifierType
The ObjectIdentifierType data type identifies every single specific data object.

< x s d : c o m p l e x T y p e name= " O b j e c t I d e n t i f i e r T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " I d e n t i f i e r " t y p e = " x s d : a n y U R I " / >
< x s d : e l e m e n t name= " D e s c r i p t i o n " t y p e = " x s d : s t r i n g " m i n O c c u r s = " 0 " / >
< x s d : e l e m e n t name= " D o c u m e n t a t i o n R e f e r e n c e s "
t y p e = " D o c u m e n t a t i o n R e f e r e n c e s T y p e " m i n O c c u r s = " 0 " / >< / x s d : s e q u e n c e >

Figure 4.1: ObjectIdentifierType

Reassigning of the Identifier element is not permitted (that means: once the Identifier element is
assigned, it can never be reassigned again).The ObjectIdentifier element as an interface between the
URN specification of the data objects and the associated URI specification (Domain names).For the devel-
oper concerned, please refer to the Chapter 5.1.2 of the W3C XAdES specification. The ObjectIdenti-
fierType is extended by the DocumentationReferences, which give further explanation on the
documentation of the ObjectIdentifier. The optional element DocumentationReference is
from type ’anyURI’.
The next tables shall illustrate the IdentifierType and DocumentationReferencesType XAdES
complexTypes:

< x s d : c o m p l e x T y p e name= " I d e n t i f i e r T y p e " >
<xsd:complexContent>
< x s d : e x t e n s i o n base =" xsd:anyURI ">
< x s d : a t t r i b u t e name= " Q u a l i f i e r " t y p e = " Q u a l i f i e r T y p e " u s e = " o p t i o n a l " / >
< / x s d : e x t e n s i o n >< / x s d : c o m p l e x C o n t e n t >
< / x s d : c o m p l e x T y p e > < x s d : s i m p l e T y p e name= " Q u a l i f i e r T y p e " >
< x s d : r e s t r i c t i o n base=" x s d : s t r i n g ">
< x s d : e n u m e r a t i o n v a l u e = " OIDAsURI " / >
< x s d : e n u m e r a t i o n v a l u e = "OIDAsURN" / >< / x s d : r e s t r i c t i o n >
</ xsd:simpleType>

Figure 4.2: IdentifierType

42

< x s d : c o m p l e x T y p e name= " D o c u m e n t a t i o n R e f e r e n c e s T y p e " >
< x s d : s e q u e n c e maxOccurs = " unbounded " >
< x s d : e l e m e n t name= " D o c u m e n t a t i o n R e f e r e n c e " t y p e = " x s d : a n y U R I " / >
</ xsd:sequence>

Figure 4.3: DocumentationReferencesType

1 /∗∗
2 ∗ Method s e t I d e n t i f i e r
3 ∗
4 ∗ @param I d e n t i f i e r S t r i n g
5 ∗/
6 public void s e t I d e n t i f i e r ( S t r i n g I d e n t i f i e r ) {
7 i f ( I d e n t i f i e r == n u l l ) {
8 throw new I l l e g a l A r g u m e n t E x c e p t i o n ( " I d e n t i f i e r A t t i b u t e i s r e q u i r e d ! " ) ; }
9 e l s e i f ( t h i s . _ s t a t e == MODE_SIGN) {
10 t h i s . a d d S t r i n g E l e m e n t ( I d e n t i f i e r , C o n s t a n t s . _TAG_IDENTIFIER ) ;
12 }
13 }
14
15 /∗∗
16 ∗ Method s e t D e s c r i p t i o n
17 ∗ @param D e s c r i p t i o n S t r i n g
18 ∗/
19 public void s e t D e s c r i p t i o n ( S t r i n g D e s c r i p t i o n ) {
20 i f ( ( t h i s . _ s t a t e == MODE_SIGN) && ( D e s c r i p t i o n ! = n u l l ) ) {
21 t h i s . a d d S t r i n g E l e m e n t ( D e s c r i p t i o n , C o n s t a n t s . _TAG_DESCRIPTION ) ;
23 }
24 }
25
26 /∗∗
27 ∗ Method s e t D o c u m e n t a t i o n R e f e r e n c e s
28 ∗
29 ∗ @param D o c u m e n t a t i o n R e f e r e n c e s S t r i n g
30 ∗/
31 public void setDocumentationReferences ( S t r i n g DocumentationReferences ) {
32 i f ( ( t h i s . _ s t a t e == MODE_SIGN) && ( D o c u m e n t a t i o n R e f e r e n c e s ! = n u l l ) ) {
33 t h i s . addStringElement ( DocumentationReferences ,
34 C o n s t a n t s . _TAG_DOCUMENTATIONREFERENCES ) ;
36 }
37 }

Figure 4.4: Methods setIdentiﬁer, setDescription, setDocumentationReferences

43

The child-elements, which define the format ObjectIdentifierType - Identifier,
Description and DocumentationReferences are created using set-Method. Because of their oc-
currence, it is necessary to define the following conditions:


2. And also, whether the XML-element (Identifier, Description,
DocumentationReferences) is not an empty one((Identifier!= null), (Description!= null), (Doc-
umentationReferences!= null));

If any one of these both statements is not fulfilled, no child-element of ObjectIdentifierType
would be created.
By the Identifier element we use the JUnit test to demonstrate the obligatorily occurrence, with other
words: if this element does not exist, an IllegalArgumentException should be executed with the relevant
message.

1 i f ( I d e n t i f i e r == n u l l ) {
2 throw new I l l e g a l A r g u m e n t E x c e p t i o n ( " I d e n t i f i e r A t t i b u t e i s
3 required ! " );
4 }

Refers to the negative JUnit test testNeg_ObjectIdentifier_Identifier_Attribute_required in

4.2 The EncapsulatedPKIDataType
The EncapsulatedPKIDataType data type is a sophisticated extension, which acts as an interface to
include PKI data into the XML structure. The encoding of the PKI data is conform to the ANS.1 encod-
ing mechanism, which permits to be included X509 certificates revocation lists OCSP responses, attribute
certificates and time-stamps.

< x s d : c o m p l e x T y p e name= " E n c a p s u l a t e d P K I D a t a T y p e " >
<xsd:complexContent>
< x s d : e x t e n s i o n base=" xsd:base64Binary ">
</ xsd:extension>
< / xsd:complexContent>

Figure 4.5: EncapsulatedPKIDataType

More detailed, this PKI data type is base64 encoded referred to the XMLDSIG specification.

44

1 /∗∗
2 ∗ S e t s t h e <code >Id </ code > E l e m e n t
3 ∗
4 ∗ @param I d
5 ∗/
6 public void s e t I d ( S t r i n g Id ) {
7 i f ( ( t h i s . _ s t a t e == MODE_SIGN) && ( I d ! = n u l l ) ) {
8 t h i s . _constructionElement . s e t A t t r i b u t e N S ( null ,
9 C o n s t a n t s . _ATT_ID , I d ) ;
10 IdResolver . registerElementById ( t h i s . _constructionElement , Id ) ;
11 }
12 }

Figure 4.6: Method setID

The attribute, which extends the format EncapsulatedPKIDataType - Id is created using set-
Method. Because of its occurrence, it is necessary to define the following conditions:
2. And also, whether the XML-attribute (Id) is not an empty one( (Id != null));
EncapsulatedPKIDataType would be created.

4.3 The TimeStampType
The use of the TimeStampType data type is fully explained in the chapter 5.1.4 of the W3C XAdES
specification. The mechanism of the time-stamp could be explained as it follows: a given data, associated
with its digest value, receives its time-stamp from the Time-Stamp Authority (TSA).The returned time-
stamp represents the signed data, which contains the digest value, the identity of the TSA and the time of
the calculation of the stamping process. NOTE that the given data exists before the computation process.

The HashDataInfo element decrypts the time-stamp request to the TSA. On one hand referencing an
uri attribute to the data object, on the other containing the Transforms element, refer to XMLDSIG.
The following Java-code for the implementation of these elements:

The elements, which extend the format TimeStampType - HashDataInfo,
EncapsulatedTimeStamp, XMLTimeStamp are created using set-Method. Because of their occur-
rence, it is necessary to define the following conditions:
2. And also, whether the XML-element TimeStampType - HashDataInfo,
EncapsulatedTimeStamp, XMLTimeStamp) is not an empty one( (hashdatainfo!= null), (en-
capsulatedtimestamp!= null), (XMLTimeStamp!= null));
If any one of these both statements is not fulfilled, no child-element of TimeStampType would be
created.

45

< x s d : c o m p l e x T y p e name= " TimeStampType " >
<xsd:sequence>
< x s d : e l e m e n t name= " H a s h D a t a I n f o " t y p e = " H a s h D a t a I n f o T y p e "
<xsd:choice>
< x s d : e l e m e n t name= " E n c a p s u l a t e d T i m e S t a m p "
type =" EncapsulatedPKIDataType " / >
< x s d : e l e m e n t name= " XMLTimeStamp " t y p e = " AnyType " / >
</ xsd:choice>
</ xsd:sequence>
< x s d : c o m p l e x T y p e name= " H a s h D a t a I n f o T y p e " >
<xsd:sequence>
< x s d : e l e m e n t name= " T r a n s f o r m s " t y p e = " d s : T r a n s f o r m s T y p e " m i n O c c u r s = " 0 " / >
</ xsd:sequence>
< x s d : a t t r i b u t e name= " u r i " t y p e = " x s d : a n y U R I " u s e = " r e q u i r e d " / >

Figure 4.7: TimeStampType

1 /∗∗
2 ∗ Method s e t H a s h D a t a I n f o
3 ∗
4 ∗ @param h a s h d a t a i n f o
5 ∗/
6 public void setHashDataInfo ( HashDataInfoType h a s h d a t a i n f o ) {
7 i f ( h a s h d a t a i n f o == n u l l ) {
8 throw new I l l e g a l A r g u m e n t E x c e p t i o n ( " H a s h D a t a I n f o E l e m e n t i s r e q u i r e d ! " ) ;
9 }
10 else i f ( ( t h i s . _ s t a t e == MODE_SIGN) && ( h a s h d a t a i n f o ! = n u l l ) ) {
11 t h i s . _constructionElement . appendChild ( hashdatainfo . getElement ( ) ) ;
13 }
14 }
15
16 /∗∗
17 ∗ Method s e t E n c a p s u l a t e d T i m e S t a m p
18 ∗
19 ∗ @param e n c a p s u l a t e d t i m e s t a m p
20 ∗/
21 public void setEncapsulatedTimeStamp ( EncapsulatedPKIDataType e n c a p s u l a t e d t i m e s t a m p ) {
22 i f ( ( t h i s . _ s t a t e == MODE_SIGN) && ( e n c a p s u l a t e d t i m e s t a m p ! = n u l l ) ) {
23 t h i s . _constructionElement . appendChild ( encapsulatedtimestamp . getElement ( ) ) ;
25 }
26 }
27
28 /∗∗
29 ∗ Method setXMLTimeStamp
30 ∗
31 ∗ @param XMLTimeStamp
32 ∗/
33 p u b l i c v o i d setXMLTimeStamp ( S t r i n g XMLTimeStamp ) {
34 i f ( ( t h i s . _ s t a t e == MODE_SIGN)&& ( XMLTimeStamp ! = n u l l ) ) {
35 t h i s . a d d S t r i n g E l e m e n t ( XMLTimeStamp , C o n s t a n t s . _TAG_XMLTIMESTAMP ) ;
37 }
38 }

Figure 4.8: Method setHashDataInfo, setEncapsulatedTimeStamp, setXMLTimeStamp

46

5 Conclusion
At the end of this project thesis a brief discussion over the library’s functionality, associated test-cases and
further use/ future implementations will be made.
The reader/ developer/ user can refer to the Appendixes A and B , where the complete output from the Java
classes:

• CreateSinature_XAdES,

• CreateSignature_XAdES_BES,

can be found.
This illustrates the functionality of the library, which can generate the complete XAdES/ XAdES-BES spec-
ifications.
The case where, optional XAdES elements can meet their occurrence more than once, is demonstrated on
the example of the Java class: CreateSignature_XAdES_MoreThanOneElement, refer to Appendix C.
Furthermore, there are three associated with these classes positive JUnit test cases, which verify the proper
execution of the Java classes and creation of the advanced electronic signatures, see Appendix D.
The other 16 negative JUnit tests validate the created signature, as every required element / attribute of the
XAdES specification is probed for its existence in the advanced electronic signature, see Appendix D.
The negative tests are created in a way , that if one required element/ attribute is an empty one, this particular
test gives a proper run, which is its expected value.This means that the signature’ creation has failed, and if
this is not the expected situation, there is no proper creation of the advanced electronic signature, because
a required XAdES element/ attribute is compromised with its 0 occurrence, which makes the signature
invalid.
The Eclipse IDE integrated JUnit plug-in delivers the complete execution time of all 19 tests of 3.438
seconds.
This confirms the good efficiency of the XAdES library.
These tests run as an example on a Pentium Celeron IV 1.7GHz, Single Core CPU PC with 768 MB of
DDR-I SD-RAM, Microsoft Windows XP SP2, refer to Appendix D.
Beside the qualifying property and its sub-elements , which extend the security of the advanced elec-
tronic signature, required future development on the project’s library shall be the implementation of times-
tamps[TSP][TSPProf], which are explained in the XAdES-T, XAdES-X, XAdES-X-L and XAdES-A spec-
ifications.
Furthermore, an implementation of the countersignature is also seen in the future works of the project.
This shall give the chance to complete integration of advanced electronic signature to the Apache XML
Security Project.
Finally, our XAdES project is developed as an OpenSource,so this gives the freedom for further imple-
mentations to the other developers, who can use our XAdES library as a fundament and extend its function-
ality.

47

6 Author’s addresses

Zdravko Danailov Krassen Deltchev

Ruhr-University of Bochum Ruhr-University of Bochum
Department of Applied Informatics, Block IC Department of Applied Informatics, Block IC
Universitaetsstrasse 150 Universitaetsstrasse 150
44801, Bochum 44801, Bochum

e-mail: nqkoi_ot_bg@yahoo.com e-mail: Krassen.Deltchev@rub.de

48

Bibliography
[CMS] RFC 3852: Cryptographic Message Syntax. R. Housley. July 2004.
http://tools.ietf.org/html/rfc3852

[ESI] ETSI TS 101 733: Electronic Signature Formats.
http://www.etsi.org

[ESI-XAdES] ETSI TS 101 903: XML Advanced Electronic Signatures (XAdES).
http://uri.etsi.org/01903/v1.1.1#

[ES-SMIME] RFC 2634: Enhanced Security Services for S/MIME. P. Hoffman. June 1999.
http://www.ietf.org/rfc/rfc2634.txt
update:
RFC2634-update-00: Enhanced Security Services for S/MIME;
draft-ietf-smime-rfc2634-update-00.txt, J Schaad, August 2004
http://tools.ietf.org/html/draft-ietf-smime-rfc2634-update-00

[EU-DIR-ESIG] Directive 1999/93/EC of the European Parliament and of the Council of 13 December
1999 on a Community framework for electronic signatures.

[Keywords] RFC 2119: Key words for use in RFCs to Indicate Requirement Levels. S. Bradner . March
1997.

[OCSP] RFC 2560: X.509 Internet Public Key Infrastructure Online Certificate Status Protocol - OCSP. M.
Myers, R. Ankney, A. Malpani, S. Galperin, C. Adams. June 1999.

[TSP] RFC 3161: Internet X.509 Public Key Infrastructure Time Stamp Protocol (TSP). P. Cain, D. Pinkas,
R. Zuccherato. August 2001.

[TSPProf] ETSI TS 101 861: Time stamping profile.
http://www.etsi.org
http://portal.etsi.org/docbox/EC_Files/EC_Files/ts_101861v010201p.pdf

[URI] RFC 2396: Uniform Resource Identifiers (URI): Generic Syntax. T. Berners-Lee, R. Fielding, U.C.
Irvine, L. Masinter. August 1998.
update:
RFC : Uniform Resource Identifier (URI): Generic Syntax. T. Berners-Lee. January 2005

[URN] RFC 2141: URN Syntax. R. Moats. May 1997.

49

[URN-NM] RFC 2611: URN Namespace Definition Mechanisms. L. Daigle, D. van Gulik, R. Iannella, P.
Falstrom. June 1999.
update:
RFC 3406: URN Namespace Definition Mechanisms. L. Daigle. October 2002
http://ietfreport.isoc.org/idref/rfc3406/

[URN-OID] RFC 3061: A URN Namespace of Object Identifiers. M. Mealling. February 2001.

[XML] Extensible Markup Language (XML) 1.0 (Second Edition). W3C Recommendation. T. Bray, E.
Maler, J. Paoli, C. M. Sperberg-McQueen. October 2000.
http://www.w3.org/TR/2000/REC-xml-20001006
update:
Extensible Markup Language (XML) 1.0 (Fourth Edition), W3C Recommendation
http://www.w3.org/TR/REC-xml/
http://www.w3.org/TR/2006/PER-xml-20060614/

[XMLDSIG] XML-Signature Syntax and Processing. W3C Recommendation. Donald Eastlake, Joseph
Reagle, David Solo. February 2002.
http://www.w3.org/TR/2002/REC-xmldsig-core-20020212/

[XAdES] XML Advanced Electronic Signatures (XAdES). W3C Recommendation. Juan Carlos Cruellas(
UPC), Gregor Karlinger( IAIK), Denis Pinkas( Bull), John Ross( Security and Standards), Krishna
Sankar( Cisco). February 2003.
http://www.w3.org/TR/2003/NOTE-XAdES-20030220/
update:
http://www.w3.org/TR/XAdES/

[XML-schema-part-1] XML-Schema Part 1: Structures. W3C Recommendation. D. Beech, M. Maloney,
N. Mendelsohn, H. Thompson. May 2001.
http://www.w3.org/TR/2001/REC-xmlschema-1-20010502/

[XML-schema-part-2] XML-Schema Part 2: Datatypes. W3C Recommendation. P. Biron, A. Malhotra.
May 2001.
http://www.w3.org/TR/2001/REC-xmlschema-2-20010502/

[X509v3] ITU-T Recommendation X.509 version 3 (1997). "Information Technology - Open Systems In-
terconnection - The Directory Authentication Framework" ISO/IEC 9594-8:1997.

[X509Prof] RFC 2459: Internet X.509 Public Key Infrastructure Certificate and CRL Profile. R. Housley,
W. Polk, D. Solo. January 1999.

50

A Appendix - XAdES

<nds:RootElement xmlns:nds="http://www.nds.rub.de/xades">
<nds:AI-NDS-HGI Id="AI-NDS-HGI-18378667">Some simple text</nds:AI-NDS-HGI>
<Signature xmlns="http://www.w3.org/2000/09/xmldsig#" Id="SignatureId">
<SignedInfo>
<CanonicalizationMethod Algorithm="http://www.w3.org/TR/2001/REC-xml-c14n-20010315" />
<SignatureMethod Algorithm="http://www.w3.org/2000/09/xmldsig#dsa-sha1" />
<Reference URI="#AI-NDS-HGI-18378667">
<Transforms>
<Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#" />
</Transforms>
<DigestMethod Algorithm="http://www.w3.org/2000/09/xmldsig#sha1" />
<DigestValue>+e0UhqPaZkX7+5xVrbg50ITch2I=</DigestValue>
</Reference>
<Reference URI="#SignedProperties-11626165">
<Transforms>
</Transforms>
<DigestValue>5ZbU+3vplCMW1BCVNM+6n1N2klc=</DigestValue>
</Reference>
<Reference URI="#UnsignedProperties-25392791">
<Transforms>
</Transforms>
<DigestValue>9E3pIezH0ZCKfO781NEOBxAEiE4=</DigestValue>
</Reference>
</SignedInfo>
<SignatureValue>SVlS9m97Q0t12piyIqegQbR9mhqU8OcTtEV/IdclY4/fMOuHtBCx/Q==
</SignatureValue>
<KeyInfo>
<X509Data>
<X509Certificate>MIIC3DCCApoCBEY1vX .....</X509Certificate>
</X509Data>
<KeyValue>
<DSAKeyValue>
/X9TgR11EilS30q´ .....
<Q>l2BQjxUjC8yykrmCouuEC/BYHPU=</Q>
<G>+GghdabPd7LvKtc .....</G>
<Y>OglcRuqvCSTioZQ .....</Y>
</DSAKeyValue>
</KeyValue>
</KeyInfo>
<Object>
<QualifyingProperties xmlns="http://uri.etsi.org/01903/v1.1.1#"
Id="QualifyingProperties-26613447"
Target="#SignatureId">
<SignedProperties Id="SignedProperties-11626165">
<SignedSignaturePropeties>
<SigningTime>2007-05-01T17:34:07.140+02:00</SigningTime>
<SigningCertificate>
<CertIDList>
<CertID>
<DigestAlgAndValue>
<DigestValue>Nqcd88piw69JTL7UsOPhTqS+YMw=</DigestValue>
</DigestAlgAndValue>

i

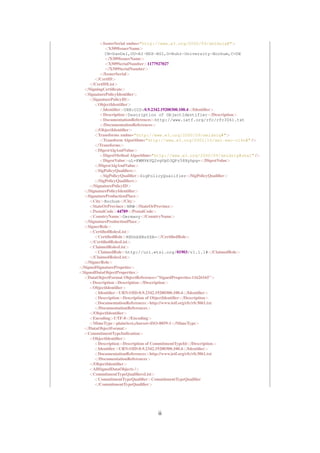

<IssuerSerial xmlns="http://www.w3.org/2000/09/xmldsig#">
<X509IssuerName>
CN=DanDel,OU=AI-NDS-HGI,O=Ruhr-University-Bochum,C=DE
</X509IssuerName>
<X509SerialNumber>1177927027
</X509SerialNumber>
</IssuerSerial>
</CertID>
</CertIDList>
</SigningCertificate>
<SignaturePolicyIdentifier>
<SignaturePolicyID>
<ObjectIdentifier>
<Identifier>URN:OID:0.9.2342.19200300.100.4</Identifier>
<Description>Description of ObjectIdentifier</Description>
<DocumentationReferences>http://www.ietf.org/rfc/rfc3061.txt
</DocumentationReferences>
</ObjectIdentifier>
<Transforms xmlns="http://www.w3.org/2000/09/xmldsig#">
</Transforms>
<DigestAlgAndValue>
<DigestValue>uL+KWM9kVQ2vgVpD3QPz58Xyhpg=</DigestValue>
<SigPolicyQualifiers>
<SigPolicyQualifier>SigPolicyQualifier</SigPolicyQualifier>
</SigPolicyQualifiers>
</SignaturePolicyID>
</SignaturePolicyIdentifier>
<SignatureProductionPlace>
<City>Bochum</City>
<StateOrProvince>NRW</StateOrProvince>
<PostalCode>44789</PostalCode>
<CountryName>Germany</CountryName>
</SignatureProductionPlace>
<SignerRole>
<CertifiedRolesList>
<CertifiedRole>RXhhbXBsZSA=</CertifiedRole>
</CertifiedRolesList>
<ClaimedRolesList>
<ClaimedRole>http://uri.etsi.org/01903/v1.1.1#</ClaimedRole>
</ClaimedRolesList>
</SignerRole>
</SignedSignaturePropeties>
<SignedDataObjectProperties>
<DataObjectFormat ObjectReference="SignedProperties-11626165">
<Description>Description</Description>
<ObjectIdentifier>
<Description>Description of ObjectIdentifier</Description>
<Encoding>UTF-8</Encoding>
<MimeType>plain/text,charset=ISO-8859-1</MimeType>
</DataObjectFormat>
<CommitmentTypeIndication>
<ObjectIdentifier>
<Description>Description of CommitmentTypeId</Description>
<AllSignedDataObjects />
<CommitmentTypeQualifiersList>
<CommitmentTypeQualifier>CommitmentTypeQualifier
</CommitmentTypeQualifier>

ii

</CommitmentTypeQualiﬁersList>
</CommitmentTypeIndication>
<AllDataObjectsTimeStamp>
<TimeStampType>
<HashDataInfo URI="AI-NDS-HGI-18378667">
</Transforms>
</HashDataInfo>
<EncapsulatedTimeStamp Id="EncapsulatedTimeStamp">
<EncapsulatedPKIData>MIIC3DCCApoCBEY1vXMwCwYH ......
</EncapsulatedPKIData>
</EncapsulatedTimeStamp>
<XMLTimeStamp>XMLTimeStamp</XMLTimeStamp>
</TimeStampType>
</AllDataObjectsTimeStamp>
<IndividualDataObjectsTimeStamp>
<TimeStampType>
</Transforms>
</HashDataInfo>
</TimeStampType>
</IndividualDataObjectsTimeStamp>
</SignedDataObjectProperties>
</SignedProperties>
<UnsignedProperties Id="UnsignedProperties-25392791">
<UnsignedSignatureProperties>
<CounterSignature />
</UnsignedSignatureProperties>
<UnsignedDataObjectProperties />
</UnsignedProperties>
</QualifyingProperties>
</Object>
</Signature>
</nds:RootElement>

Table A.1: XAdES

iii

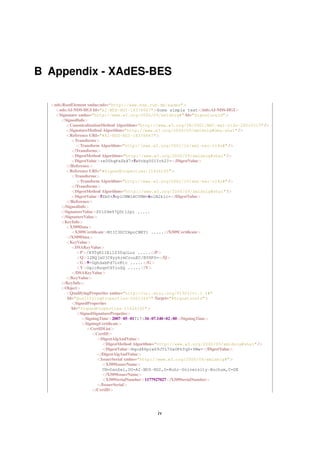

B Appendix - XAdES-BES

<SignedInfo>
<Transforms>
</Transforms>
</Reference>
<Transforms>
</Transforms>
</Reference>
</SignedInfo>
<SignatureValue>SVlS9m97Q0t12pi .....
</SignatureValue>
<KeyInfo>
<X509Data>
<X509Certiﬁcate>MIIC3DCCApoCBEY1 .....</X509Certiﬁcate>
</X509Data>
<KeyValue>
<DSAKeyValue>
/X9TgR11EilS30qcLuz .....
<G>9+GghdabPd7LvKtc .....</G>
</DSAKeyValue>
</KeyValue>
</KeyInfo>
<Object>
Id="QualifyingProperties-26613447" Target="#SignatureId">
<SignedProperties
Id="SignedProperties-11626165">
<CertIDList>
<CertID>
<DigestAlgAndValue>
<X509IssuerName>
</X509IssuerName>
<X509SerialNumber>1177927027</X509SerialNumber>
</IssuerSerial>
</CertID>

iv

</CertIDList>
<SignaturePolicyID>
<ObjectIdentiﬁer>
</Transforms>
<DigestAlgAndValue>
</SignedProperties>
</Object>
</Signature>
</nds:RootElement>

Table B.1: XAdES-BES

v

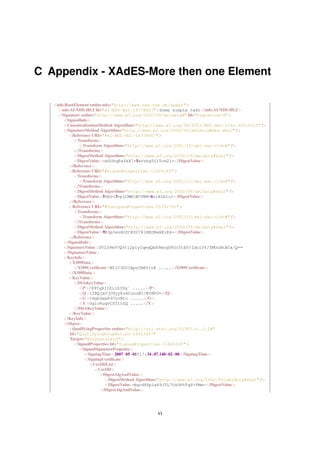

C Appendix - XAdES-More then one Element

<SignedInfo>
<Transforms>
</Transforms>
</Reference>
<Transforms>
</Transforms>
</Reference>
<Reference URI="#UnsignedProperties-25392791">
<Transforms>
</Transforms>
<DigestValue>9E3pIezH0ZCKfO781NEOBxAEiE4=</DigestValue>
</Reference>
</SignedInfo>
<SignatureValue>SVlS9m97Q0t12piyIqegQbR9mhqU8OcTtEV/IdclY4/fMOuHtBCx/Q==
</SignatureValue>
<KeyInfo>
<X509Data>
<X509Certiﬁcate>MIIC3DCCApoCBEY1vX .....</X509Certiﬁcate>
</X509Data>
<KeyValue>
<DSAKeyValue>
/X9TgR11EilS30q´ .....
<G>+GghdabPd7LvKtc .....</G>
</DSAKeyValue>
</KeyValue>
</KeyInfo>
<Object>
Id="QualifyingProperties-26613447"
Target="#SignatureId">
<SignedProperties Id="SignedProperties-11626165">
<CertIDList>
<CertID>
<DigestAlgAndValue>

vi

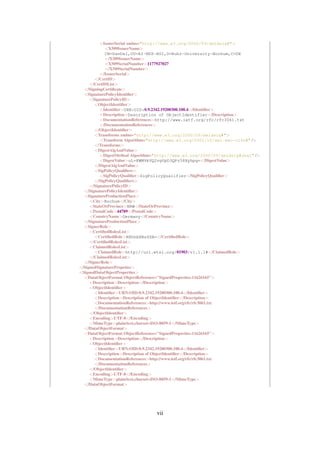

<X509IssuerName>
</X509IssuerName>
<X509SerialNumber>1177927027
</X509SerialNumber>
</IssuerSerial>
</CertID>
</CertIDList>
<SignaturePolicyID>
<ObjectIdentifier>
</Transforms>
<DigestAlgAndValue>
<SignatureProductionPlace>
<City>Bochum</City>
<StateOrProvince>NRW</StateOrProvince>
<PostalCode>44789</PostalCode>
<CountryName>Germany</CountryName>
</SignatureProductionPlace>
<SignerRole>
<CertifiedRolesList>
<CertifiedRole>RXhhbXBsZSA=</CertifiedRole>
</CertifiedRolesList>
<ClaimedRolesList>
<ClaimedRole>http://uri.etsi.org/01903/v1.1.1#</ClaimedRole>
</ClaimedRolesList>
</SignerRole>
<SignedDataObjectProperties>
<ObjectIdentifier>
</DataObjectFormat>
<ObjectIdentifier>
</DataObjectFormat>

vii

<ObjectIdentifier>
</DataObjectFormat>
<ObjectIdentifier>
<ObjectIdentifier>
<ObjectIdentifier>
<TimeStampType>
</Transforms>
</HashDataInfo>
</TimeStampType>
<TimeStampType>

viii

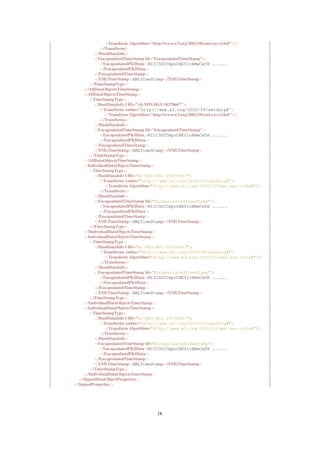

</Transforms>
</HashDataInfo>
</TimeStampType>
<TimeStampType>
</Transforms>
</HashDataInfo>
</TimeStampType>
<TimeStampType>
</Transforms>
</HashDataInfo>
</TimeStampType>
<TimeStampType>
</Transforms>
</HashDataInfo>
</TimeStampType>
<TimeStampType>
</Transforms>
</HashDataInfo>
</TimeStampType>
</SignedDataObjectProperties>
</SignedProperties>

ix

<UnsignedProperties Id="UnsignedProperties-25392791">
<UnsignedSignatureProperties>
<CounterSignature />
</UnsignedSignatureProperties>
<UnsignedDataObjectProperties />
</UnsignedProperties>
</Object>
</Signature>
</nds:RootElement>

Table C.1: XAdES-More then one Element

x

D Appendix - Screenshots
Short summary on the screenshots in this appendix:

• Screenshot - Eclipse IDE Junit plug-in console output , gives an overview over the 19 different
JUnit tests( positive and negative) and
the reader can obtain information on the test execution time, proper run of the different tests,
test errors and failures.
The screenshot shows the complete Eclipse IDE frame and there is a pointer from the JUnit console,
which is separately shown below, for the sake of a better illustration.

• Screenshot - Eclipse IDE console output , gives the console output from the Eclipse IDE
after successful execution of the Java class JUtests.
The console delivers information on the correct
veriﬁcation of all ReferenceURIs for the
XAdES root element, Signed- and Unsigned Properies;
which proves on one hand the securing on all their subelements,
which are referenced to the unique IDs of that ones and
on another the sucessful creation of the XAdES signature.More detailed:

- regarding CreateSignature_XAdES, the ReferenceURIs are:
#AI-NDS-HGI-XXXXXXXX 1 , #SignedProperties-XXXXXXXX and #UnsignedProperties-XXXXXXXX;

- regarding CreateSignature_XAdES_BES, the ReferenceURIs are:
#AI-NDS-HGI-XXXXXXXX and #SignedProperties-XXXXXXXX
NOTE: Unsigned Property element is empty for the
Basic Electronic XAdES signatures;
- regarding CreateSignature_XAdES_MoreThanOneElement, the ReferenceURIs are:
#AI-NDS-HGI-XXXXXXXX, #SignedProperties-XXXXXXXX and #UnsignedProperties-XXXXXXXX.

This second screenshot shows also the complete Eclipse IDE frame and with a pointer from the en-
larged Eclipse output console,
which is separately shown below, for the sake of a better illustration too.

1
The ’XXXXXXXX’ represent digits in the unique element ID, generated as a random hashcode, using SHA1

xi

Figure D.1: Screenshot - Eclipse IDE JUnit plug-in console output

xii

Figure D.2: Screenshot - Eclipse IDE console output

xiii

XAdES Specification based on the Apache XMLSec Project

More Related Content

Similar to XAdES Specification based on the Apache XMLSec Project

More from Krassen Deltchev

Recently uploaded

XAdES Specification based on the Apache XMLSec Project
