Loher provides complete electrical drive systems for lifts, including motors, inverters, traction sheaves, and accessories. They have over 100 years of experience in electric motors and 50+ years in control engineering. Their drive systems offer reliability, simplicity of installation and maintenance. They can provide gearless or geared solutions using their DYNASYS S and DYNASYS G products and DYNAVERT L inverters.

1. Drive systems for lifts
lift solutions
LOHER

2. 2
Power and intelligence for each elevator
Loher is one of only a few worldwide acting suppliers of complete electrical drive systems, looking back
to a more than 100 years’ tradition in the construction of electric motors. Also control engineering has been
an integral part of our program for more than 50 years.
This wealth of experience in development and production enables us to be that competent partner, able
to offer you complete solutions from one single source. That means not only the top quality and reliability
f our drive systems – motor, inverter, traction sheave plus a great number of accessories – but also
professional assistance in design, rating and commissioning of drive systems.
Please make use of our widespread product range and of our profound know-how.
We have got the suitable solution for complete drive systems for nearly any nature of task, so you can
forget about extensive matching of many single components.
Low effort – top reliability
•• DYNASYS® S Gearless drive systems with synchronous motors and frequency inverter DYNAVERT® L
•• DYNASYS® G Geared drive systems and frequency inverter DYNAVERT L
•• Retrofit We’ll get your elevator moving again within short by means of the Loher relay interface
and the frequency inverter DYNAVERT L

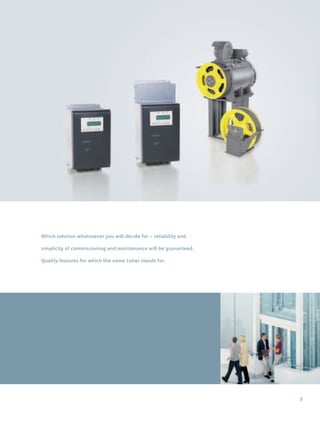

3. Which solution whatsoever you will decide for – reliability and
simplicity of commissioning and maintenance will be guaranteed.
Quality features for which the name Loher stands for.
3

4. 4
Loher elevator inverters of the DYNAVERT L06 line guarantee top reliability and riding comfort.
Depending on the specifications they can be used for line voltage ranging from 230 V to 500 V,
in combination with synchronous or asynchronous motors.
DYNAVERT L devices are modern, fully digitalised inverters with voltage-controlled intermediate circuit,
efficient and convenient up to 100 kW elevator performance equipped with IGBT’s in the forth generation.
The inverter may be used in any environment without any problem, even in hospitals and chemical
production plants.
Today, elevator drives are designed either as gearless systems or as geared ones. The decision about which
type will be installed depends on the intended use of the respective elevator. Therefore, Loher DYNAVERT L
enables both systems – the DYNASYS S for gearless and the DYNASYS G for the geared types.
Frequency inverter DYNAVERT L – economical and efficient
•• Utmost efficiency at low cost – 50% energy savings compared to standard drives
•• Usable in TN, TT and IT networks up to 500 V
•• Safe and fault-free operation owing to integrated filters, line reactors and travelling contactor(s)
•• Quick commissioning due to optimized adaptation for the controller unit and convenient, PC-supported software – IMS
•• Conventional and DCP interface matching with all elevator controllers
•• EMC directives are met without additional add-on units
•• Ready-to-install frequency inverter saves installation time
•• Integrated solution of the power components reducing costs for the elevator controller unit
•• Low commissioning efforts only due to in-house parametrizing too
DYNAVERT L – compact & tailor-made
IMS Inverter Management Software –
the intelligent solution for
top reliability and riding comfort

5. 5

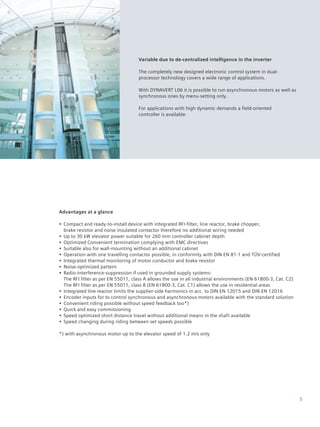

Advantages at a glance
•• Compact and ready-to-install device with integrated RFI-filter, line reactor, brake chopper,
brake resistor and noise insulated contactor therefore no additional wiring needed
•• Up to 30 kW elevator power suitable for 260 mm controller cabinet depth
•• Optimized Convenient termination complying with EMC directives
•• Suitable also for wall-mounting without an additional cabinet
•• Operation with one travelling contactor possible, in conformity with DIN EN 81-1 and TÜV-certified
•• Integrated thermal monitoring of motor conductor and brake resistor
•• Noise-optimized pattern
•• Radio-interference-suppression if used in grounded supply systems:
The RFI filter as per EN 55011, class A allows the use in all industrial environments (EN 61800-3, Cat. C2)
The RFI filter as per EN 55011, class B (EN 61800-3, Cat. C1) allows the use in residential areas
•• Integrated line reactor limits the supplier-side harmonics in acc. to DIN EN 12015 and DIN EN 12016
•• Encoder inputs for to control synchronous and asynchronous motors available with the standard solution
•• Convenient riding possible without speed feedback too*)
•• Quick and easy commissioning
•• Speed optimized short distance travel without additional means in the shaft available
•• Speed changing during riding between set speeds possible
*) with asynchronous motor up to the elevator speed of 1.2 m/s only
Variable due to de-centralized intelligence in the inverter
The completely new designed electronic control system in dual-
processor technology covers a wide range of applications.
With DYNAVERT L06 it is possible to run asynchronous motors as well as
synchronous ones by menu-setting only.
For applications with high dynamic demands a field-oriented
controller is available.

6. Technical data DYNAVERT L06
6
Short Designation L06 - 16/400 25/400 40/400 62/400 75/400 100/400
Output 3 x 0… 400… 415 V 0… 50… 100… 250 Hz
Rated power [kVA] 5.5 8.7 14 21 26 35
Rated current [A] 8.0 12.5 20 31 37.5 50
Lifting current [A] 12 19 30 46.5 56 75
Max. power [kVA] 11 17 28 43 52 69
Max. current [A] 16 25 40 62 75 100
Power Supply 3 x 230… 400… 415 V (+10% -15%) 50–60 Hz
Connected Load [kVA] 5.1 7.9 13 20 24 32
Number of pulses in / out 6 / 6
Clock frequency of vector modulation approx. 10 kHz
Standby-consumption (VDI4707) [W] 17 17 20 20 23 23
Mechanical data
Dimensions Kompakt H x W x D [mm] 496 x 250 x 226 596 x 250 x 226 667 x 350 x 226
Dimensions Kompakt Plus H x W x D [mm] 590 x 250 x 226 831 x 250 x 226 900 x 350 x 226
Weight Kompakt [kg] 13 14 18 20 25 27
Weight Kompakt Plus [kg] 15 17 22 26 30 36
Short Designation L06 - 130/400 170/400 210/400 250/400
Output 3 x 0… 400… 460 V 0… 50… 100… 250 Hz
Rated power [kVA] 60 78 97 116
Rated current [A] 87 113 140 167
Lifting current [A] 98 128 158 188
Max. power [kVA] 90 125 158 184
Max. current [A] 130 170 210 250
Power Supply 3 x 230… 400… 460 V (+10% -15%) 50–60 Hz
Connected Load [kVA] 62 83 105 123
Number of pulses in / out 6 / 6
Clock frequency of vector modulation approx. 7.5 kHz
Standby-consumption (VDI4707) [W] 26 35 35 35
Mechanical data
Dimensions Kompakt H x W x D [mm] 710 x 350 x 320 1060 x 350 x 320
Dimensions Kompakt Plus H x W x D [mm] 860 x 500 x 340 N.A.
Weight Kompakt [kg] 52 70 75 80
Weight Kompakt Plus [kg] 80 N.A.

7. 7
General technical data
Max. length of motor cable (screened).................. 20 m
Setting, diagnosis................................................. Operating panel at DYNAVERT L, LEDs, serial interface
Control commands............................................... Contacts or 24 V trigger signals (PLC-compatible for travel commands
and other digital inputs), DCP-interface
Function of the control commands........................ Call-up of the parameterized travel characteristic
(positioning trip or direct approach)
Motor types.......................................................... Synchronous / Asynchronous – gearless or geared
Signal outputs...................................................... Potential-free contacts, 250 V AC/1A, DCP-interface
Speed feedback for synchronous motors................ Sin cos-encoder (max. 20 m cable length) – Signal level 1 V-SS
Speed feedback for asynchronous motors.............. Pulse encoder with HTL-level or TTL-level, pulses parametrizable,
1024 – 4096 pulses/revolutions (2 tracks with 90° offset)
Open-Loop operation............................................ Possible with asynchronous motors up to 1.2 m/s travelling speed
Mechanical protection.......................................... IP20
Ambient temperature for storage.......................... –25 – +70 °C
Ambient temperature for operation....................... 0 – +45 °C
Site altitude.......................................................... Max. 1000 m above sea level; in case of installation higher than 1000 m
above sea level de-rating of 10 % / 1000 m to be considered
Classification of environmental conditions.............
acc. to EN 60 721 (Part 3, Cooling systems)
3K3, forced direct air cooling, automatic temperature control
Options / accessories
•• Technology board for additional pulse-encoder outputs – additional pulse-encoder signals for shaft information
•• Evacuation package with single phase UPS
•• Auxiliary board for the initiation of control mode PCM – Position Control Mode
•• Relay interface for revitalization and in the case of servicing, as a connecting link between a still operative old elevator
controller and latest inverter technology with DYNAVERT L
Short Designation L06 - 25/500 50/500 90/500 130/500 170/500 210/500 250/500
Output 3 x 0… 500 V 0… 50… 100… 250 Hz
Rated power [kVA] 15 30 52 78 98 121 145
Rated current [A] 17 34 60 87 113 140 167
Lifting current [A] 19 38 68 98 128 158 188
Max. power [kVA] 22 45 78 113 147 182 216
Max. current [A] 25 52 90 130 170 210 250
Power Supply 3 x 230… 500 V (+10% -15%) 50–60 Hz
Connected Load [kVA] 16 36 52 78 102 130 156
Number of pulses in / out 6 / 6
Clock frequency of vector modulation approx. 7.5 kHz
Standby-consumption (VDI4707) [W] 21 24 32 32 44 44 44
Mechanical data
Dimensions Kompakt H x W x D [mm]
510 x 165
x 320
610 x 254
x 320
710 x 350 x 320 1060 x 350 x 320
Dimensions Kompakt Plus H x W x D [mm] N.A. 860 x 500 x 340 N.A.
Weight Kompakt [kg] 15 30 48 52 70 75 80
Weight Kompakt Plus [kg] N.A. N.A. 76 80 N.A.

8. 8

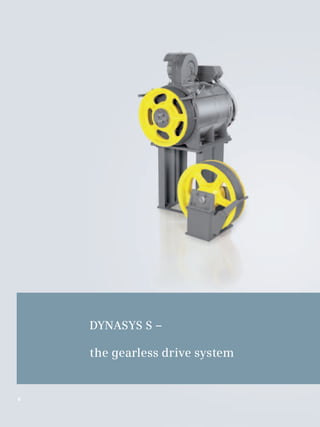

DYNASYS S –
the gearless drive system

9. 9

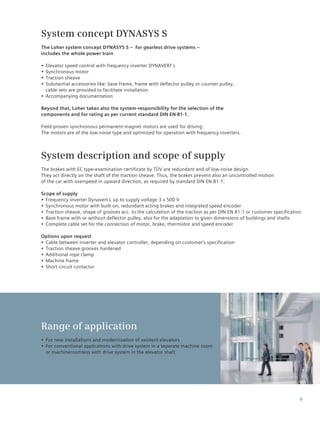

System concept DYNASYS S
The Loher system concept DYNASYS S – for gearless drive systems –
includes the whole power train
•• Elevator speed control with frequency inverter DYNAVERT L
•• Synchronous motor
•• Traction sheave
•• Substantial accessories like: base frame, frame with deflector pulley or counter pulley,
cable sets are provided to facititate installation
•• Accompanying documentation
Beyond that, Loher takes also the system-responsibility for the selection of the
components and for rating as per current standard DIN EN 81-1.
Field-proven synchronous permanent-magnet motors are used for driving.
The motors are of the low-noise type and optimized for operation with frequency inverters.
System description and scope of supply
The brakes with EC type-examination certificate by TÜV are redundant and of low-noise design.
They act directly on the shaft of the traction sheave. Thus, the brakes prevent also an uncontrolled motion
of the car with overspeed in upward direction, as required by standard DIN EN 81-1.
Scope of supply
•• Frequency inverter Dynavert L up to supply voltage 3 x 500 V
•• Synchronous motor with built-on, redundant acting brakes and integrated speed encoder
•• Traction sheave, shape of grooves acc. to the calculation of the traction as per DIN EN 81-1 or customer specification
•• Base frame with or without deflector pulley, also for the adaptation to given dimensions of buildings and shafts
•• Complete cable set for the connection of motor, brake, thermistor and speed encoder
Options upon request
•• Cable between inverter and elevator controller, depending on customer’s specification
•• Traction sheave grooves hardened
•• Additional rope clamp
•• Machine frame
•• Short circuit contactor
Range of application
•• For new installations and modernization of existent elevators
•• For conventional applications with drive system in a separate machine room
or machineroomless with drive system in the elevator shaft

10. 10

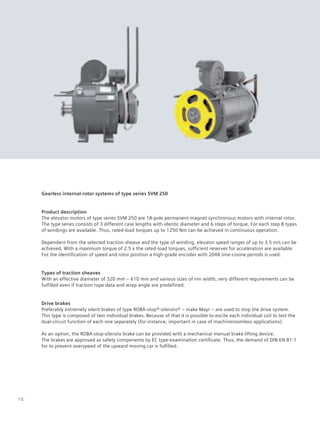

Gearless internal-rotor systems of type series SVM 250
Product description
The elevator motors of type series SVM 250 are 18-pole permanent-magnet synchronous motors with internal rotor.
The type series consists of 3 different case lengths with identic diameter and 6 steps of torque. For each step 8 types
of windings are available. Thus, rated-load torques up to 1250 Nm can be achieved in continuous operation.
Dependent from the selected traction sheave and the type of winding, elevator speed ranges of up to 3.5 m/s can be
achieved. With a maximum torque of 2.5 x the rated-load torques, sufficient reserves for acceleration are available.
For the identification of speed and rotor position a high-grade encoder with 2048 sine-cosine periods is used.
Types of traction sheaves
With an effective diameter of 320 mm – 610 mm and various sizes of rim width, very different requirements can be
fulfilled even if traction rope data and wrap angle are predefined.
Drive brakes
Preferably extremely silent brakes of type ROBA-stop®-silenzio® – make Mayr – are used to stop the drive system.
This type is composed of two individual brakes. Because of that it is possible to excite each individual coil to test the
dual-circuit function of each one separately (for instance, important in case of machineroomless applications).
As an option, the ROBA-stop-silenzio brake can be provided with a mechanical manual brake lifting device.
The brakes are approved as safety components by EC type-examination certificate. Thus, the demand of DIN EN 81-1
for to prevent overspeed of the upward moving car is fulfilled.

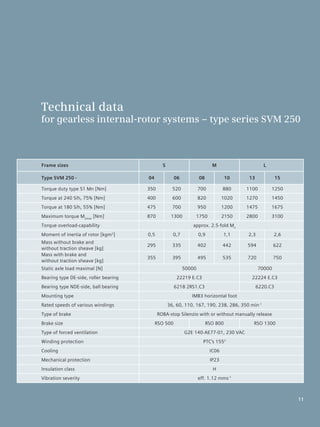

11. Technical data
for gearless internal-rotor systems – type series SVM 250
11
Frame sizes S M L
Type SVM 250 - 04 06 08 10 13 15
Torque duty type S1 Mn [Nm] 350 520 700 880 1100 1250
Torque at 240 S/h, 75% [Nm] 400 600 820 1020 1270 1450
Torque at 180 S/h, 55% [Nm] 475 700 950 1200 1475 1675
Maximum torque Mümax
[Nm] 870 1300 1750 2150 2800 3100
Torque overload-capability approx. 2.5-fold Mn
Moment of inertia of rotor [kgm2
] 0,5 0,7 0,9 1,1 2,3 2,6
Mass without brake and
without traction sheave [kg]
295 335 402 442 594 622
Mass with brake and
without traction sheave [kg]
355 395 495 535 720 750
Static axle load maximal [N] 50000 70000
Bearing type DE-side, roller bearing 22219 E.C3 22224 E.C3
Bearing type NDE-side, ball bearing 6218 2RS1.C3 6220.C3
Mounting type IMB3 horizontal foot
Rated speeds of various windings 36, 60, 110, 167, 190, 238, 286, 350 min-1
Type of brake ROBA-stop Silenzio with or without manually release
Brake size RSO 500 RSO 800 RSO 1300
Type of forced ventilation G2E 140-AE77-01, 230 VAC
Winding protection PTC’s 155°
Cooling IC06
Mechanical protection IP23
Insulation class H
Vibration severity eff. 1.12 mms-1

12. 12
System concept DYNASYS G
The Loher system concept DYNASYS G – for geared drive systems –
includes the whole power train
•• Elevator speed control with frequency inverter DYNAVERT L
•• Asynchronous motor
•• Gear
•• Traction sheave
•• Substantial accessories like: connection cable, base frame, frame with deflector pulley or counter pulley
•• Accompanying documentation
Beyond that, Loher takes also the system-responsibility for the selection of the components,
and for rating as per current standard DIN EN 81-1.
Field-proven elevator brake motors of type series UB (G,L,H) A are used for driving. These are of low-noise design and
optimized for operation with frequency inverters. For the standard type series 50 Hz-motors with synchronous speed
1500 min-1
are used.
The dual-circuit disk brake with manual brake lifting – type tested by TÜV – is of the low-noise type and is arranged
at the B-side of the motor together with the speed encoder and the handwheel. The gears of type series DYNASYS G
are of the two-stage helical-worm type. Depending on the ratio an efficiency factor of up to 92 % can be achieved by
this technology. The forces applying at the traction sheave are transferred to the base frame via a two-point support.
A torque-arm is effective in this frame also and takes primarily the effects of the occurring dynamic forces.
System description and scope of supply
The traction sheave bearings are factory-mounted and aligned on the base frame included in the supply, forming
a two-point support. An additional torque-arm minimizes the bending stress of the traction sheave shaft. The compact
design of the gear enables e.g. the installation of the gear even in a wall recess, with gear shaft and traction sheave
projecting into the elevator shaft.

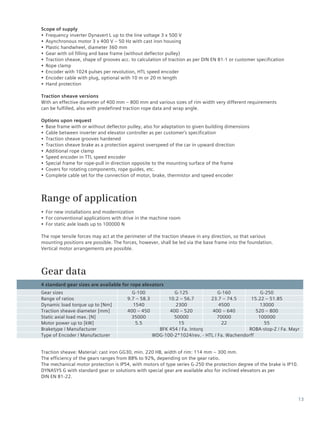

13. Scope of supply
•• Frequency inverter Dynavert L up to the line voltage 3 x 500 V
•• Asynchronous motor 3 x 400 V – 50 Hz with cast iron housing
•• Plastic handwheel, diameter 360 mm
•• Gear with oil filling and base frame (without deflector pulley)
•• Traction sheave, shape of grooves acc. to calculation of traction as per DIN EN 81-1 or customer specification
•• Rope clamp
•• Encoder with 1024 pulses per revolution, HTL speed encoder
•• Encoder cable with plug, optional with 10 m or 20 m length
•• Hand protection
Traction sheave versions
With an effective diameter of 400 mm – 800 mm and various sizes of rim width very different requirements
can be fulfilled, also with predefined traction rope data and wrap angle.
Options upon request
•• Base frame with or without deflector pulley, also for adaptation to given building dimensions
•• Cable between inverter and elevator controller as per customer’s specification
•• Traction sheave grooves hardened
•• Traction sheave brake as a protection against overspeed of the car in upward direction
•• Additional rope clamp
•• Speed encoder in TTL speed encoder
•• Special frame for rope-pull in direction opposite to the mounting surface of the frame
•• Covers for rotating components, rope guides, etc.
•• Complete cable set for the connection of motor, brake, thermistor and speed encoder
Range of application
•• For new installations and modernization
•• For conventional applications with drive in the machine room
•• For static axle loads up to 100000 N
The rope tensile forces may act at the perimeter of the traction sheave in any direction, so that various
mounting positions are possible. The forces, however, shall be led via the base frame into the foundation.
Vertical motor arrangements are possible.
Gear data
4 standard gear sizes are available for rope elevators
Gear sizes G-100 G-125 G-160 G-250
Range of ratios 9.7 – 58.3 10.2 – 56.7 23.7 – 74.5 15.22 – 51.85
Dynamic load torque up to [Nm] 1540 2300 4500 13000
Traction sheave diameter [mm] 400 – 450 400 – 520 400 – 640 520 – 800
Static axial load max. [N] 35000 50000 70000 100000
Motor power up to [kW] 5.5 15 22 55
Braketype / Manufacturer BFK 454 / Fa. Intorq ROBA-stop-Z / Fa. Mayr
Type of Encoder / Manufacturer WDG-100-2*1024/rev. - HTL / Fa. Wachendorff
Traction sheave: Material: cast iron GG30, min. 220 HB, width of rim: 114 mm – 300 mm.
The efficiency of the gears ranges from 88% to 92%, depending on the gear ratio.
The mechanical motor protection is IP54, with motors of type series G-250 the protection degree of the brake is IP10.
DYNASYS G with standard gear or solutions with special gear are available also for inclined elevators as per
DIN EN 81-22.
13

14. 14

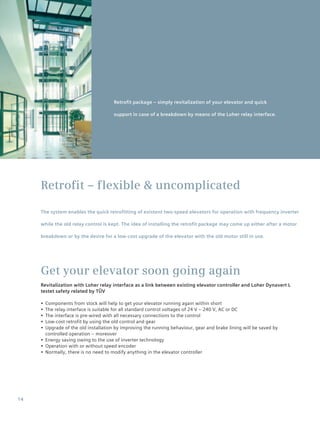

Retrofit – flexible & uncomplicated
The system enables the quick retrofitting of existent two-speed elevators for operation with frequency inverter
while the old relay control is kept. The idea of installing the retrofit package may come up either after a motor
breakdown or by the desire for a low-cost upgrade of the elevator with the old motor still in use.
Get your elevator soon going again
Revitalization with Loher relay interface as a link between existing elevator controller and Loher Dynavert L
testet safety related by TÜV
•• Components from stock will help to get your elevator running again within short
•• The relay interface is suitable for all standard control voltages of 24 V – 240 V, AC or DC
•• The interface is pre-wired with all necessary connections to the control
•• Low-cost retrofit by using the old control and gear
•• Upgrade of the old installation by improving the running behaviour, gear and brake lining will be saved by
controlled operation – moreover
•• Energy saving owing to the use of inverter technology
•• Operation with or without speed encoder
•• Normally, there is no need to modify anything in the elevator controller
Retrofit package – simply revitalization of your elevator and quick
support in case of a breakdown by means of the Loher relay interface.

15. 15

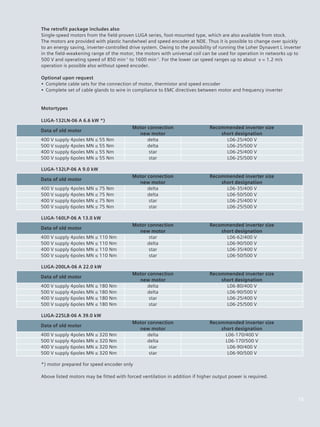

The retrofit package includes also
Single-speed motors from the field-proven LUGA series, foot-mounted type, which are also available from stock.
The motors are provided with plastic handwheel and speed encoder at NDE. Thus it is possible to change over quickly
to an energy saving, inverter-controlled drive system. Owing to the possibility of running the Loher Dynavert L inverter
in the field-weakening range of the motor, the motors with universal coil can be used for operation in networks up to
500 V and operating speed of 850 min-1
to 1600 min-1
. For the lower car speed ranges up to about v = 1.2 m/s
operation is possible also without speed encoder.
Optional upon request
•• Complete cable sets for the connection of motor, thermistor and speed encoder
•• Complete set of cable glands to wire in compliance to EMC directives between motor and frequency inverter
Motortypes
LUGA-132LN-06 A 6.6 kW *)
Data of old motor
Motor connection
new motor
Recommended inverter size
short designation
400 V supply 4poles MN ≤ 55 Nm delta L06-25/400 V
500 V supply 4poles MN ≤ 55 Nm delta L06-25/500 V
400 V supply 6poles MN ≤ 55 Nm star L06-25/400 V
500 V supply 6poles MN ≤ 55 Nm star L06-25/500 V
LUGA-132LP-06 A 9.0 kW
Data of old motor
Motor connection
new motor
Recommended inverter size
short designation
400 V supply 4poles MN ≤ 75 Nm delta L06-35/400 V
500 V supply 4poles MN ≤ 75 Nm delta L06-50/500 V
400 V supply 6poles MN ≤ 75 Nm star L06-25/400 V
500 V supply 6poles MN ≤ 75 Nm star L06-25/500 V
LUGA-160LP-06 A 13.0 kW
Data of old motor
Motor connection
new motor
Recommended inverter size
short designation
400 V supply 4poles MN ≤ 110 Nm star L06-62/400 V
500 V supply 4poles MN ≤ 110 Nm delta L06-90/500 V
400 V supply 6poles MN ≤ 110 Nm star L06-35/400 V
500 V supply 6poles MN ≤ 110 Nm star L06-50/500 V
LUGA-200LA-06 A 22.0 kW
Data of old motor
Motor connection
new motor
Recommended inverter size
short designation
400 V supply 4poles MN ≤ 180 Nm delta L06-80/400 V
500 V supply 4poles MN ≤ 180 Nm delta L06-90/500 V
400 V supply 6poles MN ≤ 180 Nm star L06-25/400 V
500 V supply 6poles MN ≤ 180 Nm star L06-25/500 V
LUGA-225LB-06 A 39.0 kW
Data of old motor
Motor connection
new motor
Recommended inverter size
short designation
400 V supply 4poles MN ≤ 320 Nm delta L06-170/400 V
500 V supply 4poles MN ≤ 320 Nm delta L06-170/500 V
400 V supply 6poles MN ≤ 320 Nm star L06-90/400 V
500 V supply 6poles MN ≤ 320 Nm star L06-90/500 V
*) motor prepared for speed encoder only
Above listed motors may be fitted with forced ventilation in addition if higher output power is required.

16. Inform yourself on our products for comprehensive
and efficient lift solutions!
www.loher.com lift@loher.com
Loher GmbH –
A Siemens Company
Hans-Loher-Straße 32
94099 Ruhstorf
GERMANY
The information provided in this brochure contains merely general
descriptions or characteristics of performance which in actual case of use
do not always apply as described or which may change as as result of further
development of of the products. An obligation to provide the respective
characteristics shall only exist if expressly agreed in the terms of contract.
All product designations may be trademarks or product names of
Siemens AG or supplier companies whose use by third parties for their own
purposes could violate the rights of the owners.
Subject to change without prior notice 06/10
Order No. E20001-A20-P580-V1-7600
Dispo 21503
GD.LD.XX.LOHE.52.0.06
Printed in Germany
© Siemens AG 2010
