1. Working With
AFNetworking
@waynehartman

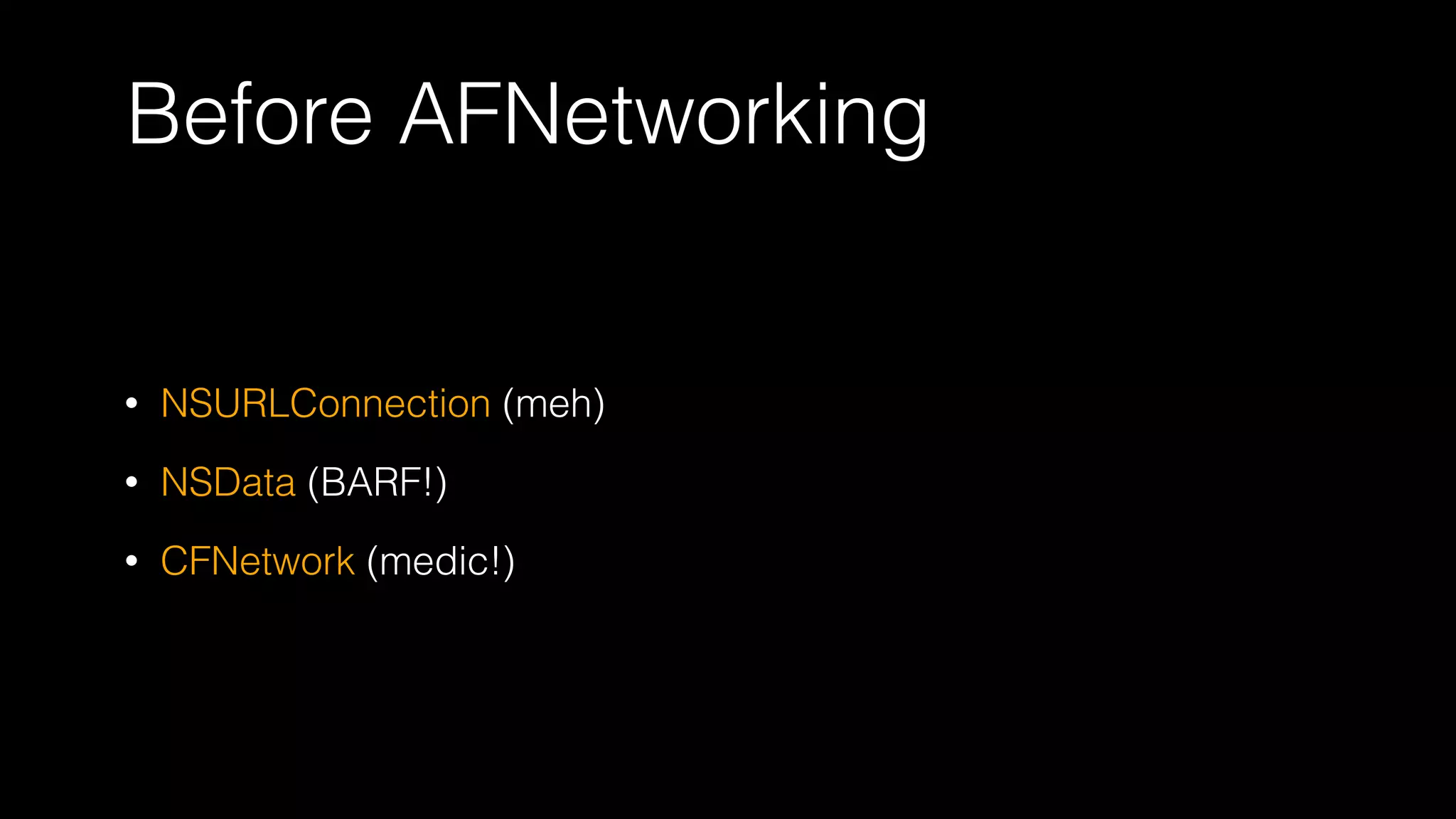

2. Before AFNetworking
• NSURLConnection (meh)
• NSData (BARF!)
• CFNetwork (medic!)

3. NSURLConnection - (IBAction)didSelectRefreshButton:(id)sender {
NSURL *url = [NSURL URLWithString:@"http://ip.jsontest.com/"];
NSURLRequest *request = [NSURLRequest requestWithURL:url];
!
self.connection = [[NSURLConnection alloc] initWithRequest:request delegate:self startImmediately:YES];
}
!
#pragma mark - NSURLConnection
!
- (void)connection:(NSURLConnection *)connection didReceiveResponse:(NSHTTPURLResponse *)response {
_data = nil;
!
switch (response.statusCode) {
case 200: {
self.data = [NSMutableData dataWithCapacity:(NSUInteger)response.expectedContentLength];
}
break;
default: {
[connection cancel];
!
NSError *error = [NSError errorWithDomain:(NSString *)kCFErrorDomainCFNetwork
code:response.statusCode
userInfo:@{(NSString *)kCFErrorDescriptionKey : (NSString *)kCFURLErrorFailingURLErrorKey}];
[self connection:connection didFailWithError:error];
}
break;
}
}
!
- (void)connection:(NSURLConnection *)connection didReceiveData:(NSData *)data {
[self.data appendData:data];
}
!
- (void)connectionDidFinishLoading:(NSURLConnection *)connection {
NSError *error = nil;
NSDictionary *jsonData = [NSJSONSerialization JSONObjectWithData:self.data options:0 error:&error];
if (!jsonData) {
UIAlertView *alert = [[UIAlertView alloc] initWithTitle:@"Error"
message:@"The data was corrupt. Sorry"
delegate:nil
cancelButtonTitle:@"OK"
otherButtonTitles:nil];
[alert show];
} else {
NSString *ip = jsonData[@"ip"];
UIAlertView *alert = [[UIAlertView alloc] initWithTitle:@"Success!"
message:[NSString stringWithFormat:@"Your IP is: %@", ip]
delegate:nil
cancelButtonTitle:@"OK"
otherButtonTitles:nil];
[alert show];
}
!
self.connection = nil;
}
!
- (void)connection:(NSURLConnection *)connection didFailWithError:(NSError *)error {
UIAlertView *alert = [[UIAlertView alloc] initWithTitle:@"Error"
message:@"There was an error getting the data. Please try again later."
delegate:nil
cancelButtonTitle:@"OK"
otherButtonTitles:nil];
[alert show];
self.connection = nil;
}

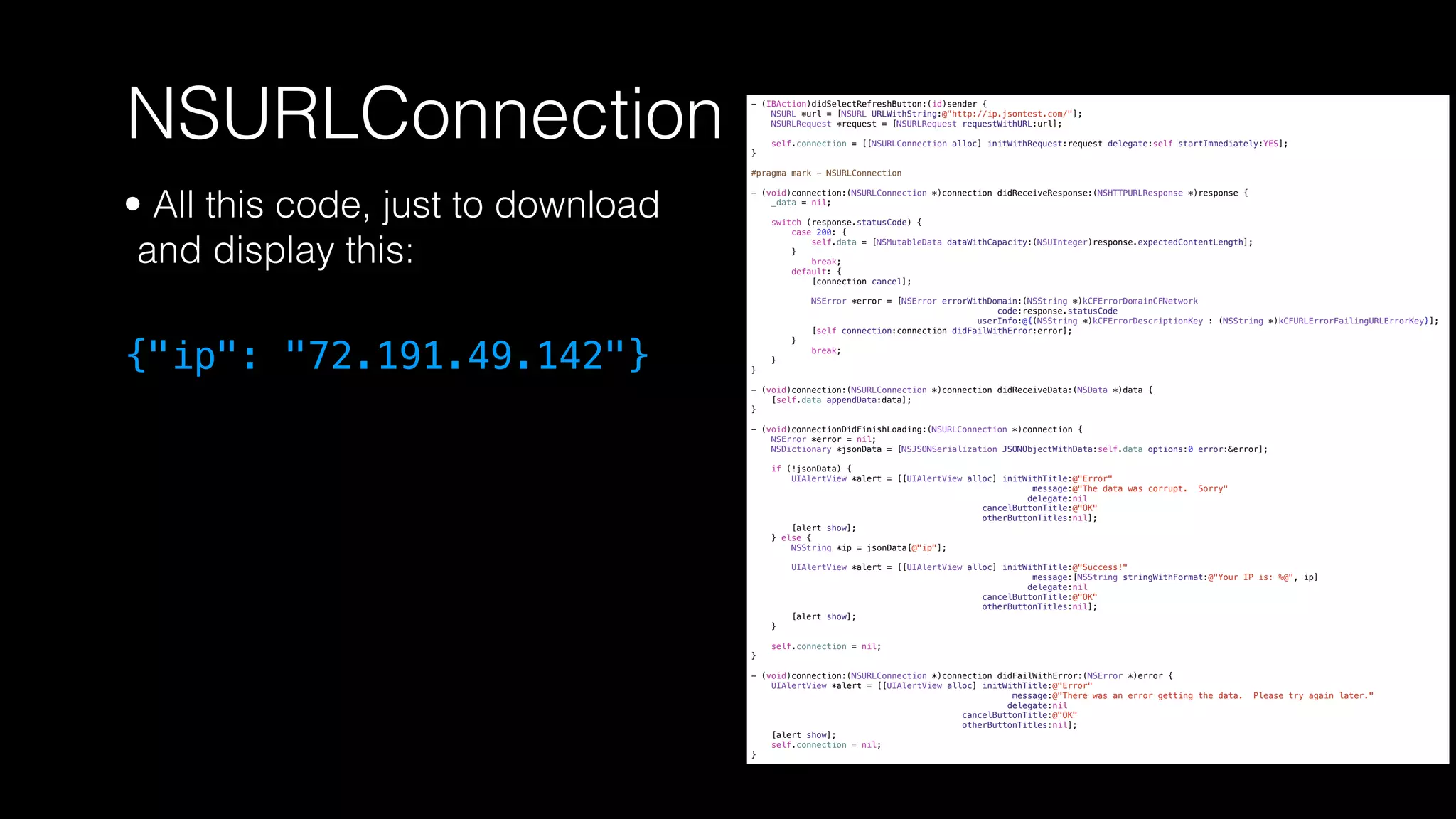

• All this code, just to download
and display this:
{"ip": "72.191.49.142"}

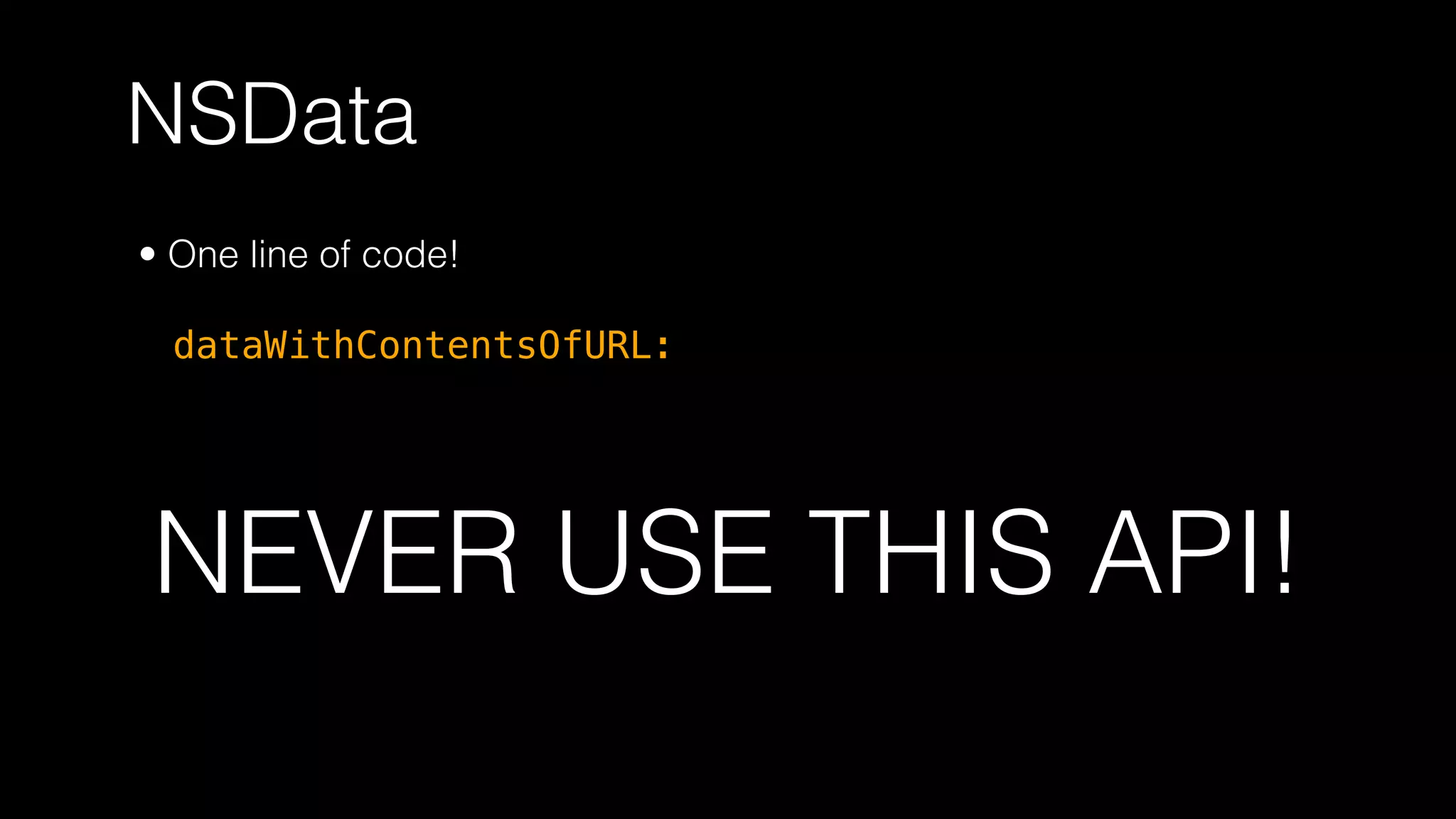

4. NSData
• One line of code!
!
dataWithContentsOfURL:
!
NEVER USE THIS API!

5. CFNetwork NSURL *url = [NSURL URLWithString:DOWNLOAD_URL];
!
CFHTTPMessageRef request = CFHTTPMessageCreateRequest(NULL, CFSTR("GET"), (__bridge CFURLRef)url, kCFHTTPVersion1_1);
!
CFReadStreamRef requestStream = CFReadStreamCreateForHTTPRequest(NULL, request);
CFReadStreamOpen(requestStream);
NSMutableData *responseBytes = [NSMutableData data];
CFIndex numBytesRead = 0 ;
NSUInteger totalBytesRead = 0;
!
do {
UInt8 buf[1024];
numBytesRead = CFReadStreamRead(requestStream, buf, sizeof(buf));
if(numBytesRead > 0) {
[responseBytes appendBytes:buf length:numBytesRead];
totalBytesRead += numBytesRead;
}
} while(numBytesRead > 0);
if (totalBytesRead > 0) {
CFHTTPMessageRef response = (CFHTTPMessageRef)CFReadStreamCopyProperty(requestStream, kCFStreamPropertyHTTPResponseHeader);
CFHTTPMessageSetBody(response, (__bridge CFDataRef)responseBytes);
CFReadStreamClose(requestStream);
CFDataRef responseBodyData = CFHTTPMessageCopyBody(response);
NSError *error = nil;
NSDictionary *jsonData = [NSJSONSerialization JSONObjectWithData:(__bridge NSData *)responseBodyData options:0 error:&error];
CFRelease(responseBodyData);
CFRelease(response);
if (!jsonData) {
UIAlertView *alert = [[UIAlertView alloc] initWithTitle:@"Error"
message:@"The data was corrupt. Sorry"
delegate:nil
cancelButtonTitle:@"OK"
otherButtonTitles:nil];
[alert show];
} else {
NSString *ip = jsonData[@"ip"];
UIAlertView *alert = [[UIAlertView alloc] initWithTitle:@"Success!"
message:[NSString stringWithFormat:@"Your IP is: %@", ip]
delegate:nil
cancelButtonTitle:@"OK"
otherButtonTitles:nil];
[alert show];
}
} else {
UIAlertView *alert = [[UIAlertView alloc] initWithTitle:@"Error"
message:@"There was an error getting the data. Please try again later."
delegate:nil
cancelButtonTitle:@"OK"
otherButtonTitles:nil];
[alert show];
}
!
CFRelease(requestStream);
CFRelease(request);

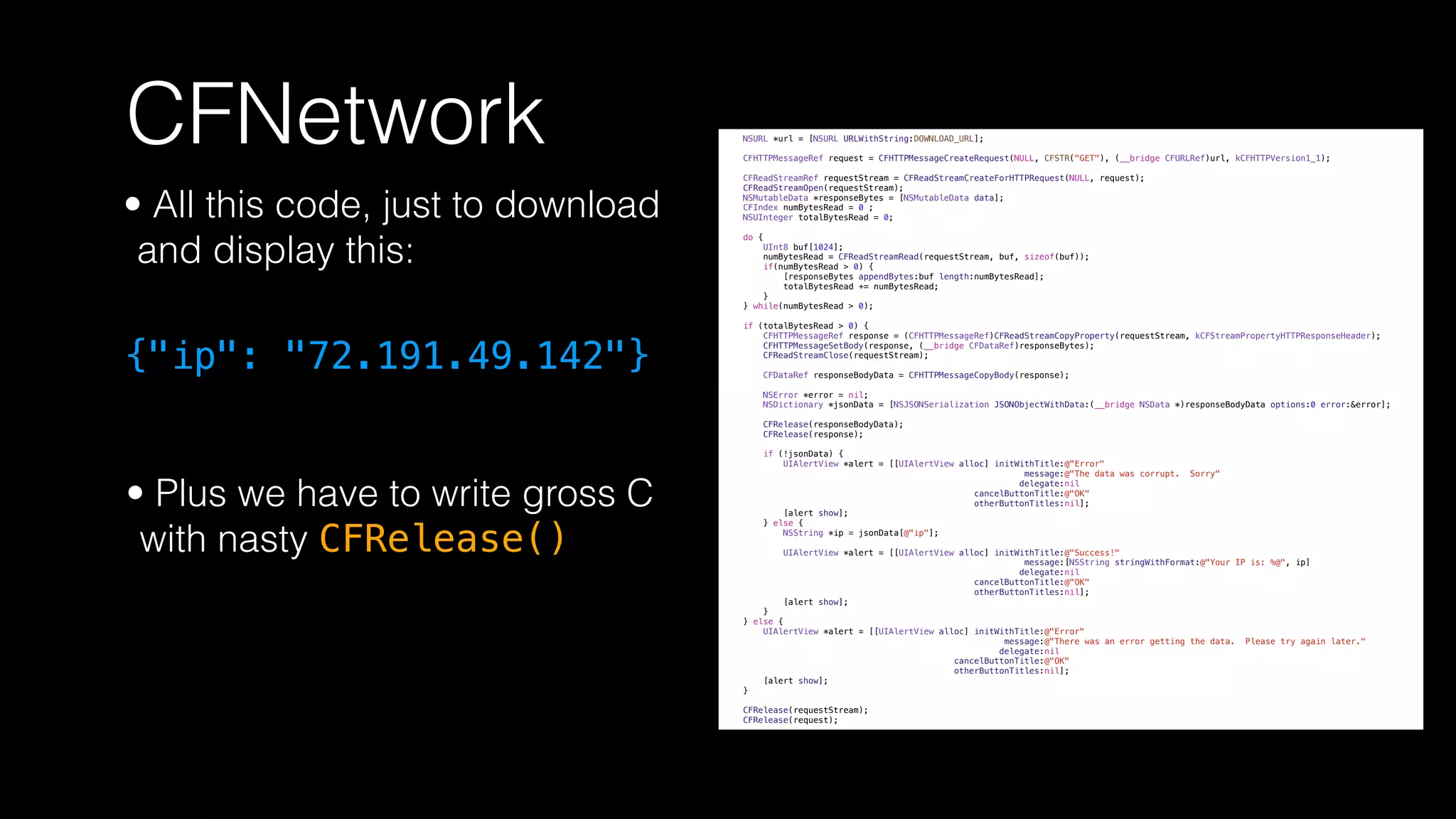

• All this code, just to download
and display this:
{"ip": "72.191.49.142"}
• Plus we have to write gross C
with nasty CFRelease()

6. AFNetworking
“AFNetworking is a delightful networking library for iOS and Mac OS
X. It's built on top of the Foundation URL Loading System, extending
the powerful high-level networking abstractions built into Cocoa. It
has a modular architecture with well-designed, feature-rich APIs that
are a joy to use.”

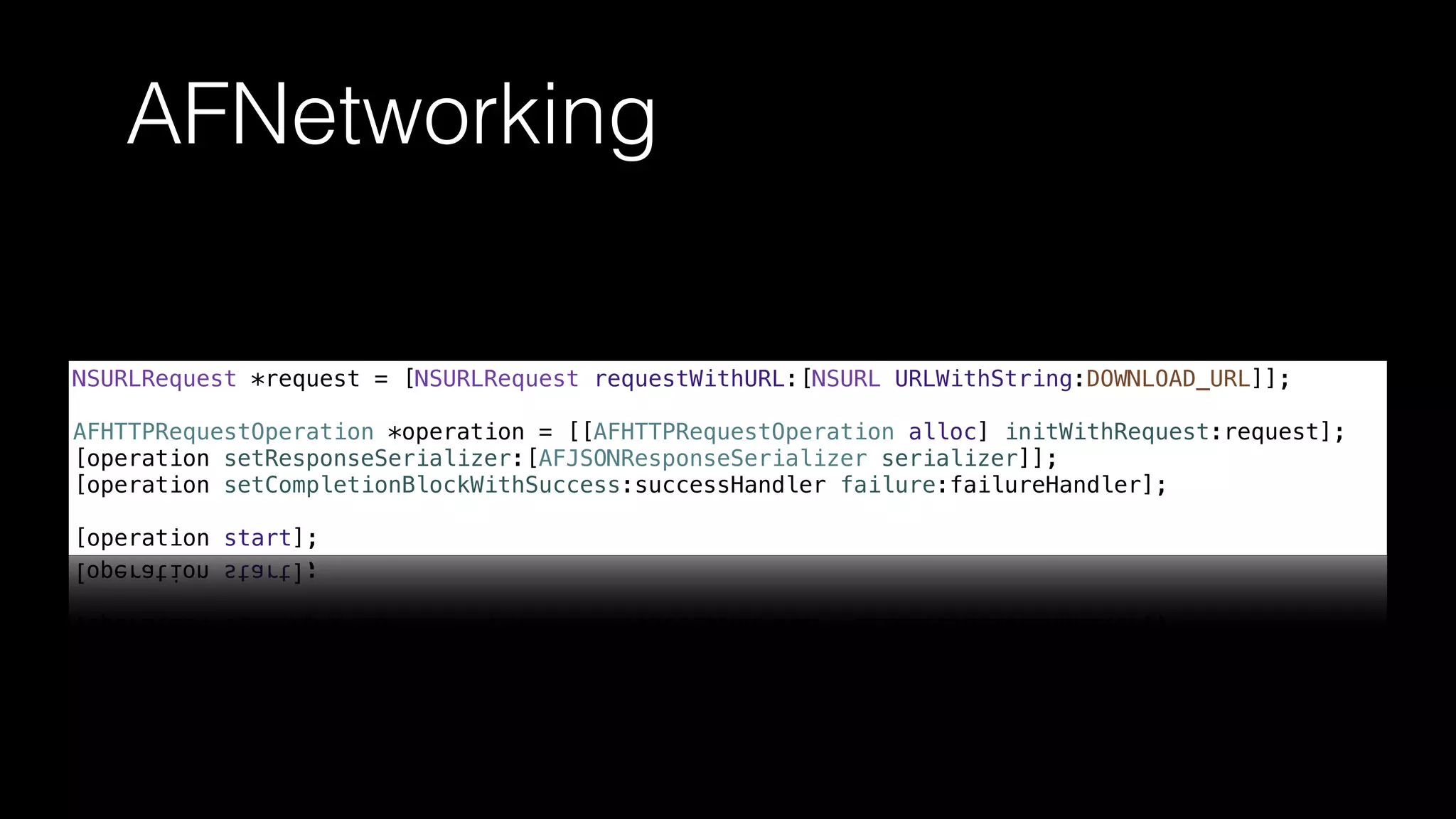

7. AFNetworking
NSURLRequest *request = [NSURLRequest requestWithURL:[NSURL URLWithString:DOWNLOAD_URL]];
!
AFHTTPRequestOperation *operation = [[AFHTTPRequestOperation alloc] initWithRequest:request];
[operation setResponseSerializer:[AFJSONResponseSerializer serializer]];
[operation setCompletionBlockWithSuccess:successHandler failure:failureHandler];
!
[operation start];

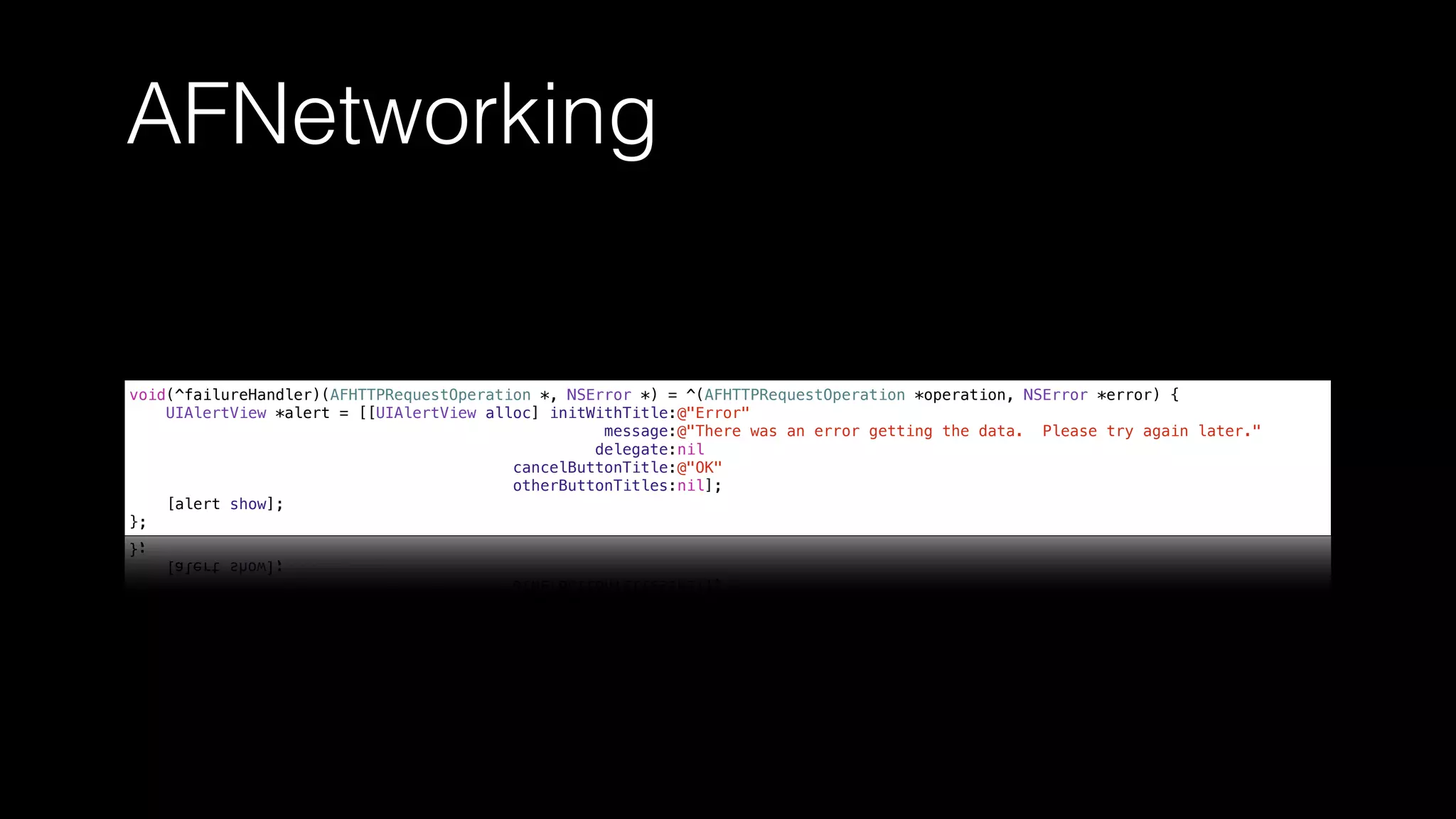

8. AFNetworking
void(^failureHandler)(AFHTTPRequestOperation *, NSError *) = ^(AFHTTPRequestOperation *operation, NSError *error) {
UIAlertView *alert = [[UIAlertView alloc] initWithTitle:@"Error"
message:@"There was an error getting the data. Please try again later."
delegate:nil
cancelButtonTitle:@"OK"
otherButtonTitles:nil];
[alert show];
};

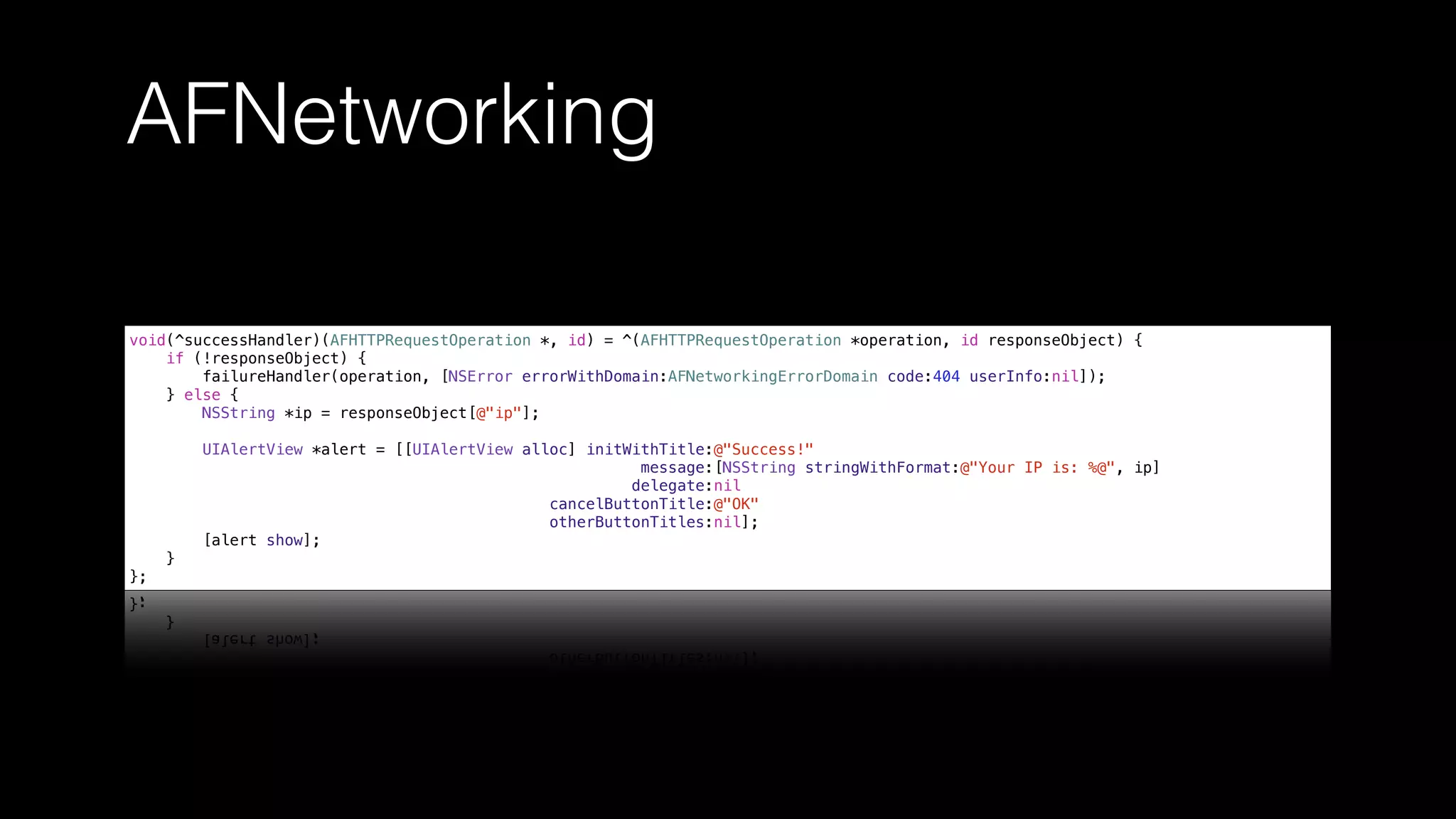

9. AFNetworking
void(^successHandler)(AFHTTPRequestOperation *, id) = ^(AFHTTPRequestOperation *operation, id responseObject) {
if (!responseObject) {
failureHandler(operation, [NSError errorWithDomain:AFNetworkingErrorDomain code:404 userInfo:nil]);
} else {
NSString *ip = responseObject[@"ip"];
!
UIAlertView *alert = [[UIAlertView alloc] initWithTitle:@"Success!"
message:[NSString stringWithFormat:@"Your IP is: %@", ip]
delegate:nil
cancelButtonTitle:@"OK"
otherButtonTitles:nil];
[alert show];
}
};

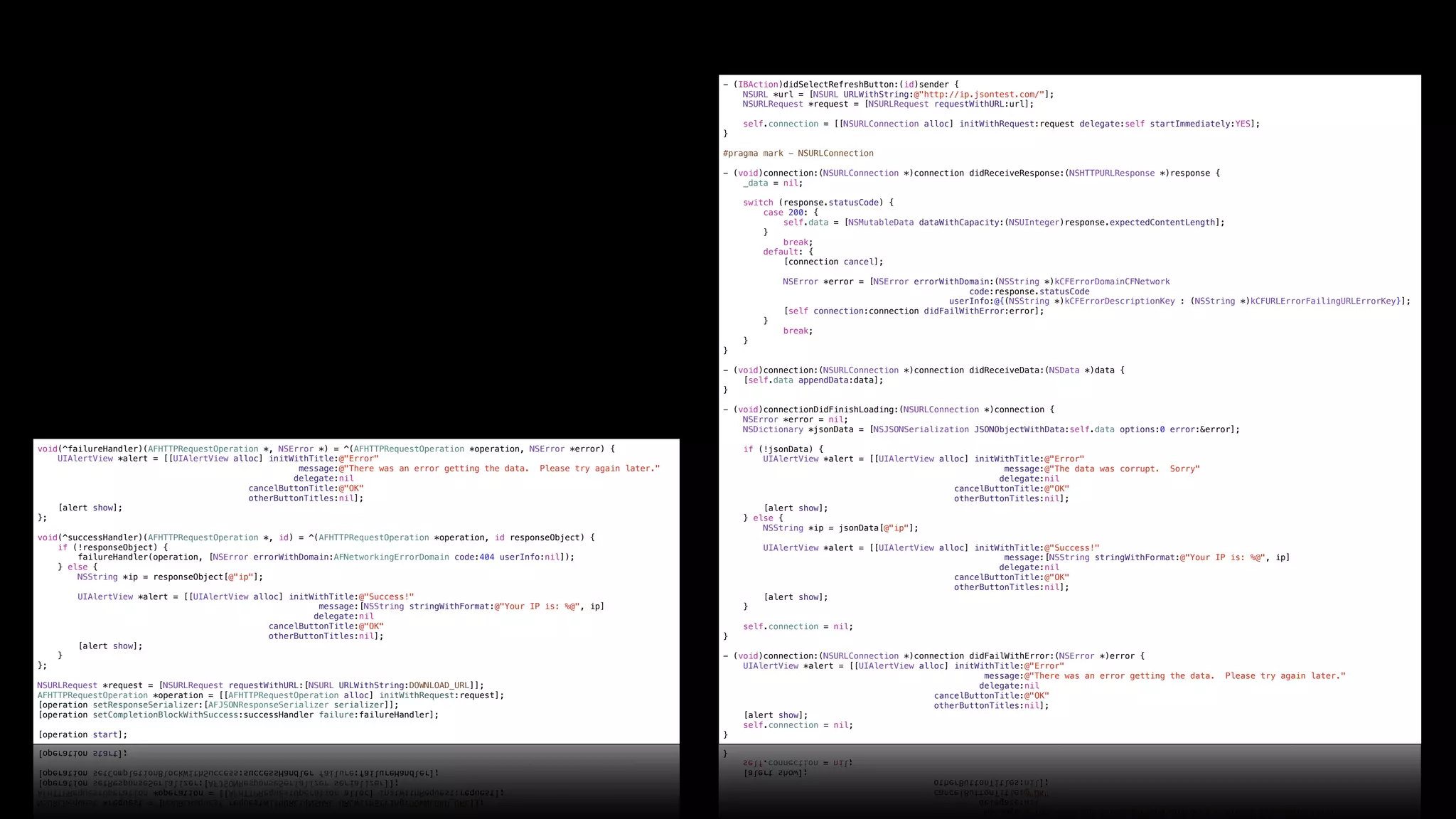

10. void(^failureHandler)(AFHTTPRequestOperation *, NSError *) = ^(AFHTTPRequestOperation *operation, NSError *error) {
UIAlertView *alert = [[UIAlertView alloc] initWithTitle:@"Error"
message:@"There was an error getting the data. Please try again later."
delegate:nil
cancelButtonTitle:@"OK"
otherButtonTitles:nil];
[alert show];
};
void(^successHandler)(AFHTTPRequestOperation *, id) = ^(AFHTTPRequestOperation *operation, id responseObject) {
if (!responseObject) {
failureHandler(operation, [NSError errorWithDomain:AFNetworkingErrorDomain code:404 userInfo:nil]);
} else {
NSString *ip = responseObject[@"ip"];
!
UIAlertView *alert = [[UIAlertView alloc] initWithTitle:@"Success!"
message:[NSString stringWithFormat:@"Your IP is: %@", ip]
delegate:nil
cancelButtonTitle:@"OK"
otherButtonTitles:nil];
[alert show];
}
};
NSURLRequest *request = [NSURLRequest requestWithURL:[NSURL URLWithString:DOWNLOAD_URL]];
AFHTTPRequestOperation *operation = [[AFHTTPRequestOperation alloc] initWithRequest:request];
[operation setResponseSerializer:[AFJSONResponseSerializer serializer]];
[operation setCompletionBlockWithSuccess:successHandler failure:failureHandler];
!
[operation start];
- (IBAction)didSelectRefreshButton:(id)sender {
NSURL *url = [NSURL URLWithString:@"http://ip.jsontest.com/"];
NSURLRequest *request = [NSURLRequest requestWithURL:url];
!
self.connection = [[NSURLConnection alloc] initWithRequest:request delegate:self startImmediately:YES];
}
!
#pragma mark - NSURLConnection
!
- (void)connection:(NSURLConnection *)connection didReceiveResponse:(NSHTTPURLResponse *)response {
_data = nil;
!
switch (response.statusCode) {
case 200: {
self.data = [NSMutableData dataWithCapacity:(NSUInteger)response.expectedContentLength];
}
break;
default: {
[connection cancel];
!
NSError *error = [NSError errorWithDomain:(NSString *)kCFErrorDomainCFNetwork
code:response.statusCode
userInfo:@{(NSString *)kCFErrorDescriptionKey : (NSString *)kCFURLErrorFailingURLErrorKey}];
[self connection:connection didFailWithError:error];
}
break;
}
}
!
- (void)connection:(NSURLConnection *)connection didReceiveData:(NSData *)data {
[self.data appendData:data];
}
!
- (void)connectionDidFinishLoading:(NSURLConnection *)connection {
NSError *error = nil;
NSDictionary *jsonData = [NSJSONSerialization JSONObjectWithData:self.data options:0 error:&error];
if (!jsonData) {
UIAlertView *alert = [[UIAlertView alloc] initWithTitle:@"Error"
message:@"The data was corrupt. Sorry"
delegate:nil
cancelButtonTitle:@"OK"
otherButtonTitles:nil];
[alert show];
} else {
NSString *ip = jsonData[@"ip"];
UIAlertView *alert = [[UIAlertView alloc] initWithTitle:@"Success!"
message:[NSString stringWithFormat:@"Your IP is: %@", ip]
delegate:nil
cancelButtonTitle:@"OK"
otherButtonTitles:nil];
[alert show];
}
!
self.connection = nil;
}
!
- (void)connection:(NSURLConnection *)connection didFailWithError:(NSError *)error {
UIAlertView *alert = [[UIAlertView alloc] initWithTitle:@"Error"
message:@"There was an error getting the data. Please try again later."
delegate:nil
cancelButtonTitle:@"OK"
otherButtonTitles:nil];
[alert show];
self.connection = nil;
}

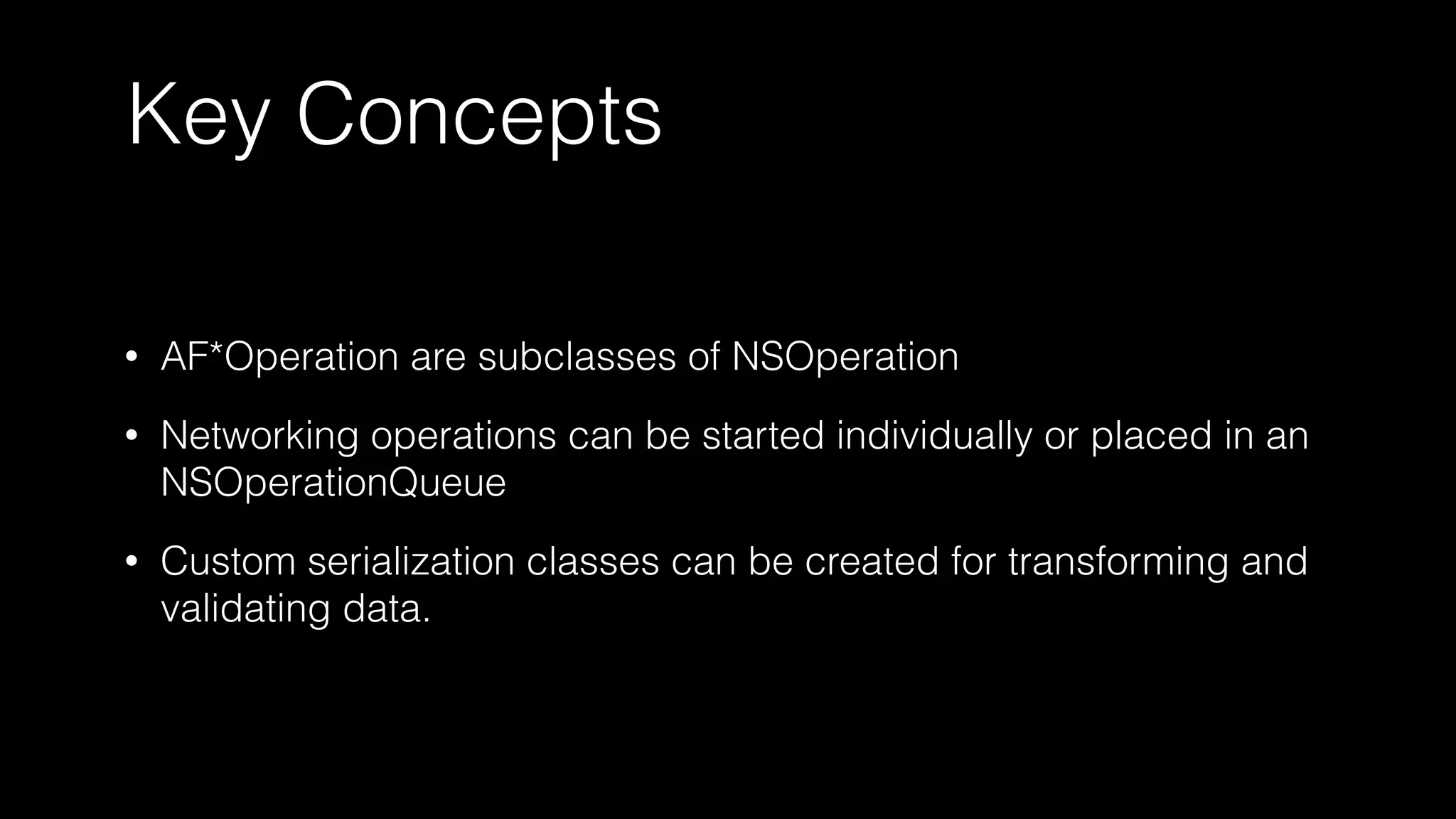

12. Key Concepts
• AF*Operation are subclasses of NSOperation
• Networking operations can be started individually or placed in an
NSOperationQueue
• Custom serialization classes can be created for transforming and
validating data.

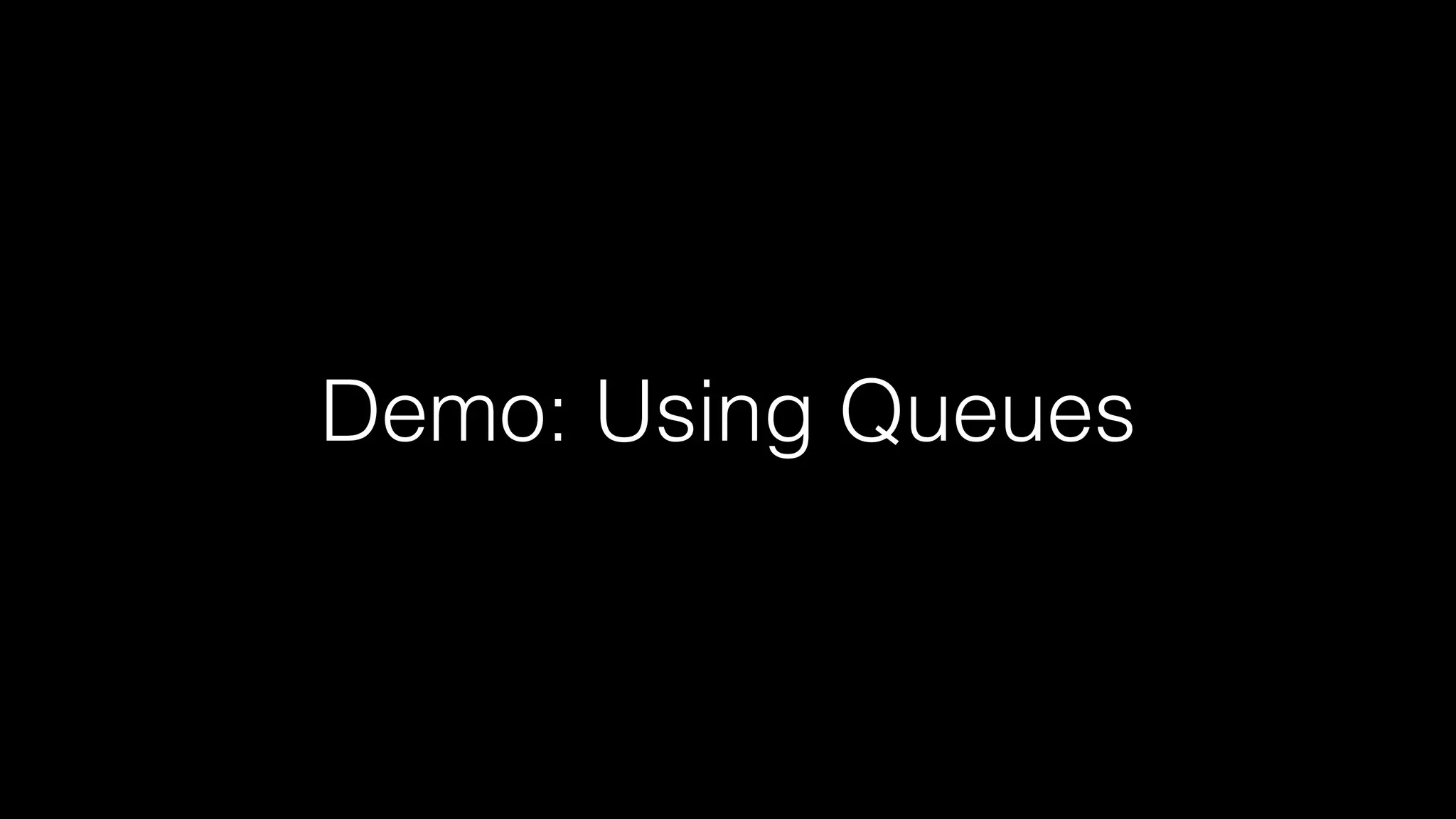

13. Demo: Using Queues

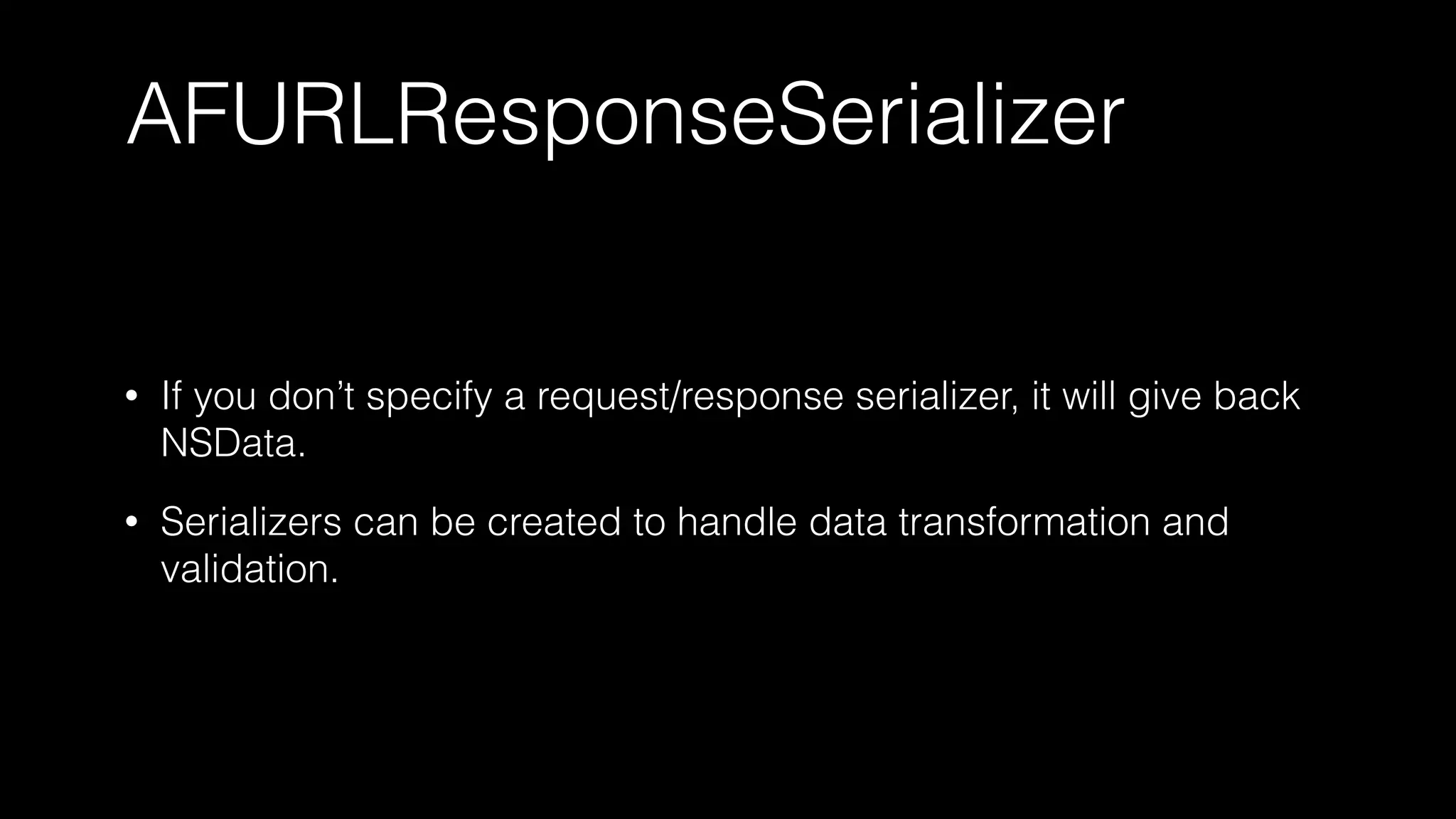

14. AFURLResponseSerializer
• If you don’t specify a request/response serializer, it will give back
NSData.
• Serializers can be created to handle data transformation and
validation.

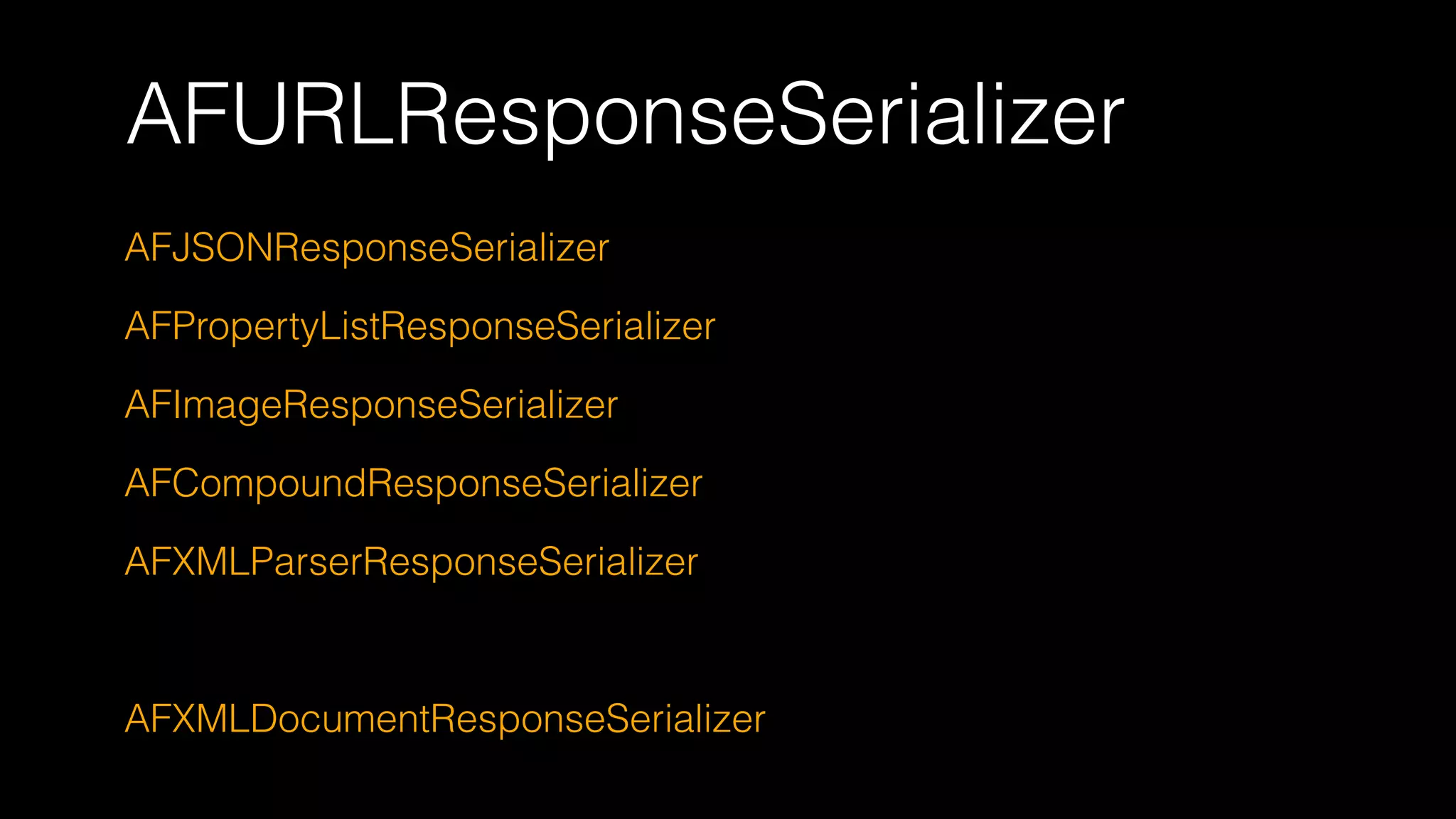

15. AFURLResponseSerializer
AFJSONResponseSerializer
AFPropertyListResponseSerializer
AFImageResponseSerializer
AFCompoundResponseSerializer
AFXMLParserResponseSerializer
!
AFXMLDocumentResponseSerializer

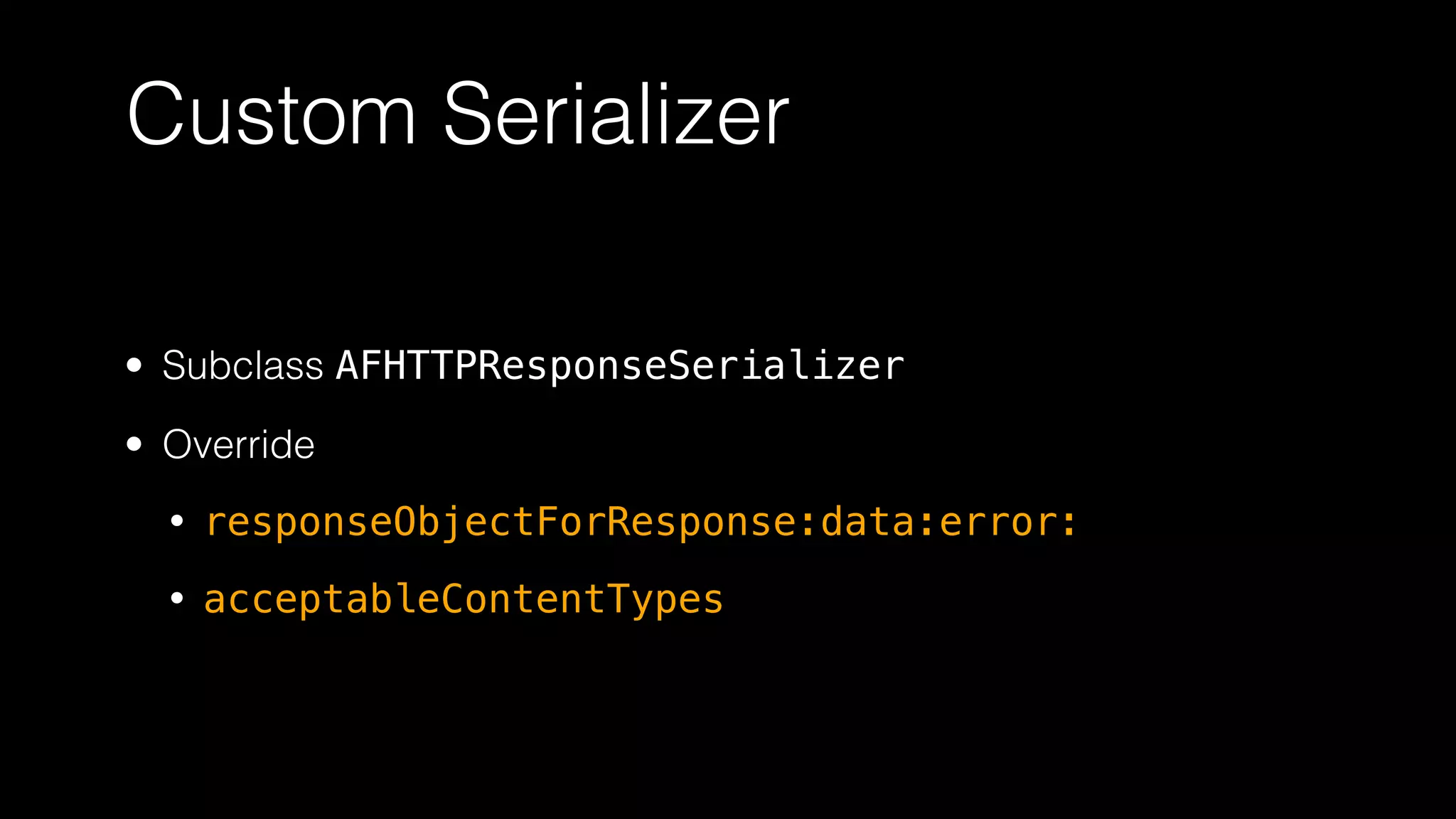

16. Custom Serializer
• Subclass AFHTTPResponseSerializer
• Override
• responseObjectForResponse:data:error:
• acceptableContentTypes

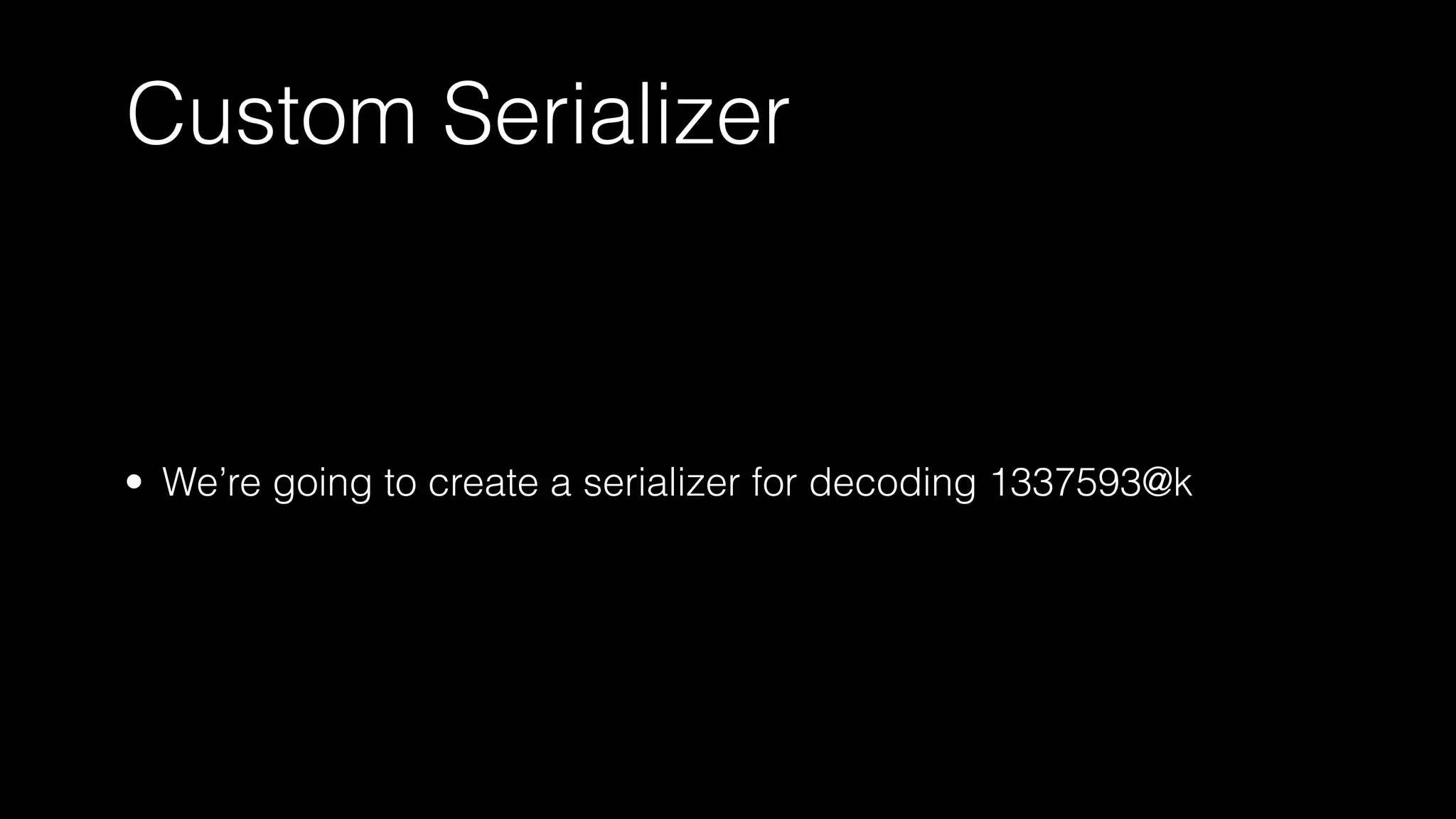

17. Custom Serializer
• We’re going to create a serializer for decoding 1337593@k

18. Anyone know the Content-Type for
1337 encoded data?

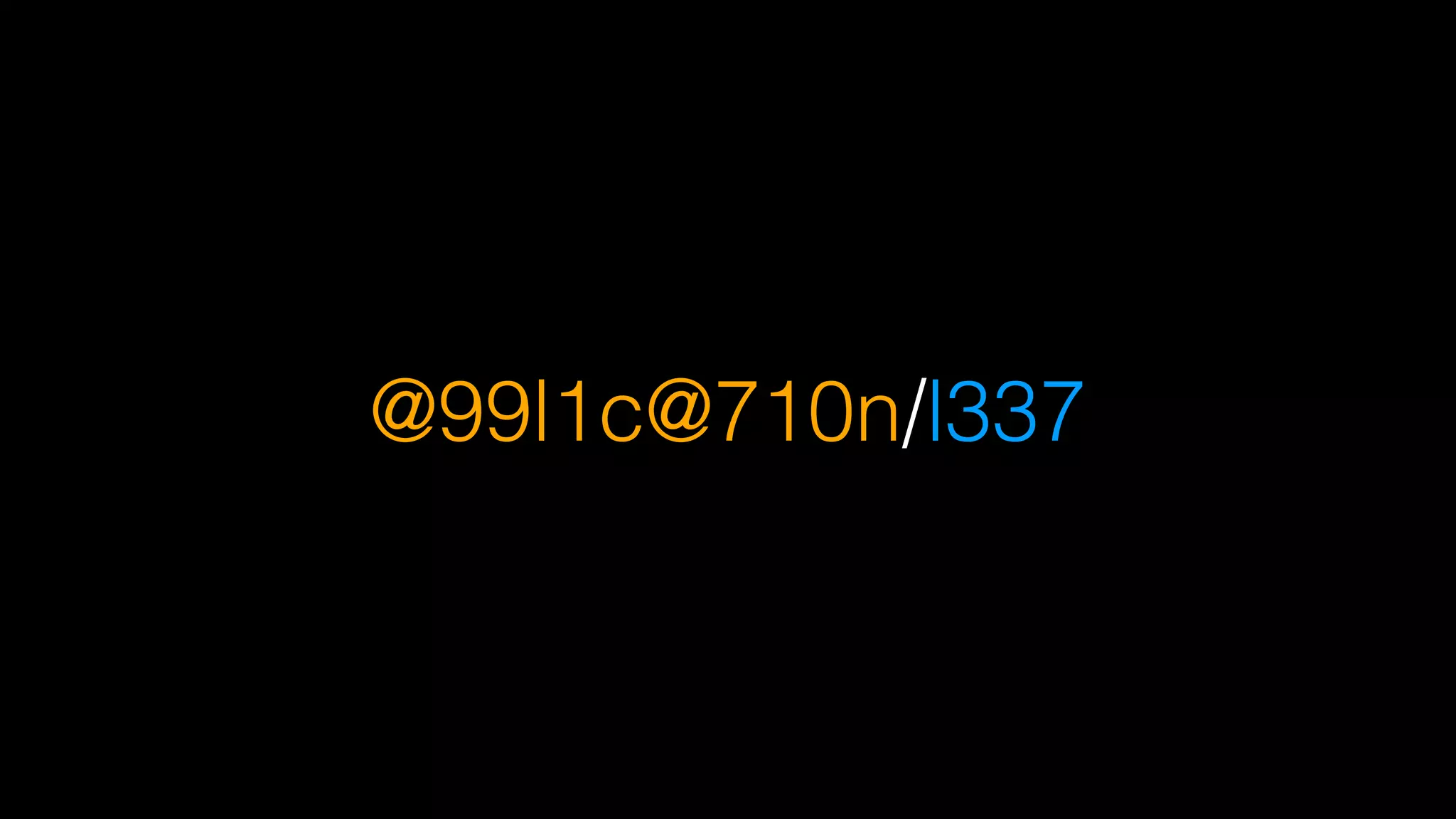

19. @99l1c@710n/l337

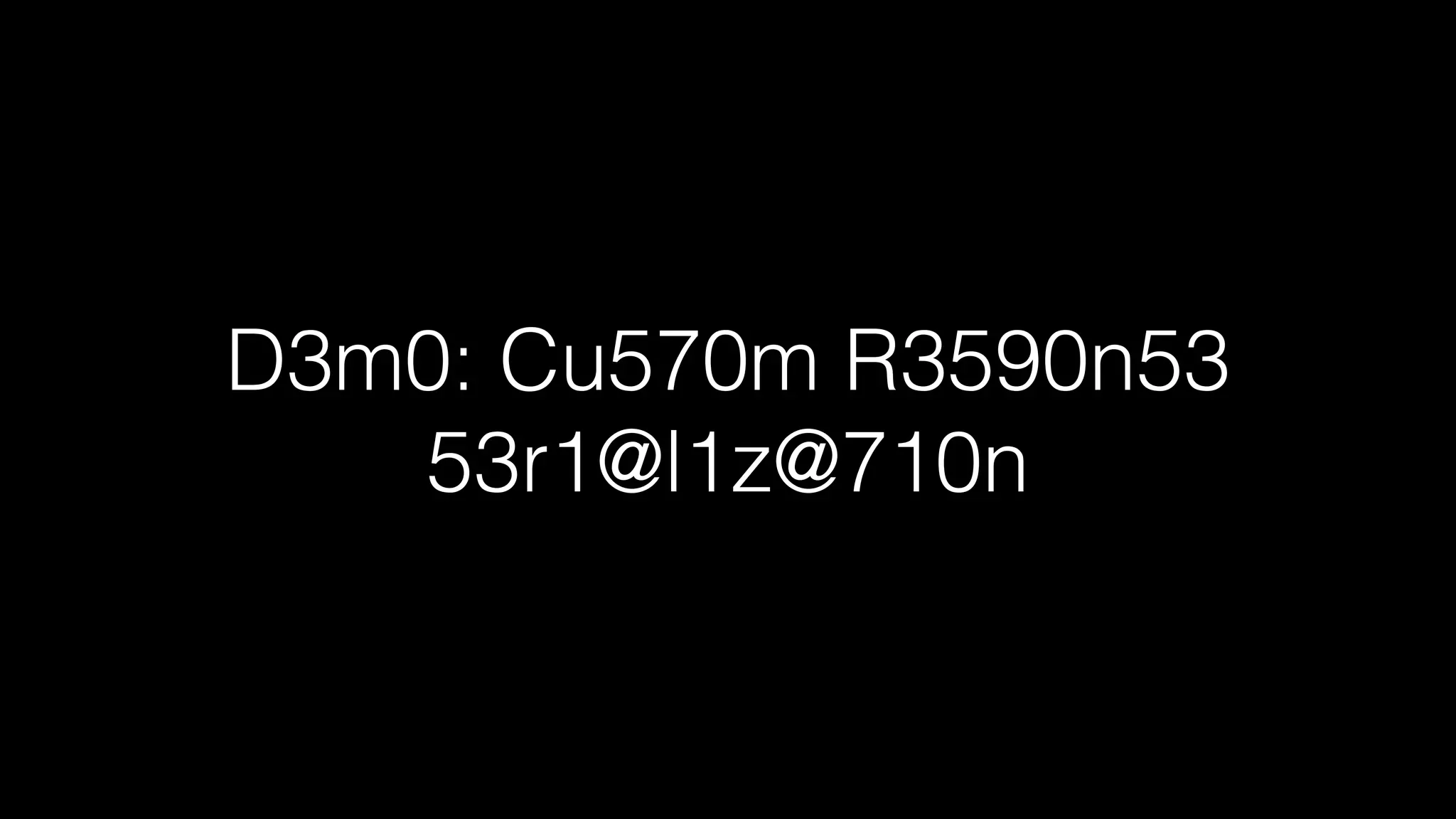

20. D3m0: Cu570m R3590n53
53r1@l1z@710n

21. AFNetworking + UIKit
• AFNetworking adds a number of extensions to common UIKit
classes:
• UIImageView
• UIButton
• UIWebView
• UIProgressView
• UIRefreshControl

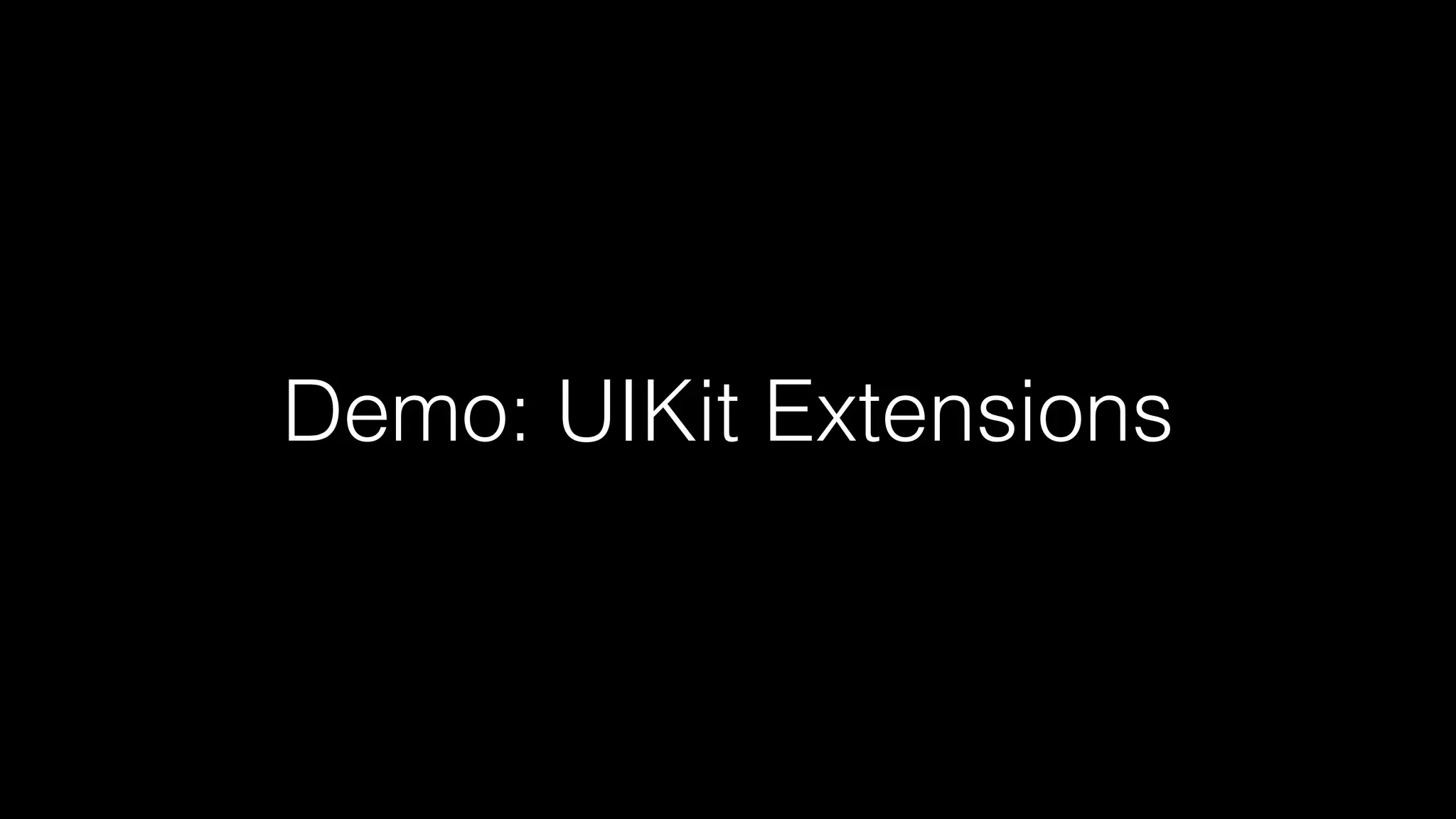

22. Demo: UIKit Extensions

23. Design Patterns for
Network & Data

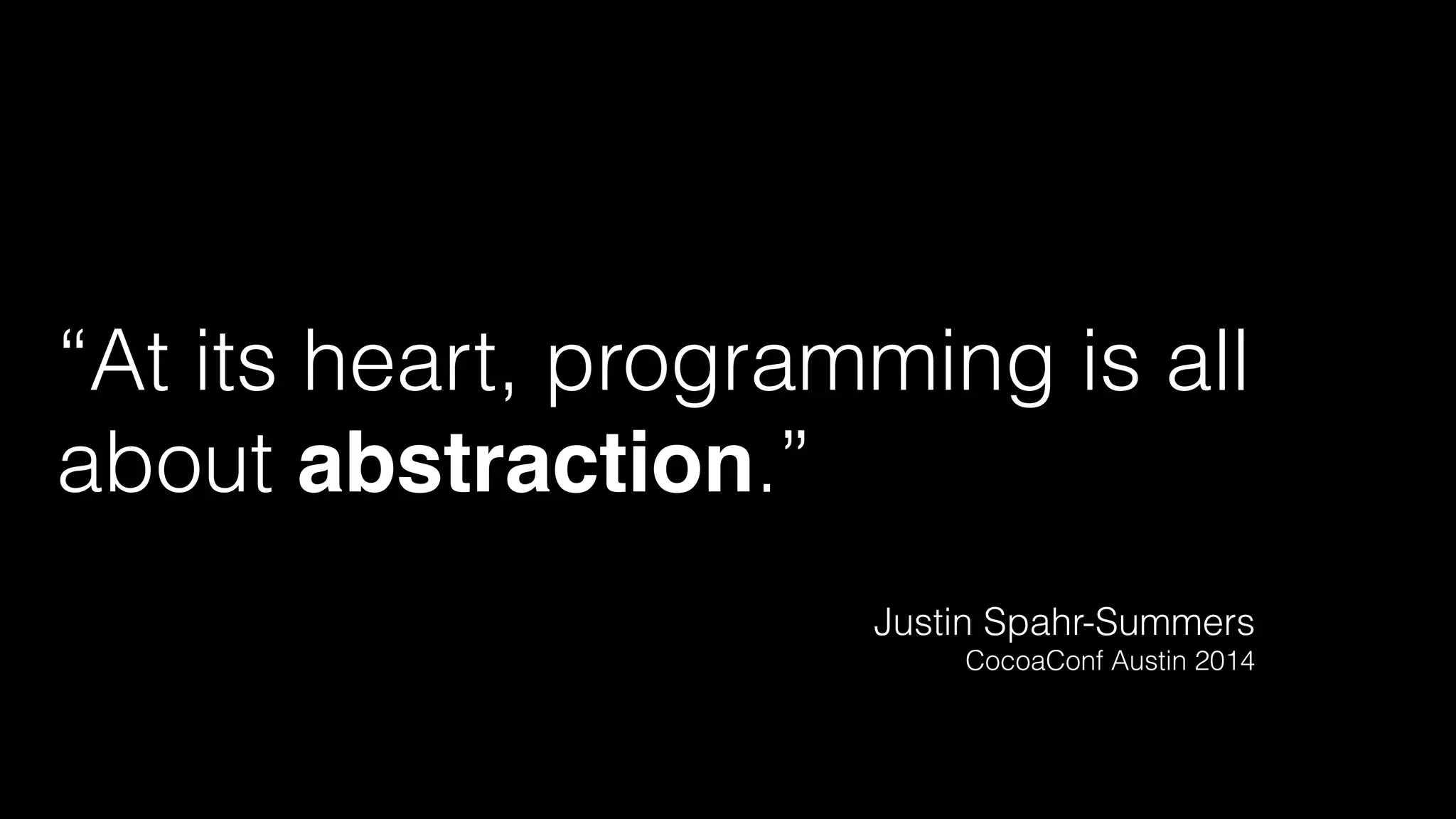

24. “At its heart, programming is all
about abstraction.”
Justin Spahr-Summers
CocoaConf Austin 2014

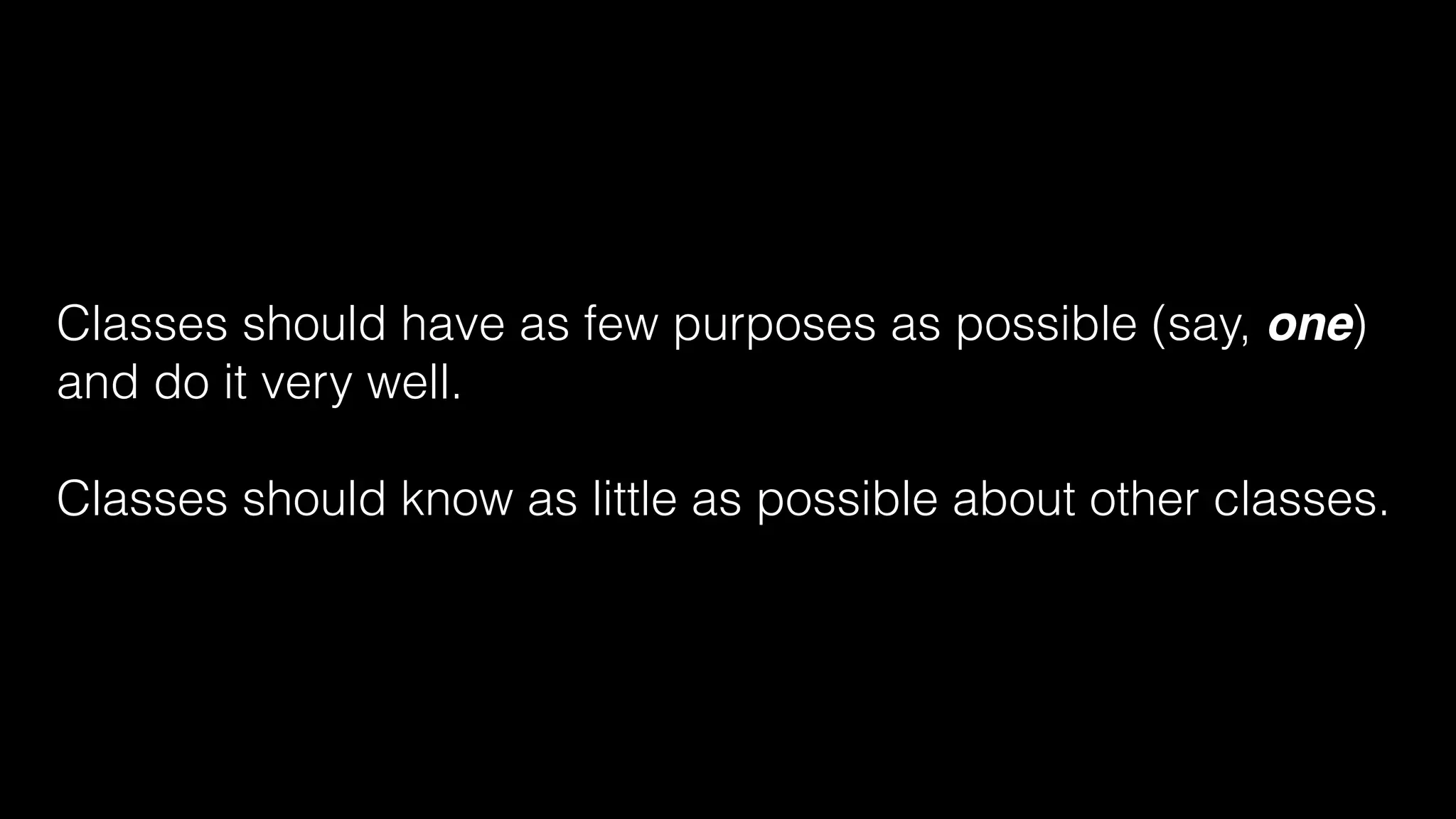

25. Classes should have as few purposes as possible (say, one)
and do it very well.
!
Classes should know as little as possible about other classes.

26. Are your View Controllers like this?

27. Case Study:
Geekdom for iOS

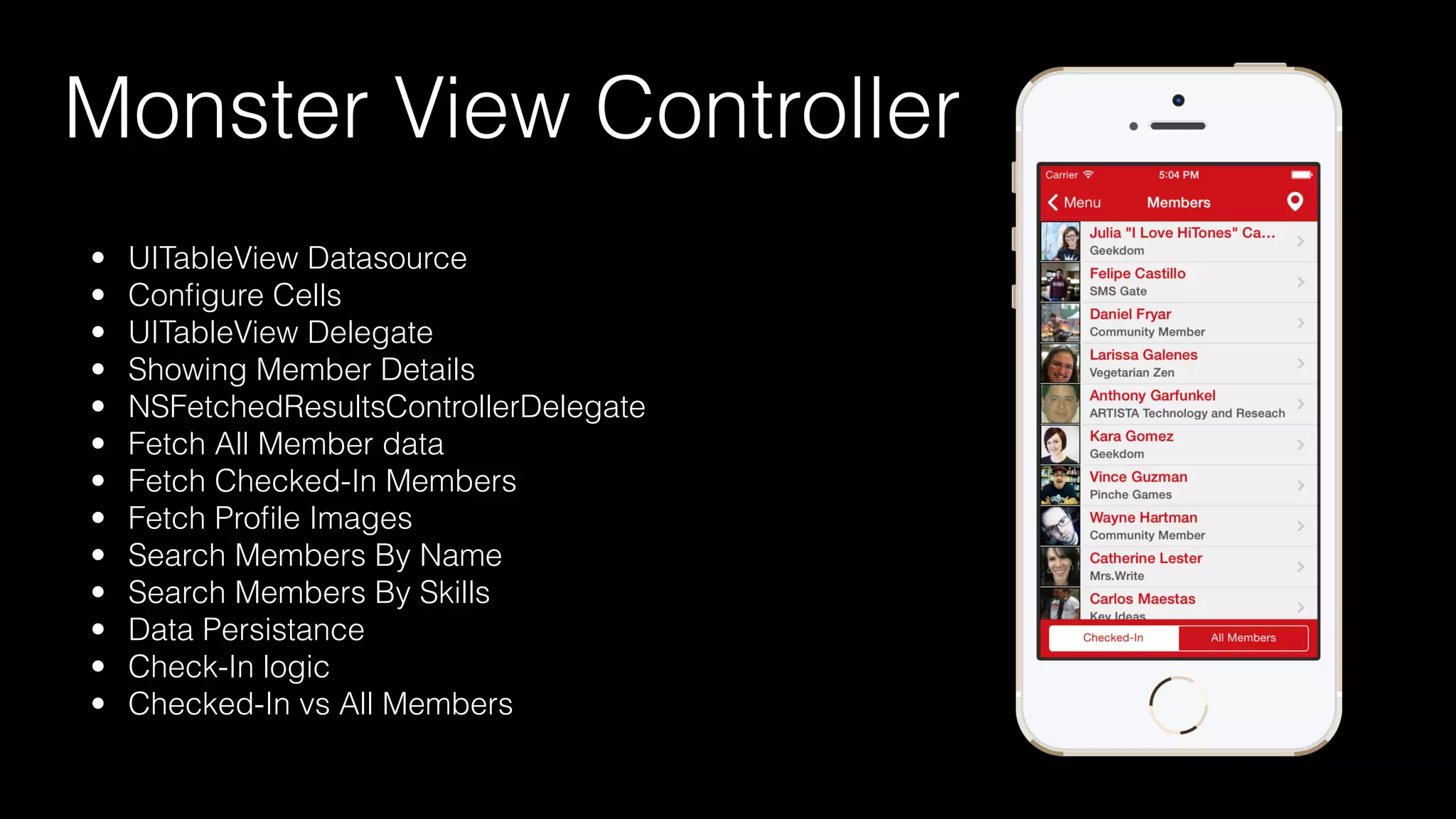

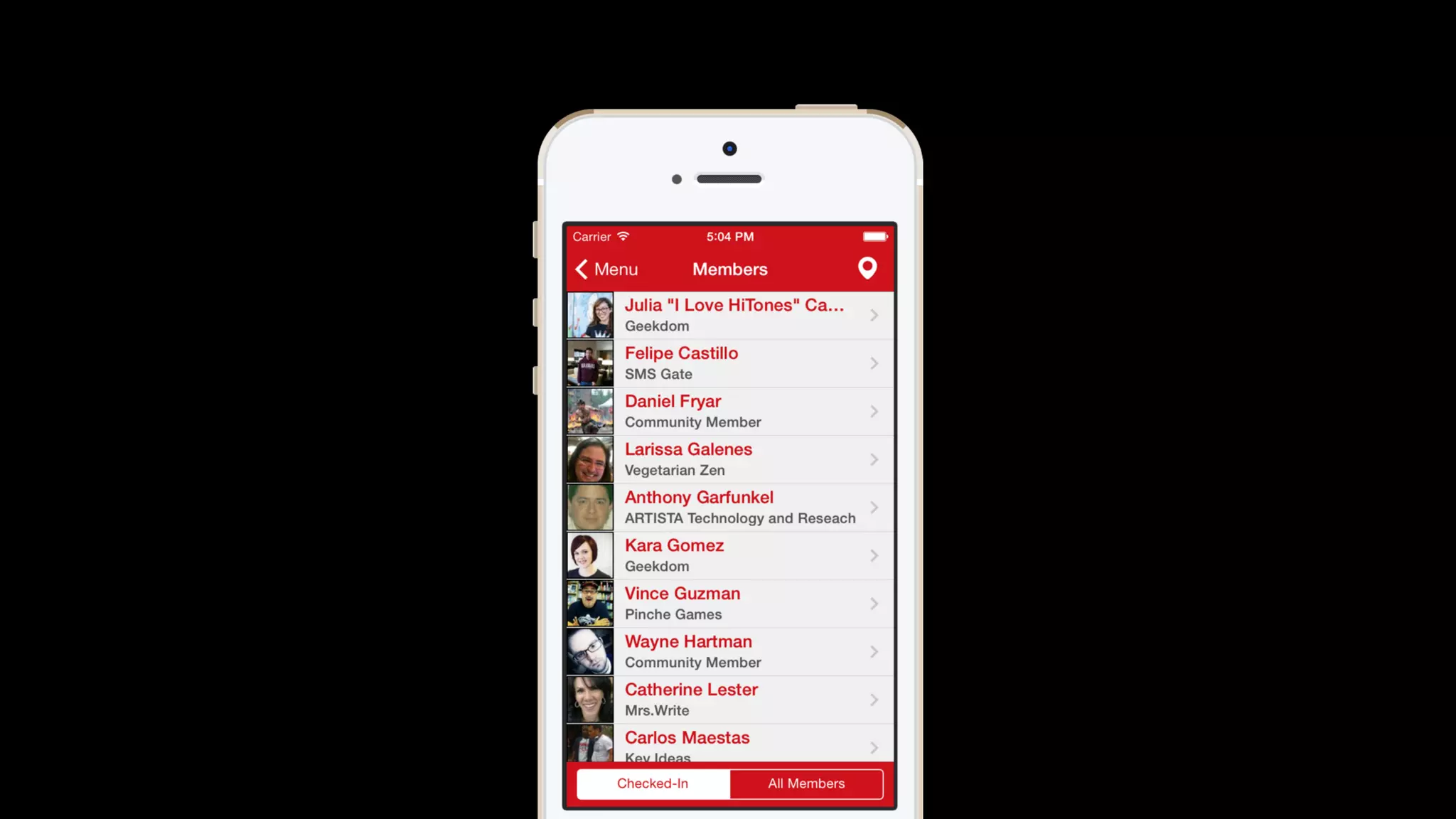

29. Monster View Controller
• UITableView Datasource
• Configure Cells
• UITableView Delegate
• Showing Member Details
• NSFetchedResultsControllerDelegate
• Fetch All Member data
• Fetch Checked-In Members
• Fetch Profile Images
• Search Members By Name
• Search Members By Skills
• Data Persistance
• Check-In logic
• Checked-In vs All Members

32. Questions?

33. @waynehartman
