1. When CQRS meets Event Sourcing
A warehouse management system done in PHP

2. When CQRS meets Event Sourcing / Ulabox
ULABOX

3. About me
● @manelselles
● Backend at Ulabox
● Symfony Expert
Certified by Sensiolabs
● DDD-TDD fan

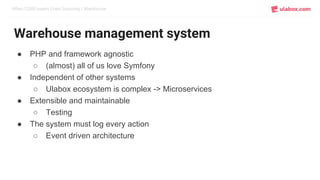

4. When CQRS meets Event Sourcing / Warehouse
Warehouse management system
● PHP and framework agnostic
○ (almost) all of us love Symfony
● Independent of other systems
○ Ulabox ecosystem is complex -> Microservices
● Extensible and maintainable
○ Testing
● The system must log every action
○ Event driven architecture

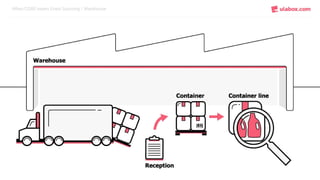

5. When CQRS meets Event Sourcing / Warehouse

6. Please test!
Good practices

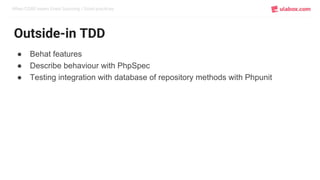

7. When CQRS meets Event Sourcing / Good practices
Outside-in TDD
● Behat features
● Describe behaviour with PhpSpec
● Testing integration with database of repository methods with Phpunit

8. When CQRS meets Event Sourcing / Good practices

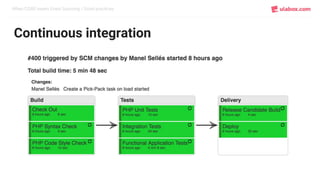

Continuous integration

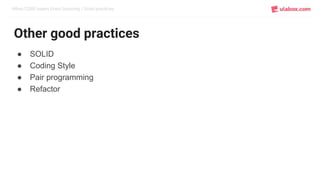

9. When CQRS meets Event Sourcing / Good practices
Other good practices
● SOLID
● Coding Style
● Pair programming
● Refactor

10. DDD-Hexagonal architecture

11. When CQRS meets Event Sourcing / DDD-Hexagonal

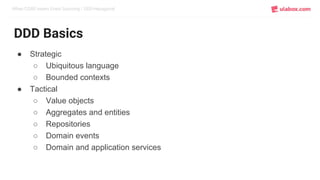

DDD Basics
● Strategic
○ Ubiquitous language
○ Bounded contexts
● Tactical
○ Value objects
○ Aggregates and entities
○ Repositories
○ Domain events
○ Domain and application services

12. When CQRS meets Event Sourcing / DDD-Hexagonal

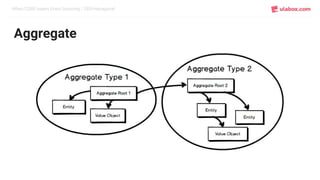

Aggregate

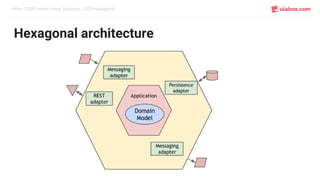

13. When CQRS meets Event Sourcing / DDD-Hexagonal
Hexagonal architecture

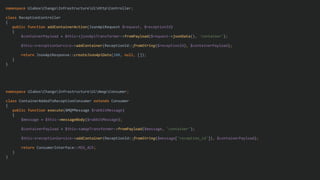

14. namespace UlaboxChangoInfrastructureUiHttpController;
class ReceptionController
{
public function addContainerAction(JsonApiRequest $request, $receptionId)
{
$containerPayload = $this->jsonApiTransformer->fromPayload($request->jsonData(), 'container');
$this->receptionService->addContainer(ReceptionId::fromString($receptionId), $containerPayload);
return JsonApiResponse::createJsonApiData(200, null, []);
}
}
namespace UlaboxChangoInfrastructureUiAmqpConsumer;
class ContainerAddedToReceptionConsumer extends Consumer
{
public function execute(AMQPMessage $rabbitMessage)
{
$message = $this->messageBody($rabbitMessage);
$containerPayload = $this->amqpTransformer->fromPayload($message, 'container');
$this->receptionService->addContainer(ReceptionId::fromString($message['reception_id']), $containerPayload);
return ConsumerInterface::MSG_ACK;
}
}

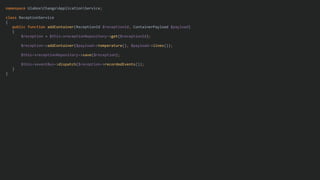

15. namespace UlaboxChangoApplicationService;
class ReceptionService
{
public function addContainer(ReceptionId $receptionId, ContainerPayload $payload)
{
$reception = $this->receptionRepository->get($receptionId);
$reception->addContainer($payload->temperature(), $payload->lines());
$this->receptionRepository->save($reception);
$this->eventBus->dispatch($reception->recordedEvents());
}
}

16. When CQRS meets Event Sourcing / DDD-Hexagonal

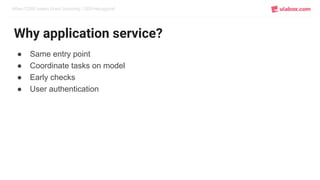

Why application service?
● Same entry point
● Coordinate tasks on model
● Early checks
● User authentication

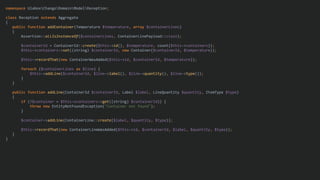

17. namespace UlaboxChangoDomainModelReception;
class Reception extends Aggregate
{
public function addContainer(Temperature $temperature, array $containerLines)
{
Assertion::allIsInstanceOf($containerLines, ContainerLinePayload::class);
$containerId = ContainerId::create($this->id(), $temperature, count($this->containers));
$this->containers->set((string) $containerId, new Container($containerId, $temperature));
$this->recordThat(new ContainerWasAdded($this->id, $containerId, $temperature));
foreach ($containerLines as $line) {
$this->addLine($containerId, $line->label(), $line->quantity(), $line->type());
}
}
public function addLine(ContainerId $containerId, Label $label, LineQuantity $quantity, ItemType $type)
{
if (!$container = $this->containers->get((string) $containerId)) {
throw new EntityNotFoundException("Container not found");
}
$container->addLine(ContainerLine::create($label, $quantity, $type));
$this->recordThat(new ContainerLineWasAdded($this->id, $containerId, $label, $quantity, $type));
}
}

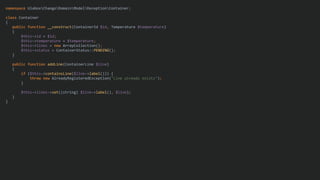

18. namespace UlaboxChangoDomainModelReceptionContainer;
class Container
{
public function __construct(ContainerId $id, Temperature $temperature)
{
$this->id = $id;
$this->temperature = $temperature;
$this->lines = new ArrayCollection();
$this->status = ContainerStatus::PENDING();
}
public function addLine(ContainerLine $line)
{
if ($this->containsLine($line->label())) {
throw new AlreadyRegisteredException("Line already exists");
}
$this->lines->set((string) $line->label(), $line);
}
}

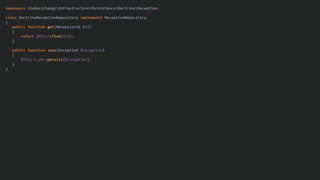

19. namespace UlaboxChangoInfrastructurePersistenceDoctrineReception;
class DoctrineReceptionRepository implements ReceptionRepository
{
public function get(ReceptionId $id)
{
return $this->find($id);
}
public function save(Reception $reception)
{
$this->_em->persist($reception);
}
}

20. Let’s apply Command and Query
Responsibility Segregation

21. When CQRS meets Event Sourcing / CQRS

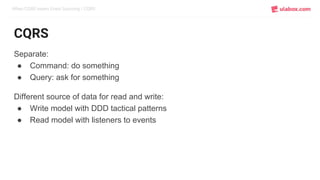

CQRS
Separate:
● Command: do something
● Query: ask for something
Different source of data for read and write:
● Write model with DDD tactical patterns
● Read model with listeners to events

22. When CQRS meets Event Sourcing / CQRS

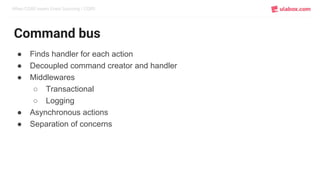

Command bus
● Finds handler for each action
● Decoupled command creator and handler
● Middlewares
○ Transactional
○ Logging
● Asynchronous actions
● Separation of concerns

23. When CQRS meets Event Sourcing / CQRS

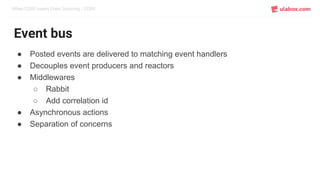

Event bus
● Posted events are delivered to matching event handlers
● Decouples event producers and reactors
● Middlewares
○ Rabbit
○ Add correlation id
● Asynchronous actions
● Separation of concerns

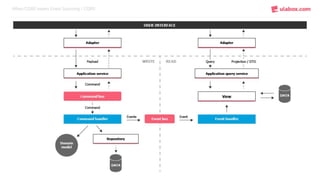

24. When CQRS meets Event Sourcing / CQRS

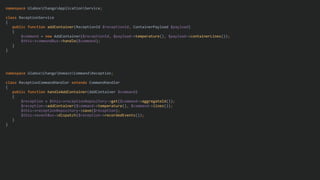

25. namespace UlaboxChangoApplicationService;
class ReceptionService
{
public function addContainer(ReceptionId $receptionId, ContainerPayload $payload)
{
$command = new AddContainer($receptionId, $payload->temperature(), $payload->containerLines());
$this->commandBus->handle($command);
}
}
namespace UlaboxChangoDomainCommandReception;
class ReceptionCommandHandler extends CommandHandler
{
public function handleAddContainer(AddContainer $command)
{
$reception = $this->receptionRepository->get($command->aggregateId());
$reception->addContainer($command->temperature(), $command->lines());
$this->receptionRepository->save($reception);
$this->eventBus->dispatch($reception->recordedEvents());
}
}

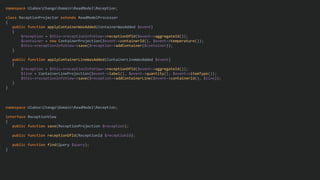

26. namespace UlaboxChangoDomainReadModelReception;
class ReceptionProjector extends ReadModelProcessor
{
public function applyContainerWasAdded(ContainerWasAdded $event)
{
$reception = $this->receptionInfoView->receptionOfId($event->aggregateId());
$container = new ContainerProjection($event->containerId(), $event->temperature());
$this->receptionInfoView->save($reception->addContainer($container));
}
public function applyContainerLineWasAdded(ContainerLineWasAdded $event)
{
$reception = $this->receptionInfoView->receptionOfId($event->aggregateId());
$line = ContainerLineProjection($event->label(), $event->quantity(), $event->itemType());
$this->receptionInfoView->save($reception->addContainerLine($event->containerId(), $line));
}
}
namespace UlaboxChangoDomainReadModelReception;
interface ReceptionView
{
public function save(ReceptionProjection $reception);
public function receptionOfId(ReceptionId $receptionId);
public function find(Query $query);
}

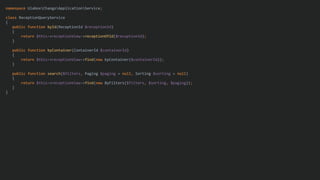

27. namespace UlaboxChangoApplicationService;
class ReceptionQueryService
{
public function byId(ReceptionId $receptionId)
{
return $this->receptionView->receptionOfId($receptionId);
}
public function byContainer(ContainerId $containerId)
{
return $this->receptionView->find(new byContainer($containerId));
}
public function search($filters, Paging $paging = null, Sorting $sorting = null)
{
return $this->receptionView->find(new ByFilters($filters, $sorting, $paging));
}
}

28. Let’s get crazy: event sourcing

29. When CQRS meets Event Sourcing / Event sourcing
Event sourcing
● Entities are reconstructed with events
● No state
● No database to update manually
● No joins

30. When CQRS meets Event Sourcing / Event sourcing

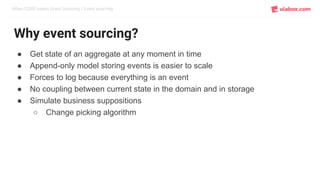

Why event sourcing?
● Get state of an aggregate at any moment in time
● Append-only model storing events is easier to scale
● Forces to log because everything is an event
● No coupling between current state in the domain and in storage
● Simulate business suppositions
○ Change picking algorithm

31. When CQRS meets Event Sourcing / Event sourcing

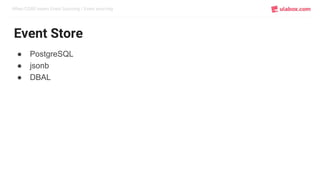

Event Store
● PostgreSQL
● jsonb
● DBAL

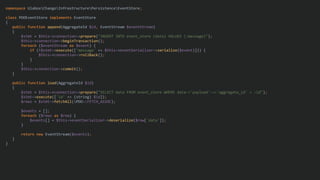

32. namespace UlaboxChangoInfrastructurePersistenceEventStore;
class PDOEventStore implements EventStore
{
public function append(AggregateId $id, EventStream $eventStream)
{
$stmt = $this->connection->prepare("INSERT INTO event_store (data) VALUES (:message)");
$this->connection->beginTransaction();
foreach ($eventStream as $event) {
if (!$stmt->execute(['message' => $this->eventSerializer->serialize($event)])) {
$this->connection->rollBack();
}
}
$this->connection->commit();
}
public function load(AggregateId $id)
{
$stmt = $this->connection->prepare("SELECT data FROM event_store WHERE data->'payload'->>'aggregate_id' = :id");
$stmt->execute(['id' => (string) $id]);
$rows = $stmt->fetchAll(PDO::FETCH_ASSOC);
$events = [];
foreach ($rows as $row) {
$events[] = $this->eventSerializer->deserialize($row['data']);
}
return new EventStream($events);
}
}

33. When CQRS meets Event Sourcing / Event sourcing

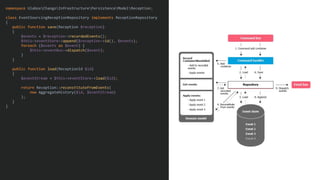

34. namespace UlaboxChangoInfrastructurePersistenceModelReception;
class EventSourcingReceptionRepository implements ReceptionRepository
{
public function save(Reception $reception)
{
$events = $reception->recordedEvents();
$this->eventStore->append($reception->id(), $events);
foreach ($events as $event) {
$this->eventBus->dispatch($event);
}
}
public function load(ReceptionId $id)
{
$eventStream = $this->eventStore->load($id);
return Reception::reconstituteFromEvents(
new AggregateHistory($id, $eventStream)
);
}
}

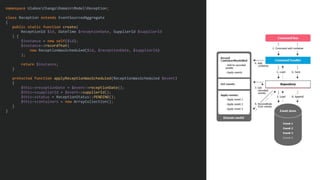

35. namespace UlaboxChangoDomainModelReception;
class Reception extends EventSourcedAggregate
{
public static function create(
ReceptionId $id, DateTime $receptionDate, SupplierId $supplierId
) {
$instance = new self($id);
$instance->recordThat(
new ReceptionWasScheduled($id, $receptionDate, $supplierId)
);
return $instance;
}
protected function applyReceptionWasScheduled(ReceptionWasScheduled $event)
{
$this->receptionDate = $event->receptionDate();
$this->supplierId = $event->supplierId();
$this->status = ReceptionStatus::PENDING();
$this->containers = new ArrayCollection();
}
}

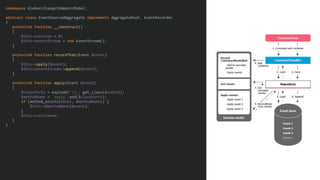

36. namespace UlaboxChangoDomainModel;
abstract class EventSourcedAggregate implements AggregateRoot, EventRecorder
{
protected function __construct()
{
$this->version = 0;
$this->eventStream = new EventStream();
}
protected function recordThat(Event $event)
{
$this->apply($event);
$this->eventStream->append($event);
}
protected function apply(Event $event)
{
$classParts = explode('', get_class($event));
$methodName = 'apply'.end($classParts);
if (method_exists($this, $methodName)) {
$this->$methodName($event);
}
$this->version++;
}
}

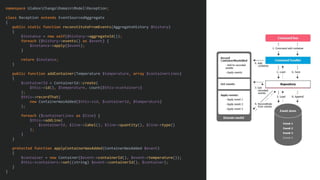

37. namespace UlaboxChangoDomainModelReception;
class Reception extends EventSourcedAggregate
{
public static function reconstituteFromEvents(AggregateHistory $history)
{
$instance = new self($history->aggregateId());
foreach ($history->events() as $event) {
$instance->apply($event);
}
return $instance;
}
public function addContainer(Temperature $temperature, array $containerLines)
{
$containerId = ContainerId::create(
$this->id(), $temperature, count($this->containers)
);
$this->recordThat(
new ContainerWasAdded($this->id, $containerId, $temperature)
);
foreach ($containerLines as $line) {
$this->addLine(
$containerId, $line->label(), $line->quantity(), $line->type()
);
}
}
protected function applyContainerWasAdded(ContainerWasAdded $event)
{
$container = new Container($event->containerId(), $event->temperature());
$this->containers->set((string) $event->containerId(), $container);
}
}

38. Conclusions

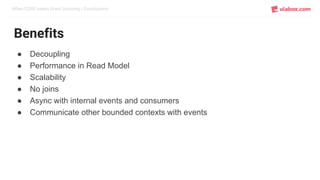

39. When CQRS meets Event Sourcing / Conclusions
Benefits
● Decoupling
● Performance in Read Model
● Scalability
● No joins
● Async with internal events and consumers
● Communicate other bounded contexts with events

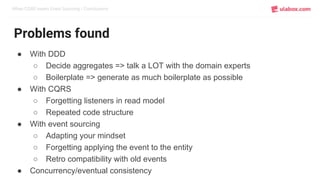

40. When CQRS meets Event Sourcing / Conclusions
Problems found
● With DDD
○ Decide aggregates => talk a LOT with the domain experts
○ Boilerplate => generate as much boilerplate as possible
● With CQRS
○ Forgetting listeners in read model
○ Repeated code structure
● With event sourcing
○ Adapting your mindset
○ Forgetting applying the event to the entity
○ Retro compatibility with old events
● Concurrency/eventual consistency

41. Work with us!

42. When CQRS meets Event Sourcing / Work with us
Work with us

43. Thanks to...

44. When CQRS meets Event Sourcing / Conclusions

45. Thank you!
Questions?
@manelselles
manelselles@gmail.com
