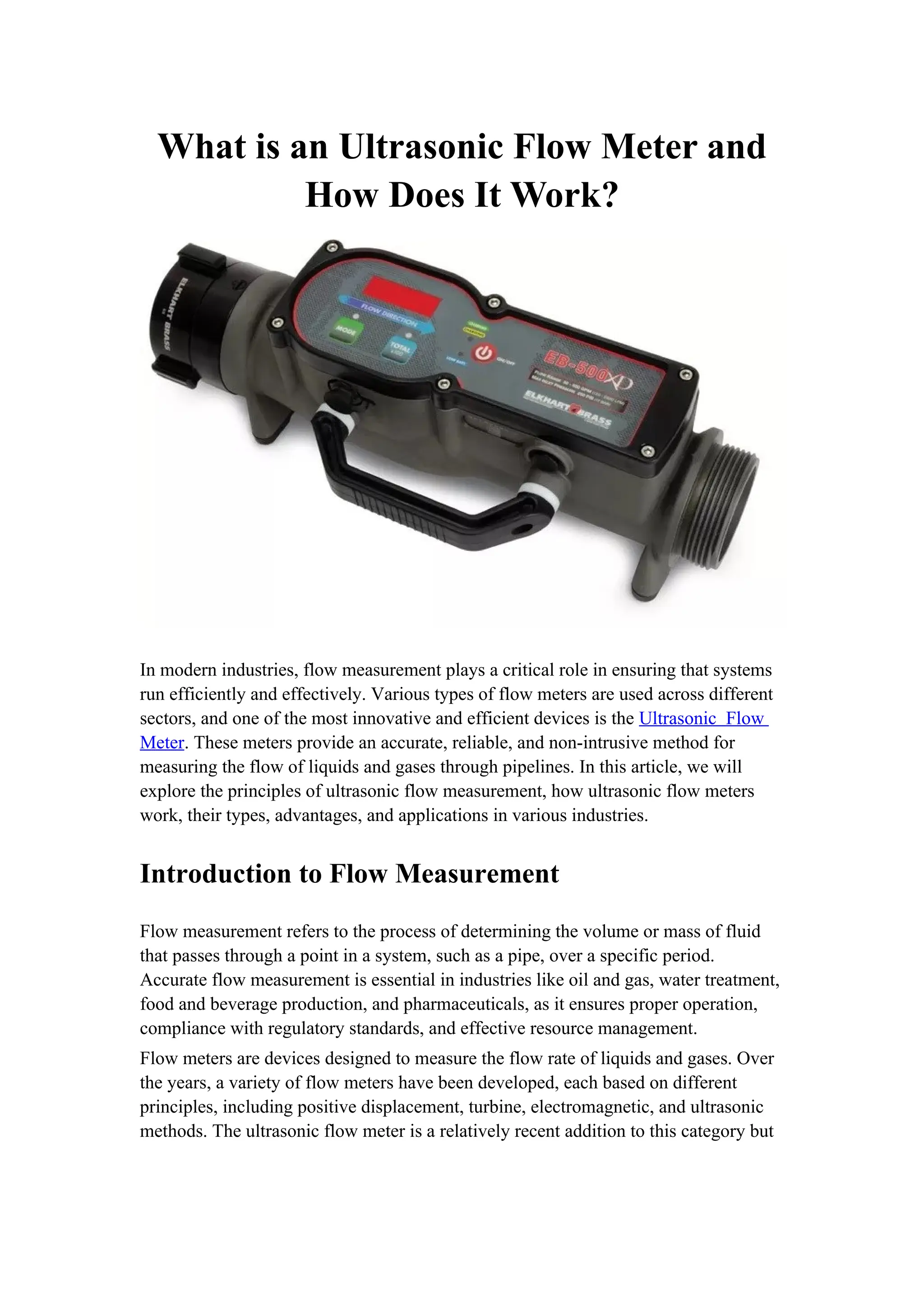

1. What is an Ultrasonic Flow Meter and
How Does It Work?
In modern industries, flow measurement plays a critical role in ensuring that systems
run efficiently and effectively. Various types of flow meters are used across different
sectors, and one of the most innovative and efficient devices is the Ultrasonic Flow
Meter. These meters provide an accurate, reliable, and non-intrusive method for
measuring the flow of liquids and gases through pipelines. In this article, we will
explore the principles of ultrasonic flow measurement, how ultrasonic flow meters
work, their types, advantages, and applications in various industries.
Introduction to Flow Measurement
Flow measurement refers to the process of determining the volume or mass of fluid
that passes through a point in a system, such as a pipe, over a specific period.
Accurate flow measurement is essential in industries like oil and gas, water treatment,
food and beverage production, and pharmaceuticals, as it ensures proper operation,
compliance with regulatory standards, and effective resource management.
Flow meters are devices designed to measure the flow rate of liquids and gases. Over
the years, a variety of flow meters have been developed, each based on different
principles, including positive displacement, turbine, electromagnetic, and ultrasonic
methods. The ultrasonic flow meter is a relatively recent addition to this category but

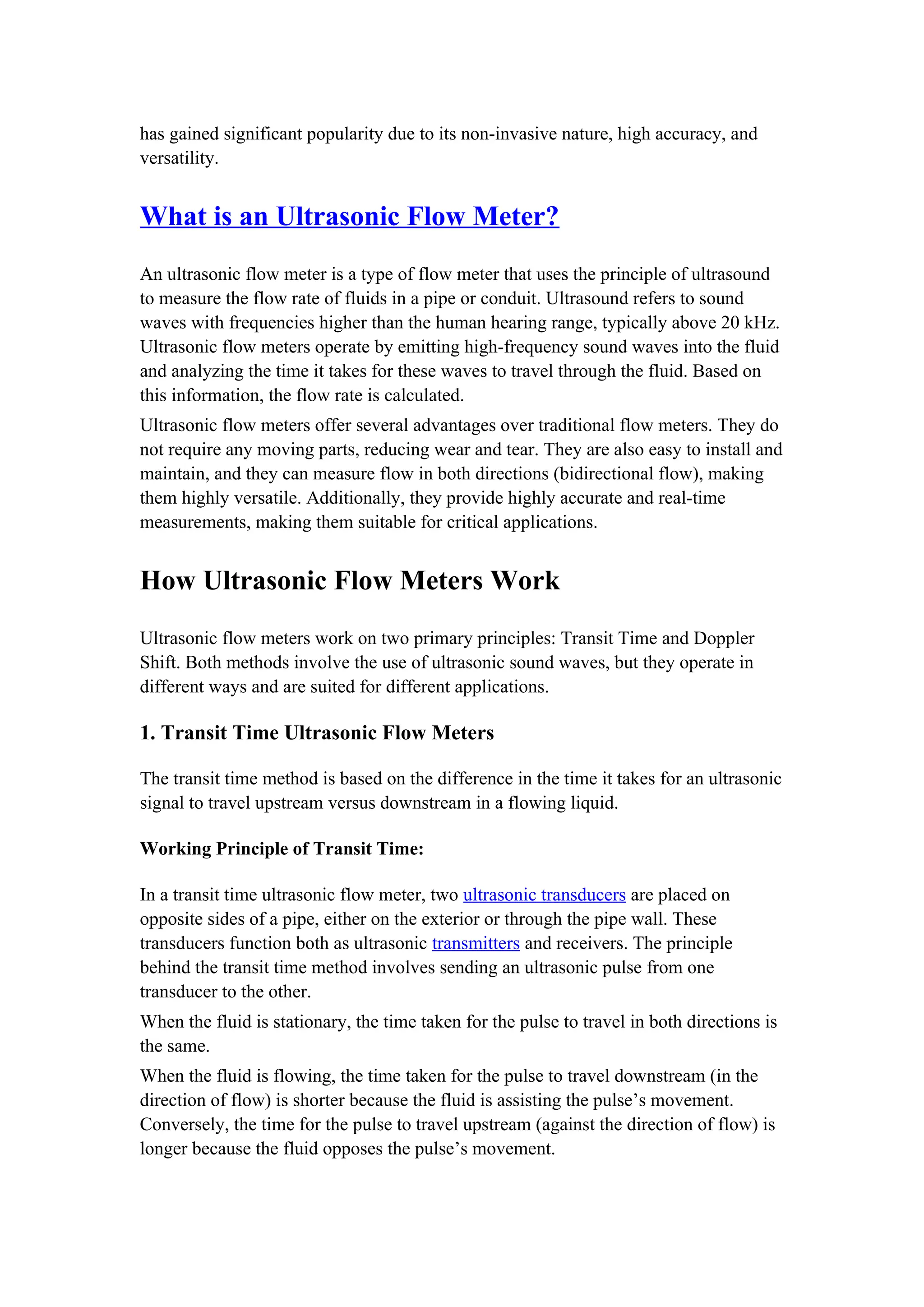

2. has gained significant popularity due to its non-invasive nature, high accuracy, and
versatility.
What is an Ultrasonic Flow Meter?
An ultrasonic flow meter is a type of flow meter that uses the principle of ultrasound
to measure the flow rate of fluids in a pipe or conduit. Ultrasound refers to sound
waves with frequencies higher than the human hearing range, typically above 20 kHz.
Ultrasonic flow meters operate by emitting high-frequency sound waves into the fluid
and analyzing the time it takes for these waves to travel through the fluid. Based on
this information, the flow rate is calculated.
Ultrasonic flow meters offer several advantages over traditional flow meters. They do
not require any moving parts, reducing wear and tear. They are also easy to install and
maintain, and they can measure flow in both directions (bidirectional flow), making
them highly versatile. Additionally, they provide highly accurate and real-time
measurements, making them suitable for critical applications.
How Ultrasonic Flow Meters Work
Ultrasonic flow meters work on two primary principles: Transit Time and Doppler
Shift. Both methods involve the use of ultrasonic sound waves, but they operate in
different ways and are suited for different applications.
1. Transit Time Ultrasonic Flow Meters
The transit time method is based on the difference in the time it takes for an ultrasonic
signal to travel upstream versus downstream in a flowing liquid.
Working Principle of Transit Time:
In a transit time ultrasonic flow meter, two ultrasonic transducers are placed on
opposite sides of a pipe, either on the exterior or through the pipe wall. These
transducers function both as ultrasonic transmitters and receivers. The principle
behind the transit time method involves sending an ultrasonic pulse from one
transducer to the other.
When the fluid is stationary, the time taken for the pulse to travel in both directions is
the same.
When the fluid is flowing, the time taken for the pulse to travel downstream (in the
direction of flow) is shorter because the fluid is assisting the pulse’s movement.
Conversely, the time for the pulse to travel upstream (against the direction of flow) is
longer because the fluid opposes the pulse’s movement.

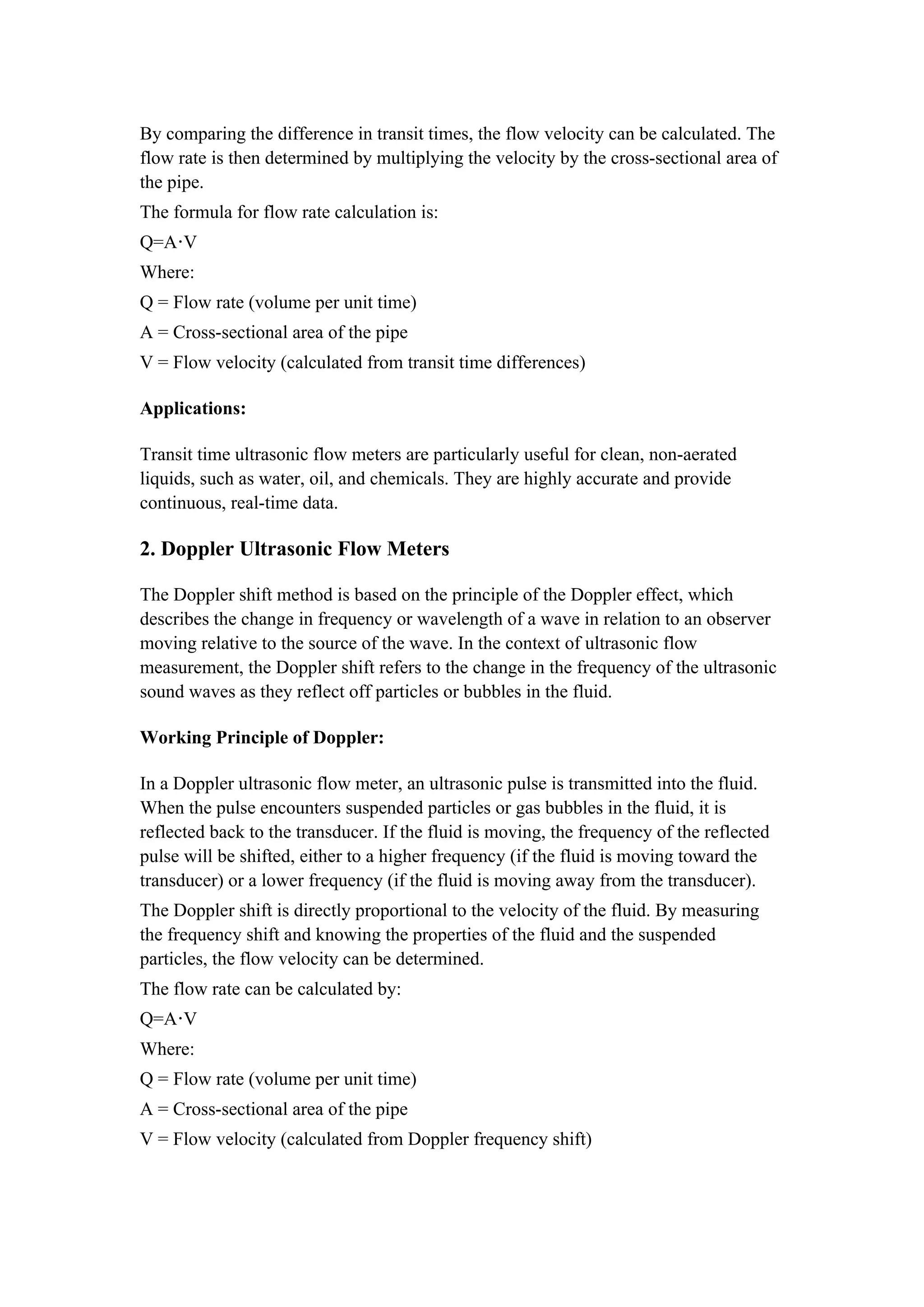

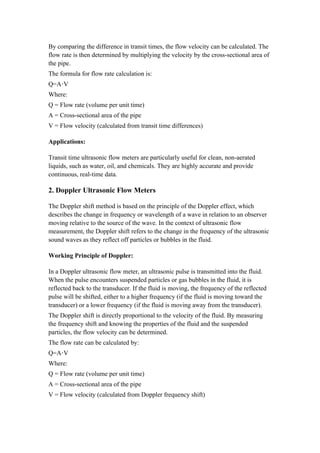

3. By comparing the difference in transit times, the flow velocity can be calculated. The
flow rate is then determined by multiplying the velocity by the cross-sectional area of
the pipe.
The formula for flow rate calculation is:
Q=A V
⋅
Where:
Q = Flow rate (volume per unit time)
A = Cross-sectional area of the pipe
V = Flow velocity (calculated from transit time differences)
Applications:
Transit time ultrasonic flow meters are particularly useful for clean, non-aerated
liquids, such as water, oil, and chemicals. They are highly accurate and provide
continuous, real-time data.
2. Doppler Ultrasonic Flow Meters
The Doppler shift method is based on the principle of the Doppler effect, which
describes the change in frequency or wavelength of a wave in relation to an observer
moving relative to the source of the wave. In the context of ultrasonic flow
measurement, the Doppler shift refers to the change in the frequency of the ultrasonic
sound waves as they reflect off particles or bubbles in the fluid.
Working Principle of Doppler:
In a Doppler ultrasonic flow meter, an ultrasonic pulse is transmitted into the fluid.
When the pulse encounters suspended particles or gas bubbles in the fluid, it is
reflected back to the transducer. If the fluid is moving, the frequency of the reflected
pulse will be shifted, either to a higher frequency (if the fluid is moving toward the
transducer) or a lower frequency (if the fluid is moving away from the transducer).
The Doppler shift is directly proportional to the velocity of the fluid. By measuring
the frequency shift and knowing the properties of the fluid and the suspended
particles, the flow velocity can be determined.
The flow rate can be calculated by:
Q=A V
⋅
Where:
Q = Flow rate (volume per unit time)
A = Cross-sectional area of the pipe
V = Flow velocity (calculated from Doppler frequency shift)

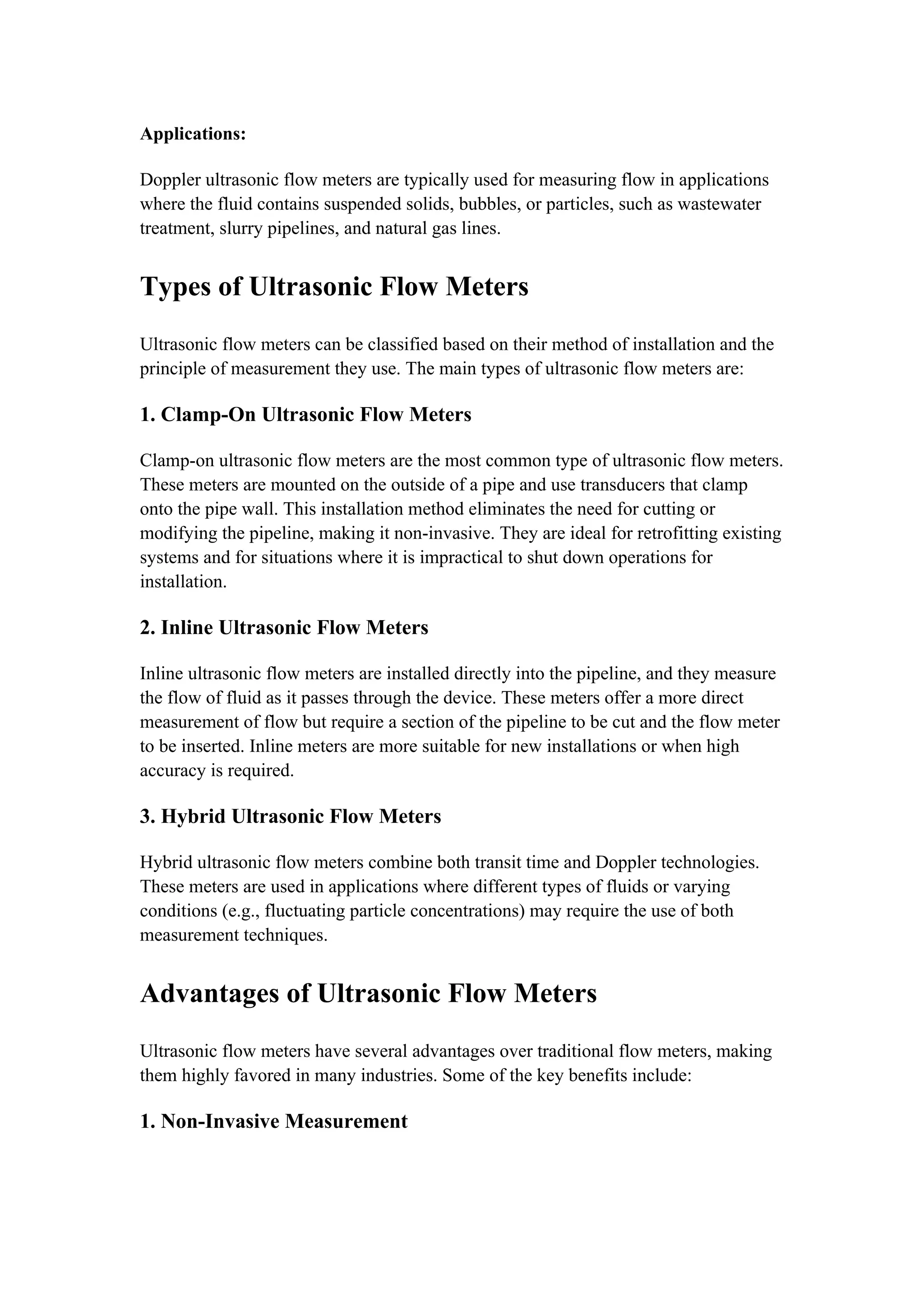

4. Applications:
Doppler ultrasonic flow meters are typically used for measuring flow in applications
where the fluid contains suspended solids, bubbles, or particles, such as wastewater
treatment, slurry pipelines, and natural gas lines.
Types of Ultrasonic Flow Meters
Ultrasonic flow meters can be classified based on their method of installation and the
principle of measurement they use. The main types of ultrasonic flow meters are:
1. Clamp-On Ultrasonic Flow Meters
Clamp-on ultrasonic flow meters are the most common type of ultrasonic flow meters.
These meters are mounted on the outside of a pipe and use transducers that clamp
onto the pipe wall. This installation method eliminates the need for cutting or
modifying the pipeline, making it non-invasive. They are ideal for retrofitting existing
systems and for situations where it is impractical to shut down operations for
installation.
2. Inline Ultrasonic Flow Meters
Inline ultrasonic flow meters are installed directly into the pipeline, and they measure
the flow of fluid as it passes through the device. These meters offer a more direct
measurement of flow but require a section of the pipeline to be cut and the flow meter
to be inserted. Inline meters are more suitable for new installations or when high
accuracy is required.
3. Hybrid Ultrasonic Flow Meters
Hybrid ultrasonic flow meters combine both transit time and Doppler technologies.
These meters are used in applications where different types of fluids or varying
conditions (e.g., fluctuating particle concentrations) may require the use of both
measurement techniques.
Advantages of Ultrasonic Flow Meters
Ultrasonic flow meters have several advantages over traditional flow meters, making
them highly favored in many industries. Some of the key benefits include:
1. Non-Invasive Measurement

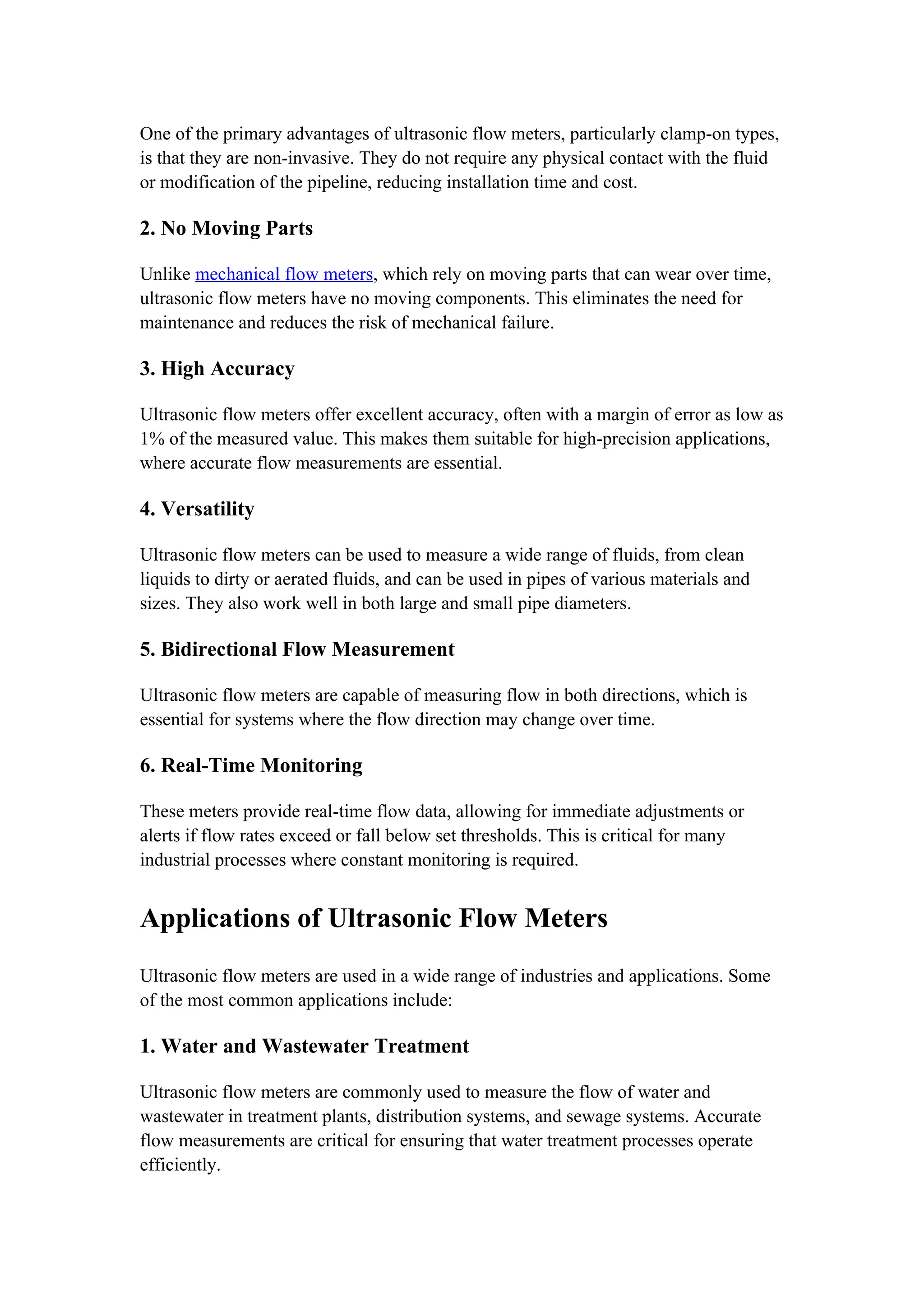

5. One of the primary advantages of ultrasonic flow meters, particularly clamp-on types,
is that they are non-invasive. They do not require any physical contact with the fluid
or modification of the pipeline, reducing installation time and cost.
2. No Moving Parts
Unlike mechanical flow meters, which rely on moving parts that can wear over time,
ultrasonic flow meters have no moving components. This eliminates the need for
maintenance and reduces the risk of mechanical failure.
3. High Accuracy
Ultrasonic flow meters offer excellent accuracy, often with a margin of error as low as
1% of the measured value. This makes them suitable for high-precision applications,
where accurate flow measurements are essential.
4. Versatility
Ultrasonic flow meters can be used to measure a wide range of fluids, from clean
liquids to dirty or aerated fluids, and can be used in pipes of various materials and
sizes. They also work well in both large and small pipe diameters.
5. Bidirectional Flow Measurement
Ultrasonic flow meters are capable of measuring flow in both directions, which is
essential for systems where the flow direction may change over time.
6. Real-Time Monitoring
These meters provide real-time flow data, allowing for immediate adjustments or
alerts if flow rates exceed or fall below set thresholds. This is critical for many
industrial processes where constant monitoring is required.
Applications of Ultrasonic Flow Meters
Ultrasonic flow meters are used in a wide range of industries and applications. Some
of the most common applications include:
1. Water and Wastewater Treatment
Ultrasonic flow meters are commonly used to measure the flow of water and
wastewater in treatment plants, distribution systems, and sewage systems. Accurate
flow measurements are critical for ensuring that water treatment processes operate
efficiently.

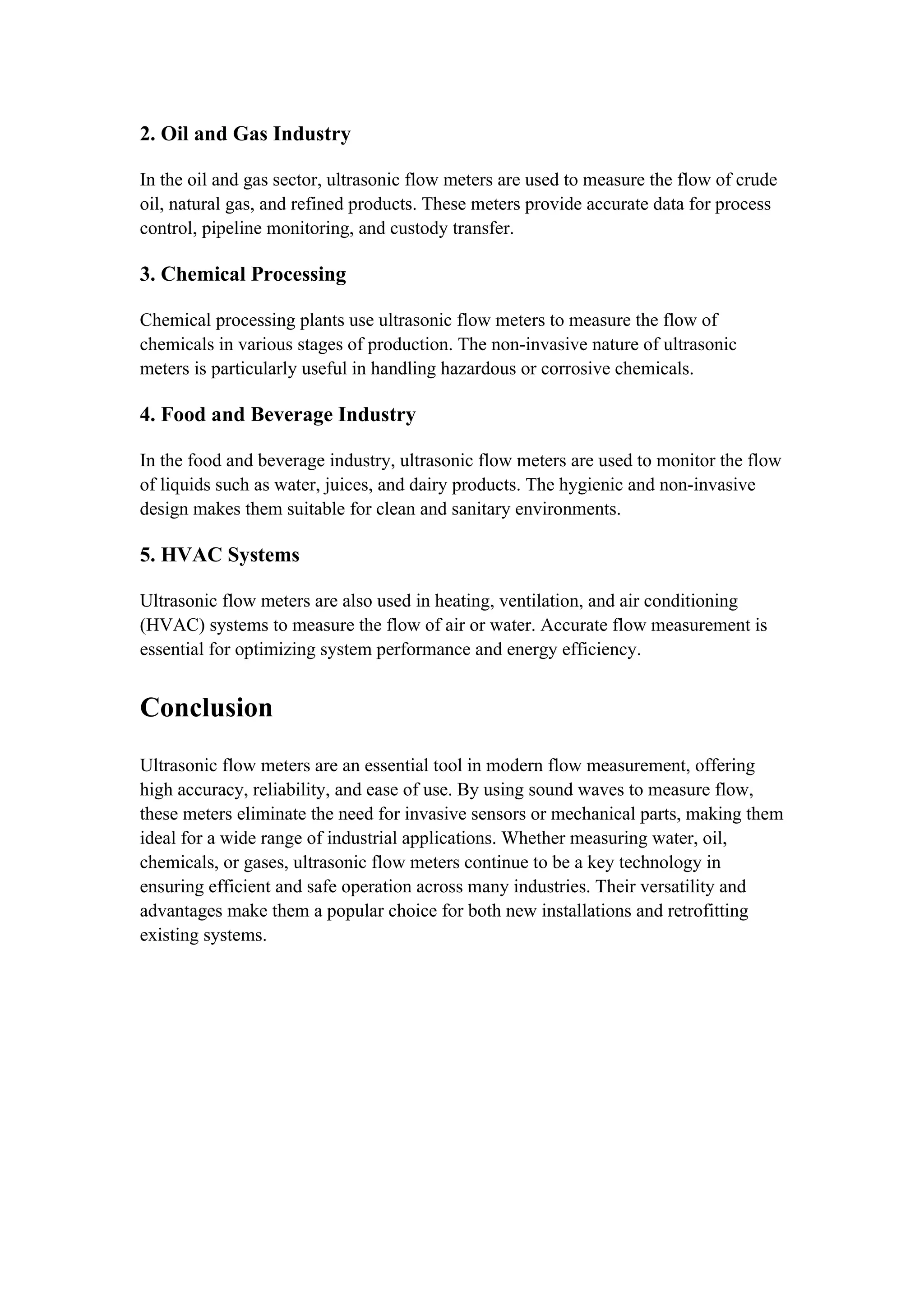

6. 2. Oil and Gas Industry
In the oil and gas sector, ultrasonic flow meters are used to measure the flow of crude
oil, natural gas, and refined products. These meters provide accurate data for process
control, pipeline monitoring, and custody transfer.
3. Chemical Processing
Chemical processing plants use ultrasonic flow meters to measure the flow of
chemicals in various stages of production. The non-invasive nature of ultrasonic
meters is particularly useful in handling hazardous or corrosive chemicals.
4. Food and Beverage Industry
In the food and beverage industry, ultrasonic flow meters are used to monitor the flow
of liquids such as water, juices, and dairy products. The hygienic and non-invasive
design makes them suitable for clean and sanitary environments.
5. HVAC Systems
Ultrasonic flow meters are also used in heating, ventilation, and air conditioning
(HVAC) systems to measure the flow of air or water. Accurate flow measurement is
essential for optimizing system performance and energy efficiency.
Conclusion
Ultrasonic flow meters are an essential tool in modern flow measurement, offering
high accuracy, reliability, and ease of use. By using sound waves to measure flow,
these meters eliminate the need for invasive sensors or mechanical parts, making them
ideal for a wide range of industrial applications. Whether measuring water, oil,
chemicals, or gases, ultrasonic flow meters continue to be a key technology in
ensuring efficient and safe operation across many industries. Their versatility and
advantages make them a popular choice for both new installations and retrofitting
existing systems.
