What Are The Best Practices When Building a Back-end App With Kotlin And Spring Boot?

What Are The Best Practices
When Building a Back-end App
With Kotlin And Spring Boot?
by Oleksii Fedorov
bit.ly/k-boot-slides
1

What Are The Best Practices When Building a Back-end App With Kotlin And Spring Boot?
Who am I?
Oleksii Fedorov
• Sr Software Engineer @ Pivotal Berlin
• Entrepreneur In-house @ Pivotal Berlin
• Founder @ iwillteachyoukotlin.com
• Kotlin on Back-end in Production for 2+ years
• Programming for more than 2/3 of my life
• Writer, mentor, coach
• @waterlink000 on Twitter
2

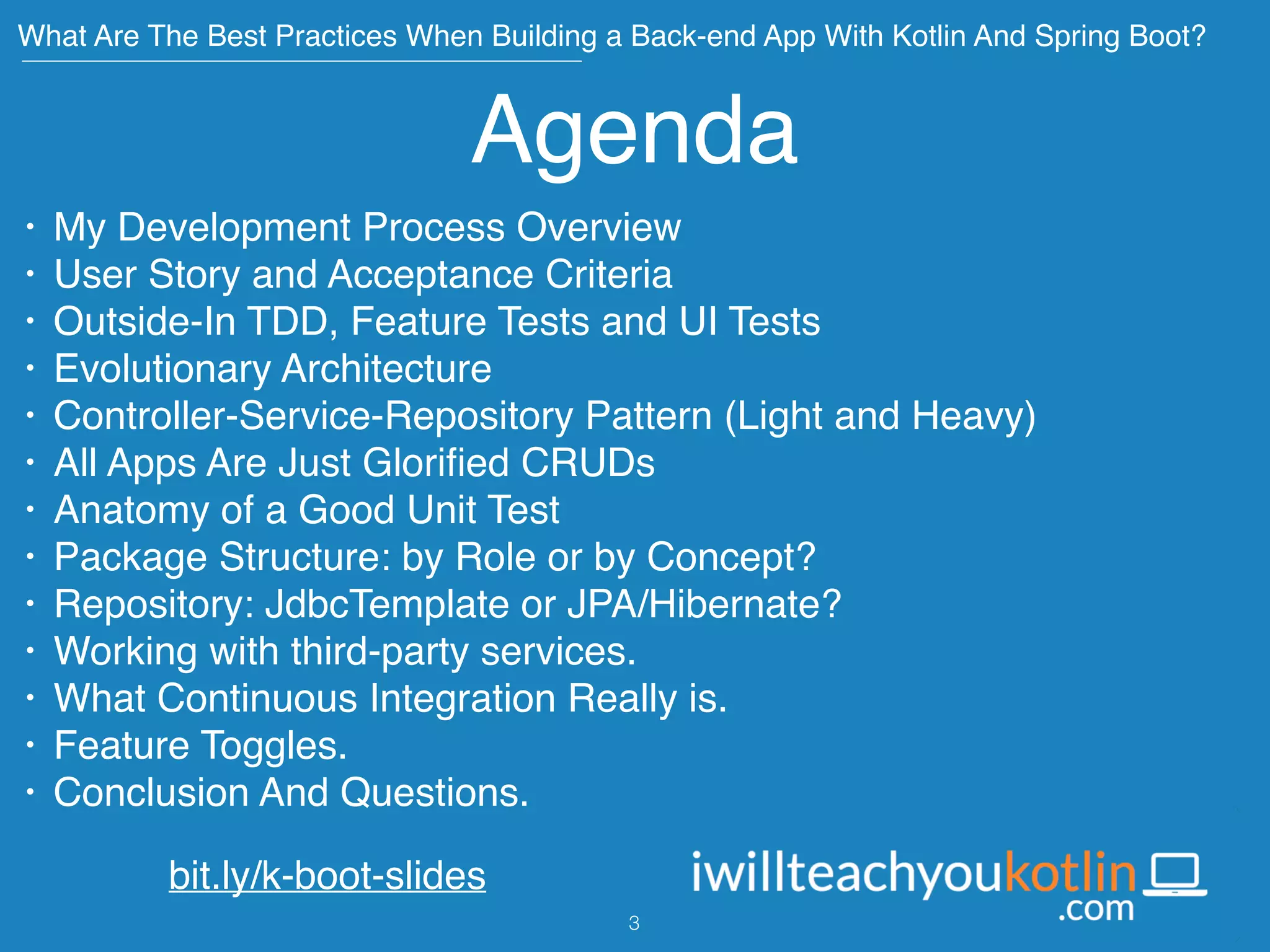

Agenda
• My Development Process Overview
• User Story and Acceptance Criteria
• Outside-In TDD, Feature Tests and UI Tests
• Evolutionary Architecture
• Controller-Service-Repository Pattern (Light and Heavy)
• All Apps Are Just Gloriﬁed CRUDs
• Anatomy of a Good Unit Test

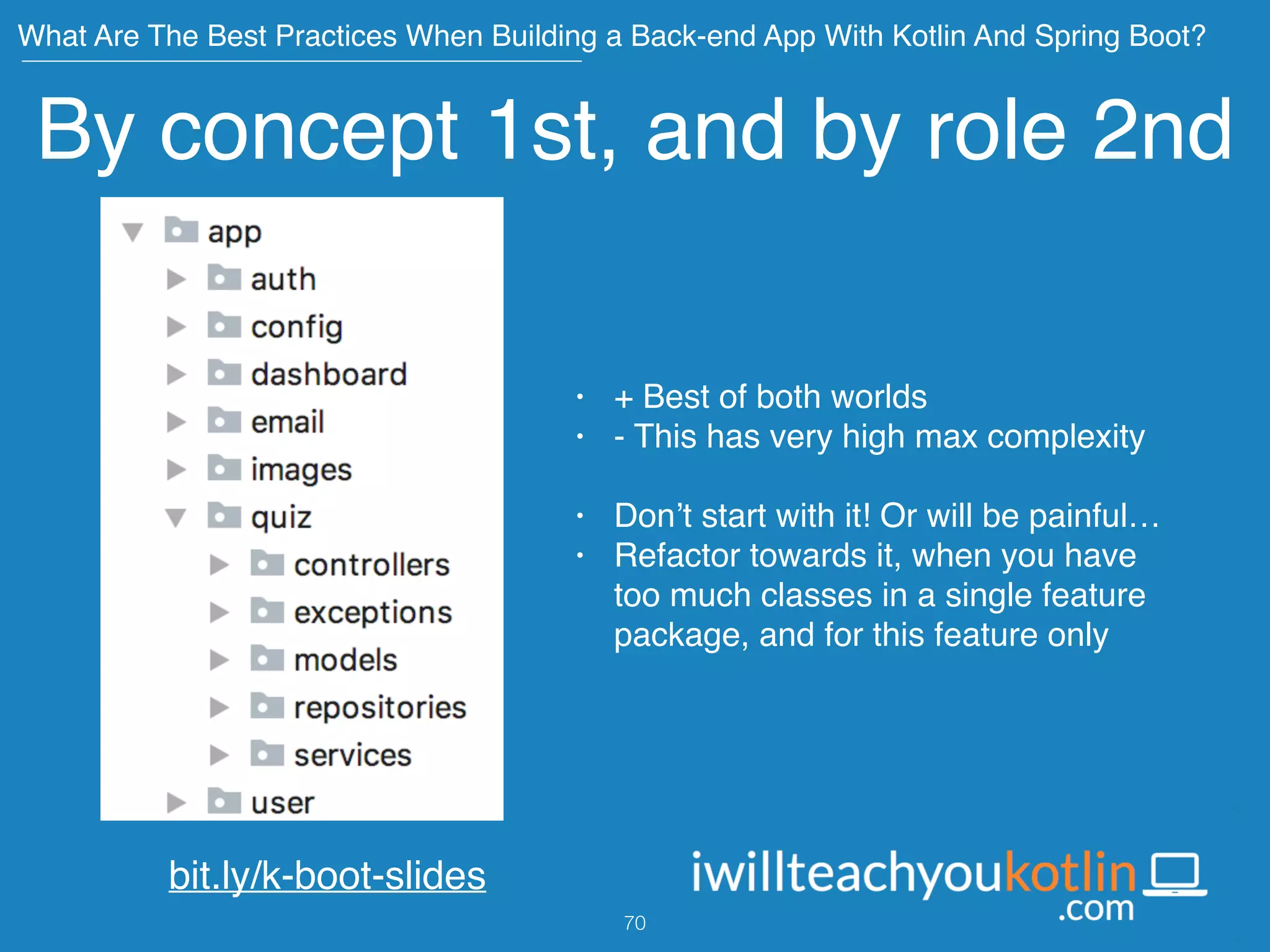

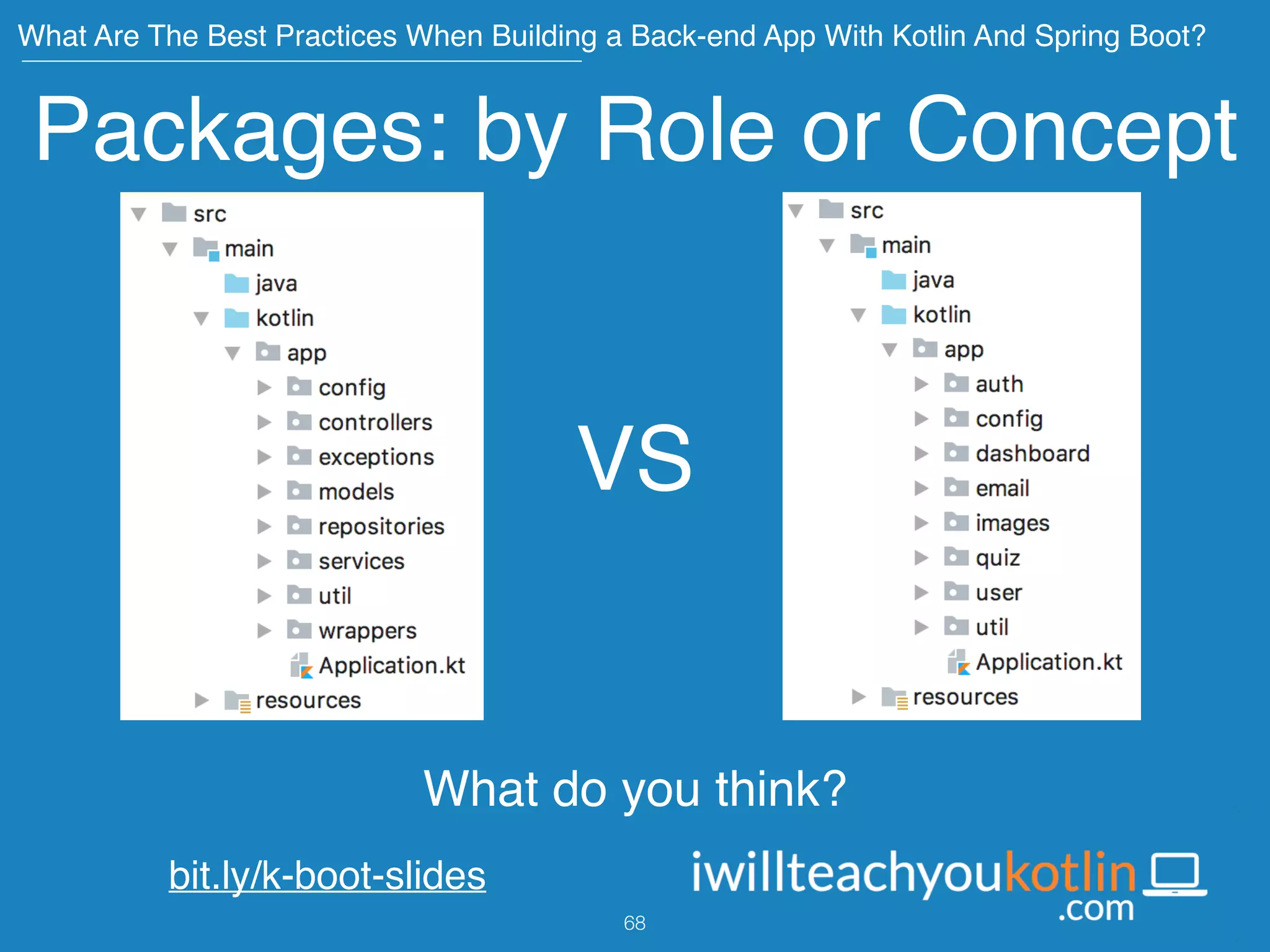

• Package Structure: by Role or by Concept?

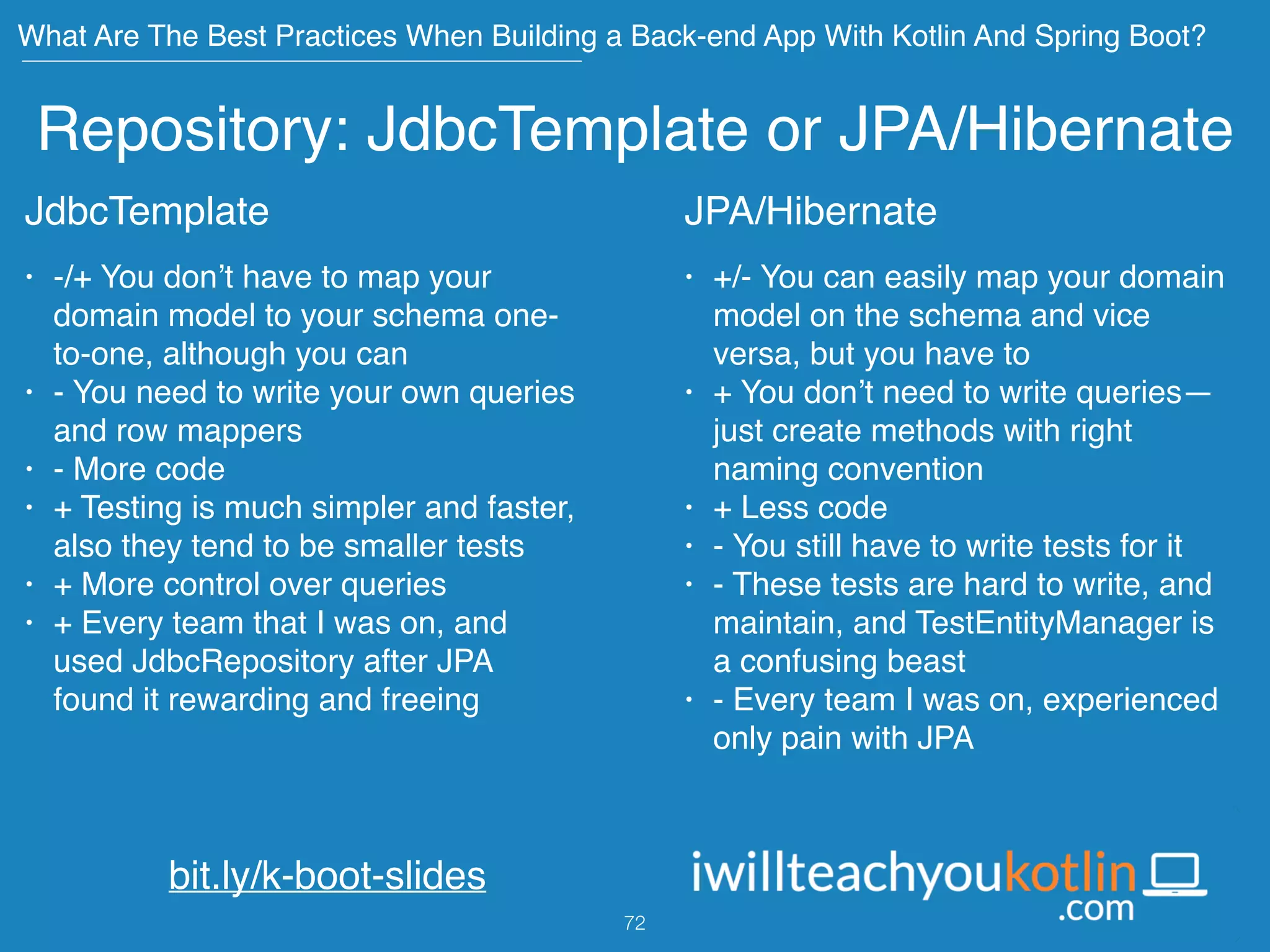

• Repository: JdbcTemplate or JPA/Hibernate?

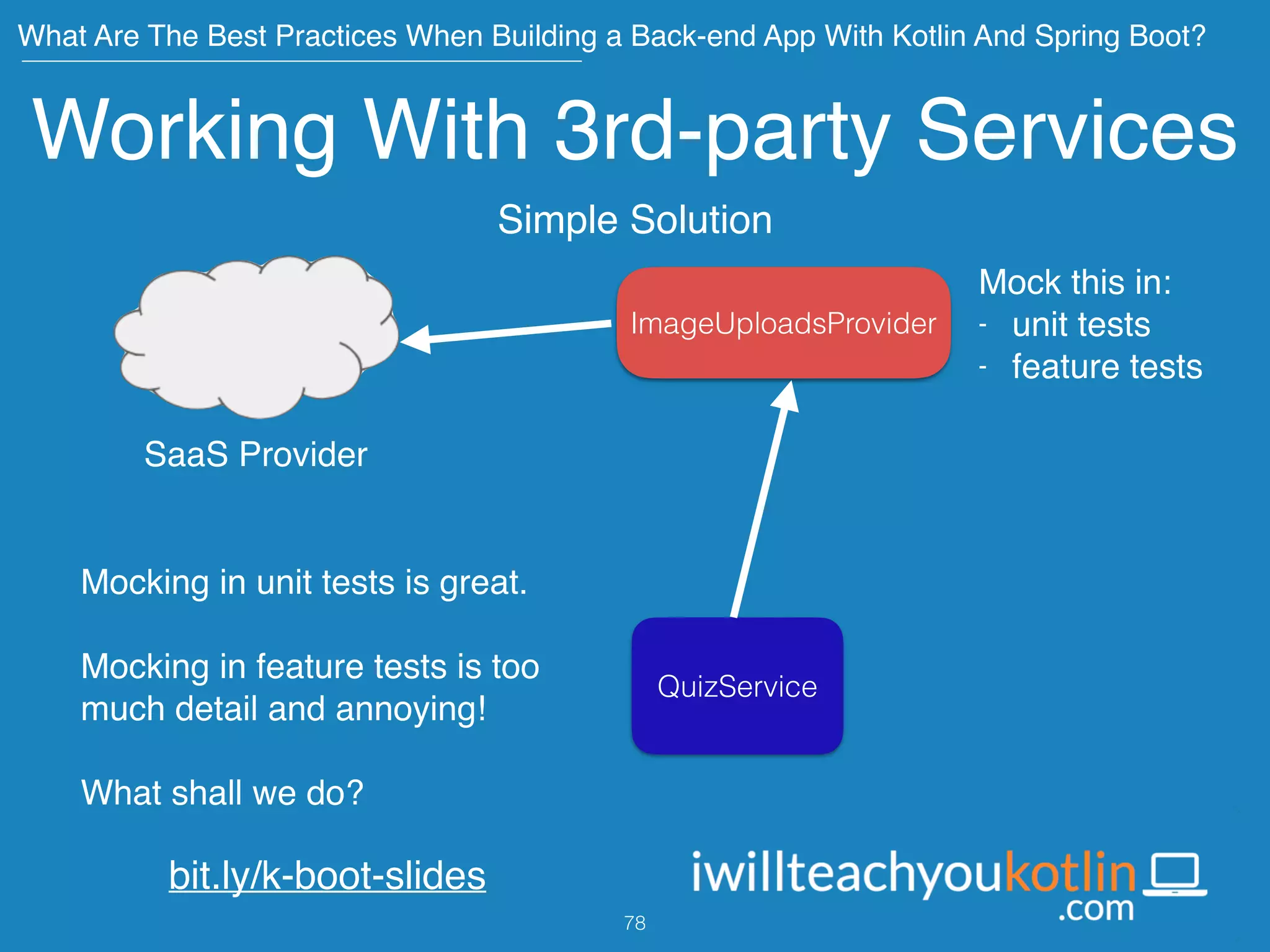

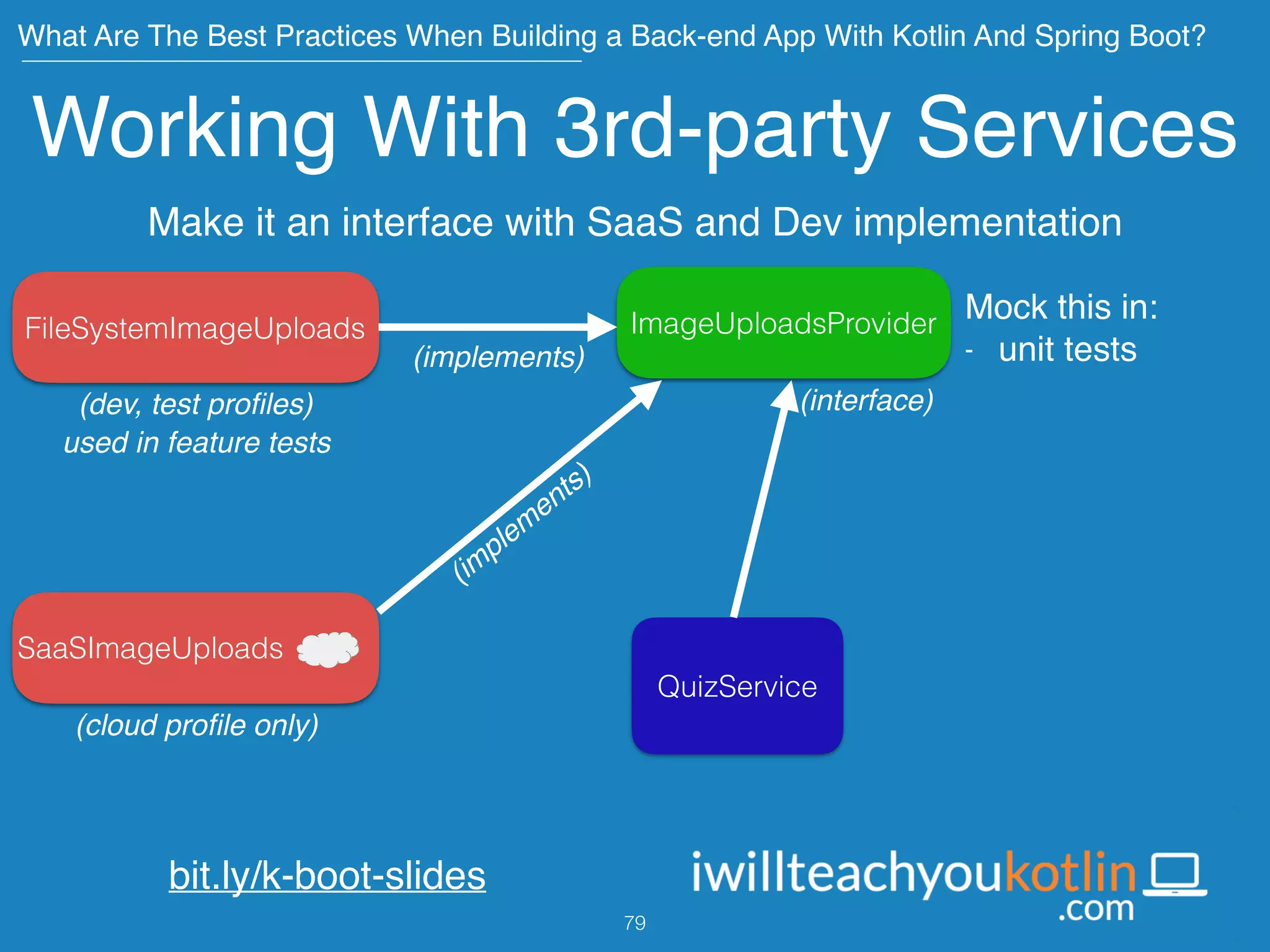

• Working with third-party services.

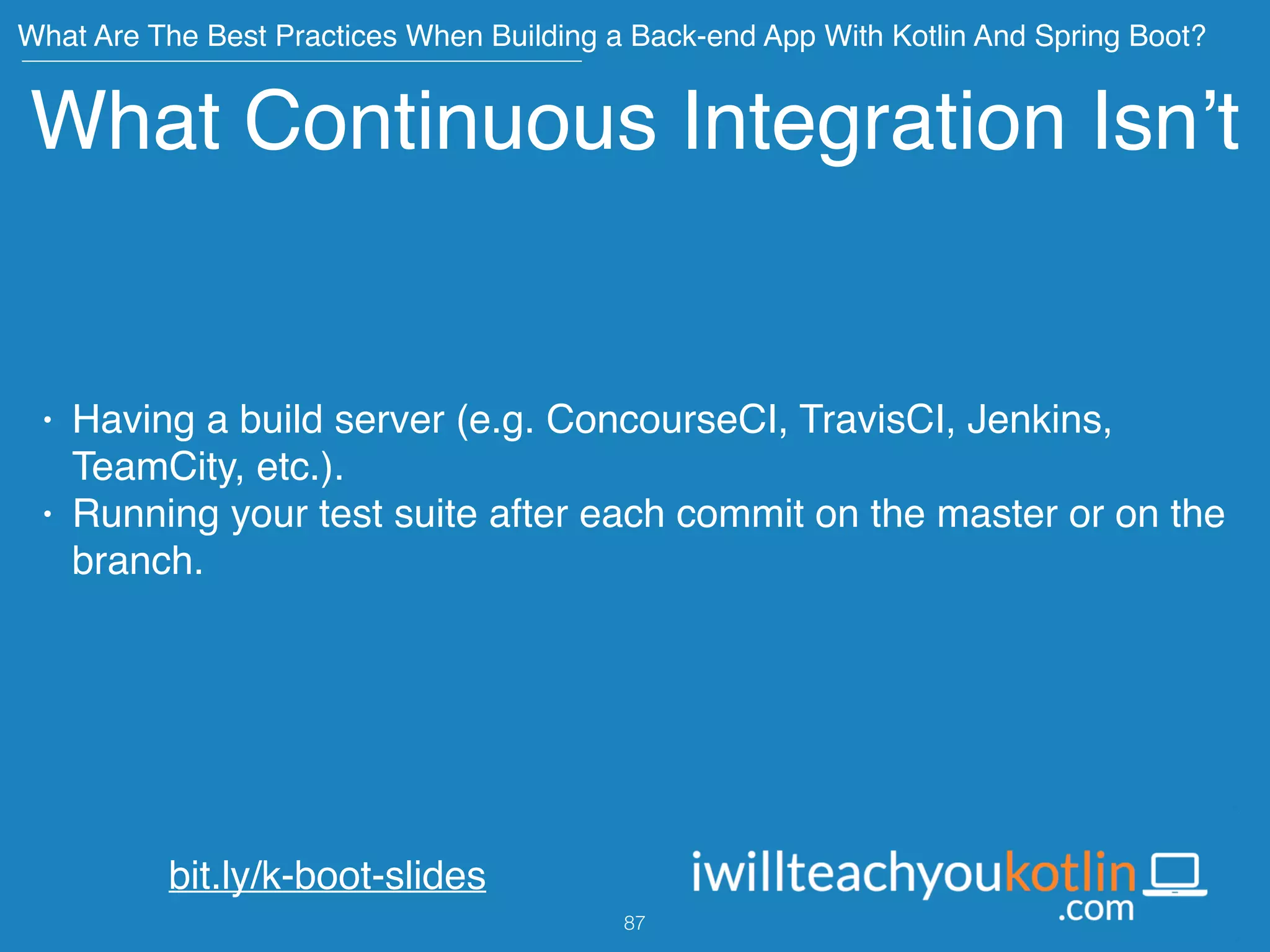

• What Continuous Integration Really is.

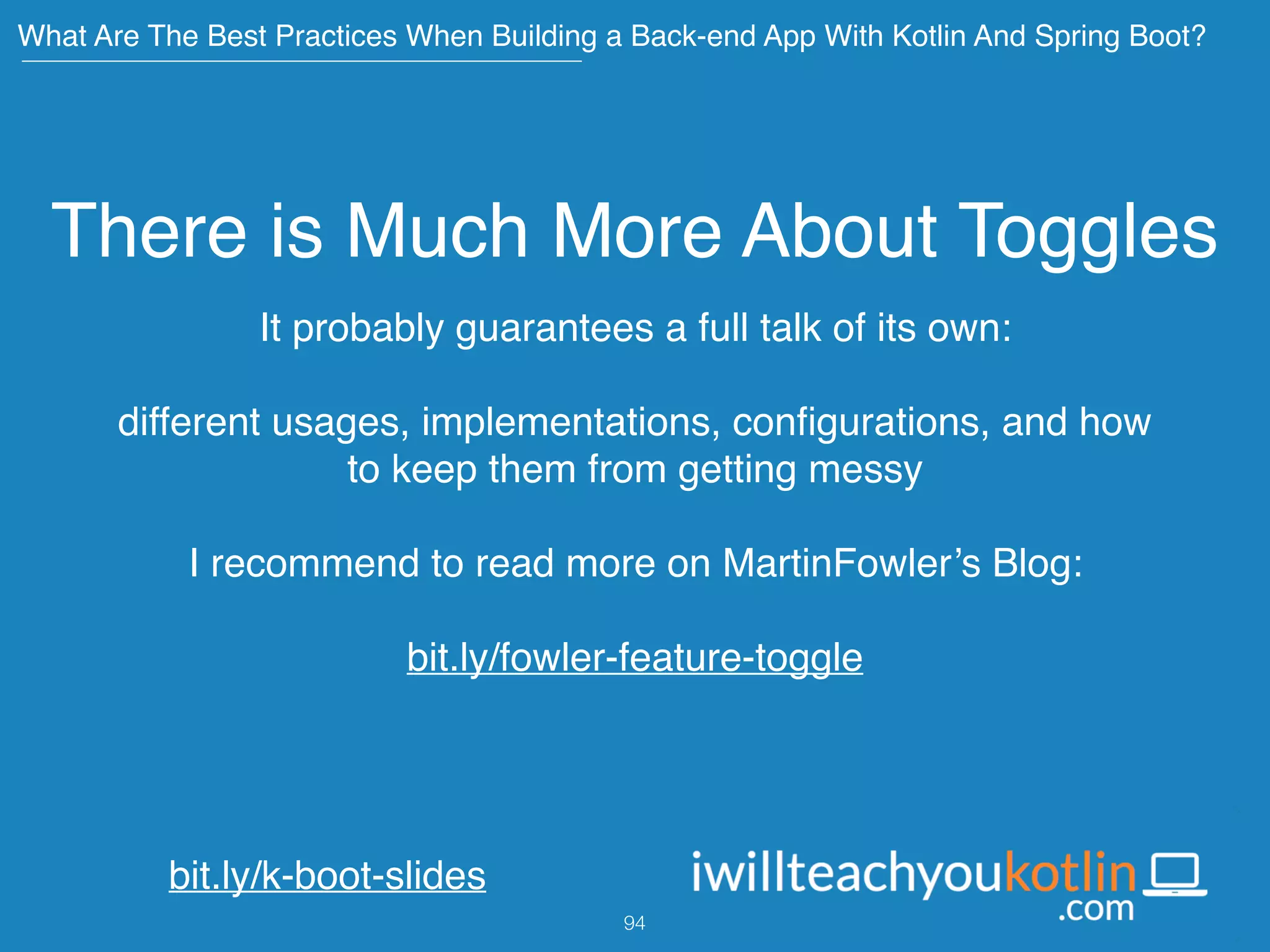

• Feature Toggles.
• Conclusion And Questions.
3

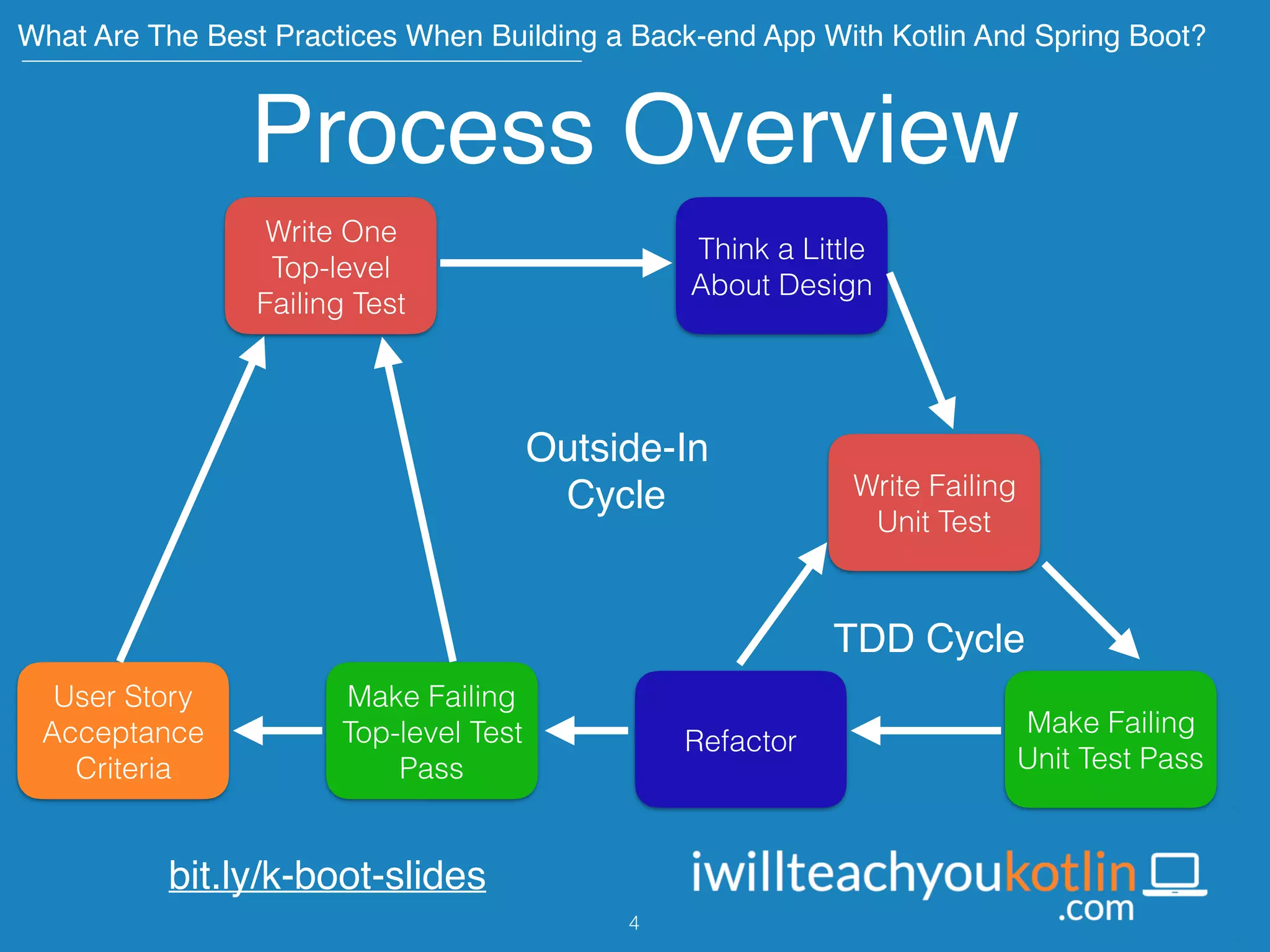

Process Overview
User Story 
Acceptance
Criteria
Write One
Top-level
Failing Test
Think a Little
About Design
Write Failing
Unit Test
Make Failing
Unit Test Pass
Refactor
Make Failing
Top-level Test
Pass
TDD Cycle
Outside-In
Cycle
4

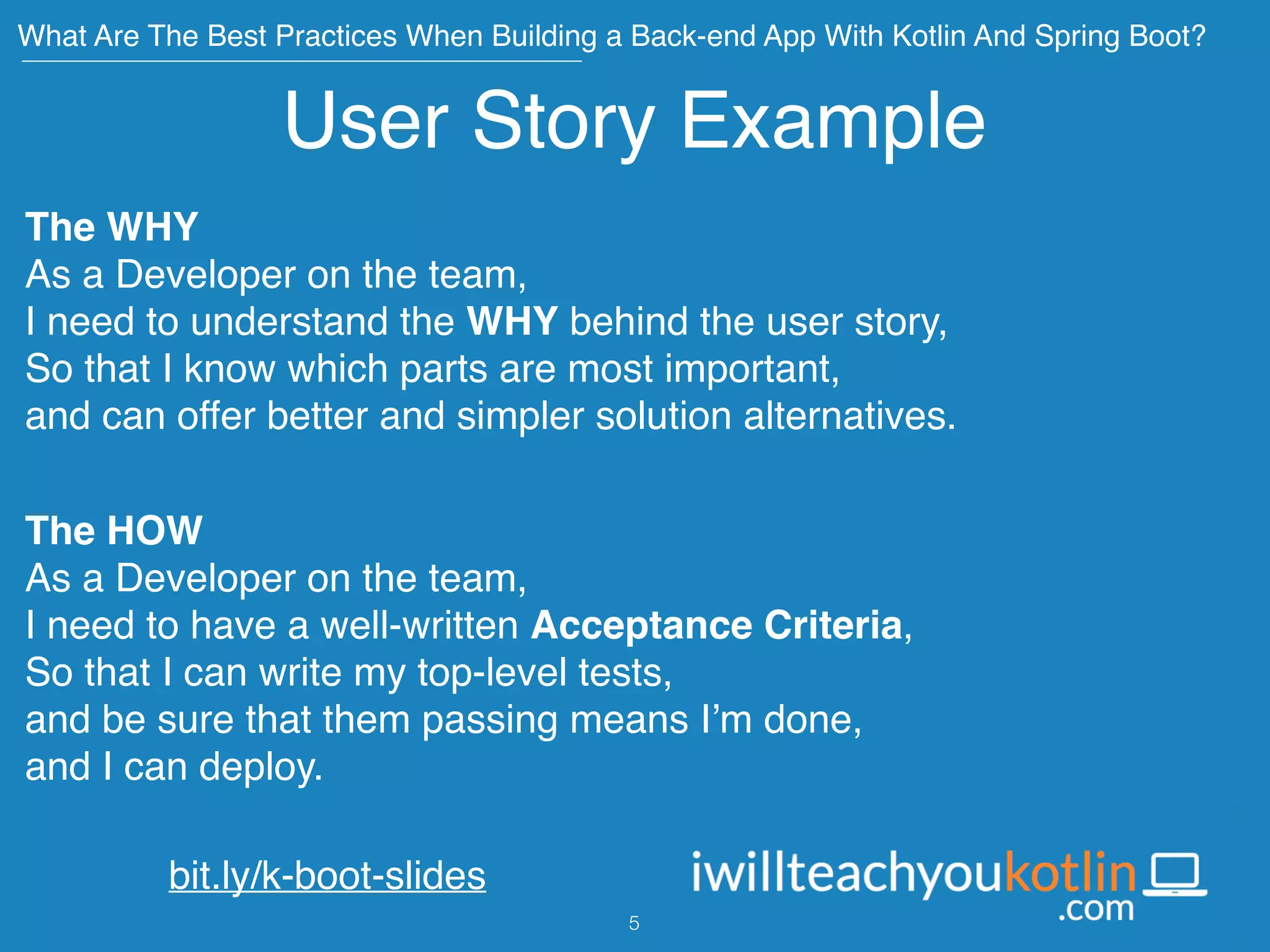

User Story Example
The WHY
As a Developer on the team,
I need to understand the WHY behind the user story,
So that I know which parts are most important,
and can offer better and simpler solution alternatives.
The HOW
As a Developer on the team,
I need to have a well-written Acceptance Criteria,
So that I can write my top-level tests,
and be sure that them passing means I’m done,
and I can deploy.
5

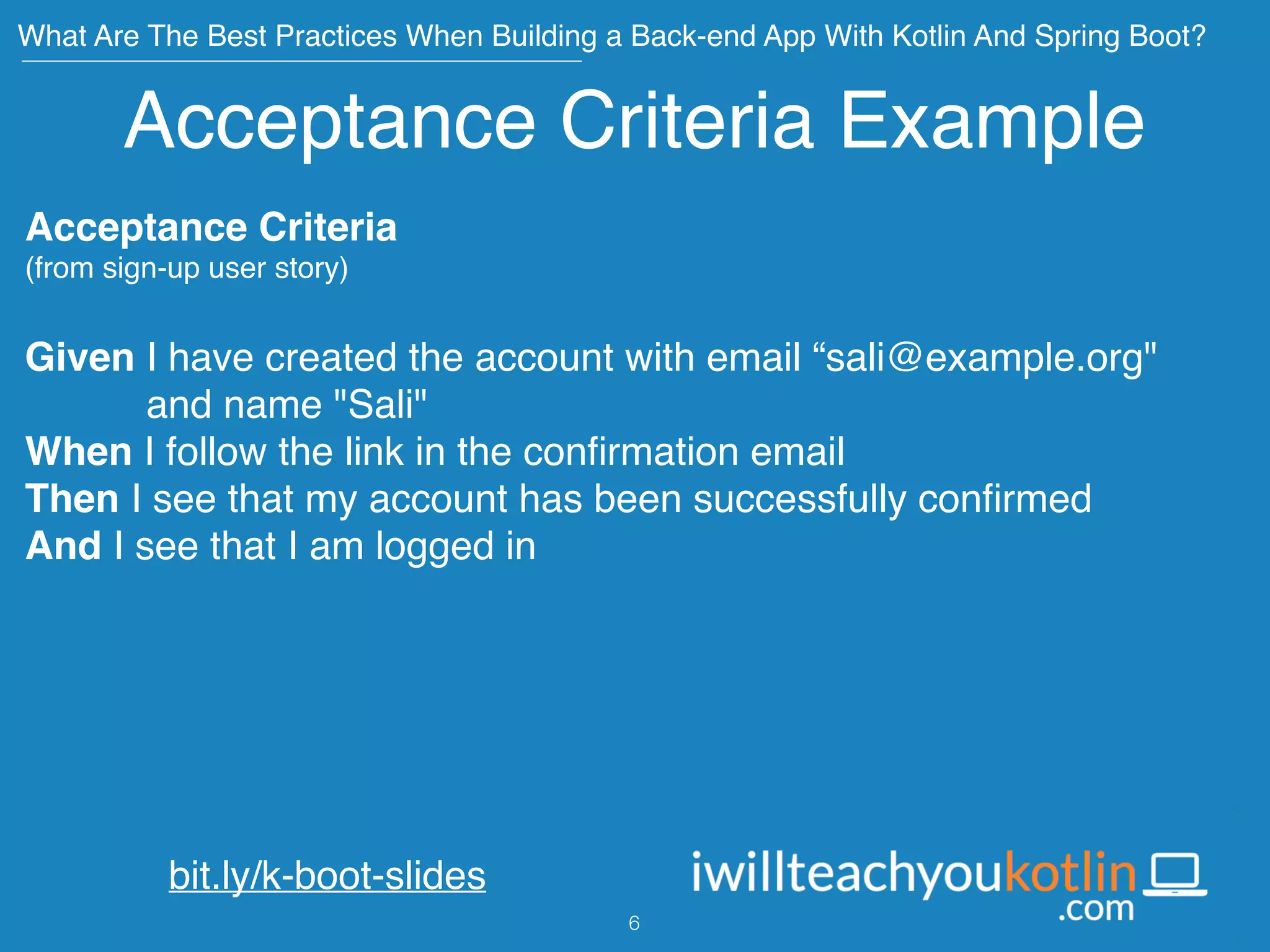

Acceptance Criteria Example
Acceptance Criteria 
(from sign-up user story)
Given I have created the account with email “sali@example.org"  
and name "Sali"
When I follow the link in the conﬁrmation email
Then I see that my account has been successfully conﬁrmed
And I see that I am logged in
6

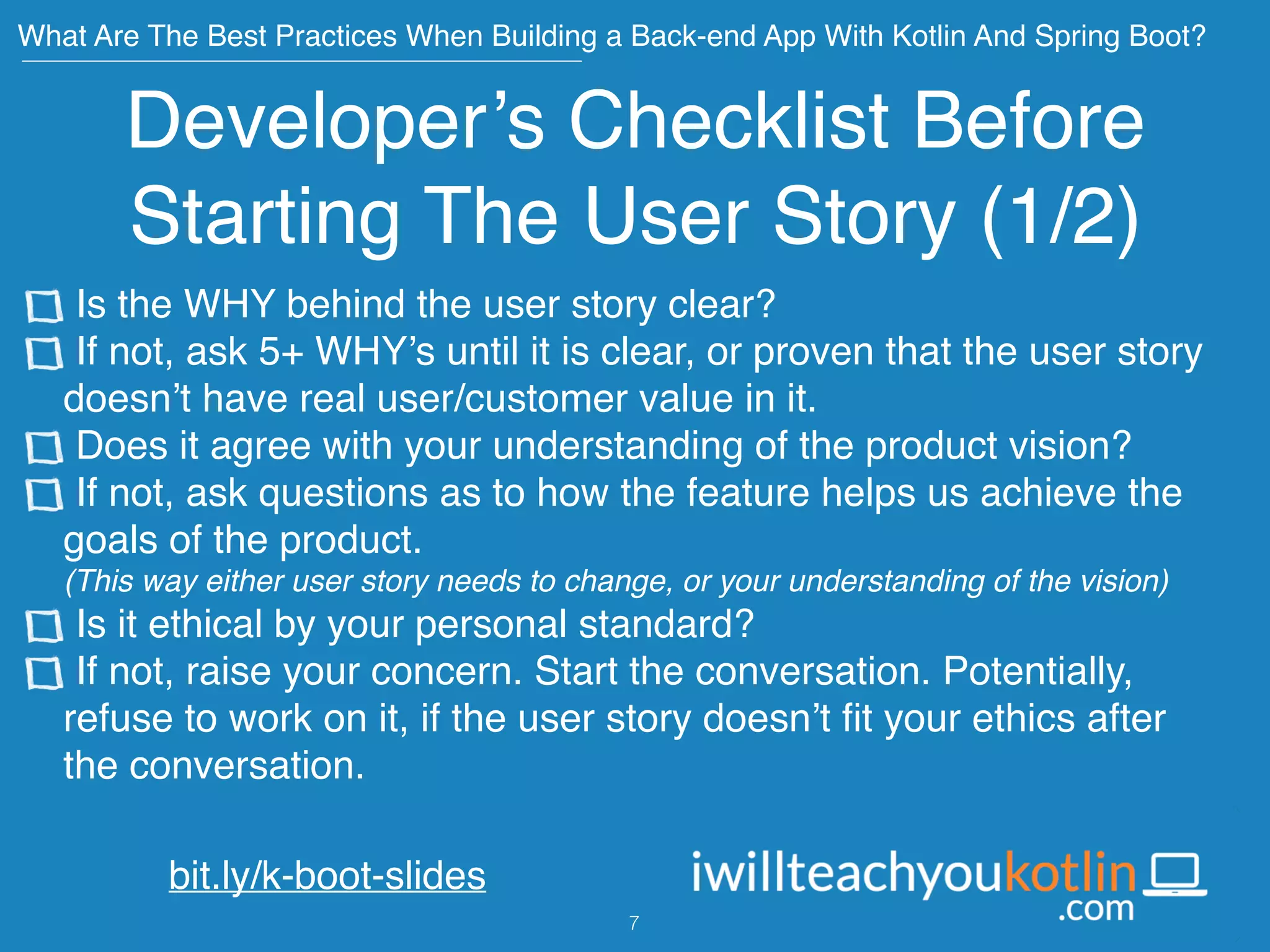

Developer’s Checklist Before
Starting The User Story (1/2)
Is the WHY behind the user story clear?
If not, ask 5+ WHY’s until it is clear, or proven that the user story
doesn’t have real user/customer value in it.
Does it agree with your understanding of the product vision?
If not, ask questions as to how the feature helps us achieve the
goals of the product. 
(This way either user story needs to change, or your understanding of the vision)
Is it ethical by your personal standard?
If not, raise your concern. Start the conversation. Potentially,
refuse to work on it, if the user story doesn’t ﬁt your ethics after
the conversation.
7

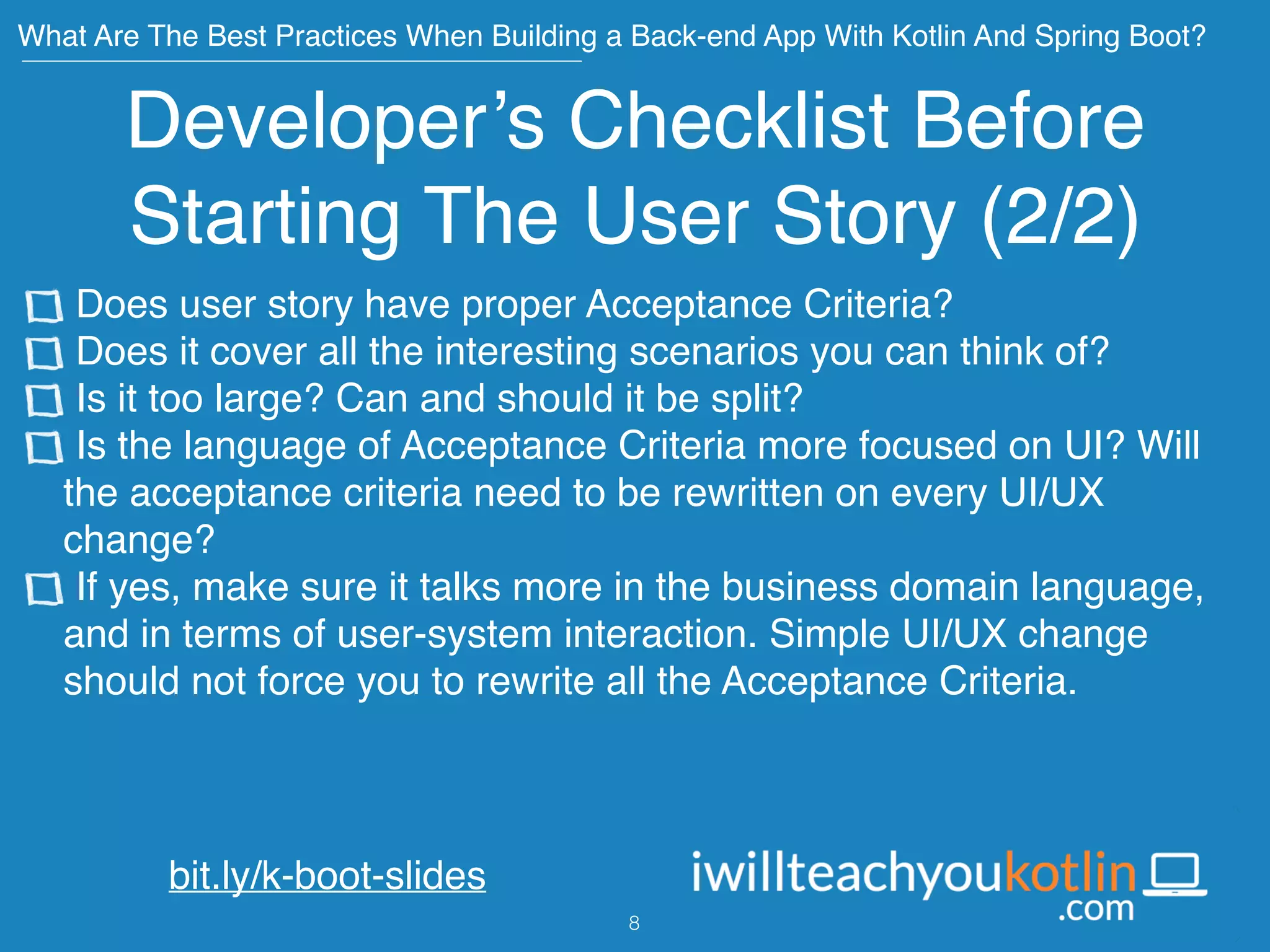

Developer’s Checklist Before
Starting The User Story (2/2)
Does user story have proper Acceptance Criteria?
Does it cover all the interesting scenarios you can think of?
Is it too large? Can and should it be split?
Is the language of Acceptance Criteria more focused on UI? Will
the acceptance criteria need to be rewritten on every UI/UX
change?
If yes, make sure it talks more in the business domain language,
and in terms of user-system interaction. Simple UI/UX change
should not force you to rewrite all the Acceptance Criteria.
8

Download This Checklist as PDF
bit.ly/dev-user-story-checklist
9

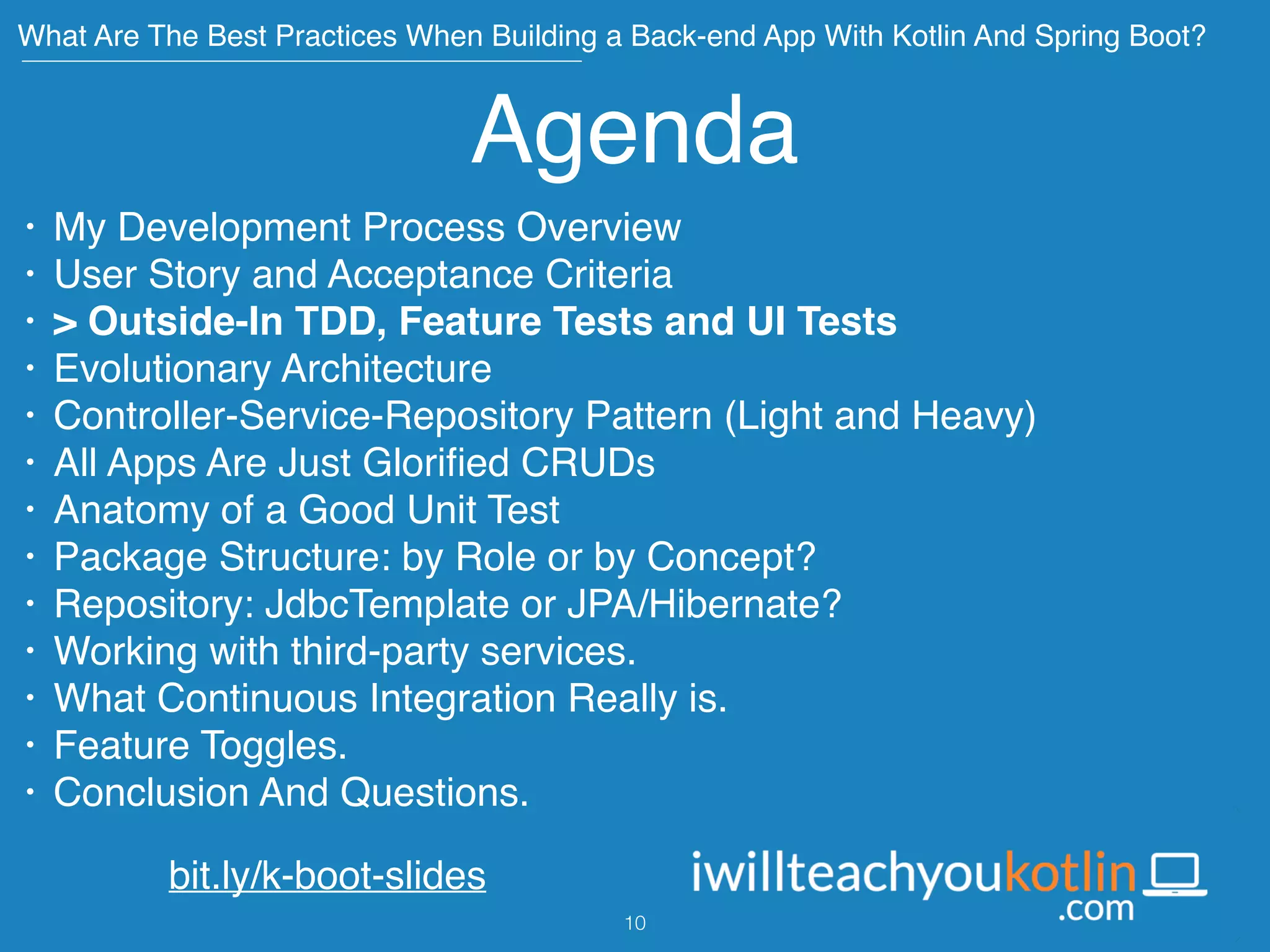

Agenda
• > Outside-In TDD, Feature Tests and UI Tests
10

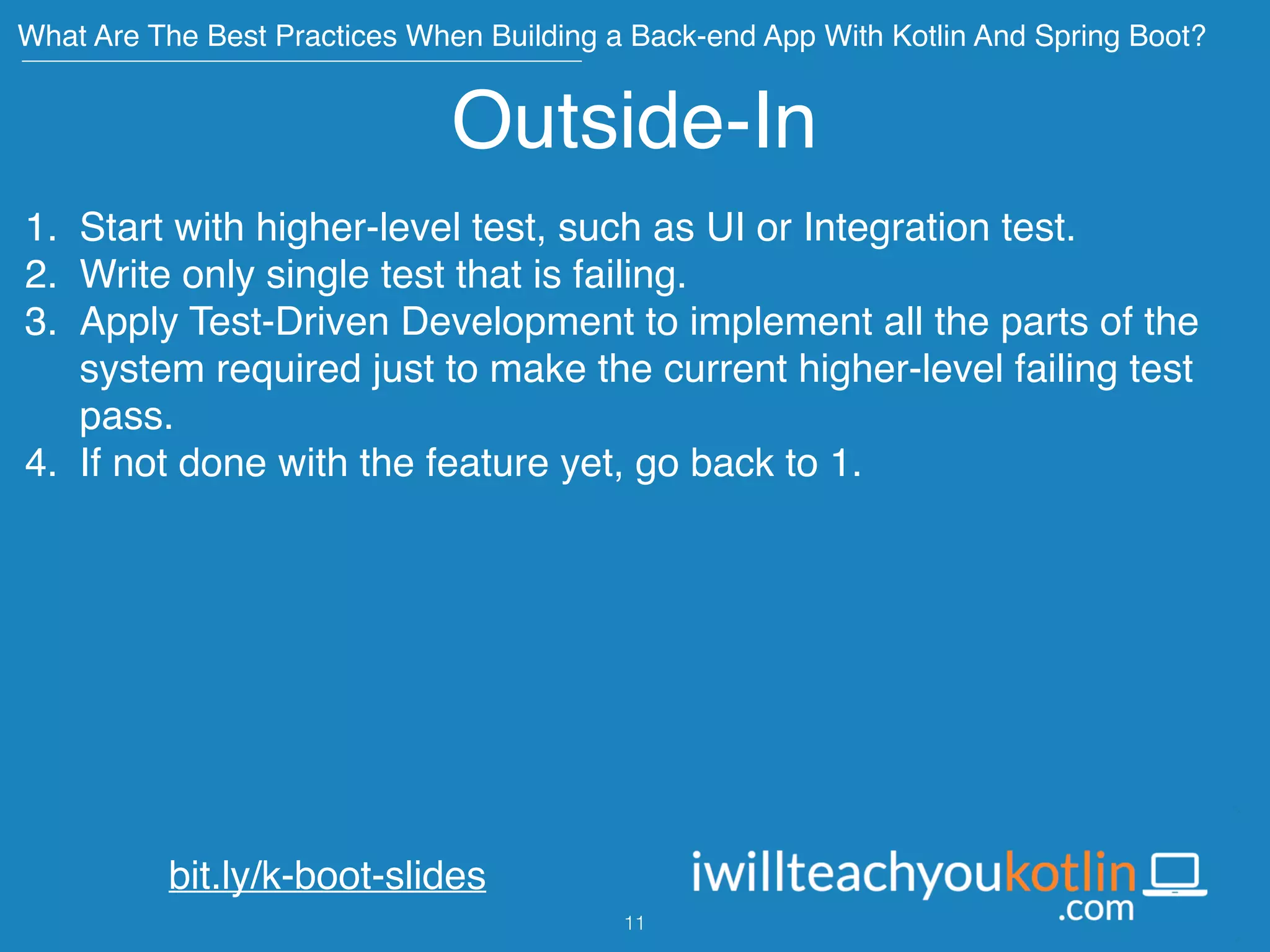

Outside-In
1. Start with higher-level test, such as UI or Integration test.
2. Write only single test that is failing.
3. Apply Test-Driven Development to implement all the parts of the
system required just to make the current higher-level failing test
pass.
4. If not done with the feature yet, go back to 1.
11

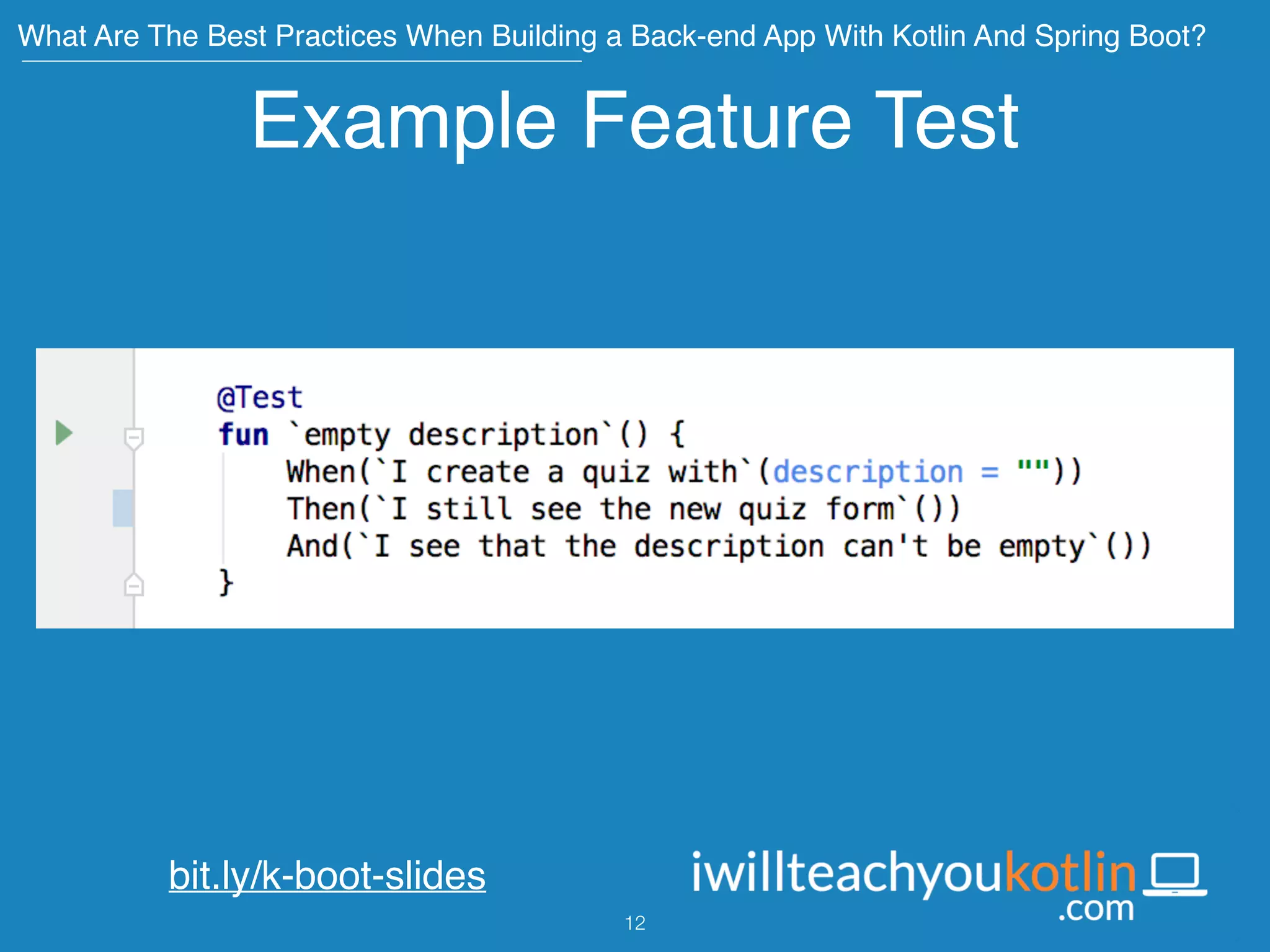

Example Feature Test
12

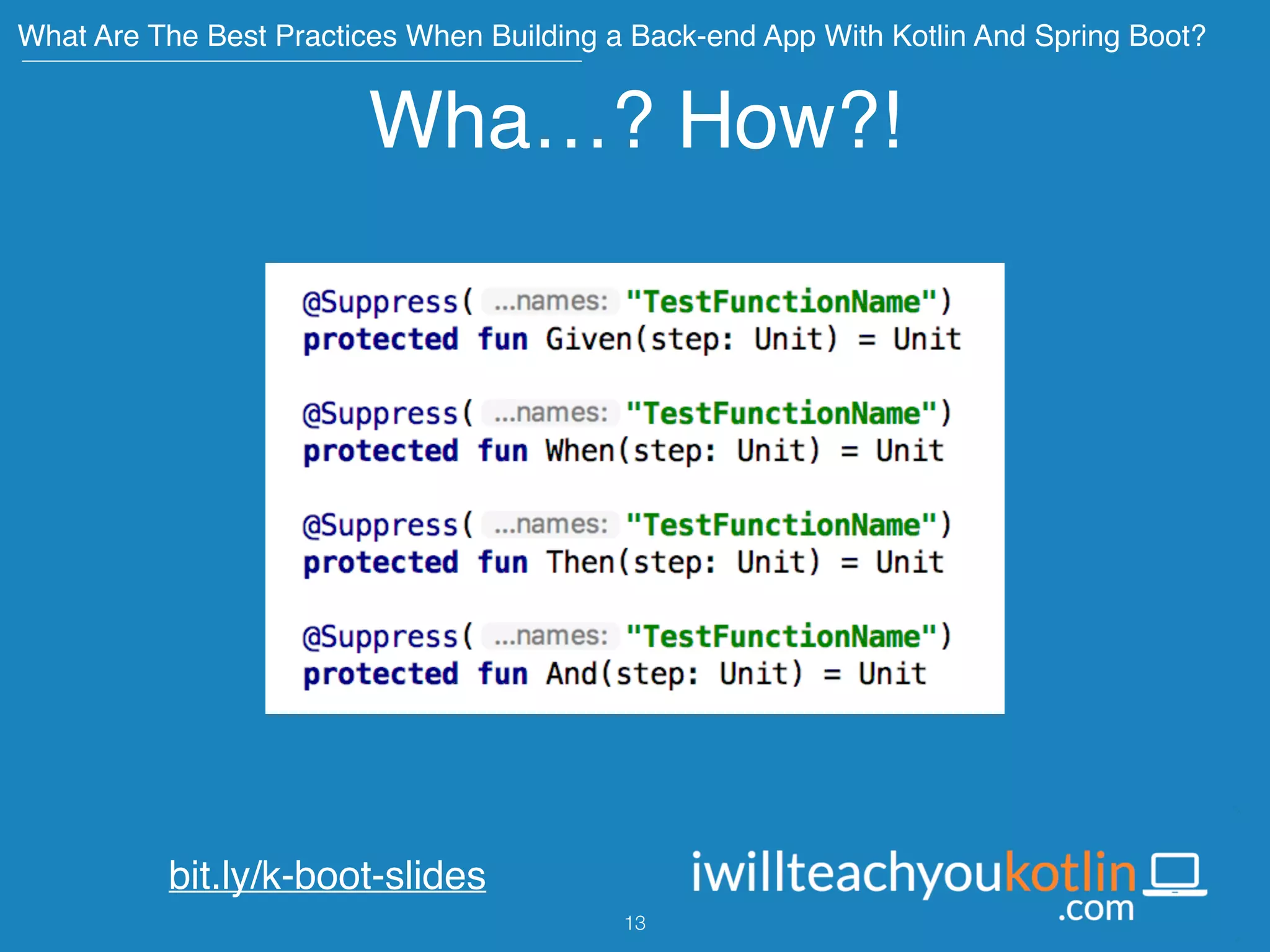

Wha…? How?!
13

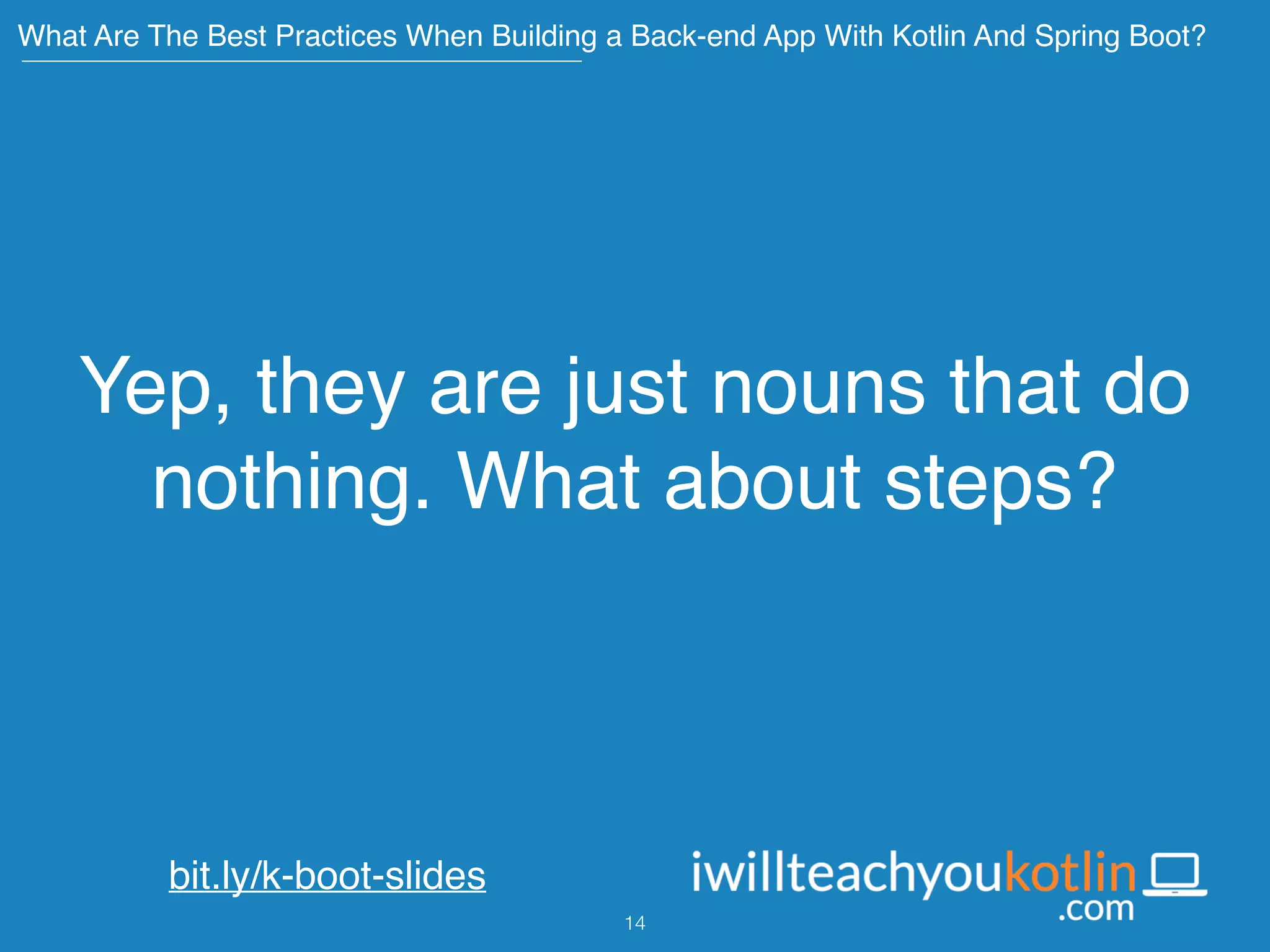

Yep, they are just nouns that do
nothing. What about steps?
14

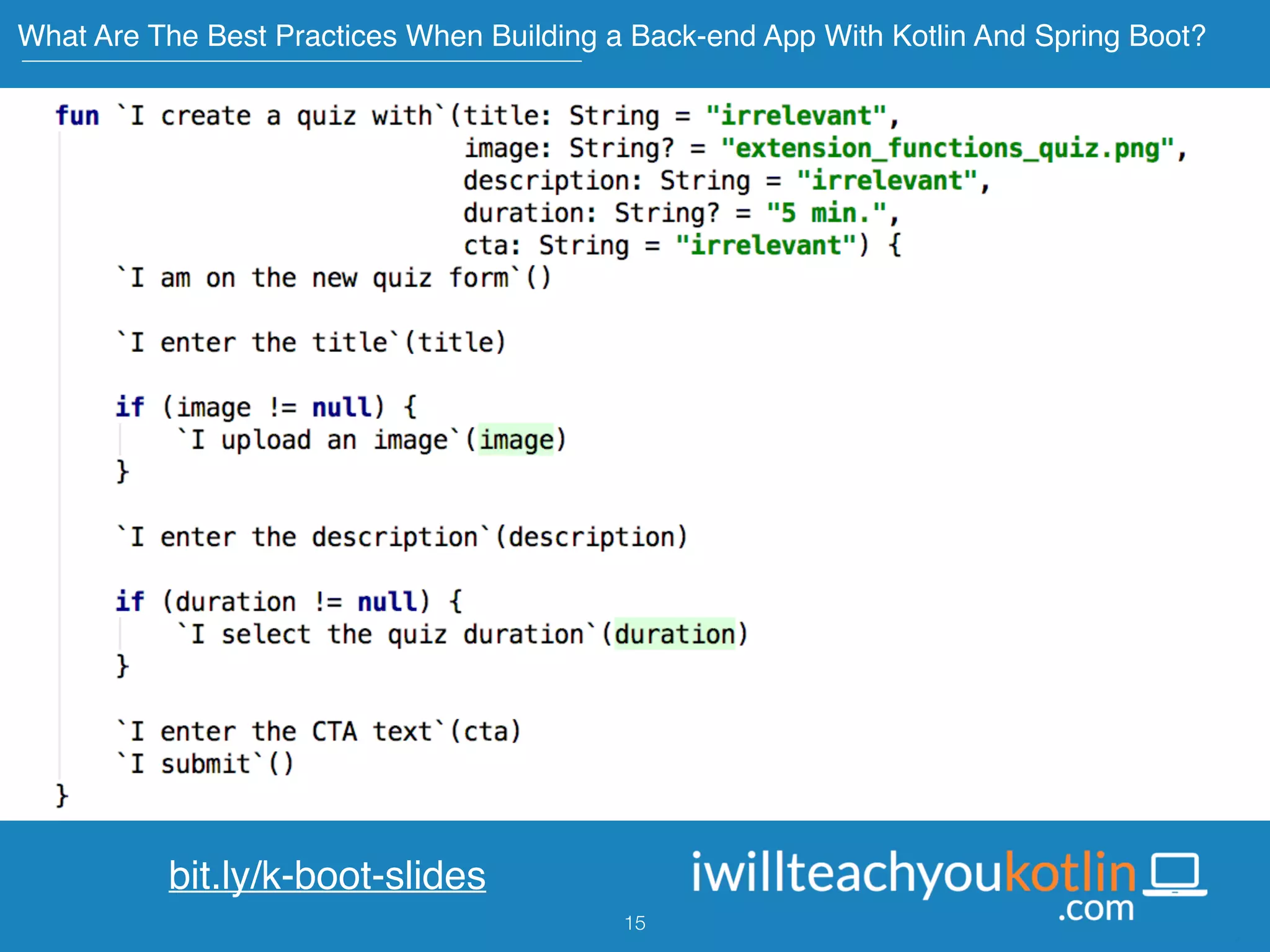

15

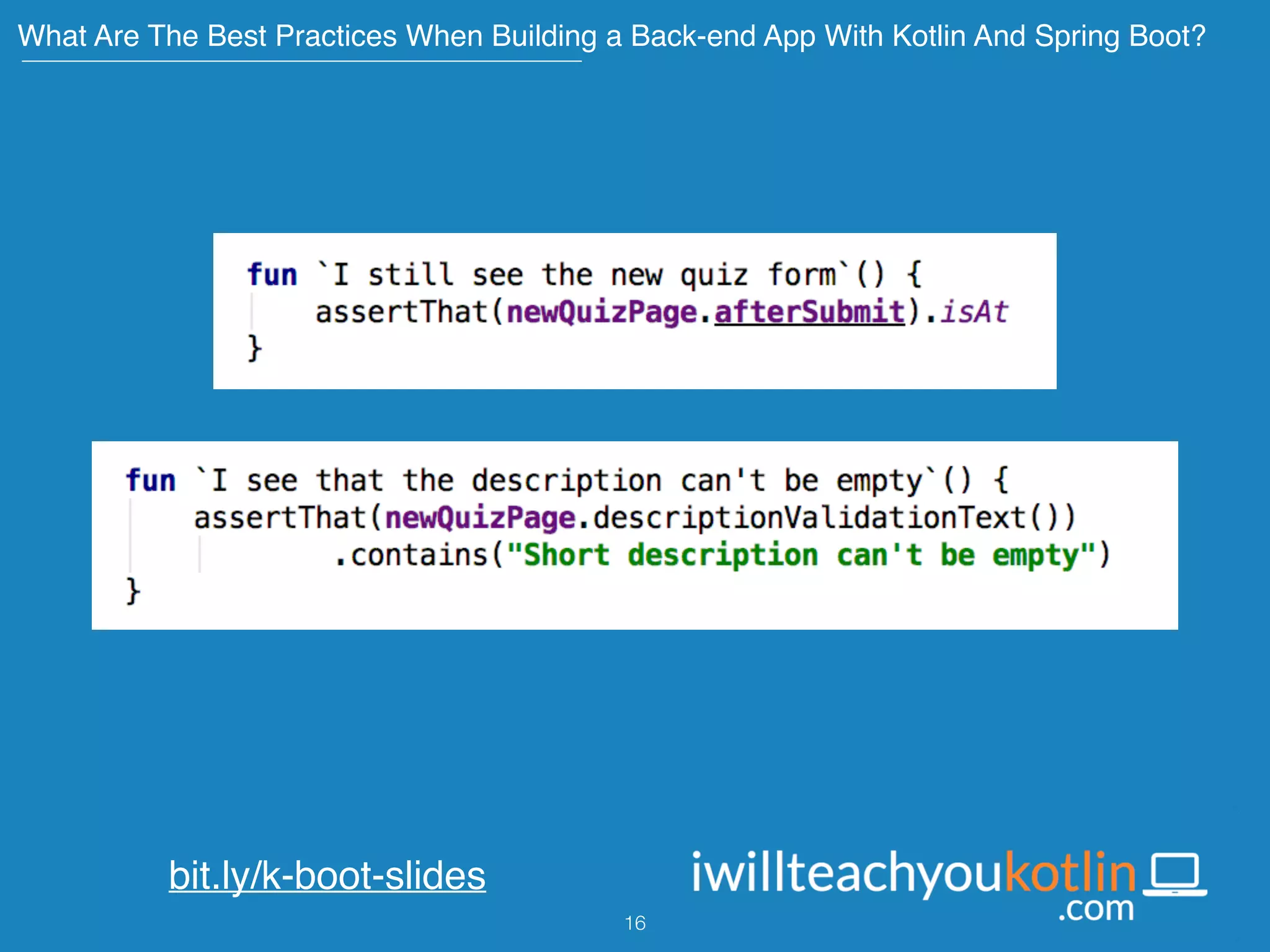

16

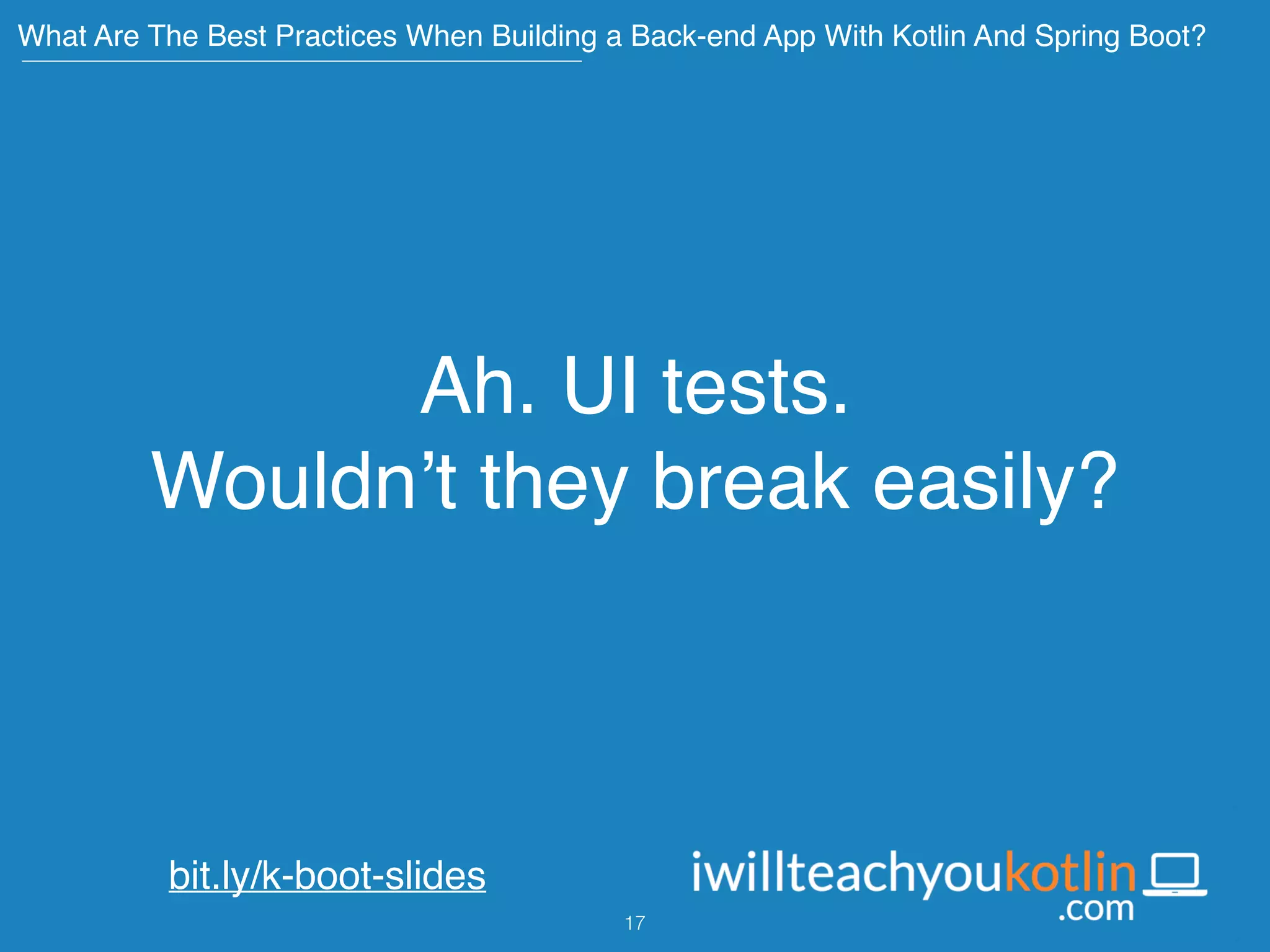

Ah. UI tests. 
Wouldn’t they break easily?
17

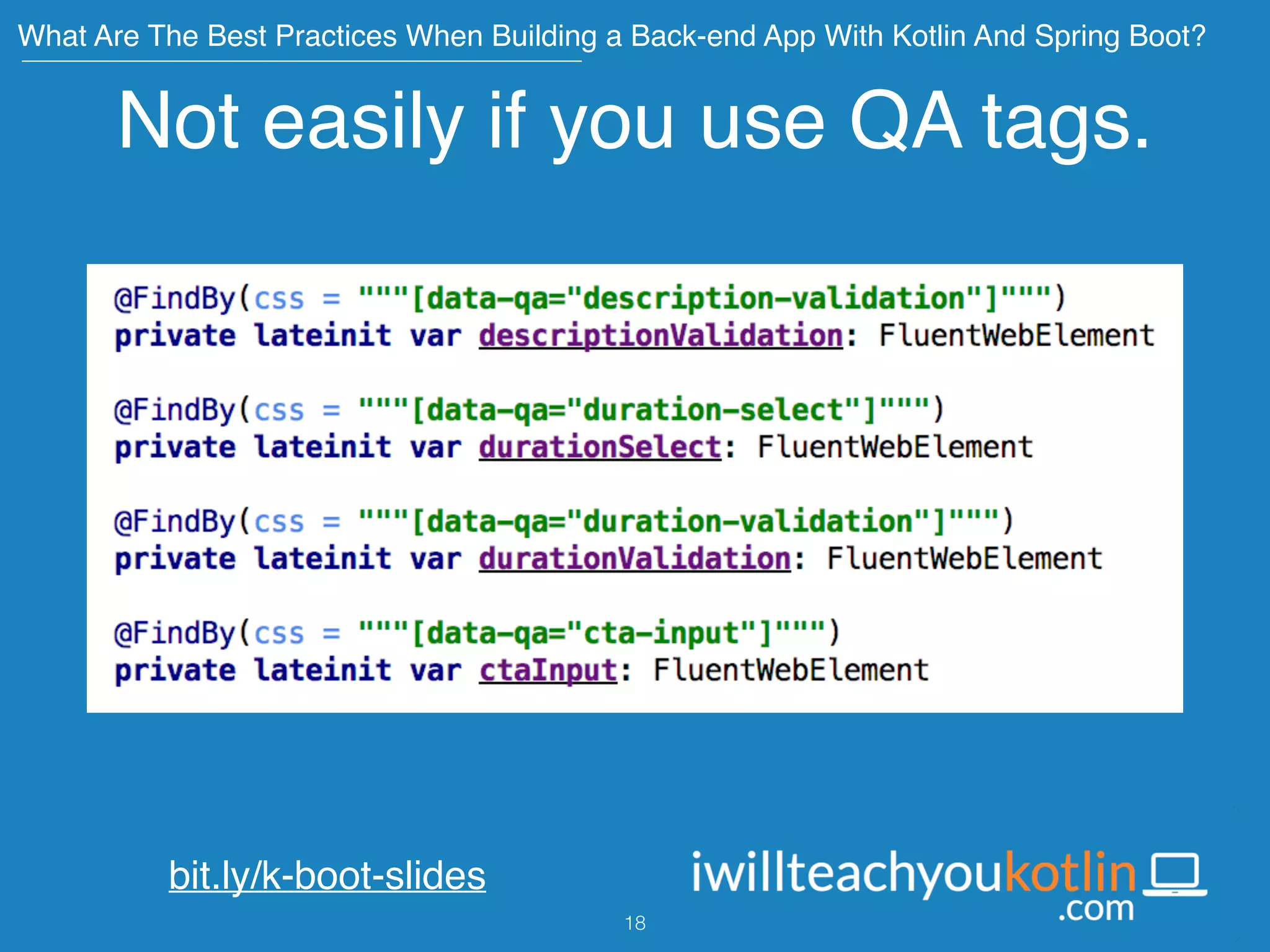

Not easily if you use QA tags.
18

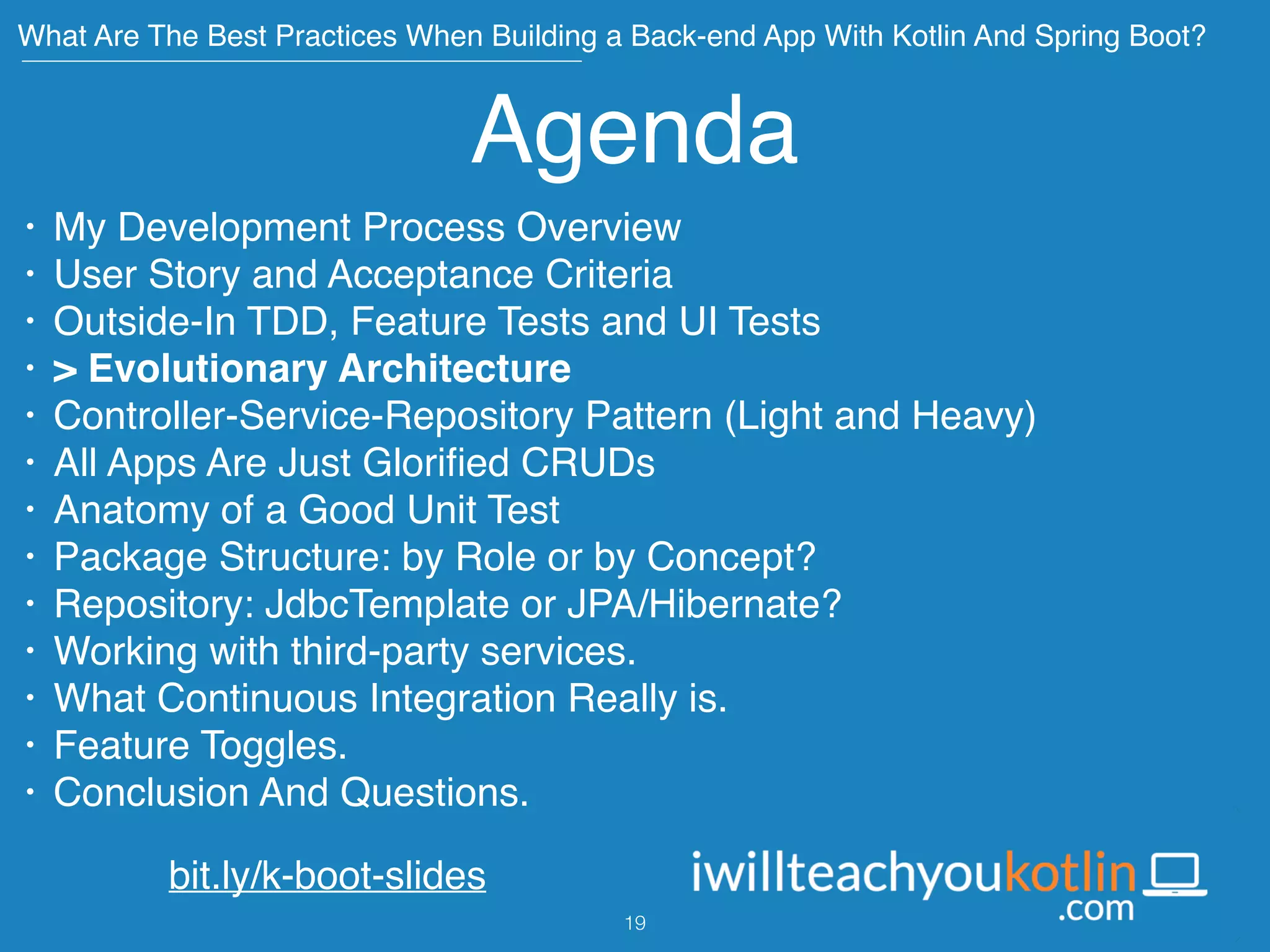

Agenda
• > Evolutionary Architecture
19

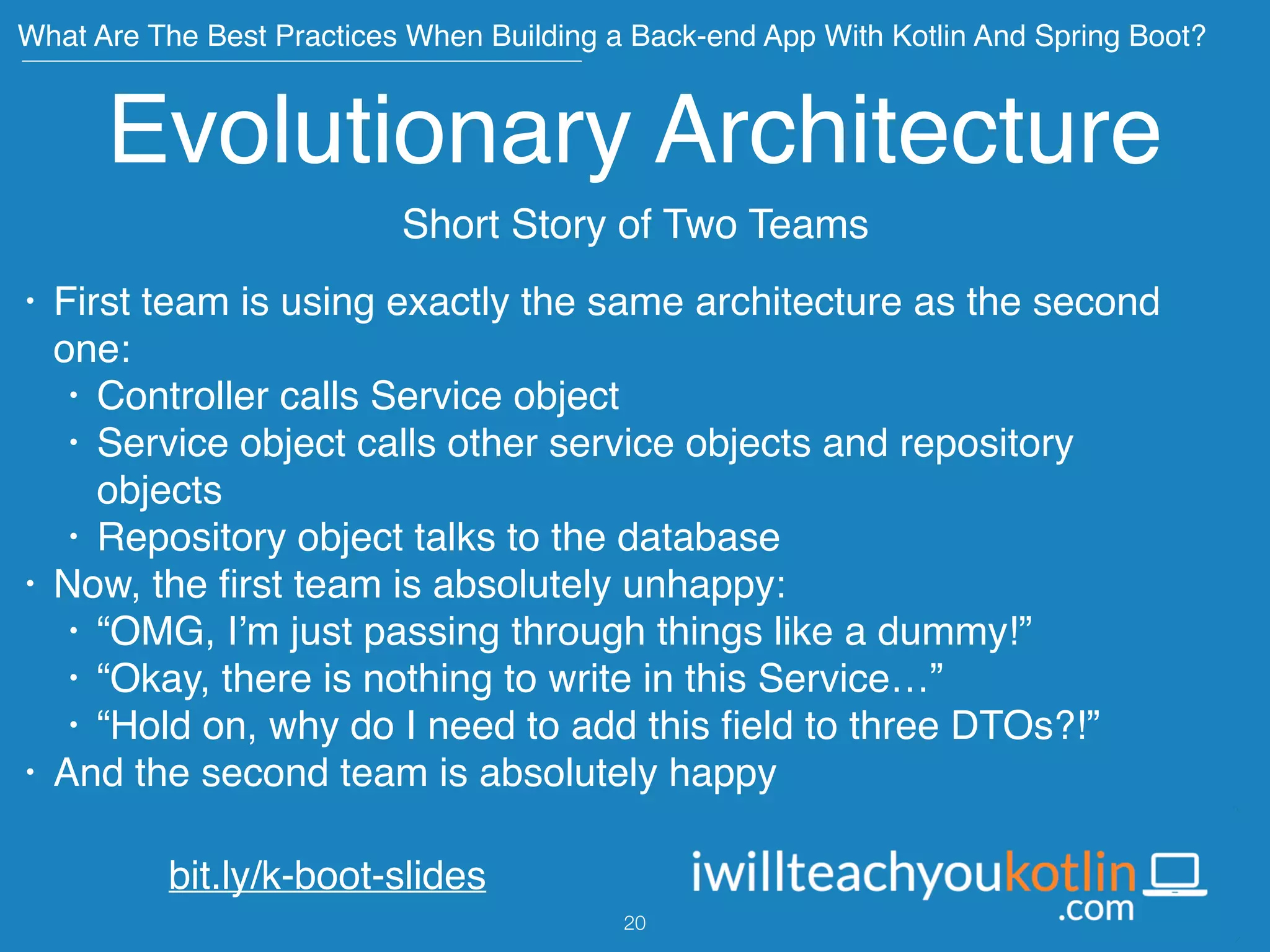

Evolutionary Architecture
Short Story of Two Teams
• First team is using exactly the same architecture as the second
one:
• Controller calls Service object
• Service object calls other service objects and repository
objects
• Repository object talks to the database
• Now, the ﬁrst team is absolutely unhappy:
• “OMG, I’m just passing through things like a dummy!”
• “Okay, there is nothing to write in this Service…”
• “Hold on, why do I need to add this ﬁeld to three DTOs?!”
• And the second team is absolutely happy
20

Why?
21

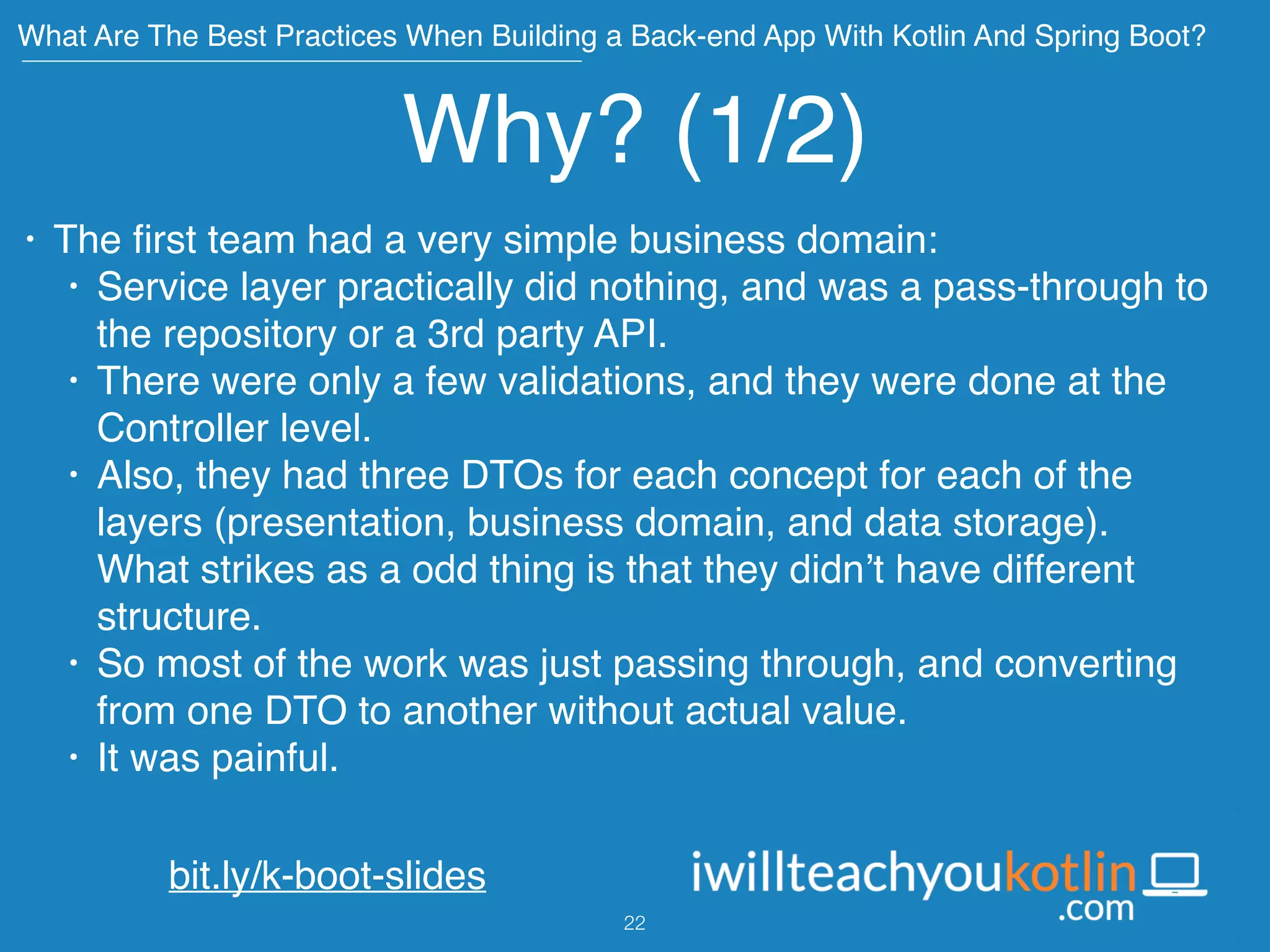

Why? (1/2)
• The ﬁrst team had a very simple business domain:
• Service layer practically did nothing, and was a pass-through to
the repository or a 3rd party API.
• There were only a few validations, and they were done at the
Controller level.
• Also, they had three DTOs for each concept for each of the
layers (presentation, business domain, and data storage).
What strikes as a odd thing is that they didn’t have different
structure.
• So most of the work was just passing through, and converting
from one DTO to another without actual value.
• It was painful.
22

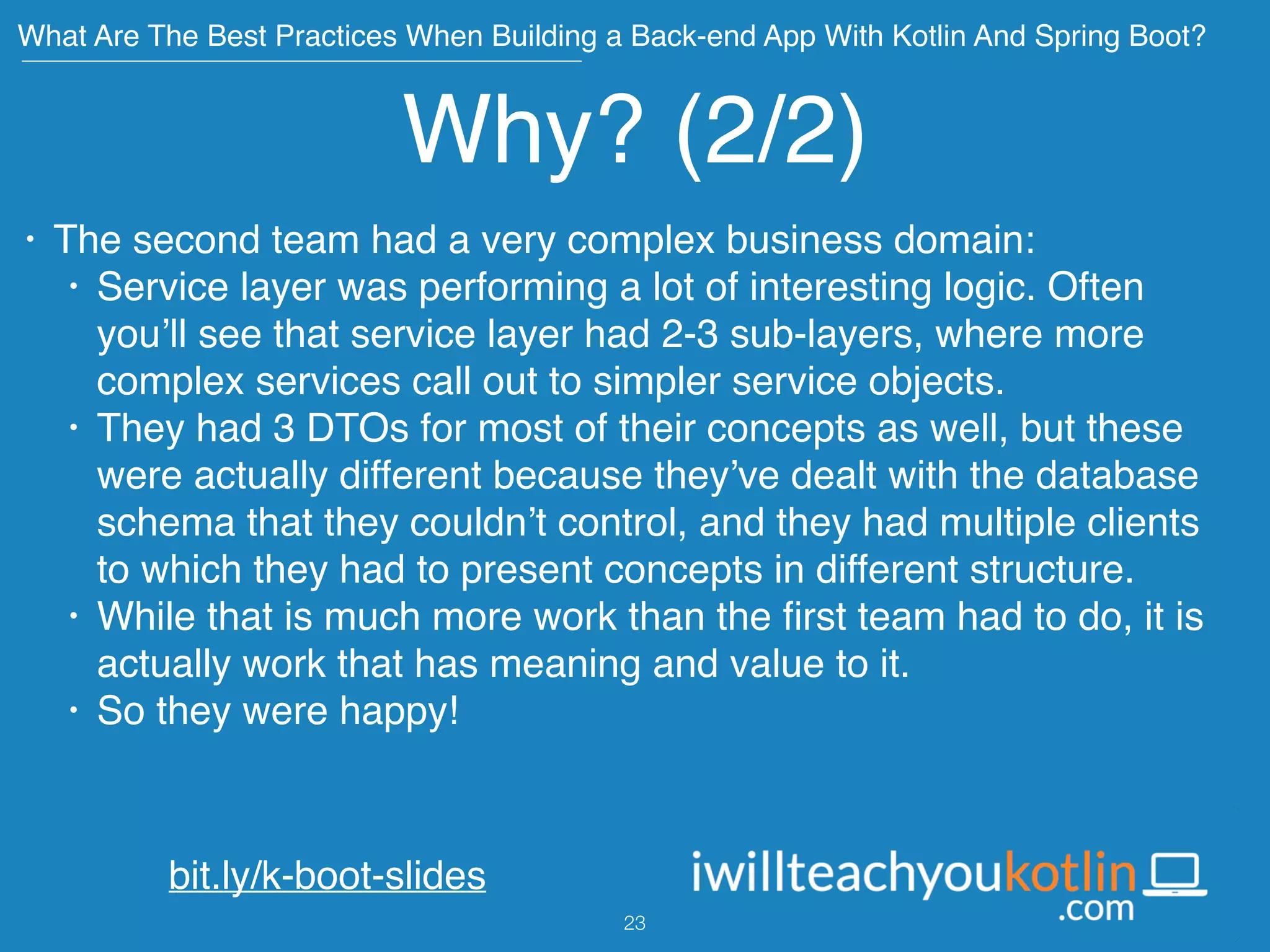

Why? (2/2)
• The second team had a very complex business domain:
• Service layer was performing a lot of interesting logic. Often
you’ll see that service layer had 2-3 sub-layers, where more
complex services call out to simpler service objects.
• They had 3 DTOs for most of their concepts as well, but these
were actually different because they’ve dealt with the database
schema that they couldn’t control, and they had multiple clients
to which they had to present concepts in different structure.
• While that is much more work than the ﬁrst team had to do, it is
actually work that has meaning and value to it.
• So they were happy!
23

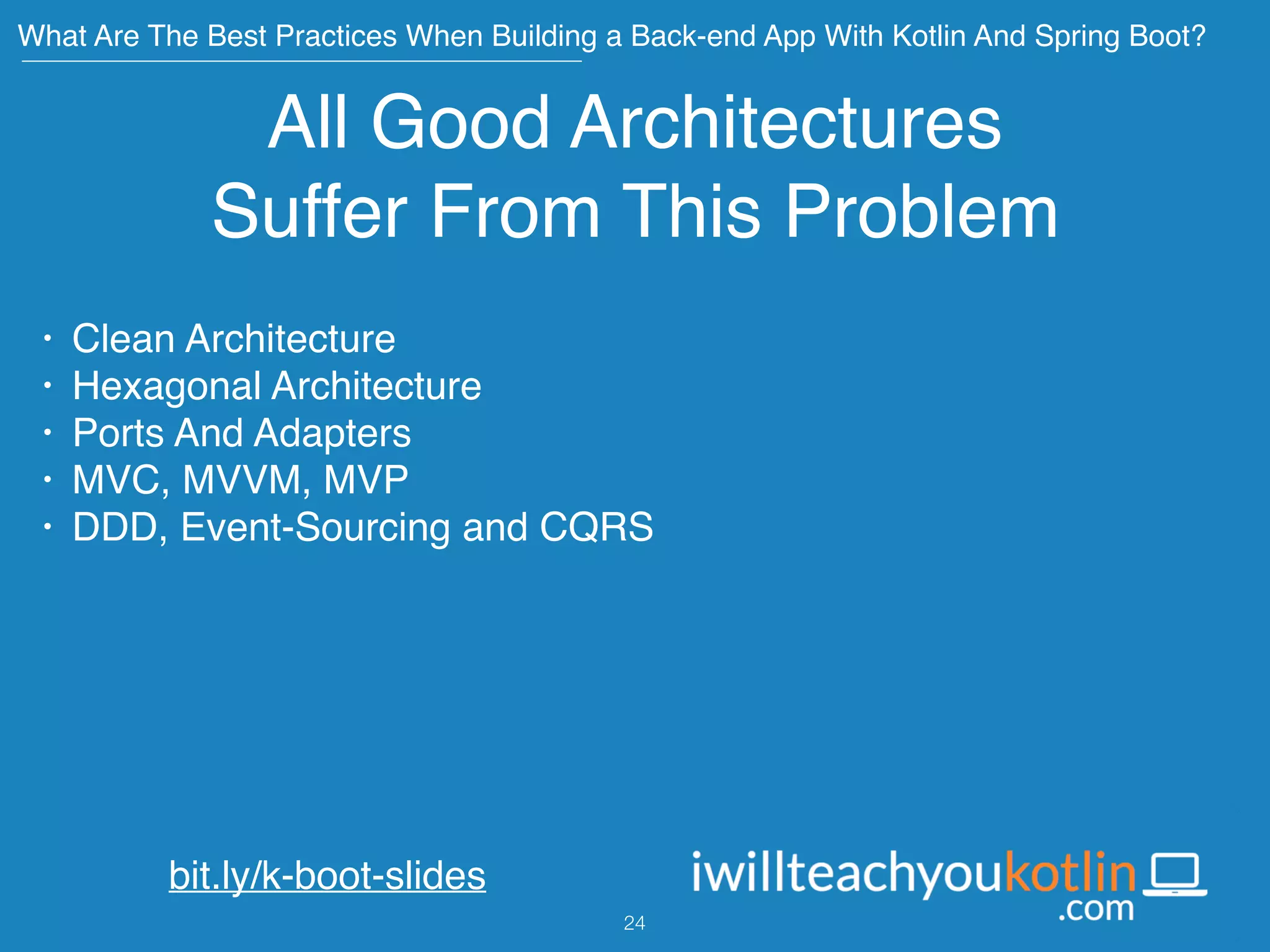

All Good Architectures 
Suffer From This Problem
• Clean Architecture
• Hexagonal Architecture
• Ports And Adapters
• MVC, MVVM, MVP
• DDD, Event-Sourcing and CQRS
24

Why?
25

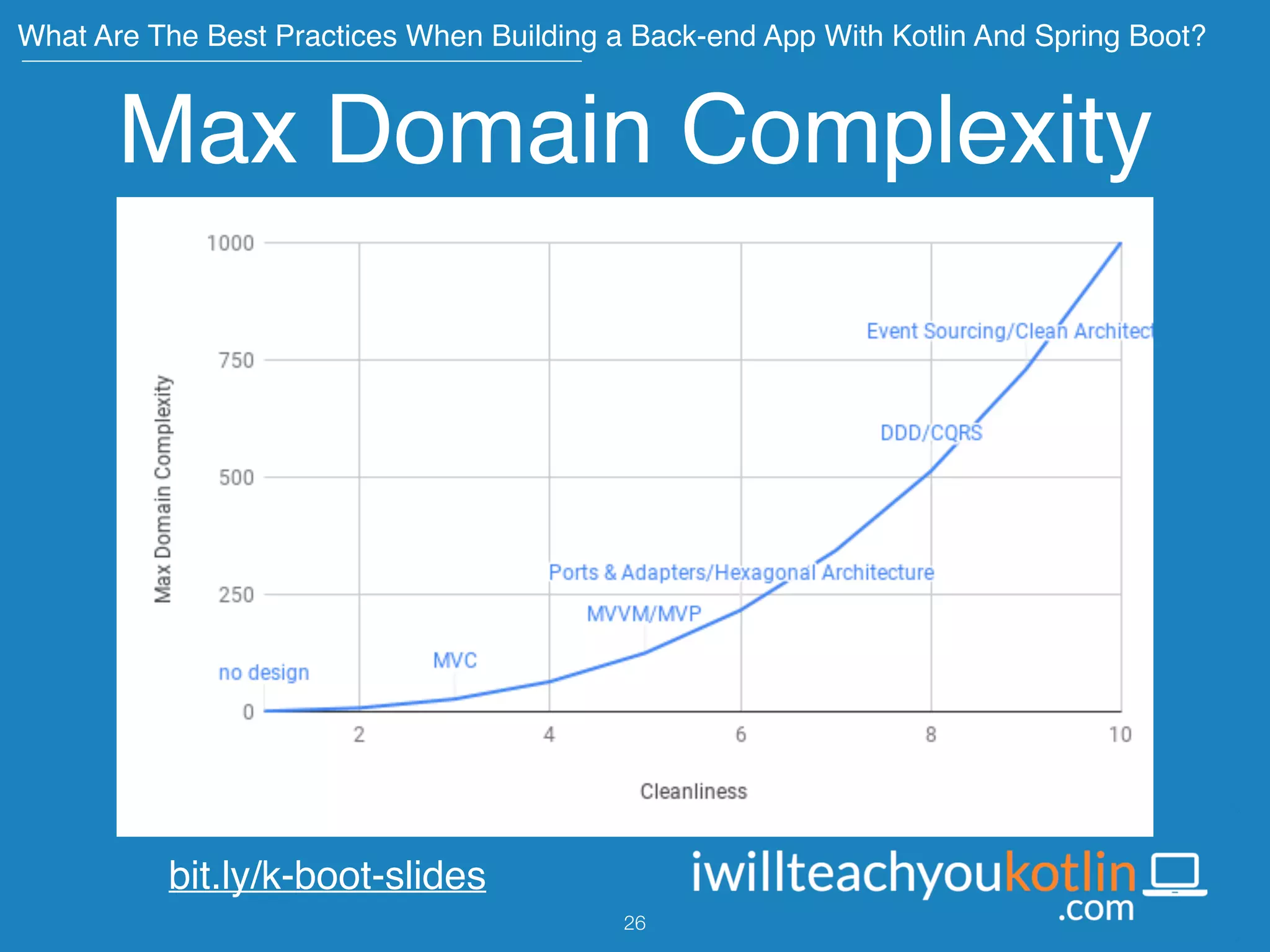

Max Domain Complexity
26

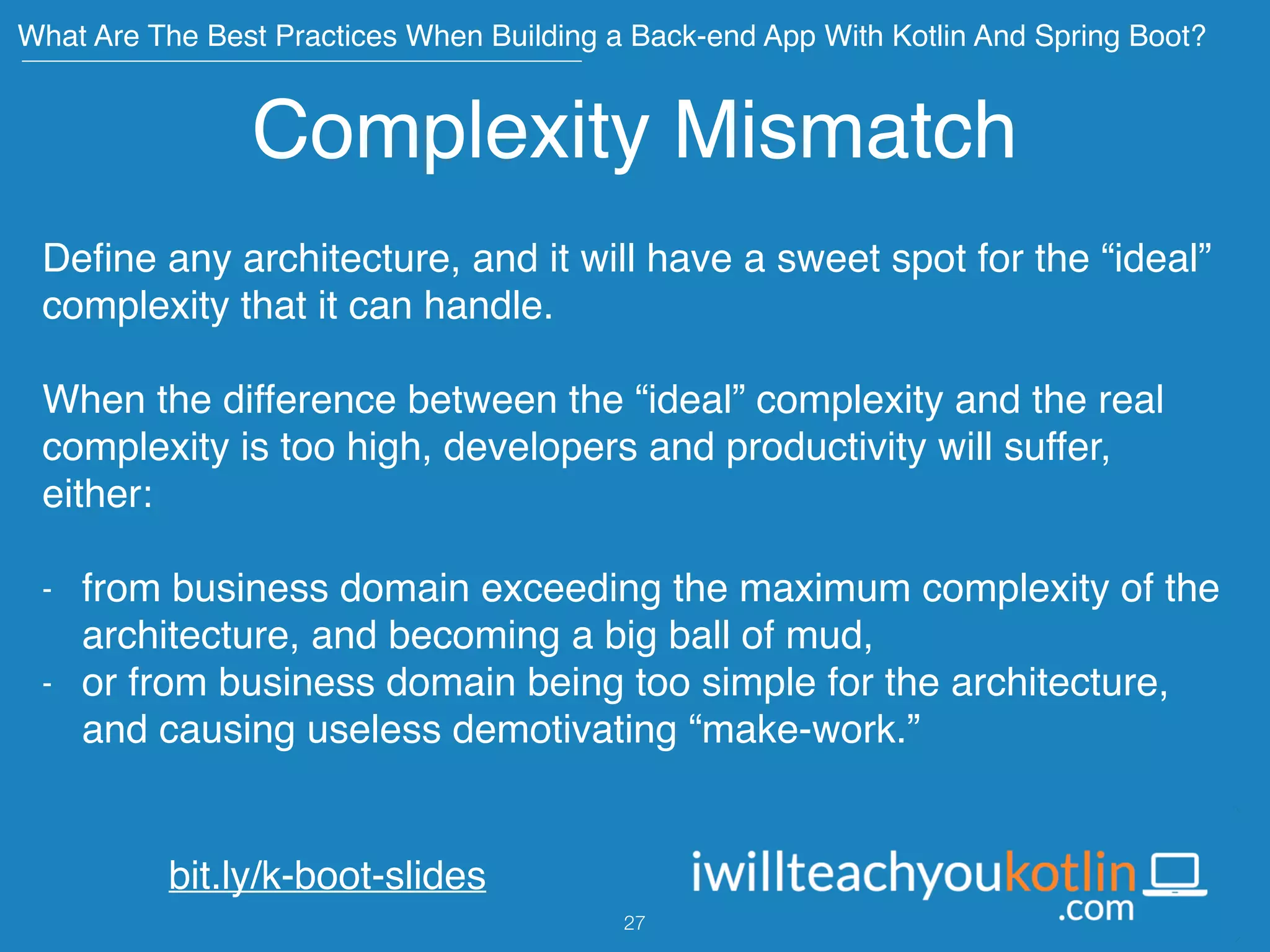

Complexity Mismatch
Deﬁne any architecture, and it will have a sweet spot for the “ideal”
complexity that it can handle.
When the difference between the “ideal” complexity and the real
complexity is too high, developers and productivity will suffer,
either:
- from business domain exceeding the maximum complexity of the
architecture, and becoming a big ball of mud,
- or from business domain being too simple for the architecture,
and causing useless demotivating “make-work.”
27

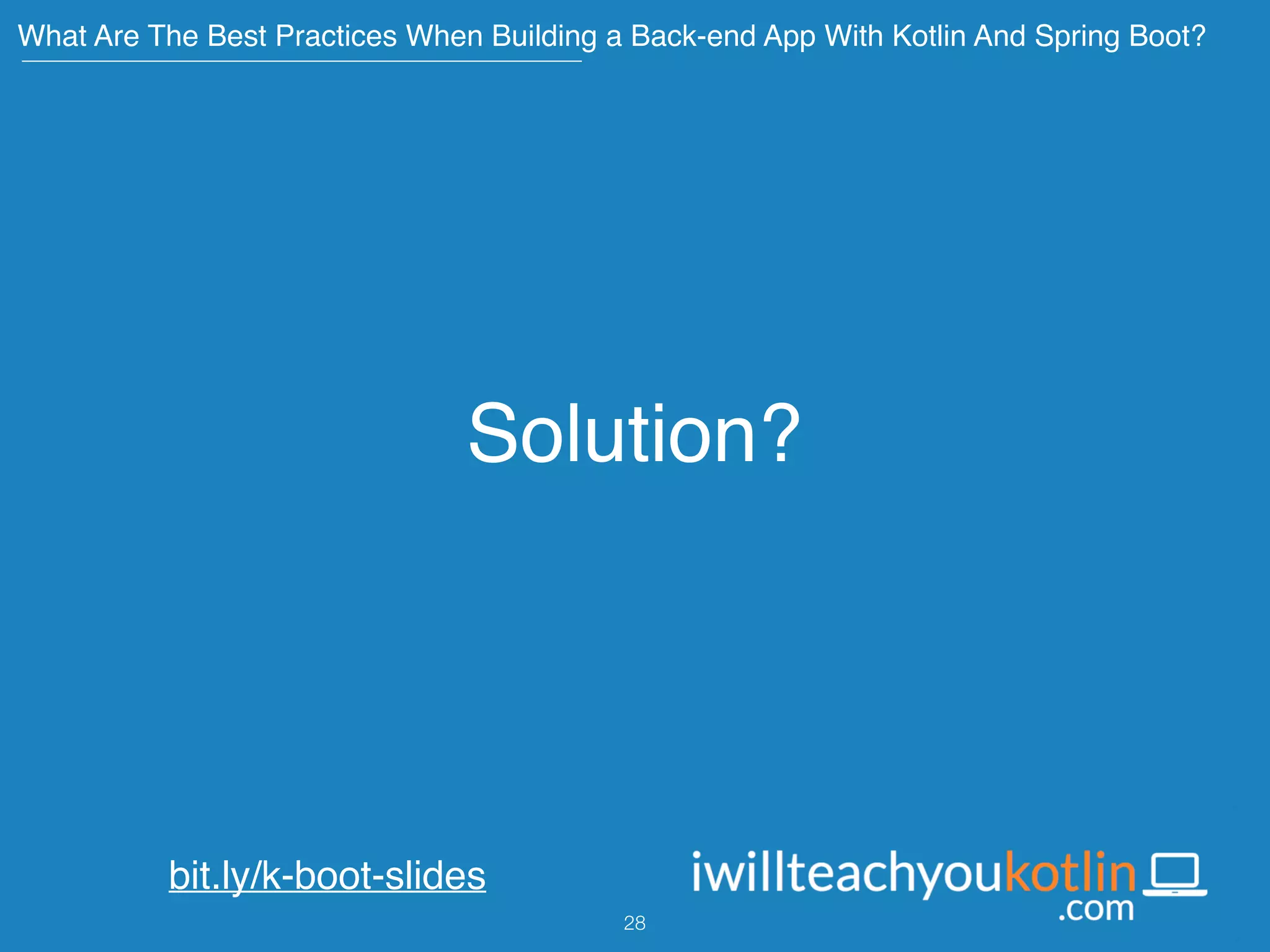

Solution?
28

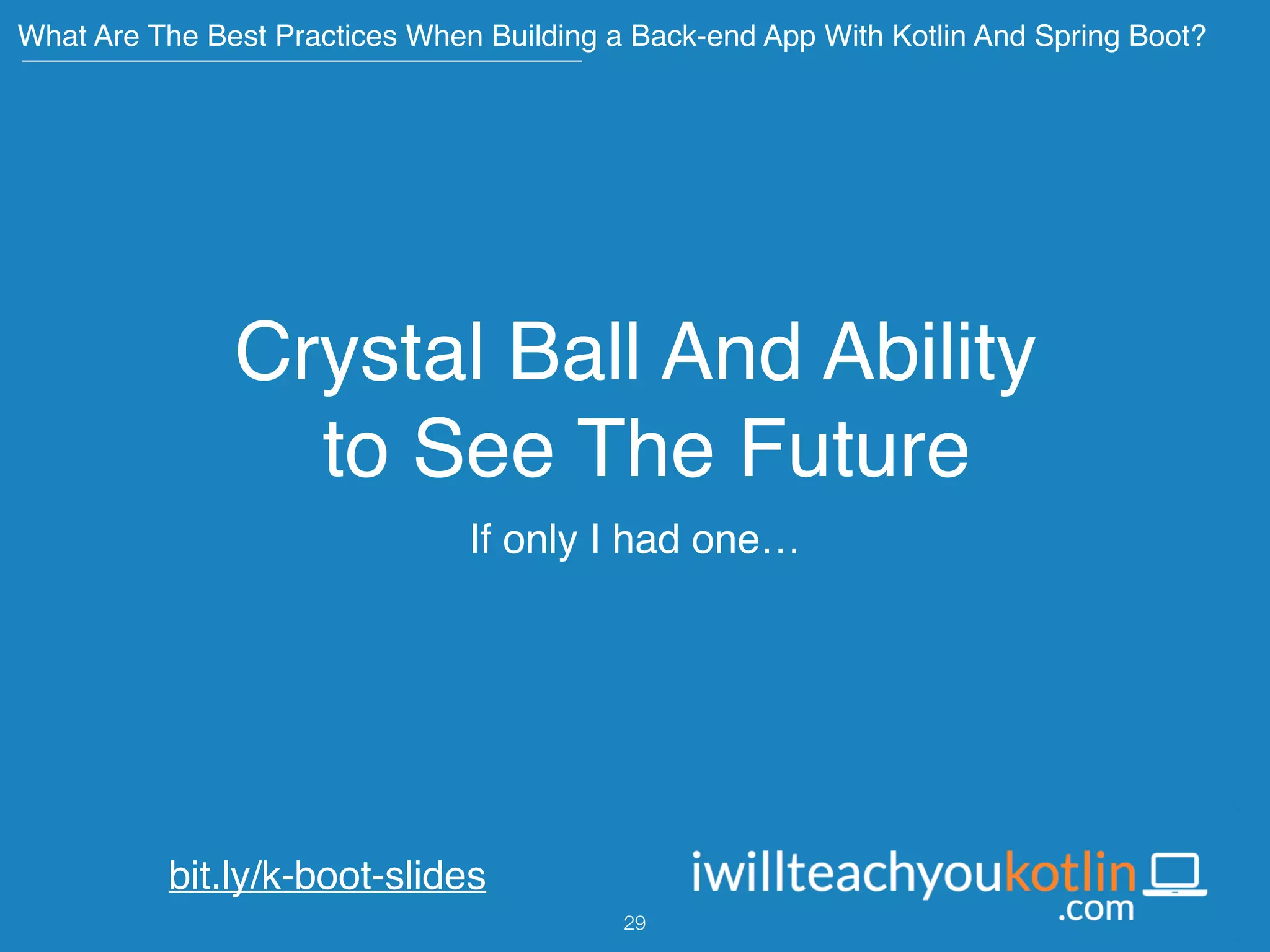

Crystal Ball And Ability 
to See The Future
If only I had one…
29

Make The Best Pragmatic Guess
And refactor once you know that you’ve made a mistake
You’ll need to go either up or down the scale of the cleanliness as
the codebase gives you more and more feedback
30

That is Exactly Why I Usually Start
Somewhere in The Middle
You’ll have less to refactor on average
31

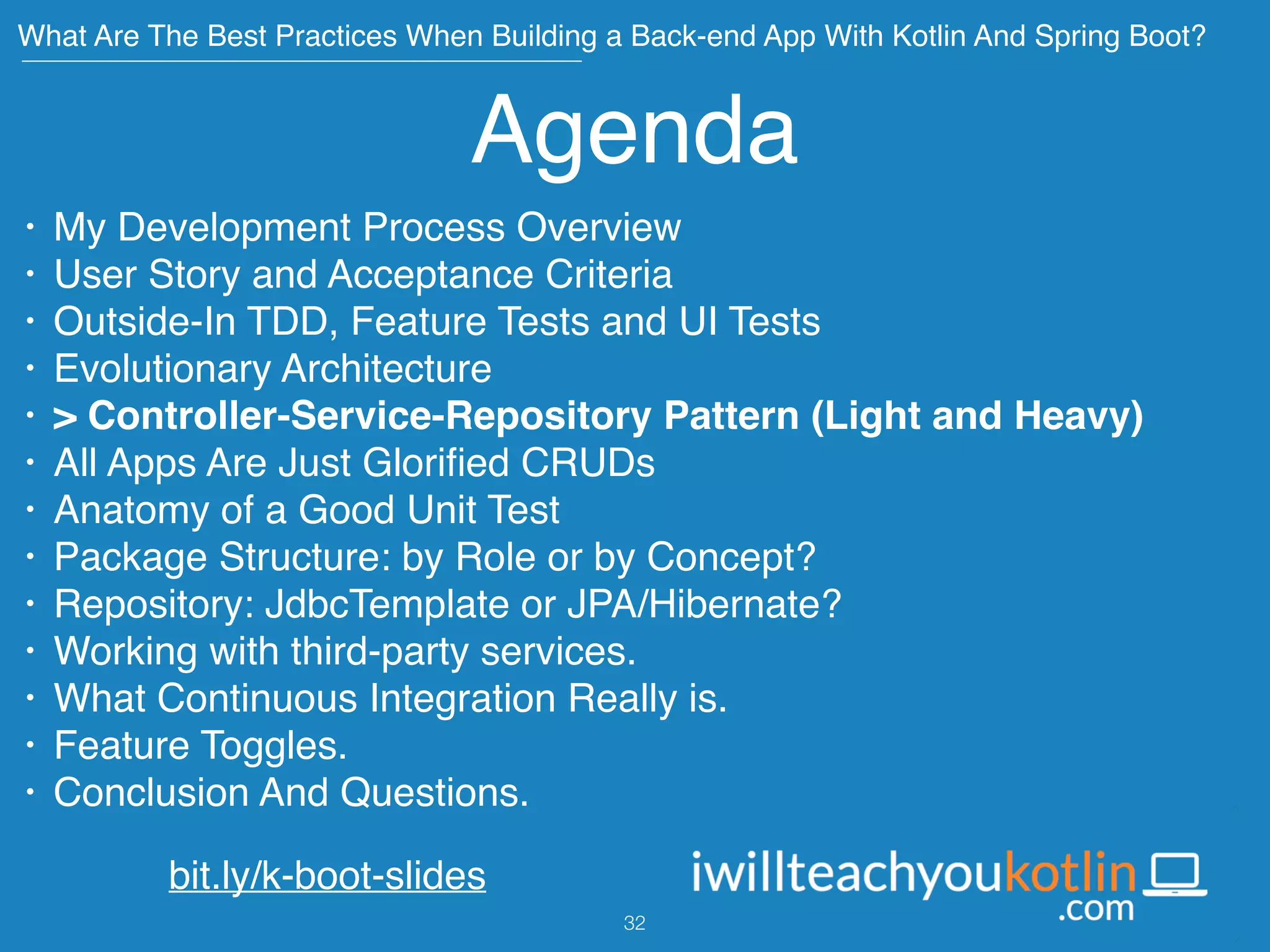

Agenda
• > Controller-Service-Repository Pattern (Light and Heavy)
32

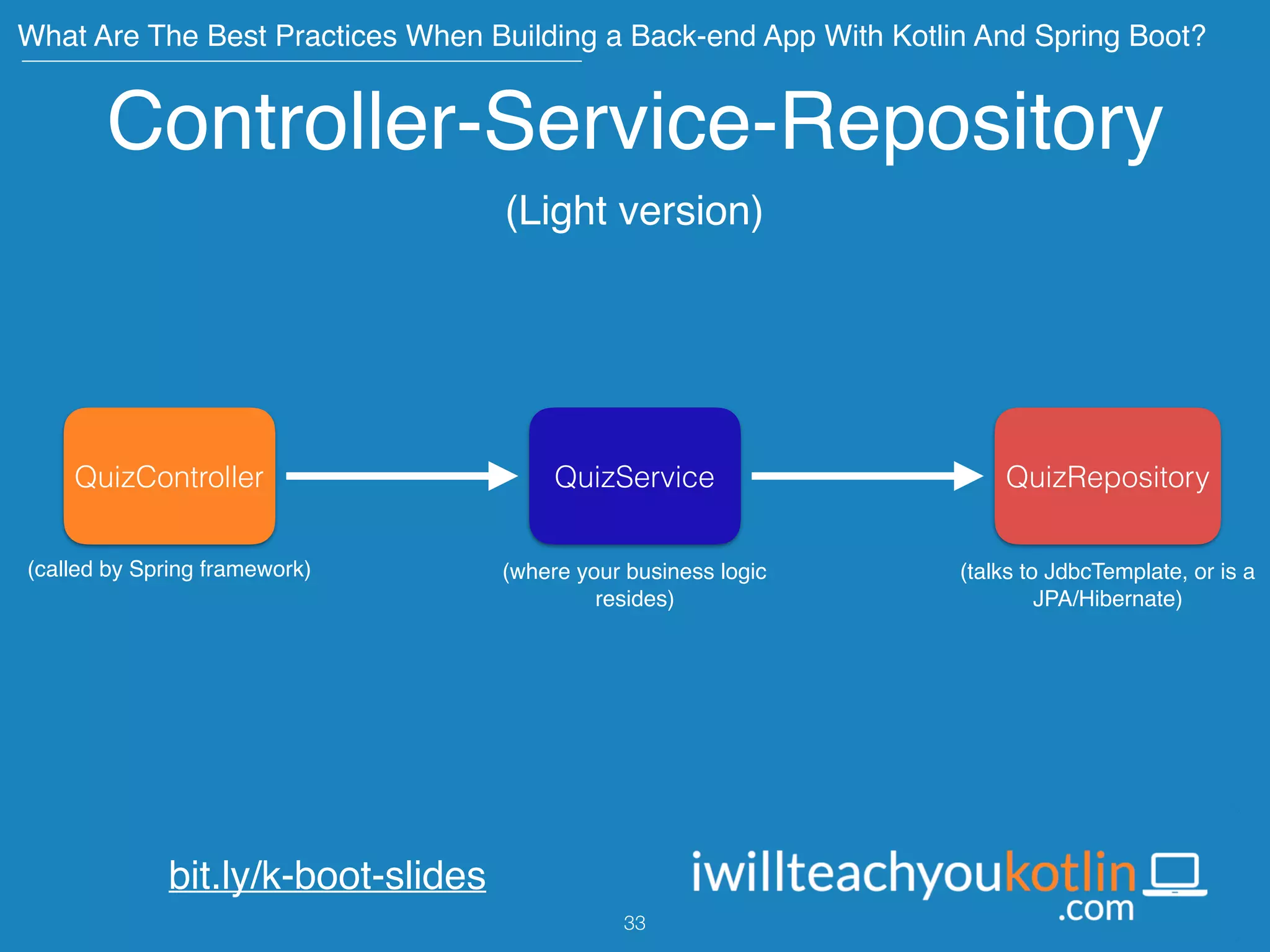

Controller-Service-Repository
(Light version)
QuizController QuizService QuizRepository
(called by Spring framework) (talks to JdbcTemplate, or is a
JPA/Hibernate)
(where your business logic
resides)
33

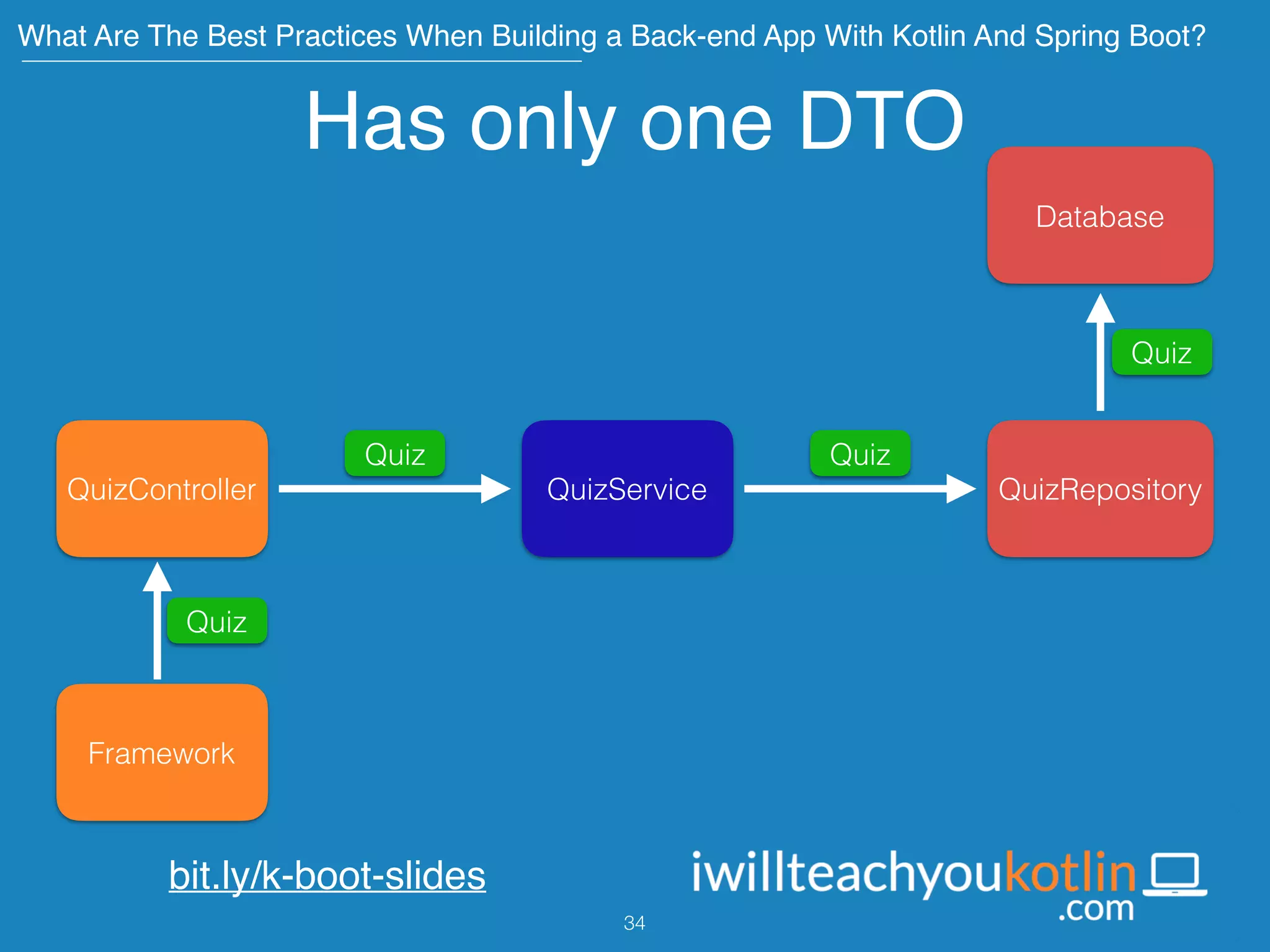

Has only one DTO
Quiz Quiz
Framework
Quiz
Database
Quiz
34

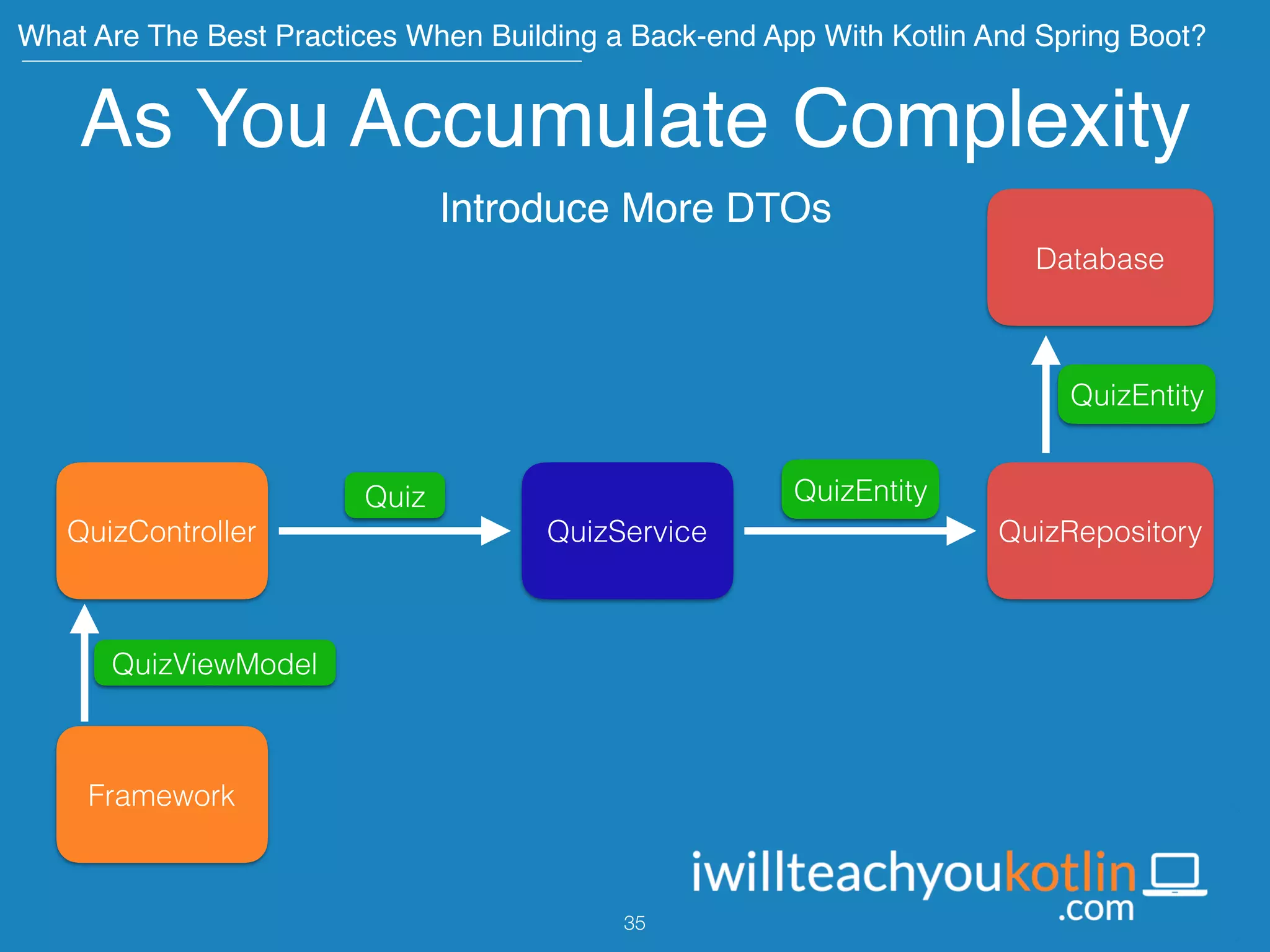

As You Accumulate Complexity
Quiz
Framework
QuizViewModel
Database
QuizEntity
Introduce More DTOs
QuizEntity
35

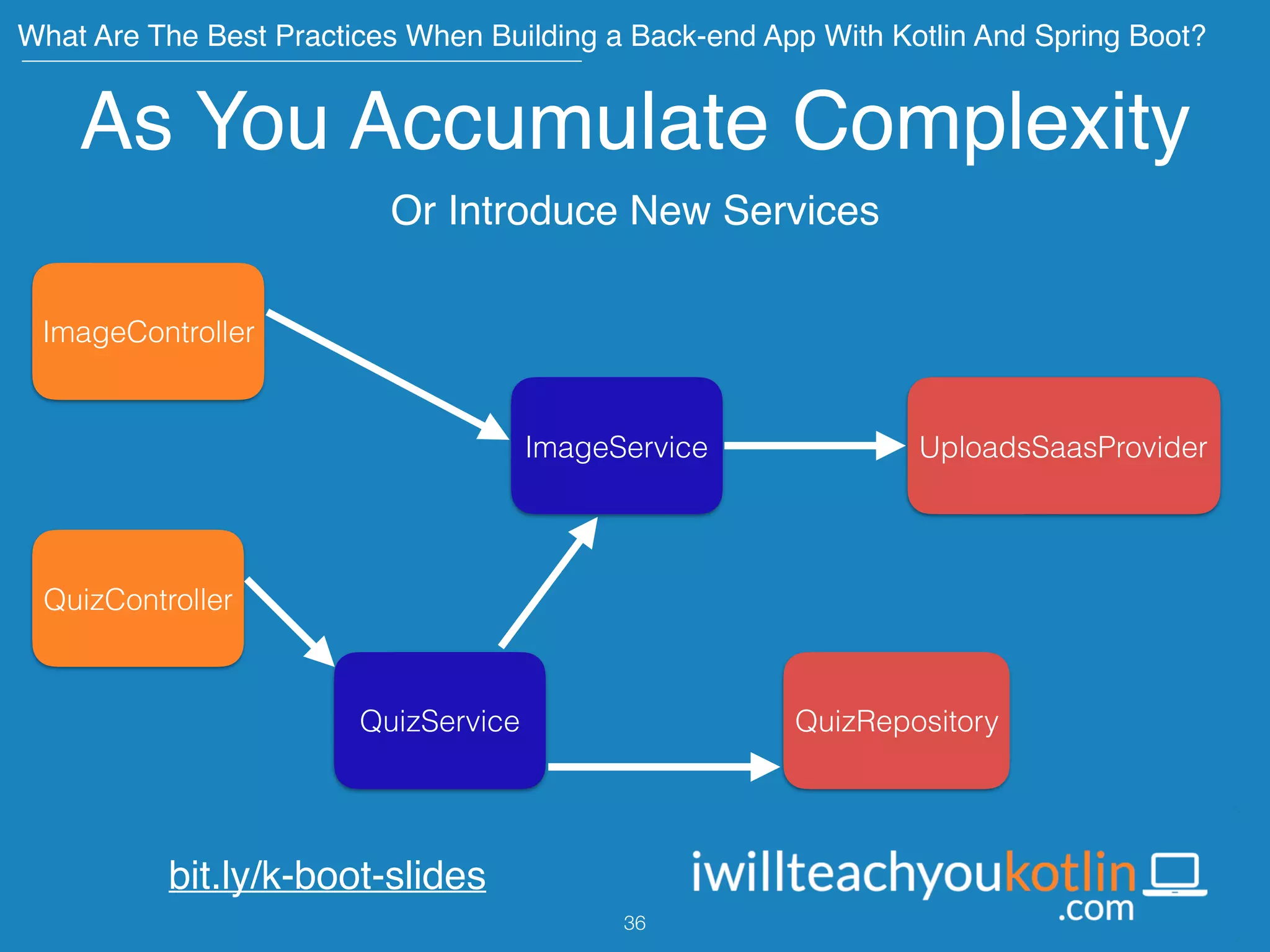

Or Introduce New Services
QuizController
QuizService QuizRepository
As You Accumulate Complexity
ImageService UploadsSaasProvider
ImageController
36

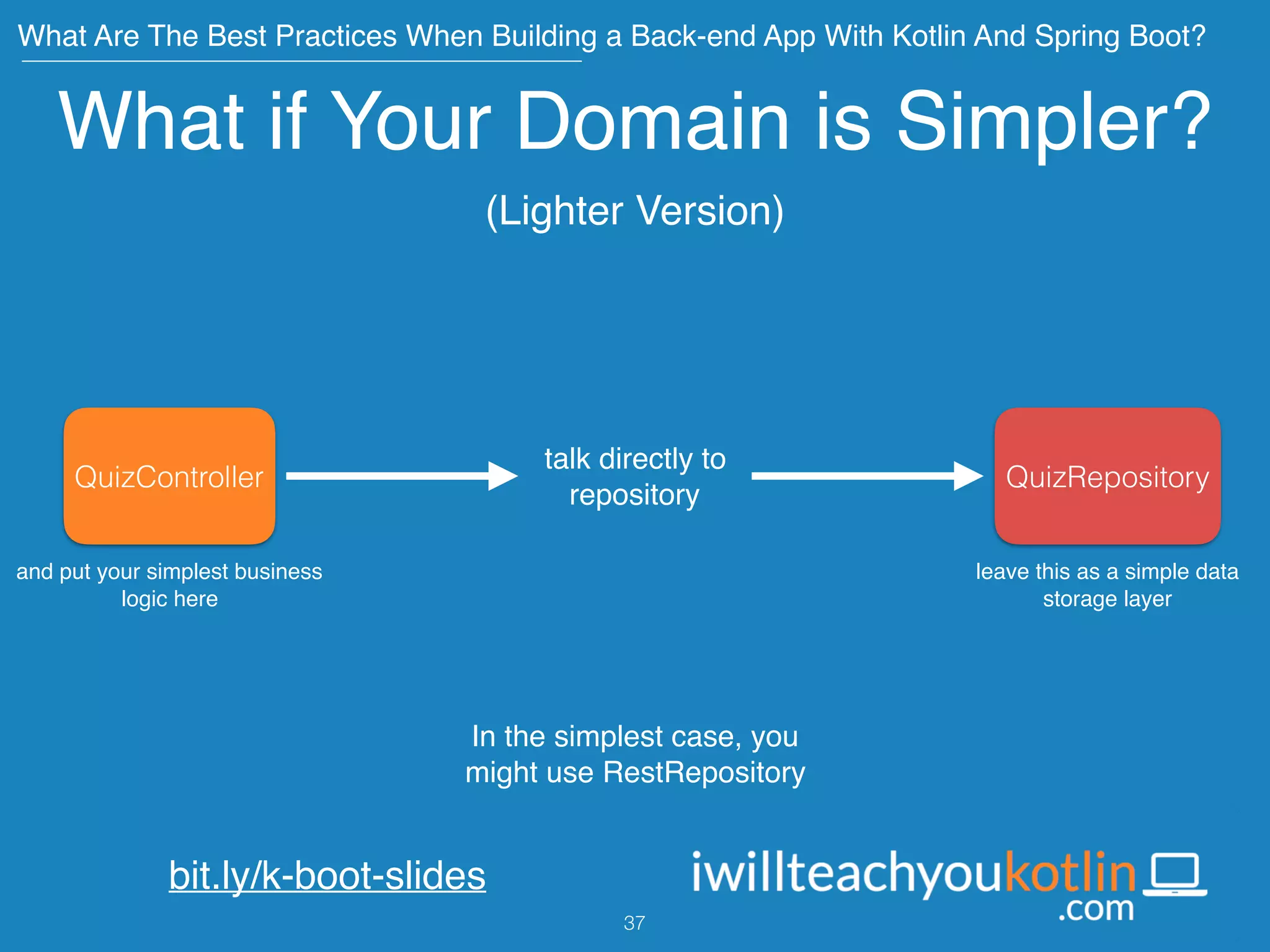

What if Your Domain is Simpler?
(Lighter Version)
QuizController QuizRepository
and put your simplest business
logic here
leave this as a simple data
storage layer
talk directly to
repository
In the simplest case, you
might use RestRepository
37

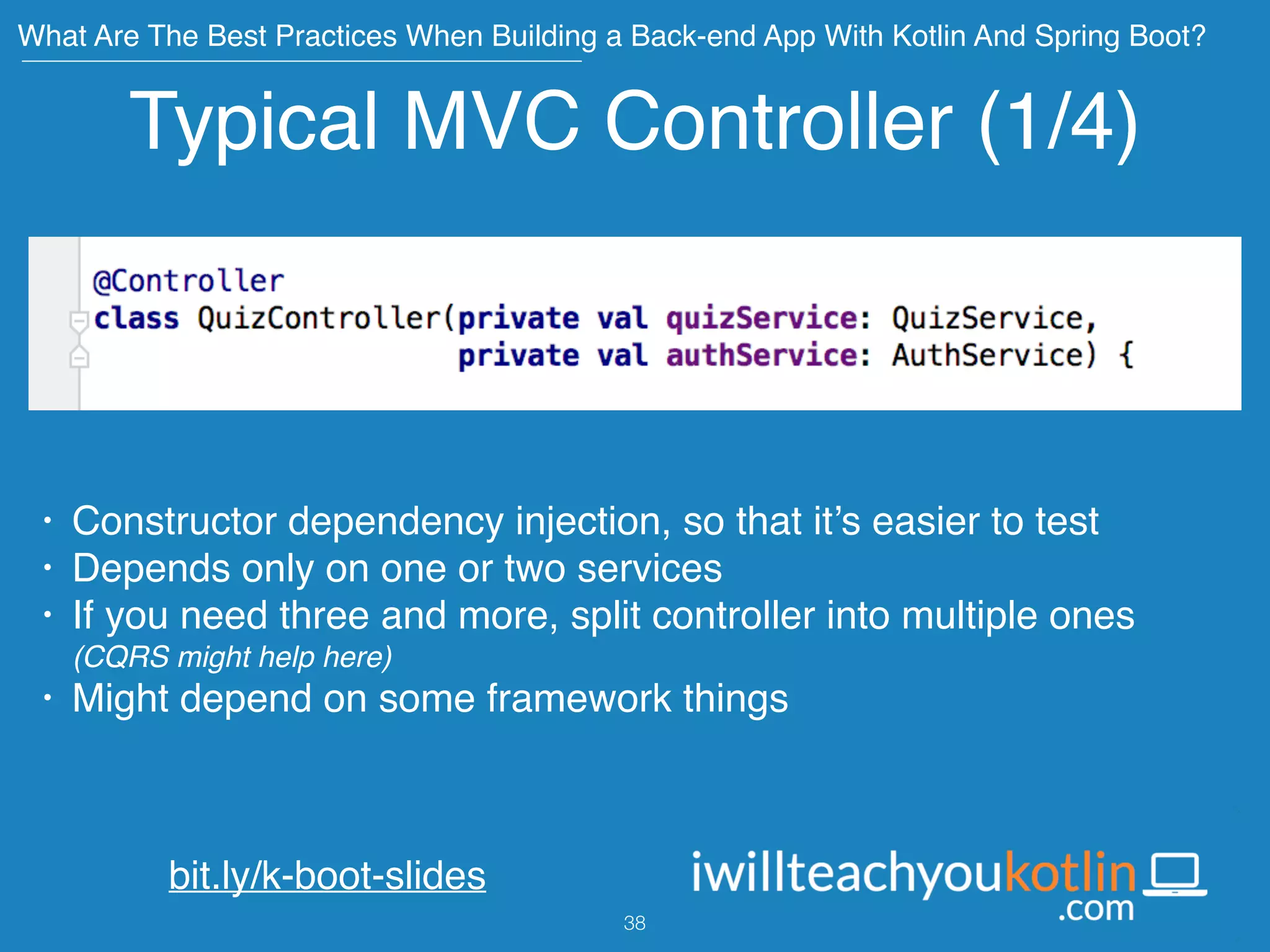

Typical MVC Controller (1/4)
• Constructor dependency injection, so that it’s easier to test
• Depends only on one or two services
• If you need three and more, split controller into multiple ones 
(CQRS might help here)
• Might depend on some framework things
38

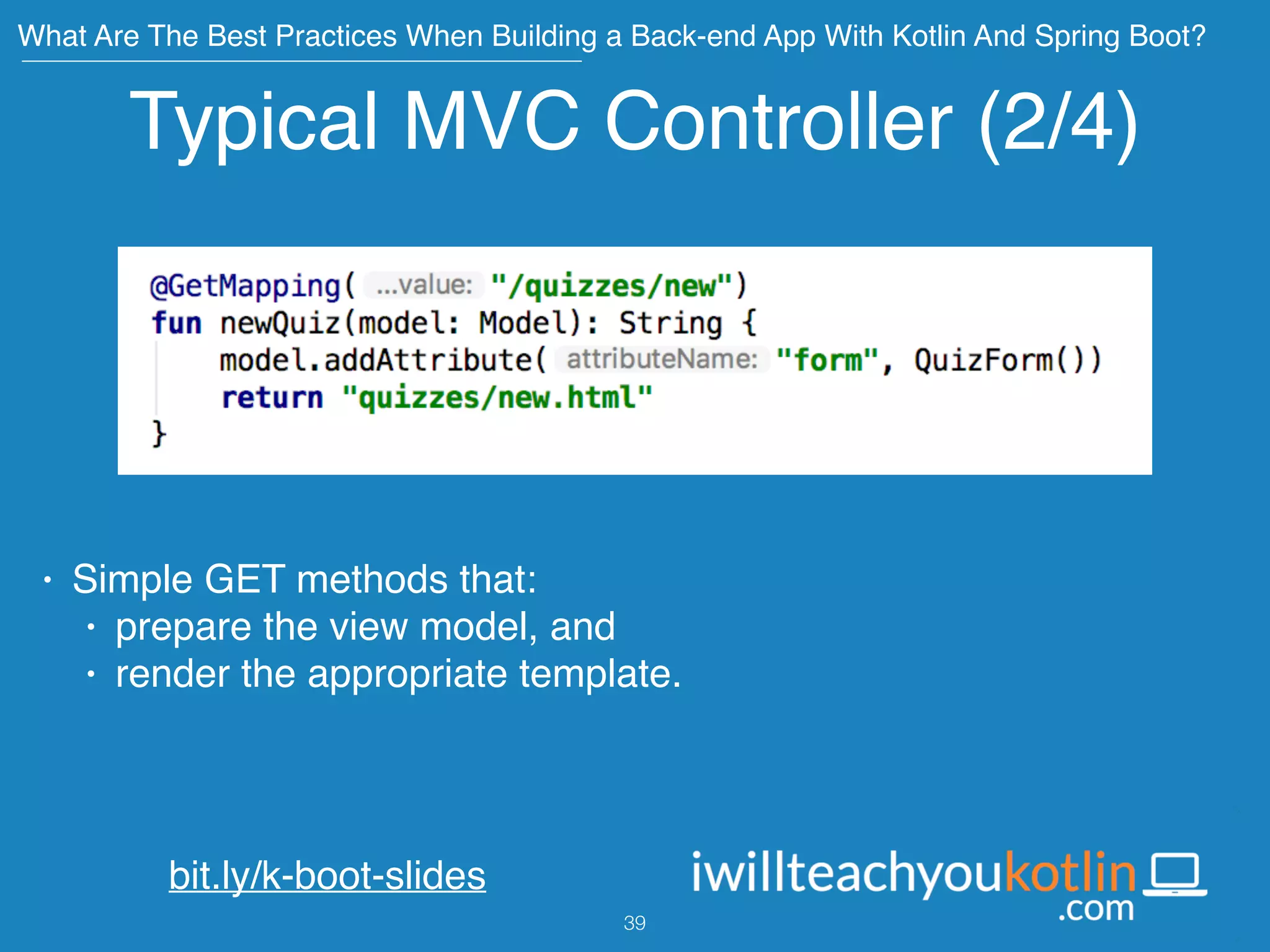

• Simple GET methods that:
• prepare the view model, and
• render the appropriate template.
39

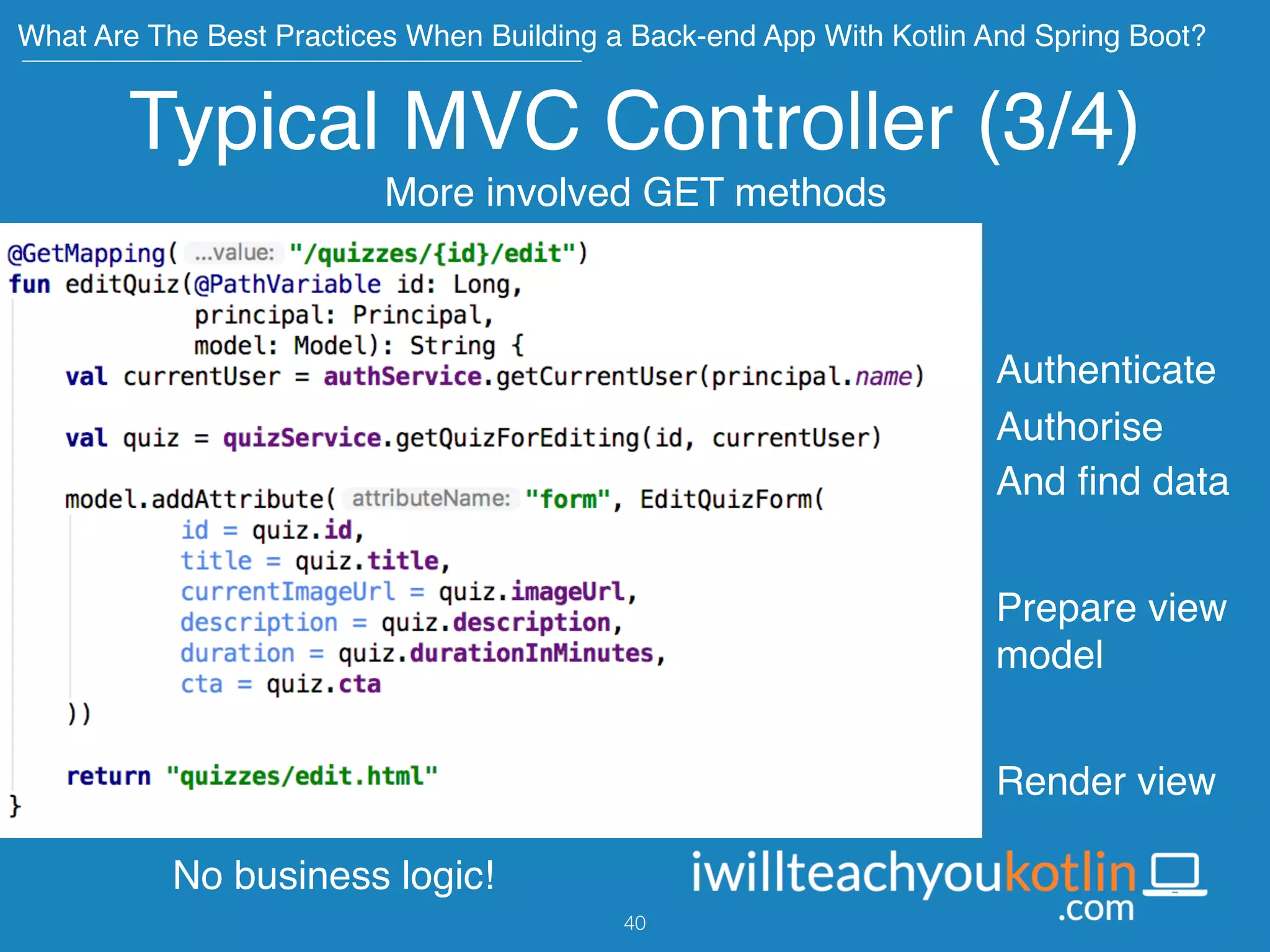

Authenticate
Authorise
And ﬁnd data
Prepare view
model
Render view
More involved GET methods
No business logic!
40

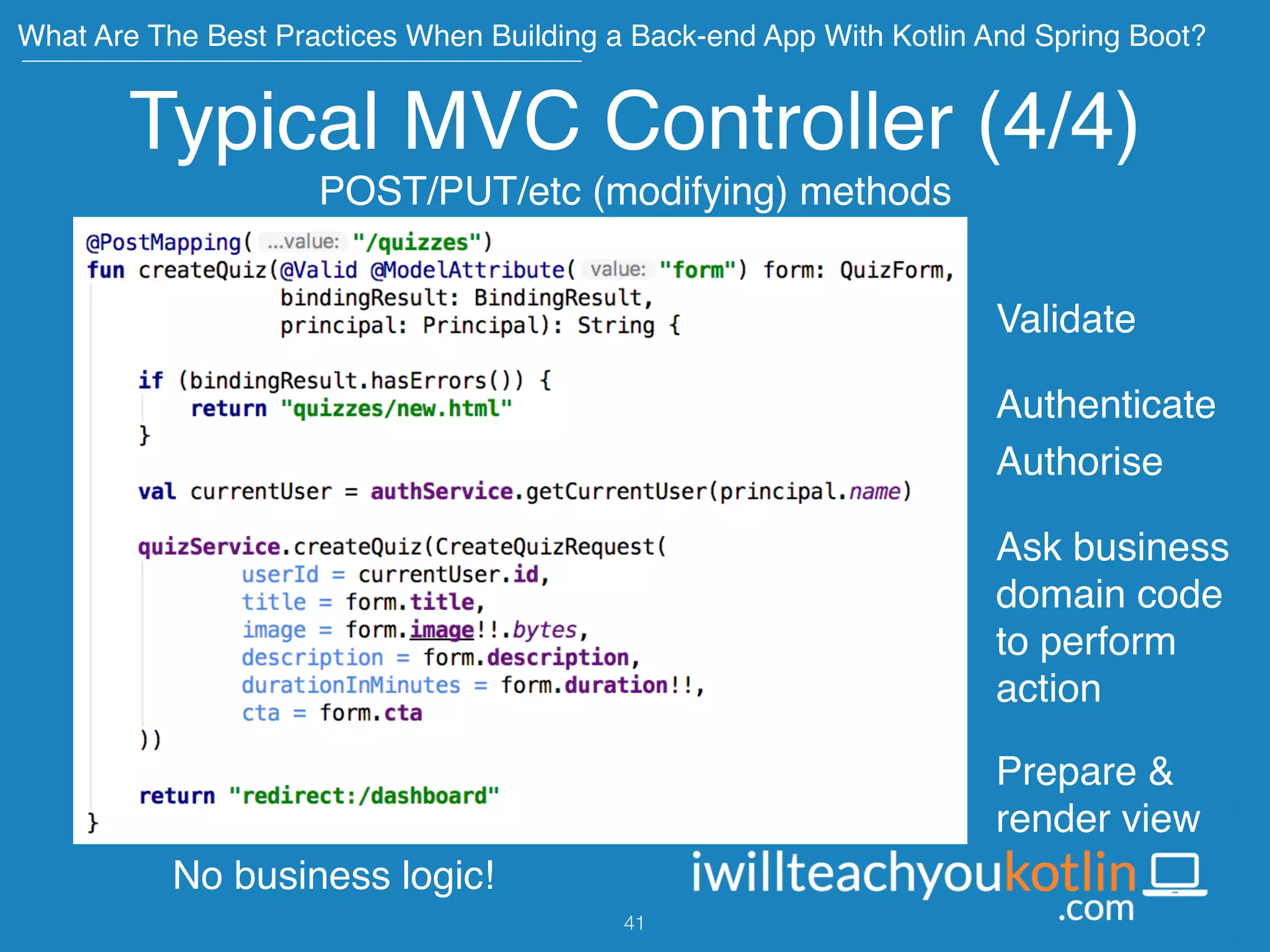

Authenticate
Authorise
Ask business
domain code
to perform
action
Prepare &
render view
POST/PUT/etc (modifying) methods
No business logic!
Validate
41

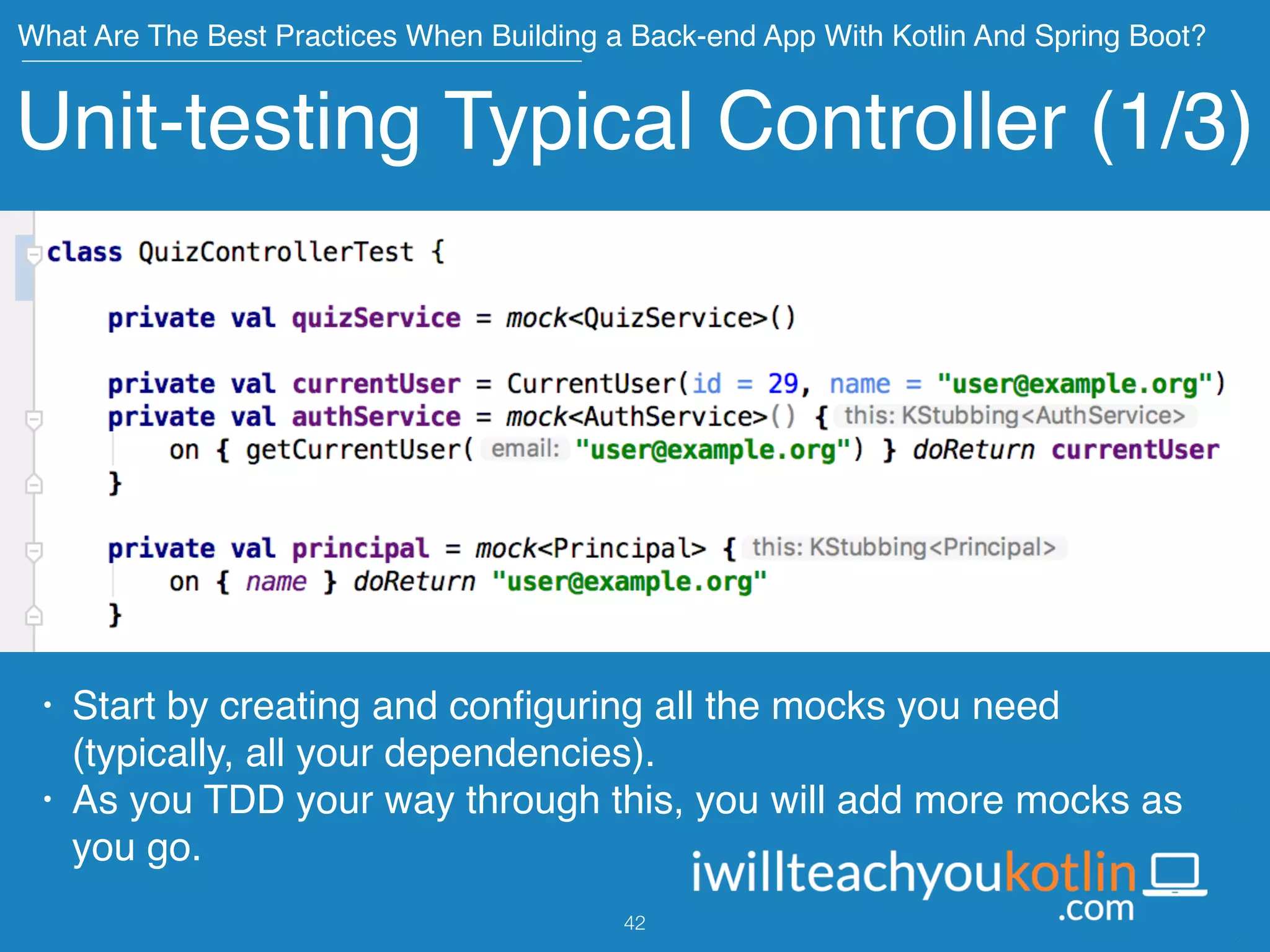

Unit-testing Typical Controller (1/3)
• Start by creating and conﬁguring all the mocks you need 
(typically, all your dependencies).
• As you TDD your way through this, you will add more mocks as
you go.
42

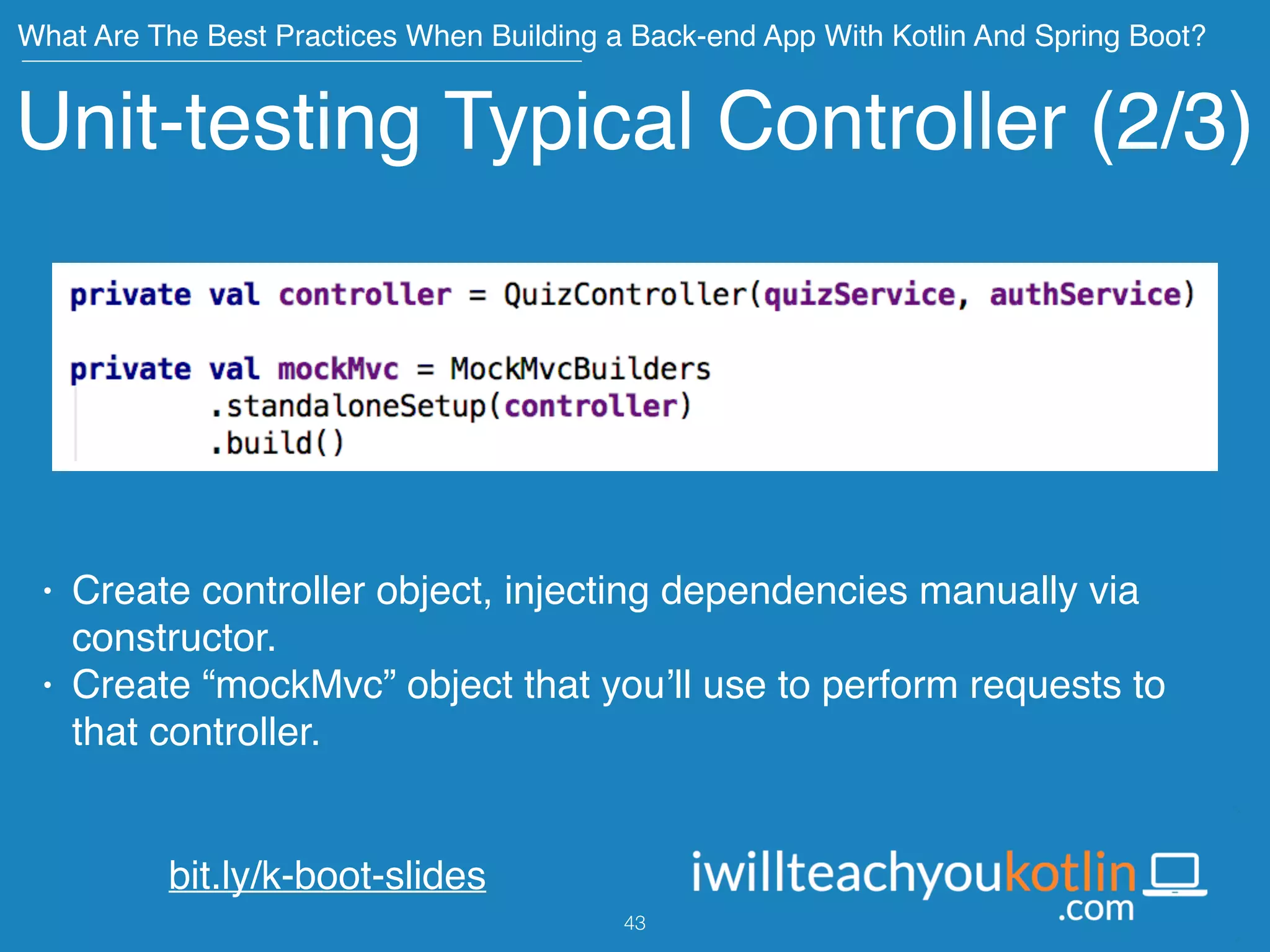

• Create controller object, injecting dependencies manually via
constructor.
• Create “mockMvc” object that you’ll use to perform requests to
that controller.
43

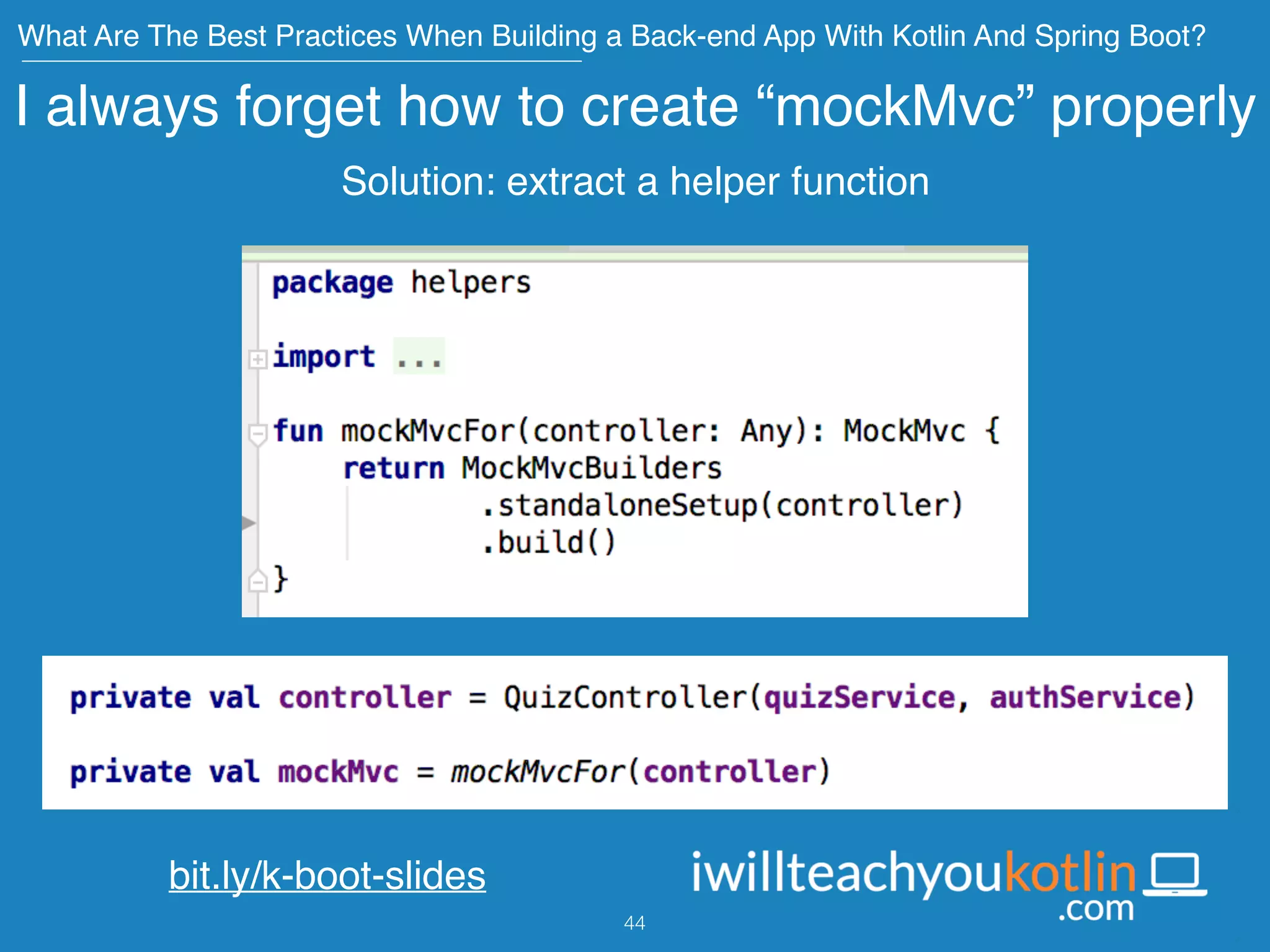

I always forget how to create “mockMvc” properly
Solution: extract a helper function
44

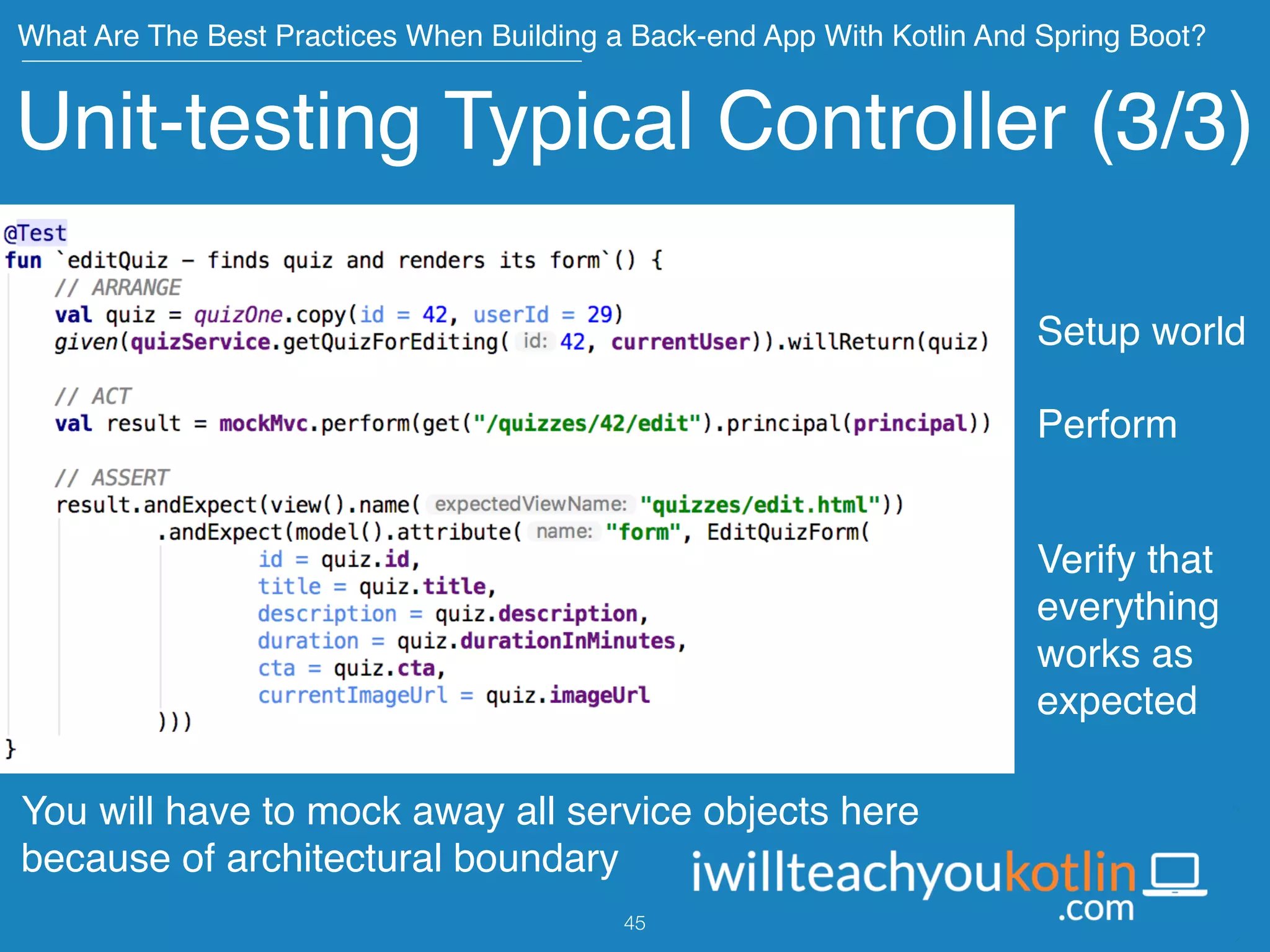

Setup world
Perform
Verify that
everything
works as
expected
You will have to mock away all service objects here 
because of architectural boundary
45

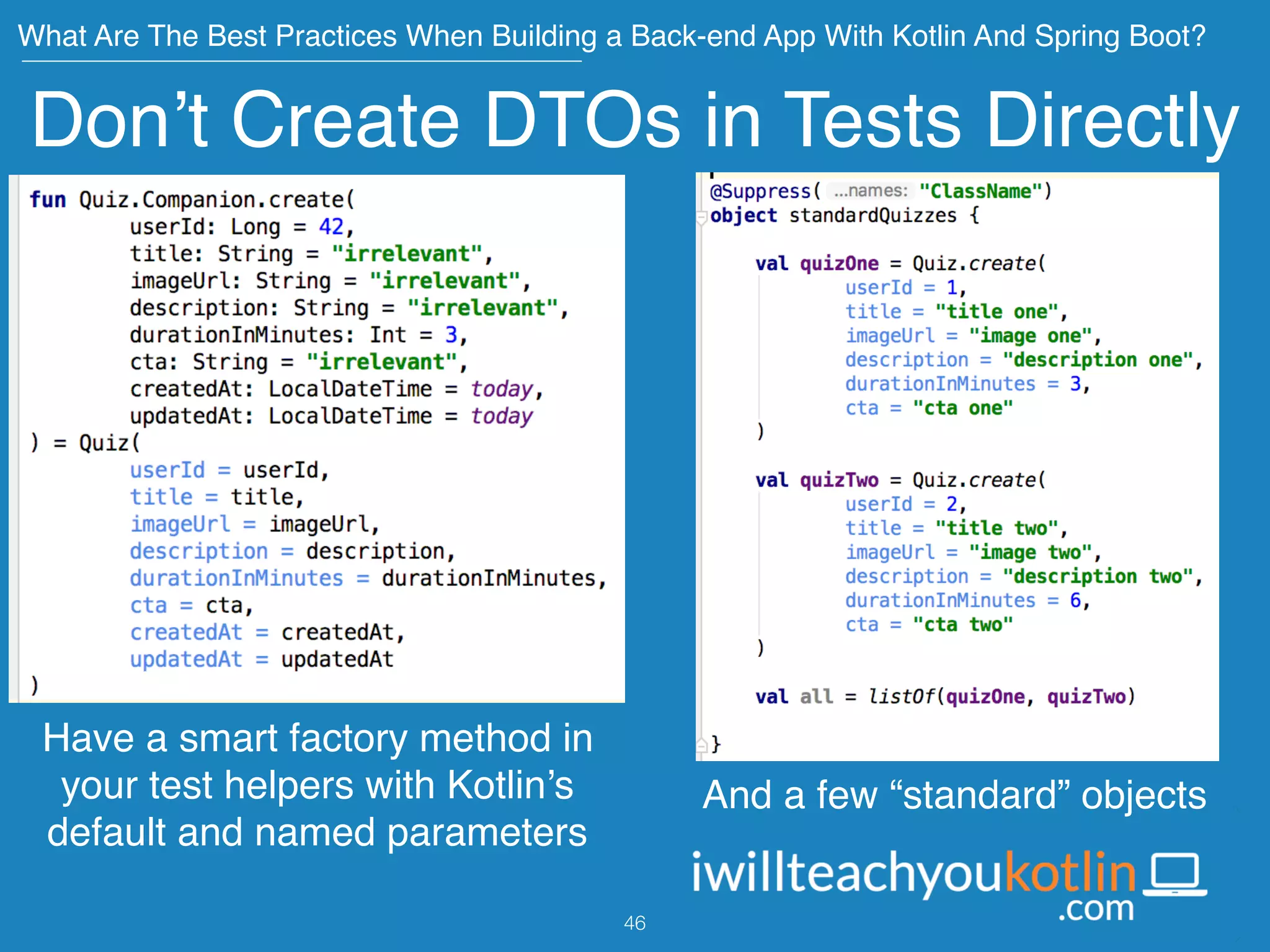

Don’t Create DTOs in Tests Directly
Have a smart factory method in
your test helpers with Kotlin’s
default and named parameters
And a few “standard” objects
46

Join My Newsletter
• Early bird for screencast series:  
“Kotlin/Back-End Best Practices.”
• Exclusive articles about Kotlin monthly.
bit.ly/kotlin-newsletter
47

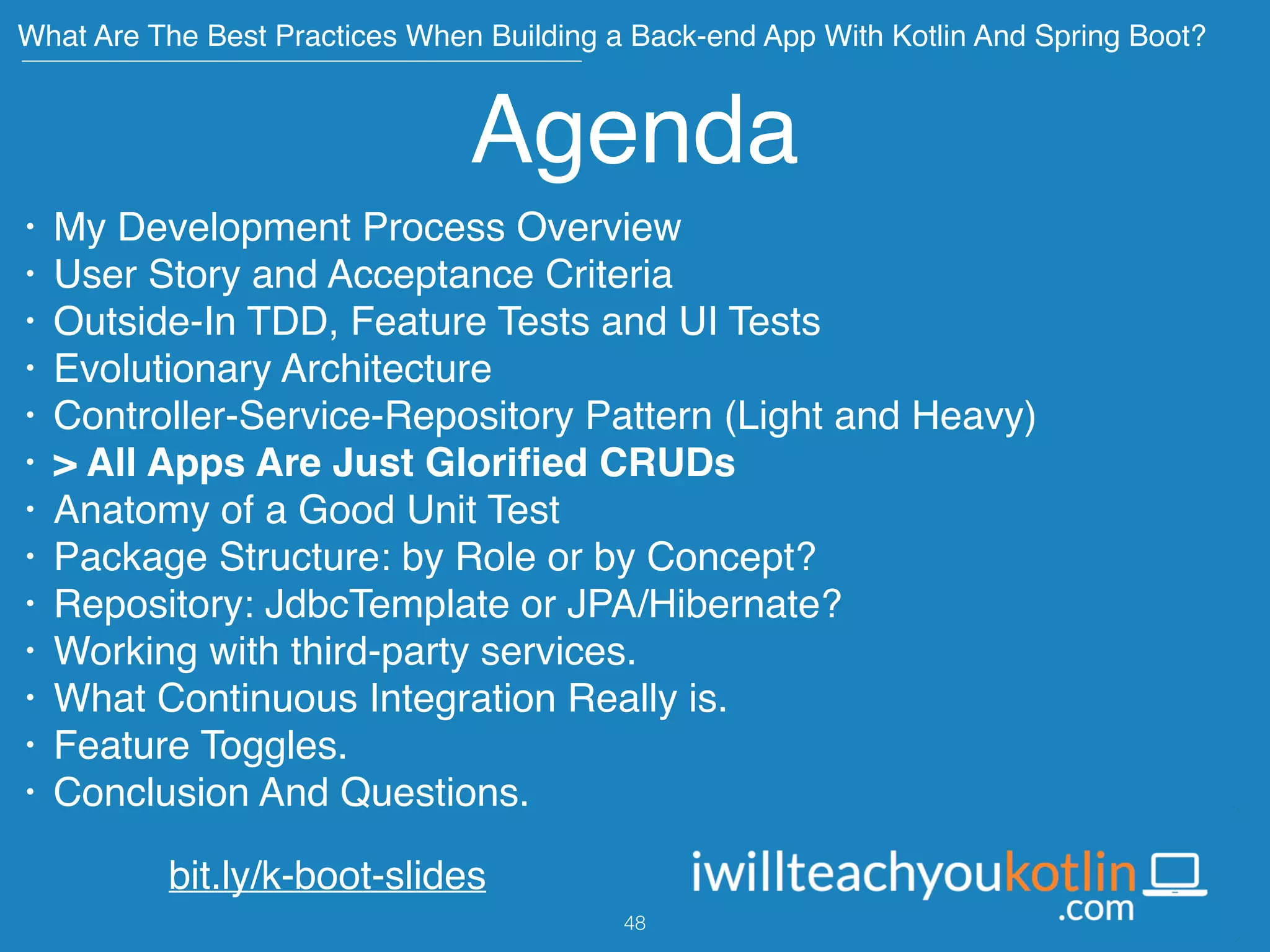

Agenda
• > All Apps Are Just Gloriﬁed CRUDs
48

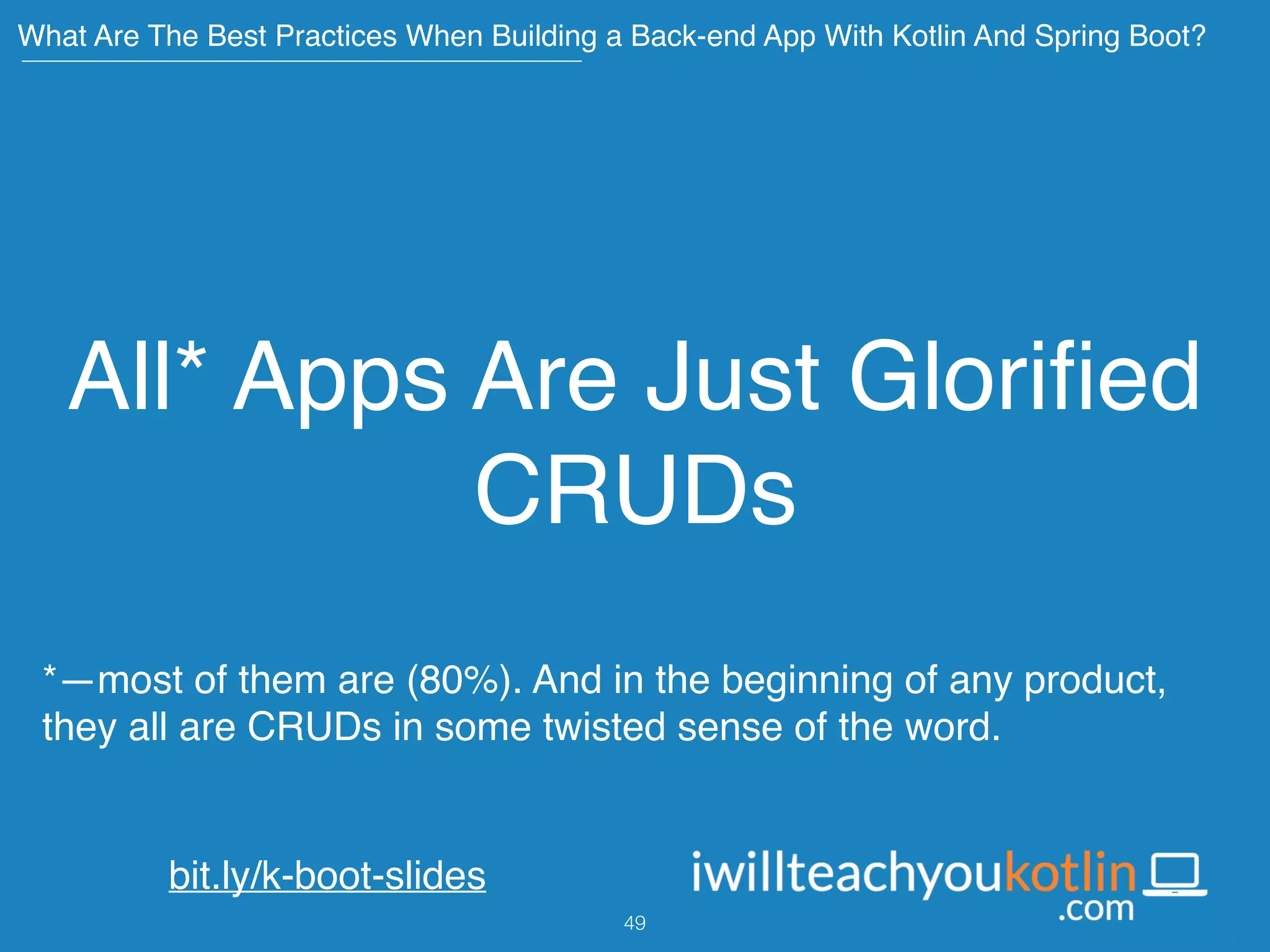

All* Apps Are Just Gloriﬁed
CRUDs
*—most of them are (80%). And in the beginning of any product,
they all are CRUDs in some twisted sense of the word.
49

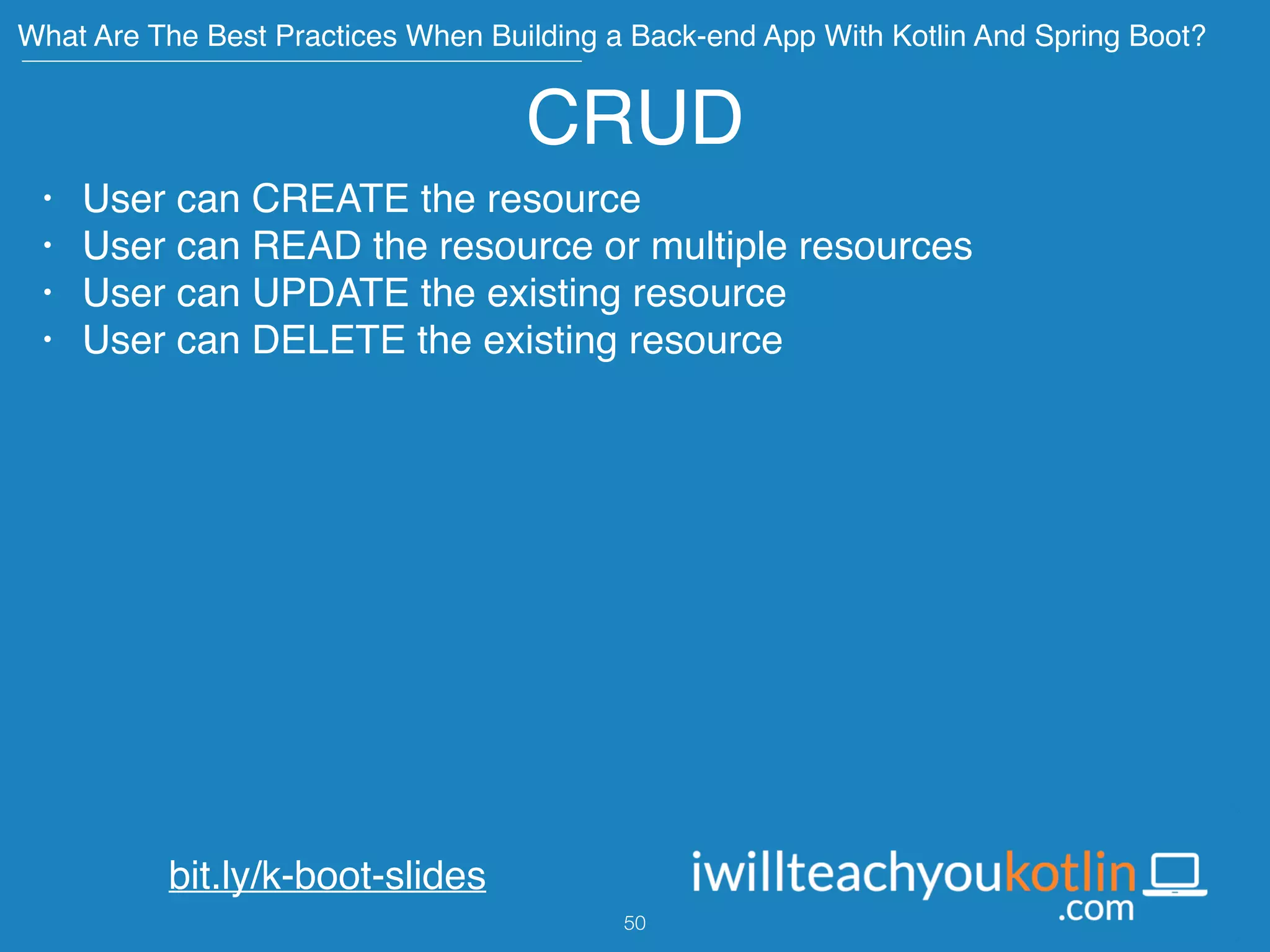

CRUD
• User can CREATE the resource
• User can READ the resource or multiple resources
• User can UPDATE the existing resource
• User can DELETE the existing resource
50

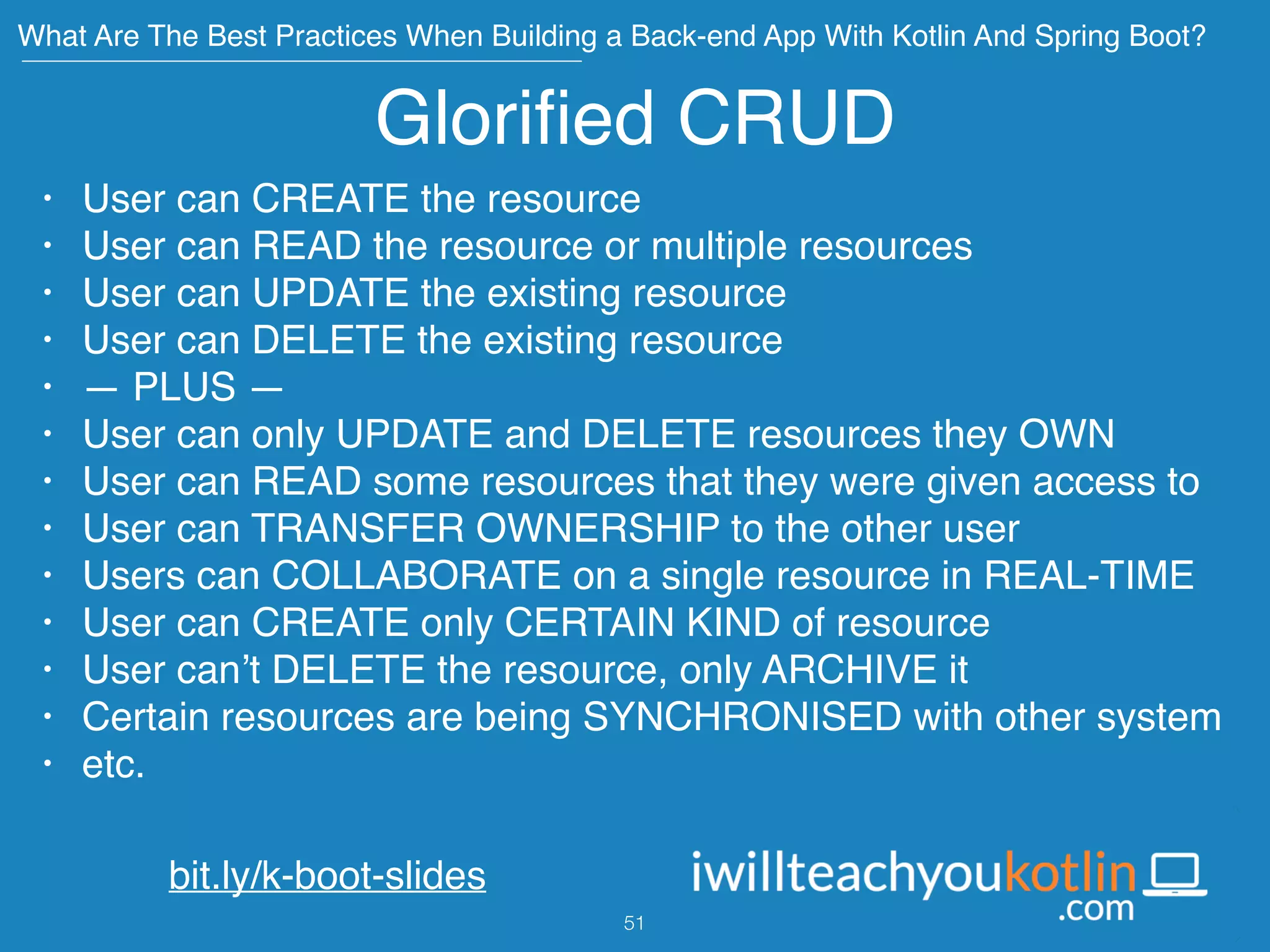

Gloriﬁed CRUD
• — PLUS —
• User can only UPDATE and DELETE resources they OWN
• User can READ some resources that they were given access to
• User can TRANSFER OWNERSHIP to the other user
• Users can COLLABORATE on a single resource in REAL-TIME
• User can CREATE only CERTAIN KIND of resource
• User can’t DELETE the resource, only ARCHIVE it
• Certain resources are being SYNCHRONISED with other system
• etc.
51

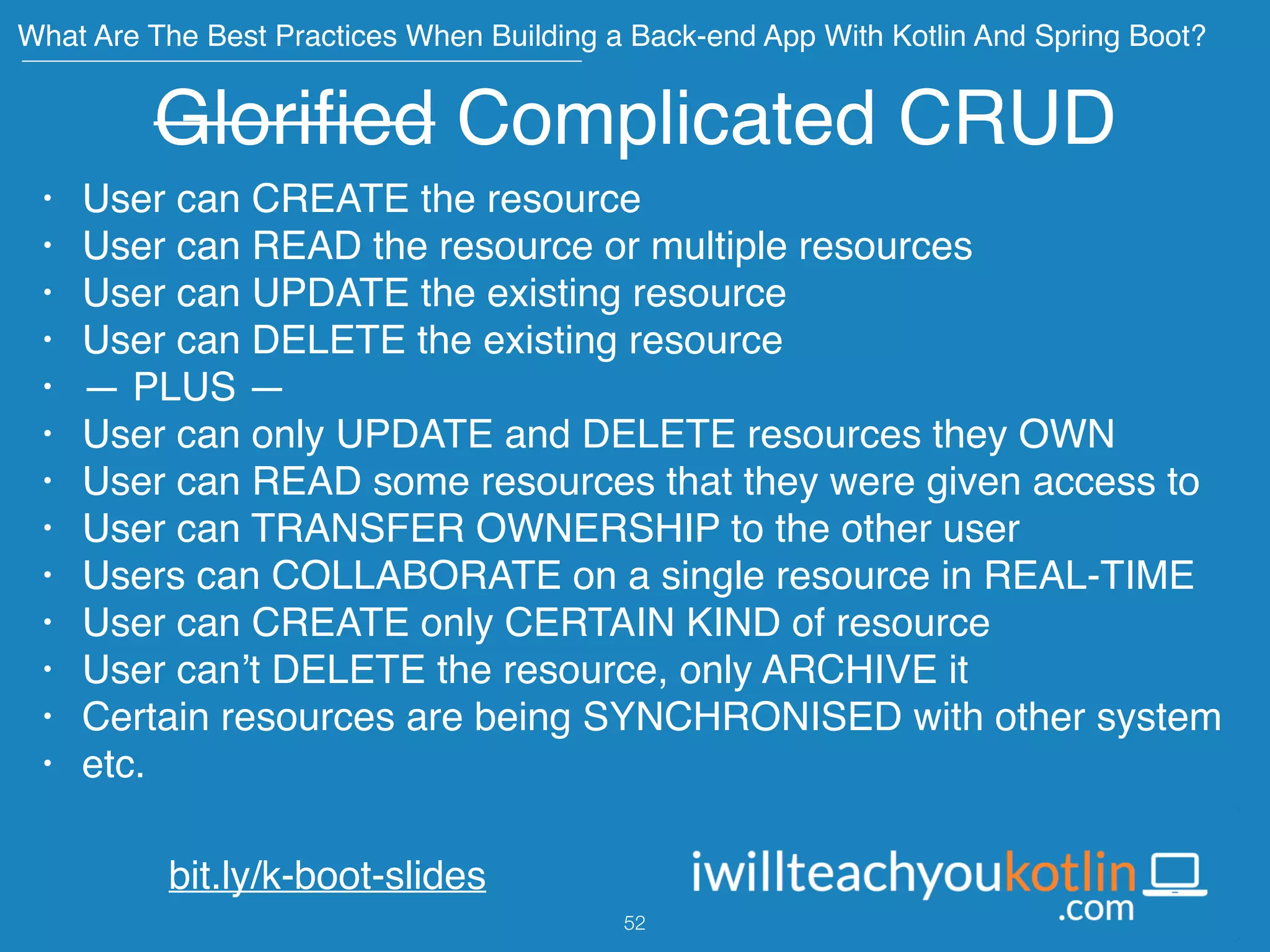

Gloriﬁed Complicated CRUD
• — PLUS —
• etc.
52

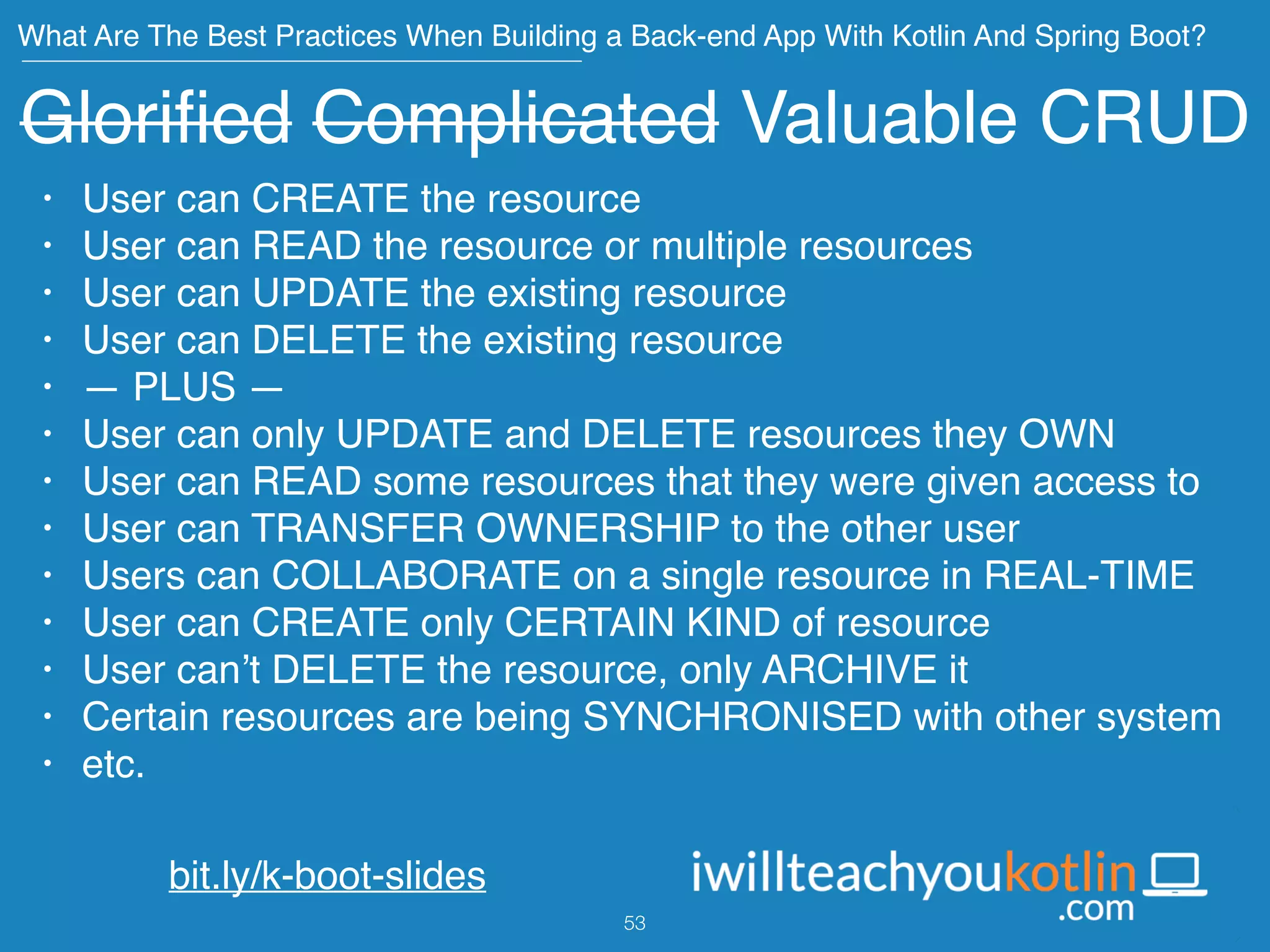

Gloriﬁed Complicated Valuable CRUD
• — PLUS —
• etc.
53

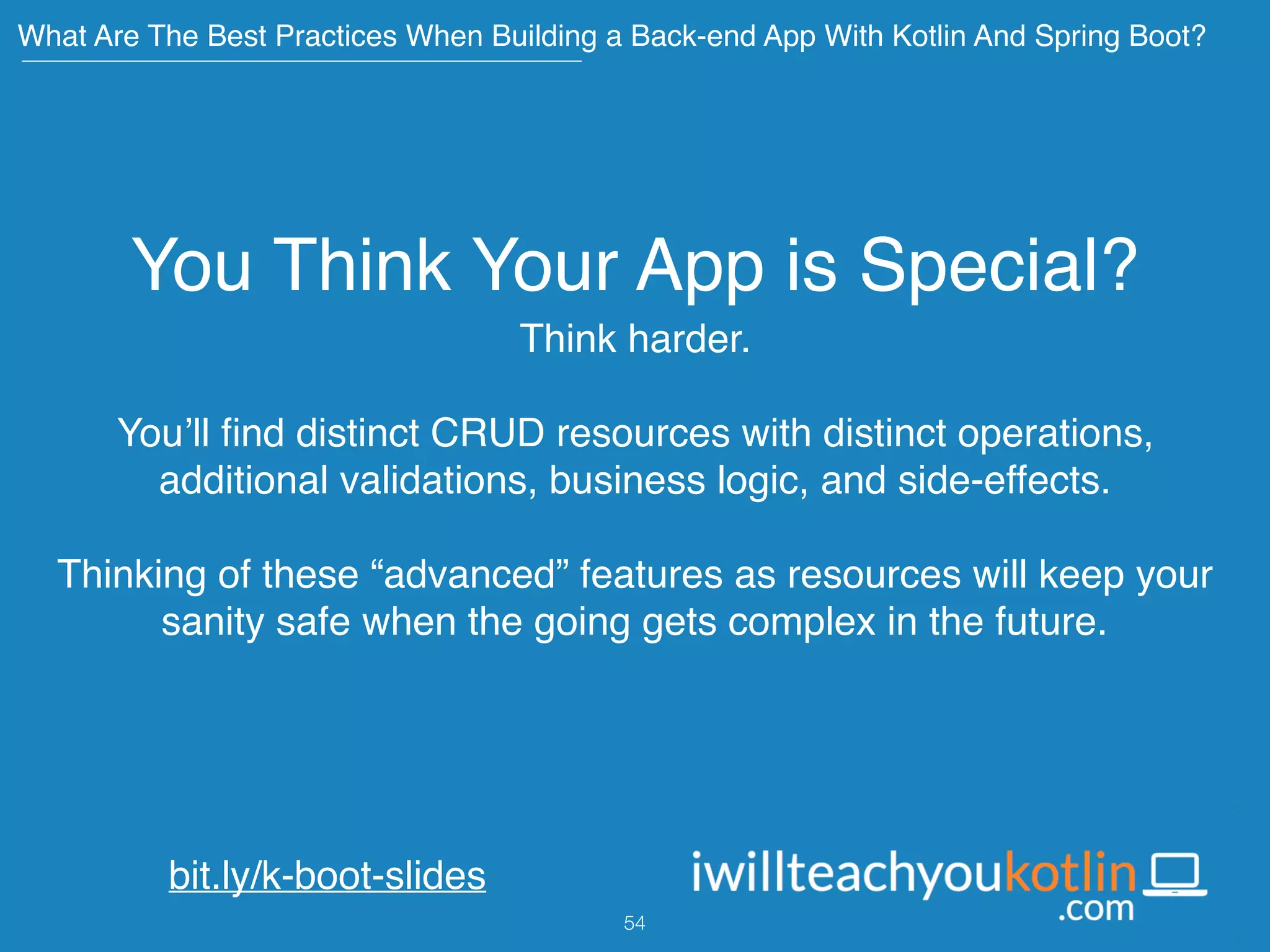

You Think Your App is Special?
Think harder.
You’ll ﬁnd distinct CRUD resources with distinct operations,
additional validations, business logic, and side-effects. 
 
Thinking of these “advanced” features as resources will keep your
sanity safe when the going gets complex in the future.
54

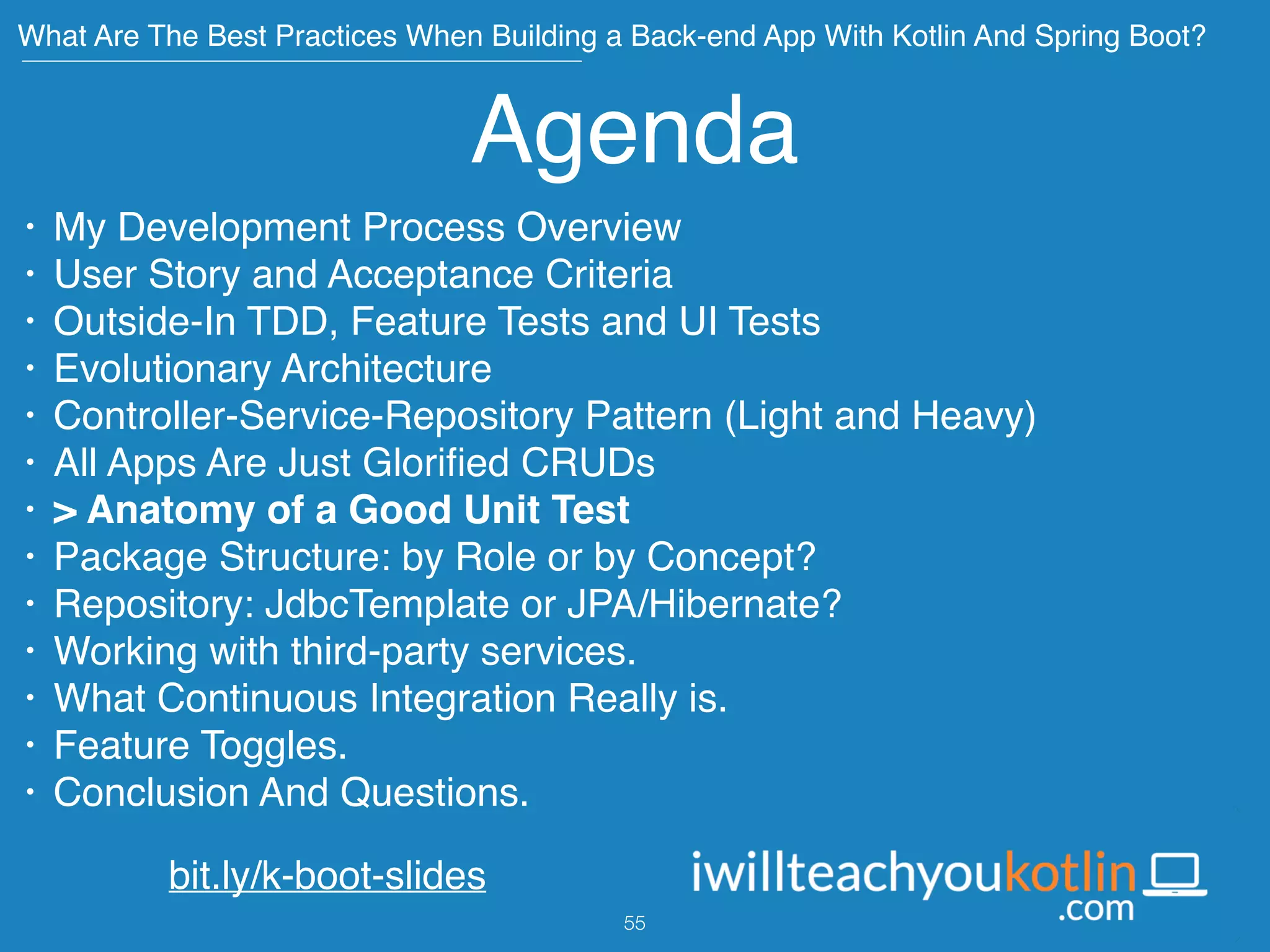

Agenda
• > Anatomy of a Good Unit Test
55

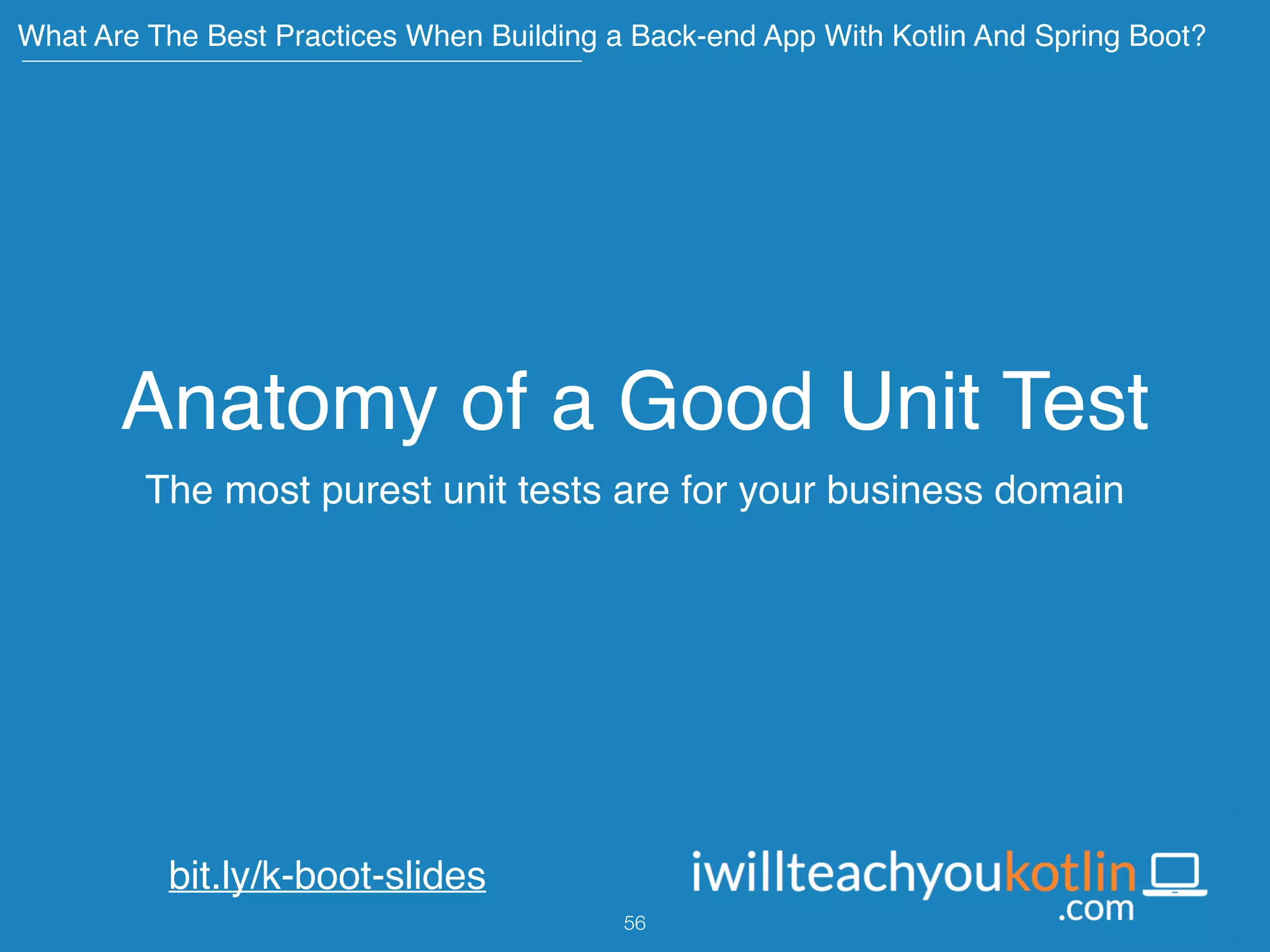

Anatomy of a Good Unit Test
The most purest unit tests are for your business domain
56

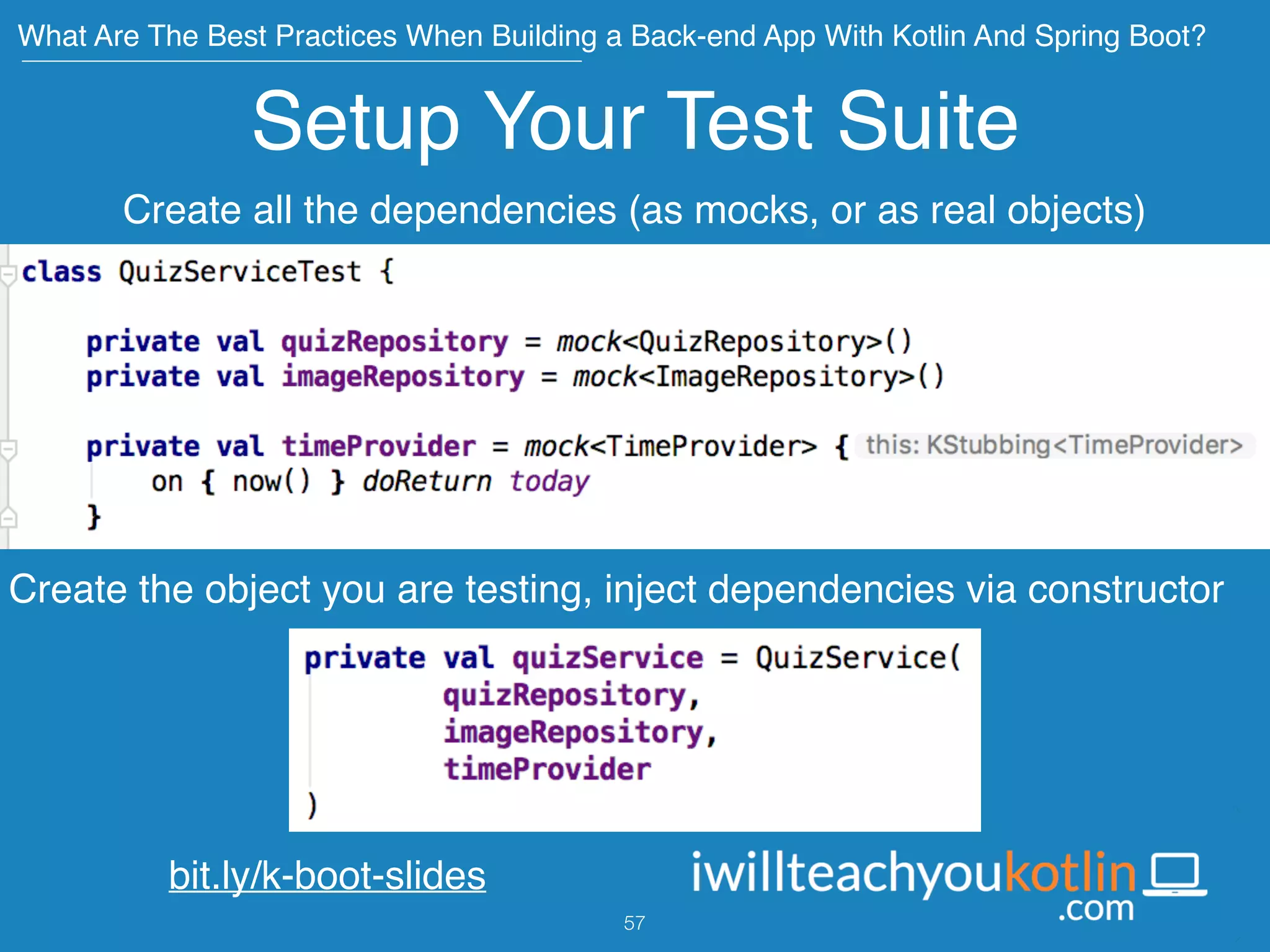

Setup Your Test Suite
Create all the dependencies (as mocks, or as real objects)
Create the object you are testing, inject dependencies via constructor
57

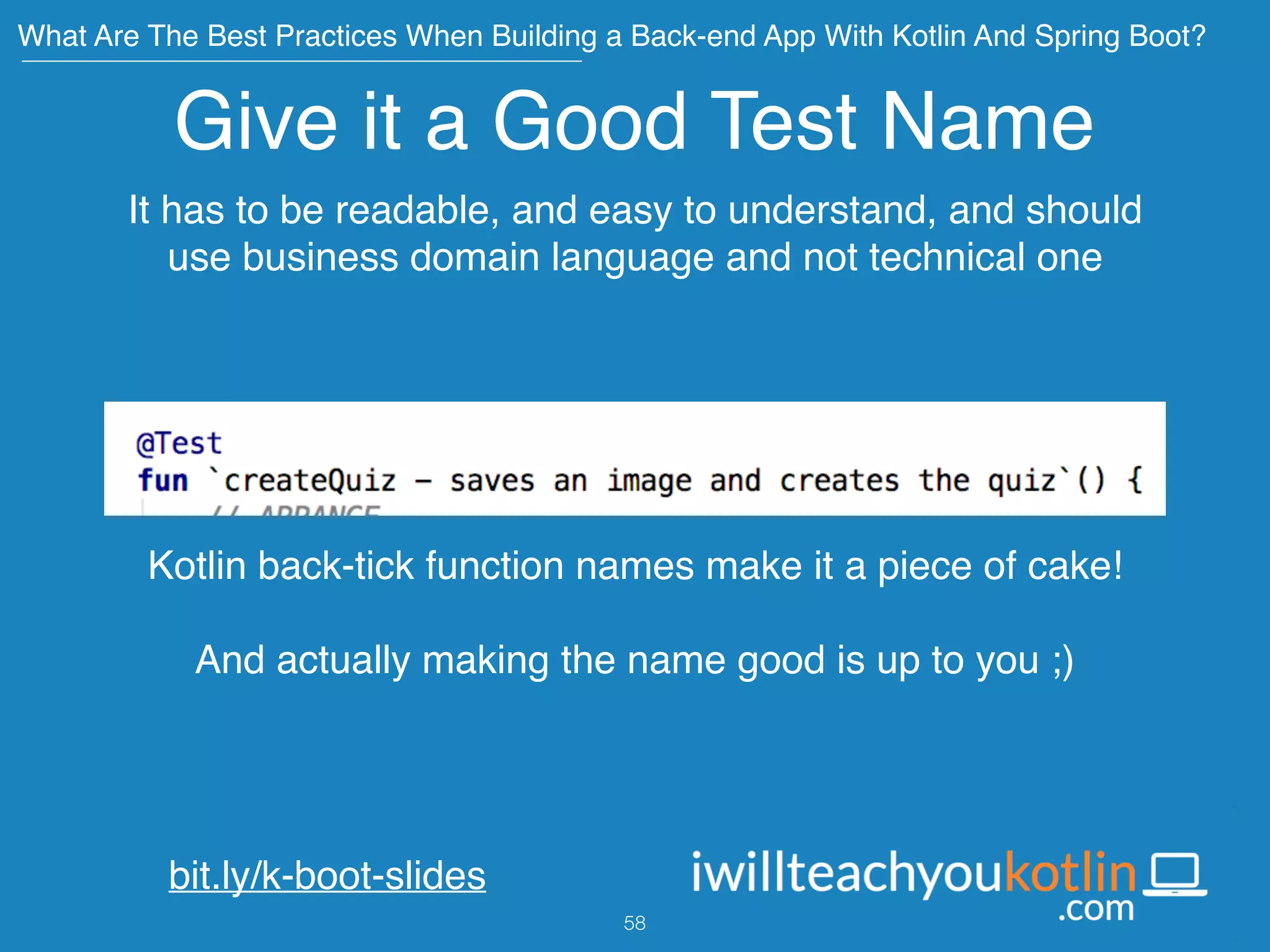

Give it a Good Test Name
It has to be readable, and easy to understand, and should
use business domain language and not technical one
Kotlin back-tick function names make it a piece of cake! 
 
And actually making the name good is up to you ;)
58

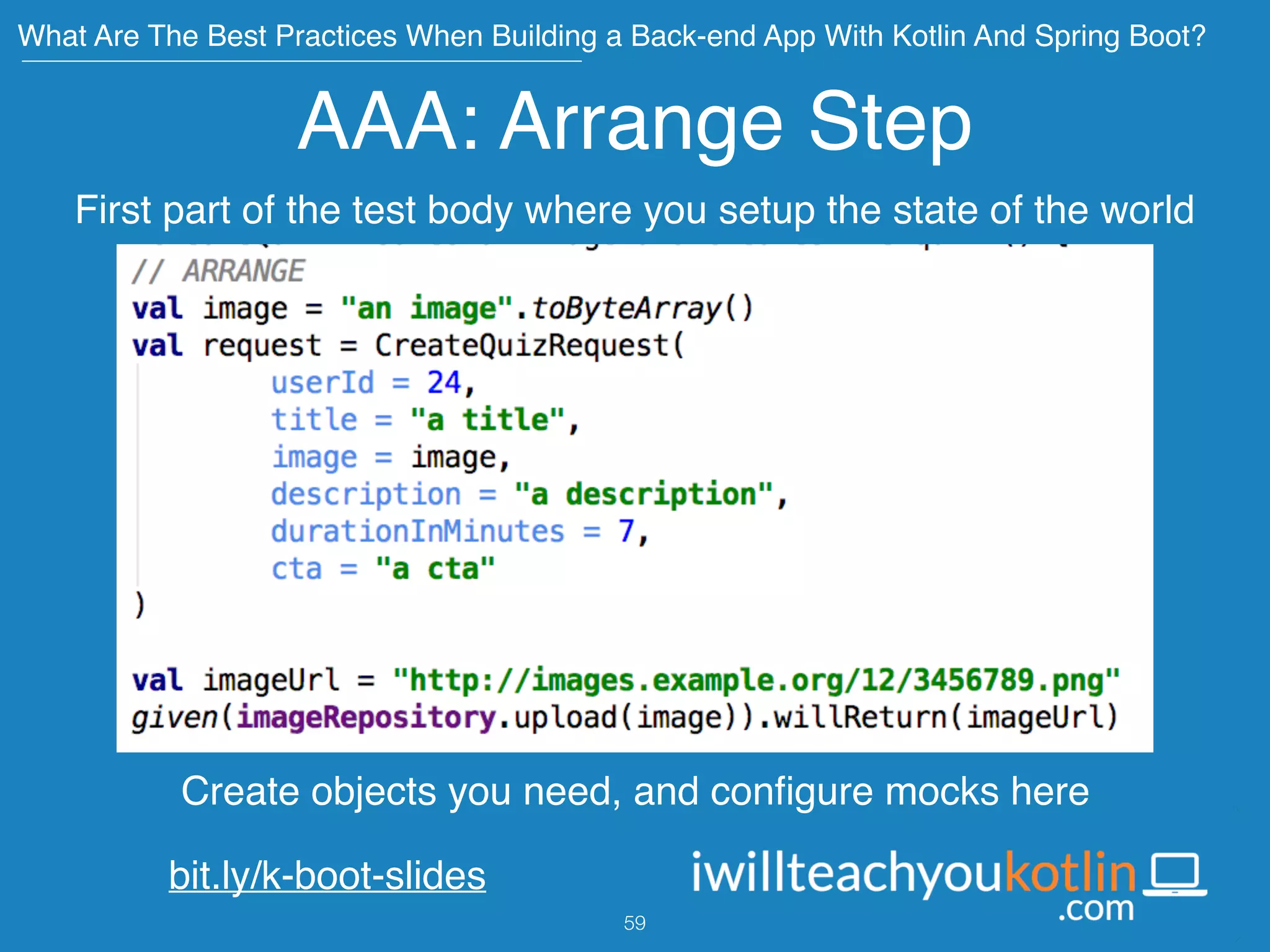

AAA: Arrange Step
First part of the test body where you setup the state of the world
Create objects you need, and conﬁgure mocks here
59

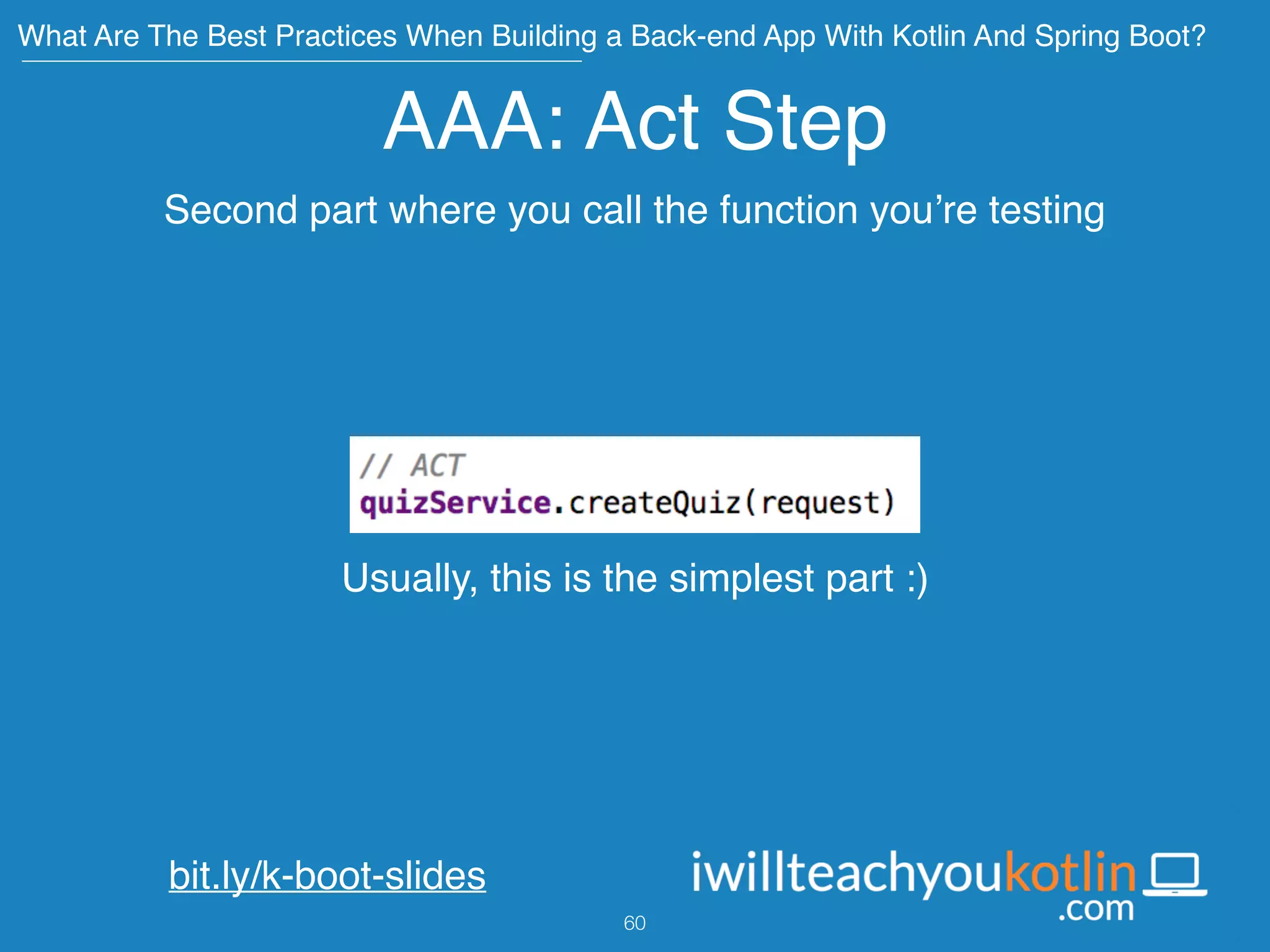

AAA: Act Step
Second part where you call the function you’re testing
Usually, this is the simplest part :)
60

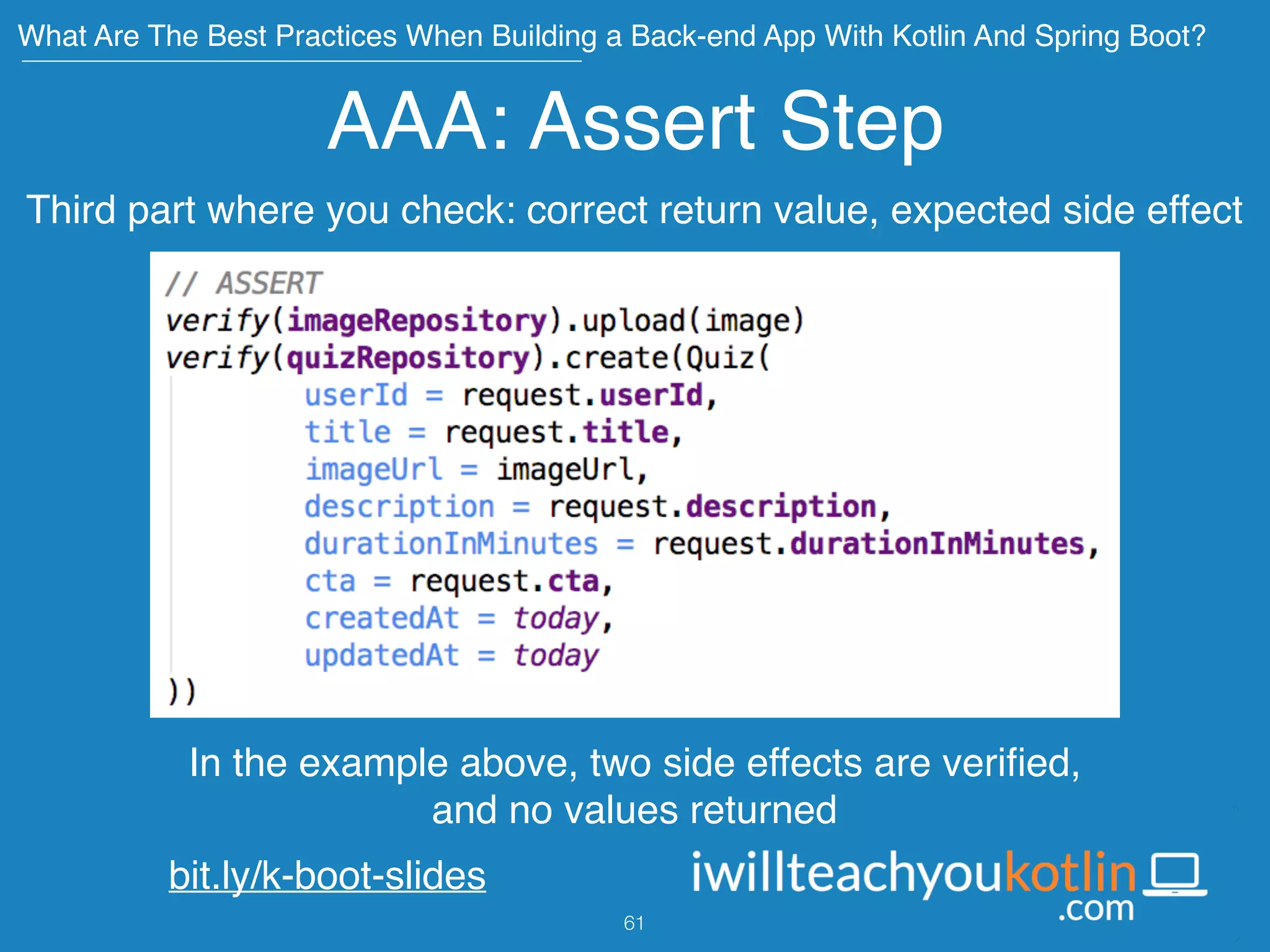

AAA: Assert Step
Third part where you check: correct return value, expected side effect
In the example above, two side effects are veriﬁed,
and no values returned
61

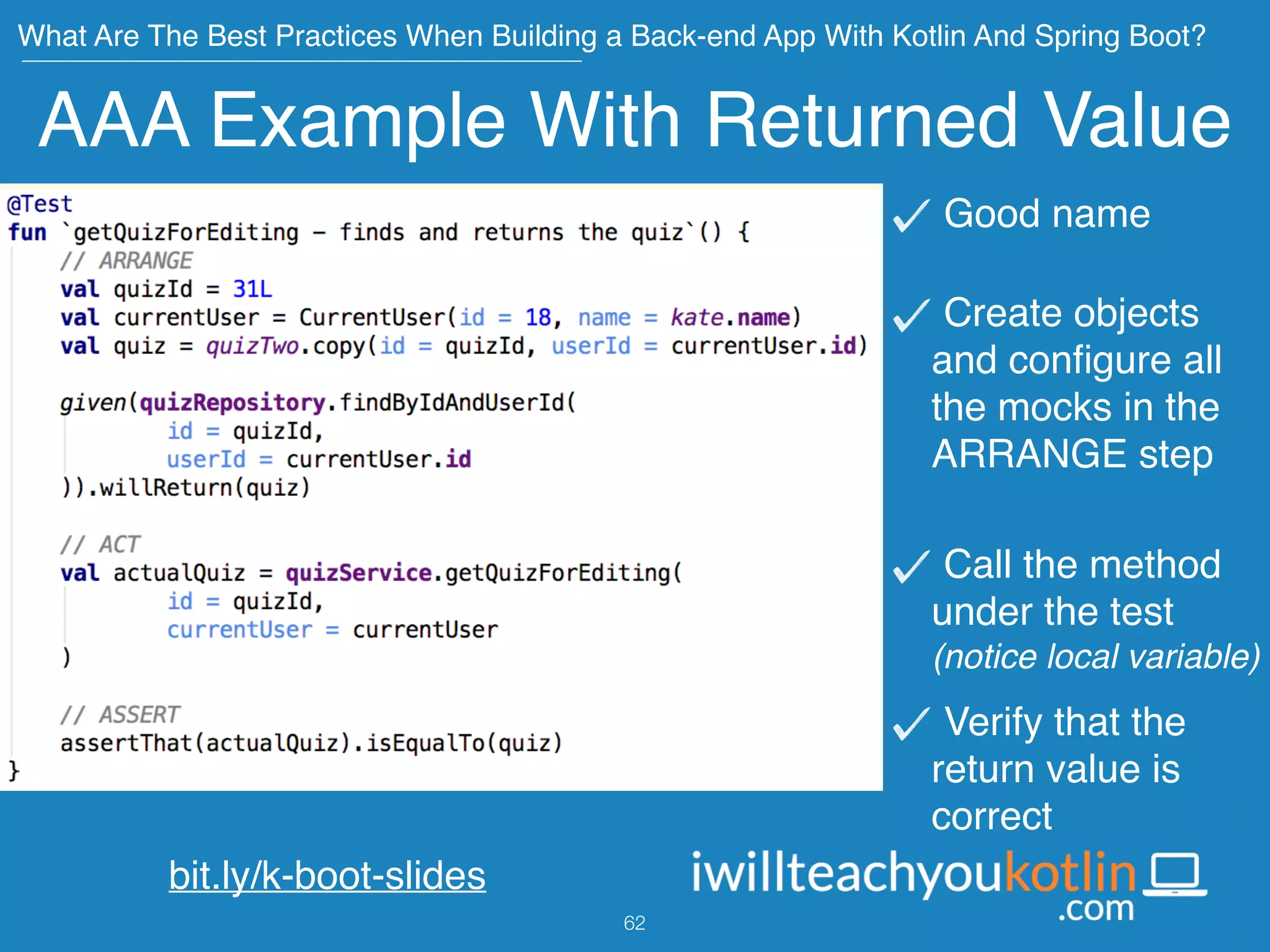

AAA Example With Returned Value
Good name
Create objects
and conﬁgure all
the mocks in the
ARRANGE step
Call the method
under the test 
(notice local variable)
Verify that the
return value is
correct
62

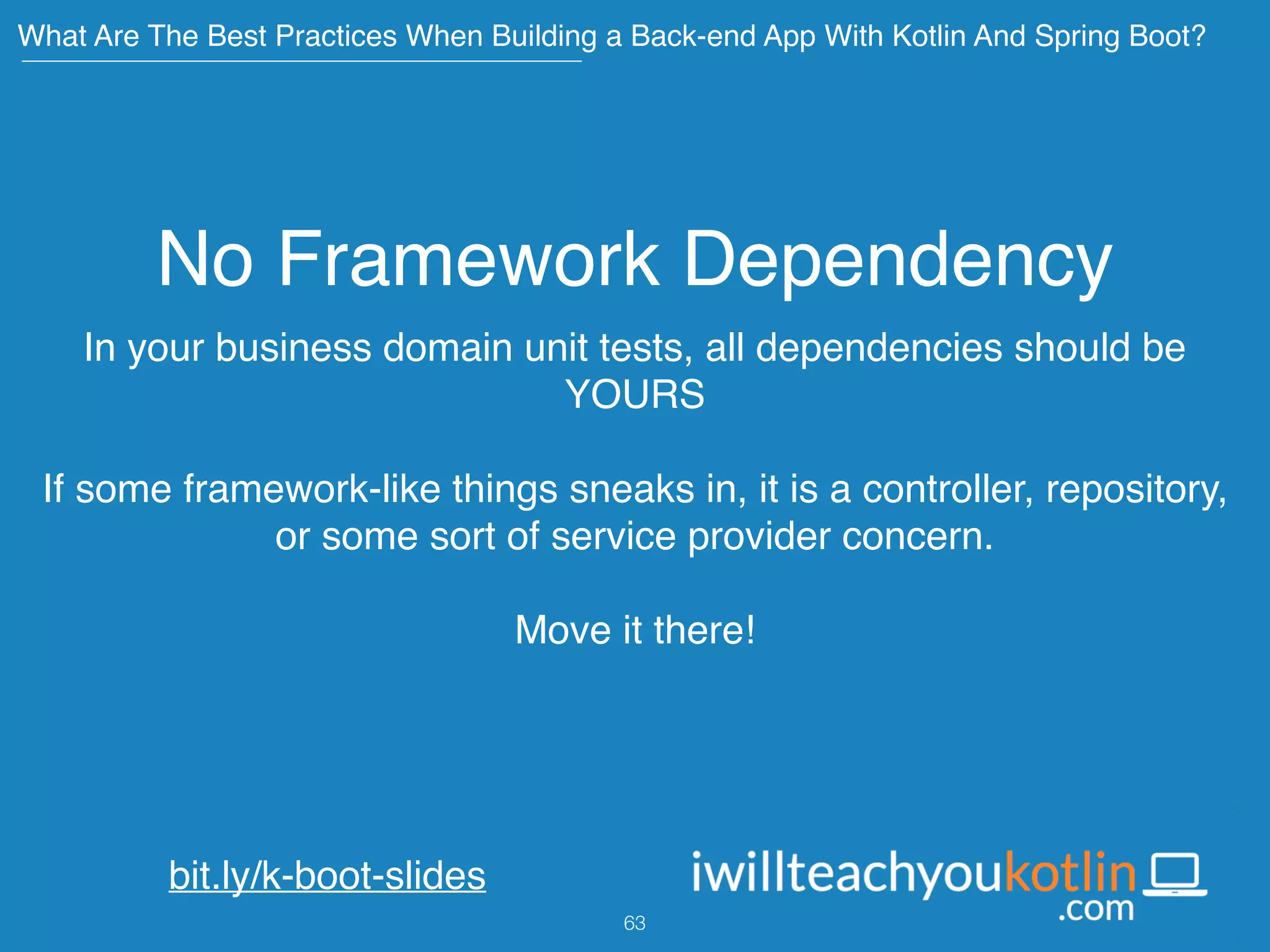

No Framework Dependency
In your business domain unit tests, all dependencies should be
YOURS 
 
If some framework-like things sneaks in, it is a controller, repository,
or some sort of service provider concern. 
 
Move it there!
63

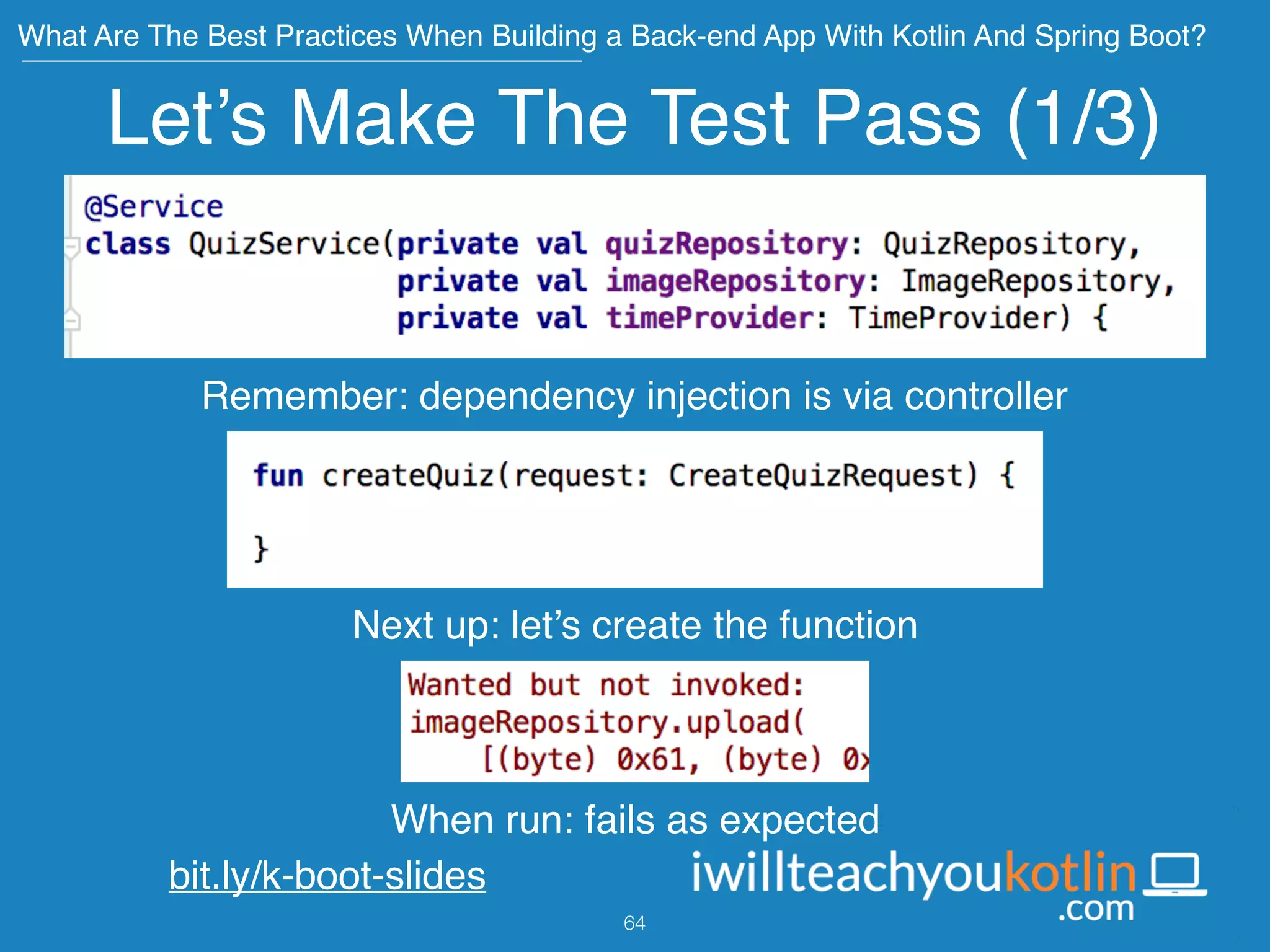

Let’s Make The Test Pass (1/3)
Remember: dependency injection is via controller
Next up: let’s create the function
When run: fails as expected
64

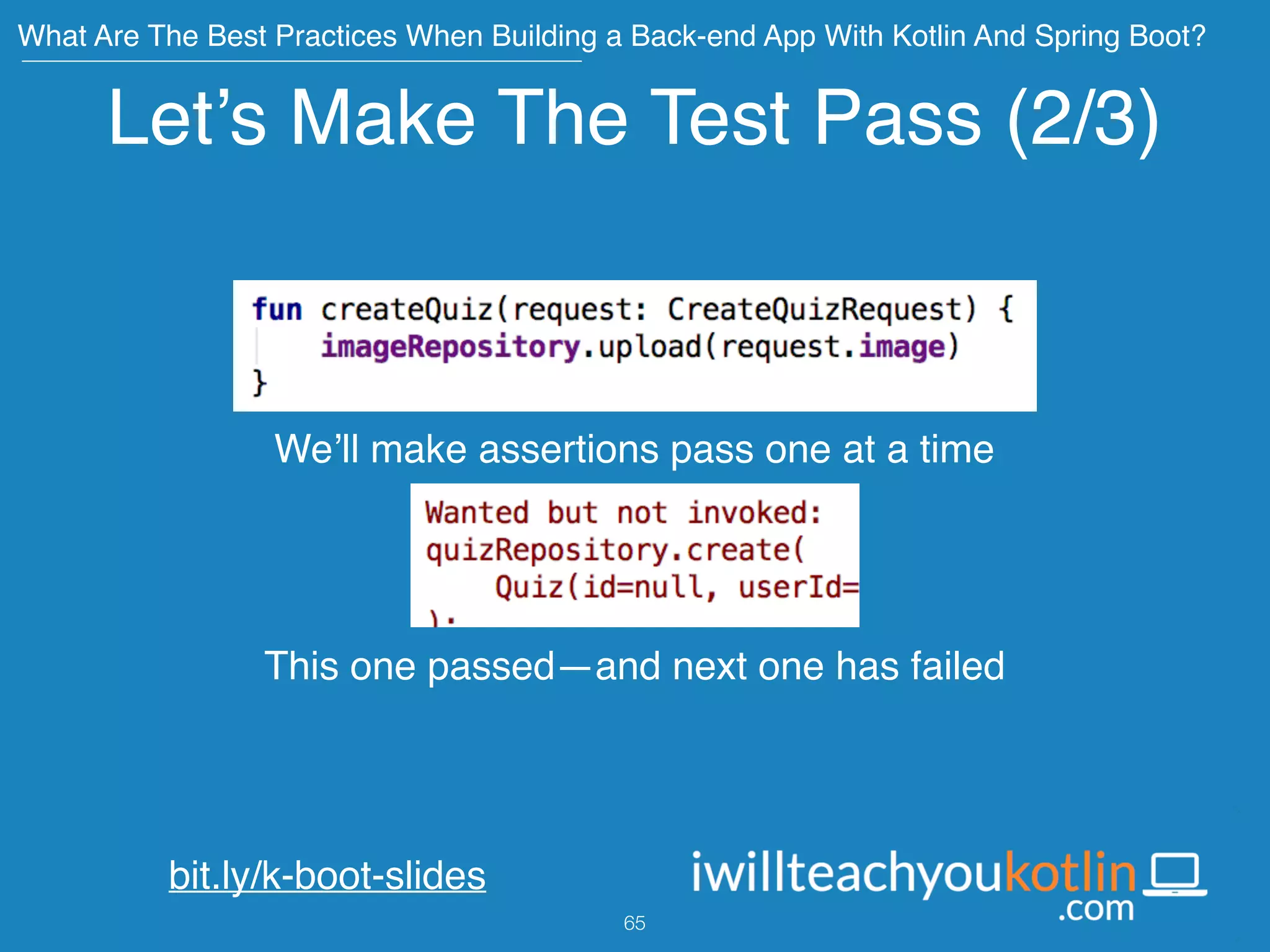

We’ll make assertions pass one at a time
This one passed—and next one has failed
65

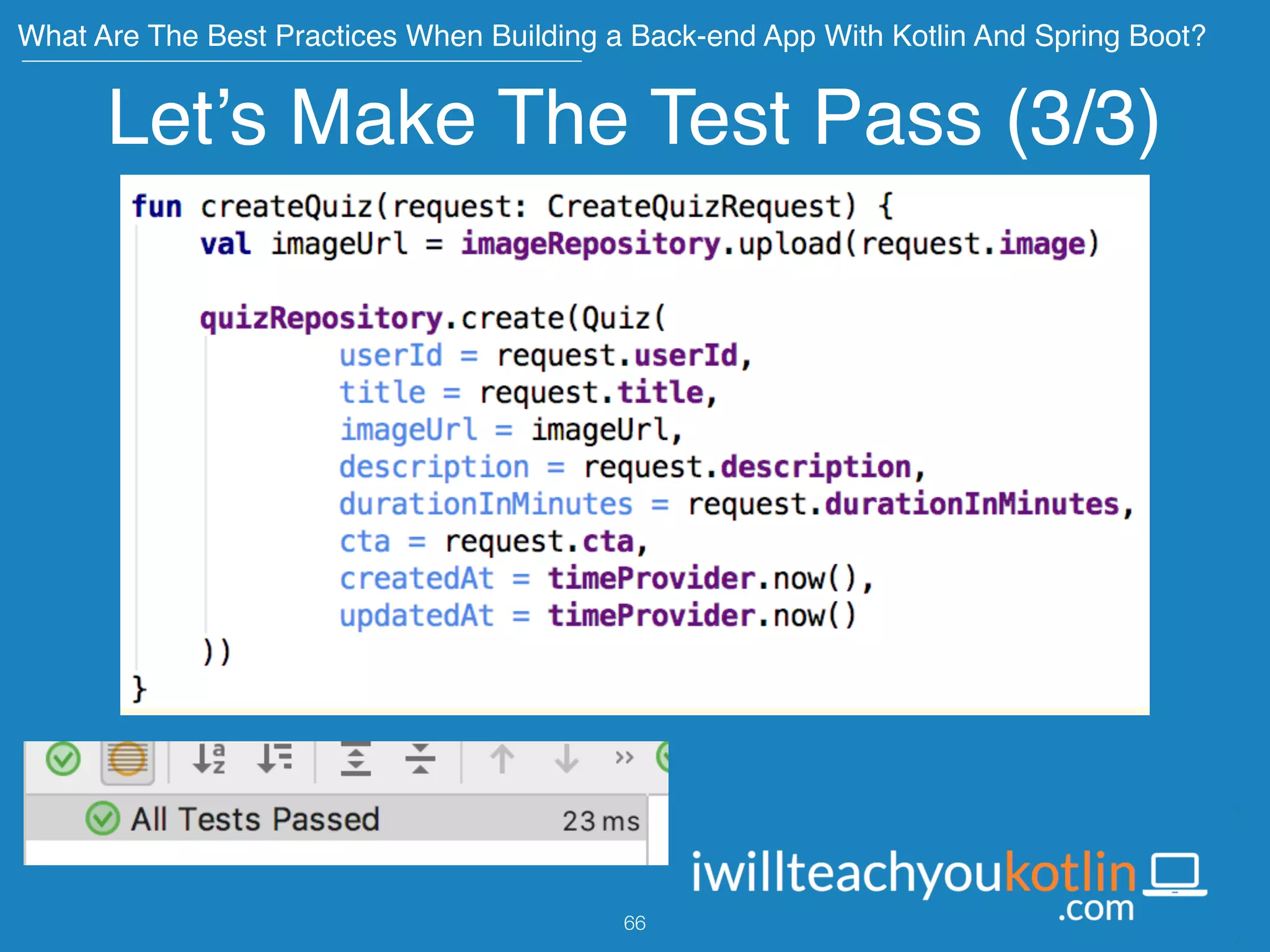

66

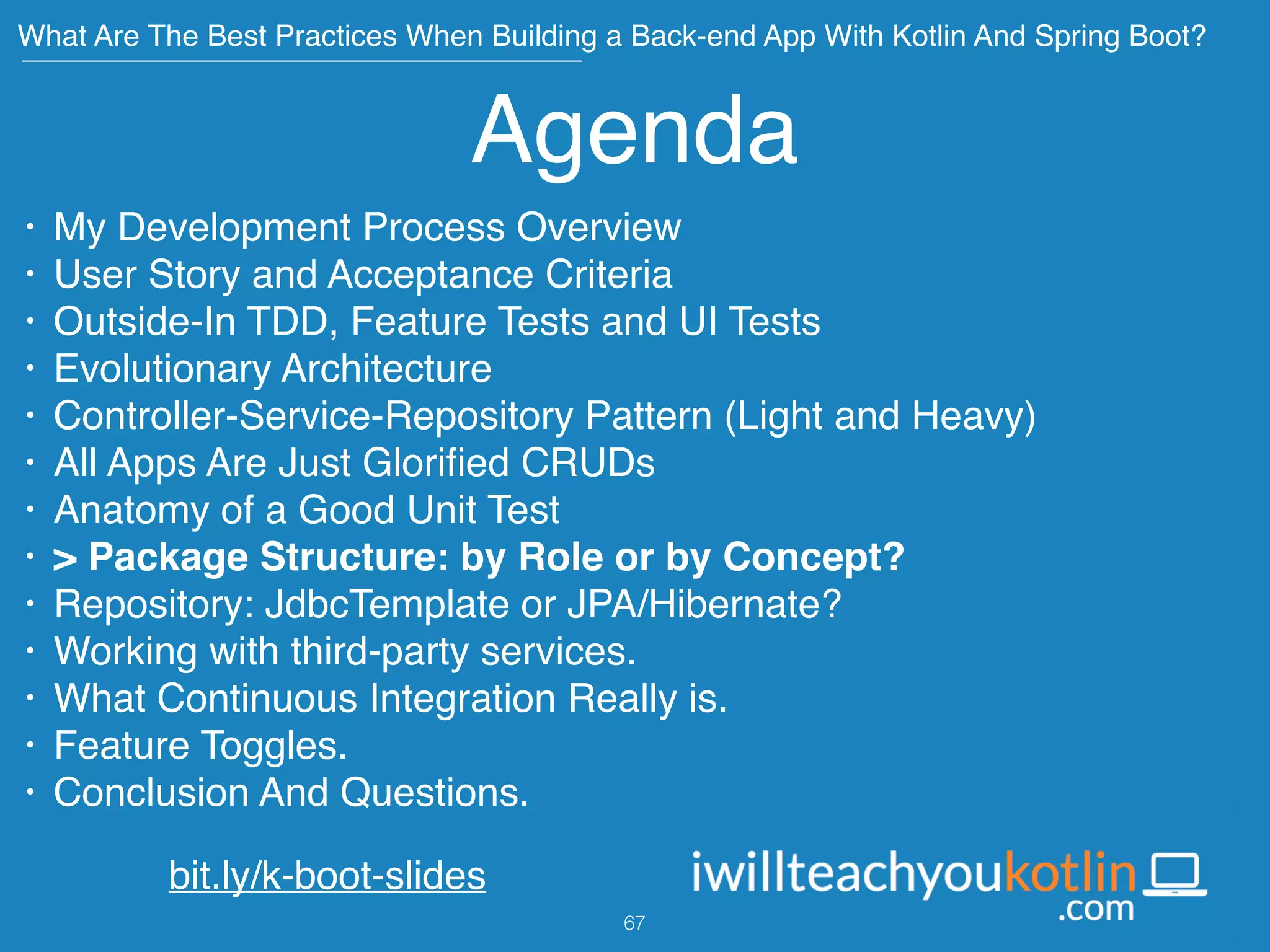

Agenda
• > Package Structure: by Role or by Concept?
67

Packages: by Role or Concept
VS
What do you think?
68

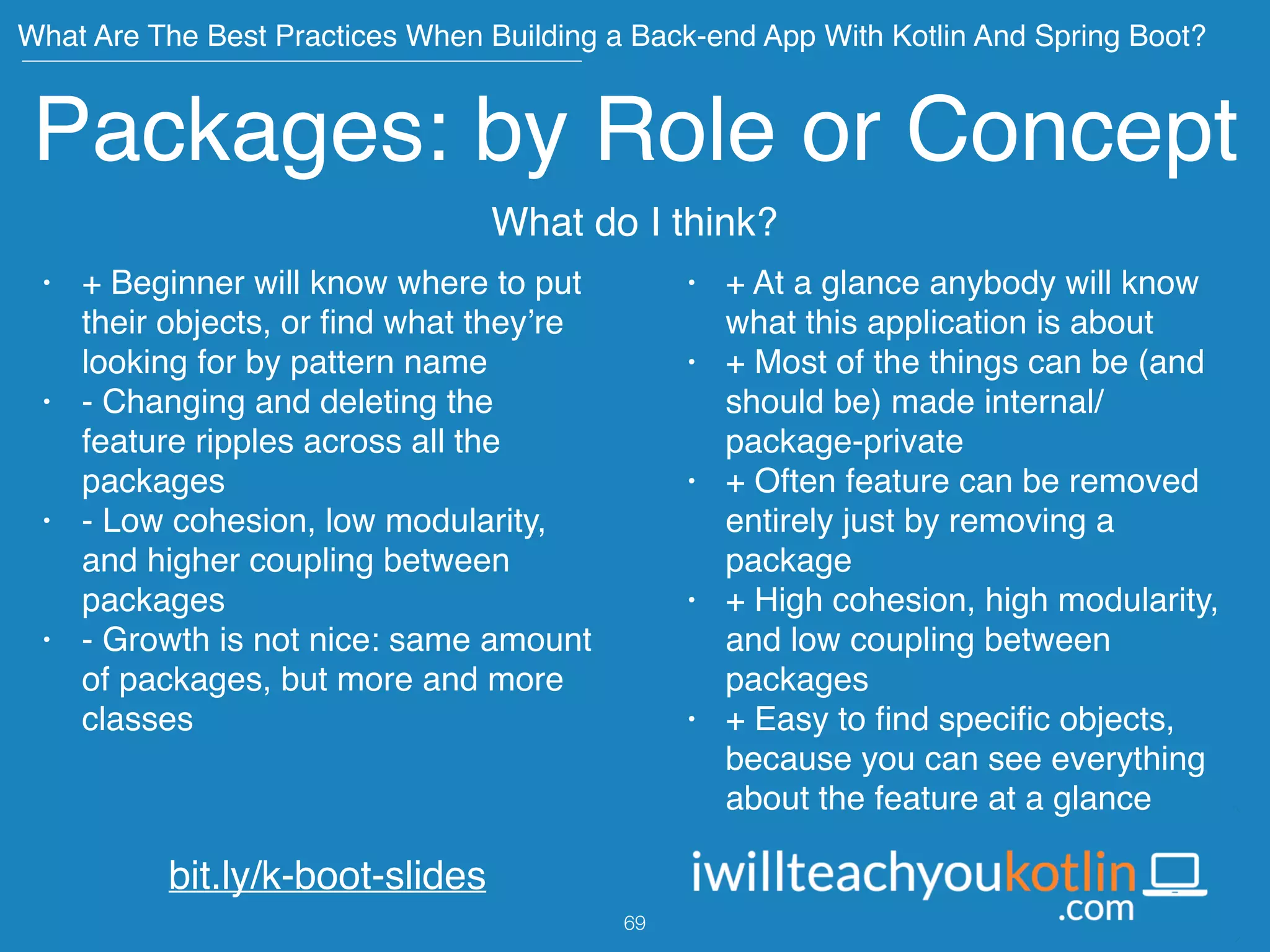

Packages: by Role or Concept
What do I think?
• + Beginner will know where to put
their objects, or find what they’re
looking for by pattern name
• - Changing and deleting the
feature ripples across all the
packages
• - Low cohesion, low modularity,
and higher coupling between
packages
• - Growth is not nice: same amount
of packages, but more and more
classes
• + At a glance anybody will know
what this application is about
• + Most of the things can be (and
should be) made internal/
package-private
• + Often feature can be removed
entirely just by removing a
package
• + High cohesion, high modularity,
and low coupling between
packages
• + Easy to find specific objects,
because you can see everything
about the feature at a glance
69

By concept 1st, and by role 2nd
• + Best of both worlds
• - This has very high max complexity
• Don’t start with it! Or will be painful…
• Refactor towards it, when you have
too much classes in a single feature
package, and for this feature only
70

Agenda
• > Repository: JdbcTemplate or JPA/Hibernate?
71

Repository: JdbcTemplate or JPA/Hibernate
• -/+ You don’t have to map your
domain model to your schema one-
to-one, although you can
• - You need to write your own queries
and row mappers
• - More code
• + Testing is much simpler and faster,
also they tend to be smaller tests
• + More control over queries
• + Every team that I was on, and
used JdbcRepository after JPA
found it rewarding and freeing
JdbcTemplate JPA/Hibernate
• +/- You can easily map your domain
model on the schema and vice
versa, but you have to
• + You don’t need to write queries—
just create methods with right
naming convention
• + Less code
• - You still have to write tests for it
• - These tests are hard to write, and
maintain, and TestEntityManager is
a confusing beast
• - Every team I was on, experienced
only pain with JPA
72

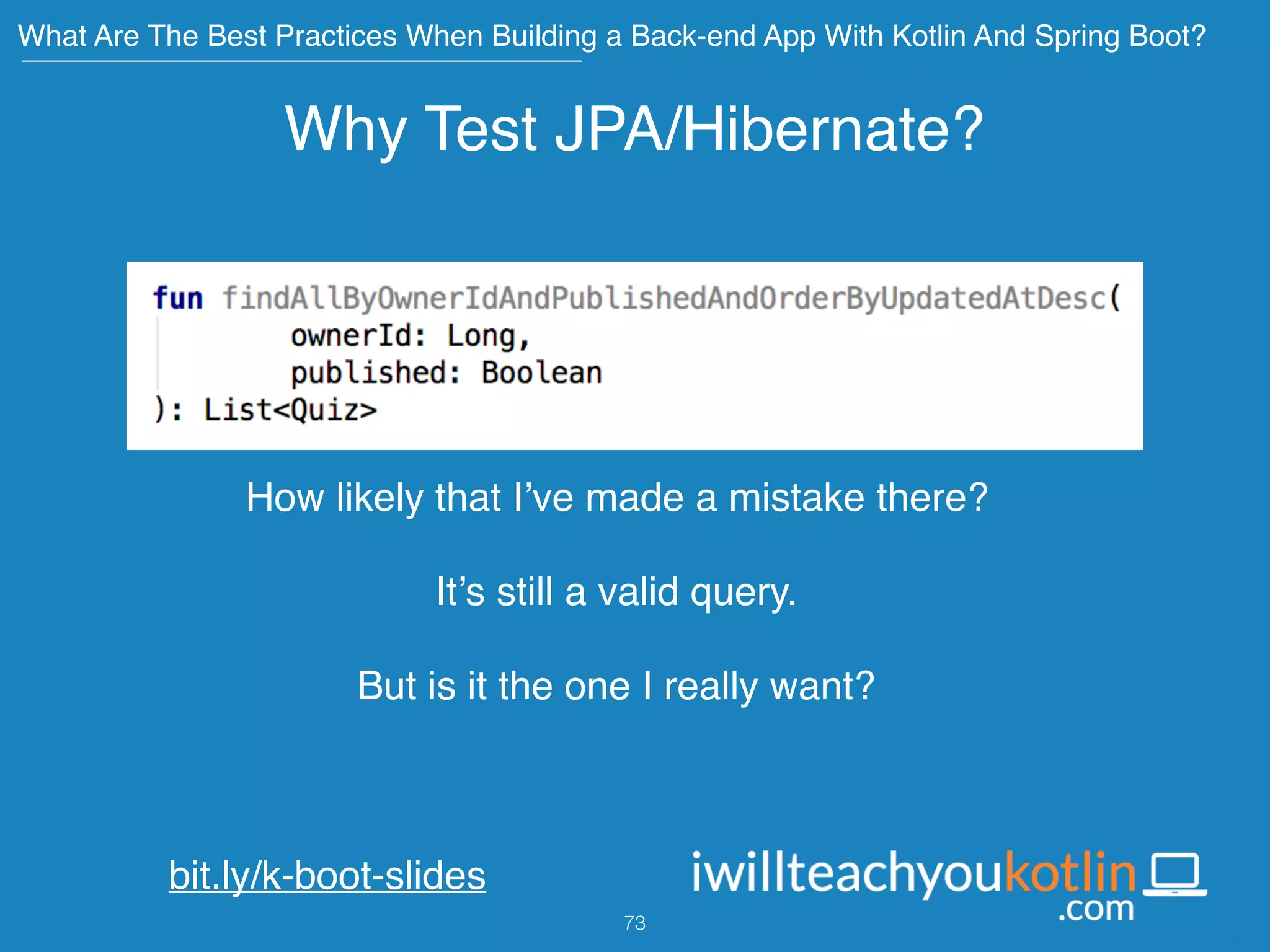

Why Test JPA/Hibernate?
How likely that I’ve made a mistake there?
It’s still a valid query.
But is it the one I really want?
73

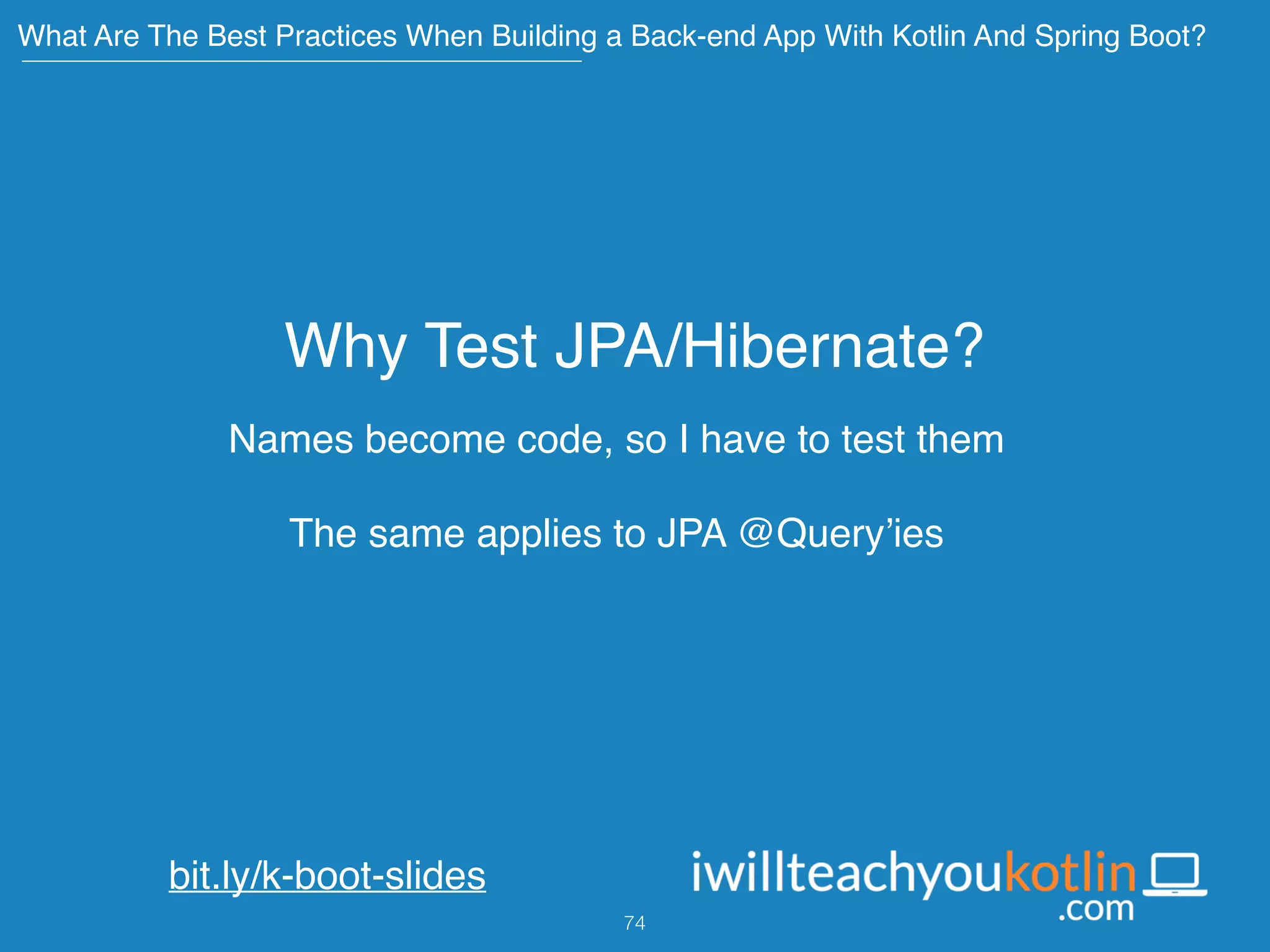

Why Test JPA/Hibernate?
Names become code, so I have to test them
The same applies to JPA @Query’ies
74

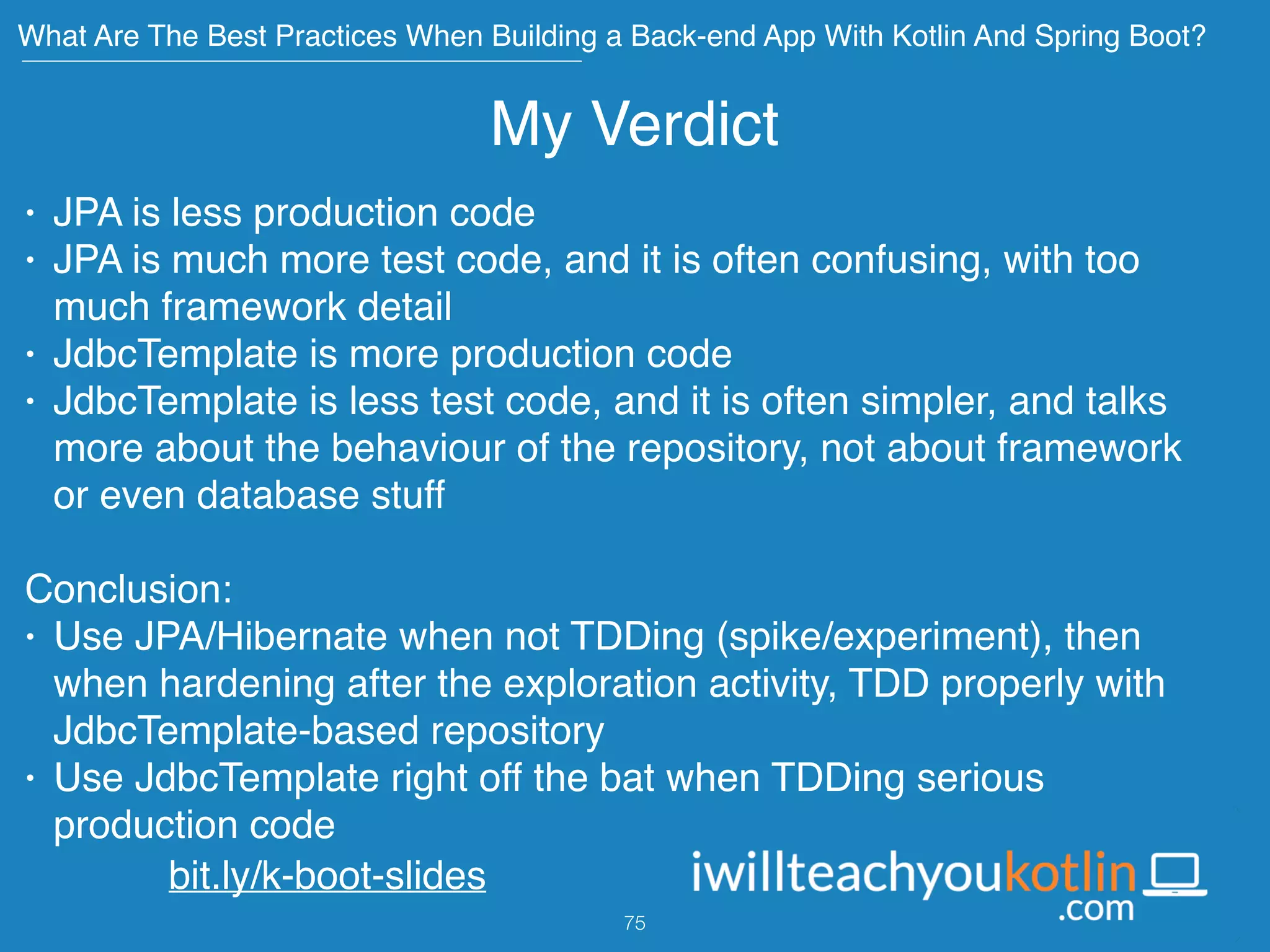

My Verdict
• JPA is less production code
• JPA is much more test code, and it is often confusing, with too
much framework detail
• JdbcTemplate is more production code
• JdbcTemplate is less test code, and it is often simpler, and talks
more about the behaviour of the repository, not about framework
or even database stuff
Conclusion:
• Use JPA/Hibernate when not TDDing (spike/experiment), then
when hardening after the exploration activity, TDD properly with
JdbcTemplate-based repository
• Use JdbcTemplate right off the bat when TDDing serious
production code
75

Let’s TDD a QuizRepository!
A little bit :)
76

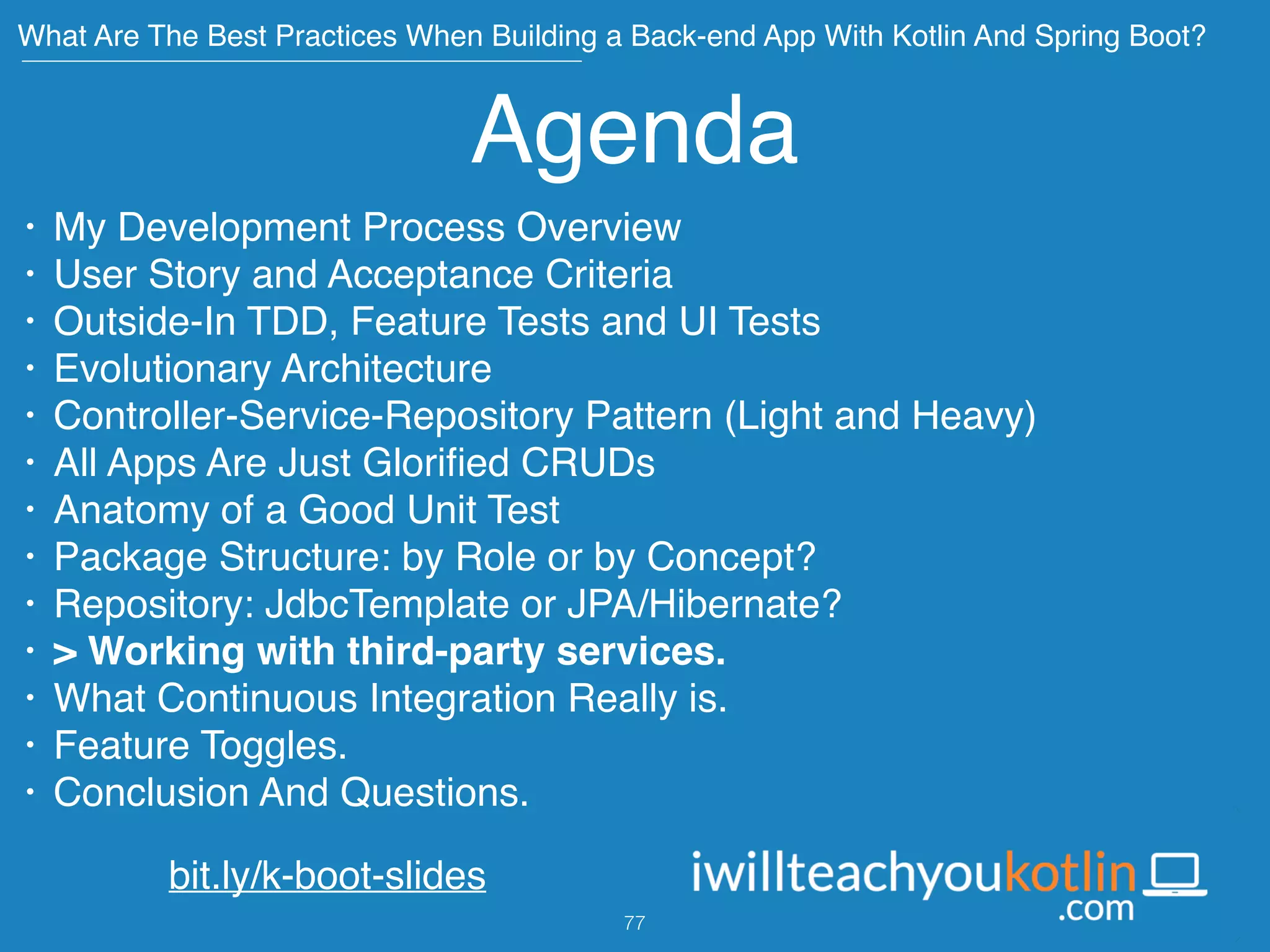

Agenda
• > Working with third-party services.
77

Working With 3rd-party Services
Simple Solution
ImageUploadsProvider
SaaS Provider
QuizService
Mock this in:
- unit tests
- feature tests
Mocking in unit tests is great.
Mocking in feature tests is too
much detail and annoying!
What shall we do?
78

Working With 3rd-party Services
Make it an interface with SaaS and Dev implementation
ImageUploadsProvider
QuizService
Mock this in:
- unit tests
FileSystemImageUploads
(interface)(dev, test proﬁles)
(implements)
SaaSImageUploads
(cloud proﬁle only)
(im
plem
ents)
used in feature tests
79

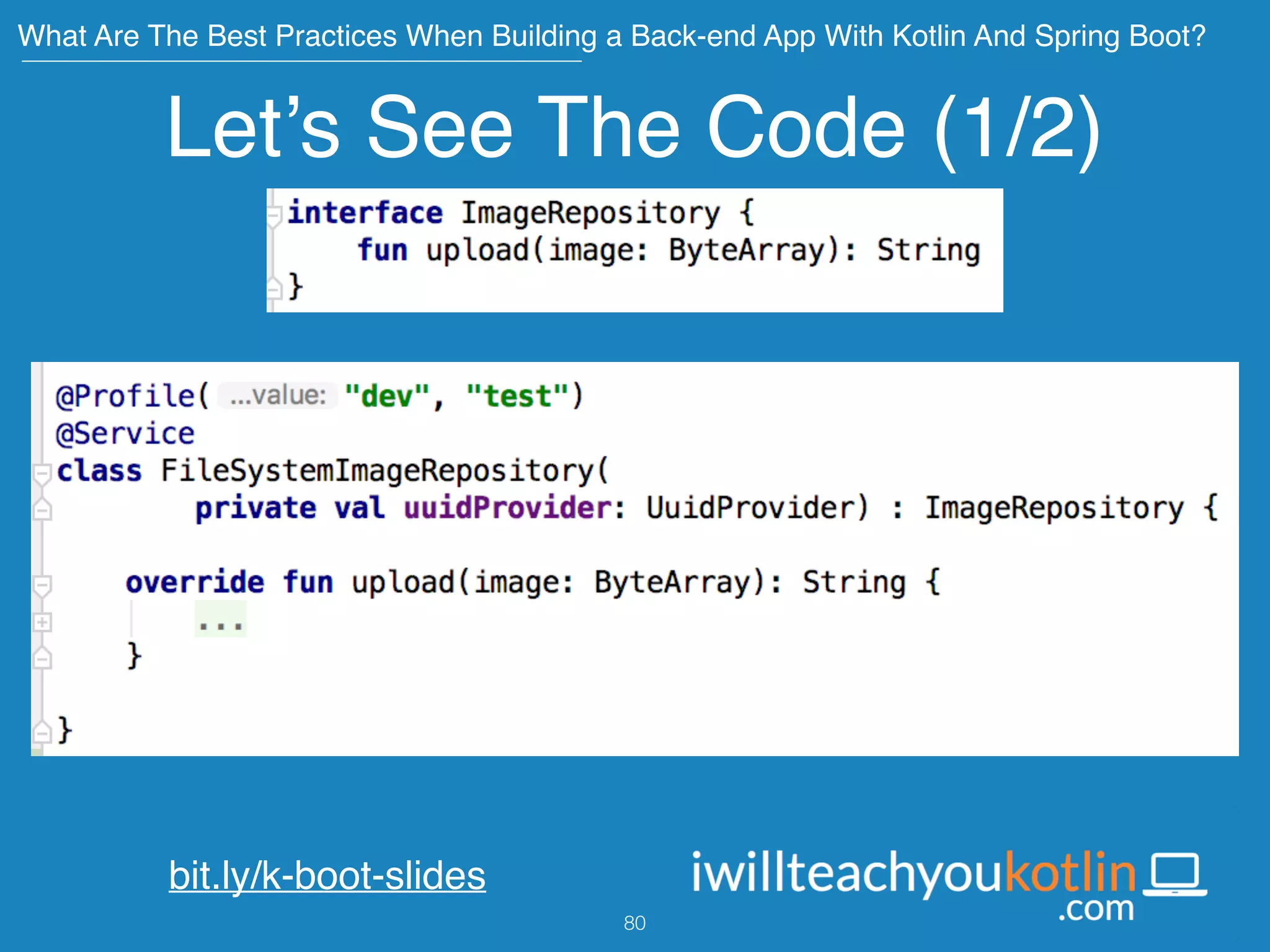

Let’s See The Code (1/2)
80

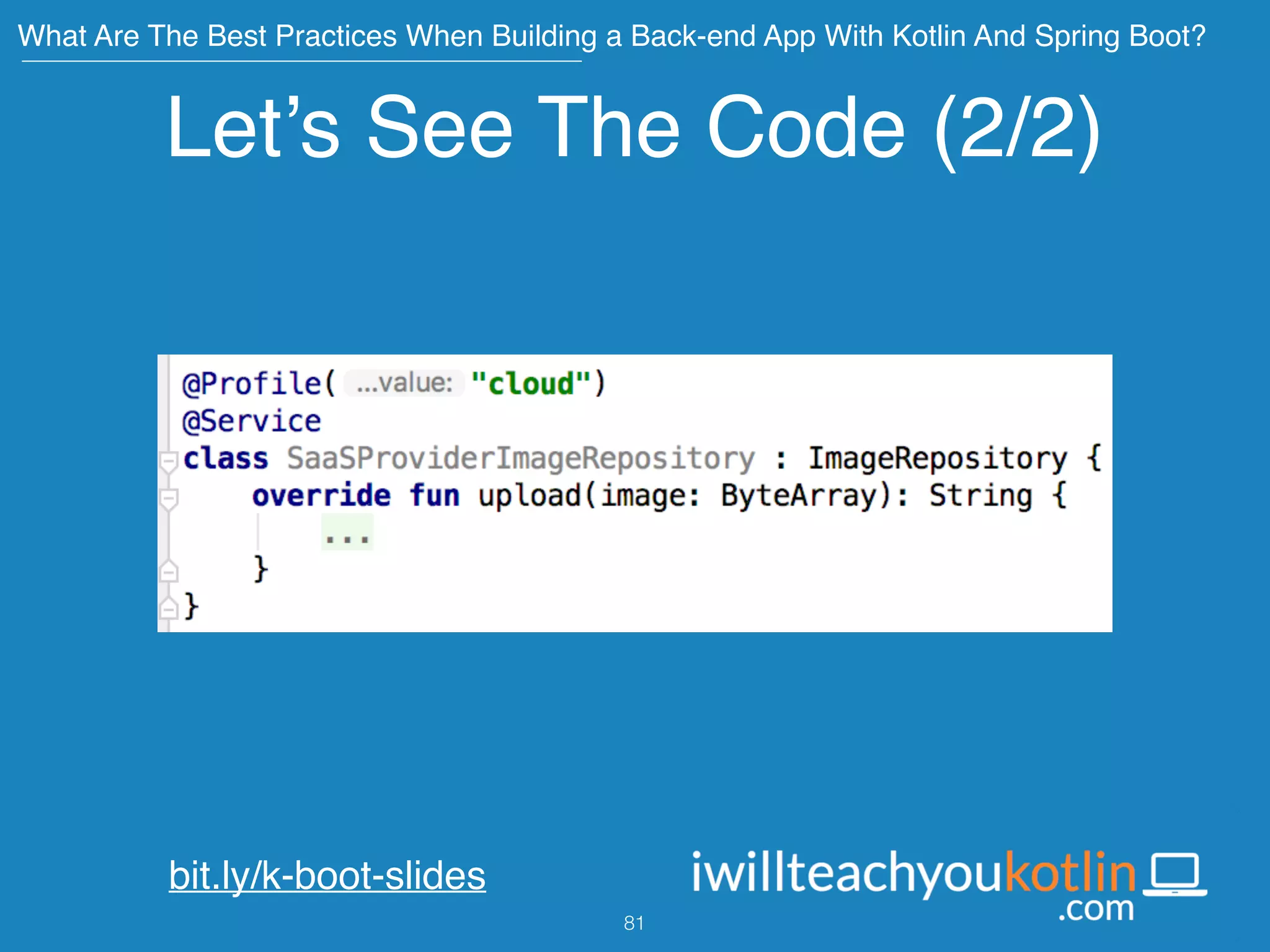

Let’s See The Code (2/2)
81

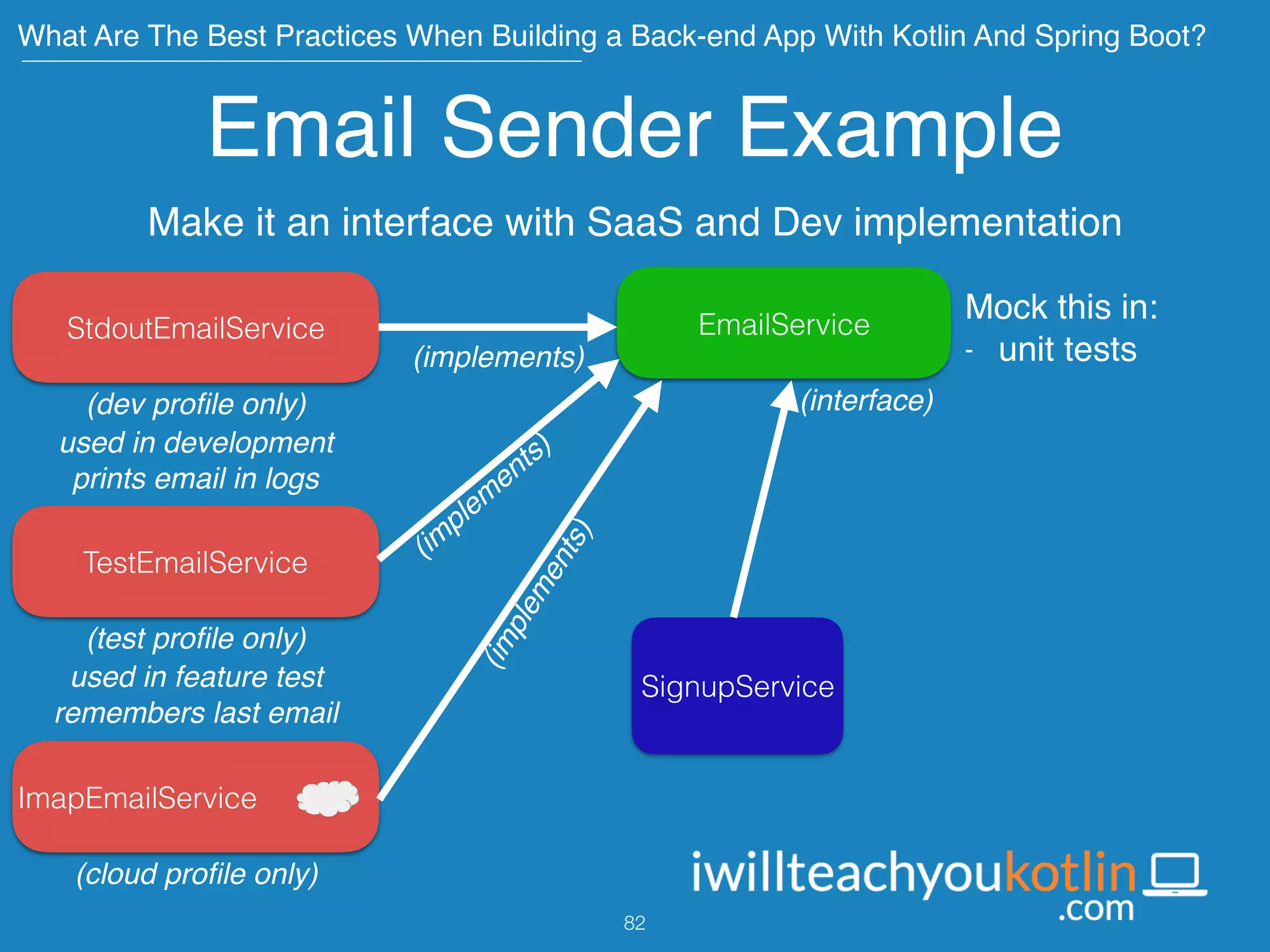

Email Sender Example
Make it an interface with SaaS and Dev implementation
EmailService
SignupService
Mock this in:
- unit tests
StdoutEmailService
(interface)(dev profile only)
(implements)
ImapEmailService
(cloud profile only)
(implements)
used in development 
prints email in logs
TestEmailService
(test profile only)
used in feature test 
remembers last email
(im
plem
ents)
82

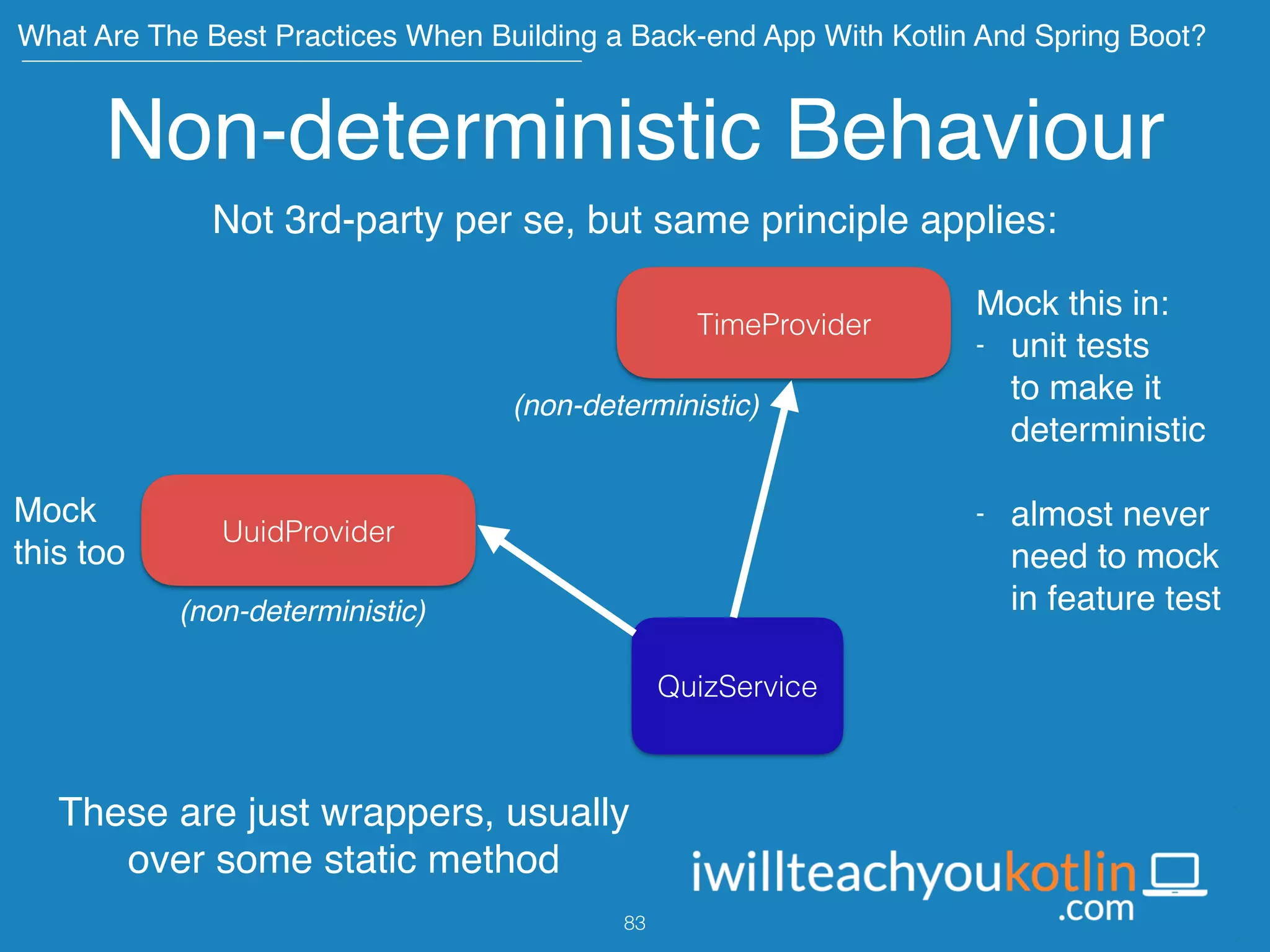

Non-deterministic Behaviour
Not 3rd-party per se, but same principle applies:
TimeProvider
QuizService
Mock this in:
- unit tests 
to make it
deterministic
- almost never
need to mock
in feature test
(non-deterministic)
UuidProvider
(non-deterministic)
Mock
this too
These are just wrappers, usually
over some static method
83

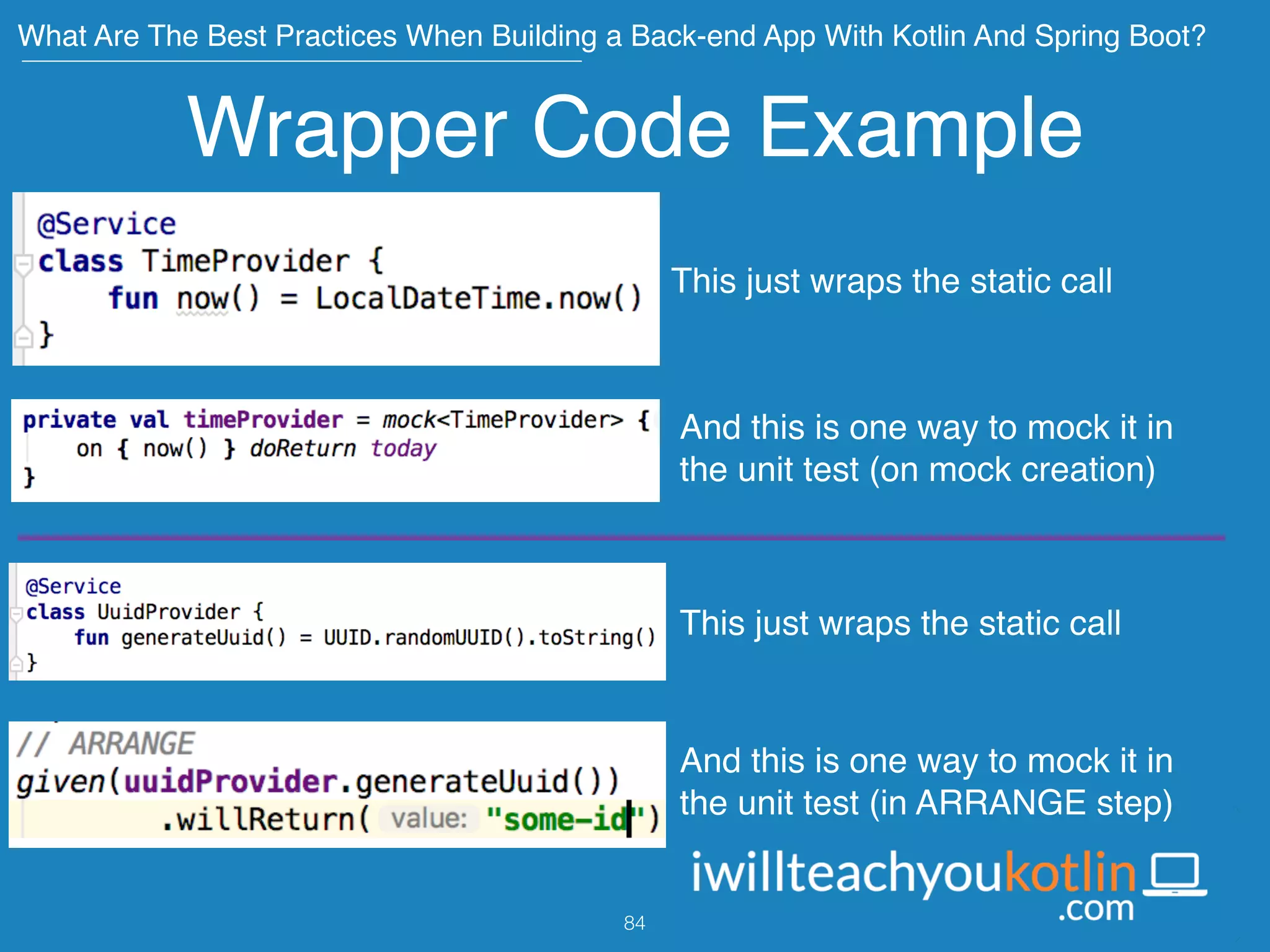

Wrapper Code Example
This just wraps the static call
And this is one way to mock it in
the unit test (on mock creation)
This just wraps the static call
And this is one way to mock it in
the unit test (in ARRANGE step)
84

Agenda
• > What Continuous Integration Really is.
85

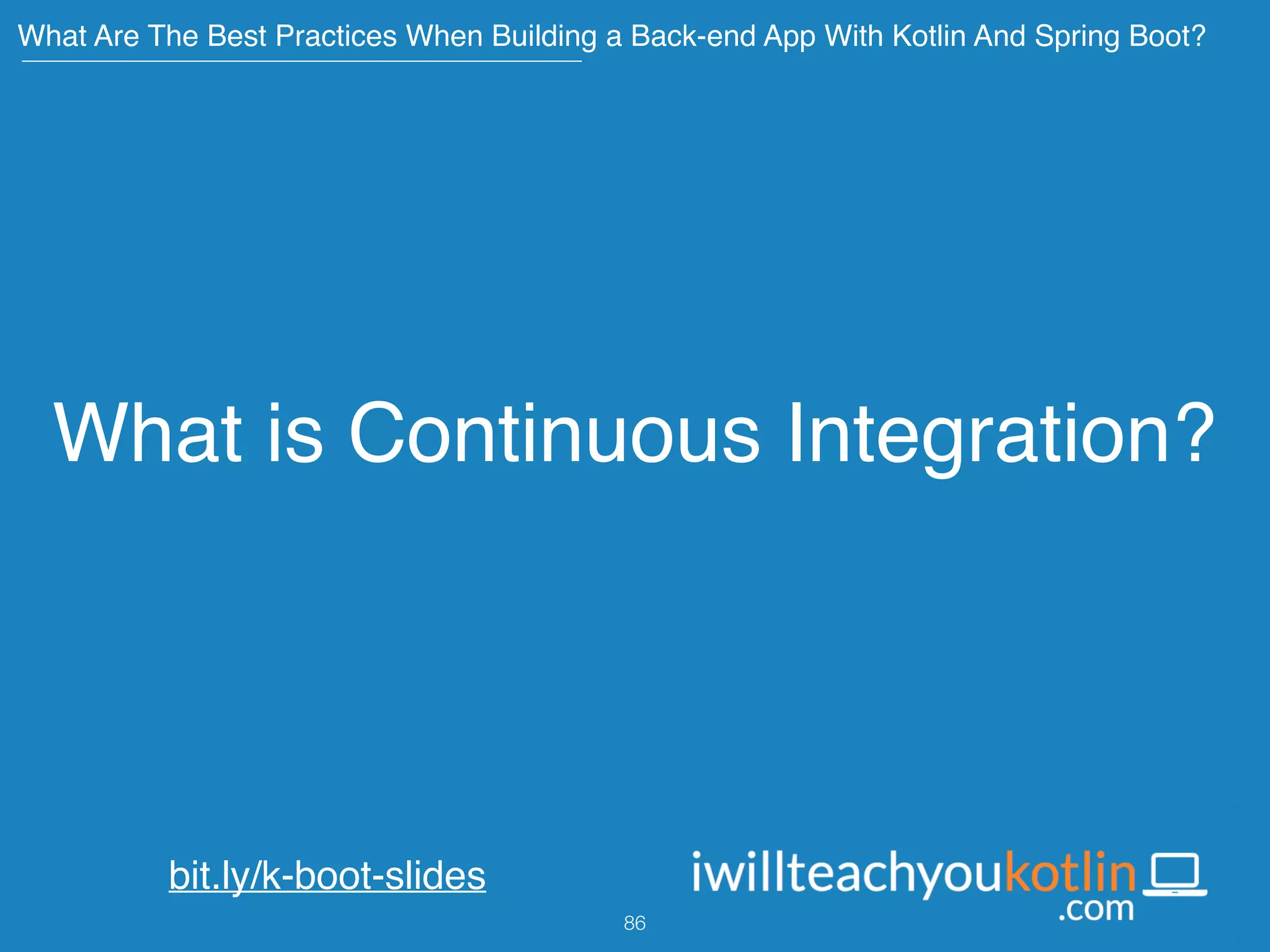

What is Continuous Integration?
86

What Continuous Integration Isn’t
• Having a build server (e.g. ConcourseCI, TravisCI, Jenkins,
TeamCity, etc.).
• Running your test suite after each commit on the master or on the
branch.
87

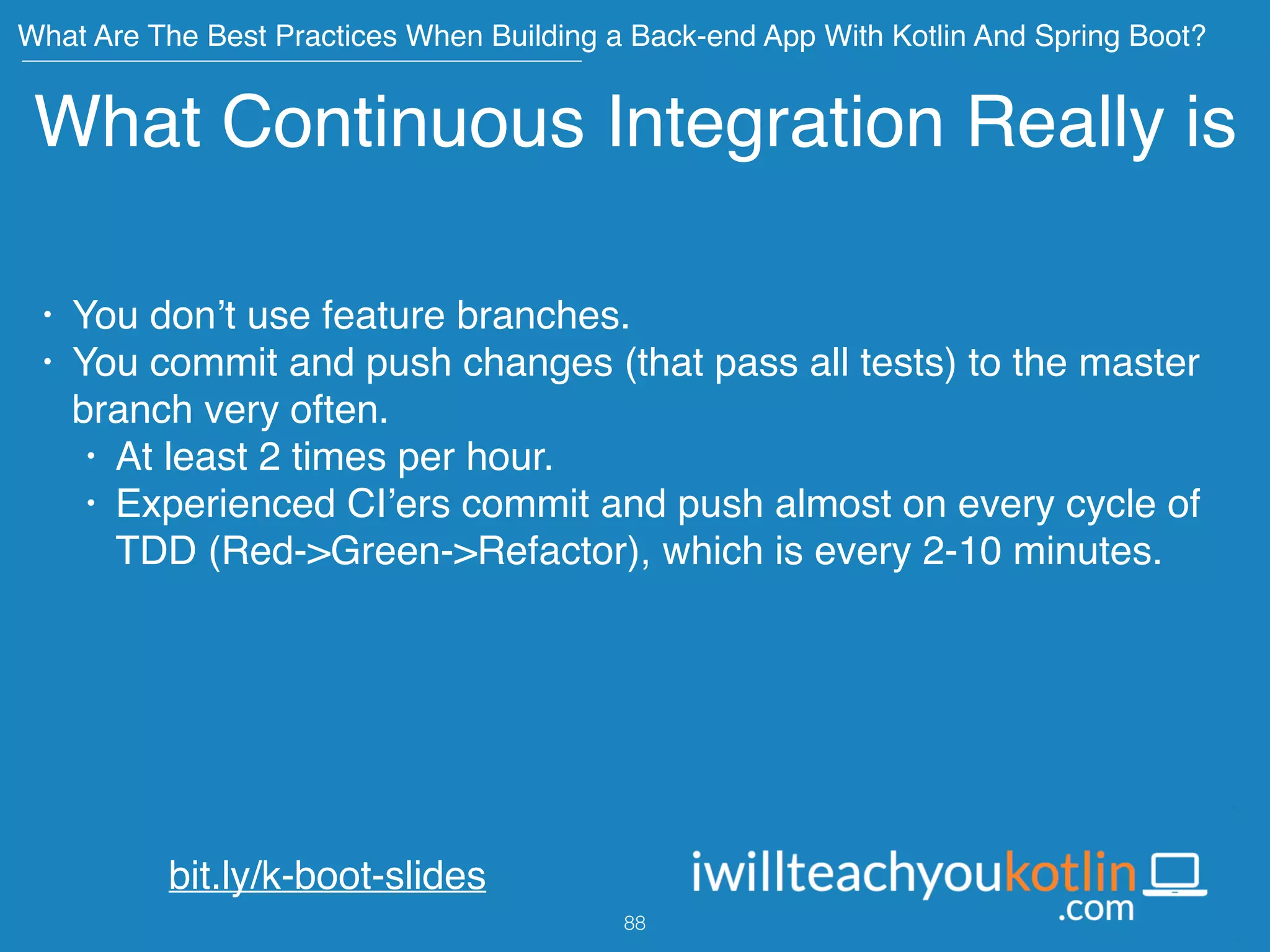

What Continuous Integration Really is
• You don’t use feature branches.
• You commit and push changes (that pass all tests) to the master
branch very often.
• At least 2 times per hour.
• Experienced CI’ers commit and push almost on every cycle of
TDD (Red->Green->Refactor), which is every 2-10 minutes.
88

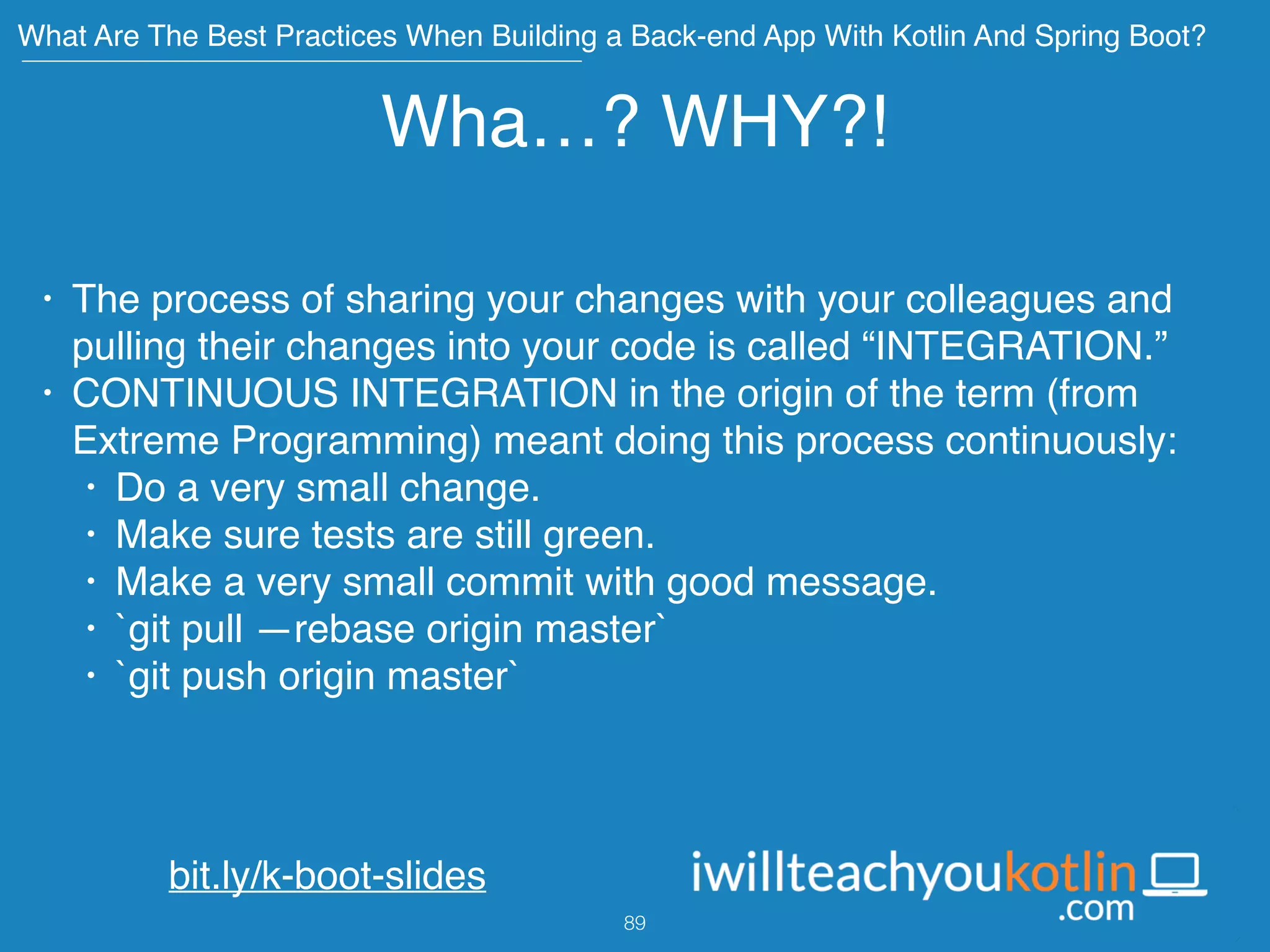

Wha…? WHY?!
• The process of sharing your changes with your colleagues and
pulling their changes into your code is called “INTEGRATION.”
• CONTINUOUS INTEGRATION in the origin of the term (from
Extreme Programming) meant doing this process continuously:
• Do a very small change.
• Make sure tests are still green.
• Make a very small commit with good message.
• `git pull —rebase origin master`
• `git push origin master`
89

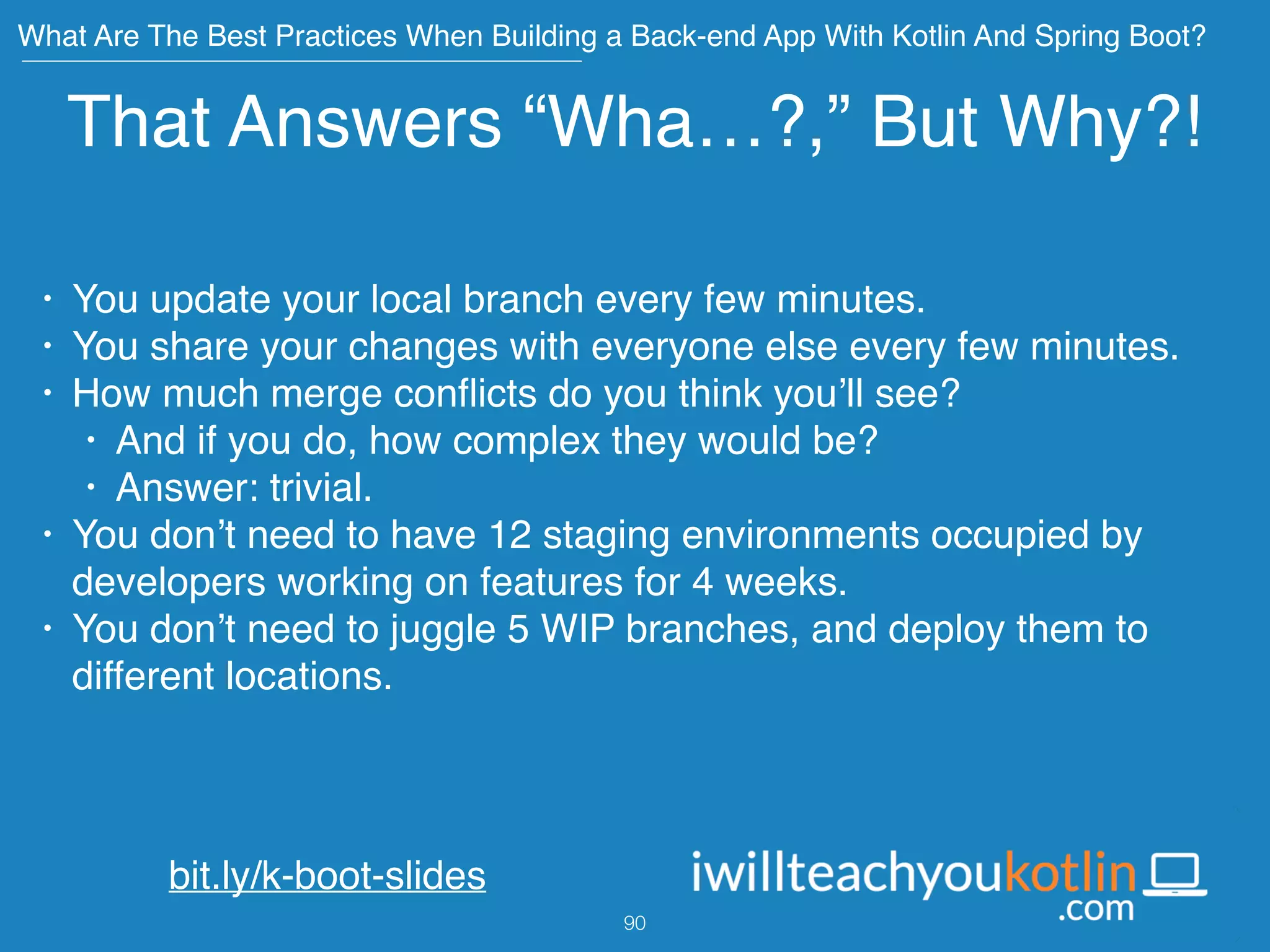

That Answers “Wha…?,” But Why?!
• You update your local branch every few minutes.
• You share your changes with everyone else every few minutes.
• How much merge conﬂicts do you think you’ll see?
• And if you do, how complex they would be?
• Answer: trivial.
• You don’t need to have 12 staging environments occupied by
developers working on features for 4 weeks.
• You don’t need to juggle 5 WIP branches, and deploy them to
different locations.
90

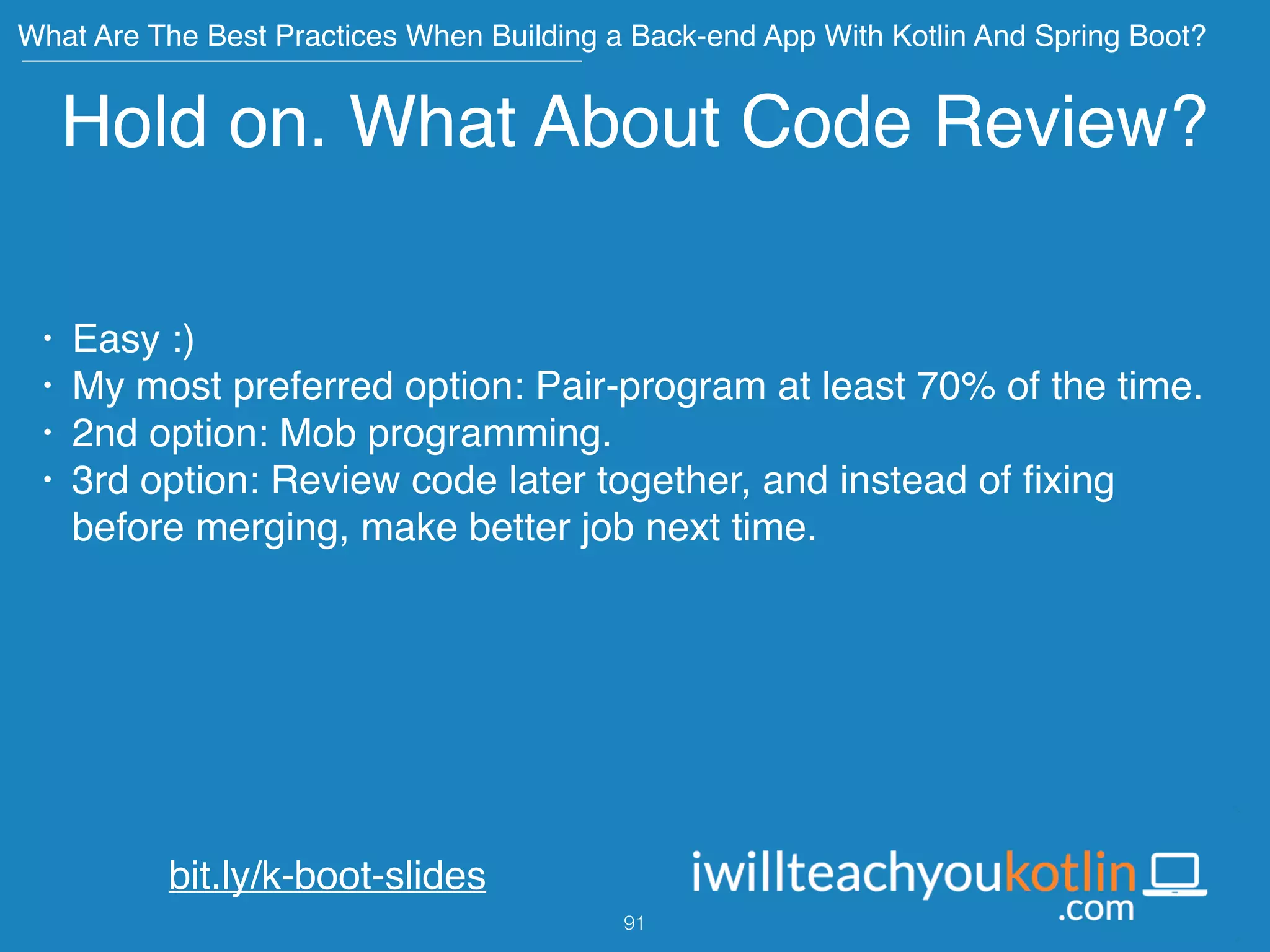

Hold on. What About Code Review?
• Easy :)
• My most preferred option: Pair-program at least 70% of the time.
• 2nd option: Mob programming.
• 3rd option: Review code later together, and instead of ﬁxing
before merging, make better job next time.
91

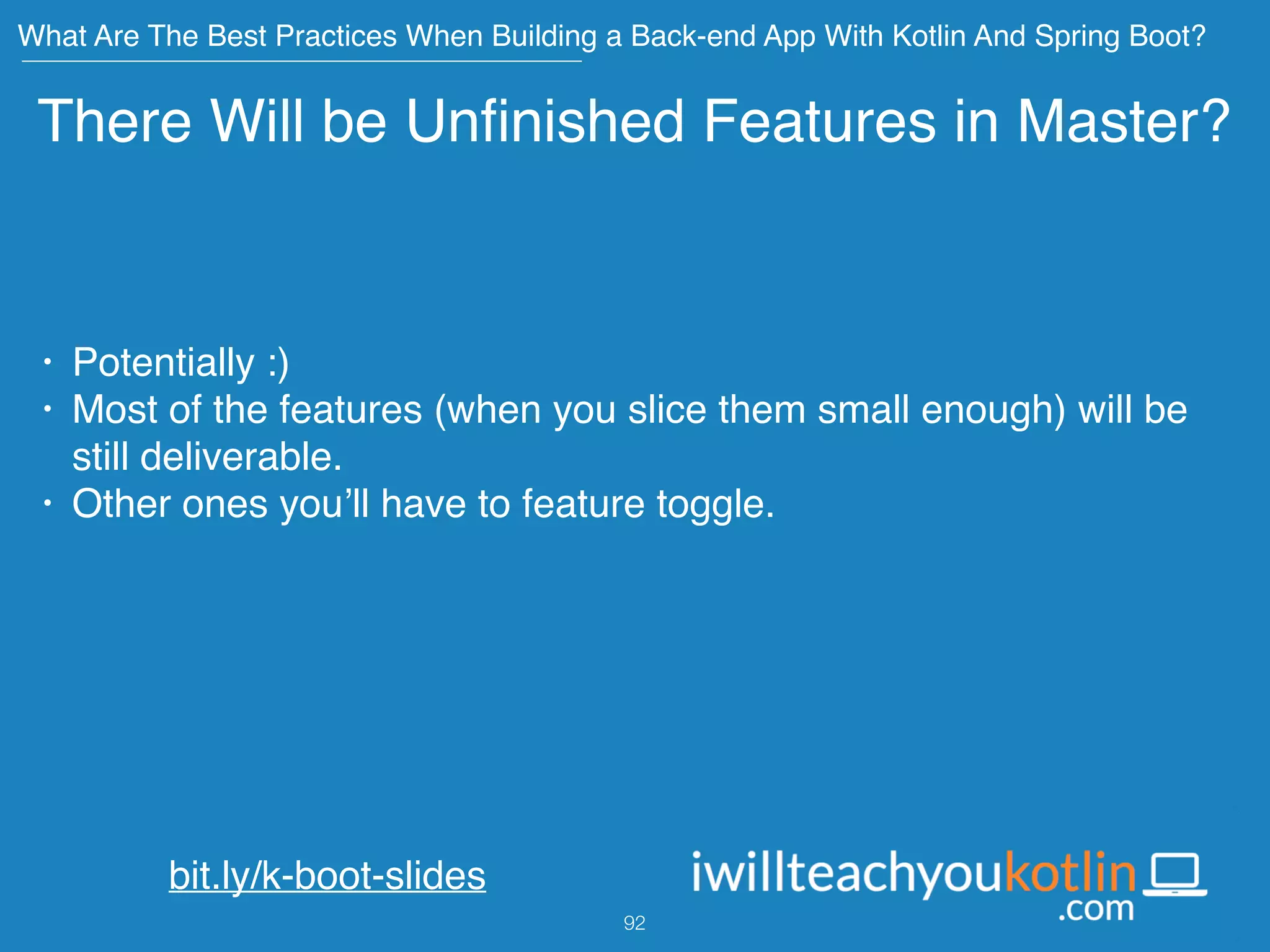

There Will be Unﬁnished Features in Master?
• Potentially :)
• Most of the features (when you slice them small enough) will be
still deliverable.
• Other ones you’ll have to feature toggle.
92

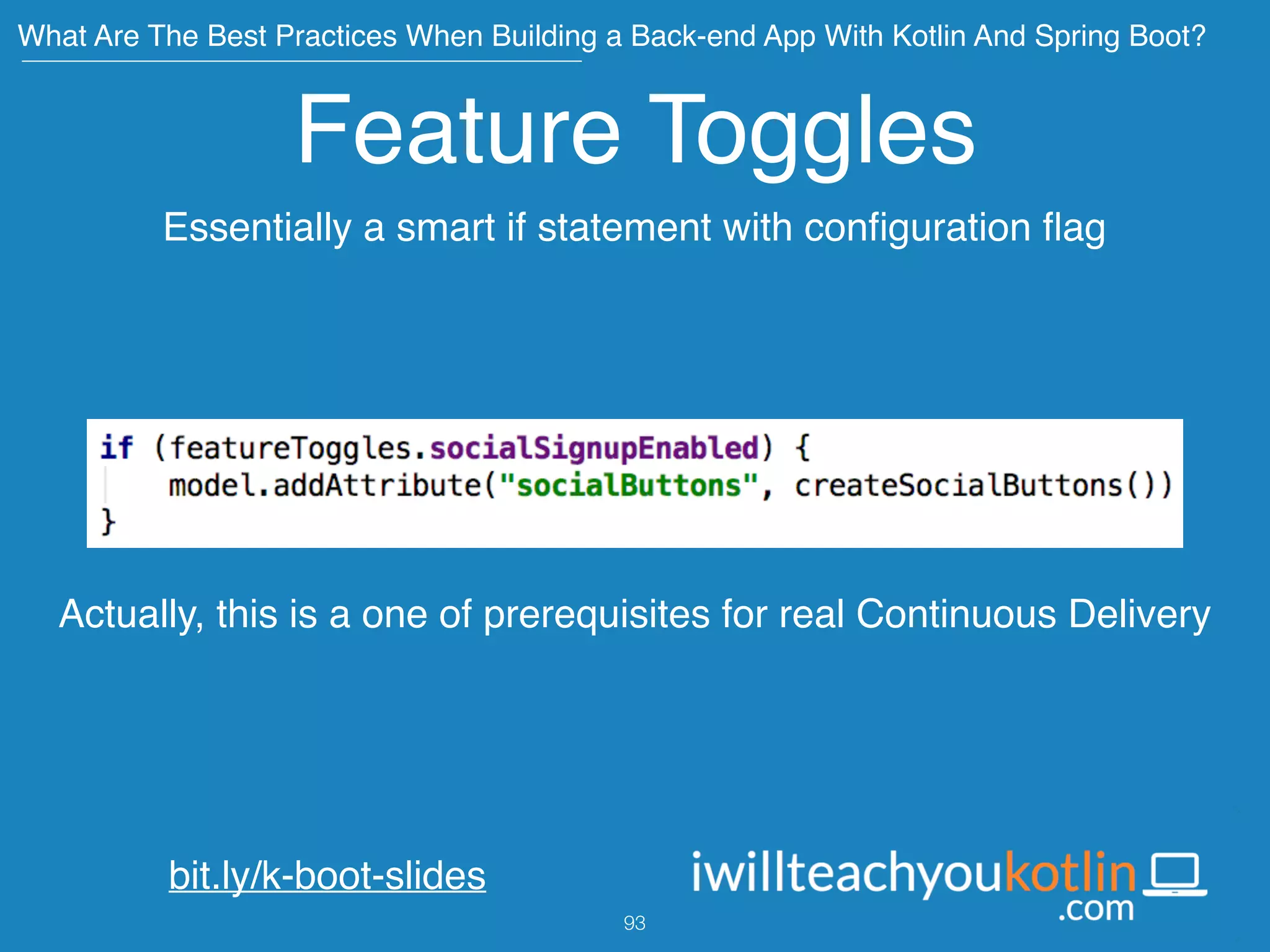

Feature Toggles
Essentially a smart if statement with conﬁguration ﬂag
Actually, this is a one of prerequisites for real Continuous Delivery
93

There is Much More About Toggles
It probably guarantees a full talk of its own: 
different usages, implementations, conﬁgurations, and how
to keep them from getting messy 
 
I recommend to read more on MartinFowler’s Blog:
 
bit.ly/fowler-feature-toggle
94

Conclusions & Questions
Follow me on Twitter: @waterlink000
Sign-up for my newsletter:
bit.ly/kotlin-newsletter
• Early bird of screencast series:  
“Kotlin/Back-End Best Practices.”
• Exclusive articles about Kotlin monthly.
95

What Are The Best Practices When Building a Back-end App With Kotlin And Spring Boot?

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to What Are The Best Practices When Building a Back-end App With Kotlin And Spring Boot?

Similar to What Are The Best Practices When Building a Back-end App With Kotlin And Spring Boot? (20)

Recently uploaded

Recently uploaded (20)

What Are The Best Practices When Building a Back-end App With Kotlin And Spring Boot?
